EverDri14EL - Dehumidifier DIMPLEX - Free user manual and instructions
Find the device manual for free EverDri14EL DIMPLEX in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Compressor Dehumidifier |
| Brand | Dimplex |
| Model | EverDri14EL |
| Extraction Rate (30°C, 80% RH) | 14 L/day |
| Air Flow | 150 m³/h |
| Water Tank Capacity | 2.5 L |
| Continuous Drainage | Yes (hose connection) |
| Humidity Control | Electronic with adjustable setpoint (30-80% RH) |
| Fan Speeds | 2 (Low/High) |
| Timer | 1-12 hours |
| Auto Defrost | Yes |
| Power Supply | 220-240 V ~ 50 Hz |
| Power Consumption | 250 W |
| Dimensions (W x D x H) | 35 x 24 x 50 cm |
| Weight | 10 kg |
| Noise Level | 48 dB(A) |
| Refrigerant | R134a |
| Operating Temperature Range | 5°C - 35°C |
| Filter Type | Washable mesh filter |
| Filter Cleaning | Every 2 weeks (vacuum or rinse) |
| Tank Full Indicator | Yes (auto shut-off) |
| Castors | Yes (4 wheels) |
| Security Features | Auto restart after power failure, frost protection |
| Repairability Index | 8.1/10 |
| Accessories Included | Continuous drainage hose, user manual |
Frequently Asked Questions - EverDri14EL DIMPLEX

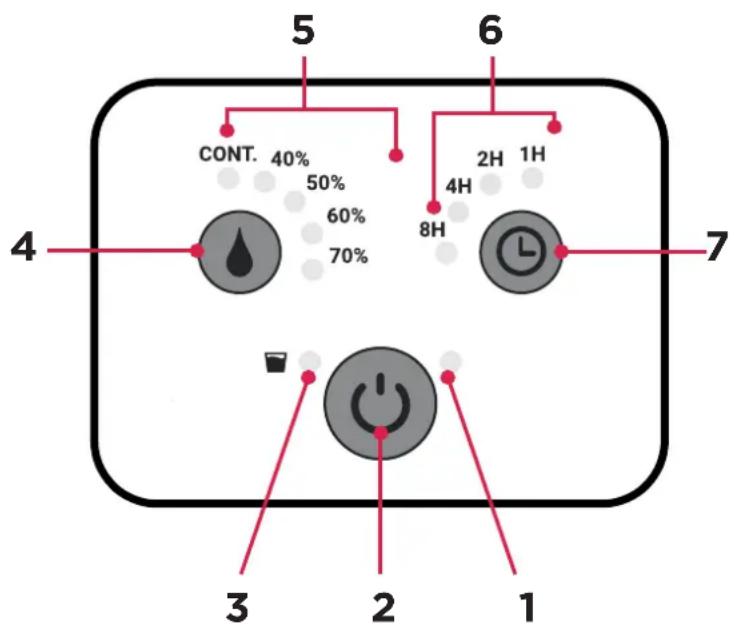

How do I set the desired humidity level?
Press the Humidity Set button repeatedly until the desired %RH (30-80%) is shown. The dehumidifier will automatically maintain that level.

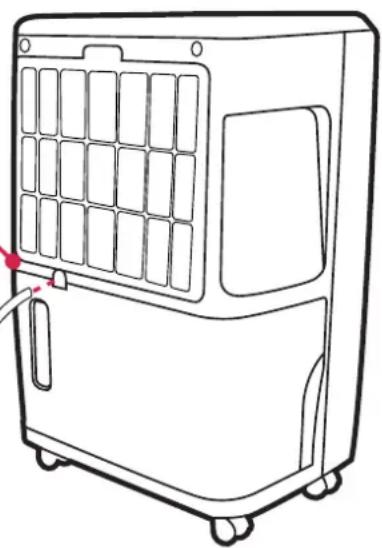

Can I use a hose for continuous drainage?
Yes. Attach a standard ½-inch garden hose (not included) to the continuous drain outlet at the back. Ensure the hose slopes downward for gravity drainage.

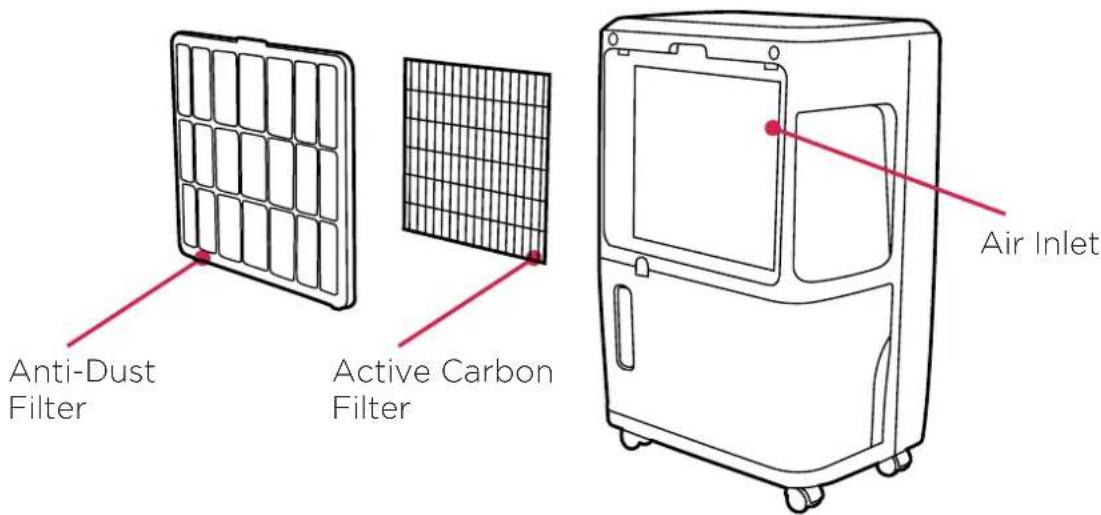

How often should I clean the filter?
Clean the washable mesh filter every 2 weeks more often in dusty environments. Remove, vacuum or rinse with lukewarm water, dry completely before reinstalling.

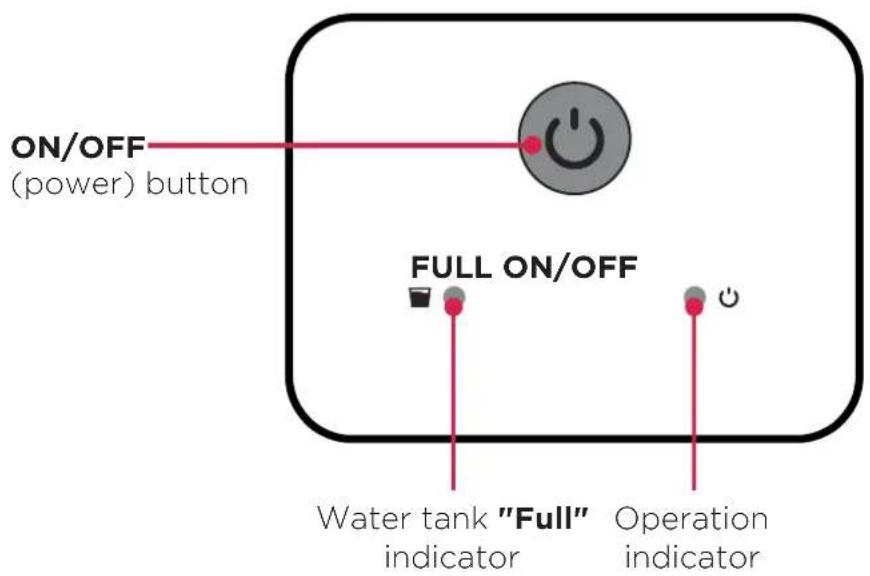

What does the 'Tank Full' indicator mean?
The indicator lights and the unit stops when the water tank is full. Empty the tank, replace it securely, and the unit will resume operation.
Is the dehumidifier safe to leave unattended?
Yes. It has auto shut-off when the tank is full and auto restart after a power cut. Place it on a level, stable surface away from water sources.
Why is ice forming on the coils?
This can occur in low ambient temperatures (below 15°C). The unit has auto defrost function that cycles off periodically to melt the ice.
Can I use it in a basement without drainage?
Yes, the 2.5L tank collects water. For larger areas, continuous drainage is recommended. Check and empty the tank regularly.
What is the recommended room size?
The EverDri14EL is suitable for rooms up to 35 m² (approximately 90 m³) with average humidity.
How do I reset the filter cleaning reminder?
After cleaning the filter, press and hold the Filter Reset button for 3 seconds until the indicator turns off.
Where can I find spare parts or service?
Contact Dimplex customer service or an authorized service center. The repairability index of 8.1/10 indicates that parts and manuals are readily available.
