Type	Electric Kettle
Brand	Electrolux
Model	Explore 7 E7CK1-80BP
Capacity	1.25 L
Minimum Water Level	0.6 L
Temperature Settings	7 presets (40°C, 60°C, 80°C, 85°C, 90°C, 95°C, 100°C)
Keep Warm Function	Up to 40 minutes
Quick Boil	Yes
Auto Shut-Off	Yes
Boil-Dry Protection	Yes
Cordless Operation	Yes (with base unit)
Filter	Removable mesh filter
Material	Stainless steel base, plastic body
Safety Features	Auto shut-off, boil-dry protection, cool-touch handle
Cleaning	Wipe exterior with damp cloth; rinse interior; descale every 3 months
Accessories Included	Base unit, mesh filter

Frequently Asked Questions - Explore 7 E7CK1-80BP ELECTROLUX

What is the maximum water capacity of the Electrolux Explore 7 E7CK1-80BP kettle?

The maximum capacity is 1.25 L. Do not exceed the maximum filling volume to avoid boiling water splashing out.

How do I set a specific water temperature?

From stand-by mode, press the increase or decrease heat setting buttons until the desired temperature LED lights up. Then press the Start/Stop button to begin heating.

How does the Keep Warm function work?

After selecting a target temperature, press the Keep Warm button. The kettle will maintain the selected temperature for up to 40 minutes. Press the button again or it turns off automatically after 40 minutes.

How should I clean the kettle?

Unplug and wipe the exterior with a damp cloth. Rinse the interior with clean water. To clean the mesh filter, lift it out, rinse under running water, and reinsert. Descaling every 3 months is recommended.

Why does the kettle switch off before the water boils?

This is likely due to limescale buildup. Run the decalcifying procedure using a suitable decalcifier.

The kettle won't turn on. What should I do?

If the kettle was operated with little or no water, the thermal cut-out may have activated. Allow the kettle to cool down sufficiently, then try again.

Can I use an external timer or remote control with this kettle?

No. The manual warns that the appliance must not be supplied through an external switching device like a timer to avoid hazard.

What temperature presets are available?

The kettle offers 7 presets: 40°C, 60°C, 80°C, 85°C, 90°C, 95°C, and 100°C.

How do I open the lid?

Press the opening lid button located on the handle. Do not open the lid while water is boiling to avoid steam burns.

What should I do if the kettle is not working properly?

Contact Electrolux Customer Care with the model number, PNC, and serial number found on the rating plate. Refer to the manual for service centers.

USER MANUAL Explore 7 E7CK1-80BP ELECTROLUX

Line drawing of a modern electric kettle with control buttons and a brand mark (no text or symbols on the device itself)

EN INSTRUCTION BOOK

CNS 说明书

CNT 說明手冊

KR사용 설명서

ID Buku Panduan

Keep Warm

Temperature set

Quick boil

Illustration of a water tap being poured into a shared tank (no text or symbols)

INSTRUCTION MANUAL

Graphics and drawings in this manual are solely for illustration purposes and are subject to variations from actual product.

Read all instructions carefully before using the appliance for the first time.

Keep this manual for future reference.

COMPONENTS

A. Jug
B. Spout
C. Lid
D. Opening lid button
E. Handle
F. Water level indicator

G. Decrease heat setting button (<)
H. Increase heat setting button (>)
I. Keep warm button
J. Start/Stop button
K. Base and mains cable

SAFETY ADVICE

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Keep the appliance and its power cord out of reach of children. Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be performed by children without supervision.
• The appliance can only be connected to a power supply which voltage and frequency comply with the specifications on the rating plate.
• The appliance must only be connected to an earthed mains socket.
• Never leave the appliance unattended while connected to the supply mains.

• Never use or pick up the appliance if

• the power cord is damaged, or

• the housing is damaged.
• If the appliance or its power cord is damaged, it must be replaced by Electrolux or its service agent in order to avoid hazard.
• Do not immerse the appliance, its power cord or plug in water or any liquid.
• Do not use or place the appliance on sink, on hot surface, near heat source, or near the edge of table or counter.
  • Always place the appliance on a flat, level and dry surface.
• Caution: Ensure that the appliance is switched off before removing the kettle from the base.
• Do not move the appliance when it is in operation.
• Never operate the appliance without the lid.
• Warning: Do not open the lid while the water is boiling, or immediately after the water is boiled. Failure to do so may lead to injury due to sudden ejection of steam.
• Position the lid so that steam is directed away from the handle.
• Caution: Do not exceed the maximum filling volume as indicated on the appliance, as there is risk of boiling water splashing out, which may cause scalding or burn.
• Do not operate the appliance without any water in it.
• The kettle is only used for boiling water. Never use the kettle to boil any other liquids.
• The appliance and its accessories become hot during operation. Use only designated handles and knobs. Allow to cool down before cleaning and maintenance.
• Caution: The surfaces around the heater are subjected to residual heat after use.
• The appliance must be switched off and mains plug removed from wall socket each time after use, and before cleaning and maintenance.

• Warning: The power cord or any object must be kept away from the ON/OFF switch. Do not obstruct the ON/OFF switch. Failure to do so could result in malfunction of auto-off function and risk of fire hazard.

• Do not let the power cord come into contact with hot surfaces or hang over the edge of a table or counter.

• The kettle can only be used with the base unit provided.
• This appliance is not intended to be operated by means of an external timer or separate remote control system.
  • This appliance is for indoor use only.
• This appliance is intended for domestic use only. Electrolux will not accept any liability for possible damage caused by improper or incorrect use.
• This appliance is suitable to operate on both 50 and 60Hz.
• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

GETTING STARTED

Before using your appliance for the first time, remove all packing material such as plastics, stickers or tags that may be attached to the components.

Before first use:

Boil water in the kettle and pour it out. Repeat for 2 or 3 times. This will remove any remaining dust or residues. (See the following steps on how to use the kettle). Wipe the outside of the kettle with a damp cloth.

USING THE PRODUCT

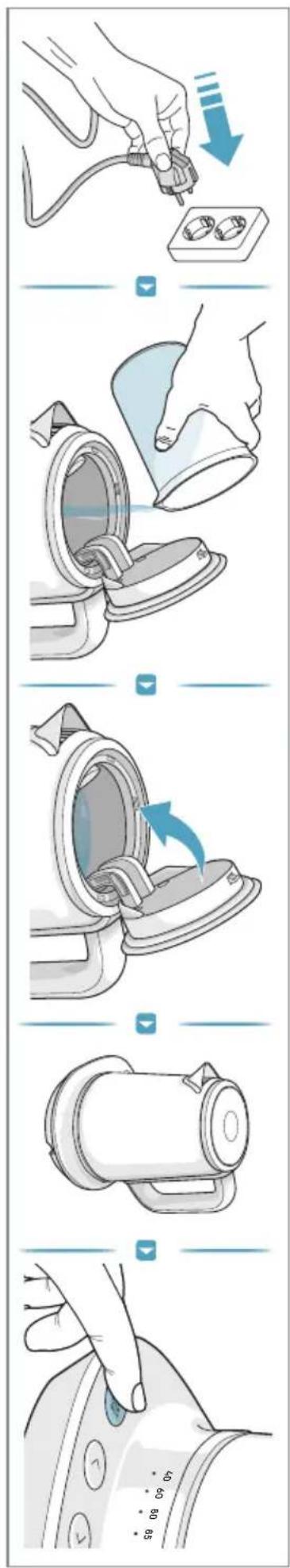

1. Place the base unit on a firm and flat surface. Plug the mains plug into a wall socket.
2. Press the open lid button to open the lid. Fill the kettle with fresh tap water to the desired level (E7CK1-Min. 0.6 L - Max. 1.25 L, E7EK1-Min. 0.6 L - Max. 1.7 L).
3. Close the lid and make sure that it snaps in correctly. Place the kettle on the base. The kettle is now in stand-by mode.

Quick boil water:

1. From stand-by mode, press the Start/Stop button. The heating will start. The Start/Stop button will be illuminated and the 100 degree LED will blink slowly.
2. As the water temperature rises, the temperature LEDs will be illuminated. The 100 degree LED will continue to blink slowly.
3. When the temperature (100°C) is reached, all of the temperature LEDs will be illuminated. The Start/Stop button light will turn off, and you will hear three short beeps.
4. After the heating is turned off, the temperature of the water will begin to decrease. The temperature LEDs will indicate the current temperature.
5. When the water is cold ( <40^ C), all of the lights will turn off. This indicates that the kettle is stand-by mode.

Set temperature and heat:

1. From stand-by mode, press either the increase or decrease heat setting buttons (< or >). If pressing the decrease button, the 100^ C will light up first. If pressing the increase button, the 40^ C LED will light up first.
2. Continue pressing the increase or decrease buttons until the desired temperature setting is reached.
3. Press the Start/Stop button. The chosen temperature LED will start blinking slowly, and the Start-Stop button will be illuminated. Heating starts.
4. As the water temperature rises, the temperature LEDs will be illuminated. The selected degree LED will continue to blink slowly.
5. When the temperature is reached, all of the temperature LEDs below the selected setting will be illuminated. The Start/Stop button light will turn off, and you will hear three short beeps.
6. After the heating is turned off, the temperature of the water will begin to decrease. The temperature LEDs will indicate the current temperature.
7. When the water is cold ( <40^ C), all of the lights will turn off. This indicates that the kettle is stand-by mode.

Note: If you do not press Start/Stop within 10 seconds after making your temperature setting selection, the kettle will revert to stand-by mode.

Note: The target temperature may be changed at any time during any heating function. While heating, simply press the increase or decrease buttons accordingly.

Keep warm function:

1. This kettle can maintain your target temperature for up to 40 minutes.
2. Press start and select your target temperature, then press the Keep warm button. The button will remain illuminated while the function is activated.
3. To turn off the function, press the keep warm button at any time while it is illuminated. It will also turn off automatically after 40 minutes.

Note: If you press the Start/Stop button while the keep warm mode is active, the KEEP WARM button turns off and the kettle starts heating at 100 degrees.

To cancel heating:

1. You may cancel the heating function at any time by pressing the Start/Stop button (Boiling water mode only). Under heating and keep warm modes, by pressing the Start/Stop button, the kettle will go into keep warm mode at current temperature.

CAUTION: Keep enough water on the minimum water level (0.6L).

Note: If the Preset temperature is set to 100 °C , the keep warm function will be unavailable.

CLEANING AND CARE

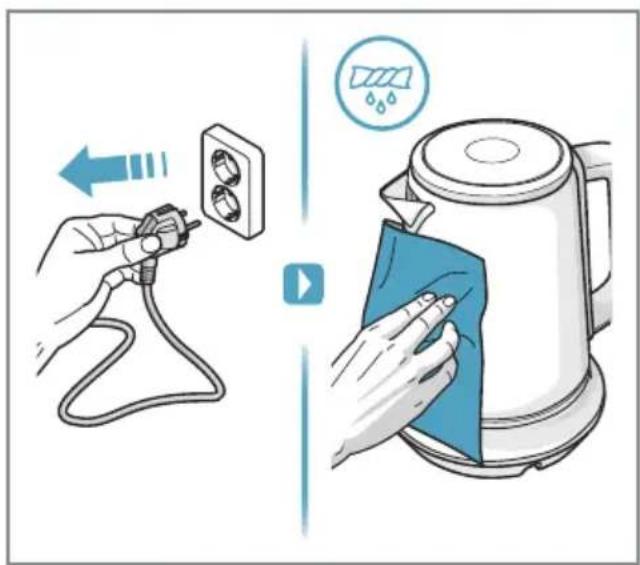

1. Before cleaning, always unplug the appliance. Wipe the outside of the kettle with a damp cloth. Occasionally rinse out the kettle with clean water. Warning! Never immerse the housing, plug, or cord in water or any other fluid.
2. To clean the mesh filter, grab the mesh filter and lift it out. Rinse under clean, running water, and insert it back into the kettle in the correct orientation. To clean the base plate, you may use a stainless steel cleaning product to clean the metal of the base plate.

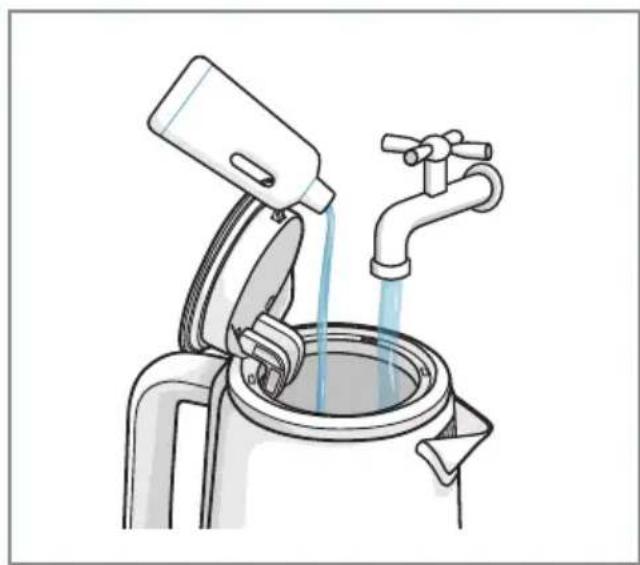

3. Decalcifying is recommended every three months for best performance. Fill the kettle with water and decalcifier according to decalcifier product instructions. Do not boil the solution as it may foam over. Afterwards, rinse kettle thoroughly with fresh water.

Enjoy your new Electrolux product!

DISPOSAL

This symbol on the product or on its packaging indicates that the product may not be treated as householdwaste. To recycle your product, please take it to an official collection point or to an Electrolux service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available: Model, PNC, Serial Number. The information can be found on the rating plate.

Due to the Electrolux policy of continual product development; specifications, colours, and details of our products and those mentioned in this manual are subject to change without notice.

RECIPES

40° 60° 80° 85° 90° 95°		100°
Baby Milk	Warm Water	Yellow Tea (3min)	Jasmine Tea (3min)	Pu-erh (3min)	Coffee Pour Over	Boiling Water
	Lemon Water
	Honey Water	Matcha Tea	Sow Mee (4min)		Instant Coffee	Herbal Tea 5min

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
The appliance switches off before boiling.	Too much lime scale at the base of the kettle.	Run the decalcifying procedure.
The appliance cannot be switched on.	After operating with little or no water, the appliance has not cooled down sufficiently.	Allow to cool a short time and try again.
