USER MANUAL EDS805KQSA ELECTROLUX

REVISION: DATE: DETAIL:	REQUESTED BY: REMARK:
00128 SEP 2018	New Release for Mist Model K. Manassapong 44 Pages	(ENGLISH - THAI- VEITNAM)
00224 Oct 2018 Revise Content at veitnam lang. K. Manassapong
003 13 Nov 2018 Add Enable/Disable Buzzer K. Manassapong

NOTE: THIS PAGE IS A GUIDELINE NOT AN ARTWORK DO NOT PRINT

COLOUR

Gray Scale1

Electrolux

BRAND Electrolux	User Manual for modelEDS805JQWAEDS805KQWAEDS805KQSA
BY Worawoot K.
DATE -	A12554107	TITLE
SCALE 100%	ARTWORK NO.: G0021997 003

This drawing contains confidential information and is the property of Aktiebolaget Electrolux, Stockholm, Sweden, without whose permission it may not be copied, shown or handed to a third party or otherwise used, and it is to be returned promptly upon request to Aktiebolaget Electrolux.

EN - Tumble Dryer

PRODUCT WITH YOUR SMARTPHONE

Photograph the camera icon located on your product's serial tag, including

the 4 dots (●).

Easy register with your smartphone

1. Photograph the corner door, including the 4 dial.
2. Send it in view line, Facebook Messenger or go online

eurorag eurorag eurorag.com

Line drawing of a washing machine with two doors open, showing mechanical components (no text or symbols)

Send it in via Line, Facebook Messenger or go online.

@eluxreg

eluxreg

eluxreg.com

Enjoy many privileges.*

*Terms and conditions apply.

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time. Welcome to Electrolux.

Important Information that may impact your Manufacturer's Warranty

Adherence to the directions for use in this manual is extremely important for health and safety. Failure to strictly adhere to the requirements in this manual may result in personal injury, property damage and affect your ability to make a claim under the Electrolux manufacturer's warranty provided with your product. Products must be used, installed and operated in accordance with this manual. You may not be able to claim on the Electrolux manufacturer's warranty in the event that your product fault is due to failure to adhere to this manual.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information, buy accessories & spare parts, online product registration : www.electrolux.com

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts. When contacting Service, ensure that you have the following data available. The information can be found on the rating plate. Model, PNC, Serial Number.

Warning / Caution-Safety information.

General information and tips

Environmental information.

Subject to change without notice.

CONTENTS

1. IMPORTANT SAFETY INSTRUCTIONS

1.1 Dryer Safety 3
1.2 Fire Hazards 3
1.3 Cleaning The Lint Filter 4
1.4 Drying Guide 4

2. INSTALLATION INSTRUCTIONS 5

3. USE

3.1 The Control Panel 7
3.2 Operating Sequence 10

4. HINTS.... 11

5. TROUBLESHOOTING

5.1 Troubleshooting 13
5.2 Customer center 14

6. TECHNICAL DATA 15

IMPORTANT SAFETY INSTRUCTIONS1.

1.1 Dryer Safety

Failure to follow these safety instructions could damage the dryer or your clothes

You may then not be covered by warranty for this damage.

Only plug this appliance directly into an AC power supply, which is properly earthed and has the correct voltage.

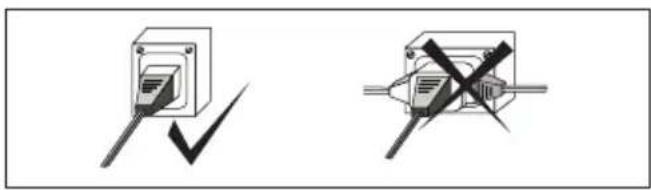

Two technical diagrams showing electrical socket installation with checkmark and cross symbol (no text or labels)

See the serial number sticker located on the bottom of the door opening for voltage information.

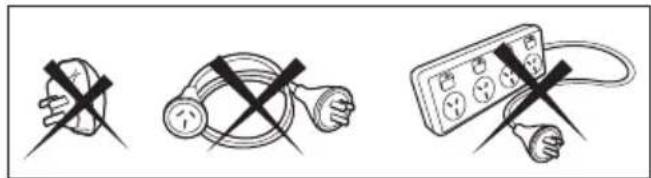

CAUTION : if this appliance is supplied form a cord extension set or electrical portable outlet device, the cord extension set or electrical portable outlet device must be positioned or that it is not subject to splashing or ingress of moisture. For Safety reasons we strongly advise against the use of double adaptor, extension cords or power boards.

Three black cross symbols on white background: a plug, a cable with plug, and a power plug (no text or labels)

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

IMPORTANT:

• If the electrical cord of this appliance is damaged, it must be replaced by the Manufacturer, Authorised Service Agent or similarly qualified person in order to avoid a hazard.
  • These dryers are for drying clothes, towels and linen at home. Do not use them for any other purpose.
• Lint must not be allowed to accumulate around the tumble dryer.
• Do not dry unwashed items in the tumble dryer. ! WARNING:

Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

1.2 Fire Hazards

Some fabrics are not suitable for tumble drying. The following MUST NOT be placed in your dryer due to the risk of a fire or an explosion :

- Items that have been spotted or soaked with vegetable oil, cooking oil, suntan oil, linseed oil, salad oil, lubrication oil or grease. Oil affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing as oxidation reaction in the oil. Oxidation creates heat. If heat cannot escape, the items can become hot enough to ignite. Pilling, stackingl or storing oil-affected items can prevent heat from escaping and create a fire hazard. If it is unavoidable that fabrics that contain vegetable or cooking oil, or have been contaminated by hair care products be placed in a tumble dryer, they should first be washed is hot water with extra detergent - this will reduce, but not eliminate the hazard.

The final part of tumble dryer cycle occurs without heat (Cooling cycle) to ensure that the items are left at the temperature that ensures that the items will not be damage.

• Item that have previously been cleaned in, washed in, or spotted with petrol/gasoline, industrial chemicals used only for cleaning, dry-cleaning solvents or other flammable or explosive substances are highly flammable. Highly flammable or explosive commonly found around the house include acetone, (nail polish remover) denatured alcohol, petrol/gasoline, kerosene, some spot removers, turpentine, waxes and wax removers should not be put in the dryer. Items containing foam rubber (also known as latex foam) or similarly textured rubber-like materials. Foam rubber materials can produce fire by spontaneous combustion when heated.
• Rubber-backed articles, clothes fitted with foam rubber pads, pillows, rubber boots and rubber-coated sports shoes.

For your safety, and to reduce the risk of fire or an explosion, DO NOT store or use petrol or other inflammable vapours and liquids near your dryer.

1.3 Cleaning The Lint Filter LINT BUILD-UP IS A FIRE HAZARD

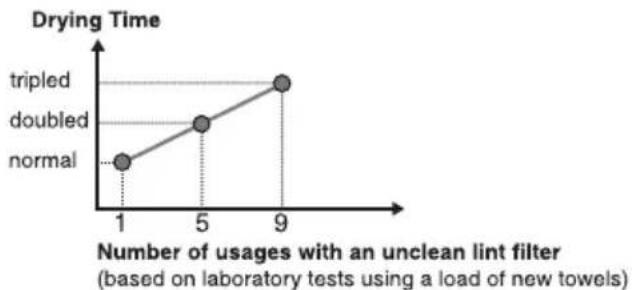

A clean lint filter reduces drying times, saves energy and avoids overheating. Overheating may also damage your clothes.

What happens If I forget to clean the lint filter?

You must clean this lint filter after every load.

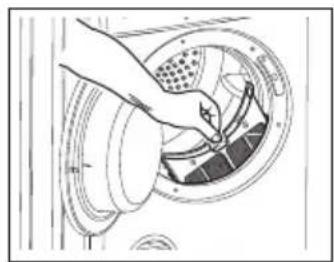

Illustration of a hand cleaning a circular mechanical component with a mesh pattern (no text or symbols)

Open apart the lint filter and wipe or peel off the lint.

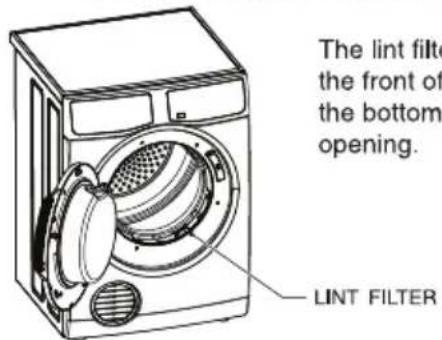

To remove the lint filter open the door and press the two pads together. Pull the lint filter out of the pocket.

Illustration of a hand using a tool to cut or rotate a component on a grid-patterned surface (no text or symbols)

Ensure the lint filter "Clicks" when replacing. It can be inserted into the pocket only one way.

• Never operate your dryer without the lint filter.
- Do not allow lint to build around your dryer.
- A torn or damaged lint filter must be replaced immediately.
• Overloading can increase lint build-up because the airflow is reduced.

To avoid potential fire hazards, we recommend that you pay a qualified service technician to periodically clean your dryer. You must do this also when you change your mounting from upright to inverted, or vice versa.

1.4 Drying Guide

Your load, when dry must not exceed the rated capacity

- 8.0 kg for the EDV805JQWA, EDS805KQWA, EDS805KQSA dryer

(See page 12 for a table of average weights of laundry items)

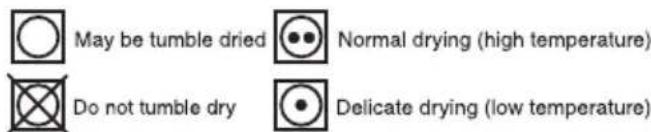

Always check your labels for the drying symbol which this international Care Labelling Code now uses.

• Permanent press and synhetics - take out as soon as the dryer stops to reduce wrinkles.
• Woollen articles - not recommended. Pull them to their original shape, then dry them flat.
- Woven and loop knit materials - may shrink, by varying amount, depending on their quality. Do not use the "Boost" setting for these fabrics, Always stretch them out immediately after drying.
- Fibre or leather materials - always check the manufacturer's instructions.
- Baby clothes and night gowns - acrylic clothing or sleepwear use only on the "Low Heat" setting.
- Rubber and plastics - Do not dry any items made from or containing rubber or plastics, such as aprons, bibs, babies' water proof napkins, curtains, tablecloths, shower caps, clothes fitted with foam rubber pads, pillows, galoshes, or rubber coated tennis shoes.
- Fibreglass - not recommended, glass particles left in the dryer could be picked up by your clothes the next time you use the dryer and irritate your skin.

Fabric softeners or similar products should not be used in a tumble dryer to eliminate the effects of static electricity unless this practice is specifically recommended by the manufacturer of the fabric softener or product.

Note: We strongly advise against the use of fabric conditioners of the sheet type that are added to the clothes in the drum. These products may lead to rapid blockage of the lint filter and inefficient operation of your dryer.

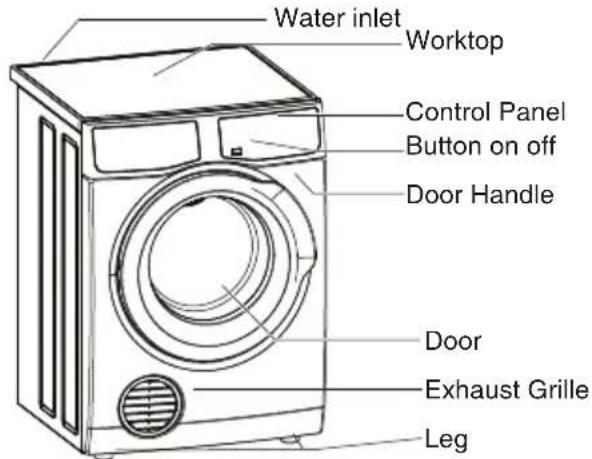

INSTALLATION INSTRUCTIONS2.

You can choose to put your dryer:

• on the floor.
  • on a work bench.

The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer in such away that a full opening of the tumble dryer door is restricted.

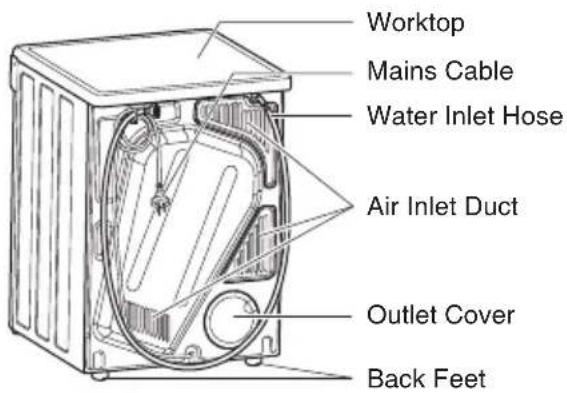

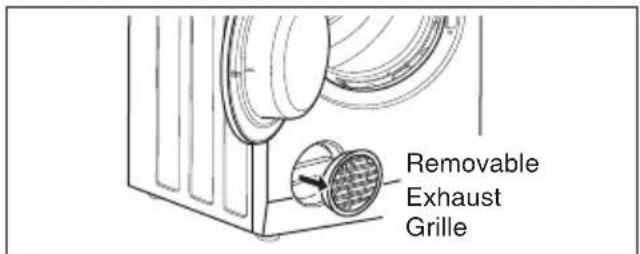

The exhaust grille has a range of positions, which allows you to select the optimum exhaust air angle. Simply hold the grille and rotate it until it hits the built-in stop.

There are 2 VENTING OPTIONS

• front
  • rear-using a included kit

i Important: Use only kits approved by Electrolux with your dryer.

The exhaust duct must not exceed 2 metres in length at 100mm diameter.

If connecting the dryer to a common ducting system, safety advice should be requested from the manufacturer.

If you choose to use included kit, the exhaust grille at the front of the dryer will need to be replaced with the outlet cover from the back of the dryer. Gently prise open the grille, using a thin bladed tool. Next, remove the cover from the back and clip it into the grille space at the front. The exhaust grille is not required when using a vent kit.

Do not install your dryer in a cupboard or small unventilated room.

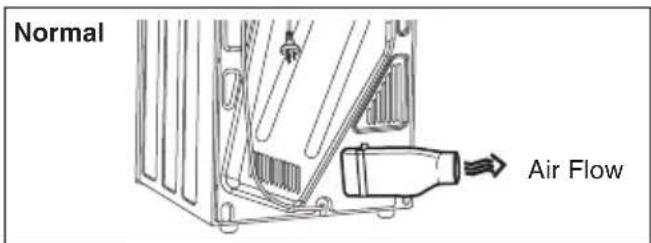

You can position the vent kit at the back of the dryer to remove air u•wards or sidewa s.

Inlet and outlet points need clear airflow to prevent overheating, so ensure there is adequate ventilation. (i.e. open window or external door.)

If a venting kit is used and the exhaust is discharged out of the room, there must be adequate ventilation to avoid the back flow of gases in to the room from appliances burning other fuels, including open fires, when operating the tumble dryer. This is not applicable where a venting hose is directed to an open window. The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.

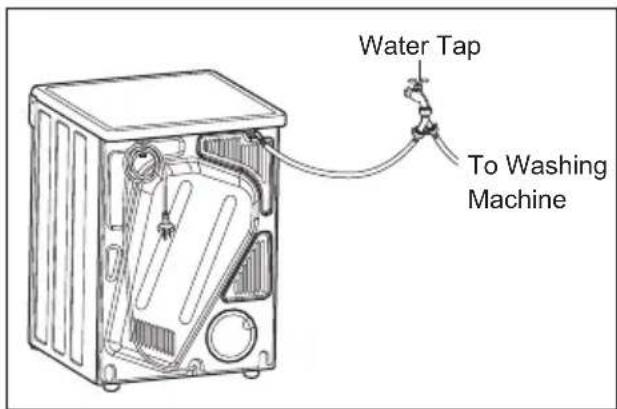

How to install Water Connection

Water tap must be installed within 110 cm of your dryer's water inlet and the tap must be 3/4 inch BSP thread for laundry hose connection. Water pressure must be between 200kpa to 800kpa.

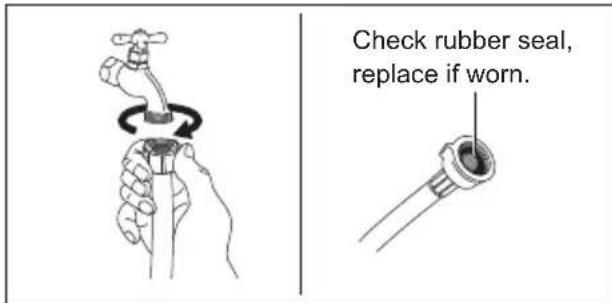

Use the hose supplied with the dryer. DO NOT USE OLD HOSES.

To connect the water inlet to dryer:

1. Turn off water supply to washer.

1. Remove inlet hose from water supply.

1. Turn on water supply for a short time to run some water into a bucket or container to clear any contaminants in the line.

CARE AND CLEANING

Warning!

You must DISCONNECT the appliance from the electricity supply, before you can carry out any cleaning or maintenance work.

External Cleaning

Clean the appliance only with soap and warm water. Fully dry all the surfaces.

Caution!

Do not use alcohol, solvents or chemical products.

Cleaning The Water Inlet Filter

If your water is very hard or contains traces of lime deposit, the water inlet filter may become clogged. It is therefore a good idea to clean it from time to time.

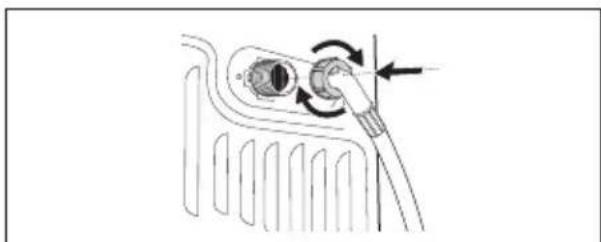

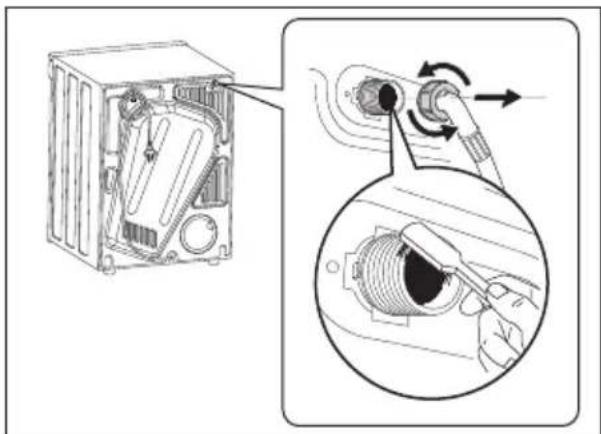

To clean the water inlet filters:

1. Close the water tap.

2. Remove the water inlet hose from the water tap.

3. Clean the filter in the inlet hose with a stiff brush.

4. Remove the inlet hose behind the appliance.

Illustration of hands using a tool to lift a faucet (no text or symbols present)

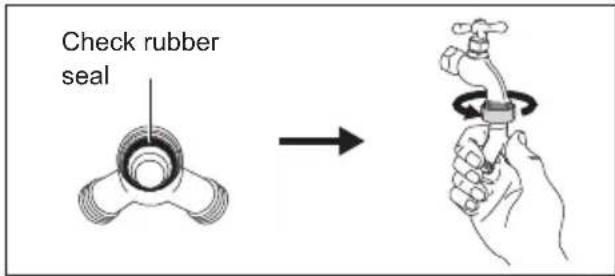

1. Connect the Y-Connector to the water tap.

1. Connect the inlet hose for the washer and the dryer to the Y-Connector and tighten them.

1. Turn on the water tap and check for leaks at all connection.

2. Clean the filter in the valve with a stiff brush or a towel.

1. Re-install the inlet hose. Make sure that the couplings are tight to prevent leakages.

Diagram of a car engine component with a valve and directional arrow indicating rotation (no text or symbols)

1. Open the water tap.

USE3.

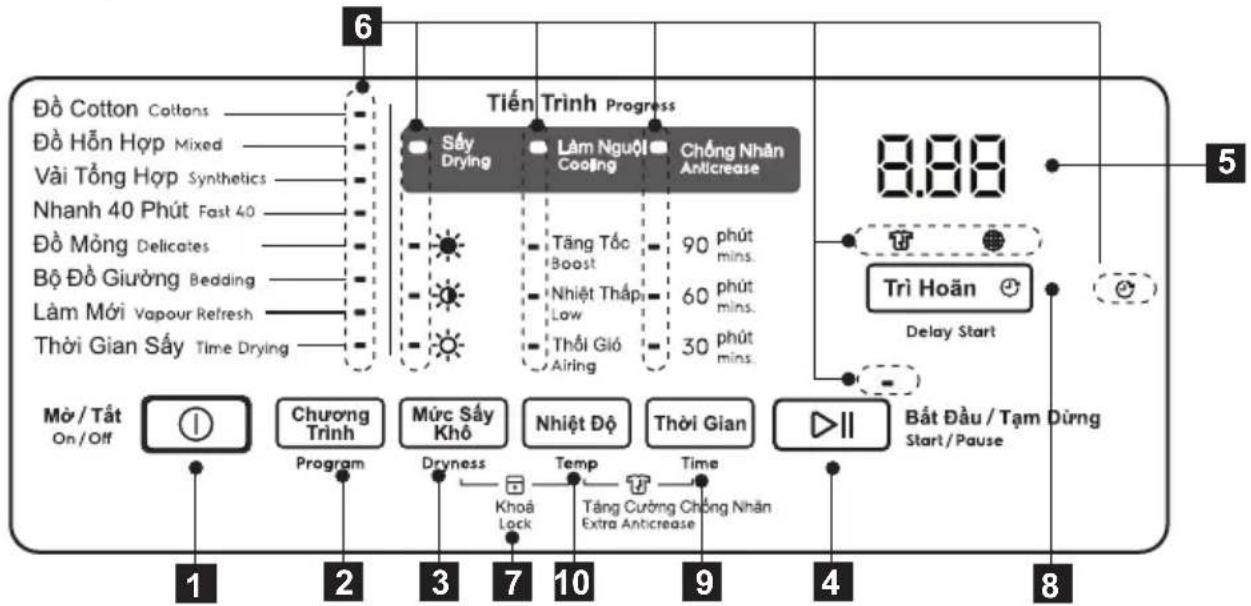

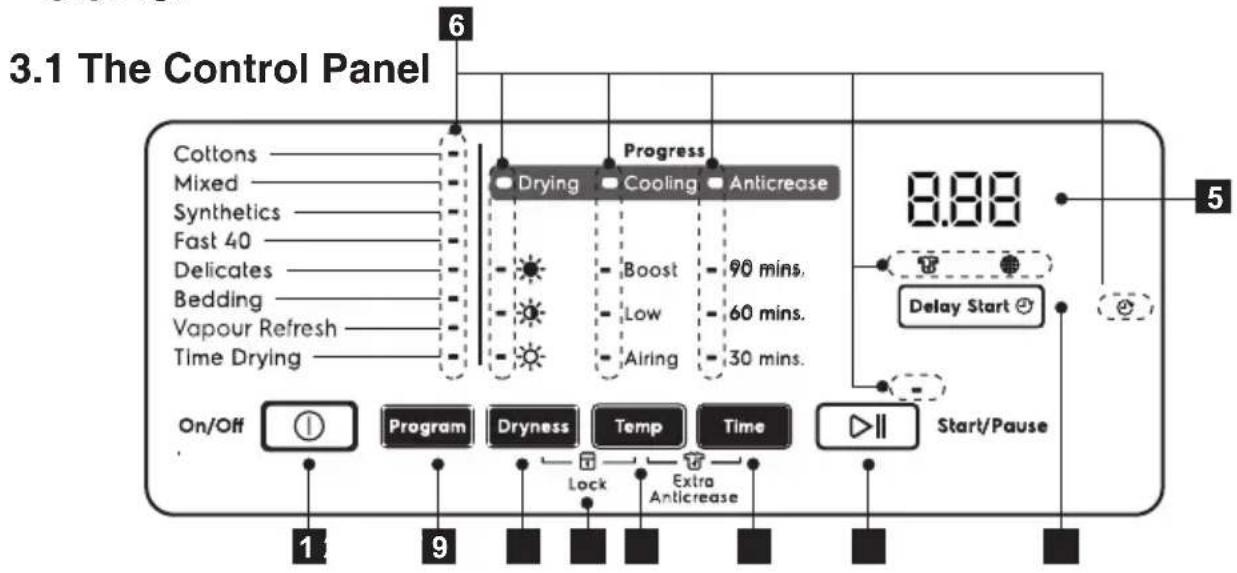

1 ON/OFF BUTTON

This button is used to switch the appliance ON or OFF.

2 PROGRAM SELECTOR BUTTON

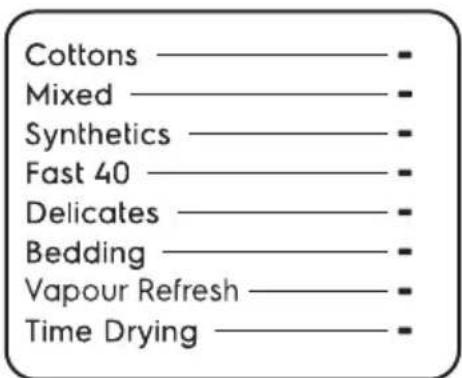

Press or touch Program Selector button to choose the dry program. The table "Your Program Guide" shown on page 10 will help you in selecting the right program. Once you select a dry program, the light will show stay at that program position for the whole dry cycle.

3 SETTING DRYNESS MODE

Press this touchpad to set dryness level. The display will show the selected option.

• Extra dry
• Cupboard dry
• Iron dry

- Dryness level settings are based on Dry program selected.

i NOTE:

• Dryness level do not allow on program "TIME DRYING"
• Dryness level can change following main program

Dryness Option Guidelines:

Level of dryness Type of fabric
Extra Dry [6C3T]Ideal for towels or similar	Cotton and linen (bathrobes, bath towels)
Cupboard Dry Suitable for items to put away without ironing	Cotton and linen (bathrobes, bath towels)
	Synthetics and mixed fabrics (jumpers ,blouses, underwear, household linen)
Iron Dry Suitable for ironing	Cotton and linen (sheets, tablecloths, shirts, etc.)

4 START / PAUSE BUTTON

▷|| Start/Pause

User needs to Press or touch [Start / Pause] button once to pause the appliance displayed in hours and minutes will blink This button allows you to start or pause the dryer to check the contents or perhaps add more clothes.

i NOTE:

• This mode have standby mode for saving energy when user do not operate any program within 5 mins.
• The dryer will not start unless the door is closed.

5 DISPLAY

The display shows the following information

After selecting a program, the duration is displayed in hours and minutes (for example 3:10 which means 3 hour and 10 minutes) The duration is calculated automatically on the basis of the maximum recommended load for each type of fabric.

6 PROGRESS INDICATORS

6.1 DRY CYCLE IN PROGRESS

After the program has started, the dry time remaining is updated every minute.

6.2 COOLING CYCLE IN PROGRESS

After the drying process finish, Cooling process will operate and switch off heater. The Cooling indicator blink until finish cooling process. This process will release heat from the clothes and crease protection.

After this process finish, Machine will show "END" and lint filter indicator

User can remove the clothes from this process

6.3 ANTI CREASE CYCLE IN PROGRESS

- This process will operate after end of cycle to protect tangling of clothes,

- After Cooling process finish and display show "END" the indicator "Anticrease" will show and blink until operate end of cycle. The machine will rotate drum clockwise and counter clockwise around 1 hour.

NOTE:

- User can remove clothes anytime of this process, by open door and machine will stop operate “Anticrease” process

6.4 EXTRA ANTI CREASE CYCLE IN PROGRESS

This dryer can additional time for anticrease by press and hold "TEMP" and "TIME" 2 sec, Display will show " TV" indiator and time add for 2 hours.

i NOTE:

- Extra Anticrease User should set on initial main program.

7 LOCK (☐)

This option use for protecting change the program when the machine still operate but ON/OFF button user can use.

To Activate "LOCK"

Press and hold "Dryness" and "Temp" 2 Sec. display will show "LOC"

Display

To Deactivate "LOCK"

Press and hold "Dryness" and "Temp" 2 Sec. display will show "unL"

Display

i NOTE:

- Recommend to activated the Lock after operate program.

8 DELAY START

• This dryer can set delay start time 30,60,90 mins, 2h - 20h by 1 hour the increment time.
• To set this option choose drying time and press "Delay start" display will show time and 🔒.
• User can select time and press Start/Pause button

i NOTE:

- Recommend to select program before set delay start option.

CHANGE AND CANCEL DELAY START

- After user set delay start for waiting operate machine.

Change time

- Press Start/Pause and press Delay start, time will reset to 0h and user can select time, again when finish press Start/Pause for start delay for start again.

Cancel time

- Press Start/Pause and press Delay start, time will reset to 0h and press Start/Pause for normal operate program

9 TIME DRYING

This mode gives you the option of selecting different Time for drying. Time button is pressed during setup, the display will only light up part of the segmented display to indicate which mode is being selected

• 90 mins.
• 60 mins.
• 30 mins.

After the program has started, the time remaining is

updated every minute

10 TEMP option

Press the "Temp" button to select either Boost or Low from the option program.

Option	Definition
Boost	For drying most fabrics.
Low	For drying delicates and synthetics at lower heat for maximum care of the fabrics. The Low Heat setting will cause the heater to cycle on for shorter time than the Boost setting.
Airing	This setting does not heat. ONLY circulate the air in the dryer to shake out dust and refresh clothes.

i "Airing" is NOT available in Drying program.

3.2 Operating Sequence

Step 1

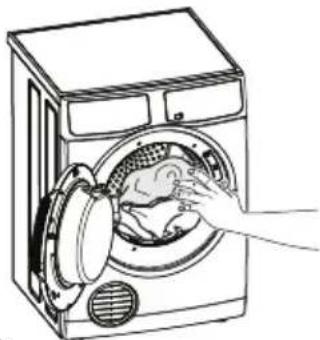

Load your dryer loosely until it is no more than TWO THIRDS FULL. Clothes must tumble freely in a dryer. Don't crem them in. Wet clothed fluff up when dry.

Line drawing of a hand washing a baby inside a washing machine (no text or symbols)

Overloading will :

Reduce efficiency

Increase drying time

Increase the risk of creasing.

Do not load clothes or other articles which are dripping wet or have sand and grit on them into your dryer.

Step 2

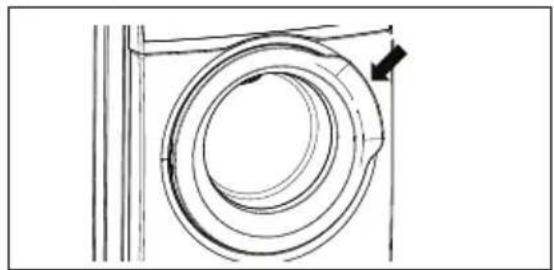

Switch on and Close the door

The dryer will not operate unless the door fully pressed in.

Technical line drawing of a mechanical component with concentric rings and a directional arrow (no text or symbols)

Step 3

Press then release the On/Off button on the control panel.

You are now ready to select your drying Program.

i See program table guides for load size info.

* Do not select the "Extra Dry" option for delicates fabric such polyester as shrinking may occur.

*To obtain the best drying results with small loads it is recommended to use "Time drying" program.

Program Table Guides

Program Textile Type Info		Load Size Info (Max.)*
Cotton	Ideal for towels or similar such as cotton and linen.	Full [IMAGE]
Mixed	Select this cycle to dry everyday fabrics including cottons, linens and sheets.	Half [IMAGE]
Synthetics	Suitable for synthetics such as polyester.	3.5 kg [IMAGE]
Fast 40	Select this cycle to dry everyday fabrics, cotton or blended fabrics that need to be dried quickly.	2 kg [IMAGE]
Delicate	For drying delicate clothing and Synthetics.	3.5 kg [IMAGE]
Bedding	For Bedding clothing	Half
Refresh	Refreshing items that have been in storage for long time (a short cycle with warm temp).	3-5 pcs (dry items)
90 min.	For drying most fabrics, cotton.	4 kg [IMAGE]
		3 kg60 min.
		1.5 kg 80 min.

* Depend on model of Dryer

Program Cottons, Mixed, Synthetics, Fast40, Delicates, Bedding, Refresh do not allow to select drying time.

Program Time Drying do not allow to select Dryness and Temp.

When a new program is selected while the dryer is already running, the drying process will continue using the setting from the new program.

For best result we recommend to sort out your laundry according to fabric type and spin dry at highest speed available in your washing machine.

WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

Reversing Action

The drum is designed to rotate in both direction, clockwise and anti-clockwise. This reduces tangling and gives more even drying is a shorter time.

Step 4

Switch off the machine by press button "ON/OFF" When you have finished using the dryer to turn off the power, then switch off at the power point. It is recommended to power off the appliance when not in use.

Step 5

Clean Lint Filter

After every load clean the lint filter to reduce drying time and avoid overheating.

Checking the Load

To check the dryness or add clothes during the cycle, simply open the door. The dryer will beep several times indicating the door is open. If further drying is required, close the door and then press the Start/Pause button to continue.

For the best drying performance, only add or remove clothes at the beginning of the drying cycle.

Last Memory Setting

Next time you turn your dryer on it will be ready to go as it remembers the last program, Temperature and Option setting used. You can change the setting if you wish.

Enabling/Disabling End-Of-Wash Buzzer

This setting permits you to either enable or disable the buzzer at the end of the program. As an example, you might wish to disable this buzzer when you start a drying when going to bed, so that when the cycle finished it will not disturb you through the night.

Error warning beeps such as critical faults are not disabled.

- To disable the buzzer sound, press "Program" and "Dryness" touchpads at the same time for 3 seconds, and listen for "BEEP, BEEP".

- To return to default configuration press these 2 touchpads at the same time for 3 seconds, and listen for "BIP".

Hints4.

• Never tumble dry the following: Delicate items such as net curtains, woollen, silk, fabric with metal trim, nylon tights, bulky metarials such as anoraks, blankets, eiderdown, sleeping bags, feather quilts and any item containing rubber foam or materials similar to foam rubber.
• Do not place in your dryer undergarments such as bras and corsets that contain metal reinforcements. Your dryer may be damaged if metal part were to come loose fro the garment. Place such items in a bag designed for this purpose.

Check and empty pockets. Clip, pens, nails and pins can damage both the dryer and your clothes. Other item such as matches or cigarette lighters will cause a fire.

• Close all press studs, hooks, eyes and zips that may catch on something else. Tie all belts and aporn string to prevent tangling.
• Drying time will depend on fabric type and construction, load size and wetness. Save time and money and always spin the load as dry as possible your washing machine.

• Always clean the lint filter-this will reduce drying time and save you money.
• The laundry must be thoroughly spun before tumble drying.
- Easy-care items eg shirt, should be briefly pre-spun before drying (depending on this crease resistance approximately 30 second).
- To avoid static charge when drying is completed, use either a fabric softener when you are washing the laundry or a fabric conditioner specifically for tumble dryers.
- Remove the laundry when the dryer has finished drying.
- Do not over-dry laundry, this avoids creasing and saves energy.
• Clothes or towels containing sand or grit should be washed first.
- Due to variations in dryer load fabric texture and thickness it is possible that not all items will be dried evenly. It you experience uneven dryness on Cupboard program please use either Extra Dry or Timer Program but be mindful of the type of fabric being dried to avoid overdrying certain types of fabric. Always follow drying instructions attached to the items intended to be dried in a clothes dryer.
- Drying time will also be effected by voltage fluctuations, room temperature and humidity. Clothes will dry more slowly on a cool or humid day.

• For best results, sort the load according to fabric. Such as heavy items which may take longer to dry, eg. towels, flannelette sheets, etc. than ones which dry quickly, eg. poly/cotton shirts and and sheets.
• Avoid drying dark clothes with light coloured items such as towels as lint will show on the dark clothes.
• Note : Some fabrics will collect lint from other clothes and items. Separate the lint "gives" and the lint "collectors" to minimise this problem.
• Clothes that give lint include towels, nappies, chenille. Clothes that collect lint include corduroy, synthetics and permanent press garments.
• If individule items are still damp after drying, set a 30 minutes post drying time. This will be necessary particularly for multilayered items (eg. collars, pockets, etc).
  • To help you, here is a list of the average weights of some common laundry items.

Sheet	700 - 1000g
Tablecloth	400 - 500g
Kitchen towel	70 - 120g
Table napkin	50 - 100g
Towelling hand towel	150 - 250g
Bathrobe	1000 - 1500g
Men's shirt	200 - 300g
Pillowcase	100 - 200g
Men's pyjamas	400 - 500g
Ladies nightdress	200 - 250g
Bath towel	300 - 400g

TROUBLESHOOTING5.

5.1 Troubleshooting

Check the points listed here before you call for help, and make sure that you have followed the Important safety Instructions on pages 3 and 4.

Problem	Possible causes
The dryer will not start:	Plug is not firmly in socket, or power not turned on.You have blown a fuse. Check the power point with another appliance.You have not closed the dryer door or pushed in the door safety switch button.
Clothes are still wet:	The selected drying time was insufficient. Select a longer time setting.Longer time may be needed when the room temperature is 10 °C or less.Check that the lint filter is not blocked.Check to see that you have read all the instructions carefully.You have used wet clothes with “Iron Aid” option.The "Iron Aid" program reduces wrinkle on dry laundry only. It is not a drying program.Contact the Service Centre if you are still having problems. Write down the model and serial numbers and the date of purchase before you ring.The Service Centre will need this information.
Isolated wet spots on fabrics after “Vapour refresh” cycle completed.	Water pressure too low - please check that the water pressure is between 200 kPa and 800 kPa.
No water goes out from Nozzle, when “Vapour refresh” cycle is selected.	The water tap is closed, please open the water tap.The inlet hose is squashed or kinked, please check inlet hose connection.The filter in the inlet hose is blocked, please clean the inlet hose filter.Refer to relevant paragraph in “Care And Cleaning” section.The Nozzle is clogged, please contact the Service Centre.Contact the Service Centre if you are still having problems.
Clothes are slightly damp after using “Vapour refresh” cycle.	This is Normal. Iron Aid uses moisture to reduce the wrinkle on fabrics. It is recommended to hang clothes after using this cycle.If your laundry feels wet rather than slightly damp, then the household water pressure is too high. You may need to reduce pressure by installing a pressure reducing valve at Mains water connection to the household.This must be done by qualified plumber.Note: High water pressure is harmful to all appliances in your household that are connected to the water supply ie: washing machine, dishwasher... etc.

Possible Failures

Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Centre, please check possible cause of malfunction and solution listed below.

Once the problem has been eliminated, press the Start/Pause button to restart the program. If after all checks, the problem persists, contact your local Service Centre.

Alarm Code:

E40	The appliance door is open or not closed correctly. Please check the door!
E40	The main supply is unstable. Wait until the main supply is stable.
E91	No communication between electronic elements of the appliance. Switch off and switch on again.

ECO	The appliance does not fill with water properly.
!	WARNING! Deactivate the appliance before you do the checks.

Important

To operate efficiently the clothes dryer must have an unrestricted air supply and exhaust ventilation.

Service calls resulting from installation where ventilation is restricted are not covered by warranty.

THE COST OF THIS TYPE OF CALL WILL BE CHARGED TO THE CUSTOMER

Should you require further instructions in the use and care of your clothes dryer please contact the CUSTOMER CENTER on the phone number listed below:

5.2 Customer Center

Electrolux Customer Care

9th Floor, AB Tower

76 Le Lai Street, Ben Thanh Ward, District 1,

Ho Chi Minh City.

Office Tel: [phone]

Office Fax: [phone]

Email: [e-mail]

10310

Plaza Kuningan - Menara Utara 2 ^nd Fl. Suite 201

JI. HR. Rasuna Said

Kav. C11-14, Jakarta 12940

Office Tel : [phone]

Office Fax : [phone]

Email : [e-mail]

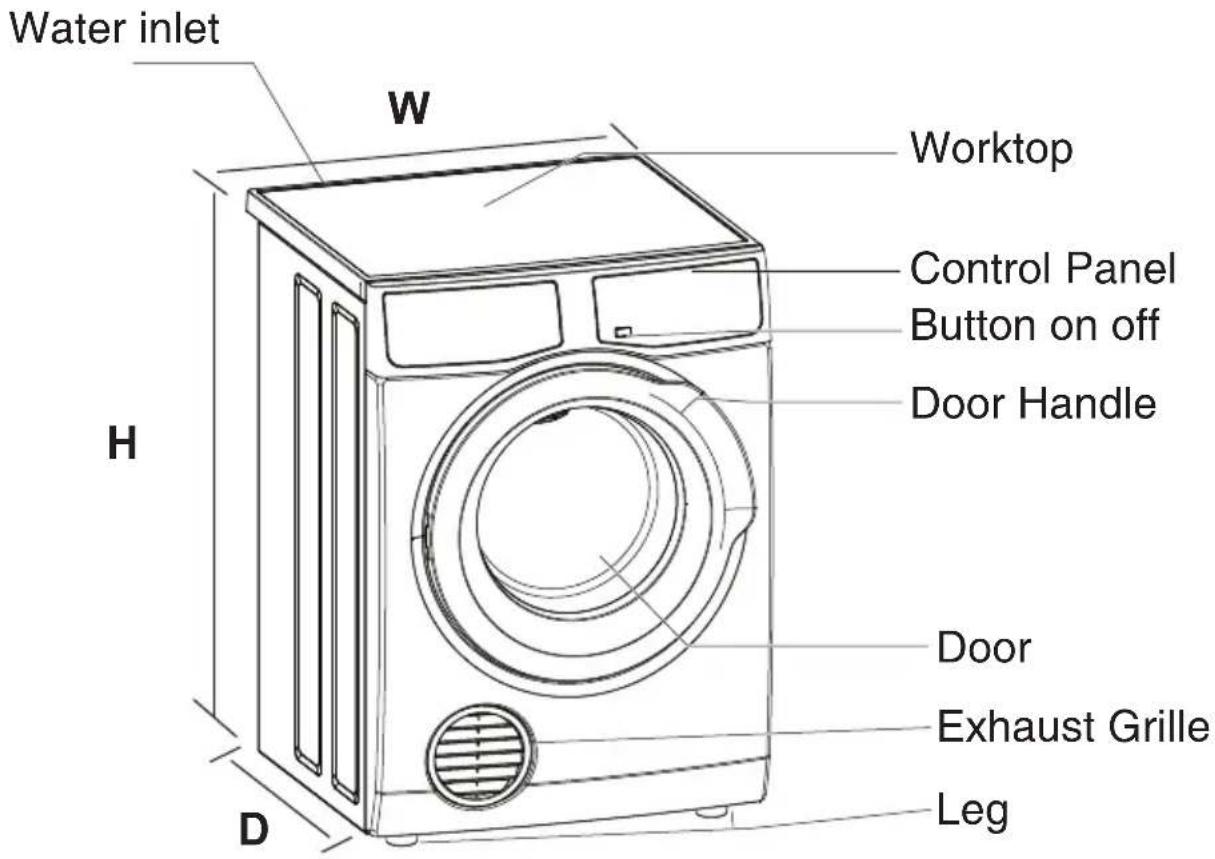

6. TECHNICAL DATA

Dimensions (H/W/D)	850x600x610 mm
Power supply (Voltage / Frequency)	220-240 V / 50 Hz
Total power (Heater/Motor)	1500/150 W
Minimum fuse protection 10 A
Water supply pressure (Maximum / Minimum)	800 - 200kPa

CHÚNG TÔI LUÔN NGHĨ VỀ KHÁCH HÀNG

Two technical diagrams showing a switch or plug assembly with no visible text or symbols

Technical line drawing of a washing machine interior showing internal components and housing (no text or labels)

Nozzle (Vòi Phun)

Illustration of a hand cleaning a car interior with a mesh pattern (no text or symbols)

Illustration of a flexible solar panel with grid panels and an arrow indicating rotation (no text or symbols)

Có 2 CÁCH THÔNG KHÍ

Illustration of hands using a tool to interact with a faucet (no text or symbols present)

Diagram of a car plug with a hand holding a cable, showing rotational motion (no text or symbols)

1. Mở vòi nước.

3. Sử dụng

3.1 Bằng Điều Khiền

Line drawing of a hand placing a baby into a washing machine (no text or symbols)

Bước 2

Technical line drawing of a mechanical component with concentric rings and an arrow indicating direction (no text or symbols)

Bước 3

14th Floor 1910 New Petchburi Road,

Bangkapi,Huay Kwang, Bangkok 10310

Email: [e-mail]

Indonesia

Tel : [phone]

Plaza Kuningan - Menara Utara 2 ^nd Fl. Suite 201

JI. HR. Rasuna Said

Kav. C11-14, Jakarta 12940

Office Tel : [phone]

Office Fax : [phone]

Email: [e-mail]

Vietnam

Domestic Toll Free : 1800-58-88-99

76 Le Lai Street, Ben Thanh Ward, District 1,

Ho Chi Minh City.

Office Tel: [phone]

Office Fax: [phone]

Email: [e-mail]

Mã Báo Đông

Domestic Toll Free: 1300-88-11-22

Electrolux Home Appliances Sdn. Bhd.

7th Floor, Tower 2. Jaya33,

No.3, Jalan Semangat, Seksyen 13,

46100 Petaling Jaya, Selangor

Office Tel: [phone]

Office Fax: [phone]

Email: [e-mail]

Philippines

Domestic Toll Free: 1-800-10-845-care-2273

Customer Care Hotline: (+63 2) 845 care 2273

Electrolux Phils Inc.

25th Floor, Equitable Bank Tower 8751

Paseo De Roxas, Makaiti City

1226 Philippines

Office Tel: [phone]

Office Fax: [phone]

Email: [e-mail]

Singapore

Tel: [phone]

Electrolux S.E.A Pte Ltd.

11 Lorong 3 Toa Payoh

Jackson Square, Block B, #01-13/14/15

Singapore 319579

Office Tel: [phone]

Office Fax: [phone]

Email: [e-mail]

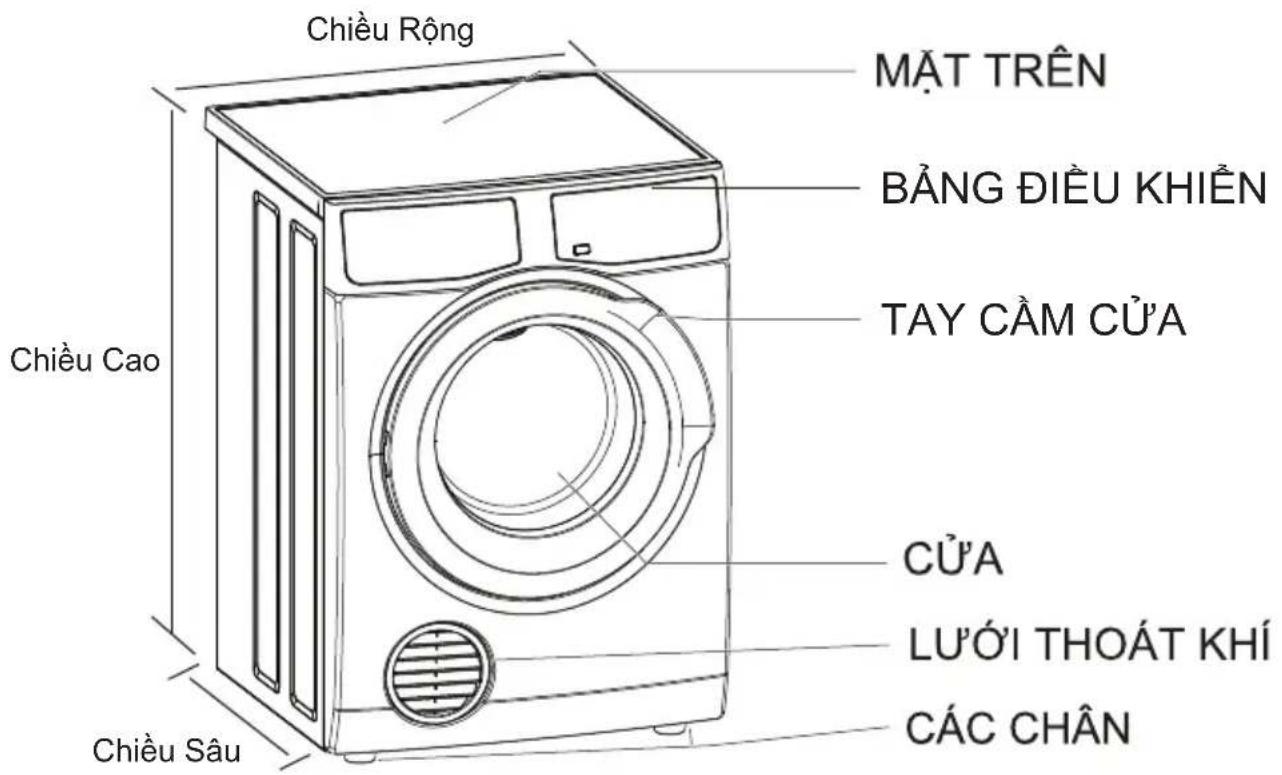

Dữ LIỆU KỸ THUẬT6.

Two technical diagrams showing a plug socket with a checkmark and a cross-shaped component, no text or symbols present.

ข้อควรระวัง:

Line drawing of a washing machine with internal components (no text or symbols)

Line drawing of a hand inserting a component into a circular device (no text or symbols)

Illustration of a hand using a tool to cut or adjust a component on a tray (no text or symbols visible)

Illustration of hands performing a manual task with a tool, no text or symbols present

Diagram of a car interior with a valve and directional arrow indicating rotation (no text or symbols)

Line drawing of a hand opening a washing machine with a fan inside (no text or symbols)

Technical line drawing of a mechanical component with concentric rings and a directional arrow (no text or symbols)

ขั้นตอนที่ 3

76 Le Lai Street, Ben Thanh Ward,

District 1, Ho Chi Minh City.

7th Floor, Tower2, Jaya33,

No. 3 Jalan Semangat, Seksyen 13,

46100 Petaling Jaya, Selangor

Electrolux Phils Inc.

25th Floor, Equitable Bank Tower 8751

Paseo De Roxas, Makati City,

1226 Philippines

11 Lorong 3 Tao Payoh

Jackson Square, Block B # 01-13/14/15

Singapore 319579

Repeating pattern of gray geometric shapes on white background, no text or symbols present
