Product Type	Portable CD/Radio/Bluetooth System
Dimensions (L x D x H)	346 x 240 x 148 mm
Power Consumption	23 W
Power Source	AC 240 V ~ 50 Hz or DC 12 V (8 x UM-2/C batteries)
Battery Type	8 x UM-2/C (size C) not included
Operating Temperature	+5 to +35°C
Radio Bands	FM 87.5 – 108 MHz
Bluetooth Version	2.1 + EDR
Audio Output Power	2 W x 2 (max)
Frequency Response	100 Hz – 16 kHz
CD Playback Compatibility	CD, CD-R, CD-RW, CD-DA
USB Playback	Up to 32 GB, MP3/WMA
Optical Pickup	3-Beam Laser (Class 1)
Inputs/Outputs	AUX In (3.5 mm), Headphone Jack (3.5 mm), USB Input
Antenna	FM telescopic antenna
Functions	CD, FM radio, USB, Bluetooth, AUX
Special Features	Program play, repeat, random, bass effect, alarm clock? (not specified)
Safety Classification	Class 1 Laser Product
Disc Maintenance	Clean from center to edge with soft cloth; avoid benzine, thinners
Battery Care	Remove if exhausted; do not mix types; dispose properly
Accessories Included	AC power cord, Instruction manual

Frequently Asked Questions - ACD325 AIWA

How do I pair my Bluetooth device with the Aiwa ACD325?

Press the MODE Button to select Bluetooth mode. 'bt' appears on the display and the Pair/Standby indicator flashes blue rapidly. On your device, enable Bluetooth and search for 'Aiwa ACD325'. Select it and enter '0000' if prompted. The indicator lights solid blue when paired. Press the ▶/PAIR Button to start playback.

What should I do if the disc is not playing?

Ensure the disc is loaded with the label side up. Check that the disc is not scratched or dirty. Wipe it with a soft cloth from center to edge. Make sure the player is in CD mode (press MODE Button). If 'NO' is displayed, the disc may be unreadable or incompatible. Only use CD, CD-R, or CD-RW discs.

How can I preset radio stations on the ACD325?

Tune to your desired station using the Tuning Dial. Press the PROG./MEM. Button – 'P01' flashes. Use the 10/FOLD./M.+ or M.- buttons to select a preset number (P01 to P30). Press PROG./MEM. again to save. Repeat for other stations. To access saved stations, press the 10/FOLD./M.+ or M.- buttons.

How do I clean the CD lens?

Avoid touching the lens directly. To prevent dust, always keep the CD door closed. If the lens is dirty, use a lens cleaning disc (not included). For general maintenance, clean discs with a soft cloth from center to edge. Never use benzine, thinners, or record cleaner fluid.

Can I use rechargeable batteries in this unit?

Yes, you can use 8 x size C (UM-2) rechargeable batteries. However, ensure they are fully charged. The unit does not recharge batteries internally. Remove batteries if not used for a long period. Do not mix alkaline with zinc-carbon or different types.

What is the maximum USB capacity supported?

The USB input supports devices up to 32 GB. Compatible file formats are MP3 and WMA. Do not use USB extension cables as they may cause interference. The USB must be formatted in FAT32.

How do I activate the bass effect?

Press the BASS Button on the unit to enable the bass enhancement. The effect will be applied to the current audio output. Press again to deactivate.

Why is there no sound from the speakers when I plug in headphones?

The Headphone Jack automatically cuts the speaker output. When you insert a 3.5mm headphone, the speakers mute. To resume speaker playback, unplug the headphones. Ensure the volume is adjusted using the Volume Dial.

How do I perform an auto scan for FM stations?

In FM mode, press the ▶/PAIR Button to start auto scan. The unit will search for available stations and store them automatically as presets (P01, P02...). Use the 10/FOLD./M.+ or M.- buttons to cycle through the found stations.

What does the 'CLASS 1 LASER PRODUCT' label mean?

This label indicates that the laser in the CD player is safe under normal use. The unit is designed so that the laser beam is contained and cannot escape during operation. Do not open the casing; servicing must be done by qualified personnel to avoid hazardous radiation exposure.

USER MANUAL ACD325 AIWA

Black portable electronic device with analog clock and antenna, no visible text or symbols on body

Instruction Manual

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: Use of controls or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Danger of explosion if battery is incorrectly replaced! Replace only with the same or equivalent type.

DANGER: This compact disc player is classified as a Class 1 LASER PRODUCT. The 'CLASS 1 LASER PRODUCT' label is located on the bottom of the unit.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). DO NOT OPEN THE UNIT; REFER ANY SERVICING TO QUALIFIED SERVICE PERSONNEL.

1. Read all instructions and keep for future reference.

2. Avoid installing the unit in locations described below:

3. Places exposed to direct sunlight or close to heat radiating appliances such as electric heaters, or other equipment that radiate too much heat.

4. Places subject to constant vibration.
5. Unventilated or dusty places.

6. Humid or moist places.

7. Before turning on the power for the first time, make sure that the power cord is properly installed and the voltage switch is correctly set.

8. Store your CD or other devices in a cool area to avoid damage from heat.
9. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
10. This product is not a toy! Children should be supervised to ensure that they do not play with the appliance.
11. Do not expose this unit to water, corrosive liquids or gases. Do not immerse in water or other liquids.
12. Remove batteries if exhausted or if they will not be used for a long period.
13. The incorrect use of batteries can cause electrolyte leakage and may corrode the compartment or cause the batteries to burst. Therefore:

- Do not mix battery types, e.g. alkaline with zinc carbonate.

- When inserting new batteries, replace all batteries at the same time.

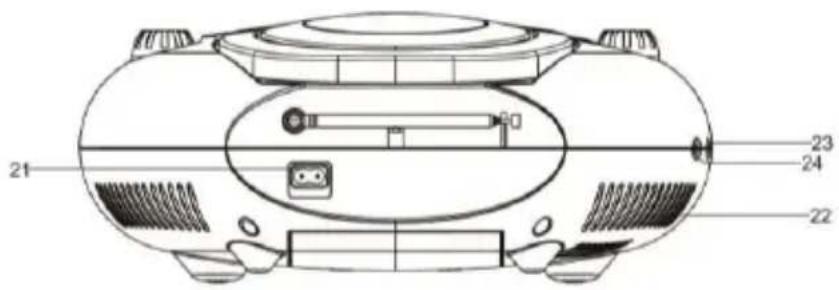

OVERVIEW

1. FM Antenna
2. Handle
3. CD Door
4. Tuning Dial
5. Volume Dial
6. Bass Button
7. Power Button
8. 10/Fold./M.+
9. 10/Fold./M.-
10. Mode Button
11. Stop (■) Button

12. LCD Display

13. Play/Pause (▶) / Pair Button

14. Repeat/Random Button
15. Standby/ Pair Indicator
16. Program/Memory Button
17. Tun.- / Button
18. Tun.+ / ➤ Button
19. Speaker
20. USB Input
21. AC Socket
22. Ventilation Holes
23. Aux Input
24. Headphone Jack

POWER SOURCE

This unit works on either AC or DC power.

AC OPERATION

Connect the tail end of the supplied AC power cord into the AC Socket on the unit and the plug end to a suitable AC mains outlet. The batteries will be automatically disconnected.

DC OPERATION

Open the Battery Compartment Door. Insert 8 x 'UM-2/C' size batteries (not included) into the battery compartment ensuring correct polarities as marked.

Note: When using a battery, remove the AC power cord from the unit.

Caution: Remove batteries if they are exhausted or not being used for a long period of time. Batteries contain chemical substances and should be disposed of properly. Contact your local council for recycling or disposal options.

BASIC FUNCTIONS

SWITCHING ON THE UNIT

After connecting the power, press POWER Button to turn on. Press the MODE Button to choose between the available modes: CD / USB / FM / AUX or BT.

ADJUSTING THE VOLUME

Rotate the Volume Dial to increase or decrease the volume.

BASS FUNCTION

Press the BASS Button to activate the bass effect.

HEADPHONE JACK

For private listening, insert a 3.5mm headphone (not included) into the Headphone Jack. The speaker output would be automatically cut off.

Caution: Listening at a high volume for long periods of time can cause hearing loss.

RADIO OPERATION

TUNING RADIO STATIONS

1. Press the MODE Button to select FM mode.
2. Tune to the desired station by rotating the Tuning Dial. The LCD Display will show the band frequency (e.g. FM 97.10 MHz). If the radio receives stereo signal, "STEREO" will be shown on the Display.
3. Press and hold the TUN.- / or TUN.+ / Button; the unit will scan the frequencies until a broadcasting station strong enough for good reception is found.
4. Extend the FM Antenna to its full length and gently move the unit back and forth to get the best reception, or place the unit in an open location.
5. To turn off the radio, press the MODE Button to switch to other functions or press POWER Button to turn off the unit.

RADIO AUTO SCAN (SEARCH)

Press the ▶/PAIR Button, the unit will conduct auto scan and search for the first available channel. The unit will start to broadcast the station 'P01' after searching is finished.

Press the 10/FOLD./M.+ or 10/FOLD./M.- Button to choose the next or previous programmed station.

You can store up to 30 (FM) radio stations in the unit memory to listen to your favourite stations directly and quickly. This prevents having to tune and search for the channels each time.

1. Rotate the Tuning Dial to select the first desired station.
2. Press PROG./MEM. Button; 'P01' will flash on the Display. Press the 10/FOLD./M.+ or 10/FOLD./M.- Button to choose the position you want to store the channel (from 'P01' to 'P30'), and then press the PROG./MEM. Button again to enter.
3. Search for another station and repeat steps (1) and (2). Repeat the process until you have saved all desired stations. Up to 30 stations can be programmed.
4. Press the 10/FOLD./M.+ or 10/FOLD./M.- Button to switch between the saved stations directly.

CD OPERATION

PLAYBACK OF AUDIO DISCS

This system can playback all digital audio CDs including audio CD-Recordable (CD-R) discs, audio CD-Rewritable (CD-RW) discs and CD-DA format digital audio CD/CD-R/CD-RW discs.

LOADING A DISC

1. Press the MODE Button to select 'CD' mode.
2. Open the CD door, 'OP' will be shown on the Display.
3. Place an audio CD into the tray with the label side facing up.
4. Close the CD door. The Display initially shows a flashing ‘---’ which then changes to the total number of tracks. Playback will start from the first track.
5. To remove the CD, press STOP (■) Button to stop playback; then open the CD compartment lid. Hold the CD by its edges, and take it out carefully.

Note:

1. Make sure play is stopped before opening the CD door.
2. To ensure good performance; wait until the unit completely reads the CD before starting play.
3. If no disc is loaded into the tray, or if the disc is unreadable, the Display will show 'NO'.

PLAYING A DISC

1. Playback starts from track 1 automatically.
2. To pause playback, press ▶ I/ PAIR Button. The current playing time and 'PLAY' will flash on the Display.
3. To resume playback, press ▶|/ PAIR Button again.
4. To stop playback, press STOP (■) Button, the total number of tracks will show on the Display.

SELECTING A DESIRED TRACK/PASSAGE

To select a desired track

Press the TUN.+/▶ or TUN.- /◀ Button until the desired track appears on the Display. It will start play automatically.

To search for a particular passage during playback (track scanning at high speed)

Press and hold the TUN.+/▶▶ or TUN.-◀◀ Button to scan the current playing track at high speed until desired point (passage) appears, then release the button for normal playback mode. Playback will start again from this point.

To select a song with track number more than 10 (for USB only)

To select a song/track with number more than 10, press the 10/FOLD./M.+ or 10/FOLD./M.-Button each time to skip forward 10 tracks, then press the TUN.+/ ▶ or TUN.- /◀◀ Button to select the desired track.

To select a desired folder (for USB that contains more than one folder)

To select a desired folder, press and hold the 10/FOLD./M.+ or 10/FOLD./M.- Button to tune to the next or previous folder.

PROGRAMMING TRACKS

You can program individual tracks of discs when playback is stopped. Up to 20 tracks for CDs and 99 tracks for USB can be stored in the memory in any order.

1. With playback stopped, press the PROG./MEM. Button to enter program setting, the 'P' logo will flash on the Display and show 'P01'.
2. Press the TUN.+/▶ or TUN.-/◀◀ Button to select the first desired track to be programmed (for example, track 5).
3. Press the PROG./MEM. Button on unit again. The 'P' logo will flash on the Display and show 'P01'.
4. Repeat steps 2 & 3 to store other desired tracks until all tracks are programmed.
5. Press the ▶|/PAIR Button to start playback from the first programmed track.
6. Press the TUN.+/▶ or TUN.-/◀◀ Button to select the next or previous programmed track.
7. Press the STOP (■) Button to stop program playback.
8. To clear the program, press STOP (■) Button when the disc is stopped or open the CD compartment lid – the program will be erased.

REPEAT PLAY

You can play one track or all tracks on the disc repeatedly.

To Repeat a Single Track

1. Press RPT/RDM Button on the unit during play. The Display will show flashing '←' and the current track will be played over and over again till you press the STOP (■) Button.
2. To cancel repeat play, press RPT/RDM Button until '→' disappears from the Display.

To repeat all the Tracks

1. Press RPT/RDM Button until '←' shows steadily on the Display. All tracks on the disc will be played over and over again till you press the STOP (■) Button.
2. To cancel repeat play, press the RPT/RDM button until '☐' disappears from the Display.

To repeat the folder (only for USB/MP3 discs which contain more than one folder)

1. Press the RPT/RDM Button until 'FOLDER' shows steadily on the Display. The current folder will be repeated over and over again till you press the STOP (■) Button.
2. To cancel repeat play, press the RPT/RDM Button until 'FOLDER' disappears from the Display.

RANDOM PLAY

1. Press the RPT/RDM Button on the unit in play mode until 'RAND' appears on the Display. Random play starts automatically until all tracks are played and then play stops.
2. To cancel random play, press the RPT/RDM Button again until 'RAND' disappears from the Display.

USB OPERATION

1. Press the MODE Button to select 'USB' mode.
2. Connect a suitable USB memory device to the USB Input. The Display shows the total number of tracks and folders stored in the USB. Playback starts from track 1 automatically after reading the USB.
3. To pause playback, press ▶//PAIR Button. The current playing time and 'PLAY' flashes on the Display.
4. To resume playback, press ▶ /PAIR Button again.
5. Press the STOP (■) Button to stop playing.

Note: Program play/ repeat play (repeat 1- repeat folder - repeat all) / random play for USB are the same as for CDs.

Maximum capacity of USB device: 32G

File formats that can be played: mp3/ wma

Caution: Do not use USB extension cables for connecting the USB device as this may cause harmful interference.

BLUETOOTH OPERATION

1. Make sure that your Bluetooth enabled device (smartphone, tablet or similar) is within the Bluetooth range of 10 metres from the unit.
2. Press the MODE Button to switch to Bluetooth function. 'bt' is shown on the Display and the PairStandby indicator will flash blue at high speed.
3. Turn on the Bluetooth function on your Bluetooth enabled device; search for the unit name 'Aiwa ACD325' and connect to it. Enter '0000' if asked for a password.
4. The Pair/Standby indicator will light up blue to indicate that pairing is successful and the Display will show 'bt'. Press ▶ /PAIR Button on the unit or play button on your Bluetooth enabled device to start playback.
   Note: If the unit does not connect to the Bluetooth device within 2 minutes, press and hold the ▶/PAIR Button to reconnect.
5. Rotate the Volume Dial to adjust the volume.
6. Press TUN.+/ ▶ or TUN.- / ◀ Button on the unit to choose the previous or next song.
7. To stop playback, press ▶/PAIR Button.

AUX-IN OPERATION

1. Press the MODE Button to select 'AUX' mode.
2. Use a 3.5mm auxiliary cable to connect your external device (like an mp3 player) to the AUX Input on the unit. You can now play music from your device on the unit speakers.
3. Rotate the Volume Dial to adjust the volume.
4. Use the controls on your device to pause/play, or to switch to the previous/next song.

COMPACT DISC MAINTENANCE

1. Always use audio CDs bearing the mark as shown.

1. Notes on handling discs

✧ Remove the disc from its storage case and load it.
Do not touch the reflective recorded surface.
Do not write anything or stick any paper on the surface.
Do not bend the disc.

Two hand diagrams showing a circular object being held by hands, with no text or symbols present.

✨ Store the disc in its case.
Do not expose discs to direct sunlight or high temperatures, high humidity or dust.

If the disc becomes dirty, wipe clean with a soft cloth.
✨ Clean the disc from the centre to the edge.

Line drawing of hands holding a circular object with a cloth (no text or symbols)

CORRECT

INCORRECT

FROM THE CENTRE TO THE EDGE

✿ Never use benzine, thinners, record cleaner fluid or anti-static spray.
✧ Always keep the CD door closed so that the lens is not contaminated by dust.
Do not touch the lens.

SPECIFICATIONS

GENERAL

Power Requirement: AC 240V\~50Hz

DC 12V, 'UM-2/C' x 8pcs

Power consumption: 23 Watts

Dimensions (L x D x H): 346 x 240 x 148 mm

Operating temperature: +5 to +35°C

BLUETOOTH: VERSION 2.1 + EDR

RECEIVER SECTION

Receiving Bands: FM

Frequency Range: FM 87.5 – 108 MHz

COMPACT DISC SECTION

Optical Pickup: 3-Beam Laser

Frequency Response: 100Hz – 16KHz

AUDIO SECTION

Power output (max.): 2W x 2

ACCESSORIES

1 x AC Cord

1 x Instruction Manual (this document)

Note: As a result of continual improvements, the design and specifications of the product within may differ slightly from the unit illustrated on the packaging.

aiwa
