Product Type	Motherboard
Dimensions	305 x 244 mm (ATX form factor)
Weight	Approx. 0.5 kg (1.1 lbs)
Power Connectors	24-pin ATX (PWR1) + 4-pin ATX 12V (PWR2)
CPU Support	Intel LGA775 Pentium 4 / Celeron, FSB 800/533 MHz, Hyper-Threading
Chipset	VIA PT880Pro (NB) + VIA VT8237 (SB)
Memory	2x DDR DIMM (max 2GB, 400/333/266 MHz) or 2x DDR2 DIMM (max 2GB, 533/400 MHz); DDR and DDR2 cannot be mixed
Expansion Slots	1x AGP 8X, 1x PCI Express Lite, 4x PCI 2.2, 1x CNR
Storage Interfaces	2x UltraDMA 133/100/66 IDE (up to 4 devices), 2x SATA 1.5Gb/s, 1x Floppy
RAID Support	VIA VT8237 SATA RAID 0, 1, JBOD
USB Ports	4 rear + 4 front (via headers), USB 2.0
Audio	AC'97 2.3, 6-channel (line-in, line-out, mic)
LAN	10/100 Mbps Ethernet (optional onboard)
BIOS	AWARD BIOS, 4Mb Flash ROM
Rear I/O	PS/2 keyboard/mouse, COM1, LPT1, 4x USB, LAN (opt.), audio jacks
Maintenance	Clean with dry cloth; avoid static discharge; handle by edges
Safety	Wear grounding strap; disconnect power before installing; avoid over-tightening screws
Spare Parts & Repairability	Standard ATX components; CMOS battery replaceable; no specialized parts required
General Information	Supports Windows 98/ME/2000/XP; ISO 9001 & 14001 certified; FCC Class B

Frequently Asked Questions - PT880PRO-A ECS

What processors does the PT880PRO-A motherboard support?

The motherboard supports Intel LGA775 Pentium 4 and Celeron processors with a Front Side Bus of 800 or 533 MHz. It also supports Hyper-Threading technology.

Can I use DDR and DDR2 memory together?

No, the motherboard does not support mixing DDR and DDR2 modules. You must use either two DDR DIMMs or two DDR2 DIMMs, but not both simultaneously.

How do I clear the CMOS settings?

To clear the CMOS, set the JCMOS1 jumper to pins 2-3 (CMOS CLEAR) for a few seconds, then return it to pins 1-2 (NORMAL). After clearing, enter BIOS and select 'Load Optimal Defaults' then save and exit.

What RAID levels are supported by the onboard SATA controller?

The VIA VT8237 Southbridge supports RAID 0 (striping), RAID 1 (mirroring), and JBOD (spanning) using two Serial ATA hard drives.

How do I enter the BIOS setup utility?

During system boot, press the DEL or F1 key when prompted (usually after POST) to enter the AWARD BIOS Setup Utility.

What is the maximum memory capacity?

The motherboard supports up to 2 GB of system memory, using either DDR or DDR2 modules with a maximum of 1 GB per DIMM.

Does the motherboard support AGP graphics cards?

Yes, it has one AGP slot compliant with AGP 8X/4X (AGP 3.0). It also features a PCI Express Lite slot for newer graphics cards.

How do I update the BIOS?

Download the latest BIOS from the ECS website. Create a bootable floppy, copy the flash utility and BIOS file, then boot from the floppy and run the utility (e.g., AMINF340.EXE 040706.ROM).

What type of power supply is needed?

The motherboard requires a standard ATX power supply with a 24-pin main connector (PWR1) and a 4-pin 12V connector (PWR2) for CPU power.

How can I enable the front panel audio?

Connect the front panel audio cable to the AUDIO1 header on the motherboard. Ensure the pin assignments match; if the cable is separated, connect MIC to pin 1 and pin 3, and Line-Out to pin 5 and pin 7.

USER MANUAL PT880PRO-A ECS

The TÜV CERT Certification Body for QM Systems of RWTÜV Systems GmbH

hereby certifies in accordance with TÜV CERT procedure that

ELITEGROUP COMPUTER SYSTEMS CO., LTD. ECS MANUFACTURING (SHENZHEN) CO., LTD. ELITE TECHNOLOGY (SHENZHEN) CO., LTD.

2F, No. 240, Sec. 1, Nei Hu Road, Taipei, Taiwan 114 No. 22, Alley 38, Lane 91, Sec. 1, Nei Hu Road, Taipei, Taiwan 114 No. 20 & No. 26, Free Trade Zone, Shataujiao, Shenzhen City, GuangDong Province, China

has established and applies a quality system for

Design, Manufacturing and Sales of Mainboards, Personal Computers, Notebooks and Peripheral Cards

An audit was performed, Report No. 2.5-1585/2000

Proof has been furnished that the requirements according to

ISO 9001 : 2000 / EN ISO 9001 : 2000 / JIS Q 9001 : 2000 / ANSI/ASQC Q9001 : 2000

are fulfilled. The certificate is valid until 27 January 2007

Certificate Registration No. 04100 2000 1325

The company has been certified since 2000

Essen, 04.03.2004

The TÜV CERT Certification Body for QM Systems of RWTÜV Systems GmbH

ISO14001

CERTIFICATE

Certificate No.: 061-04-E1-0065-R1-L

We hereby certify that

ECS MANUFACTURING (SHANZHEN) CO., LTD.

by reason of its

Environmental Management System

has been awarded this certificate for

compliance with the standard

ISO14001:1996

The Environmental Management System

applies in the following area:

ECS MANUFACTURING (SHANZHEN) CO., LTD.

located at No. 20 & 26 (except 1F, 2F), Free Trade Zone,

Shatuojiao, Shenzhen City, Guangdong Province, P. R. China.

is engaged in manufacturing of Mother Board and Peripheral Card,

and interrelated managerial activities.

Date of issue: 28th Sept. 2004

Date of expiry: 27th Sept. 2007

Signed by:

① x = 2 或 3x + y

SHENZHEN SOUTHERN CERTIFICATION CO., LTD.

Preface

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.

Version 1.0

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp.

MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel Corporation.

Other product names used in this manual are the properties of their respective owners and are acknowledged.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment onto an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help

Shielded interconnect cables and a shielded AC power cable must be employed with this equipment to ensure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system's manufacturer could void the user's authority to operate the equipment.

This device complies with part 15 of the FCC rules. Operation is subject to the following conditions:

• This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation

This class B digital apparatus meets all requirements of the Canadian Interference-causing Equipment Regulations.

The manual consists of the following:

Chapter 1

Introducing the Motherboard	Describes features of the motherboard.
	Go to ➔ page 1
Chapter 2	Describes installation of motherboard components.
Installing the Motherboard	Go to ➔ page 7
Chapter 3	Provides information on using the BIOS Setup Utility.
Using BIOS	Go to ➔ page 27
Chapter 4	Describes the motherboard software
Using the Motherboard Software	Go to ➔ page 39
Chapter 5
VIA VT8237 SATA RAID	Describes the information about SATA RAID Setup
Setup Guide	Go to ➔ page 43

Preface i

◆◆◆□▼◆◆

Introducing the Motherboard 1

Introduction....1

Feature....2

Motherboard Components....4

※※□▼※□ ✗

Installing the Motherboard 7

Safety Precautions....7

Choosing a Computer Case....7

Installing the Motherboard in a Case....7

Checking Jumper Settings....8

Setting Jumpers....8

Checking Jumper Settings....9

Jumper Settings....9

Connecting Case Components....10

Front Panel Connector....12

Installing Hardware....13

Installing the Processor....13

Installing Memory Modules....15

Installing a Hard Disk Drive/CD-ROM/SATA Hard Drive.....17

Installing a Floppy Diskette Drive....19

Installing Add-on Cards....20

Connecting Optional Devices....23

Connecting I/O Devices....26

*※□※] √ *X*X

Using BIOS 27

About the Setup Utility....27

The Standard Configuration....27

Entering the Setup Utility....27

Updating the BIOS....29

Using BIOS....29

Standard CMOS Setup....30

Advanced Setup....30

Features Setup....32

Power Management Setup....33

PCI/Plug and Play Setup....34

BIOS Security Features....35

CPU PnP Setup....36

Hardware Monitor....37

Load Best Performance Settings....38

Load Optimal Defaults....38

Save Changes and Exit....38

Discard Changes and Exit....38

+ * * □ ▼ □ √

√+√+

Using the Motherboard Software 39

About the Software CD-ROM....39

Auto-installing under Windows 98/ME/2000/XP....39

Running Setup....40

Manual Installation....42

Utility Software Reference....42

◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◉

√√ √√

VIA VT8237 SATA RAID Setup Guide 43

VIA RAID Configurations....43

Installing RAID Software & Drives....51

Using VIA RAID Tool....52

Multi-Language Translation

Introduction

Thank you for choosing the PT880PRO-A motherboard. This motherboard is a high performance, enhanced function motherboard that supports LGA775 Pentium 4/Celeron processors for high-end business or personal desktop markets.

The motherboard incorporates the PT880Pro Northbridge (NB) and VT8237 Southbridge (SB) chipsets. The Northbridge supports a Front Side Bus (FSB) frequency of 800/533 MHz FSB and Hyper-Threading technology. The memory controller supports DDR memory DIMM frequencies of 400/333/266 MHz or DDR2 memory DIMM frequencies of 533/400 MHz. It supports four DDR Sockets with up to maximum memory of 2 GB. DDR Maximum memory bandwidth of 3.2 GB/s in single-channel is supported, or 8.5 GB/s in dual-channel interleaved mode assuming DDR2 533 MHz. Aside from the onboard AGP slot, one PCI Express Lite slot, intended for Graphics Interface, is fully compliant to the PCI Express Base Specification revision 1.0a.

The VT8237 Southbridge is a highly integrated peripheral controller, it includes an integrated keyboard controller with PS2 mouse support, two-channel Serial ATA/RAID hard disk controller, master mode enhanced Parallel IDE controller with full scatter/gather capability and extension to UltraDMA-133/100/66 for 133/100/66 MB/sec transfer rate, integrated USB 2.0 interface, supporting up to eight functional ports, and OnNow/ACPI compliant advanced configuration and power management interface. The VT8237 integrated networking MAC controller with standard MII interface to an external PHY for 100/10/1Mb Base-T Ethernet.

The PT880PRO-A motherboard is equipped with advanced full set of I/O ports in the rear panel, including PS/2 mouse and keyboard connectors, COM1, LPT1, four USB ports, one optional LAN port, and audio jacks for microphone, line-in and line out.

Feature

Processor

PT880PRO-A uses an LGA775 type of Pentium 4 that carries the following features:

• Accommodates Intel P4/Celeron processors
• Supports a system bus (FSB) of 800/533MHz
• Supports "Hyper-Threading" technology CPU

“Hyper-Threading” technology enables the operating system into thinking it’s hooked up to two processors, allowing two threads to be run in parallel, both on separate “logical” processors within the same physical processor.

Chipset

The PT880Pro Northbridge (NB) and VT8237 Southbridge (SB) chipset is based on an innovative and scalable architecture with proven reliability and performance.

PT880Pro (NB)

• High performance Northbridge with 800MHz FSB for P4/Celeron processors plus PCI Express and AGP bus
- Ultra V-link 1066 MB/sec high bandwidth North/South Bridge interconnect
• Supports for AGP 8X/4X, AGP v3.0 compliant
• Supports one PCI Express Lite slot for Graphics Interface
- Advanced high-performance 128-bit, Dual-Channel, DDR SDRAM controller

PT880Pro chipset can only support mixed 2048/1024/512/256/128/64Mb x8/16 DDR2 SDRAMs or mixed 1024/512/256/128/64Mb x8/16 DDR SDRAMs.

VT8237(SB)

• Supports 16-bit 66 MHz V-Link Host interface with total bandwidth of 1066 MB/s
- Compliant with PCI 2.2 specification at 33 MHz, supporting up to 6 PCI masters
- Integrated Serial ATA Host Controllers, supporting data transfer rates up to 1.5Gb/s
- Integrated Dual channel UltraDMA 133/100/66 Master Mode EIDE Controller
• USB 2.0 Controller, supporting up to 8 USB 2.0 ports
• Network Controller, supporting enterprise class 100/10 Mb Fast Ethernet MAC
- Integrated keyboard Controller with PS2 mouse support

Memory

• Supports DDR 400/333/266 MHz or DDR2 533/400 DDR SDRAM DIMMs
- Accommodates four unbuffered DIMMs
- Up to 1 GB per DIMM with maximum memory size up to 2 GB

Users please note that DDR & DDR2 can't both be applied at the same time on this motherboard. Users can use either DDR or DDR2 memory modules only!

Audio

• Compliant with AC'97 2.3 specification
• 16-bit Stereo full-duplex CODEC with 48KHz sampling rate
• Supports double sampling rate (96KHz) of DVD audio playback
- Direct Sound 3D ^TM compatible

Onboard LAN (Optional)

The onboard LAN controller provides the following features:

• Single chip 100Base-TX/10Base-T physical layer solution
• Dual speed 100/10 Mbps, half and full duplex with auto negotiation
• MII interface to Ethernet controller
• Meets all applicable IEEE 802.3, 10Base-T and 100Base-Tx standards

Expansion Options

The motherboard comes with the following expansion options:

• One AGP slot
• One PCI Express Lite slot for Graphic Interface
• Four 32-bit PCI v2.2 compliant slots
- Two 40-pin IDE low profile connectors supporting up to 4 IDE devices
• One floppy disk drive interface
- Two 7-pin SATA connectors
• One Communications Networking Riser (CNR) slot

The PT880PRO-A motherboard supports UltraDMA bus mastering with transfer rates of 133/100/66 MB/s.

Integrated I/O

The motherboard has a full set of I/O ports and connectors:

• Two PS/2 ports for mouse and keyboard
• One serial port
• One parallel port
• Four USB ports
  • One LAN port (optional)
  • Audio jacks for microphone in, line-in and line-out

BIOS Firmware

This motherboard uses AWARD BIOS that enables users to configure many system features including the following:

• Power management
- Wake-up alarms
- CPU parameters
• CPU and memroy timing

The firmware can also be used to set parameters for different processor clock speeds.

Some hardware specifications and software items are subject to change with out prior notice.

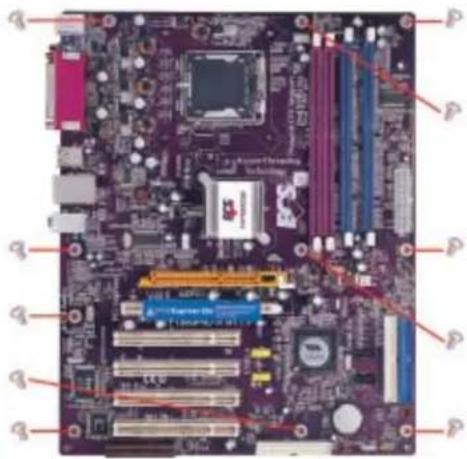

Motherboard Components

X

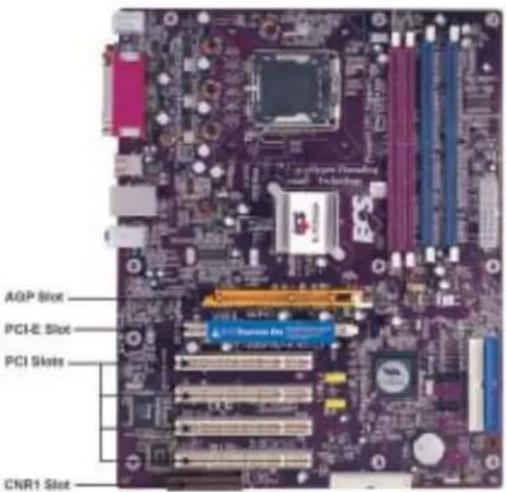

Table of Motherboard Components

LABEL	COMPONENT
1 CPU Socket LGA775 socket for Pentium 4 CPUs
2 CPU_FAN CPU cooling fan connector
3 DIM1~2	240-pin DDR2 SDRAM slots
4 DIMMA1~DIMMB1	184-pin DDR SDRAM slots
5 PWR1 Standard 20-pin ATX power connector
6 IDE1	Primary IDE channel
7 IDE2	Secondary IDE channel
8 SATA1~2 Serial ATA connectors
9 SYS_FAN System cooling fan connector
10 SW1 Panel connector for case switches and I.E.Ds
11 SPK1	Speaker header
12 JCMOS1 Clear CMOS jumper
13 FDD1 Floppy diskette drive connector
14 USB2-3 Front Panel USB headers
15 CNR1	Communications Networking Riser slot
16 PCI1~4 32-bit add-on card slots
17 IR1	Internal infrared header
18 PCI-L	PCI Express Lite graphics card slot
19 AGP	Accelerated Graphics Port slot
20 JCDIN1 Analog audio input header
21 AUDIO1 Front panel audio header
22 PWR2 Auxiliary 4-pin power connector

Users please note that DDR & DDR2 can't both be applied at the same time on this motherboard. Users can use either DDR or DDR2 memory modules only!

This concludes Chapter 1. The next chapter explains how to install the motherboard.

×

★★O□

Safety Precautions

• Follow these safety precautions when installing the motherboard
• Wear a grounding strap attached to a grounded device to avoid damage from static electricity
• Discharge static electricity by touching the metal case of a safely grounded object before working on the motherboard
• Leave components in the static-proof bags they came in
• Hold all circuit boards by the edges. Do not bend circuit boards

Choosing a Computer Case

There are many types of computer cases on the market. The motherboard complies with the specifications for the ATX system case. First, some features on the motherboard are implemented by cabling connectors on the motherboard to indicators and switches on the system case. Make sure that your case supports all the features required. Secondly, PT880PRO-A supports one or two floppy diskette drives and four enhanced IDE drives. Make sure that your case has sufficient power and space for all drives that you intend to install.

Most cases have a choice of I/O templates in the rear panel. Make sure that the I/O template in the case matches the I/O ports installed on the rear edge of the motherboard.

This motherboard carries a ATX form factor of 305 x 244 mm. Choose a case that accommodates this form factor.

Installing the Motherboard in a Case

Refer to the following illustration and instructions for installing the motherboard in a case.

Most system cases have mounting brackets installed in the case, which correspond the holes in the motherboard. Place the motherboard over the mounting brackets and secure the motherboard onto the mounting brackets with screws.

Ensure that your case has an I/O template that supports the I/O ports and expansion slots on your motherboard.

Do not over-tighten the screws as this can stress the motherboard.

Checking Jumper Settings

This section explains how to set jumpers for correct configuration of the motherboard.

Setting Jumpers

Use the motherboard jumpers to set system configuration options. Jumpers with more than one pin are numbered. When setting the jumpers, ensure that the jumper caps are placed on the correct pins.

The illustrations show a 2-pin jumper. When the jumper cap is placed on both pins, the jumper is SHORT. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is OPEN.

This illustration shows a 3-pin jumper. Pins 1 and 2 are SHORT

SHORT

OPEN

Checking Jumper Settings

The following illustration shows the location of the motherboard jumpers. Pin 1 is labeled.

Close-up of a purple computer motherboard with various slots, chips, and connectors (no readable text or symbols)

Jumper Settings

Jumper	Type	Description	Setting (default)
JCMOS1	3-pin	CLEAR CMOS	1-2: NORMAL2-3: CMOS CLEARBefore clearing the CMOS, make sure to turn off the system.	JCMOS11

To avoid the system instability after clearing CMOS, we recommend users to enter the main BIOS setting page to "Load Optimal Defaults" and then "Save Changes and Exit".

Connecting Case Components

After you have installed the motherboard into a case, you can begin connecting the motherboard components. Refer to the following:

1 Connect the CPU cooling fan cable to CPU_FAN.
2 Connect the system cooling fan connector to SYS_FAN.
3 Connect the case speaker calbe to SPK1.
4 Connect the case switches and indicator LEDs to the SW1.
5 Connect the standard power supply connector to PWR1.
6 Connect the auxiliary case power supply connector to PWR2.

CPU_FAN: CPU FAN Power Connector

Pin Signal Name Function
1 GND System Ground
2 +12V Power +12V
3	Sense	Sensor
4	PWM	CPU FAN control

Users please note that the fan connector supports the CPU cooling fan of 1.1A\~2.2A (26.4W max.) at +12V.

SYS_FAN: System cooling FAN Power Connector

Pin Signal Name Function
1 GND System Ground
2 +12V Power +12V
3	Sense	Sensor

PWR2: ATX 12V Power Connector

Pin Signal Name

1 Ground

2 Ground

3 +12V

4 +12V

PWR1: ATX 24-pin Power Connector

Pin Signal Name Pin Signal Name
1 +3.3V 11 +3.3V
2 +3.3V 12 -12V
3 Ground 13 Ground
4 +5V 14 PS ON#
5 Ground 15 Ground
6 +5V 16 Ground
7 Ground 17 Ground
8 PWRGD 18 -5V
9	+5VSB	19	+5V
10 +12V 20 +5V

SPK1: Internal Speaker Header

Pin Signal Name
1	VCC
2	NC
3	Ground
4	Signal

Front Panel Connector

The front panel connector (SW1) provides a standard set of switch and LED connectors commonly found on ATX or micro-ATX cases. Refer to the table below for information:

SW1

Pin Signal Function Pin Signal Function
1 HD_LED_P Hard disk LED(+)	2 FP PWR/SLP *MSG LED(+)
3 HD_LED_N Hard disk LED(-)	4 FP PWR/SLP *MSG LED(-)
5 RST_SW_N Reset Switch(-)	6 PWR_SW_P Power Switch(+)
7 RST_SW_P Reset Switch(+)	8 PWR_SW_N Power Switch(-)
9 RSVD Reserved	10 Key No pin

*MSG LED (dual color or single color)

Hard Drive Activity LED

Connecting pins 1 and 3 to a front panel mounted LED provides visual indication that data is being read from or written to the hard drive. For the LED to function properly, an IDE drive should be connected to the onboard IDE interface. The LED will also show activity for devices connected to the SCSI (hard drive activity LED) connector.

Power/Sleep/Message waiting LED

Connecting pins 2 and 4 to a single or dual-color, front panel mounted LED provides power on/off, sleep, and message waiting indication.

Reset Switch

Supporting the reset function requires connecting pin 5 and 7 to a momentary-contact switch that is normally open. When the switch is closed, the board resets and runs POST.

Power Switch

Supporting the power on/off function requires connecting pins 6 and 8 to a momentary-contact switch that is normally open. The switch should maintain contact for at least 50 ms to signal the power supply to switch on or off. The time requirement is due to internal debounce circuitry. After receiving a power on/off signal, at least two seconds elapses before the power supply recognizes another on/off signal.

Installing Hardware

Installing the Processor

Caution: When installing a CPU heatsink and cooling fan make sure that you DO NOT scratch the motherboard or any of the surface-mount resistors with the clip of the cooling fan. If the clip of the cooling fan scrapes across the motherboard, you may cause serious damage to the motherboard or its components.

On most motherboards, there are small surface-mount resistors near the processor socket, which may be damaged if the cooling fan is carelessly installed.

Avoid using cooling fans with sharp edges on the fan casing and the clips. Also, install the cooling fan in a well-lit work area so that you can clearly see the motherboard and processor socket.

Before installing the Processor

This motherboard automatically determines the CPU clock frequency and system bus frequency for the processor. You may be able to change these settings by making changes to jumpers on the motherboard, or changing the settings in the system Setup Utility. We strongly recommend that you do not over-clock processors or other components to run faster than their rated speed.

Warning: Over-clocking components can adversely affect the reliability of the system and introduce errors into your system. Over-clocking can permanently damage the motherboard by generating excess heat in components that are run beyond the rated limits.

This motherboard has a LGA 775 socket. When choosing a processor, consider the performance requirements of the system. Performance is based on the processor design, the clock speed and system bus frequency of the processor, and the quantity of internal cache memory and external cache memory.

CPU Installation Procedure

The following illustration shows CPU installation components.

A. Unload the cap - Use thumb & forefinger to hold the lifting tab of the cap. - Lift the cap up and remove the cap completely from the socket.

B. Open the load plate - Use thumb & forefinger to hold the hook of the lever, pushing down and pulling aside unlock it. - Lift up the lever. - Use thumb to open the load plate. Be careful not to touch the contacts.

C. Install the CPU on the socket - Orientate CPU package to the socket. Make sure you match triangle marker to pin 1 location.

D. Close the load plate - Slightly push down the load plate onto the tongue side, and hook the lever. - CPU is locked completely.

E. Apply thermal grease on top of the CPU.

F. Fasten the cooling fan supporting base onto the CPU socket on the motherboard.

G. Make sure the CPU fan is plugged to the CPU fan connector. Please refer to the CPU cooling fan user's manual for more detail installation procedure.

To achieve better airflow rates and heat dissipation, we suggest that you use a high quality fan with 3800 rpm at least. CPU fan and heatsink installation procedures may vary with the type of CPU fan/heatsink supplied. The form and size of fan/heatsink may also vary.

Installing Memory Modules

This motherboard accommodates four memory modules. It can support two 184-pin 2.5V unbuffered DIMM, DDR 400/333/266 or two 240-pin 1.8V DDR2 533/400. The total memory support capacity is 2GB.

Users please note that DDR & DDR2 can't both be applied at the same time on this motherboard. Users can use either DDR or DDR2 memory modules only!

DDR SDRAM memory module table

Memory module Memory Bus
DDR 266	133MHz
DDR 333	166MHz
DDR 400	200MHz

DDR2 SDRAM memory module table

Memory module Memory Bus
DDR2 400	200MHz
DDR2 533	266MHz

You must install at least one module in any of the four slots. Each module can be installed with 256 MB to 1 GB of memory; total support memory capacity is 2 GB.

Do not remove any memory module from its antistatic packaging until you are ready to install it on the motherboard. Handle the modules only by their edges. Do not touch the components or metal parts. Always wear a grounding strap when you handle the modules.

Installation Procedure

Refer to the following to install the memory modules.

1 This motherboard supports unbuffered DDR and DDR2 SDRAM.
2 Push the latches on each side of the DIMM slot down.
3 Align the memory module with the slot. The DIMM slots are keyed with notches and the DIMMs are keyed with cutouts so that they can only be installed correctly.
4 Check that the cutouts on the DIMM module edge connector match the notches in the DIMM slot.
5 Install the DIMM module into the slot and press it firmly down until it seats correctly. The slot latches are levered upwards and latch on to the edges of the DIMM.
6 Install any remaining DIMM modules.

Close-up of a hand installing a green RAM module on a computer motherboard (no visible text or symbols)

Table A: Supported DDR QVL (Qualified Vendor List)

Size Vendor		Module Name
256MB	SAMSUNG	K4H560838D-TCC4
	KingMax	KDL388P4EA-50A
	Winbond	W942508BH-5
	A-DATA	ADD8608A8A-5B
	A-DATA	ADD8608A8A-4.5B
	Hynix	HY5DU56822BT-D43
512MB	Infineon HYB25D	256800BT-5
	Elixir	N2DS25680BT-5T
	Kingston	D3208DL1T-5
	Kingston	KHX3500AK2
	PSC	A2S56D30BTP
	Hynix	HY5DU56822DT-D5
	ValueSelect	VS32MB-5 2B0402
	CORSAIR	CMX512-3200C2PT
	Mushkin PC3500	level ONE
	UNIFOSA	USI 64M8B8-WB200-043
	GEIL	GE1GB3200BDC
	G.SKILL	F1-3200PHU2-1 GVZX
1GB	CORSAIR	CMX1024-3200PT

Table B: Supported DDR2 QVL (Qualified Vendor List)

Size Vendor		Module Name
256MB	Elixir	N2TU51216AF-37B
	ELPIDA	E2508AA-DF-E
	SAMSUNG	K4T56083QF-GCCC
	SAMSUNG	K4T56083QF-GCD5
512MB	A-DATA	M2GXX2F3H4140A1B0E
	Corsair	CM2X512-4200
	Elixir	N2TU51280AF-37B
	ELPIDA	E2508AA-DF-E
	Hynix HY5PS12821
	SAMSUNG	K4T51083QB-GCCC
	SAMSUNG	K4T51083QB-GCD5
	UNIFOSA	ELPIDA E5108AB-5C-E
1GB	UNIFOSA	ELPIDA E5108AB-5C-E

Installing a Hard Dish Drive/CD-ROM/SATA Hard Drive

This section describes how to install IDE devices such as a hard disk drive and a CD-ROM drive.

About IDE Devices

Your motherboard has two IDE channels interface. An IDE ribbon cable supporting two IDE devices is bundled with the motherboard.

You must orient the cable connector so that the pin1 (color) edge of the cable corresponds to the pin 1 of the I/O port connector.

IDE1: IDE Connector

This motherboard supports two high data transfer SATA ports with each runs up to 150 MB/s. To get better system performance, we recommend users connect the CD-ROM to the IDE channel, and set up the hard dives on the SATA ports.

Close-up of a blue industrial component with a white sheet, possibly a battery or filter unit (no visible text or symbols)

Close-up of a silver printer with attached cable and paper strips (no visible text or symbols)

IDE2: Secondary IDE Connector

The second drive on this controller must be set to slave mode. The configuration is the same as IDE1.

Close-up of a computer RAM module with blue and yellow memory chips (no visible text or labels)

Close-up of a silver computer drive with attached cable and paper (no visible text or symbols)

IDE devices enclose jumpers or switches used to set the IDE device as MASTER or SLAVE. Refer to the IDE device user's manual. Installing two IDE devices on one cable, ensure that one device is set to MASTER and the other device is set to SLAVE. The documentation of your IDE device explains how to do this.

About SATA Connectors

Your motherboard features two SATA connectors supporting a total of two drives. SATA, or Serial ATA (Advanced Technology Attachment) is the standard interface for the IDE hard drives which are currently used in most PCs. These connectors are well designed and will only fit in one orientation. Locate the SATA connectors on the motherboard and follow the illustration below to install the SATA hard drives.

Installing Serial ATA Hard Drives

To install the Serial ATA (SATA) hard drives, use the SATA cable that supports the Serial ATA protocol. This SATA cable comes with an SATA power cable. You can connect either end of the SATA cable to the SATA hard drive or the connector on the motherboard.

SATA cable (optional)

SATA power cable (optional)

Refer to the illustration below for proper installation:

1 Attach either cable end to the connector on the motherboard.
2 Attach the other cable end to the SATA hard drive.
3 Attach the SATA power cable to the SATA hard drive and connect the other end to the power supply.

This motherboard does not support the "Hot-Plug" function.

Installing a Floppy Diskette Drive

The motherboard has a floppy diskette drive (FDD) interface and ships with a diskette drive ribbon cable that supports one or two floppy diskette drives. You can install a 5.25-inch drive and a 3.5-inch drive with various capacities. The floppy diskette drive cable has one type of connector for a 5.25-inch drive and another type of connector for a 3.5-inch drive.

You must orient the cable connector so that the pin 1 (color) edge of the cable corresponds to the pin 1 of the I/O port connector.

FDD1: Floppy Disk Connector

This connector supports the provided floppy drive ribbon cable. After connecting the single end to the onboard floppy connector, connect the remaining plugs on the other end to the floppy drives correspondingly.

Close-up of a computer RAM module with gold contacts and a black memory card (no visible text or symbols)

Installing Add-on Cards

The slots on this motherboard are designed to hold expansion cards and connect them to the system bus. Expansion slots are a means of adding or enhancing the motherboard's features and capabilities. With these efficient facilities, you can increase the motherboard's capabilities by adding hardware that performs tasks that are not part of the basic system.

PCI-E Slot

The PCI Express Lite slot is used to install an external PCI Express graphics card that is fully compliant to the PCI Express Base Specification revision 1.0a.

AGP Slot

The AGP slot is used to install a graphics adapter that supports the 8X/4X AGP specification. It is AGP 3.0 compliant.

PCI 1\~4 Slots

This motherboard is equipped with four standard PCI slots. PCI stands for Peripheral Component Interconnect and is a bus standard for expansion cards, which for the most part, is a supplement of the older ISA bus standard. The PCI slots on this board are PCI v2.2 compliant.

CNR1 Slot

This slot is used to insert CNR cards with Modem and Audio functionality.

Before installing an add-on card, check the documentation for the card carefully. If the card is not Plug and Play, you may have to manually configure the card before installation.

Table C: Supported PCI Express Lite VGA Cards List

VGA Chip	Chipset Model Name
ATI	Radeon X300SE	ECS RX300SE-128TDN V:C
	Radeon X300 A	SUS EAX300LE A334C/TD
	Radeon X600XT	GIGABYTE GV-RX60XT 128V
	Radeon X700Pro	ELSA FALCONX X70PRO 256B3
	Radeon X800XT	MSI RX800XT-VDT256E
nVIDIA	GeForce PCX5300	GIGABYTE GV-NX53128D
	GeForce PCX5750	ASUS EN5750/A
	GeForce PCX5900	WINFAST PX350XT
	GeForce PCX5900	ELSA PCX935
	GeForce6200	GIGABYET GV-NX62128D
	GeForce6200TC	GIGABYTE GV-NX62TC256D
	GeForce6600	WINFAST PX6600TD
	GeForce6600GT	GIGABYTE GV-NX66T128D
	GeForce6800Ultra	WINFAST PX6800Ultra

For the latest updates of the supported PCI Express Lite VGA cards list, please visit ECS ELITEGROUP website for details.

ECS ELITEGROUP website: http://www.ecs.com.tw

Follow these instructions to install an add-on card:

1 Remove a blanking plate from the system case corresponding to the slot you are going to use.
2 Install the edge connector of the add-on card into the expansion slot. Ensure that the edge connector is correctly seated in the slot.
3 Secure the metal bracket of the card to the system case with a screw.

Close-up of a computer motherboard with visible circuit board and RAM slots (no text or symbols)

For some add-on cards, for example graphics adapters and network adapters, you have to install drivers and software before you can begin using the add-on card.

Connecting Optional Devices

Refer to the following for information on connecting the motherboard's optional devices:

USB2/3: Front Panel USB header

The motherboard has four USB ports installed on the rear edge I/O port array. Additionally, some computer cases have USB ports at the front of the case. If you have this kind of case, use auxiliary USB connector to connect the front-mounted ports to the motherboard.

Pin Signal Name Function
1 USBPWR Front Panel USB Power
2 USBPWR Front Panel USB Power
3 USB_FP_P0- USB Port 0 Negative Signal
4 USB_FP_P1- USB Port 1 Negative Signal
5 USB_FP_P0+ USB Port 0 Positive Signal
6 USB_FP_P1+ USB Port 1 Positive Signal
7 GND Ground
8 GND Ground
9 Key No pin
10 USB_FP_OC0 Overcurrent signal

AUDIO1: Front Panel Audio header

This header allows the user to install auxiliary front-oriented microphone and line-out ports for easier access.

Pin Signal Name Function
1	AUD_MIC Front Panel	Microphone input signal
2	AUD_GND Ground used by Analog Audio Circuits
3	AUD_MIC_BIAS Microphone Power
4	AUD_VCC Filtered +5V used by Analog Audio Circuits
5	AUD_F_R Right Channel audio signal to Front Panel
6	AUD_RET_R	Right Channel Audio signal to Return from Front Panel
7	REVD Reserved
8	Key No Pin
9	AUD_F_L Left Channel	Audio signal to Front Panel
10	AUD_RET_L	Left Channel Audio signal to Return from Front Panel

If your front panel cable is seperated, please connect it to pin1 and pin3 or pin5 and pin7 to activate the MIC function.

JCDIN1: CD Audio Input header

Pin Signal Name Function
1 CD in LCD In left channel
2 GND	Ground
3 GND	Ground
4 CD in RCD In right channel

IR1: Infrared port

The mainboard supports an Infrared (IR1) data port. Infrared ports allow the wireless exchange of information between your computer and similarly equipped devices such as printers, laptops, Personal Digital Assistants (PDAs), and other computers.

Pin	Signal Name	Function
1	Not Assigned	Not assigned
2	Key	No pin
3	+5V	IR Power
4	GND	Ground
5	IRTX	IrDA serial output
6	IRTX	IrDA serial input

SATA1\~2: Serial ATA connectors

These connectors are use to support the new Serial ATA devices for the highest date transfer rates (150 MB/s), simpler disk drive cabling and easier PC assembly. It eliminates limitations of the current Parallel ATA interface. But maintains register compatibility and software compatibility with Parallel ATA.

Pin Signal Name Pin Signal Name
Pin Signal Name Function
1 Ground 2 TX+
3 TX-4 Ground
5 RX-6 RX+
7 Ground - -

Connecting I/O Devices

The backplane of the motherboard has the following I/O ports:

PS2 Mouse Use the upper PS/2 port to connect a PS/2 pointing device.

PS2 Keyboard Use the lower PS/2 port to connect a PS/2 keyboard.

Parallel Port (LPT1) Use LPT1 to connect printers or other parallel communications devices.

Serial Port Use the COM port to connect serial devices such as mice or (COM1) fax/modems.

LAN Port (optional)

Connect an RJ-45 jack to the LAN port to connect your computer to the Network.

USB Ports Use the USB ports to connect USB devices.

Audio Ports

Use the three audio ports to connect audio devices. The first jack is for stereo line-in signal. The second jack is for stereo line-out signal. The third jack is for microphone.

This concludes Chapter 2. The next chapter covers the BIOS.

About the Setup Utility

The computer uses the latest American Megatrends BIOS with support for Windows Plug and Play. The CMOS chip on the motherboard contains the ROM setup instructions for configuring the motherboard BIOS.

The BIOS (Basic Input and Output System) Setup Utility displays the system's configuration status and provides you with options to set system parameters. The parameters are stored in battery-backed-up CMOS RAM that saves this information when the power is turned off. When the system is turned back on, the system is configured with the values you stored in CMOS.

The BIOS Setup Utility enables you to configure:

• Hard drives, diskette drives and peripherals
  • Video display type and display options
• Password protection from unauthorized use
  • Power Management features

The settings made in the Setup Utility affect how the computer performs. Before using the Setup Utility, ensure that you understand the Setup Utility options.

This chapter provides explanations for Setup Utility options.

The Standard Configuration

A standard configuration has already been set in the Setup Utility. However, we recommend that you read this chapter in case you need to make any changes in the future.

This Setup Utility should be used:

• when changing the system configuration
• when a configuration error is detected and you are prompted to make changes to the Setup Utility
• when trying to resolve IRQ conflicts
• when making changes to the Power Management configuration
• when changing the password or making other changes to the Security Setup

Entering the Setup Utility

When you power on the system, BIOS enters the Power-On Self Test (POST) routines. POST is a series of built-in diagnostics performed by the BIOS. After the POST routines are completed, the following message appears:

Press DEL/F1 to enter SETUP

Press the delete key or FI to access the BIOS Setup Utility.

CMOS Setup Utility -- Copyright (C) 1985-2004, American Megatrends, Inc.

Standard CMOS SetupAdvanced Setup Hardware monitorFeatures Setup Load Best PerformancePower Management Setup Load Optimal DefaultsPCI/Plug and Play Setup Save Changes and ExitBIOS Security Features Discard Changes and Exit	CPU PnP Setup
↑↓←→:Move Enter:Select +/-:Value F10:Save ESC:ExitF1:General Help F9:Optimized Defaults
Standard CMOS setup for changing time, date, hard disk type, etc.v02.56 (C)Copyright 1985-2004, American Mega trends, Inc.

BIOS Navigation Keys

The BIOS navigation keys are listed below:

KEY FUNCTION
ESC	Exits the current menu
←↑↓→←Scrolls through the items on a menu
+/-/PU/PD	Modifies the selected field's values
F1 Displays a screen that describes all key functions
F9 Loads	an optimized setting for better performance
F10 Saves the current configuration and exits setup
ESC Exits the current menu

Updating the BIOS

You can download and install updated BIOS for this motherboard from the manufacturer's Web site. New BIOS provides support for new peripherals, improvements in performance, or fixes for known bugs. Install new BIOS as follows:

1 If your motherboard has a BIOS protection jumper, change the setting to allow BIOS flashing.
2 If your motherboard has an item called Firmware Write Protect in Advanced BIOS features, disable it. (Firmware Write Protect prevents BIOS from being overwritten.
3 Create a bootable system disk. (Refer to Windows online help for information on creating a bootable system disk.)
4 Download the Flash Utility and new BIOS file from the manufacturer's Web site. Copy these files to the system diskette you created in Step 3.
5 Turn off your computer and insert the system diskette in your computer's diskette drive. (You might need to run the Setup Utility and change the boot priority items on the Advanced BIOS Features Setup page, to force your computer to boot from the floppy diskette drive first.)
6 At the A:\ prompt, type the Flash Utility program name and the filename of the new bios and then press . Example: AMINF340.EXE 040706.ROM
7 When the installation is complete, remove the floppy diskette from the diskette drive and restart your computer. If your motherboard has a Flash BIOS jumper, reset the jumper to protect the newly installed BIOS from being overwritten. The computer will restart automatically.

Using BIOS

When you start the Setup Utility, the main menu appears. The main menu of the Setup Utility displays a list of the options that are available. A highlight indicates which option is currently selected. Use the cursor arrow keys to move the highlight to other options. When an option is highlighted, execute the option by pressing .

Some options lead to pop-up dialog boxes that prompt you to verify that you wish to execute that option. Other options lead to dialog boxes that prompt you for information.

Some options (marked with a triangle ▶) lead to submenus that enable you to change the values for the option. Use the cursor arrow keys to scroll through the items in the submenu.

In this manual, default values are enclosed in parenthesis. Submenu items are denoted by a triangle ▶ .

Standard CMOS Setup

This option displays basic information about your system.

CMOS Setup Utility - Copyright (C) 1985-2004, American Megatrends, Inc.

Standard CMOS Setup

System Time 14:02:44System Date Wed 05/05/2004	Help Menu
Primary IDE Master Not DetectedPrimary IDE Slave Not DetectedSecondary IDE Master Not DetectedSecondary IDE Slave Not DetectedSATA-1SATA-2Floppy A 1.44 MB 3 12 "	Use [ENTER], [TAB]or [SHIFT-TAB] Toselect a field.Use [+] or [-] toconfigure system Time.

1↓←→ :Move Enter:Select +/-:Value F10:Save ESC:Exit

F1: General Help F9: Optimized Defaults

Date and Time

The Date and Time items show the current date and time on the computer. If you are running a Windows OS, these items are automatically updated whenever you make changes to the Windows Date and Time Properties utility.

▶Primary/Secondary IDE Master/Slave, SATA-1\~2

Your computer has one IDE channel and each channel can be installed with one or two devices (Master and Slave). In addition, this motherboard supports two SATA channels and each channel allows one SATA device to be installed. Use these items to configure each device on the IDE channel.

Floppy A

These items set up size and capacity of the floppy diskette drive(s) installed in the system.

Press to return to the main menu setting page.

Advanced Setup

This page sets up more advanced information about your system. Handle this page with caution. Any changes can affect the operation of your computer.

CMOS Setup Utility - Copyright (C) 1985-2004, American Megatrends, Inc.

Advanced Setup

Quick Boot Enabled1st Boot Device HDD:SS-ST3120026AS2nd Boot Device CD:DVD:3M-Pioneer D3rd Boot Device 1st Floppy DriveTry Other Boot Device YesBootup num-Luck Boot to OS/2 > 64MB AGP Aperture Size DRAM timing Hyper Threading Tecnology Auto Detect DIMM/PCI Clk Spread Spectrum Max CPUID Value Limit CPU TM function	[REDACTED]	Help Menu
		Allows BIOS to skip certain tests while booting. This will decrease the time needed to boot the system.

↑↓←→ :Move Enter:Select +/-:Value F10:Save ESC:Exit
F1: General Help F9: Optimized Defaults

Quick Boot (Enabled)

If you enable this item, the system starts up more quickly because of the elimination of some of the power on test rutines.

1st/2nd/3rd Boot Device

Use this item to determine the device order the computer used to look for an operating system to load at start-up time. The devices showed here will be different depending on the exact devices installed on your motherboard.

Try Other Boot Device (Yes)

If you enable this item, the system will also search for other boot devices if it fails to find an operating system from the first boot device.

BootUp Num-Lock (On)

This item determines if the Num Lock key is active or inactive at system start-up time.

Boot To OS/2 > 64MB (No)

Enable this item if you are booting the OS/2 operating system and you have more than 64MB of system memory installed.

AGP Aperture Size (128MB)

This item defines the size of aperture if you use a graphic adapter.

Configure DRAM Timing by (Enabled)

This item allows you to enable or disable the DRAM timing defined by the Serial Presence Detect electrical.

Hyper Threading Technology (Enabled)

If your P4 CPU is not HT CPU, this item will be hidden. If your P4 CPU is HT CPU, the BIOS will show this item. You can set "Disabled" or "Enabled" to control HT CPU support in the OS. Set "Enabled" to test HT CPU function.

Auto Detect DIMM/PCI CIk (Enabled)

When this item is enabled, BIOS will disable the clock signal of free DIMM/PCI slots.

If you enable spread spertrum, it can significantly reduce the EMI (Electro-Magnetic interface) generated by the system.

This item enables or disables the Max CPU ID value limit. When Prescott with LGA775 CPU is installed, enable this item to prevent the system from "rebooting" when trying to install Windows NT4.0.

CPU TM function (TM1)

This item displays CPU's temperature and enables you to set a safe temperature to Prescoot CPU.

Press to return to the main menu setting page.

Features Setup

This page sets up some parameters for peripheral devices connected to the system.

CMOS Setup Utility - Copyright (C) 1985-2004, American Megatrends, Inc. Features Setup

OnBoard Floppy Controller EnabledSerial Port1 Address 3F8/IRQ4Onboard IR Port DisabledParallel Port Address 378Parallel Port Mode ECPECP Mode DMA Channel DMA3Parallel Port IRQ IQ7OnBoard PCI IDE Controller BothOnBoard SATA IDE RAIDAudio Device EnabledModem Device AutoEthernet Device EnabledOnboard LAN Boot ROM DisabledOnboard USB Function EnabledUSB Function For DOS Disabled	Help Menu
	Allow BIOS to Enable or Disable Floppy Controller.

↑↓←→ :Move Enter:Select +/-:Value F10:Save ESC:Exit F1:General Help F9:Optimized Defaults

OnBoard Floppy Controller (Enabled)

Use this item to enable or disable the onboard floppy disk drive interface.

Serial Port1 Address (3F8/IRQ4)

Use this item to enable or disable the onboard COM1 serial port, and to assign a port address.

Onboard IR Port (Disabled)

Use this item to enable or disable the onboard IR port function.

Parallel Port Address (378)

Use this item to enable or disable the onboard Parallel port, and to assign a port address.

Parallel Port Mode (ECP)

Use this item to select the parallel port mode. You can select Normal (Standard Parallel Port), ECP (Extended Capabilities Port), EPP (Enhanced Parallel Port), or BPP (Bi-Directional Parallel Port).

ECP Mode DMA Channel (DMA3)

Use this item to assign the DMA Channel under ECP Mode function.

Parallel Port IRQ (IRQ7)

Use this item to assign IRQ to the parallel port.

OnBoard PCI IDE Controller (Both)

Use this item to enable or disable either or both of the onboard Primary and Secondary IDE channels.

OnBoard SATA-IDE (RAID)

Use this item to set the onboard SATA-IDE channel to be disabled, IDE, or RAID.

Audio Device (Enabled)

Use this item to enable or disalbe the onboard audio device.

Modem Device (Auto)

Use this item to enable or disalbe the onboard MC'97 modem device.

Ethernet Device (Enabled)

Use this item to enable or disable the onboard Ethernet.

Onboard LAN Boot ROM (Disabled)

Use this item to enable or disable the boot function using the onboard LAN boot rom.

Onboard USB Function (Enabled)

Enable this item if you plan to use the USB ports on this motherboard.

USB Function For DOS (Disabled)

Enable this item if you plan to use the USB ports on this motherboard in a DOS environment.

Press to return to the main menu setting page.

Power Mangement Setup

This page sets up some parameters for system power management operation.

CMOS Setup Utility - Copyright (C) 1985-2004, American Megatrends, Inc. Power Management Setup

ACPI Aware O/S YesPower Management EnabledSuspend Time Out DisabledResume on RTC Alarm DisabledLAN/Ring Power On DisabledKeyboard Power On DisabledWake-Up Key Any Key	Help Menu
	Yes / NoACPI support forOperating System.YES: If OSSupports ACPI.NO: If OSDoes not supportACPI.

↑↓←→ :Move Enter : Select +/- : Value F10: Save ESC: Exit F1:General Help F9:Optimized Defaults

ACPI Aware O/S (Yes)

This itme supports ACPI (Advanced Configuration and Power Management Interface). Use this item to enable or disable the ACPI feature.

Power Management (Enabled)

Use this item to enable or disable a power management scheme. If you enable power management, you can use this item below to set the power management operation. Both APM and ACPI are supported.

Suspend Time Out (Disabled)

This item sets up the timeout for Suspend mode in minutes. If the time selected passes without any system activity, the computer will enter power-saving Suspend mode.

Resume on RTC Alarm (Disabled)

The system can be turned off with a software command. If you enable this item, the system can automatically resume at a fixed time based on the system's RTC (realtime clock). Use the items below this one to set the date and time of the wake-up alarm. You must use an ATX power supply in order to use this feature.

LAN/Ring Power On (Disabled)

The system can be turned off with a software command. If you enable this item, the system can automatically resume if there is an incoming call on the Modem/Ring, or traffic on the network adapter. You must use an ATX power supply in order to use this feature.

Keyboard Power On (Disabled)

If you enable this item, system can automatically resume by pressing any keys or power key or typing in the password on the keyboard. You must use an ATX power supply in order to usethis feature.

Wake-Up Key (Any Key)

When Keyboard Power On is set to Enable, this item is available and users can enter any key, or hot key on the keyboard or type in the password.

Press to return to the main menu setting page.

PCI / Plug and Play Setup

This page sets up some parameters for devices installed on the PCI bus and those utilizing the system plug and play capability.

CMOS Setup Utility - Copyright (C) 1985-2004, American Megatrends, Inc.

PCI / Plug and Play Setup

Primary Graphics Adapter PCI-E VGAShare Memory Size 32MBAllocate IRQ to PCI VGA YesPCI IDE BusMaster Disabled	Help Menu
	No: lets the BIOSconfigure all thedevices in the system.YES: lets theoperating systemconfigure Plug andPlay (PnP) devices notrequired for boot ifyour system has a Plugand Play operatingsystem.

↑↓←→ :Move

Enter:Select

+/+: Value

F10: Save

ESC: Exit

F1:General Help

F9: Optimized Defaults

Primary Graphics Adapter (PCI-E VGA)

This itme indicates if the primary graphics adapter uses the PCI-E Lite VGA, PCI VGA, or AGP.

Share Memory Size (32MB)

This itme lets you allocate a portion of the main memory for the onboard VGA display.

*▲■* +☆☆

Allocate IRQ to PCI VGA (Yes)

If this item is enabled, an IRQ will be assigned to the PCI VGA graphics system. You set this value to No to free up an IRQ.

PCI IDE BusMaster (Disabled)

This item enables or disabled the DMA under DOS mode. We recommend you to leave this item at the default value.

Press to return to the main menu setting page.

BIOS Security Features

This page helps you install or change a password.

CMOS Setup Utility - Copyright (C) 1985-2004, American Megatrends, Inc. BIOS Security Features

Security Settings	Help Menu
Supervisor Password: Not Installed Change Supervisor Password Press Enter Password Check Setup	Install or Change the password.

↑↓←→ :Move Enter : Select +/- : Value F10: Save ESC: Exit F1:General Help F9:Optimized Defaults

Supervisor Password (Not Installed)

This item indicates whether a supervisor password has been set. If the password has been installed, Installed displays. If not, Not Installed displays.

Change Supervisor Password (Press Enter)

You can select this option and press to access the sub menu. You can use the sub menu to change the supervisor password.

Password Check (Setup)

This item enables users to choose the time when the system will perform password check.

Press to return to the main menu setting page.

CPU PnP Setup

This page helps you manually configure the CPU of this motherborad. The system will automatically detect the type of installed CPU and make the appropriate adjustments to these items on this page.

CMOS Setup Utility - Copyright (C) 1985-2004, American Megatrends, Inc.

CPU PnP Setup

Manufacturer: Intel Ratio Status: Locked DRAM Frequency Auto CPU Over-clocking Func. Disabled CPU Frequency: 200MHz	Help Menu

↑↓←→ :Move Enter:Select +/-:Value F10:Save ESC:Exit

F1: General Help F9: Optimized Defaults

Manufacturer (Intel)

These items indicate the brand of the CPU installed in your system.

Ratio Status/Actual Value/CMOS Setting (Locked)

Unlock the Ratio Status to modify the value of Actual Value and CMOS Setting.

DRAM Frequency (Auto)

This item enables users to adjust the DRAM frequency. The default setting is auto and we recommend users leave the setting unchanged. Modify it at will may cause the system to be unstable.

CPU Over-clocking Func. (Disabled)

This item decides the CPU over-clocking function/frequencyinstalled in your system. If the over-clocking fails, please turn off the system power. And then, hold the PageUp key (similar to the Clear CMOS function) and turn on the power, the BIOS will recover the safe default.

CPU Frequency

This item indicates the current CPU frequency. Users can not make any change to this item. Please note that the frequency will be varied with different CPU.

Press to return to the main menu setting page.

Hardware Monitor

This page helps you set up some parameters for the hardware monitoring function of this motherboard.

CMOS Setup Utility - Copyright (C) 1985-2004, American Megatrends, Inc. Hardware Monitor

-- System Hardware Monitor ---Vcore: 1.324 VVdimm: 2.544VVivdd: 1.467 VVcc5V: 5.148 VSB3V: 3.184 VVBAT: 3.200 VCPU FAN Speed: 2463 RPMSYSTEM FAN Speed: 0 RPMCPU Temperature: 47 °C/116-F	Help Menu

1↓←→ :Move Enter : Select +/- : Value F10: Save ESC: Exit F1:General Help F9: Optimized Defaults

System Hardware Monitor

These items display the monitoring of the overall inboard hardware health events, such as CPU temperature, CPU & DIMM voltage, CPU & system fan speed,...etc.

Press to return to the main menu setting page.

Load Best Performance Settings

If you select this item and press Enter a dialog box appears. If you select [OK], and then Enter, the Setup Utility loads a set of best-performance default values. These default are quite demanding and your system might not function properly if you are using slower memory chips or other low-performance components.

Warning: To load Best Performance Settings may make your system unstable or unbootable.

Load Optimal Defaults

This option opens a dialog box that lets you install stability-oriented defaults for all appropriate items in the Setup Utility. Select [OK] and then press to install the defaults. Select [Cancel] and then press to not install the defaults.

Save Changes and Exit

Highlight this item and press to save the changes that you have made in the Setup Utility and exit the Setup Utility. When the Save and Exit dialog box appears, select [OK] to save and exit, or select [Cancel] to return to the main menu.

Discard Changes and Exit

Highlight this item and press to discard any changes that you have made in the Setup Utility and exit the Setup Utility. When the Exit Without Saving dialog box appears, select [OK] to discard changes and exit, or select [Cancel] to return to the main menu.

If you have made settings that you do not want to save, use the “Discard Changes and Exit” item and select |OK| to discard any changes you have made.

◆◆◆◆◆◆

*▲■■**★□**□□□□□□□

About the Software CD-ROM

The support software CD-ROM that is included in the motherboard package contains all the drivers and utility programs needed to properly run the bundled products. Below you can find a brief description of each software program, and the location for your motherboard version. More information on some programs is available in a README file, located in the same directory as the software.

Never try to install all software from folfer that is not specified for use with your motherboard.

Before installing any software, always inspect the folder for files named README.TXT, INSTALL.TXT, or something similar. These files may contain important information that is not included in this manual.

Auto-installing under Windows 98/ME/2000/XP

The Auto-install CD-ROM makes it easy for you to install the drivers and software for your motherboard.

If the Auto-install CD-ROM does not work on your system, you can still install drivers through the file manager for your OS (for example, Windows Explorer). Refer to the Utility Folder Installation Notes later in this chapter.

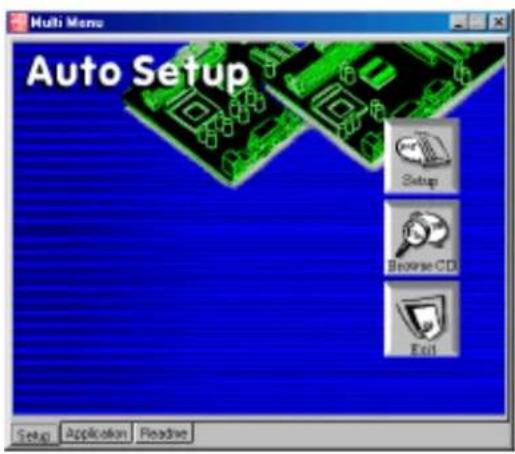

The support software CD-ROM disc loads automatically under Windows 98/ME/2000/XP. When you insert the CD-ROM disc in the CD-ROM drive, the autorun feature will automatically bring up the install screen. The screen has three buttons on it, Setup, Browse CD and Exit.

If the opening screen does not appear; double-click the file "setup.exe" in the root directory.

*▲■■■■■□■■□□■■■■

Setup Tab

Setup	Click the Setup button to run the software installation program. Select from the menu which software you want to install.
Browse CD	The Browse CD button is the standard Windows command that allows you to open Windows Explorer and show the contents of the support CD.Before installing the software from Windows Explorer, look for a file named README.TXT, INSTALL.TXT or something similar. This file may contain important information to help you install the software correctly.Some software is installed in separate folders for different operating systems, such as DOS, WIN NT, or WIN98/95. Always go to the correct folder for the kind of OS you are using.In install the software, execute a file named SETUP.EXE or INSTALL.EXE by double-clicking the file and then following the instructions on the screen.
Exit	The EXIT button closes the Auto Setup window.

Application Tab

Lists the software utilities that are available on the CD.

Read Me Tab

Displays the path for all software and drivers available on the CD.

Running Setup

Follow these instructions to install device drivers and software for the motherboard:

1. Click Setup. The installation program begins:

The following screens are examples only. The screens and driver lists will be different according to the motherboard you are installing.

The motherboard identification is located in the upper left-hand corner.

√

1. Click Next. The following screen appears:

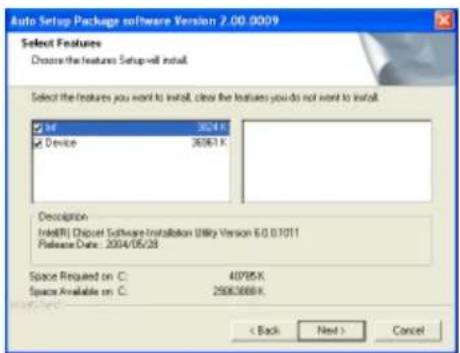

1. Check the box next to the items you want to install. The default options are recommended.
2. Click Next run the Installation Wizard. An item installation screen appears:

1. Follow the instructions on the screen to install the items.

Drivers and software are automatically installed in sequence. Follow the onscreen instructions, confirm commands and allow the computer to restart a few times to complete the installation.

Manual Installation

Insert the CD in the CD-ROM drive and locate the PATH.DOC file in the root directory. This file contains the information needed to locate the drivers for your motherboard.

Look for the chipset and motherboard model; then browse to the directory and path to begin installing the drivers. Most drivers have a setup program (SETUP.EXE) that automatically detects your operating system before installation. Other drivers have the setup program located in the operating system subfolder.

If the driver you want to install does not have a setup program, browse to the operating system subfolder and locate the readme text file (README.TXT or README.DOC) for information on installing the driver or software for your operating system.

Utility Software Reference

All the utility software available from this page is Windows compliant. They are provided only for the convenience of the customer. The following software is furnished under license and may only be used or copied in accordance with the terms of the license.

These software(s) are subject to change at anytime without prior notice. Please refer to the support CD for available software.

AMI/AWARD Flash Utility

This utility lets you erase the system BIOS stored on a Flash Memory chip on the motherboard, and lets you copy an updated version of the BIOS to the chip. Proceed with caution when using this program. If you erase the current BIOS and fail to write a new BIOS, or write a new BIOS that is incorrect, your system will malfunction. Refer to Chapter 3, Using BIOS for more information.

WinFlash Utility

The Award WinFlash utility is a Windows version of the DOS Award BIOS flash writer utility. The utility enables you to flash the system BIOS stored on a Flash Memory chip on the motherboard while in a Windows environment. This utility is currently available for WINXP\ME\2000\98SE. To install the WinFlash utility, run WINFLASH.EXE from the following directory: \UTILITY\WINFLASH 1.51

This concludes Chapter 4.

VIA RAID Configurations

The motherboard includes a high performance Serial ATA RAID controller integrated in the VIA VT8237 Southbridge chipset. It supports RAID 0, RAID 1 and JBOD with two independent Serial ATA channels.

RAID: (Redundant Array of Independent Disk Drives) use jointly several hard drives to increase data transfer rates and data security. It depends on the number of drives present and RAID function you select to fulfill the security or performance proposes or both.

RAID 0 (called data striping) optimizes two identical hard disk drives to read and write data in parallel, interleaved stacks. Two hard disks perform the same work as a single drive but at a sustained data transfer rate, double that of a single disk alone, thus improving data access and storage.

RAID 1 (called data mirroring) copies and maintains an identical image of data from one drive to a second drive. If one drive fails, the disk array management software directs all applications to the surviving drive as it contains a complete copy of the data in the other drive. This RAID configuration provides data protection and increases fault tolerance to the entire system.

JBOD: (Just a Bunch of Drives) Also known as “Spanning”. Two or more hard drives are required. Several hard disk types configured as a single hard disk. The hard drives are simply hooked up in series. This expands the capacity of your drive and results in a useable total capacity. However, JBOD will not increase any performance or data security.

Install the Serial ATA (SATA) hard disks

The VIA VT8237 Southbridge chipset supports Serial ATA hard disk drives. For optimal performance, install identical drives of the same model and capacity when creating a RAID set.

• If you are creating a RAID 0 (striping) array of performance, use two new drives.
• If you are creating a RAID 1 (mirroring) array for protection, you can use two new drives or use an existing drive and a new drive (the new drive must be of the same size or larger than the existing drive). If you use two drives of different sizes, the smaller capacity hard disk will be the base storage size. For example, one hard disk has an 80GB storage capacity and the other hard disk has 60GB storage capacity, the maximum storage capacity for the RAID 1 set is 60GB.

Follow these steps to install the SATA hard disks for RAID configuration.

i Before setting up your new RAID array, verify the status of your hard disks. Make sure the Master/Slave jumpers are configured properly.

ii Both the data and power SATA cables are new cables. You cannot use older 40-pin 80-conductor IDE or regular IDE power cables with Serial ATA drives. Installing Serial ATA (SATA) hard disks require the use of new Serial ATA cable (4-conductor) which supports the Serial ATA protocol and a Serial ATA power cable.

iii Either end of the Serial ATA data cable can be connected to the SATA hard disk or the SATA connector on the motherboard.

1 Install the Serial ATA hard disks into the drive bays.
2 Connect one end of the Serial ATA cable to the motherboard's primary Serial ATA connector (SATA1).
3 Connect the other end of Serial ATA cable to the master Serial ATA hard disk.
4 Connect one end of the second Serial ATA cable to the motherboard's secondary Serial ATA connector (SATA2).
5 Connect the other end of Serial ATA cable to the secondary Serial ATA hard disk.
6 Connect the Serial ATA power cable to the power connector on each drive.
7 Proceed to section "Entering VIA Tech RAID BIOS Utility" for the next procedure.

Entering VIA Tech RAID BIOS Utility

1 Boot-up your computer.
2 During POST, press to enter VIA RAID configuration utility. The following menu options will appear.

The RAID BIOS information on the setup screen shown is for reference only. What you see on your screen may not by exactly the same as shown.

On the upper-right side of the screen is the message and legend box. The keys on the legend box allow you to navigate through the setup menu options. The message describes the function of each menu item. The following lists the keys found in the legend box with their corresponding functions.

F1 View Array

↑↓

Move to the next item

Enter Confirm the selection

ESC Exit

Create Array

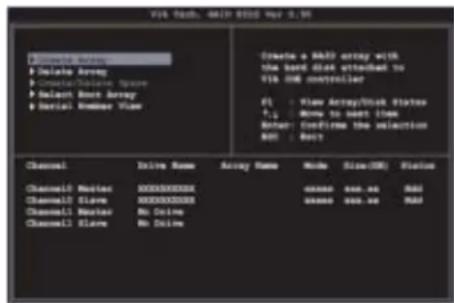

1 In the VIA RAID BIOS utility main menu, select Create Array then press the key. The main menu items on the upper-left corner of the screen are replaced with create array menu options.

RAID 0 for performance

1 Select the second option item Array Mode, then press the key. The RAID system setting pop-up menu appears.

2 Select RAID 0 for performance from the menu and press . From this point, you may choose to auto-configure the RAID array by selecting Auto Setup for Performance or manually configure the RAID array for stripped sets. If you want to manually configure the RAID array continue with next step, otherwise, proceed to step #5.

3 Select Select Disk Drives, then press . Use arrow keys to select disk drive/s, then press to mark selected drive. An asterisk is placed before the selected drive.

4 Select Block Size, then press to set array block size. Lists of valid array block sizes are displayed on a pop-up menu.

Tip For server systems, it is recommended to use a lower array block size. For multimedia computer systems used mainly for audio and video editing, a higher array block size is recommended for optimum performance.

Use arrow keys to move selection bar on items and press to select.

5 Select Start Create Process and press to setup hard disk for RAID system. The following confirmation appears:

The same confirmation message appears when the Auto Setup for Performance option is selected.

Press "Y" to confirm or "N" to return to the configuration options.

RAID 1 for data protection

1 Select the second option item Array Mode, then press the key. The RAID system setting pop-up menu appears.

2 Select RAID 1 for data protection from the menu and press . Select next task from pop-up menu. The task Create only creates the mirrored set without creating a backup. Create and duplicate creates both mirrored set and backup.

3 Select task and press . The screen returns to Create Array menu items. From this point, you may choose to auto-configure the RAID array by selecting Auto Setup for Data Security or manually configure the RAID array for mirrored sets. If you want to manually configure the RAID array continue with next step, otherwise, proceed to step #5.

4 Select Select Disk Drives, then press . Use arrow keys to select disk drive/s, then press to mark selected drive. (An asterisk is placed before a selected drive.)

5 Select Start Create Process and press to setup hard disk for RAID system. The following confirmation message appears:

The same confirmation message appears when the Auto Setup for Performance option is selected.

Press "Y" to confirm or "N" to return to the configuration options.

*□**×√X*□*□*□*□*□□□*

Delete Array

1 In the VIA RAID BIOS utility main menu, select Delete Array then press the key. The focus is directed to the list of channel used for IDE RAID arrays.

2 Press the key to select a RAID array to delete. The following confirmation message appears.

Press "Y" to confirm or "N" to return to the configuration options.

Select Boot Array

1 In the VIA RAID BIOS utility main menu, select Select Boot Array then press the key. The focus is directed to the list of channel used for IDE RAID arrays.

2 Press the key to select a RAID array for boot. The Status of the selected array will change to Boot. Press key to go return to menu items. Follow the same procedure to deselect the boot array.

Serial Number View

1 In the VIA RAID BIOS utility main menu, select Serial Number View then press the key. The focus is directed to the list of channel used for IDE RAID arrays. Move the selection bar on each item and the serial number is displayed at the bottom of the screen. This option is useful for identifying same model disks.

*☆☆**×÷√×☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆

Duplicate Critical RAID 1 Array

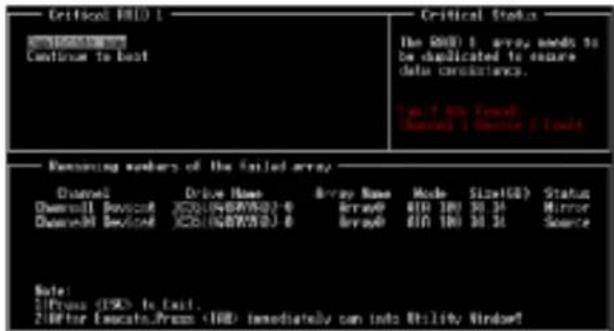

When booting up the system, BIOS will detect if the RAID 1 array has any inconsistencies between user data and backup data. If BIOS detects any inconsistencies, the status of the disk array will be marked as critical, and BIOS will prompt the user to duplicate the RAID 1 in order to ensure the backup data consistency with the user data.

If user selects Continue to boot, it will enable duplicating the array after booting into OS.

Rebuild Broken RAID 1 Array

When booting up the system, BIOS will detect if any member disk drives of RAID has failed or is absent. If BIOS detects any disk drive failures or missing disk drives, the status of the array will be marked as broken.

If BIOS detects a broken RAID 1 array but there is a spare hard drive available for rebuilding the broken array, the spare hard drive will automatically become the mirroring drive. BIOS will show a main interface just like a duplicated RAID 1. Selecting Continue to boot enables the user to duplicate the array after booting into operating system.

If BIOS detects a broken RAID 1 array but there is no spare hard drive available for rebuilding the array, BIOS will provide several operations to solve such problems.

*□**×√X*□*□*□*□□□◆□◆◆◆

1. Power off and Check the Failed Drive:

This item turns off the computer and replaces the failed hard drive with a good one. If your computer does not support APM, you must turn off your computer manually. After replacing the hard drive, boot into BIOS and select Choose replacement drive and rebuild to rebuild the broken array.

2. Destroy the Mirroring Relationship:

This item cancels the data mirroring relationship of the broken array. For broken RAID 1 arrays, the data on the surviving disk will remain after the destroy operation. However, Destroy the Mirroring Relationship is not recommended because the data on the remaining disk will be lost when the hard drive is used to create another RAID 1 array.

3. Choose Replacement Drive and Rebuild:

This item enables users to select an already-connected hard drive to rebuild the broken array. After choosing a hard drive, the channel column will be activated.

Highlight the target hard drive and press , a warning message will appear. Press Y to use that hard drive to rebuild, or press N to cancel. Please note selecting option Y will destroy all the data on the selected hard drive.

4. Continue to boot:

This item enables BIOS to skip the problem and continue booting into OS.

Installing RAID Software & Drivers

Install Driver in Windows OS

New Windows OS (2000/XP/NT4) Installation

The following details the installation of the drivers while installing Windows XP.

1 Start the installation:
Boot from the CD-ROM. Press F6 when the message "Press F6 if you need to install third party SCSI or RAID driver" appears.
2 When the Windows Setup window is generated, press S to specify an Additional Device(s).
3 Insert the driver diskette VIA VT8237 Disk Driver into drive A: and press .
4 Depending on your operation system, choose VIA Serial ATA RAID Controller (Windows XP), VIA Serial ATA RAID Controller (Windows 2000) or VIA Serial ATA RAID Controller (Windows NT4) from the list that appears on Windows XP Setup screen, press the key.
5 Press to continue with installation or if you need to specify any additional devices to be installed, do so at this time. Once all devices are specified, press to continue with installation.
6 From the Windows XP Setup screen press the key. Setup will now load all device files and the continue the Windows XP installation.

Existing Windows XP Driver Installation

1 Insert the ECS CD into the CD-ROM drive.
2 The CD will auto-run and the setup screen will appear.
3 Under the Driver tab, click on VIA SATA RAID Utility.
4 The drivers will be automatically installed.

Confirming Windows XP Driver Installation

1 From Windows XP, open the Control Panel from My Computer followed by the System icon.
2 Choose the Hardware tab, then click the Device manager tab.
3 Click the “+” in front of the SCSI and RAID Controllers hardware type. The driver VIA IDE RAID Host Controller should appear.

X

Installation of VIA SATA RAID Utility

The VIA SATA RAID Utility is the software package that enables high-performance RAID 0 arrays in the Windows*XP operating system. This version of VIA SATA RAID Utility contains the following key features:

• Serial ATA RAID driver for Windows XP
  • VIA SATA RAID utility
  • RAID0 and RAID1 functions

Insert the ECS CD and click on the Setup to install the software.

The InstallShield Wizard will begin automatically for installation. Click on the Next button to proceed the installation in the welcoming window.

*☆☆**×÷√×☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆

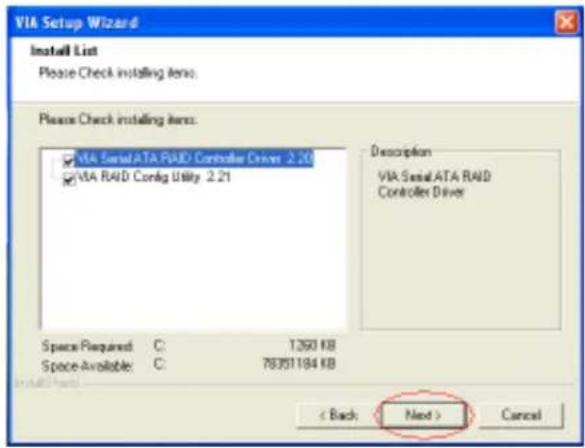

Put a check mark in the check box to install the feature you want. Then click Next button to proceed the installation.

Using VIA RAID Tool

Once the installation is complete, go to Start--> Programs--> VIA--> raid_tool.exe to enable VIA RAID Tool.

After the software is finished installation, it will automatically started every time Windows is initiated. You may double-click on the 📄 icon shown in the system tray of the tool bar to launch the VIA RAID Tool utility.

X√

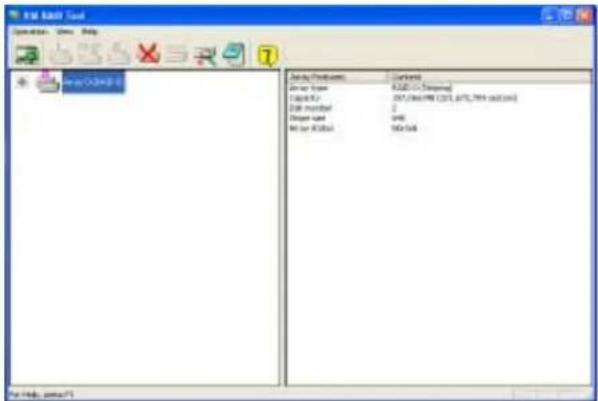

The main interface is divided into two windows and the toolbar above contain the main functions. Click on these toolbar buttons to execute their specific functions. The left windowpane displays the controller and disk drives and the right windowpane displays the details of the controller or disk drives. The available features are as following:

View by Controller

View by Devices

View Event log

Help Topics

It means that VT8237 SATA RAID only has the feature of monitoring the statuses of RAID 0 and RAID 1.

Click on or button to determine the viewing type of left windowpane. There are two viewing types: By controllers and by device. Click on the object in the left windowpane to display the status of the object in the right windowpane. The following screen shows the status of Array 0-RAID 0.

*☆**×√X☆☆☆☆☆◆□◆※

Click on the plus (+) symbol next to Array 0--RAID 0 to see the details of each disk.

You may also use the same RAID 1.

button to view the statuses of Array 0--

XX

Click on the plus (+) symbol next to Array 0; RAID 1 to see the details of each disk.

Caractéristiques

Processeur
