USER MANUAL SVC1861NFX SVAN

Please go through this manual before use.

Thank you for purchasing our products.

Attention:

* Please understand the safety instructions before use.
* Please keep this manual well after reading it for further reference.
* Notice will not be given if this manual is altered due to product improvement.

Warning

1. WARNING Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
2. WARNING Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
3. WARNING Do not damage the refrigerant circuit.
4. WARNING Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
5. The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.
6. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
7. Children should be supervised to ensure that they do not play with the appliance.
8. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
9. Please abandon the refrigerator-free zer according to local regulators for it use flammable blowing gas and refrigerant.
10. Disconnect the power supply before replacing the lamp.
11. Please according to local regulations regarding disposal of the appliance for its flammable refrigerant and blowing gas. Before you scrap the appliance, please take off the doors to prevent children trapped.

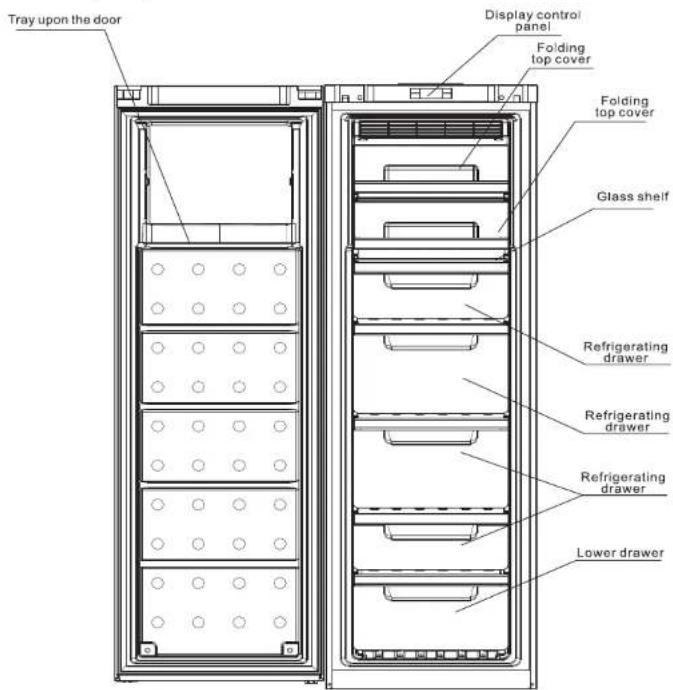

Names of the components

Apologizing for some features and accessories of the refrigerator you brought might not accord with the illustrations, refer to the packing list in the refrigerator please.

Note: remove folding top cover, tray upon the door, ice-makere, ice-collection box and refrigerating drawer according to graphic expression to get more space, and that will not affect the normal functions of the product.

Preparation before using g

Warning

• Except the solutions recommended by the manufacturer, do not use mechanical equipment or other means to accelerate defrosting.
• Except the types recommended by the manufacturer, do not use electrical appliance inside food closet.
  ● The refrigerator is provided with R600a refrigerant and cyclopentane foaming material, and both are combustible materials. Obsolete refrigerator should be isolated from fire and combustion treatment is forbidden.

New refrigerator

• Remove all packing materials before using, including bottom seating washer and foam pads and gummed paper inside:
• Use warm and wet cleaning cloth to wipe the refrigerator's interior and exterior (add a little detergent in the warm water and use clean water to clean up);
  ● Prepare a separating grounding receptacle with both polarities. Do not share multi-purpose socket with other electrical appliances;
• Connect earth wire. Earth electrode of the socket must be equipped with a reliable grounding wire.

Trans portation and placement of the refrigerator

Transportation

• Do not invert, traverse, press and shake the refrigerator. When moving the refrigerator angle of inclination shall not be lowered by 15°
  refrigerator, angle of inclination shall not be larger than 45°
• When moving, do not make excessive pressure to the door or top cover, otherwise deformation will occur.
• Slightly remove the refrigerator backward (less than 20^ ) to rear truckle roll a short distance.

Placement

• Place the refrigerator at a ventilative place, far away from heat source and direct sunlight. In order to avoid rust or reduce insulation result, please do not place it at damp and watered place.
  ● Top space for the refrigerator shall not be less than 30cm. Distance against two sides shall not be less than 10cm, Distance against to the wall shall not exceed 75mm, providing convenience to open and close the door and disperse the heat.
• Place the refrigerator on a flat and solid floor. (if it is not stable, you can regulate the regulating legs)

Attention

Make sure the power line is not pressed by the refrigerator or other articles. Before connect the power line, make sure the voltage range of the refrigerator accord with that of the power supply.

Correct application of the refrigerator

Ensure that the refrigerator is placed correctly and stably. Be aware of all safety matters needing attention.

1. Connect the electricity

After connecting electricity, it will enter into ex-factory state.

2. Put food into the refrigerator

Suggestion: after working a time, the refrigerator will arrive store temperature or after the first stop of the compressor, put food into it, which is beneficial to retain freshness.

Note: if the set temperature is altered or new food is put in, temperature inside the box will achieve the balance after a time, which is determined by the temperature alteration degree, temperature of ambient environment, opening frequency, quantity of the food inside and so on.

• Generally, temperature inside refrigerating chamber is below -18°C. Food needing long-term storage shall be put in refrigerating chamber.
• Quick-frozen food shall be put into the refrigerating chamber as soon as possible before defreezing.
• Hot food should be put into refrigerating chamber after it cools down to room temperature.
• Fruit and vegetable should not be put into refrigerating chamber. In order to avoid freezing and rupture, glass container with liquid should not be put into the refrigerating chamber.
• Quick-frozen food should be stored by category. Food in the same kind should be put into together. Thus, energy conservation can be realized by reducing opening frequency.

Refrigerating chamber's drawer

It is for food needing freezing. A block of meat should be put into the drawer after being sliced for convenience. When take out the food, pull our the drawer at first, then horizontally push the tray above the drawer inward, and then take out the food under the drawer,

Note: close the drawer, after using the refrigerating chamber.

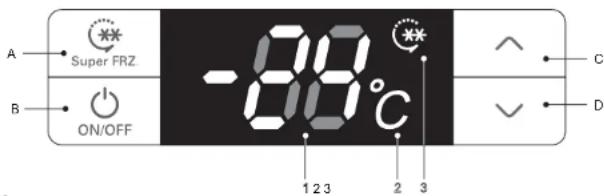

1. Keys

A. Super FRZ: quick-frozen pattern
B. ON/OFF: start up or shut down the system
C. ∧: increase temperature of the refrigerating box /: regulate quick-frozen time
D. √: decrease temperature of the refrigerating box /: regulate quick-frozen time

2. Names of functions of display screen

1、Temperature region digitron
2、Temperature (℃) icon
3、Quick-frozen icon

3. Display control

● Power on for the first time: all shines for three seconds with ringing of start bell. Defaulting temperature of the refrigerating box is -18°C.

● Normal operation display:

Temperature display region: when there is a failure, it will show failure codes by turn at a priority order; without failure, it will show the set temperature.

- Display control:

1、Under the normal pattern, it will not shine any more after thirty seconds without opening and key operation;
2、When the door is under open state, the display will shine all the time and it will stop shining thirty seconds after the door is closed.
3、When a failure happens and it is within "Failure Code", the screen will shine for one time and stop to shine after thirty seconds (if the buzzer has been ringing for a long time, press any key to cancel the failure bell);

4. User Mode operation

- Start-up and shutdown

Under start-up mode, press and hold ON/OFF key (B key) for three seconds, the start bell will ring and the system will be shut down immediately;

Under shut down mode, press and hold ON/OFF key (B key) for three seconds, the start bell will ring and the system will be started immediately.

Press ON/OFF key for three seconds to shut down the system and the display screen will not show any more. Except ON/OFF key (B key), other keys will stop responding, and compressor, defros ting heater, door lamp and other loads will be shut down immediately; Press ON/OFF key for three seconds to start up the system. Before starting, if the system is at Quick-Frozen Mode, the display screen will show -24°C and Quick-frozen icon was lighted, or otherwise the display screen will show the temperature inside refrigerating chamber (set at the last time) and all loads will run the mode having been set before shutdown.

All following functions must be worked under start state.

● Quick-Frozen Mode entry

When the system is at non Quick-Frozen Mode, press and hold Super FRZ key (A key) for three seconds to start the Quick-Frozen Mode, and quick-frozen icon will be lit up, and the display screen will show the defaulting quick-frozen time (6 hours). Press temperature regulation keys A (C key) or V (D key) to change quick-frozen time. A change needs 6 hours. Adjustment range is between 6 hours to 48 hours. If you do not press any key in five seconds and the setting will take effect automatically and show "-24°C"; within five seconds, you can press Super FRZ key(A key) manually for affirmation and it will show "-24°C". Then, the refrigerator will work under Quick-Frozen Mode.

Note: The freezing capacity marked in ra ting label is the test result of quick-freeze mode (mentioned above) selling in 48 hours

- Exit from Quick-Frozen Mode

After quick-froze mode takes effect and when it arrives the set quick-frozen time, press and hold Super FRZ (A key) for three seconds or change the set temperature by pressing certain keys to exit form Quick-Frozen Mode, and then the quick-frozen icon will not shine any more. After withdrawing from the Quick-Frozen Mode, it will run at the mode having been set before. Note: if it is shut down or has a power failure when the Quick-Frozen Mode is under operation, it will continue to run under the Quick-Frozen Mode after recovery.

- Set the temperature of the refrigerating chamber

Press temperature regulation keys A (C key) and V (D key) to set the temperature and the set temperature will shine. The setting range is between -16°C to -24°C (non-periodic temperature regulation); it will exit from setting state in five seconds and the setting will take effect. (within five seconds after finishing the setting, press A key or B key to affirm the set state manually and make the setting valid.)

5. Illuminating lamp control

When open refrigerating box's door, refrigerating box's illuminating lamp will shine. When close refrigerating box's door, refrigerating box's illuminating lamp will not shine any more.

6. Door-opening hint and door-opening alarming control

If refrigerator chamber door has been open for 120 seconds, it will ring warning bell, and the bell will ring per 2 seconds till the door is closed. Press any key to cancel the door-opening warning.

7. Power-interruption memory and initial power-up state

• When meet power interruption, the refrigerator can memory operating mode and state before automatically; When power up, it will recover to the state before interruption and run the mode having been set before interruption.
• Initial power-up state: the set temperature of refrigerating chamber is -18^ .
• Memory: include set temperature of refrigerating box, cumulative working hours of

Function introduction

8. High temperature warning of the refrigerating chamber

When the temperature of the refrigerating chamber has been above -8^ for six hours, high temperature warning will ring. The buzzer will ring per second for ten times and then ten times every thirty minutes, and temperature display region will show failure code (E9); the ringing will stop when the temperature of the refrigerating chamber is below -12^ . Press any key to cancel the warning buzzer (if it does not buzz after thirty minutes). But the failure code display state is not canceled, until the failure is solved.

1. Failure hint

Failure code	Hint	Failure code	Hint
E2	Temperature sensor failure of refrigerating box	E6	Communication failure
E5	Refrigerating defrosting sensor failure	E9	High temperature warning of the refrigerating chamber
E7	Ambient temperature sensor failure	EC	EEPROM circuit failure

Note: when there is a failure, the system will display all machine failures' codes by turn. The warning will be automatically canceled or be canceled by pressing any key. When failure happens, it is a priority to show failure code till failure recovery, otherwise the set temperature and quick-frozen icon cannot be displayed. If a failure has been displayed all the time and automatic recovery fails, please contact After-sale Department or professional maintenance personnel.

10. Force defrosting

Press and hold "temperature regulation" keys A and V for three seconds to enter into Force Defrosting Mode. High position of LED temperature region always shows "3" with no display in the low position. When entering into Force Defrosting Mode, the compressor and fan will be stopped immediately. When defrosting heater is forced to be started and under Force Defrosting Mode or the exiting conditions are satisfied, press and hold "temperature regulation" keys A and V for three seconds to exit from the Force Defrosting Mode.

Matters needing attention

Do not arbitrarily dismantle or repair. Choose the repair shops designated by the manufacturer to replace the accessories.

Use standard professional three-hole power socket (above 10A). Socket grounding must be good.

In order to avoid fire, please do not use combustible solvents nearby the refrigerator.

In order to avoid destroy, fire and other accidents, please do not put anything combustible, explosive, volatile and strongly corrosive into the refrigerator. In order to avoid freezing, rupture and other losses, please do not put the bottles with fluids or sealing containers into the refrigerating box.

In order to avoid accidental harm caused by closing a child inside or refrigerator falling, do not allow the children to enter into or climb the refrigerator.

Do not put the heavy things on the refrigerator, otherwise it will easily fall and cause harm.

Do not put too much food into the refrigerator.

Do not open the door and drawers for a long time or frequently open the door and drawers, otherwise it would weaken the efficiency of the complete machine and increase operating load.

When the refrigerator is not at normal operation or destroyed, please cut off the power and inform local service center.

Do not splash the water on the top or back of the refrigerator, otherwise it would reduce insulation effect.

Attention:

The product is a household refrigerator. According to the national standards, household refrigerator is only applicable to store food and cannot be used for other purpose such as storing blood, drugs, biological products, etc.

Refrigerator maintenance

Cleaning

Fingerprints are easily left on its exterior. Use a dry towel to wipe up. Periodically clean the dust both at the back of and under the refrigerator.

Refrigerator interior should be cleaned frequently so as to avoid foreign odor. After the power is cut off, use soft towel and neutral detergent to clean and wipe with the clean water.

Do not use the following products to clean refrigerator interior: ● Alkaline or alkalescent detergents; (may cause the inner liner and plastic components to crack)

- Soap powder, benzine, amyl acetate, alcohol, etc.; (may destroy the plastic components)

- If cooking oil or seasonings blot on the refrigerator's external surface, please clean it immediately. (may cause the plastic components to crack)

Lamps and replacement

If the Illumina ting lamp occur failure, please contact professional personnel for home service.

Halt

Non-use with in a long time Please plug off the power to avoid electric shock or fire due to power line aging; clean up refrigerator interior; open the door for a time and close it after the interior become completely dry.

Power fa ilure: ... Reduce opening times as many as possible; you'd better not to put fresh food in it.

Discard: ... When discard unused refrigerator, door seal must be dismantled off, so that the children would not be closed in it by accident.

Door Right-Left Change

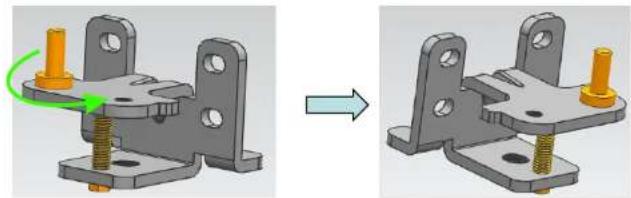

1. Remove the two nut caps and two hinge cover plates from the top beam (open the door toward right)

1. Remove decorating components from the top beam

1. Remove the two bolts fixed with hinges, pull the hinges out from one side and dismantle the door at the same time. As last, take the hinges out from the door.

Door Right-Left Change

1. Reassemble the lower hinge axis: dismantle the original hinge axis and assemble it at the graphic position.

Mechanical assembly diagram showing a metal bracket with bolt holes and a green arrow indicating rotation (no text or symbols)

5、Reassemble the upper hinges axis: dismantle the hinge axis and assemble by rota fing it from the other end of the screw hole.

3D mechanical component before and after assembly, showing a bracket with mounting holes (no text or symbols)

1. Inst all the upper hinges fixed leg (on the left) at the right side.

Diagram showing a computer monitor with a cable being inserted, before and after the change (no text or symbols present)

Door Right-Left Change

7、Install the lower hinge at the right side of the refrigerator

3D rendering of a cabinet with two drawers and a highlighted lower hinge (no text or symbols on the cabinet itself)

1. Inst all the upper hinges into the relative axle holes on the right (upon the door) at first, then place the door on the lower hinges, press upper hinges into hinge fixed legs and fix the upper hinges at last.

3D rendering of a mechanical cabinet with internal compartments and a green safety guard (no text or symbols visible)

1. Install top-beam decoration, nut caps and hinge cover plates

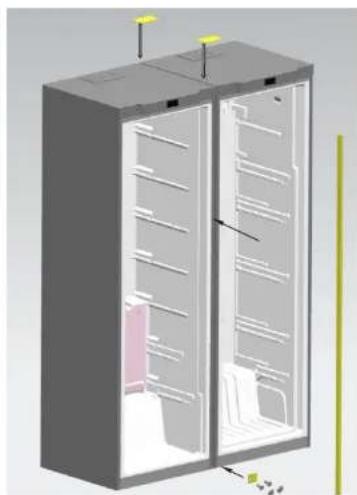

CONNECTING GUIDE for REFRIGERATOR AND FREEZER CABINETS

1 ^st Stop:Put two cabinets together with only 10mm gap. Fix the connecting hinge to the place as shown in the picture.

3D architectural diagram showing two views of a building facade with ventilation grilles and structural elements (no text or symbols)

3" Sep: Put the best inside the gap between two cabinets. The correcting 500 finished.

2 ^st Stop: Fit the lower connecting hinge at the bottom of two cabinets.

Diagram showing two views of a mechanical component with a highlighted yellow component and scattered particles (no text or symbols)

3D rendering of a server rack cabinet with shelves and ventilation grilles (no text or symbols visible)

3D architectural rendering of a building facade with visible doorways and structural elements (no text or symbols)

3D diagram of a refrigerator interior showing internal compartments and doorways (no text or labels)

Before overhaul, please read following content carefully

Phenomenon	Possible reasons and matters needing check
Inoperation	Not charged with electricity or loose pluggingExcessively low voltage
Poor refrigeration	High temperature regulationToo much foodHot foodFrequent door operation (open and close)Incomplete door closingHeat source nearby
High noises	Uneven floor and unsteady placementRight placement of accessories
Foreign odor	Unsealed wrapping of odorous foodSour foodUncleanliness interior

If the situation still exist after checking all above matters, please
contact our company's After-sale Department.
The damaged power cord must be replaced by maintenance personnel
appointed by our company for the sake of safety.

Non-failure phenomenon

Within the capillary tubes, refrigerant fluid flows very fast, sometimes carries few air bubbles, which might cause irregular noises at the entrance. If the refrigerator is under quick-refrigeration state, opening the refrigerating chamber will produce sound of the wind, that is the sound of high-speed rotation of the fan.

When air humidity is relatively high, areas around the door may be damp and you can clean it with a dry cloth.

Correct Disposal of this product

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
