E6SI3-62MN - Iron ELECTROLUX - Free user manual and instructions

Product Type	Steam Iron
Brand	Electrolux
Model	E6SI3-62MN
Voltage	220-240 V
Power	2400 W
Soleplate Material	Stainless Steel
Water Tank Capacity	300 ml
Cord Length	2 m
Weight	1.2 kg
Dimensions (L x W x H)	30 x 12 x 15 cm
Temperature Settings	Adjustable: Delicate to Linen
Continuous Steam	Yes
Steam Jet	Yes
Vertical Steam	Yes
Spray Function	Yes
Anti-Drip System	Yes
Self-Cleaning Function	Yes
Automatic Shut-Off	No
Cord Storage	Yes
Warranty	2 years

Frequently Asked Questions - E6SI3-62MN ELECTROLUX

What should I do if the soleplate is not heating?

First, check that the iron is properly connected to the power supply. If it is, select a higher temperature setting, such as Cotton. The iron may be set to a low temperature like Delicate, which prevents heating.

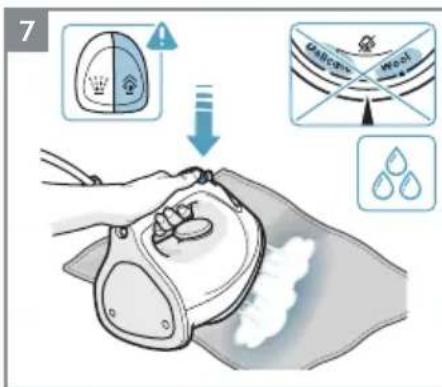

Why is my iron not producing steam?

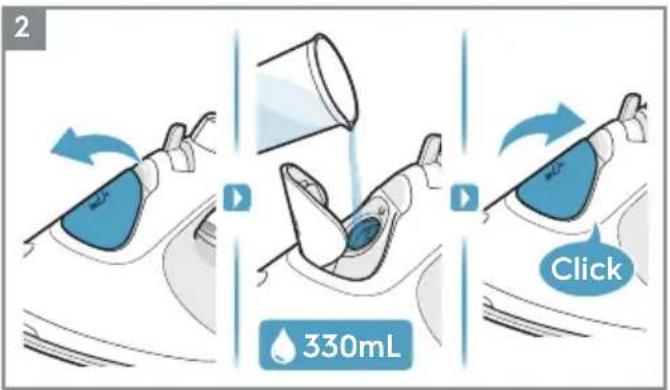

Ensure the water tank is filled (see 'Getting started' for instructions). Also, the temperature must be set to at least Cotton for steam generation. If the temperature is too low, the iron cannot produce steam.

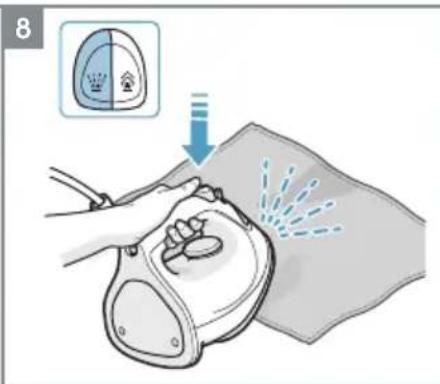

How do I use the steam jet function?

Press and hold the steam jet button. Ensure the iron is hot enough (temperature set to Cotton or higher). If the function has been used frequently, let the iron rest horizontally for a moment before using again.

Why does water leak from the soleplate?

Water leakage typically occurs if the iron is not hot enough. Set the temperature to Cotton or higher and wait for the indicator light to turn off. Also, ensure the steam lever is in the 'no steam' position after use.

How do I clean the iron to remove scale?

Use the self-cleaning function: fill the tank with a mixture of white vinegar and water (150 ml each) or citric acid solution (15 ml citric acid + 285 ml water). Follow the cleaning procedure in the manual (see 'Maintenance').

How can I prevent brown streaks on clothes?

Brown streaks are often caused by burnt fabric fibers or using chemical descaling agents. Clean the soleplate with a damp soft cloth and avoid aggressive descaling products. Also, rinse new garments before ironing.

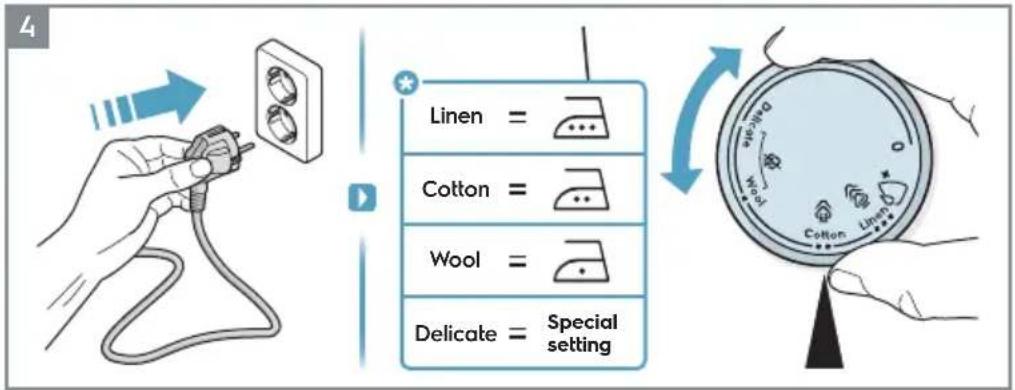

What temperature setting should I use for different fabrics?

Refer to the ironing chart in the manual. For example, use Delicate for silk and synthetics, Cotton for cotton and linen, and Wool for wool blends. Always check the garment care label.

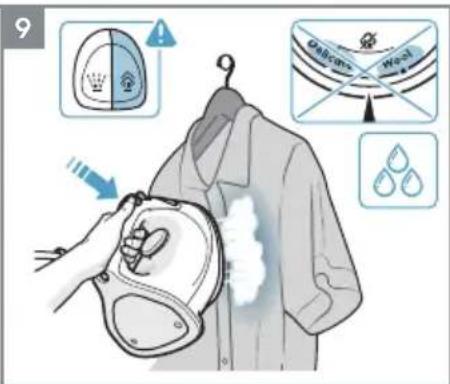

Can I use the iron vertically for hanging garments?

Yes, the iron has a vertical steam function. Hold the iron upright and press the steam jet button to remove wrinkles from hanging clothes or curtains.

Is the iron safe to leave unattended?

No, the iron must not be left unattended while connected to the power supply. Always unplug the iron when not in use and keep it out of reach of children under 8 years.

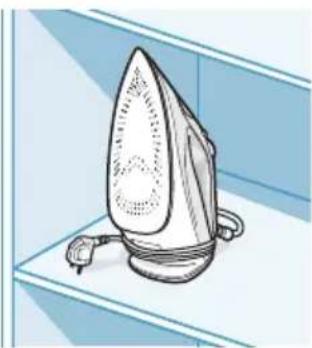

How should I store the iron after use?

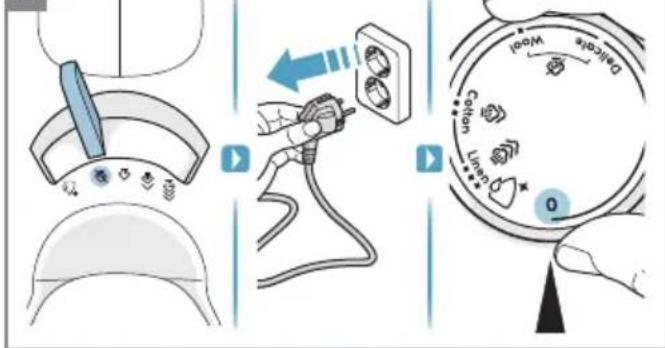

Turn off the iron, unplug it, and empty any remaining water from the tank. Set the steam lever to the 'no steam' position and allow the iron to cool completely before storing it on its heel.

USER MANUAL E6SI3-62MN ELECTROLUX

Refine 600 Steam Iron

E6SI3-61xx

E6S13-62xx

E6S13-82xx

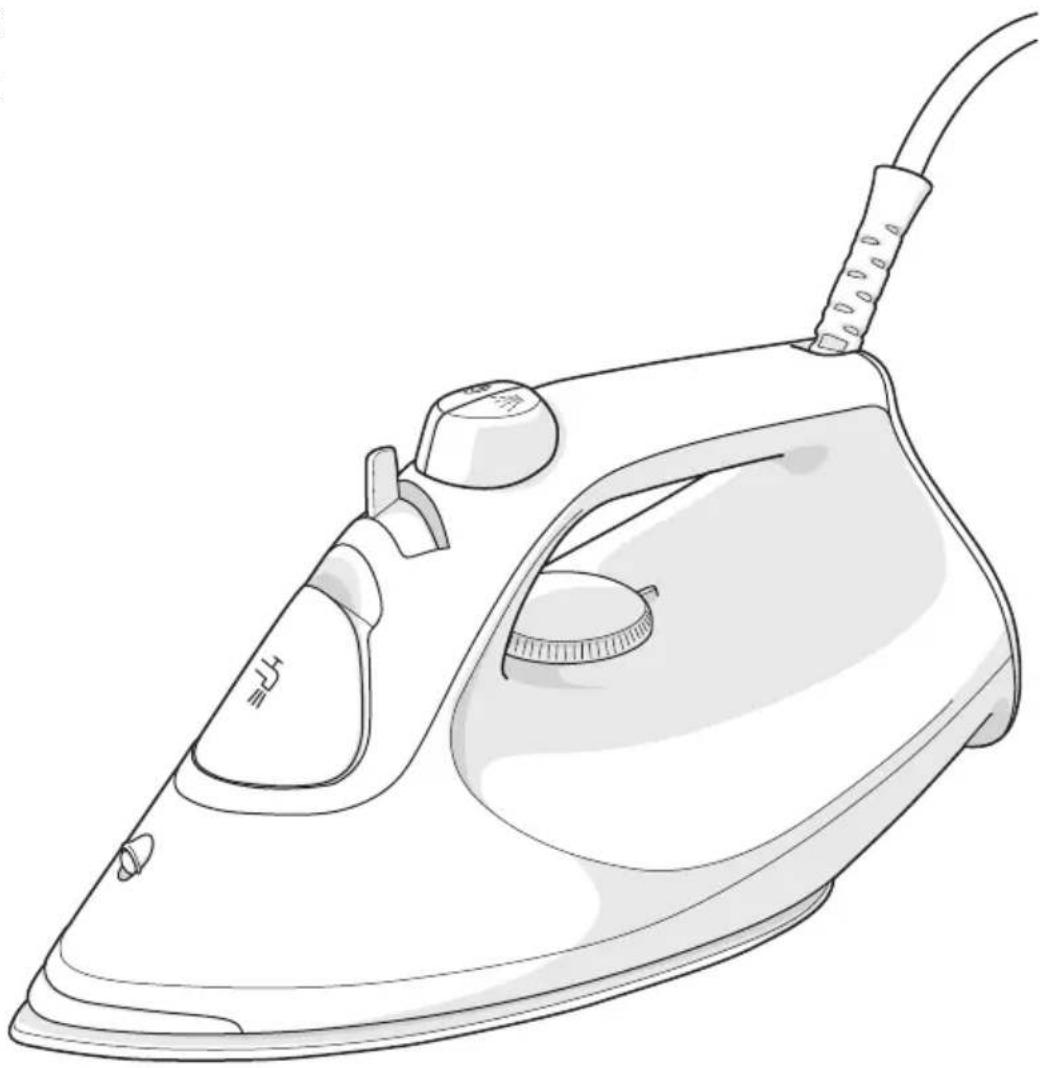

Line drawing of a steam iron with handle and spout (no text or symbols)

EN INSTRUCTION BOOK

CNS 说明手册

KR사용 설명서

ID Buku Panduan

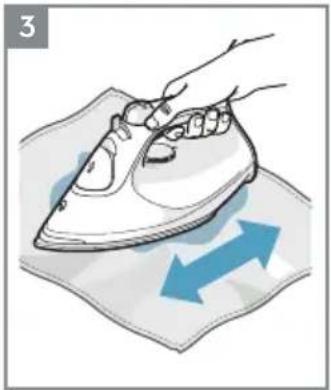

Illustration of a hand using a power iron to clean a cloth with blue directional arrows (no text or symbols)

12

14

Illustration of a pair of iron burners with attached power plugs, showing side-by-side wiring and a blue play button (no text or symbols)

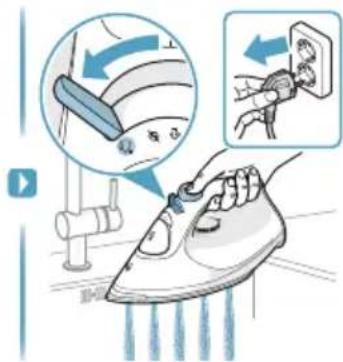

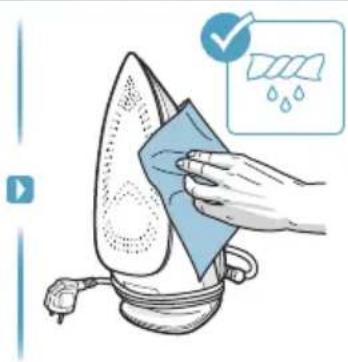

Illustration of a hand cleaning a steaming iron with a cloth, showing cleaning process (no text or symbols)

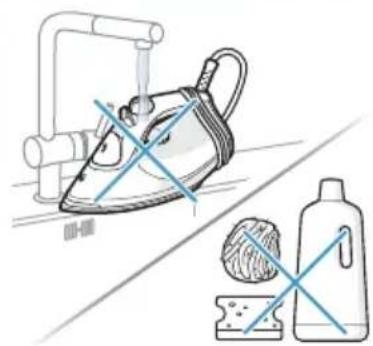

Illustration of a steam iron on a surface with a crossed-out cleaning board and a bottle nearby (no text or symbols)

15

Illustration of a shoe's front and side profile with a thermometer and checkmark (no text or symbols on the main diagram)

▶

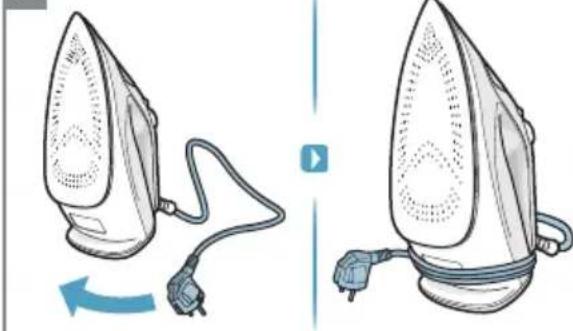

Illustration of a steam iron on a shelf, no text or symbols present

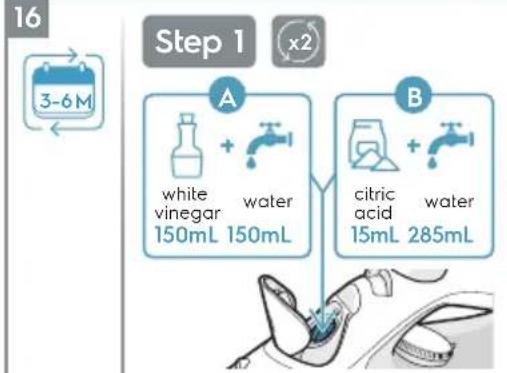

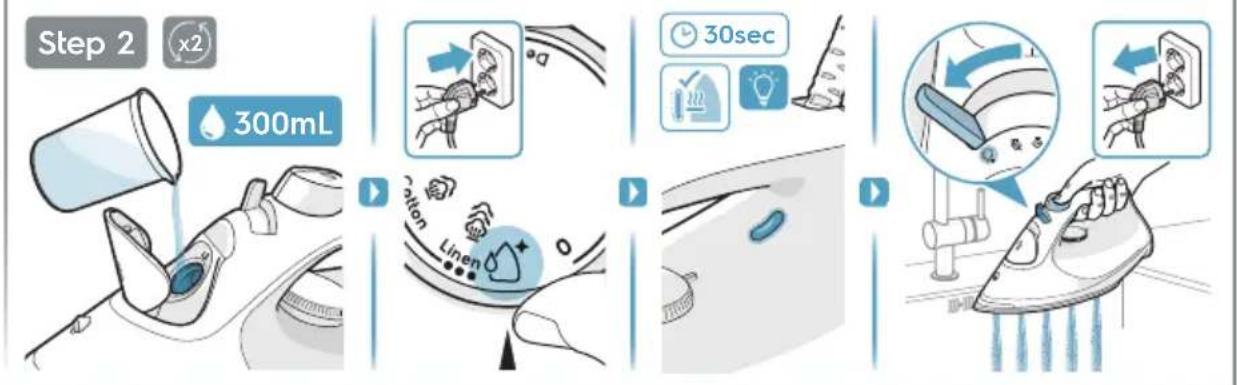


INSTRUCTION MANUAL

Graphics and drawings in this manual are solely for illustration purposes and are subject to variations from actual product.

Keep this manual for future reference.

SAFETY ADVICE

Read the following instruction carefully before using machine for the first time.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• No action must be taken to adjust the appliance for operation at the required rated frequency.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The iron must not be left unattended while it is connected to the supply mains;

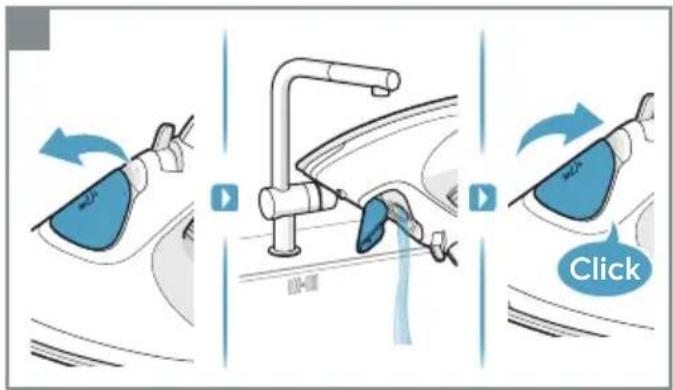

• The plug must be removed from the socket-outlet before the water reservoir is filled with water;
• The filling, or decalcifying, or rinsing, or inspection apertures that are under pressure, must not be opened during use;

-The iron must be used and rested on a flat, stable surface;

• When placing the iron on its stand, ensure that the surface on which the stand is placed is stable;
• The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.
• Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.

Surfaces are liable to get hot during use.

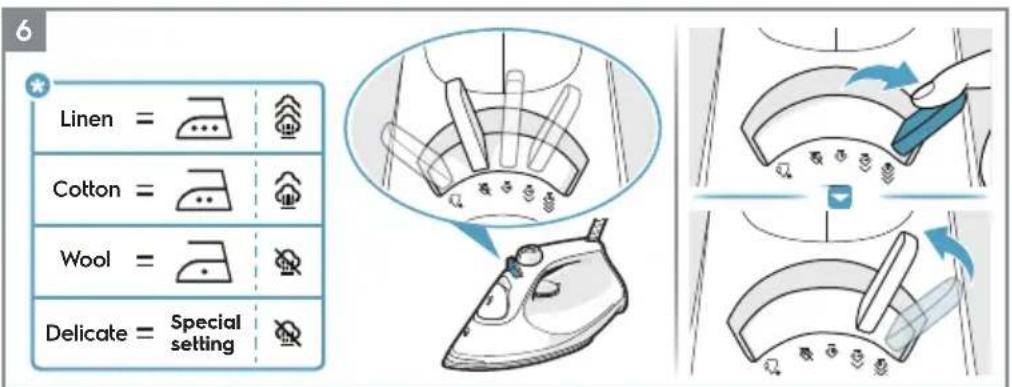

IRONING CHART

FABRIC TEMPERATURE	SETTING IRONING RECOM	MENDATION
Acrylic Delicate Dry iron	inside out.
Acetate Delicate Dry iron	inside out while still damp	or use spray to dampen.
Nylon & Polyester Delicate	Iron inside out while still damp	damp or use spray to dampen.
Rayon Delicate Iron inside	out.
Viscose Delicate Iron inside	out.
Silk	Delicate Iron inside out. Use	an ironing cloth to prevent shiny iron marks.
Wool & Wool blends	Wool	Iron inside out or use ironing cloth.
Cotton	Cotton	Dry iron while still damp or use spray to dampen. Use maximum steam.
Corduroy	Cotton	Steam iron inside out or use ironing cloth.
Linen	Cotton or Linen	Iron inside out or use ironing cloth to prevent shiny iron marks, especially with dark-colored fabrics. Dry iron while still damp or use spray to dampen. Use maximum steam.
Denim Cotton or Linen Use maximum steam. Apply maximum steam by pressing and holding the steam on/off button.
Please follow the instructions of your garment care label. Varied ironing speed and fabric dampness might cause optimal setting to differ from the recommendations in the table!

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION

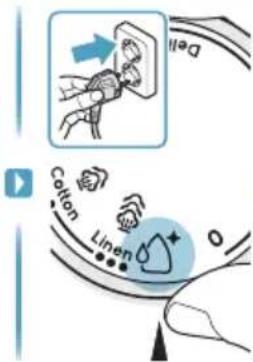

Soleplate is not heating even though iron is turned on.	Connection problem Select higher	programme like "Cotton".
	Temperature control is in "Delicate" position.	Select higher programme like "Cotton".
Iron does not produce steam. Not	enough water in tank. Fill water tank	(see "Getting started", no 2).
	Selected temperature is lower than that specified to use with steam.	Increase temperature to at least "Cotton".
Steam jet and vertical steam jet function does not work.	Steam jet function was used very frequently within a short period.	Put iron on horizontal position and wait before using steam jet function.

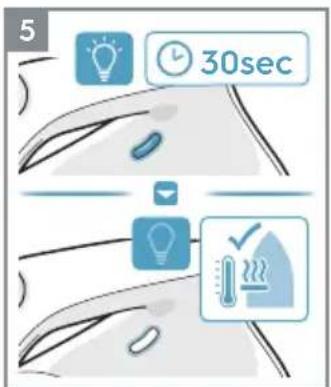

	Iron is not hot enough. Select the	Cotton setting ("Cotton" to "Linen") suitable for steam ironing. Put the iron on its heel and wait until temperature indicator light turns off.
Water leaks from the soleplate during ironing.	Iron is not hot enough. Select the	Cotton setting ("Cotton" to "Linen") suitable for steam ironing. Put the iron on its heel and wait until temperature indicator light turns off.

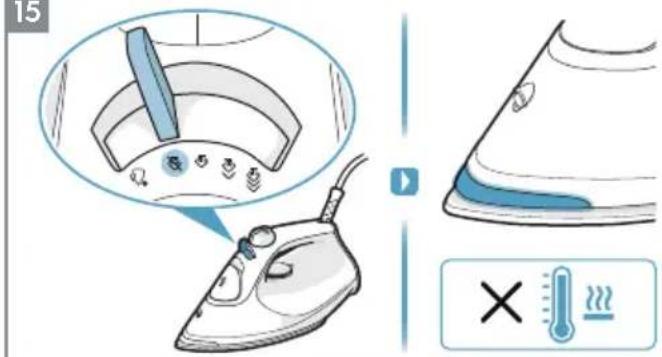

Water leaks from the soleplate while the iron is cooling down or after it has been stored.	You may have forgot to put steam lever in "no steam position".	Turn steam lever to "no steam position" position when finished ironing (see "After use", no 12).
Flakes and impurities come out of the soleplate during ironing.	You may have used hard water, which has caused scale flakes to develop in the water tank.	Clean the iron according to Cleaning section (see "Maintenance", no 16).
Brown streaks come out of the soleplate while ironing and stain the linen.	You may have used non recommended chemical descaling agents.	Clean the iron according to Cleaning section (see "Maintenance", no 16).
	Fabric fibers have accumulated in the holes of the soleplate and are burning.	Clean the soleplate with a damp soft cloth.
	Fabrics might not be properly rinsed or the garments are new and have not been washed before ironing.	Please rinse the fabrics properly before ironing.

DISPOSAL

This symbol on the product or on its packaging indicates that the product may not be treated as household waste.

To recycle your product, please take it to an official collection point or to an Electrolux service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

Electrolux reserves the right to change products, information and specifications without notice.

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com

Register your product for better service: www.electrolux.com/productregistration

Buy accessories and consumables for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available:

• Model Number
• PNC number
• Serial number

The information can be found on the rating plate.
