Product Type	2-Way Full Marinized Marine Waketower Speaker System
Brand	BOSS Audio Systems
Model	B6ABT
Speaker Size	6.5" (165 mm) Mid Bass Driver + 1" (25 mm) PEI Dome Tweeter
Impedance	4 Ohms
Frequency Response	140 Hz - 20 kHz
Sensitivity	93 dB (1W/1m)
Crossover	Built-in
Amplifier Type	Built-in amplifier
Amplifier Input Impedance	10 kΩ
Amplifier Frequency Response	20 Hz - 20 kHz
Bluetooth Version	V5.0 w/ EDR A2DP
Bluetooth Range	33 ft (10 m)
Bluetooth Network Name	BOSS Audio Systems B6ABT
Power Supply	12V DC (via included power wire harness)
Dimensions (W x H x D)	7-3/16" x 9-7/8" x 7-5/16" (182 x 250 x 186 mm)
Weight (in gift box)	10.7 lbs (4.85 kg)
Mounting Tube Diameter Compatibility	1.5" - 2" (38 - 51 mm)
Waterproof Rating	Fully waterproof (marinized)
Included Accessories	2 speakers, mounting bands, screws, washers, locknuts, rubber pads, stereo wire, power harness
Safety	Mount securely; avoid head impact; secure wires; do not block pilot view
Maintenance	Clean with mild soap and water; avoid abrasive cleaners
Spare Parts & Repairability	Contact BOSS customer support for parts and service

Frequently Asked Questions - B6ABT BOSS

How do I connect my phone to the B6ABT via Bluetooth?

Ensure Bluetooth is enabled on your device. The speaker will automatically pair when in range (up to 33 ft). The network name is BOSS Audio Systems B6ABT. If prompted, no password is required.

What is the Bluetooth range of the B6ABT?

The Bluetooth range is 33 feet (10 meters) in open air. Walls or obstacles may reduce this range.

Are these speakers waterproof?

Yes, the B6ABT is fully marinized and waterproof, designed for marine environments like wake towers. However, avoid submerging connectors.

What mounting tube sizes does the B6ABT fit?

The included aluminum bands accommodate mounting tube diameters from 1.5" to 2" (38-51 mm). Two sets of bands are provided for different sizes.

How do I install the B6ABT waketower speakers?

First, loosen the two screws on the mounting band to adjust angle. Then attach the rubber pad and aluminum band around the cage bar. Secure with M6 screws, washers, and locknuts. Finally, tighten all hardware. See manual for detailed steps.

What are the power requirements for the built-in amplifier?

The amplifier requires a 12V DC power supply. The included power harness connects to a 12V accessory source and battery. A fuse holder (not included) is recommended.

Can I use these speakers in a car instead of a boat?

While designed for marine use, they can be used in vehicles as long as the mounting and power requirements are met. However, they are optimized for outdoor, high-moisture environments.

What are the dimensions and weight of the B6ABT?

Each speaker measures 7-3/16" (W) x 9-7/8" (H) x 7-5/16" (D) (182x250x186 mm). The total weight in the gift box is 10.7 lbs (4.85 kg).

What type of tweeter does the B6ABT use?

It uses a 1-inch (25 mm) PEI dome tweeter for clear high-frequency sound.

How do I clean and maintain the speakers?

Use a mild soap and water solution with a soft cloth. Avoid harsh chemicals or abrasive cleaners. Dry thoroughly after cleaning. Periodically check mounting hardware for tightness.

USER MANUAL B6ABT BOSS

FEATURING BUILT-IN AMPLIFIER

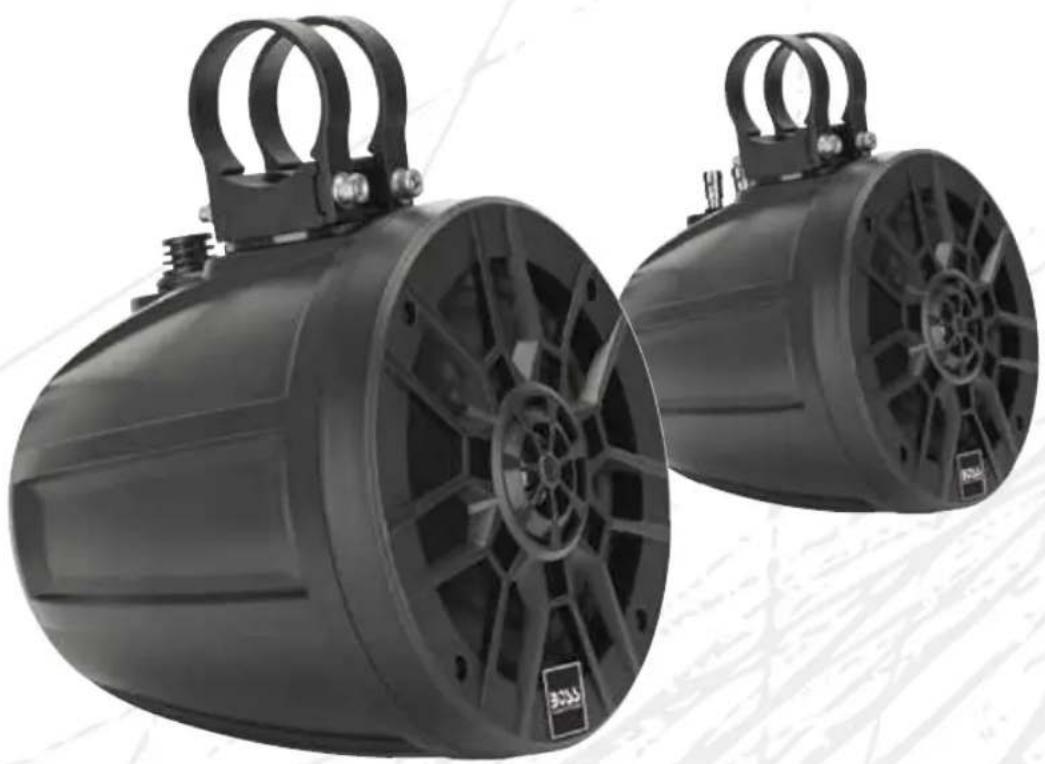

Two black industrial fan-shaped devices with visible blades and mounting brackets (no text or symbols)

BOSS®

AUDIO SYSTEMS

B6ABT

2-Way Full Marinized Marine Waketower Speaker System

Congratulations on your purchase of a BOSS Marine AUDIO SYSTEMS Waketower Speaker System.

It has been engineered to bring you the highest level of performance. Its quality will afford you years of listening pleasure.

Thank you for making BOSS AUDIO SYSTEMS your choice for marine audio entertainment!

Specifications

Mid Bass Driver:

6.5" (165mm) poly injection cone rubber surround

Tweeter:

1" (25mm) PEI dome tweeter

Crossover network: Built-in

Impedance:

4 Ohms

Frequency Response: 140Hz - 20kHz

Sensitivity:

93dB (1 watt/1 meter)

Dimensions:

7-3/16" (W) x 9-7/8" (H) x 7-5/16"(D) (182(W) x 250 (H) x 186 (D) mm)

Weight (in gift box): 10.7 lbs (4.85kg)

Amplifier:

Input Impedance: 10kΩ Frequency Response: 20Hz - 20kHz

Bluetooth:

Version: V5.0 w/ EDR A2DP

Range: 33ft (10m) Network Name: BOSS Audio Systems B6ABT

USER'S MANUAL

Introduction

Your new B6ABT waketower speakers are high-powered, fully-waterproof 2-way systems featuring 6.5" drivers and a 1" PEI dome tweeter

BOSS understands that wake tower systems are used in many different types of installations. Our versatile mounting solutions gives you the ability to attach our wake tower speakers to mounting tube diameters of 1.5"-2" (38 - 51mm)

What is included?

Before you begin installation please check that your system contains the following contents:

• (2) Waketower speakers
• (4) M6 locknuts
• (4) M6 flat washers
• (4) M6x60mm screws
• (4) 2" mounting aluminum bands for 2" and 1.875" installation.
• (4) 1.75" mounting aluminum bands for 1.75" and 1.5" installation.
• (4) 130x14x2mm rubber mounting pads
• (4) 120x14x1mm rubber mounting pads
• (2) 48x30x2mm rubber mounting pads
• (1) 3.5mm stereo wire
• (1) Power wire harness

Safety considerations when installing

Please remember that these are heavy products, that will be installed in a boating environment. These vehicles can travel at high speeds and be unstable. So please consider this and use extreme caution.

Some safety considerations include:

1- Do not mount the speaker in a location were someone may either walk into or strike their head. During a turbulent ride please make sure that you do not lose footing and fall or hit the unit, it may cause injury.
2- Secure the wires to the speaker in multiple locations along their route to your audio source so there are no hanging loops of wire. Having unsecure wires in any lighting conditions can cause entanglement and injury.
3- Tighten the aluminum bands with rubber inserts using care. Do not over compress the rubber inserts. After installation is complete please recheck all bolts and tight further if needed before taking your boat or vessel out for an audio adventure.
4- Do not install these speakers where they may block the view of the pilot and prevent safe operation of the vessel or vehicle.

It is strongly recommended that you work with an assistant to install these speakers.

Installation instruction

STEP1

Technical line drawing of a mechanical device with no visible text or symbols

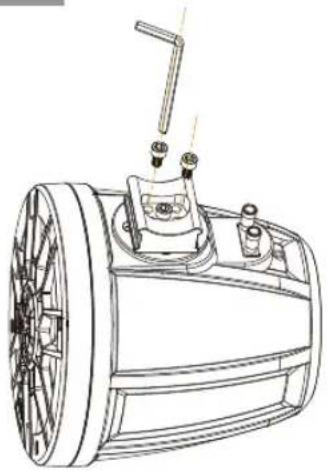

The two screws can be unbolted to loosen the metal base of the mounting band to adjust the mounting angle. Make sure to put all components of the mounting hardwares in a safe location.

STEP2

Technical line drawing of a mechanical device with wheels and a handle (no text or symbols)

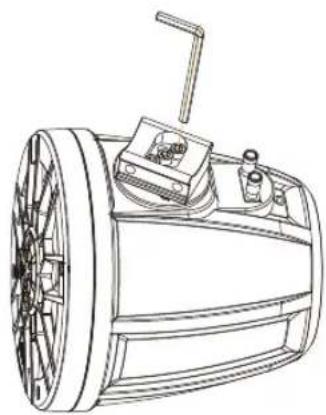

After loosening the two screws and determining the optimal angle for your speakers on the mounting cage, tighten the two screws in place to secure the metal base of mounting band tightly.

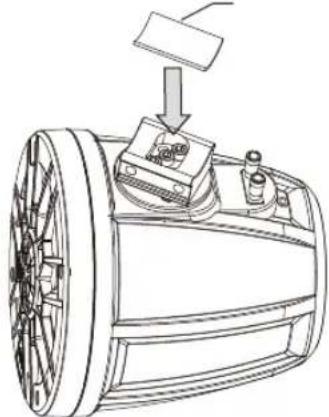

48x30mm rubber pad

Technical line drawing of a mechanical assembly with a cylindrical component and a hanging component (no text or symbols)

Place the front rubber pad on the metal base of the mounting band.

STEP4STEP3

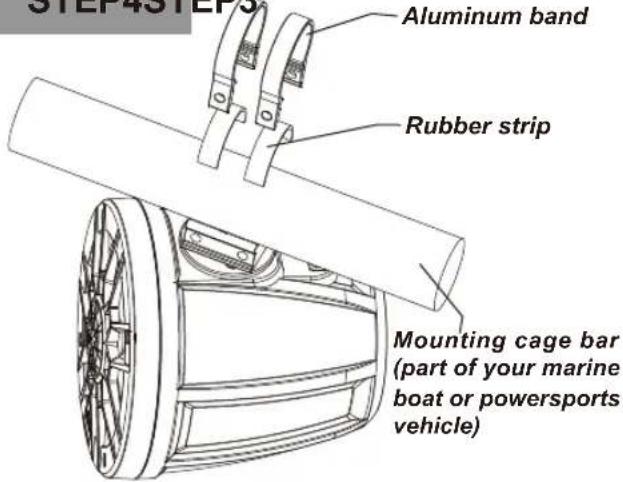

Place the supplied rubber strip around the cage bar to prevent scratching. Push the aluminum band over the cage bar. Align the aluminum bands with the metal base of mounting bands on the waketower speaker.

Technical line drawing of a mechanical device with no visible text or symbols

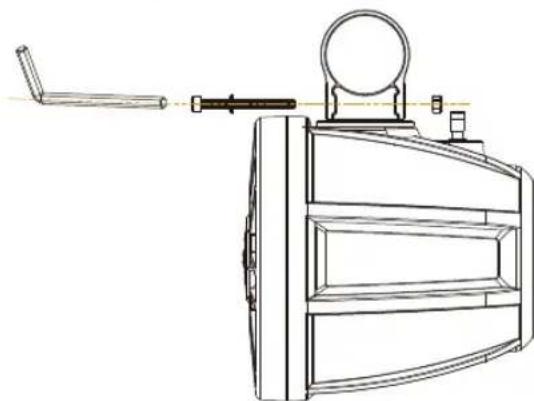

Secure the aluminum bands to the metal base using a pair of M6 x 60mm screws, M6 flat washers, and M6 locknuts as illustrated. The locknut should be installed in to the hex shaped recess on one end of each band. Hand-tighten, allowing just enough freedom to rotate the waketower speaker around the cage bar.

STEP6STEP5

Technical line drawing of a mechanical device with cylindrical components and a wheel (no text or symbols)

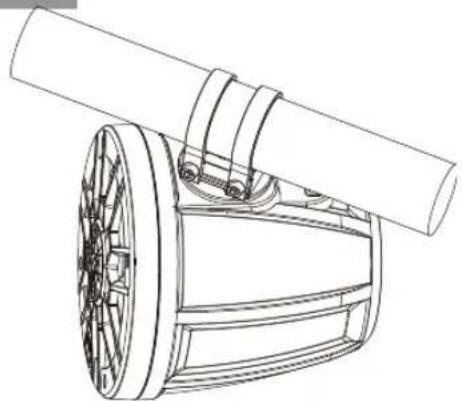

B6ABT waketower speaker installation completed.

Bluetooth connection

Please be sure the Bluetooth is turned on at your device. When the device is in Bluetooth range, it will connet Bluetooth automatically and will be disconnected automatically when it is out of Bluetooth range.

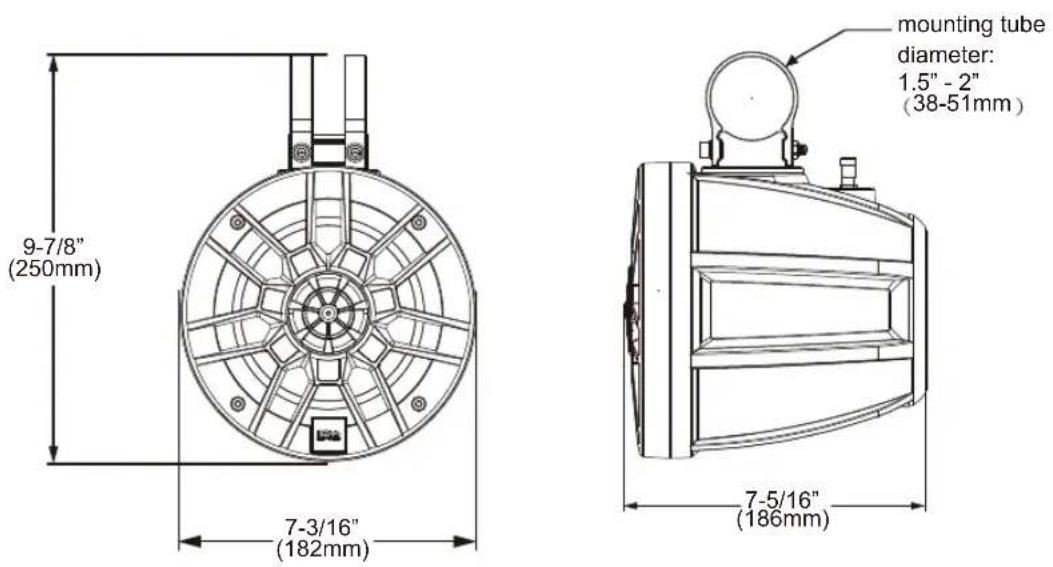

System dimensions

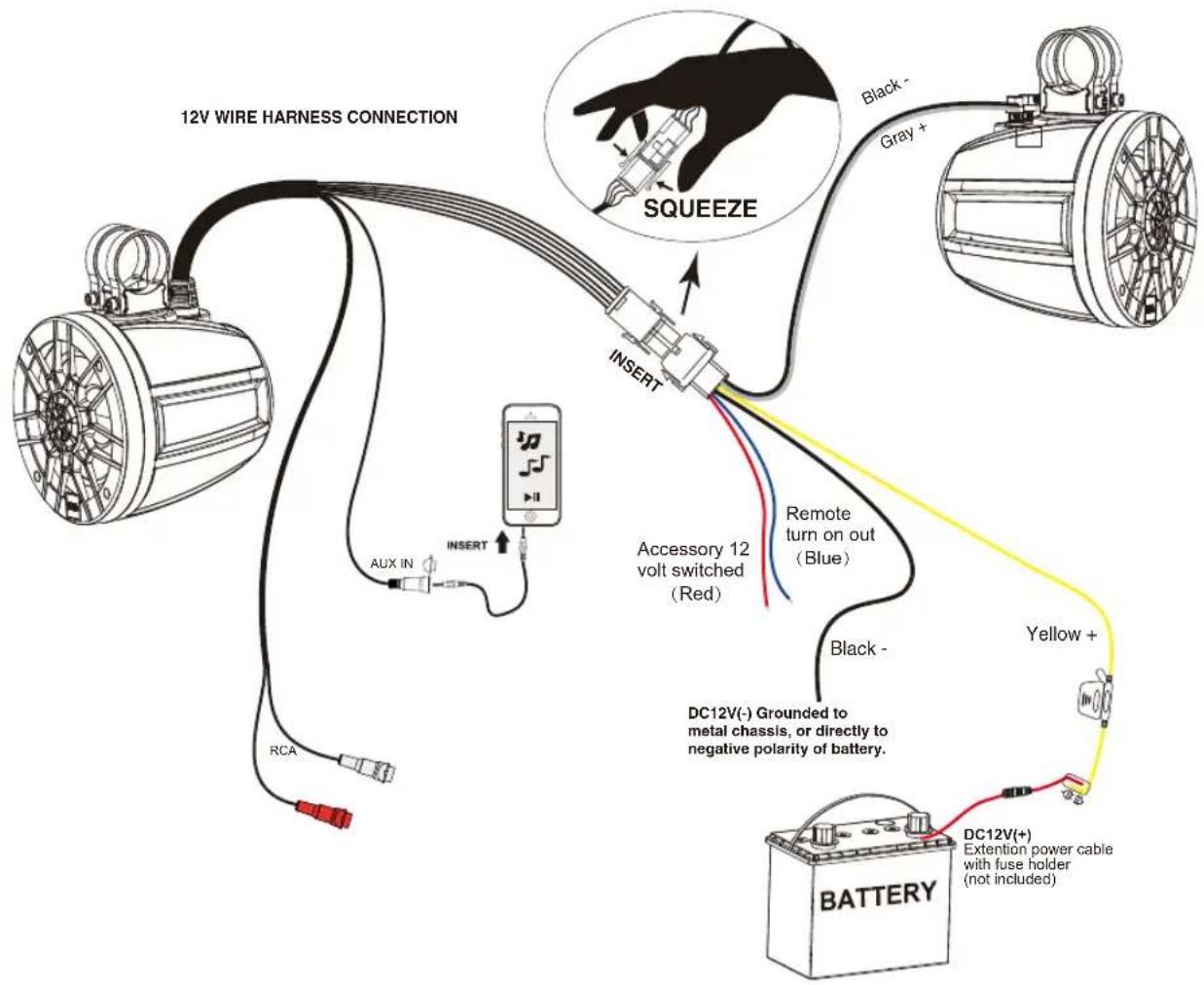

Wire diagram

BOSS®

AUDIO SYSTEMS

BOSS Audio Systems

3451 Lunar Court - Oxnard, CA 93030

www.bossaudio.com

805-751-4853 Customer Service

Tech Support: www.bossaudio.com/support

0720
