Product Type	Top Mount Refrigerator (Freezer on top)
Refrigerant	R600a (flammable)
Temperature Control	Electronic with 8 settings; Quick Chill function
Freezer Control	Slide control (Colder/Less Cold)
Ice Making	Twist & Serve Ice (manual ice dispenser)
Air Filtration	NutriPlus Anti-Oxidant Filter, TasteGuard Deodoriser
Storage Features	Crisper drawer, Chiller drawer, FlexStor bins, Egg tray, Door bins, Bottle bin
Lighting	LED lighting (auto dim after 5 min, off after 7 min)
Door Alarm	Sounds if door left open >2 minutes
Installation	Adjustable height nut, stability feet, rollers (forward/backward only)
Cleaning	Interior: soft cloth with unscented mild soap; exterior: lukewarm soapy water
Safety	Manual includes warnings for R600a, child safety, electrical grounding
Voltage	220-240V (typical, check rating plate)
Warranty	Manufacturer warranty applies; report damages within 7 days
User Interface	ETB4600: 'Temp' button for refrigerator, Quick Chill hold 3 sec
Error Codes	Communication error (reset at power point), sensor error (call service)

Frequently Asked Questions - ETB4600B-H ELECTROLUX

How do I adjust the refrigerator temperature?

Touch the 'Temp' button to awaken the control. Each press decreases the temperature. There are 8 settings indicated by illuminated icons. Once the coldest is reached, the next press returns to the warmest. Wait 24 hours after adjustment to see the effect.

How to use the Quick Chill function?

Press and hold the 'Temp' button for 3 seconds. The Quick Chill icon flashes, and the fridge runs at 2°C for 90 minutes, then returns to normal. Cancel anytime by pressing 'Temp' again.

How to remove the crisper drawer?

Empty the crisper, then pull it forward, lift the front, and pull out completely. On some models, remove bottle bins first. For top mount models, also lift the catches under the shelf.

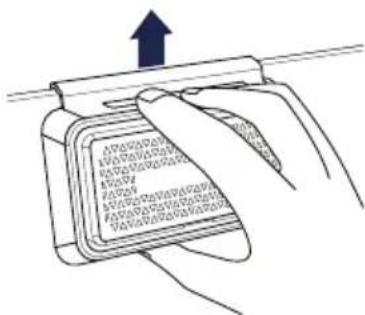

How to replace the NutriPlus filter cartridge?

The filter is at the back of the crisper. Hold it and move upward to release from hooks. Install new filter by hooking it to the back of the crisper bin after removing the plastic wrap.

What should I do if the refrigerator is too warm?

Ensure food is cooled before placing, check that vents are not blocked, and the door is not opened frequently. Adjust to a colder setting if needed. Also verify installation clearances.

How to clean the refrigerator?

Unplug first. Clean interior with a soft cloth and unscented mild soap in lukewarm water. Dry all surfaces. For the exterior (white/silver), use only lukewarm soapy water. Never use abrasive cleaners or stainless steel cleaners.

How to fit the handles?

Handles are prepackaged inside the refrigerator. Refer to the separate instructions provided in the pack for fitting. They require simple attachment to the door.

Why is the freezer door popping open?

This is normal if the refrigerator door is closed too quickly; it should re-close. If it stays open, the appliance needs to be tilted back further. Adjust the height adjusting nut and stability feet as per installation instructions.

How to change the freezer temperature?

For top mount models, slide the freezer control to the right for colder or left for less cold. Wait 24 hours for adjustment to take effect. The factory default is 'Mid' for the freezer.

What does the door alarm mean?

An alarm sounds if the refrigerator or freezer door is left open for more than 2 minutes. To silence it while the door is open, press any button. The alarm will reactivate if the door remains open after 8 minutes.

USER MANUAL ETB4600B-H ELECTROLUX

CARA MUDAH MENDAFTARKAN PRODUK ANDA MENGGUNAKAN SMARTPHONE (PONSEL PINTAR) ANDA

2 Kirim hasil foto itu via Line, Facebook Messenger atau online.

@eluxreg

eluxerg

eluxerg.com

3 Nikmati berbagai hak akses/istimewa.*

Being ensured the permissible content limitation of some toxic Chemicals (RoHS compliant)

(According to the Circular No. 30/2011/TT-BCT, Vietnam, dated 10^th August, 2011)

2 DAFTAR ISI

INSTRUKSI (PETUNJUK) KESELAMATAN YANG PENTING

Panel kontrol Lemari pendingin

Pure mechanical assembly diagram without any text, numbers, or symbols

Line drawing of a refrigerator front with doors and ventilation grilles (no text or symbols)

MENGGUNAKAN LEMARI PENDINGIN (KULKAS) ANDA

9

MELEPASKAN FITUR

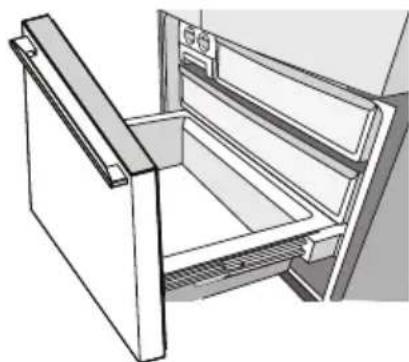

Pelepasan Laci Crisper:

Line drawing of a storage unit with arrows indicating flow or movement (no text or symbols)

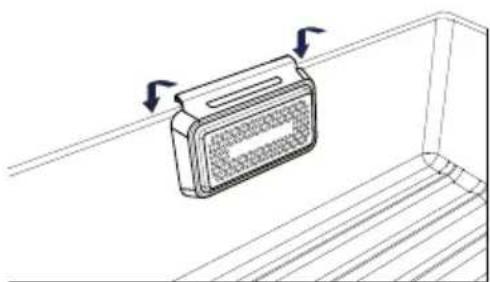

Mengganti Kartid Filter

10

MELEPASKAN FITUR

Rak kaca

Technical line drawing of a door frame with open lid and side panel (no text or symbols)

WASPADA

Illustration of a hand holding a sheet of paper with arrows indicating direction (no text or symbols)

Hand holding a tool with an arrow pointing upward, no visible text or symbols

Masukkan ke slot di bagian belakang rak

Illustration of a hand using a tool to adjust or install a component (no text or symbols visible)

Simple line drawing of a hand holding a tool, no text or symbols present

Segel pintu

Share more of our thinking at electrolux.com.

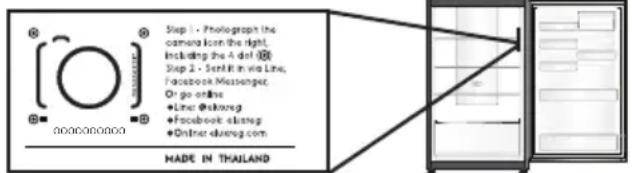

EASY WAY TO REGISTER YOUR PRODUCT WITH YOUR SMARTPHONE

Photograph the camera icon located on your product's serial tag, including the 4 dots (●).

Send it in via Line, Facebook Messenger or go online.

@eluxreg

eluxreg

eluxreg.com

Enjoy many privileges.*

* Terms and conditions apply.

CONGRATULATIONS

Dear customer,

Congratulations and thank you for choosing our refrigerator. We are sure you will find your new refrigerator a pleasure to use. Before you use the refrigerator we recommend that you read through the relevant sections of this manual, which provides a description of your refrigerator and its functions.

To avoid the risks that are always present when you use an electric appliance, it is important that the refrigerator is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards.

We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.

After unpacking the refrigerator, please check it is not damaged. If in doubt, do not use the refrigerator but contact your local customer care centre.

The symbols you will see in this booklet have these meanings:

WARNING

This symbol indicates information concerning your personal safety.

CAUTION

This symbol indicates information on how to avoid damaging the refrigerator

IMPORTANT

This symbol indicates tips and information about use of the refrigerator

ENVIRONMENT

This symbol indicates tips and information about economical and ecological use of the refrigerator

Conditions of use

This refrigerator is designed and intended to be used in normal domestic applications only.

Record model and serial number here:

Model number: ____

Serial number: ....

CONTENTS

Important safety instructions .... 3

Refrigerator Features

Top mount refrigerator features 4

Bottom mount refrigerator features 6

French door ice & water refrigerator features....7

Installing your new refrigerator

Unpacking your refrigerator 8

Locating your refrigerator 8

Installing your refrigerator 8

Fitting the handles 9

Using your refrigerator

Removing features 10

Crisper drawer 10

NutriPlus™ (Anti-Oxidant Filter) 10

Glass shelves 10

Freezer shelves 10

Drawers with telescopic slides 10

Twist & Serve ice 11

LED Lighting 11

Temperature control 12

About the User Interface

ETB4600 & ETB5400 model....13

EBE4500 model 14

ETE5720 & EHE5224 model 15

General information

Error codes 17

Cleaning the refrigerator food 18

Storage guide....19

Troubleshooting 20

Ice maker troubleshooting 23

RoHS

Compliance

Being ensured the permissible content limitation of some toxic Chemicals (RoHS compliant)

(According to the Circular No. 30/2011/TT-BCT, Vietnam, dated 10^th August, 2011)

IMPORTANT SAFETY INSTRUCTIONS

Note: You must read these warnings carefully before installing or using the refrigerator. If you need assistance, contact your customer care centre. The manufacturer will not accept liability, should these instructions or any other safety instructions incorporated in this book be ignored.

WARNING

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• It is essential the power point is properly earthed to ground. Consult a qualified electrician if you are unsure.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Unplug the refrigerator before cleaning or moving it to avoid electric shock.
• Never unplug the refrigerator by pulling the electrical cord as this may damage it. Grip the plug firmly and pull straight out.
• If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Don't use a steam cleaner. If live components come into contact with condensing steam, they may short-circuit or cause an electric shock.
• Do not store explosive substances such as aerosol cans with a flammable propellant

in this appliance. If pressurised aerosol containers bear the word 'flammable' and/or a small flame symbol, do not store them inside any refrigerator or freezer. If you do so you may cause an explosion.

• Do not damage the refrigerant circuit.
- This appliance contains insulation formed with flammable blowing gases. Avoid safety hazards by carefully disposing of this appliance.
- If you wish to discard this refrigerator, please contact your local authorities and ask for the correct method of disposal.
- When you dispose of your old refrigerators and freezers, remove any doors. Children can suffocate if they get trapped inside.
- The plug must be accessible when the appliance is in position.
- Never try to repair the refrigerator yourself, only use a qualified or authorized service person for repairs.

WARNING

R600a REFRIGERANT WARNING

This appliance contains flammable R600a refrigerant. Avoid safety hazards by carefully installing, handling, servicing and disposing of this appliance.

• Ensure that the tubing of the refrigerant circuit is not damaged during transportation and installation.
  • Leaking refrigerant may cause eye injuries or ignite.
• The room for installing appliance must be at least 1m ^2 per 8g of refrigerant. The amount of refrigerant in the appliance can be found on the rating plate inside the appliance.
  • If you are unsure of the refrigerant check the rating plate inside the refrigerator compartment.
• It is hazardous for anyone other than an Authorised Service Person to service this appliance. In Queensland Australia the Authorisation Service Person MUST hold a Gas Work Authorisation for hydrocarbon refrigerants to carry out servicing or repairs which involve the removal of covers.
• Keep ventilation openings in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

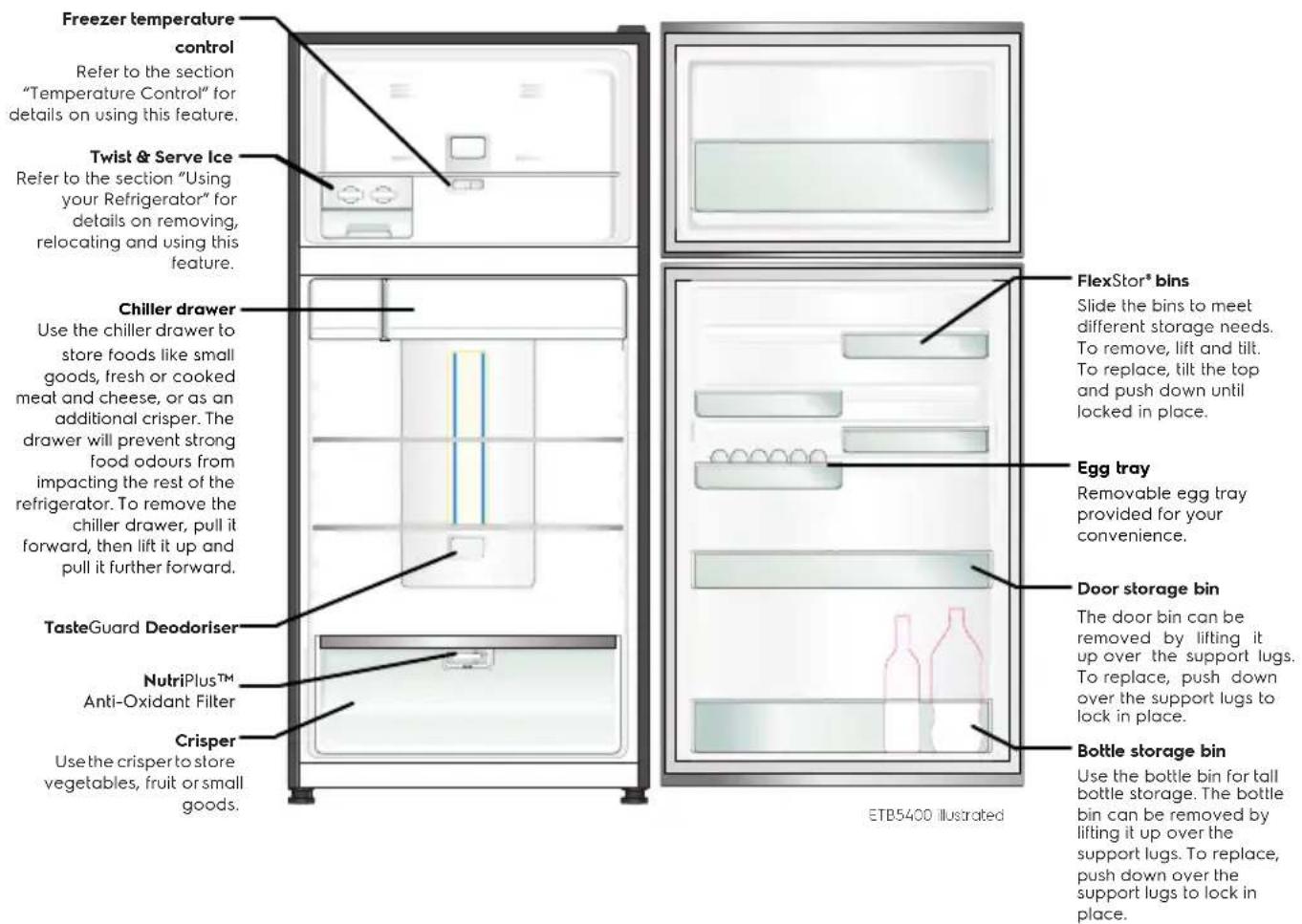

TOP MOUNT REFRIGERATOR FEATURES ETB4600 & ETB5400

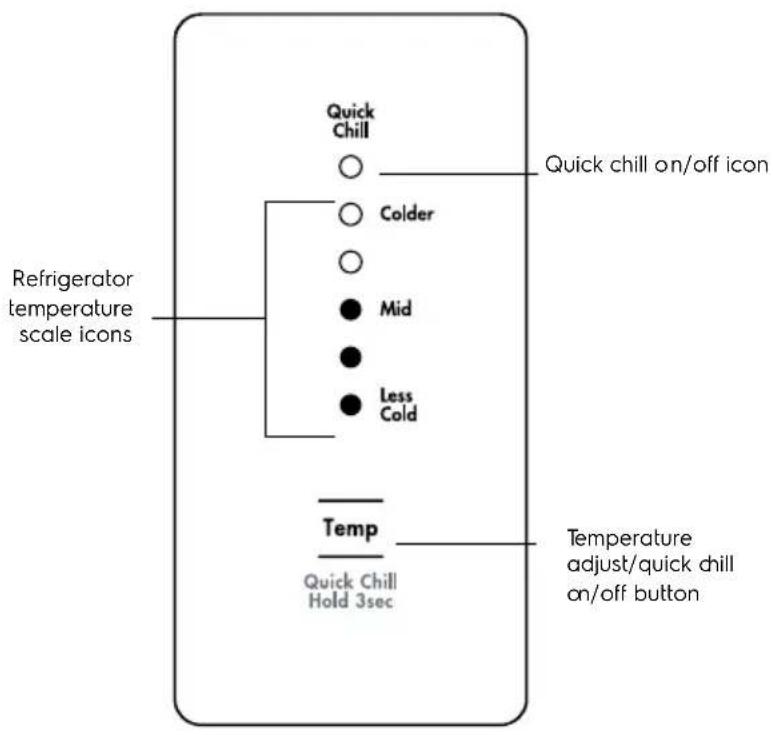

Refrigerator control panel

From this panel you can control the temperature of the refrigerator compartment as well as setting the quick chill function or resetting the door alarm.

For further information on how to use this feature refer to the section "About the User Interface".

Freezer control

This is a simple slide control to adjust the temperature of your freezer compartment.

For further information on how to use this feature refer to the section "Temperature Control".

Features may vary depending on model. Not all models will have features listed.

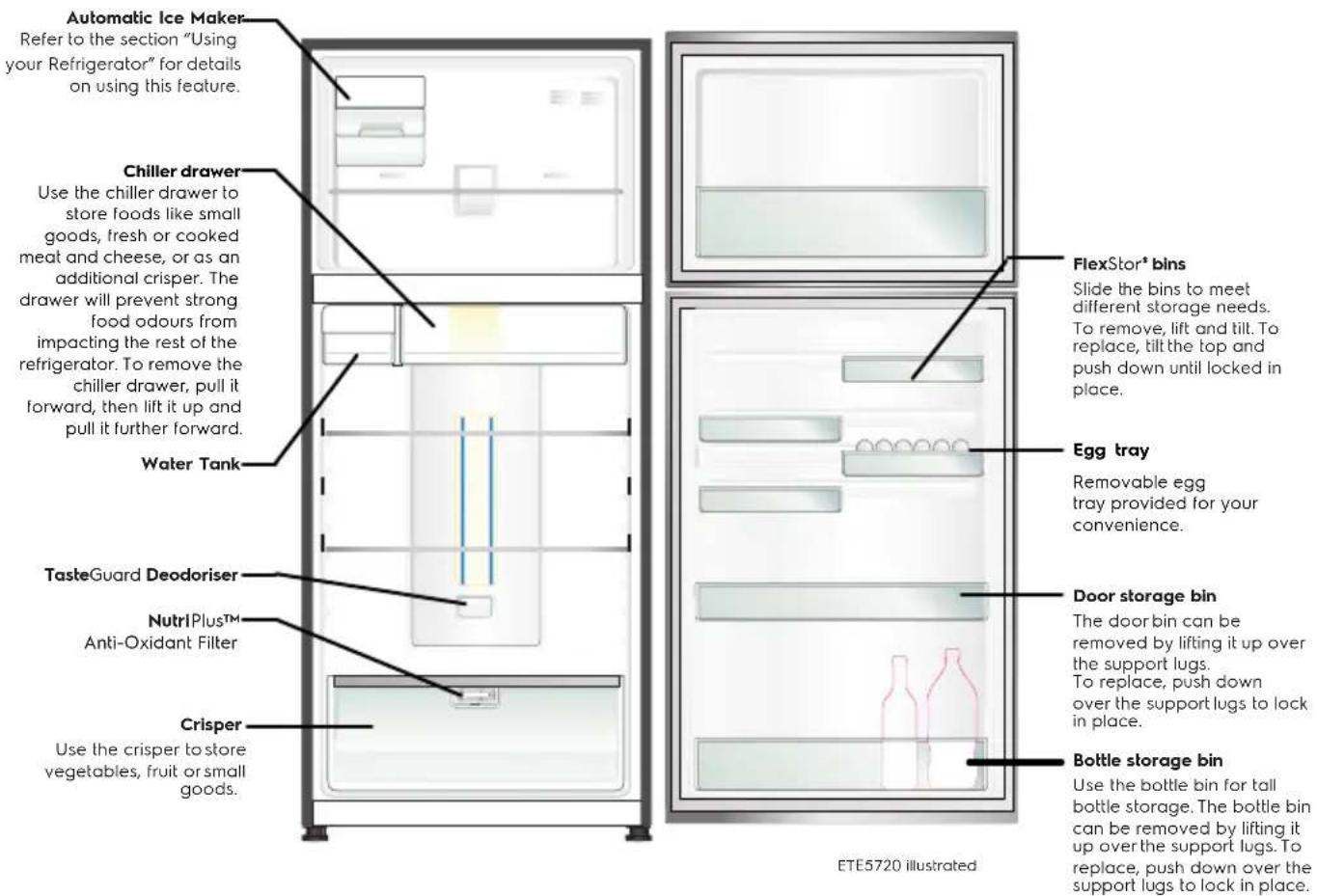

TOP MOUNT REFRIGERATOR FEATURES ETE5720

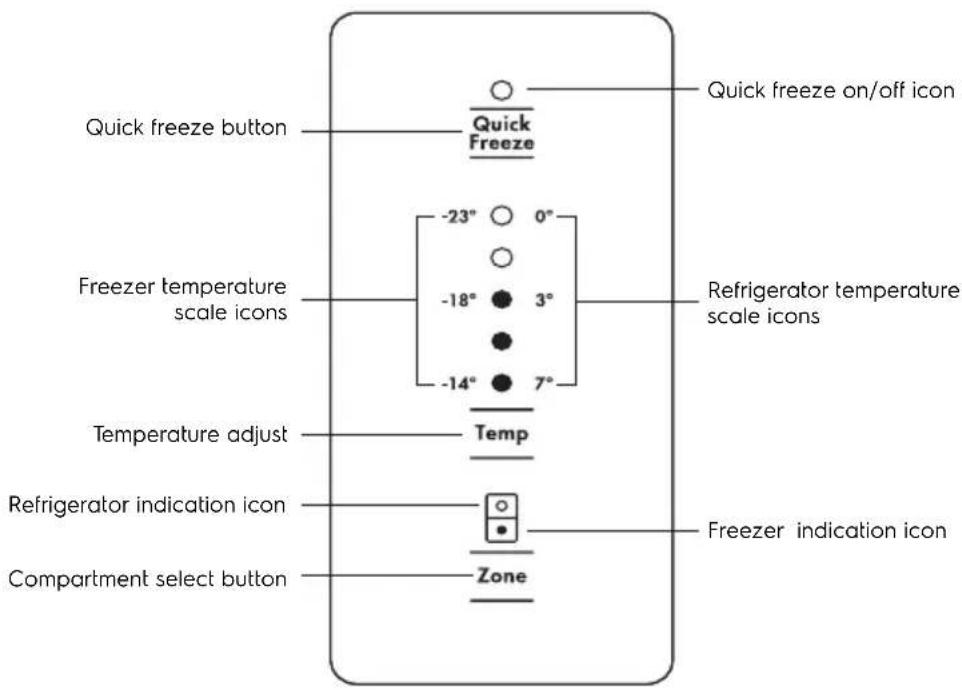

Refrigerator/freezer control panel

From this panel you can control the temperature of the refrigerator and freezer compartments as well as setting the Boost function, controlling the Ice Maker or resetting the door alarm.

For further information on how to use this feature refer to the section "About the User Interface".

Features may vary depending on model. Not all models will have features listed.

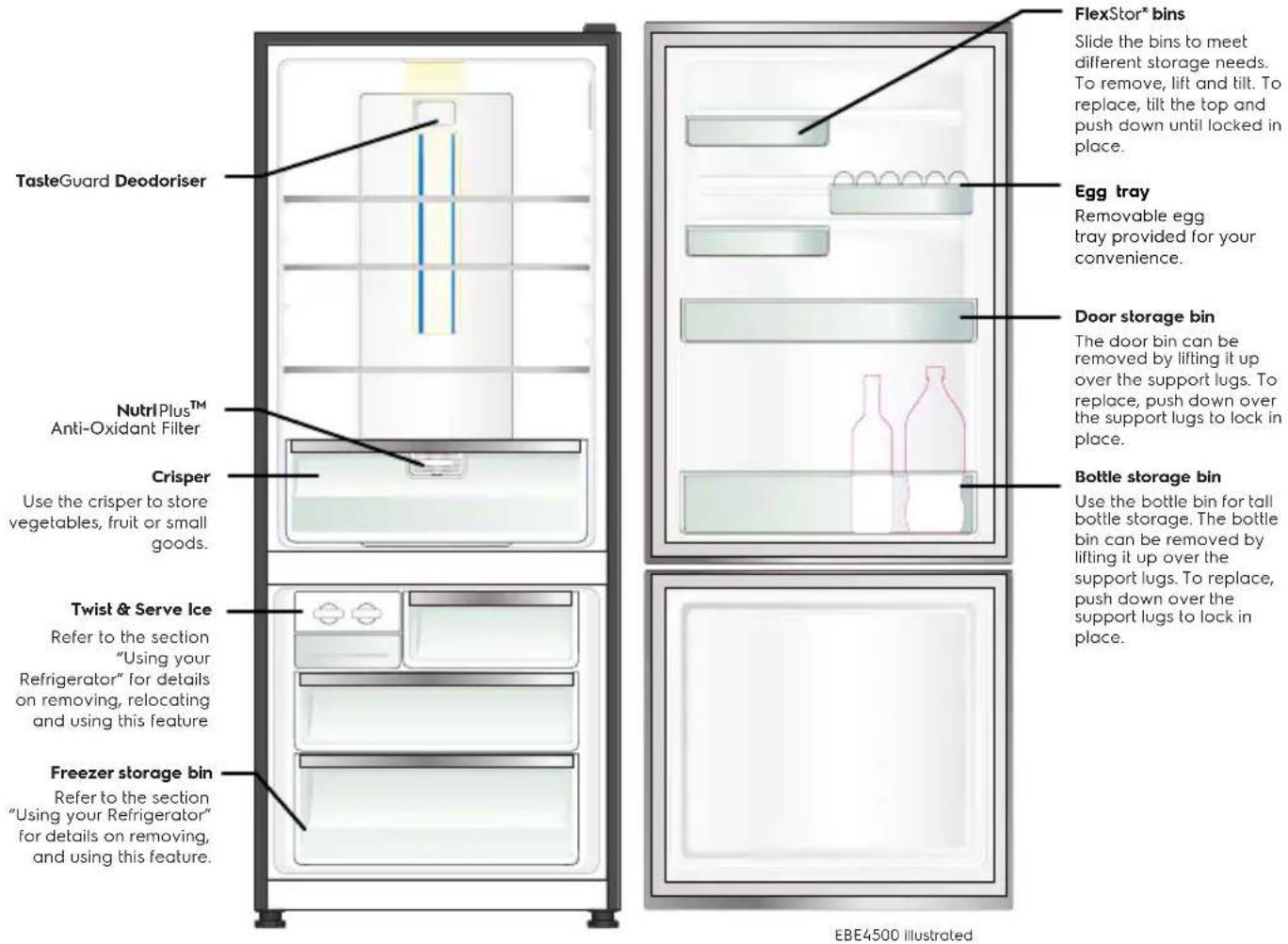

BOTTOM MOUNT REFRIGERATOR FEATURES EBE4500

Refrigerator/freezer control panel

From this panel you can control the temperature of the refrigerator and freezer compartments as well as setting the quick freeze function or resetting the door alarm.

For further information on how to use this feature refer to the section "About the User Interface".

Features may vary depending on model. Not all models will have features listed.

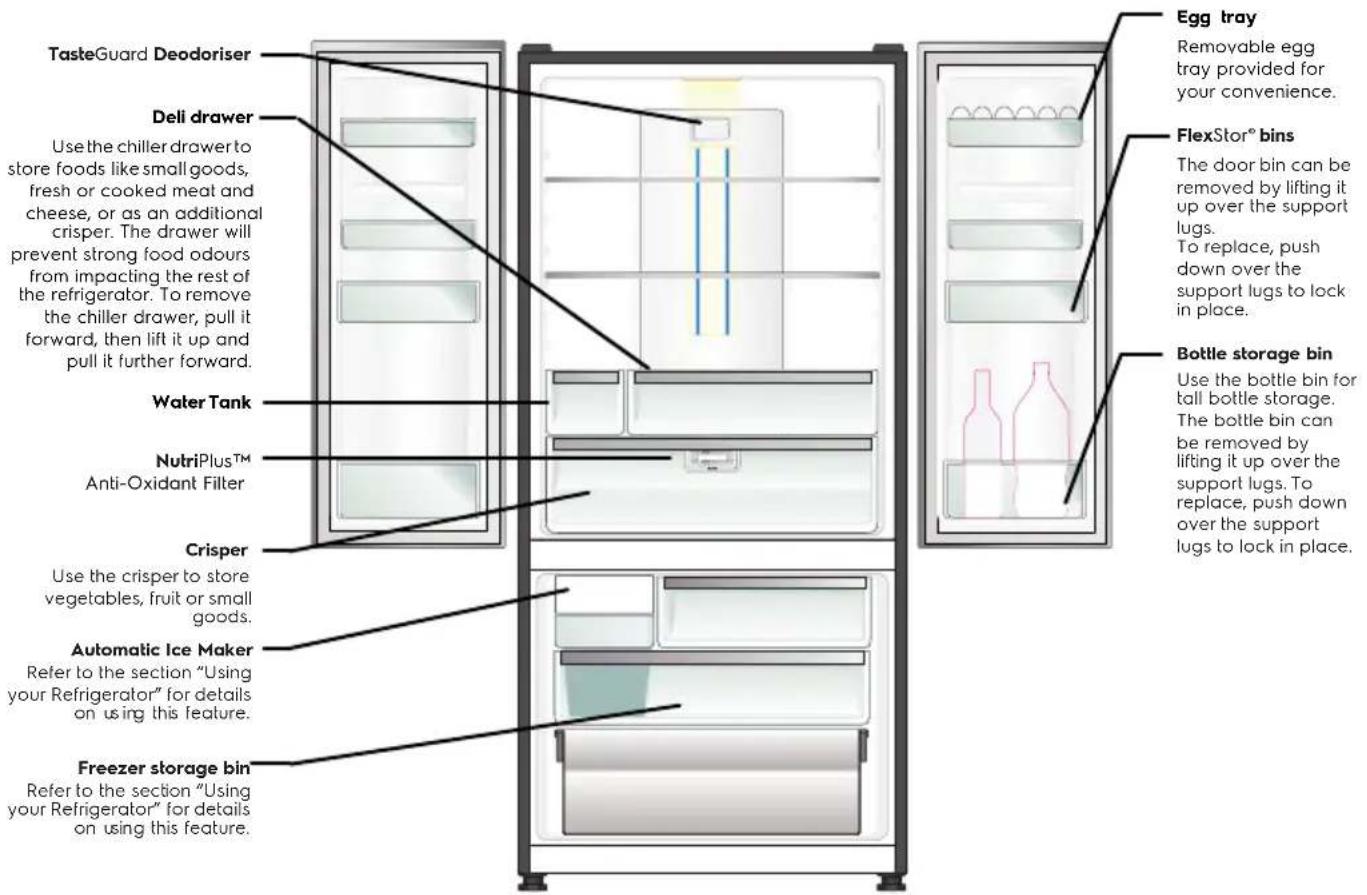

FRENCH DOOR ICE & WATER REFRIGERATOR FEATURES EHE5224

EHE5224 illustrated

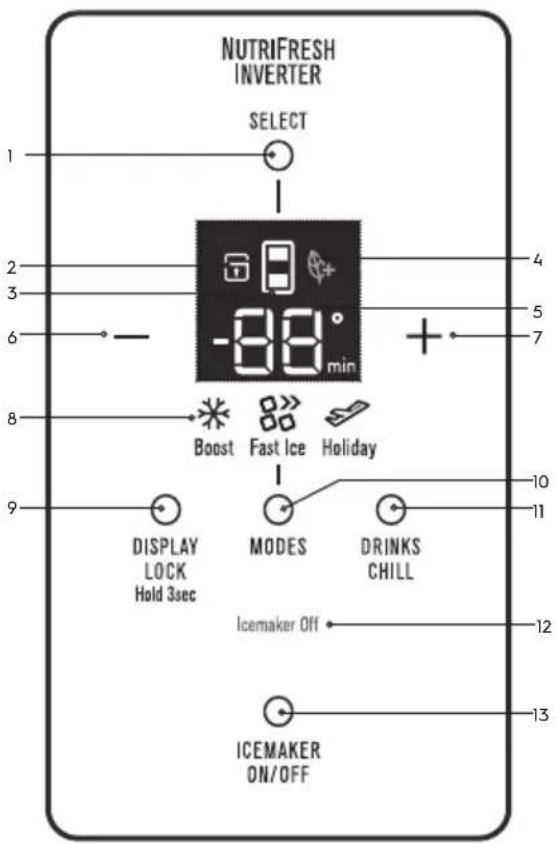

Refrigerator/freezer control panel

From this panel you can control the temperature of the refrigerator and freezer compartments as well as setting the Boost function, controlling the Ice Maker or resetting the door alarm.

For further information on how to use this feature refer to the section "About the User Interface".

Features may vary depending on model. Not all models will have features listed.

INSTALLING YOUR NEW REFRIGERATOR

Unpacking

ENVIRONMENT

Most of the packing materials are recyclable. Please dispose of those materials through your local recycling depot or by placing them in appropriate collection containers.

Important – check for any damages or marks. If you find the refrigerator is damaged or marked, you must report it within 7 days should you wish to claim for damage/ marks under the manufacturers warranty. This does not affect your statutory rights.

Clean your refrigerator thoroughly following the instructions in the "Cleaning" section and wipe off any dust that has accumulated during shipping.

Locating the refrigerator

CAUTION

Automatic aerosol systems (such as insect control) should not be located adjacent to the product as the spray may cause long term damage to the external plastics of the appliance.

Do not put the refrigerator in a location that is too cold or is unprotected, for example in a garage or on a veranda. The ambient temperature should be above 10^ C.

Put the refrigerator in a dry place avoiding areas of high moisture or humidity.

Ensure the refrigerator is located on an even surface.

Adequate ventilation around your refrigerator

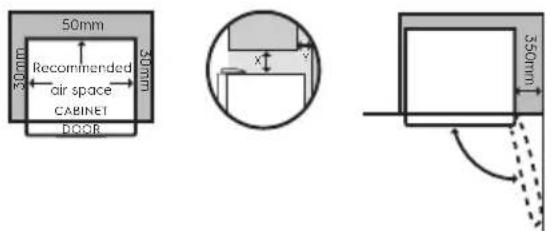

The diagram below shows the recommended airspace to allow for ventilation of your refrigerator.

If you have a cupboard above the refrigerator with a rear gap of less than 100 mm (Y), recommended clearance at the top of the refrigerator increases from 50mm to 90mm (X) minimum.

When positioned in a corner area, spacing of at least 350mm (300mm for multi-door models) on the hinge side will allow the doors to open enough to enable the removal of bins and shelves.

NOTE: Doors are designed to sit proud of cabinetry (not flush). The clearances shown above are the recommended minimum clearances.

The clearance at the rear must not exceed 75mm.

Installing your refrigerator

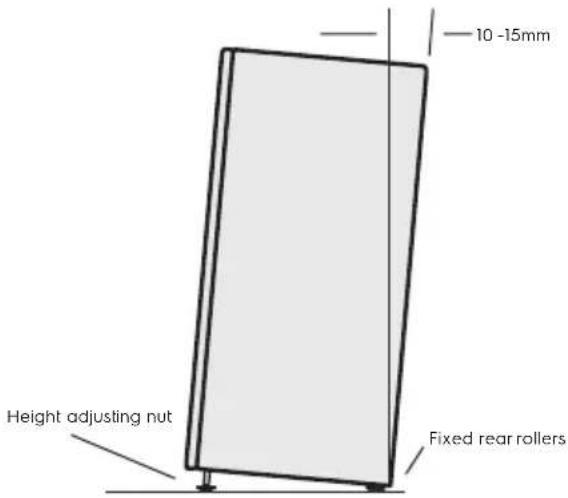

1. Roll the refrigerator into place. The rollers are designed for forward or backward movement only. They are not castors. Moving the refrigerator sideways may damage your floor and the rollers. Before moving your refrigerator ensure height adjusting nut and the stability foot are fully wound up off the floor.

2. Wind the large height adjusting nut under door hinge down until the refrigerator is tilted back by 10mm (see diagram).

1. Wind the large height adjusting nut on the handle side down until the refrigerator is level and stable. If you have difficulty winding the nut or height adjusting foot down, have someone tilt the refrigerator back so you have better access.

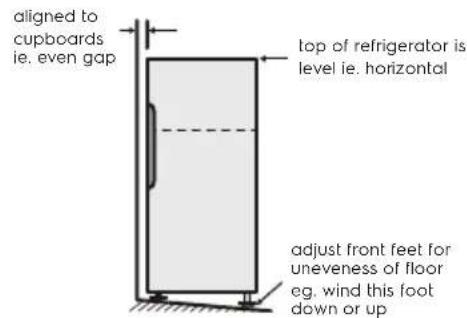

1. Check the alignment of the refrigerator to the surrounding cupboards to see if it is level. You can adjust the level as detailed in step 2 and 3.

INSTALLING YOUR NEW REFRIGERATOR

1. If you find your refrigerator rocks from corner to corner, it means your floor is uneven. Find a piece of plastic or hardboard etc. and pack it firmly under the roller.
2. You may now need to fine-tune the installation by repeating steps 3, 4 and 5.
3. When you have the appliance in its final position, it needs to be stabilised. Wind the stability foot under the door hinge down to the floor until it just makes contact with the floor. Lift the front of the appliance to take the weZight off the stability foot, then turn it half a turn further to ensure firm contact with the floor. Wind the large height adjusting nut back up to ensure all the weight is now on the front stability foot.
4. Repeat step 7 for the stability foot on the handle side. Whenever you need to move the appliance, be sure to wind the feet back up so that the appliance can roll freely and be sure to reset it when reinstalling.

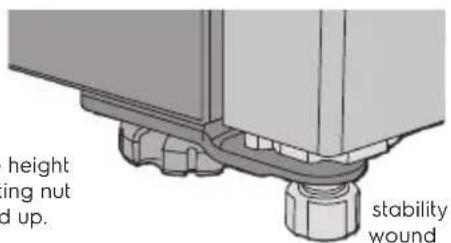

Large height adjusting nut wound up.

stability foot wound down

1. Plug your refrigerator straight into its own power point and never use a double adapter. If you need to roll the refrigerator to get to the plug, remember to raise the stability foot first.
2. Before you put any food in your refrigerator, it's recommended you leave it on for 2 or 3 hours to check it is running properly.

Fitting the handles

The handles are supplied prepackaged inside your refrigerator and will require fitting.

Refer to the instructions provided in the pack.

Congratulations! You have successfully installed your new refrigerator.

USING YOUR REFRIGERATOR

Refrigerators work by transferring heat from the food inside to the outside air. This operation makes the back and sides of the refrigerator feel warm or even hot particularly at start-up and on warm days – this is normal.

Avoid placing food against the air vents in the refrigerator as it affects efficient circulation. If the door is opened frequently, a light frosting will occasionally occur on the freezer's interior. This is normal and will clear after a few days. If the freezer door is accidentally kept open, a heavy frost will coat the inside walls and should be removed.

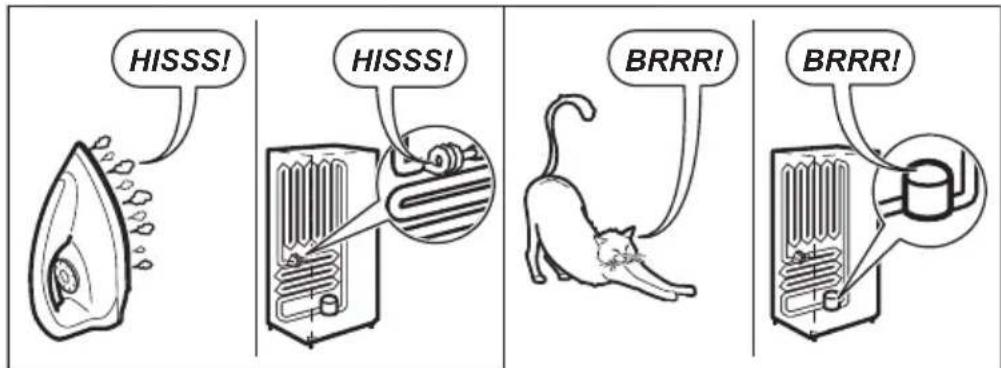

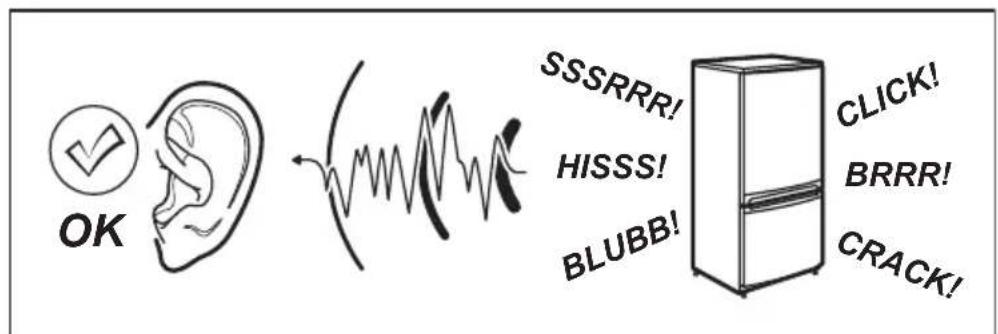

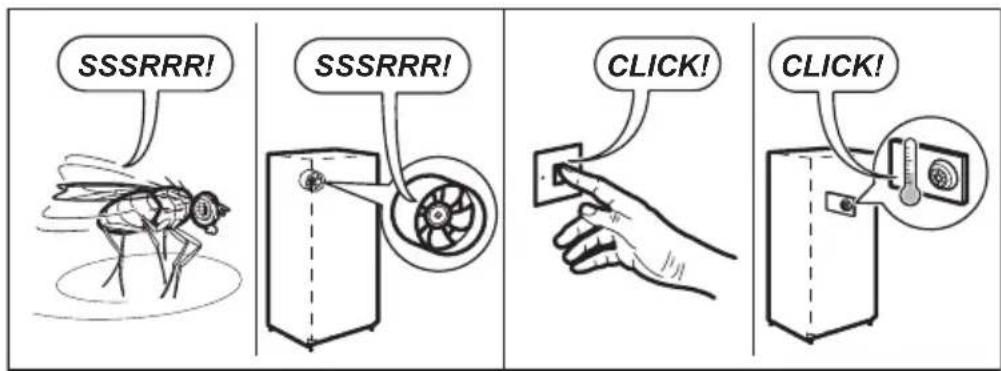

Your new refrigerator uses a high-speed compressor, along with other energy-efficient components, which may make unusual sounds and be more noticeable at night and quieter times. These sounds simply indicate your refrigerator is working how it should. They include:

• Compressor running noises;
• Air movement n oise from the small fan motor;

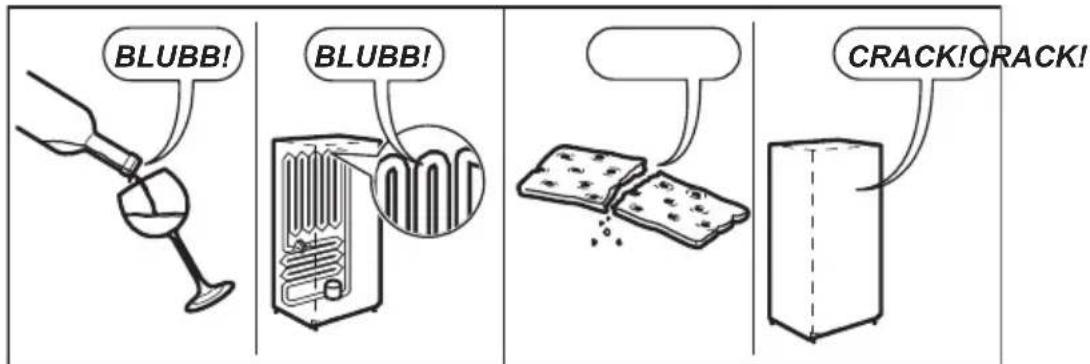

• A gurgling sound, similar to water boiling;
- A popping noise, heard during automatic defrosting; and
- A clicking noise, prior to compressor start-up. Further details can be found in the Troubleshooting Guide.

IMPORTANT

For top mount refrigerators (where the freezer is on top of the fresh food compartment).

- Don't place food forward of the ribs on the freezer floor, as it will keep the door open.

For bottom mount refrigerators (where freezer is below the fresh food compartment):

- Ensure all freezer drawers and shelves are pushed back completely to prevent them from keeping the door open.

Line drawing of a refrigerator front with two doors and a side panel (no text or symbols)

REMOVING FEATURES

Removal of Crisper Drawer:

1. Empty food from the crisper. On some models it will be necessary to remove the bottle storage bins.

2. Remove the crisper by pulling forward, then up and forward again.

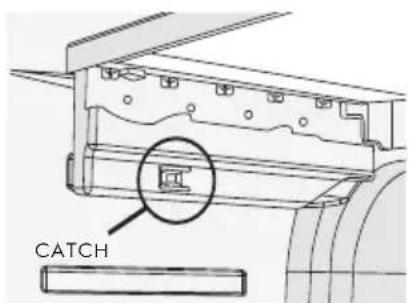

3. For top mount models, remove the crisper shelf by lifting the catches on the left and right underside of the shelf and pulling the shelf forward.

NutriPlus™ (Anti-Oxidant Filter)

Installing Filter Cartridge

Your filter can be found in the crisper. To enjoy the full benefit of NutriPlus™, it is important to install it after turning on the refrigerator. For installation, please follow the following instruction.

1. Remove plastic wrap

2. Hook the filter to the back of the crisper bin.

Line drawing of a storage unit with arrows indicating flow or movement (no text or symbols)

Replacing Filter Cartridge

The filter is located at the back of the crisper. Hold the filter, move upwards to release from the hooks.

Glass shelves

To remove the shelves, gently pull them forward until the shelf comes clear of the shelf guides. To return the shelf, make sure there is nothing behind that may obstruct movement. Gently push the shelf, into the cabinet and back into position.

Architectural line drawing of a structural framework with beams and supports (no text or symbols)

Freezer shelf

Remove the freezer shelf by lifting the catches on the right and left underside of the shelf to release the shelf then pull the shelf toward you.

Line drawing of a hand holding a pen or stylus, with no text or symbols present

Drawers fitted with telescopic slides

To remove the drawer for cleaning.

1. Empty food from the drawer.

2. Remove the drawer by pulling it forward and lifting the front to unhook it from the slides. Once you have removed the drawer, ensure the slides are pushed back so they are fully closed.

WARNING

Never close the door while the telescopic slides are extended. This may damage the slide and/or refrigerator or cause the slide to become disengaged from the refrigerator.

To replace the drawer:

1. Ensure the telescopic slides are pushed in all the way.

2. Slide the drawer into place over the slides and push the bin in until it stops.

3. Drop drawer into position.

Freezer bottom bin

To remove the bin, pull the drawer out until it is open all the way then lift bin out from the front of the bin. When refitting insert the rear of the bin first then lower into position.

When replacing the bins after cleaning, we recommend fitting the lower bin first.

Technical line drawing of a refrigerator interior showing door, drawer, and shelf (no text or symbols)

CAUTION

Never close the door while the telescopic slides are extended. It may damage the slide and/or the refrigerator or cause the slide to become disengaged from the refrigerator.

Twist and Serve Ice

Mounting the twist & serve dispenser to the other side of the freezer.

Note: This is only possible on top mount models.

1. Remove the ice bin and ice cube tray. If the ice tray assembly is frozen to the carriage, simply squeeze the tray and shelf together to break the ice.

Illustration of a hand holding a thin object with two arrows pointing downward (no text or symbols)

1. Before you remove the ice carriage, remember to disengage it from the glass shelf as it may result in damage to the assembly.

2. Remove the centre runner by disengaging it at the front of the shelf, and removing it from the rear.

Illustration of a hand pressing down on a computer keyboard (no text or symbols visible)

Insert into the slot at the rear of the shelf

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Then engage into the front of the shelf

1. Refit the runner into the rear of the shelf on the right hand side and then engage the front.

2. Fit the carriage by sliding it into the runners until the front if the carriage engages with the shelf.

3. Refit the ice tray and ice bin.

WARNING

Fill the ice tube tray with potable water only.

CAUTION

LED lighting

Your appliance is fitted with long life LED lighting. In the unlikely event the LED lights should fail, then the LED lights should be serviced by the manufacturer.

Refer to the warranty page for contact details.

Automatic Ice Maker

The automatic ice making function pumps water from the water tank located in the refrigerator and dispenses it into the automatic ice maker in the freezer.

The ice will then be dropped into the ice bin located beneath the ice maker

If the water tank is empty, the ice maker will automatically turn off after 3 attempts at pumping water from the tank. The ice maker indicator on the user interface shows the operational status of the ice maker (Refer control instructions).

Water Tank Refilling

Step 1. Pull the tank directly out of the tank housing frame.

Step 2. Pour potable water through the lid at the top of the water tank.

Step 3. Push the tank directly into the tank housing frame. To avoid water leaks ensure that the tank nozzle fully engages with the housing socket.

Step 4. Ensure ice maker is switched ON (refer control instructions).

Line drawing of a hand inserting a small rectangular object into a wall (no text or symbols)

Illustration of a hand pouring liquid into a container (no text or symbols visible)

CAUTION

Do not fill the water tank with anything other than clean water (Filtered or Mineral water).

Soft drink, juice, tea or hot water etc, can damage your automatic icemaker.

The water tank can withstand a maximum water temperature of 60^ C.

Tips and Useful Information

Remove and clean ice bin and water tank once a month, discarding unused ice and water. This will ensure fresh ice and smooth operation of your icemaker.

Make sure your refrigerator is level to avoid uneven ice cubes.

TEMPERATURE CONTROL

If you want to change the temperature, follow the instructions in the section About the User Interface for your model. Ensure that you make only small adjustments and wait 24 hours to see if it's to your liking.

IMPORTANT

NOTE: When you set a temperature, you set an average temperature for the whole refrigerator cabinet.

Checking the softness of ice cream is a good indication that your freezer is the right temperature, while checking the temperature of water kept in the refrigerator is a good way of checking the temperature of the food compartment.

Temperatures inside each compartment may vary, depending on how much food you store and where you place it.

High or low room temperature may also affect the actual temperature inside the refrigerator.

Top mount freezer temperature adjustment

1. Select the freezer control.
2. Slide the control to the right (as per image below).
3. Slide the control to the left (as per image below).

FREEZER TEMPERATURE SETTING RECOMMEDATION

Set to less coldSummer ( >35^ c)

Normal

Winter (<15°C) Set t

ABOUT THE USER INTERFACE

Control - ETB4600 & ETB5400

DESCRIPTION	OPERATION / PRIMARY FUNCTION
Refrigerator temperature scale icons	Indicates the temperature setting of the refrigerator compartment.
Quick Chill On/ Off icon	Indicates the status of the Quick Chill function.
Temperature adjust/ quick chill on/ off button	Temperature ControlTouch the 'Temp' button to awaken control.Touch the 'Temp' button to decrease the refrigerator temperature. There are 8 temperature settings indicated by the illumination sequence on the display. Once the coldest temperature is reached the display will return to the warmest setting with the next press.
	Quick ChillUse the quick chill function when you add a large amount of food to the refrigerator compartment.Press and hold the 'Temp' button for 3 seconds. The Quick Chill icon will flash indicating that the Quick Chill is active.Your refrigerator will run at 2°C for 90 minutes, then automatically return to normal mode.The Quick Chill function can be cancelled anytime by pressing the 'Temp' button again.

IMPORTANT

The factory default settings for the refrigerator is "Mid". If you want to change the temperature, remember to make only small adjustments and wait 24 hours to see if it's correct.

ABOUT THE USER INTERFACE

Control - EBE4500

DESCRIPTION	OPERATION / PRIMARY FUNCTION
Quick Freeze on/ off icon	Indicates the status of the Quick Freeze function.
Quick Freeze button	Use the Quick Freeze function when you add a large amount of food to the freezer compartment.Press the 'Quick Freeze' button. The Quick Freeze icon will flash indicating that the quick freeze is active and the compressor will run continuously for 90 minutes.After 90 minutes the freezer will automatically return to normal mode.The Quick Freeze function can be cancelled anytime by pressing the button again.
Refrigerator / Freezer temperature scale icons	Indicates the temperature setting of the refrigerator compartment.Indicates the temperature setting of the freezer compartment.
Temperature adjust button	Touch any button to awaken control.Touch the 'Temp' button to decrease the selected compartment temperature. There are 8 temperature settings indicated by the illumination sequence on the display. Once the coldest temperature is reached the display will return to the warmest setting with the next press.
Refrigerator/Freezer	Indicates the selected zone.
indication iconCompartment select button	Press to select the desired compartment.The refrigerator / freezer indication icon will show which zone is selected.

IMPORTANT

The factory default settings for the refrigerator is "3°C" and "-18°C" for the freezer. If you want to change the temperature, remember to make only small adjustments and wait 24 hours to see if it's correct.

ABOUT THE USER INTERFACE

Control-ETE5720 & EHE5224

BUTTON / ICON	DESCRIPTION PRIMARY FUNCTION
1	Compartment Selector button	Selects controllable compartment.
2	Lock Icon	Indicates if the user interface is locked.
3	Compartment Icon	Indicates controllable compartment.
4	ECO Icon	Indicates if the appliance is operating in its most energy efficient mode.
5	Digital display	Indicates temperature of selected compartment.
6	Decrease button	Decreases temperature of selected compartment as well as the drinks chill time
7 Increase button		Increases temperature of selected compartment as well as the drinks chill time.
8	Mode indicators (Boost, Fast Ice, Holiday)	Indicates appliance operation mode.
9	Display Lock button	Selects lock state of user interface.
10	Mode select button	Selects operation mode of appliance.
11	Drinks Chill button	Selects drinks chill timer.
12	Icemaker status indicator	Shows operational status .
13	Icemaker on/off button	Selects operation of icemaker.

FUNCTIONS OF THE USER INTERFACE

Control - ETE5720 & EHE5224 models.

FUNCTION ICON OPERATION
Setting the temperature	[2424]	Press button 1 until the desired compartment is displayed on icon 3.Press buttons 6 or 7 to adjust temperature up or down.
Boost modeIncreases the chill rate of the refrigerator for 90mins before returning to pre-set mode.	Boost	Press button 10 until the boost icon is illuminated.Boost mode can be deselected using button 10.
Fast IceDecreases the freezer temperature to -23°C for 26 hours before returning to pre-set mode.	[642X]Fast Ice	Press button 10 until the fast ice icon is illuminated.Fast Ice mode can be deselected using button 10.
Holiday modeThe refrigerator minimises defrosting to save energy when doors remain closed for an extended period.		Press button 10 until the holiday icon is illuminated.Holiday mode can be deselected using button 10 or opening the fridge door.When holiday made is disabled the temperature settings will revert to the previous settings.
Display LockDeactivates the user interface controls.	[3706]	To turn on/off press and hold button 9 for 3 seconds, the lock icon is illuminated when activated.
Drinks ChillSets a timer for between 1 and 30 minutes as a reminder for when drinks are placed in the freezer for quick chill.		To turn on press button 11 and initial time of 20 mins will appear on digital display. To adjust time use buttons 6 and 7.Alarm will sound when time is finished.Press button 11 to turn off during or after countdown. The time taken to chill depends on the size of your bottle.Do not leave the bottle inside the freezer longer than the time needed for chilling.
Ice on/offEnables/disables ice maker	Icemaker Off	To enable/disable press button 13 to cycle through on/off modes.Indicator 12 will illuminate when the ice maker is deactivated.The ice maker will turn off automatically after sensing that the water tank is empty.
INDICATOR ICON OPERATION
Eco ModeEnabled when appliance set to energy efficient operating temperatures.		ECO icon automatically appears when refrigerator is set between +3°C and +7°C and freezer is set between -14°C and -18°C

IMPORTANT

The factory default settings for the refrigerator is "3" and "-18°C" for the freezer. If you want to change the temperature, remember to make only small adjustments and wait 24 hours to see if it's correct.

ERROR CODES & ALARMS

Alarms

ALARM ICON WHAT IT MEANS OPERATION
		Freezer Temperature AlarmActivates if the freezer temperature is 10°c over set temperature for a period of 50 minutes (except during a defrost).An alarm will sound the temperature icons will flash.	To deactivate the alarm for 50 minutes press any button.To deactivate alarm for 12 hrs on the ice & water model press and hold Select Mode for 10 seconds for non ice and water models press and hold any button for 10 seconds.
	TEMP[CSX5]
	ZONENon Electronic Display
	Non Electronic Display	Door AlarmActivates if the refrigerator or freezer doors are left open for longer than 2 minutes.An alarm will sound and the affected compartment icon will flash and the temperature and icons will fade on and off.	Alarm will sound and icon will flash indicating which door is open.(Ice & water models)To silence the alarm for 8 minutes while the door is open press any button (the icons will continue to flash until door is closed).

Error codes

ERROR CODE WHAT IT MEANS... WHAT TO DO...
Communication Error		If you see this icon displayed (electronic display models) or the top temperature icon is flashing it means that the control has lost contact with the main control board.	Turn the unit off at the power point for 5 minutes and then turn it back on.
		The appliance will operate at its last known setting, all auxiliary functions will not work.	Under most circumstances this will reset the display enabling normal function to continue.
	Non Electronic Display		If the error re-occurs then call for service.
Sensor - Open Circuit / Short Circuit		If you see this icon displayed (electronic display models) or any combination of the second and fourth temperature icons are flashing it means that an error has been detected on a sensor.	Call for service.
		The refrigerator will run in a default cycle to prevent food spoilage.
	Non Electronic Display

CLEANING YOUR REFRIGERATOR

WARNING

BEFORE CLEANING: Turn the refrigerator off at the power point and unplug the cord to prevent any chance of electrocuting yourself.

Doors and exterior (white and silver):

You should only clean the doors with lukewarm soapy water and a soft cloth.

CAUTION

Never use stainless steel cleaners, abrasive pads or other cleaners that will scratch the surface. Damage to the appliance after delivery is not covered by your warranty.

Interior

Clean the inside of your refrigerator regularly with a soft cloth, unscented mild soap and lukewarm water. Thoroughly dry all surfaces and removable parts and avoid getting water on the controls. Replace removable parts, plug power cord in and switch the power on before returning the food.

Water Tank Assembly

Clean the inside of the water tank regularly with a soft cloth, unscented mild soap and rinse thoroughly with lukewarm water to completely remove any soap residue.

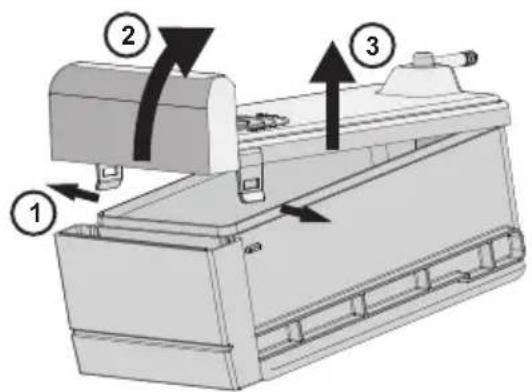

To remove the lid follow these steps:

1. Unclip the front 2 clips and
2. rotate lid up and off the rear clip.
3. Lift lid off tank

Door seals

Always keep door seals clean by washing them with a mild detergent and warm water, followed by a thorough drying.

Sticky food and drink can cause seals to stick to the cabinet and tear when you open the door.

CAUTION

Never use hot water, solvents, commercial kitchen cleaners, aerosol cleaners, metal polishes, caustic or abrasive cleaners, or scourers to clean your refrigerator. Many commercially available cleaning products and detergents contain solvents that will damage your refrigerator. Use only a soft cloth with an unscented mild soap and lukewarm water.

To clean a crisper or freezer bin with telescopic extension slides, simply wipe with a damp cloth and warm soapy water. Never immerse the cover in water, as this could affect the operation of the slide.

Switching off your refrigerator

If you switch off your refrigerator for an extended period, follow these steps to reduce the chances of mould:

1. Remove all food.
2. Remove the power plug from the power point.
3. Thoroughly clean and dry the Interior.
4. Ensure that all the doors are wedged open slightly for air circulation.

FOOD STORAGE GUIDE

CATEGORY PRODUCT REFRIGERATOR FREEZER STORAGE TIPS
MEAT	Sausages and Mince	1-2 Days	2-3 Months	Keep cold meat at the back of the refrigerator where it is coldest.
	Chops and Steak	3-4 Days	4-6 Months
	Cold Meats	3-5 Days	4-6 Months	Plastic can cause meat to sweat if stored in refrigerator for more than a day.
	Roasts 3-5 Days 12 Months			Roast can take up to 48 hours to defrost properly, transfer frozen roast to the refrigerator 2 days before use.
POULTRY	Chicken	1-2 Days	2 Months	If poultry takes on a smell or colour you are unsure about it is best to throw it out.
	Roast Chicken	3-5 Days	12 Months
	Eggs	6 Weeks	Not Suitable	Whole eggs are not suitable for freezing, slightly beaten eggs may be frozen for four months.
SEAFOOD	Whole fish and fillets	2-3 Days	2 Months	Store in an air light container or foil.
	Lobster and crabs	1-2 Days	2 Months
	Prawns	1-2 Days	2 Months	Never freeze prawns in salty water as this will dehydrate the flesh.
DAIRY	Milk	Until Expiry Date	Not Suitable	If dairy takes on a smell or colour and you are unsure about it, it is best to throw it out.
	Yoghurt	7-10 Days	Not Suitable
	Hard Cheeses	2 Weeks - 2 Months	2 Months (Grated)
	Soft Cheeses	1-2 Weeks	Not Suitable	Depending on the variety hard cheese can last from 2 weeks to 2 months.
	Butter	8 Weeks	12 Months
FRUIT & VEGETABLES	Every fruit and vegetable has a different shelf life. Some stay fresh for a couple of days e.g. beans, others can last for a couple of months e.g. onions.		8-12 MonthsWhen freezing chop and blanch in small portions.	Keep vegetables in the crisper and away from the air vents to avoid freezing.
				Don't wash fruit and vegetables before storing them in the refrigerator as this can make them susceptible to rotting.
LEFT OVERS	Homemade meals	3-4 Days	2-6 Months	Store in sealed container.
				Freeze meals in small portion sizes to limit wastage.

IMPORTANT

Please note, use this information as a guide only, actual storage times will vary depending on how you use your refrigerator, climatic conditions and the freshness of the food.

TROUBLESHOOTING

Appliance does not operate at desired temperature

In a modern frost free refrigerator / freezer, cold air is circulated around the various compartments through air vents using a high efficiency fan.

CONCERN WHAT TO DO
Refrigerator is too warm	Ensure food is allowed to cool before placing inside the refrigerator.
	Ensure the appliance is set up as per instructions on page 11.
	Ensure that contents are not obstructing the cooling vents.
	Ensure the door is not held open or is being opened too frequently.
Freezer is too warm	Adjust temperature to a colder setting.Ensure food is allowed to cool before placing inside the freezer.Ensure the appliance is set up as per instructions on page 11.Ensure that contents are not obstructing the cooling vents.Ensure the door is not held open or is being opened too frequently.
Food is freezing in the refrigerator	Adjust temperature to a warmer setting.Ensure that fruit and vegetables are stored in the crisper. Items with a high water content should not be placed near the cooling vents.
Unable to change temperature settings	Refer to function guide in Controlling Your Refrigerator.Ensure that user interface is in "awake" mode before trying to adjust temperature settings.

Crisper Operation

CONCERN WHAT TO DO
Excess moisture build up in crisperIt is normal for there to be some moisture and humidity in the crisper bin.	Ensure that the crisper is not over packed.
Crisper bin can not be removed	If crisper bin interferes with the door bins, remove door bins before removing crisper.Position cabinet so that the door can be fully opened.
Freezing items in the crisper	Adjust temperature to a warmer setting.

TROUBLESHOOTING

Appliance noise

Your new refrigerator may make sounds that your old one didn't make. Because the sounds are new to you, you might be concerned about them. Most of the new sounds are normal. Hard surfaces, like the floor, walls and cabinets, can make the sounds seem louder than they actually are. The following describes the kinds of sounds and what may be making them.

Refrigerator operation

CONCERN WHAT TO DO
Appliance will not run	Ensure that the cord is plugged into a live power outlet and outlet is switched on.
It is normal for the freezer fan not to operate during the automatic defrost cycle, or for a short time after the appliance is switched on.	Ensure that the household circuit breaker has not tripped or that the fuse has not blown.
	The appliance maybe in defrost mode, check again in half an hour.
Compressor motor seems to run too long	Ensure that the doors are not held open
At normal room temperatures, expect your motor to run about 40% to 80% of the time. Under warmer conditions, expect it to run even more often.	Check that large amounts of warm food have not just been placed inside the appliance. Note that the appliance will run more than normal just after you install it or when adjusting to temperature setting changes.
The exterior of the appliance is warm or hot to touch	Ensure the appliance has the external clearances recommended in the section "Installing your new appliance".
This is normal because the appliance transfers heat from the inside out through the outer panels and the divider between the doors.	The exterior of the cabinet will be much warmer on warmer days it may even feel hot to touch, as the appliance is working harder.
User interface will not respond	Check that the user interface is in awake mode, refer to section "About the user interface".
To ensure settings are not accidentally changed the user interface will go into sleep mode when not in use. Press any button to wake user interface	Check that the user interface is not locked, refer to section "About the user interface". If the user interface is frozen turn the appliance off for five minutes for the memory to clear, then turn back on. Check that the user interface is not in Sabbath Mode, refer to control instructions. (I&W models only).
Alarms Sounding	Check that all doors are fully closed. Ensure that the over temperature alarm is not being activated by hot food placed in the freezer. Check if the drinks timer has ended, refer control instructions. Check if the Filter Replacement alert is activated, refer control instructions. (I&W models only)
Frost build up	Check that all doors are fully closed. Ensure that the doors are not opened too often. Ensure that the return air vents are not blocked with packaging. Ensure the seals are clean and not obstructed.
Odours	The interior may need cleaning, refer to cleaning guide. Ensure that food is stored correctly as some food, containers and wrapping can produce odours. Check appliance for old or unusual food.
Lights not working	Ensure that the cord is plugged into a live power outlet and outlet is switched on.
The LED lighting is designed to dim automatically if the door is left opened for more than 5 minutes and turn off completely if the door is open for more than 7 minutes. Closing the door will reset the timer. The LED lighting is also designed to turn on gradually.	Ensure that the household circuit breaker has not tripped or that the fuse has not blown. Check that the user interface is not in Sabbath Mode, refer to control instructions. Check the appliance features section to determine lighting configuration for your model. Check that the doors are closed completely

TROUBLESHOOTING

Door operation

CONCERN WHAT TO DO
Freezer door pops open.	This is normal and should re-close. This happens when the refrigerator door is closed too quickly.If the freezer door stays open, it indicates that the appliance needs to be tilted backwards a little further. Refer to section "Installing your new appliance".
Self close not working.	Check if your appliance has self closing hinges as not all models do.It indicates that the appliance needs to be tilted backwards a little further. Refer to section "Installing your new appliance".
Door not sealing properly	Ensure there is nothing that is preventing the door from closing such as appliance contents or items placed near the appliance.Ensure that the crisper/freezer bin is closed completely. Refit if required as referred to in the section "Using your refrigerator".Ensure the appliance is set up asper recommendations.
Door difficult to open and close	If the door is difficult to open just after you have closed it this is due to the pressure equalising, the door will open normally after a few minutes.

Automatic Ice maker system

CONCERN WHAT TO DO
Ice maker does not produce ice or not enough ice	Ensure that the Ice Maker is switched on at the user interface refer to "About the User Interface" for details.Ensure water tank is full and contains clean water (if liquids other than clean water have been used, call Electrolux Customer Care).Ensure water tank is securely pushed into pump housing.
The icemaker is designed to produce a tray of ice approximately every 3 hours, depending on the conditions.	If the freezer compartment is too warm, refer to "freezer is too warm" then wait 24 hours for the freezer to reach ideal temperature.Turn the unit off at the mains and leave for 2 minutes then turn the appliance back on (this will reset the icemaker unit). Check for ice production after 24 hours.Check that there is no obstruction under the ice maker and ensure the ice bin is fitted correctly.
Ice has bad odour or taste	Cover food to ensure ice does not absorb foreign odours.Interior of appliance or ice bin may require cleaning, refer to "Cleaning your refrigerator".Discard stale ice monthly and allow ice maker to produce a fresh supply.

If you still require service

If you have a problem, and the problem persists after you have made the checks mentioned, contact your nearest Electrolux approved Service Centre or the dealer you bought the refrigerator from. Be ready to quote the model number, the 9-digit PNC and 8-digit serial number, which is stated on the label inside the refrigerator compartment.

CONTACT DETAILS ELECTROLUX CUSTOMER CARE

Indonesia

CUSTOMER CARE CENTER:

Electrolux Building
