| Product Type | Freestanding Refrigerator |
| Brand | Electrolux |
| Model | EUM0900SA |
| Energy Efficiency Class | F (EU energy label) |
| Annual Energy Consumption | Approx. 120 kWh |
| Noise Level | 41 dB (A) |
| Total Net Capacity | 90 L |
| Fridge Compartment Capacity | 80 L |
| Freezer Compartment Capacity | 10 L (ice cube tray) |
| Dimensions (H x W x D) | 85 x 50 x 55 cm |
| Weight | 28 kg |
| Power Supply | 220-240 V, 50 Hz |
| Power Consumption | 0.8 A |
| Climate Class | N-ST (16°C - 38°C) |
| Refrigerant | R600a |
| Temperature Control | Mechanical dial |
| Interior Light | LED |
| Shelves | 2 glass shelves |
| Door Storage | 3 door bins |
| Egg Tray | Included |
| Ice Tray | Included |
| Reversible Door | Yes |
| Frost Free System | No (manual defrost) |
| Maintenance | Clean with damp cloth, defrost regularly |
| Spare Parts Availability | 5 years after discontinuation |
Frequently Asked Questions - EUM0900SA ELECTROLUX
User questions about EUM0900SA ELECTROLUX
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fridge in PDF format for free! Find your manual EUM0900SA - ELECTROLUX and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. EUM0900SA by ELECTROLUX.
USER MANUAL EUM0900SA ELECTROLUX
Congratulations and thank you for choosing our Electrolux.
We are sure you will find your new appliance a pleasure to use. Before you use the appliance, we recommend that you read through the whole user manual which provides a description of the product and it's functions.
To avoid the risks that are always present when you use an appliance, it is important that the appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards.
We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.
After unpacking the appliance, please check it is not damaged. If in doubt, do not use the appliance but contact your local customer care centre.
For contact details, refer to the last page of this user manual.
Conditions of use
This appliance is designed and intended to be used in normal domestic applications only.
Please ensure you read the instruction manual fully before you call for service, or a full service fee could be applicable.
Record model and serial number here:
Model number:
Serial number:
PNC:

WARNING
This symbol indicates information concerning your personal safety.

CAUTION
This symbol indicates information on how to avoid damaging the appliance.

IMPORTANT
This symbol indicates tips and information about use of the appliance.

ENVIRONMENT
This symbol indicates tips and information about economical and ecological use of the appliance.
CONTENTS
Important safety instructions 3
Instructions 5
Installation 6
Start 7
Storage of food 8
In use 9
Trouble Shooting And Maintenance 12
Servicing 14
Electrical Information 16

ENVIRONMENT
Information on disposal for users
- Most of the packing materials are recyclable. Please dispose of those materials through your local recycling depot or by placing them in appropriate collection containers.
• If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.
RoHS Compliant
Being ensured the permissible content limitation of some toxic chemicals (RoHS compliant)
SAFETY


WARNING!
It is hazardous for anyone other than authorized service personnel to carry out servicing or repairs which involves the removal of covers. To avoid the risk of an electric shock do not attempt to repair this appliance yourself.
Safety tips
Safety tips
Do not use electrical appliances such as a hair dryer or heater to defrost your Fridge/Freezer.
Containers with flammable gases or liquids can leak at low temperatures.
Do not store any containers with flammable materials, such as spray cans, fire extinguisher refill cartridges etc. in the Fridge/Freezer.
Do not place carbonated or fizzy drinks in the Freezer compartment. Ice lollies can cause "Frost/Freeze burns". If consumed straight from the Fridge/Freezer.
Do not remove items from the Fridge/Freezer compartment if your hands are damp/wet, as this could cause skin abrasions or "Frost/Freezer burns". Bottles and cans must not be placed in the Freezer compartment as they can burst when the contents freeze.
Manufacturer's recommended storage times should be adhered to. Refer to relevant instructions.
Do not allow children to tamper with the controls or play with the Fridge/Freezer. The Fridge/Freezer is heavy. Care should be taken when moving it. It is dangerous to alter the specification or attempt to modify this product in any way.
Do not store inflammable gases or liquids inside you Fridge/Freezer.
If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
This appliance is intended to be used in household and similar applications such as
- staff kitchen areas in shops, offices and other working environments;
- farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of type recommended by the manufacturer.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
Disposal
Old appliances still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again.
The refrigerant used in your appliance and insulation materials requires special disposal procedures. Ensure that none of the pipes on the back of the appliance are damaged prior to disposal. Up to date information concerning options for disposing of your old appliance and packaging from the new one can be obtained from your local council office.
Locks
If your Fridge/Freezer is fitted with a lock, to prevent children being entrapped keep the key out of reach and not in the vicinity of the appliance. If disposing of an old Fridge/Freezer break off any old locks or latches as a safeguard.
INTRODUCTION
Before use
Please read these instructions and the Safety guidelines on page 1 carefully before using your new Fridge/Freezer. The Fridge/Freezer is for indoor, domestic use only.

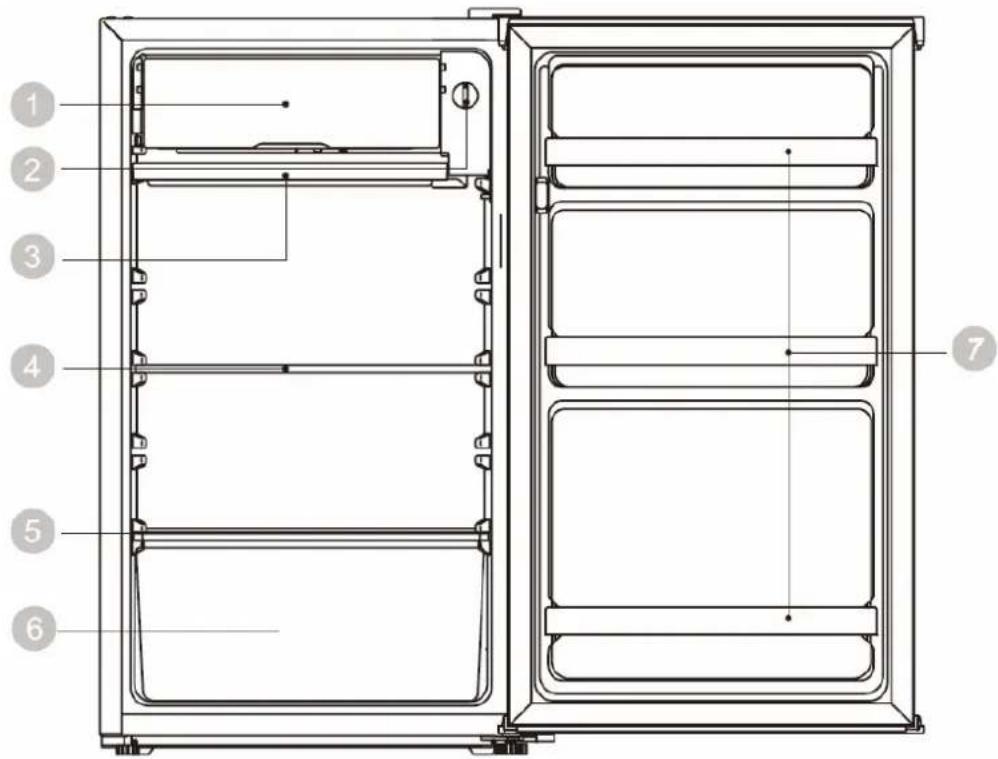

| No Description | |
| 1 Chill door | |
| 2 Thermostat | |
| 3 Drip tray | |
| 4 Shelve | |
| 5 Crisper cover | |
| 6 Crisper | |
| 7 Plastic retaining |
INSTALLATION
Location
When selecting a position for your Fridge/Freezer you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16°C and 32°C. Avoid locating your Fridge/Freezer near a heat source, eg, cooker, boiler or radiator. Also avoid direct sunlight in out-buildings or sun lounges. If you are placing your Fridge/Freezer in an out-building such as a garage or annex ensure that the Fridge/Freezer is placed above the damp course, otherwise condensation will occur on the Fridge/Freezer cabinet. Never place the Fridge/Freezer in a wall recessed or into fitted cabinets or furniture when your Fridge/Freezer is working, the grille at the back may become hot and the sides warm. It must therefore be installed so that the back of the Fridge/Freezer has at least 9cm(31/2") of free space and the sides have 2cm(3/4"). Do not drape the Fridge/Freezer with any covering.
Leveling the Fridge/Freezer
If the Fridge/Freezer is not level, the door and magnetic seal alignment will be affected and may cause you Fridge/Freezer to work incorrectly. Once the Fridge/Freezer is placed in its final location, adjust the leveling feet at the front by turning them.

Cleaning before use
Wipe the inside of the Fridge/Freezer with a weak solution of bicarbonate of soda. Then rinse with warm water using a damp sponge or cloth. Wash the baskets and shelves in warm soapy water and dry completely before replacing in the Fridge/Freezer. The external parts of the Fridge/Freezer can be cleaned with wax polish. See page 10 for more details on cleaning.
Before plugging in YOU MUST
Check that you have a socket which is compatible with the plug supplied with the Fridge/Freezer. If not see the section called ELECTRICAL INFORMATION on page 12.
Before switching on!
DO NOT SWITCH ON UNTIL FOUR HOURS AFTER MOVING THE FRIDGE/FREEZER. The coolant fluid needs time to settle. If the appliance is switched off at any time, wait 30 minutes before switching back on to allow the coolant fluid to settle.
Before filling your Fridge/Freezer
Before storing foods in your Fridge/Freezer, turn the Fridge/Freezer on and wait for 24 hours, to make sure it is working properly and to allow the Fridge/Freezer to fail to the correct temperature. See page 9 for more details.
START
Testing
- Clean the parts of the refrigerator with lukewarm water containing a little neutral detergent and with clear water, and wipe them dry.
Notes: Electric parts of the refrigerator can only be wiped by dry cloth.
- Turn the thermostat knob to the "3" position, turn on electricity. The compressor and the light inside the refrigerator begin to work..
- Open the door 30 minutes later, if the temperature in the refrigerator decreased obviously, it shows that the refrigerator system works well. When the refrigerator operates for a period of time, the temperature controller will automatically set the temperature within limits it opens.
Temperature Control Dial

Temperature Control
-
The temperature in the refrigerator compartment is controlled by the temperature controller installed on the side wall of the refrigerator compartment.
-
Turn the thermostat knob to right or left, you can regulate the temperature inside the refrigerator.
-
The marks on the knob are the temperature grades, not the exact number of the degrees of temperature."OFF" shows a forced STOP and "7" shows the lowest temperature. Turn the knob from "1" position to "6" position, the temperature decreases continuously. You may set the temperature control selector to any position according to what you need.
-
Please set the selector to "4" position in normal use.
STORAGE OF FOOD
1.How to Use the Chilled Room
*Put fresh and clean food such like fish, meat into ice room ,therefore the taste and nutrient of food are preserved.
*Wrap food to be frozen in ALUMINIUM FOIL or place it in AIRTIGHT boxes.
*Do not allow already frozen food into direct contact with food to be frozen.
*If you buy deep frozen food in the shops, bring it home and place it in ice room as quickly as possible so that the time during which it kept in the air temperature is as SHORT AS POSSIBLE.
2.How to Use the Refrigerator Compartment
*The cook dishes can be put into refrigerator to keep fresh after their temperature decreases to room temperature.
*Egg pockets and bottle pockets for eggs, butter, milk and bottle drinks, et50DVDc..
*Vegetable box for fruits, vegetables, etc..(the cover on the vegetable can keep the water from evaporating)
3.Placement of Food
*Proper place should be left instead of too crowded during food storage.
*Food to be stored should be wrapped with clean plastic film or fresh keeping paper, then distributed to several frames even to avoid contamination and the loss of water and smell mixture.
*Cool hot food down to the room temperature before storing or consumption of electricity will increase and would lead to frost forming inside.
*Never place vegetables and fruits into ice room in order to prevent them from being frostbitten.
IN USE
- The appliance might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed
- The fact that the climate class is ST, and the room temperature of between 16^ C and 38^ C.
- The fact that the internal temperatures could be affected by such factors as the location of the refrigerating appliance, ambient temperature and the frequency of door opening, and, if appropriate, a warning that the setting of any temperature control device might have to be varied to allow for these factors
- The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold
- The need to not exceed the storage time(s) recommended by the food manufacturers for any kind of food
- The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life
- It is better wrapping the frozen food in several layers of the glass shelves.
- the care required with regard to frozen food in storage in the event of an extended non-running of the refrigerating appliance (interruption of power supply or failure of the refrigerating system)
- The door to the evaporator clearance can be used to store food;
Tips for keeping food perfect in the Fridge
Take extra care with meat and fish
Cooked meats should always be stored on a shelf above raw meats to avoid bacterial transfer. Keep raw meats on a plate which is large enough to collect juices and cover it with cling film or foil.
Leave space around food
This allows cold air to circulate around the Fridge, ensuring all parts of the Fridge are kept cool.
Wrap up food!
To prevent transfer of flavors and drying out, food should be separately packed or covered. Fruit and vegetables need not be wrapped.
Pre-cooked food should be cooled properly
Allow pre-cooked food to cool down before placing in the Fridge. This will help to stop the internal temperature of the Fridge from rising.
Shut the door!
To prevent cold air escaping, try to limit the number of times you open the door. When returning from shopping, sort foods to be kept in your Fridge before opening the door. Only open the door to put food in or take it out.

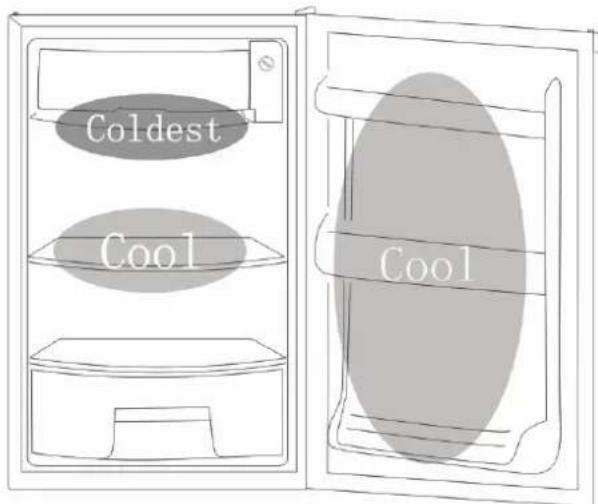

Where to store your foods in the fridge
Cool area
This is where to store foods which will keep longer if they are kept cool. Milk, eggs, yogurt, fruit juices, hard cheeses eg. Cheddar. Opened jars and bottles of salad dressings, sauces and jams. Fats, eg. Butter, margarine, low-fat spreads, cooking fats and lard.
Coldest area:
This is where foods which must be cold to keep them safe should be kept:
- Raw and uncooked foods should always be wrapped.
- Pre-cooked chilled foods, eg. Ready meals, meat pies, soft cheeses.
- Pre-cooked meats eg. Ham,
- Prepared salads(including pre-packed mixed green salads, rice, potato salad etc).
·Desserts, eg. Fromage frais, home-prepared food and leftovers or cream cakes.

NOTE: Always wrap and store raw meat, poultry and fish on the lowest shelf at the bottom of the fridge. This will stop them dripping onto, or touching other foods. Do not store inflammable gasses or liquids in the fridge.
Recommended storage periods
For recommended food storage time, refer to the information given on your food packaging.
DEFROSTING
Defrosting
- When the refrigerator working for a period of time, the inner surface of the chilled room will be covered with a layer of white frost. It may raise the electricity consumption and lessen the effect of refrigeration. Then you should do frost re-movement at once.
- After defrosting, clear away defrosting water in water pan as soon as possible.
Notes: Never use sharp metal tools or it will damage the refrigerator.
Cleaning inside the Fridge/Freezer
After defrosting you should clean the Fridge/Freezer internally with a weak solution of bicarbonate of soda. Then rinse with warm water using a damp sponge or cloth and wipe dry. Wash the baskets in warm soapy water and ensure they are completely dry before replacing in the Fridge/Freezer. Condensation will form on the back wall of the Fridge; however it will normally run down the back wall and into the drain hole behind the salad bin.
Cleaning outside the Fridge/Freezer
Use standard non-abrasive detergent diluted in warm water to clean the Fridge/Freezer exterior.
The grille of the condenser at the back of the Fridge/Freezer and the adjacent components can be vacuumed using a soft brush attachment.
Do not use harsh cleaners, scouring pads or solvents to clean any part of the Fridge/Freezer
TROUBLESHOOTING AND MAINTENANCE
Trouble Shooting
Power cut
If the internal temperature of the Fridge/Freezer compartment is -18^ or less when the power returns, your food is safe. The food in your Fridge/Freezer will remain frozen for approx 16 hours with the door closed. Do not open the Fridge/Freezer door more than necessary.
The Fridge/Freezer is exceptionally cold
You may have accidentally adjusted the thermostat control dial to a higher position.
The Fridge/Freezer is exceptionally warm
The compressor may not be working. Turn the thermostat control dial to the maximum setting and wait a few minutes. If there is no humming noise, it is not working. Contact the local store where your purchase was made.
The Fridge/Freezer is not working
Check it is plugged in and switched on. Check that the fuse in the plug has not blown. Plug
In another appliance, such as a lamp, to see if the socket is working. The Fridge/Freezer should be placed in a well ventilated room with an ambient temperature of between 16^ C and 32^ C. Leave the Fridge/Freezer for 30 minutes.
Condensation appears on the outside of the Fridge/Freezer
This may be due to a change in the room temperature. Wipe off any residue of moisture. If the problem continues contact the local store where your purchase was made.
GURGLING, WHOOSHING
These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your Fridge/Freezer.
HUMMING, PURRING OR PULSATING
This is the compressor motor working, as it pumps the refrigerant around the system.
Moving the Fridge/Freezer
Location
Do not place your Fridge/Freezer near a heat source, eg. Cooker, boiler or radiator. Also avoid direct sunlight in out-buildings or sun lounges.
Leveling the Fridge/Freezer
Make sure the Fridge/Freezer is level. Use the rotating leveling feet at the front. If the Fridge/Freezer is not level, the doors and magnetic seal alignments will be affected and may cause your Fridge/Freezer to work incorrectly.
Do not turn on the Fridge/Freezer for 4 hours
After the Fridge/Freezer is in place it needs to be left for 4 hours. This allows time for the coolant to settle.
Installation
Don't cover or block the vents or grilles of your appliance.
Vacation Time
- Turn off the refrigerator first and then unplug the unit from the wall outlet.
- Remove all the food.
- Clean the refrigerator.
- Leave the lid open slightly to avoid possible formation of condensation, mold, or odors.
- Use extreme caution in the case of children. The unit should not be accessible to
child's play.
- Short vacations: Leave the refrigerator operating during vacations of less than three weeks.
- Long vacations: If the appliance will not be used for several months, remove all food and unplug the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary or have the door removed.
Servicing
This product should be serviced by an authorized engineer and only genuine spare parts should be used.
Under no circumstances should you attempt to repair the appliance yourself.
Repairs carried out by inexperienced persons may cause injury or serious malfunctioning.
Contact the local store where your purchase was made.
When the appliance is not in use for long periods, disconnect from the electricity supply, empty all foods and clean the appliance, leaving the door ajar to prevent unpleasant smells.
Lamps can only be replaced by the manufacturer, together with a part of the appliance.
ELECTRICAL INFORMATION
THIS APPLIANCE MUST BE EARTHED.
This appliance is fitted with a fused three pin plug to BS 1363 which will be suitable for use in all houses fitted with sockets to current specifications.
If the fitted plug is not suitable for your socket outlets, it should be cut off and carefully disposed of. To avoid a possible shock hazard, do not insert the discarded plug into a socket.
CONTACT DETAILS ELECTROLUX CUSTOMER CARE
Indonesia
Consumer Care Center Tel : (+62 21) 522 7180
Menara Utara 2nd Floor,
Suite 201, I. HR Rasuna Said
kav C 11-14, Karet Setiabudi
Corporate Office Address: Unit T2-7, 7th Floor, Tower 2,
aya33 Hyperoffice, No. 3, alan Semangat, Seksyen 13,
46100 Petaling aya, Selangor
Office Tel:(+60 3)7843 5999
Office Fax : (+60 3) 7955 5511
Consumer Care Center Address: Lot C6, No. 28,
alan 15/22, Taman Perindustrain Tiong Nam,
40200 Shah Alam, Selangor
Consumer Care Center Fax : (+60 3) 5524 2521
Philippines
Consumer Care Center Toll Free: 1-800-10-845-CARE 2273
Consumer CareHotline : (+63 2) 845 CARE 2273
10th Floor. W5thAvenue Building
5th Avenue Corner 32nd Street
Bonifacio Global City,
Taguig Philippines 1634
Trunkline:+63 2737-4757
Singapore
Consumer Care Center Tel:(+65)67273699
1 Fusionopolis Place,
07 -10 Galaxis, West Lobby
Singapore 138522.
Office Fax:(+65)67273611
ประเทศไทย
Consumer Care Toll Free:1800-58-88-99
Tel:(+84 8)3910 5465
Floor 9th, A&B Tower
76 Le Lai street - Ben Thanh Ward - District 1
Ho Chi Minh City, Vietnam
Office Tel: (+84 8)3910 5465
Office Fax: (+84 8)3910 5470
Hongkong
2-28 Kwai Lok Street, Kwai Chung, N.T.
www.electrolux.com

pie
| Segment | Percentage (%) | | :--- | :--- | | White | 80 | | Dark Grey | 20 |VN TỦ LẠNH
TÀI LIỆU HƯỚNG DÃN SỬ DỤNG
EUM0900SA
XIN CHÚC MÙNG
CẢNH BÁO!
Symbol of a trash bin crossed with diagonal lines and a horizontal bar below (no text or labels)Menara Utara 2nd Floor,
Suite 201, I. HR Rasuna Said
kav C 11-14, Karet Setiabudi
Corporate Office Address: Unit T2-7, 7th Floor, Tower 2,
aya33 Hyperoffice, No. 3, alan Semangat, Seksyen 13,
46100 Petaling aya, Selangor
Office Tel:(+603)78435999
Office Fax : (+60 3) 7955 5511
Consumer Care Center Address: Lot C6, No. 28,
alan 15/22, Taman Perindustrain Tiong Nam,
40200 Shah Alam, Selangor
Consumer Care Center Fax : (+60 3) 5524 2521
Philippines
Consumer Care Center Toll Free: 1-800-10-845-CARE 2273
Consumer CareHotline:(+63 2)845 CARE 2273
10th Floor. W5th Avenue Building
5th Avenue Corner 32nd Street
Bonifacio Global City,
Taguig Philippines 1634
Trunkline:+63 2737-4757
Singapore
Consumer Care Center Tel: (+65) 6727 3699
1 Fusionopolis Place.
07 -10 Galaxis, West Lobby
Singapore 138522.
Office Fax : (+65) 6727 3611
Vietnam
Consumer Care Toll Free:1800-58-88-99
Tel:(+84 8)3910 5465
Floor 9th, A&B Tower
76 Le Lai street - Ben Thanh Ward - District 1
Ho Chi Minh City, Vietnam
Office Tel: (+84 8)3910 5465
Office Fax: (+84 8)3910 5470
Hongkong
Tel:(+85 2)8203 0298
Dah Chong Hong,Ltd.-Service Centre
8/F.Yee Lim Godown Block C
2-28 Kwai Lok Street, Kwai Chung,N.T.
www.electrolux.com
