Product Type	Freestanding Microwave Oven
Model	EMS2348X
Brand	Electrolux
Capacity	23 L
Microwave Output Power	800 W
Microwave Input Power	1250 W
Grill Input Power	1000 W
Rated Voltage	~230 V
Rated Frequency	50 Hz
Turntable Diameter	270 mm
External Dimensions (W x D x H)	485 x 370 x 292.5 mm
Net Weight	13.2 kg
Control Type	Electronic with LED display
Functions	Microwave, Grill, Combination, Defrost by Time/Weight, Auto Menu, Kitchen Timer, Clock
Power Levels (Microwave)	5 (800, 640, 400, 240, 80 W)
Child Lock	Yes
Memory Function	Yes (last microwave cooking setting)
Safety Features	Grounding, door interlocks, auto shut-off
Cabinet Finish	Metal (stainless steel look)
Cleaning Method	Mild detergent and damp cloth; lemon water for easy cleaning
Accessories Included	Glass tray, turntable ring assembly, grill rack, instruction manual
Installation Type	Countertop freestanding
Certifications	RoHS compliant
Warranty	Varies by region (refer to local supplier)

Frequently Asked Questions - EMS2348X ELECTROLUX

How do I set the clock on my Electrolux EMS2348X?

Press TIMER / CLOCK twice. Use the dial to set the hour (0-23), press the button again, set minutes (0-59), then press TIMER / CLOCK to confirm.

How can I use the kitchen timer?

Press TIMER / CLOCK once, turn the dial to set time (max 95 minutes), then press START. The timer will count down but does not start cooking.

How do I defrost food by weight?

Press DEFROST twice, turn the dial to select weight (100-2000 g), then press START. The time is set automatically.

How to activate the child lock?

In standby mode, press and hold STOP/CLEAR for 3 seconds until a beep sounds and the lock icon appears. Repeat to unlock.

What utensils are safe to use in this microwave?

Use microwave-safe dishes only (glass, ceramic, plastic labeled safe). Avoid metal, aluminum foil (except small pieces), and containers with metal trim.

Why is my microwave not heating?

Check if the door is closed properly, the power cord is plugged in, and the circuit breaker is not tripped. If the problem persists, contact a qualified technician.

How should I clean the microwave oven?

Unplug the oven. Wipe the interior with a damp cloth. For stubborn stains, heat half a lemon in 300 ml water for 10 minutes at full power, then wipe dry.

What is the maximum cooking time?

The maximum cooking time is 95 minutes for microwave, grill, and combination functions. The kitchen timer also allows up to 95 minutes.

How to use the grill function?

Press GRILL, set the cooking time (max 95 min), then press START. Halfway through, the oven beeps twice; turn the food over for even browning.

Can I set multiple cooking stages?

Yes, up to 2 stages. If one stage is defrost, it must be first. Example: set defrost then microwave using the DEFROST and MICROWAVE buttons.

USER MANUAL EMS2348X ELECTROLUX

EN Free-standing Microwave Oven

ID Free-standing Microwave Oven

中文 独立式微波炉

instruction manual

คู่มือการใช้งาน

IMPORTANT SAFETY INSTRUCTIONS 4

Grounding Installation 6

UTENSILS 7

SETTING UP YOUR OVEN 8

Installation 9

Control Panel and Features 10

Operation Instructions 11

Touble shooting 17

Technical Data 18

Customer Care Center 19

Microwave Oven

INSTRUCTION MANUAL

MODEL:EMS2348X

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. Only use utensils suitable for use in microwave ovens.
6. The oven should be cleaned regularly and any food deposits should be removed.
7. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.

12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

13. Install or locate this oven only in accordance with the installation instructions provided.

14. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
15. This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -by clients in hotels, motels and other residential type environments; -farm houses; -bed and breakfast type environments.
16. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
17. Do not store or use this appliance outdoors.
18. Do not use this oven near water, in a wet basement or near a swimming pool.
19. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any vents on the oven.
20. Do not let cord hang over edge of table or counter.
21. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

22. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

23. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

24. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
25. Children should be supervised to ensure that they do not play with the appliance.
26. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
27. Accessible parts may become hot during use. Young children should be kept away.
28. Steam cleaner is not to be used.
    29 During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
29. Only use the temperature probe recommended for this oven.(for ovens provided with a facility to use a temperature-sensing probe.)
30. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
31. The microwave oven must be operated with the decorative door open.(for ovens with a decorative door.)
32. The rear surface of appliance shall be placed against a wall.
33. The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard

Touching some of the interna components can cause serious personal injury or death.

Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

2. If a long cord set or extension cord is used:

1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.

2) The extension cord must be a grounding-type 3-wire cord.

3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.

2. Clean the accessories in the usual way in soapy water.

3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch:

Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes.

Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils	Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

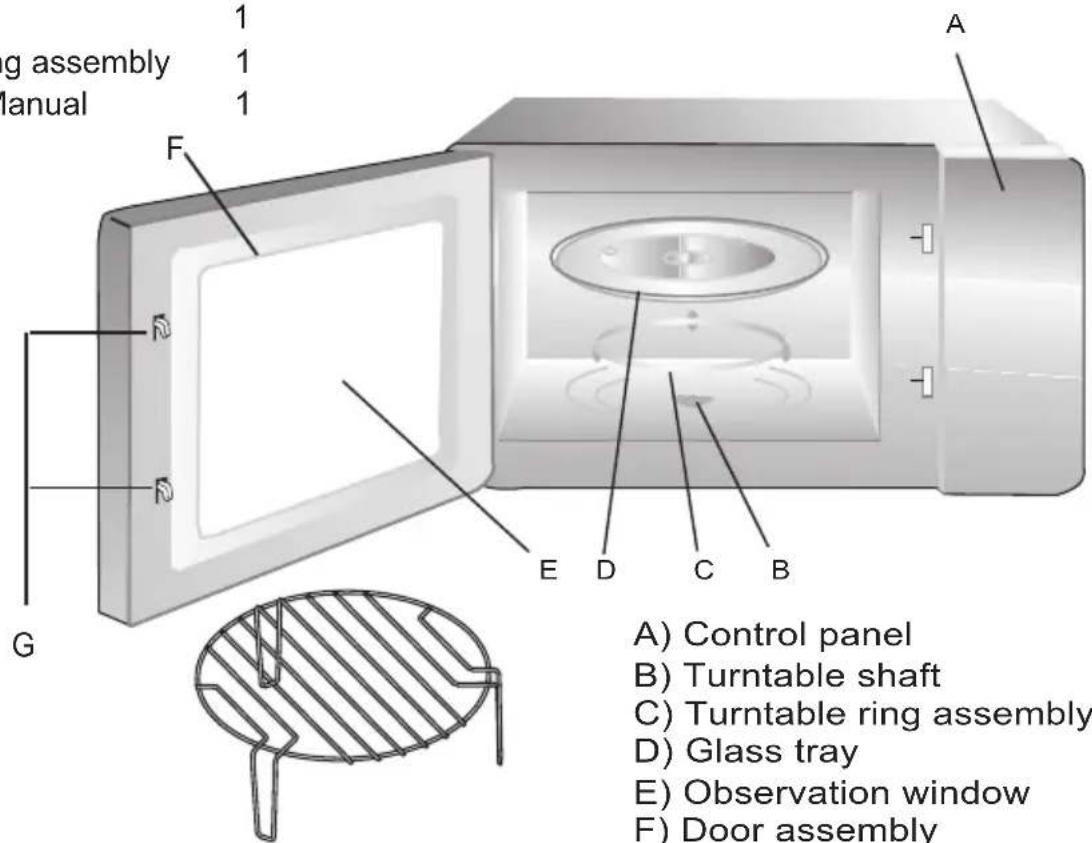

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray	1
Turntable ring assembly	1
Instruction Manual	1

Grill Rack( Only be used in grill function and be placed on the glass tray )

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

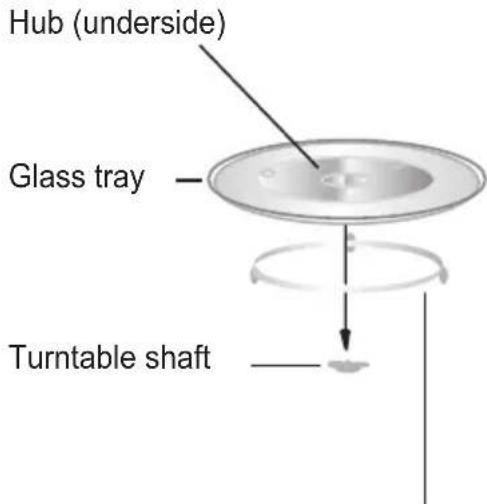

Turntable Installation

Turntable ring assembly

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

Installation

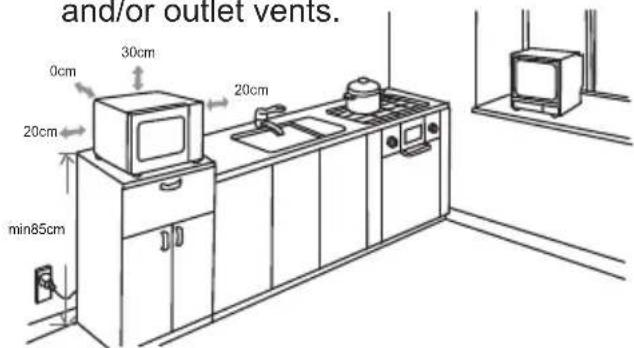

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

(1) The minimum installation height is 85cm.

(2) The rear surface of appliance shall be placed against a wall. Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls.

(3) Do not remove the legs from the bottom of the oven.

(4) Blocking the intake and/or outlet openings can damage the oven.
(5) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.
2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

The accessible surface may be hot during operation.

Operation

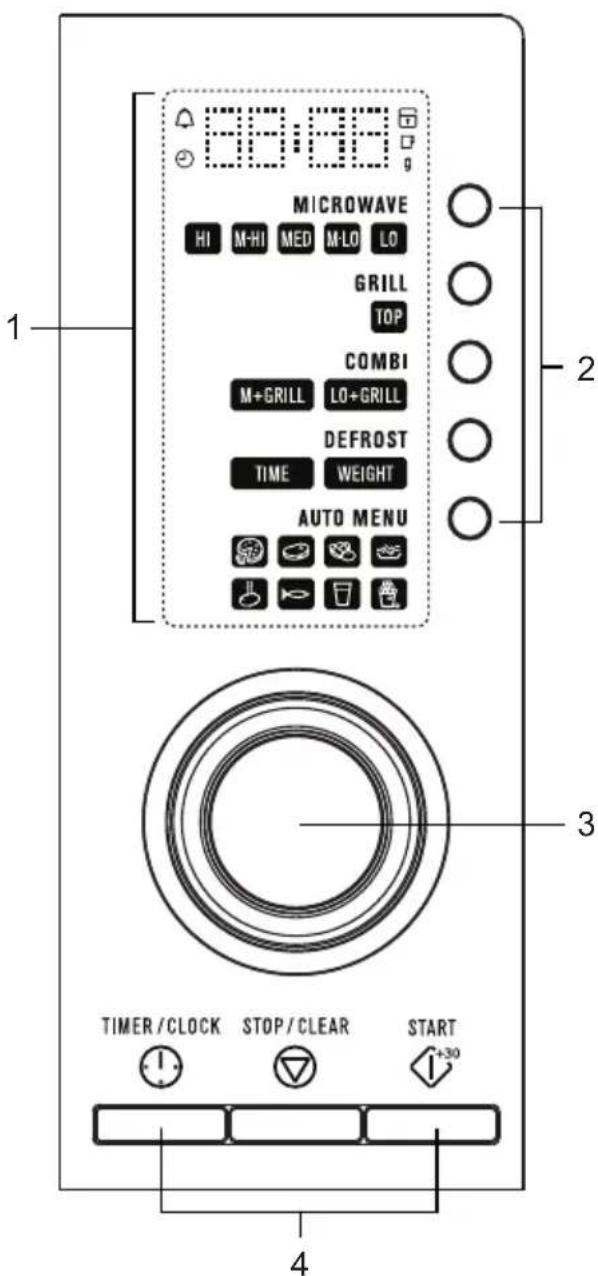

Control Panel and Features

1. LED display
2. Program Selection Buttons
3. Selection Knob
4. Function Buttons

Operation Instructions

1. Clock Setting

1) Press "TIMER / CLOCK " twice to select clock function, the hour figures "0" will flash. The CLOCK ⏻ icon will appear.
2) Turn " 🔍 " to adjust the hour figures, the input time should be within 0--23.
3) Press "TIMER / CLOCK ", the minute figures will flash00"
4) Turn " 🔍 " to adjust the minute figures, the input time should be within 0--59.
5) Press "TIMER / CLOCK " to finish clock setting. ":" will flash, and the time will light.

Note: 1) If the clock is not set, the clock function will not work when powered. 2) During the process of clock setting, if you press " STOP/CLEAR ", the oven will go back to the previous status automatically. If you don't press " TIMER / CLOCK" or there is operation in 1 minute, the oven will go back to the previous status.

2. Kitchen Timer

(1) Press "TIMER / CLOCK" once, LED will display 0:00. The TIMER will appear.
(2) Turn " " to enter the correct time.(The maximum timer is 95 minutes.)
(3) Press " START " to confirm setting.
(4) When the kitchen time is reached, timer indicator will go out. "End" will display and flash. Buzzer will ring 7 times. If no operation in 2 minutes, buzzer will sound once, and "End" will stop flashing.

Note: 1) The kitchen Time is different from 24-hour system. Kitchen Timer is a timer, it does not activate the cooking. 2) Kitchen Timer function can be set together with other cooking functions.

3. Microwave Cooking

1) Press " MICROWAVE ", the screen displays "0:00". "MICROWAVE" and "HI" will light on continue to press " MICROWAVE select different power levels.
2) Turn " 🔍 " to adjust the cooking time between 0:05-95:00.
3) Press " START " to start cooking.

Note: the step quantities for the adjustment time of the coding switch are as follow:

" Microwave/Grill/Combi." Pad instructions

Instructions	LED Display	Microwave Power	Grill Power
1	HI	800W
2	M-HI	640W
3	MED	400W
4	M-LO	240W
5	LO	80W
6	GRILL	0%	100 0W
7	M+GRILL	55%	45%
8	+GRILLLO	36%	64%

4. Grill Function

1) Press " GRILL ", the screen displays "0:00". "GRILL" and "'Top" will light.

2) Turn " " to adjust the cooking time. The maximum cooking time is 95 minutes.

3) Press " START " to start cooking.

Note: If half the grill time passes, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over, close the door, and then press "START" to continue cooking. If no operation, the oven will continue working.

5. Combination Function

1) Press "COMBI", the screen displays "0:00". "M+GRILL" and "LO+GRILL" will light.
2) Turn " " to adjust the cooking time. The maximum cooking time is 95 minutes.
3) Press "START" to start cooking.

6. Quick Start

1) In standby mode, press "START" to start cooking with 100% power for 30 seconds, each added press will increase 30 seconds cooking time up to 95 minutes. "MICROWAVE" and "HI" will light.
2) In microwave, grill, combination cooking or time defrost state, each press of "START" can increase 30 seconds of cooking time.

7. Defrost By Time

1) Press "DEFROST" once, and the oven will display "0:00". "TIME" will light.
2) Turn " 🔍 " to select the defrost time. The MAX time is 95 minutes.
3) Press " START " to start defrosting. The defrost power is P30, and it cannot be changed.

8. Defrost By Weight

1) Press " DEFROST " twice, and the oven will display "100", "WEIGHT" will light.

2) Turn " [icon] " to select the weight of food from 100 to 2000 g.

3) Press " START " to start defrosting. The time will be set automatically according to the weight.

Note: Halt of the defrosting time passes, the oven will sound to remind you to the food over. If no operation, the over will conti ce cooking.nu

9. Inquiring Function

(1) In cooking state without timer, press "TIMER / CLOCK " once to set the timer function. Press " TIMER / CLOCK " twice to inquire the current time for 3 seconds.

(2) In timer state, press "TIMER / CLOCK
(3) In cooking state with timer, press "TIMER / CLOCK

" once to inquire the current ti

" once to inquire

10. Multi-setting cooking

At most 2 sections can be set for cooking. In multi-setting cooking, if one section is defrosting, then defrosting shall be placed in the first section.

Example: If you want to defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes, operate it as the following:

1) Press " DEFROST " once, and the oven will display "0:00". "TIME" will light.
2) Turn " 🔍 " to select the defrost time till "5:00" displays.
3) Press "MICROWAVE" twice, "MICROWAVE" and "M-HI" will light.
4) Turn " 🔍 " to adjust the cooking time till the oven displays "7:00".
5) Press "START" to start cooking, and buzzer will sound once for the first section, defrosting time counts down; buzzer will sound once again entering the second cooking. Men cooking finish, buzzer sounds five times.

11. Auto Menu

1) Press "AUTO MENU" once to choose the menu, the default weight or portron and "75" indicator will light.
2) Continue to press "AUTO MENU" to select different menu.
3) Turn " 🔍 " to choose the default weight as the menu chart.
4) Press "START" to start cooking.

The menu chart:

Menu		Weight	Display
	Pizza	200 g	200
		400 g	400
	Meat	250 g	250
		350 g	350
		450 g	450
	Vegetable	200 g	200
		300 g	300
		400 g	400
	Pasta	50g(with 450 ml cold water)	50
		100g(with 800 ml cold water)	100
	Potato	200 g	200
		400 g	400
		600 g	600
	Fish	250 g	250
		350 g	350
		450 g	450
	Beverage	1 cup(120 ml)	1
		2 cups(240 ml)	2
		3 cups(360ml)	3
	Popcorn	50 g	50
		85 g	85
		100 g	100

12. Lock for Children

Lock: In waiting state, press " STOP/CLEAR " for 3 seconds, the oven beep once. After 3 seconds, the oven beeps once again denoting entering the children-lock state and current time will an current time will display if the time has been set, otherwise, the LED will display " 00:00 ". " 🔒 " icon will light.

Cancel Lock: In locked state, press "STOP/CLEAR" for 3 seconds, the oven beep once. After 3 seconds, the oven beeps once again and turns back to waiting state. The screen will display the current time or 00:00.

13. Memory Function

1) The oven will remember the last microwave cooking setting.

For example, the oven worked for 5 minutes with M-HI power level.

Press " MICROWAVE " again, then turn " 🔍" to set the cooking time.

Press " START " and the oven work wi M-thl power leve automatically.

2) If the electricity is cut off, the cooking setting will be reset to factory default.

14 Specification

(1) The buzzer will sound once when turning the knob at the beginning;
(2) "START be pressed to continue cooking if the door is opened during cooking;
(3) Once the cooking programme has been set, "START pressed

in 1 minute. The current time will be displayed. The setting will be cancelled.

( ) 4When cooking finishes, "End" will display and flash. Buzzer will ring 7 times. If no operation in 2 minutes, buzzer will sound once, and "End" will stop flashing.

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan.It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside.It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.
Glass turntable makes noise when microwave oven operates	(5) Dirty roller rest and oven bottom.	Refer to "Maintenance of Microwave" to clean dirty parts.

RoHS

Compliant.

Environmental Information

If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to collecting points where available.

This product is RoHS compliant.

TECHNICAL DATA

Model:	EMS2348X
Rated Voltage:	Please refer to rating label
Rated Input Power (Microwave):	1250W
Rated Output Power (Microwave):	800W
Rated Input Power (Grill):	1000W
Oven Capacity:	23L
Tumtable Diameter:	∅ 270mm
External Dimensions:	485x370x292.5 mm
Net Weight:	Approx. 13.2 kg

CUSTOMER CARE CENTER

ThailandTel: ([phone]Electrolux Thailand Co., Ltd.14th Floor, 1910 New Petchburi RoadBangkapi, Huay KwangBangkok 10320	VietnamToll Free: 1800-58-88-99Tel: [phone]Electrolux Vietnam Ltd .AB Tower, 9th Floor76 Le Lai Street, District 1Ho Chi Minh City
IndonesiaTel: ([phone]PT. Electrolux IndonesiaPlaza KuninganMenara Utara Suite 201Jl. HR. Rasuna Said Kav. C11-14Jakarta 12940Depdag No. I.43.EI7.00401.0911	PhilippinesDomestic Toll Free : 1-800-10-845-care 2273Customer Care Hotline : (+63 2) 845 care 227310th Floor. W5th Avenue Building5th Avenue Corner 32nd StreetBonifacio Global City,Taguig Philippines 1634Trunkline: [phone]
SingaporeTel: ([phone]e-mail: [e-mail] S.E.A Pte. Ltd.11 Lorong 3 Toa Payoh, Jackson Square Block B,#01-13/14/15 Singapore 319579	MalaysiaToll Free: 1300-88-11-22Tel: [phone]e-mail: [e-mail] Home Appliances Sdn. Bhd.7th Floor, Tower 2, Jaya 33,No 3. Jalan Semangat, Seksyen 13,46100 Petaling Jaya, Selangor

www.electrolux.com

The Thoughtful Design Innovator.

Do you remember the last time you opened a gift that made you say, "Oh! How did you know? That's exactly what I wanted!" That's the kind of feeling that we at Electrolux seek to evoke in everyone who chooses or uses one of our products. We devote time, knowledge, and a great deal of thought to anticipating and creating the kind of appliances that our customers really need and want.

This kind of thoughtful care means innovating with insight. Not design for design's sake, but design for the user's sake. For us, thoughtful design means making appliances easier to use and tasks more enjoyable to perform, freeing our customers to experience the ultimate 21st century luxury: ease of mind. Our aim is to make this ease of mind more available to more people in more parts of their everyday lives, all over the world.

The "Thinking of you" promise from Electrolux goes beyond meeting the needs of today's consumers. It also means we're committed to making appliances safe for the environment—now and for future generations.

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com

สารบัญ

Electrolux. Thinking of you.

Simple line drawing of a three-legged table with hatched pattern (no text or symbols)

The Thoughtful Design Innovator.

Electrolux. Thinking of you.

Electrolux. Thinking of you.
