Sequel 65 - Car seat GRACO - Free user manual and instructions

Product Type	Convertible Car Seat
Weight Range (Rear-Facing)	4 – 40 lb (1.8 – 18 kg)
Weight Range (Forward-Facing)	22 – 65 lb (10 – 30 kg)
Height Limit (Forward-Facing)	Up to 49 inches (125 cm)
Installation Methods	LATCH system (lower anchors + top tether) or vehicle seat belt (lap/shoulder or lap-only)
Harness Type	5-point harness with chest clip and adjustable crotch strap

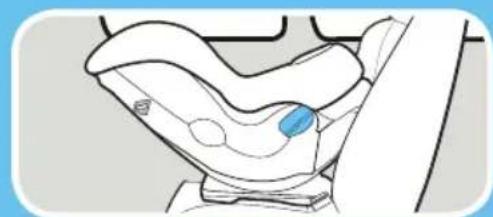

Recline Positions	3 rear-facing positions and 3 forward-facing positions
LATCH Strap Adjustment	Movable between rear-facing (blue label) and forward-facing (orange label) belt paths
Cup Holders	Attachable on both sides (on select models)
Level Indicator	Built-in ball-level indicator for proper recline angle
Seat Pad Cleaning	Machine wash cold, delicate cycle, drip dry. No bleach.
Harness and LATCH Strap Cleaning	Surface wash only with mild soap and damp cloth. Do not immerse.
Safety Certifications	Meets FMVSS 213; certified for aircraft use (forward-facing only)
Useful Life	10 years from date of manufacture (see sticker on back)
Registration	Required for recall notification (mail or online at www.gracobaby.com/carseatregistration)
Spare Parts & Accessories	Available from Graco Customer Service (www.gracobaby.com or 1-800-345-4109)
Manufacturer	Graco Children's Products, Inc., Elverson, PA
Model Number	Sequel 65 (found on label on back of car seat)

Frequently Asked Questions - Sequel 65 GRACO

What is the weight limit for rear-facing use?

The Graco Sequel 65 can be used rear-facing for children weighing 4 to 40 lb (1.8 – 18 kg). Infants less than 22 lb (10 kg) must ride rear-facing.

Can I install this car seat using both LATCH and the vehicle seat belt?

No, do not use both at the same time. Use either the LATCH system or the vehicle seat belt, but not both.

How do I know if the car seat is installed tightly enough?

After installation, grab the car seat at the belt path and try to move it side-to-side and front-to-back. It should not move more than 1 inch (2.5 cm).

How do I clean the seat pad?

Remove the seat pad and machine wash in cold water on delicate cycle. Drip dry. Do not use bleach.

What should I do if the car seat has been in a crash?

The car seat must be replaced after any crash, even if no damage is visible. A crash can cause unseen damage and using it again could result in serious injury or death.

Can I use this car seat on an airplane?

Yes, it is certified for aircraft use. Install forward-facing with the lap belt only (do not use top tether). Check with the airline for their specific policies.

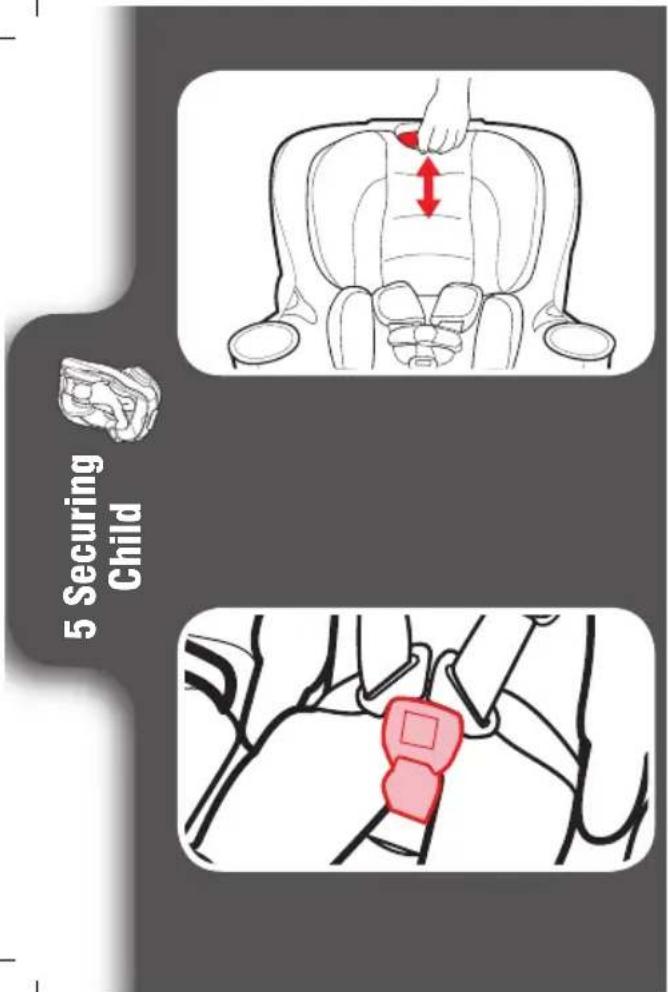

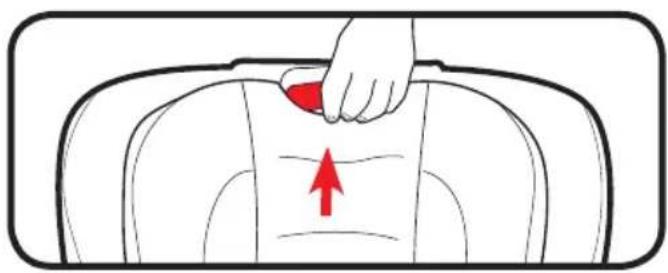

How do I adjust the harness height?

Squeeze the adjustment handle on the headrest and move the headrest up or down. For rear-facing, straps should be at or just below the child's shoulders; for forward-facing, at or just above.

What is the crotch strap position for forward-facing?

When forward-facing, the crotch strap must be in the front-most slot (closest to the child) to ensure proper fit.

How long is the useful life of this car seat?

Stop using and discard the car seat 10 years after the date of manufacture. The manufacture date is on the label on the back of the seat.

What should I do if the harness straps are frayed or heavily soiled?

Do not immerse the straps in water. Clean only with a damp cloth and mild soap. If frayed or heavily soiled, contact Graco Customer Service at 1-800-345-4109 for replacement.

USER MANUAL Sequel 65 GRACO

CONVERTIBLE CAR SEAT

Read This Instruction Manual

Line drawing of a car seat with no text or symbols

PD349423C 7/16

Line drawing of a car seat with seats and seatbelt (no text or symbols)

Do not install or use this child restraint until you read and understand the instructions in this manual.

FAILURE TO PROPERLY USE THIS CHILD RESTRAINT INCREASES THE RISK OF SERIOUS INJURY OR DEATH IN A SUDDEN STOP OR CRASH.

1 Important

1-A A Quick Guide to Your Manual
1-B Welcome to the Graco Family
1-C Right Mode of Use
1-D Before You Begin

Register This Car Seat

If You Need Help

Certification

Car Seat's Useful Life

Vehicle Seat Protection

Warm Weather Use

1-E Safety Warnings

2 Features

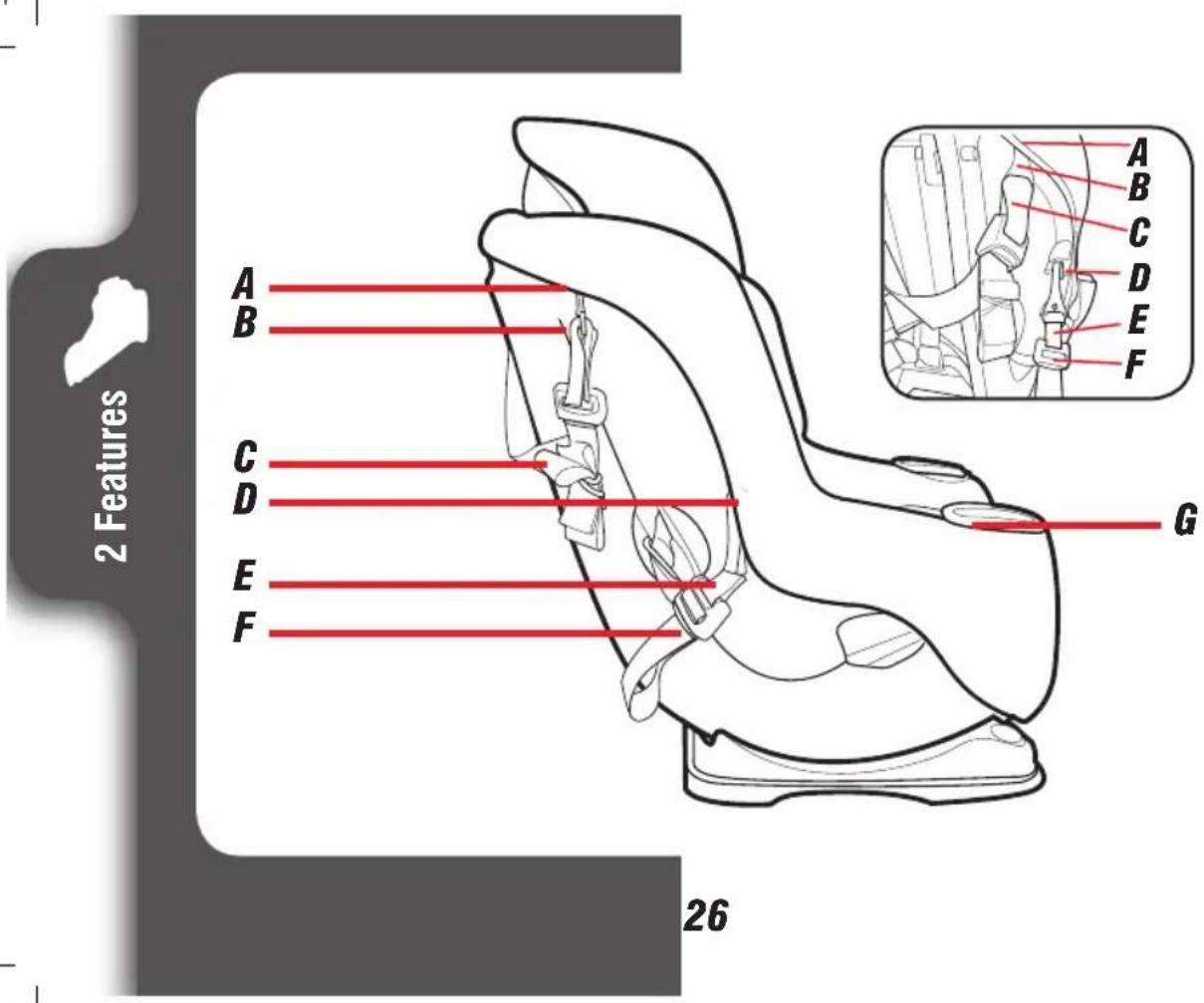

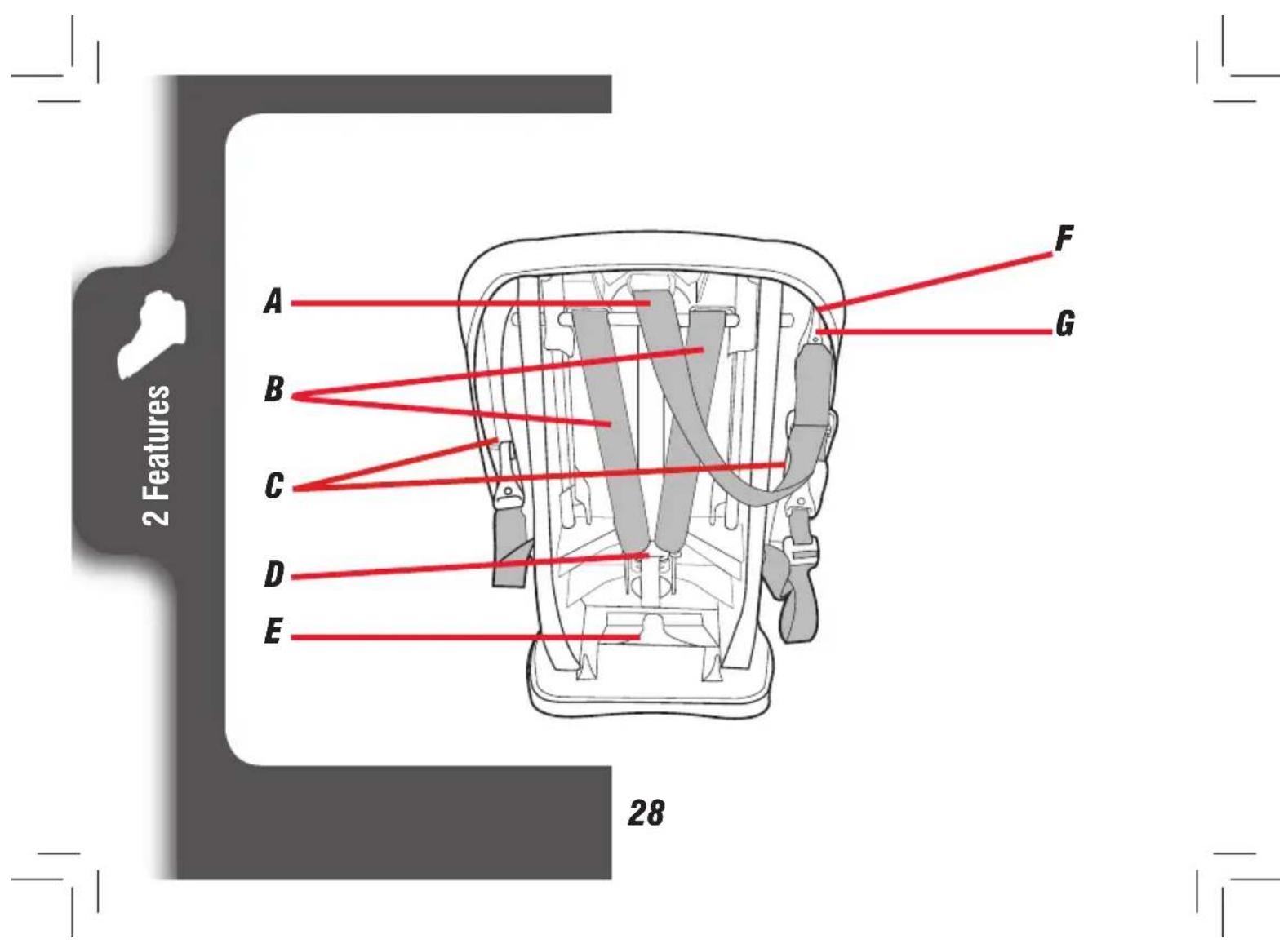

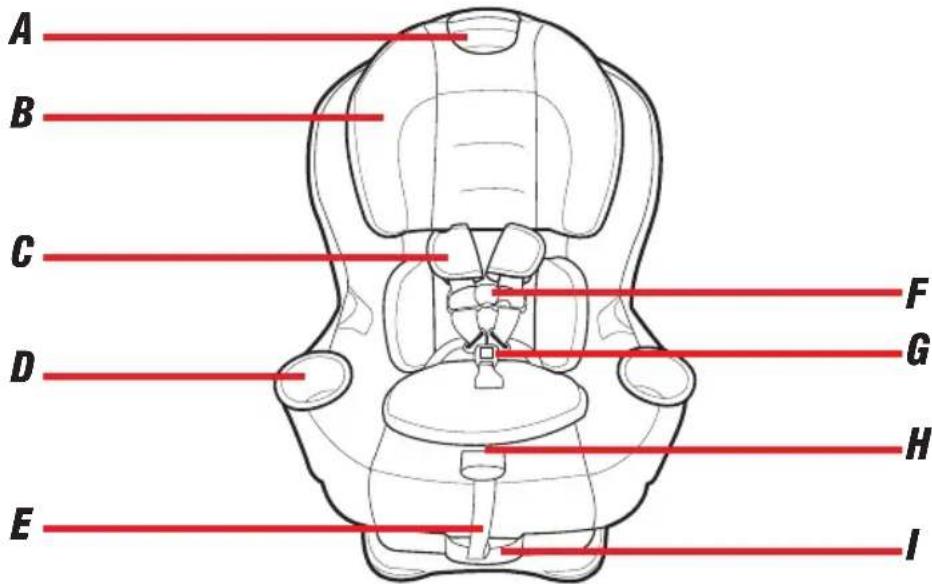

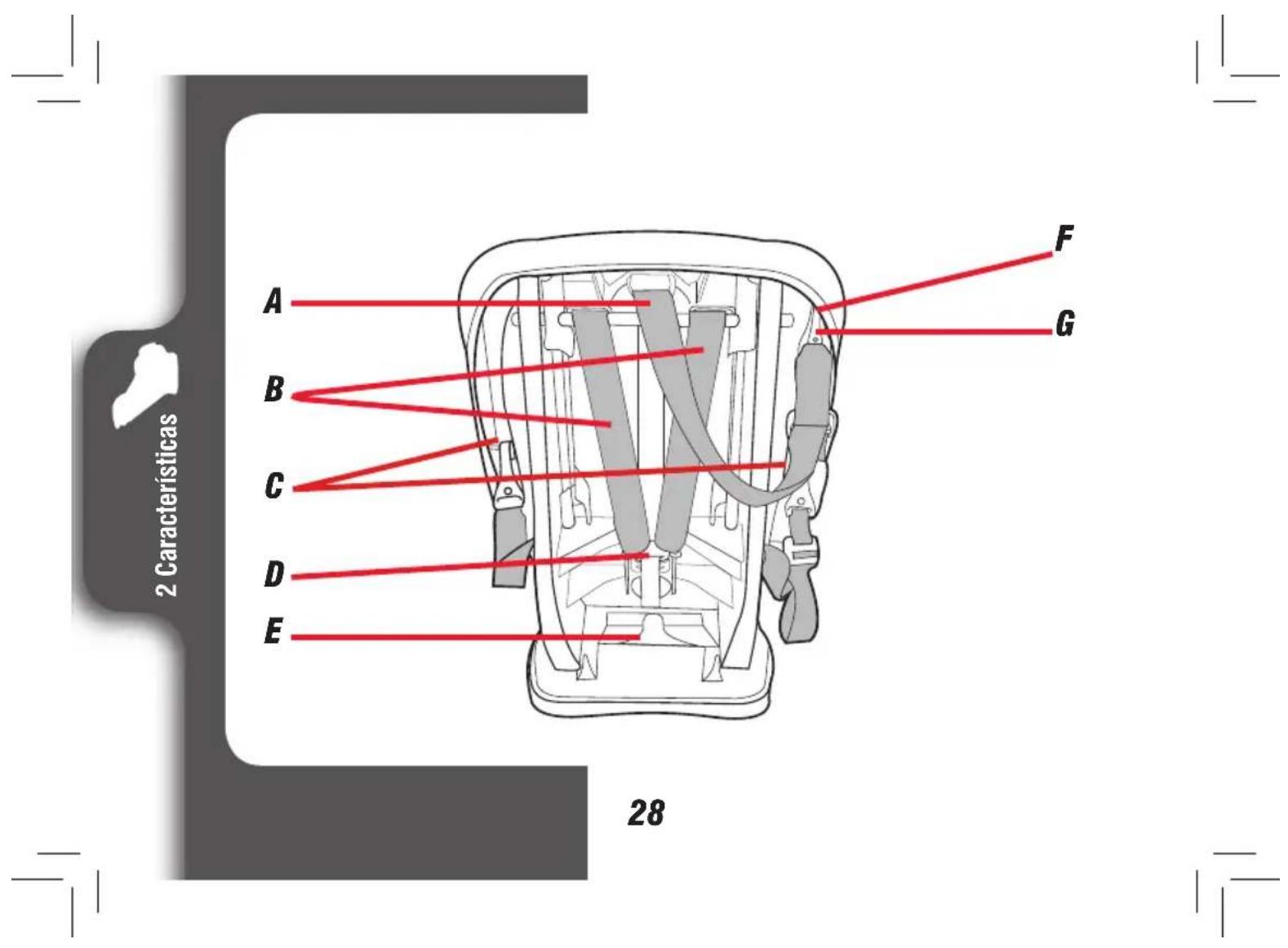

2-A Car Seat Features

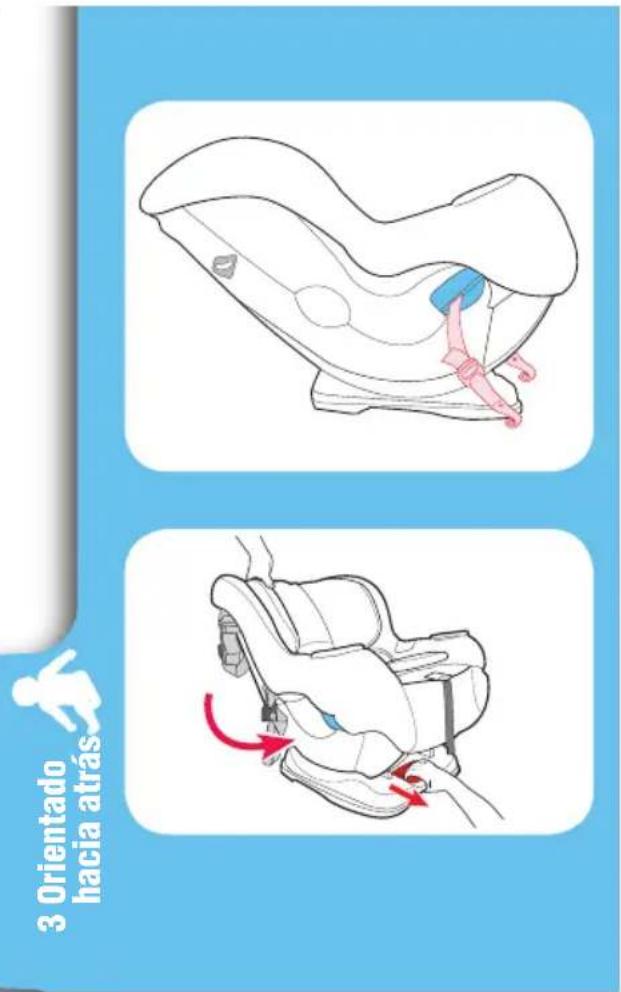

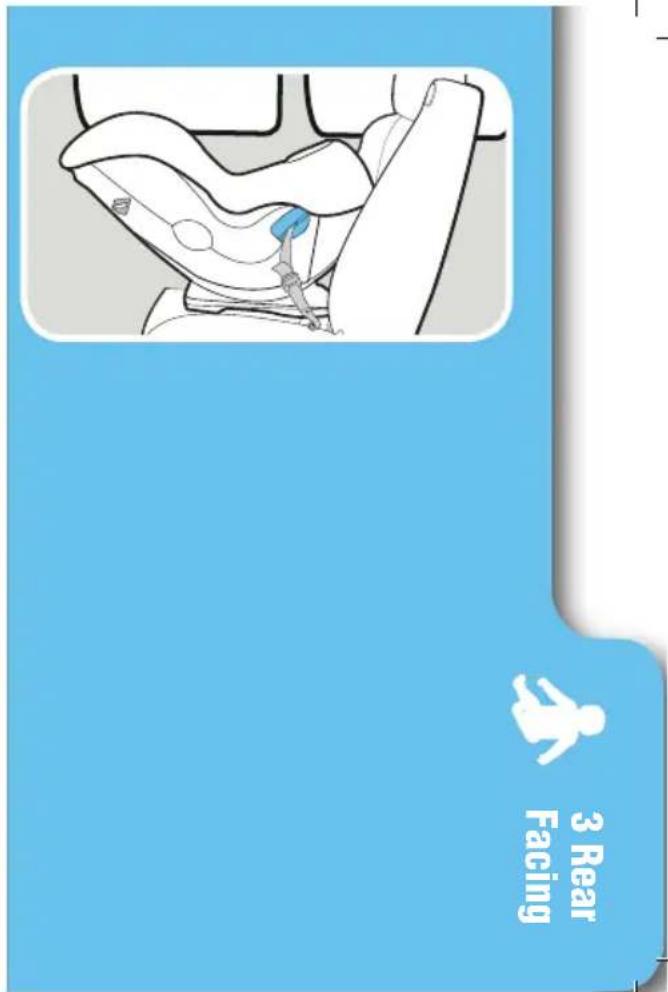

3 Rear-Facing Use

Pages 30-47

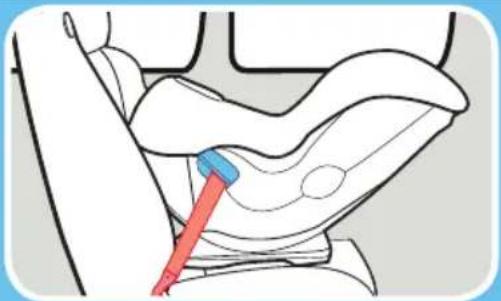

3-A Rear-Facing

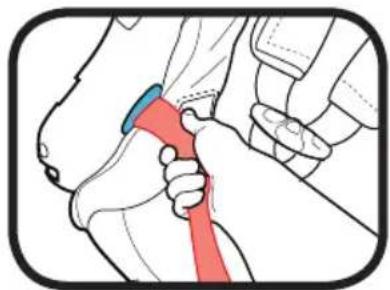

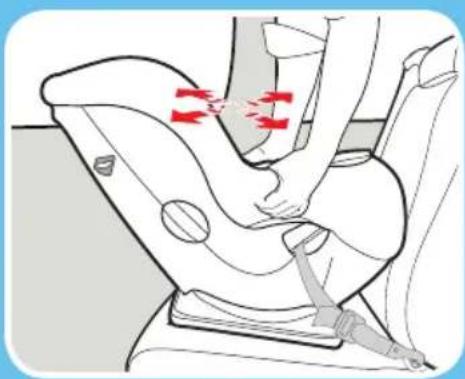

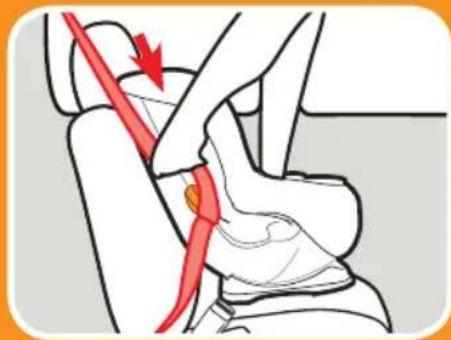

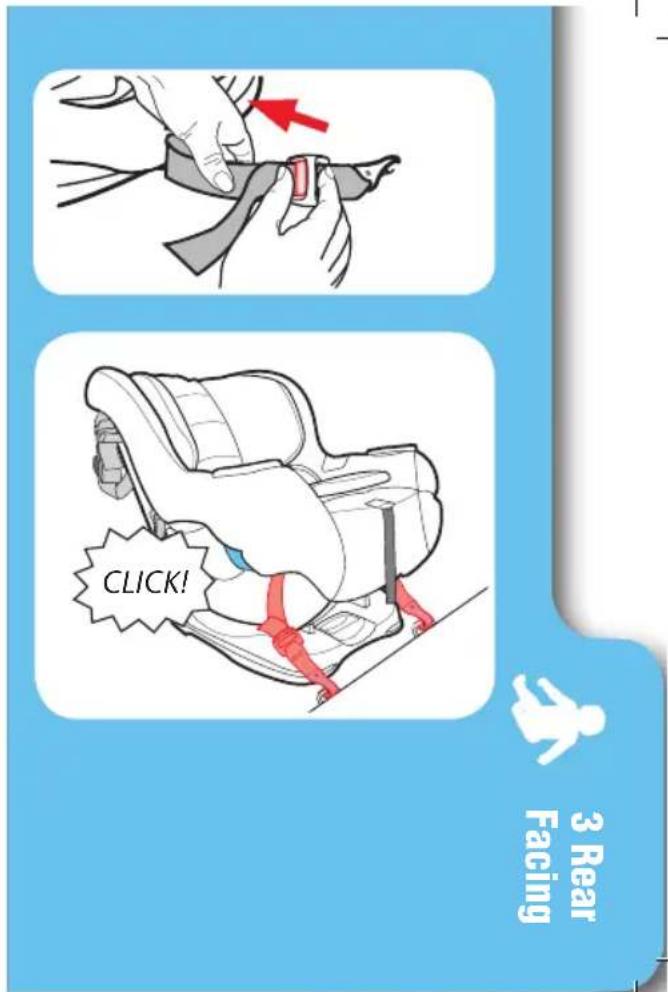

3-B Installing Rear-Facing With LATCH Straps

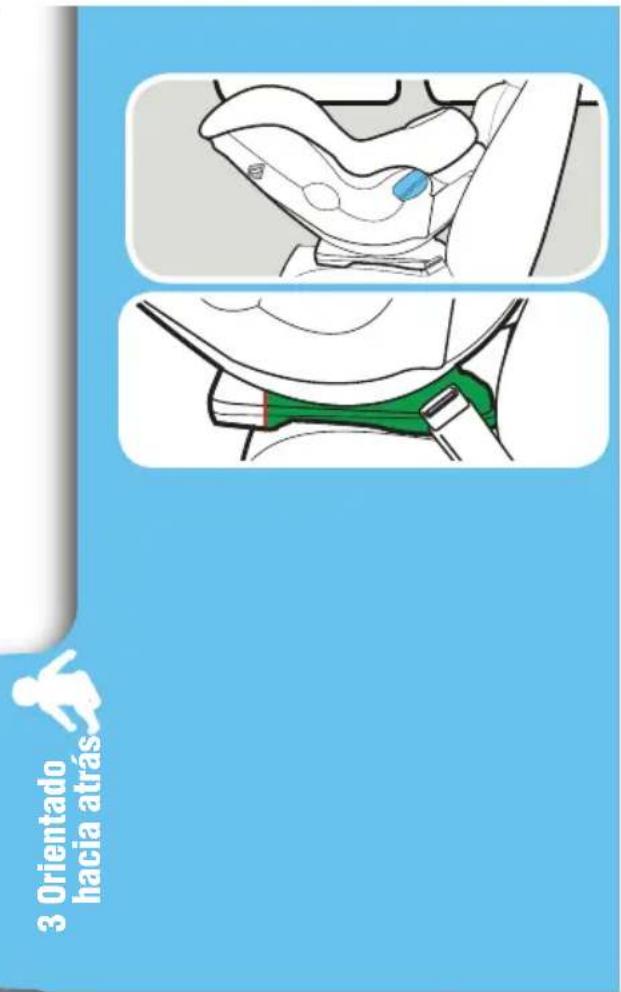

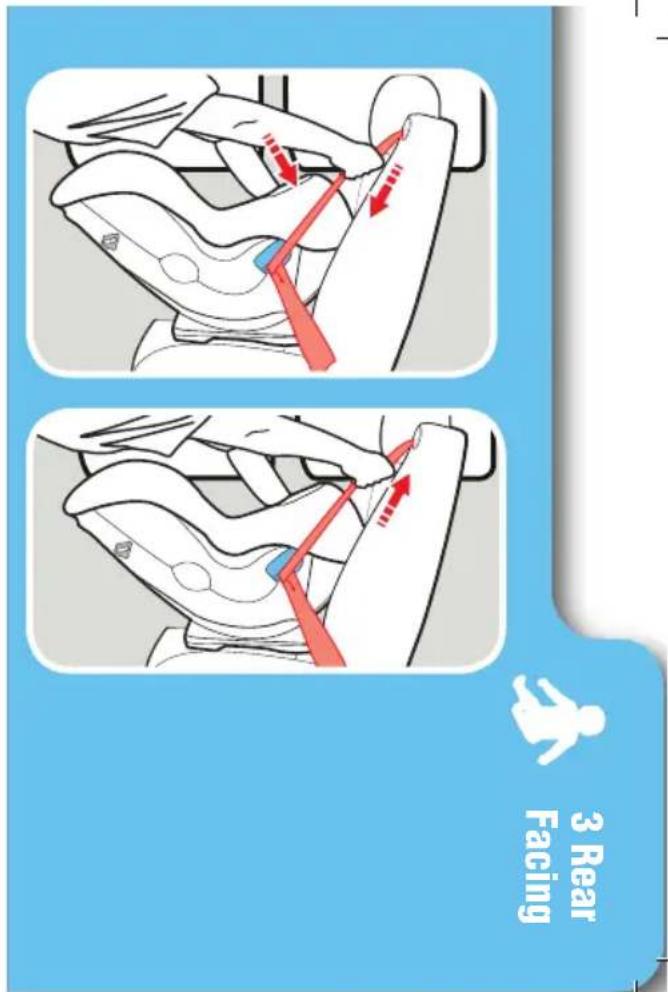

3-C Install Rear-Facing With Vehicle Seat Belt

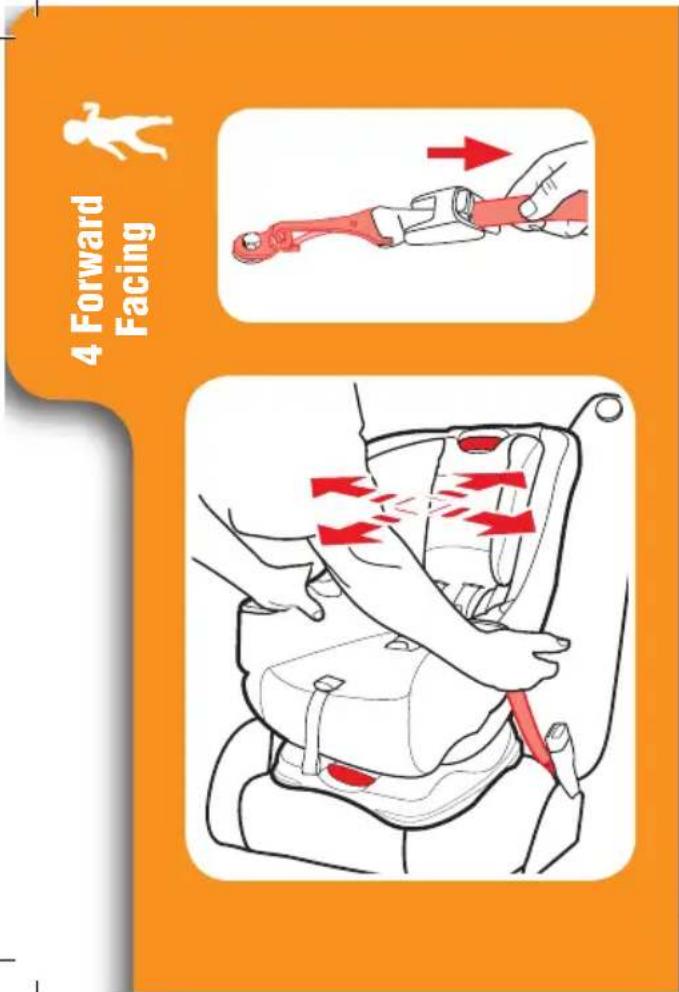

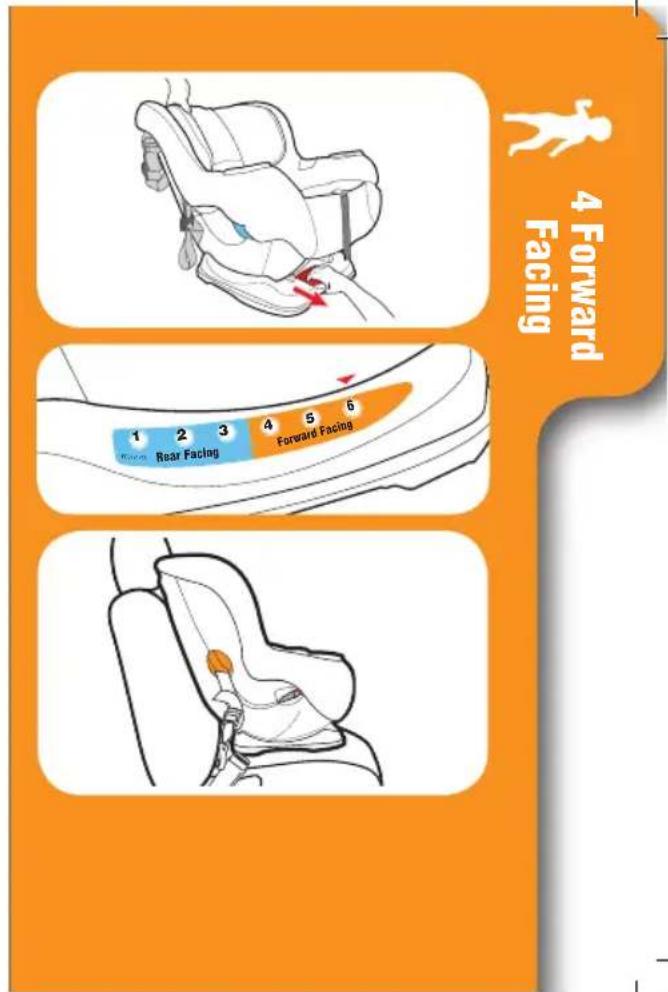

4 Forward-Facing Use

Pages 48-61

4-A Forward-Facing

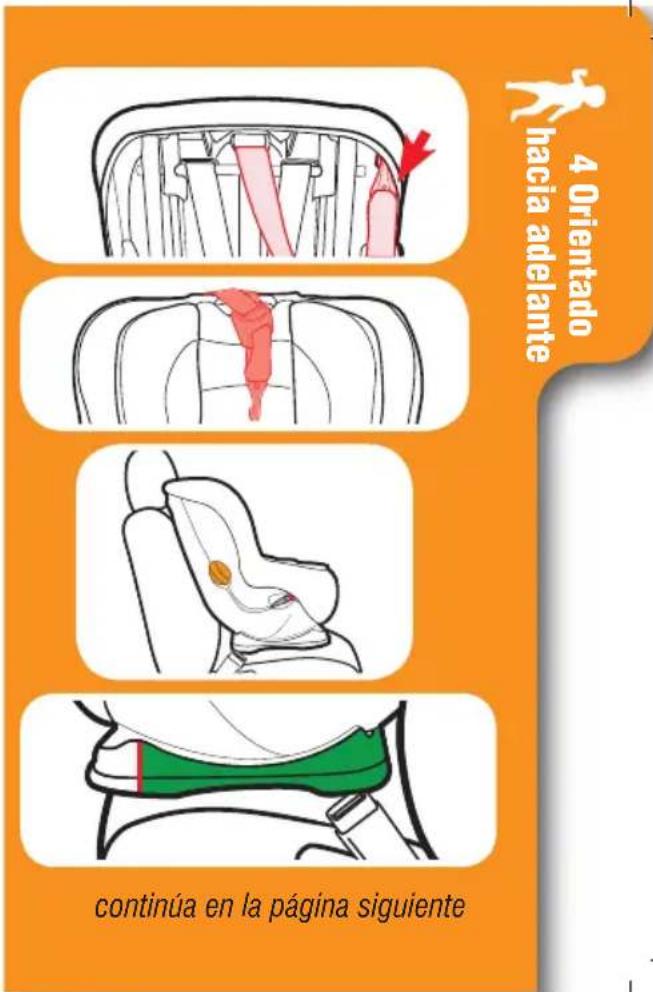

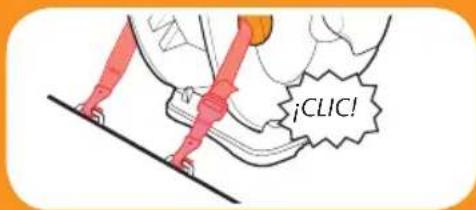

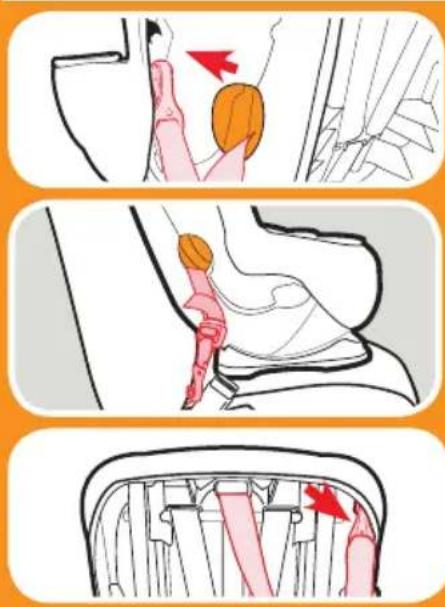

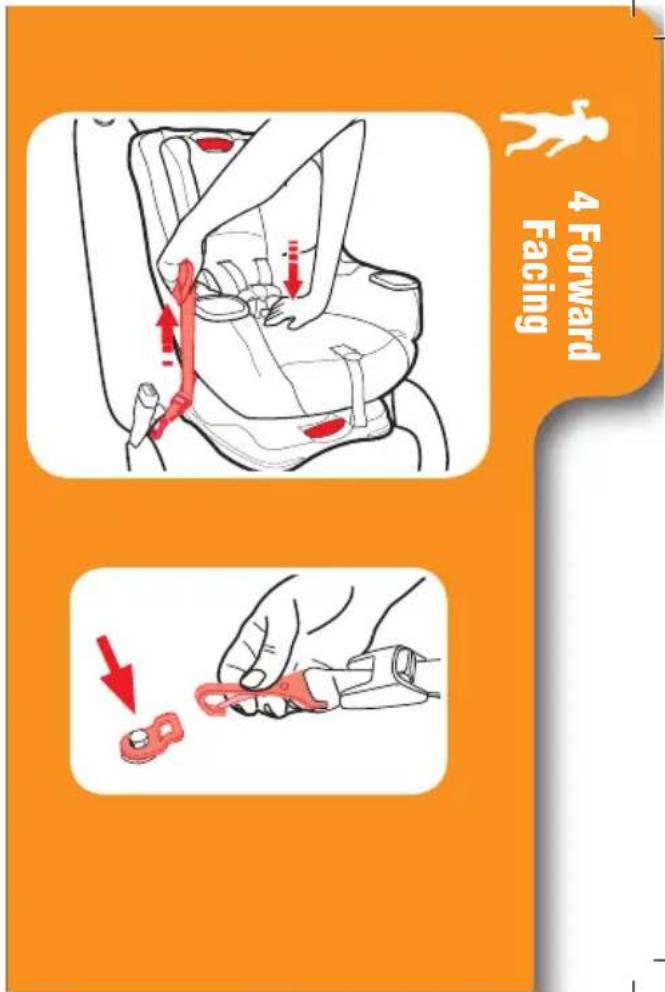

4-B Installing Forward-Facing With LATCH Straps

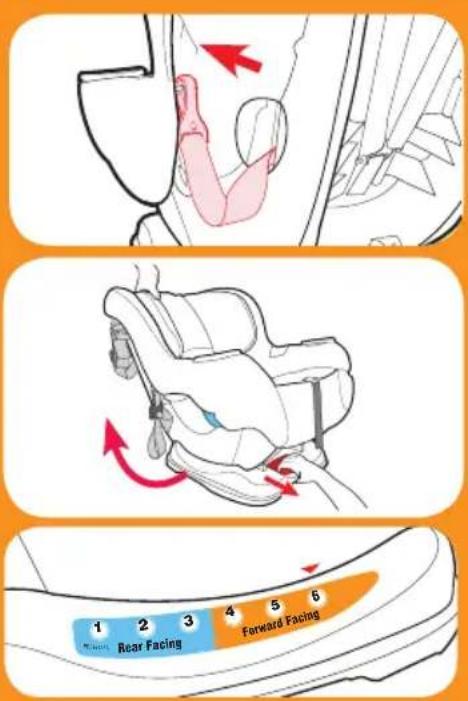

4-C Install Forward-Facing With Vehicle Seat Belt

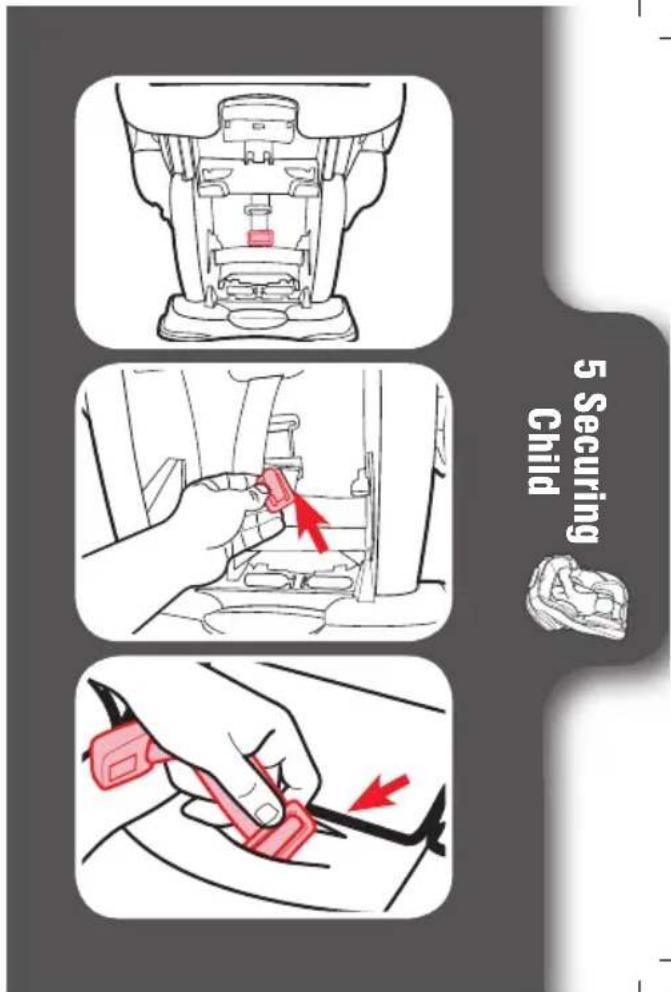

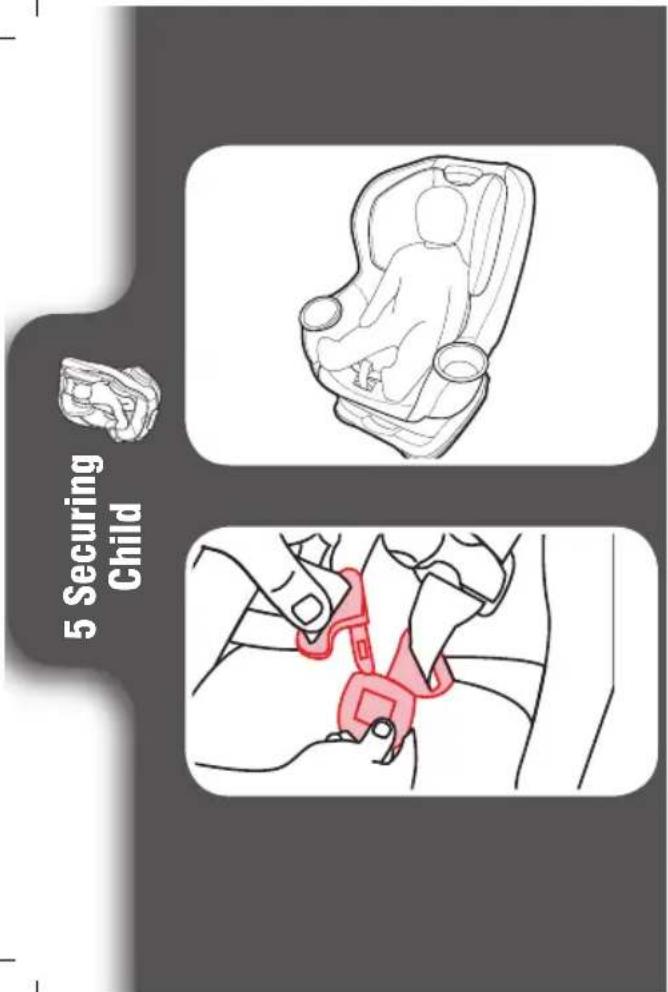

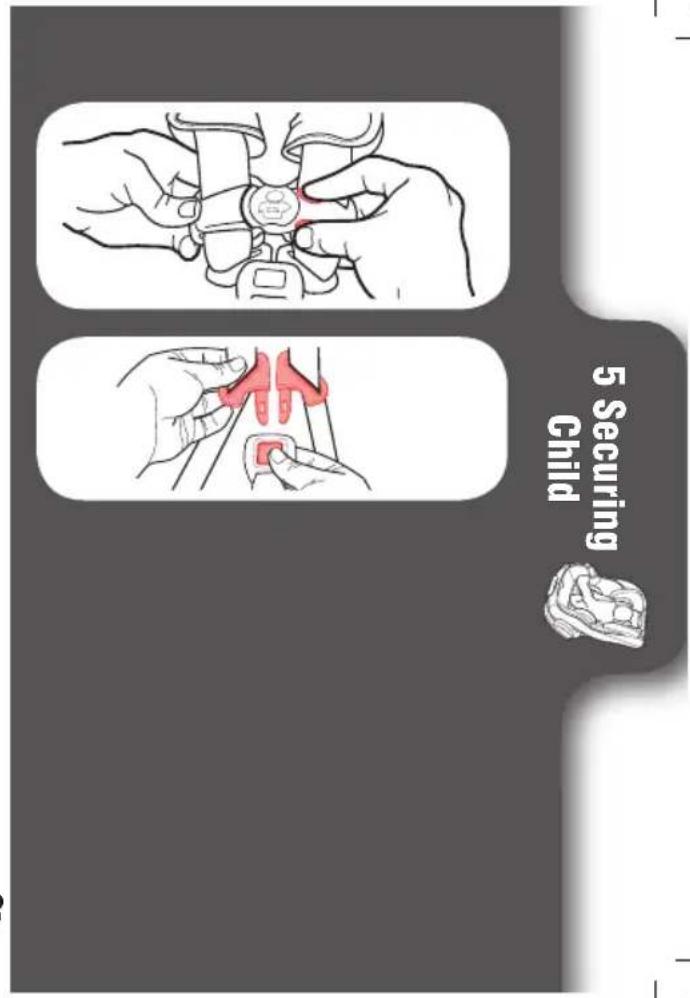

5 Securing Child

Pages 62-69

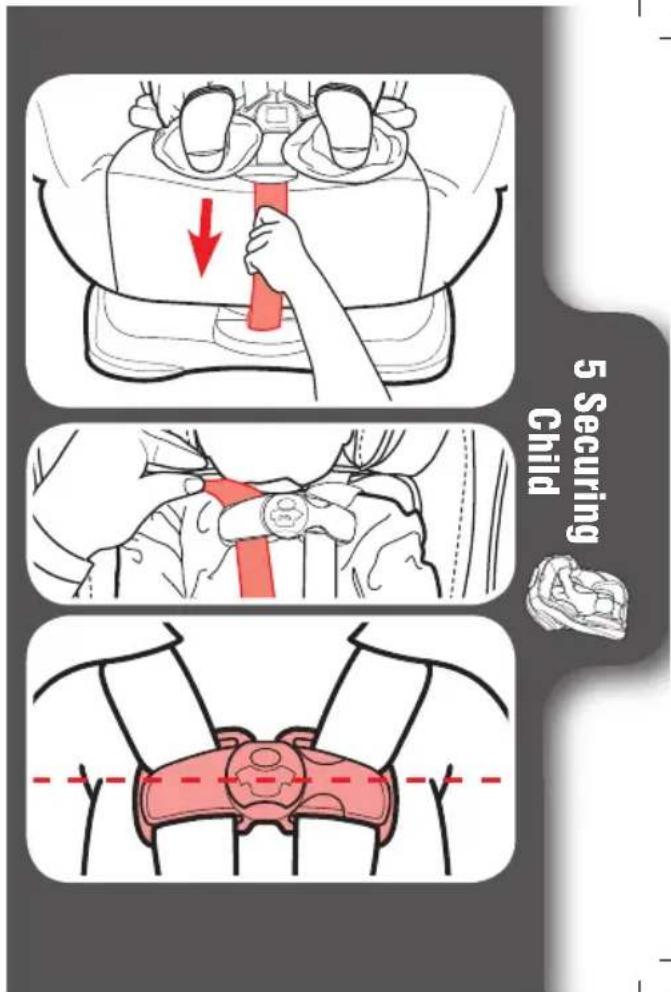

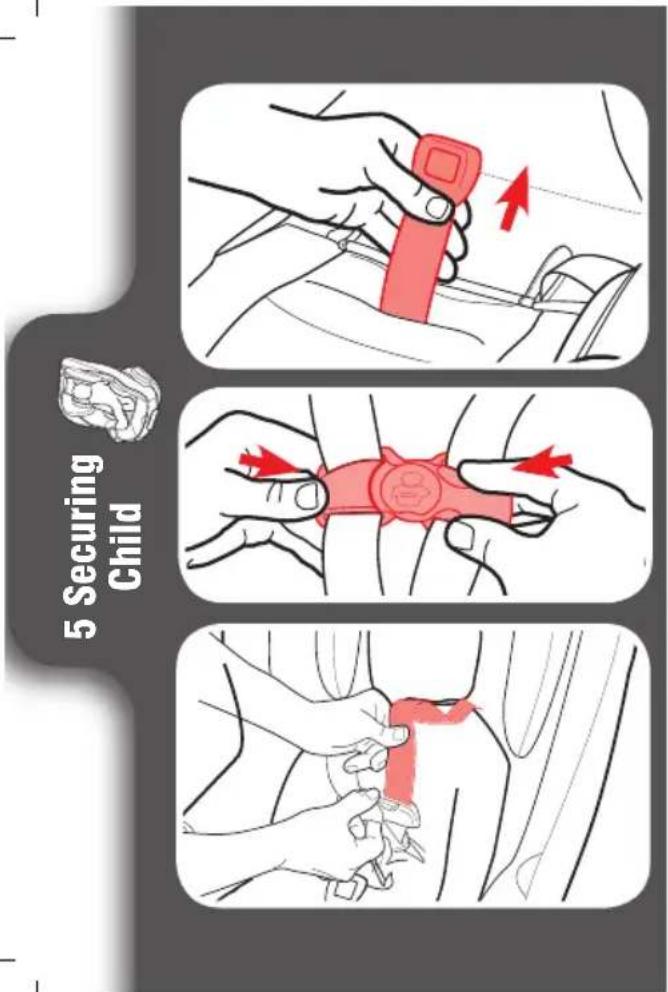

5-A Securing Child 5-Point Harness

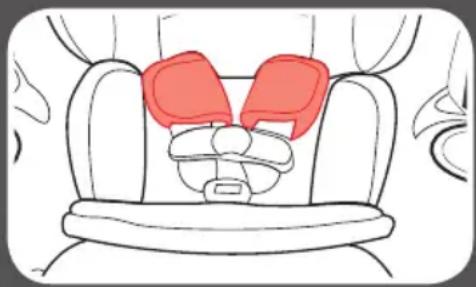

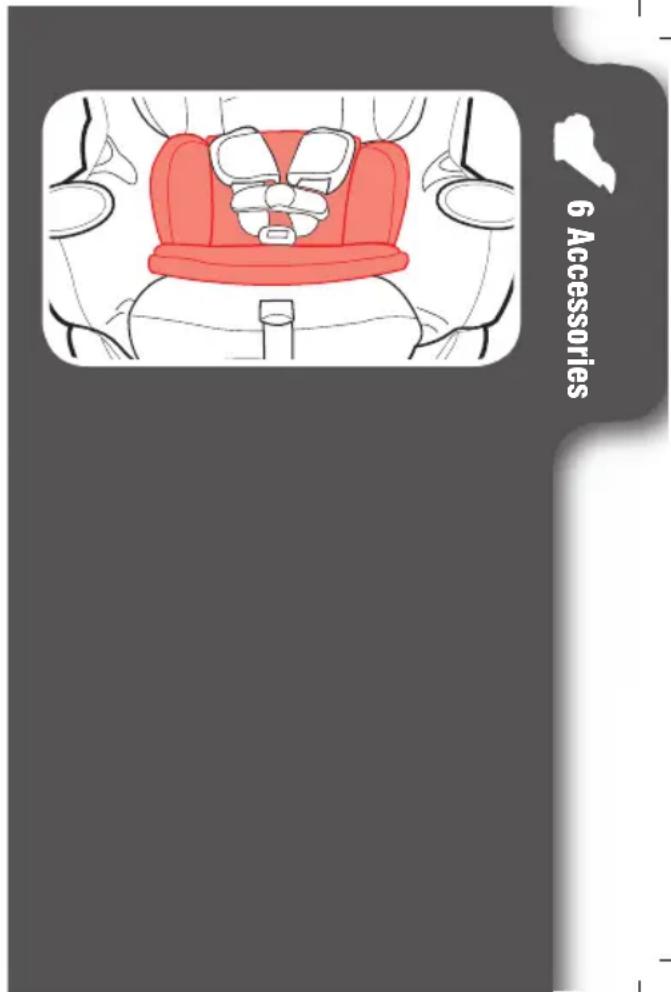

6 Accessories

Pages 70-71

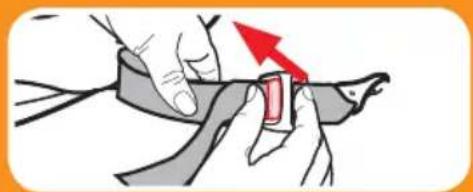

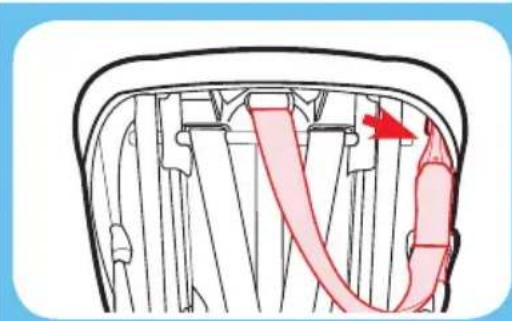

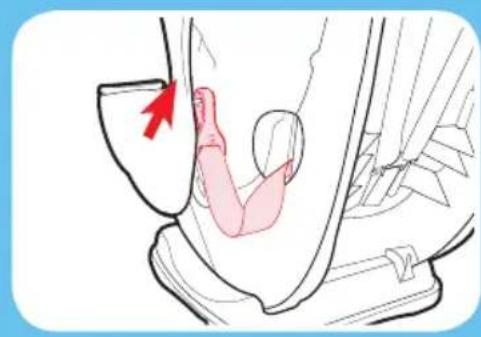

7 Moving the LATCH Strap

Pages 72-74

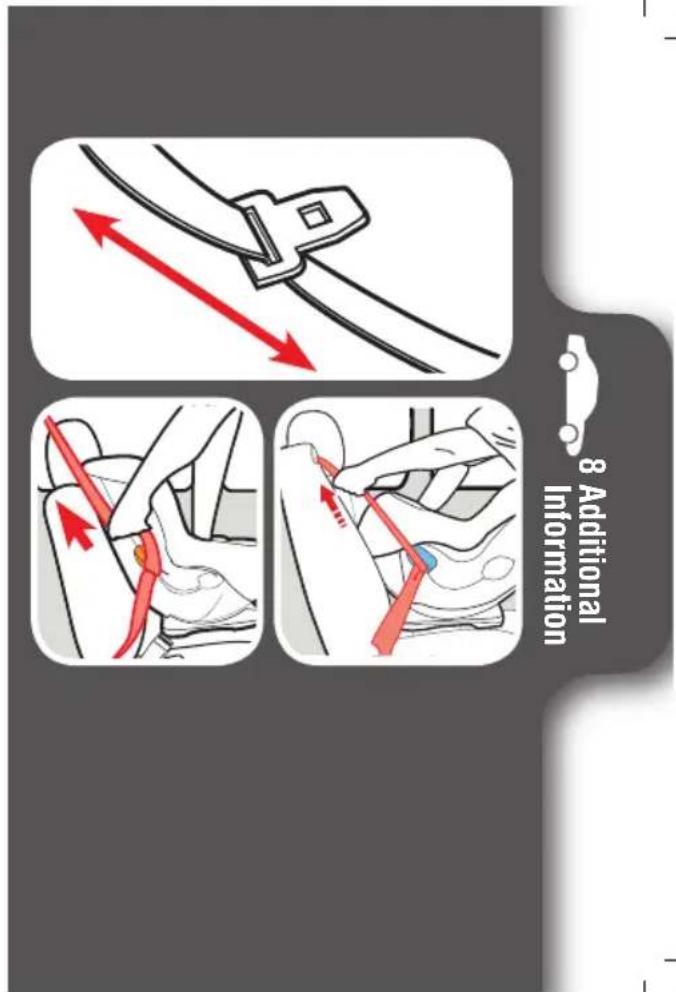

8 Additional Information

Pages 75-85

8-A How to Remove LATCH and Top Tether
8-B Choosing Vehicle Seat Location
8-C Unsafe Vehicle Seat Locations
8-D Vehicle Seat Belts

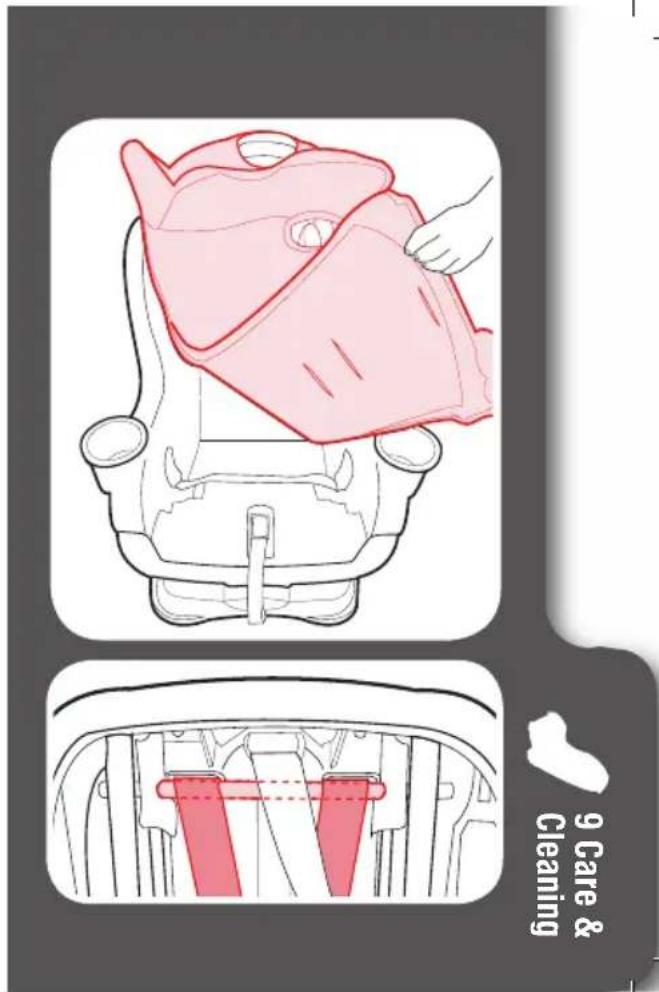

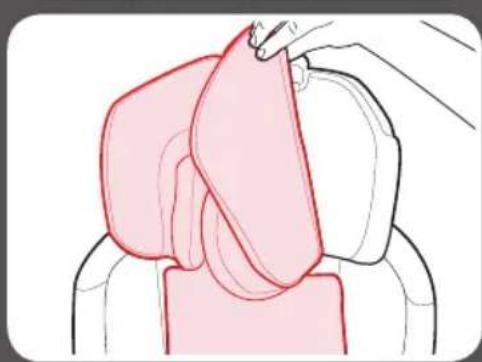

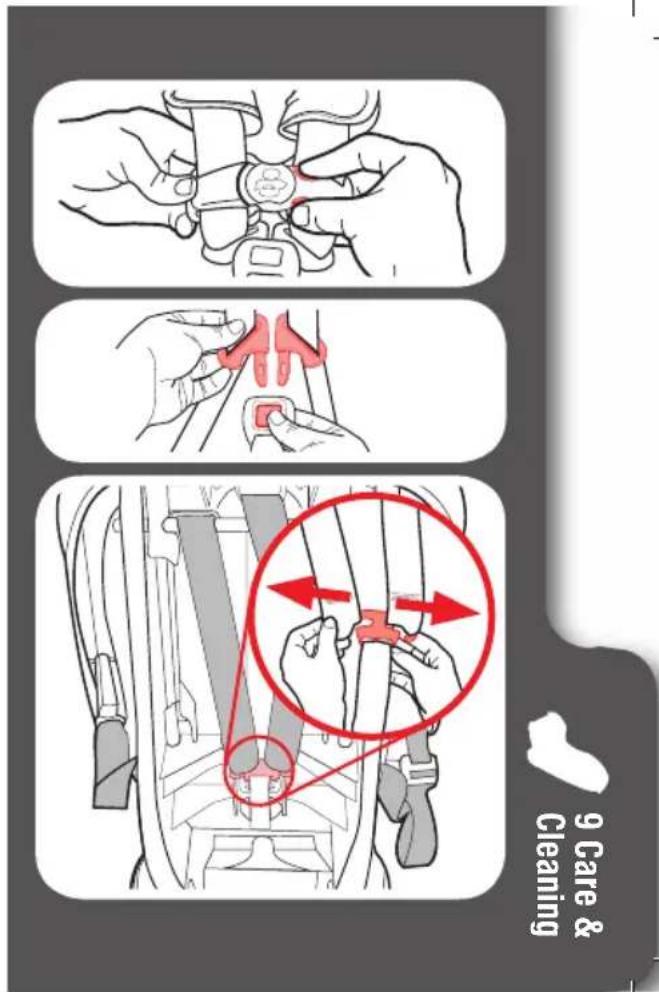

9 Cleaning Seat Pad

Pages 86-92

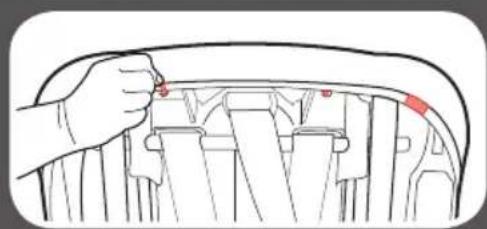

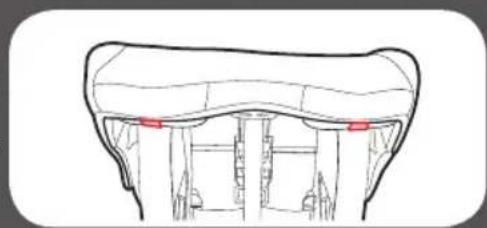

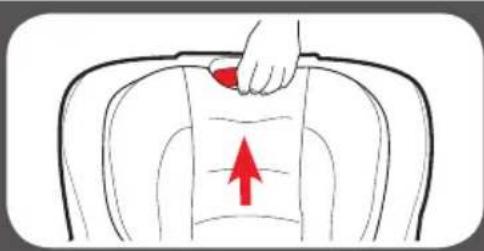

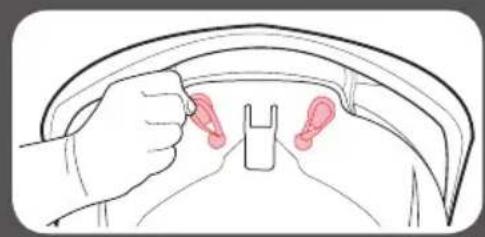

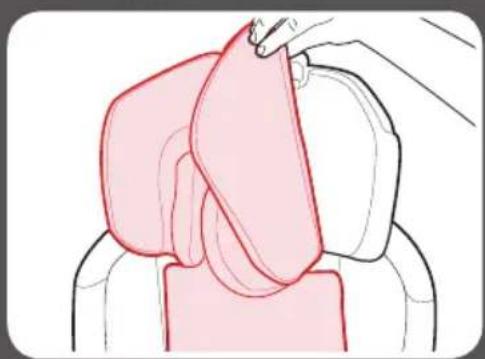

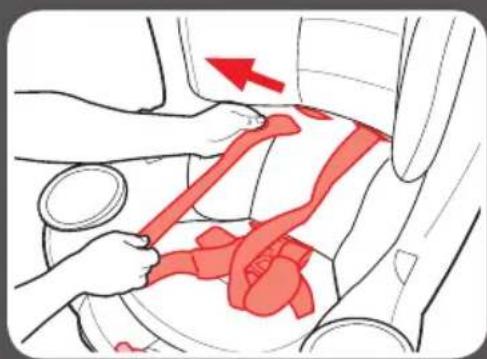

9-A Cleaning Seat Pad

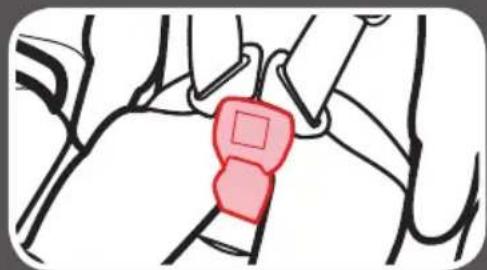

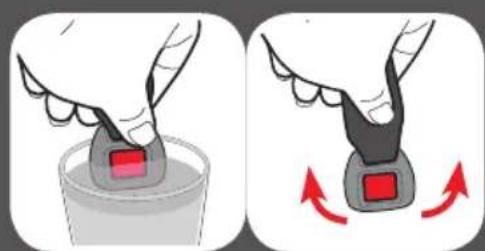

9-B Cleaning Crotch Buckle
9-C Cleaning Harness and LATCH Straps

1-A A Quick Guide to Your Manual

This car seat is for children: Rear-Facing: 4-40 lb (1.8-18 kg)

Forward Facing: 22-65 lb (10-30 kg)

- Children less than 22 lb (10 kg) MUST use this car seat rear-facing. Review section 1-C for more information.

Get to Know Your Car Seat

Review section 2-A to see all of the features of this car seat.

Car Seat Assembly (On Select Models)

Adult Assembly Required

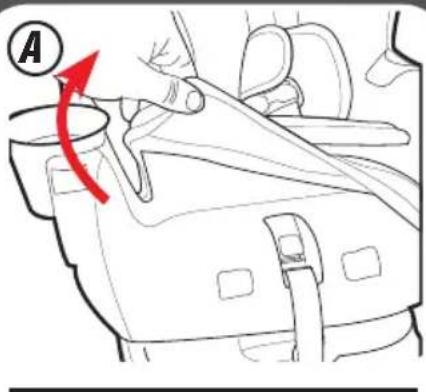

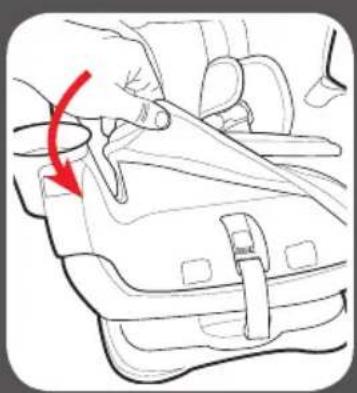

1. Attach Cup Holders

You MUST attach cup holders. Remove seat cover. Line up tab on bottom of cupholder with hole in shell. Press and snap into place. Replace cover.

Illustration of a pink plastic bag inserted into a seatbelt, with a red arrow indicating the insertion point (no text or symbols present)

Medical illustration showing a hand holding a small pink object with a red arrow indicating direction (no text or symbols present)

What Seating Location Should I Use?

The best seating location for this car seat is one that:

• Is recommended by your vehicle owner's manual, and
  • Results in a secure installation of this car seat.

Some vehicles have specific requirements for where the car seat can be installed, so be sure to check your vehicle owner's manual for available seating positions, if any. Review section 8-B, 8-C of this manual AND your vehicle owner's manual.

According to accident statistics, the safest place for your child in any vehicle is the back seat. The center of the back seat can be the safest during a possible side impact.

Diagram of a car showing seat and seat assembly with a red arrow indicating downward motion (no text or symbols)

Which Installation Method Should I Use?

This car seat can be installed in your vehicle using either the vehicle seat belt OR the LATCH system. Both are equally safe to use. DO NOT USE BOTH AT THE SAME TIME.

Vehicle Seat Belt: Review section 8 and your vehicle owner's manual to learn how to install your car seat with the vehicle seat belts.

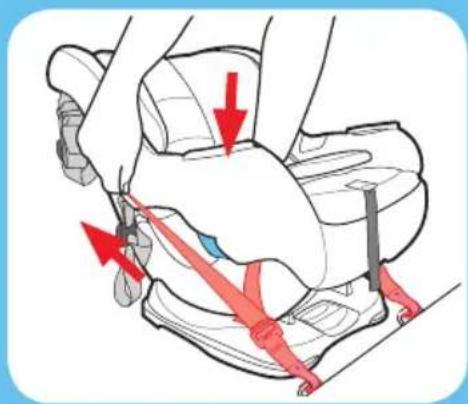

LATCH: The LATCH system allows you to securely attach your safety seat in your car without using the vehicle seat belt and possibly to get a better fit. All 2003 and newer model year vehicles are required to have a LATCH system, although some manufacturers began including LATCH earlier. Some vehicle owner manuals use the term ISOFIX to identify the LATCH system.

What is LATCH?

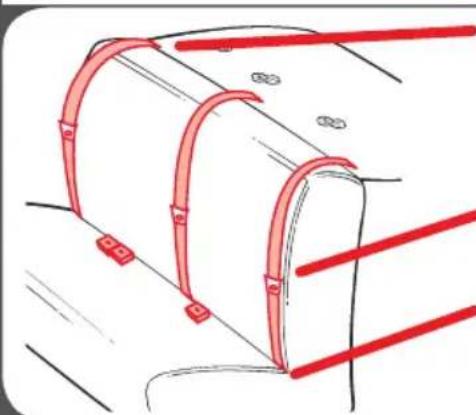

LATCH consists of lower anchors and top tether anchors, which are built-in to your vehicle, and connecting hooks that are built-in to your car seat. Lower anchors are used INSTEAD of the vehicle's seat belt to secure the child seat to the vehicle. Top tethers are used IN ADDITION to the lower anchors OR the vehicle's seat belt to secure a forward-facing car seat to the vehicle.

Review your vehicle's owner manual for exact location and use.

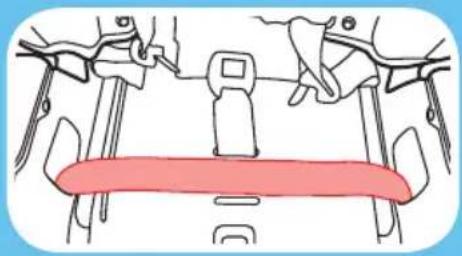

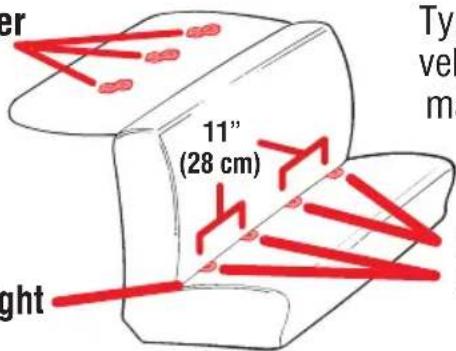

Vehicle Top Tether Anchor Points

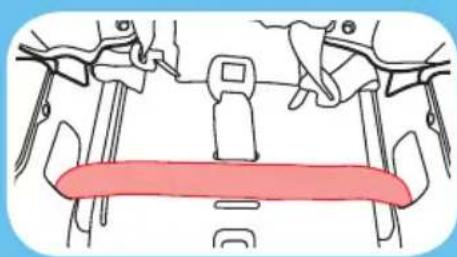

Vehicle Seat Bight

Typical seat in a passenger vehicle. Other vehicle types may have different LATCH locations.

Vehicle Lower Anchor Points

continue next page

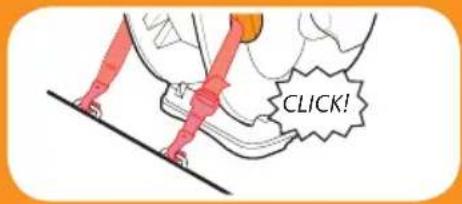

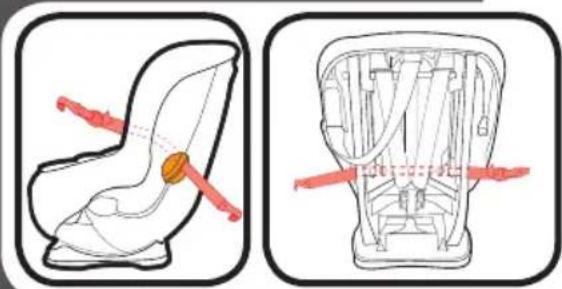

When Installing Rear-Facing & Forward-Facing

LATCH System

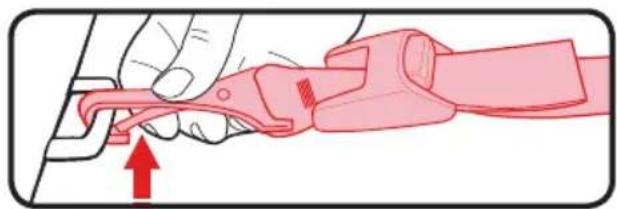

LATCH consists of two lower anchors, which are built-in to your vehicle, and connecting hooks that are built-in your car seat.

Review section 3-B & 4-B of this manual AND your vehicle owner's manual.

If allowed by your Vehicle Owners Manual, the center seating position may be used if the anchor spacing is 11" (28 cm) or greater.

Illustration of a hand securing a red buckle buckle (no text or symbols)

Cross-sectional diagram of a vehicle seat assembly (no text or labels)

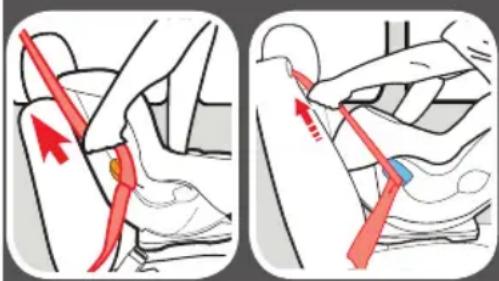

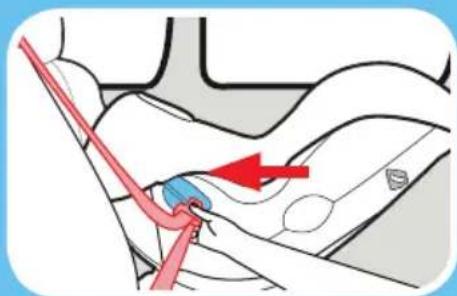

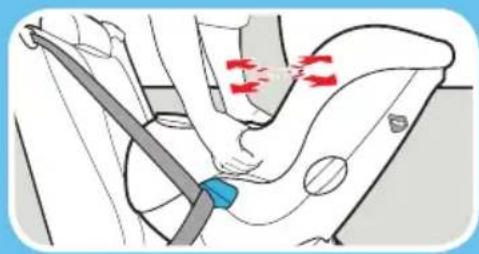

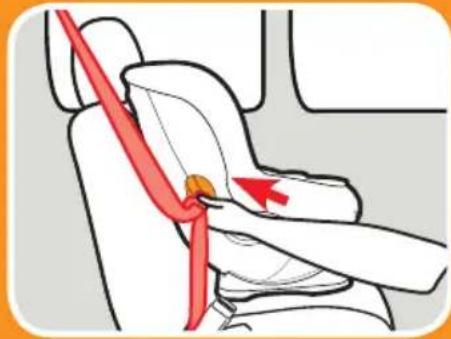

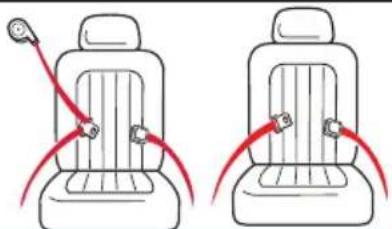

Vehicle Seat Belt

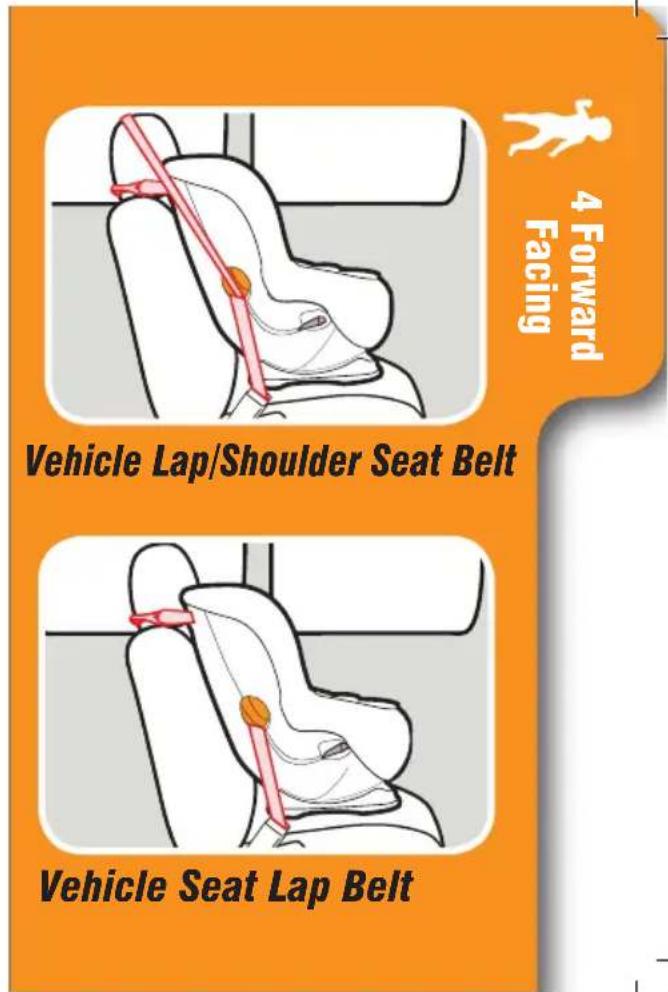

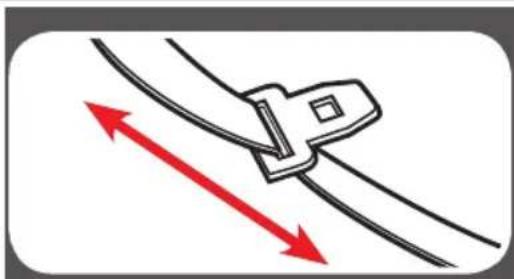

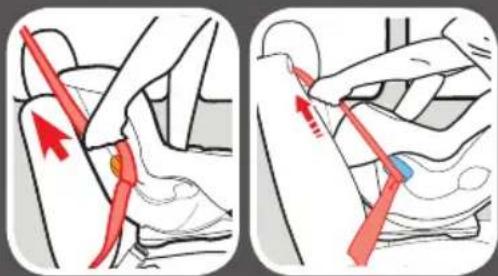

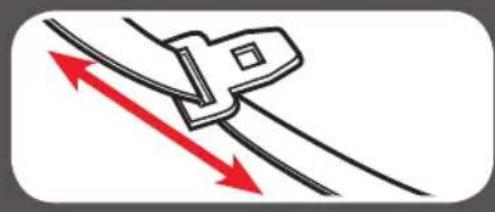

There are two types of vehicle seat belts that can be used. Lap/Shoulder Seat Belt or Lap Only Seat Belt.

Review section 3-C & 4-C of this manual AND your vehicle owner's manual.

Two identical line drawings of a car seat with red cable connectors, no text or symbols present.

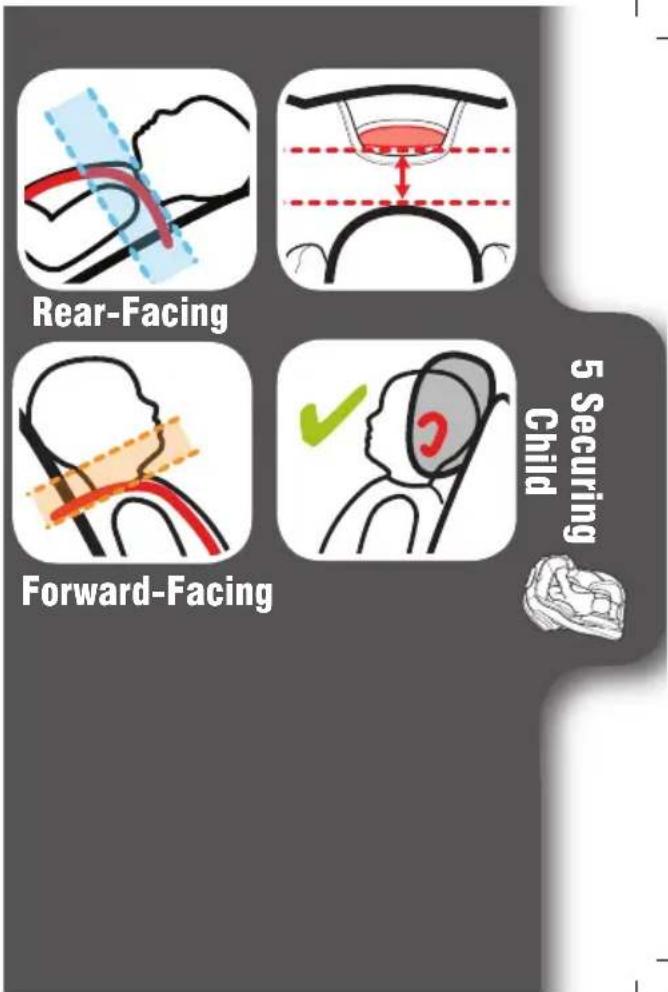

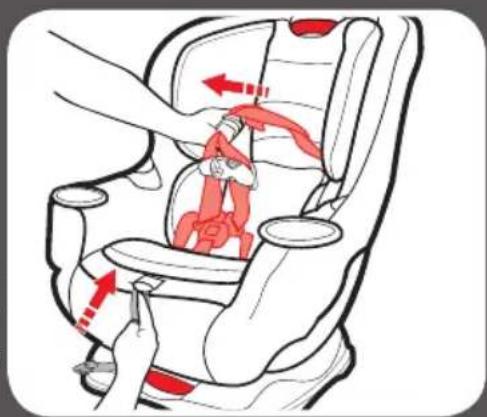

Does Your Car Seat Fit Your Child Correctly?

To make sure your child is secured properly, review section 3 and 4 to understand all of the actions you need to take to properly adjust the car seat to fit your child.

For Rear-Facing, You Need to Adjust:

Harness Height, Rear-Facing (A)

Harness straps at or just below the child's shoulders and top of head must be at least 1" (2.5 cm) below the headrest adjustment lever (B). Review section 5.

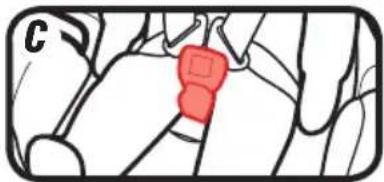

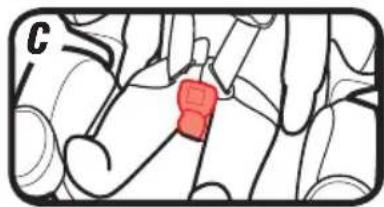

Buckle Position (C)

The correct slot is the one that is closest to your child without being underneath them. Review section 5.

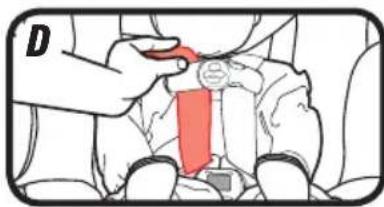

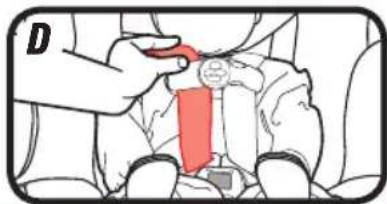

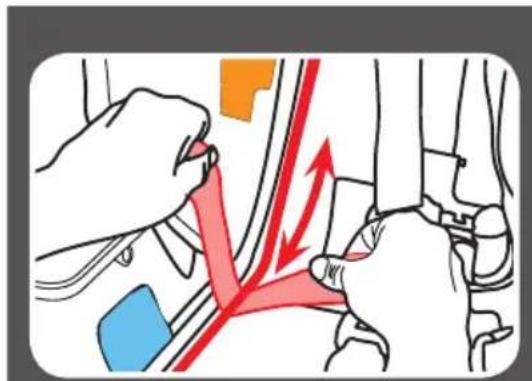

Harness Tightness (D)

If your fingers slide off the harness straps without pinching the straps, it is tight enough. Review section 5.

Anatomical illustration of a human hand and wrist with a highlighted red area (no text or labels)

Illustration of a person adjusting a red belt on a seatbelt (no text or symbols)

continue next page

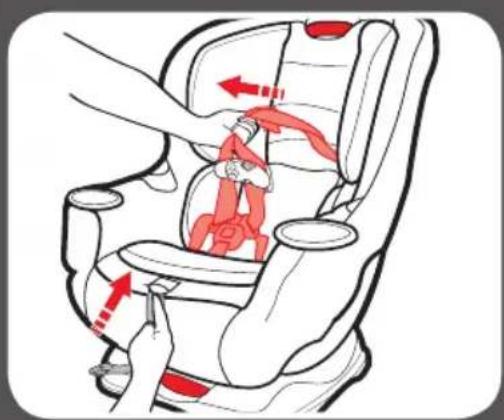

For Forward-Facing, You Need to Adjust:

Harness Height, Forward-Facing (A)

Harness straps at or just above the child's shoulders and top of child's ears below top of headrest (B). Review section 5.

Buckle Position (C)

The crotch strap must be in the front-most slot when forward facing.

Harness Tightness (D)

If your fingers slide off the harness straps without pinching the straps, it is tight enough. Review section 5.

Diagram of a hand holding a small object with a red highlighted section, surrounded by other fingers (no text or symbols)

Illustration of a person adjusting a red tie on a seatbelt (no text or symbols)

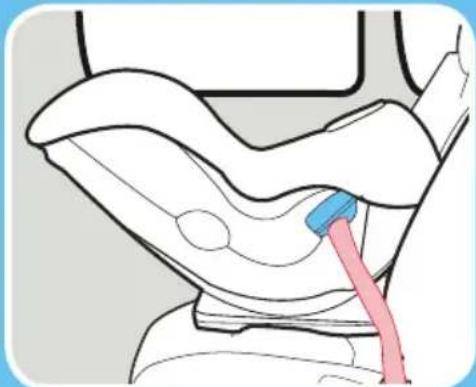

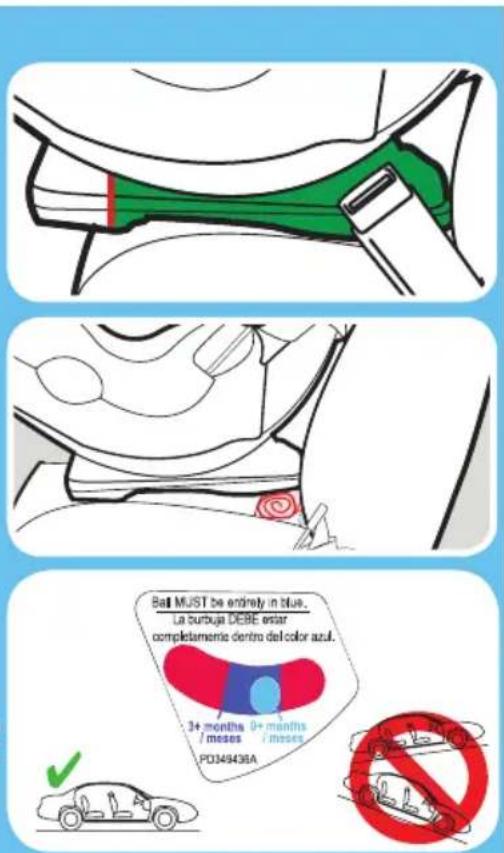

Rear-Facing Installation

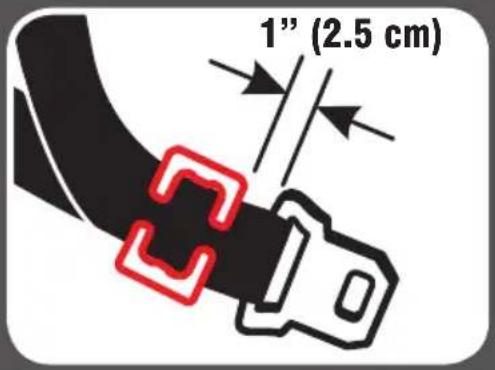

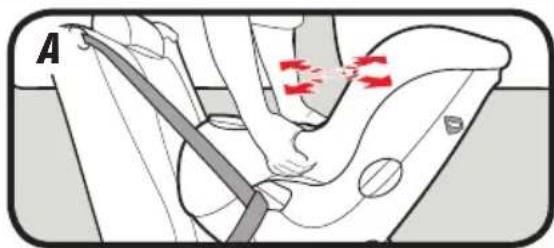

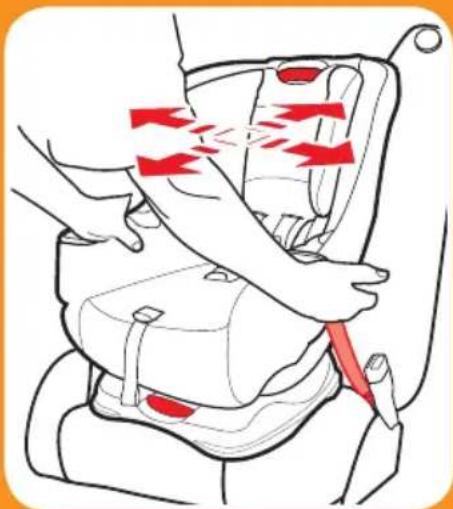

Car Seat Does Not Move More than 1" (2.5 cm) at the Belt Path (A)

Review section 3

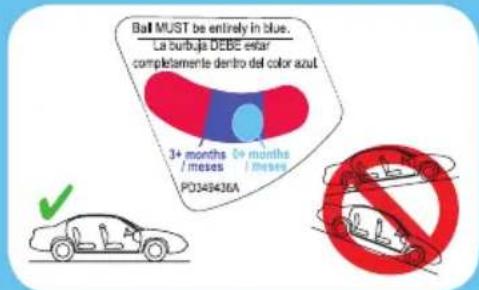

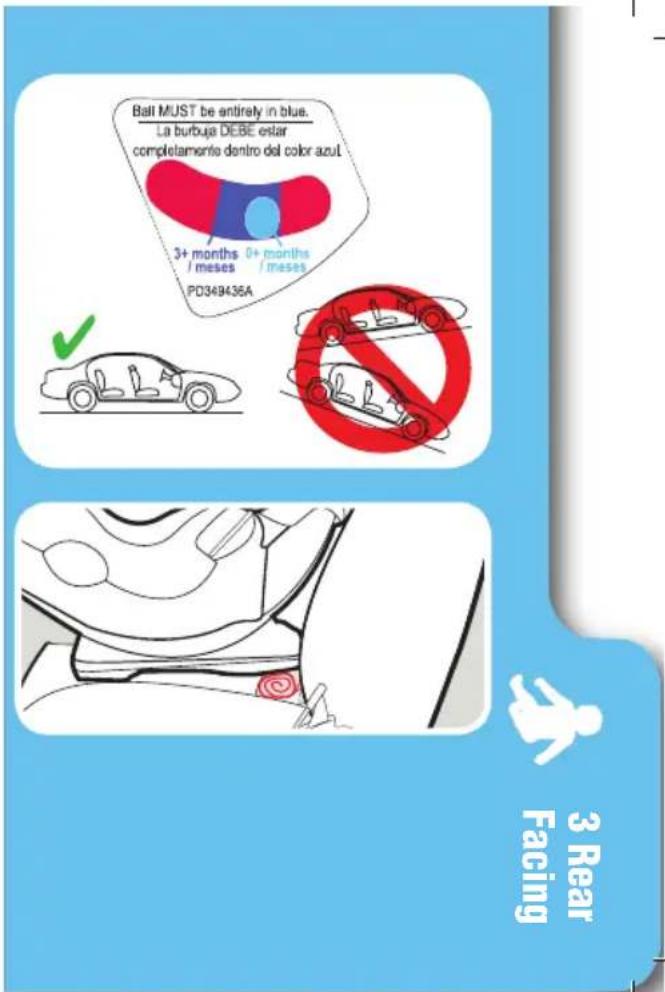

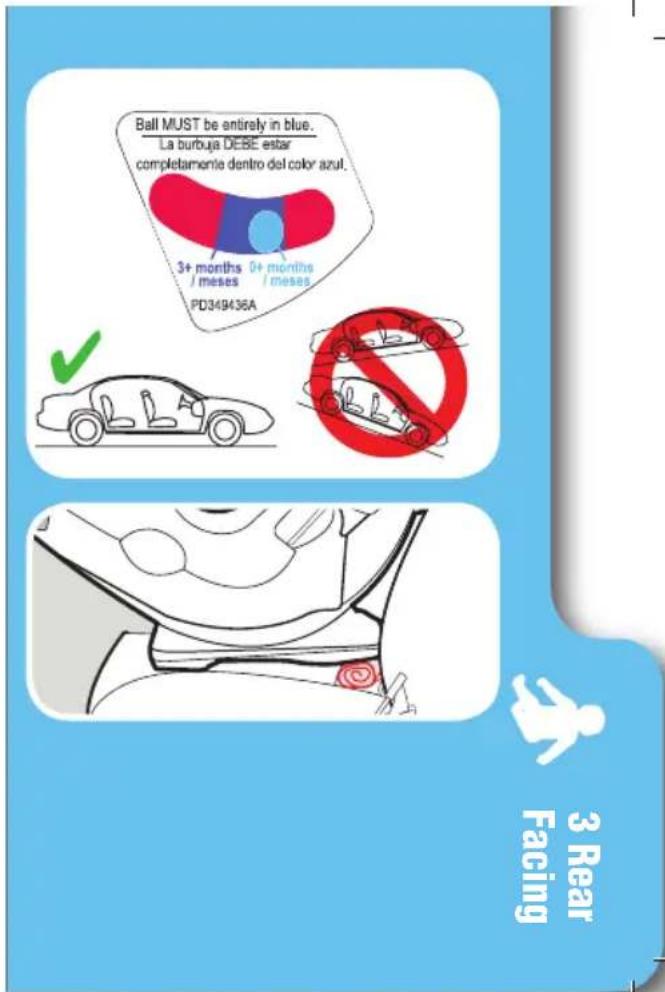

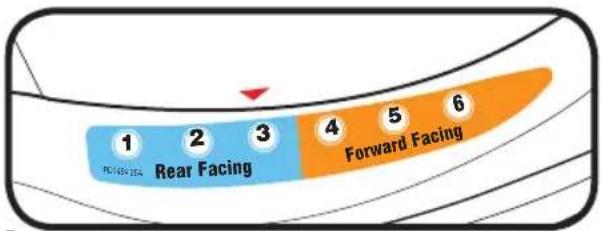

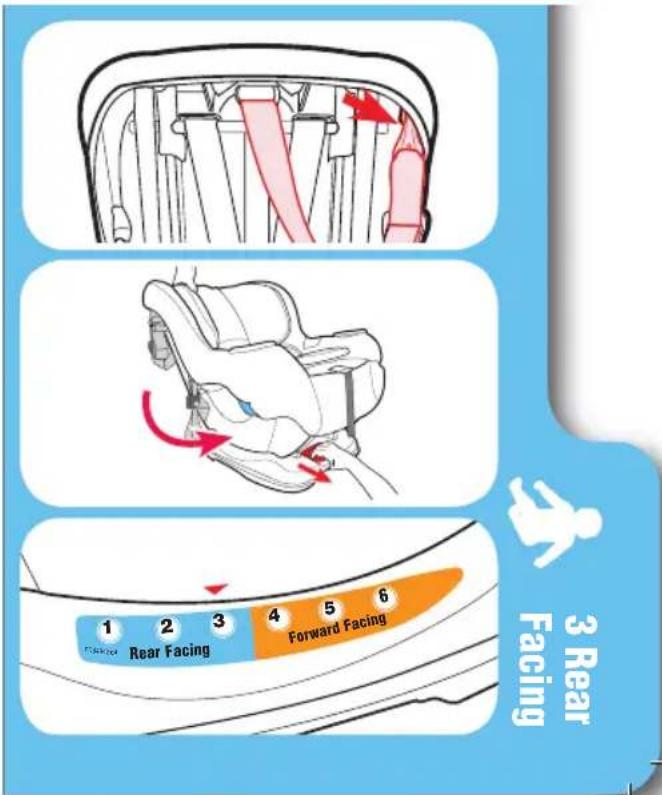

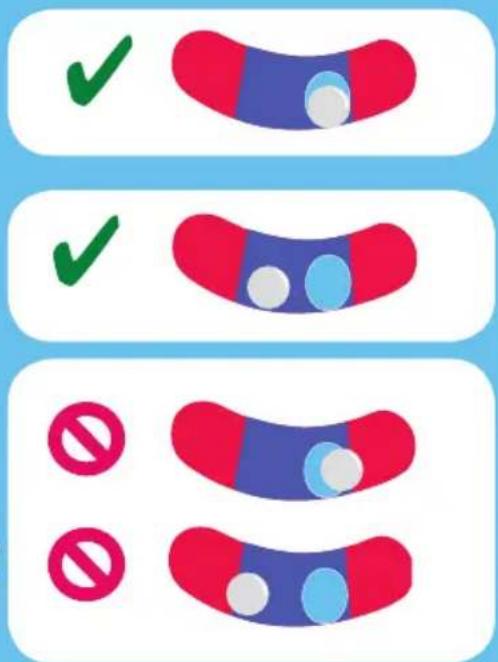

Check level indicator (B)

Review section 3

Harness Straps at or Just Below Child's Shoulders (C)

Review section 5

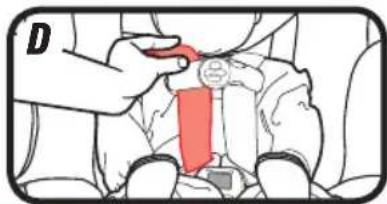

Chest Clip Even With Armpits (D)

Review section 5

Cannot Pinch Harness Straps at the Shoulder (E)

Review section 5

Diagram showing a curved red line intersecting a blue dashed line, with no visible text or symbols

Illustration of a person's abdomen with a red bandage and a small object inside, no text or symbols present.

Illustration of a person adjusting a red ribbon on a seat (no text or symbols)

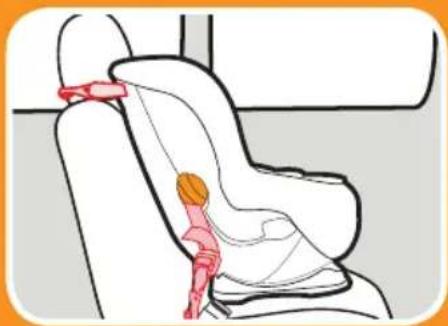

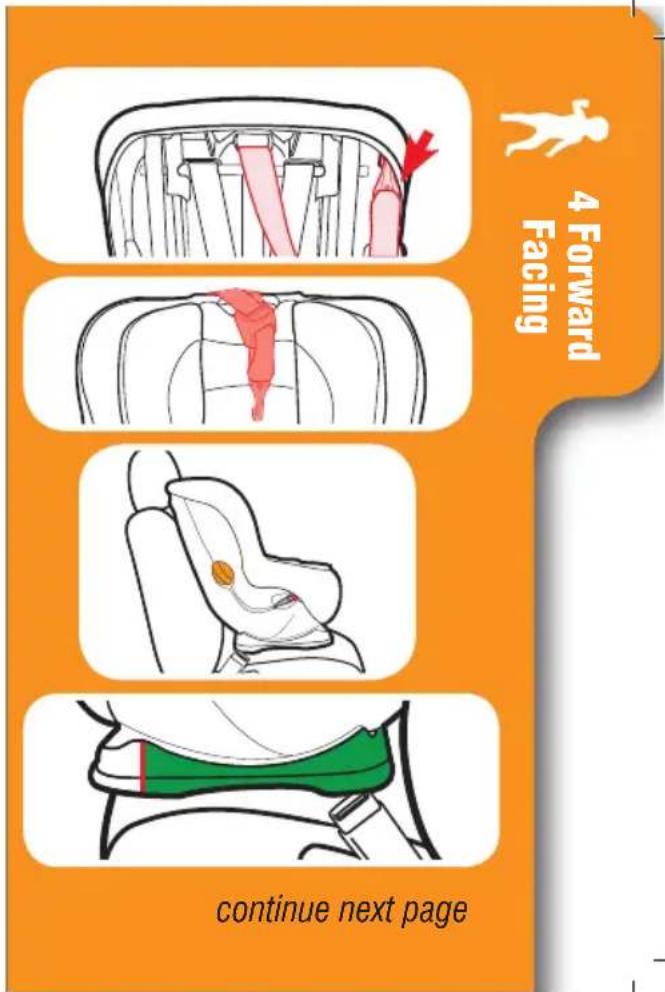

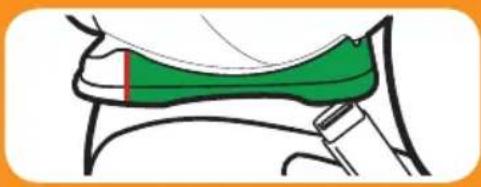

Forward-Facing Installation

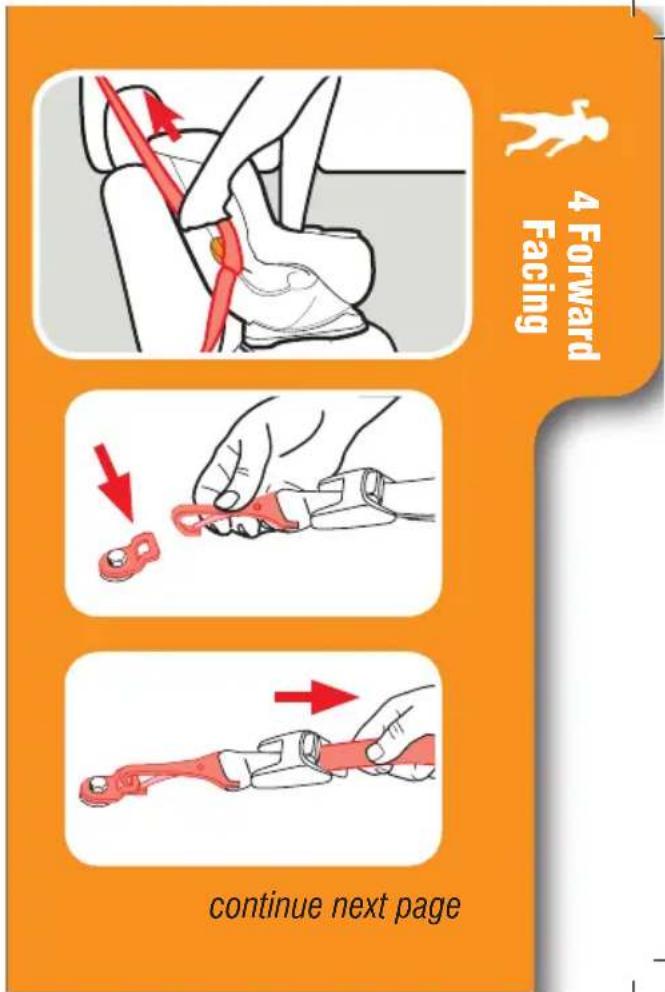

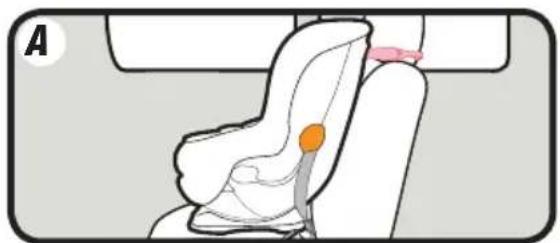

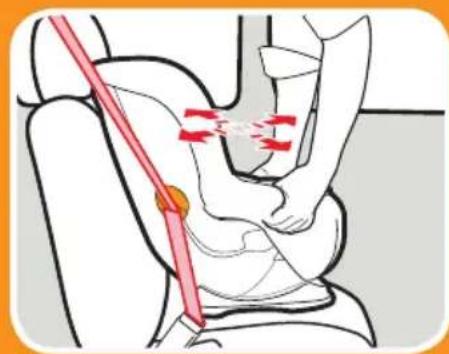

Use the top tether strap when using forward-facing (Å)

When used properly, the top tether helps reduce injury in a sudden stop or crash.

Review section 4

Car Seat Does Not Move More than 1" (2.5 cm) at the Belt Path (B)

Review section 4

Harness Straps at or Just Above Child's Shoulders (C)

Review section 5

Chest Clip Even With Armpits (D)

Review section 5

Cannot Pinch Harness Straps at the Shoulder (E)

Review section 5

Diagram of a car seat with highlighted orange seat and pink connector (no text or symbols)

Illustration of a person using a tool to adjust or install a device, with red arrows indicating movement or force (no text or symbols present)

Diagram of a human head with a red band and orange shaded area, no text or symbols present

Illustration of a person's torso with a red bandage and a small object inside, no text or symbols present.

Illustration of a person adjusting a red belt on a seat (no text or symbols)

1-B Welcome to the Graco Family!

Your child's safety depends on you. No car seat can guarantee protection from injury in every situation, but proper use helps reduce the risk of serious injury or death.

Even if this car seat seems easy to figure out on your own, you must follow the detailed instructions in this instruction manual to ensure the steps below are performed correctly.

1-C Right Mode of Use

4 lb(1.8 kg)

22 lb(10 kg)

40 lb(18 kg)

65 lb(30 kg)

Rear-Facing with 5-Point Harness

4-22 lb (1.8-10 kg) less than 1 year old MUST be rear-facing.

22-40 lb (10-18 kg) CAN be rear-facing.

Forward-Facing with 5-Point Harness

22-40 lb (10-18 kg) can sit upright unassisted CAN be forward-facing. 40-65 lb (18-30 kg) MUST be forward-facing.

Note: Preterm or low birth weight infants may be at special risk in a vehicle or aircraft.

According to the AAP, these infants may suffer breathing issues if improperly reclined in a car seat. When rear-facing, use the corrected age for preemies. Graco advises that you have your physician or hospital staff evaluate your infant and recommend the proper car seat or car bed before you and your infant leave the hospital.

1-D Before You Begin

Register This Child Restraint

Please fill out the prepaid registration postcard attached to the harness and mail it in today or register online at www.gracobaby.com/carseatregistration.

Child restraints could be recalled for safety reasons. You must register this restraint to be reached in a recall. Send your name, address, and the restraint's model number and manufacturing date to:

Graco Children's Products, Inc.

Attn: Customer Service

P.O. Box 169, Elverson, PA 19520-9901

or call 1-800-345-4109

or register online at

www.gracobaby.com/carseatregistration

For recall information, call the U.S. Government's Vehicle Safety Hotline at 1-888-327-4236 (TTY: 1-800-424-9153), or go to http://www.NHTSA.gov.

continue next page

For future reference or if you change addresses, record the model name, model number, date of manufacture and purchase date of this car seat on the below. You can find this information either on the registration card if you still have it or on the date label located on the back of the car seat.

Model Name
Model Number ____
Date of Manufacture ____
Date of Purchase

If You Need Help

In the U.S.A, please contact our Customer Service Department with any questions you may have concerning parts, use, or maintenance. When you contact us, please have your product's model number and date of manufacture ready so that we may help you efficiently. These numbers can be found on a sticker on the back side of your car seat. For additional resources or to get your car seat checked by a child passenger safety technician, please visit the following web sites:

www.nhtsa.gov • www.seatcheck.org • www.safekids.org

Certification

This child restraint meets or exceeds all applicable requirements of Federal motor vehicle safety standard 213 for use in motor vehicles.

This child restraint is certified for use in aircraft. Use only on forward-facing aircraft seats. Follow the instructions for vehicle installation. For rear-facing installation, see section 3-C and 8-D Lap Belt Installation. For forward-facing installation, see section 4-C and 8-D Lap Belt Installation, but do not use top tether. Contact the airline for their specific policies.

Car Seat's Useful Life

STOP using this car seat and throw it away 10 years after the date of manufacture. Look for this sticker on back of the car seat.

Graco Children's Products Inc. advises against loaning or passing along a car seat unless you know the complete history of the product. We also advise against purchasing a car seat second hand.

Vehicle Seat Protection

Protect vehicle seat. Use a car seat mat, towel, or thin blanket under and behind car seat.

Warm Weather Use

Car seat parts can get very hot in the sun or warm weather. To avoid burns, always check before putting child in car seat.

1-E Safety Warnings

No car seat can guarantee protection from injury in every situation, but proper use helps reduce the risk of serious injury or death. READ THIS MANUAL CAREFULLY.

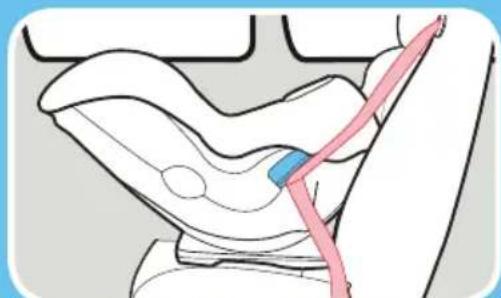

!WARNING!

Failure to follow these instructions and child restraint's labels can result in child striking the vehicle's interior during a sudden stop or crash.

! NEVER PLACE THIS CHILD RESTRAINT REAR-FACING IN A VEHICLE SEATING LOCATION THAT HAS AN ACTIVE FRONT AIR BAG.

If an air bag inflates, it can hit the child and car seat with great force and cause serious injury or death to your child.

! Review your vehicle owner's manual for more information about air bags and car seat use.
! If your vehicle does not have a back seat, review your vehicle owner's manual.

! The American Academy of Pediatricians (AAP) and National Highway Safety Administration (NHTSA) recommend that children ride rear-facing until the age of 2 or until they reach the maximum rear-facing height or weight rating for their seat, and when forward-facing, children should use the built-in harness system for as long as possible until they reach the maximum forward-facing weight or height for their car seat.
! Choose the correct mode of use for the car seat depending on your child's size. Infants less than 22 lb. (10 kg) MUST use this car seat rear-facing.
! Select a suitable location for the car seat in your vehicle.
! Secure car seat with a vehicle seat belt or LATCH that is properly routed as shown in this manual.
! Vehicle seat belt system MUST hold car seat securely. Not all vehicle seat belts can be used with a car seat.

! If vehicle seat belt does not hold car seat securely, read "Vehicle Seat Belts" section 8-D and your vehicle owner's manual.

! Always secure car seat with LATCH or a vehicle seat belt, even when unoccupied. In a crash, an unsecured car seat can injure passengers.

! If car seat is in a crash, it must be replaced. DO NOT use it again! A crash can cause unseen damage and using it again could result in serious injury or death.

! DO NOT use car seat if it is damaged or missing parts.

! DO NOT use accessories or parts other than those provided by Graco. Their use could alter the performance of the car seat.

! DO NOT remove LATCH system from car seat. If using vehicle seat belt to secure car seat, LATCH connectors must be stored.

! Never leave child unattended, even when sleeping. Child may become tangled in harness straps and suffocate or strangle.

! Rear-facing car seat must be properly leveled:

• Too reclined can result in injury or ejection.
• Too upright can result in breathing difficulties.

! Never attach two LATCH connectors to one vehicle lower anchor point unless specifically allowed by the vehicle manufacturer.

! Do not use both the vehicle belt and LATCH belts at the same time when using the car seat rear or forward facing.

2-A Car Seat Features

2 Features

A Height Adjust Lever
B Headrest
C Harness Cover
D Cupholder
E Harness Adjustment Strap
F Chest Clip
G Harness Buckle
H Harness Release Lever (under seat pad)
I Base Recline Handle

A Tether Storage
B Tether Hook
C Tether Strap
D LATCH Storage
E LATCH Strap
F LATCH Adjuster
G Cup Holder
H. Level Indicator

Diagram of a curved mechanical component with a red horizontal line labeled 'H' (no text or symbols on the diagram itself)

27

A Tether Strap
B Harness Straps
C LATCH Storage Bars
D Splitter Plate

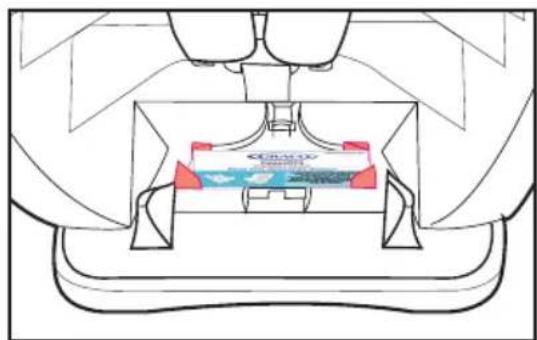

E Instruction Manual Storage
F Tether Storage Bar
G Tether Hook

3-A Rear-Facing

Diagram of a car seatbelt with a red tool inserted, showing no text or symbols

LATCH Strap

3 Rear

Facing

Rear-Facing: 4-40 lb (1.8-18 kg)

• Infants who weigh less than 22 lb (10 kg) MUST be rear-facing.
- Place car seat rear-facing in the vehicle back seat.
- Make sure LATCH strap or vehicle seat belt is routed through the rear-facing belt path marked with a blue label.
- Install this car seat tightly in your vehicle. Car seat should not move at the rear-facing belt path more than 1". (2.5 cm) from side to side, front to back.
- Check recline level making sure the ball is within the blue area.

- Harness straps need to be even with or just below the top of child's shoulders and chest clip is at armpit level.

The AAP and NHTSA recommend that children ride rear-facing until the age of 2 or until they reach the maximum rear-facing height or weight rating for their car seat. This car seat can remain rear-facing up to 40 lb (18 kg).

!WARNING!

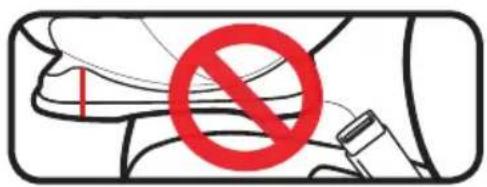

NEVER place this child restraint rear-facing in a vehicle seating location that has an active front air bag.

Medical illustration of a car seat with a pink catheter inserted, showing no text or symbols

Vehicle Seat Lap/Shoulder Belt

Illustration of a car seatbelt with a blue cable inserted into the seat area (no text or symbols)

Vehicle Seat Lap Belt

3 Rear Facing

When reading the level indicator,

3 Rear Facing

Vehicle MUST be on level ground.

Use corrected age for preemies.

- If the ball is entirely in light blue, the restraint is level for infants 0+ months in age.

- If the ball is in light blue and dark blue, the restraint is level for a child 3+ months in age.

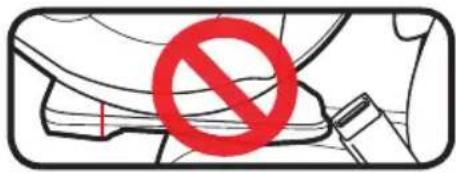

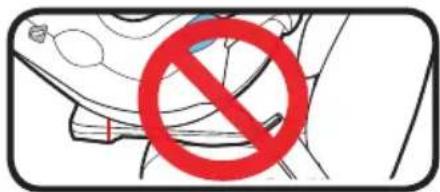

- If the ball is in RED, child restraint is NOT level. You must adjust your recline position.

3-B Installing Rear-Facing With LATCH Straps

Review your vehicle's owner manual for LATCH location and use.

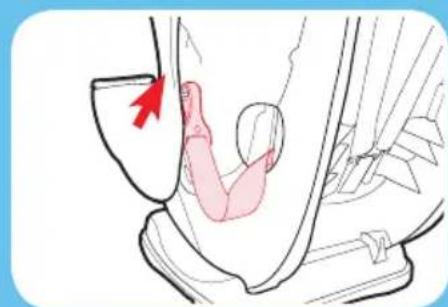

1. Store Top Tether Strap

Attach tether hook to the plastic bar on right side of the car seat.

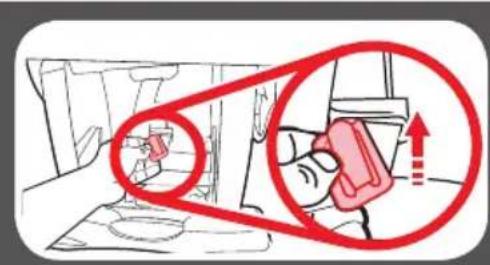

2. Remove LATCH Strap from Storage Location

Press in on the hook's spring. Push hook in, lift hook up, twist and pull out away from LATCH storage.

continue next page

Diagram of a car interior showing internal structure with a highlighted red arrow pointing to a specific area (no text or symbols present)

Anatomical illustration of a baby's abdomen with a red arrow indicating a specific area (no text or labels present)

3 Rear Facing

3 Rear Facing

3. Make Sure LATCH Strap is in the Rear-Facing Belt Path Marked With a Blue Label

If not, See section 7 to move LATCH strap.

4. Recline the Car Seat

Pull out on handle on front of child restraint and adjust to one of the 3 rear-facing positions.

34

5. Place Car Seat Rear-Facing in Back Seat of the Vehicle

Place rear-facing in vehicle seat and center the car seat between the lower LATCH anchors. The base should sit as flat as possible on the vehicle seat.

continue next page

35

3 Rear

Facing

1. Make Sure Base is a minimum of 80% on Vehicle Seat.

1. Check the Level Indicator

Vehicle MUST be on level ground. Ball must be completely in the blue zone.

Readjust the incline if needed. Or if needed, rolled towels may be placed under the car seat at the vehicle seat crease, until the ball is completely in the blue zone.

For infants 3 months and under, the ball must completely cover the light blue circle.

8. Extend the LATCH Strap.

For easier installation, extend the LATCH strap to its maximum length by pressing the grey button and pulling on the strap.

9. Attach LATCH Connectors to Vehicle's Lower LATCH Anchors.

LATCH strap should lie flat and not be twisted. If allowed by your Vehicle Owners Manual, the center seating position may be used if the anchor spacing is 11" (28 cm) or greater.

Illustration of a hand holding a pink cable or clamp, with a red arrow pointing to the clip (no text or symbols present)

continue next page

3 Rear Facing

Illustration of a person using a seatbelt with red arrows indicating force or movement (no text or symbols present)

Illustration of a person using a car seatbelt with red motion arrows indicating movement (no text or symbols)

10. Tighten the LATCH Strap

Press down firmly in the center of the car seat while tightening the LATCH strap. You may need to tighten through the rear-facing belt path as shown.

Illustration of a medical procedure showing a hand holding a red object over a patient's knee joint (no text or symbols present)

11. Test For Tightness

Grab the sides of the seat where the LATCH strap is and slide the car seat side-to-side and front-to-back.

If the seat moves less than 1". (2.5 cm), it is tight enough.

12. Check the Level Indicator

Vehicle MUST be on level ground. Ball must be completely in the blue zone.

Readjust if needed.

For infants 3 months and under, the ball must completely cover the light blue circle.

If needed, rolled towels may be placed under the car seat at the vehicle seat crease, until the ball is completely in the blue zone.

See section 5 to secure your child.

Recheck level indicator with child in seat.

continue next page

39

Is Everything Correct?

Illustration of a medical procedure on a patient's shoulder joint (no text or symbols visible)

Car Seat Does Not Move More than 1" (2.5 cm) at the Belt Path

Level Indicator's Ball in the Blue Zone and Vehicle on Level Ground

Harness Straps at or Just Below the Child's Shoulders.

Review section 5

Chest Clip Even With Armpits

Review section 5

Cannot Pinch Harness Straps at the Shoulder

Review section 5

3 Rear Facing

3-C Install Rear-Facing with Vehicle Seat Belt

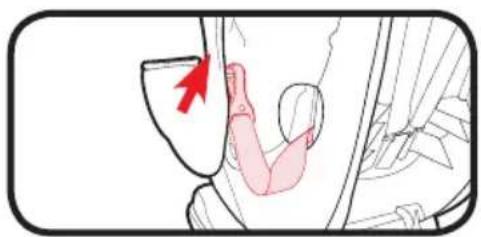

1. Store Top Tether and LATCH Strap

Attach tether hook and LATCH connectors to the plastic bars as shown.

Illustration of a car interior with a red arrow pointing to a specific area, no text or symbols present

2. Recline the Car Seat

Pull out on handle on front of child restraint and adjust to one of the 3 rear-facing positions.

continue next page

Line drawing of a car seatbelt with a blue highlighted component (no text or symbols)

Diagram of a mechanical component with green highlighted area, no visible text or symbols

3 Rear Facing

3. Place Car Seat Rear-Facing in Back Seat of the Vehicle

Place rear-facing in vehicle seat. The base should sit as flat as possible on the vehicle seat.

4. Make Sure Base is a minimum of 80% on Vehicle Seat.

5. Check the Level Indicator

Vehicle MUST be on level ground. Ball must be completely in the blue zone. Readjust if needed.

For infants 3 months and under, the ball must completely cover the light blue circle.

If needed, rolled towels may be placed under the car seat at the vehicle seat crease, until the ball is completely in the blue zone.

Review your vehicle's owner manual for vehicle seat belt use

Diagram of a car interior showing a red tool interacting with a blue object, no text or symbols present

Diagram of a car interior showing seatbelt and dashboard (no text or symbols)

6. Route the Vehicle Seat Belt

Thread vehicle seat belt through the rear-facing belt path (marked with a blue label) and out the other side. Buckle it. The seat belt should lie as flat as possible and not be twisted.

Note: It may be easier to route the vehicle seat belt by lifting seat pad up to expose the belt path.

Make sure the vehicle seat belt is in front of the buckle strap when the buckle is in the inner-most position, and in behind when in the outer-most position.

3 Rear Facing

7. Lock Vehicle Seat Belt

In most vehicles today, slowly pull the shoulder belt all the way out and then let it go back in. You will hear a clicking sound. Slowly pull out on the belt and it should be locked. If not, review your car's owner manual and section 8-D.

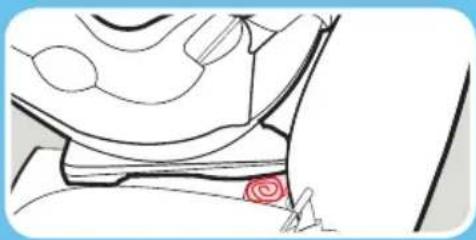

8. Tighten the Vehicle Seat Belt

Press down firmly in the center of the car seat. Pull on the shoulder belt to tighten while feeding the slack back in the retractor.

continue next page

3 Rear
Facing

Medical illustration showing a patient's seatbelt with red arrows indicating pressure or stress (no text or symbols present)

Line drawing of a seated car with a red circular mark on the side (no text or symbols)

9. Test For Tightness

Grab the sides of the seat where the vehicle seat belt is and slide the car seat side-to-side and front-to-back.

If the seat moves less than 1" (2.5 cm), it is tight enough.

10. Check the Level Indicator

Vehicle MUST be on level ground. Ball must be completely in the blue zone. Readjust if needed.

For infants 3 months and under, the ball must completely cover the light blue circle. If needed, rolled towels may be placed under the car seat at the vehicle seat crease, until the ball is completely in the blue zone.

See section 5 to secure your child.

Recheck level indicator with child in seat.

Is Everything Correct?

Car Seat Does Not Move More than 1" (2.5 cm) at the Belt Path

Level Indicator's Ball in the Blue Zone and Vehicle on Level Ground

Harness Straps at or Just Below the Child's Shoulders.

Review section 5

Chest Clip Even With Armpits

Review section 5

Cannot Pinch Harness Straps at the Shoulder

Review section 5

Illustration of a medical procedure with surgical tools and a blue clip (no text or symbols)

Simple line drawing of a hand holding a small object, no text or symbols present

3 Rear Facing

4 Forward

Facing

4-A Forward-Facing

Illustration of a car seatbelt with a person adjusting its seatbelt (no text or symbols)

LATCH Strap

Do not install by this method for a child weighing over 45 lb (20 kg).

Forward-Facing:

22-65 lb (10-30 kg) and 49 inches (125 cm) or less and at least one year old

• The crotch strap must be in the front-most slot when forward facing.
• Place car seat forward-facing in the vehicle back seat.

• Make sure LATCH strap or vehicle seat belt is routed through the forward-facing belt path marked with a orange label.

• Install this car seat tightly in your vehicle. Car seat should not move at the forward-facing belt path more than 1". (2.5 cm) from side to side, front to back.

• Harness straps need to be even with or just above the top of child's shoulders and chest clip is at armpit level.
• The crotch strap MUST be in the front-most slot when forward facing.
• The AAP and NHTSA recommend that children ride rear facing until the age of 2 or until they reach the maximum rear-facing height or weight rating for their seat, and when forward-facing, children should use the built-in harness system for as long as possible until they reach the maximum forward-facing weight or height for their car seat. This car seat can remain rear-facing up to 40 lb (18 kg).

4 Forward Facing

4-B Install Forward-Facing with LATCH Straps

Review your vehicle's owner manual for LATCH location and use. Do not install by this method for a child weighing over 45 lb (20 kg).

1. Remove LATCH Strap from Storage Location
2. Make Sure LATCH Strap is in the Forward-Facing Belt Path Marked with Orange Label If not, See section 7 to move LATCH strap.
3. Unhook Top Tether Strap From Storage

Unhook tether and lay it in the seat.

Anatomical illustration of a human heart with a red highlighted region, likely indicating a specific area or abnormality (no text or labels present)

50

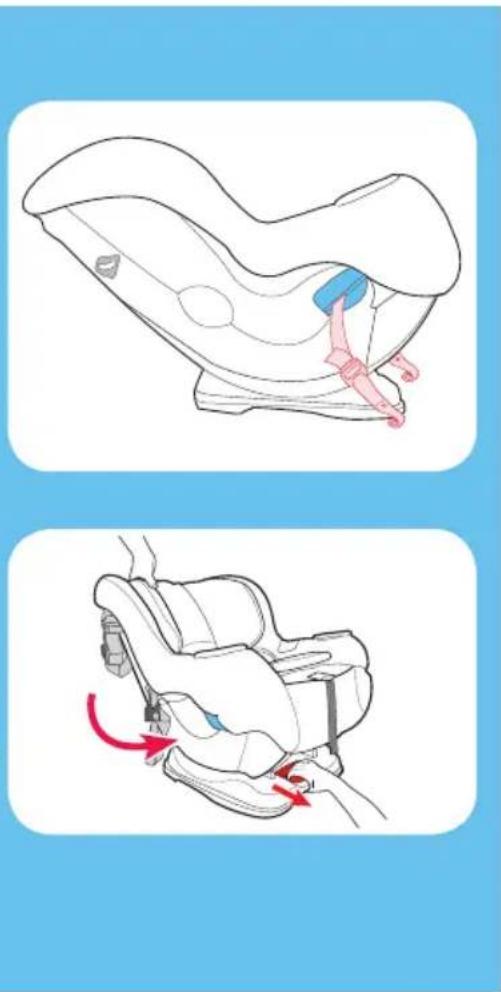

4. Recline the Car Seat

Pull out on handle on front of child restraint and adjust to one of the 3 forward-facing positions.

].

5. Place Car Seat Forward-Facing in Back Seat of the Vehicle

Place forward-facing in vehicle seat and center the car seat between the lower LATCH anchors. The base should sit as flat as possible on the vehicle seat.

continue next page

51

4 Forward

Facing

Illustration of a car's seat with a green seat cover and red line indicating a specific seat (no text or symbols)

Illustration of hands performing a finger massage on a curved object, with a red arrow indicating the motion (no text or symbols present)

1. Make Sure Base is a minimum 80% on Vehicle Seat.

1. Extend the LATCH Strap.

For easier installation, extend the LATCH strap to its maximum length by pressing the grey button and pulling on the strap.

1. Attach LATCH Connectors to Vehicle's Lower LATCH Anchors.

LATCH strap should not be twisted. If allowed by your Vehicle Owners Manual, the center seating position may be used if the anchor spacing is 11" (28 cm) or greater.

Illustration of a hand holding a wrist with a red arrow pointing to the wrist area (no text or symbols present)

9. Tighten the LATCH Strap

Press down firmly in the center of the car seat while tightening the LATCH strap.

10. Attach Top Tether Strap

Extend the top tether by pressing the grey button and pulling on the strap and attach.

Illustration of hands holding a red object on a dark surface, no text or symbols present

Consult vehicle's owner manual for specific location.

continue next page

53

11. Tighten Top Tether Strap

Remove all the slack.

12. Test For Tightness

Grab the sides of the seat where the LATCH strap is and slide the car seat side-to-side and front-to-back.

If the seat moves less than 1" (2.5 cm), it is tight enough.

See section 5-A to secure your child.

Is Everything Correct?

Car Seat Does Not Move More than 1" (2.5 cm) at the Belt Path

Harness Straps at or Just Above the Child's Shoulders.

Review section 5

Chest Clip Even With Armpits

Review section 5

Cannot Pinch Harness Straps at the Shoulder

Review section 5

Illustration of a person performing a medical or surgical procedure on a device (no text or symbols visible)

Facing
4 Forward

Simple line drawing of a human head with a red band and black outline, no text or symbols present

Illustration of a human pelvic anatomy with a red bandage and dashed lines indicating measurement or alignment (no text or symbols)

Illustration of a hand holding a wristband near a person's torso (no text or symbols)

4 Forward Facing

4-C Install Forward-Facing with Vehicle Seat Belt

1. Store LATCH Strap

Attach LATCH connectors to the plastic bars as shown.

2. Recline the Car Seat

Pull out on handle on front of child restraint and adjust to one of the 3 forward-facing positions.

3. Unhook Top Tether Strap From Storage

Unhook tether and lay it in the seat.

4. Place Car Seat Forward-Facing in Back Seat of the Vehicle

Place forward-facing in vehicle seat. The base should sit as flat as possible on the vehicle seat.

5. Make Sure Base is a minimum of 80% on Vehicle Seat.

57

Review your vehicle's owner manual for vehicle seat belt use

Illustration of a car seatbelt with red belt and orange belt, no text or symbols present

6. Route the Vehicle Seat Belt

Thread vehicle seat belt through the forward-facing belt path (marked with a orange label) and out the other side. Buckle it. The seat belt should lie as flat as possible and not be twisted.

Anatomical illustration of a human hip joint with a red surgical instrument inserted, showing no text or labels.

7. Lock the Vehicle Seat Belt

In most vehicles today, slowly pull the shoulder belt all the way out and then let it go back in. You will hear a clicking sound. Slowly pull out on the belt and it should be locked. If not, review your car's owner manual and section 8-D.

8. Tighten the Vehicle Seat Belt

Press down firmly in the center of the car seat. Pull on the shoulder belt to tighten while feeding the slack back in the retractor.

9. Attach Top Tether Strap

Extend the top tether by pressing the grey button and pulling on the strap and attach. Consult vehicle's owner manual for specific location.

Illustration of hands adjusting a gray belt with a red clip (no text or symbols)

10. Tighten the Top Tether Strap

Push the car seat back while tightening the top tether strap to remove all the slack.

4 Forward

Facing

Medical illustration showing a surgical procedure on pelvic region with red arrows indicating force or movement (no text or labels)

11. Test For Tightness

Grab the sides of the seat where the vehicle seat belt is and slide the car seat side-to-side and front-to-back.

If the seat moves less than 1" (2.5 cm), it is tight enough.

See section 5-A to secure your child.

Is Everything Correct?

Car Seat Does Not Move More than 1" (2.5 cm) at the Belt Path

Harness Straps at or Just Above the Child's Shoulders.

Review section 5

Chest Clip Even With Armpits

Review section 5

Cannot Pinch Harness Straps at the Shoulder

Review section 5

Medical illustration showing a surgical procedure with a needle inserted into a patient's arm (no text or labels)

Facing
4 Forward

Diagram of a human head with a red band and black outline, no text or symbols present

Illustration of a human pelvic band with a red bandage and dashed lines indicating measurement or alignment (no text or symbols)

Simple line drawing of a hand holding a small object, no text or symbols present

!WARNING!

WARNING! Do not put snowsuits or bulky garments on your child when placing them in the car seat. Bulky clothing can prevent the harness straps from being tightened properly. To keep child warm, buckle your child in the car seat and place a blanket around the child or place the child's coat on backwards after buckling in.

5 Securing Child

5-A Securing Child 5-point Harness

1. Loosen Harness Straps

Lift up on the harness release lever while pulling out on the harness straps at the chest clip. Unbuckle the chest clip and the crotch buckle. Place harness straps off to the sides.

Unbuckle the chest clip and the crotch buckle.

2. Place Your Child in the Seat

Make sure their back is flat against the car seat back.

Avoid bulky or heavy clothing. Doing so will prevent the harness straps from being tightened properly. Place a blanket over the child after you have secured the child.

3. Place Harness Straps Over Child's Shoulders and Buckle

You will hear a "click" when buckle tongues are securely attached. Pull up on each buckle tongue to make sure it is securely attached.

4. Be Sure the Harness Straps Are at the Proper Height

Rear-Facing: Harness straps should be at or just below the child's shoulders. Top of head must be 1" (2.5 cm) below the headrest adjustment lever.

Forward-Facing: Harness straps should be at or just above the child's shoulders. Top of child's ears below top of headrest.

5. To Raise or Lower Headrest/Harness Height

Squeeze the adjustment handle and move headrest for the proper harness height.

Illustration of a hand pressing down on a car seat with a red arrow indicating upward motion (no text or symbols)

6. Check the Buckle Position

The correct slot is the one that is closest to your child without being underneath them.

The crotch strap MUST be in the front-most slot when forward facing.

7. To Adjust Crotch Strap

Recline the car seat and locate the metal retainer under the car seat shell.

8. Rotate Metal Retainer and Insert It Up Through the Shell and Pad

From the top of the car seat, pull the crotch buckle out.

9. Insert Metal Retainer in the New Crotch Buckle Slot

Reach underneath the car seat and pull the metal retainer through. The crotch strap must be in the front-most slot when forward facing.

1. Pull Up on Crotch Strap to Make Sure it is Secured

2. Buckle the Chest Clip

You will hear a "click" when the chest clip is securely buckled.

1. Pull All the Slack Out From Around the Waist

Pull up on the harness strap while pushing the chest clip down. Do this to both sides.

13. Tighten the Harness by Pulling the Harness Adjustment Strap

When you are not able to pinch any of the harness webbing at your child's shoulder, the harness is tight enough. A snug harness should not allow any slack. It lies in a relatively straight line without sagging. It does not press on the child's flesh or push the child's body into an unnatural position.

14. Raise the Chest Clip to Child's Armpit Level

6 Accessories

6-A Accessories (on select models)

Line drawing of a car seat with two red seats, no text or symbols present

Harness Covers

Make sure that harness covers do not interfere with placement of the chest clip at armpit level.

To remove, undo the fastening strips and remove.

Body Support

Use only in the rear-facing mode.

Body support must be used if shoulders are below the lowest harness setting.

Never allow body support to bunch or fold behind child.

7 Moving
LATCH

7-A Moving the LATCH Strap

Illustration of a hand holding a mechanical component with red motion lines indicating movement (no text or symbols)

1. For Ease of Moving the LATCH Strap

A. Undo Snaps and fastening strips in front of child restraint.
B. Pull the LATCH straps out of the belt path opening, so that the LATCH hooks end up on the same side of the child restraint.

B

Mechanical assembly diagram showing a clamping mechanism with red arrows indicating force or motion (no text or symbols present)

Diagram of a car's engine compartment with red cable routing (no text or labels)

72

2. Slide Entire LATCH Strap Along Bar to Correct Belt Path Opening

Rear-Facing: Slide LATCH strap down to the blue label.

Forward-Facing: slide the LATCH strap up to the orange label.

3. Feed the LATCH Connector with the Adjuster Closest to it Through the Chosen Belt Path

Illustration of a car seat with a red hand holding a blue object, no text or symbols present

Mechanical assembly diagram showing a belt buckle adjustment mechanism with red arrows indicating motion (no text or symbols)

Diagram of a helmet assembly with red arrows indicating force or movement (no text or symbols)

Diagram of a mechanical device with red arrows indicating force or movement (no text or symbols)

Rear-Facing: Make sure the LATCH strap is in front of the buckle strap when the buckle is in the inner-most position (A), and in behind when in the outer-most position (B) and that it is flat and is not twisted.

7 Moving
LATCH

Two technical illustrations of a car seat assembly, one showing front view and the other showing side view with red arrows indicating force or movement (no text or symbols present)

Line drawing of a car seatbelt with a hand adjusting the seatbelt (no text or symbols)

Forward-Facing: Make sure the strap is flat and not twisted.

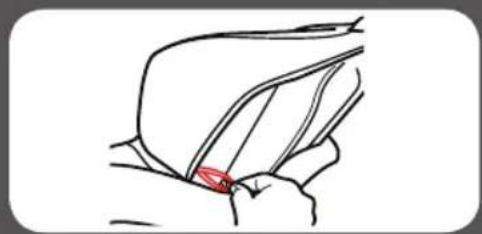

1. Replace the Seat Pad Fabric on the Front of the Child Restraint.

8-A How to Remove LATCH and Top Tether

Illustration of hands using a tool to cut a piece of paper or paper (no text or symbols visible)

Illustration of a hand using a belt switch to adjust a piece of material (no text or symbols present)

Illustration of a hand adjusting a wristband with a red arrow indicating movement (no text or symbols)

LATCH

Push gray button in while pulling on LATCH strap to loosen. Press in on the hook's spring. Push hook in, lift hook up, twist and pull out away from anchor point.

Top Tether Strap

To remove, press the grey button and pull on the strap to release the tension. Press in on the hook's spring. Push tether hook in, then lift up and pull away from tether anchor.

Illustration of hands using a knife to cut a piece of material (no text or symbols visible)

Illustration of a hand holding a pink object with red arrows pointing to it, no text or symbols present

8-B Choosing Vehicle Seat Location

Review your vehicle owner's manual for seating locations.

The best seating location for this car seat is one that:

• Is recommended by your vehicle owner's manual, and
  • Results in a secure installation of this car seat

In the event there is no available back seat and / or you have no other option than to place a child in a front passenger seating position (other than rear-facing), the National Highway Traffic Safety Administration (NHTSA) recommends that you take the following steps:

• Ensure the child is properly restrained according to their age and size
• Move the seat as far back as possible
• Make sure the child is not leaning out of position, such as leaning forward into the deployment path of the air bag
• Set the air bag ON-OFF switch, if available, to the OFF position

8-C Unsafe Vehicle Seat Locations

Never install this car seat in any of the following vehicle seating locations:

rear-facing or side-facing vehicle seats

rear-facing with an active front air bag

8-D Vehicle Seat Belts

Review your vehicle owner's manual for vehicle seat belt use

This car seat can be installed using a vehicle seat belt. To do this, you will need to change the seat belt to a locked mode for use with car seats. With some vehicle seat belts, this is done with the latchplate; with other vehicle seat belts, this is done with the retractor.

Vehicle Seat Belt Terms

Technical line drawing of a mechanical component with red curved elements and black alignment lines (no text or symbols)

Retractor

A device that winds up the unused vehicle seat belt. It is often hidden inside the panels on the walls of the vehicle or in the vehicle seatback.

Latch Plate

The male end of the seat belt with the silver tongue.

Seat Bight

The crease where the vehicle seat back and seat bottom meet.

Identify Your Seat Belt Type

There are two different types of vehicle seat belts that can be used with this car seat:

Lap/Shoulder Belt

3 connections points. Can be used in all car seats modes of use.

Lap Belt Only

2 connection points.

The following types of vehicle seat belts CANNOT be used safely with this car seat:

Diagram of a car seat with a red diagonal line indicating seatbelt, enclosed in a pink circle (no text or symbols)

Lap Belt with Motorized Shoulder Belt

Illustration of a car seat with a red prohibition symbol (no text or labels)

Lap Belt or Shoulder Belt Mounted on Door

Belts Forward of the Seat Bight

Lap/Shoulder Belt Installation - Rear-Facing/Forward Facing Modes

Always review your vehicle owner's manual for specific information about your vehicle seat belts.

There are three types of retractors: ELR (Emergency Locking Retractor), ALR (Automatic Locking Retractor), and Switchable (ELR switch to ALR). To

determine your type of retractor, follow these steps:

1. Slowly pull the belt out about halfway and stop.
2. Let the belt retract back several inches.

3. Try to slowly pull the belt out more. If the belt cannot be pulled any further, it is ALR. If it can be pulled further, go to the next step.

4. Slowly pull the belt all the way out, and then allow it to retract several inches.

5. Try to pull the belt all the way out again. If it cannot be pulled out, it is Switchable. If it can still be pulled out freely, it is ELR.

Illustration of a hand holding a red cable with a red arrow indicating force or direction (no text or symbols)

Note: Most vehicles manufactured after 1996 will have Switchable retractors in the back seat. If you have any questions about your retractor type, consult your vehicle owner's manual or call Graco for assistance.

How to Lock Your Lap and Shoulder Vehicle Seat Belt

Sliding Latch Plate and Switchable Retractor

A latchplate that slides freely on the belt webbing and cannot, by itself, hold the belt snug around a car seat.

When installing the car seat, route the vehicle seat belt through the proper belt path and buckle it in.

Slowly pull the shoulder belt all the way out to switch it to locking mode. Then, as you pull the vehicle seat belt tight, feed all the slack back into the retractor.

Grab the sides of the seat at the belt path and slide the seat side-to-side and front-to-back. The seat should not move more than 1" (2.5 cm).

Diagram showing a car with two curved lines and two red arrows indicating direction (no text or symbols)

Illustration of a person's seatbelt with a red belt and arrow indicating direction (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, with no visible text or symbols.

Information
8 Additional

Note: With the vehicle seat belt in this locking mode, all the tension is upwards in the shoulder belt. This may start to tilt your car seat sideways. If this happens, use a locking clip instead of this switching the retractor. See Sliding Latch Plate and ELR Retractor.

8 Additional
Information

Line drawing of a buckle buckle with light rays (no text or symbols)

Illustration of a person's seatbelt being adjusted for a red belt, showing two different positions (no text or symbols present)

Locking Latchplate and ELR Retractor

A latchplate that holds the lap belt snug after it has been adjusted; contains a metal bar on the underside of the hardware that "locks" the belt in position.

When installing the car seat, route the vehicle seat belt through the proper belt path and buckle it in. Then, pull upwards on the shoulder belt so that the lap belt gets tight around the car seat.

Grab the sides of the seat at the belt path and slide the seat side-to-side and front-to-back. The seat should not move more than 1" (2.5 cm).

Sliding Latch Plate and ALR Retractor

A latchplate that slides freely on the belt webbing and cannot, by itself, hold the belt snug around a car seat.

Slowly pull the shoulder belt all the way out. Route the vehicle seat belt through the proper belt path and buckle it in. Then, as you pull the vehicle seat belt tight, feed all the slack back into the retractor.

Grab the sides of the seat at the belt path and slide the seat side-to-side and front-to-back. The seat should not move more than 1 inch (2.5 cm).

8 Additional
Information

Diagram showing two curved lines with red arrows indicating direction, no text or symbols present

Sliding Latch Plate and ELR Retractor

A latchplate that slides freely on the belt webbing and cannot, by itself, hold the belt snug around a car seat.

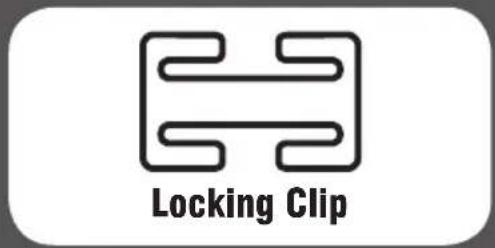

With this retractor, you will need to use the locking clip to lock the vehicle seat belt.

To get a locking clip order online at gracobaby.com or call 1-800 345-4109

Route the vehicle seat belt through the proper belt path and buckle it in. Pull the vehicle seat belt tight. While pushing down on seat, pinch the two straps together behind the buckle tongue. Unbuckle the belt without allowing it to slip.

Attach locking clip to lap and shoulder belts as shown.

Rebuckle belt. Check that lap belt does not move by pulling hard. If belt loosens or lengthens, repeat procedure.

Lap Belt Installation

Always review your vehicle owner's manual for specific information about your vehicle seat belts.

Locking Latch Plate and No Retractor

When installing the car seat, route the lap seat belt through the proper path and buckle it in. Then, pull upwards on the tail of the belt so that the lap belt gets tight around the car seat.

Sewn On Latch Plate and ALR

Slowly pull the lap belt all the way out.

Route the vehicle seat lap belt through the proper belt path and buckle it in. Then, pull the lap belt tight while feeding all the slack back into the retractor.

Simple line drawing of a wristwatch with a red arrow indicating left motion (no text or symbols)

Grab the sides of the seat at the belt path and slide the seat side-to-side and front-to-back. The seat should not move more than 1 inch (2.5 cm).

Information

8 Additional

Pure electrical circuit lines without any symbols

9-A Cleaning Seat Pad

9 Care & Cleaning

Illustration of a hand pressing down on a seat with a red upward arrow indicating pressure or movement (no text or symbols)

Clean with a damp sponge using mild soap and cool water. Refer to seat pad care tag for washing instructions.

Your model determines how to remove the seat pad. Follow the instructions that match your seat.

Seat Pad (on most models)

Raise the headrest all the way up.

Lift up on the harness release lever while pulling out on the harness straps.

Unbuckle the chest clip and the buckle strap.

Face the rear of the seat and remove the belt straps from splitter plate as shown.

9 Care & Cleaning

Medical illustration showing a hand holding a car seatbelt with a red arrow pointing to the seat area (no text or symbols present)

Line drawing of a hand holding a tool over a vehicle chassis frame (no text or symbols)

Anatomical line drawing of a mechanical or dental component with no visible text or labels

Grab hold of the shoulder straps and pull them out of their slots on the seat pad.

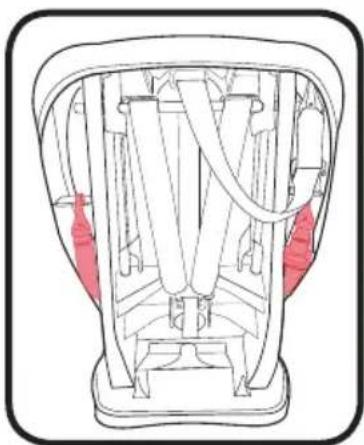

From the back of the seat, undo the elastic straps and plastic hooks.

Undo both plastic hooks from the front of the seat.

Remove pad from shell.

Machine wash pad in cold water on delicate cycle and drip-dry. DO NOT USE BLEACH.

To put the seat pad back on, reverse preceding steps. Make sure that you rethread the harness straps OVER THE METAL BAR. The harness straps MUST not be twisted.

9 Care & Cleaning

Illustration of a hand holding a curved object with two red, flame-like shapes on its surface (no text or symbols)

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Illustration of a hand holding a pink object over a seated area, with no visible text or symbols.

Head Support Cover

Undo elastic loop underneath head support cover. Pull tab out from behind head support.

Undo the elastic loops on the sides of the headrest.

Peel cover off head support.

Machine wash pad in cold water on delicate cycle and drip-dry. DO NOT USE BLEACH.

To put the head support cover back on, reverse preceding steps.

9-B Cleaning Crotch Buckle

Recline the car seat and locate the metal retainer. Rotate the metal retainer up through the shell and pad. From the front, pull the crotch buckle out.

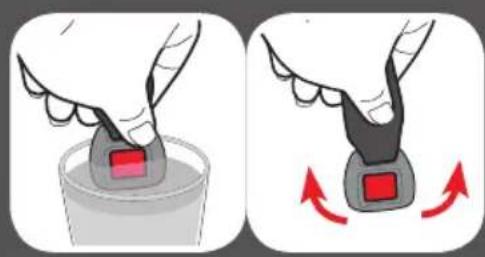

To clean buckle, place in a cup of warm water and gently agitate the buckle. Press the red button several times while in the water.

DO NOT SUBMERGE THE BUCKLE

STRAP. DO NOT USE SOAPS, HOUSEHOLD DETERGENTS or LUBRICANTS.

Shake out excess water and allow to air dry. Repeat steps as needed until it fastens with a click. Re-insert the buckle into the same slot it was removed. Pull up on crotch buckle to make sure it is secured.

Illustration of a hand holding a small object with red square markers, showing two states of change (no text or symbols)

WARNING! Inspect and clean buckle from time to time to remove any objects or debris that could prevent latching.

Cleaning

9 Care &

9-C Cleaning Harness and LATCH Straps

Surface wash only with mild soap and damp cloth. DO NOT IMMERSE THE HARNESS STRAPS or LATCH STRAP IN WATER Doing so may weaken the straps. If harness straps or LATCH belt are frayed or heavily soiled, contact Customer Service at www.gracobaby.com or 1-800-345-4109.

Notes:

Notes:

Notes:

Replacement Parts

To purchase parts or accessories in the United States, please contact us at the following:

www.gracobaby.com

or 1-800-345-4109

Line drawing of a mechanical assembly with a central component and two arms (no text or symbols)

Store instruction manual behind the tab with the instruction book icon as shown.

www.gracobaby.com

Sequel™ 65

ASIENTO DE AUTOMÓVIL CONVERTIBLE

Line drawing of a car seat with no text or symbols

PD349450C 7/16

Line drawing of a car seat with seats and seatbelt (no text or symbols)

Illustration of a hand holding a pink object over a small box, with a red arrow indicating direction (no text or symbols)

Illustration of a hand holding a small object with a red arrow indicating direction (no text or symbols present)

Illustration of a hand holding a red belt buckle (no text or symbols)

Cross-sectional diagram of a mechanical device with internal components and red highlighted areas (no text or labels)

Illustration of two car seatbelt covers with red cable connectors (no text or symbols)

Anatomical illustration of a joint with a red highlighted area, likely indicating a specific region or area of interest (no text or labels present)

Illustration of a person adjusting a red belt on a seatbelt (no text or symbols)

Diagram of a hand holding a small red object, possibly a device or tool, with no visible text or symbols.

Illustration of a person adjusting a red tie on a seatbelt (no text or symbols)

Diagram of a person's seatbelt with red arrows indicating motion or pressure, no text or symbols present

Diagram showing a curved red line intersecting a black line with blue dashed lines, labeled 'c' (no text or symbols beyond label)

Illustration of a person's lower torso with a red bandage and dashed lines indicating measurement or alignment (no text or symbols)

Illustration of a person adjusting a red belt on a seat (no text or symbols)

Diagram of a car seat with highlighted orange seat and pink connector (no text or symbols)

Illustration of a person adjusting a seatbelt with red arrows indicating force or movement (no text or symbols present)

Diagram of a human head with a red band and black line, no text or symbols present

Illustration of a person's lower torso with a red bandage and dashed lines indicating measurement or alignment (no text or symbols)

Illustration of a person adjusting a red belt on a seat (no text or symbols)

Graco Children's Products, Inc.

Attn: Customer Service

P.O. Box 169, Elverson, PA 19520-9901

Diagram of a curved mechanical component with a red line labeled 'H' intersecting it (no text or symbols beyond the label)

Illustration of a car seatbelt with a red tool inserted, no text or symbols present

Correa del LATCH

Medical illustration of a car seat with a pink catheter inserted, showing no text or symbols

Medical illustration of a surgical procedure in progress, showing anatomical structures without any text or labels

Diagram of a car interior showing internal components and a highlighted curved area with an arrow (no text or symbols)

Anatomical illustration of a human foot and arm in the lower abdomen, showing internal organs and a red arrow indicating a specific area (no text or labels present)

34

a

Illustration of a hand holding a pink tool with an arrow pointing to it, no text or symbols present

Illustration of a hand holding a red object, possibly a tool or device, in contact with another person's arm (no text or symbols visible)

Anatomical illustration of a human head with a red arrow pointing to a specific area (no text or labels present)

Illustration of a medical procedure in a seated chair, showing anatomical positioning (no text or symbols)

Illustration of a hand pointing to a small pink object inside a vehicle (no text or symbols)

Diagram of a car interior showing a red cable inserted into a seatbelt, with no visible text or symbols.

Diagram of a car seatbelt mechanism showing two seats and a belt (no text or labels)

Medical illustration showing a surgical tool interacting with a mechanical device (no text or symbols visible)

Illustration of a car seatbelt with a highlighted orange object on the seat (no text or symbols)

Correa del LATCH

Diagram of a human heart with a red highlighted region, no text or symbols present

Diagram of a car's seat and dashboard area with green seating (no text or labels)

Illustration of hands adjusting a belt buckle with a red arrow indicating the motion (no text or symbols present)

Illustration of a hand holding a wrist with a red arrow pointing to the wrist area (no text or symbols present)

9. Tensione la correa del LATCH

Illustration of hands holding a red belt buckle (no text or symbols)

Illustration of a hand holding a red wrench with an arrow indicating direction (no text or symbols)

Illustration of a person using a medical device to interact with another person's seat, showing red arrows indicating movement or pressure (no text or symbols present)

Illustration of a person's seatbelt with red bandages indicating muscle fibers (no text or symbols)

Simple line drawing of a human head with a red band and black outline, no text or symbols present

Illustration of a human lower body with a red bandage and measurement lines (no text or symbols)

Simple line drawing of a hand holding a small object, no text or symbols present

Illustration of a car seatbelt with red belt and orange belt, no text or symbols present

Anatomical illustration of a joint with a red arrow indicating a specific area (no text or labels present)

Illustration of hands adjusting a belt or buckle (no text or symbols present)

Medical illustration showing a surgical procedure on a patient's foot, with no visible text or symbols

Medical illustration showing a surgical procedure with a needle inserted into a patient's arm (no text or labels)

Diagram of a human head with a red band and orange shaded area, no text or symbols present

Illustration of a human pelvic anatomy with a red shaded region indicating a specific area (no text or labels)

Illustration of a hand holding a wristwatch, no text or symbols present

5 Asegurar
al niño

iADVERTENCIA!

Illustration of a car seatbelt with red arrows indicating movement or force (no text or symbols)

Line drawing of a car seat with a hand holding the seat, showing a red double-headed arrow indicating pressure or movement (no text or symbols present)

Diagram of a human hand holding a small object, possibly a tool or device, with no visible text or symbols.

Illustration of a hand pressing down on a car seat with a red arrow indicating pressure point (no text or symbols)

Line drawing of a car seat with red seat covers (no text or symbols)

6 Accesorios

Fundas del arnés

Illustration of a car seat with a red object inserted, no text or symbols present

Diagram of a mechanical component with red arrows indicating motion or force direction (no text or symbols)

Diagram of a helmet with red arrows indicating direction, no text or symbols present

Diagram of a mechanical component with red arrows indicating force or movement (no text or symbols)

Diagram showing two views of a car seat assembly with red arrows indicating force or movement (no text or labels)

Line drawing of a hand adjusting a car seatbelt with a red arrow indicating rotation (no text or symbols)

Illustration of a hand using a tool to interact with a device, showing a red arrow indicating direction (no text or symbols present)

Illustration of a hand adjusting a wristband with a red arrow indicating movement (no text or symbols)

LATCH

Illustration showing a hand using a knife to cut a tool and then applying red adhesive to a small object (no text or symbols present)

Technical line drawing of a mechanical component with red curved brackets and mounting holes (no text or symbols)

Retractor

Illustration of a hand holding a red tool with a lightning bolt, no text or symbols present

Diagram showing two curved lines with opposing red arrows indicating direction, no text or symbols present

Line drawing of a buckle buckle with light rays (no text or symbols)

Illustration of a car seatbelt being adjusted for a person's seatbelt, showing red force arrows (no text or symbols)

Diagram showing a vehicle with two red arrows indicating upward motion, no text or symbols present

Line drawing of a medical or electronic device with a strap and connector (no text or symbols)

Line drawing of a cable or connector with no visible text or symbols

Illustration of a hand pressing down on a seated seat with a red arrow indicating upward motion (no text or symbols)

Illustration of a hand holding a tool near a curved object with two pink circular markers (no text or symbols)

Line drawing of a hand holding a curved object with a red highlight (no text or symbols)

Illustration of a hand holding a pink object over a seated figure (no text or symbols)

Illustration of a hand pressing down on a red square object into a glass container, with red arrows indicating motion (no text or symbols)

Line drawing of a mechanical assembly with a central component and two arms (no text or symbols)
