SL156 - Vacuum Cleaner VOX - Free user manual and instructions

Product Type	Vacuum Cleaner
Brand	VOX
Model	SL156
Color / Finish	Not specified
Power Supply	Mains powered (plug into earthed socket)
Cord Rewind	Automatic with button
Dustbin Type	Removable, washable container
Filtration	Foam filter, washable
Handle	Integrated with wind-force adjuster
Extension Tubes	Included, for reach
Floor Brush	Dual-position: bristles extended for hard floors, retracted for carpets
Accessories Included	Narrow nozzle, small brush
On/Off Switch	Yes, located on the unit
Safety Features	Do not use on wet surfaces, avoid cord damage, keep away from children
Maintenance	Empty dustbin and wash foam filter regularly
Usage	Domestic use only
Manual Language	English, Serbian, Bosnian

Frequently Asked Questions - SL156 VOX

How do I assemble the vacuum cleaner?

First, remove the flexible tube by pressing the button on its end and pulling it from the air intake duct. Then, attach the extension tubes and accessories as needed. Refer to the manual diagrams for detailed steps.

How do I clean the dust bin?

Lift the form cover and take out the dust cup. Remove the foam filter from the dust cup, then clean off the dust inside the cup. Wash the foam filter in water and let it dry naturally before reuse.

How do I rewind the power cord?

Press the cord rewind button with one hand and guide the cord with the other to prevent whipping. Do not pull the cord beyond the red mark.

Can I use the vacuum cleaner on wet surfaces?

No, do not use the appliance on wet surfaces. It is designed for dry vacuuming only. Vacuuming liquids can damage the unit and pose an electrical hazard.

What should I not vacuum?

Do not vacuum lighted matches, cigarette ends, hot ash, needles, pins, string, or any sharp objects. Also avoid vacuuming liquids or using on wet surfaces.

How do I use the floor brush for different surfaces?

The dual-position brush has two settings: Position 1 (bristles extended) for hard floors, and Position 2 (bristles retracted) for carpets. Adjust accordingly.

How often should I clean the foam filter?

Clean the foam filter when it gets dirty. Remove it, wash in water, and dry completely before next use. Regular cleaning maintains suction power.

What should I do if the power cord is damaged?

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard. Do not attempt to repair it yourself.

What do the symbols in the manual mean?

The symbols indicate prohibitions: do not use on wet surfaces, do not obstruct vents, do not vacuum sharp objects, do not vacuum hot items, and do not run over the cord. They ensure safe operation.

Where can I get repairs or accessories?

For any repairing or accessories, contact your dealer or an authorized Service Center. Do not attempt to open or repair the appliance yourself.

USER MANUAL SL156 VOX

Line drawing of a mechanical device with wheels and mounting brackets (no text or symbols)

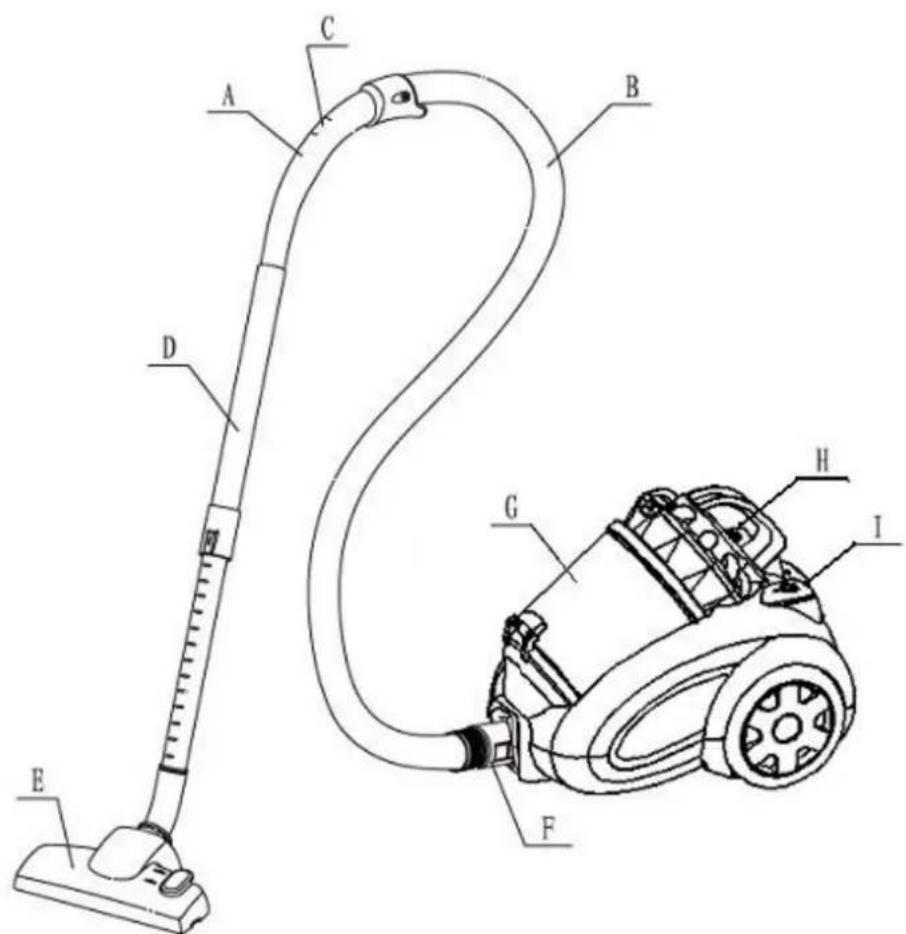

DESCRIPTION

A. Handle
B. Hose
C. Wind-force adjuster
D. Tube
E. Floor brush

F. Hose connector

G. Dustbin

H. Cord rewind button

I. Power switch

IMPORTANT

. Read this instruction booklet carefully.
. Before using the appliance, check if the mains power voltage corresponds to the voltage shown on the rating plate.
. The appliance should be connected to the correctly-earthed 10 power socket.
. Always remove the plug from the power socket when the appliance is not in use and before carrying out any cleaning or maintenance operations.
. Always remove the plug from the power socket before opening the appliance.
. Never use methylated spirits or other solvents to clean the appliance.
. Do not use the appliance to vacuum liquids.
. Never leave the appliance unattended when it is switched on. Keep the appliance out of the reach of children or infirm persons.
. The appliance is only for domestic use. Use as described in this instruction booklet.
. Do not switch the appliance on if it appears to be faulty in any way.
. For any repairing or accessories, contact your dealer or an authorized Service Center.
. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Do not remove the plug by pulling the cable the or appliance itself

Line drawing of a vacuum cleaner with a cross mark and flame symbols (no text or labels)

Do not use the appliance on wet surfaces.

Do not run the appliance over the power cable

Line drawing of a car with a cross mark and a small geometric symbol (no text or labels)

Do not obstruct the air intake or outlet vent.

Do not use the appliance to vacuum lighted matches, cigarette ends or hot ash.

Simple line drawing of a cigarette emitting smoke, crossed by a diagonal line (no text or symbols)

Do not use the appliance to vacuum needles, pins or string.

Simple line drawing of a medical or laboratory setup with a device and a cross mark (no text or symbols)

Simple line drawing of a mechanical device with a cross mark, no text or symbols present

Abstract line drawing of crossed tools including a hammer, screwdriver, and wrench (no text or symbols)

ASSEMBLING THE VACUUM CLEANER

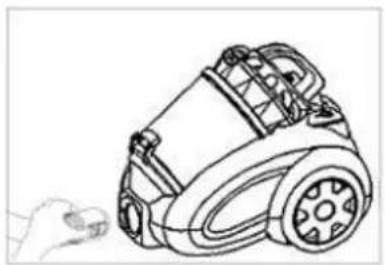

Removing the flexible tube

Remove the plug from the power socket. Release the Flexible Tube, press the button on the end of the tube and pull the tube firmly from the air intake duct.

Line drawing of a vacuum cleaner with a hand pointing to it (no text or symbols)

Fitting the extension tubes and accessories

Fitting the extension tube The handle

Fitting the extension tubes

Fitting the accessories to the extension tube

Illustration of a hand holding a tool with an arrow indicating motion (no text or symbols)

Line drawing of a hand holding a mechanical tool or device (no text or symbols present)

Illustration of hands using a pen to apply a physical procedure to a device (no text or symbols present)

INSTRUCTION FOR USE

1. Before using the appliance, unwind the power cable and insert the plug into the power socket. Do not extend the cable beyond the RED mark.

To rewind the power cable, press the rewind button with one hand and guide with the other hand to ensure that it does not whip causing damage

1. Press the ON/OFF button to switch on the appliance.

Using the cleaning accessories

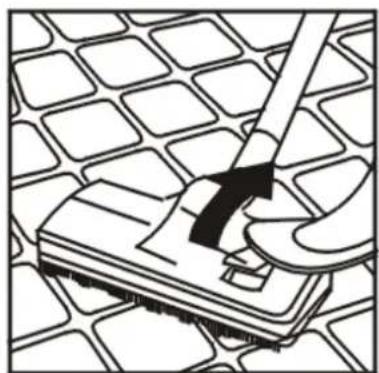

. Dual-position carpet/floor brush.

Pos. 1: bristles extended for hard floors

Pos. 2: bristles retracted for carpets

Illustration of a brush applying material to a grid-patterned surface (no text or symbols)

Illustration of a person using a tool to lift a shoe on a tiled floor (no text or symbols)

. Narrow nozzle

For cleaning radiators, corners, edges, drawers etc.

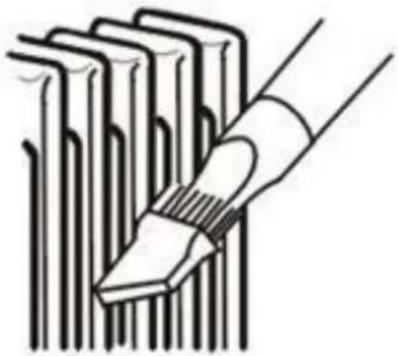

Small brush

For cleaning curtains, shelves, books, inlaid furniture, lamps and other delicate objects.

Illustration of a hand holding a tool over a grid of vertical bars (no text or symbols)

Simple line drawing of a hand holding a tool, no text or symbols present

Clean the dust

1. Lift the form cover and take out the dust cup
2. Take out the foam form dust cup
3. Clean off the dust inside the dust cup.

Line drawing of a vacuum cleaner with an arrow pointing to the component (no text or symbols present)

Line drawing of a mechanical device with a handle and base plate (no text or symbols)

Clean the foam

1. Take out the foam when it gets dirty.
2. Clean it in water. Dry it naturally before next use.

Simple line drawing of a trash bin with an open lid and handle (no text or symbols)

Line drawing of hands washing in a basin with a faucet (no text or symbols)

USISIVAČ SL-156

UPUTSTVO ZA UPOTREBU

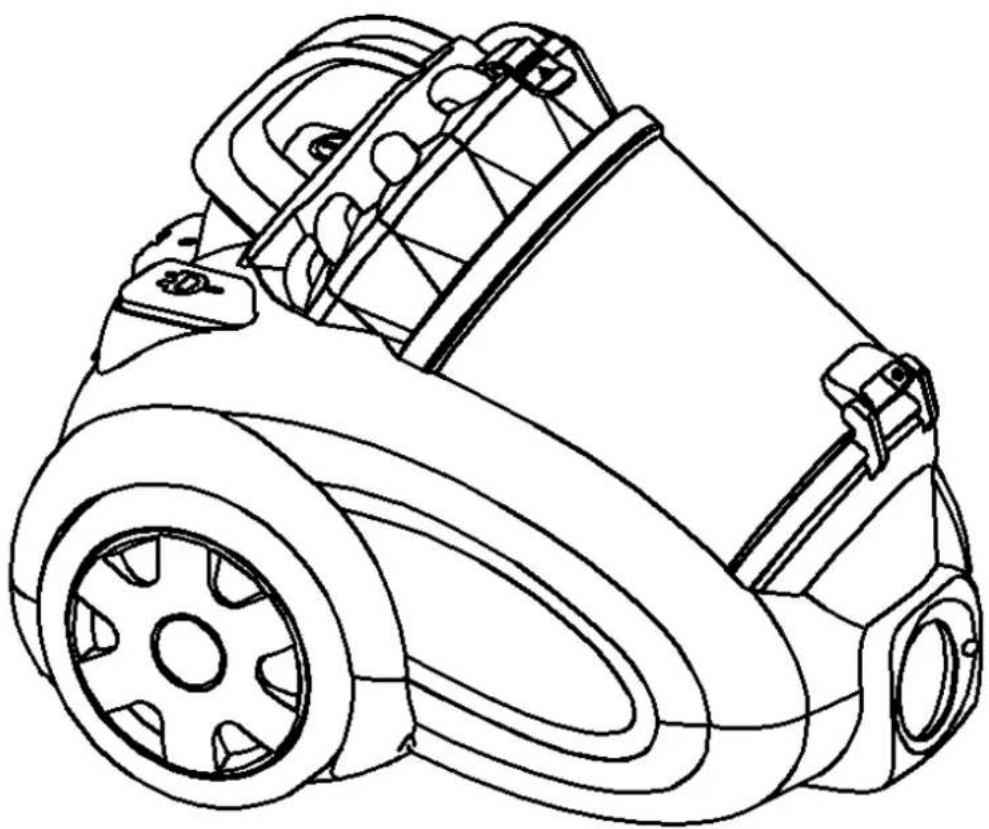

Line drawing of a mechanical device with wheels and brackets (no text or symbols)

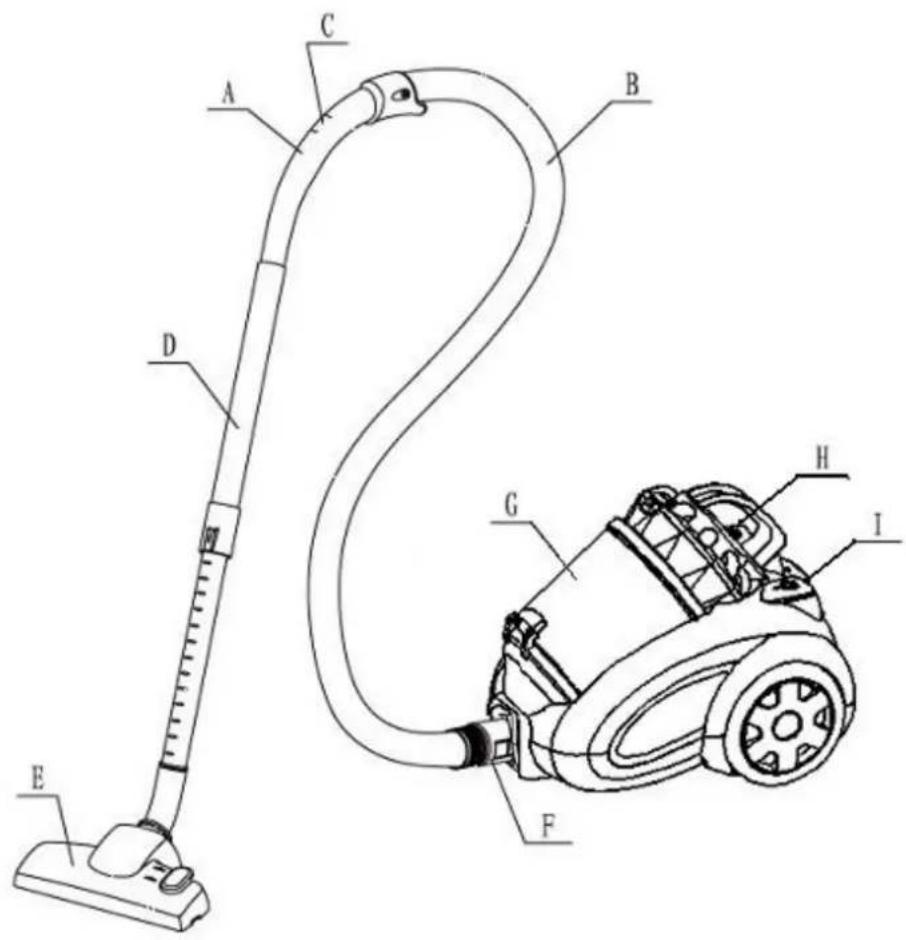

OPIS

A. Ručka F. Crevo za povezivanje
B. Crevo G. Rezervoar za prašinu
C. Regulator snage vazduha H. Prekidač za vraćanje kabla u kućište
D. Cev I. Prekidač
E. Četka za čišćenje poda

VAŽNE INFORMACIJE

Line drawing of a car with a cross mark and smokestacks (no text or symbols)

Line drawing of a car with a cross mark and a small icon (no text or symbols)

Illustration of cigarette smokers with smoke and a crossed arrow indicating compression (no text or symbols)

Nemojte koristiti uređaj na mokrim površinama.

Ne sprečavajte slobodan protok vazduha kroz usisivač.

Nemojte usisavati igle, eksere i druge oštre predmete.

Simple line drawing of a device with a cross mark and a bulb, no text or symbols present.

Simple line drawing of a mechanical device with a cross mark, no text or symbols present

Abstract line drawing of crossed tools including gears, screws, and a cross (no text or symbols)

SKLAPANJE USISIVAČA

Line drawing of a vacuum cleaner with a hand pointing to it (no text or symbols)

Illustration of a hand holding a wrist with an arrow indicating motion (no text or symbols)

Line drawing of two hands operating a mechanical device (no text or symbols present)

Line drawing of a hand using a pen to apply a sample into a device (no text or symbols present)

UPUTSTVO ZA UPOTREBU

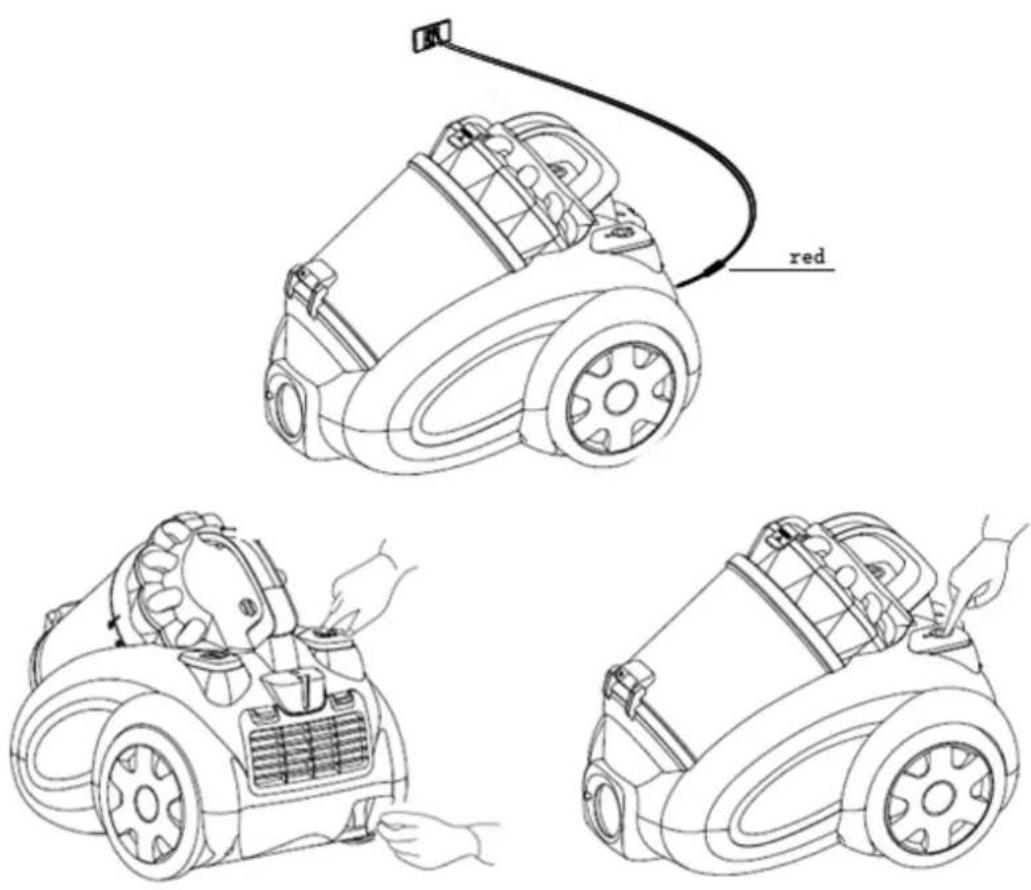

1. Pre upotrebe uređaja, odmotajte kabal i uključite utikač u zidnu utičnicu.
   Nemojte izvlačiti kabal preko crvene oznake na njemu.
   Za izvlačenje kabla, pritisnite dugme za izvlačenje jednom rukom kako biste kontrolisali da se neće iščupati i dovesti do oštećenja.
2. Pritisnite dugme ON/OFF da biste pustili uređaj u rad.

Upotreba dodataka za čišćenje

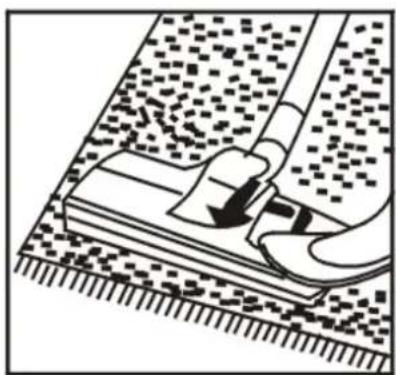

. Dva položaja četke tepih/pod.

Illustration of a brush applying material to a grid-patterned surface (no text or symbols)

Illustration of a person using a tool to lift a shoe on a tiled floor (no text or symbols)

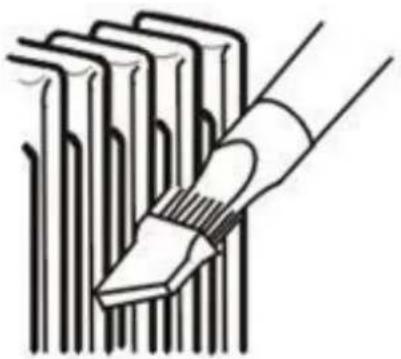

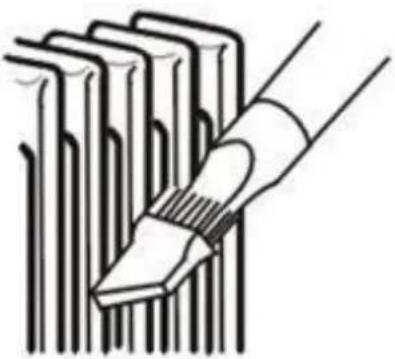

. Uzani usisni dodatak Mala četka

Za čišćenje radijatora, ćoškova, ivica, fioka itd.

Illustration of a hand holding a tool over a stack of vertical bars (no text or symbols)

Za čišćenje zavesa, polica, knjiga, nameštaja, lampi i drugih osetljivih predmeta.

Simple line drawing of a hand holding a tool, no text or symbols present

Čišćenje usisane prašine

1. Podignite poklopac i uklonite rezervoar za prašinu
2. Uklonite mekani penasti dodatak sa poklopca.
3. Uklonite prašinu unutar rezervoara.

Line drawing of a vacuum cleaner with an arrow pointing to the component (no text or symbols present)

Line drawing of a mechanical device with a handle and base plate (no text or symbols)

Čišćenje penastog filtera

Simple line drawing of a trash bin with an open lid and handle (no text or symbols)

Line drawing of hands washing in a basin with a faucet (no text or symbols)

USISIVAČ SL-156

UPUTSTVO ZA UPOTREBU

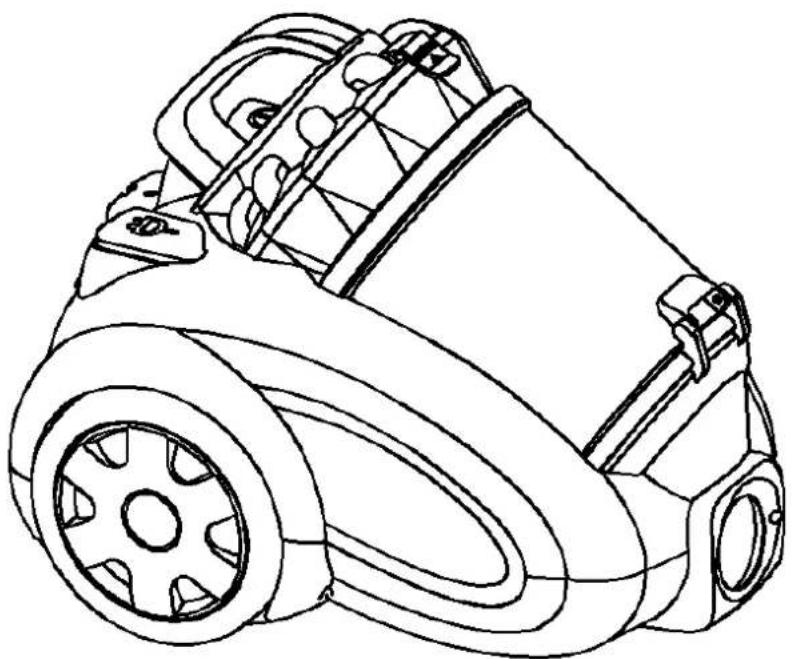

Line drawing of a robotic vacuum cleaner with visible wheel, gear, and sensor components (no text or symbols)

OPIS

A. Ručka F. Crijevo za povezivanje
B. Crijevo G. Rezervoar za prašinu
C. Regulator snage vazduha H. Prekidač za vraćanje kabla u kućište
D. Cijev I. Prekidač
E. Četka za čišćenje poda

VAŽNE INFORMACIJE

Line drawing of a car with a cross mark and smokestacks (no text or symbols)

Line drawing of a car with a cross mark and a small icon (no text or symbols)

Illustration of cigarette smokers with smoke and a crossed arrow indicating compression (no text or symbols)

Nemojte koristiti uređaj na mokrim površinama.

Ne spriječavajte slobodan protok vazduha kroz usisivač.

Nemojte usisavati igle, eksere i druge oštre predmete.

Simple line drawing of a device with a cross mark and a bulb, no text or symbols present

Simple line drawing of a mechanical device with a cross mark, no text or symbols present

Abstract line drawing of crossed tools including a hammer, screwdriver, and string (no text or symbols)

SKLAPANJE USISIVAČA

Line drawing of a vacuum cleaner with a hand pointing to it (no text or symbols)

Illustration of a hand holding a wrist with an arrow indicating motion (no text or symbols)

Line drawing of a hand holding a tool with a spring scale (no text or symbols)

Line drawing of a hand inserting a pen into a device (no text or symbols)

UPUTSTVO ZA UPOTREBU

1. Prije upotrebe uređaja, odmotajte kabal i uključite utikač u zidnu utičnicu. Nemojte izvlačiti kabal preko crvene oznake na njemu.
   Za izvlačenje kabla, pritisnite dugme za izvlačenje jednom rukom kako biste kontrolisali da se neće iščupati i dovesti do oštećenja.
2. Pritisnite dugme ON/OFF da biste pustili uređaj u rad.

Upotreba dodataka za čišćenje

. Dva položaja četke tepih/pod.

Illustration of a brush applying material to a grid-patterned surface (no text or symbols)

Illustration of a person using a tool to lift a shoe on a tiled floor (no text or symbols)

. Uzani usisni dodatak Mala četka

Za čišćenje radijatora, ćoškova, ivica, fioka itd.

Za čišćenje zavjesa, polica, knjiga, namještaja, lampi i drugih osetljivih predmeta.

Illustration of a hand holding a tool interacting with a row of vertical bars (no text or symbols)

Simple line drawing of a hand holding a tool, no text or symbols present

Čišćenje usisane prašine

1. Podignite poklopac i uklonite rezervoar za prašinu
2. Uklonite mekani pjenasti dodatak sa poklopca.
3. Uklonite prašinu unutar rezervoara.

Line drawing of a vacuum cleaner with an arrow pointing to the component (no text or symbols present)

Line drawing of a mechanical device with a handle and base plate (no text or symbols)

Čišćenje pjenastog filtera

1. Uklonite pjenasti filter kada se zaprlja.
2. Operite ga u vodi. Osušite ga u potpunosti prije sljedeće upotrebe.

Simple line drawing of a trash bin with an open lid and handle (no text or symbols)

Line drawing of hands washing in a basin with a faucet (no text or symbols)
