SL150 - Vacuum Cleaner VOX - Free user manual and instructions

Type	Vacuum Cleaner
Brand	VOX
Model	SL150
Power Supply	220-240 V ~ 50 Hz, 10 A earthed socket
Power Cord Length	Approximately 5 m (marked with red limit)
Suction Power Control	Electronic regulator with sliding knob
Dust Container Type	Removable dustbin (bagless)
Filter Type	Foam filter (washable)
Accessories Included	Dual-position floor brush, narrow nozzle, small brush
Floor Brush Positions	Bristles extended for hard floors, retracted for carpets
Weight	Approximately 4.5 kg
Dimensions (H x W x D)	Approximately 35 x 30 x 45 cm
Cord Rewind	Automatic with button control
Hose Length	Approximately 1.5 m
Safety Features	Overheat protection, automatic shut-off (implied)
Usage	Household only, not for liquids or hot objects
Maintenance	Clean foam filter with water, let dry completely
Warranty	Standard 2 years (contact dealer)
Certification	CE (intended for European market)

Frequently Asked Questions - SL150 VOX

How do I assemble the vacuum cleaner?

First, insert the hose connector into the air intake duct. Then attach the extension tube to the handle, and finally click the floor brush onto the tube. For accessories like the narrow nozzle, attach them directly to the tube or handle as needed. Refer to the assembly section of the manual.

Can I vacuum water with this vacuum?

No, the VOX SL150 is designed for dry vacuuming only. Never use it to vacuum liquids as it can damage the appliance and cause electrical hazards.

How do I clean the foam filter?

Remove the dustbin by pressing the dustbin button. Take out the foam filter from the dustbin. Rinse the foam under running water until clean. Squeeze out excess water and let it air dry completely before putting it back. Do not use solvents or put it in a washing machine.

How do I rewind the power cord?

Press the cord rewind button (I) with one hand while guiding the cord with your other hand to prevent whipping. Ensure the cord retracts fully and does not get tangled.

What should I do if the cord is damaged?

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard. Contact your dealer or authorized service center. Do not attempt to repair it yourself.

How can I adjust the suction power?

Use the wind-force adjuster (C) on the hose or the electronic power regulator on the main body. Slide or turn the knob to increase or decrease suction. It's recommended to start at minimum setting when turning on.

Is the vacuum safe for use on delicate surfaces?

Yes, the dual-position floor brush has bristles that can be extended for hard floors or retracted for carpets. Use the small brush accessory for curtains, shelves, lamps, and other delicate objects to avoid scratching.

How do I empty the dustbin?

Press the dustbin button (H) to release the dustbin from the main unit. Open the lid and dispose of dust into a trash bag. Clean the foam filter as needed. Reattach the dustbin securely until it clicks.

What safety precautions should I take when using this vacuum?

Always unplug before cleaning or maintenance. Do not vacuum lit matches, hot ash, or sharp objects. Keep the appliance away from children under 8 years. Do not use on wet surfaces or obstruct air vents. Ensure the power cord does not get trapped under the vacuum.

Where can I find replacement parts or accessories?

Contact your local VOX dealer or authorized service center for original spare parts such as filters, brushes, and hoses. Do not use generic parts as they may affect performance and safety.

USER MANUAL SL150 VOX

Thank you for purchasing Vox Electronics Vacuum Cleaner. We hope that you will enjoy using this appliance for many years to come.

BEFORE USING FOR THE FIRST TIME

Before using your Vacuum Cleaner for the first time it is important that you read and follow these instructions, even if you think you are familiar with this type of appliance.

Find a safe and convenient place to keep this manual handy for future reference. This appliance has been designed to operate from a standard domestic power outlet. It is not intended for industrial or commercial use.

IMPORTANT SAFEGUARDS

1. Read this instruction booklet carefully.
2. Before using the appliance, check that the mains power voltage corresponds to the voltage shown on the rating plate.
3. The appliance should be connected to a correctly-earthed 10A power socket.
4. Always remove the plug from the power socket when the appliance is not in use and before cleaning or maintenance.
5. Always remove the plug from the power socket before opening the appliance.
6. Never use methylated spirits or other solvents to clean the appliance.
7. Do not use the appliance to vacuum liquids.
8. Never leave the appliance unattended when it is switched on. Keep the appliance out of the reach of children or the infirm.
9. This appliance is only for household. Use as described in this instruction booklet.
10. Do not switch the appliance on if it appears to be faulty in any way.
11. For repairs or accessories, contact your dealer or an authorized Service Center.
12. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
13. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
14. Keep the appliance and its cord out of reach of children less than 8 years of age.
15. Do not remove the plug from the socket by pulling the cable or the appliance itself.

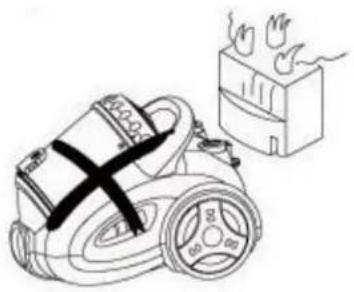

16. Do not use the appliance to vacuum lighted matches, cigarette ends and hot ash.

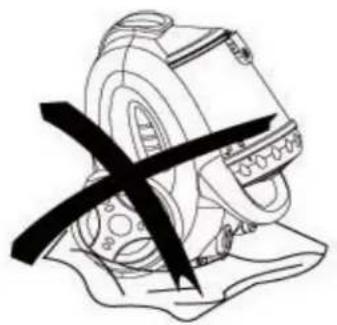

17. Do not use the appliance on wet surfaces.
18. Do not obstruct the air intake or outlet vent.
19. Do not use the appliance to vacuum needles, drawing pins or strings.

Do not remove the plug from from the socket by pulling the cable or the appliance Do not run the appliance over the power cable.

Do not use the appliance to vacuum lighted matches, cigarette ends or hot ash.

Line drawing of a car with a black X mark and smokestack emitting flames (no text or symbols)

Line drawing of a car with a cross mark and arrow pointing to the front wheel (no text or symbols)

Illustration of a cigarette emitting smoke from its pages (no text or symbols)

Do not use the appliance on wet surfaces. Do not obstruct the air intake or outlet vent.

Do not use the appliance to vacuum needles, drawing pins or strings.

Simple line drawing of a person using a device with a crossed X mark, no text or symbols present

Line drawing of a mechanical device with a cross mark, no text or symbols present

Abstract line drawing of mechanical tools including rings, screws, and hooks (no text or symbols)

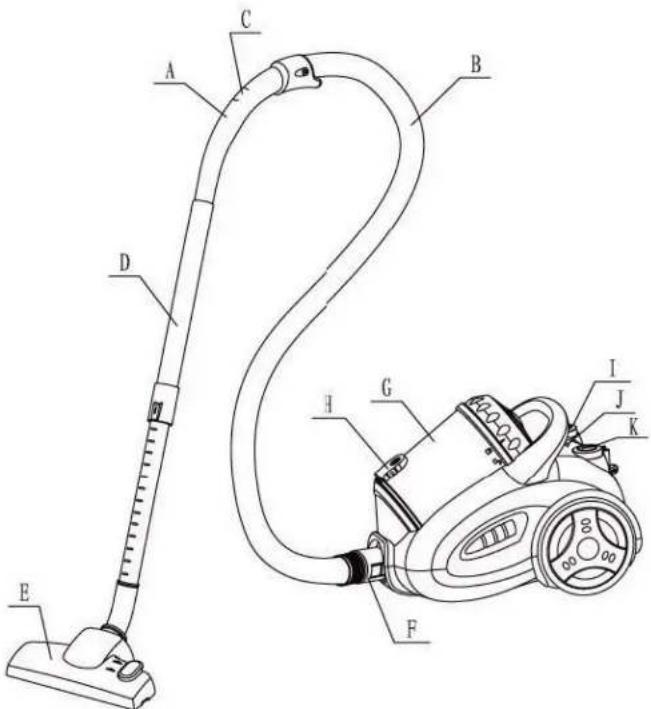

GET TO KNOW YOUR VACUUM CLEANER

A. Handle

G. Dustbin

B. Hose

H. Dustbin button

C. Wind-force adjuster

I. Cord rewind button

D. Tube

J. Indicator

E. Floor Brush

K. Power switch

F. Hose Connector

ASSEMBLING THE VACUUM CLEANER

Removing the flexible tube

Remove the plug from the power socket. To release the flexible tube, press the button on the end of the tube and pull the tube firmly from the air intake duct.

Line drawing of a hand holding a small electronic device with a circular control panel (no text or symbols)

Fitting the extension tubes and accessories

Fitting the extension tube The handle

Fitting the extension tubes extension tube

Fitting the accessories to the

Illustration of a hand holding a pen or tool, with an arrow indicating motion (no text or symbols present)

Illustration of two hands performing a manual tool on a wrist (no text or symbols visible)

Illustration of a hand using a pen to apply liquid onto a bottle (no text or symbols present)

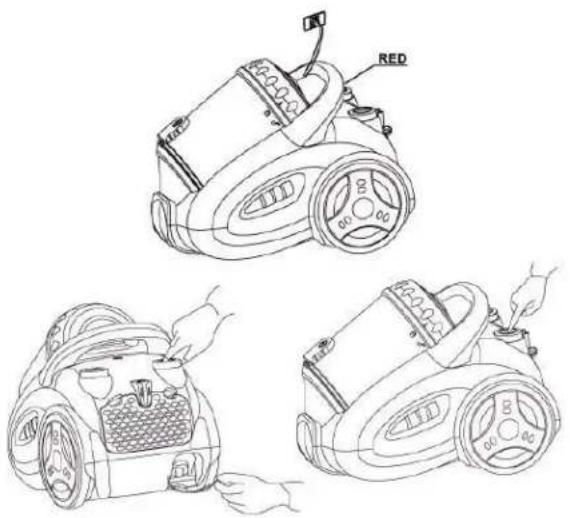

INSTRUCTIONS FOR USE

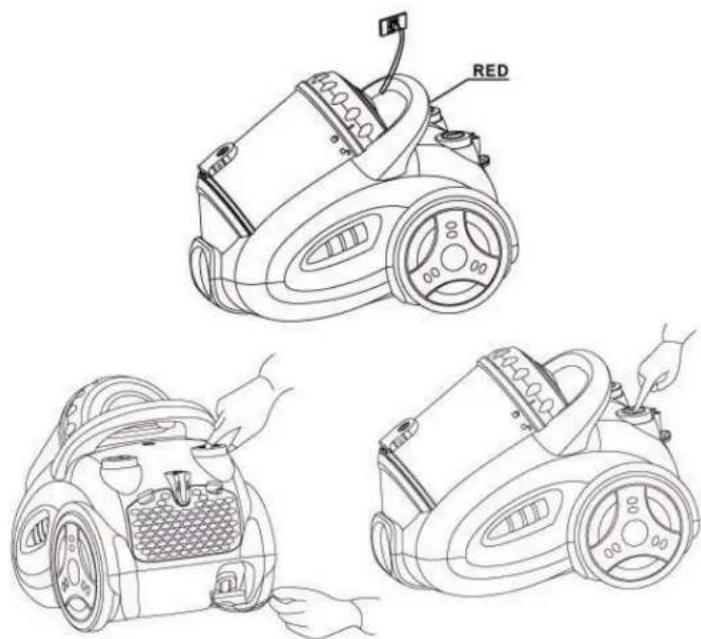

1. Before using the appliance, unwind length of cable and insert the plug into the power socket. Do not extend the cable beyond the RED mark.

To rewind the power cable, press the rewind button (1) with one hand, and guide the other hand to ensure that it does not whip causing damage

1. Press the ON/OFF button (2) to switch the appliance on .it is advisable to set the electronic power regulator to MIN before switching the appliance on.

2. By turning the speed control knob the absorption power can be adjusted.

Line drawings of three different vacuum cleaner designs with hands adjusting parts (no text or symbols)

Using the cleaning accessories

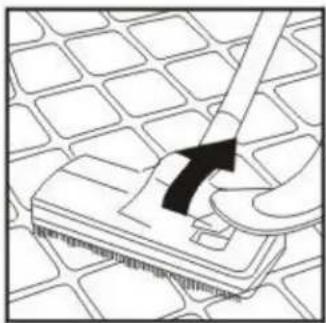

Dual-position carpet/floor brush.

Pos. 1: bristles extended for hard floors

Pos. 2: bristles retracted for carpets

Diagram showing a tool interacting with a grid-patterned surface, no text or symbols present

Diagram of a foot pressing down on a shoe, with a black arrow indicating the foot's direction (no text or symbols present)

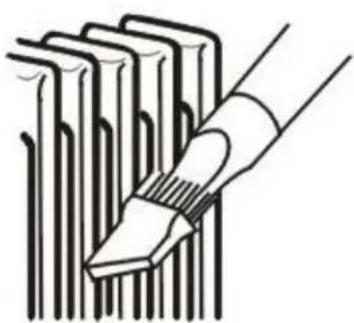

Narrow nozzle.

For cleaning radiators: corners, edges, drawers etc.

Small brush.

For cleaning curtain, shelves, books, inlaid furniture, lamps and other delicate objects.

Illustration of a hand holding a tool interacting with stacked rectangular objects (no text or symbols)

Simple line drawing of a hand holding a device with a scroll wheel, no text or symbols present

Clean the dust

1. Lift the form cover and take out the dust cup.
2. Take out the foam from the dust cup.
3. Clean the dust inside the dust cup

Line drawing of a mechanical device with no visible text or symbols

Clean the foam

1. Clean the foam when it gets dirty.
2. Clean the foam in the water.
3. Let it dry completely before putting it back.

DISPOSAL

Environmental Protection

Waste electrical production should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

OUR COMPANY WISHES YOU GREAT SATISFACTION WITH YOUR VACUUM CLEANER

ŽIVIMO ZAJEDNO

UPUTSTVO ZA UPOTREBU USISIVAČ SL-150

Hvala Vam što ste kupili Vox Electronics usisivač. Nadamo se da ćete uživati koristeći ovaj aparat dugi niz godina.

PRE PRVE UPOTREBE

Pre prve upotrebe veoma je važno da pročitate i sledite ova uputstva, čak i ako mislite da ste upoznati sa ovom vrstom aparata.

VAŽNE SIGURNOSNE MERE

1. Pročitajte ovo uputstvo pažljivo.
2. Pre upotrebe aparata, proverite da li utičnica usisivača odgovara utčnici za struju na zidu.
3. Aparat mora biti povezan sa ispravno uzemljenom utičnicom jačine 10A.
4. Uvek isključite kabl iz utičnice kad ne koristite aparat, kao I pre njegovog održavanja.
5. Nikad ne koristiti metil-alokohol za čišćenje aparata.
6. Ne koristiti aparat za usisavanje tečnosti.
7. Ne ostavljajte uključen aparat bez nadzora. Držite uredjaj van domašaja male dece I nemoćnih.
8. Aparat je namenjen za upotrebu u domaćinstvu, koristite ga po uputstvu za upotrebu.
9. Ne uključujte aparat ako vam deluje da je neispravan.
10. Za popravku aparata I dodatni pribor kontaktirajte Vox Electronics Call centar ili najbliži servis.
11. Ako je strujni kabl oštećen, mora biti zamenjen od strane proizvođača ili ovlašćenog servisera a sve u cilju izbegavanja rizika od povrede. Ova popravka ne spada u garanciju I ne može biti predmet nesaobraznosti, jer je u pitanju fizičko oštećenje aparata
12. Ovaj uređaj mogu koristiti deca starija od 8 godina, kao I osobe sa umanjenim psiho-fizičkim sposobnostima samo ako su nadgledani od strane starije osobe I ukoliko su svesni opasnosti koje mogu nastati upotrebom usisivača.
13. Čuvajte usisivač I kabl dalje od dece koja su mlađa od 8 godina.
14. Nemojte vaditi kabl iz utičnice povlačenjem kabla ili samog aparata.
15. Ne usisavajte šibice, opuške I vruć pepeo.
16. Ne korisititi usisivač na mokrim površinama.
17. Ne ometajte slobodan protok vazduha kroz usisivač.
18. Ne usisavajte igle I ostale oštre predmete koji mogu oštetiti aparat.

NEPOŠTOVANJE OVIH UPOZORENJA MOŽE DOVESTI DO OŠTEĆENJA APARATA.

Ne vadite kabl iz utičnice povlačenjem direktno kabla ili povlačenjem samog aparata.

Ne pomerajte usisivač povlačenjem strujnog kabla.

Ne usisavajte šibice, opuške i vruć pepeo.

A. Ručka

C. Regulator snage vazduha

H. Dugme za otvaranje posude

D. Cev

I. Dugme za kabl

E. Četka za pod

J. Indikator

K. Prekidač

SKLAPANJE USISIVAČA

Line drawing of a hand holding a small device with a handle and control knob (no text or symbols)

Illustration of a hand holding a pen or tool with an arrow indicating motion (no text or symbols present)

Illustration of a hand holding a syringe with a wrist, no text or symbols present

UPUTSTVO ZA UPOTREBU

1. Pre korišćenja uređaja, odmotajte ceo kabl I ubacite priključnicu u naponski šuko. Ne izvlačite kabl preko CRVENE OZNAKE. Da bi izvukli strujni kabl, držite usisivač jednom rukom a drugom izvlačite kabl I pazite da se ne uvrne.
2. Pritisnite ON/OFF taster (2) da uključite usisivač. Preporučljivo je da podesite elektronski regulator na minimum pre nego što upalite usisivač.

KORIŠĆENJE DODATAKA ZA USISIVANJE

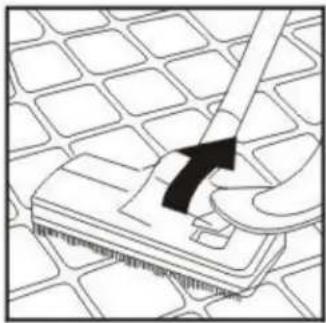

Četka za pod ima 2 položaja.

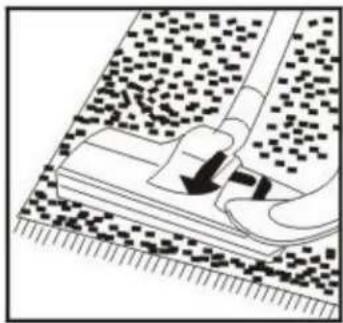

Položaj 1: četkasti deo izbačen za čvrste podove Položaj 2: četkasti deo uvučen za tepihe

Diagram of a tool interacting with a grid-patterned surface, no text or symbols present

Uski usisnik

Za čišćenje ćoškova, radijatora, fioka I ivica.

Diagram of a foot stepping on a shoe with a black arrow indicating motion (no text or symbols)

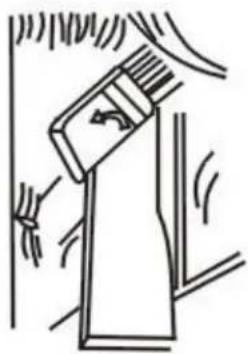

Mala četka

Za čišćenje zavesa,polica,knjiga,nameštaja,lampi I drugih osetljivih predmeta.

Illustration of a tool interacting with stacked rectangular objects (no text or symbols)

Simple line drawing of a hand holding a tool near a vertical wall, with motion lines indicating movement (no text or symbols)

Čišćenje prašine

1. Podignite poklopac I izvadite posudu za prašinu.
2. Izbacite penu I prašinu iz posude.
3. Očistite prašinu unutar posude.

Line drawing of a vacuum cleaner device with labeled parts (no text or symbols)

Simple line drawing of a kitchen appliance with a lid and base, no text or symbols present

Čišćenje pene

Line drawing of a portable device with lid and ventilation slots (no text or symbols)

ODLAGANJE
