Express Steam 361000 - Steam cleaner MORPHY RICHARDS - Free user manual and instructions

Product Type	Steam Cleaner
Brand	Morphy Richards
Model	Express Steam 361000
Dimensions (H x W x D)	25 cm x 20 cm x 30 cm
Weight	1.5 kg
Power	1500 W
Water Tank Capacity	250 ml
Heating Time	30 seconds
Steam Pressure	3 bar
Cord Length	4 m
Functions	Steam cleaning, sanitizing, degreasing
Included Accessories	Floor mop head, detail brush, window squeegee, measuring cup
Safety Features	Auto shut-off, pressure relief valve, lockable trigger
Maintenance	Descale monthly, clean nozzles after each use
Repairability	Spare parts available online, replaceable seals and heating element
Warranty	2 years

Frequently Asked Questions - Express Steam 361000 MORPHY RICHARDS

How do I descale the Morphy Richards Express Steam 361000?

To descale, fill the tank with a mixture of white vinegar and water (1:3 ratio). Heat and steam for a few minutes, then let it sit for 30 minutes. Rinse thoroughly with clean water and steam again to remove residue. Repeat monthly or if steam output decreases.

Can I use tap water in the steam cleaner?

Yes, you can use tap water, but if you have hard water, it's recommended to use distilled or demineralized water to prevent scale buildup. Avoid adding any chemicals or cleaning agents.

What accessories are included with the Express Steam 361000?

The package includes a floor mop head for hard floors, a detail brush for corners and crevices, a window squeegee for glass, and a measuring cup for filling the tank.

How long does it take for the Express Steam 361000 to heat up?

It heats up in approximately 30 seconds. The indicator light will turn on when ready. You can start steaming immediately.

Is the steam cleaner safe for all surfaces?

It is safe for sealed hard surfaces like tile, laminate, vinyl, and glass. Avoid using on unsealed wood, waxed surfaces, or delicate fabrics. Always test on an inconspicuous area first.

How do I clean the nozzle and accessories?

After use, allow the unit to cool. Remove accessories and rinse them under warm water. For stubborn debris, use a small brush. Wipe the nozzle with a damp cloth. Ensure all parts are completely dry before storing.

What is the steam pressure of this model?

The Express Steam 361000 generates steam at a pressure of 3 bar, which is sufficient for effective cleaning and sanitizing of most household surfaces.

Can I use the steam cleaner vertically?

Yes, the unit can be used vertically for steam cleaning items like curtains, mattresses, and upholstery with the appropriate fabric attachment (not included). Ensure the fabric can withstand steam.

How should I store the steam cleaner after use?

First, empty any remaining water from the tank. Allow the unit to cool completely. Wrap the cord around the storage hook. Store in a dry, upright position out of reach of children. Do not store with water in the tank.

What does the auto shut-off feature do?

The auto shut-off automatically turns off the heating element if the unit overheats or if the water tank runs dry. This prevents damage and ensures safety. Once cooled or refilled, it will reset automatically.

USER MANUAL Express Steam 361000 MORPHY RICHARDS

smart ideas for your home

*Register at www.morphyrichards.co.uk UK customers only

Garment Steamer

Please read and keep these instructions for future use

Line drawing of a hand washing machine (no text or symbols)

Register your guarantee online: www.morphyrichards.co.uk

We'll keep you updated with special offers, competitions and important product information.

If you experience any problems with this Garment Steamer, do not return to the store.

Please contact our help line who will be happy to help:

[e-mail]

www.morphyrichards.co.uk

IMPORTANT: To reduce limescale damage we recommend using distilled, deionised or demineralised water only.

Never use battery topping up fluid or water containing any substances like starch, sugar, fragrant additives or defrosted water from a refrigerator.

Failure to maintain your Garment Steamer will invalidate your guarantee.

Important safety instructions

- WARNING: Care should be taken when using the appliance due to emission of steam.

- WARNING: Misuse of the appliance could cause personal injury.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience or knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

- Keep the Garment Steamer and its cord out of reach of children less than 8 years of age at all times.

- If the supply cable is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.

- The Garment Steamer must not be left unattended while it is connected to the supply mains.

- The plug must be removed from the socket before filling the Garment Steamer with water.

- When placing the Garment Steamer on its base, ensure that the surface on which the base is placed is stable.

- The Garment Steamer is not to be used if it has been dropped, if there are visible signs of damage or it is leaking.

CAUTION - HOT: Burns can occur from touching hot parts, hot water or steam.

- WARNING: To avoid electric shock, do not immerse appliance in water / liquid.

Electrical requirements and mains cable

- Check that the voltage on the rating plate of your appliance corresponds with your house electricity supply which must be A.C. (Alternating current).

- Do not operate with a damaged supply cord or grommet, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

- Do not let the mains lead come into contact with the hot hotplate of the Garment Steamer.

- Should the fuse in the mains plug require changing, replace it with a fuse of the same rating as originally fitted.

- WARNING: This appliance must be earthed. PLEASE READ ALL INSTRUCTIONS AND KEEP FOR REFERENCE

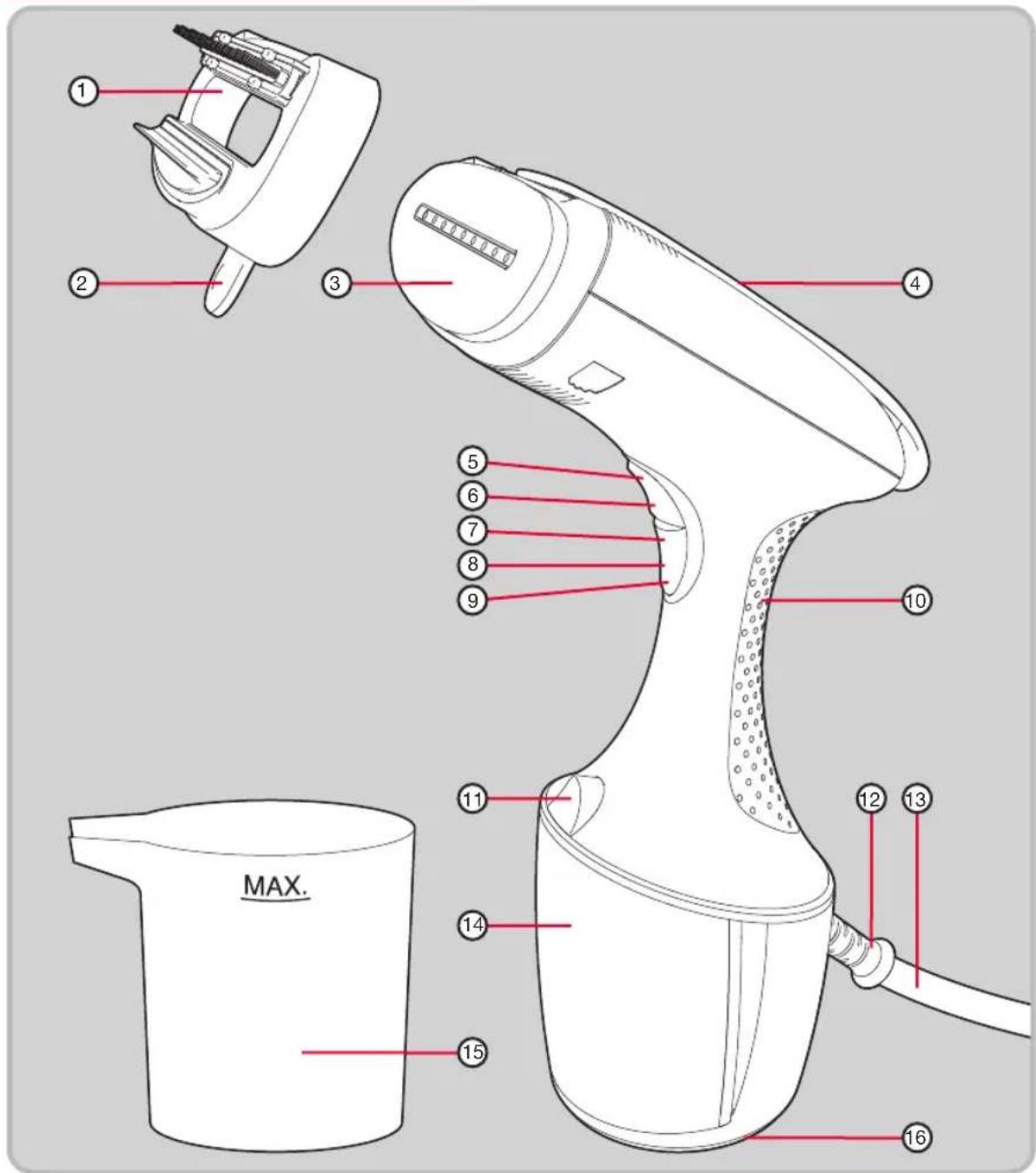

Garment Steamer overview

(1) Brush attachment
(2) Brush attachment removal tab
(3) Hotplate
(4) Creaser (with steam hole underneath)
(5) Red steam boost indicator light

(6) Steam boost button
(7) Blue steam indicator light
(8) Steam button
(9) Green temperature indicator light
(10) Handle
(11) Water tank release button

(12) Power cord grommet
(13) Power cord
(14) Removable water tank
(15) Filling beaker
(16) Base

Using the Garment Steamer

1) Filling the tank 2) Switching on

Make sure the Garment Steamer is not plugged in. Press the water tank release button (11) to remove the water tank (14). Lift the bung out of the filling hole and fill the water tank via the filling hole using the filling beaker (15) provided. Then, replace the bung and firmly press the water tank back into position.

WE RECOMMEND USING DISTILLED, DEIONISED OR DEMINERALISED WATER ONLY.

Never use battery topping up fluid or water containing any substances like starch, sugar, fragrant additives or defrosted water from a refrigerator.

NOTE: Please see point 2 of 'Exclusions' on page 6.

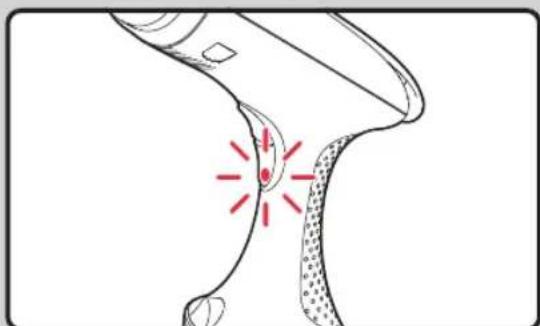

Diagram of a medical or anatomical structure with red laser lines and a central point, no visible text or symbols

Plug in the Garment Steamer and switch on at the mains.

The green temperature indicator light (9) will flash for approximately 40 seconds until the Garment Steamer has achieved optimal temperature. The appliance is ready to use when the green power light remains constant.

NOTE: Ensure the blue steam indicator light (7) and the red steam boost indicator light (5) are NOT illuminated at this point, otherwise the unit will start steaming automatically once the temperature is reached. Press the steam button (8) or steam boost button (6) to turn them off if necessary.

3) Hanging the garment 4) Brush accessory

Line drawing of a garment hanger with collar and button (no text or symbols)

Using a non-metal coat hanger, hang the garment to be steamed.

CAUTION: If hanging the garment against a vertical surface such as a door, take care not to damage the surface with steam.

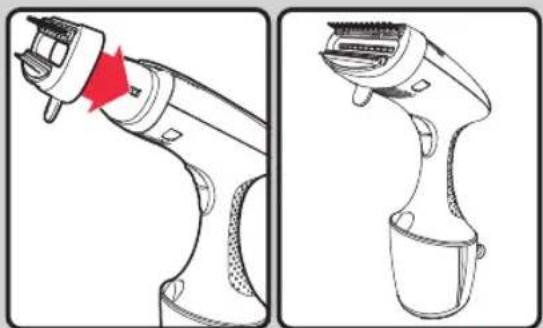

Technical line drawing of a robotic hand mixer with a red arrow indicating the handle (no text or symbols present)

If required, attach the brush attachment (1) to relax the fibres of the garment. Push the attachment onto the hotplate (3) and click it into place.

To remove again, pull the brush attachment removal tab (2).

Brush the garment before steaming.

Using the Garment Steamer (continued)

5) Steaming 6) Steam boost

Line drawing of a garment with a hairdryer emitting mist, no text or symbols present

To begin steaming, press and release the steam button (8). The blue steam indicator light (7) will illuminate and steam will be emitted from the hotplate (3). To stop steaming, press and release the steam button again.

Hold the hotplate around 1 inch from the surface of the garment. Pass the Garment Steamer over the garment whilst steaming, you may need to do this a few times to remove more stubborn creases.

WARNING: Do not direct steam at animals or people. Do not steam clothes that are being worn.

Without steaming, occasionally brush the garment with the brush accessory to help relax the fibres.

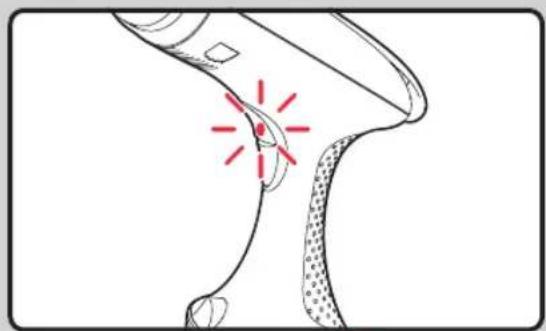

Diagram of a medical or anatomical structure with red laser lines and a central point, no visible text or symbols

Press the steam boost button (6) for extra steam boost for stubborn creases / heavy fabrics.

To begin the steam boost, press and release the steam boost button. The red steam boost indicator light (5) will illuminate and extra steam will be emitted from the hotplate (3). To stop the steam boost, press and release the steam boost button again.

NOTE: To stop steaming completely, both the blue steam indicator light (7) and the red steam boost indicator light (5) must be off.

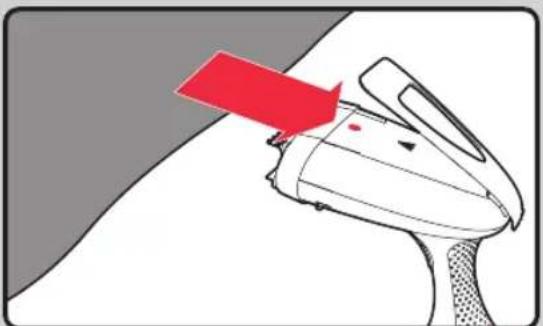

Using the creaser

Illustration of a hairdryer with a red arrow pointing to the tip area (no text or symbols)

Press down on the rear end of the creaser (4) to lift it up. This reveals a steam hole underneath. With the creaser lifted, slip a folded garment between the creaser and the Garment Steamer and lower the creaser. To begin steaming, press and release the steam button (8). The blue steam indicator light (7) will illuminate and steam will be emitted from the hotplate (3) and the steam hole. Draw the Garment Steamer along the folded edge of the garment to create a crease. To stop steaming, press and release the steam button again.

Maintenance

Emptying and storing

When you have finished steaming, unplug and empty all water from your Garment Steamer. When cool, store the Garment Steamer on its base (16) with the power cord (13) wrapped loosely around the handle (10).

NOTE: Please see point 4 of 'Exclusions' on page 8.

Cleaning the hotplate

To clean a stainless steel hotplate

We recommend using a generally available gentle chrome, silver or stainless steel cleaner. Always follow the manufacturer's instructions.

If any man-made fibres fuse to the hotplate (3), pass it over a clean piece of cotton to draw the deposit off the surface.

To clean the exterior

Allow the unit to cool and wipe over with a damp cloth and mild detergent, then wipe dry.

RN361000 MUK Rev3 01/24

Registering your guarantee

Your standard 1 year guarantee is extended for an additional 12 months when you register the product within 28 days of purchase with Morphy Richards. If you do not register the product with Morphy Richards within 28 days, your product is guaranteed for 1 year. To validate your 2 year guarantee register with us online at:

www.morphyrichards.co.uk

N.B. Each qualifying product needs to be registered with Morphy Richards individually.

Please note that the 2 year guarantee is only available in the UK and Ireland. Please refer to the 1 year guarantee for more information.

Your 1 year guarantee

It is important to retain the retailer's receipt as proof of purchase. Staple your receipt to this back cover for future reference.

Please quote the following information if the product develops a fault. These numbers can be found on the base of the product.

Model no. Serial no.

All Morphy Richards products are individually tested before leaving the factory. In the unlikely event of any appliance proving to be faulty within 28 days of purchase, it should be returned to the place of purchase for it to be replaced.

If the fault develops after 28 days and within 12 months of original purchase, you should contact the Helpline quoting Model number and Serial number on the product, or write to Morphy Richards at the address shown.

You may be asked to return a copy of proof of purchase. Subject to the exclusions (see Exclusions), the faulty appliance will then be repaired or replaced as appropriate and dispatched usually within 7 working days of receipt.

If, for any reason, this item is replaced or repaired during the 1 year guarantee period, the guarantee on the new item will be calculated from original purchase date. Therefore it is vital to retain your original till receipt or invoice to indicate the date of initial purchase.

To qualify for the 1 year guarantee, the appliance must have been used according to the instructions supplied.

Exclusions

Morphy Richards shall not be liable to replace or repair the goods under the terms of the guarantee where:

1 The fault has been caused or is attributable to accidental use, misuse, negligent use or used contrary to the manufacturer's recommendations or where the fault has been caused by power surges or damage caused in transit.
2 The fault has been caused by using water other than that recommended by Morphy Richards.
3 The fault is caused by limescale build-up.
4 The cables are damaged due to wrapping too tightly or excessive kinking.
5 The appliance has been used on a voltage supply other than that stamped on the products.
6 Repairs have been attempted by persons other than our service staff (or authorised dealer).
7 The appliance has been used for hire purposes or non domestic use.
8 The appliance is second hand.
9 Morphy Richards reserves the right not to carry out any type of servicing under the guarantee at its discretion.
- This guarantee does not confer any rights other than those expressly set out above and does not cover any claims for consequential loss or damage. This guarantee is offered as an additional benefit and does not affect your statutory rights as a consumer. Morphy Richards products are intended for household use only. See usage limitations within the location safety instructions.

Disclaimer

Morphy Richards has a policy of continuous improvement in product quality and design. The company, therefore reserves the right to change the specification of its models at any time.

For electrical products sold within the European Community. At the end of the electrical products useful life, it should not be disposed of with household waste.

Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice in your country.

Contact us

Helpline

If you are having a problem with your appliance, please call our Helpline, as we are more likely to be able to help than the store you purchased the item from. Please have the product name, model number and serial number to hand when you contact us to help us deal with your enquiry quicker.

[e-mail]

morphyrichards

9 Cabot Lane

Poole

Dorset

BH17 7BY

UK

UK CACE
