USER MANUAL WM747W Campomatic
5
Dear Customer.
Thank you for choosing our product.
Please read these instructions carefully before connecting and using the appliance.
Knowledge of the operating principles will help guarantee correct and safe use of the appliance. This instruction booklet contains the technical characteristics of the washing machine and is full of useful information regarding its operation, all designed to help you get the best out of your appliance. If the appliance is sold or handed over for use by others, remember to give the new user the instruction booklet.
CONTENTS
OTES AND ADVICE FOR THE USER 5-7
Technical characteristics 5
DESCRIPTION OF THE APPLIANCE 7
INSTALLING THE WASHING MACHINE 8-10
- Unpacking the washing machine and removing the locking devices 8
• Levelling the washing machine 9
- Connecting to the mains water supply 9
- Connecting to the mains electricity supply 10
USING THE WASHING MACHINE
- Recommendations prior to use 10
• Use of detergents 11
• How to remove some stains 12
• International clothing care symbols 12
WASHING INSTRUCTIONS
• Correct washing procedure 13
• Function of the buttons 14
• Programme table 15
AINTENANCE
Cleaning the washing machine 16
- Removing the detergent drawer 16
• Cleaning the filter 16
• Resolving problems 17
TECHNICAL CHARACTERISTICS
| MODEL: | JUMBO 747 INOX |
| With icmi | 59.5 |
NOTES AND ADVICE FOR THE USER
Before connecting the appliance read these instructions carefully. Repairing the failure arising from inappropriate connections or use of the appliance is not covered by the guarantee.
This appliance has been designed for use as a domestic washing machine. Any other use is considered as improper and therefore dangerous.
▼ Any modifications or attempts to interfere with the washing machine can be dangerous for the user and may damage the appliance itself.
▼ Considering the substantial weight of the washing machine, specific safety standards must be observed during handling.
▼ The washing machine must not be used by children unless supervised.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety..
▼ Any modifications to the mains water or electricity supply must be carried out by authorised technicians only.
When positioning the washing machine, ensure that the power supply cable is not kinked or squashed and is accessible.
Before using the washing machine, remove all the packing and locking devices used for the transport (locking screws). If this is not done, serious damage may be caused to both the appliance and your home.
If the washing machine is installed on a carpeted fl oor, leave suffi cient space between the appliance and the fl oor to guarantee the free circulation of air.
▼ Do not overload the washing machine.
▼ When the appliance is in operation, avoid any contact with the water being discharged through the drain box, as it may be very hot.
Do not touch the door glass either, as this will tend to heat up during washing.
Use the washing machine for machine-washable items only. In the case of any doubts, refer to the manufacturer's instructions on the label attached to the item to wash (see "Clothing care symbols")
Before placing the washing in the washing machine, make sure that all pockets are empty. Hard or pointed objects such as coins, pins, nails, screws or stones can cause serious damage to the appliance.
▼ Never wash items that have been soiled with substances containing petrol. In the case where stains have been removed using vaporising products, wait until these substances have fully evaporated from the surface of the material before loading into the washing machine.
▼ The use and quantities of detergent, softener and bleach must comply with the instructions reported on the packaging.
▼ Do not use detergents designed for hand washing, in that the excessive suds produced could damage the internal components.
▼ After washing mats, blankets or any other long-fi bre materials, remove the filter and clean it if necessary.
▼ It is advisable to leave the door open at the end of the wash cycle.
Do not attempt to repair any appliance faults alone, in that repairs carried out by a non-professional may cause serious damage and will invalidate any rights to repairs under guarantee.
▼ Repairs to the appliance can only be carried out by personnel authorised by the customer service centres. All repairs must make use of
NOTES AND ADVICE FOR THE USER
7
Never insert or remove the plug from the mains socket with wet hands.
The washing machine must be connected to a mains socket fitted with an efficient earth complying with current safety standards.
Do not use extension leads or multiple plug adapters to connect the washing machine to the mains electricity supply.
Do not expose the appliance to atmospheric agents.
The door can only be opened approximately three minutes after the end of each wash, as a safety device has been fitted to protect from accidental opening.
When servicing or cleaning the washing machine, remember to disconnect it from the mains electricity supply.
Do not pull the power supply cable to unplug the washing machine from the mains supply. Pull the plug only.
It is advisable to unplug the washing machine from the mains electricity supply and close-off the water supply after each wash.
THE MANUFACTURER WILL NOT BE HELD RESPONSIBLE FOR ANY INCIDENTS RESULTING FROM NON-COMPLIANCE WITH SAFETY STANDARDS OR THE REQUIREMENTS OF THIS INSTRUCTION BOOK.
DESCRIPTION OF THE APPLIANCE
The washing machine has been constructed in steel panels which have been treated and painted to guarantees that its aesthetic qualities remain unaltered over time.
▼ The motor and all moving parts have been designed and manufactured to guarantee the minimum possible noise levels
▼ The large easily-accessible stainless steel drum will ensure a better quality work and
▼ The wide door makes loading and unloading the washing much easier.
▼ The very high stability of the appliance is the result of constant research by our technicians into the equilibrium of masses in movement.
G
|
D
/
INSTALLING THE WASHING MACHINE
UNPACKING THE WASSHING MACHINE AND REMOVING THE LOCKING DEVICES
Installation must be carried out by qualified personnel in line with the instructions supplied by the manufacturer. Incorrect installation may result in damage and injury.
The appliance can be installed anywhere providing that the ambient temperature is not less than 3^ C and that the wires or pipes on the rear of the machine are not squashed.
WARNING!! The washer/drier version must not be installed behind a locked door, a sliding door or with a hinged door on the opposite wall to the washer/drier itself.
For transport reasons, the washing machine's oscillating group is locked in place by 4 spacers and screws. Before using the machine, remove the spacers and locking screws. Keep the screws and spacers for future use.
Close off the holes using the plugs supplied. The plugs can be found in the bag containing the documents.
For transport reasons, the washing machine's oscillating group is locked in place by 4 spacers and screws. Before using the machine, remove the locking screws with a suitable tool.
Insert a screwdriver in the holes and lever out the 4 plastic spacers as shown in the fl gure.
LEVELLING THE WASHING MACHINE
After having selected the most suitable location for the appliance, make sure it is level by regulating the adjustable feet (Fig. 6).
Pay particular attention to the positioning and levelling of the washing machine and make sure that the lock nuts are light.
If the appliance is not levelled correctly, it will be unstable and
INSTALLING THE WASHING MACHINE
9
CONNECTING THE WATER SUPPLY
The mains water pressure must be between 0.05 and 1.00 Mpa (0.5 - 10 bar.)
Before connecting the washing machine, open the valve and allow a certain quantity of water to flow out in order to clean the pipes of any sand or rust. This operation is particularly important in the case where the washing machine has been left standing for a long time or when connecting to a new water supply system.
The li ll hose must be connected to the mains supply using a 34 " threaded connection.
N.B. On electronic washing machines fitted with a dual solenoid valve (hot and cold water), connect the red hose to the hot water supply valve and the other hose to the cold water supply valve.
If a hot water supply is not available, both hoses must be connected to the cold supply using the fl tting supplied (see fl g. 9)
▼ Connect the fill hose (fi g. 10).
N.B. Washing machines and condensation type washer/driers must be connected to the mains water supply using the new hoses provided with the appliance. The old hoses must not be re-used.
During the wash, the water supply valve must be fully open.
▼ The drain hose must be positioned at a height of between 60 cm and 90 cm (fi g. 11).
If the water is drained directly into the drainage system, the free end of the drain hose must be inserted in a pipe of internal diameter not less than 40 mm.
The drain hose connection to the drainage system must not be hermetically sealed, as this would cause a build up of air in the siphon and allow water to leak out.
INSTALLING THE WASHING MACHINE
CONNECTING TO THE MAINS ELECTRICITY SUPPLY
Make sure that the voltage indicated on the identification plate attached to the inside of the filter door corresponds to that of the mains supply (fi g. 13).
All cut-outs, electric wiring and mains sockets must have a rating such that enables them to support the maximum load indicated on the identification plate. Once the appliance has been installed, it must be connected to the mains supply through a single-pole switch.
The mains supply to which the appliance is connected must be fitted with an earthing system. If this is not the case, the manufacturer will not be held liable for any incidents that may occur (fi g. 14).
If the mains socket to which the appliance is connected is faulty or unsuitable, it must be replaced by a qualified electrician.
The washing machine must not be connected to the mains supply using indirect methods such as extension leads or multiple adapters.
During maintenance work, the washing machine must be disconnected from the mains electricity supply.
Do not insert or remove the plug from the mains socket with wet hands.
If the power supply cable is damaged in any way, contact the appropriate specialised service centre.
The plug used to connect the machine to the power supply must never be fixed behind the machine, but must be in a position easily accessible in an emergency.
USING THE WASHING MACHINE
RECOMMENDATIONS PRIOR TO USE
Warning: Before carrying out the first wash, allow the washing machine to effect a short wash cycle without any washing.
This will allow the operation of the washing machine to be checked all clean the drum.
Before each wash make sure that
USING THE WASHING MACHINE
11
USE OF DETERGENTS

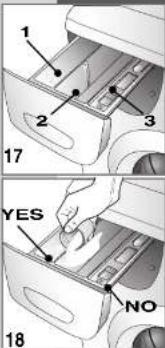

The washing machine is fitted with a three-compartment detergent drawer
↑compartment for pre-wash or soak soap powder (1)
2ompartiment for normal wash soap powder (2)
softener compartment (3)
Use a low-suds detergent and softener (if required) recommended for automatic
washing machines. Follow the dosage instructions written on the packet.
N.B. Too much detergent can produce excessive suds and may result in a poor wash.
Too little detergent will produce an unsatisfactory wash.
N.B. When adding detergent to the dispenser, remember to avoid any spillage into the softener compartment, in that this would create a soapy rinse and stain the fabrics white. Vice versa, if softener is added to the detergent compartment, the quality of
the wash will be compromised.
N.B. When using a liquid detergent (recommended for programmes without pre-wash) proceed as follows: remove the baffle from its housing at the front of compartment 2 and insert it in the near the centre of the same compartment.
USING THE WASHING MACHINE
HOW TO REMOVE SOME STAINS
Stains exist that cannot be removed by machine washing alone. Before trying to remove any type of stain by hand, if rst try the removal procedure on a small area of hidden fabric. Start from the edge of the stain and working inwards, this will prevent a dark ring from forming around the site of the stain. A few methods to adopt for removing stains are reported below.
WAX: Scrape the wax using a rounded point in order not to damage the fabric. Then, with the fabric placed between two pieces of absorbent paper, run a hot iron over the stain.
▼ BALL POINT PENS AND FELT-TIP PENS: clean using a soft cloth soaked in ethyl alcohol. Take care not to spread the stain.
DAMP AND MOULD: if the fabric supports the use of bleach, carry out a wash cycle adding bleach. Otherwise, soak the soiled part in hydrogen peroxide (10 volumes) and leave for 10 to 15 minutes.
LIGHT SCORCH MARKS LEFT BY IRONING: follow the instructions for mould and clamp.
▼ Rust: use products specially designed for rust stains, following the manufacturer's instructions written on the packet.
CHEVING gum: rub ice over the fabric, scrape away as much chewing gum as possible and then rub with a piece of cotton soaked in acetone.
▼ PAINT: do not allow the paint to dry. Rub the area with the solvent recommended by the paint manufacturer (e.g. water, turps, trichloroethylene), soap and then rinse.
Lipstick: stains on cotton or wool can be eliminated using a cloth soaked in ether. Stains on silk require the use of trichloroethylene.
NAIL VARNISH: place a sheet of absorbent paper on the stained material, then dampen the back of the fabric with acetone, frequently changing the absorbent paper placed over the stain. Continue in this manner until the stain has disappeared.
▼ TAR OR DIRT: spread a little fresh butter over the stain, allow to stand and then wash with oil of turpentine.
▼ GRASS: delicately soap the stain, use diluted bleach. Good results can be obtained on woollen fabrics using 90% alcohol.
BLOOD: put into soak in cold water with added salt, then wash with washing soap.
INTERNATIONAL CLOTHING CARE SYMBOLS
Before placing the clothes in the washing machine and selecting the wash programme, examine the symbols on the manufacturer's label. The table reported below will provide a useful guide to reading the symbols.
Normal wash
Delicate wash
Wash at max 95°C
ron at up to max 200°
Dry flat
ron at up to max 150°
Dry hanging
Iron at up to max 100 ^®
Dry on hanger
WASHING INSTRUCTIONS
13
Detergent dispenser:
1 Prewash
2 Wash
Softener

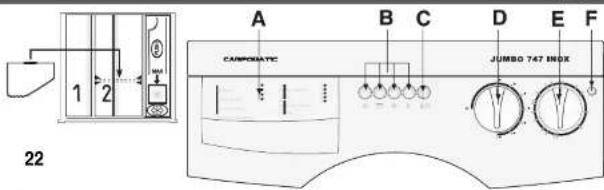

Control panel:
A Table of programmes
B Extra functions
C On/off button
D Thermostat dial
E Programmer dial
F Machine "on" indicator light
CORRECT WASHING PROCEDURE
Before using the washing machine, make sure that it has been installed correctly as reported in the instruction book.
Daily use
- Before placing the washing in the washing machine, make sure that there are no hard pointed objects in the pockets (nails, screws, coins, pins, stones, etc.) as these can damage both the clothing and the appliance.
- To improve the performance of the wash, place the washing loosely in the drum without compressing it. Do not overload the machine. A full load of particularly absorbent material such as bathrobes and towelling can unbalance the washing machine during the spin phase. The automatic load-balancing system distributes the washing as evenly as possible and automatically sets the best spin speed to reduce vibrations to a minimum.
- Close the door, making sure that no washing has become trapped between the door and the gasket.
- Place the correct amount of detergent in the appropriate dispenser 2. When using a liquid detergent, insert the partition supplied. If the Prewash function is required, add detergent to compartment 1. Add softener to the compartment marked with the symbol ⚙. After adding the detergent, gently close the detergent drawer.
- Choose and set the desired washing cycle program and temperature using the relative E and D knobs.
WARNING!! Do not turn the programming knob to the left. If you pass the desired
WASHING INSTRUCTIONS
ON/OFF KNOB OR BUTTON
To start the machine, pull programmer knob or if the machine has push-button, press the start push-button. The indicator light will be illuminated.
NO-DRAIN BUTTON
When this button is pushed, the washing machine will stop automatically at the end of the last rinse cycle and before draining the water. In this case, the washing is held in the water-fi led drum to prevent creasing. This function only works for the delicate wash cycle.
NO-SPIN BUTTON
Pushing this button the washing machine carries out a normal wash cycle but does not spin.
EXTRA RINSE BUTTON
The washing machine has been designed to reduce water consumption to a minimum. Three rinse cycles are normally sufficient. For very soft water zones or for those who are allergic to detergent residues, press this button and the machine will carry out an extra rinse.
WASHING PROGRAMMES
15
| Knob(P) | Knob(T)* | Programme | Care label symbol | Dispenser compartment | Examples and degree of sitting | Program description | Use of supplementary buttons(Available according to the model) | |||
| E | ||||||||||
| INTENSIVE PROGRAMS FOR RESISTENT FABRICS | ||||||||||
| 1 | 90° | Cotton linen hemp | Shirts, white and solid colour tabecloths, towels, underwear; heavy soil | Prevash, main wash, rinses, softener, empty and final spin | — | As required | As required | As required | ||
| 2 | 90° | Cotton linen hemp | Sheets, white and solid colour tabecloths, towels, underwear; heavy soil | Main wash, rinses, softener, empty and final spin | — | As required | As required | As required | ||
| 3 | 60° | Cotton linen hemp | Sheets, white and solid colour tabecloths, towels, underwear; heavy soil | Main wash, rinses, softener, empty and final spin | — | As required | — | As required | ||
| 4 | 60° | Cotton linen, resistant mixes | Coloured, underwear, shirts, bath roses, cotton knits, sheets, normal soil | Main wash, rinses, softener, empty and final spin | — | As required | — | As required | ||
| 5 | 40° | Cotton delicate mixes | Sheets, white and solid colour tabecloths, towels, underwear; light soil | Main wash, rinses, softener, empty and final spin | — | As required | — | As required | ||
| 6 | Any position | Cotton linen, hemp and resistant mixes | — | Fast rinse | Rinases, softener, empty and final spin | — | As required | — | As required | |
| 7 | Any position | Cotton linen, hemp and resistant mixes | — | Whiteener, achented softener | Rinases, softener, empty and final spin | — | As required | — | — | |
| 8 | 60° | Resistant mixsa | Shirts, sheets, baby wear, nipples; heavy soil | Prevash 40°C-, main wash, rinses, softener, empty and final spin | Recommen-dad | Recommen-dad | — | — | ||
| 9 | 60° | Resistant mixsa | Shirts, aunts, baby wear, nipples; heavy soil | Main wash, rinses, softener, empty and final spin | Recommen-dad | Recommen-dad | — | — | ||
| 10 | 50° | Resistant mixsa | Shirts, sheets, baby wear, nipples; normal soil | Main wash, rinses, softener, empty and final spin | Recommen-dad | Recommen-dad | — | — | ||
| 11 | 40° | Synthelics (injles, per-long cotton mixes) | Colourstad shirts, blouses, skirts, light soil | Main wash, rinses, softener, empty and final spin | Recommen-dad | Recommen-dad | — | — | ||
| AUXILIARY PROGRAMS FOR DELICATE FABRICS | ||||||||||
| 12 | Woollen | Machine | Main wash, rinses, softener, | Recomm- | Recomm- | |||||
MAINTENANCE
CLEANING THE WASHING MACHINE
The washing machine has been specifically designed to reduce maintenance to a minimum. Nevertheless, it is important that it is cleaned regularly.
Before cleaning, make sure that the appliance has been disconnected from the power supply and that the water supply valve has been closed.
The external structure and the parts of the washing machine in plastic must be cleaned with a soft damp cloth only.
WARNING!! Never use chemicals, abrasive products, alcohol, soap, petrol or other solvents to clean the appliance as these may cause damage. (fl g. 28)
After washing, leave the door open for a short time to allow rubber parts to dry.
Periodically wash out the detergent compartments. To do this, remove the detergent compartment and rinse it under running water (fi g. 29). Then replace it.
REMOVING THE DETERGENT DRAWER
▼ open the detergent drawer;
▼ press on the word "PUSH" with the right hand and pull out the drawer with the left hand (fi g. 30).
CLEANING THE FILTER
WARNING!! Before starting the operations described below, make sure that the washing machine is empty. Do not remove the filter while the washing machine is running, or when full of water.
Place a cloth or tray under the filter to collect any water that may still be inside Open the filter door, unscrew the filter and remove it by turning it in an anticlockwise direc-
MAINTENANCE
RESOLVING PROBLEMS
If the appliance is not working properly, check through the following troubleshooting guide before calling for technical assistance.
The washing machine does not work (warning lights are off) (Display off)
Make sure that
1) The mains power supply is working
2) The plug is inserted correctly in the socket
3) The On/Off button has been pressed, or if not present, check that the programming knob is positioned on a programme.
The washing machine does not work (warning lights are off)
• Make sure that:
1) The programme has been selected
2) The door is closed properly
3) The "Start" button has been pressed (electronic models only)
4) Refer to the information provided for "The washing machine does not fill with water"
The washing machine does not fill with water\* • Check that:
1) There is water in the water supply system
2) The water fill pipe is connected to the washing machine
3) The mains water supply valve is open
4) The filter is not blocked if it is, clean the filter after first unplugging the appliance from the power supply
The washing machine continuously fills and drains the water\*\*
- Check that:
1) The drain hose has been installed at the correct height (60-90 cm)
2) The end of the drain hose is not under water
The washing machine does not drain or spin\*\*
- Check that:
5) The Stop with water function has not been selected.
The washing machine vibrates and is noisy
• Make sure that:
1) All the locking elements used for transportation have been removed.
2) The washing machine is perfectly level
3) Bulky items such as sheets, tablecloths etc. are not all bundled in one part of the drum
The door will not open
• Make sure that:
1) The wash cycle has fi nished.
2) The Stop with water function has not been selected (automatic on some models).
The washing has not been spun properly
• Make sure that:
1) The washing is evenly distributed in the drum
2) The correct spin speed has been selected
The washing machine stops during a wash
• Make sure that:
1) The mains power supply is working
There is still a lot of detergent in the compartment
• Make sure that:
1) The mains water supply valve is open
2) The filter between the valve and the supply hose is clean
The washing is not clean at the end of the wash cycle
• Make sure that:
1) The drum has not been overloaded
2) The correct amount of detergent has been used
3) The correct programme has been selected
The washing has shrunk or faded
• Make sure that:
- ENGLISH
- Dear Customer.
- CONTENTS
- NOTES AND ADVICE FOR THE USER
- DESCRIPTION OF THE APPLIANCE
- INSTALLING THE WASHING MACHINE
- UNPACKING THE WASSHING MACHINE AND REMOVING THE LOCKING DEVICES
- LEVELLING THE WASHING MACHINE
- CONNECTING THE WATER SUPPLY
- CONNECTING TO THE MAINS ELECTRICITY SUPPLY
- USING THE WASHING MACHINE
- RECOMMENDATIONS PRIOR TO USE
- USE OF DETERGENTS
- HOW TO REMOVE SOME STAINS
- INTERNATIONAL CLOTHING CARE SYMBOLS
- WASHING INSTRUCTIONS
- Detergent dispenser:
- Control panel:
- CORRECT WASHING PROCEDURE
- Daily use
- ON/OFF KNOB OR BUTTON
- NO-DRAIN BUTTON
- NO-SPIN BUTTON
- EXTRA RINSE BUTTON
- WASHING PROGRAMMES
- MAINTENANCE
- CLEANING THE WASHING MACHINE
- REMOVING THE DETERGENT DRAWER
- CLEANING THE FILTER
- RESOLVING PROBLEMS
- The washing machine does not work (warning lights are off) (Display off)
- The washing machine does not work (warning lights are off)
- The washing machine does not fill with water\* • Check that:
- The washing machine continuously fills and drains the water\*\*
- The washing machine does not drain or spin\*\*
- The washing machine vibrates and is noisy
- The door will not open
- The washing has not been spun properly
- The washing machine stops during a wash
- There is still a lot of detergent in the compartment
- The washing is not clean at the end of the wash cycle
- The washing has shrunk or faded
Brand : Campomatic
Model : WM747W
Category : Washing machine
