Product type	DLP laser projector
Brand	Optoma
Model	ZU500T
Brightness	5000 ANSI lumens
Native resolution	WUXGA (1920 x 1200)
Display technology	Single-chip DLP
Light source	Phosphor laser (lifespan up to 30,000 h)
Contrast ratio	300,000:1 (typical)
Throw ratio	1.41 - 2.24:1
Keystone correction	Vertical ±30°, horizontal ±30°
Power supply	100-240 V AC, 50/60 Hz
Power consumption	375 W (normal mode), < 0.5 W (standby)
Dimensions (W x D x H)	337 x 265 x 108 mm (without feet)
Net weight	5.5 kg
Video inputs	2 x HDMI 2.0, 1 x VGA, 1 x composite, 1 x component
Audio inputs	1 x 3.5 mm audio input
Outputs	1 x 3.5 mm audio output, 1 x USB-A (5V/1.5A power)
Connectivity	Ethernet RJ45, RS232, service port
Noise level	29 dB (eco mode)
Operating temperature	5°C to 40°C
Maintenance	Clean the air filter every 500 hours; replace if clogged
Safety	Automatic shutdown if overheating; Kensington lock
Spare parts and repairability	Sealed laser non-replaceable; other parts available through authorized service

Frequently Asked Questions - ZU500T OPTOMA

How to clean the air filter of the ZU500T?

Turn off the projector and unplug it. Remove the filter cover, gently vacuum the dust using a vacuum cleaner, then put the filter back in place. Replace the filter if it is very dirty.

What is the lifespan of the laser light source?

The laser source has a typical lifespan of 30,000 hours, which equates to several years of daily use. It does not require replacement.

Can I use the projector without an HDMI cable?

Yes, the ZU500T has VGA, composite, and component inputs for analog sources, as well as network connectivity via Ethernet.

How to adjust keystone correction?

Access the OSD menu, select 'Image Settings' then 'Keystone Correction'. Adjust vertically and horizontally using the directional keys.

What to do if the projector does not turn on?

Check the power cord and outlet. Make sure the projector is not overheating (wait 5 minutes). If the indicator blinks red, consult the manual.

The projector displays 'No signal' - what to do?

Check that the source is on and the cable is properly connected. Press the 'Source' button on the remote to select the appropriate input.

How to mount the projector to the ceiling?

Use a compatible mounting kit (not included). Attach the bracket to the ceiling following load ratings. Screw the four mounting points under the projector.

The fan is noisy, is this normal?

In high brightness mode, the fan spins faster. Use eco mode to reduce noise to 29 dB. Make sure the ventilation vents are not blocked.

Can I use the projector for permanent installation?

Yes, the ZU500T is designed for fixed installation use thanks to its long-life laser source and full connectivity (RS232, network).

Where to find the serial and model numbers?

They are on the label affixed under the projector. Note them before any service request.

USER MANUAL ZU500T OPTOMA

Regulation & Safety Notices....5

INTRODUCTION 9

Package Overview 9

Product Overview....10

Main Unit 10

Control Panel....11

Connections 12

Remote Control 13

SETUP AND INSTALLATION ....16

Connecting Source to the Projector 16

Powering the Projector On/Off 18

Warning Indicator 19

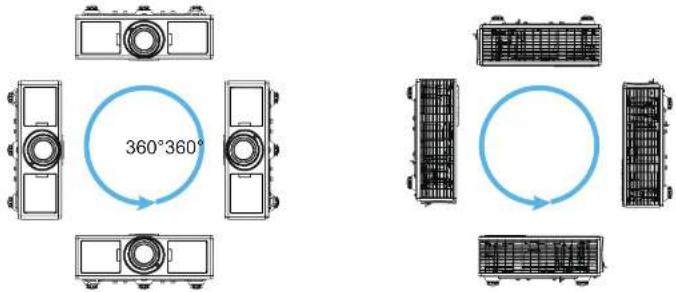

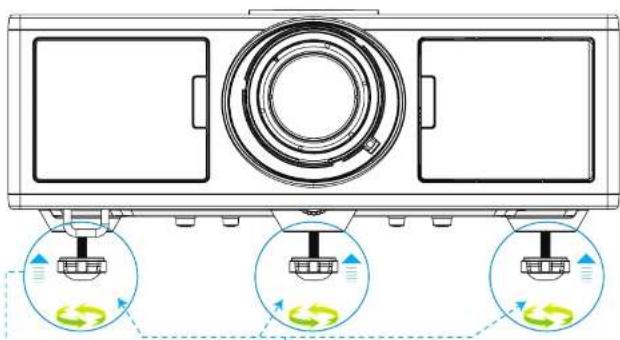

Adjusting the projector position 20

Adjusting the Projected Image 21

USER CONTROLS 25

Using the Control Panel 25

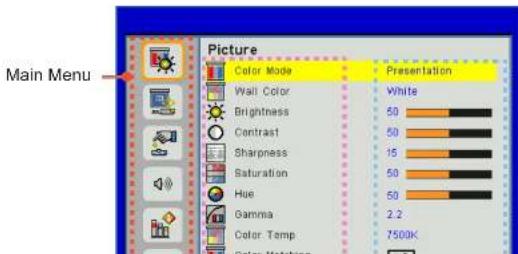

On-screen Display Menus 26

How to operate 26

Structure....27

Picture 21

SAFETY

The lightning flash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

Class B emissions limits

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Important Safety Instruction

1. Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from over heating, it is recommended to install the projector in a location that does not block ventilation. As an example, do not place the projector on a crowded coffee table, sofa, bed, etc. Do not put the projector in an enclosure such as a book case or a cabinet that restricts air flow.
2. Do not use the projector near water or moisture. To reduce the risk of fire and/or electric shock, do not expose the projector to rain or moisture.
3. Do not install near heat sources such as radiators, heaters, stoves or any other apparatus such as amplifiers that emits heat.
4. Clean only with dry cloth.
5. Only use attachments/accessories specified by the manufacturer.
6. Do not use the unit if it has been physically damaged or abused.
   Physical damage/abuse would be (but not limited to):
   Unit has been dropped.
   ☐ Power supply cord or plug has been damaged.
   ☐ Liquid has been spilled on to the projector.
   ☐ Projector has been exposed to rain or moisture.
   Something has fallen in the projector or something is loose inside.
   Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards.
7. Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short out parts that could result in fire or electric shock.

Precautions

Please follow all warnings, precautions and maintenance as recommended in this user's guide.

Warning- Do not look into the projector's lens when the light source is on. The bright light may hurt and damage your eyes.
Warning- To reduce the risk of fire or electric shock, do not expose this projector to rain or moisture.
Warning- Please do not open or disassemble the projector as this may cause electric shock.
Warning- Please do not open or disassemble the projector as this may cause electric shock.

Do:

Turn off and unplug the power plug from the AC outlet before cleaning the product.

Use a soft dry cloth with mild detergent to clean the display housing.

Disconnect the power plug from AC outlet if the product is not being used for a long period of time.

Do not:

Block the slots and openings on the unit provided for ventilation.

Use abrasive cleaners, waxes or solvents to clean the unit.

Use under the following conditions:•

- In extremely hot, cold or humid environments.

▶ Sea level to 6000 feet
Extremely hot: > 35°C
Extremely cool: < 5°C
6000 feet above
Extremely hot: > 30°C
Extremely cool: < 5°C
Extremely humid: > 70% R.H. (Relative Humidity)

- In areas susceptible to excessive dust and dirt.

• Watching 3D projection may also cause motion sickness, perceptual after effects, disorientation, eye strain and decreased postural stability. It is recommended that users take frequent breaks to lessen the potential of these effects. If your eyes show signs of fatigue or dryness or if you have any of the above symptoms, immediately discontinue use of this device and do not resume using it for at least thirty minutes after the symptoms have subsided.
• Watching 3D projection while sitting too close to the screen for an extended period of time may damage your eyesight. The ideal viewing distance should be at least three times the screen height. It is recommended that the viewer's eyes are level with the screen.
• Watching 3D projection while wearing 3D glasses for an extended period of time may cause a headache or fatigue. If you experience a headache, fatigue or dizziness, stop viewing the 3D projection and rest.
• Do not use the 3D glasses for any other purpose than for watching 3D projection.
• Wearing the 3D glasses for any other purpose (as general spectacles, sunglasses, protective goggles, etc.) may be physically harmful to you and may weaken your eyesight.
• Viewing in 3D projection may cause disorientation for some viewers. Accordingly, DO NOT place your 3D PROJECTOR near open stairwells, cables, balconies, or other objects that can be tripped over, run into, knocked down, broken or fallen over.

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.

© Copyright 2015

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

Trademark Recognition

Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending applications in other countries throughout the world.

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the device into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this projector.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Declaration of Conformity for EU countries

• EMC Directive 2014/30/EU

Safety notice

! WARNING

• This product is classified as Class 2 of IEC 60825-1:2007 and also complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007. IEC 60825-1:2014: CLASS 1 LASER PRODUCT - RISK GROUP 2
• Explanatory label is shown all information of laser power.
• This projector has built-in Class 4 laser module. Disassembly or modification is very dangerous and should never be attempted.
• Any operation or adjustment not specifically instructed by the user's guide creates the risk of hazardous laser radiation exposure.
• Do not open or disassemble the projector as this may cause damage by the exposure of laser radiation.
• Do not stare into beam when the projector is on. The bright light may result in permanent eye damage.
• When turning on the projector, make sure no one within projection range is looking at the lens.
• Without following the control, adjustment or operation procedure may cause damage by the exposure of laser radiation.
• Adequate instructions for assembly, operation, and maintenance, including clear warnings concerning precau-

Safety notice

WXGA

! WARNING

• This product is classified as Class 3R of IEC 60825-1:2007 and also complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50. dated June 24, 2007. IEC 60825-1:2014: CLASS 1 LASER PRODUCT - RISK GROUP 2
• Explanatory label is shown all information of laser power.
• This projector has built-in Class 4 laser module. Disassembly or modification is very dangerous and should never be attempted.
• Any operation or adjustment not specifically instructed by the user's guide creates the risk of hazardous laser radiation exposure.
• Do not open or disassemble the projector as this may cause damage by the exposure of laser radiation.
• Do not stare into beam when the projector is on. The bright light may result in permanent eye damage.
• When turning on the projector, make sure no one within projection range is looking at the lens.

INTRODUCTION

Package Overview

Unpack and inspect the box contents to ensure all parts listed below are in the box. If something is missing, please contact your nearest customer service center.

Note: * For European warranty Information, please visit www.optomaeurope.com Due to different applications in each country, some regions may have edifferent accessories.

INTRODUCTION

Product Overview

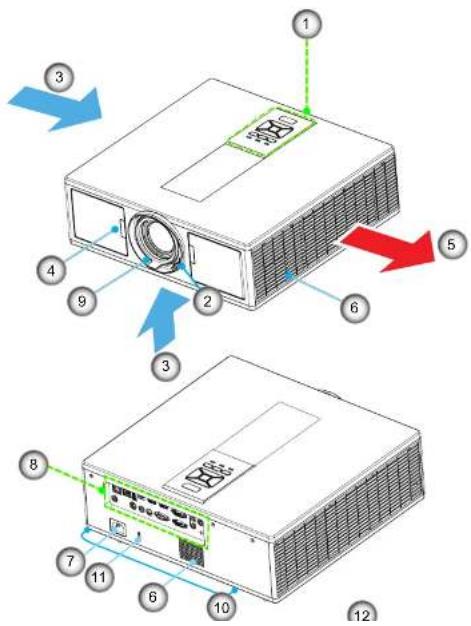

Main Unit

INTRODUCTION

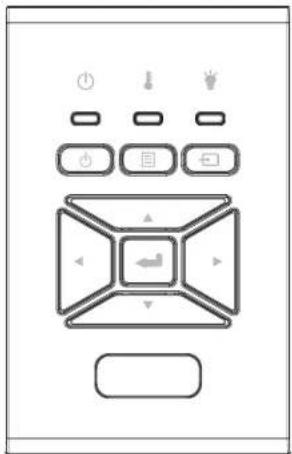

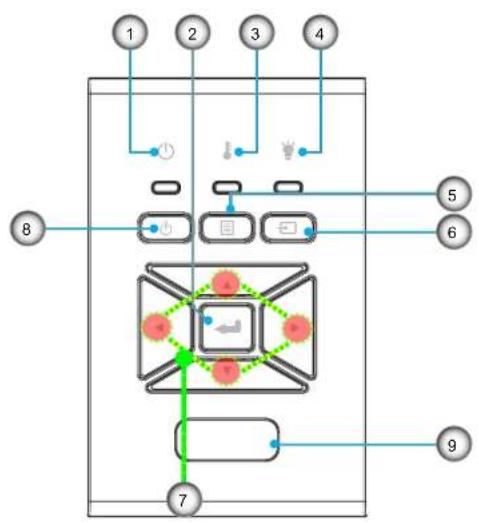

Control Panel

No item

1 On/Standby LED

No item

1. Source

INTRODUCTION

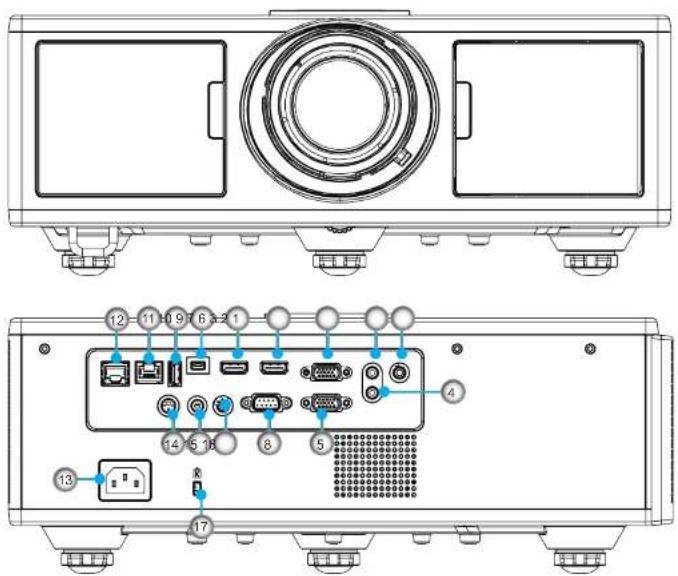

Connections

INTRODUCTION

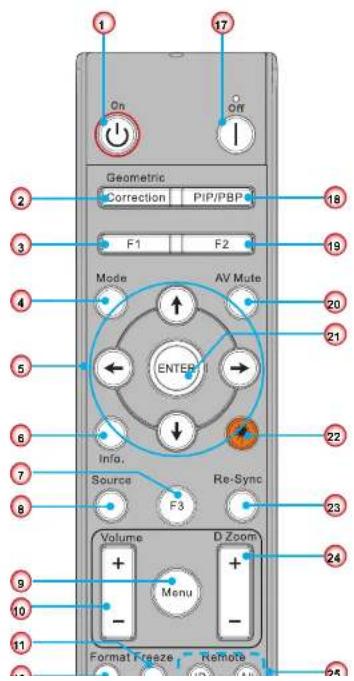

Remote Control

No Item

1. Power On

Power on the projector.

1. Geometric Correction

Launch the Geometric Correction menu.

1. F1:Test pattern

Display a test pattern.

1. Display Mode

Select the display mode.

1. Four directional select keys

To select items or make adjustments.

1. Information

Display the projector information.

1. F3:Color Matching

Launch the Color Matching setting menu.

1. Input source selection

Select an input signal.

1. Menu

Launch the OSD menu. To exit OSD, Press

"Menu" again.

1. Volume Control -/+

Increase/decrease the volume.

1. Freeze

Freeze the projected image.

INTRODUCTION

No Item

1. AV Mute

Momentarily turns off/on the audio and video.

1. Enter

Confirm your item selection.

1. Laser

Use as laser pointer.

1. Re-Sync

Automatically synchronize the projector to the input source.

1. Digital Room -/+

Zoom in/out the projected image.

1. Remote ID / Remote all

Set the remote control ID

1. HDMI2

Switch to HDMI2 source.

1. Number Keypad (0\~9)

Use as numeric keypad number "0\~9".

SETUP AND INSTALLATION

IR Code table for Data

	Customer code 32CD
Key	Description Key code printing-key definition
1 Power Off 2E Off
2 Power On 2 On
3 PIP/PBP Menu 78 PIP/PBP
4 Keystone		7 Geometric Correction
5 Function 2		27 F2
6 Function 1		26 F1
7 Display mode menu on/off		95 Mode
8	Up key for OSD when OSD on	C6	Up arrow
9 AV Mute		3 AV Mute
10	Left key for OSD when OSD on	C8	Left arrow
11	Enter	C5	Enter
12	Right key for OSD when OSD on	C9	Right arrow
13 Information		25 Info.
14	Down key for OSD when OSD on	C7	Down arrow
15	Laser pointer trigger, press to emit laser	N/A	Laser
16	Input source selection when OSD off	18	Source
17 Function 3		66 F3
18	Auto adjustment for phase, tracking, size, position when OSD off	4 Re-Sync
19 OSD menu on/off		88 Menu
20 Volume Control +		9 Volume +
21 Volume Control -		0C Volume -
22 D Room +		8 D Zoom +
23 D Room -		0B D Zoom -
24 Format		15 Format

SETUP AND INSTALLATION

Connecting Source to the Projector

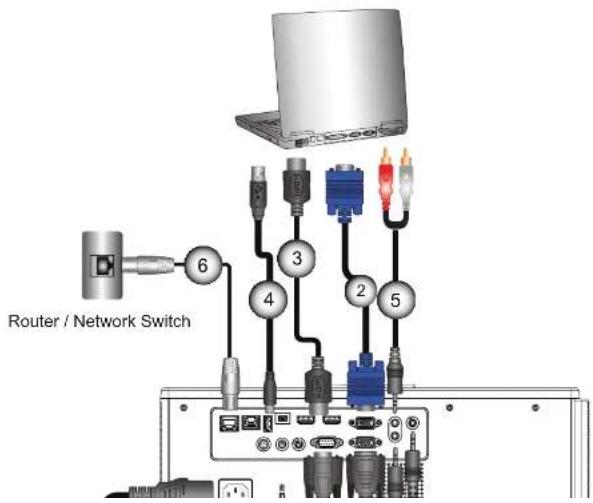

Connect to Computer/Notebook

Note:

Due to the difference in applications for each country, some regions may have different accessories. (*) Optional accessory

SETUP AND INSTALLATION

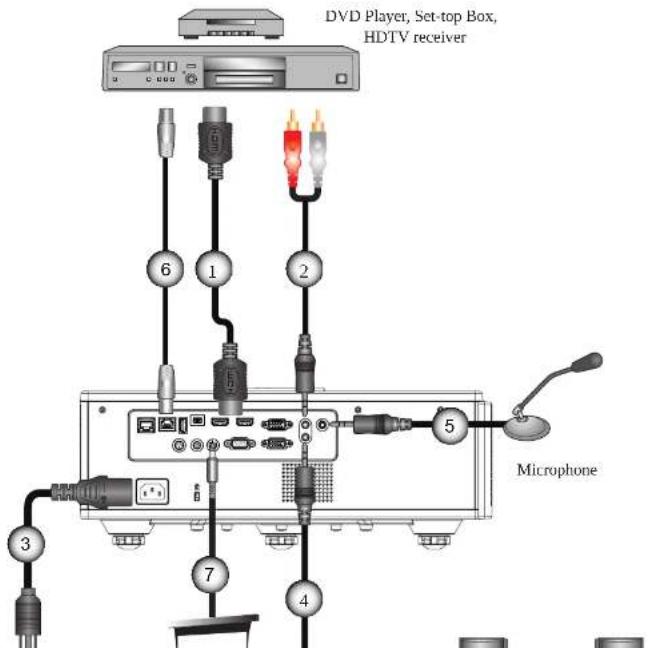

Connect to Video Sources

SETUP AND INSTALLATION

Powering the Projector On/Off

Powering On the Projector

1. Securely connect the power cord and signal cable. When connected, the POWER/STANDBY LED will turn Red.

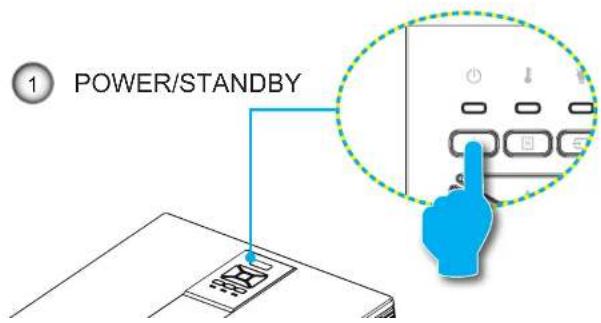

2. Turn on the lamp by pressing the "⏻" button either on the projector or on the remote. At this moment, the POWER/ STANDBY LED will now turn Blue. ①

The startup screen will display in approximately 6 seconds.

1. Turn on and connect the source that you want to display on the screen (computer, notebook, video player, etc). The projector will detect the source automatically.

If you connect multiple sources at the same time, press the "INPUT" button on the control panel to switch between inputs.

Note: When the power mode is in standby mode (power consumption < 0.5W), the VGA output/Wire remote/LAN will be deactivated when the projector is in standby. Audio out loop-through is always active in standby mode. HDBaseT control is always deactivated in standby mode.

SETUP AND INSTALLATION

Powering Off the Projector

1. Press the "O" button on the remote control or on the control panel to turn off the projector. The following message will be displayed on the screen.

Press the "button again to confirm otherwise the message will disappear after 10 seconds. When you press the "button for the second time, the fan will start cooling the system and will shut down.

1. The cooling fans continue to operate for about 4 seconds for cooling cycle and the POWER/STANDBY LED will flash Red. When the POWER/STANDBY LED lights solid Red, the projector has entered standby mode. If you wish to turn the projector back on, you must wait until the projector has completed the cooling cycle and has entered standby mode. Once in standby mode, simply press "U" button to restart the projector.
2. Disconnect the power cord from the electrical outlet and the projector.

Warning Indicator

LED lightning messages

When the warning indicators (see below) come on, the projector will automatically shutdown:

◆ "LAMP" LED indicator is lit red and/or if "TEMP" LED indicator is lit red.
- "TEMP" LED indicator is lit red, this indicates the projector has overheated. Under normal conditions, the projector can be switched back on.
◆ "TEMP" LED indicator flashes red.

Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicator light up again, please contact your nearest service center for assistance.

Message	Power LED		Temp LED	Lamp LED
	Red Blue	Red Red
Standby State (LAN Off)	On

SETUP AND INSTALLATION

Adjusting the projector position

When you select a position for the projector, consider the size and shape of your screen, the location of your power outlets, and the distance between the projector and the rest of your equipment. Follow these general guidelines:

Position the projector on a flat surface at a right angle to the screen. The projector must be at least 4.26 feet (1.30m) from the projection screen.

Position the projector to the desired distance from the screen. The distance from the lens of the projector to the screen, the zoom setting, and the video format determine the size of the projected image.

360 degree free orientation operation

SETUP AND INSTALLATION

Adjusting the Projected Image

Adjusting the Projector's Height

The projector is equipped with elevator feet for adjusting the image height.

1. Locate the adjustable foot you wish to modify on the underside of the projector.

2. Rotate the adjustable ring clockwise to raise the projector or counter clockwise to lower it. Repeat with the remaining feet as needed.

Diagram of a device front view with three circular components and three circular insets showing directional arrows (no text or symbols)

SETUP AND INSTALLATION

Adjusting Projector Focus and Zoom

1. To adjust the image size, turn the zoom ring clockwise or anticlockwise to increase or decrease the projected image size.

2. To adjust the focus, turn the focus ring clockwise or anticlockwise until the image is sharp and legible. The projector will focus at distances (lens to wall) from 4.27 - 25.59 feet (1.3-7.8 meters).

Adjusting Projection Image Size (Diagonal)

Projection Image Size from 36" to 300" (1.09–9.09 meters).

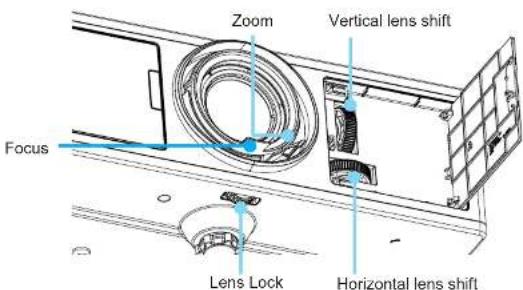

Open the front side door of the projector.1.

Unlock the lens lock, before adjust the lens shift.2.

Turn the vertical/horizontal lens shift knob to shift the lens3.

Turn the lens lock clockwise to lock the lens in place 4.

( Lens shift knob still can be rotated.)

Close the front side door of the projector.5.

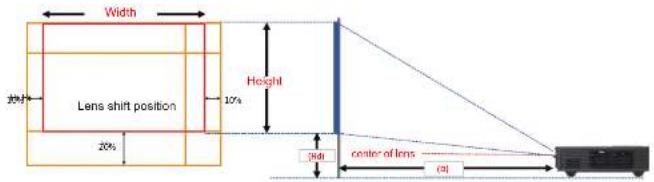

Note: The stroke for lens shift is designed to be regular triangle, when lens are adjusted to central position horizon-

SETUP AND INSTALLATION

	Vertical Shift Range (Vs)	Horizontal Shift Range (Hs)
XGA 10% ±10%
WXGA 20% ±10%
1080p 25% ±10%
WUXGA 20% ±10%

Image Offset
	image size Screen Size WxH Projection Distance (D) Offset (Hd)
	inch	cm		inch		cm		inch		cm		inch
	Diagonal	Width	Height	Width	Height	Wide	Tele	Wide	Tele	Wide	Tele	Wide	Tele
XGA 4:3	30"	60.7	40.0	23.9	15.7	NA	120.2	NA	47.3	2.3	2.3	0.9	0.9
	100"	202.3	135.0	79.7	53.1	250.9	400.6	98.8	157.7	7.6	7.6	3.0	3.0
	150"	303.5	202.0	119.5	79.5	376.3	600.9	148.2	236.6	11.4	11.4	4.5	4.5
	200"	404.7	269.0	159.3	105.9	501.8	801.2	197.6	315.4	15.2	15.2	6.0	6.0
	250"	505.8	337.0	199.1	132.7	627.2	NA	246.9	NA	19.1	19.1	7.5	7.5
	300"	607.0	404.0	239.0	159.1	752.7	NA	296.3	NA	22.9	22.9	9.0	9.0

Image Offset
	image size	Screen Size WxH Projection Distance (D) Offset (Hd)
	i

SETUP AND INSTALLATION

Image Offset
	Image size	Screen Size WxH Projection Distance (D) Offset (Hd)
	inch cm	inch cm inch cm		inch
	Diagonal	Width	Height	Width	Height	Wide	Tele	Wide	Tele	Wide	Tele	Wide	Tele
WUXGA 16:10	36"	78.0	49.0	30.7	19.3	NA	149.8	NA	59.0	9.7	9.7	3.8	3.8
	100"	215.0	135.0	84.6	53.1	258.0	412.8	101.6	162.5	26.9	26.9	10.6	10.6
	150"	323.0	202.0	127.2	79.5	387.6	620.2	152.6	244.2	40.4	40.4	15.9	15.9
	200"	431.0	269.0	169.7	105.9	517.2	827.5	203.6	325.8	53.9	53.9	21.2	21.2
	250"	539.0	337.0	212.2	132.7	646.8	NA	254.6	NA	67.3	67.3	26.5	26.5
	300"	646.0	404.0	254.3	159.1	775.2	NA	305.2	NA	80.8	80.8	31.8	31.8

This table is for user's reference only.

USER CONTROLS

Using the Control Panel

Line drawing of a control panel with buttons and navigation icons (no text or symbols)

Name	Description
POWER ⏻	Refer to the "Power On/Off the Projector" section on pages 18-19.
Enter ⏻	Confirm a selected item.
INPUT ⏻	Select an input signal
MFNI ⏻	Launch the on-screen display (OSD) menu. To exit OSD, press

USER CONTROLS

On-screen Display Menus

The Projector has multilingual On-screen Display menus that allow you to make image adjustments and change a variety of settings.

How to operate

To open the OSD menu, press "Menu" on the Remote Control or Projector Keypad.1.

When OSD is displayed, use ▲▼ 2. keys to select any item in the main menu. While making a selection on a particular page, press the ▶ or "Enter" key to enter sub menu.

Use the 3. ▲▼ keys to select the desired item and adjust the settings using the ◀▶ key.

Select the next item to be adjusted in the sub menu and adjust as described above.4.

Press "Enter" to confirm.5.

To exit, press "Menu" again. The OSD menu will close and the projector will automatically save the new settings.6.

USER CONTROLS

Structure

Note: Please note that the on-screen display (OSD) menus vary according to the signal type selected and the projector model you are using.

Main Menu	Sub Menu Setting
Picture	Color Mode		Bright/Presentation/Movie/sRGB/Blending/DICOM SIM./User (Change Color Mode to User Mode if customer changes the settings)
	Wall Color White/Light Yellow/Light Blue/Pink/Dark Green
	Brightness
	Contrast
	Sharpness
	Saturation		(For VGA component signal only)
	Hue		(VGA component signal only)
	Gamma Film/Graph	cs/1.8/2.0/2.2/2.6/	Blackboard/DICOM SIM
	Color Temp 5500K/6500K/7500K/8500K/9500K
	Color Matching	White/Red/Green/Blue/Cyan/Magenta/Yellow	Hue/Saturation /Gain
	Extreme Black On /Off
	Color Space		Not HDMI Input: Auto/RGB/YUV
			HDMI Input: Auto/RGB(0~255)/RGB(16~235)/YUV
	BrillianColorTM		1~10
	Aspect Ratio Auto/4:3/16:9/16:10
	Phase
	Clock
	H.Position

USER CONTROLS

Main Menu	Sub Menu Setting
Settings	Language		English/German/French/Italian/Spanish/Polish/Swedish/Dutch/Portuguese/Japanese/Traditional Chinese/Simplified Chinese /Korean/Russian/Arabic/Norsk/Turkish/Danish/Finnish/Greek/Hungarian/Czech/Romania/Thai/Farsi/Vietnam /Indonesian/Slovakian
	Menu Location Left	Top, Right Top, Center, Left Bottom, Right Bottom
	VGA OUT (Standby)		Off/On
	LAN (Standby) Off/On
	Test Pattern None /	Grid / White
	Direct Power On On/Off
	Signal Power On On/Off
	Reset to Default Yes/No
Volume	Speaker On/Off
	Audio Out On/Off
	Microphone On/Off
	Mute On/Off
	Volume
	Microphone Volume
	EQ

USER CONTROLS

Main Menu	Sub Menu Setting
Options	Logo Default/User
	Logo Capture
	Auto Source On/Off
	Input VGA, HDMI-1,	HDMI-2, HDBaseT
	Auto Power Off (Min.)
	Sleep Timer (Min.)
	SSI Settings		SSI Hours Used (Normal)
			SSI Hours Used (ECO)
		SSI Power Mode	Normal, ECO
	High Altitude On/Off	[Default Off]
	Optional Filter Settings	Optional Filter Installed	Yes/No
		Filter Usage Hours	Read-Only
		Filter Reminder
		Cleaning Up Reminder	Yes/No
	Security	Security On / Off
		Security Timer Month / Day / Hour
		Change Password
	Remote Settings	IR Function On / Off
		Remote Code 00 ~ 99
	HDBaseT Control	Auto
		HDBaseT

USER CONTROLS

Main Menu	Sub Menu Setting
3D	3D Auto/On
	3D Invert On/Off
	3D Format		Frame Packing
			Side-by-Side (Half)
			Top amd Bottom
			Frame Sequential
			Field Sequential
	1080p @ 24 96Hz/1	44Hz
Network	Status
	DHCP Client On/Off
	IP Address
	Subnet Mask
	Gateway
	DNS
	Store
	MAC Address
	Group Name
	Projector Name
	Location
	Contact

USER CONTROLS


Color Mode

There are many factory presets optimized for various types of images. Use the ◀ or ▶ button to select the item.

Bright: For brightness optimization.

Presentation: For meeting presentation.

Movie: For playing video content.*

sRGB: For game content.

Blending: For blending application.

DICOM Sim:•

User: Memorize user's settings.*

Wall Color

Use this function to obtain an optimized screen image according to the wall color. You can select from "White", "Light Yellow", "Light Blue", "Pink", and "Dark Green".

Brightness

Adjust the brightness of the image.

Press the ◀ button to darken image.

Press the ▶ button to brighten image.

Contrast

The Contrast controls the difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image.

Press the ◀ button to decrease the contrast.

Press the ▶ button to increase the contrast.

Sharpness

Adjust the sharpness of the image.

Press the ◀ button to decrease the sharpness.

Press the ▶ button to increase the sharpness.

USER CONTROLS

Saturation

Adjust a video image from black and white to fully saturated color.

Press the ◀ button to decrease the amount of saturation in the image.

Press the ▶ button to increase the amount of saturation in the image.

Note: Saturation is only supported for VGA source (480i/480p 576i/675p 720P 1080i/1080p)

Hue

Adjust the color balance of red and green.

Press the ◀ button to increase the amount of green in the image.

Press the ▶ button to increase the amount of red in the image.

Note: Hue is only supported for VGA source (480i/480p 576i/675p 720P 1080i/1080p)

Gamma

This allows you to adjust the gamma value to obtain the better image contrast for the input.

Color Temp

This allows you to adjust the color temperature. At higher temperature, the screen looks colder; at lower temperature, the screen looks warmer.

Color Maching

Use these settings for advanced adjustment of the individual Red, Green, Blue, Cyan, Magenta and Yellow and White Colors.

Extreme Black

Use this function to increase the contrast ratio.

Color Space

Select an appropriate color matrix type from AUTO, RGB, RGB(0-255), RGB(16-235) or YUV.

Note: "RGB (0-255)" and "RGB (16-235)" are only supported for HDMI source.

BrilliantColor™

USER CONTROLS

Screen

Aspect Ratio

• Auto: Keep the image with original width-height ratio and maximize the image to fit native horizontal or vertical pixels.
  4:3: The image will be scaled to fit the screen and displayed using a 4:3 ratio.
• 16:9: The image will be scaled to fit the width of the screen and the height adjusted to display the image using a 16:9 ratio.
• 16:10: The image will be scaled to fit the width of the screen and the height adjusted to display the image using a 16:10 ratio.

Phase

Synchronize the signal timing of the display with the graphic card. If the image appears to be unstable or flickers, use this function to correct it.

Note: Phase, Clock, H. Position, V. Position adjustment only support VGA Graphic.

Clock

Adjust to achieve an optimal image when there is a vertical flicker in the image.

H. Position

Press the ◀ button to move the image left. Press the ▶ button to move the image right.

V. Position

Press the ◀ button to move the image down. Press the ▶ button to move the image up.

Digital Zoom

Press the ◀ button to reduce the size of an image. Press the ▶ button to magnify an image on the projection screen.

Projection

Front: The image is projected straight on the screen.

USER CONTROLS

PIP-PBP Settings

Function: To enable/disable PIP/PBP function.

Main Source: To set PIP/PBP main source.

SUB Source: To set PIP/PBP sub source.

Location: To set PIP sub source location.

Size: To set PIP sub source size.*

Swap: To swap PIP/PBP main/sub source.

Some source/signal combinations may not be compatible with PIP/PBP function. Please refer to the table below:

Matrix HD	MI-1 HDMI-2	HDBaseT VGA
HDMI-1 - V - V
HDMI-2 V - V	V
HDBaseT - V - V
VGA	V	V	V -

1. Flashing lines may occur if the bandwidth of both inputs are too high, please try to reduce the resolution.

2. Frame tearing may occur due to a difference in frame rate between the Main and the Sub picture, please try to match the frame rate for each input.

USER CONTROLS

Settings

Language

Choose the multilingual OSD menu. Press the ◀ or ▶ button into the sub menu and then use the ▲ or ▼ button to select your preferred language. Press ▶ on the remote control to finalize the selection.

Menu Location

Choose the menu location on the display screen.

VGA Output (Standby)

Choose "On" to enable VGA OUT connection.

LAN (Standby)

Choose "On" to enable LAN connection. Choose "Off" to disable LAN connection.

Test Pattern

Display a test pattern.

Direct Power On

Choose "On" to activate Direct Power mode. The projector will automatically power on when AC power is supplied, without pressing the ⏻key on the projector control panel or on the remote control.

Signal Power On

If Signal Power On is set to ON the projector will wake up automatically from standby mode if the input source is

USER CONTROLS

Volume

Speaker

Choose "On" to enable the speaker.

Choose "Off" to disable the speaker.

Line Out

Choose "On" to enable the line out function.

Choose "Off" to disable the line out function.

Microphone

Choose "On" to enable the microphone.

Choose "Off" to disable the microphone.

Mute

Choose "On" to turn mute on.

Choose "Off" to turn mute off.

Volume

Press the ◀ button to decrease the volume.

Press the ▶ button to increase the volume.

Microphone Volume

Press the ◀ button to decrease the microphone volume.

Press the ▶ button to increase the microphone volume.

EQ

Set audio EQ values.

USER CONTROLS

Options

Logo

Use this function to set the desired startup screen. If changes are made they will take effect the next time the projector is powered on.

Default: The default startup screen.

User: Use stored picture from "Logo Capture" function.

Logo Capture

Press ▶ button to capture an image of the picture currently displayed on screen.

Note:

"Logo Capture" is not available when 3D is enabled.

Before active this function, it is recommended that "Aspect Ratio" is set to the "Auto".

Auto Source

On: The projector will search for other signals if the current input signal is lost.

Off: The projector will only search current input connection.

Input

Press ▶ button to enable/disable input sources. The projector will not search for inputs that are not selected.

Auto Power Off (Min)

USER CONTROLS

Optional Filters Remind (Hour)

Optional Filter Installed: Filter is installed or not.

Filter Usage Hours: Hours of filter had been used.

Filters Remind (Hour): Set the filter reminder time.

- Cleaning Up Remind: Select "Yes" to reset the dust filter hour counter after replacing or cleaning the dust filter.

Security

- Security: Choose "On" to use security verification when turning on projector. Choose "Off" to be able to switch on the projector without password verification.

Security Timer

Use this function to set the how long (Month/Day/Hour) the projector can be used. Once this time has elapsed you will be requested to enter your password again.

Change Password•

First time:

Press "4" to set the password.

The password has to be 6 digits.2.

Use number button on the remote to enter your new password and then press "3:" key to confirm your password.

Change Password:

Press "4" to input old password.

Use number button to enter current password and then press "2." to confirm.

Enter new password (6 digits in length) using the number buttons on the remote, then press "3:" to confirm.

Enter new password again and press "4:" to confirm.

If the incorrect password is entered 3 times, the projector will automatically shut down.

If you have forgotten your password, please contact the dealer for support.

Note:

Password default value is "000000" (first time).

Always keep the password in your files. If the password is forgotten or lost, please contact your local authorized service center.

USER CONTROLS

Remote Setting

• IR function: When this function is "Off", the projector cannot be operated by the remote control.
• Remote code: 00\~99, default code (common code): 00

Note:

How to set remote controller to the remote code.

1. Press remote controller "ID" Key for 5 secs

2. Press remote controller the number button (XX)

For example, if user would like to set remote controller to map remote code setting value 2, press ID Key for

5 seconds and then press 02.

HDBaseT Control

The projector will automatically detect the signal from HDBaseT transmitter supplied. Choose "HDBaseT" to activate Direct Power mode.

PIP-PBP Module

Version: Show PIP-PBP module software version.*

Reset: Reset the PIP-PBP module.

USB Upgrade: Upgrade the PIP-PBP module software.

HDMI EQ: Set PIP-PBP module HDMI port EQ value.

Information Hide

On: Choose "On" to hide the info message.*

Off: Choose "Off" to show the "info" message.

Information

Display the projector information for model name, SNID, source, resolution, software version, aspect ratio, SSI Hours, IP Address and Network Status on the screen.

USER CONTROLS

3D

3D

Auto: When a HDMI 1.4a 3D timing identification signal is detected, the 3D image is selected automatically.

Choose "On" to enable 3D function.

Choose"Auto" to detected 3D signal automatically.

3D Invert

If you see a discrete or overlapping image while wearing DLP 3D glasses, you may need to execute "Invert" to get best match of left/right image sequence to get the correct image.

3D Format

Use this feature to select the 3D format. Options are: "Frame Packing", "Side-by-Side (Half)", "Top and Bottom", "Frame Sequential".

1080p@24

Use this feature to select 96 or 144Hz refresh rate as using 3D glasses in the1080p @ 24 frame packing.

USER CONTROLS

LAN

Status

Display the network connection status.

DHCP

Configure the DHCP settings.

On: Choose "On" to let the projector to obtain an IP address automatically from your network.

Off: Choose "Off" to assign IP, Subnet Mask, Gateway, and DNS configuration manually.

IP Address

Display an IP address.

Subnet Mask

Display the subnet mask number.

Gateway

Display the default gateway of the network connected to the projector.

DNS

Display the DNS number.

MAC Address

Display the MAC address.

Group

Display the group name.

Projector Name

Display the projector name.

Location

Display the projector location.

Contact

APPENDICES

Projector Problems

? The projector stops responding to all controls

If possible, turn off the projector, then unplug the power cord and wait at least 60 seconds before reconnecting power.
▶ Check that "Keypad Lock" is not activated by trying to control the projector with the remote control.

? If the remote control does not work

▶ Check if the operating angle of the remote control is within ±30^ both horizontally and vertically on one of the IR receivers on the projector.
Make sure there is no obstruction between the remote control and the projector. Move to within 12 m ( ±0^ ) of the projector.

Make sure the batteries are inserted correctly.

Replace batteries if they are exhausted.

Ensure that you have set your remote to the correct IR code setting.

When making a direct connection from your computer to the projector

If you have network connection problem from your computer to the projector, please refer to the computer setting as below or contact with web administrator.

Step 1: Find an IP Address (192.168.0.100) from LAN function of projector.

IP Address

192.168.0.100

Step 2: Select "Apply" and push the "Enter" button. Once the setting is saved, exit the OSD by pushing "Menu" button.

Step 3: To open Network Connections, click Start, click Control Panel, click Network and Internet Connections, and then click Network Connections. Click the connection you want to configure, and then, under Network Tasks 📄, click Change settings of this connection.

APPENDICES

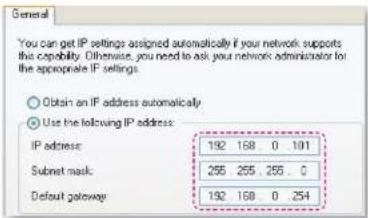

Step 5: Click Use the following IP address, and type in as below:

1) IP address: 192.168.0.101
2) Subnet mask: 255.255.255.0
3) Default gateway: 192.168.0.254

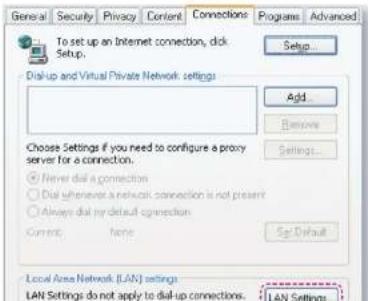

Step 6: To open Internet Options, click IE web browser, click Internet Options, click the Connections tab and click "LAN Setting...".

APPENDICES

How to use web browser to control your projector

1. Turn on DHCP to allow a DHCP server to automatically assign an IP, or manually enter the required network information.

1. Then choose apply and press button to complete the configuration process.

2. Open your web browser and type in IP Address from the OSD LAN screen then the web page will display as below:

Note: When you used the projector IP address, you will can not link to your service server.

1. Based on network web-page for the input-string in [tools] tab, the limitation for Input-Length is in the below list ("space" and the other punctuation key included):

Category Item		Input-Length (characters)
Crestron Control	IP Address 15
	IP ID 2
	Port 5
Projector	Projector Name 10
	Location 9

APPENDICES

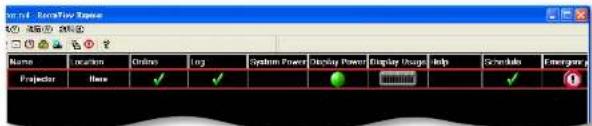

Crestron RoomView Control Tool

Crestron RoomView™ provides a central monitoring station for 250+ control systems on a single Ethernet network (more are possible, the number depends on the combination of IP ID and IP address). Crestron RoomView monitors each projector, including projector's online status, system power, light source life, network setting and hardware faults, plus any custom attribute as defined by the Administrator.

The Administrator can add, delete, or edit room information, contact information and events, which are logged automatically by the software for all users. (Operation UI as following image)

Note: Crestron RoomView function support is dependent on models.

Main Screen1.

Edit Room2.

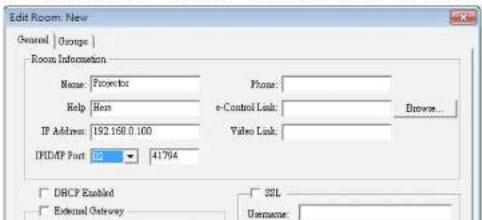

On the "Edit Room" page, enter the IP Address (or hostname) as shown on the projector's on-screen display (OSD) menu, and "02" for IPID, "41794" for the reserved Crestron control port.

APPENDICES

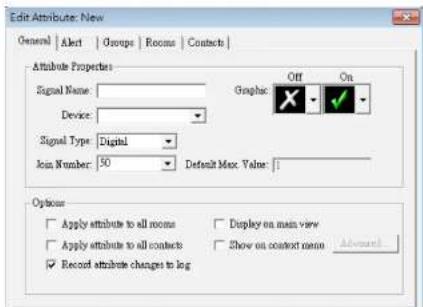

Edit Attribute3.

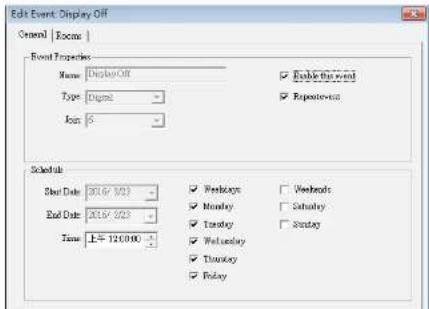

Edit Event4.

APPENDICES

Installing and Cleaning the Optional Dust Filter

We recommend you clean the dust filter every 500 hours of operation, or more often if you are using the projector in a dusty environment.

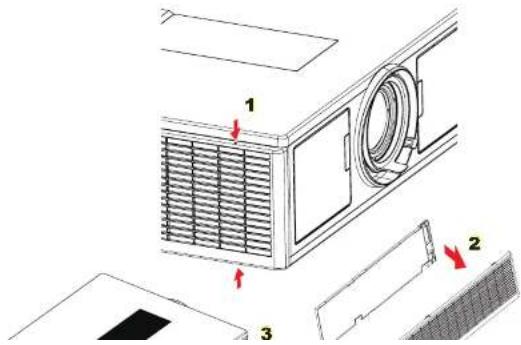

When the warning message appears on the screen, do the following to clean the air filter:

Note:

The optional dust filter should be used in dusty environments.

If the dust filter is installed, a proper maintenance will prevent overheat- ing and projector malfunction.

The dust filter is optional.

The specific inter- faces are selected in terms of the specifications of types.

APPENDICES

Compatibility Modes

		A. VGA Analog
		(1) PC Signal
Modes Resolution		V.Frequency [Hz]	H.Frequency [KHz]	Pixel CLK [MHz]	EDID Description
VGA 640x480	60 31.5			25.2	Established Timings 1
	640x480 67 35.0	26.8 Established Timings 1
	640x480 72 37.9			31.5	Established Timings 1
	640x480 75 37.5			31.5	Established Timings 1
	640x480 85 43.3			36.0
IBM 720x400	70 31.5	28.3 Established Timings 1
SVGA 800x600	56 35.1			36.0	Established Timings 1
	800x600 60 37.9			40.0	Established Timings 1
	800x600 72 48.1	50.0 Established Timings 2
	800x600 75 48.9	49.5 Established Timings 2
	800x600 85 50.7	56.3
Apple, Mac II 832	x624 75 49.1	57.3 Established Timings 2
XGA 1024x768	60 48.4	65.0			WXGA: Established Timings 2XGA: Established Timings 2and (Native)Detailed Timing / Descriptor Block 1
	1024x768 70	56.5	75.0 Established Timings 2
	1024x768 75	60.0	78.8 Established Timings 2
	1024x768 85	68.7	94.5
	1024x768 120	99.0	137.8 Standard Timing Identification
Apple, Mac II 1152	x870	75	68.7	100.0 Manufacturer's Reserved Timing
SXGA	1280x1024 60	64.0	108.0
	1280x1024 72	77.0	133.0
	1280x1024 75	88.8	135.8 Established Timings 2

APPENDICES

576i	720x576(1440x576)	50(25) 15.6	13.5
480p 720x480	59.94 31.5 27.0
576p 720x576	50 31.3 27.0
720p 1280x720	60 45.0 74.25
720p 1280x720	50 37.5 74.25
1080l 1920x1080	60(30) 33.8 74.25
1080l 1920x1080	50(25) 28.1 74.25
1080p 1920x1080	23.98/24 27.0 74.25
1080p 1920x1080	60 67.5 148.5
1080p 1920x1080	50 56.3 148.5
		B. HDMI Digital
		(1) PC Signal
Modes Resolution		V.Frequency [Hz]	H.Frequency [KHz]	Pixel CLK [MHz]	EDID Description
VGA 640x480	60 31.5			25.2	Established Timings 1
	640x480	67	35.0	26.8	Established Timings 1
	640x480 72 37.9			31.5	Established Timings 1
	640x480 75 37.5			31.5	Established Timings 1
	640x480 85 43.3			36.0
IBM	720x400	70	31.5	28.3	Established Timings 1
SVGA 800x600	56 35.1			36.0	Established Timings 1
	800x600	60	37.9	40.0	Established Timings 1
	800x600	72	48.1	50.0	Established Timings 2
	800x600	75	46.9	49.5	Established Timings 2
	800x600	85	53.7 56.3
Apple, Mac II	832x624	75	49.1	57.3	Established Timings 2

APPENDICES

WXGA 1280x720 60 44.8 74.2 Standard Timing Identification
	1280x800 60	49.6 83.5			WXGA: (Native)Detailed Timing / Descriptor Block 1XGA: Standard Timing Identification
	1366x768 60	47.7 84.8
	1440x900 60	59.9 106.5 Standard Timing Identification
WSXGA+ 1680x1050 60 65.3 146.3					WXGA: Standard Timing IdentificationXGA: N/A
	1920x720 60	44.35 92.25
		(3) HDMI - Video Signal
640x480p 640x480 59.94/60 31.5		25.2			Short Video Descriptor of CEA EDID Timing
480i	720x480(1440x480)	59.94(29.97)	15.7 13.5		Short Video Descriptor of CEA EDID Timing
576i	720x576(1440x576)	50(25) 15.6	13.5		Short Video Descriptor of CEA EDID Timing
480p 720x480 59.94 31.5 27.0					Short Video Descriptor of CEA EDID Timing
576p 720x576 50 31.3 27.0					Short Video Descriptor of CEA EDID Timing
720p	1280x720 60	45.0 74.25			(Native)Short Video Descriptor of CEA EDID Timing
720p	1280x720 50	37.5 74.25			(Native)Short Video Descriptor of CEA EDID Timing
1080i	1920x1080 60	(30) 33.8 74.25			Short Video Descriptor of CEA EDID Timing
1080i	1920x1080 50	(25) 28.1 74.25			Short Video Descriptor of CEA EDID Timing
1080p	1920x1080	23.98/24 27.0	74.25		Short Video Descriptor of CEA EDID Timing

APPENDICES

Ceiling Mount Installation

1. To prevent damage to your projector, please use the Optoma ceiling mount.
2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specifications:

Screw type: M4*4*

Minimum screw length: 14mm

Note: Please note that damage resulting from incorrect installation will void the warranty.

Warning:

1. If you buy a ceiling mount from another company, please be sure to use the correct screw size. Screw size will vary depending on the thickness of the mounting plate.
2. Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector.
3. Avoid installing the projector near a heat source.

APPENDICES

Optoma global offices

For service or support, please contact your local office.

USA

3178 Laurelview CL. 888-289-6786

Fremont, CA 94538, USA 510-897-8601

www.optomausa.com [e-mail]

Canada

3178 Laurelview Ct. 888-289-6766

Fremont, CA 94538, USA 510-897-8601

www.oplomausa.com [e-mail]

Latin America

3178 Laurelview Ct. 888-289-6786

Fremont, CA 94538, USA 510-897-8601

www.optomausa.com [e-mail]

Europe

Unit 1, Network 41, Bourne End Mills

Hemel Hempstead, Herts,

HP1 2UJ, United Kingdom [phone]

www.optoma.eu [phone]

Service Tel: [phone] [e-mail]

Benelux BV

Randstad 22-123 [phone]X0252

1316 BW Almere [phone]

The Netherlands

www.optoma.nl

Scandinavia

Lerpeveien 25 [phone]

3040 Drammen [phone]

Norway [e-mail]

PO.BOX 9515

3038 Drammen

Norway

Korea

WOOMI TECH.CO.,LTD.

4F, Minu Bldg.33-14, Kangnam-Ku, 82+2+34430004

seoul,135-815, KOREA +82+2+34430005

Japan

東京都足立区核税3-25-18

12F., No. 213, Sec. 3, Beixin Rd.. [phone]

Xindian Dist., New Taipei City 231, £886-2-8911-6550

Taiwan, R.O.C. [e-mail]

www.optoma.com.tw asia.optoma.com

Hong Kong

Unit A, 27/F Dragon Centre,

79 Wing Hong Street [phone]

Completely blank white image with no visible content, text, or symbols.
