Product Type	Video Projector
Model	RICOH PJ WX2440
Display Technology	DLP (0.65" WXGA DMD)
Native Resolution	1280 x 800 (WXGA)
Lamp Type	190W
Lamp Life	Normal: 5000 hours; Eco: 6000 hours
Projection Lens	Manual zoom (1:1.10) and manual focus
Throw Ratio	1.54 to 1.72
Projection Distance	1.1 m to 10 m
Image Size	30" to 300" diagonal
Keystone Correction	Digital keystone correction
Input Terminals	HDMI (2, one MHL), Computer In (D-sub 15), Video In, Audio In, Audio Out, PC Control (D-sub 9), Service/5V 1.0A
Built-in Speaker	2W
Noise Level	Normal: 34 dB(A) typ; Eco: 31 dB(A) typ
Power Consumption	Normal: 238W typ; Eco: 196W typ
Standby Power	0.5W or less
Weight	Approx. 2.6 kg

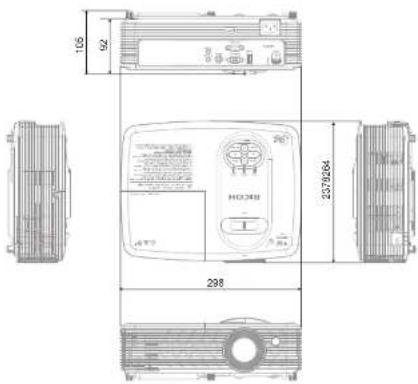

Dimensions (W x D x H)	298 x 237 x 92 mm (without protrusions), 298 x 237 x 105 mm (with)
Operating Temperature	41°F to 104°F (5°C to 40°C)
OSD Languages	Multilingual (English, Japanese, Chinese)
3D Compatibility	Yes (Blu-ray 3D, Side-by-Side, Top-and-Bottom)
Security	Password protection
High Altitude Mode	On/Off for elevations >2500 ft
Included Accessories	Remote control with batteries, power cord, RGB cable, CD-ROM, lens cap

Frequently Asked Questions - PJ WX2440 RICOH

How do I connect my laptop to the Ricoh PJ WX2440 projector?

Use an HDMI cable or the supplied RGB cable. For HDMI, connect to the HDMI 1 In or HDMI 2/MHL In port. For VGA, connect to the Computer In (D-sub 15) port. Ensure the projector is powered on and select the correct input source via the Input button.

How can I adjust the projected image size and focus?

Use the zoom lever on top of the projector to zoom in/out, and rotate the focus ring to sharpen the image. The projector must be at a distance of 1.1 m to 10 m for a 30" to 300" image.

What should I do when the lamp replacement warning appears?

The warning indicates the lamp is near end of life. Replace it with Replacement Lamp Type 27. Turn off the projector, unplug, wait at least 60 minutes for cooling. Remove the lamp cover screw, slide the cover, remove the lamp module screw, carefully lift out the old lamp, install the new one, and reverse steps.

What do the indicator lights on the control panel mean?

Power indicator: red in standby, blue when on, flashing blue during warm-up, flashing red during cool-down. Lamp indicator: red indicates lamp error or end of life. Temp indicator: red indicates overheating or fan failure. See manual page 61 for details.

How do I enable 3D mode on this projector?

Connect a 3D source via HDMI. The projector automatically detects Blu-ray 3D. For other formats, go to 3D menu in OSD and select appropriate 3D Format (Auto, Side-by-Side, Top-and-Bottom). You may need to adjust 3D Sync Invert if image appears reversed.

Can I use the projector at high altitudes?

Yes. Press Menu, go to OPTIONS > High Altitude and set to On when operating above 2500 ft (750 m). This increases fan speed to prevent overheating.

How do I clean or replace the air filter?

The filter is optional and sold separately. To clean, turn off projector and unplug. Remove the filter cover (if installed), clean with a vacuum or replace with a new RICOH 1PJ Replacement Air Filter Type 6. Reset the filter timer in OPTIONS > Filter Settings after replacement.

How can I set a password to prevent unauthorized use?

Go to SETTING > Security in OSD. Set Security to On, then Change Password. The default password is 123456. Enter a new password. The projector will request the password each time it is turned on.

Why is the image flickering or not displaying correctly?

Press the Auto button on the remote to auto-sync. If still flickering, adjust Phase and Clock in the SCREEN menu. Ensure computer resolution is ≤ 1600x1200. For notebooks, toggle display output (e.g., Fn+F7 or similar).

How do I set the projector to turn off automatically?

Go to SETTING > Auto Power Off (Min). Set a time from 0 to 99 minutes. When no signal is detected, the projector will power off after the set time. Set to 0 to disable.

USER MANUAL PJ WX2440 RICOH

RICOH PJ WX2440 / X2440 / S2440

User's Manual

1. Usage Notice
2. Introduction
3. Basic Operations
4. User Settings
5. Troubleshooting
6. Replacing the lamp
7. Appendices

Abstract composition of colorful circles (no text or symbols)

Gradient background transitioning from dark purple to white (no text or symbols)

Table of Contents

Table of Contents ....1

Usage Notice....2

Precautions....2

Safety Labels of This Machine......12

Regulation & Safety Notices......13

Other Information....18

Introduction....19

Product Features 19

Package Overview....20

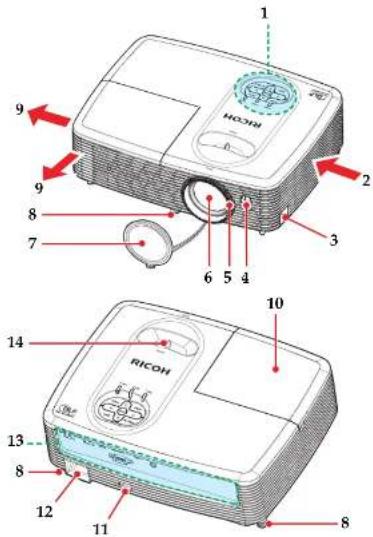

Product Overview 21

Connection Ports 22

Control Panel 23

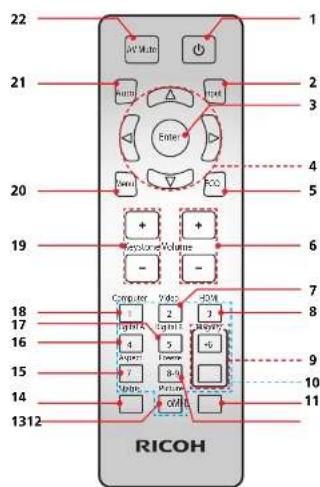

Remote Control....24

Remote Control Battery Installation..... 26

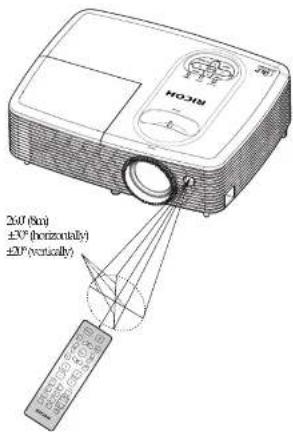

Remote Control Operating Range.....27

Basic Operations....28

Connecting the Projector....28

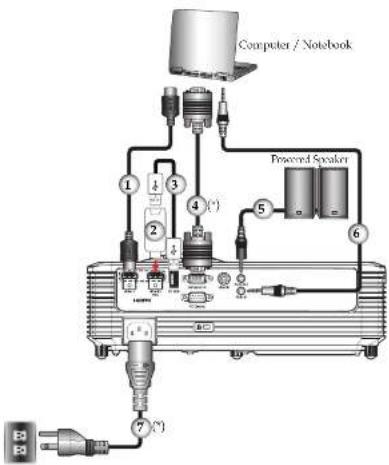

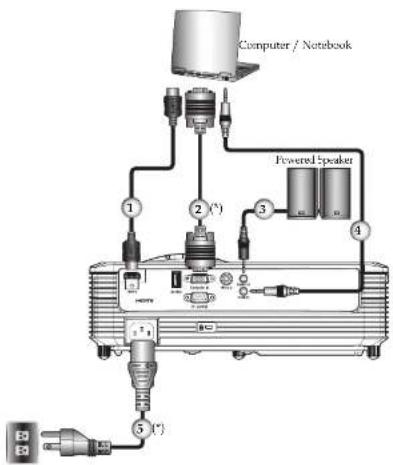

Connect to Computer/Notebook.....28

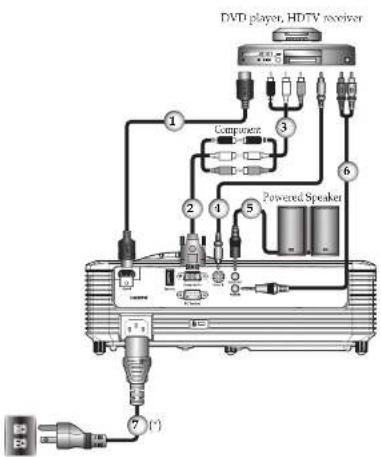

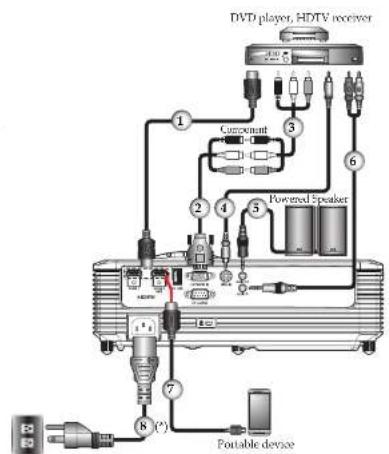

Connect to AV Equipment 30

Powering On/Off the Projector......32

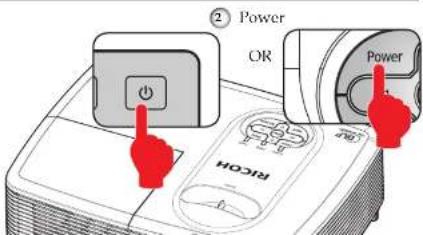

Powering On the Projector 32

Powering Off the Projector 33

Warning Indicator 34

Adjusting the Projected Image....35

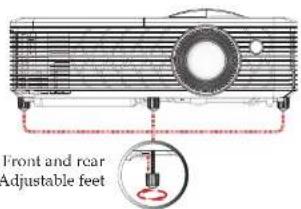

Adjusting the Position of Projector Image...35

Adjusting the Projector Zoom and Focus...36

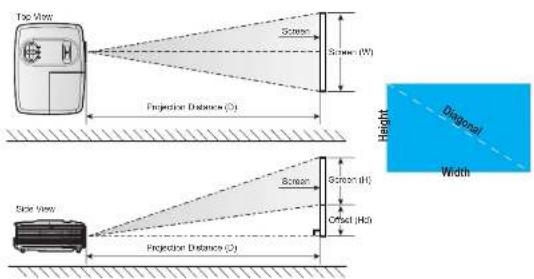

Adjusting Projection Image Size..... 37

User Settings 39

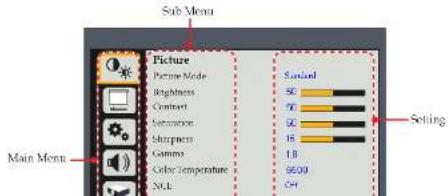

Using the On Screen Display (OSD) 39

How to operate....39

PICTURE....40

SCREEN 45

SETTING....48

Troubleshooting ....57

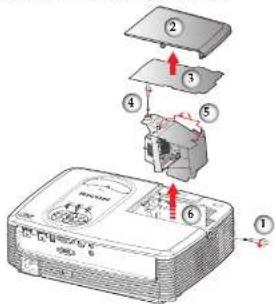

Replacing the lamp....62

Appendices 63

List of Compatible Signals....63

Configurations of Terminals 68

Terminal: Computer In (Mini D-sub 15 pin) 68

Terminal: PC Control (D-sub 9 pin) ..... 66

Specifications....69

Cabinet Dimensions....70

Trademarks....71

Usage Notice

Precautions

Follow all warnings, precautions and maintenance as recommended in this user's guide to maximize the life of your unit.

Warning-

Indicates a potentially hazardous situation which, if instructions are not followed, could result in death or serious injury.

Caution-

Indicates a potentially hazardous situation which, if instructions are not followed, may result in minor or moderate injury or damage to property.

■ Warning- Do not place vases, plant pots, cups, toiletries, medicines, small metal objects, or containers holding water or any other liquids, on or close to this machine. Fire or electric shock could result from spillage or if such objects or substances fall inside this machine
■Warning- Keep the machine and attachments out of the reach of children. If the machine is near children, it may cause injury.
■ Warning- Plastic bags can be dangerous, please do not leave near babies and young children. To avoid the threat of suffocation, please keep away from their nose and mouth.
■ Warning- Do not use any power sources other than those that match the specifications shown in this manual. Doing so could result in fire or electric shock.
■ Warning- Do not damage, break, or modify the power cord. Also, do not place heavy objects on the power cord, or pull the cord or bend it severely. Doing so could result in fire or electric shock.
Warning- Touching the prongs of the power cable's plug with anything metallic constitutes a fire and electric shock hazard.
■ Warning- Do not use flammable sprays or solvents in the

Usage Notice

■ Warning- The supplied power cord is for use with this machine only. Do not use it with other appliances. Doing so could result in fire or electric shock.
■ Warning- It is dangerous to handle the power cord plug with wet hands. Doing so could result in electric shock
■ Warning- Be sure to disconnect the plug from the wall outlet at least once a year and check for the following:
■There are burn marks on the plug.
■The prongs on the plug are deformed.
If any of the above conditions exist, do not use the plug and consult your dealer or service representative. Use of the plug could result in fire or electric shock.
- Warning- Be sure to disconnect the power cord from the wall outlet at least once a year and check for the following: - The power cord's inner wires are exposed, broken, etc.
■The power cord's coating has a crack or dent.
■When bending the power cord, the power turns off and on.
■Part of the power cord becomes hot.
■The power cord is damaged.
If any of the above conditions exist, do not use the power cord and consult your dealer or service representative. Use of the power cord could result in fire or electric shock.
■ Warning- Be sure to locate the machine as close as possible to a wall outlet. This will allow easy disconnection of the power cord in the event of an emergency.
■ Warning- Do not use the connection cable if it is deformed, cracked, or damaged. Doing so could result in fire or electric shock. If the connection cable is deformed, cracked, or damaged, contact your service representative to request a replacement cable.
■ Warning- When using an extension cord or power strip, only connect equipment whose total power consumption is within the power rating for the extension cord or power strip. If the power rating is exceeded, it may cause heat buildup and result in fire.
■ Warning- If the machine emits smoke or odours, or if it behaves

Usage Notice

Do not use the machine. Doing so could result in fire or electric shock.

■ Warning- If metal objects, or water or other fluids fall inside this machine, you must turn off its power immediately. After turning off the power, be sure to disconnect the power cord plug from the wall outlet. Then contact your service representative and report the problem. Do not use the machine. Doing so could result in fire or electric shock.

■ Warning- Never operate this unit on AC power during a thunderstorm. If you see lightning or hear thunder, never touch the unit, cables and/or peripherals. An electric surge caused by the storm, may result in an electrical shock or damage to the unit.

■ Warning- If the machine topples, or if a cover or other part gets broken, you must turn off its power immediately. After turning off the power, be sure to disconnect the power cord plug from the wall outlet. Then contact your service representative and report the problem. Do not use the machine. Doing so could result in fire or electric shock.

■ Warning- Do not use lens cap when projector is powered on

■ Warning- Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

■ Warning- Do not place or keep the projector within the reach of the children. It may fall or tip over, possibly causing serious injury

■ Warning- Do not remove any covers or screws that are not mentioned in this manual. There are high voltage components inside the machine that may cause electric shock. Contact your service representative if any of the machine's internal components require maintenance, adjustment, or repair.

■ Warning- Do not disassemble or modify the machine. Doing so may cause injury or malfunction.

■ Warning- Installing the Projector on a Wall or Ceiling: a) Do not attempt to clean or reduce parts for

Usage Notice

b) Do not open the lamp cover of a machine that is installed on a wall or ceiling. Doing so may cause the lamp cover to fall down. If the lamp is broken, pieces of glass may fall and cause an injury.

c) Contact your sales or service representative to clean or replace parts for a machine that is installed on a wall or ceiling.

d) If a machine is incorrectly installed on a wall or ceiling, it may fall down and cause an injury. Contact your sales or service representative if you want to install a machine on a wall or ceiling.

e) Do not obstruct the machine's vents. Doing so risks fire caused by overheated internal components.

f) For users, do not install the projector by yourself. Contact your sales or service representative if you want to install the projector on a wall or ceiling. g) For sales or service representatives:

- Use brackets that are strong enough to support the projector.

* PJ S2440/X2440/WX2440 Series weigh less than 2.6kg.

- The projector must be installed in a location that is sturdy enough to support the full weight of the projector and brackets.

- Use only the screws (three M4-16 screws) provided with the projector to attach the brackets to the projector.

■ Caution- Keep the machine away from humidity and dust. Otherwise a fire or an electric shock might occur

■ Caution- Do not place any objects on the machine. Doing so may cause the machine to topple over, possibly resulting in injury.

■ Caution- Do not place the machine on an unstable or tilted surface. If it topples over, an injury might occur

■ Caution- Do not place the machine or use it in an environment where it might get wet such as from snow, rain, or being near water. Doing so could result in fire or electric shock.

■ Caution- Do not put your face or hand near the exhaust vents. Doing so could result in burns or an accident due to

Usage Notice

■ Caution- Do not place the machine in a location where air flow is poor. Doing so may cause fire due to internal components becoming overheated.
■ Caution- Do not place or store the machine in a location where direct sunlight or heat generation might occur. The heat may deform or wear out the exterior parts or negatively affect internal parts. Doing so could result in fire.
■ Caution- Do not place low heat resistant material near the exhaust vents. Hot air may come from the exhaust vents, resulting in damage to the machine or an accident.
■ Caution- Do not obstruct the machine's vents. Doing so risks fire caused by overheated internal components.
■ Caution- Push the power plug all the way into the power outlet. Do not use a power outlet with a loose connection. Doing so may result in heat buildup. Plug the power cord in the correct direction into the base. If they are not plugged in correctly, it could result in smoke, fire, or electric shock.
■ Caution- If this machine is not going to be used for several days or longer at a time, disconnect its power cord from the wall outlet.
■ Caution- When disconnecting the power cord from the wall outlet, always pull the plug, not the cord. Pulling the cord can damage the power cord. Use of damaged power cords could result in fire or electric shock.
■ Caution- Be sure to disconnect the plug from the wall outlet and clean the prongs and the area around the prongs at least once a year. Allowing dust to build up on the plug constitutes a fire hazard.
■ Caution- When performing maintenance on the machine, always disconnect the power cord from the wall outlet.
■ Caution- Do not place the power cord and connection cable in a way that might cause someone to trip and fall. The machine might fall over and cause an injury.
■ Caution- The machine may be very hot after it is turned off, especially the vents and the lower part of the unit where the lamps is located. Avoid touching these areas

Usage Notice

■ Caution- Do not increase the volume unless you are listening while increasing the volume. Also, lower the volume before turning off the power, because a loud sound may be emitted when the power is turned on and cause hearing damage.
■ Caution- Do not tilt the machine horizontally more than ±20 degrees. Doing so may cause the entrance of foreign objects in the housing of the machine which could result in fire or electric shock.
■ Caution- If the machine's interior is not cleaned regularly, dust will accumulate. Fire and breakdown can result from heavy accumulation of dust inside this machine. Contact your sales or service representative for details about and charges for cleaning the machine's interior.
■ Caution- Unplug the power cord from the wall outlet before you move the machine. While moving the machine, take care that the power cord is not damaged under the machine. Failing to take these precautions could result in fire or electric shock.
■ Caution- Do not use attachments not recommended by RICOH. Use of an incompatible attachments could cause hazards or damage to the product.
■ Caution- Unplug this product from the wall outlet and take the product to qualified service personnel if you encounter any of the following conditions: a) The power supply cord or plug is damaged. b) Liquid has been spilled, or objects have fallen into the product. c) The product has been exposed to rain or water. d) The product does not operate normally when following the operating instructions. Adjust only those controls that are covered by the operating instructions. e) The product has been dropped or damaged in any way. (If the cabinet should break, please handle with care to avoid injury.)
■ Caution- This product incorporates glass components, including a lens and a lamp. If these should break, please handle with care to avoid injury and contact your sales representative for repair service. Avoid any

Usage Notice

■ Caution- Do not place anything in front of the lens while the projector is operating. Things placed in front of the lens may overheat and burn or start a fire.
■ Caution- Unauthorized substitutions may result in fire, electric shock, or other hazards. (Only the replacement of the lamp should be made by users.) Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to verify that the product is in proper operating condition.
■ Caution- Do not use the product in a closed installation location. Do not place the product in a box or in any other closed installation location. Otherwise it may overheat, which could result in a risk of fire

Usage Notice

ABOUT THE LAMP

■ Warning- When the lamp reaches the end of its life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, follow the procedures listed under "Replacing the Lamp".

■ Warning- Before replacing the lamp, turn off the power and wait at least one hour to allow the machine to cool completely. If it is not completely cool, you may burn or injure yourself due to the inside of the machine and lamp unit being hot. If you replace the lamp without unplugging the power cord from the power outlet, electric shock or explosion may occur.

■ Warning- Be careful when handling the used lamp so that it does not break. If it breaks, it may cause injury.

■ Caution- This projector will detect the life of the lamp itself. Be sure to change the lamp when it shows warning messages.

■ Caution: The machine's light uses a mercury vapor lamp that becomes high pressure when it is turned on. The lamp has the following characteristics, so be sure to handle it with care after understanding the contents. If the lamp explodes and you are either injured from broken pieces of glass, think you have gotten glass particles or mercury vapour in your eyes, or have inhaled glass particles or mercury vapour, contact a doctor immediately.

■Deterioration or shock can cause the lamp's life span to end or the lamp to explode. If the lamp explodes, it may make a big noise.

■The time that it takes for the lamp to reach its life span or explode depends on each individual lamp and its operating conditions. It is possible that it might explode the first time it is used.

■If you use the lamp past its replacement period, the possibility of explosion increases.

Usage Notice

■If the lamp explodes, a very small amount of

mercury vapor in the lamp tube and broken glass

pieces may be ejected from the vents or other opening.

What to do if a lamp has exploded

If the lamp explodes, remove the power cord from the projector, leave the room while making sure it is thoroughly ventilated.

If the lamp explodes and you think that you have gotten glass particles or mercury vapor in your eyes or have inhaled either, contact a doctor immediately.

Clean up the area around the projector completely while being careful not to get injured from any broken glass pieces.

Throw away any food that was near the projector.

Ask your service representative to replace the lamp and inspect the projector.

Usage Notice

REMOTE CONTROL BATTERY

Warning

- Never throw batteries into a fire.

Using the batteries improperly may cause them to explode or leak and may result in serious injury. If battery-leaking fluid contacts skin, wash the fluid off immediately with clean water and consult a doctor. If the fluid spills on an instrument, avoid contact and wipe it off using tissue paper. Then dispose of the used tissue paper as flammable garbage after moistening the tissue with water.

- Keep new and used batteries away from children.

If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

Notes

• Be sure to use AAA (RIO3) size batteries.
• Dispose of batteries in a designated disposal area.
• Attention should be drawn to the environmental aspects of battery disposal.
• If the remote control does not operate correctly, or if the operating range becomes reduced, replace the batteries.
• Avoid contact with water or liquid.
• Do not expose the remote control to moisture or heat.
• Do not drop the remote control.
• If the batteries have leaked in the remote control, carefully wipe the case clean and install new batteries.
• Dispose of used batteries according to the instructions.
• The remote control may fail to operate if the infrared remote sensor is exposed to bright sunlight or fluorescent lighting.

Important:

Contents of this manual are subject to change without prior notice. In no event will the company be liable for direct, indirect, special, incidental, or consequential damages as a result of handing or

Usage Notice

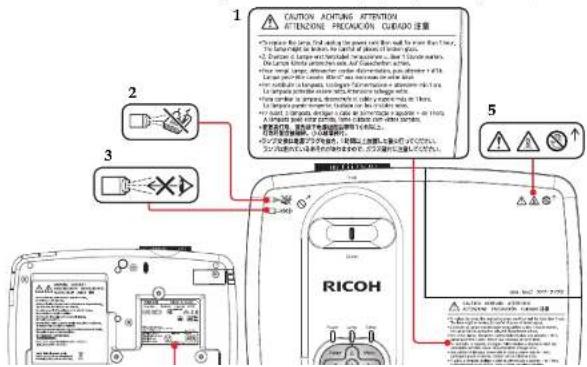

Safety Labels of This Machine

1 To replace the lamp, unplug the power cord and then wait for 60 minutes.
2 Do not place anything in front of the lens while the projector is operating. Things placed in front of the lens may overheat and burn or start a fire. If you want to temporarily stop the projected image, use the AV mute on the remote control or the keypad.
3 Do not look into the lens while the lamp is on. The strong light from the lamp may cause damage to your eyesight.
4 This product should be operated only from the type of power source which does not exceed the voltage range specified on the rating label and the power cord.
5 Do not block the air intake or exhaust. Doing so could cause a fire due to internal overheating. Do not place your hands, face, or other objects near the air exhaust, the lamp cover or the bottom of the unit. Doing so could result in injury and/or damage the object.

Usage Notice

Regulation & Safety Notices

This appendix lists the general notices of your Projector.

Notice: Users in the United States of America

FCC notice

MODEL NAME: RICOH PJ S2440/ X2440/ WX2440

TRADE NAME: PROJECTOR

MODEL NAME: RICOH PJ S2440/ X2440/ WX2440

Tested To Comply

With FCC Standards

FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired operation.

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.
■ Increase the separation between the device and

Usage Notice

RESPONSIBLE PARTY: Ricoh Americas Corporation

5 Dedrick Place, West Caldwell, NJ 07006

Phone: [phone]

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this projector.

LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS.

Notes to Users in the State of California

Perchlorate Material - special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate.

WARNING: Handling the cord on this product will expose you to lead, a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling.

Notes to Canadian Users

For more information on sale handling procedures, the measures to be taken in case of accidental breakage and safe disposal option visit:

Declaration of Conformity for EU countries

■ EMC Directive 2014/30/EC (including amendments)
Low Voltage Directive 2014/35/EC

Notice: Users in EU countries

CE Marking Traceability Information (For EU Countries Only)

Manufacturer:

Ricoh Co. Ltd

3-6 Nakamagome 1-chome, Ohta-ku, Tokyo. 143-8555,

Japan

Importer:

Ricoh Europe PLC

20 Triton Street, London. NW1 3BF, United Kingdom

User Information on Electrical and

Electronic Equipment

Users in the countries where this symbol shown in this section has been specified in national law on collection and treatment of E-waste.

Our Products contain high quality components and are designed to facilitate recycling.

Our products or product packaging are marked with the symbol below.

Usage Notice

• The lamp contains mercury.

Please dispose of this product or used lamps in accordance with local regulations.

The symbol indicates that the product must not be treated as municipal waste. It must be disposed of separately via the appropriate return and collection systems available. By following these instructions you ensure that this product is treated correctly and help to reduce potential impacts on the environment and human health, which could otherwise result from inappropriate handling. Recycling of products helps to conserve natural resources and protect the environment.

For more detailed information on collection and recycling systems for this product, please contact the shop where you purchased it, your local dealer or sales/service representatives.

Notice: Users in Turkey

If you wish to discard this product, please contact your local authorities, the shop where you bought this product, your local dealer or sales/service representatives.

Usage Notice

Notice: Users in the EU

Note for the Battery and/or Accumulator Symbol

In accordance with the Battery Directive 2006/66/FC Article 20 Information for end-users Annex II, the above symbol is printed on batteries and accumulators. This symbol means that in the European Union, used batteries and accumulators should be disposed of separately from your household waste. In the EU, there are separate collection systems for not only used electrical and electronic products but also batteries and accumulators. Please dispose of them correctly at your local community waste collection/recycling centre.

Notice: Users in Taiwan

廢電池請回收

Copyrights to Images

When projecting images using the projector, be careful not to infringe the copyright of protected materials. The following are examples that may infringe the copyright of protected materials.

• Broadcasting images or movies for commercial purposes
• Modifying images or movies using functions such as freeze, magnify, or zoom to broadcast images for commercial purposes or public viewing
• Varying the aspect ratio of images or movies using a function that changes the screen size to broadcast images for commercial purposes or public viewing

Note to Users Viewing 3D Images

Pay attention to the following points when viewing images using 3D glasses with projector:

• How 3D images are viewed may vary according to the individual.
• Do not use 3D glasses for viewing any material other than 3D images.
• Before viewing 3D images, make sure to read the manuals provided with your 3D glasses and 3D compatible content.
• Avoid viewing 3D images for a long period of time. Take a break of 15 minutes or longer after every hour of viewing.
• If you feel sick while viewing 3D images, stop viewing them. If you continue to feel sick, consult a doctor.
• When viewing 3D image in a room where on LED lighting system or fluorescent lights are used, you may feel that the light in the room flickers. If this is the case, dim the lights until you do not notice any flickers, or turn off the lights.
• If you or any member of your family has a history of light-sensitive seizures, consult a doctor before viewing 3D

Introduction

Product Features

Outstanding features include:

■ True 800x600 (SVGA) / 1024x768 (XGA)/ 1280x800 (WXGA) resolution, 16.7M True colors
■ Weight <2.6kg(5.75lbs)
■ Manual focus projection 1:1.10 zoom lens
■ Built-in full screen NTSC/PAL/SECAM video capability with S-video/ Composite/ component through D-sub terminals
■ UXGA/ WXGA/ Quad VGA/ SXGA+/ SXGA/ XGA/ SVGA/ VGA/ MAC compatibility
■ User friendly multilingual on screen display
■ Automatic image resizing to 800x600 (SVGA)/ 1024x768 (XGA)/ 1280x800 (WXGA) and full screen

Introduction

Package Overview

This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immediately if anything is missing.

Due to the difference in applications for each country, some regions may have different accessories.

Projector Lens Cap Remote Control

(with Batteries, please see page 27)

Power Cord CD-ROM RGB Cable

Read This First

About the CD-ROM

Contains the user's manual in PDF format and the projector management software.

Support languages of the user's manual are English, Japanese and Chinese. For the other languages, visit RICOH Web site.

Introduction

Product Overview

1. Control panel
2. Ventilation (inlet)
3. Security Bar
4. Remote Receiver
5. Focus ring
6. Ventilation (outlet)
7. Lamp cover
8. Anti-theft lock hole
   (Kensington™ lock)
9. AC In socket

Introduction

The interface is subject to model's specifications.

- Compatible with MHL version 2.1, the charging current 5V@0.9A.

Connection Ports
SVGA

XGA/WXGA

1. HDMI/HDMI 1 In terminal
2. HDMI 2/MHL In termina
3. Service/5V 1.0A terminal

4. Computer In terminal

5. Video In terminal

6. Audio Out terminal

7. Audio In terminal

8. PC Control terminal

Introduction

Control Panel

1 Power indicator Indicate the projector's power status.

2 Lamp indicator Indicate the projector's lamp status.

3 Temp indicator Indicate the inside of the projector's temperature status.

4 Menu Press "Menu" to launch the on screen display (OSD), or go back to the previous menu. (See page 39)

5 Enter Select or confirm settings.

6 AV Mute Momentarily turn off/on the audio and video.

7 Four Directional Select Keys Use ▲ or ◀ to select items or make adjustments to your selection.

8 Input Select the input source.

9 Power Refer to the "Power On/Off the Projector" section. (See pages

Introduction

Remote Control

1 Power Refer to the "Power On/Off the Projector" section. (See pages 32\~33)
2 Input Press "Input" to choose your desired input source.
3 Enter Confirm your section of items in sub

Introduction

Nock

◆ SVGA model supports only HDMI input, MHI. input is not supported.

5 ECO Display Lamp Power Mode popup menu. (See page 52)
6 Volume +/- Increase or decrease speaker volume.
7 Video Press "Video" to choose Video In terminal.
8 HDMI Press "HDMI" to choose HDMI source for PJ S2440 or HDMI1 and HDMI2/MHL source for PJ WX2440 and PJ X2440.
9 Magnify Zoom in the projector display.
10 Number (0~9) Input numbers.
11 MHI. Control Press "MHI. Control" to control your MI IL device.
12 Freeze Pause the screen image. Press again to resume the screen image.
13 Picture Select the preset picture mode.
14 Status Display the projector status.
15 Aspect Use this function to choose your desired aspect ratio.
16 Digital A This function is not supported.
17 Digital B This function is not supported.
18 Computer Press "Computer" to choose Computer in terminal.
19 Kystone +/-	Adjust the image to compensate for distortion caused by tilting the projector.
20 Menu	Press "Menu" to launch the On Screen Display (OSD), back to the top level of OSD for the OSD main menu operation. (See page 39)
21 Auto	Automatically synchronize the projector to the input source.
22 AV Mute	Momentarily turn off/on the audio and video.

Introduction

Remote Control Battery Installation

① Push the clip to release the battery cover.

② Install new batteries (AAA/R03). Ensure that you have the batteries' polarity (+/-) aligned correctly.

③ Close the battery cover and press it down until it clicks into place. Do not mix different types of batteries or new and old batteries.

To ensure safe operation, please observe the following precautions:

■ Use AAA/R03 type battery.
■ Avoid contact with water or liquid.
■ Do not expose the remote control to moisture or heat.
■ Do not drop the remote control.
■ If the battery has leaked in the remote control, carefully wipe the case clean and install new battery.
■ Risk of an explosion if battery is replaced by an incorrect type.
■ Dispose of used battery according to the instructions.
■ Remove batteries from remote control when not using for extended periods.
■ The remote control may fail to operate if the infrared remote sensor is exposed to bright sunlight or fluorescent lighting.

Introduction

Remote Control Operating Range

Point the remote control toward the projector (Remote

Receiver) when pressing any button.

Maximum operating range for the remote control is about

26.0' (8m) and ±30° (horizontally), ±20° (vertically) in front of

the projector.

Basic Operations

Connecting the Projector

Connect to Computer/Notebook

SVGA

Make sure that the power plug is fully inserted into both the projector AC inlet and the wall outlet.
The AC outlet must be near this equipment and must be easily accessible.
Due to the difference in applications for each country, some regions may have different accessories.
When Audio Out is connected, the built-in speaker doesn't produce sound.
In ensure the projector works well with your computer, please make sure the timing of the display mode is compatible with your projector. (See pages 63-67)
Use the cables that come with the projector. (*)

1.	HDMI cable
2.	RGB cable (supplied)
3.	Audio cable
4.	Audio cable
5.	Power cord (supplied)

Basic Operations

XGA/WXGA

Make sure that the power plug is fully inserted into both the projector AC inlet and the wall outlet.

The AC outlet must be near this equipment and must be easily accessible.

Due to the difference in applications for each country, some regions may have different accessories.

When Audio Out is connected, the built-in speaker doesn't produce sound.

To ensure the projector works well with your computer, please make sure the timing of the display mode is compatible with your projector. (See pages 63-67)

Use the cables that come with the projector. (*)

1	HDMI cable
2	HDMI dongle
3	USB cable
4	3GB cable (supplied)
5	Acho cable

Basic Operations

Connect to AV Equipment

SVGA

Note

Make sure that the power plug is fully inserted into both the projector AC inlet and the wall outlet.
The AC outlet must be near this equipment and must be easily accessible.
- Due to the difference in applications for each country, some regions may have different accessories.
When HDMI input is selected, only audio signal with HDMI can be output.
When Audio Out is connected. Built-in speaker doesn't sound
Use the cables that come with the projector. (*)

1	...... HDMI cable
2	...... Component RGB Cable
3	...... Component Cable
4	...... Video cable
5	...... Audio cable
6	...... Audio cable
7	...... Power cord (supplied)

Basic Operations

XGA/WXGA

Make sure that the power plug is fully inserted into both the projector AC inlet and the wall outlet.
The AC outlet must be near this equipment and must be easily accessible.
Due to the difference in applications for each country, some regions may have different accessories.
When HDMI input is selected, only audio signal with HDMI can be output.
When Audio Out is connected, Built-in speaker doesn't sound.
Use the cables that come with the projector. (*)

1.	HDMI cable
2.	Component-RGB Cable
3.	Component Cable
4.	Video cable
5.	Audio cable
6.	Audio cable
7.	HDMI/MHE cable
8.	Power cord (supplied)

Basic Operations

Powering On/Off the Projector

Powering On the Projector

- If you connect multiple sources at the same time, press "Input" to switch inputs.

1. Ensure that the power cord and signal cable are securely connected. The Power indicator will turn red.

2. Remove the lens cap.

3. Turn on the lamp by pressing the "Power" button on the control panel or the "O" button on the remote control. The Power indicator will flash blue.

The startup screen will display and the Power indicator will turn blue.

1. The first time you use the projector, you will be asked to select the preferred language. Turn on your source (computer, notebook, video player, etc.) The projector will detect your source automatically.

Make sure that the "Auto Source" has been set to "On".

Turn on the projector first and then the signal sources.

CAUTION:

- Do not look into the lens while the lamp is on. The strong light from the lamp may cause damage to your eyesight.

- Do not block the air intake or exhaust. Doing so could cause a fire due to internal overheating.

- Do not place your hands, face, or other objects near the air exhaust, the lamp cover or the bottom of the unit. Doing so could result in injury and/or damage the object.

Basic Operations

Powering Off the Projector

1. Press the "O" button and you will see a message as below on the on-screen display.

1. Press the "O" button again to turn off the projector lamp.

2. The cooling fan continues to operate for about 30 seconds for cooling cycle and the Power indicator will flash red. After cooling down, the light stops flashing, and then the projector will enter the standby mode.

If you wish to turn the projector back on, you must wait until the projector has completed the cooling cycle and has entered standby mode. Once in standby mode, simply press the "O" button to restart the projector.

1. Disconnect the power cord from the electrical outlet and the projector.

Basic Operations

Warning Indicator

When the "Temp" indicator lights red, it indicates the projector has overheated. The projector will automatically shut itself down.

When the "Lamp" indicator lights red, and you see the message below displays on-screen, the projector has detected that the lamp is approaching its end of life. Please change the lamp as soon as possible or contact your local dealer or our service center.

When the "Temp" indicator flashes red (0.5 sec on, 0.5 sec off) and the message below displays, it indicates the cooling fan failed. Stop using the projector and disconnect the power cord from the electrical outlet, then contact your local dealer or our service center.

For more information of the warning indicator, please see page 61.

Basic Operations

Adjusting the Projected Image

Adjusting the Position of Projector Image

The projector is equipped with adjustable feet to raise and lower the image to fill the screen.

1. Locate the adjustable foot you wish to modify on the underside of the projector.
2. Rotate the adjustable ring clockwise to raise the projector or counter clockwise to lower it. Repeat with the remaining feet as necessary.

The projector has one adjustable foot in the front and two adjustable feet on the rear. The maximum length of the feet is 26mm. The maximum tilt angle is 8°

Basic Operations

Adjusting the Projector Zoom and Focus

You may turn the zoom lever to zoom in or out. To focus the image, rotate the focus ring until the image is clear.

▶ Focus at distances;

-SVGA / XGA: from 3.94 to 39.40 feet

(from 1.2 to 12 meters)

-WXGA : from 3.64 to 32.8 feet

(from 1.1 to 10 meters)

Focus Ring

Illustration of a projector with a circular lens and screen (no text or symbols)

Zoom Lever

Basic Operations

Adjusting Projection Image Size

SVGA/XGA/WXGA: Projection image size from 30" to 300".

SVGA/XGA

Diagonal length (inch) size of 4.3 Screen	Screen Size W ± H Projection Distance (D)								Offset (Hd)
	(m) inch (m) (ft/s)
	Width Height Width	Height wide	site wide base (cm) (feet)
30.610	46.24 18.1	1.3 2.88	4.0 7.0 23
40.610	51.32 24.1	1.8 5.15	5.73 9.0 30
60.122	91.45 38.2	2.8 7.72	8.80 14.0 45
70.142	107.56 42.8	3.1 8.01	10.03 16.0 53
80.163	122.64 38.1	3.5 10.28	1.47	18.0 60
90.183	137.72 54.3	3.9 11.58	2.80 21.0 68
100	2.00 1.52	30 80 3.9	2.4 12.87	14.33 23.0 75
120	2.44 1.83	36 72 4.7	5.2 15.44	17.20 27.0 90
150	3.05 2.29	120 90 5	5.8 18.30	21.50 34.1 13
200	4.06 3.05	180 120	7.9 8.7 25.7	28.67 46.1 50
250	5.06 3.41	220 150	9.8 17.23	37.26 57.51 28

Basic Operations

WXGA

Disposallength (inch)size of 16.10Screen	Screen Size With Protection Distance (D)								Offset (Hd)
	(m) inch (m) (fted)
	Width	Height	Width	Height, wide	Wide wide tere	(cm) (fted)
30 0.65	0.40	25.4	15.9	1.0	1.1	3.77	3.85	5.0	15
40 0.86	0.54	33.9	21.2	1.3	1.5	4.36	4.86	7.0	22
60 1.26	0.41	50.9	31.8	2.0	2.2	8.55	7.26	10	33
70 1.51	0.34	59.4	37	1.3	2.6	7.66	8.51	12	38
80 1.72	0.38	67.8	42.4	2.7	3.0	8.73	8.72	13	44
90 1.94	1.21	76.3	47.7	3.0	3.3	9.92	10.84	15	49
100 2.15	1.35	84.8	53	0.3	3.7	10.91	12.15	17	55
120 2.58	1.62	101.8	63	0.4	0.5	13.09	14.59	20	66
150 3.23	2.02	127.2	79.5	0.5	0.6	16.37	18.23	25	82
200 4.31	2.68	169.6	105	0.6	7.7	21.82	24.31	33	110
250 5.36	3.37	212.6	102	2.5	8.3	27.28	30.39	42	137
300 6.48	4.04	264.4	159	0.0	0.0

• This table is for user's reference only.

User Settings

Using the On Screen Display (OSD)

The Projector has a multilingual On Screen Display that allows you to make image adjustments and change a variety of settings.

How to operate

1. To open the OSD, press "Menu" on the Control Panel or Remote Control.
2. When OSD is displayed, use ▲▼ keys to select any item in the main menu. While making a selection on a particular page, press "Enter" to enter sub menu.
3. Use ▲▼ keys to select the desired item in the sub menu and press "Enter" to view further settings. Adjust the settings by using ◀key or ▲▲▼
4. Select the next item to be adjusted in the sub menu and adjust as described above.
5. Press "Enter" or "Menu" to confirm, and the screen will return to the previous menu.
6. To exit, press "Menu" again. The OSD menu will close and the projector will automatically save the new settings.

User Settings


Picture Mode

There are many factory presets optimized for various types of images. The available options:

Note

♦ Bright function is grayed out in 3D mode.

Picture Mode.

Color Temperature,

NCF, and Advanced

functions are grayed out in 3D mode.

Bright: Mode for emphasizing brightness.
Standard: Mode for optimizing the balance between brightness and color reproduction.
Vivid: Mode for emphasizing color.
sRGB: Standard color values.
DICOM SIM.: This mode is suitable for projecting a monochrome medical image such as an X ray radiography, MRI, etc.

Brightness

Adjust the brightness of the image.

▶ Press the ◀ key to darken image.
▶ Press the ▶key to lighten the image.

User Settings

Contrast

The contrast controls the degree of difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image.

Press the ◀cy to decrease the contrast.
Press the ▶key to increase the contrast.

Saturation

Adjust the color saturation of the image.

Press the ◀ key to decrease the amount of color in the image.
Press the ▶key to increase the amount of color in the image.

Sharpness

Adjust the sharpness of the image.

Press the ◀ key to decrease the sharpness.
▶ Press the ▶key to increase the sharpness.

Gamma

Use this function to optimize the image output. The available options: 1.8 / 2.0 / Standard(2.2) / 2.4 / Shine.

Color Temperature

Use this function to select the preset color temperature.

User Settings

NCE (Natural Color Enhancer)

Use this function to enhance color and reproduce vivid colors.

On: Enable NCE.
Off: Disable NCE.

Advanced

Configure the advanced image settings.

WallColor: Use this function to obtain an optimized screen image according to the wall color. The available options: White/ Light Yellow/ Light Blue/ Pink / Dark Green.

Wall Color

White

Light Yellow

Light Blue

Pink

Dark Green

NCE Settings: Configure the image color settings (Hue/Saturation/Gain when Color is Red/Green/Blue/Cyan/Magenta/Yellow).

User Settings

- Color: Use the ◀or ►key to adjust the red, green, blue, cyan, magaenta, and yellow.

- Hue: Use the color key to adjust the color balance of red and green when Color is red, green, blue, cyan, magenta, and yellow.

- Saturation: Use the ◀ or ▶ key to adjust the color saturation when Color is red, green, blue, cyan, magenta, and yellow.

Gain: Use the ◀ or ▶ key to adjust the color brightness when Color is red, green, blue, cyan, magenta, and yellow.

- Reset: Reset the color settings to the factory defaults.

NCE Settings: Configure the image color settings (Red/Green/Blue when Color is White).

- Color: Use the ▶ or key to adjust the red, green, blue. Red: Use the ◀ or ▶ key to adjust the gain of red when Color is White.

User Settings

- Green: Use the color key to adjust the gain of green when Color is White.

- Blue: Use the ◀ or ▶ key to adjust the gain of blue when Color is White.

- Reset: Reset the color settings to the factory defaults.

User Settings

SCREEN

Aspect Ratio

Use this function to choose your desired aspect ratio.

Auto: Automatically selects the appropriate display format. When input is 4:3, the image is displayed as 4:3. When input is 16:9 above, the image is displayed as 16:9.
4:3: Displays 4:3 aspect ratio.
16:9: Displays 16:9 aspect ratio.
16:10: Displays 16:10 aspect ratio.

Phase

Eliminate flicker from the image displayed. Use the ◀or ►key to adjust the value.

- "Phase" and "Clock" functions are only supported under Computer Signal source.

Clock

Adjust the number of total dots in one horizontal period. Use the ◀ or ▶ key to adjust number to match your PC image.

User Settings

- "H. Position" and "V. Position" functions are only supported under Computer Signal source.

H. Position (Horizontal Position)

Shift the projected image position horizontally.

Press the ◀ key to move the image left.
▶ Press the ▶key to move the image right.

V. Position (Vertical Position)

Shift the projected image position vertically.

Press the ◀ key to move the image down.
▶ Press the ▶key to move the image up.

Keystone

Use this function to make an image look visually correct when it is projected onto the screen.

Keystone:Press the ◀ key to adjust image distortion caused by tilting the projector.

Projection

Use this function to select the projector, depending upon how the projector is mounted.

Normal: This is the default selection. The image is projected straight on the screen.

User Settings

Advanced

Configure the advanced screen settings.

Magnify: Use the or key to zoom in or zoom out the image.

RGB Input Range: Adjust the color range of the HDMI image data.

Auto: Automatically detect RGB range.

- Limited Range: Process the input image with a limited RGB range.

- Full Range: Select this mode when computer signal or full range signal from AV equipment is input.

Test Pattern: Use this function to choose your desired test pattern between grid and white. Choose "Off" to disable this function.

- “RGB Input Range” function is only supported under HDMI source.

User Settings

SETTING

Language

Choose the multilingual OSD. Press "Enter" to open the sub menu and then use the ▲ or ▶ or ◀ key to select your preferred language. Press "Enter" to finalize the selection.

Auto Power Off (Min)

Default value of "Auto Power Off (Min)" is 20 min.

Set the countdown timer interval (in minutes). The countdown timer will start, when there is no signal being sent to the projector. The projector will automatically power off when the countdown has finished. When countdown timer is selected to "0", auto power off is disabled.

User Settings

Security

Configure the security settings.

▶ Security:Select"On" to use the security verification when the turning on the projector. Select "Off" to be able to switch on the projector without a password verification.

Change Password: Set the password. The default password is "123456".

Reset

Return the adjustments and settings to the factory default values. Choose "OK" to return the display parameters on all menus except Language, Lamp Hours Used, Filter Reminder, Filter Hours Used, Security and Password to the factory default settings.

User Settings

AUDIO

- "Mute" function affects both internal and external speaker volume.

Mute

Temporarily turn off the sound.

Choose "On" to mute the sound.
Choose "Off" to turn mute off.

Volume

Adjust the volume level.

Press the ◀ key to decrease the volume.
▶ Press the ▶key to increase the volume.

User Settings

OPTIONS

Auto Source

When this function is turned "On", the projector will search for other signals if the current input signal is lost. When this function is turned "Off", it will only search a specified connection port.

Input Source

Use this option to enable/disable input sources. Press "Enter" to select which sources you require. Press "Menu" to finalize the selection. The projector will only search for inputs that are enabled.

For SVGA:

For XGA/WXGA:

User Settings

Lamp Settings

Use this option to view the lamp life status and configure the lamp settings. Press "Enter" to enter the sub menu and configure the desired settings.

When ambient temperature is over 40°C in operating, the projector will switch to "Eco." automatically.

Lamp Hours Used (Normal): Display the projection time. Lamp Hours Used in Eco. mode or "Image FCO" mode "On" will be converted to Lamp Hours Used in "Normal" mode.
Lamp Power Mode: Set the brightness mode. Choose "Normal" to increase the brightness or choose "Eco." to dim the projector lamp which will lower power consumption and extend the lamp life. Choose "Image ECO" to dim the lamp power, depending on the brightness level of images, and significantly reduce the lamp power consumption. The lamp life will be extended.

Lamp Life Reminder: Choose this function to show or to hide the warning message when the changing lamp message is displayed. The message will appear 30 hours before suggested replacement of lamp.

User Settings

Note

•

Due to the difference in applications for each country, same regions may have different accessories.

- Optional filter is separately sold. Use "RICOH1PJ Replacement Air Filter Type 6 (Black)/ (White)".

Filter Settings

Use this option to view the filter status and configure the filter settings. Press "Enter" to enter the sub menu and configure the desired settings.

This item is disabled for the projector sold in some regions.

Filter Hours Used: Display the filter hours.
Filter Reminder: Set the maximum filter time usage.

If the reminder function is enabled and the usage time reached its limit, a message will appear on the screen to remind you to clean or change the filter.

Reset Filter Timer: Choose this function to reset Filter Hours Used.

High Altitude

When "On" is selected, the fans will spin faster. Set High Altitude mode to "On" when the projector is used over 2500ft (750m) elevation.

User Settings

Power Settings

Use this option to configure the power settings. Press "Enter" to enter the sub menu and configure the desired settings.

Direct Power On: Select "On" to automatically power on the projector when the AC power is supplied. If this option is set to "Off", user needs to press the "Power" button on the control panel or the "①" button on the remote control to power on the projector. If changes are made, they will take effect the next time the projector is powered on.

Sleep Timer (Min): Set the countdown timer interval. The countdown timer will start, when there is signal being sent to the projector. The projector will shut down automatically after the countdown has reached 0.

Advanced

Use this option to configure advanced options. Press "Enter" to enter the sub menu and configure the desired settings. If changes are made, they will take effect the next time the projector is powered on.

User Settings

Information

Display the projector information.

Source: Display the input source that is currently connected to.
▶ Resolution: Display the resolution setting of the current input source.
▶ Color Space: Display the color space of the source.
▶ Filter Hours Used: Display the filter hours.
▶ Lamp Time: Display the lamp hours.
▶ Lamp Power: Display the currently used lamp mode.
FWVersion: Display the current firmware version.

User Settings

3D

- "3D Sync Invert" is only available when 3D is enabled.

This setting may need to change when re-start running 310 movie.

◆ 3D function is turned on automatically when Blu-ray 3D source is input.

◆ Picture Mode, Color Temperature, NCF, and Advanced functions are grayed out in 3D mode.

3D Sync Invert

Use this option to enable/disable the 3D sync invert function.

Off: Choose "Off" for default frame contents.
On: Choose "On" to invert left and right frame contents.

3D Format

Use this option to select the appropriate 3D format content.

Auto: Use this mode to let the system to automatically select the appropriate 3D format content.
Side-by-Side: Use this mode for "Side-by-Side" format 3D content.
Top and Bottom: Use this mode for "Top and Bottom" format 3D content.

Troubleshooting

If you experience trouble with the projector, refer to the following information. If the problem persists, please contact your local dealer or service center.

Problem: No image appears on screen

Ensure all the cables and power connections are correctly and securely connected as described in the "Connecting, the Projector" section.
▶ Ensure the pins of terminals are not crooked or broken.
Check if the projection lamp has been securely installed. Refer to the "Replacing the lamp" section for more information.
Make sure you have removed the lens cap and the projector is switched on.
Ensure that the "AV Mute" feature is not turned on.

Problem: Partial, scrolling or incorrectly displayed image

Press "Auto" on the remote control.
Adjust the computer display settings. Verify the resolution setting is less than or equal to 1600 x 1200 resolution. See your operating system's Help file.
If you are using a Notebook:
1. First, follow the steps above to adjust resolution of the computer.
2. Press the toggle output settings. For example: [Fn]+[F3]

PANASONIC, NEC => Fn+F3

HP, SHARP, TOSHIBA => Fn+F5

IBM, SONY => Fn+F7

DELL, EPSON => Fn+F8

FUJITSU => Fn+F10

APPLE => F7

Troubleshooting

Problem: The screen of the Notebook computer is not displaying a presentation

If you are using a Notebook PC:

Some Notebook PCs may deactivate their own screens when a second display device is in use. Each has a different way to be reactivated. Refer to your computer's documentation for detailed information.

Problem: Image is unstable or flickering

Adjust the "Phase" or "Clock" to correct it. Refer to the
"H. Position" or "V. Position" section for more information.
▶ Check and reconfigure the display mode of your graphic card to make it compatible with the product.

Problem: Image is out of focus

Adjust the Focus Ring on the projector lens.
Make sure the projection screen is between the required distance. (refer to pages 37-38)

Problem: The image is stretched when displaying 16:9 DVD

Change the aspect ratio by pressing the "Aspect" button on the remote control or select "Screen > Aspect Ratio" from the OSD menu to show image with proper aspect ratio.

Problem: Image is too small or too large

Adjust the Zoom lever on the top of the projector.
▶ Move the projector closer to or further from the screen.
Press the "Aspect" button on the remote control or press the "Menu" button on the projector panel, go to "Screen > Aspect Ratio" and try the different settings.

Troubleshooting

Problem: Image is reversed

Select "Screen > Projection" from the OSD menu to adjust the image.

Problem: Lamp burns out or makes a popping sound

When the lamp reaches its end of life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn on until the lamp module has been replaced. To replace the lamp, follow the procedures in the "Replacing the Lamp".

Troubleshooting

Problem: Indicator lighting message

Message	POWER indicator	TEMP indicator	LAMP indicator
	(Red/Blue) (Red) (Red)
Standby (Input power cord)
Normal (Power on)
Powering up (Warming up) Flashing Blue (0.5 sec)
Power off (Cooling Down) Flashing Red (0.5 sec)
Programming
Temperature Error (Over temperature)
Lamp Error (Lamp hours below 100 hours)	Flashing Blue (1 sec)
Lamp Error (Lamp hours between 100 and 1000 hours)
Lamp Error (Lamp hours over 1000 hours)
Fan Lock (Fan failed)		Flashing (0.5 sec)

Steady light => No light =>

Troubleshooting

Problem: Message Reminders

Temperature Error - the projector is overheat inside. Check the environmental condition.

- Replacing the lamp - the lamp is about to reach its maximum lifetime. Prepare to replace it soon.

▶ Fan Error - the cooling system fan is not working.

- Replacing the filter - the filter is about to reach its maximum usage time. Clean or replace the filter soon.

Replacing the lamp

The projector will detect the lamp life itself. It will show you a warning message:

Warning: To avoid burns, allow the projector to cool for at least 60 minutes before you replace the lamp!

Warning. Do not drop the lamp module or touch the glass parts. The glass parts may shatter and cause injury if it is dropped.

Warning: For continued safety replace with Replacement Lamp Type 27.

Caution: If the lamp should break, handle with care to avoid injury due to broken pieces and contact your sales representative for repair service.

When you see this message, change the lamp as soon as possible. Make sure the projector has been cooled down for at least 60 minutes before changing the lamp.

Lamp Replacing Procedure:

1. Switch off the power to the projector by pressing the "Power" button on the control panel or the "Button" button on the remote control.
2. Allow the projector to cool down at least 60 minutes.
3. Disconnect the power cord.
4. Remove the screw on the lamp cover.
5. Slide the lamp cover to the side and remove the cover.
6. Remove the mylar.
7. Remove the screw on the lamp module.
8. Lift up the lamp handle.
9. Carefully remove the lamp module.
10. Install the new lamp module by reversing the previous stens.

Appendices

List of Compatible Signals

A. VGA Analog
(1) VGA Analog - PC Signal
Modes Resolution		V.Frequency (Hz)	H.Frequency (kHz)
VGA	640 x 480 60 31.47
	640 x 480 72 87.86
	640 x 480 75 37.5
	640 x 480 85 43.27
SVGA	800 x 600 56 35.2
	800 x 600 60 37.88
	800 x 600 72 48.08
	800 x 600 75 46.88
	800 x 600 85 53.67
XGA	1024 x 768 60 48.36
	1024 x 768 70 56.48
	1024 x 768 75 60.02
	1024 x 768 85 68.67
SXGA	1152 x 864 70 63.8
	1152 x 864 75 67.5
	1152 x 864 85 77.1
	1280 x 1024 60 69.98
	1280 x 1024 72 77.9
	1280 x 1024 75 79.98
	1280 x 1024 85 91.15
Quad VGA	1280 x 960 60 60
	1280 x 960 75 75
SXGA+1400 x 1050 60 65.32
UXGA 1600 x 1200 60 75
PowerBook GJ	640 x 480 60 31.5
	640 x 480 66.6(67) 35
	800 x 600 60 37.88
	1024 x 768 60 48.36

Appendices

A. VGA Analog

(2) VGA Analog - Extended Wide Timing
Modes Resolution		V.Frequency (Hz)	LLFrequency (kHz)
WSVGA 1024 x 600 60 37.3
WXGA	1280 x 768 60 47.78
	1280 x 768 75 60.29
	1280 x 768 85 68.63
	1280 x 720 60 44.8
	1280 x 800 60 49.6
	1366 x 768 60 47.71
WXGA + 1440 x 900 60 55.9
WSXGA 1680 x 1050 60 65.3
WUXGA	1920 x 1080-RB 60 66.6
	1920 x 1080-HA 60 67.5
(3) VGA Analog - Component Signal
480i 720 x	480 59.94(29.97) 27
480p 720 x	480 59.94 31.47
576i 720 x	576 50(25) 27
576p 720 x	576 50 31.25
720p	1280 x 720 60 45
720p	1280 x 720 50 37.5
1080i 1920 x	1080 60(30) 33.75
1080i 1920 x	1080 50(25) 33.75
1080p	1920 x 1080 60 67.5
1080p	1920 x 1080 50 56.25

Appendices

B. HDMI
(1) HDMI - PC Signal
Modes Resolution		V.Frequency (kHz)	H.Frequency (kHz)
VGA	640 x 480 60 31.47
	640 x 480 72 37.86
	640 x 480 75 37.5
	640 x 480 85 43.27
SVGA	800 x 600 56 35.2
	800 x 600 60 37.88
	800 x 600 72 48.08
	800 x 600 75 46.88
	800 x 600 85 53.67
XGA	1024 x 768 60 48.36
	1024 x 768 70 56.48
	1024 x 768 75 60.02
	1024 x 768 85 68.67
SXGA	1152 x 864 70 61.8
	1152 x 864 75 67.5
	1152 x 864 85 77.1
	1280 x 1024 60 63.98
	1280 x 1024 72 77.9
	1280 x 1024 75 79.96
	1280 x 1024 85 91.15
Quad VGA	1280 x 960 60 60
	1280 x 960 75 75
SXGA+ 1400 x 1050 60 63.32
UXGA 1600 x 1200 60 75
PowerBook G1	640 x 480 60 31.5
	640 x 480 66.6(67) 35
	800 x 600 60 37.88
	1024 x 768 60 48.36
	1152 x 870 75 68.68
	1280 x 960 75 75.2

Appendices

B. HDMI

(2) HDMI - Extended Wide Timing
Modes Resolution		V.Frequency (1Hz)	H.Frequency (kHz)
WSVGA 1021 x 600 60 37.3
WXGA	1280 x 768 60 47.78
	1280 x 768 75 60.29
	1280 x 768 85 68.63
	1280 x 720 60 44.8
	1280 x 800 60 49.6
	1366 x 768 60 47.71
WXGA+ 1440 x 900 60 55.9
WSXGA 1681 x 1050 60 65.3
WUXGA	1920 x 1080-RB 60 66.6
	1920 x 1080-EIA 60 67.5
	1920 x 1200-RB 59 95 74.04
(3) HDMI - Video Signal
480i 720 i x 480 59.94(29.97) 27
480p 720 x 480 59.94 31.47
576i 720 x 576 50(25)		27
576p 720 i x 576 50 31.25
720p	1280 x 720 60	45
720p	1280 x 720 50 37.5
1080i 1920 x 1080 60(30)		33.75
1080i 1920 x 1080 50(25)		33.75
1080p	1920 x 1080 60 67.5
1080p	1920 x 1080 50 56.25
1060p 1920 x1080 23.97/24 27

Appendices

C. 3D Timing
Input Resolutions	HDMI 3D Input (with 3D Info Frame information)	Input timing
		1280 x 720P @ 50Hz Top - and - Bottom
		1280 x 720P @ 60Hz Top - and - Bottom
		1280 x 720P @ 50Hz Frame packing
		1280 x 720P @ 60Hz Frame packing
		1920 x 1080i @ 50 Hz	Side-by-Side (Half)
		1920 x 1080i @ 60 Hz	Side-by-Side (Half)
		1920 x 1080P @ 24 Hz Top - and - Bottom
		1920 x 1080P @ 24 Hz Frame packing
	HDMI 3D Input (without 3D Info Frame information)	1920 x 1080i @ 50Hz	Side-by-Side (Half)	SRS mode is on
		1920 x 1080i @ 60 Hz
		1280 x 720P @ 50Hz
		1280 x 720P @ 60Hz
		1920 x 1080i @ 50 Hz	Top-and-Bottom	TAB mode is on
		1920 x 1080i @ 60Hz
		1280 x 720P @ 50 Hz
		1280 x 720P @ 60 Hz
		480 HQFS
	VGA (PC)	800 x 600 @ 60 Hz	SDS or TAB
		1024 x 768 @ 60 Hz
		800 x 600 @ 120Hz	Frame Sequential
		1024 x 768 @ 120 Hz
	Composite N	1SC HQFS
	S-Video NT	SC HQFS

Appendices

Configurations of Terminals

Terminal: Computer In (Mini D-sub 15 pin)

1	Red (R/Cr) Input [R Output]	9	DDC 5V [NC*]
2	Green (G/Y) Input [G Output]	10	Ground (Ver. sync.)
3	Blue (B/Cr) Input [B Output]	11	NC*
4	NC*	12	DDC Data [NC*]
5	Ground (Horizosyn.)	13	Horiz. sync. Input [Output] [Composite H/V sync. Input]
6	Ground (Red)
7	Ground (Green)	14	Ver. sync. Input [Output]
8	Ground (Blue)	15	DDC CLK [NC*]

* Do not connect anything.

Terminal: PC Control (D-sub 9 pin)

Contact your deal for control cable and commands.

1	NC*	6	NC*
2	TXD (Sending Data)	7	NC*
3	RXD (Receiving Data)	8	NC*
4	NC*	9	NC*

Appendices

Specifications
■ List of general specifications

Item	PJ S2440 PJ X2440 PJ WX2440
DMD chip 0.55" SVGA DMD 0.55" XGA DMD 0.65" WXGA DMD
Lamp Type 190W
Projection Lens 1:1.10s manual zoom and manual focus
Projection Distance (Focus range) 1.2 to 12m 1.1-10m
Throw Ratio(distance/width)	1.95 to 2.15 1.54 to 1.72
Dimension(WxDM II)	298 x 237 x 92 mm (w/n protruding part)
	298 x 237 x 105 mm (with protruding part)
Weight Approx. 2.6kg
I/O Terminal	HDMI InServiceComputer InVideo InAudio InAudio OutPC Control	HDMI 1 InHDMI 2/MI II In5V 1.0AComputer InVideo InAudio InAudio OutPC Control
Speaker 2W
Lamp life	Normal: 5000 hoursECO: 6000 hours
Noise Level	Normal: Typ. 34dB(A) Max. 36dB(A)ECO: Typ. 31dB(A) Max. 33dB(A)
Standby Power (Monitor Out Off) 0.5W or less
Environment	Operation: Temperatures: 41° to 104°F (5° to 40°C)Humidity (non-condensing): 20% to 80%Storage: Temperatures: -4° to 140°F (-20° to 80°C)Humidity (non-condensing): 20% to 80%
Power Consumption	ECO: Mode:Typ. 196W, Max.216W @ 110VacTyp. 191W, Max.210W @ 220VacNormal Mode:Typ. 238W, Max.262W @ 110VacTyp. 232W, Max.253W @ 220Vac

Appendices

Cabinet Dimensions

Lnit: mm

Appendices

Trademarks

• DLP is trademarks or registered trademark of Texas Instruments.
  • IBM is a trademark or registered trademark of International Business Machines Corporation.
  • Macintosh, Mac OS X, iMac, and PowerBook are trademarks of Apple Inc., registered in the U.S. and other countries.
• Microsoft, Windows, Windows Vista, Internet Explorer and PowerPoint are either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
• HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
• DisplayPort, DisplayPort Compliance Logo are registered trademarks of Video Electronics Standards Association.
• MHL, Mobile High-Definition Link, and MHL Logo are trademarks or registered trademarks of MHL, LLC.
• Kensington is a trademark or registered trademark of ACCO Brands.
• Blu-ray is a trademark of Blu-ray Association.
• Other product and company names mentioned in this user's
