Product Type	Video Projector
Brand	Ricoh
Model	PJ WXL6280
Display Technology	0.65" DLP DMD by Texas Instruments
Native Resolution	WXGA (1280 x 800)
Brightness (Typical)	6,000 ANSI Lumens
Light Source	Laser (3.5W x 38 diodes, 440-455nm)
Power Consumption (Normal Mode)	560 W ±20% @ 110 VAC
Power Consumption (ECO Mode)	340 W ±20% @ 110 VAC
Standby Power	< 0.5 W
Weight (without lens)	18 kg (40 lb)

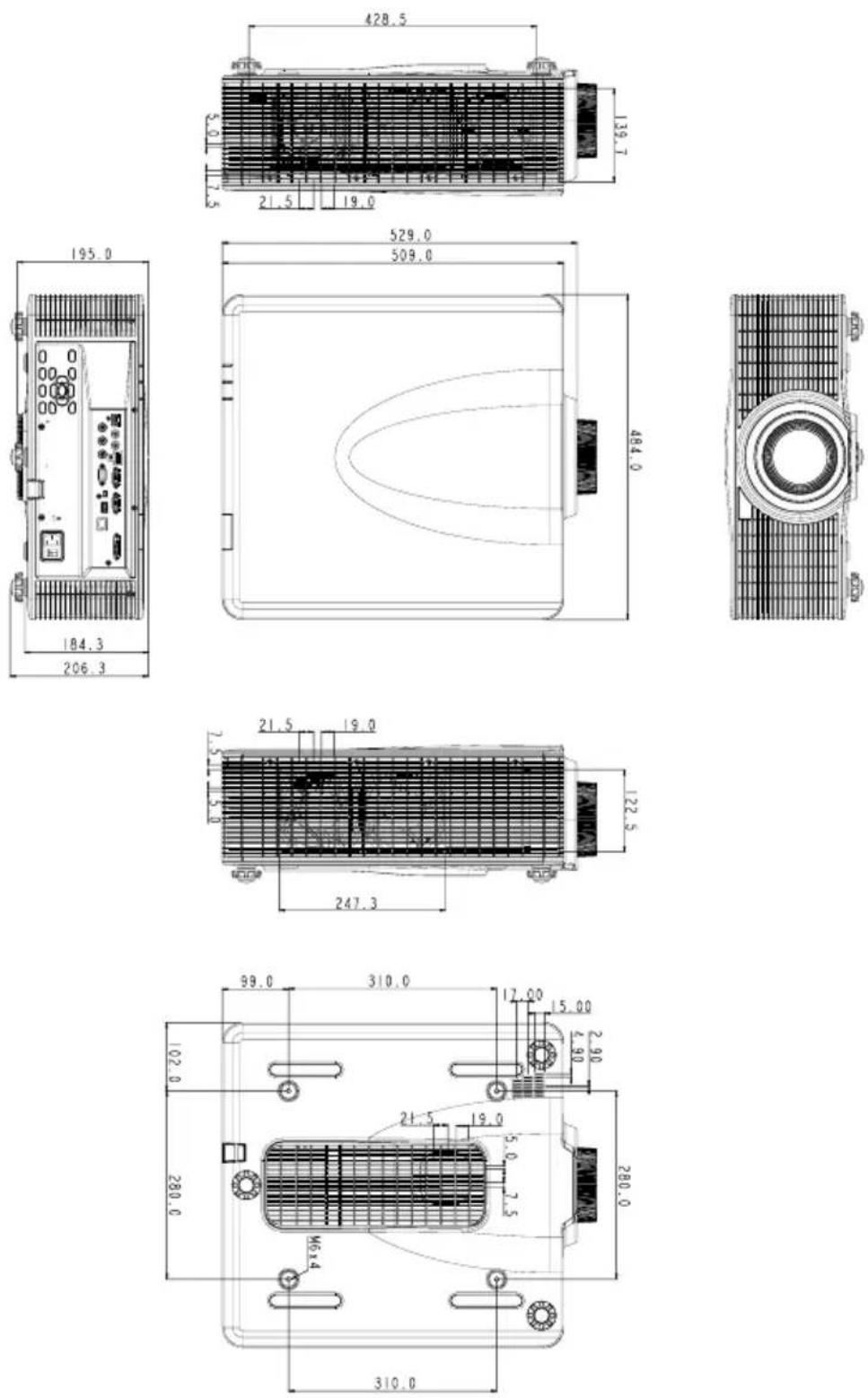

Dimensions (W x D x H, without lens)	484 x 509 x 185 mm (19.06" x 20.04" x 7.28")

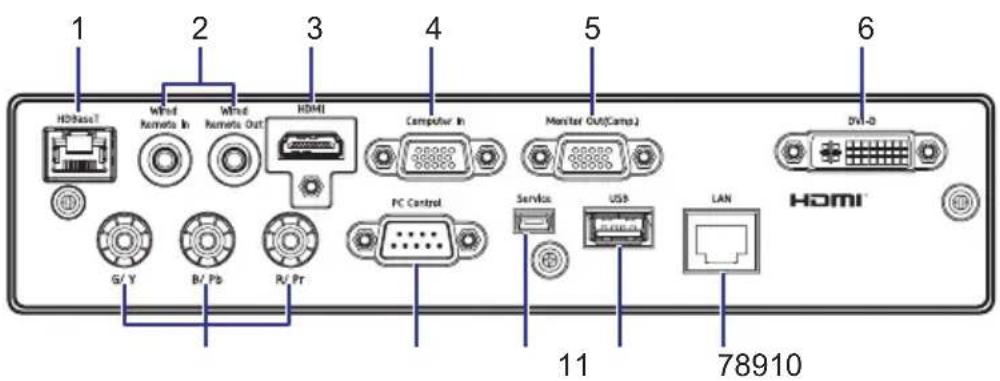

Inputs	HDBaseT, HDMI, Computer In (VGA), DVI-D, Component (YPbPr), USB Type A

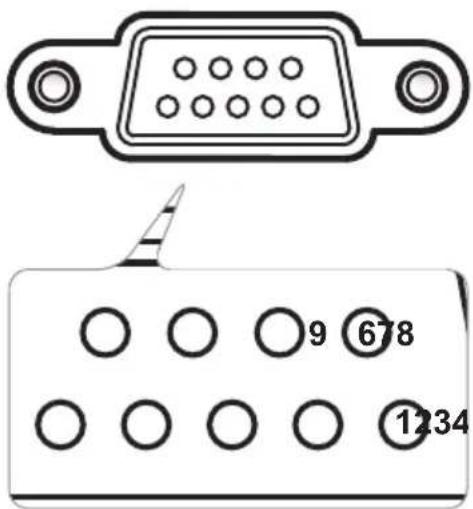

Outputs	Monitor Out (VGA), PC Control (RS-232), LAN (RJ45), Remote In/Out

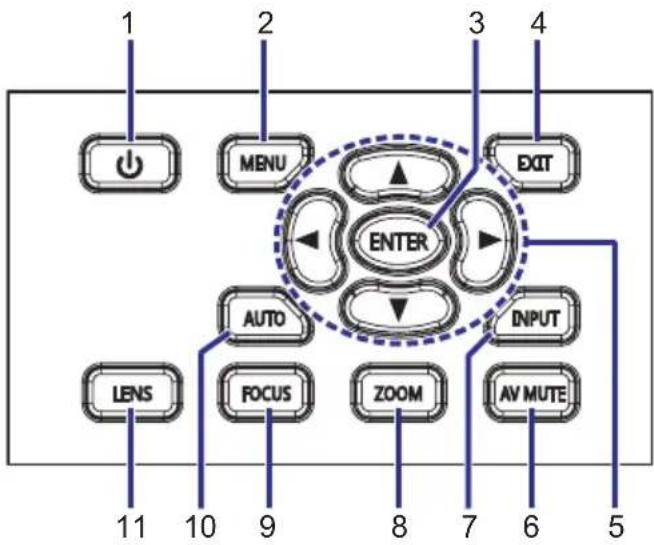

Control	Remote Control, Built-in Keypad, RS-232, LAN

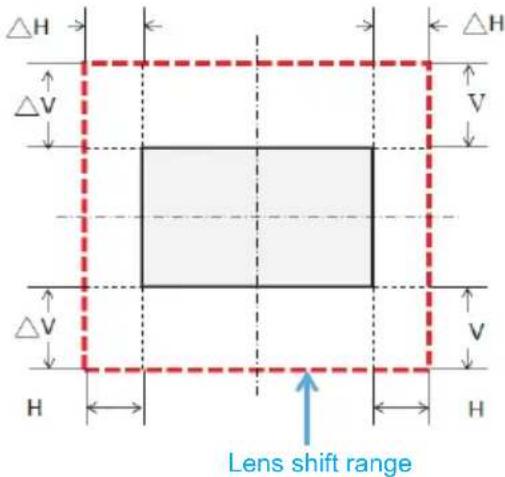

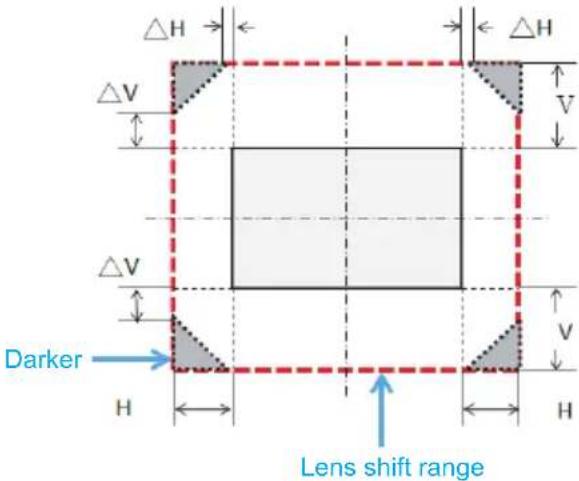

Lens Shift	Motorized: Vertical ±100%, Horizontal ±30% (varies by lens type)
Keystone Correction	Vertical ±20°, Horizontal ±20°

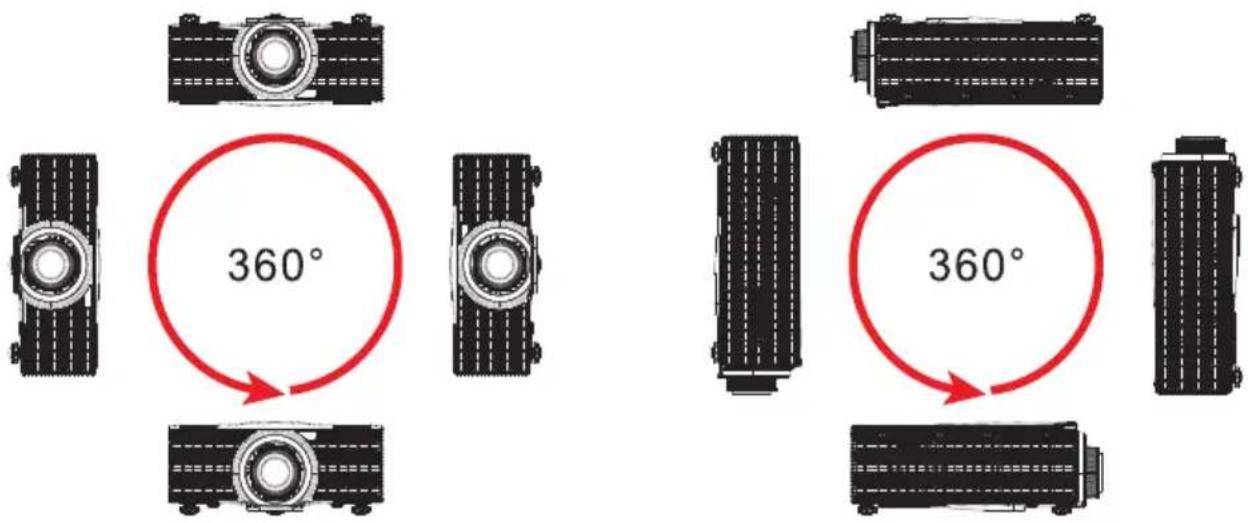

Orientation	360° Free Orientation, Portrait Mode (with optional safety cover)
Special Features	PIP/PBP, Lens Calibration, 3D Support (120 Hz frame sequential), Color Matching
Safety	Laser Class 1 (IEC 60825-1:2014 RG2), avoid direct eye exposure
Maintenance	Replace lens, clean intake/exhaust vents, interior cleaning by service representative
Supplied Accessories	Power Cord, VGA Cable, Remote Control with AAA Batteries, User Manual CD, Read This First

Frequently Asked Questions - PJ WXL6280 RICOH

How do I turn on the Ricoh PJ WXL6280 projector?

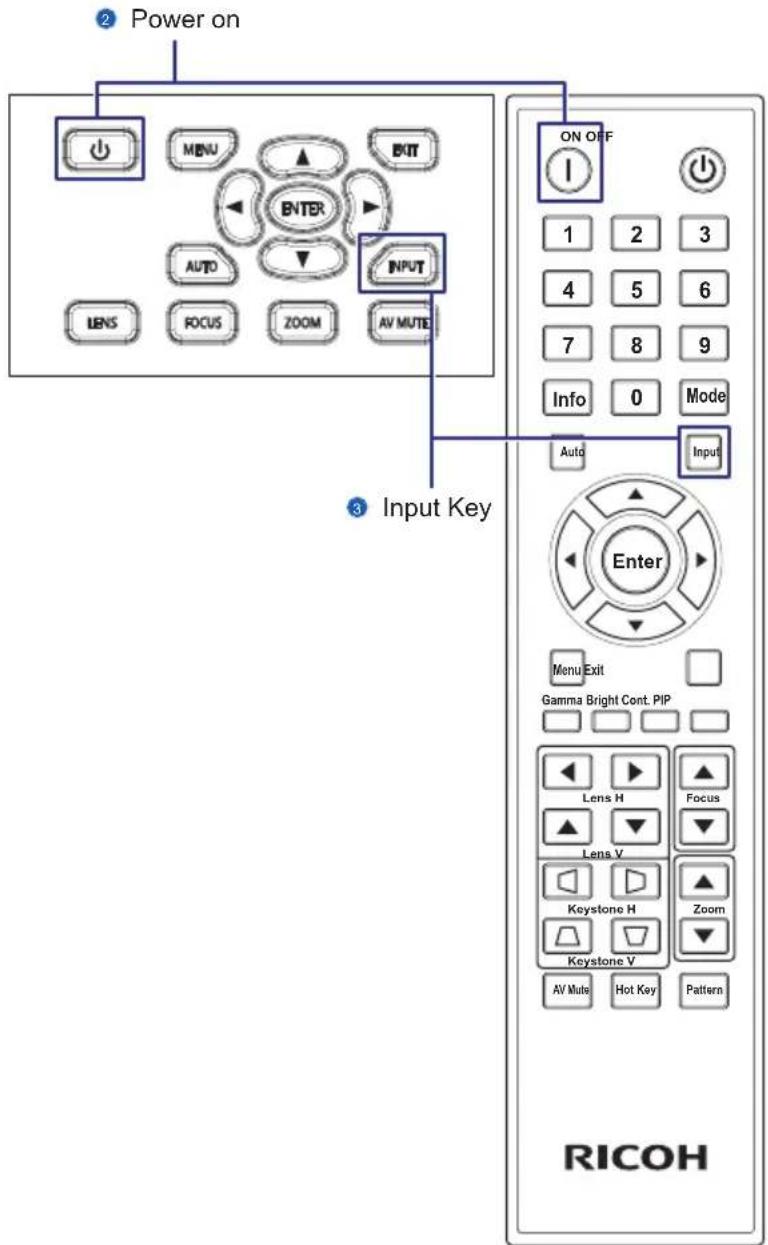

Ensure the power cord and signal cable are securely connected. Press the Power button (marked with '|' or 'O') on the remote control or the built-in keypad. The Status LED will turn orange with a long blink, then green when ready. Select the input source using the Input key.

What should I do if no image appears on screen?

First, verify all cable connections are secure and that the lens cover is removed. Ensure the projector is powered on (green Status LED). Press AUTO on the remote or keypad to reacquire the signal. Check that the source device is turned on and outputting a compatible resolution.

How can I adjust the projected image size and focus?

Use the Zoom and Focus buttons on the remote control or keypad. For lens shift (vertical/horizontal), press the Lens button and use the arrow keys. To center the lens, go to SETUP > Lens Function > Lens Calibration.

How do I clean the projector?

Turn off the projector and unplug the power cord. Use a soft, dry cloth to wipe the exterior. Clean the intake and exhaust vents with a vacuum cleaner to remove dust. For interior cleaning, contact your service representative. Do not use liquid cleaners or sprays.

Can I replace the lens myself?

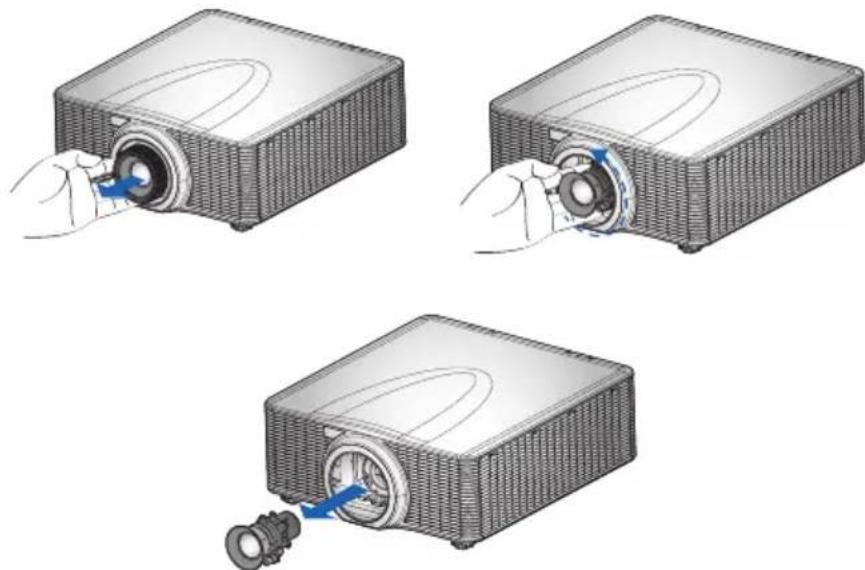

Yes, the projector supports field-replaceable lenses (types A1 to A5). To remove, center the lens via Lens Calibration, turn off the projector, wait for cooling, remove the lens ring, rotate the lens counter-clockwise a quarter turn, and pull it out. Insert the new lens straight in and rotate clockwise to lock.

What does the LED status indicator mean?

The Light LED shows laser status: solid green for normal operation, flashing red if luminance drops below 60%. The Status LED indicates power: solid green for normal operation, flashing orange during startup/cooldown, solid red for overtemperature, flashing red for fan failure.

How do I enable PIP/PBP mode?

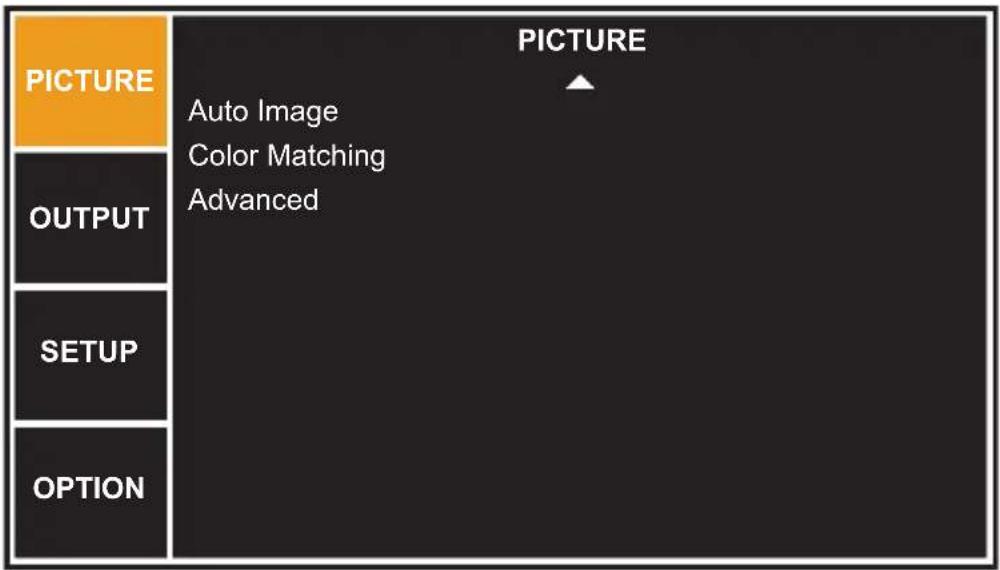

Press the PIP button on the remote control. Go to OUTPUT > PIP/PBP to enable, select main and sub sources, and choose size and layout. Press Swap to exchange main and sub images.

What is the maximum throw distance for the projector?

It depends on the lens. For the standard lens (A3), the throw distance ranges from 1.38 m to 10.40 m for WXGA, producing a 50-300 inch diagonal image. Use the tables in the manual for exact calculations.

Can I project from behind a translucent screen?

Yes. Go to SETUP > Rear Projection and set it to On. This will horizontally reverse the image for rear projection.

How do I reset the projector to factory defaults?

Go to OPTION > Factory Reset and select Yes. This restores all settings to default values except network settings. The projector will restart.

USER MANUAL PJ WXL6280 RICOH

Abstract composition of gray circles of varying sizes and sizes on white background (no text or symbols)

Safety Information

This chapter describes safety information for this machine.

Information

Introduction

This manual contains detailed instructions and notes on the operation and use of this machine. For your safety and benefit, read this manual carefully before using the machine. Keep this manual in a handy place for quick reference.

Important

Contents of this manual are subject to change without prior notice.

In no event will the company be liable for direct, indirect, special, incidental, or consequential damages as a result of handling or operating the machine.

Some illustrations in this manual might be slightly different from the machine.

Caution

The manufacturer shall not be responsible for any damage or expense that might result from the use of parts other than genuine parts from the manufacturer with your office products.

When using this machine, the following safety precautions should always be followed.

Safety During Operation

In this manual, the following important symbols are used:

WARNING

Indicates a potentially hazardous situation which, if instructions are not followed, could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation which, if instructions are not followed, may result in minor or moderate injury or damage to property.

Safety Precautions to Be Followed

This section explains safety precautions that should always be followed when using this machine.

Environments where the machine can be used

This section explains safety precautions about environments where the machine can be used.

WARNING

■ Do not place vases, plant pots, cups, toiletries, medicines, small metal objects, or containers holding water or any other liquids, on or close to this machine. Fire or electric shock could result from spillage or if such objects or substances fall inside this machine.

WARNING

- Keep the product and attachments out of the reach of children. If the product is near children, it might fall over and cause an injury.

CAUTION

- Keep the machine away from humidity and dust. Otherwise a fire or an electric shock might occur.

CAUTION

■ Do not place any objects on the machine. Doing so may cause the machine to topple over, possibly resulting in injury.

CAUTION

- Do not place the machine on an unstable or tilted surface. If it topples over, an injury might occur.

CAUTION

■ Do not place the product or use it in an environment where it might get wet such as from snow, rain, or being near water. Doing so could result in fire or electric shock.

CAUTION

■ Do not put your face or hand near the exhaust vents. Doing so could result in burns or an accident due to hot air coming from the exhaust vents.

CAUTION

■ Do not use the product on soft material such as paper or cloth that might get sucked into the intake vents. Doing so may cause heat buildup inside the product, resulting in malfunction, burns, or fire.

CAUTION

■ Do not place the power cord and connection cable in a way that might cause someone to trip and fall. The product might fall over and cause an injury.

CAUTION

■ Do not place the product in a location where air flow is poor. Doing so may cause fire due to internal components becoming overheated.

CAUTION

■ Do not place or store the product in a location where direct sunlight or heat generation might occur. The heat may deform or wear out the exterior parts or negatively affect internal parts. Doing so could result in fire.

CAUTION

■ Do not place low heat resistant material near the exhaust vents. Hot air may come from the exhaust vents, resulting in damage to the product or an accident.

CAUTION

■ Do not expose the product to salt air or corrosive gas. Also, do not place the product in a laboratory or other location where a chemical reaction might occur. Doing so may cause the product to malfunction.

CAUTION

- Do not obstruct the machine's vents. Doing so risks fire caused by overheated internal components.

Handling power cords and power cord plugs

This section explains safety precautions about handling power cords and power cord plugs.

WARNING

■ Do not use any power sources other than those that match the specifications shown. Doing so could result in fire or electric shock.

WARNING

■ Do not use any frequencies other than those that match the specifications shown. Doing so could result in fire or electric shock.

WARNING

■ Do not damage, break, or modify the power cord. Also, do not place heavy objects on the power cord, or pull the cord or bend it severely. Doing so could result in fire or electric shock.

WARNING

- Touching the prongs of the power cable's plug with anything metallic constitutes a fire and electric shock hazard.

WARNING

■ The supplied power cord is for use with this machine only. Do not use it with other appliances. Doing so could result in fire or electric shock.

WARNING

■ It is dangerous to handle the power cord plug with wet hands. Doing so could result in electric shock.

WARNING

■ Be sure to disconnect the plug from the wall outlet at least once a year.

■ There are burn marks on the plug.

■ The prongs on the plug are deformed.

If any of the above conditions exist, do not use the plug and consult your dealer or service representative. Use of the plug could result in fire or electric shock.

WARNING

■ Be sure to disconnect the power cord from the wall outlet at least once a year.

- The power cord's inner wires are exposed, broken, etc.

- The power cord's coating has a crack or dent.

■ When bending the power cord, the power turns off and on.

■ Part of the power cord becomes hot.

■ The power cord is damaged.

If any of the above conditions exist, do not use the power cord and consult your dealer or service representative. Use of the power cord could result in fire or electric shock.

WARNING

- Do not use the connection cable if it is deformed, cracked, or damaged. Doing so could result in fire or electric shock. If the connection cable is deformed, cracked, or damaged, contact your service representative to request a replacement cable.

WARNING

- When using an extension cord or power strip, only connect equipment whose total power consumption is within the power rating for the extension cord or power strip. If the power rating is exceeded, it may cause heat buildup and result in fire.

WARNING

■ Do not place the power cord and connection cable in front of the lens or exhaust vents when the product is turned on. Doing so may result in fire.

CAUTION

■ Push the power plug all the way into the power outlet. Do not use a power outlet with a loose connection. Doing so may result in heat buildup. Plug the power cord in the correct direction into the base. If they are not plugged in correctly, it could result in smoke, fire, or electric shock.

CAUTION

If this machine is not going to be used for several days or longer at a time, disconnect its power cord from the wall outlet.

CAUTION

■ When disconnecting the power cord from the wall outlet, always pull the plug, not the cord. Pulling the cord can damage the power cord. Use of damaged power cords could result in fire or electric shock.

CAUTION

■ Be sure to disconnect the plug from the wall outlet and clean the prongs and the area around the prongs at least once a year. Allowing dust to build up on the plug constitutes a fire hazard.

CAUTION

■ When performing maintenance on the machine, always disconnect the power cord from the wall outlet.

Handling the main machine

This section explains safety precautions about handling the main machine.

WARNING

If the machine emits smoke or odours, or if it behaves unusually, you must turn off its power immediately. After turning off the power, be sure to disconnect the power cord plug from the wall outlet. Then contact your service representative and report the problem. Do not use the machine. Doing so could result in fire or electric shock.

WARNING

If metal objects, or water or other fluids fall inside this machine, you must turn off its power immediately. After turning off the power, be sure to disconnect the power cord plug from the wall outlet. Then contact your service representative and report the problem. Do not use the machine. Doing so could result in fire or electric shock.

WARNING

■ Do not touch this machine if a lightning strike occurs in the immediate vicinity. Doing so could result in electric shock.

WARNING

- The following explains the warning messages on the plastic bag used in this product's packaging. - Keep the polythene materials (bags, etc.) supplied with this machine away from babies and small children at all times. Suffocation can result if polythene materials are brought into contact with the mouth or nose.

WARNING

If the machine topples, or if a cover or other part gets broken, you must turn off its power immediately. After turning off the power, be sure to disconnect the power cord plug from the wall outlet. Then contact your service representative and report the problem. Do not use the machine. Doing so could result in fire or electric shock.

WARNING

■ Contact your sales or service representative to clean or replace parts for a projector that is installed on a wall or ceiling.

■ Do not attempt to clean or replace parts for a projector that is installed in a high location on a wall or ceiling. Doing so may cause it to fall down, resulting in an injury.

WARNING

If a projector is incorrectly installed on a wall or ceiling, it may fall down and cause an injury. Contact your sales or service representative if you want to install a projector on a wall or ceiling.

■ Use brackets that are strong enough to support the projector. The projector weighs about 18kg(40lb) (Projector weight without lens).
■ The projector must be installed in a location that is sturdy enough to support the full weight of the projector and brackets.

CAUTION

■ The machine may be very hot after it is turned off, especially the vents and the lower part of the unit where the laser is located. Avoid touching these areas. Doing so may result in burns.

CAUTION

■ Do not place the product on other equipment or vice versa. Doing so may cause heat buildup inside the product or cause the other equipment to malfunction.

CAUTION

- Do not increase the volume unless you are listening while increasing the volume. Also, lower the volume before turning off the power, because a loud sound may be emitted when the power is turned on and cause hearing damage.

Handling the machine's interior

This section explains safety precautions about handling the machine's interior.

WARNING

- Do not remove any covers or screws that are not mentioned in this manual. There are high voltage components inside the product that may cause electric shock. Contact your service representative if any of the product's internal components require maintenance, adjustment, or repair. - Do not disassemble or modify the product. Doing so may cause injury or malfunction.

CAUTION

If the machine's interior is not cleaned regularly, dust will accumulate. Fire and breakdown can result from heavy accumulation of dust inside this machine. Contact your sales or service representative for details about and charges for cleaning the machine's interior.

About the batteries

Explains things that you should follow in regard to the batteries.

WARNING

■ For safe operation, follow the warnings below regarding the batteries used in the remote control. If you use the batteries incorrectly, it may result in fire or injury due to batteries leaking or exploding.
■ Do not use batteries other than the ones specified.
■ Do not mix and use batteries that are different types or that are new and old.
■ Correctly insert batteries according to the polarity (+/-).
■ Do not charge non-rechargeable batteries.
■ Do not heat or throw the batteries into fire or water.
■ Do not connect the positive and negative terminals on a battery with a wire.

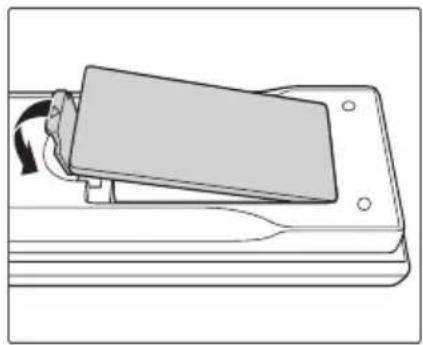

■ Remove the batteries from the remote control that are past their suggested use period or that are depleted.
■ Remove the batteries when they will not be used for extended periods.
- Keep the batteries out of the reach of children. Children may swallow or choke on the batteries. If this happens, contact a doctor immediately.

WARNING

■ What to do if a battery has leaked
If leakage from a battery adheres to your skin, rinse it with water immediately, and then contact a doctor.
■ Wipe off the leakage with tissue paper while being careful not to touch it.
■ Soak the tissue paper that you used in water, and then throw it away as burnable trash.

About the Laser light source

Explains things that you should follow in regard to the laser light source.

WARNING

■ Do not look into the lens or vent when the product is on. The bright light may damage your eyes. Be especially careful in an environment with children.

CAUTION

This projector has built-in laser module. Possibly hazardous optical radiation emitted from this product. Do not stare into the beam. May be harmful to the eyes.

CAUTION

■ Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

CAUTION

- Do not block the projection light when it is on. If you do so, the part that is blocking the projection light may get quite hot and deform, deteriorate or cause a burn or fire. The reflected light may make the lens hot and cause a product failure. To temporarily suspend projection, select the mute function. To suspend longer, turn off the product.

Moving

This section explains safety precautions about moving the machine.

CAUTION

■ Unplug the power cord from the wall outlet before you move the machine. While moving the machine, take care that the power cord is not damaged under the machine. Failing to take these precautions could result in fire or electric shock.

Copyrights to Images

When projecting images using the projector, be careful not to infringe the copyright of protected materials.

The following are examples that may infringe the copyright of protected materials.

• Broadcasting images or movies for commercial purposes
• Modifying images or movies using functions such as freeze, magnify, or zoom to broadcast images for commercial pur poses or public viewing
• Varying the aspect ratio of images or movies using a function that changes the screen size to broadcast images for commercial purposes or public viewing

Positions of WARNING and CAUTION labels

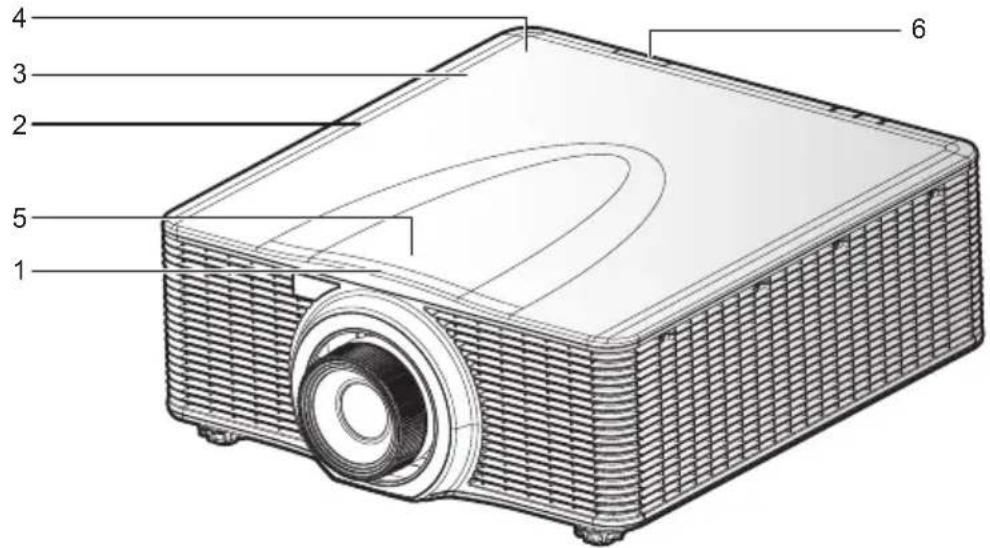

This machine has labels for WARNING and CAUTION at the positions shown below. For safety, please follow the instructions and handle the machine as indicated.

Main unit

1

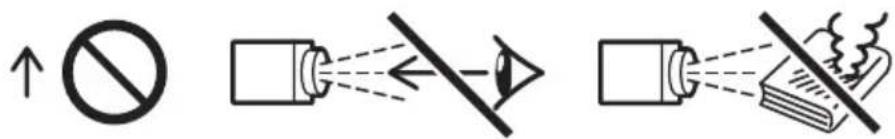

Do not look into the lens when the product is on. The bright light may damage your eyes.

Do not place anything in front of the lens. The object may become very hot and cause a fire or burn. To blank the image temporarily, turn on the mute function.

2

Do not put your face or hand near the exhaust vents. Doing so could result in burns or an accident due to hot air coming from the exhaust vents.

3

5 Notice: User in USA

6 Notice: Users in USA

6 Notice: Users in EU countries and Japan and China

Power Switch Symbols

The meanings of the symbols for the switches on this machine are as follows:

: STANDBY

User Information on Electrical and Electronic Equipment

If you wish to discard this product, please contact your local authorities, the shop where you bought this product, your local dealer or sales/service representatives.

Regulation & Safety Notices

This appendix lists the general notices of your Projector.

Notice: Users in the United States of America

FCC notice

MODEL NAME: RICOH PJ WUL6280/ RICOH PJ WXL6280

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interferenceto radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this projector.

Notes to Users in the State of California

Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.

WARNING: Handling the cord on this product will expose you to lead, a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling.

Declaration of Conformity for EU countries

EMC Directive 2004/108/EC (including amendments)

Low Voltage Directive 2006/95/EC

WARNING: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Notice: Users in EU countries

CE Marking Traceability Information (For EU Countries Only)

Manufacturer:

Ricoh Co., Ltd.

3-6 Nakamagome 1-chome, Ohta-ku, Tokyo. 143-8555, Japan

Importer:

Ricoh Europe PLC

20 Triton Street, London. NW1 3BF, United Kingdom

User Information on Electrical and Electronic

Equipment

Users in the countries where this symbol shown in this section has been specified in national law on collection and treatment of E-waste.

Our Products contain high quality components and are designed to facilitate recycling.

Our products or product packaging are marked with the symbol below.

This product contains substances which are harmful to humans and the environment.

Notice: Users in Turkey

If you wish to discard this product, please contact your local authorities, the shop where you bought this product, your local dealer or sales/service representatives.

Laser Notice

• This Product is classified as Class 3R of IEC60825-1:2007 and also complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No.50, dated June 24,2007. (For USA)
• IEC 60825-1:2014: CLASS 1 LASER PRODUCT - RISK GROUP 2. (For EU countries and Japan and China)

Laser source specification

3.5W laser diode x 38

Wavelength: 440-455nm

Pulse duration: 1.08ms

Notice: Users in the EU

Note for the Battery and/or Accumulator Symbol

In accordance with the Battery Directive 2006/66/EC Article 20 Information for end-users Annex II, the above symbol is printed on batteries and accumulators. This symbol means that in the European Union, used batteries and accumulators should be disposed of separately from your household waste. In the EU, there are separate collection systems for not only used electrical and electronic products but also batteries and accumulators. Please dispose of them correctly at your local community waste collection/recycling centre.

Notice: Users in Taiwan

廢電池請回收

Regulation & Safety Notices......17

Introduction 23

Product Features....23

Package Overview 24

Product Overview....25

Projector Components 25

Built-in Keypad....28

Input/Output (I/O) Panel....29

LED Status Indicators 30

Remote Control....31

Remote Control Battery Installation.33

Remote Control Operating Range ... 34

Installation 35

Adjust the Projector Position 35

Removing and Installing the Lens ..... 36

Adjusting the Projected Image 37

Adjusting the Projector's Height......37

Connect to Computer 38

Connect to Video Equipment....39

Turn the Projector On 40

Turn the Projector Off 41

Projection Lens....42

A3 is the standard lens for WXGA and

WUXGA....42

Adjusting the Projecting Image's

Position....44

User Controls 46

OPERATION 46

OSD Tree 47

Picture Menu 53

Output Menu....58

Setup Menu 61

Option Menu....63

Appendices 66

Troubleshooting......66

Image Problems......66

Projector Problems 69

On Screen Messages 72

Compatibility Modes....73

Inputs 73

PIP/PBP Compatibility 75

RS232 Pin Assignments....76

Specifications 77

Cabinet dimension....79

Trademarks 80

Introduction

Product Features

• WXGA: One panel 0.65"-WXGA projection system
• WUXGA: One panel 0.67"-WUXGA projection system
• 6,000 ANSI lumens platform for WXGA (typical) and WUXGA (typical)
  • Power Zoom/Focus and full lens shift (1/2 screen, V +/- 100%, H +/- 30%)
• Support LAN network control and HDBaseT for video streaming
  • Support PIP/PBP function
• Support 360 degrees & portrait mode projection. (With optional safety cover and portrait by input source)

Package Overview

Unpack and inspect the box contents to ensure all parts listed below are in the box. If something is missing, please contact our customer service.

Technical line drawing of a rectangular projector with a circular lens (no text or symbols)

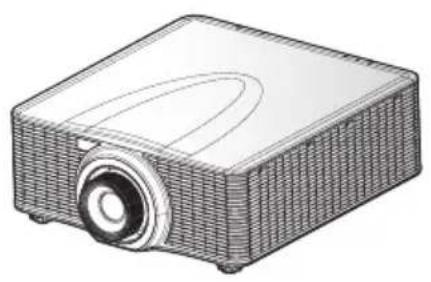

Projector with lens cover

Illustration of a bundle of cables tied with a strap (no text or symbols)

Power Cord

Technical line drawing of a mechanical connector with coiled cable and connectors (no text or symbols)

VGA Cable

Remote Control

AAA(R03) Batteries x 2 (For remote control)

Documentation:

• User's Manual (CD)
• Read This First (Paper)

■ Due to different applications in each Country, some regions may have different accessories.

Product Overview

The product specified in this document is a high brightness, high-resolution video/graphics 1-chip laser based projector. The projector is available in WXGA and WUXGA resolutions. The projector utilizes Digital Light Processing (DLP®) technology from Texas Instruments. It is primarily designed for fixed installation markets.

Projector Components

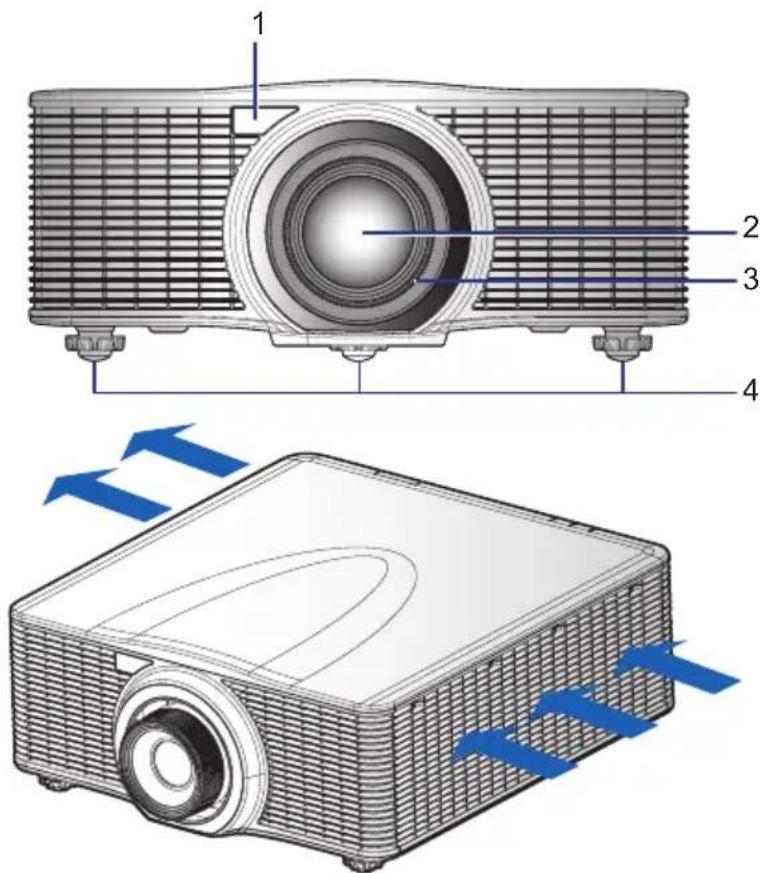

Front View

Ind. Part Name Description
1 Front IR Receiver		Receives signals from the IR remote. Keep the signal path to the sensor unobstructed for uninterrupted communication with the projector.
2 Projection Lens		Allows automated lens control and adjustment vertical and horizontal offsets, zoom and focus.
3 Lens Ring		Protects the lens motors and mechanism. Remove in order to insert or remove the lens.
4 Adjustable Feet Raise or lower the feet to level the projector.

Rear View

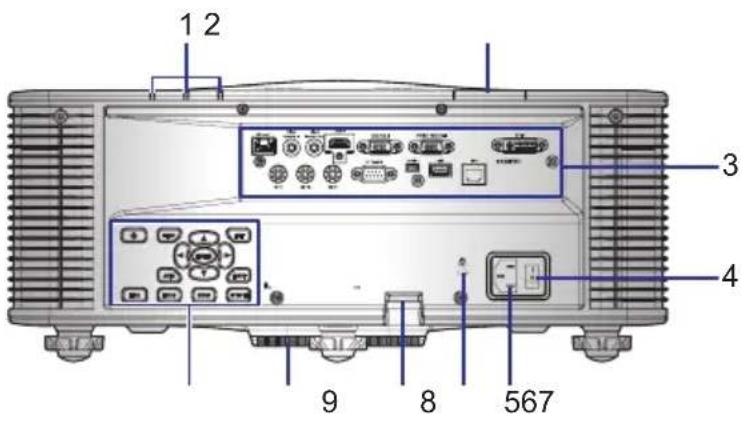

Ind. Part Name Description
1 LED Status Indicators Displays the status of the projector.
2 Top IR Sensor		Receives signals from the IR remote. Keep the signal path unobstructed for uninterrupted communication with the projector.
3 Connector panel Connects the projector to external devices.
4 Power Switch Switch the power button to turn on the power source.
5 Power Connector Connect to the supplied power adapter.
6	Kensington Lock	Use to secure the projector to countertops, tables, etc.
7 Security bar Use to secure the projector.
8 Inlet Vent		Keep these vents unobstructed to prevent the projector from overheating.
9 Keypad Panel Controls the projector.

Left View

Technical line drawing of a rectangular industrial or mechanical component with internal grid structure (no text or symbols)

Right View

Technical diagram of a rectangular industrial or thermal unit with internal grating and mounting base (no text or symbols)

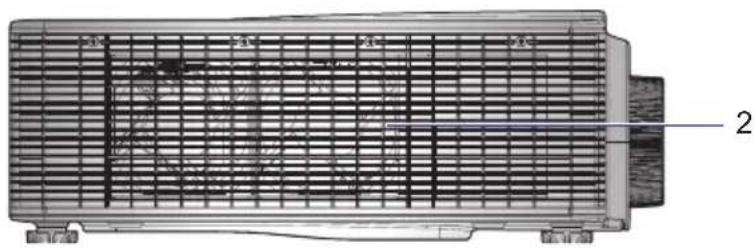

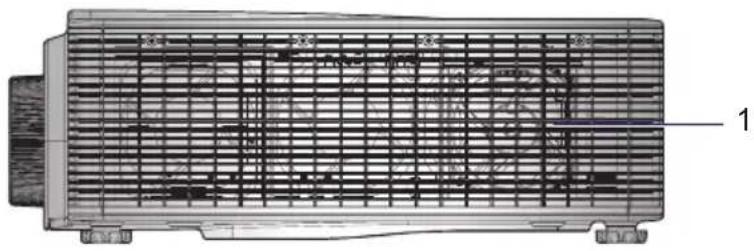

Ind. Part Name Description
1 Inlet Vent	Keep these vents unobstructed to prevent the projector from overheating.
2 Outlet Vent	Keep these vents unobstructed to prevent the projector from overheating.

Things to note when installing projectors

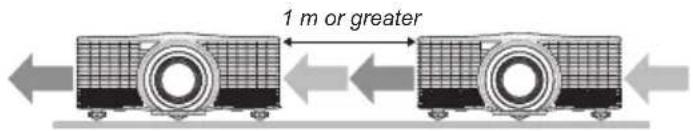

- Leave 1 m or over space between the projectors when projectors are installed side by side, so that intake and exhaust vents of the projectors are not obstructed. In addition, leave a space of at least 30 cm between the intake/exhaust vent and the wall. When the air intake and discharge outlet are obstructed, the temperature inside the projector will rise and this may result in a malfunction.

Built-in Keypad

Ind. Part Name Description
1 Power Turn the projector on or off.
2 Menu Display menus.
3 Enter Confirm a selection.
4 Exit Return to previous level or exit menus if at top level.
5 Arrow Keys • Adjust a setting UP or DOWN.• Navigate within a menu.
6 AV Mute Display or blank the video image.
7 Input Select an input for the main or PIP/PBP image.
8 Zoom Adjust zoom.
9 Focus Adjust focus.
10 Auto Automatically optimize image.
11 Lens		Adjust the lens vertical or horizontal offset setting.

Input/Output (I/O) Panel

Ind. Connector Name Ind. Connector Name
1 HDBaseT 7 LAN
2 Remote In/Out 8 USB
3 HDMI 9 Service
4 Computer IN 10 PC Control
5 Monitor Out 11 Component IN
6 DVI-D

LED Status Indicators

The LED status indicators are located on the rear of the projector. Each LED is defined below.

LED Type LED Status Projector State
Light LED	Off Laser diode is off
	Solid Orange Laser diode time has expired
	Solid Green Laser diode is on and operating correctly
	Flashing Red When projector has lost over 60% initial luminance
Status LED	Off AC power is off (without AC plug in)
	Off AC has been applied, projector is in standby modeNOTE: Status LED cannot be flashing red, as this is reserved for an error condition. Status LED is off but keypad LED will indicate Standby Mode.
	Solid Green Projector is powered up and operating normally
	Flashing Green Projector communications
	Flashing Orange Projector is in cool down mode or startup mode
	Flashing(alternating) Green/Orange Projector is in flash update state
	Solid Red Over-temperature
	Flashing Red Fan failure
AV Mute	Solid Green Light is on - image is displayed
	Solid Orange Light is on - image is blank

Remote Control

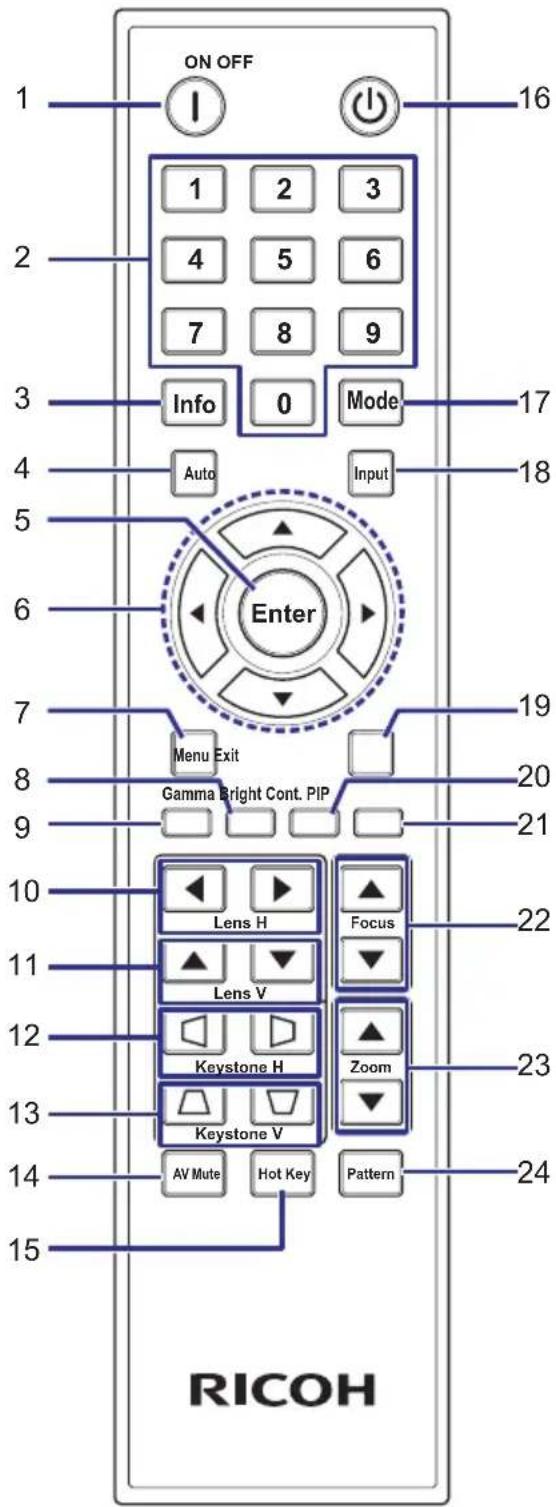

Ind.	Part Name Description
1	Power on Turn projector ON.
2	Number Keys	Enter a number, such as a value for an IP address, etc.
3	Info Display source image information.
4	Auto Automatically optimize image.
5	Enter	Select a highlighted menu item.Change or accept a value.
6	Arrow Keys	Adjust a setting UP or DOWN.Navigate within a menu.
7	Menu Display menus.
8	Bright Adjust amount of light in the image.
9	Gamma Adjust mid-range levels.
10	Lens H Adjust the position of the image horizontally.
11	Lens V Adjust the position of the image vertically.
12	Keystone H Adjust the horizontal keystone.
13	Keystone V Adjust the vertical keystone.
14	AV Mute Display or blank the video image.
15	Hot Key Select your preset keys quickly.
16	OFF Turn projector OFF.
17	Mode Select the preset display mode.
18	Input Select an input for the main or PIP/PBP image.
19	Exit Return to previous level or exit menus if at top level.
20	Cont. Adjust difference between dark and light.
21	PIP Turn PIP/PBP ON/OFF.
22	Focus Adjust focus to improve image clarity as desired.
23	Zoom Adjust zoom to achieve a desired image size.
24	Pattern Display a test pattern.

Remote Control Battery Installation

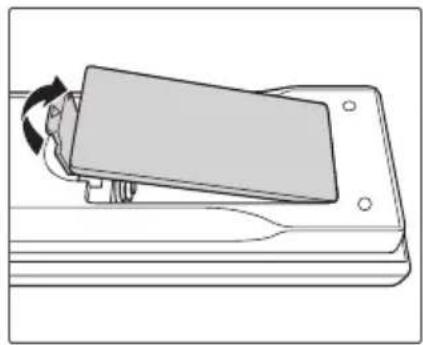

1 Remove the battery compartment cover as shown in the illustration.

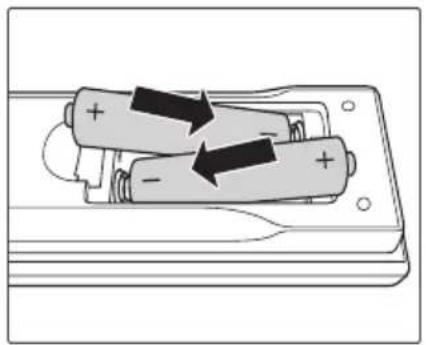

2 Install new batteries (AAA/R03). Ensure that you have the batteries' polarity (+/-) aligned correctly.

3 Replace the cover. Do not mix different types of batteries or new and old batteries.

Diagram of a mechanical device with a rotating component and base plate (no text or symbols)

Diagram of two batteries with arrows indicating direction, no text or symbols present

Diagram of a mechanical device with a rectangular component inserted into a housing (no text or symbols visible)

To ensure safe operation, please observe the following precautions :

■ Use AAA/R03 type battery.
■ Avoid contact with water or liquid.
■ Do not expose the remote control to moisture or heat.
■ Do not drop the remote control.
■ If the battery has leaked in the remote control, carefully wipe the case clean and install new battery.
■ Risk of an explosion if battery is replaced by an incorrect type.
■ Dispose of used battery according to the instructions.
■ Remove batteries from remote control when not using for extended periods.
■ The remote control may fail to operate if the infrared remote sensor is exposed to bright sunlight or fluorescent lighting.

Remote Control Operating Range

Point the remote control toward the projector (Remote Receiver) when pressing any button.

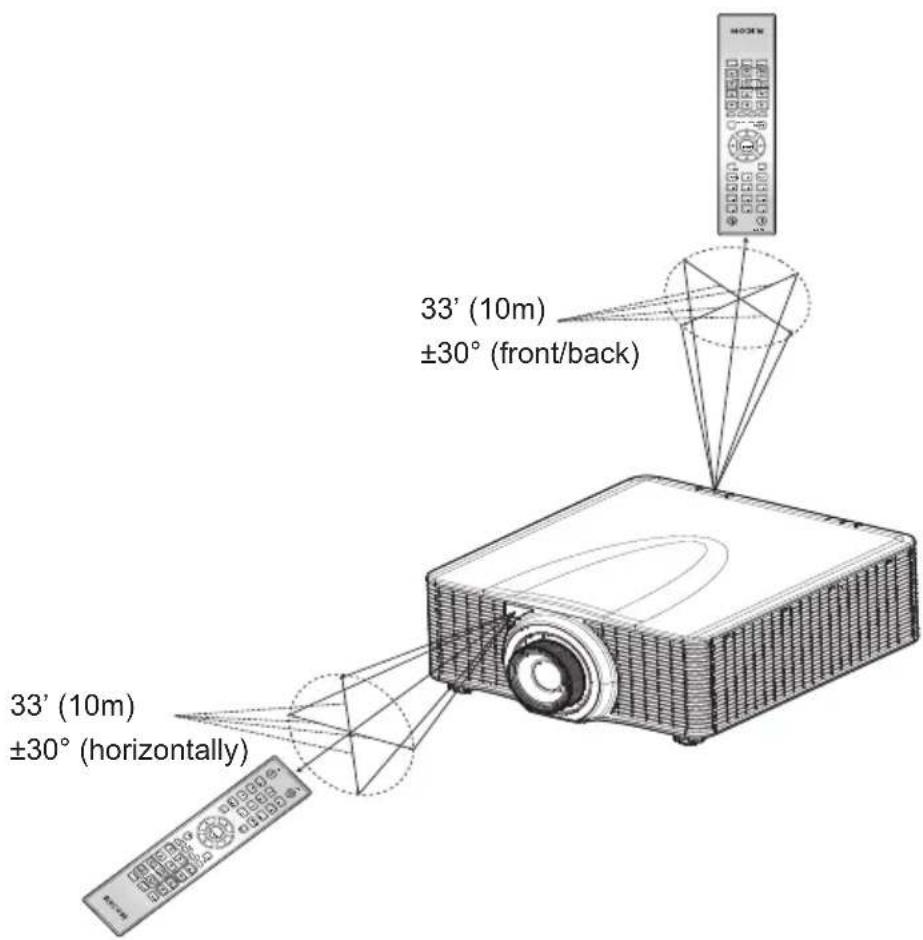

Maximum operating range for the remote control is about 33' (10m) and ±30° (horizontally) in front of the projector.

Installation

Adjust the Projector Position

When you select a position for the projector, consider the size and shape of your screen, the location of your power outlets, and the distance between the projector and the rest of your equipment. Follow these general guidelines:

• Position the projector on a flat surface at a right angle to the screen. The projector (with the standard lens) must be at least 3 feet (0.9m) from the projection screen.
• Position the projector to the desired distance from the screen. The distance from the lens of the projector to the screen, the zoom setting, and the video format determine the size of the projected image.
• For the fixed short lens, the image exits at a default angle. However, the lens shift feature makes the image offset variable.
  • 360 degree free orientation operation

Removing and Installing the Lens

When handling the projector after lens installation, make sure the front lens cap is placed on the lens to protect the lens surface from potential damage. When carrying or moving the projector, do not handle by the lens. This may damage the lens, the chassis or other mechanical parts within the projector.

Installation Steps:

1. Center the lens: Ensure that the lens is at or near its center position. Attempting to remove the lens when at a large offset may cause damage to the lens assembly. Center the lens while the projector is switched on by pressing the lens horizontal or vertical button and then pressing Enter.
2. Turn Off the projector: Turn the projector OFF.
3. Wait for projector to cool down: Allow the projector to cool down into standby mode before replacing the lens. Remove power cord after the projector has cooled down and prior to replacing the lens.
4. Remove the lens: Remove the lens ring cover. Rotate the lens counter-clockwise by a quarter to release the lock. Remove the lens through the front of the projector.

Three-step illustration of a projector with a screw being inserted, showing mechanical components (no text or symbols)

1. Install the new lens: Fully insert the lens assembly straight into the lens mount without turning. Rotate the lens cap clockwise to lock the lens in place.

Adjusting the Projected Image

Adjusting the Projector's Height

The projector is equipped with elevator rubber feet for adjusting the image height.

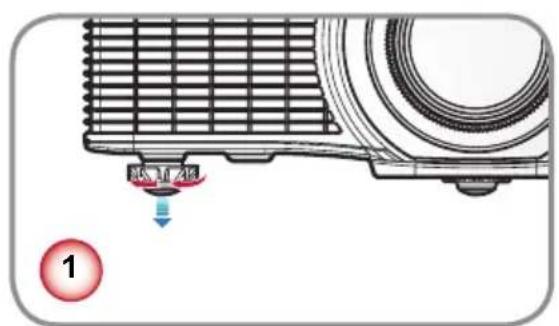

1. Locate the adjustable foot you wish to modify on the underside of the projector.

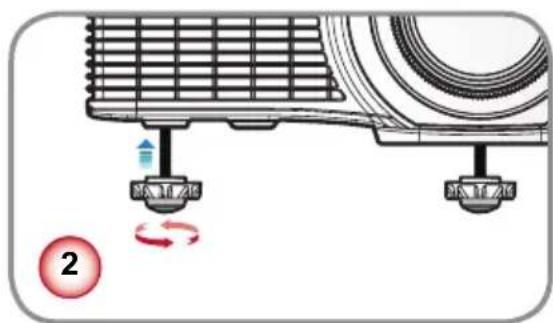

2. Rotate the adjustable ring clockwise to raise the projector or counter clockwise to lower it. Repeat with the remaining feet as needed.

Connect to Computer

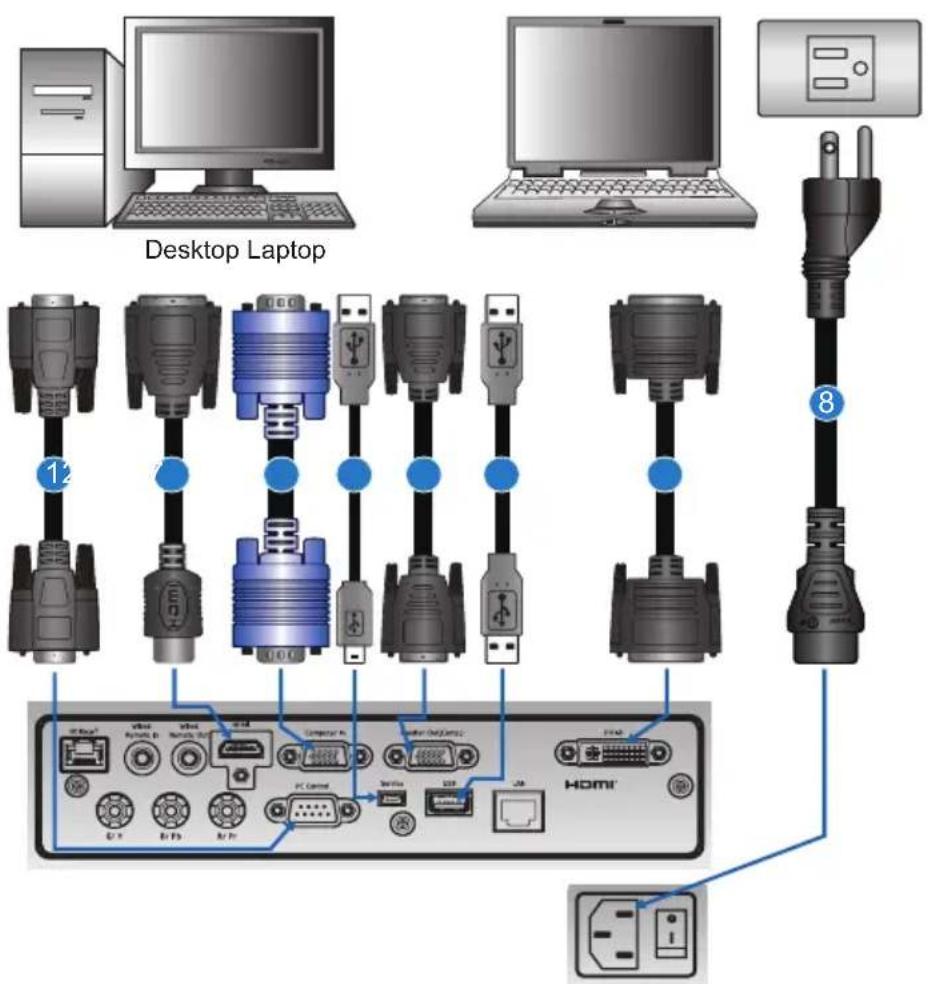

Ind.	Connector Name Ind.	Connector Name
1	RS232 Cable 5 VGA	out Cable
2	HDMI Cable 6 USB Type A	Cable
3	VGA in Cable 7 DVI Cable
4	Mini USB Cable 8 Power Cord

NOTE:

The diagram shows the cables/connectors that may be used to connect to various devices.
Due to the difference in applications for each country, the accessories required in some regions may be different from those shown.
This diagram is for illustrative purposes only, and does NOT indicate that these accessories are supplied with the projector.

Note for HDBaseT connection:

Connect the cable directly to the HDBaseT transmitter without going through a hub or router.
This projector is not guaranteed to work with all HDBaseT transmitter sold commercially.

Connect to Video Equipment

DVD playerComponent video output equipment Video cassette recorder

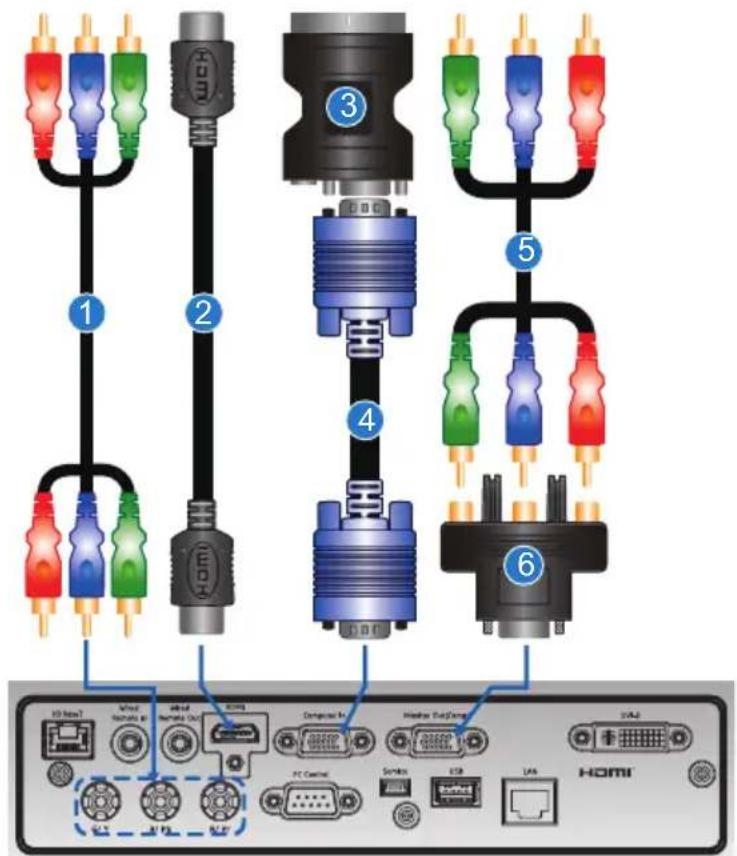

Ind.	Connector Name Ind. Connector Name
1	Component (YPbPr) Cable 4 VGA in Cable
2	HDMI Cable 5 3 RCA Component Cable
3	VGA to RBG SCART 6		15-pin to 3 RCA Component/ HDTV Adapter

NOTE:

The diagram shows the cables/connectors that may be used to connect to various devices.
Due to the difference in applications for each country, the accessories required in some regions may be different from those shown.
This diagram is for illustrative purposes only, and does NOT indicate that these accessories are supplied with the projector.
✿ (G/Y B/Pb R/Pr) terminal support component signal and RGB signal with sync on green only.
RGB signal from VGA connector (R/G/B/HD/VD) is not supported.

Turn the Projector On

1. Ensure that the power cord and signal cable are securely connected. The Power button on the built in keypad is illuminated.
2. Turn on the projector by pressing “” on the remote control or press “” on the built-in keypad. The Status LED is Orange with a long blink.
3. Turn on the source. Press the Input key on the remote control to select an input source (VGA, HDMI, or Component).
4. The projector detects the source you selected and displays the image.

NOTE:

The first time the projector is used, the preferred language may be selected from the main menu after the startup screen is displayed.

Turn the Projector Off

1. Press “” on the built-in keypad or press “” on the remote control to turn off the projector. A warning message will appear on the displayed image.

2. Press “” on the built-in keypad or press “” on the remote control again to confirm your selection. If you do not press “” or “” again, the warning message will disappear after 10 seconds.

Projection Lens

A3 is the standard lens for WXGA and WUXGA.

Projection Lens A1 A2 A3 A4 A5
Focal Length (f) 11.11-14.06	14.03-17.95 18.07	-22.59 22.56-42.87	42.60-80.90
F number 2.30-2.53 2.30-2.57	2.00-2.32 2.30-3	39 2.30-2.74
Focus spec (MTF) 67 Ip/mm	67 Ip/mm 47 Ip/mm	67 Ip/mm 67 Ip/mm
Zoom Range(Ratio) 1.26X 1.	28X 1.25X 1.9X 1.9X
Zoom & Focus Adjustment Motorized
Throw Ratio (WXGA) 0.79-1	1.00 1.00-1.28 1.28-1	1.61 1.60-3.07 3.04	-5.78
Throw Distance(WXGA)	0.83-6.45m	1.08-8.27m	1.38-10.40m	1.72-19.84m	3.27-37.35m
Throw Ratio (WUXGA)	0.75-0.95 0.95	-1.22 1.22-1.53 1.5	2-2.92 2.90-5.50
Throw Distance(WUXGA)	0.81-6.13m	1.02-7.88m	1.31-9.89m	1.64-18.87m	3.12-35.54m
Projection Image Size	50~300"

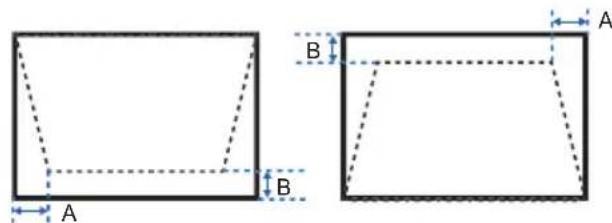

Motorized Lens Shift (Lens shift range based on 1/2 screen width and height)		Horizontal: +/-30%Vertical: +/-100%Projection Lens: A2, A4, A5
		Platform	H	V	ΔH
		0.65" WXGA	30% 100%	30% 100%
		0.67"WUXGA	30% 100%	30% 100%
		Projection Lens: A3
		Platform	H	V	ΔH
		0.65" WXGA	30% 100%	15%	70%
		0.67"WUXGA	30% 100%	5%	50%
		Projection Lens: A1
		Platform	H	V	ΔH
		0.65" WXGA	30% 100%	14%	70%
		0.67"WUXGA	30% 100%	2%	50%

Projection Lens A1 A2 A3 A4 A5
Motorized Lens Shift (Lens shift range based on 1/2 screen width and height)		A2/A4/A5 lens shift range:A1/A3 lens shift range:Lens shift accuracy: 0.5 pixel per step.When the lens is shifted beyond the described range of operation, the screen edges may become darker or the images may become out of focus.

Adjusting the Projecting Image's Position

To determine where to position the projector, consider the size and shape of your screen, the location of your power outlets, and the distance between the projector and the rest of your equipment.

Platform WUXGA (16:10)
DMD 0.67"
Projection Lens			Replacement Lens Type A1		Replacement Lens Type A2		Replacement Lens Type A3		Replacement Lens Type A4		Replacement Lens Type A5
			Short Throw Wide Zoom Standard Long Zoom								Ultra-Long Zoom
Throw Ratio 0.75-0.95 0.95-1.22 1.22-1.53 1.53-2.92 2.90-5.50
Zoom Ratio 1.26X 1.28X 1.25X 1.9X 1.9X
Throw Distance			0.81-6.14m		1.03~7.88m		1.32~9.88m		1.65~18.86m		3.13~35.53m
Projection screen size			Projection distance (m)
Throw Ratio			0.75	0.95	0.95	1.22	1.22	1.53	1.53	2.92	2.9	5.5
Diagonal (inch)	Height (m)	Width (m)	Min (m)	Max (m)	Min (m)	Max (m)	Min (m)	Max (m)	Min (m)	Max (m)	Min (m)	Max (m)
50	0.67	1.08	0.81	1.03	1.03	1.32	1.32	1.65	1.65	3.15	3.13	5.94
60	0.81	1.29	0.97	1.23	1.23	1.57	1.57	1.97	1.97	3.77	3.74	7.10
70	0.94	1.51	1.13	1.43	1.43	1.84	1.84	2.31	2.31	4.41	4.38	8.31
80	1.08	1.72	1.29	1.63	1.63	2.10	2.10	2.63	2.63	5.02	4.99	9.46
90	1.21	1.94	1.46	1.84	1.84	2.37	2.37	2.97	2.97	5.66	5.63	10.67
100	1.35	2.15	1.61	2.04	2.04	2.62	2.62	3.29	3.29	6.28	6.24	11.83
110	1.48	2.37	1.78	2.25	2.25	2.89	2.89	3.63	3.63	6.92	6.87	13.04
120	1.62	2.58	1.94	2.45	2.45	3.15	3.15	3.95	3.95	7.53	7.48	14.19
130	1.75	2.8	2.10	2.66	2.66	3.42	3.42	4.28	4.28	8.18	8.12	15.40
140	1.88	3.02	2.27	2.87	2.87	3.68	3.68	4.62	4.62	8.82	8.76	16.61
150	2.02	3.23	2.42	3.07	3.07	3.94	3.94	4.94	4.94	9.43	9.37	17.77
160	2.15	3.45	2.59	3.28	3.28	4.21	4.21	5.28	5.28	10.07	10.01	18.98
170	2.29	3.66	2.75	3.48	3.48	4.47	4.47	5.60	5.60	10.69	10.61	20.13
180	2.42	3.88	2.91	3.69	3.69	4.73	4.73	5.94	5.94	11.33	11.25	21.34
190	2.56	4.09	3.07	3.89	3.89	4.99	4.99	6.26	6.26	11.94	11.86	22.50
200	2.69	4.31	3.23	4.09	4.09	5.26	5.26	6.59	6.59	12.59	12.50	23.71
250	3.37	5.38	4.04	5.11	5.11	6.56	6.56	8.23	8.23	15.71	15.60	29.59
300	4.04	6.46	4.85	6.14	6.14	7.88	7.88	9.88	9.88	18.86	18.73	35.53
Platform WXGA (16:10)
DMD 0.65"
Projection Lens			Replacement Lens Type A1		Replacement Lens Type A2		Replacement Lens Type A3		Replacement Lens Type A4		Replacement Lens Type A5
			Short Throw		Wide Zoom Standard		dard Long Zoom				Ultra-Long Zoom
Throw Ratio 0.79-1 1.00-1.28 1.28-1.61 1.60-3.07 3.04-5.78
Zoom Ratio 1.26X 1.28X 1.25X 1.9X 1.9X
Throw Distance			0.85-6.46m		1.08~8.27m		1.38~10.40m		1.73~19.83m		3.28~37.34m
Projection screen size			Projection distance (m)
Throw Ratio			0.79	1	1	1.28	1.28	1.61	1.6	3.07	3.04	5.78
Diagonal (inch)	Height (m)	Width (m)	Min (m)	Max (m)	Min (m)	Max (m)	Min (m)	Max (m)	Min (m)	Max (m)	Min (m)	Max (m)
50	0.67	1.08	0.85	1.08	1.08	1.38	1.38	1.74	1.73	3.32	3.28	6.24
60	0.81	1.29	1.02	1.29	1.29	1.65	1.65	2.08	2.06	3.96	3.92	7.46
70	0.94	1.51	1.19	1.51	1.51	1.93	1.93	2.43	2.42	4.64	4.59	8.73
80	1.08	1.72	1.36	1.72	1.72	2.20	2.20	2.77	2.75	5.28	5.23	9.94
90	1.21	1.94	1.53	1.94	1.94	2.48	2.48	3.12	3.10	5.96	5.90	11.21
100	1.35	2.15	1.70	2.15	2.15	2.75	2.75	3.46	3.44	6.60	6.54	12.43
110	1.48	2.37	1.87	2.37	2.37	3.03	3.03	3.82	3.79	7.28	7.20	13.70
120	1.62	2.58	2.04	2.58	2.58	3.30	3.30	4.15	4.13	7.92	7.84	14.91
130	1.75	2.8	2.21	2.8	2.8	3.58	3.58	4.51	4.48	8.60	8.51	16.18
140	1.88	3.02	2.39	3.02	3.02	3.87	3.87	4.86	4.83	9.27	9.18	17.46
150	2.02	3.23	2.55	3.23	3.23	4.13	4.13	5.20	5.17	9.92	9.82	18.67
160	2.15	3.45	2.73	3.45	3.45	4.42	4.42	5.55	5.52	10.59	10.49	19.94
170	2.29	3.66	2.89	3.66	3.66	4.68	4.68	5.89	5.86	11.24	11.13	21.15
180	2.42	3.88	3.07	3.88	3.88	4.97	4.97	6.25	6.21	11.91	11.80	22.43
190	2.56	4.09	3.23	4.09	4.09	5.24	5.24	6.58	6.54	12.56	12.43	23.64
200	2.69	4.31	3.40	4.31	4.31	5.52	5.52	6.94	6.90	13.23	13.10	24.91
250	3.37	5.38	4.25	5.38	5.38	6.89	6.89	8.66	8.61	16.52	16.36	31.10
300	4.04	6.46	5.10	6.46	6.46	8.27	8.27	10.40	10.34	19.83	19.64	37.34

User Controls

OPERATION

The projector has multilingual On-Screen Display (OSD) menus that allow you to make image adjustments and change a variety of settings.

• Most of the projector controls are accessed from within the projector menu system. There are several groups of related functions, with each group selectable from the Main menu as shown below. Press the MENU button on the remote control or on the built-in keypad on the rear of the projector to display the main menu.
• Use the arrow keys to navigate within the menu and adjust a setting up or down.
• Press ENTER to select a highlighted menu item or use it to change or accept a value.
• Select the next item that you want to adjust in the menu and adjust it as described above.
• Press EXIT to return to the previous menu or exit menus if at top level.

PICTURE	PICTURE
	Display Mode	Presentation
OUTPUT	Brightness	50
	Contrast	50
	Sharpness	2
SETUP	Color	50
	Tint	50
	Phase	50
OPTION	Frequency	50
	Horz Position	50
	Vert Position	50

NOTE:

If the text is gray color, user is unable to enter the menu when the projector does not detect any input source.
If the text is white color, user is able to select the menu when the projector does not detect any input source.

OSD Tree

Level 1 Level 2 Level 3 Level 4 Level 5 Default
PICTURE	Display Mode	Presentation			By source set
		Video
		Bright
		DICOM SIM
		Blending
		2D High Speed
		3D
		User
		Save to User
	Brightness	0 ~ 100 50
	Contrast	0 ~ 100 50
	Sharpness	0 ~ 4 2
	Color	0 ~ 100 50
	Tint	0 ~ 100 50
	Phase	0 ~ 100 50
	Frequency	0 ~ 100 50
	Horz Position	0 ~ 100 50
	Vert Position	0 ~ 100 50
	Auto Image
	3D Display	3D Enable On/Off
		3D Invert
	Color Matching	Enable On/Off Off
		Auto Test Pattern On/Off On
		Red Part of Red 0 - 1000	1000
		Green Part of Red 0 - 1000			0
		Blue Part of Red	0 - 1000		0
		Green Part of Green	0 - 1000 1000
		Red Part of Green 0 - 1000			0
		Blue Part of Green	0 - 1000		0
		Blue Part of Blue	0 - 1000 1000
		Red Part of Blue	0 - 1000		0
		Green Part of Blue	0 - 1000		0
		Red Part of White	0 - 1000 1000
		Green Part of White	0 - 1000 1000
		Blue Part of White	0 - 1000 1000
		Reset to Default Yes/No
	Advanced	White Peaking	0 - 100		By source set
		Gamma	Vdeo		By source set
			Film
			Bright
			CRT
			DICOM
			Gamma 2.2
		Color Temperature	Warmest		By source set
			Warm
			Cool
			Bright
PICTURE Advanced	Color Space	RGB		Auto
		REC709
		REC601
		RGB Video
		Auto
	Color Settings	Red Gain 0 ~ 100	50
		Green Gain 0 ~ 100	50
		Blue Gain 0 ~ 100	50
		Red Offset 0 ~ 100	50
		Green Offset 0 ~ 100	50
		Blue Offset 0 ~ 100	50
		Reset RGB Gain/Offset
	Color Enhancement 0 ~ 2 0
	Film Mode	Off
		On
	Extreme Black	Off		On
		On
OUTPUT	Aspect Ratio	Auto		Auto
		4:3
		16:10
		Native
	Overscan	Off		By source set
		On
	H Digital Zoom 50% ~	400% 100
	V Digital Zoom 50% ~	400% 100
	H Digital Shift	0 ~ 100		50
	V Digital Shift	0 ~ 100		50
	Image Warping	H Keystone	0 ~ 40	20
		V Keystone	0 ~ 40	20
		H Pincushion	0 ~ 100	50
		V Pincushion	0 ~ 100	50
	PIP/PBP	PIP/PBP Enable	Off	Off
			On
		Main Source	VGA	VGA
			HDMI
			Component
			HDBaseT Port
			DVI-D
		Sub Source	VGA
			HDMI
			Component
			HDBaseT Port
			DVI-D
		Swap
		Size	Small	Large
			Medium
			Large
OUTPUT PIP/PBP Layout			PBP, Main Left
			PBP, Main Top
			PBP, Main Right
			PBP, Main Bottom
			PIP-Bottom Right
			PIP-Bottom Left
			PIP-Top Left
			PIP-Top Right
SETUP	Language	English			English
		French
		Spanish
		German
		Italian
		Russian
		Chinese Simplified
		Japanese
		Korean
	Ceiling Mount	Off			AutoOn
		Auto
	Rear Projection	Off			Off
		On
	Lens Function	Focus
		Zoom
		Lens Shift
		Lens Calibration Yes/No	(Dialog box)
		Lens Lock	No
			Yes
	Menu Preferences	Menu Transparency 0 ~ 9 0
		Show Messages	Off		On
			On
	Keypad LED Settings	Off			On
		On
	Pin	Pin Protect	Off Off		PIN default : 12345
			On
		Change PIN
	Communications LAN		DHCP by set
			IP Address		by set
			Subnet Mask		by set
			Default Gateway		by set
			MAC Address
			Apply		by set
SETUP Communications		Network	Projector Name by	set
			Restart Network
			Network Factory Reset
		Serial Port Baud Rate	9600		19200
			14400
			19200
			38400
			57600
			115200
		Serial Port Path	RS232		RS232
			HDBaseT Port
		Projector Address 0 - 99 0
OPTION	Auto Source	Off			On
		On
	High Altitude	Off			Off
		On
	Test Pattern	Off			Off
		Grid
		Red
		Green
		Blue
		Yellow
		Magenta
		Cyan
		White
		Black
	Background Color	Logo			Logo
		Blue
		Black
		White
	Hot-Key settings	Blank Screen			Blank Screen
		Aspect Ratio
		Freeze Screen
		Overscan
OPTION	Power Settings	Standby Power Mode	0.5W mode		0.5W mode
			Communication mode
		Direct Power On	Off		Off
			On
		Auto Power Off	No		20 Mins
			5 Mins
			10 Mins
			15 Mins
			20 Mins
			25 Mins
			30 Mins
		Sleep Timer	No		No
			2 Hours
			4 Hours
			6 Hours
	Light Source Settings	Light Source Mode	Constant Power		Constant Power
			Constant Luminance
			Eco Mode
		Constant Power Settings 0	- 10 10
		Constant Luminance Settings	0 - 10 7
		Total Projector Hours
	Light Sensor	Light Sensor Calibration
		Calibrated? (Display Yes/No)
	Information	Native Resolution
		Firmware
		Main Source
		- Resolution
		- Signal Format
		- Pixel Clock
		- Horz Refresh
		- Vert Refresh
		Sub Source
		- Resolution
		- Signal Format
		- Pixel Clock
		- Horz Refresh
		- Vert Refresh
		Light Source Mode
		Total Projector Hours
OPTION	Information	Standby Power Mode
		IP Address
		DHCP
		System Temperature
	Factory Reset Yes/No	(Dialog box)
	Service

Picture Menu

PICTURE	PICTURE
	Display Mode	Presentation
OUTPUT	Brightness	50
	Contrast	50
	Sharpness	2
SETUP	Color	50
	Tint	50
	Phase	50
	Frequency	50
OPTION	Horz Position	50
	Vert Position	50

PICTURE (1/2)

PICTURE (2/2)

Display Mode

Optimize the projector for displaying images under certain conditions, such as Presentation, Video, Bright, DICOM SIM, Blending, 2D high speed, 3D, and user-definable preset. It will affect Gamma, Sharpness, White Peaking, Overscan, Brightness, Contrast, Color, Tint, Red Gain, Green Gain, Blue Gain, Red Offset, Green Offset and Blue Offset.

Brightness

Adjust the intensity of the image.

Contrast

Adjust the degree of difference between the lightest and darkest parts of the picture and change the amount of black and white in the image.

Sharpness

Select the edge clarity of the image.

Color

Adjust a video image from black and white to fully saturated color. The color setting applies to video sources only.

Tint

Adjust the red-green color balance in the image of video images. The tint setting applies to video sources only.

Phase

Analog signals only. Adjust pixel phase when the image still shows shimmer or noise after pixel tracking is optimized. Pixel phase can adjust the phase of the pixel-sampling clock relative to the incoming signal.

Frequency

Analog signals only. Steady flickering or several soft vertical stripes or bands across the entire image indicates poor frequency. Proper frequency ensures that the image quality is consistent across the screen, the aspect ratio is maintained, and that the pixel phase can be optimized.

Horz Position

Move the image right or left within the area of available pixels.

Vert Position

Move the image up or down within the area of available pixels.

Auto Image

Force the projector to reacquire and lock to the input signal. This is useful when signal quality is marginal.

3D Display

Select the 3D relating settings.

- 3D Enable:

• Off: Disable 3D function.
• On: Enable 3D function, Supports frame sequential 3D at 120Hz.

- 3D Invert: When 3D synchronous error, user can toggle the item to correct 3D synchronous.

NOTE:

✿ 3D supported format timings:1280x720@120Hz, 1024x768@120Hz frame sequential.
When input timing is 120 Hz frame sequential, the keystone and color temperature function will be disable temporary.

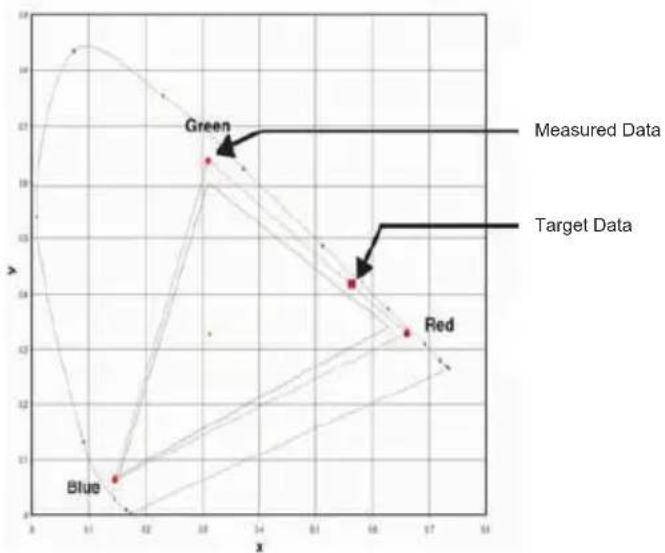

Color Matching

You may require a unique color gamut (range) for a single projector or application, or you may need to precisely match colors across multiple adjacent displays. Use Color Matching by Meter Adjustment or by Manual Adjustment to define the precise hue of each primary color component (red, green, blue and white).

The x/y coordinates for each color define its location on the standard CIE chromaticity graph. Changing either or both of these numbers will change the hue of the color, and modify the range of possible colors. For example, changing the x/y coordinates for red may move the color closer to orange or closer to violet, which will in turn affect all displayed colors having a red component. Adjust the slide bars or enter new specific coordinates as desired to define or change the color gamuts needed for your environment and applications.

Enable the selected method (Meter or Manual Adjustment)- this will automatically disable the other method. For both methods, if Auto Test Pattern is enabled, the solid colored test pattern will be displayed according to the menu item on which you are positioned.

If the Auto Test Pattern is enabled, the projector will automatically project a solid color screen when user selects the desired color in Color Matching setting.

For example:

• When “Red Part of Red” is highlighted, the projector is automatically projected the red screen.
• When “Red Part of White” is highlighted, the projector is automatically projected the white screen.

- Meter Adjustment

1. Using a color meter, enter the current x and y co-ordinates of Red, Green, Blue and White for the projector image into the Measured Data menu. This is the reference point for the projector. The default values in the menu are based on the average for all projectors.

2. After measuring the values for all the projectors to be matched, calculate the target values.

3. Enter the target values for x, y and gain for each color into the Target Data menu.

- Manual Adjustment

1. Adjust color slide bars and judge image color by eye or meter. A user-defined color "adjustment" can be applied.

2. Use this submenu if you do not have specific color coordinates in mind and will judge color performance by eye or meter. As for Meter Adjustment, each color control actually defines new x/y coordinates for that color and changes its hue. The main colors (red part of red, green part of green and blue part of blue) adjust the intensity of that color component, while the modifying colors (e.g. green part of red and blue part of red) modify the x and y value and change the hue of that color. At the same time the main colors also are used to control the color of the white point.

Advanced

- White Peaking: (Video source only) Increase the brightness of whites that are near 100%.

- Gamma: Select the appropriate gamma from Video, Film, Bright, CRT, DICOM, and Gamma 2.2.

• Color Temperature: Change the intensity of the colors. Select a listed relative warmth value.

• Color Space: Select a color space that has been specifically tuned for the input signal. Use only for analog signals and certain digital sources.

• Color Settings: Adjust the gain of the red, green, or blue channel of the image. It will affect the black and white.

Adjust the offset of the red, green, or blue channel of the image. It will affect the black and white.

Reset RGB gain/offset to return the factory default settings for color adjustments.

• Color Enhancement: Apply the Color enhancement process.

Film Mode

- Control film mode detection and determine whether the original source of the input video was film or video.

• Off: Films are not detected.
• On: Films are detected automatically.

NOTE:

This function is available for interlaced video signals.

Extreme Black:

- Contrast can be increased by a dark content.

• Off: Disable Extreme Black.
• On: The projector will automatically improvement contrast.

Output Menu

PICTURE	OUTPUT
	Aspect Ratio	Auto
	Overscan	Off
OUTPUT	H Digital Zoom	100
	V Digital Zoom	100
	H Digital Shift	50
SETUP	V Digital Shift	50
	Image Warping
	PIP/PBP
OPTION

Aspect Ratio

Display an image with the detected size, or resize the image by maximizing either the height, width or both, or resize to the maximum size possible while keeping the original aspect ratio.

• Auto: Display with the detected size.
• 4:3: Retain 4:3 aspect ratio.
• 16:10: Retain 16:10 aspect ratio.
- Native: Display in its native resolution.

Overscan

Remove noise around the image. Overscan Zoom enlarges image 3% from original size. Overscan Crop cuts 3% of active pixels in four edges of original image.

H Digital Zoom

Change the size of projector's display area horizontally. If the display area has been resized by this setting, it can be moved by changing the H Digital Shift and V Digital Shift settings.

V Digital Zoom

Change the size of projector's display area vertically. If the display area has been resized by this setting, it can be moved by changing the H Digital Shift and V Digital Shift settings.

H Digital Shift

Move the display area horizontally if its size has been changed by the Digital Zoom setting.

V Digital Shift

Move the display area vertically if its size has been changed by the Digital Zoom setting.

Image Warping

- H Keystone: Adjust the keystone horizontally and make a squarer image. Horizontal keystone is used to correct a keystoned image shape in which the left and right borders of the image are unequal in length. This is intended for use with horizontally on-axis applications.

Ind. WXGA WUXGA
A 12.3% 7.1%
B 7.7% 5.2%

- V Keystone: Adjust the keystone vertically and make a squarer image. Vertical keystone is used to correct a keystoned image shape in which the top and bottom are slanted to one of the sides. This is intended when for use with vertically on-axis applications.

Ind. WXGA WUXGA
A 5.4% 3.3%
B 10% 5.4%

- H Pincushion: Adjust the pincushion horizontally and make a more square image.

Pure geometric diagram with dashed curved lines inside a rectangle and labeled point A (no text or symbols beyond label)

Simple geometric diagram showing a rectangle with a dashed circular arc and label B (no text or symbols within the shape)

Ind. WXGA WUXGA
A 16.0% 8.0%
B 16.0% 7.9%

• V Pincushion: Adjust the pincushion vertically and make a more square image.

Pure geometric diagram with dashed curved lines inside a rectangle and a labeled point A (no text or symbols beyond label)

Simple geometric diagram with a rectangle and dashed inner lines, no text or symbols present.

Ind. WXGA WUXGA
A 14.7% 11.4%
B 14.7% 11.4%

PIP/PBP

• PIP/PBP Enable: Toggle between displaying two sources at once (Main and PIP/PBP images) or one source only.
• Main Source: From the list of active inputs, select one to be used as the main image.
• Sub Source: From the list of active inputs, select one to be used as the PIP/PBP.
• Swap: Change the main image to PIP/PBP, and the PIP/PBP to main image. Swapping is available only when PIP/PBP is enabled.
• Size: Select the PIP/PBP size. Available options: Small, Medium, or Large.
• Layout: Set the location of the PIP/PBP image on the screen.

NOTE:

• PIP/PBP layout and size table as described below.
  ❖ P : indicates primary source region (lighter color).
  * : Both source regions are the same size. Main and sub picture are the same size when the PBP size is large.

PIP/PBP Layout	PIP/PBP Size
	Small Medium Large
PBP, Main Left
PBP, Main Top
PBP, Main Right
PBP, Main Bottom
PIP-Bottom Right
PIP-Bottom Left
PIP-Top Left
PIP-Top Right

Setup Menu

PICTURE	SETUP
	Language	English
OUTPUT	Ceiling Mount	Auto
	Rear Projection	Off
	Lens Function
SETUP	Menu Preferences
	Keypad LED Settings	On
	Pin
	Communications
OPTION

Language

This item allows you to select an available language for the OSD display.

Ceiling Mount

Turn the image upside down for ceiling-mounted projection.

Rear Projection

Reverse the image so you can project from behind a translucent screen.

Lens Function

• Focus: Adjust focus function on the projected image.
• Zoom: Adjust zoom function on the projected image.
• Lens Shift: Shift the projected image.
• Lens Calibration: Perform calibration and return lens to the center position.
• Lens Lock: Select this function to prevent all lens motors from moving.

- No: Lens shift can be used by user.

- Yes: Lens shift will be locked.

Menu Preferences

• Menu Transparency: Change OSD menu background to be transparent.
  • Show Messages: Display status messages on the screen.

Keypad LED Settings

• Off: Turn off the backlight of the keypad.
• On: Turn on the backlight of the keypad.

Pin

- PIN Protect: The PIN (personal identification number) feature allows you to password protect your projector. Once you enable the PIN feature, you must enter the PIN before you can project an image. (PIN Default : 12345)

- Change PIN: This item allows you to change the PIN.

Communications

• LAN:

• DHCP: Turn the DHCP ON/OFF.
• IP Address: Assign Network IP Address.
• Subnet Mask: Assign Network Subnet Mask.
• Default Gateway: Assign Network Default Gateway.
• MAC Address: Display the network MAC Address value.
• Apply: Apply Network settings.

- Network:

• Projector Name: Display the projector hostname for Network.
• Restart Network: Restart the network.

• Network Factory Reset: Perform factory reset on the network settings. The Projector Name, LAN IP, and SNMP settings will be reset.

• Serial Port Baud Rate: Select the serial port and baud rate.

• Serial Port Path: Select the serial port path from either RS232 or HDBaseT Port.
• Projector Address: Set the projector address. The projector will respond to IR remotes set either at the same address as the projector or to IR remotes set to address 0.

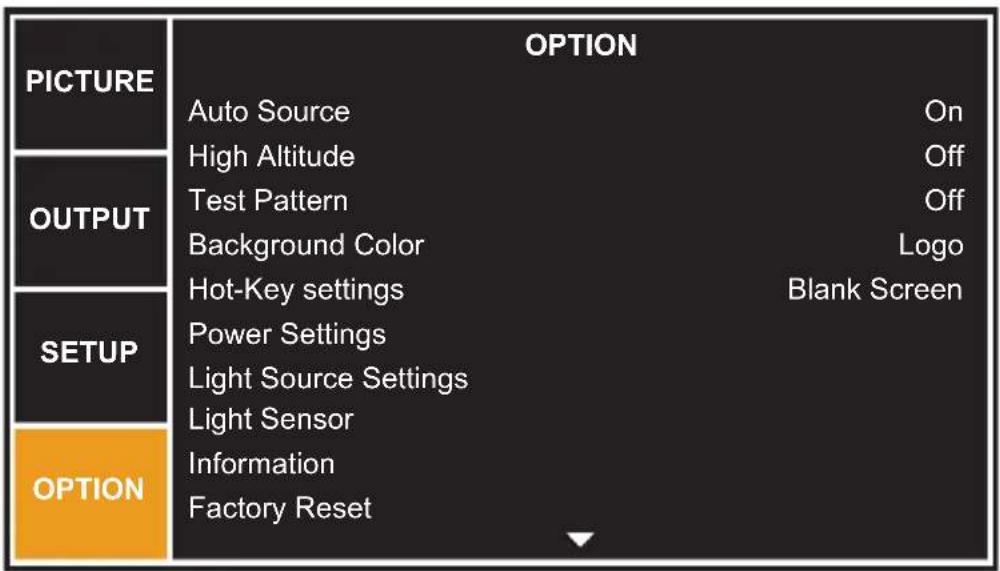

Option Menu

OPTION (1/2)

OPTION (2/2)

Auto Source

• Off: The projector will only search current input connection.
• On: The projector will search for other signals if the current input signal is lost.

High Altitude

When “On” is selected, the fans will spin faster. Set High Altitude mode to “On” when the projector is used over 5000ft (1500m) elevation.

Test Pattern

Choose the desired internal test pattern to display, or select Off to turn off a test pattern.

Background Color

Use this feature to display a "Logo", "Blue", "Black" or "White" screen when no signal is available.

Hot-Key settings

Assign a different function to the hot-key on the remote control by highlighting the function in the list and pressing ENTER. Choose a function that does not already have a dedicated button, and assign the hot-key to that function, allowing you to quickly and easily use the chosen function.

Power Settings

- Standby Power Mode:

• 0.5W mode: The projector is in standby mode when connected to AC power. (<0.5W)
• Communication mode: The projector could be controlled via the LAN terminal during power standby.

- Direct Power On: The projector automatically turns on when electrical power is connected.

• Auto Power Off: Automatically turns the projector off after no signals are detected for a preset number of minutes. If an active signal is received before the projector powers down, the image will be displayed.
• Sleep Timer: This item allows the projector to automatically power off after it has been on for a specified amount of time.

Light Source Settings

• Light Source Mode: Select Constant Power, Constant Luminance or Eco Mode. When in Eco Mode, the projector will adjust to the lowest fan speed and switch the laser diode power to the minimum setting.
• Constant Power Settings: Set the value of the laser diode power (in Watts).
• Constant Luminance Settings: Set the value for the Constant Luminance Settings to maintain constant brightness. The light sensor will monitor the light level and will apply more power as the laser brightness decays naturally over time. When the laser setting reaches maximum power of 405W, it will remain at this setting. Note that the light sensor needs to be calibrated for Constant Luminance mode to work properly.
• Total Projector Hours: Display current total hours the projector used.

Light Sensor

- Light Sensor Calibration: Calibrate the Light Sensor for use with the Constant Luminance mode, which allows the projector to be set for constant brightness. If the Light Sensor has not been calibrated, Constant Luminance mode will be disabled.

- Constant Power Settings

• Yes: Light Sensor has been calibrated.
• No: Light Sensor has not been calibrated.

Information

Display the projector information for source, resolution, and software version on the screen.

Factory Reset

Restore all settings to their default value. It will not reset network.

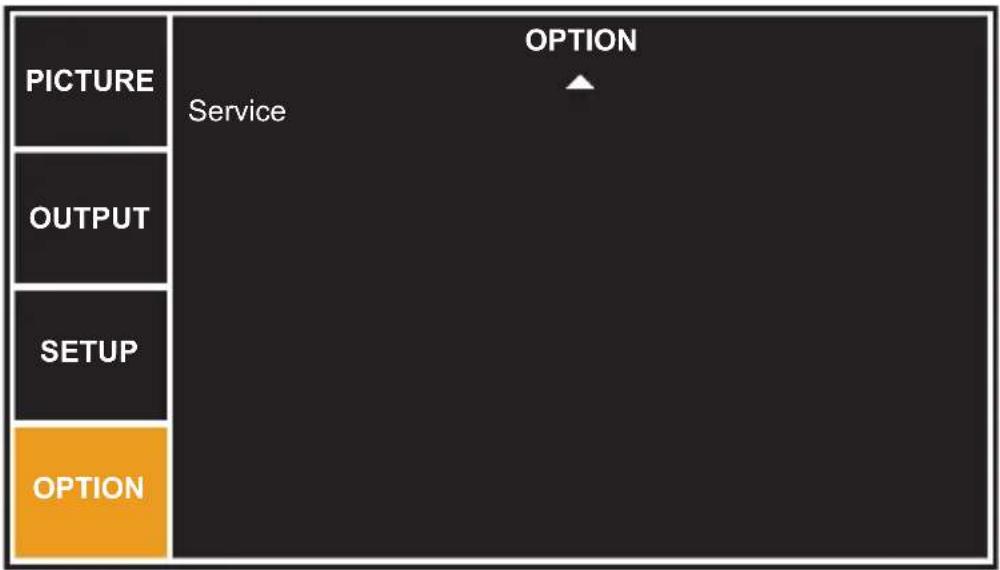

Service

Service only.

Appendices

Troubleshooting

If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center.

Image Problems

No image appears on-screen

▶ Ensure all the cables and power connections are correctly and securely connected as described in the “Installation” section.
▶ Ensure the pins of connectors are not crooked or broken.
▶ Make sure you have removed the lens cover and the projector is switched on.

Partial, scrolling or incorrectly displayed image

▶ Press "AUTO" on the control panel or the remote control.
▶ If you are using a PC:

- For Windows Vista, Windows 7:

1. Open the "My Computer" icon, the "Control Panel" folder, and then double click on the "Display" icon.
2. Select the "Settings" tab.
3. Verify that your display resolution setting is lower than or equal to WUXGA(1920 x 1200).
4. Click on the "Advanced Properties".

If the projector is still not projecting the whole image, you will also need to change the monitor display you are using. Refer to the following steps.

1. Verify the resolution setting is lower than or equal to WUXGA(1920 x 1200).
2. Select the "Change" button under the "Monitor" tab.
3. Click on "Show all devices". Next, select "Standard monitor types" under the SP box; choose the resolution mode you need under the "Models" box.
4. Verify that the resolution setting of the monitor display is lower than or equal to WUXGA(1920 x 1200).

▶ If you are using a Notebook:

• First, follow the steps above to adjust resolution of the computer.
• Press the toggle output settings. example: [Fn]+[F4]

Notebook Brand Function Keys
Acer [Fn]+[F5]
Asus [Fn]+[F8]
Dell [Fn]+[F8]
Gateway [Fn]+[F4]
IBM/Lenovo [Fn]+[F7]
HP/Compaq [Fn]+[F4]
NEC [Fn]+[F3]
Toshiba [Fn]+[F5]
Mac Apple	System Preference -> Display -> Arrangement -> Mirror display

If you experience difficulty changing resolutions or your monitor freezes, restart all equipment including the projector.

The screen of the Notebook or PowerBook computer is not displaying your presentation

Some Notebook PCs may deactivate their own screens when a second display device is in use. Each has a different way to be reactivated. Refer to your computer's documentation for detailed information.

? Image is unstable or flickering

Adjust the "Phase" to correct it.
▶ Change the monitor color setting from your computer.

? Image has vertical flickering bar

▶ Use “Frequency” to make an adjustment.
▶ Check and reconfigure the display mode of your graphic card to make it compatible with the projector.

? Image is out of focus

▶ Make sure the lens cover is removed.
Adjust the Focus function for the projector lens.
▶ Make sure the projection screen is between the required distance.

The image is stretched when displaying 16:9 DVD title

When you play anamorphic DVD or 16:9 DVD, the projector will show the best image when the projector display mode is set to Auto in the OSD.
If you play 4:3 format DVD titles, please change the format to 4:3 in the projector OSD.
If the image is still stretched, you will also need to adjust the aspect ratio by referring to the following:
▶ Please setup the display format as 16:9 (wide) aspect ratio type on your DVD player.

? Image is too small or too large

▶ Move the projector closer to or further from the screen.
Press "Menu" on the control panel. Go to "OUTPUT" --> "Aspect" and try the different settings.

? Image has slanted sides:

If possible, reposition the projector so that it is centered on the screen and below the bottom of the screen.
▶ Press the "Keystone" button on the remote control, until the sides are vertical.

? Image is reversed

Adjust the "SETUP" --> "Rear Projection" to correct it.

Projector Problems

The projector stops responding to all controls

If possible, turn off the projector, then unplug the power cord and wait at least 60 seconds before reconnecting power.
▶ Check that "Keypad Lock" is not activated by trying to control the projector with the remote control.

If the remote control does not work

▶ Check if the operating angle of the remote control is within ±30^ both horizontally and vertically on one of the IR receivers on the projector.
▶ Make sure there is no obstruction between the remote control and the projector. Move to within 12 m ( ±0^ ) of the projector.
▶ Make sure the batteries are inserted correctly.
▶ Replace batteries if they are exhausted.
▶ Ensure that you have set your remote to the correct IR code setting.

When making a direct connection from your computer to the projector

If you have network connection problem from your computer to the projector, please refer to the computer setting as below or contact with web administrator.

Step 1: Find an IP Address (192.168.0.100) from LAN function of projector.

IP Address

192.168.0.100

Step 2: Select "Apply" and push the "Enter" button. Once the setting is saved, exit the OSD by pushing "Menu" button.

Step 3: To open Network Connections, click Start, click Control Panel, click Network and Internet Connections, and then click Network Connections. Click the connection you want to configure, and then, under Network Tasks , click Change settings of this connection.

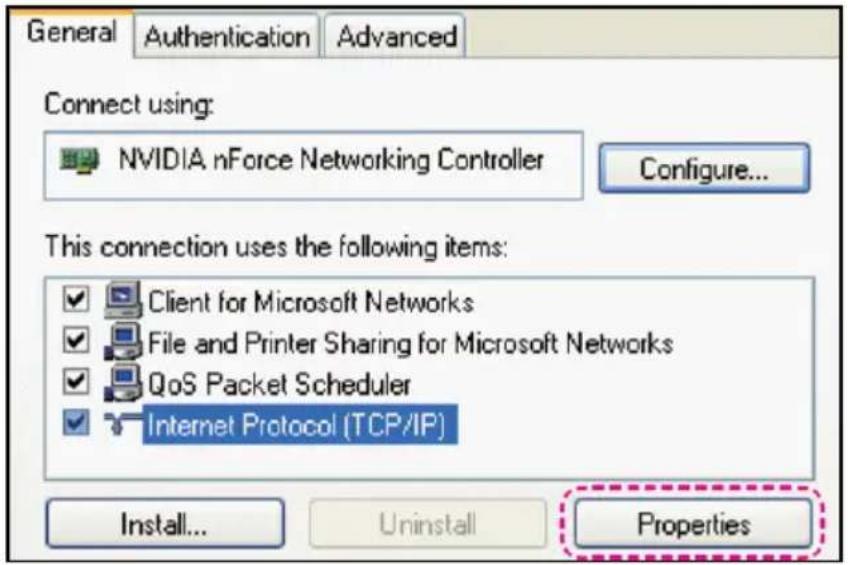

Step 4: On the General tab, under This connection use the following items, click Internet Protocol(TCP/IP), and then click "Properties".

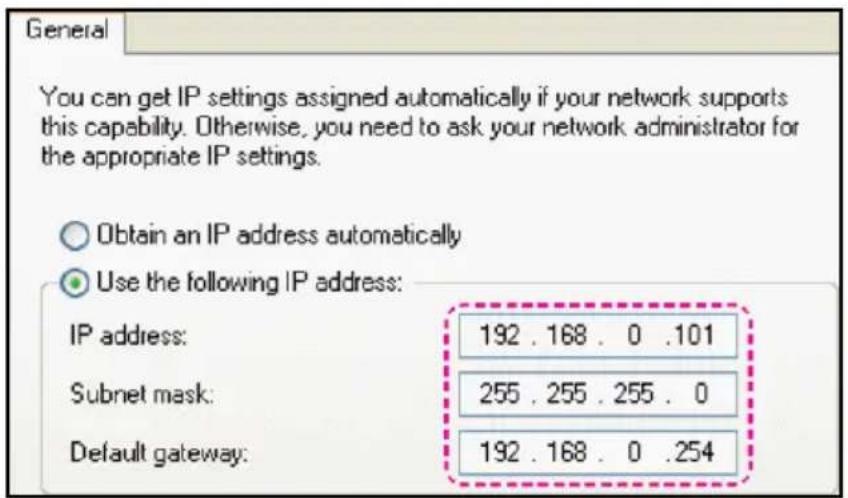

Step 5: Click Use the following IP address, and type in as below:

1) IP address: 192.168.0.101
2) Subnet mask: 255.255.255.0
3) Default gateway: 192.168.0.254

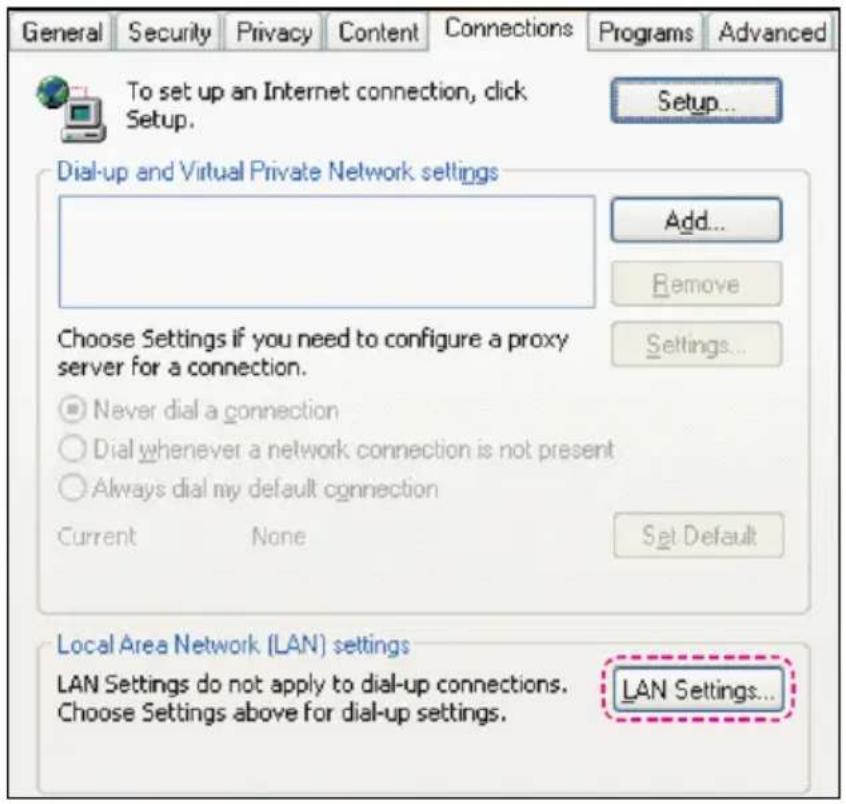

Step 6: To open Internet Options, click IE web browser, click Internet Options, click the Connections tab and click "LAN Setting...".

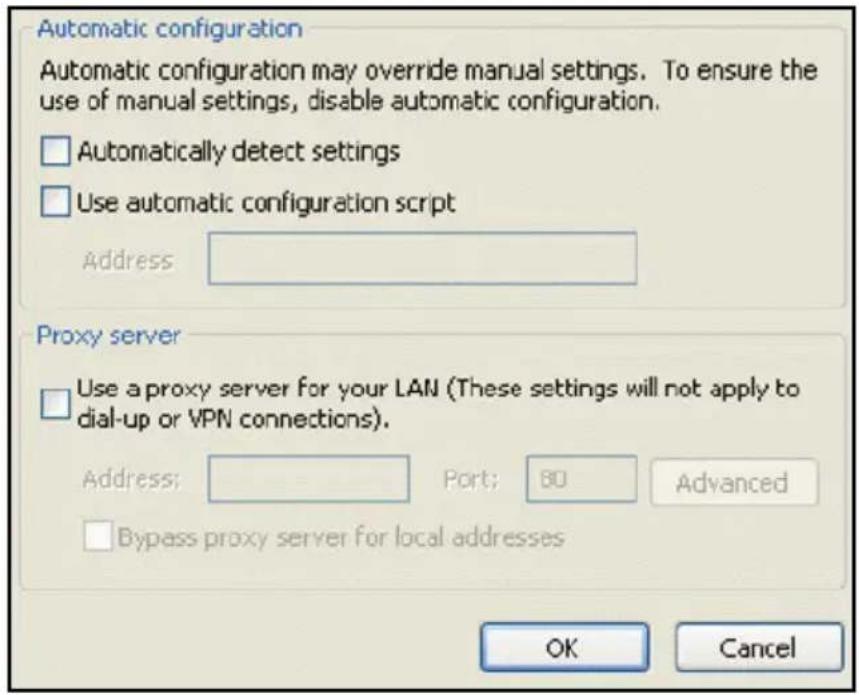

Step 7: All items in the Local Area Network (LAN) Setting window must unchecked. Then click "OK" button twice.

Step 8: Connect a cat5 Ethernet cross-over cable between the projector and the computer.

On Screen Messages

• Power off confirm

Power Off?

Press OFF key again.

Compatibility Modes

Inputs

Signal Type Resolution		Frequency H. (KHz)	Frame rate (Hz)	VGA	Component	HDMI DVI	HDBaseT
PC	640x480 31	469 60 V V V
	640x480 37	861 72 V V V
	640x480 37	500 75 V V V
	640x480 43	269 85 V V V
	640x480 35	000 66.6 V V
	720x400 31	469 70 V V V
	800x600 37	9 60 V V V
	800x600 48	1 72 V V V
	800x600 46	9 75 V V V
	800x600 53	7 85 V V V
	832x624 75	V V V V
	848x480 24	621 50 V V V
	848x480 29	829 60 V V V
	848x480 37	683 75 V V V
	848x480 42	968 85 V V V
	1024x768 48	4 60 V V V V
	1024x768 60	022 75 V V V
	1024x768 68	7 85 V V V V
	1152x720 37	024 50 V V V
	1152x720 44	858 60 V V V
	1152x720 56	414 75 V V V
	1152x720 64	453 85 V V V
	1152x864 53	783 60 V V V
	1152x864 63	851 70 V V V
	1152x864 67	500 75 V V V
	1152x864 77	093 85 V V V
	1152x870 68	681 75 V V V
	1280x720 37	071 50 V V V
	1280x720 44	771 60 V V V
	1280x720 56	456 75 V V V
	1280x720 64	398 85 V V V
	1280x768 47	776 60 V V V
	1280x768 60	288 75 V V V
	1280x768 68	633 85 V V V
	1280x800 41	262 50 V V V
	1280x800 49	702 60 V V V
	1280x800 62	795 75 V V V
	1280x800 71	554 85 V V V
	1280x960 49	404 50 V V V
	1280x960 59	699 60 V V V
	1280x960 75	231 75 V V V
	1280x960 85	792 85 V V V
	1280x1024	52.678 50 V V V
Signal Type Resolution		Frequency H. (KHz)	Frame rate (HZ)	VGA	Component	HDMI DVI	HDBaseT
PC	1280x1024 64	60 V V V V
	1280x1024 80	75 V V V V
	1280x1024 91	.1 85 V V V	√
	1360x768 39	564 50 V V	√
	1360x768 47	719 60 V V	√
	1360x768 60	287 75 V V
	1360x768 68	667 85 V V
	1366x768 48	60 V V V V
	1400x1050 54	.112	50 V V V
	1400x1050 65	316 60 V V	√
	1400x1050 82	278 75 V V	V V
	1440x900 55	935 60 V V	√ V
	1440x900 70	635 75 V V	√
	1600x900 60	60 V V V
	1600x1200 75	60 V V V V
	1680x1050 65	.29	60 V V V V
	1920X1080 74	.17	50			V V V
	1920X1080	66.586 60	V V V V
	1920X1200RB	74.038 60	V V V V
	1920X1200RB	61.816 50	V V V V
SDTV	480i	15.734	60	V	V	V	V	V
	576i	15.625	50	V	V	V	V	V
EDTV	480p	31.469	60	V	V	V	V	V
	576p	31.25	50	V	V	V	V	V
HDTV	1080i	28.125	25	V	V	V	V	V
	1080i	33.716	29	V	V	V	V	V
	1080i	33.75	30	V	V	V	V	V
	720p	37.5	50	V	V	V	V	V
	720p	44.955	59	V	V	V	V	V
	720p	45	60	V	V	V	V	V
	1080p	26.973	23	V	V	V	V	V
	1080p	27	24	V	V	V	V	V
	1080p	28.125	25	V	V	V	V	V
	1080p	33.716	29	V	V	V	V	V
	1080p	33.75	30	V	V	V	V	V
	1080p	56.25	50	V	V	V	V	V
	1080p	67.433	59	V	V	V	V	V
	1080p	67.5	60	V	V	V	V	V

NOTE:
◆ "RB" means "reduced blanking".

3D Timing Table(Image downsize to 720P)

Input Signal	Resolution	3D Format
XGA	1024 x 768 @120 Hz	Frame sequential
720p	1280 x 720 @120 Hz	Frame sequential

PIP/PBP Compatibility

PIP/PBP Matrix HDMI VGA Component HDBaseT DVI-D

HDMI - - - - V
VGA - - - - V
Component - - - - V
HDBaseT - - - - V
DVI-D V V V V -

V : PIP/PBP combinations are enabled

- : PIP/PBP combinations are disabled

RS232 Pin Assignments

Pin No. PC Side		Projector Side(RS232 Terminal)
1 N/A N/A
2 RXD RXD
3 TXD TXD
4 N/A N/A
5 GND GND
6 N/A N/A
7 N/A N/A
8 N/A N/A
9 N/A N/A

Setup Information

RS-232 protocol

Baud Rate 9600 bps (default)

Data Length 8 bit

Parity Check None

Stop Bit 1 bit

Flow Control None

■ RS232 shell is grounded.
■ RS232 interface need use swap pin for RS232 communication.

Specifications

Technology WXL6280/LW6000	series: “TI” 0.65” WXGA DMDWUL6280/LU6000 series: “TI” 0.67” WUXGA DMD
ASIC DDP4421/DDP4422 + PW392C
Native Resolution WXGA (1280x800) / WUXGA (1920x1200)
Support Resolution Up to WUXGA@60Hz (Reduced Blanking) & UXGA@60Hz
Computer compatibility IBM PC	Compatible, support HDTV (1080i/p, 720p, 576i/p, 480i/p) include both PC and component inputs
Video compatibility HDTV 720p	(50/60Hz), 1080i/p (50/60Hz), 1080p(24/25/30/50/60Hz)SDTV 480i/p, 576i/p
Horizontal scan rate 15 KHz to 91.1 KHz
Vertical scan rate 24 Hz to 85 Hz
Keystone correction V: +/- 20 degreesH: +/- 20 degreesOSD adjusting range will be +/-40 steps for H and V.
Weight Net weight (w/o lens): 18 Kg
Dimensions (W x D x H) 484 (W) x 509 (D) x 185 (H) mm (without lens, w/o elevators)(19.06" (W) x 20.04" (D) x 7.28" (H))
Power supply AC 100 – 240 V @ 50/60 Hz- 400W Laser Diode @ Normal operation- 240W Laser Diode @ ECO operation
Power consumption	560W+/-20%@ 110VAC in Normal brightness Mode340W+/-20%@ 110VAC in ECO brightness ModeStandby mode (LAN off): < 0.5 W
Operating temperature 5 ~ 40 °C (>35°C, auto dim to 75% normal mode)
I/O connectors	HDBaseT x 1HDMI x 1Computer In x 1Monitor Out x 1DVI-D x 1USB type A x1YPBPR x 1PC Control (D-sub 9 pin) x 1Wired in/out (3.5mm phone jack) x1LAN (RJ45) x 1Service x1

Standard package contents

• AC power cord x 1
• VGA cable x 1
  • Remote control (with batteries) x 1
  • User's Manual CD x 1
• Lens mount cover x 1
  • Read this first (Paper) x 1
• Warranty Card x 1

■ Design and specifications are subject to change without prior notice.

Cabinet dimension

Unit: mm

Screw type: M6 x 4

Maximum screw length: 10mm

Trademarks

• DLP is trademark or registered trademark of Texas Instruments.
• IBM is a trademark or registered trademark of International Business Machines Corporation.
• Macintosh, Mac OS X, iMac, and PowerBook are trademarks of Apple Inc., registered in the U.S. and other countries.
• Microsoft, Windows, Windows Vista, Internet Explorer and PowerPoint are either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
• HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
• Other product and company names mentioned in this user's manual may be the trademarks or registered trademarks of their respective holders.
• Blu-ray is a trademark of Blu-ray Association.
• HDBaseT is a trademark of HDBaseT Alliance.
