TOC619 - Oven Tisira - Free user manual and instructions

Product Type	Built-in Electric Oven
Model	TOC619
Brand	Tisira
Dimensions (W x D x H)	595 x 575 x 595 mm
Cut-out Dimensions (W x H x D)	560 x 590 x min. 570 mm
Voltage / Frequency	220–240 V ~ / 50 Hz
Power Rating	3100 W
Capacity	65 L
Number of Functions	9
Cooking Functions	Light, Defrost, Bottom Element, Natural Convection, Fan-Assisted Convection, Grill, etc.
Temperature Range	50–250 °C (depending on function)
Timer Types	Digital timer with hour and minute adjustment
Child Lock	Yes
Oven Light	Yes (standard E14 25W bulb, 300°C rating)
Cooling Fan	Thermostatically controlled, continues after switch-off
Removable Door	Yes, for easy cleaning
Cleaning Advice	Use damp cloth; no steam cleaners, abrasives or metal scrapers
Safety Features	Child lock, automatic shut-off timer, overheat protection
Installation	Underbench or tower cabinet; requires ventilation gap
Electrical Connection	Hardwired via omnipolar circuit breaker (min. 3mm gap)
Country of Origin	Australia / New Zealand (brand)

Frequently Asked Questions - TOC619 Tisira

How do I set the clock on the TOC619 oven?

After connecting to power, '0:00' appears. Press the hour digits flash, then turn knob K2 to adjust the hour (24h format). Press ☐ to confirm.

What is the purpose of the defrost function?

The Defrost function circulates room-temperature air to thaw frozen food quickly without using heating elements. Ideal for frozen ready meals and cream-filled products.

How do I activate the child lock?

Press and hold the ☐ and ☐ buttons simultaneously for 3 seconds. A long beep and the child lock symbol will appear on the display.

What maintenance is required before first use?

Select Natural Convection at 250°C for 30 minutes with the door closed. Then open the door to air out the cavity. This removes odours from protective coatings.

Can I use a steam cleaner to clean the oven?

No. Steam cleaners must not be used. Clean with lukewarm water and a damp cloth, avoiding abrasive powders or metal scrapers.

How do I remove the oven door for cleaning?

Lift and turn the small levers on the hinges (B), then partially close the door until the levers engage. Pull the door towards you to remove. Reinstall in reverse order.

How do I replace the oven light bulb?

Disconnect the oven from power. Use a standard E14 25W oven bulb rated for 300°C. Unscrew the old bulb and replace with a new one.

What is the maximum temperature for the fan-assisted convection function?

The Fan-Assisted Convection function can be set between 50°C and 250°C. The default temperature is 220°C.

How does the reminder function work?

In standby mode, press ☐ to set a reminder. The colon flashes. When time is reached, the oven beeps 10 times and the symbol disappears.

What electrical connection is needed for the TOC619?

It requires a 220–240 V / 50 Hz supply and must be hardwired via an omnipolar circuit breaker with a minimum 3mm contact gap. A 10A circuit is sufficient for the 3100W load.

USER MANUAL TOC619 Tisira

IMPORTANT // Please ensure that you read through this user manual prior to installation and use. This manual contains important information to ensure optimal performance and keep you safe. Please retain your proof of purchase, as this will be required in the event that you require warranty service. Remember to keep this manual for future reference.

Contents

Contents

Warning & Safety Instructions 3 - 4

Product Specifications 5

Product Overview 6

Operating Instructions 7 - 10

Maintenance 11 - 12

Installation 13 - 15

Contact Details 16

Warning & Safety Instructions

IMPORTANT // To ensure best performance, avoid risk of damage or accidents. Please read the operating instructions prior to first time use.

To maintain the efficiency and safety of this appliance, we recommend that you do the following:

• Only call the Service Centers authorized by the manufacturer.
  • Always use original spare parts.
• In case of damage to the power cord, a special purpose cord or component bought from the manufacturer or maintenance department shall be used for replacement.

When handling the appliance, we recommend you always use the purpose provided handles recessed into the sides of the oven to prevent harming people or damaging the appliance itself.

WARNING // Accessible parts may become hot when the grill is in use. Children should be kept away.

WARNING // This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

WARNING // Children should be supervised to ensure that they do not play with the appliance.

The following items are potentially dangerous, and therefore appropriate measures must be taken to prevent children

Warning & Safety Instructions

Avoid the following:

• Touching the appliance with wet parts of the body.
  • Using the appliance when barefoot
• Pulling on the supply cable to unplug it from the electrical outlet.
• Improper or dangerous operations;
• Obstructing the ventilation or heat dissipation slots.
• Allowing power supply cables of small appliances to come into contact with the hot parts of the appliance.
• Exposing the appliance to atmospheric agents such as rain or sunlight.
• Using the oven for storage purposes;
  • Using flammable liquids near the appliance
• Using adapters, multiple sockets and /or extension leads.
• Attempting to install or repair the

the entire assembly. Only use temperature probes recommended for this oven.

• If in doubt about the soundness of the appliance after removing it from its packaging.
  • If the power supply cable has been damaged or needs to be replaced.
• If the appliance breaks down or functions poorly; ask for original spare parts.

NOTICE // The manufacturer may not be held responsible for any damage due to: Incorrect installation, improper, incorrect and irrational use.

• Steam cleaner cannot be used to clean the oven.
• Only use the appliance to cook food and nothing else.
• Disconnect the appliance from the electrical mains if it is not functioning

Product Specifications

Model: TOT615 (5 Function Electric Oven)

Dimensions W595 x D575 x H595mm
Voltage / Frequency 220-240V~ / 50Hz
Power 2000W
Capacity 65L

Model: TOC619 (9 Function Electric Oven)

Dimensions W595 x D575 x H595mm
Voltage / Frequency 220-240V~ / 50Hz
Power 3100W
Capacity 65L

Product Overview

Control Panel

Model: TOT615

1. Function Selector 2. Manual Timer 3. Thermostat

Control Panel

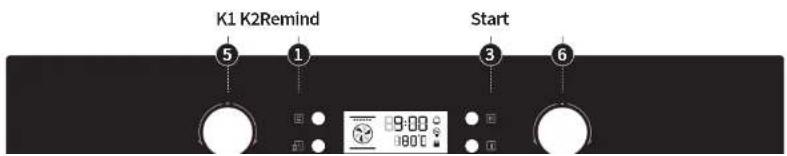

Model: TOC619

Operating Instructions

IMPORTANT // Prior to first time use, it is recommended that you select the Natural Convection function and set it to work at its highest temperature (250°C) for half an hour without anything inside the oven and with its door shut.

At the end of this process, open the oven door and leave it open for a few minutes to allow fresh air to circulate inside the oven.

This procedure will remove the unpleasant odour that is caused by bonding agents used to protect the oven cavity during the enamel coating stage.

NOTICE // Your oven is equipped with a thermostatically controlled cooling fan that will switch on when required to cool the oven. This fan may continue to run even after the oven is switched off, but it will automatically turn off when the cavity is sufficiently cool. Warm air is discharged from the front of the oven during the

1. Adjusting The Clock (TOC619 only)

After connecting the unit to the power, the zero hour "0:00" will be visible on the display.

1. Press "the hour digits will flash.
2. Turn the knob "K2" to adjust the hour (24h

Operating Instructions

2. Selecting The Cooking Function

Function Description
	LIGHT - The light function enables the user to observe the progress of cooking without opening the door. The oven light remains on in all cooking functions.
	DEFROST - The circulation of air at room temperature enables quicker thawing of frozen food (without using any heating elements). It's a gentle but quick way to speed up the defrosting time and thawing of ready-made dishes and cream filled products.
	BOTTOM ELEMENT - A concealed element in the bottom of the oven provides heat focused to the base of the dishes in the oven without browning them. This is ideal for slow cooking dishes such as casseroles, stews, pastries and pizzas where a crispy base is desired. The temperature can be set within the range of 60-120°C. The default temperature for this function is 60°C.
	NATURAL CONVECTION - The top and bottom elements work together to provide conventional cooking. The temperature can be set within the range of 50-250°C. The default temperature for this function is 220°C.
	FAN-ASSISTED CONVECTION- The combination of the fan and top and bottom heating elements provides more even heat transference, saving up to 40% of energy. Dishes tend to be lightly browned on the outside and still moist on the inside when using this function.Note // This function is suitable for grilling or roasting big pieces of meat at a higher temperature. The temperature can be set within the range of 50-250°C. The default temperature for this

Operating Instructions

Model: TOT615

1. Turn the Function Selector to choose the desired cooking function.
2. Turn the Thermostat knob to adjust the temperature. Not applied to the Light and Defrost functions.
3. Turn the Manual Timer anti-clockwise to the 'ON' position.

Model: TOC619

1. Turn the Function Selector knob ("K1") to choose the desired cooking function.
2. Turn the Thermostat knob ("K2") to adjust the temperature. Not applied to the Light and Defrost functions.

NOTE // The default temperature of the function selected is displayed prior to any temperature adjustments.

1. Press "to start cooking. The

NOTE // (TOC619 only) The temperature on the display will flash until the set temperature is reached inside the oven. The current temperature inside the oven cavity can be checked by pressing the buttons “☐” and “☐” simultaneously

The intervals between two values of time and temperature are as follows:

Time

From 0 to 30min – intervals of 1 minute. From 30min to 9h – intervals of 5 minutes.

Temperature

From 0 to 250°C – intervals of 5°C. Exception – Grill function intervals are of 30°C.

3. Setting The Timer

Model: TOT615

This model is equipped with a mechanical

Operating Instructions

1. Turn the knob "K1" to adjust the timer. This function is available after the cooking process has started.
2. After selecting the desired cooking time, press "☐ to set the timer. If " " not pressed within 3 seconds, the previous set time will be displayed.

NOTE // To check what the time is on the oven clock during a cooking process, please press "The current time will be displayed for a few seconds.

4. Setting The Reminder

The Reminder function can only be used when the oven is in standby to remind you to start the cooking process or as a timer during other activities in the kitchen. For example, while boiling eggs on your cooktop.

1. Press "☐" to finish setting the reminder. The colon ":" should be flashing now.

NOTE // The reminder will beep 10 times when the set time is reached and the symbol “ should disappear from the display.

NOTE // The reminder function can be cancelled at any time by pressing "☐"

5. Child Lock (TOC619 only)

This appliance is equipped with a child lock system that prevents accidental operation by an unsupervised child.

To lock the oven functions, press “and simultaneously for 3 seconds. You will hear a long “beep”, which indicates that the child-lock has been activated and the symbol “will be displayed.

Maintenance

ATTENTION // Before cleaning your oven, or performing maintenance, turn the appliance off and disconnect it from the power supply.

Cleaning your oven frequently will extend its life. When cleaning your oven:

• Keep in mind that the enamelled or stainless steel parts should be washed with lukewarm water and without using any harsh abrasive powders, corrosive substances or metal scrapers as they can damage the surface treatment of the oven parts.
• Do not use a steam cleaner.
• To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquids.
• Do not clean the appliance while it is still hot. The internal and external surfaces of the oven should preferably be cleaned by damp cloth when the oven has cooled down.

with aluminium foil as the consequent accumulation of heat could compromise the cooking and even damage the enamel.

- Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

If the grease spots and dirt marks are particularly tough to remove, a special product for oven cleaning can be used. Follow the instructions provided by the manufacturer on the product packaging.

1. How To Remove The Oven Door

The oven door can be removed for a more thorough cleaning.

Maintenance

1. Lift up and turn the small levers (B) situated on the two hinges (A).


Line drawing of a mechanical assembly with a lever and pivot point (no text or symbols)

1. Grip the door on its sides, as shown on the image below, and start to shut it slowly until the levers (doorstops) engage in the slots of the oven door (B). Do not try to close the door completely as it could damage the doorstops.
2. Pull the door towards you, pulling it out from the hinge supports.
3. To reinstall the door, please follow these instructions in reverse making sure that the slots on the hinges (C) are sitting properly on the base of the hinge supports.

2. Replacing The Oven Light Bulb

WARNING // Ensure that the appliance is switched off before replacing the light bulb to avoid the possibility of electric shock.

This oven is fitted with a standard E14 25W oven light bulb (300°C).

Installation

IMPORTANT // This appliance must be installed by a qualified professional and in accordance with the instructions presented in this manual. The manufacturer will not be held responsible for any damage caused by incorrect installation.

ATTENTION // Before installing the appliance, ensure that the power supply is turned off.

1. Electrical Connection

This oven must be connected to a 220-240V\~/50Hz power supply.

The 5-function oven is fitted with a 10A plug and its rated power is 2000W.

The 9-function oven is supplied with a lead without a plug and its rated power is 3200W. In this case, the oven must be permanently connected to the fixed wiring as follows:

NOTE // When connecting the cable directly to the mains, install an omnipolar circuit breaker with a minimum contact gap of 3mm, which should be sized according to the load and should comply with current regulations (the earth wire should not be interrupted by the circuit breaker).

WARNING // If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

NOTE // Position the mains supply cable so that it is never subject to high temperatures.

Installation

2. Fitting The Oven Into The Kitchen Cabinet

This appliance can be installed as an under bench unit or into an oven tower cabinet.

The panels of the adjacent cabinetry must be made of heat-resistant materials. In particular, cabinets using veneer finish panels must be assembled with adhesives suitable for temperatures of up to 120°C.

The figures below present the dimensions of the appliance and cabinet cut-out for installation of the built-in oven.

IMPORTANT // In order to function correctly, the oven requires an adequate supply of cool air.

• do not fit a back panel in the housing cabinet.
• there should be a gap of approximately 45mm at the rear of the shelf on which the oven rests. The shelf should not touch the wall behind it.

Please note that, alternatively, an aperture of 250x100mm can be done on the back wall of the cabinet, considering that there is a gap between that wall and the kitchen wall, to ensure adequate ventilation of the oven carcass.

Installation

OVERALL DIMENSIONS

CUT-OUT DIMENSIONS

CONTACT DETAILS

AUSTRALIA

ARISIT PTY LIMITED

40-44 Mark Anthony Drive, Dandenong South, VIC 3175, Australia
© P // 1300 762 219
F//0397680838
[e-mail]

NEW ZEALAND

ARISIT PTY LIMITED

PO Box 68-140

Newton, Auckland 1145,

New Zealand

© P // 09 306 1020
F//093020077
[e-mail]
