USER MANUAL OFI604A OMEGA
Quick operation guide
| Switch on the appliance | Open the door, press the OryOff button to switch on the appliance. |
| Fillthedetergentdispenser | Compartment A:With each wash cycle.Compartment B:For programmes with pre-wash only.(Follow the user instructions) |
| Checkthernseadlevel | Mechanical Indicator C.Electric indicator on control panel (if provided). |
| Loadthe baskets | Scrape of any large amount of leftover food. Softrenants of burn food in pens, then load the baskets. Refer to the dish washer loading instructions. |
| Selectsprogramme | Press the Programme Button until these selected programm lights up.{ See the section entitled "Operation instruction"} |
| Running the dishwasher | Turn on the water tap, closeted door. Themachinewill start working after about 1 |
| Changing the programme | • 1. Arunning cycle can only be modified if has been running for a short time. Otherwise, the detergent may have already been released and the water already drained. If this is the case, the detergent |
Read this Manual
DearCustomer,
This appliance is intended to be used in household and similar applications such as:
-staff kitchen areas in shops, offices and other working environments;
-farmhouses
-by clients in hotels, motels and other residential type environments;
-bed and breakfast type environments.
Please carefully read this manual before using the dishwasher, it will help you to use and maintain the
dishwasherproperly.
- Keep it as a reference in the later days.
■ Passitonto any subsequent owner of the appliance.
This manual contains sections on safety Instructions. Operating Instructions, Installation Instructions and Troubleshooting Tips, etc.
Before Calling for Service
CONTENTS
1) Safety Information....1
2) Operating Instructions....2
Dishwasher Features....2
3) Prior using for the first time....3
A. Fill the Rinse Aid Dispenser....3
B. Function of Detergent 4
4) Loading the Dishwasher Basket....6
Attention before or after loading the Dishwasher
Baskets....6
The Method Loading Normal Dishware....7
Max. Dishes 8
5) Starting a washing programme....9
Wash Cycle Table....9
Turning on the Appliance....9
Change the Programme....10
At the End of the Wash Cycle....10
6) Maintenance and cleaning....11
Filtering System....11
Caring for the Dishwasher....12
7) Installation instruction....13
Installation preparation....13
WARNING!
When using your dishwasher, follow the precautions listed below:
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce therlskofanelectric shock by providing apathof least resistance of electric current. This appliance is equipped with accordance having an equipment-grounding conductor and underground plug.
■ Theplugmustbepluggedinloanappropriateoutlet thatisinstalledandgroundedinaccordancewith allocalcodesandordinances.
▲WARNING!
■ Improperconnection of the equipment-grounding conductor can result in the risk of an electric shock.
Check with a qualified electrician or service representative if you are indoubt whether the appliance is properly grounded. Donot modify the plug provided with the appliance; If it does not fit the outlet. Have a proper outlet installed by a qualified electrician.
WARNING! PROPER USE
■ Donotabuse, slton, orstandonthedo rackofthedishwasher.
■ Donottouchtheheatingelementduringor immediatelyafteruse.
(Thisinstructionisonlyapplicabletomachines withavisualheating element.)
■ Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of watersquirtingout.
■ Do notplaceanyheavyobjects on or stand the door when it is open. The appliance could tip forward.
■ When loading items to be washed:
1) Locate sharp items so that they are not likely
Keep children away from detergent and rinse aid, keep children away from the open door of the dish washer, there could still besomed detergent left inside.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been supervision or instruction concerning use of the appliance by a person responsible for their safety.
■ Children should be supervised to ensure that they do not playwiththeappliance.
■ Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open.
2. Operation Instruction
IMPORTANT Togetthebestperformancefromyourdishwasher,readalloperatinginstructions beforeusingitforthefirsttime.
Control Panel
- Power indicator: Tashowwhenthepoweron.
- Rinse aid warning light: To show dispenser need to be refilled Rinse aid.
- Extra Drying indicator : ☑
Extradrying: An increased temperature during the final rinse to increase drying well. There is a slight increase in the energy consumption.
-
Half load indicator: To show when you select the half load function. If you have only about or less than half of full load dishes of the dishwasher, you can select the half load function and your desired program according to the dishes contaminated degree. A program select the half load function, it can save time, energy, and water compare to the program hasn't select the half load function. After the half load function is selected, all the spray arms are running, you can load all the baskets.
-
Program indicators: To show which program you have chosen;
- Option Button: To select Half load and Extra dry functions, these functions can only be used with programmes Intensive, Heavy, Normal, Glass and 1 Hour.
- Delay Button: To Press the button to delay the washing time.
- Program Button: To Press the button to select a wash Program.
9.On/Off Button: Toturnon/offthepowersupply.
- Delay indicators: Toshowthedelaytime. (3h/6h/9h)
Dishwasher Features
Frontview
BackView
3.Prior using for the first time
Before using your dishwasher for the first time:
A Filltherinseaidispenser
B Fillindetergent
A. Fill the Rinse Aid Dispenser
RinseAidDispenser
Therinse aidis released during the final rinse to prevent water from forming droplets on your dishes, which can leaves spots and streaks. It also improves drying by allowing water to rolled the dishes. Yourdishwasherls designed to use liquid rinse aids. Therinse aidis dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of therinse aid container is about 110 ml.
FunctionofRinseAid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.
Attention!
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
When to Refill the Rinse Aid Dispenser
If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of the optical level indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1/4 full.
As the rinse aid diminishes, the size of the black dot
on the rinse aid level indicator changes, as illustrated below.
Full
3/4full
1/2full
1/4full-Shouldrefilltoeliminatespotting
○ Empty
Adjusting Rinse Aid Dispenser
The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or are showing spots, adjust the dial to the next higher lever until your dishes are spot-free. The recommended setting is "4", (Factoryvalues "4".)
A NOTE:
Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knife blades.
B. Function of Detergent
Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.
Detergents
There are 3 sorts of detergents
1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chlorine
Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6 ^th . If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a program with a higher temperature.
Concentrated Detergent
Based on their chemical composition, detergents can be split into two basic types:
Amount of Detergent to Use
NOTE:
■ If the lid is closed: press release button. The lid will spring open.
■ Always add the detergent just before starting each wash cycle.
■ Only use branded detergent aid for dishwasher.
WARNING!
Dishwasher detergent is corrosive! Take care to keep it out of reach of children.
ProperUseofDetergent
Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry.
Don't put powdered detergent into the dispenser until you're ready to wash dishes.
Fill in Detergent
Fill the detergent dispenser with detergent.
The marking indicates the dosing levels, as
4. Loading the Dishwasher Baskets
Recommendation
■ Considerbuyingutensils which are identified as dishwasher-proof.
■ Use a mild detergent that is described as 'kind todishes'. If necessary, seek further information from the detergent manufacturers.
■ For particular items, select a program with as low atemperature as possible.
■ To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended.
For washing in the dishwasher the following cutlery/dishes
Arenotsuitable
■ Cutlerywithwooden,hornchinaor mother-of-pearlhandles
■ Plastic items that are not heat resistant
■ Oldercutlerywithgluedpartsthatarenot temperatureresistant
■ Bondedcutleryitemsordishes
■ Pewterorcooperitems
■ Crystalglass
■ Steelitemssubjecttorusting
■ Woodenplatters
■ Items made from synthetic fibres
Are of limited suitability
■ Some types of glasses can become dull after alarge number of washes
■ Silver and aluminum parts have a tendency to discolour during washing
■ Glazed patterns may fade if machine washed frequently
Attention before or after loading the Dishwasher Baskets
(For best performance of the dishwasher, follow these loading guidelines. Features and appearance of baskets and cutlery baskets may vary from your model.)
Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water.
Place objects in the dishwasher in the following way:
1. Items such as cups, glasses, pots/pans, etc. are faced downwards.
2. Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3. All utensils are stacked securely and can not tip over.
4. All utensils are placed in the way that the spray arms can rotate freely during washing.
The Method of Loading Normal Dishware
Loading the Upper Basket
Loading the Lower Basket
The upper basket is designed to hold more delicate and lighter dishware as close as glasses, coffee and teacups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.
We suggest that you place large items and the most difficult to clean items into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top sprayarm.
Pleaseberemindedthat:
Pols, serving bowls, etc, must always be placed topdown.
- Deep pots should be slanted to allow water to flow out.
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.
Adjusting the Upper Basket
The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper /lower basket. The height of the upper basket can be
Folding back the cupshelves
For better stacking of pots and pans, the spikes can be folded down as shown in the pictureright.

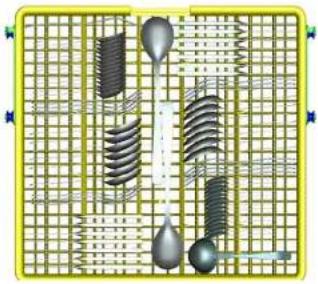

Cutlery Basket
Cutlery should be placed in the cutlery rack separately from each other in the appropriate positions, and do make sure the utensils do not nest together. this may cause bad performance.
For a top quality cleaning, place the silverware in the basket makingsurethat:
■ They donotnesttogether.
■ Silverware is placed with the male face up.
■ Long utensils in the middle
Max.Dishes
| Position\Max. Dishes | Topbasket | Bottombasket |
| Lower Positionmax. Φ |  | 19cm | 25cm |
5. Starting a washing program
Wash Cycle Table
NOTE: (★) Means:needtofillrinseintotheRinse-AidDispenser.
| Program | Cycle Selection Information | Description of Cycle | Detergent pre/main | Running time(min) | Energy (Kwh) | Water (L) | Rinse Aid |
| Intensive | Fortheheaviestsoiled loads, such as pots, pans, casseroledishesanddishes that havebeenstiting with driedfoodonthemfora while. | Pre-wash(50°C)Wash(65°C)RinseRinseRinse(65°C)Drying | 5/27.5g(OrAll in I) | 135 | 1.4 | 18 | |
| Heavy | Forheavilysoiledloads, suchaspots,plates,glasses andlightlysoiledpans. | Pre-wash(45°C)Wash(55°C)RinseRinse(60°C)Drying | 5/27.5g(OrAll in I) | 165 | 1.15 | 14.5 | |
| Normal | For normally soiled loads, such as pots, plates,glasses and lightly soiled pans, standard daily cycle. | Pre-washWash(45°C)RinseRinse(50°C)Drying | 5/27.5g(OrAll in I) | 160 | 0.87 | 13.6 | |
| Glass | Forlightlysoiled loads, suchasglasses, crystalandfinechina. | Pre-washwash(40°C)RinseRinse(60°C)Drying | 20g | 115 | 0.8 | 14.5 | |
| 1 Hour | Daily wash in only 1 hour. For lightly and normally soiled plates and pans for everyday. | Pre-wash(50°C)Wash(60°C)Rinse(50°C)Drying | 5/27.5g60 | 60 | 0.9 | 10 | |
| Quick | A shorter wash for lightly soiled loads that do not need drying. | Wash(40°C)RinseRinse(45°C) | 20g | 40 | 0.5 | 10.5 | |
Change the Program...
Premise:
A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled "Loading the Detergent").
2 Open the door press the Program button more than 3 seconds, the machine will be in standby state, then you can change the program to the desired cycle setting (see the section entitled "Startling a washcycle...").
NOTE:
If you open the door, the machine will pause. The program light will stop blinking and the buzzer will mooing every minute unless you close the door. After you close the door, the machine will keep on working after 10 seconds.
Forgot to Add a Dish?
Aforgottendishcanbeaddedanytimebeforethedetergentcupopens.
1 Openthodooralittle.
4 Closethedoor
2 After the spray arms stop working, you can open the door completely.
5 Thedishwasherwillrunafter10seconds.
3 Addforgottendishes.
At the End of the Wash Cycle
When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher.
Wait for a few minutes before unloading the dishwashers to avoid handling the dishes and utensils while they
6. Maintenance and Cleaning
Filtering System
The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed.
The filter system consists of a coarse filter, a flat (Main filter) And a microfilter(Fine filter).
Mainfilter 1
Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain.
Coarsefilter 2
Larger Items, such as pieces of bones or glass, that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and liftout.
Finefilter 3
This filter holds soil and food residues in the sumparea and prevents it from being redeposit on the dishes during wash cycle.
Filterassembly
The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter device, pull the cup handle in the upward direction.
WARNING!
■ The dishwasher must never be used without the filters.
■ Improper replacement of the filter may reduce the performance level of the appliance and damaged dishes and utensils.
- Inspect the filters for blocking after every time the dishwasher has been used.
- By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters underrunningwater.
NOTE: The entire filter assembly should be cleaned once a week.
Cleaning the Filter
To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures on the last page and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards.
WARNING!
Whencleaningthefilters, don'tknockonthem. Otherwise, thefilters could be contorted and the performance of the dishwasher could be decreased.
Caring for the Dishwasher
The control panel can be cleaned by using a lightly dampened cloth. After cleaning, make sure to dry it thoroughly.
For the exterior, use a good appliance polish wax.
Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.
Cleaning The Door
To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use aspraycleanerofanykind.
WARNING!
■ Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
■ Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.
How to Keep Your Dishwasher in Shape
■ AfterEveryWash
After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside.
■ RemovethePlug
Before cleaning or performing maintenance, always remove the plug from the socket.
■ No Solvents or Abrasive Cleaning
Toclean the exterior and rubber parts of the dishwasher, do not use solvent or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.
■ WhennotinUseforaLongTime
It is recommend that you run a washcycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seal to last longer and prevent odours from forming within the appliance.
■ MovingtheAppliance
If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.
Seals
One of the factor that cause our sto form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.
7. Installation instruction
Positioning the Appliance
▲Attention:
The installation of the pipes and electrical equipments should bedone by professionals.
Warning
ElectricalShockHazard
Disconnect electricalpowerbefore
installingdishwasher.
Failure to do so can result in death or
Please carefully read the installation instruction.
Illustrations of cabinet dimensions and installation position of the dishwasher
Preparations should be made before moving the dishwasher to the installation place.
1 Choose a place near the sink to facilitate the installation of inlet and drain hoses (seefigure1).
2 If dishwasher is installed at the corner of the cabinet, there should be some space (illustrated in figure 2) when the door is opened.
【】
Cabinetdimensions Lessthan5mm betweenthetop ofdishwasher and cabinet and the outerdoor aligned to cabinet.
[ ]
Minimum space when the door is opened
Figure2
![OMEGA OFI604A - [ ] - 1](/content/2026/05/925765/images/89b04073c5b0b0e07fbb206df04705cc0bf9f0f05a9c262c9ea0d5089d6bdea0.jpg)
- Aestheticpanel'sdimensionsandinstallation

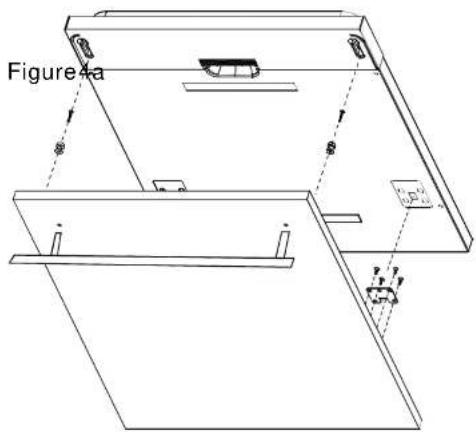

2 Install the hook on the aesthetic wooden panel and put the hook into the slot of the outer door of dishwasher(see figure 4a). After positioning of the panel, fix the panel onto the outer door by screwsandbolts(See figure 4b).
【 】
Installation of aesthetic panel
【 】
Installation of aesthetic
Figure4b
Take away the four short screws Pin up the four long screws
• Tension adjustment of the doorspring
The doors springs are set at the factory to the propertension for the outer door. If aesthetic wooden panel are installed, you will have to adjust the door spring tension. Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable (see figure 5).
Door spring tension is correct when the door remains horizontal in the fully opened position yet rises to a close with the slight lift finger.
【 】
Tension adjustment of the doorspring
- Connectionofdrain hoses
Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. The top of the hose must be less than 1000mm.
- Dishwasher installation steps
1 Install the furniture door to the outer door of the dishwasher using the brackets provided. Refer to the template for positioning of the brackets.
2 Adjust the tension of the door springs by using an Allen key turning in a clockw tighten the left and right door springs. Failure to do this could cause damage to your dishwasher (Illustration 2)
3 Connect the inlet hose to the cold . water supply
4 Connect the drain hose. Refer to diagram (Figure 6)
5 Connect the power cord
6 Affix the condensation strip under the work surface of cabinet. Please ensure the c strip is flush with edge of work surface.
7 Place the dishwasher into position.(Illustration 4)
8 Level the dishwasher. The rear foot can be adjusted from the front of the dish the Allen screw in the middle of the base of dishwasher use an Allen key (Illustration 5A). To adjust the front feet, use a flat screw driver and turn the front feet until the dishwasher is level (Illustration 5B).
9 The dishwasher must be secured in place. There are two ways to do this:
A. Normal work surface: Put the right(left) installation hook into the slot of the right(left) side plane and secure it to the work surface with two woodscrews (Illustration 6).
B. Marble or granite work top: Bend the right(left) installation hook into right-angle, and put it into the slot of the right(left) side plane and secure it to the work surface with two woodscrews s (Illustration 7).
Dishwasher must be level for proper dish rack operation and wash performance.
1 Place aspiritlevelondoorandracktrackinsidethetubasshowntocheckthatthe dishwasherislevel.
2 level the dishwasher by adjusting the three levelling legs individually.
3 When level the dishwasher, please pay attention not to let the dishwashertipover.
【 】
Illustrationoffeetadjustment
NOTE:
The maximum adjustment height of the feet is 50 mm.
About Electricity Connecting
WARNING!
Forpersonalsafety:
DONOTUSEANEXTENSIONCORDORANADAPTERPLUGWITHTHISAPPLIANCE.
DO NOT. UNDER ANY CIRCUMSTANCES. CUT OR REMOVE THE EARTHING
CONNECTIONFROMTHEPOWERCORD
Electrical Requirements
Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.
Cold Water Connection
Connect the coldwatersupply hose to a threaded 3/4 (inch) connector and makes sure that it is fastened slightly in place.
If the water pipes are new or have not been used for an extended period of time, let the waterruntomakesure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance.
▲WARNING! pleaseclosethehydrantafterusing.
Positioning the Appliance
Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.
HowtoDrainExcessWaterFromHoses
If the sink is 1000mm higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.
WaterOutlet
Connect the water drain hose. The rain hose must be correctly fitted to avoid water leaks. Ensure that the water inlet hose is not kinked or squashed.
ExtensionHose
If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.
SyphonConnection
8. Troubleshooting Tips
Before Calling for Service
Review the charts on the following pages may save you from calling for service.
Problem Possible Causes What To Do
| Technical problems | Dishwasher doesn't start | Fuseblown,orthehome circuitbreakerhasbeen triggered | Replace/useorresetcircuitbreaker.Removeanyother appliancesharingthesamecircuitwiththedishwasher |
| Powersupplylsnot turnedon | Makesurethodishwasheristumedonandthedooris closedsecurely.Makesurethepowercordisproperlypluggedintothe wallsocket. |
| Waterpressureislow | Checkthatthewatersupplylsconnectedproperlyand thewatersturnedon. |
| Doorofdishwasher notproperlyclosed. | Makesuretoclosethedoorproperlyandlatchit. |
| water not pumped from dishwasher | Kinkindrainhose | Checkdrainhose. |
| Filterclogged | Checkcoarsethefilter (seesectionlitted)*CleaningTheFilter* |
| Kitchensinkclogged | Checkthokitchensinktomakesureitisdrainingwell.Iftheproblemisthekitchensinknortdraining,youmay needaplumberratherthanaservicemanfordishwashers. |
| Suds in the tub | Improperdetergent | Useonlythespecialdishwasherdetergenttoavoldsuds.Ifthisoccurs,openthedishwasherandletsudsevaporate.Add1gallonofcoldwatertothetub.Closeandlatchthe dishwasher,thenselectanycycle.Dishwasherwilldrain outthewateratthefirststep.Openthedooralterdraining hasstopandcheckilthesudshasdisappeared.Repeatifnecessary. |
| Spilledrinse-aid | Alwayswipeuprinse-aldspillsimmediately. |
| Stained tub interior | Detergentwith colourantwasused | Makesurethatthedetergentistheonewithout colourant. |
Unsatis -factory washing result
Unsatis
-factory
drying
result
| Problem | Possible Causes | What To Do |
| The dishes are not clean | Thedisheswerenot loadedcorrectly. | Scenotesin"LoadingtheDishwasherBaskets". |
| Theprogrammewas notpowerfulenough. | Selectamcreintensiveprogramme.See"WashCycleTable." |
| Nolenoughdetergent wasdispensed. | Usermoredetergent,orchangeyourdetergent. |
| Itemsareblocking thepathofspayarms.r | Rearrangethethemssothatthespaycanrotatefreely.r |
| Thefiltercombination in the base of wash cabinetisnotcleanor isnotcorrectlyfitted. Thismaycause thespayarmjets togetblocked. | Cleanand/orfitthefiltercombinationcorrectly.Cleanthespayarmjets.See"CleaningtheSpray Arms". |
| Cloudiness on glassware | Combinationofsoft waterandtoomuch detergent. | Uselessdetergntifyouhavesoftwaterandselect ashortestcycletowashtheglasswareandoget themclean. |
| Black or gray marks on dishes | Aluminumutensils haverubbedagainst dishes. | Useamildabrasivecleanertoeliminatethosemarks. |
| Detergent left in dispenser cups | Dishesblock detergentcups. | Re-loadingthedishesproperly. |
| The dishes are not drying | Improperloading | Loadthedishwasherassuggestedinthedirections. |
| Toolittlerinse-aid | Increasetheamountofrinse-aid/refilltherinse-aid dispenser. |
| Dishesareremoved toosoon | Donotemptyyourdishwasherimmediatelyafter washing.Openthdoorslightlysothatthesteamcan escape.Beginnloadingthedishwasheronlyoncet hedishesarebarelywarmtothetouch.Emptythelow basketfirst.Thispreventswaterformdroppingoff dishesintheupperbasket. |
| Wrongprogram hasheenselected | Inshortprogramthewashingtemperatureslower.Thisisolowerscleaningperformance Choose |
▲ WARNING!
■ Ifoverflowoccurs,turnoffthemainwatersupplybeforecallingaservice.
■ Ifthereiswaterinthebasepanbecauseofanoverfillorsmallleak,
thewatershouldberemovedbeforerestartingthedishwasher.
Technical Information
- Cutlery basket:
| 1 Forks | |
| 2 Soup spoons | |
| 3 Dessert spoons | |
| 4 Teaspoons | |
Information for comparability tests in accordance with (*AS/NZS 2007.1)
■ Capacity: 14 place settings
■ Position of the upper basket: lower position
■ Programme: Normal
■ Rinse ald setting: 6 or max
■ Open the door slightly 50mm to assist in drying of the dishes after every wash
