ODW707X - Dishwasher OMEGA - Free user manual and instructions

Product Type	Freestanding Dishwasher
Brand	Omega
Model	ODW707X
Dimensions (H x W x D)	85 x 60 x 60 cm
Weight	50 kg
Voltage / Frequency	220-240 V / 50 Hz
Power Consumption	1900 W
Water Consumption (per cycle)	12 L
Noise Level	49 dB(A)
Place Settings	12
Wash Programs	Eco, Intensive, Normal, Quick, Glass, Pre-wash
Energy Efficiency Class	E (EU 2019)
Drying System	Condensation drying
Control Type	Electronic push buttons with LED display
Salt and Rinse Aid Indicators	Yes
Delay Start	Up to 24 hours
Child Lock	Yes
Overflow Protection	AquaStop system
Self-Cleaning Filter	Partially self-cleaning; manual cleaning recommended
Adjustable Upper Basket	Yes, height adjustable
Cutlery Basket	Yes, removable

Frequently Asked Questions - ODW707X OMEGA

What are the dimensions of the Omega ODW707X dishwasher?

The Omega ODW707X has standard dimensions of 85 cm height, 60 cm width, and 60 cm depth, making it suitable for most kitchen cabinetry.

How many place settings does this dishwasher hold?

This dishwasher can accommodate 12 place settings, ideal for medium-sized households.

What wash programs are available?

The ODW707X offers several programs: Eco, Intensive, Normal, Quick, Glass, and Pre-wash. Select the one that best suits your load.

Does this dishwasher have a child lock?

Yes, it is equipped with a child lock to prevent accidental operation. Refer to the manual for activation instructions.

What is the noise level of the Omega ODW707X?

The noise level is 49 dB(A), which is relatively quiet and suitable for open-plan kitchens.

How do I clean the filter?

The filter system is partially self-cleaning, but you should manually clean it every few months. Remove the filter assembly, rinse under running water, and replace.

What does the AquaStop system do?

The AquaStop provides overflow protection. It automatically shuts off water supply if a leak is detected, preventing water damage.

Can I delay the start of a cycle?

Yes, the delay start function allows you to set the dishwasher to start up to 24 hours later, convenient for off-peak hours.

What type of detergent should I use?

Use dishwasher detergent (powder, gel, or tablets) along with rinse aid and salt for optimal results. Ensure the salt reservoir is filled for water softening.

Why is the dishwasher not drying completely?

Ensure you are using rinse aid and that the drying system is not obstructed. Also, check that the final rinse water is hot enough. Some plastics may not dry as well.

USER MANUAL ODW707X OMEGA

Technical Details

Style

Dishwasher Type: Freestanding

Category Size: 60cm

Functionality

Place Settings: 14
Wash Programs: Intensive
	Heavy
	Normal
90 mins
	Rapid
	Prewash
Water Rating:	4.5 Stars
Energy Rating:	3.5 Stars
Wash Temperatures (°C):	5 - 40, 45, 55, 60 and 65°C
Maximum Water Temperature (°C):	65°C
Floating Plug:	Yes
Lockable Controls:	Yes
Delayed Start: Yes up to 24 hours
Dual Zone:	Yes
Aquastop Safety Hose:	Yes
Flexible Top Basket:	Yes
Cutlery Tray:	Yes
Cutlery Basket:	Yes, 2 baskets
Allowable Plate Size:	Up to 30cm
Residual Heat Drying:	Yes

Installation

Maximum Current:	10amps
Connection:	240V, 50Hz
Water Connection:	Cold Water Recommended
Length of hose:	1.5m
Water Pressure:	40 - 1000kpa
Noise:	45dBA
Warranty:	24 Months Parts and Labour

Customer Care

T: 1300 739 033 (AU)

09 415 6000 (NZ)

E: [e-mail]

[e-mail]

Updated 30/01/2020 - V1

Dimensions/Weight

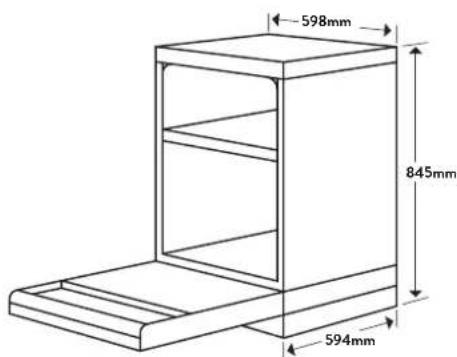

Overall Dimensions (mm): 845(h) x 598(w) x 594(d)

Weight: 47kg

Aesthetics

Finish: Stainless Steel

Controls: Electronic Controls with

LED Display

Key Features

Cutlery Tray

Keep your all cutlery neat and tidy during a wash cycle with a hardy tray.

Flexible Basket

Every load is different. That's why we've designed a Flexible Basket option which allows you to adapt the interior and fit dishes of all shapes and sizes - anywhere. Simply click the side levers on the top basket to lower it to accommodate things like tall glasses. Or, raise it to allow maximum space for frying pans or serving plates on the bottom drawer.
