Cookwell - Hob FAKIR - Free user manual and instructions

Product Type	Built-in Hob
Model	Cookwell
Brand	Fakir
Cooking Zones	4
Zone Type	Induction
Power Supply	220-240 V ~ 50 Hz
Total Power	7200 W
Dimensions (W x D x H)	590 x 520 x 50 mm
Cut-out Dimensions	560 x 490 mm
Weight	8.5 kg
Control Type	Touch Control
Display	Digital LED
Timer	Yes, per zone
Child Lock	Yes
Residual Heat Indicator	Yes
Auto Shut-off	Yes
Booster Function	Yes, on each zone
Keep Warm Function	Yes
Color	Black
Cleaning	Smooth ceramic glass, wipe with damp cloth
Safety Features	Overheat protection, automatic cut-off
Spare Parts Available	Yes, through authorized service
Repairability Index	7.5 / 10

Frequently Asked Questions - Cookwell FAKIR

How do I activate the child lock?

Press and hold the lock symbol for 3 seconds until the indicator lights up.

Why does the hob turn off automatically?

The hob has an auto shut-off feature for safety. This activates after a period of inactivity or if no cookware is detected.

How do I clean the ceramic surface?

Use a soft damp cloth and a mild cleaner. Avoid abrasive sponges. For burnt residues, use a glass scraper.

What cookware is suitable for induction?

Only ferromagnetic pans (cast iron, stainless steel with magnetic base). Use a magnet to check.

How do I set the timer?

Select the cooking zone, press the timer button, then adjust the time with +/-. The zone will shut off when time expires.

What does the error code 'E0' mean?

E0 indicates no cookware or incompatible pan on the zone. Place a suitable pan or check the pan's base.

Can I install the hob myself?

Installation should be done by a qualified electrician due to high power requirements and safety regulations.

How do I activate the booster function?

Press the booster button on the desired zone. It will run at maximum power for up to 5 minutes.

Why is the hob not turning on?

Check the power supply and the main fuse. Ensure the child lock is not activated. If persists, contact service.

What is the warranty period?

Fakir offers a 2-year warranty for manufacturing defects. Register your product for service.

USER MANUAL Cookwell FAKIR

Exterior view of a Skir brand air fryer with control panel (no visible text or symbols)

COOKWELL

Kullanım Kılavuzu

F1-4-08

İÇİNDEKİLER

TR

Genel 4

Cihaz açıklamaları

1) Cam Kapak
2) Isi Kontrol Ayari
3) Kontrol Lambasi
4) Termostat
5) Yapismaz Döküm Plaka 25X35cm

TR

KULLANIM

Isi Kontrol Ayarı

General 15
Information about the operating instructions ..... 15
Liability 15
Notices in the operating instructions 15
Safety 16 OF Declaration of Conformity 18
CE Declaration of Conformity .... 16 Intended use.... 16
intended use 16 Unauthorized use 17
Safety is important 17
Important Safeguards 18
In case of danger 19
In case of defects 20
Overview 21
Technical Data 21
Device description 21 Usage 32
Usage 22 Cleaning the appliance 24
Cleaning the appliance 24 Waste disposal 25
waste disposal 25 Fault 25
Fault 25 Dispatch 25

GB

GENERAL

Thank you for purchasing Fakir COOKWELL Electrical Grill. It was developed and manufactured to work reliably for many years.

Information about the operating instructions

These operating instructions are intended to enable the safe and proper handling and operation of the appliance. Read these operating instructions carefully before using the appliance for the first time.

Keep the operating instructions in a safe place. Include these operating instructions when passing the appliance on to another user.

Liability We will accept no liability for damages resulting from failure

to comply with the operating instructions.

We cannot assume any liability in case the appliance is used for other purposes than its intended use or handled, repaired or serviced improperly.

Notices in the operating instructions

WARNING!

Indicates notices which, if ignored, can result in risk of in jury or death.

ATTENTION!

Indicates notices of risks that can result in damage to the appliance.

NOTICE!

Emphasizes tips and other useful information in the operating instructions.

SAFETY

CE Declaration of Conformity

This appliance fulfills the requirements of the Appliance and Product Safety Law (GPSG) and the EU Directives 2004/108/EC "Electromagnetic Compatibility" and 2006/95/EC "Low-Voltage Directive." The appliance bears the CE mark on the rating plate.

Intended use

• The appliance is constructed for household use only.
• Always disconnect the blender from the supply if it is left unattended and before assembling, disassembling or cleaning.
- Switch off the appliance and disconnected from supply before changing accessories or approaching parts which move in use.
• Children should be supervised to ensure that they do not play with the appliance.
- Do not use this appliance near water contained in basins like bathtubs, washbasins, etc.
- Do not use any abrasive substance for cleaning the appliance.
- You could clean the surface with a damp cloth.
- Do not abuse the electrical cord. Never disconnect from outlet by pulling the power cord. Always use the body of the plug for disconnecting the appliance.
- Do not bend the power cord. Do not keep the folded power cord.
• Always unplug the appliance after use.

Please read all instructions and safety guards carefully.

SAFETY

Unauthorized use • The examples of unauthorized use listed here can result

in malfunctions, damage to the appliance or personal injury:

- This appliance is not designed to be used by persons (including children) with limited physical, sensory or mental capacities or by persons lacking in experience and/or knowledge, unless they are supervised by someone who is responsible for their safety or have received instructions on how to use the appliance. Children should be supervil

sed to ensure that they do not play with the appliance. • Children should be supervised to ensure that they do not play with the appliance. Electric appliances are not toys for children! Therefore, use and store the appliance away from the reach of children. Children do not recognize the danger involved with handling an electric appliance. Do not let the power cord dangle from the appliance.

- Keep packaging films away from children - danger of suffocation!

Safety is important!!!

For yours and others safety please read the instructions before using the appliance. Please keep this instruction in a safe place for the further use. If you pass the appliance on, pass on the instructions too.

SAFETY

GB

Important Safeguards

• When use electrical appliances, basic safety precautions should always be followed, including the following:
  • Always unplug the appliance before assembling, disassembling, cleaning.
• Before plugging into a socket, check whether your voltage corresponds to the rating label of the appliance.
• Don't plug the appliance into the power supply until it is fully assembled and always unplug before disassembling the appliance or handle the blade.
  • Don't allow supervision.
• Don't let the motor unit, cord, or plug get wet
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to an authorized Fakir Service facility for examination, repair or adjustment.
• Don't let excess cord hang over the edge of the table or worktop or touch hot surface.

SAFETY

ATTENTION! ELECTRIC CURRENT!

- Incorrect voltage can destroy the appliance. Operate the appliance only if the voltage specified on the rating plate corresponds to the voltage in your household.

- The socket must be protected with a 16 A automatic circuit breaker.

- Use only extension cords designed for the power input of the appliance.

WARNING: DANGER OF ELECTRIC SHOCK!

- Never touch the plug with wet hands.

- When unplugging the appliance, always pull directly on the plug and never on the power cord.

- Do not kink, pinch or run over the power cord and do not expose it to heat sources.

- If the power cord of this appliance is damaged, it must be replaced by the manufacturer or the manufacturer's customer service department or a person with similar qualifications to prevent any hazards.

- Do not put the appliance in operation if you detect any visible damage on the housing, if the power cord is defective or if you suspect a defect (e.g. after a fall).

- Do not use any damaged extension cords.

WARNING!

In case of danger: In case of danger or accident, unplug the appliance immediately.

SAFETY

Safety In case of defects

WARNING!

Never operate a defective appliance or an appliance with a defective power cord. There is a danger of electric shock.

Before contacting our service department, check to see if you can eliminate the problem yourself. Refer to the chapter

" If at once you don't succeed "

If you were not able to eliminate the problem yourself, please contact our customer service.

Before calling, have the article no. and appliance/model name at hand. This information can be found on the rating plate of the appliance.

WARNING!

Repairs and maintenance may be performed only by trained technicians (e.g. Fakir customer service). Only original Fakir replacement parts may be used. Improperly repaired or serviced appliances may pose a danger to the user.

OVERVIEW

Technical data

Power:1800Watt

Voltage : 230V-50Hz

Usage Life : 7 Years

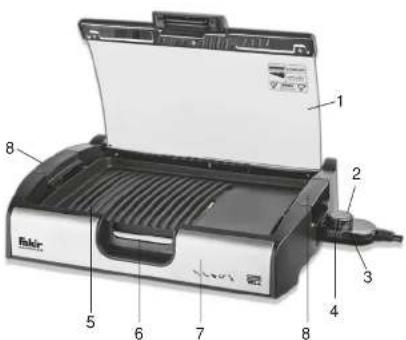

Device description

1) Glass Lid
2) Temperature Control Knob
3) Control Lamp
4) Thermostat
5) Nonstick Diecast Plate 25X35cm

USAGE

Temperature control knob

The temperature of the grill plate can be adjusted. The Numbers on the temperature knob have following meaning:

1 = thermostat switched on
2 = keeping warm
3 - 4 = grilling with low temperature ( for fish etc.)
4 = grilling on medium temperature (for chicken etc.)
5 = grilling on max. temperature.

Control Lamp When the appliance is plugged in and the thermostat is adjusted,

the control lamp is shining. When the temperature is achieved, the lamp goes off.

Grill preparations

Thermostat is placed in giftbox seperately. Before start using your device you must fit the thermostat to right side of non stick plate. Plug the thermostat into thermostat hole on the right side of the plate. Now your device is ready to work.

Oil the grill slightly before the usage. This makes it more easy to turn the food. Then heat up the appliance for about 10 min by turning the temperature knob to the maximum level.

The food should be not frozen during grilling.

Please use the appliance only with the drip tray.

Never cut on the grill surface because the coating can be damaged.

During grilling the glass lid can be placed on the plate or can be hanged at the edge to be used as a wind shield.

GB

CLEANING

Cleaning and maintenance

The appliance should be cleaned after each use. Unplug the appliance. The appliance should cool down a little and can be cleaned easier when it is not that hot. Use a damp cloth with a little bit of detergent to clean it. Resisting dirt should be covered with some oil, wait for about 5 min and try to remove it again with a damp cloth. Do not use abrasive cleaners.

Glass lid can be taken out.

Glass lid, Gril plate and oil drip tray can be washed in dishwasher.

You must remove the thermostat from grill plate before

washing. Thermostat is not washable.

WARNING!

Never immerse the thermostat in water!

Disassemble the device

To remove the glass lid from device, hold the lid with two hands by sides and pull up and towards to outside gently. To remove the grill plate, you must take off the thermostat first. Hold the thermostat tight and pull out. Then hold the handles by the two sides of grill and take out the grill plate. Remove the oil drip plate sitting underneath.

Assemble the device after cleaning

Replace the oil drip tray at the bottom of body. Replace the grill plate on body by holding from safe handles.
Replace your clean glass lid by fitting the two pins at the back side of the body.
End you plug the thermostat into the hole at the right side of the body.
Your device is ready for cooking again.

DISPOSAL

GB

If at once you don't succeed

If the service life of the device has ended, in particular if functional disturbances occur, make the worn-out device unusable by cutting through the power cable.

Dispose of the device according to the environmental regulations applicable in your country.

Electrical waste must not be disposed of together with household waste. Bring the worn-out device to a collection center.

The packaging of the device consists of recycling-capable materials. Place these, sorted out according to material, in the collectors provided, so that recycling can be carried out on them.

For advice on recycling, refer to your local authority or your dealer

Dispose of used dust bag and filters in domestic waste.

Dear customer.

Our products are subject to strict quality control.

If this device should not function trouble-free in spite of that, we regret this very much.

Before you contact our Fakir Customer Service, check

whether you can correct the fault yourself.

Malfunction	Possible cause Solution
Appliance does not work	Plug is not plugged in or the appliance is not switched on. Socket does not carry any current. Power cable is damaged.	Plug in the plug or switch the appliance on Test the appliance at another socket which you are sure carries current Have the cable replaced by authorized Fakir services

Dispatch Carry the appliance in the original package or a similar,

well-padded package to prevent damage to the appliance.

This product is produced on behalf of Fakir Elektrikli Ev

Aletlerl Diş Ticaret A.Ş. by TsannKuen Zhangzhou
