Product Type	Multi-function Display (MFD)
Display Size	15.0 inches diagonal
Display Resolution	1280 x 800 pixels (WXGA)
Dimensions (W x H x D)	400 x 300 x 100 mm (15.75 x 11.81 x 3.94 in)
Weight	4.5 kg (9.9 lbs)
Power Supply	12-24 V DC
Power Consumption	30 W (max)
Waterproof Rating	IPX6 (splash-proof)
Operating Temperature	-15°C to 55°C (5°F to 131°F)
Display Type	High-brightness LED-backlit LCD with anti-reflective coating
Touchscreen	Yes, resistive touch
GPS Receiver	Built-in 72-channel WAAS/EGNOS
Connectivity	NMEA 2000, NMEA 0183, Ethernet, Wi-Fi, Bluetooth, USB, HDMI input
Memory	Internal 32 GB, microSD card slot (max 32 GB)
Main Functions	Navigation, Radar overlay, Fish Finder, CHIRP sonar, Weather, AIS, Depth, Speed, Chart plotter, Autopilot interface
Radar Support	Yes, via Ethernet network (Furuno DRS series)
Fish Finder Support	Yes, built-in CHIRP and traditional sonar
Mounting	Flush mount or bracket mount (bracket included)
Software Updates	Via USB drive or microSD card (download from Furuno website)
Languages	English, French, German, Spanish, Italian, Japanese, Chinese
Safety Compliance	CE, FCC, IEC 60945
Maintenance	Clean with soft damp cloth; avoid alcohol and ammonia; protect from prolonged direct sunlight
Spare Parts	Available through Furuno dealers: screen assembly, power cable, fuse, mounting kit
Warranty	2 years from date of purchase

Frequently Asked Questions - TZTL15F FURUNO

How do I update the software on my TZTL15F?

Download the latest firmware from the Furuno website to a USB drive or microSD card (FAT32 formatted). Insert the media into the TZTL15F, then navigate to Settings > System > Software Update and follow the on-screen instructions. Do not power off during update.

Can I connect a radar to the TZTL15F?

Yes, the TZTL15F supports Furuno DRS series radars via a direct Ethernet connection. Connect the radar's network cable to the MFD's Ethernet port, then configure the radar type in Settings > Radar menu.

What is the maximum SD card capacity supported?

The microSD card slot supports cards up to 32 GB in FAT32 format. Larger cards may not be recognized. The internal memory is 32 GB.

How do I perform a factory reset?

Go to Settings > System > Factory Reset. This will erase all user data and restore default settings. Confirm by pressing Reset and wait for the unit to reboot.

Why is my TZTL15F not acquiring GPS signal?

Ensure the unit has a clear view of the sky. Check that the GPS receiver is enabled in Settings > Navigation > GPS. If using an external GPS, verify the NMEA 2000 connection. Try updating the GPS almanac via the GPS Status menu.

Can I use the TZTL15F with an autopilot?

Yes, the TZTL15F can interface with Furuno and many third-party autopilots via NMEA 2000 or NMEA 0183. Configure the autopilot as a device in the Settings > Devices menu.

What type of touchscreen does the TZTL15F have?

The TZTL15F uses a resistive touchscreen, which responds to pressure from a finger or stylus. It is water-resistant and can be used with gloves.

How do I clean the screen without damaging it?

Use a soft, lint-free cloth slightly dampened with water. Do not use harsh chemicals, alcohol, ammonia, or abrasive materials. Apply gentle pressure to avoid scratches.

Is the TZTL15F compatible with Navionics charts?

Yes, the TZTL15F supports Navionics Gold+, Platinum+, and C-MAP MAX charts. Insert the chart SD card into the slot, and the unit will automatically detect and display them.

What should I do if the unit freezes or becomes unresponsive?

Perform a hard reset by pressing and holding the Power button for 10 seconds until the unit shuts down. Wait 30 seconds, then power on again. If the issue persists, try a factory reset or contact Furuno support.

USER MANUAL TZTL15F FURUNO

The purpose of this guide is to provide the basic operation for this equipment. For detailed information, see the operator's manual in the supplied CD-ROM. You can get the latest version of the manual by accessing the quick response code at the back of this guide. iPhone, iPod and iPad are trademarks of Apple Inc. Android is a trademark of Google Inc. All brand and product names are trademarks, registered trademarks or service marks of their respective holders.

Operational Overview

Home screen operations

"eGuide" provides an abbreviated operator's guide.

- Power on/off.

- Adjusts display brilliance. - Changes hue.

Touchscreen operations Touchscreen operations

Tap

- Select an item on a menu. - Select an object to show the corresponding pop-up menu.

Drag

- Move the chart. - Scroll the menu.

Two finger pinch

Zoom in Zoom out

- Zoom in, zoom out the plotter and weather displays. - Change the range on the radar display.

Slider bar

Tap operation also available.

Two finger tap

Do the function assigned to [Function Gesture] in the [Settings] - [General] menu.

Two finger drag

Change the viewpoint position on the 3D display.

Menu operation

Pop-up menu

Tap any part of the screen or an object.

Tap the required function. (">" indicates additional options.)

Layer menu

Slide-out menu

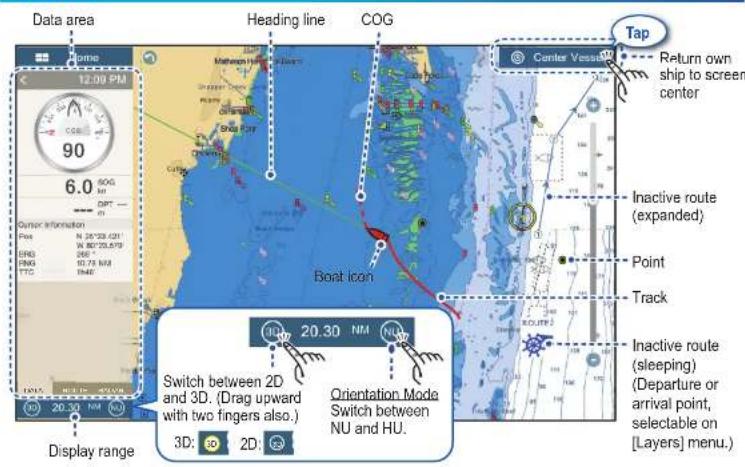

Plotter

Data Area (Data Box)

Swipe from the left edge of the screen rightward to show the data area at the left edge of the screen. Tap "<" to hide the data area.

Points

Points can be entered on the plotter and radar displays to mark important locations such as a good fishing spot. Point attributes (position, symbol type, color, etc.) are recorded to the points list.

How to enter a point

How to set a point as destination
On-screen point

Routes

A route is comprised of a series of waypoints leading to a destination. Routes are saved to the routes list.

How to create a new route

Tap the first point for the route.

Tap the next point for the route. Repeat to enter all points for the route.

At the last point

(Top right corner)

Enter a name for the route, then tap [√].

How to follow a route
On-screen route

Office
(No text)

Radar

How to switch between standby and TX

How to measure the range, bearing from own ship to a target

Tap a target to show its range and bearing from own ship.

How to set a guard zone

A guard zone alerts you (with aural and visual alarms) when a radar target enters the area you specify.

ARPA Operation

ARPA is an anti-collision aid that tracks the movement of other ships to help prevent collision. ARPA not only tracks other ships but also provides their navigation data. Targets can be acquired manually, automatically, or both automatically and manually.

How to activate, deactive ARPA

How to manually acquire a target

ARPA symbols

At acquisition Lost target

Within 30 seconds

CPA/TCPA alarm

The CPA/TCPA alarm releases aural and visual alarms when both the CPA and TCPA of a tracked target are equal to or lower than the CPA/TCPA alarm setting.

CPA: Closest point of approach

TCPA: Time to closest point of approach

How to set the CPA/TCPA alarm

How to acknowledge the CPA/TCPA alarm

Tap the alarm message (top of screen) to acknowledge the alarm and stop the aural alarm.

AIS (Automatic Identification System)

How to show or hide AIS target symbols

AIS target symbols

	Class A AIS	Class B AIS
Normal target	SOG/COG vector Color: blue	SOG/COG vector Color: green
Dangerous target	Color: rod
Lost target

Proximity AIS target alarm

The proximity AIS target alarm releases aural and visual alarms when the distance between own ship and an AIS target is less than the alarm value.

Fish Finder

How to select a frequency

Low frequency: For "normal" use.

High frequency: For detailed observation of schools of fish.

Dual frequency: Show both the low and high frequency pictures.

How to select the operating mode

The fish finder is available in automatic and manual operation. For automatic operation, gain, clutter and TVG are automatically adjusted.

Manual mode

How to change the range

How to adjust the gain

Zoom display

ACCU-FISH™

ACCU-FISH ^™ measures the size and depth of individual fish and shows that information on the screen.

How to set ACCU-FISH™

Instrument Display

With connection of appropriate sensors, the instrument display shows various navigation data.

How to enable the instrument display

Add an instrument display icon to the home to screen to show the instrument display.

How to switch instrument displays (ex. full display)

How to edit an instrument display

Wireless LAN Setting

You can connect to the internet with the wireless LAN signal to download weather information and to connect to an iPhone, iPod, iPad, or Android device.

How to connect to an existing LAN

Connect to the existing LAN to download weather data or update the software.


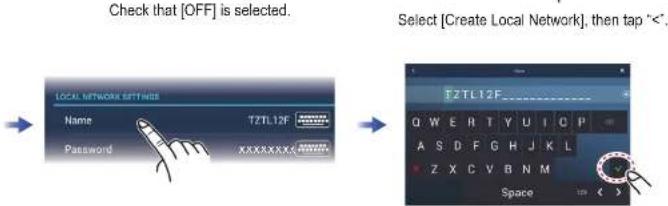

How to create a local wireless network

Create a local wireless network to connect to an iPhone, iPod, iPad, or Android device.

Home screen

Enter the name of the network, then tap [√].
