USER MANUAL VuePoint FPA400 SANUS

FPA400 INSTRUCTION MANUAL

We'll Make It Stress-Free

If you have any questions along the way, just give us a call. 1-888-333-9952. We're ready to help!

Scan for easy install video

san.us/260

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

Before You Begin

Please check the following items:

□ Any accessories you plan to use do not exceed the specified weight limit.
☐ The wall you chose to mount your shelf is wood stud, drywall, solid concrete, or concrete block.
☐ You read and understand these directions.
☐ You have the tools needed for installation.

If you do not understand these instructions, or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service or call a qualified contractor.

▲ CAUTION: Avoid potential personal injuries and property damage!

• Do not use this product for any purpose not explicitly specified by manufacturer.
• Do not place objects heavier than 15 lb (6.8 kg) on shelf.
• Do not place a TV on shelf.
• Do not allow children to climb or hang on shelf.
  ● Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
• This product is designed for use in wood stud, drywall, solid concrete and concrete block walls.

Can be mounted to drywall, wood stud, or concrete. Stackable to accommodate multiple components - not to exceed 15 lb (6.8 kg) on each shelf.

Tools Needed

Supplied Parts and Hardware

▲ WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

NOTE: Not all hardware included will be used.

Parts and Hardware for STEP 1 Parts and Hardware for STEP 2

Lag Bolts and Wall Screws Washer Wall Plate

03 (1)

06 (1)

Wall Anchors

07 (1)

10 (2) (2)

O

Dimensions

Single shelf configuration

Stacked configuration

STEP 1

Attach the Wall Plate to the Wall - Wood Stud Option

IMPORTANT: For stacking configurations, stack from the top down.

1. Locate your stud(s). Verify the center of the stud using an awl, a thin nail, or an edge to edge stud finder.

▲ CAUTION: Avoid potential personal injuries and property damage!
• Drywall covering the wall must not exceed 16 mm (5/8 in.).
• Minimum wood stud size: common 51 x 102 mm (2 x 4 in.) nominal 38 x 89 mm (1½ x 3½ in.).

1. Remove the front (F) and top (T) covers from the wall plate 06. Level the wall plate 06 and mark the hole locations.

STEP 1

1. Drill pilot holes.

IMPORTANT: Pilot holes must be drilled to a depth of 63.5 mm (2½ in.), using a 3 mm (1/8 in.) diameter drill bit.
4. Tighten the lag bolt 01 and washer 03 the screw 02 only until they are pulled firmly against the wall plate 06

▲ CAUTION: Improper use could reduce the holding power of the lag bolt and screw. DO NOT over-tighten the lag bolt and screw.

STEP 1

Attach the Wall Plate to the Wall - Solid Concrete or Concrete Block Option

IMPORTANT: For stacking configurations, stack from the top down.

Remove the front (F) and top (T) covers from the wall plate 06

1. Level the wall plate 06 and mark the hole locations. Level the wall plate 06 and mark the hole locations.

CAUTION: Avoid potential personal injuries and property damage!

- Mount the wall plat 06 directly onto the concrete surface

• Minimum solid concrete thickness: 203mm (8 in.)

Minimum concrete block size: 203 x 203 x 406 mm (8 x 8 x 16 in.)

1. Drill pilot holes.

IMPORTANT: Pilot holes must be drilled to a depth of 75 mm (3 in.), using a 10 mm (3/8 in.) diameter drill bit. Never drill into the mortar between blocks.

STEP 1

1. Insert anchors 04 and 05

▲ CAUTION: Be sure the anchors are seated flush with the concrete surface.

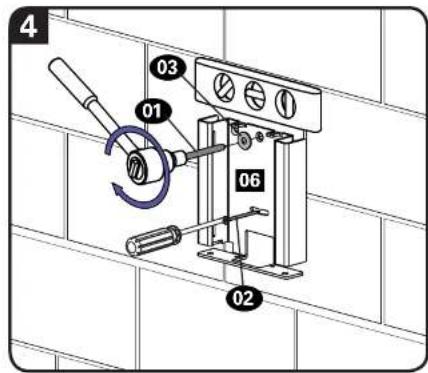

1. Tighten the lag bolt 01 and washer 03 the screw 02 only until they are pulled firmly against the wall plate 06

CAUTION: Improper use could reduce the holding power of the lag bolt and screw. DO NOT over-tighten the lag bolt and screw.

STEP 1

Attach the Wall Plate to the Wall - Drywall Option

IMPORTANT: For stacking configurations, stack from the top down. Remove the front (F) and top (T) covers from the wall plate 06

1. Level the wall plate 06 and mark the hole locations.

▲ CAUTION: Avoid potential injuries or property damage!
- Mount the wall plat 06 directly onto the wall.
• Drywall covering the wall must not exceed 13mm (1/2 in.).
- Do not install anchors into the seam between drywall pieces.

1. Drill pilot holes.

IMPORTANT: Pilot holes MUST be drilled to a depth of 38 mm (1½ in.) using a 10 mm (3/8 in.) diameter drill bit.

STEP 1

1. Insert anchors

CAUTION: Be sure the anchors are seated flush with the surface.

1. Tighten the screw

02 only until they are pulled firmly against the wall plate 06.

▲ CAUTION: Improper use could reduce the holding power of the screw. DO NOT over-tighten the screws.

STEP 2

Attach Glass to Wall Plate

1. Slide the glass shelf 07 into the wall plate 06. Line up the holes in the shelf to the holes in the wall plate as shown.
2. Secure the glass shelf 07 to the wall plate 06 using screws 10.
3. Attach the safety plate 08 to the glass shelf 07 using screws 11.

STEP 3

Manage Cables

Single shelf configuration

Cables can be routed through the opening in the lower back of the wall plate 06.

Stacked configurations

For stacked configurations, cables can be routed through the inside of the wall plates 06. When you are done routing cables replace the top (T) and front (F) covers.
