01127 - Kitchen scale AcuRite - Free user manual and instructions

Product Type	Digital Kitchen Scale
Brand	AcuRite
Model	01127
Power Source	2 x AAA alkaline batteries (not included)
Max Weight Capacity	5 kg / 11 lbs
Max Volume Capacity	5000 ml / 168.7 fl oz
Measurement Units	Metric (g, ml) and Imperial (lb:oz, fl'oz) selectable via UNIT button
Modes	Weight, Water Volume, Milk Volume (toggle via MODE button)
Functions	Zero and Tare, Minus function, Auto power-off after 2 minutes
Display	Digital LCD with indicators for mode, zero/tare, and battery
Weighing Surface	Circular platform
Care & Maintenance	Store dry at room temperature; clean with soft damp cloth; do not immerse; avoid acids and citrus juices
Safety Warnings	Not for commercial use; do not strike, shake, or drop; do not exceed max capacity
Spare Parts & Repairability	No specific information; battery replacement is user-serviceable

Frequently Asked Questions - 01127 AcuRite

How do I change the batteries in my AcuRite 01127 kitchen scale?

Remove the battery compartment cover on the bottom, insert 2 AAA alkaline batteries following the polarity (+/-) diagram, and replace the cover. Use only high-quality alkaline batteries for best performance.

How do I switch between metric and imperial units?

Press and release the UNIT button located on the bottom of the scale to toggle between Metric (g, ml) and Imperial (lb:oz, fl'oz) units.

What does the 'Lo' message on the display mean?

The Lo message indicates that the batteries are low and need to be replaced soon.

What does the 'Err' message on the display mean?

The Err message means the maximum weight capacity (5 kg / 11 lbs) has been exceeded. Remove some weight to avoid damaging the scale.

How do I use the tare function?

Place the item(s) on the scale, then press the ZERO button. If the weight is below 4% of capacity (0.04 kg/0.9 lb), the Zero indicator appears; otherwise, the Tare indicator appears. The display resets to 0, allowing you to add more items.

How do I clean my AcuRite kitchen scale?

Clean with a soft, damp cloth. Do not immerse in water or use caustic cleaners or abrasives. Wipe all parts immediately after contact with foods. Avoid contact with acids and citrus juices.

Does the scale automatically turn off?

Yes, the scale enters Power Saving Mode and auto-powers off if the display shows 0 or the same weight for 2 minutes. You can also manually turn it off by pressing and holding the ZERO button for 3 seconds when a weight is displayed.

What is the maximum weight I can measure?

The maximum weight capacity is 5 kg (11 lbs). Exceeding this will show an 'Err' message.

Can I measure liquids with this scale?

Yes, press the MODE button to switch to Water or Milk volume mode. The scale will display volume in ml or fl oz based on the selected mode.

How do I turn the scale off manually?

If the display shows 0, press the ZERO button once. If a weight is displayed, press and hold the ZERO button for 3 seconds until the scale turns off.

USER MANUAL 01127 AcuRite

CONTENTS

Package Contents 2

Features & Benefits....2

Setup 4

Install or Replace Batteries.....4

Select Measurement Units.....4

Using the Scale....5

Troubleshooting 6

Care & Maintenance....7

Specifications....7

Customer Support....7

ACU-RITE.

Congratulations on your new AcuRite product. To ensure the best possible product performance, please read this manual in its entirety and retain it for future reference.

Package Contents

1. Scale
2. Instruction Manual

Features & Benefits
FRONT

FRONT

1. Weighing Area
2. MODE Button

Press to toggle between weight modes

1. Display
2. " ZERO Button

Push to turn scale ON/OFF or select between Zero and Tare weight modes.

Features & Benefits

BACK

1. Battery Compartment

2. UNIT Button

Push to choose Metric (g, ml) or Imperial (lb:oz, fl'oz) measurement units.

1. Battery Compartment Cover

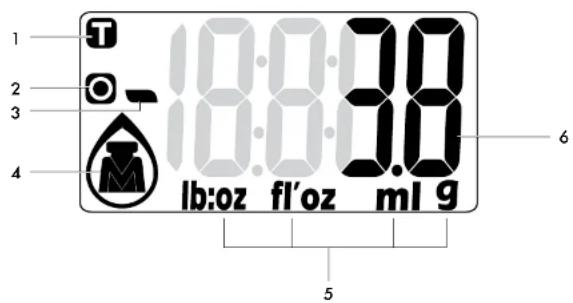

DISPLAY

DISPLAY

SETUP

Install or Replace Batteries

AcuRite recommends high quality alkaline batteries for the best product performance. Heavy duty or rechargeable batteries are not recommended.

1. Remove the battery compartment cover.
2. Insert 2 x AAA batteries into the battery compartment, as shown. Follow the polarity (+/-) diagram in the battery compartment.
3. Replace the battery cover.

Select Measurement Units

To set the measurement units (Metric or Imperial), press and release the UNIT button, located on the bottom of the scale.

OPERATION

Using the Scale

Measure Weight

The scale's default mode is set to weigh solid items. Volume Mode, used for weighing liquids, allows you to choose between WATER or MILK modes because milk is denser than water. To weigh an item:

1. Place the scale on a flat, stable surface.
2. Gently touch the center of the scale; wait for the display to show 0.
3. To set the mode, press and release the MODE button (toggle between Weight, Water and Milk modes).

4. Place item to be measured within the center of the Weighing Area of the scale.

5. Volume or weight will be shown on the display.

Weight Mode: g/kg/oz/lb

Water Volume Mode: ml/ft oz

Milk Volume Mode: ml/fl oz

Zero & Tare Functions

To measure items as they are added, use the Zero and Tare Functions. If the weight of the items being measured is below 4% of the scale's capacity (less than .04kg/0.9lb), the Zero function is used. If the weight of the items exceeds 4% of the scale's capacity, the Tare function is used.

1. Place the first item(s) within the center of the Weighing Area of the scale to take a measurement.
2. Without removing the item(s), press the ZERO button to reset the display to 0.
3. Depending on the weight of the item(s), you will see the Zero indicator "or the Tare indicator" on the display.
4. With the first item(s) still in place, add the next item to the surface of the scale. The display will now show the weight of that item.

Minus Function

If you add multiple items to the scale at one time to get a total weight, you can identify the value of a single item or ingredient by using the Minus Function:

1. Add item(s) to the scale; display shows total weight.
2. Press the ZERO button to reset display to 0.
3. Remove an item.
4. Display shows the weight of the removed item with the Minus Function indicator (negative value is shown on the display).
5. Press the ZERO button to view cumulative weight of any remaining items.
6. Repeat steps as needed.

Power Saving Mode

The scale will automatically power off if the displays shows "0" or the same weight measurement is showing for 2 minutes. The scale can be manually powered off by pressing the "On ZERO button. When the display shows "0". If the scale is showing a weight measurement, press and HOLD the "On ZERO button for 3 seconds.

Warning Messages

A "Lo" message on the display screen indicates that the batteries will need to be changed. A "Err" message on the display screen indicates that the maximum weight capacity has been exceeded. To avoid damage, remove some weight from the scale.

Troubleshooting

Problem Possible Solution
Display screen not working	• Check that the batteries are installed correctly. Batteries may need to be replaced.

Care & Maintenance

Store in a dry location at room temperature. Clean with a soft, damp cloth. DO NOT immerse in water or use caustic cleaners or abrasives. All parts should be wiped clean immediately after direct contact with foods. Avoid contact with acids and citrus juices. Use the scale on a hard, flat surface. DO NOT strike, shake or drop the scale. Scale is not designed for commercial use.

Specifications

MAX WEIGHT CAPACITY	5 kg / 11 lbs
MAX VOLUME CAPACITY	5000 ml / 168.7 fl oz
POWER	2 x AAA alkaline batteries

Customer Support

AcuRite customer support is committed to providing you with best-in-class service. For assistance, please have the model number of this product available and contact us in any of the following ways:

221-1252

info@

dhane

y-inst.com

24/7 support at www.AcuRite.com

▶ Installation Videos ▶ Register your Product
▶ Instruction Manuals ▶ Support User Forum
▶ Replacement Parts ▶ Submit Feedback & Ideas
