InstaBrew - Coffee maker Chefman - Free user manual and instructions

Product Type	Drip Coffee Maker
Model	InstaBrew
Brand	Chefman
Dimensions (L x W x H)	10 x 7 x 12 inches
Weight	3.5 lbs
Power Source	120V, 60Hz, 1100W
Water Reservoir Capacity	12 cups (60 oz)
Brew Capacity	Up to 12 cups
Filter Type	#4 cone paper filter or permanent basket
Carafe Material	Glass with ergonomic handle
Housing Material	Plastic and stainless steel accents
Brewing Functions	Regular brewing, automatic shut-off, keep warm (up to 2 hours)
Additional Features	Pause & Serve function, water level indicator
Cleaning and Maintenance	Regular descaling with vinegar solution; removable filter basket and carafe are dishwasher safe
Safety Features	Automatic shut-off after 2 hours, cool-touch handle
Parts and Accessories	Glass carafe, filter basket, permanent filter (optional)
Repairability	Common replacement parts available online; user-serviceable filter basket and carafe
Warranty	1-year limited warranty

Frequently Asked Questions - InstaBrew Chefman

How do I clean the Chefman InstaBrew coffee maker?

Regular cleaning is essential. After each use, rinse the carafe and filter basket. For deep cleaning, run a cycle with a mixture of equal parts white vinegar and water, then run two cycles with fresh water. Refer to the manual for detailed descaling instructions.

What type of filter does the InstaBrew use?

It uses a #4 cone-shaped paper filter. Alternatively, you can use a permanent basket filter if you prefer. Always ensure the filter is properly seated to avoid grounds in your coffee.

How many cups does the InstaBrew make?

The water reservoir holds up to 12 cups (60 oz). The actual number of cups depends on your brew size preference. The markings on the carafe indicate cup sizes.

Does the coffee maker have an auto shut-off feature?

Yes, the Chefman InstaBrew automatically shuts off after 2 hours of inactivity. The keep-warm function will also turn off at that time for safety.

Can I brew a smaller amount of coffee?

Yes, you can brew a minimum of 4 cups. For best results, ensure the water level is at least at the 4-cup mark and adjust the amount of coffee grounds accordingly.

What is the 'Pause & Serve' function?

This feature allows you to pour a cup of coffee before the brewing cycle ends. Simply remove the carafe for up to 30 seconds; the drips will stop automatically. Replace the carafe to resume brewing.

How do I adjust the brew strength?

The InstaBrew does not have a strength selector. To adjust strength, simply change the coffee-to-water ratio. Use more grounds for stronger coffee or less for milder flavor.

Why is my coffee maker leaking?

Leaks can occur if the carafe is not properly placed, the filter basket is overfilled, or the water reservoir lid is not closed tight. Check these areas first. If the problem persists, inspect the carafe for cracks.

Can I use the coffee maker with a timer?

No, the Chefman InstaBrew does not include a programmable timer. It is a simple on/off machine. You can use an external outlet timer if needed.

What should I do if the coffee tastes bitter or weak?

Bitter coffee may be caused by over-extraction (too many grounds) or a dirty machine. Weak coffee may be due to too few grounds or water that is not hot enough. Experiment with the grind size and coffee amount, and ensure regular descaling.

USER MANUAL InstaBrew Chefman

Close-up of a modern stainless steel coffee maker with a flame inside, no visible text or symbols on the device itself.

Congratulations on your purchase!

Every Chefman product is manufactured to the highest standards of performance and safety. We are confident that you will be so satisfied with your purchase that Chefman will be your go-to company for appliances in the future.

Customer satisfaction is a key element of our company's philosophy. The Chefman brand exists to fill a void on retail shelves and in consumer kitchens for a truly value-focused kitchen appliance. By questioning and adding value and innovation at every touch point in the manufacturer to end user journey, Chefman provides home chefs with the tools they need to achieve picture-perfect results with maximum efficiency. In addition to manufacturing appliances that are dependable, affordable and built with intuitive features to enhance your kitchen experience, we pride ourselves on providing top-of-the-line post purchase support, which includes complimentary access to ClubChefman.com for product tutorials, delicious recipes, how-to videos and access to our team of dedicated chefs.

Should a problem arise, each product is backed by a comprehensive manufacturer's 1-year warranty, as well as, outstanding after-sales service support through our dedicated customer service team. In the unlikely event that your product does not operate as described in the manual, please feel free to call or email our helpline for assistance. We understand that sometimes products can malfunction, so if you feel that your appliance is not operating as it should, warranty claims can be made within one year from the date of purchase when accompanied by a dated receipt.

This guarantee is in addition to your statutory rights; your statutory rights are not affected. This limited warranty does not apply in cases of damage caused by accident, improper use, abuse or force majeure.

This warranty gives you specific legal rights. Rights may vary depending on your state or province of residence. Some locations do not allow limitations on implied warranties or special incidental, or consequential damages, so the limitations may not apply to you. This limited warranty will be invalidated if the appliance is tampered with in any way whatsoever.

Our telephone helpline [phone] is available for questions or technical assistance. Monday through Friday, 9 am to 5 pm EST.

Customers can also receive support by emailing [e-mail].

CONTENTS

1 Safety Instructions
3 Features
4 Operating Instructions
5 Cleaning and Maintenance
6 Notes
7 Terms and Conditions
8 Warranty Card

SAFETY INSTRUCTIONS

IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS.

WARNING: When using electrical appliances, especially when children are present, basic safety precautions should always be followed to reduce the risk of fire, electric shock and/or injury to persons, including the following:

1. Do not touch hot surfaces. Use handles or knobs.
2. To protect against fire, electrical shock and injury to persons do not immerse cord, plugs, or the appliance in water or other liquids.
3. Close supervision is necessary when any appliance is used by or near children.
4. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.
5. Do not operate appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Call our toll-free customer assistance number for information on examination, repair, or adjustment.

6. The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injuries to persons.

7. Do not use outdoors or in a damp area.

8. Do not let cord hang over edge of table or counter, or touch hot surfaces.

9. Do not place on or near a hot gas or electric burner, or in a heated oven.

10. To disconnect the appliance, turn control to off, then remove plug from wall outlet.

11. Do not use this appliance for anything other than its intended use.

12. Scalding may occur if the lid is removed during the brewing cycles.

13. To reduce the risk of fire or electric shock, do not remove the bottom cover on the appliance. No user serviceable parts inside. Call our toll-free customer assistance number for repair.

Warning: InstaBrew Single Serve Coffee Maker is never to be used on a range top. Warning: Hot steam.

Caution: To reduce the risk of scalding, do not open lid when coffee is brewing.

Warning: To reduce the risk of fire or electric shock, do not remove bottom cover.

SAFETY PRECAUTIONS

IMPORTANT SAFEGUARDS

WARNING: This appliance has a polarized plug (one blade is wider than the other). This p is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way or force it into the outlet. This could result in injury or elect shock.

SHORT CORD INSTRUCTIONS

A short power supply cord is provided to reduce the hazards of entanglement or tripping over a longer cord. Longer detachable power-supply cords or extension cords are available; and may be used if care is exercised in their use. If a longer detachable power-supply extension cord is used:

1. The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance.
2. The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

POWER CORD SAFETY TIPS

1. Never pull or yank on cord or the appliance.
2. To insert plug, grasp it firmly and guide it into outlet.
3. To disconnect appliance, grasp plug and remove it from outlet.
4. Before each use, inspect the line cord for cuts and/or abrasion marks. If any are found, this indicates that the appliance should be serviced, and the line cord replaced. Please return it to an authorized service representative or contact Chefman Customer Service for assistance.
5. Never wrap the cord tightly around the appliance, as this could place undue stress on a cord where it enters the appliance and cause it to fray and break.

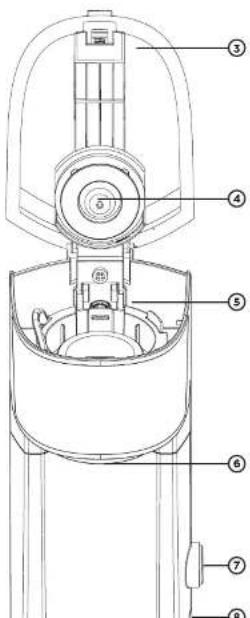

FEATURES

1. Coffee grounds filter
2. Capsule Receptacle for both K-Cups and Coffee Ground Filter

OPERATING INSTRUCTIONS

Remove packing materials and read all instructions carefully before use. Before first use, machine with water and no coffee to ensure the unit is clean. Do not immerse the unit in

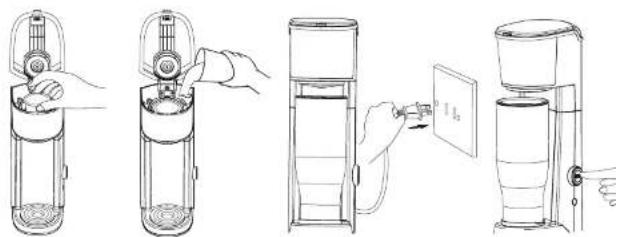

HOW TO USE

1234
1. Place K-Cup or provided permanent coffee ground filter* into receptacle.
2. Add water to tank located behind capsule receptacle, under water shower head and close lid until you hear a clicking sound.
3. Connect unit to power supply. IMPORTANT: Do not plug in this unit before water is added to tank.
4. Firmly press the "BREW" button and enjoy!
*Fill provided coffee ground filter with ground coffee and close until it clicks. Place filter in

CLEANING AND MAINTENANCE

CLEANING YOUR COFFEE MAKER

Proper maintenance will ensure years of service from your appliance. Clean the appliance after every use. This appliance contains no user serviceable parts and requires little maintenance.

Warning: Unplug the appliance and let it cool down completely before cleaning.

Caution: Do not immerse the coffee maker, or the power cord with plug into water or any liquids. Do not use abrasive pads or alcohol.

• Take out the permanent filter and receptacle from the coffee machine.
• Clean the housing with a clean, damp cloth.
• Use baking soda or a mild cleaning agent to remove stains in the receptacle. If stains are hard to remove, soak the receptacle overnight with a water/detergent mixture and clean afterwards.
• Make sure all parts are completely dry after washing and before use.
• After cleaning, reassemble the coffee maker.

Note: Do not dry the inside of the water tank with a cloth, as lint may remain.

NOTES

TERMS & CONDITIONS

Limited Warranty

CHEIFMAN' warrants subject to the conditions stated below, that from the date of purchase, this product will be free from mechanical defects for a period of ONE (1) year. CHEIFMAN, at its option, will repair or replace this product found to be defective during the warranty period. Should this product become defective by reason of improper workmanship or material defect during the specified warranty period, CHEIFMAN will repair or replace the same effecting all necessary parts replacements for a period of one year from the date of purchase. If product is no longer available we will replace it with a product of equal value. Transportation charges on parts, or products in whole, submitted for repair or replacement, under this warranty must be borne by the purchaser. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform either than as specified on the rating label (e.g., 120V - 60 Hz).

This warranty is available to consumers only. You are a consumer if you own a CHEFMAN product that was purchased at retail for personal, family or household use. Except as otherwise required under applicable law, this warranty is not available to retailers or other commercial purchasers or owners.

CONDITIONS: This warranty is valid for the original USA and Canada retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty service or replacement. Dealers, service centers, or retail stores do not have the right to alter, modify or in any way, change the terms and conditions of this warranty. Warranty registration is not necessary to obtain warranty on CHEMAN Products. Save your proof of purchase receipt.

ABOUT YOUR PRODUCT WARRANTY: Most warranty repairs are handled routinely, but sometimes requests for warranty service may not be appropriate. For example, warranty service would NOT apply if the product damage occurred because of misuse, lack of routine maintenance, shipping, handling, 3rd party warehousing or improper installation. Similarly, the warranty is void if the manufacturing date or the serial number on the product has been removed or the equipment has been altered or modified. During the warranty period, the authorized service dealer, at its option, will repair or replace any part that, upon examination, is found to be defective under normal use and service.

NORMAL WEAR: This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product; improper voltage or current; use contrary to the operation instructions; deviation from instructions regarding storage and transportation; repair or alteration by anyone other than CHEFMAN or an authorized service center. Further, the warranty does not cover Acts of God, such as fire, flood, hurricanes and tornadoes. CHEFMAN shall not be liable for any incidental or consequential damages caused by the breach of any express or implied warranty. Except to the extent prohibited by applicable law, any implied warranty of merchantability or fitness for a particular purpose is limited in duration to the duration of the above warranty. Some states, provinces or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or province to province.

HOW TO OBTAIN WARRANTY SERVICE: If your CHEFMAN product should prove to be defective within the warranty period, we will repair it, or if we think necessary replace it. To obtain warranty service, simply email [e-mail] or call our toll-free number 1-888-315-6553 for additional information from our Customer Service. Representatives, or send the defective product to Customer Service at Chefman, 200 Performance Drive, Mahwah, NJ 07496.

This warranty is effective for the time periods listed above and subject to the conditions provided for within this policy.

CALIFORNIA RESIDENTS ONLY:

WARRANTY

INSTABREW

CHEFMAN

All data fields are required in order for us to process your request:

Model Number:

Full Name:

Address:

Phone

Email: (e.g. pclase)

Date of Purchase

^1 We recommend you order this excerpt with this warning page.

Retail Store of Purchase:

Description of Malfunction:

Close-up of a dark, textured surface with visible cracks and parallel grooves (no text or symbols)
