Product Type	Tumble Dryer
Brand	Stirling
Model	GYJ70-78F3E
Capacity (kg)	7 kg
Drying Type	Condenser (Self-condensing)
Energy Rating	B
Dimensions (H x W x D)	850 x 600 x 600 mm
Weight	40 kg
Power Supply	230 V ~ 50 Hz
Power Consumption	2.5 kWh (per cycle)
Number of Programs	8
Key Functions	Anti-crease, Delay start, Quick dry, Sensor drying
Lint Filter	Removable, clean after each cycle
Water Tank	Removable, 2.5 L capacity
Installation Type	Freestanding
Safety Features	Child lock, Overheat protection, Door lock indicator
Maintenance	Clean lint filter after each use; empty water tank; check condenser periodically
Spare Parts Availability	Yes, through Stirling support or authorized dealers
Warranty	2 years

Frequently Asked Questions - GYJ70-78F3E Stirling

How often should I clean the lint filter?

The lint filter should be cleaned after every drying cycle to maintain efficiency and prevent fire hazards.

How do I empty the water tank?

Pull out the water tank (usually located at the top or front), empty it into a sink, and replace it securely. The water tank capacity is 2.5 L.

What is the maximum load capacity?

The maximum load is 7 kg of dry laundry. Overloading may affect drying performance and cause excessive wear.

Can I install the dryer in a cabinet?

The dryer is designed for freestanding installation. For built-in installation, ensure adequate ventilation and follow the clearance guidelines in the manual.

How do I reverse the door?

Door reversal is possible but requires disassembly of hinges and latch. Refer to the user manual for step-by-step instructions, or contact a qualified technician.

What do the error codes mean?

Common error codes include:
• E1 – Water tank full
• E2 – Lint filter clogged
• E3 – Overheating
Consult the manual for full list.

How do I use the delay start function?

Press the Delay Start button repeatedly to set the desired delay (e.g., 1-9 hours). The cycle will begin after the delay period ends.

How can I reduce energy consumption?

• Dry full loads (but not overloaded)
• Use sensor drying programs
• Clean filters regularly
• Use lower heat settings for synthetics.

Is it safe to leave the dryer unattended?

It is generally safe, but always check that the lint filter is clean and the area is clear of flammable materials. Do not leave the dryer running when the house is empty.

How do I contact Stirling support?

Visit the Stirling website or call the helpline provided in the warranty booklet. Have your model number (GYJ70-78F3E) ready.

USER MANUAL GYJ70-78F3E Stirling

White Stirling washing machine with blue abstract background (no visible text or symbols on main body)

6.5kg Clothes Dryer

Model Number GYJ70-78F3E

INSTRUCTION MANUAL

IM Version No: V2.4 Issue Date: 16 December 2015

Welcome

Congratulations on choosing to buy a STIRLING ^® product.

All products brought to you by STIRLING ^® are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 3 Year Warranty. We hope you will enjoy using your purchase for many years to come.

Contents

02 Welcome
04 Warranty Details
05 General Safety Instructions
08 Product Overview
10 Getting Started: Installation
15 Instructions
18 FAQs
19 Other Useful Information
23 Repair and Refurbished Goods or Parts Notice

STIRLING®

6.5kg Clothes Dryer

Warranty Details

The product is guaranteed to be free from defects in workmanship and parts for a period of 36 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour. The benefits conferred by this warranty are in addition to all rights and remedies in respect of the product that the consumer has under the Competition and Consumer Act 2010 and similar state and territory laws.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and to compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

General Safety Instructions

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Read this manual thoroughly before first use, the safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. Keep the manual in a safe place for future reference, along with the completed warranty card and purchase receipt. If applicable, pass these instructions on to the next owner.

Always follow basic safety precautions and accident prevention measures when using an electrical appliance, including the following:

Electrical safety and cord handling

• Voltage: Make sure your outlet voltage and circuit frequency correspond to the voltage indicated on the appliance rating label and your outlet socket is properly earthed. If this is not the case, do not use the dryer.
• Separate circuit: We strongly recommend you connect the appliance to a separate circuit serving only this appliance. This provides the best performance and prevents overloading the house wiring circuits that could cause a fire hazard from overheating.
• Electrical hazard: Do not insert any objects into the appliance.
• No extension cord: Do not use this appliance with a power adaptor or extension cord. CAUTION: If such a device must be used, the cord or outlet device must be positioned so that it is not subject to splashing or ingress of moisture.
• Protect the power cord. Do not kink or damage the power cord. Position the cord out of the way so no one steps on or places anything on the cord or against it. Do not run the cord under floor coverings. Arrange the cord away from traffic areas where it will not become a trip hazard.
• Damage: Do not operate the appliance after it malfunctions or has been dropped or damaged. In case of damage, contact the after sales support line for advice.
• Damaged cord: If the power supply cord is damaged, do not attempt to change it yourself. A damaged cord or plug must be replaced by the manufacturer or a qualified person in order to avoid a hazard.
• Disconnect: Unplug the clothes dryer from the power supply after use, before cleaning, servicing or moving the appliance. To disconnect, turn the appliance off, switch off the power outlet and remove the plug from the power outlet. Grip the plug when disconnecting; do not pull on the cord. After disconnection, wait at least 2 minutes before turning the appliance back on again.
• RCD: Unless your home is already fitted with a residual current device (safety switch), we recommend installing an RCD with a rated residual operating current not exceeding 30mA to provide additional safety protection when using electrical appliances. See your electrician for professional advice.

Usage conditions and restrictions

- Domestic use only: This appliance is intended for indoor household use only. Do not use it outdoors. Do not use it for anything other than its intended purpose (drying domestic quantities of washing), and only use it as described in this manual.

General Safety Instructions (Cont.)

• Usage restriction: The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children: Supervise young children to ensure they do not play with the dryer. Close supervision is necessary when any appliance is used by or near children.
• Installation requirements: Do not install the appliance in a tight fitting cabinet. Do not install it near heat sources such as radiators, heaters, air ducts or direct sunlight. If the clothes dryer is not wall-mounted, place it on a flat, firm, dry and stable floor in a well ventilated area. Use the adjustable legs to assist in levelling the dryer if required. Do not place it on any soft material such as foam or plastic.
• Ventilation: Do not block any ventilation openings. Ensure that vents are not covered by newspapers, tablecloths, curtains, carpet, etc.
• Before use: Make sure to remove transport packaging at the rear of the dryer. WARNING: Before loading the dryer, always ensure no pet or young child has climbed into it. Do not overload the clothes dryer.
• Suitability for tumble drying: Only load suitable items into the clothes dryer. See the box on the opposite page for which items and materials are unsuitable for the clothes dryer and may present a fire risk.
• Preparation: Make sure all pockets of clothing to be dried are empty. Hard, sharp objects such as coins, safety pins, bra wires, nails, screws, lighters or matches must be removed as they can cause extensive damage to the dryer.
  WARNING: Any damage or malfunction resulting from foreign objects is not covered by your warranty and may lead to expensive repairs.
• No open flames: Do not place open flame sources such as candles on the dryer.
• Hot surface: The door window may be hot after a long drying cycle. Always ensure children are kept away from the machine.
• Cool down: The final part of a clothes dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that will not damage them. Never stop the clothes dryer before the end of the drying cycle unless all items are removed quickly and spread out so the heat is dissipated.
• Subsequent cycles: After turning off the power supply to the clothes dryer, wait at least two minutes before turning it back on again.
• Repair: Except for the filters that require cleaning, this appliance contains no user-serviceable parts inside. Do not attempt to open, disassemble or repair it yourself; only have it serviced by qualified personnel, call the after sales support line.
• Liability: Improper use or installation may result in the risk of fire, electric shock and/or injury. We assume no liability for any eventual damages caused by improper use or handling, or by any other noncompliance with the instructions in this manual.

General Safety Instructions (Cont.)

CAUTION!

The items listed below are UNSUITABLE for clothes drying. They can cause fire in the clothes dryer or extensive damage. DO NOT place the following items into the clothes dryer.

☒ Items containing foam rubber (also known as latex foam) or similarly textured rubber-like materials — when heated, these materials can spontaneously combust and cause a fire.
☒ Items that have been spotted or soaked with cooking oil, or with highly flammable substances — these substances constitute a fire hazard. Highly flammable substances used in domestic environments include acetone, alcohol, petrol, kerosene, some stain removers, dry-cleaning solvents, turpentine, waxes, wax removers and some hair care products. (This also includes items that have previously been cleaned or spotted with dry-cleaning solvents or other flammable or explosive substances.)

Washing these items thoroughly beforehand in hot water with an extra amount of detergent will reduce, but not necessarily eliminate the hazard. The ‘cool down’ cycle of a clothes dryer should be used to reduce the temperature of the items. They should not be removed from the clothes dryer or piled or stacked while hot.

☒ Undergarments that contain metal reinforcements (such as underwire bras), which can come loose during drying and damage the clothes dryer.
☒ Plastic articles such as shower caps or waterproof baby bibs.
Rubber-backed articles, clothes fitted with foam rubber pads, pillows, galoshes and rubber coated tennis shoes.
☑ Fabric softeners or similar products, unless they are specifically recommended by the product manufacturer for use in a clothes dryer to eliminate the effects of static electricity.

CAUTION!

• Do not use the tumble dryer if industrial chemicals have been used for cleaning.
• Do not dry unwashed items in the tumble dryer.
• Do not allow lint to accumulate around the tumble dryer. Clean the filter after every use.
• Adequate ventilation has to be provided to avoid the backflow of gases into the room from appliances burning other fuels, including open fires.

WARNING: Risk of fire

This symbol alerts you to take care as oil-affected items can ignite spontaneously, especially when exposed to heat, such as in a clothes dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from escaping and so create a fire hazard.

Product Overview

Front view

Scope of delivery

A Clothes dryer

1 Door
2 Window
3 Control panel
4 Door gasket
5 Stainless steel drum
6 Exhaust connector
7 4 Wall-mounting notches (on both sides, at the top and bottom of the back panel)
8 Levelling legs

Product Overview (Cont.)

9 Air intake shroud
10 Air intake filter
11 Power button
12 Anti-Crease button
13 Programs button
14 Temperature button
15 Start/Pause button

B Documentation (not shown)

Instruction manual

Quick start guide

Warranty certificate

Air intake

Control panel

C Wall-mounting kit

Parts of the Wall-Mounting KitPart Illustration Quantity
Hanging brackets 2
Spacers 2
Exhaust Connector 1
12mm Screws			4
25mm Screws			4
16mm Screws			3
Additional Printed Control Panel			1

Getting Started: Installation

Unpacking

• This product has been packaged to protect it against transportation damage. When unpacking keep all packaging until you have made sure your new clothes dryer is undamaged and in good working order. The carton is recyclable. Whenever possible, reuse the carton and recycle it when disposing of the packaging materials.
• Plastic wrapping can be a suffocation hazard for babies and young children, so ensure all packaging materials are out of their reach. Dispose of packaging safely.
• Make sure to remove the transport packaging at the rear of the clothes dryer.
• Inspect the cord and plug for damage or wear before each use. Do not use the appliance if the appliance or its cord have been damaged or are not working properly. In case of damage, contact our after sales support line.
• Read all instructions in this manual and make sure you understand all warnings.
• Wipe the inside of the drum with a damp cloth to remove any dust from transport.

Important notes regarding installation

CAUTION: This appliance is heavy. Use two or more people to move and install it.

• This clothes dryer can be installed on the floor level (as supplied), or wall-mounted upside down with the control panel at the bottom. Detailed instructions for each option are provided on the following pages.
• The appliance must not be installed behind a lockable door, sliding door or a door with a hinge on the opposite side of the clothes dryer, in such a way that a full opening of the tumble dryer door is restricted.
• Do not install the appliance in a tight fitting cabinet.
• Make sure that all electrical connections are made by qualified personnel and all instructions in this manual as well as local safety regulations are observed.
• Place the dryer in a dry, well ventilated area, away from heat and direct sunlight.
• Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.

Floor level installation

- If the dryer is installed on the floor, make sure to place it on a firm, flat, dry and stable floor, close to an appropriate wall outlet. Do not place it on soft material such as foam, plastic or carpet, as this will block the air intake.

- The dryer comes with four legs installed to ensure stability. (If you are wall-mounting the dyer upside down, you will need to remove the legs from the bottom panel. To avoid damaging the floor, lay the dryer on a large piece of cardboard (from the dryer carton) and remove the legs as illustrated (Fig. 1). See page 11 for details.)

- See points 3 and 4 on page 13 for installation of the exhaust connector.

- Stand the dryer on its feet and slide it into position, leaving a space of at least 10cm between the dryer and any wall. All four legs are adjustable; just turn them to assist in levelling the dryer, if necessary. When the dryer is level, tighten the legs.

Getting Started: Installation (Cont.)

Upside down installation

The dryer can be installed upside down, if this suits your setup better. To prepare the unit for upside down installation, proceed as follows:

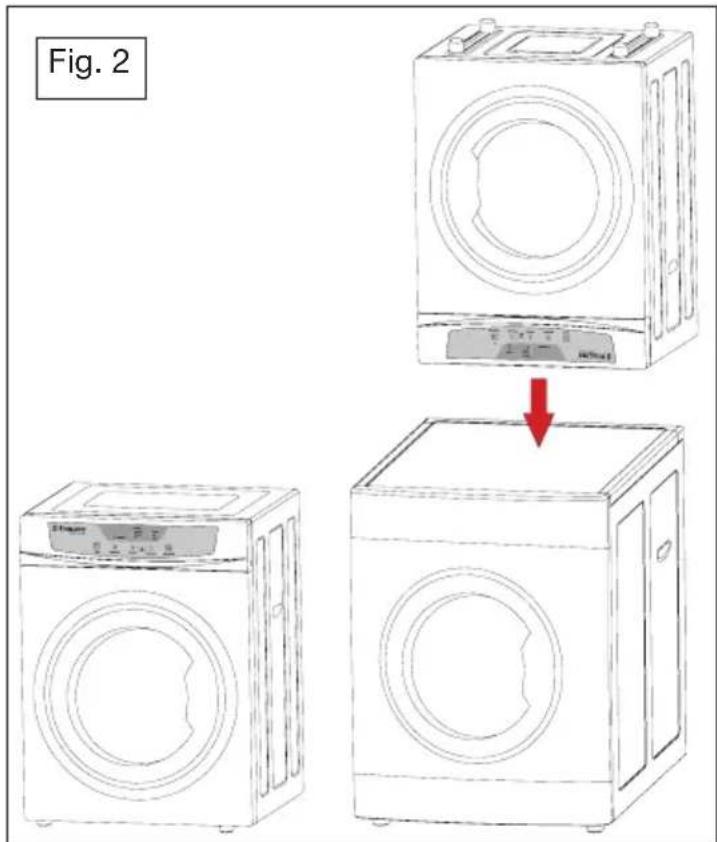

1. Place the dryer upside down on a firm horizontal surface, such as on a table or benchtop (Fig. 2).*

2. Take the additional printed control panel from the wall-mounting kit and place it over the existing panel (Fig. 3).

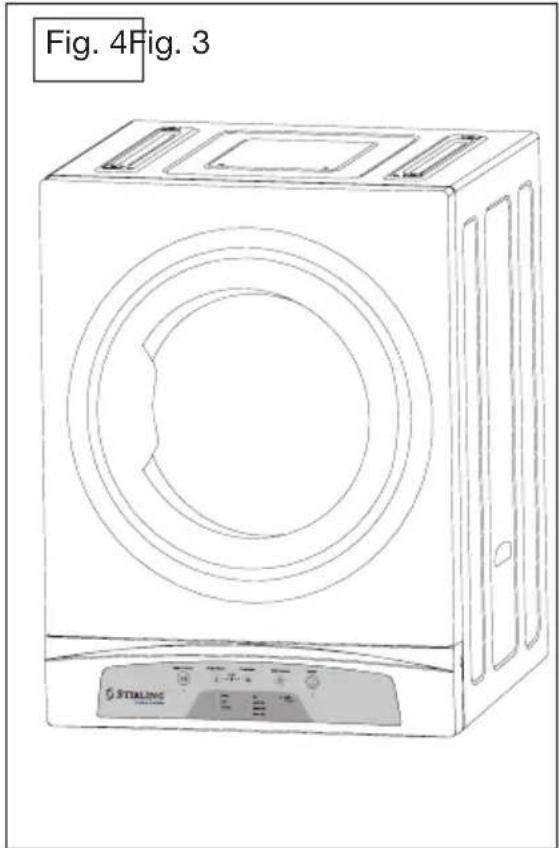

3. Remove the four legs from the dryer (Fig. 3).

4. The dryer is now ready for upside down installation (Fig. 4).

* Do NOT operate the dryer on top of a washing machine!

Line drawing of a washing machine with control panel and fan (no text or symbols on the device itself)

Getting Started: Installation (Cont.)

Rack-mounted installation

• If the clothes dryer is to be rack mounted, you will need a secure bracket (Fig. 5) to ensure stability and prevent vibration. (The bracket is not included.)
  • Make sure to leave at least 10cm space between the dryer and the wall.
• You will need at least 5cm space between the top of the dryer and the ceiling for ease of installation.

Wall-mounted installation

• If mounting above a washing machine, allow sufficient room to open the lid of a top load washer.
• You will need at least 5cm space between the top of the dryer and the ceiling for ease of installation.
• If you want to mount this dryer directly to your laundry wall, it must be installed upside down. Use the supplied wall-mounting kit which contains the following parts:

Parts of the Wall-Mounting KitPart Illustration Quantity
Hanging brackets 2
Spacers 2
Exhaust Connector 1
12mm Screws 4
25mm Screws 4
16mm Screws 3

• Additional tools required (for mounting onto a plasterboard/wood stud wall):

* Drill (with a 3mm drill bit)
* Phillips head screw driver
* 4 Timber screws (ø12x50mm)

You may also ask someone to help you lift the dryer onto the wall.

• Wall-mounting instructions follow on the next pages.

Getting Started: Installation (Cont.)

Step-by-step wall-mounting instructions

When mounting the clothes dryer to a plasterboard wall, make sure to attach the wall-mounting bracket securely to a timber stud. If the space between two studs is too wide, fit a timber slat between the studs to mount the brackets securely onto the studs (Fig. 6).

Fig. 6

1. Determine the dryer position on the wall and mark the required bracket position.
2. Fix the two wall-hanging brackets securely to the timber stud (Fig. 6). Align the hanging hooks and fasten the screws tightly (Fig. 7).

Fig. 7

1. If wall-mounting upside down, first convert the appliance for upside down use (see page 11). Then install the exhaust connector: push the connector over the exhaust vent at the back of the dryer with the exhaust outlet in the direction required (Fig. 8).
2. Use the three 16mm screws to fix the connector firmly in place.

Getting Started: Installation (Cont.)

1. Use the four 12mm screws to attach the two spacers (Fig. 9).

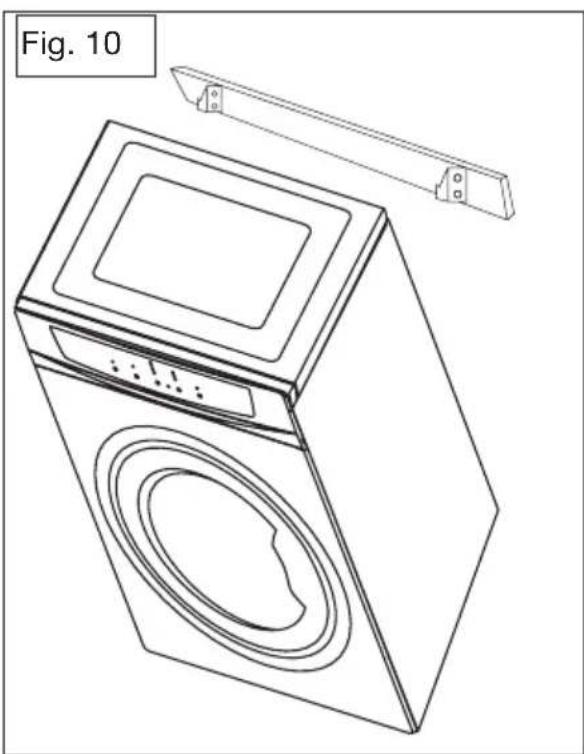

1. With assistance, mount the clothes dryer onto the wall bracket (Fig. 10).

2. Once the clothes dryer is properly installed, plug the electrical cord into an appropriately earthed three pin 240V wall socket.

Line drawing of a washing machine with a flat blade and circular vent, labeled Fig. 10 (no text or symbols on the diagram itself)

Instructions

CAUTION!

Make sure you read all safety precautions in this manual and are aware of the items (listed on page 7) that cause a hazard if placed in the clothes dryer.

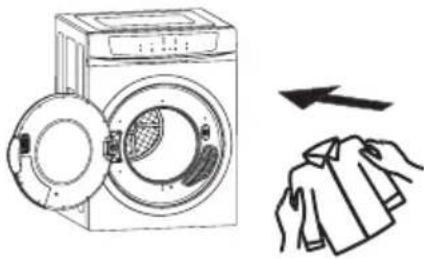

Loading the dryer

- Prior to loading the dryer, check that none of your items have the following symbols anywhere on them. These symbols indicate that items are UNSUITABLE for clothes drying.

Dry flat

Dry in the shade

Do not tumble dry

Hang to dry

Drip dry

Illustration of a washing machine with open door and close lid, alongside a hand holding a folded shirt (no text or symbols)

• Make sure that the items to be dried do not have combustible materials or foreign objects (such as lighters, hair pins, coins) inside pockets.

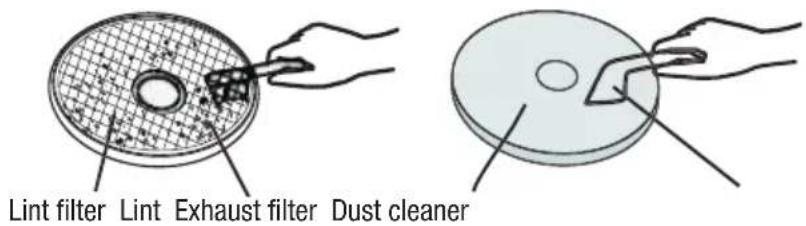

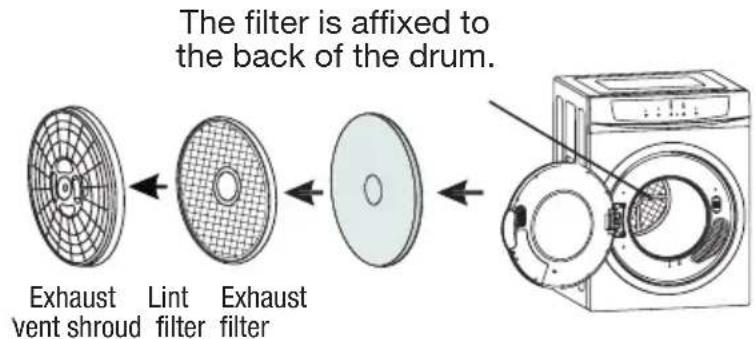

• Clean the lint filter before each use (see page 19) and make sure it is properly in place.
• To avoid items getting tangled up in the dryer, which results in uneven drying, we recommend placing items into the dryer one at a time.
• Turn items with zippers inside out and fasten buckles. This will also help reduce impact noise when the items hit against the turning drum.
• As the dryer heat may permanently set stains, ensure you check prior to drying.
• Separate dark and light coloured items as you would do when washing.
• For best results, load the dryer with similar fabrics that take a similar period of time for drying (see page 17 for suggested drying times).
• Place small, delicate items in a mesh bag; do not put too many items into one

bag. (It is not recommended to dry underwire bras in a clothes dryer.)

- When drying large items such as a blanket or sheets, open the dryer door and shake out the item from time to time, then place the item back in the dryer and close the door. This will ensure even drying.

- CAUTION: Do not overload the dryer: the maximum amount of dry textile material that can be dried in one load is 6.5kg.

- The clothes dryer is intended only for drying textile material washed in water.

- When closing the dryer door prior to starting the unit, ensure that items are not jammed in the door.

- Do not add items into the dryer while it is operating.

Illustration of a washing machine with a door open and a crossed-out bag symbol (no text or labels)

Instructions (Cont.)

Use the following buttons on the control panel to set a drying program and temperature.

Power Button

Press this button to switch the power on. The unit will beep, the light above the button will come on, indicating that power is being supplied, and the default settings (Extra Dry and Regular) will be selected.

Press the button again to switch off the power, the indicator light will go out.

Anti-Crease Button

Press this button to activate the Anti-Crease program. The light above the button will come on, indicating that the Anti-Crease program has been selected.

When this program is selected, the dryer will add an 8-10 minute air-dry cycle after the set drying program. During this cycle only cool air (no heat) will be generated to help prevent creasing of the items just dried.

NOTE: To ensure you get the most out of the anti-crease function, do not overload the dryer. Remove the dried items from the dryer immediately and hang on coat hangers or fold.

Programs Button

Press this button, repeatedly, to select one of the following four drying programs. The respective light above the button will illuminate, indicating which program has been selected.

• Extra Dry: The drying time for this program is 200 minutes.
• Mild Dry: The drying time for this program is 150 minutes.
  • Light Dry: The drying time for this program is 90 minutes.
  • 1 hour: The drying time for this program is 60 minutes.

CAUTION: HOT SURFACE!

Do not touch the air intake during a drying cycle: it will be hot.

Instructions (Cont.)

Suggested drying times

Drying Capacity	Drying Time
	Regular Airing
Approximately 2kg Approximately 60min. Approximately 90min.	90min.
Approximately 3kg Approximately 90min. Approximately 150min.	150min.
Approximately 4.5kg Approximately 150min.
Approximately 6.5kg Approximately 200min.

Drying times can be affected by many factors, such as type of material, bulkiness of the items, how full the dryer is, etc. The above list is only a guide.

Temperature Button

Press this button, repeatedly, to select one of the following three heat settings. The respective lights above the button will illuminate, indicating which setting has been selected.

• Regular: Strong heating. On this setting the dryer is working with two sets of heating elements running simultaneously, providing the strongest hot airflow.
• Half: Medium heating. On this setting the dryer is working with two sets of heating elements for 10 minutes, then with one set of elements for another 10 minutes, then with two sets again, and so on.
• Airing: Lukewarm. On this setting the dryer is working with only one set of heating elements running, providing the weakest hot airflow.

Start/Pause Button

Press this button to start the set drying program. The light above the button will illuminate, indicating that the dryer has started running.

NOTE: The dryer will not work until this button is pressed. You will have to press the Start/Pause button again, after closing the door, if you opened the dryer's door during operation.

Lock

When the dryer is running, press the Programs and Temperature buttons simultaneously and hold for 3 seconds to lock all buttons. In locked state, the buttons' programming functions will not work if pressed.

To unlock the buttons, press the Programs and Temperature buttons simultaneously and hold for 3 seconds.

CAUTION!

Never stop the clothes dryer before the end of the drying cycle, unless you remove all items quickly and spread them out so that the heat is dissipated.

FAQs

Troubleshooting guide

If your clothes dryer has a fault, is not working properly, or you think it should work better, use the list below to identify and solve any problems. If you cannot solve the problem, contact our after sales support line. Do not attempt to dismantle or repair the dryer yourself.

Problem Possible cause Solution
There is no response when pressing buttons.	Is the power plug inserted firmly into the wall socket?	Insert the power plug firmly.
The drum does not turn.	Is the door closed?Is the power plug firmly inserted?Does the wall socket have power?	Close the door.Insert the power plug firmly.If power is switched on at the wall socket, check the socket with another appliance.
Hot air is not blowing out.	Is the temperature incorrectly set to airing?	Set the temperature to Half or Regular heat.
The washing is not thoroughly dried.	Are the front and back filters clogged?Is there too much washing in the dryer?Have items been added while the dryer is in operation?Has the washing been twisted while drying?Is the dryer operating in a small and poorly ventilated area?Have you set the dryer to the Light Dry program?	Check and clean the filters.Reduce the amount of washing in the dryer.Dry damp items again for a little longer.Untwist the items and dry them for a little longer.Place the dryer in a well-ventilated area.Try using the Mild Dry or Extra Dry settings instead.
The dryer does not start.	Is there a power failure?Is the power plug inserted firmly?Is the door closed?Have you selected a drying program and temperature?Is the power switched on at the wall socket?	Check and try again when the power is back.Insert the power plug firmly.Close the door securely.Set a drying program and temperature.Switch on power at the wall socket.

Other Useful Information

Maintenance

To prolong the service life of your clothes dryer, keep it in good condition and clean the filters regularly.

CAUTION: Before cleaning or maintenance, unplug the dryer from the wall socket.

Cleaning the lint filter

The lint filter must be in place whenever drying. It must be cleaned before each use.

1. To remove the filter, insert your fingers into the four holes around the exhaust vent shroud and pull out the filter assembly. It consists of three parts: the exhaust vent shroud, the lint filter and the exhaust filter (Fig. 11).

Fig. 11

1. Take off the exhaust filter, then separate the lint filter from the exhaust vent shroud, pulling gently at the edges. Using a soft brush, cloth or vacuum cleaner attachment, clean the filter parts, taking care not to damage the filters (Fig. 12).

Fig. 12

1. After cleaning, assemble the parts in the sequence of exhaust filter - lint filter - exhaust vent shroud (Fig. 13), aligning the recesses in the centre with the projection in the centre of the drum. Make sure that the filter assembly is firmly inserted. It should audibly click into place.

Fig. 13

Three-step diagram showing a circular object being processed into a grid-patterned, circular component, and finally into a blank circular object (no text or symbols)

NOTE: The fixed metal grid fixed at the rear of the drum should also be cleaned with a soft cloth or brush.

Other Useful Information (Cont.)

Cleaning the air intake filter

• The air intake filter at the front of the unit should be cleaned about once a month.
• To remove the filter, hold the upper and lower ends of the air intake shroud and pull it outwards (Fig. 14).
• Remove the filter inside the shroud and clean it with a soft brush.
• Reassemble and push the filter back until it clicks into place.

Fig. 14

Slightly push the shroud upwards with your thumb until the latch hook disconnects, then remove.

Hand holding a car tire with a small inset image, no visible text or symbols

Air Intake Shroud

Air Intake Filter

Cleaning the interior and exterior of the dryer

• To clean the exterior surfaces of the clothes dryer, only use a dry cloth, or a cloth dampened with water and a little mild detergent.
• Do not wash exterior or interior surfaces directly with water.
• Do not use solvents, thinner, alcohol based or harsh or abrasive cleaners on any of the dryer surfaces.
• Do not use any type of spray cleaner when cleaning the interior. If the dryer drum becomes stained, clean the drum with a damp cloth.
• If cleaning the drum has left any residues on the drum, make sure to remove it before drying the next load.

Other Useful Information (Cont.)

Spare parts

The following spare parts for the GYJ70-78F3E 6.5kg Clothes Dryer are available for purchase from our after sales support centre.

• Air exhaust: thermal breaker, connector, sealing sponge
• Air inlet: cover, filter
- Axis set
• Ball bearings for fan assembly
- Bearings
- Belt tensioning wheel springs and supports
- Capacitor
- Control panel
• Door: hinge, inner and outer cover, seals
- Door: lock, lock base, lock base cover, lock spring
- Dryer motor
- Fan belt
- Fan motor puller
- Filter (inner tub)
- Filter case
- Motor: puller, vibration-proof pad
- Poli-V belt
- PTC Heating element
- PTC Thermal breaker
- Rubber pad
- Safety switch

To purchase a spare part, call the centre on 1300 886 649 or email us at [e-mail]

Other Useful Information (Cont.)

Technical specifications

Product STIRLING 6.5kg Clothes Dryer
Model Number GYJ70-78F3E
Capacity 6.5kg
Voltage & Frequency 220-240V AC - 50/60Hz
Rated Input Power 1700W
Dimensions 600 (W) x 565 (D) x 820 (H) mm
Net Weight 26.5kg
Ingress Protection IPX4

This product complies with the following standards:

• AS/NZS 60335.2.11:2009+A1:2010 for electrical safety standards
• EN 55014-1:2006+A1:2009 for electromagnetic compatibility
• AS/NZS 2442.1:1996/A4:2006 for energy consumption and performance

Responsible disposal

At the end of its working life, do not throw this appliance out with your household rubbish. Electrical and electronic products contain substances that can have a detrimental effect on the environment and human health if disposed of inappropriately. Observe any local regulations regarding the disposal of electrical consumer goods and dispose of it appropriately for recycling. Contact your local authorities for advice on recycling facilities in your area.

STIRLING®

6.5kg Clothes Dryer

Repair and Refurbished Goods or Parts Notice

Unfortunately, from time to time, faulty products are manufactured which need to be returned to the supplier for repair.

Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of repair, some or all of your stored data may be lost. We recommend you save this data elsewhere prior to sending the product for repair.

You should also be aware that rather than repairing goods, we may replace them with refurbished goods of the same type or use refurbished parts in the repair process.

Please be assured though, refurbished parts or replacements are only used where they meet ALDI's stringent quality specifications.

If at any time you feel your repair is being handled unsatisfactorily, you may escalate your complaint. Please telephone us on 1300 886 649 or write to us at:

Tempo (Aust) Pty Ltd ABN 70 106 100 252

PO BOX 6056 Frenchs Forest, Sydney, Australia NSW 2086

Telephone: [phone] (Aust) - Fax: [phone]

Tempo Help Desk: 1300 886 649 (Aust)

(Operating Hours: Mon-Fri 08:30am to 06:00pm EST)

Email: [e-mail]

Warranty returns

Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product.

Product does not work?

If you encounter problems with this product, or if it fails to perform to your expectations, make sure to contact our After Sales Support Centre on 1300 886 649 before returning it to the store for a refund.

For an electronic copy of this manual, go to www.stirlingappliances.com.au and download a copy.

Instruction Manual Revision Index

Version No Issue Date Description

V1.0 03 November 2014 Original release
V1.1 10 November 2014 Minor updates
V1.2 24 November 2014 Compliance updates
V1.3 10 December 2014 Compliance updates
V1.4 16 December 2014 Updated wall-mounting kit contents
V2.0 29 October 2015 2016 Release
V2.1 18 November 2015 Minor updates
V2.2 24 November 2015 Minor update to parts list
V2.3 15 December 2015 Minor update on page 11
V2.4 16 December 2015 Minor update on page 11
