ER2402CSS - Cooker Avanti - Free user manual and instructions

Product Type	Electric Freestanding Range
Brand	Avanti
Model	ER2402CSS
Color	Stainless Steel
Dimensions (Width x Depth x Height)	24.0" x 23.5" x 36.0" - 36.5" (610 x 595 x 915-927 mm)
Weight	Approx. 120 lbs (54 kg)
Power Supply	240V, 60Hz, 40A (requires dedicated circuit)
Power Cord	Not included; 3-wire or 4-wire UL listed range cord required
Surface Elements	4 coil burners: 3 x 6" (1250W each), 1 x 8" (1250W)
Oven Capacity	Approx. 3.5 cu. ft.
Oven Functions	Bake (2100W) and Broil (2000W) with selector knob
Oven Temperature Range	Warm (150°F) to 450°F (65°C to 232°C)
Control Type	Knobs for surface burners, oven function, and oven thermostat
Indicator Lights	Separate indicator lights for oven and surface units
Safety Features	Anti-tip bracket, auto-off when knob turned to OFF, cool-touch door handle

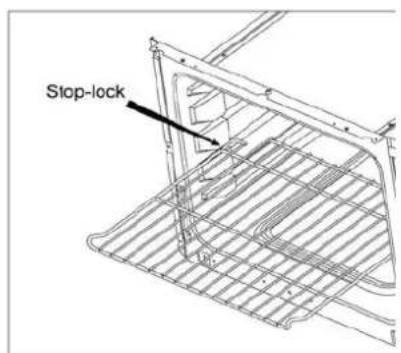

Oven Racks	2 wire racks with stop-locks

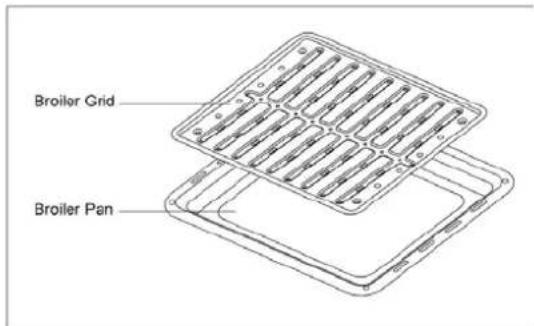

Broiler Pan	Includes broiler tray and grid
Storage Drawer	Removable storage drawer under oven
Oven Light	15W, E14 bulb (replaceable)
Installation Requirements	Leveling legs, anti-tip bracket must be installed; cabinet clearance 30" min above cooktop
Warranty	1 year parts and labor (90 days for rental/commercial); glass and finish 30 days

Frequently Asked Questions - ER2402CSS Avanti

How do I level the electric range?

Adjust the four leveling legs at the bottom corners by turning them clockwise to raise or counterclockwise to lower. Use a level on the surface units to ensure proper leveling.

Why won't the surface units heat up?

Check if the household fuse is blown or circuit breaker tripped. Ensure the surface unit is fully inserted into the receptacle and the control knob is pushed in and turned to a setting.

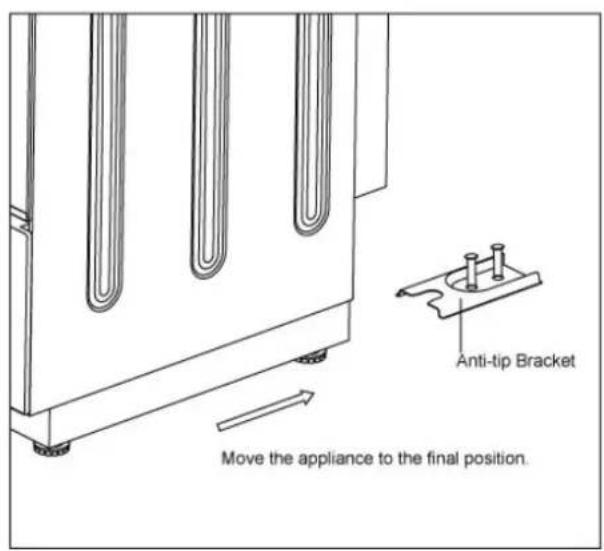

How do I install the anti-tip bracket?

Place the bracket on the floor at the back of the range (left or right side). Mark holes, drill, insert plastic anchors, and secure with screws. Slide the range back so the rear foot is under the bracket.

What type of electrical connection is required?

The range requires a 240V, 60Hz, 40A dedicated circuit. It can be connected with a 3-wire or 4-wire UL listed range cord (not supplied) or hardwired. Follow the wiring diagram in the manual.

Why is my oven not baking evenly?

Ensure the oven rack is positioned correctly and not overcrowded. Use proper cookware with flat bottoms. Check if the oven thermostat is functioning; if not, it may need replacement.

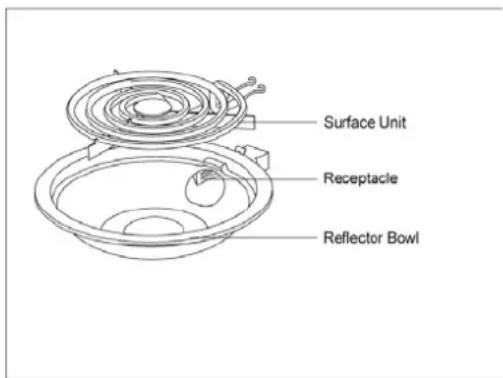

How do I clean the coil burners and reflector bowls?

Disconnect power and let burners cool. Lift the burner edge opposite the receptacle, pull gently, then lift out reflector bowls. Clean with mild detergent and warm water. Do not immerse burners in water. Reinsert by aligning terminal into receptacle and pressing down.

How do I replace the oven light bulb?

Disconnect power and let oven cool. Remove the protective cover, unscrew the old bulb, and replace with a 240V, 15W, E14 bulb rated for high temperature (300°C). Replace cover.

What should I do if the control knobs won't turn?

For surface unit knobs, push in before turning. For oven knobs, ensure you are turning clockwise. If still stuck, check for debris or damage.

Can I use aluminum foil in the oven?

Do not line the oven walls or bottom with aluminum foil. Foil can cause fire hazard or damage. Use foil only on the broiler pan as directed.

How do I remove the storage drawer for cleaning?

Pull the drawer out until it stops, then lift the front slightly and pull it free. Clean with mild detergent. Never store flammable materials in the drawer.

USER MANUAL ER2402CSS Avanti

Line drawing of a simple electric stove with four fans and top cabin (no text or symbols)

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. AND SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.

Avanti Products has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice.

Avanti Products, A Division of The Mackle Co., Inc.

P.O. Box 520604 - Miami, Florida 33152

www.avantiproducts.com

TABLE OF CONTENTS

Range Safety	3
Important Safeguides	4
The Anti-tip Bracket	5
Help Us Help You ...	6
Parts and Features	7
Important Safety Instructions	8
Installation Instructions	9
Before Using Your Electric Range	9
Important Precautions and Recommendations	10
Installation of Your Electric Range	11

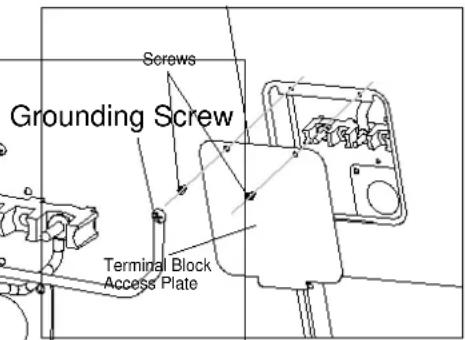

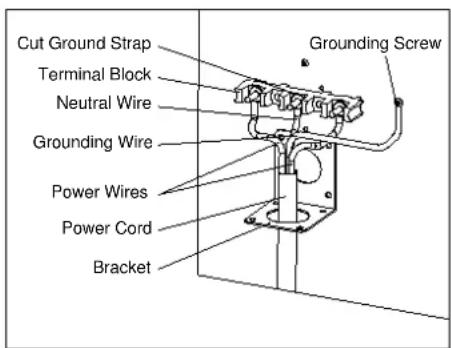

Electrical Connection	13
Leveling the Range	14

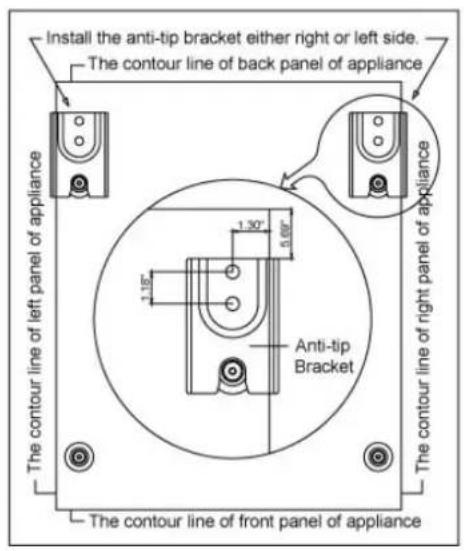

Anti-tip Bracket Installation	15
Operating Your Electric Range	16
Control Panel	16
Using the Surface Unit	16
Cookware Tips	17
Using the Oven	18
Care and Maintenance	20
General Information	20
Cleaning Your Range	20
Cleaning Surface Units and Reflector Bowls	20

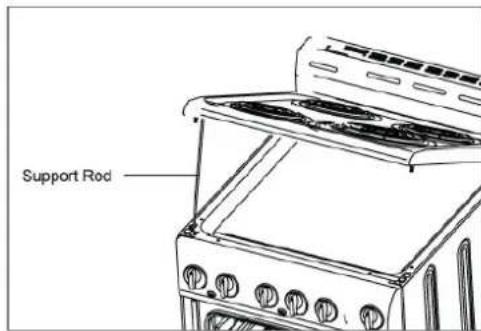

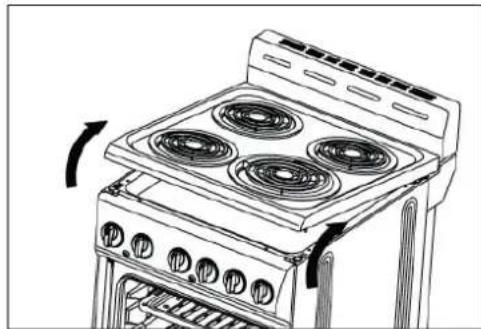

Lift-up Cooktop	21
Removing the Oven Door	21
Removable Storage Drawer	21
Replacing the Oven Light	22
Troubleshooting Guide	22
Service for Your Appliance	23

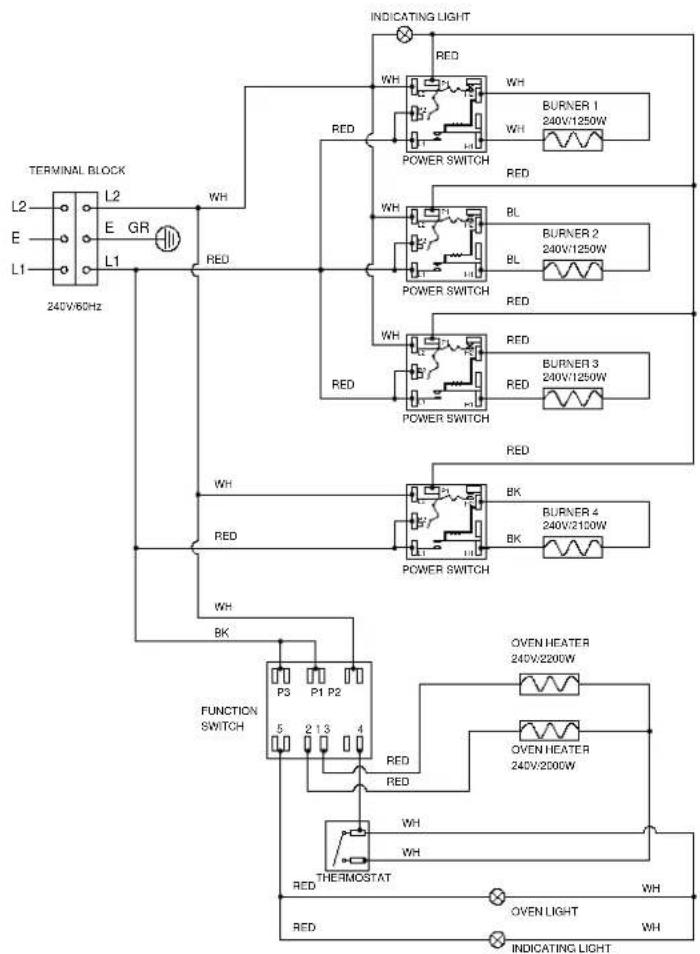

Wiring Diagram	23
Your Avanti Products Warranty	24
Instrucciones en Español	25 ~ 34
Registration Information and Registration Card	35

RANGE SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the Safety Alert Symbol.

This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the Safety Alert Symbol and either the words "DANGER", "WARNING" or "CAUTION". These words mean:

DANGER

WARNING

CAUTION

Danger means that failure to heed this safety statement may result in severe personal injury or death.

Warning means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death.

Caution means that failure to heed this safety statement may result in minor or moderate personal injury, or property or equipment damage.

All safety messages will alert you to what the potential hazard is, tell you how to reduce the chance of injury, and let you know what can happen if the instructions are not followed.

IMPORTANT SAFEGUIDES

Before the appliance is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the appliance, follow basic precaution, including the following:

! DANGER !

• It is recommended that a separate circuit, serving only your appliance be provided. Use receptacles that cannot be turned off by a switch or pull chain.
• Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
• Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is disconnected.
• Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result in electrical shock or death.
• Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.

WARNING

• This appliance shall not be used for space heating. The surface unit should not be operated without cookware. This information is based on safety considerations.
• All openings in the wall behind the appliance and in the floor under the appliance shall be sealed.
• Keep appliance area clear and free from combustible materials, gasoline, and other flammable vapors.
• Do not obstruct the flow of ventilation air.
• Disconnect the electrical supply to the appliance before servicing.

• When removing appliance for cleaning and/or service:

• Disconnect AC power supply.

• Carefully remove the range by pulling outward.
  CAUTION: Range is heavy. Use care in handling.

- The misuse of oven door (e.g. stepping, sitting, or leaning on them) can result in potential hazards and/or injuries.

- When installing or removing the range for service, a rolling life jack should be used. Do not push against any of the edges of the range in an attempt to slide it into or out of the installation. Pushing or pulling a range (rather than using a lift jack) also increases the possibility of bending the leg spindles or the internal coupling connectors.

- It is important for the appliance to be leveled in order to work properly. You may need to make several adjustments to level it.

- Never allow children to operate, play with or crawl inside the appliance.

- Electrical Grounding Instructions - The appliance must be installed and grounded by a qualified technician in accordance with the National Electrical Code ANSI/NFPA No. 70 (Latest Edition) and local electrical code requirements.

- Replacement Parts – Only authorized replacement parts may be used in performing service on the range. Replacement parts are available from factory authorized parts distributors. Contact the nearest Avanti service center in your area.

THE ANTI-TIP BRACKET

The range will not tip during normal use. However, the range can tip if you apply too much force or weight to the open door without the anti-tip bracket fastened down properly.

To reduce the risk of tipping the appliance, the appliance must be secured by properly installed anti-tip devices packed with the appliance.

	WARNING
	ALL RANGES CAN TIPINJURY TO PERSON COULD RESULTINSTALL ANTI-TIP DEVICE PACKED WITH RANGESEE INSTALLATION INSTRUCTIONS
Range Foot Anti-tip Bracket	Making sure the anti-tip bracket is installed:Slide range forward.Look for the anti-tip bracket securely attached to floor.Slide range back so rear range foot is under anti-tip bracket.

HELP US HELP YOU...

Read this guide carefully.

It is intended to help you operate and maintain your new Electric Range properly.

Keep it handy to answer your questions. If you don't understand something or you need more assistance, please call:

Avanti Customer Service 800-220-5570

Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.

Write down the model and serial numbers.

You'll find them on a plate located on the front bottom wall of the Electric Range.

Please write these numbers here:

Date of Purchase

Model Number

Serial Number

Use these numbers in any correspondence or service calls concerning your Electric Range.

If you received a damaged Electric Range, immediately contact the dealer (or builder) that sold you the Electric Range.

Save time and money. Before you call for service, check the Troubleshooting Guide. It lists causes of minor operating problems that you can correct yourself.

IF YOU NEED SERVICE

We're proud of our service and want you to be pleased. If for some reason you are not happy with the service you receive, here are some steps to follow for further assistance.

FIRST, contact the people who serviced your Electric Range. Explain why you are not pleased. In most cases, this will solve the problem.

NEXT, if you are still not pleased, write all the details, including your telephone number, and send it to:

Customer Service

Avanti Products

10880 NW 30 Street

Miami, FL 33172 USA

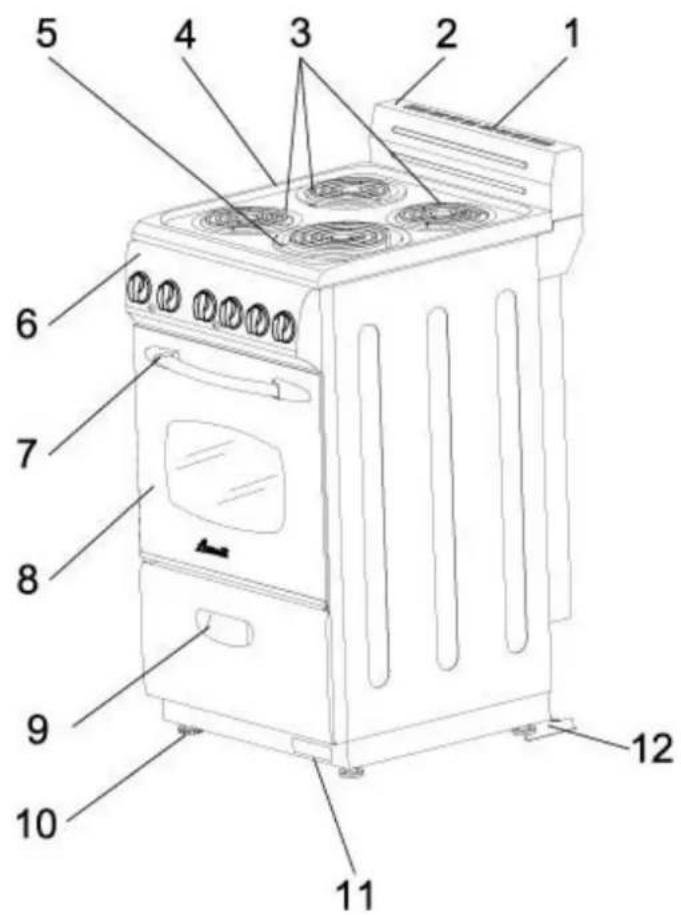

PARTS & FEATURES

1. OVEN VENT
2. BACKSPLASH
3. 6" BURNERS (3)
4. COOKTOP
5. 8" BURNER (1)
6. CONTROL PANEL
7. OVEN DOOR HANDLE
8. GLASS OVEN DOOR

9. DRAWER HANDLE

10. LEVELING LEGS

11. RATING LABEL
12. ANTI-TIP BRACKET

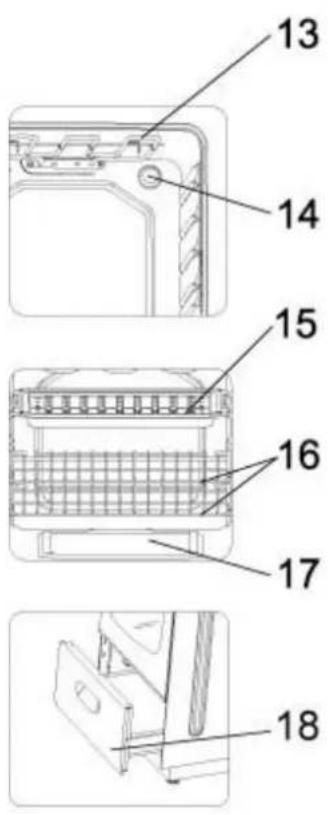

13. BROIL HEATING ELEMENT
14. OVEN LIGHT
15. BROILER TRAY AND GRID
16. WIRE RACKS (2)
17. BAKE ELEMENT (NOT SHOWN)
18. REMOVABLE STORAGE DRAWER

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock, or injury when using the range, follow these basic precautions:

Read all instructions before using the range.WARNING: TO REDUCE THE RISK OF TIPPING OF THE RANGE, THE RANGE MUST BE SECURED BY PROPERLY INSTALLED ANTI-TIP DEVICES. TO CHECK IF THE DEVICES ARE INSTALLED PROPERLY, SILDE RANGE FORWARD, LOOK FOR ANTI-TIP BRACKET SECURELY ATTACHED TO FLOOR, AND SLIDE RANGE BACK SO REAR RANGE FOOT IS UNDER ANTI-TIP BRACKET.CAUTION: Do not store items of interest to children in cabinets above a range or on the backsplash of a range – children climbing on the range to reach items could be seriously injured.Proper Installation - Be sure the range is properly installed and grounded by a qualified technician.Never use your appliance for warming or heating the room.Do Not Leave Children Alone - Children should not be left alone or unattended in area where the appliance is in use. They should never be allowed to sit or stand on any part of the appliance.Wear Proper Apparel - Loose fitting or hanging garments should never be worn while using the appliance.User Servicing - Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be referred to a qualified technician.Storage in or on Appliance - Flammable materials should not be stored in an oven or near the surface units.Do Not Use Water on Grease Fires - Smother fire or flame or use dry chemical or foam-type extinguisher.Use Only Dry Potholders - Moist of damp potholders on hot surfaces may result in burns from steam. Do not let potholder touch hot heating elements. Do not use a towel or other bulky cloth.Use Proper Pan Size - This appliance is equipped with one or more surface units of different size. Select utensils having flat bottoms large enough to cover the surface unit heating element. The use of undersized utensils will expose a portion of the heating element to direct contact and may result in ignition of clothing. Proper relationship of utensil to burner will also improve efficiency.Never Leave Surface Units Unattended at High Heat Settings – Boil over causes smoking and greasy spillovers that may ignite.Make Sure Reflector Pans or Drip Bowls Are in Place - Absence of these pans or bowls during cooking may subject wiring or components underneath to damage.Protective Liners - Do not use aluminum foil to line surface unit drip bowls or oven bottoms, except as suggested in the manual. Improper installation of these liners may result in a risk of electric shock, or fire.Glazed Cooking Utensils - Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed utensils are suitable for range top service without breaking due to sudden change in temperatureUtensil Handles Should Be turned Inward and Not Extend Over Adjacent Surface Units – To minimize burns, ignition of flammable materials, and spillage due to unintentional contact with the utensil, the handle of a utensil should be positioned so that it is turned inward, and does not extend over adjacent surface units.

• Do Not Soak Removable Heating Elements – Heating elements should never be immersed in water.
• Do Not Cook on Broken Cook-top – If cook-top should break, cleaning solutions and spillovers may penetrate the broken cook-top and create a risk of electric shock. Contact a qualified technician immediately.
• Clean Cook-top With Caution – If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn. Some cleaners can produce noxious fumes if applied to a hot surface.
• Use Care When Opening Door – Let hot air or steam escape before removing or replacing food.
• Do Not Heat Unopened Food Containers – Build-up of pressure may cause container to burst and result in injury.
• Keep Oven Vent Ducts Unobstructed.
• Placement of Oven Racks – Always place oven racks in desired location while oven is cool. If rack must be moved while oven is hot, do not let potholder contact hot heating element in oven.
• Do Not Touch Surface Units, Heating Elements, Interior Surfaces of Oven or Areas Near Units - Surface units and heating elements may be hot even though they are dark in color. Area near surface and interior surfaces of an oven become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials contact surface units, areas near units or interior surfaces of oven until they have had sufficient time to cool. Other surfaces of the appliance may become hot enough to cause burns – among these surfaces are oven vent openings and surfaces near these openings, oven doors, and window of oven doors.

This Unit Is For Indoor Use Only -SAVE THESE INSTRUCTIONS-

INSTALLATION INSTRUCTIONS

WARNING

HAVE THIS RANGE INSTALLED BY A QUALIFIED INSTALLER.

Improper installation, adjustment, alteration, or maintenance can cause injury or property damage. Consult a qualified installer, or service agency.

IMPORTANT – SAVE FOR THE LOCAL ELECTRICAL INSPECTOR'S USE.

BEFORE USING YOUR ELECTRIC RANGE

• Remove the exterior and interior packing.
• Check to be sure you have all of the following parts:
  • 3 Six Inch Coiled Burners with Reflector Bowls
  • 1 Eight Inch Coiled Burner with Reflector Bowls
• 2 Oven Racks
  • 1 Broiler Tray and Grid
  • 2 Anti-tip Bracket
  • 1 Instruction Manual

- Clean the interior surface with lukewarm water using a soft cloth.

• Have your range installed and properly grounded by a qualified installer in accordance with the installation instructions.
• Do not attempt to repair or replace any part of your range unless it is specifically recommended in this manual.
• Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty.
• The installer should leave these instructions with the consumer who should retain for local inspector's use and for future reference.
• Please observe all local and national codes and ordinances.

NOTICE

Before you use this range for the first time: The heating elements have a protective coating, which must be burned off before use. To do this, open the oven door and set the temperature control knob to 450^ F. Turn the function selector to the Bake element and the Broil element separately to approximately 15 minutes. It is important to ensure adequate ventilation during this period.

The burners also have a protective coating, which must be burned off before use. To do this, set the burner selector to the maximum setting 5 minutes. It is important to ensure adequate ventilation. Switch off the burners and allow cooling completely.

IMPORTANT:

This range is designed and manufactured solely for the cooking of domestic (household) food and is not suitable for any non domestic application and therefore should not be used in a commercial environment.

The range warranty will be void if the range is used within a non domestic environment i.e. a semi commercial, commercial or communal environment.

IMPORTANT PRECAUTIONS AND RECOMMENDATIONS

After having unpacked the range, check to ensure that it is not damaged and the oven door closes correctly. In case of doubt, do not use it and consult your supplier or a professionally qualified technician.

Packing elements (i.e. plastic bags, polystyrene foam, packing straps, etc.) should not be left around within easy reach of children, as these may cause serious injuries.

The range has been thoroughly tested for safe and efficient operation. However, as with any appliance, there are specific installation and safety precautions that must be followed to ensure safe and satisfactory operation.

• Do not attempt to modify the technical characteristics of the appliance as this may become dangerous to use.
• Do not carry out cleaning or maintenance operations on the appliance without having previously disconnected it from the electric power supply.

• After use, ensure that the knobs are in OFF position.

- Never touch the appliance with wet hands or feet.

- Do not operate the appliance barefooted.

- Do not allow children or other incapable people to use the appliance without supervision.

• During and after use of the range, certain parts will become very hot. Do not touch hot parts.

- Keep children away from the range when it is in use.

• Fire Risk! Do not store flammable materials in the oven or in the bottom drawer.

- Fire Risk! Do not attempt to dry clothing or any other type of textile in the oven or in the bottom drawer.

- Make sure that electrical cables connecting other appliances in the proximity of the range cannot come into contact with the hob or become entrapped in the oven door.

• Do not line the oven walls with aluminum foil. Do not place shelves, pans, backing trays, broil tray or other cooking utensils on the base of the oven chamber.
• The manufacturer declines all liability for injury to persons or damage to property caused by incorrect or improper use of the range.
• To avoid any possible hazard, the appliance must be installed by qualified personnel only. Any repairs by unqualified persons may result in electric shock or short circuit. In order to avoid possible injuries to your body or to the range, do not attempt ant repairs by yourself. Such work should be carried out by qualified service personnel only.
• Burn Hazard! The oven and cooking accessories may become very hot during operation. Make sure children are kept out of reach and warn them accordingly. To avoid burns use clothes and gloves when handling hot parts or utensils.
• Stand away from the range when operating oven door. Hot air or steam which escapes can cause burns to hands, face, and/or eyes.
• Never clean the oven with any high-pressure steam cleaning devices, as it may provoke a short circuit.
• Do not leave anything on the top of oven vent. Never cover the oven vent opening with aluminum foil or any other material.
  • This range is intended for household use. Never use the appliance for any other purpose.
• If you should decide not to use the range any longer (or decide to substitute an older model), before disposing of it, it is recommended that it be made inoperative in an appropriate manner in accordance to health and environmental protection regulations, ensuring in particular that all potentially hazardous parts be made harmless, especially in relation to children who could play with old appliances. Remove the door before disposal to prevent entrapment.

INSTALLATION OF ELECTRIC RANGE

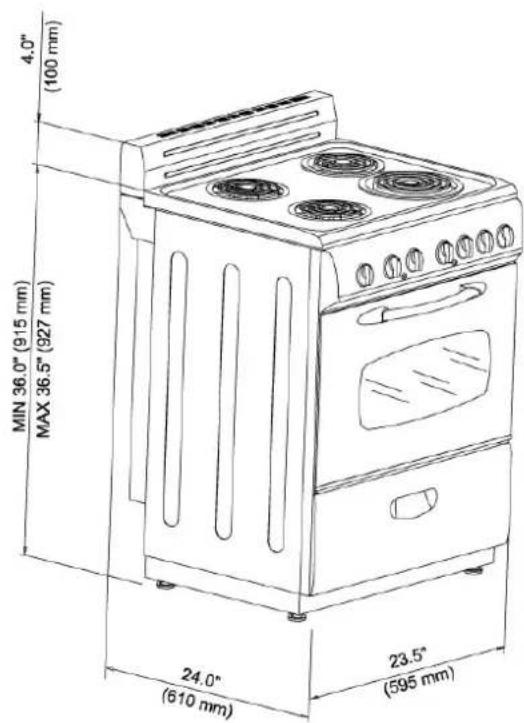

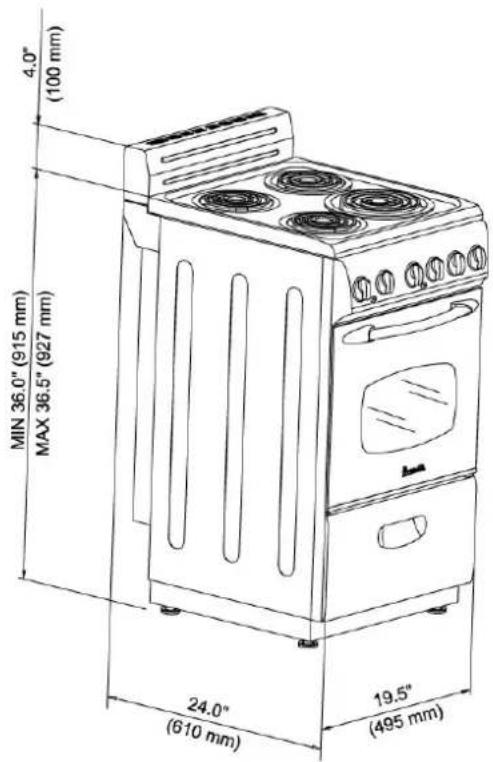

Product Dimensions

Model #: ER2001G / ER2002CSS

Model #: ER2401G / ER2402CSS

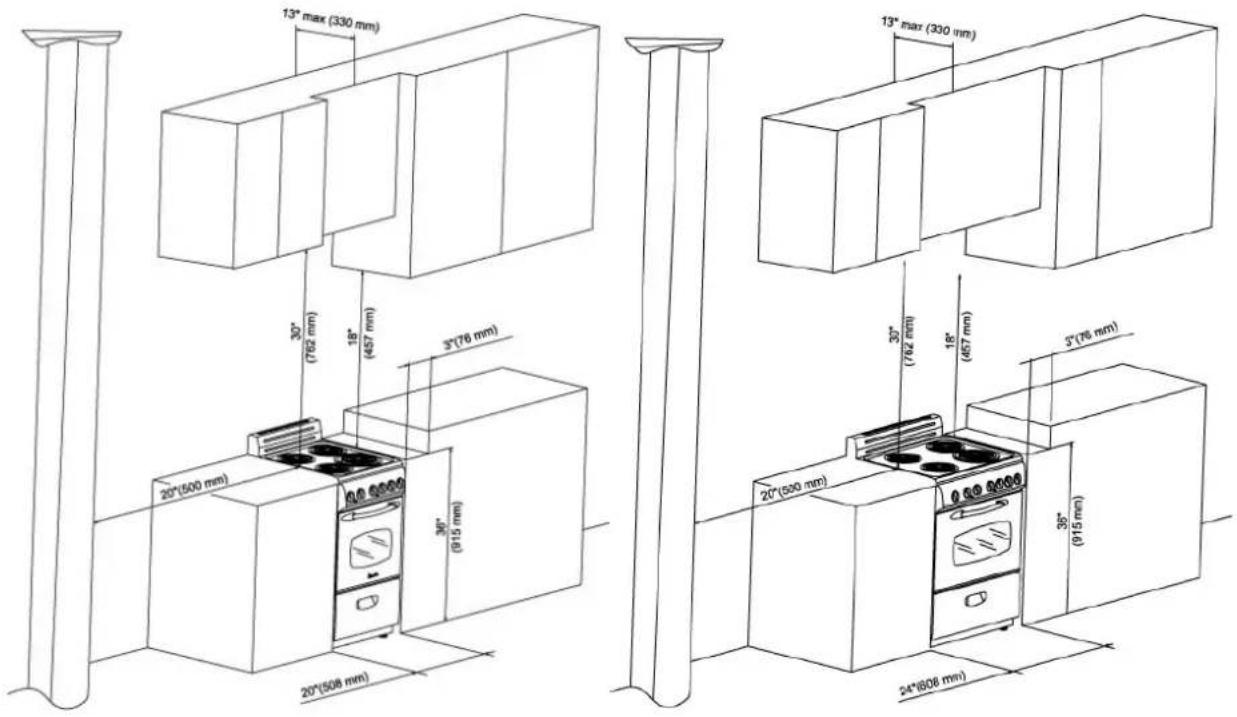

Installation Figure

Model #: ER2001G/ER2002CSS Model #: ER2401G/ER2402CSS

• The electric range must be installed by a qualified technician. Make sure you have everything necessary for correct installation. It is the installer's responsibility to comply with installation clearances specified in the manual.
• Cabinet opening dimensions that are shown above must be used. Given dimensions are minimum clearances. The minimum spacings must be maintained between the appliance cooking surface and the horizontal surface above the cooking top.
• 30 inches is the minimum clearance between the top of the cooking surface and the bottom of an unprotected wood or metal cabinet
• To eliminate the risk of burns or fire by reaching over heated surface units, cabinet storage space located above the surface units should be avoided. If cabinet storage is to be provided, the risk can be reduced by installing a range hood that projects horizontally a minimum of 5 inches beyond the bottom of the cabinets.
• Place your electric range on a floor that is strong enough to support it when it is fully assembled as above picture. To level your electric range, adjust the leveling legs at the bottom of the unit.
• Avoid locating the unit in moist areas. As this may result in the risk of electrical shock.

WARNING

Improper grounding can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Avanti Products service center.

• The range may be connected by means of permanent "Hard Wiring" or "Power Supply Cord Kit". Power supply cord is not supplied, but is available through your local electric supply house.
• Use only 3-conductor or 4-conductor UL listed range cord rated at 40 amps with 125/250V minimum voltage range. These cords may be provided with strain relief or conduit connector.
• The range must be connected to the proper electrical voltage and frequency as specified on the rating label.
• The range can be connected directly to the fused disconnect (or circuit breaker box) through flexible, armoured or non-metallic sheathed, copper cable (with grounding wire). Allow two to three feet of slack in the line so that it can be moved if servicing is ever necessary.
• For personal safety, the range must be properly grounded.
• Remove house fuse or open circuit breaker before beginning installation.
• Do not attempt to repair or replace any part of the appliance unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.
• To minimize the possibility of electric shock, disconnect this appliance from the A/C power supply before attempting any maintenance.

NOTE: Turning the appliance off does not disconnect the appliance from the power supply. We recommend having a qualified technician service your appliance.

3-Wire Power Cord Installation

• Remove the Terminal Block Access Plate on the back of range by removing the 2 fixing screws.
• Assemble the strain relief in the hole on bracket.
• Insert the power cord through the strain relief and tighten.
• Allow enough slack to easily attach the cord terminals to the terminal block Neutral Wire
• Remove the 3 wire terminal nuts and washers from the terminal block Grounding Wire
• Plug the terminal holes of power cord. The neutral or ground wire of the power cord must be connected to the neutral terminal located in the center of terminal block. The power leads must be connected to the outside terminals.
• Plug washers and tighten nuts securely.
• Assemble the Terminal Block Access Plate.

Cut Ground Strap

Terminal Block
Neutral Wire
Power Wires
Power Cord
Bracket

4-Wire Power Cord Installation

• Remove the Terminal Block Access Plate on the back of range by removing the 2 fixing screws.
• Assemble the strain relief in the hole on bracket.
• Insert the power cord through the strain relief and tighten.
• Allow enough slack to easily attach the cord terminals to the terminal block.
• Remove the 3 wire terminal nuts and washers from the terminal block.
• Remove the ground strap from the frame of range and terminal by removing its screw and cutting is as shown.
• Plug the terminal holes of power cord. The neutral wire of the power cord must be connected to the neutral terminal located in the center of terminal block. The ground wire of the power supply cord must be attached to the frame of range by using the green colored grounding screw. The power leads must be connected to the outside terminals.
• Plug washers and tighten nuts securely.
• Assemble the Terminal Block Access Plate.

LEVELING THE RANGE

The range must be level to obtain proper operating. The four screws type leveling legs located on the corners at the bottom of range should be adjusted by turning them clockwise to make the range higher or counter-clockwise to lower the range until the range is level. Use a level on surface units to check the leveling of the range.

Simple line drawing of a corner structure with a small boat and hook (no text or symbols)

ANTI-TIP BRACKET INSTALLATION

To reduce the risk of tipping the range by abnormal usage or improper door loading, the range must be secured by properly installing the anti-tip device packed with the appliance.

• Place the anti-tip bracket on the floor as shown figure. Anti-tip bracket can be installed on either right or left side.
  • Make the locations of 2 holes of ant-tip bracket on the floor.
• Use a 5/16" masonry drill bit and insert plastic anchor.
• Secure bracket to floor using screws supplied.
• Slide appliance into position.

NOTE: If range is relocated, the bracket must be removed and installed in new location.

ATTENTION:

OVENS VARY:

COOKING TIMES AND OVEN TEMPERATURES MAY NEED ADJUSTMENT

AVISO:

HORNOS PUEDEN VARIAR:

EL TIEMPO DE COCCION PUEDE VARIAR. EN ESE CASO AJUSTES DE LA

TEMPERATURA PUDIERAN SER NECESARIOS

1. Oven Function Selector Knob

2. Rear Right Burner Control Knob

3. Oven Thermostat Knob

4. Front Right Burner Control Knob

5. Front Left Burner Control Knob

6. Oven Power Indicator Light

7. Rear Left Burner Control Knob

8. Burners Power Indicator Light

OVEN FUNCTION SELECTOR KNOB

There are three functions - OVEN LIGHT, BAKE AND BROIL.

To switch off the heating elements of oven turn the function selector to the OFF setting position.

OVEN THERMOSTAT CONTROL KNOB

Turn the knob clockwise to select the desired temperature up to 450^ F. To switch off the oven turn the thermostat control to the OFF setting position.

BURNER CONTROL KNOB

The range comes with four burners. To operate the burners simply push in and turn the knob to the desired position. These controls go from low to high power output, having a number of positions. To switch off the Burner, turn the burner control knob to the OFF setting position.

OPERATING INDICATOR LIGHTS

The OVEN and BURNERS indicating lights will come ON separately when oven and top burners are in use.

USING THE SURFACE UNITS

Your range is equipped with four surface units with two different sizes. Three of them are 6" and one of them is 8" in size. The surface controls are easily operated. Simply push in and turn the knob to the desired position. When the element is energized, the indicator light marked TOP will be lit regardless of the setting when one or more of the elements are turned on. The control has a variable of power output from LO to HI with a number of

positions. The range of heat is increased by turning the knob to HI, decreased by turning the knob to LO.

The solid dot in the surface unit mark shows which surface unit is activated by that knob.

IMPORTANT: To switch on, always lightly press the control knob inwards then turn.

COOKWARE TIPS

The physical characteristics of pots and pans influence the performance of any cooking systems. Therefore, emphasis must be placed on the importance of using proper cookware.

• Use cooking vessels with flat bottoms and tight fitting lids to conserve energy and shorten cooking times.
• Only certain types of glass, glass/ceramic, ceramic, earthenware or other glazed utensils are suitable for cooktop. Manufacturers suggest using low to medium heat selections when using glass cookware.
• Pan size should match the element size. A slightly larger pan covers the entire element and prevents spillovers from contacting the heat surface and burning in. Using a smaller pan than the element is a waste of energy.
• To avoid spattering and to maximize efficiency, pan bottoms should be clean and dry before coming in contact with the elements.
• Wipe spills off the elements with a damp cloth as soon as they cool to cut down on clean up time. Be sure the control is OFF.

If a surface unit stays red for a long time, the bottom of the pan is not flat enough or is too small for the surface unit. Prolonged usage of incorrect utensils could result in damage to the surface unit, cooktop, wiring and surrounding areas. To prevent damage use correct utensil, start cooking on position 12 and turn control down to continue cooking.

Never leave an empty utensil, or one which has boiled dry, on a hot surface unit. The utensil could overheat and damage the utensils or surface unit.

Always be sure that all control knobs are turned to OFF and the indicator lights are OFF when you are not cooking.

WARNING

Make sure that the handles of cookware do not stick out over the edge of the range, to avoid them being knocked over by accident. This also makes it more difficult for children to reach the cooking pots/pans.

USING THE OVEN

You can use your range for Bake and Broil. For that reason, the oven has two different heating elements which are:

• Bake element 2100W (Lower heating element)
• Broil element 2000W (Upper heating element)

CAUTION: The oven door becomes very hot during operation. Keep children well out of reach.

WARNING: The door is hot, use the handle.

OVEN THERMOSTAT

This only sets the cooking temperature and does not switch the oven on. Rotate clockwise until the required temperature is reached (From WARM to 450°F).

The power indicator light signals when the heat elements are switched ON or switched OFF

Temperature Setting Table
Knob Setting	Temperature in °F	Temperature in °C
WARM	150	65
200 200	93
250	250	121
300 300	149
350	350	177
400 400	204
450	450	232

FUNCTION SELECTOR KNOB

Rotate the knob clockwise to set the oven for one of the following functions.

Oven Light

The oven is equipped with a light that illuminates the oven to enable visually controlling the food that is cooking.

By turning the knob onto the setting you light the oven cavity. The oven remains lighted while any of function is ON.

Bake

In this setting only the hidden lower element is switched ON. Heat is distributed by natural convection. The thermostat can be set from WARM to 450°F.

During the operating, the oven indicator light is turned ON. During operation the oven indicator light is always ON.

In order to bake, use the following steps:

1. Place the rack in the correct position, before turn the oven ON.
2. Turn the function selector knob to the Bake position.
3. Turn the thermostat control knob to the desired temperature.
4. The bottom heat element will cycle ON and OFF to maintain the selected temperature. Check food for doneness at minimum time on recipe. Cook longer if necessary.
5. When baking is completed, turn the function selector knob and thermostat control knob to the OFF position, open door fully and remove the food.

For best cooking results, always remember that hot air must circulate around the pans in the oven so that even heat reaches all parts of the oven. Therefore, place the pans in the center of oven and allow at least 2" space between pan and the surface of cavity.

Broil

In this setting only the upper element is switched ON. Heat is distributed by radiation. Use with the oven door closed and the thermostat can be set from WARM to 450°F.

In order to broil, use the following steps:

1. Place the meat on the broil grid in broiler pan. Always use the grid so that the fat drips into the broiler pan, otherwise the juices may catch on fire. Do not broil without using the broiler pan.

2. Position the broiler pan on the second level from the top.

3. Turn the function selector knob to the Broil position.

4. Turn the thermostat control knob to the desired temperature.

5. The upper heat element will cycle ON and OFF maintain the selected temperature. For best results the oven should be preheated 5 minutes before adding the food to be broiled. Turn food over about halfway through the broiling time. Always broil with the oven door closed.

6. When broiling is completed, turn the function selector knob and thermostat control knob to the OFF position, open door fully and remove the food.

Always remember that when the oven is hot, outside surfaces of the range get hot.

IMPORTANT:

Always use suitable protective gloves when inserting/removing the broiler pan, shelves, pans and other cooking utensils from the oven.

OVEN RACK

The rack is designed with stop-locks so that when placed correctly on the rack supporters, they will stop before coming completely out from the oven, and will not tilt when removing food from or placing food on them.

When placing cookware on the rack, pull the rack out to the bump on the rack support. Place the cookware on the rack, then slide the rack back into the oven.

To remove the rack from the oven, pull it towards you, tilt the front end upward and pull it out.

CARE AND MAINTENANCE

GENERAL INFORMATION

• CAUTION: Before any operation of cleaning and maintenance disconnect the appliance from the electrical supply.
• It is advisable to clean when the appliance is cold and especially for cleaning the enameled parts.
• Avoid leaving alkaline or acidic substances (lemon juice, vinegar, etc.) on the surfaces.
• Avoid using cleaning products with a chlorine or acidic base.
• The oven must always be cleaned after every use, using suitable products and keeping in mind that its operation for 30 minutes on the highest temperature eliminates most grime reducing it to ashes.

CLEANING YOUR RANGE

• Disconnect the A/C from the main power box or designated circuit breaker, turn off the range, make sure all surface units are off and cool before removing anything, then remove all items including shelves and rack.
• Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
• Wash the shelves and rack with a mild detergent solution.
• The outside of the range should be cleaned with mild detergent and warm water.
• Wring excess water out of the sponge or cloth when cleaning area of the controls, or any electrical parts.
• Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.
• Do not use steel wool or steel brush on the cook-top.

CLEANING SURFACE UNITS AND REFLECTOR BOWLS

• Disconnect the A/C from the main power box or designated circuit breaker and turn off the range to make sure that burners are off and cool before removing burners and reflector bowls.

• Removing the burners and reflector bowls as following:

• Lift the edge of the unit opposite from the receptacle, just enough to clear the reflector bowl.

• Pull the surface unit gently out of the mounting receptacle.

• After the unit has been removed, the reflector bowl can be lifted out of their mounting.

• Clean the burners and reflector bowls with mild detergent and warm water. Wring excess water out of the sponge or cloth when cleaning them.

• Replace the burners and reflector bowls as following:

• Line up the opening of the reflector bowls with the burners receptacle, hold the surface unit as level as possible with the terminal just positioned into the receptacle, then push the surface units' terminal into the receptacle.

• When the terminal is pushed into the receptacles as far as it will go, push down the edge of the surface unit opposite the receptacle.

NOTE: Do not immerse burners in water or any other liquids.

LIFT-UP COOKTOP

You can access the area beneath of the cooktop for cleaning purposes by lifting up the cooktop. In order to do:

• Hold the cooktop from front left and right corners of cooktop and pull it up.
• After lifting up the cooktop high enough, set the support rod into place as shown.
• Leave the cooktop on the tip of support rod.
• Wipe with warm soapy water. Use a soapy steel-wool pad on heavily soiled areas.
• To lower the cooktop, lift the cooktop holding from the front edge. Replace the support rod to its previous place. Lower the cooktop in its place. During replacement of the cooktop, be sure that the front edge of cooktop covers the upper edge of control panel.

NOTE: Do not drop the cooktop. Personal injury or damage to the cooktop frame could result.

Line drawing of a four-tier electric stove with cooling fans and heat sinks (no text or symbols)

REMOVABLE STORAGE DRAWER

For cleaning, you can remove the drawer by pulling it out until the stop point and lifting it up.

Never store any flammable material in the drawer.

Line drawing of a cabinet drawer with handle and drawer slot (no text or symbols)

REPLACING THE OVEN LIGHT

Before any maintenance is started involving electrical parts of the appliance, it must be disconnected from the power supply.

• Let the oven cavity and broil burner cool down.
• Switch off the electric supply.
• Remove the protective cover.
• Unscrew and replace the bulb with a new one suitable for high temperature (300°C \~ 570°C) having the same specifications: 240V 60Hz, 15W, E14.
• Replace the protective cover.

NOTE: Oven bulb replacement is not covered by your guarantee.

PROBLEMS WITH YOUR ELECTRIC RANGE?

You can solve many common appliance problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEM	POSSIBLE CAUSE
Surface units will not maintain a rolling boil or frying rate is not fast enough	You must use pans that are absolutely flat.Pan bottoms should closely match the diameter of the surface unit selected.
Foods cook slowly	Improper cookware being used.
Surface units do not operate	You have blown a household fuse or tripped a circuit breaker.The surface units are not plugged in all the way.You have not set the control knobs correctly.
Control knobs will not turn	If it is a surface unit control knob, you are not pushing in before turning.If it is oven control knob, you are trying to turn the knob to wrong direction.
Oven light does not work	Light bulb is loose or defective.Switch operating oven light is broken.
Oven does not work	You have blown a household fuse or tripped a circuit breaker.You have not set the control knobs correctly.
Food does not broil properly	The oven control knob is not set at Broil.Improper rack position being used.Cookware is not suited for broiling.Oven thermostat is defective.
Food does not bake properly	The oven control knob is not set properly.Rack position is incorrect.Incorrect cookware or cookware of improper size is being used.Oven thermostat is defective.

We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti appliances. With the purchase of your Avanti appliance, you can have the confidence that if you ever need additional information or assistance, the Avanti Products Customer Service team will be here for you. Just call us toll-free.

AVANTI PRODUCTS CUSTOMER SERVICES

Product Information800-323-5029	Whatever your questions are about our products, help is available.
Part Orders800-220-5570	You may order parts and accessories that will be delivered directly to your home by personal check, money order, Master Card, or Visa.
In-Home Repair Service800-220-5570	An Avanti Products authorized service center will provide expert repair service, scheduled at a time that is convenient for you. Our trained servicers know your appliance inside and out.

WIRING DIAGRAM

YOUR AVANTI WARRANTY

WARRANTY – ELECTRIC RANGE

LENGTH OF WARRANTY	WE WILL PAY FOR
FULL ONE YEAR WARRANTY FROM DATE OF PURCHASE ON ALL PARTS EXCEPT GLASS PARTS.IN RENTAL OR COMMERCIAL USE, THE WARRANTY PERIOD IS 90 DAYS.	REPLACEMENT PARTS AND REPAIR LABOR TO CORRECT DEFECTS IN MATERIALS OR WORKMANSHIP.SERVICE MUST BE PROVIDED BY AN AUTHORIZED SERVICE COMPANY.
FULL 30-DAY WARRANTY FROM DATE OF PURCHASE ON GLASS PARTS AND FINISH OF PORCELAIN ENAMEL, PAINTED OR BRIGHT METAL FINISHED PARTS	REPLACEMENT PARTS AND REPAIR LABOR TO CORRECT DEFECTS IN MATERIAL OR WORKMANSHIP.SERVICE MUST BE PROVIDED BY AN AUTHORIZED SERVICE COMPANY.
WE WILL NOY PAY FOR
A. Service calls to:1. Correct the installation of your range.2. Instruct you how to use your range.3. Replace house fuses or correct house wiring.4. Replace owner-accessible light bulbs.B. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for serviced calls to remote areas, including the state of Alaska.C. Pick up and delivery. Your range is designed to be repaired in the home.D. Damage to your range caused by accident, misuse, fire, flood, acts of God, or use of products not mentioned in this manual.E. Repairs to parts or systems caused as a result of unauthorized modifications made to the appliance.F. Repairs when your range is used in other than normal, single-family household use.

AVANTI PRODUCTS SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion or limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.

This warranty is not valid outside the Continental United States.

GAVETA DE ALMACENAJE REMOVIBLE

Thank you for purchasing this fine Avanti products. Please fill out this form and return it within 100 days of purchase and receive these important benefits to the following address:

Avanti Products, A Division of The Mackle Co., Inc.

P.O. Box 520604 - Miami, Florida 33172 USA

Protect your product:

We will keep the model number and date of purchase of your new Avanti Products product on file to help you refer to this information in the event of an insurance claim such as fire or theft.

➢ Promote better products:

We value your input. Your responses will help us develop products designed to best meet your future needs.

(detach here)

Avanti Registration Form

Name			Model #	Serial #
Address			Date Purchased	Store/Dealer Name
City	State	Zip	Occupation
			As Your Primary Residence, Do You:
Area Code	Phone Number		□Own □Rent

Did You Purchase An Additional Warranty: Your Age:

□Extended

□Food Loss

□None

Reason For Choosing This Avanti Product:

Please indicate the most important factors that influenced your decision to purchase this product.

□Price

□Product Features

□Avanti Products Reputation

□Product Quality

□Salesperson Recommendation

□Friend/Relative Recommendation

□Warranty

□Other

□under 18

□18-25

□26-30

□31-35

□36-50

□over 50

Marital Status:

□Married

□Single

Is This Product Used In The:

Home

□Business

How Did You Learn About This Product:

□Advertising

□In Store Demo

□Personal Demo

□Other

Comments

PRINTED IN CHINA
