Product Type	Washing Machine
Brand	Blomberg
Model	WMT 8320 S
Drum Capacity	8 kg
Maximum Spin Speed	1200 rpm
Energy Efficiency Class	A+++-20%
Water Consumption per Cycle	48 L
Noise Level (Wash/Spin)	56 dB / 76 dB
Dimensions (HxWxD)	84 x 60 x 54 cm
Weight	72 kg
Power Supply	220-240 V ~ 50 Hz
Number of Programs	15
Key Programs	Cotton, Synthetics, Delicates, Wool, Quick 30', Eco, Hand Wash, Spin, Drain
Additional Functions	Delay Start, Prewash, Extra Rinse, Easy Iron, Child Lock
Safety Features	Overflow protection, Unbalanced load detection, Anti-foam system
Drum Material	Stainless steel
Maintenance	Regular cleaning of detergent drawer and door gasket; clean filter periodically
Repairability Index	8.0 / 10
Spare Parts Availability	Available for 10 years after purchase

Frequently Asked Questions - WMT 8320 S BLOMBERG

How do I start the washing machine?

Load the laundry, add detergent, select the desired program using the program dial, adjust options if needed, close the door firmly, and press the Start/Pause button.

What does the 'Child Lock' feature do?

The Child Lock prevents accidental pressing of buttons during a cycle. To activate, press and hold the Child Lock button for 3 seconds. A symbol appears on the display.

How can I clean the detergent drawer?

Pull out the drawer until it stops, press the release lever, and remove it completely. Rinse under warm water, using a brush if needed. Wipe dry and reinsert.

Why is the machine not draining?

Check the drain hose for kinks or blockages. Also, clean the pump filter behind the lower access panel. Remove any debris and ensure the filter is screwed back tightly.

What is the maximum load capacity?

The maximum load for this model is 8 kg of dry laundry. Overloading may reduce washing efficiency and cause imbalance.

How do I use the delay start function?

Select the program and press the Delay Start button repeatedly to set the desired delay time (1-24 hours). The display will show the delay time. Press Start to activate.

What should I do if the machine vibrates excessively?

Ensure the machine is level by adjusting the feet. Check that the transportation bolts have been removed. Also, avoid washing heavy items like rugs alone.

How can I obtain spare parts?

Spare parts are available through authorized Blomberg service centers. You can order online or contact customer support. Provide the model number WMT 8320 S.

What does the 'Eco' program mean?

The Eco program is designed to wash normally soiled cotton laundry with lower energy consumption. It uses a longer wash time but reduces water and electricity usage.

How often should I run a cleaning cycle?

Run a drum clean cycle every 2-3 months to prevent build-up of mold and detergent residue. Use a descaling agent or a high-temperature program with no laundry.

USER MANUAL WMT 8320 S BLOMBERG

Line drawing of two people assembling a washing machine, one pushing the other with an arrow indicating motion (no text or symbols)

打开运输锁

1. 轻轻转动运输安全螺栓，拆卸下来。

Illustration of a hand using a tool to adjust a component, showing motion arrows (no text or symbols)

Technical line drawing of pipe fittings and connectors (no text or symbols)

Illustration showing hands holding a connector with directional arrows and a close-up of a mechanical component (no text or symbols)

Line drawing of a simple washing machine with front panel and door (no text or symbols)

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

Illustration of a person adjusting a fabric or cushion with a belt (no text or symbols)

Technical line drawings of a mechanical device with internal compartments and a side-view cross-section (no text or symbols)

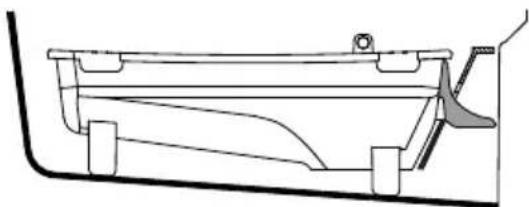

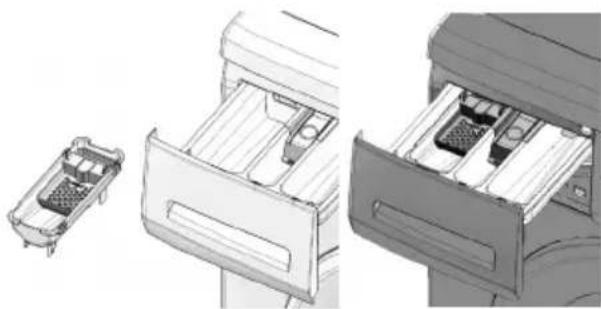

如果产品没有包含液体洗涤剂杯：

Simple diagram of two abstract shapes resembling 'L' and 'J' on a gray background, with no text or symbols.

Technical line drawing of a mechanical component with a downward arrow and a close-up view of its top component (no text or symbols)

Line drawing of a hand holding a circular component with a shaded area, no text or symbols present

Three variations of faucet installation diagrams showing different components (no text or labels)

Simple line drawing of a hand pressing down on a vertical surface with arrows indicating motion (no text or symbols)

Diagram showing two hands holding a rectangular object with arrows indicating direction, no text or symbols present

Diagram of a washing machine with a circular basin and pipe, no text or symbols present

Two-step diagram showing a washing machine with a rotary knob and a liquid-filled bowl (no text or symbols)

Please read this user manual first!

Dear Customer,

We hope that you get the best results from the product which has been manufactured in state-of-the-art plants and passed through a strict quality control procedure.

Therefore, please read the entire user manual carefully before using the product and keep it as a reference for future use. In case of transferring the product to someone else, give the manual as well.

The user manual will help you use your machine in a fast and safe way.

• Read the user manual before installing and starting your product.
  • Always follow the safety instructions.
• Keep this user manual within easy reach for future reference.
• Read also the other documents supplied with the product.

Remember that this user manual is also applicable for several other models.

Differences between models will be identified in the manual.

Explanation of symbols

Throughout this user manual the following symbols are used:

i Important information or useful hints about usage.

⚠ Warning for hazardous situations with regard to life and property.

⚠ Warning for electric shock.

This appliance's packaging material is recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose. Your appliance also contains a great amount of recyclable material. It is marked with this label to indicate the used appliances that should not be mixed with other waste. This way, the appliance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment. Contact your town hall or your retailer for the used appliance collection points closest to your home. We thank you doing your part to protect the environment.

TABLE OF CONTENTS

1 Your washing machine 33

Overview 33

Technical specifications ....34

2 Important safety instructions 35

General safety ....35

Intended use ....36

Children's safety 36

3 Installation 37

Appropriate installation location .....37

Removing packaging reinforcement ...37

Removing the transportation locks .....37

Connecting water supply ....38

Connecting to the drain 39

Adjusting the feet 40

Electrical connection ....40

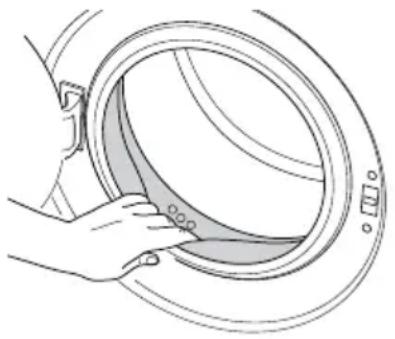

First use 40

Disposing of packaging material .....41

Transportation of the product .....41

Disposing of the old product .....41

4 Preparation 42

Things to be done for energy saving ..42

Sorting the laundry 42

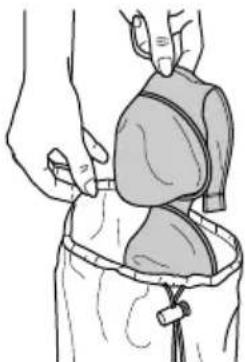

Preparing laundry for washing .....42

Correct load capacity ....43

Loading the laundry 44

Using detergent and softener .....44

5 Selecting a Programme and operating your machine 47

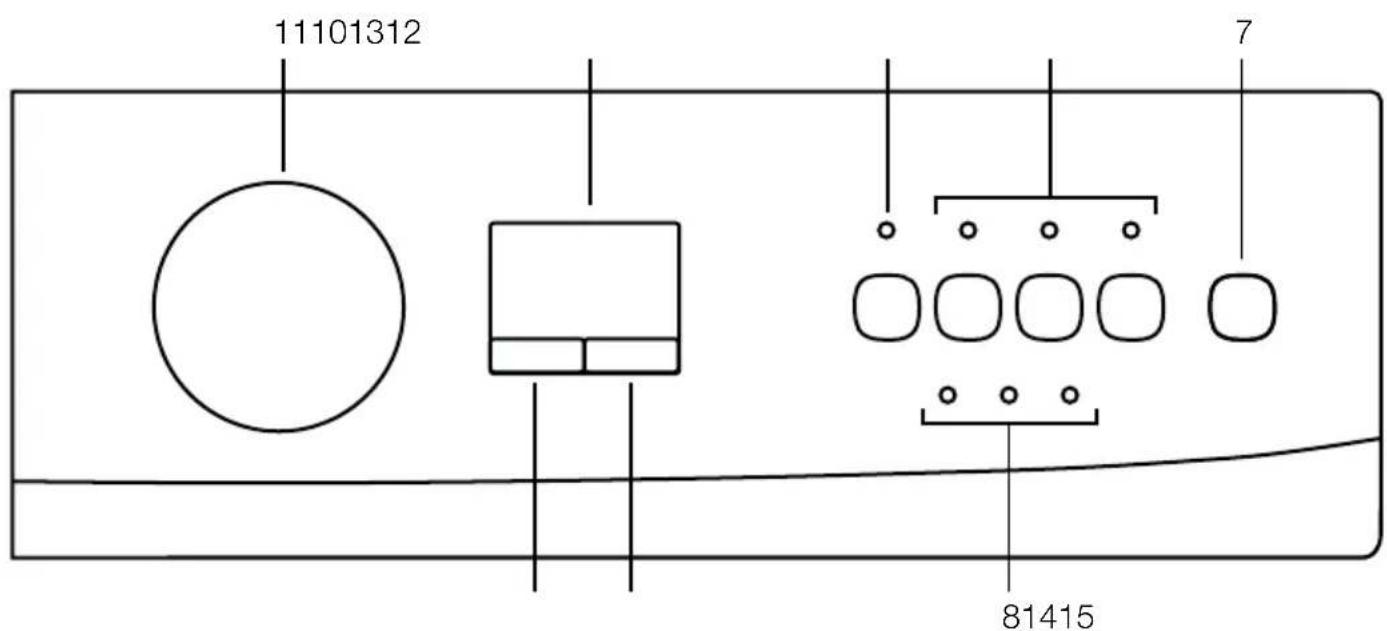

Control panel 47

Turning the machine on ....48

Programme selection ....48

Main Programmes 48

Additional Programmes ....48

Special Programmes ....49

Spin speed selection ....49

Programme selection and consumption table ....50

Auxiliary functions ....51

Time display ....51

Starting the Programme ....52

Progress of Programme ....52

Changing the selections after the

Programme has started ....52

Child-proof lock ....52

Ending the Programme through canceling ....53

6 Maintenance and cleaning 54

Cleaning the detergent drawer .....54

Cleaning the loading door and the drum 54

Cleaning the body and control panel ..55

Cleaning the water intake filters .....55

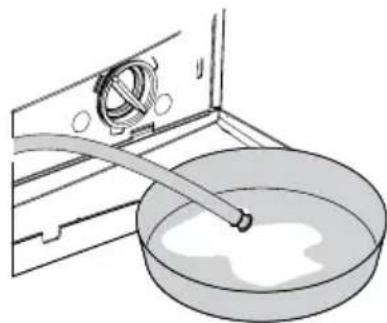

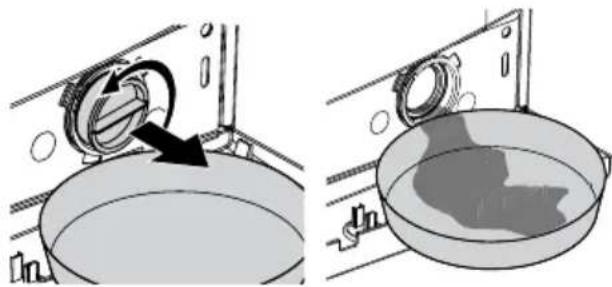

Draining remaining water and cleaning the pump filter ....55

7 Troubleshooting 58

1 Your washing machine

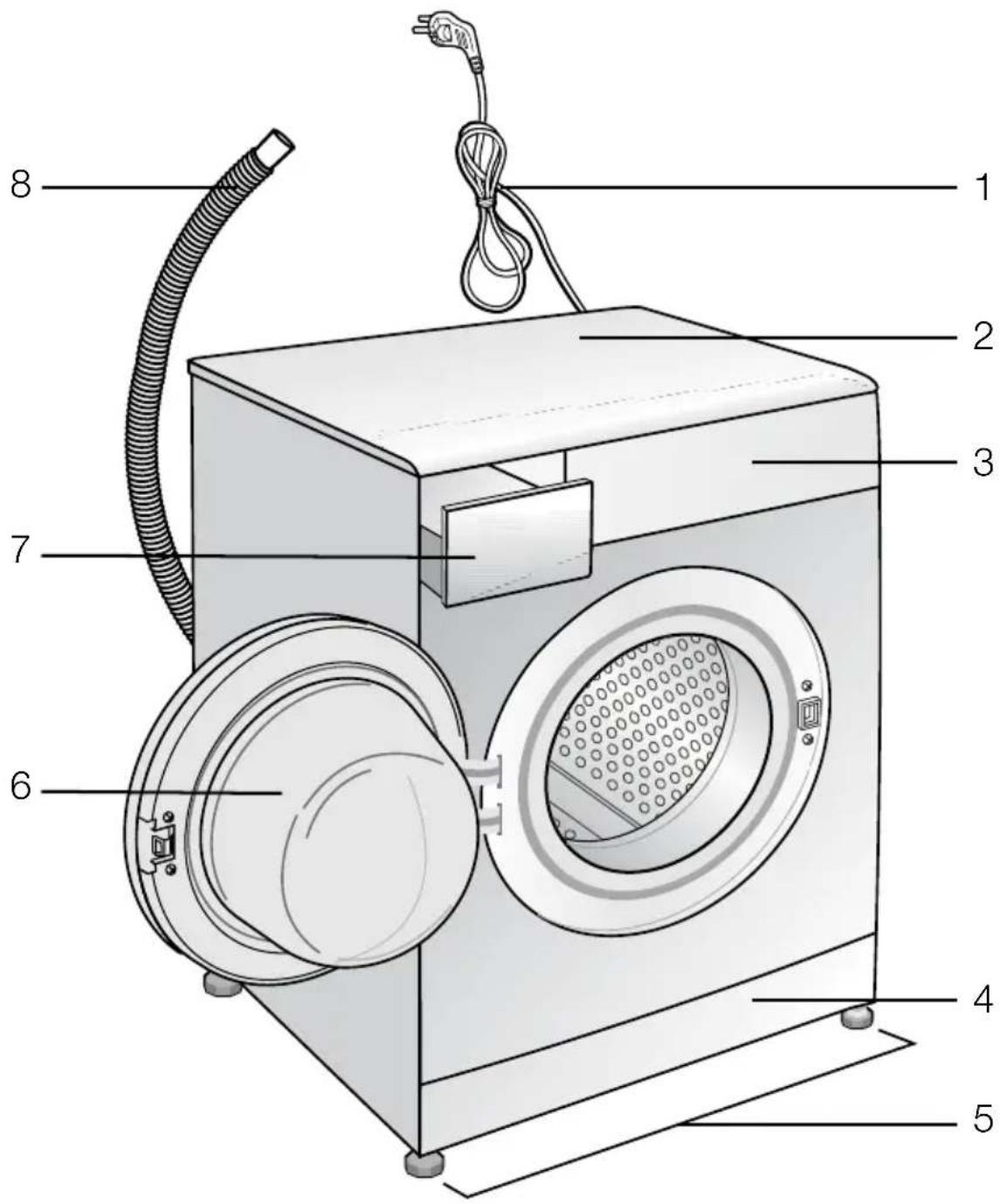

Overview

1- Power cable
2- Top panel
3- Control panel
4- Filter cap

5- Adjustable feet
6- Loading door
7- Detergent drawer
8- Drain hose

Technical specifications

Models	WMT 8320 W	MT 8320 S
Maximum dry laundry capacity (kg)	8	8
Height (cm)	84 84
Width (cm)	60 60
Depth (cm)	59 59
Net weight (±4 kg.)	73 73
Electrical input (V/Hz)	220 V / 60Hz 2	20 V / 60Hz
Total current (A)	9,5 9,5
Total power (W)	1850 1850
Spin speed (rpm max.)	1200 1200

i Technical specifications may be changed without prior notice to improve the quality of the product.
i Figures in this manual are schematic and may not match the product exactly.
Values stated on the product labels or in the documentation accompanying it are obtained in laboratory conditions in accordance with the relevant standards. Depending on operational and environmental conditions of the product, these values may vary.

2 Important safety instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions shall void any warranty.

General safety

• This product should not be used by persons with physical, sensory or mental disorders or unlearned or inexperienced people (including children) unless they are attended by a person who will be responsible for their safety or who will instruct them accordingly for use of the product.
• Never place the product on a carpet-covered floor; otherwise, lack of airflow beneath the machine will cause electrical parts to overheat. This will cause problems with your product.
• Do not operate the product if the power cable / plug is damaged. Call the Authorized Service Agent.
• Have a qualified electrician connect a 16-Ampere fuse to the installation location of the product.
• If the product has a failure, it should not be operated unless it is repaired by the Authorized Service Agent. There is the risk of electric shock!
• This product is designed to resume operating in the event of powering on after a power interruption. If you wish to cancel the programme, see "Cancelling the programme" section.
• Connect the product to a grounded outlet protected by a fuse complying with the values in the "Technical specifications" table. Do not neglect to have the grounding installation

made by a qualified electrician. Our company shall not be liable for any damages that will arise when the product is used without grounding in accordance with the local regulations.

• The water supply and draining hoses must be securely fastened and remain undamaged. Otherwise, there is the risk of water leakage.
• Never open the loading door or remove the filter while there is still water in the drum. Otherwise, risk of flooding and injury from hot water will occur.
• Do not force open the locked loading door. The loading door will be ready to open just a few minutes after the washing cycle comes to an end. In case of forcing the loading door to open, the door and the lock mechanism may get damaged.
• Unplug the product when not in use.
• Never wash the product by spreading or pouring water onto it! There is the risk of electric shock!
• Never touch the plug with wet hands! Never unplug by pulling on the cable, always pull out by grabbing the plug.
• Use detergents, softeners and supplements suitable for automatic washing machines only.
• Follow the instructions on the textile tags and on the detergent package.
• The product must be unplugged during installation, maintenance, cleaning and repairing procedures.
  • Always have the installation and repairing procedures carried out

by the Authorized Service Agent. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.

Intended use

• This product has been designed for domestic use. It is not suitable for commercial use and it must not be used out of its intended use.
• The product must only be used for washing and rinsing of laundry that are marked accordingly.
• The manufacturer waives any responsibility arisen from incorrect usage or transportation.

Children's safety

• Electrical products are dangerous for the children. Keep children away from the product when it is in use. Do not let them to tamper with the product. Use child lock to prevent children from intervening with the product.
• Do not forget to close the loading door when leaving the room where the product is located.
• Store all detergents and additives in a safe place away from the reach of the children.

3 Installation

Refer to the nearest Authorised Service Agent for installation of the product. To make the product ready for use, review the information in the user manual and make sure that the electricity, tap water supply and water drainage systems are appropriate before calling the Authorized Service Agent. If they are not, call a qualified technician and plumber to have any necessary arrangements carried out.

i Preparation of the location and electrical, tap water and waste water installations at the place of installation is under customer's responsibility.
⚠️ Installation and electrical connections of the product must be carried out by the Authorized Service Agent. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.
⚠ Prior to installation, visually check if the product has any defects on it. If so, do not have it installed. Damaged products cause risks for your safety.
i Make sure that the water inlet and discharge hoses as well as the power cable are not folded, pinched or crushed while pushing the product into its place after installation or cleaning procedures.

Appropriate installation location

- Place the machine on a rigid floor. Do not place it on a long pile rug or similar surfaces.

• Total weight of the washing machine and the dryer -with full load- when they are placed on top of each other reaches to approx. 180 kilograms. Place the product on a solid and flat floor that has sufficient load carrying capacity!
• Do not place the product on the power cable.
• Do not install the product at places where temperature may fall below 0°C.
• Place the product at least 1 cm away from the edges of other furniture.

Removing packaging reinforcement

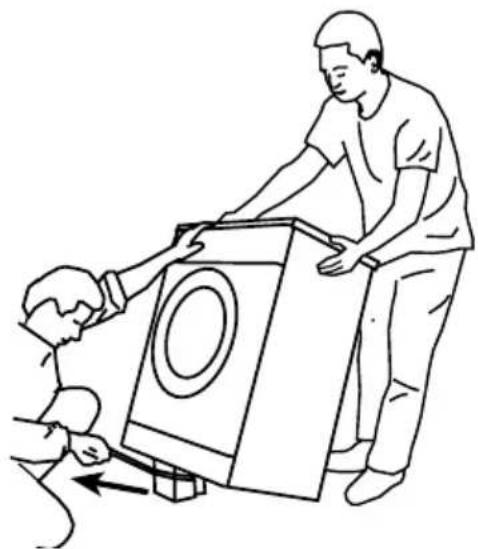

Tilt the machine backwards to remove the packaging reinforcement. Remove the packaging reinforcement by pulling the ribbon.

Line drawing of a person pushing a large washing machine with hands on it, no text or symbols present

Removing the transportation locks

⚠️ Do not remove the transportation locks before taking out the

packaging reinforcement.

⚠️ Remove the transportation safety bolts before operating the washing machine, otherwise, the product will be damaged.

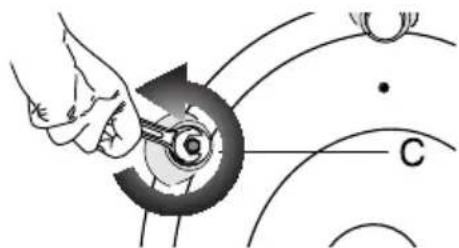

1. Loosen all the bolts with a spanner until they rotate freely (C).

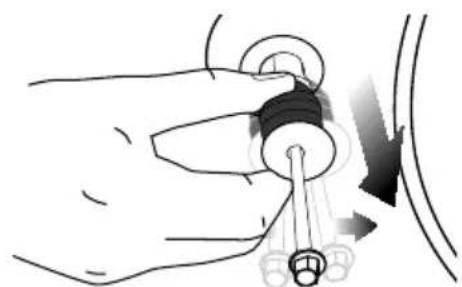

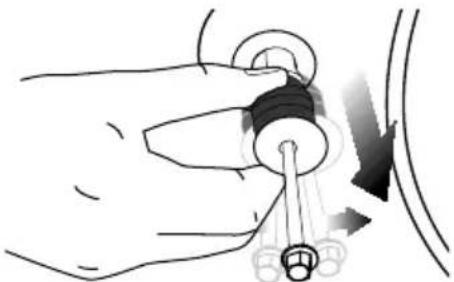

1. Remove transportation safety bolts by turning them gently.

Illustration of a hand using a tool to adjust a mechanical component (no text or symbols present)

1. Attach the plastic covers supplied in the User Manual bag into the holes on the rear panel. (P)

Keep the transportation safety bolts in a safe place to reuse when the washing machine needs to be moved again in the future.

i Never move the product without the transportation safety bolts properly fixed in place!

Connecting water supply

The water supply pressure required to run the product is between 1 to 10 bars (0.1 – 10 MPa). It is necessary to have 10 – 80 liters of

water flowing from the fully open tap in one minute to have your machine run smoothly. Attach a pressure reducing valve if water pressure is higher.

If you are going to use the double water-inlet product as a single (cold) water-inlet unit, you must install the supplied stopper to the hot water valve before operating the product. (Applies for the products supplied with a blind stopper group.)

If you want to use both water inlets of the product, connect the hot water hose after removing the stopper and gasket group from the hot water valve. (Applies for the products supplied with a blind stopper group.)

⚠️ Models with a single water inlet should not be connected to the hot water tap. In such a case the laundry will get damaged or the product will switch to protection mode and will not operate.

⚠ Do not use old or used water inlet hoses on the new product. It may cause stains on your laundry.

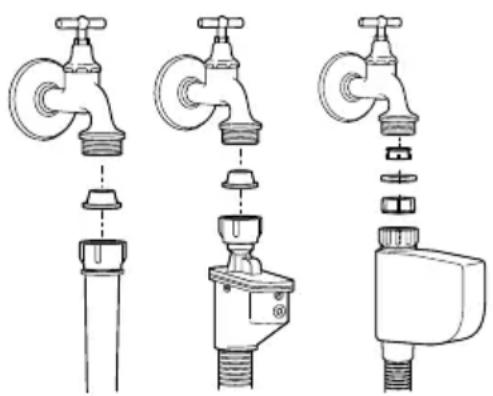

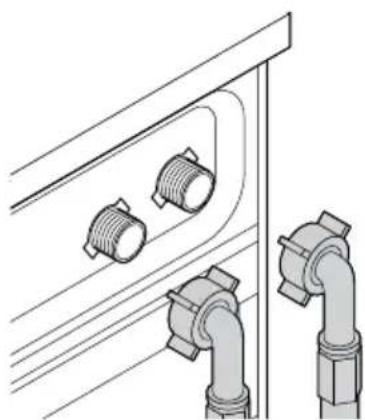

1. Connect the special hoses supplied with the product to the water inlets on the product. Red hose (left) (max. 90 °C) is for hot water inlet, blue hose (right) (max. 25 °C) is for cold water inlet.

Technical line drawing of pipe fittings and connectors (no text or symbols)

⚠ Ensure that the cold and hot water connections are made correctly when installing the product. Otherwise, your laundry will come out hot at the end of the washing process and wear out.

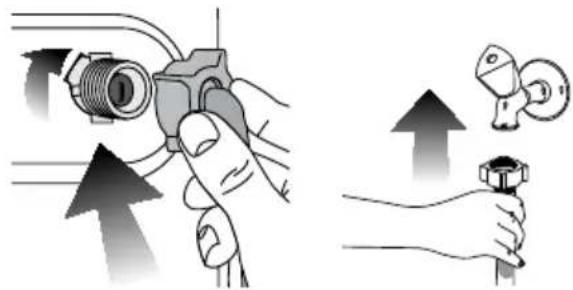

1. Tighten all hose nuts by hand. Never use a wrench when tightening the nuts.

Illustration showing a hand holding a mechanical component and a close-up of its lever mechanism (no text or symbols present)

1. Open the taps completely after making the hose connection to check for water leaks at the connection points. If any leaks occur, turn off the tap and remove the nut. Retighten the nut carefully after checking the seal. To prevent water leakages and damages caused by them, keep the taps closed when the machine is not in use.

Connecting to the drain

- The end of the drain hose must be directly connected to the wastewater drain or to the washbasin.

⚠️ Your house will be flooded if the hose comes out of its housing during water discharge. Moreover, there is risk of scalding due to high washing temperatures! To prevent such situations and to ensure smooth water intake and discharge of the machine, fix the end of the discharge hose tightly so that it cannot come out.

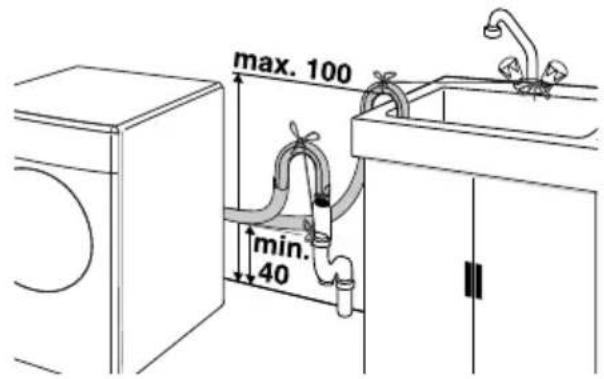

- The hose should be attached to a height of at least 40 cm, and 100 cm at most. - In case the hose is elevated after laying it on the floor level or close to the ground (less than 40 cm above the ground), water discharge becomes more difficult and the laundry may come out excessively wet. Therefore, follow the heights described in the figure.

- To prevent flowing of dirty water back into the machine and to allow for easy discharge, do not immerse the hose end into the dirty water or drive it in the drain more than 15 cm. If it is too long, cut it short.

- The end of the hose should not be bent, it should not be stepped on and the hose must not be pinched between the drain and the machine.

- If the length of the hose is too short, use it by adding an original extension hose. Length of the hose may not be longer than 3.2 m. To avoid water leak failures, the connection between the extension hose and the drain hose of the product must be fitted well with an appropriate clamp as not to come off and leak.

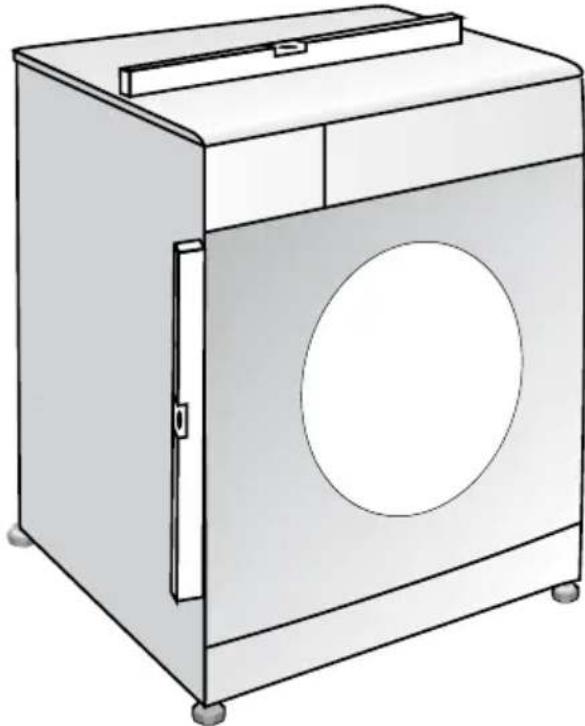

Adjusting the feet

In order to ensure that the product operates more silent and vibration-free, it must stand level and balanced on its feet. Balance the machine by adjusting the feet. Otherwise, the product may move from its place and cause crushing and vibration problems.

Line drawing of a simple washing machine with front panel and door (no text or symbols)

1. Loosen the lock nuts on the feet by hand.
2. Adjust the feet until the product stands level and balanced.
3. Tighten all lock nuts again by hand.

Diagram showing a mechanical component rotating around a nut, with no visible text or symbols

Do not use any tools to loosen the lock nuts. Otherwise, they will get damaged.

Electrical connection

Connect the product to a grounded outlet protected by a fuse complying with the values in the "Technical specifications" table. Our company shall not be liable for any damages that will arise when the product is used without grounding in accordance with the local regulations.

• Connection must comply with national regulations.
• Power cable plug must be within easy reach after installation.
• The voltage and allowed fuse or breaker protection are specified in the “Technical specifications” section. If the current value of the fuse or breaker in the house is less than 16 Amps, have a qualified electrician install a 16 Amp fuse.
• The specified voltage must be equal to your mains voltage.
• Do not make connections via extension cables or multi-plugs.

⚠️ Damaged power cables must be replaced by the Authorized Service Agents.

First use

Before starting to use the product, make sure that all preparations are made in accordance with the instructions in sections "Important safety instructions" and "Installation".

To prepare the product for washing laundry, perform first operation in Drum Cleaning programme. If your machine is not featured with Drum Cleaning programme, use Cottons-90 programme and select Additional Water or Extra Rinse auxiliary functions as well. Before starting the programme, put max. 100 g of powder anti-limescale into the

main wash detergent compartment (compartment nr. II). If the anti-limescale is in tablet form, put only one tablet into compartment nr. II. Dry the inside of the bellow with a clean piece of cloth after the programme has come to an end.

Line drawing of a hand holding a circular component with a shaded area, no text or symbols present

i Use an anti-limescale suitable for the washing machines.
i Some water might have remained in the product due to the quality control processes in the production. It is not harmful for the product.

Disposing of packaging material

Packaging materials are dangerous to children. Keep packaging materials in a safe place away from reach of the children.

Packaging materials of the product are manufactured from recyclable materials. Dispose of them properly and sort in accordance with recycled waste instructions. Do not dispose of them with normal domestic waste.

Transportation of the product

1. Unplug the product before transporting it.
2. Remove water drain and water supply connections.

3. Drain the remaining water in the product completely; see, "Draining remaining water and cleaning the pump filter".

4. Install transportation safety bolts in the reverse order of removal procedure; see, "Removing the transportation locks".
   i Never move the product without the transportation safety bolts properly fixed in place!

Disposing of the old product

Dispose of the old product in an environmentally friendly manner.

Refer to your local dealer or solid waste collection centre in your area to learn how to dispose of your product.

For children's safety, cut the power cable and break the locking mechanism of the loading door so that it will be nonfunctional before disposing of the product.

4 Preparation

Things to be done for energy saving

Following information will help you use the product in an ecological and energy-efficient manner.

• Operate the product in the highest capacity allowed by the programme you have selected, but do not overload; see, "Programme and consumption table".
• Always follow the instructions on the detergent packaging.
• Wash slightly soiled laundry at low temperatures.
• Use faster programmes for small quantities of lightly soiled laundry.
• Do not use prewash and high temperatures for laundry that is not heavily soiled or stained.
• If you plan to dry your laundry in a dryer, select the highest spin speed recommended during washing process.
• Do not use detergent in excess of the amount recommended on the detergent package.

Sorting the laundry

• Sort laundry according to type of fabric, colour, and degree of soiling and allowable water temperature.

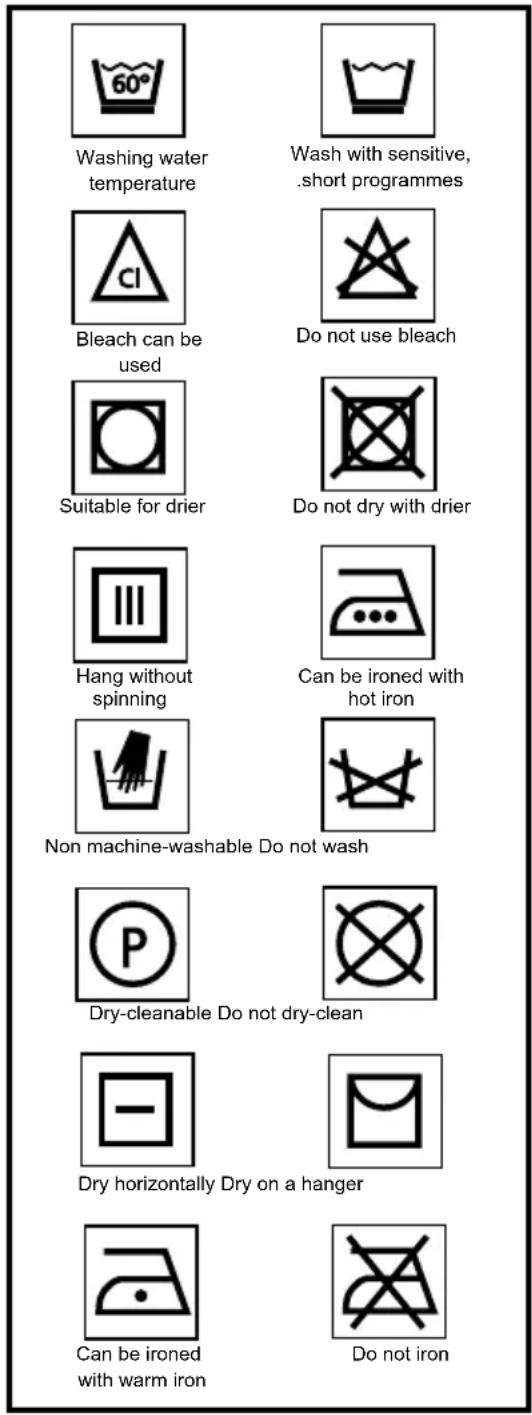

• Always obey the instructions given on the garment tags.

Preparing laundry for washing

- Laundry items with metal attachments such as, underwired bras, belt buckles or metal buttons will damage the machine. Remove the metal pieces or wash the clothes by putting them in a laundry bag or pillow case.

Illustration of a person adjusting a bag with a belt (no text or symbols)

- Take out all substances in the pockets such as coins, pens and paper clips, and turn pockets inside out and brush. Such objects may damage the product or cause noise problem.

- Put small size clothes such as infant's socks and nylon stockings in a laundry bag or pillow case.

- Place curtains in without compressing them. Remove curtain attachment items.

- Fasten zippers, sew loose buttons and mend rips and tears.

- Wash “machine washable” or “hand washable” labeled products only with an appropriate programme.

- Do not wash colours and whites together. New, dark coloured cottons release a lot of dye. Wash them separately.

- Tough stains must be treated properly before washing. If unsure, check with a dry cleaner.

- Use only dyes/colour changers and limescale removers suitable for machine wash. Always follow the instructions on the package.

- Wash trousers and delicate laundry turned inside out.

- Keep laundry items made of Angora wool in the freezer for a few hours before washing. This will reduce pilling.

- Laundry that are subjected to materials such as flour, lime dust, milk powder, etc. intensely must be shaken off before placing into the machine. Such dusts and powders on the laundry may build up on the inner parts of the machine in time and can cause damage.

Correct load capacity

The maximum load capacity depends on the type of laundry, the degree of soiling and the washing programme desired.

The machine automatically adjusts the amount of water according to the weight of the loaded laundry.

⚠️ Follow the information in the “Programme and consumption table”. When overloaded, machine's washing performance will drop. Moreover, noise and vibration problems may occur.

Laundry types and their average weights in the following table are given as examples.

Laundry type Weight (g)
Bathrobe 1200
Napkin 100
Duvet cover 700
Bed Sheet 500
Pillowcase 200
Tablecloth 250
Towel 200
Hand towel 100
Evening gown 200
Underclothing 100
Men's overalls 600
Men's shirt 200
Men's pajamas 500
Blouses	100

Loading the laundry

• Open the loading door.
• Place laundry items loosely into the machine.
• Push the loading door to close until you hear a locking sound. Ensure that no items are caught in the door.
  The loading door is locked while a programme is running. The door can only be opened a while after the programme comes to an end.
  ⚠ In case of misplacing the laundry, noise and vibration problems may occur in the machine.

Using detergent and softener Detergent Drawer

The detergent drawer is composed of three compartments:

• (I) for prewash
• (II) for main wash
• (III) for softener
• (*) in addition, there is siphon piece in the softener compartment.

The detergent dispenser may be in two different types according to the model of your machine as seen above.

Detergent, softener and other cleaning agents

• Add detergent and softener before starting the washing programme.

• Never open the detergent drawer while the washing programme is running!

• When using a programme without prewash, do not put any detergent into the prewash compartment (compartment nr. I).

• In a programme with prewash, do not put liquid detergent into the prewash compartment (compartment nr. I).
• Do not select a programme with prewash if you are using a detergent bag or dispensing ball. Place the detergent bag or the dispensing ball directly among the laundry in the machine.
• If you are using liquid detergent, do not forget to place the liquid detergent cup into the main wash compartment (compartment nr. II).

Choosing the detergent type

The type of detergent to be used depends on the type and colour of the fabric.

• Use different detergents for coloured and white laundry.
• Wash your delicate clothes only with special detergents (liquid detergent, wool shampoo, etc.) used solely for delicate clothes.
• When washing dark coloured clothes and quilts, it is recommended to use liquid detergent.
• Wash woolens with special detergent made specifically for woolens.

⚠️ Use only detergents manufactured specifically for washing machines.

⚠️ Do not use soap powder.

Adjusting detergent amount

The amount of washing detergent to be used depends on the amount of laundry, the degree of soiling and water hardness. Read the manufacturer's

instructions on the detergent package carefully and follow the dosage values.

• Do not use amounts exceeding the dosage quantities recommended on the detergent package to avoid problems of excessive foam, poor rinsing, financial savings and finally, environmental protection.
• Use lesser detergent for small amounts or lightly soiled clothes.
• Use concentrated detergents in the recommended dosage.

Using softeners

Pour the softener into the softener compartment of the detergent drawer.

• Use the dosages recommended on the package.
• Do not exceed the (>max<) level marking in the softener compartment.
• If the softener has lost its fluidity, dilute it with water before putting it in the detergent drawer.

Using liquid detergents

If the product contains a liquid detergent cup:

• Make sure that you have placed the liquid detergent cup in compartment nr. "II".
• Use the detergent manufacturer's measuring cup and follow the instructions on the package.
• Use the dosages recommended on the package.
• If the liquid detergent has lost its fluidity, dilute it with water before putting in the detergent cup.

Illustration of three different filing cabinets with one showing a small device (no text or symbols present)

Technical line drawing of a mechanical component or bracket (no text or symbols)

If the product does not contain a liquid detergent cup:

• Do not use liquid detergent for the prewash in a programme with prewash.
• Use the detergent manufacturer's measuring cup and follow the instructions on the package.
• Liquid detergent stains your clothes when used with Delayed Start function. If you are going to use the Delayed Start function, do not use liquid detergent.

Using gel and tablet detergent

When using tablet, gel, etc. detergents, read the manufacturer's instructions on the detergent package carefully and follow the dosage values. If there is not any instruction on the package, apply the following.

• If the gel detergent thickness is fluidal and your machine does not contain a special liquid detergent cup, put the gel detergent into the main wash detergent compartment during first water intake. If your machine contains a liquid detergent cup, fill the detergent into this cup before starting the programme.
• If the gel detergent thickness is not fluidal or in the shape of capsule

liquid tablet, put it directly into the drum before washing.

• Put tablet detergents into the main wash compartment (compartment nr. II) or directly into the drum before washing.
  i Tablet detergents may leave residues in the detergent compartment. If you encounter such a case, place the tablet detergent between the laundry, close to the lower part of the drum in future washings.
  i Use the tablet or gel detergent without selecting the prewash function.

Using starch

• Add liquid starch, powder starch or the dyestuff into the softener compartment as instructed on the package.
• Do not use softener and starch together in a washing cycle.
• Wipe the inside of the machine with a damp and clean cloth after using starch.

Using bleaches

• Select a programme with prewash and add the bleaching agent at the beginning of the prewash. Do not put detergent in the prewash compartment. As an alternative application, select a programme with extra rinse and add the bleaching agent while the machine is taking water from the detergent compartment during first rinsing step.
• Do not use bleaching agent and detergent by mixing them.
• Use just a little amount (approx. 50 ml) of bleaching agent and rinse the

clothes very well as it causes skin irritation. Do not pour the bleaching agent onto the clothes and do not use it for coloured clothes.

• When using oxygen based bleaches, follow the instructions on the package and select a programme that washes at a lower temperature.
• Oxygen based bleaches can be used together with detergents; however, if its thickness is not the same with the detergent, put the detergent first into the compartment nr. "II" in the detergent drawer and wait until the detergent flows while the machine is taking in water. Add the bleaching agent from the same compartment while the machine is still taking in water.

Using limescale remover

• When required, use limescale removers manufactured specifically for washing machines only.
• Always follow instructions on the package.

5 Selecting a Programme and operating your

machine

Control panel

7 - On/Off button
8 - Programme follower
9 - Child proof lock indicator*
10 - Display
11 - Programme selection knob
12 - Start/Pause/Cancel Button
13 - Auxiliary Function Buttons
14 - Time Delaying Button (+/-)
15 - Spin Speed Adjustment Button

* According to your machine's model

Refresh
(Freshen Up)

Eco 20
(Eco Clean)

Machine
Care (Self Clean)

Lingerie Mini (Daily

(Daily
express)

Mini 14
(Super short express)

Half Load

Half Load

vash
(Darkcare)

Mix Hand wash

1
&
Silk

On/Off

Start
Pause

Coton

Synthetics

Woollens

Delicate

Intensive

Sport

Shirt

Duvet

Hygiene

Hand wash

Prewash

Main wash Rinse plus

Soaking Anti

creasing

Rinse Hold

No Spin

Spin

Cold

Ready

Wash End Child Lock Cancel 3" Temperature Time Delay Drain Super Super Eco Rinse Cotton Eco

Turning the machine on

Plug in your machine. Turn the tap on completely. Check if the hoses are connected tightly. Place the laundry in the machine. Add detergent and softener. Press the “On/Off” button.

Programme selection

Select the appropriate Programme from the Programme table and the following washing temperature table according to type, amount and degree of soiling of the laundry.

90°C	Normally soiled, white cottons and linens. (Ex.: coffee table covers, tablecloths, towels, bed sheets)
60°C	Normally soiled, fade proof colored linens, cottons or synthetic clothes (Ex.: shirts, nightgowns, pajamas) and lightly soiled white linen clothes (Ex.: underwear)
40°C-30°C-Cold	For delicate clothes (Ex.: lace curtains), blended clothes including synthetics and woolens.

Select the desired Programme with the Programme selection button.

i Programmes are limited with the highest spin speed appropriate for that particular type of cloth.

Main Programmes

Depending on the type of textile, the following main Programmes are available:

Each of these main Programmes comprise of a complete washing process, including washing, rinsing and, if required, spin cycles.

i Sort the laundry according to type of fabric, color, degree of soiling and permissible water temperature when choosing a Programme.

i Always select the lowest required temperature. Higher temperature means higher power consumption.
For further Programme details, see, "Programme Selection Table"

• Cotton HYG&Wash

You can wash your durable clothes with this Programme. Your laundry will be washed with vigorous washing movements during a longer washing cycle. It is recommended for your cotton items (such as bed sheets, duvet and pillowcase sets, bathrobes, underclothing, etc.).

- Synthetics

You can wash your less durable clothes on this Programme. Gentler washing movements and a shorter washing cycle is used compared to the “Cottons” Programme. It is recommended for your synthetic clothes (such as shirts, blouses, synthetic/cotton blended garments, etc.). For curtains and lace, the “Synthetic (duo)40” Programme with pre-wash and anti-creasing functions selected is recommended. Detergent should not be put in the pre-wash compartment. Less detergent should be put in the main wash compartment as loose knit fabrics (lace) foam too much due to its meshed structure.

- Woollens

You can wash your machine-washable woolen garments on this Programme. Wash by selecting the proper temperature according to the labels of your clothes. It is recommended to use appropriate detergents for woolens.

Additional Programmes

For special cases, there are also extra Programmes available:

i Additional Programmes may differ according to the model of your machine.

- HYG&Wash 60

Increased hygiene is provided by a longer heating period and an additional rinse cycle. It is recommended for baby clothes and clothes worn by people with allergies.

- Delicate

You can wash your delicate clothes on this Programme. It has more sensitive washing movements and does not make intermediate spinning compared to “Synthetic” Programme. It must be used for clothes for which sensitive washing is recommended.

- Hand wash&Silk

You can wash your woolen/delicate clothes that bear “not machine-washable” labels for which hand wash is recommended on this Programme. It washes the laundry with very tender washing movements without damaging your clothes.

- Refresh

This Programme is used to quickly wash (30 minutes) a small amount of lightly soiled cotton garments.

• Super

This Programme washes for a longer period at 40°C and gives the same result as the "Cottons 60°C" Programme, thus it saves energy. It is suitable for clothes for which you cannot use the "Cottons 60°C" Programme.

- Shirts

You can use this Programme to wash cottons and synthetics together. There is no need to sort them.

- Sports

This Programme is suitable for clothes that are normally worn for a short time such as sportswear. It is used to quickly wash a small amount of cotton/synthetic blended clothes.

• Jean

Use this programme to wash your cotton and synthetic clothes together without sorting them.

Special Programmes

For specific applications, you can select any of the following Programmes:

- Rinse

This Programme is used when you want to rinse or starch separately.

- Spin + Drain

This Programme is used to apply an additional spin cycle for the laundry or to drain the water in the machine.

Before starting this Programme, select the desired spin sped and press "Start/

Pause/Cancel" button. Your machine drains the water after spinning at the set spin speed.

If you only want to drain the water without spinning your laundry, select "Spin and Pump" Programme, and then select no spin function with spin speed selection button. Press "Start/Pause/Cancel" button.

⚠️ You should use a lower spin speed for delicate laundries.

Spin speed selection

Whenever a new Programme is selected, the maximum spin speed of the selected Programme is displayed on the spin speed indicator.

To decrease the spin speed, press the “Spin” button. Spin speed decreases gradually. Then, rinse hold and no spin options are shown respectively.

Rinse hold is shown with “-” and no spin is shown with “-” symbols.

Simple diagram with two black right-angle symbols inside a gray rectangle (no text or labels)

If you do not want to unload your clothes immediately after Programme, you may use rinse hold function in order to prevent your clothes become wrinkled in anhydrous conditions. With this function, your laundry is kept in the final rinsing water. If you want to spin your laundry that you left in water:

- Adjust the spin speed.

- Press “Start/Pause/Cancel” button. Programme resumes. Your machines drains the water and spins your laundry. You can use no spin function in order to drain the water without spinning at the end of the Programme.

Programme selection and consumption table

EN					Auxiliary functions
Programme		Max. Load (kg)	Water Consumption (l)	Energy Consumption (kWh)	Prewash	Quick Wash	Rinse Plus	Anti-Creasing	Rinse Hold	No Heat
Cotton HYG&Wash	90	8	59	2,20	●	●	●	●	●	●
Cotton HYG&Wash	60**	8	59	1,36	●	●	●	●	●	●
Cotton HYG&Wash	40	8	59	0,80	●	●	●	●	●	●
Cotton HYG&Wash	30	8	59	0.50	●	●	●	●	●	●
Super 40 8590,90 ●
HYG&Wash 60	60	8	85	1,30			*	●	●	●
Sports 40 4 371,33 ● ● ●	●	●●
Shirts	40 4	50 0,55 ● ●	●	●	●		●
Synthetics	60 4	50 0,94 ● ●	●	●	●●
Synthetics (Mix)	40 4	50 0,55 ● ●	●	●	●●
Synthetics	30 4	50 0.50 ● ●	●	●	●●
Jean	40 4	50 0,55					*● ●●
Delicate	30	3	52	0,30			●	●	●	●
Woollens	40	2	44	0,20			●		●	●
Hand Wash&Silk	30	1,5	30	0,15						●
Refresh	30	3	47	0,20						●

• : Selectable
  * : Automatically selected, not cancellable.
  **: Energy Label Programme (EN 60456)

Water and power consumption and Programme duration may differ from the table shown, subject to changes in water pressure, water hardness and temperature, ambient temperature, type and amount of laundry, selection of auxiliary functions, and fluctuations in the supply voltage.

The auxiliary functions in the table may differ according to the model of your machine.
i Programme duration will be displayed on the screen of your machine according to your selection.

Auxiliary functions Auxiliary Function Selection Buttons

Select the required auxiliary functions before starting the Programme.

i Some combinations cannot be selected together. (Ex.: Pre-wash and Quick Wash.

Warning signal on the selected auxiliary function will light up.

Auxiliary function selection

If an auxiliary function that should not be selected together with a previously selected function is chosen, the first selected function will be cancelled and the last auxiliary function selection will remain active.

(Ex.: If you want to select pre-wash first and then quick wash, pre-wash will be cancelled and quick wash will remain active.

Auxiliary function that is not compatible with the Programme cannot be selected. (see, “Programme Selection Table”)

i Auxiliary function buttons may differ according to the model of your machine.

- Prewash

A pre-wash is only worthwhile for heavily soiled laundry. Without pre-wash you save energy, water, detergent and time.

i Pre-wash without detergent is recommended for lace and curtains.

- Quick Wash

This function can be used for “Cottons” and “Synthetics” Programmes. It decreases the washing times for lightly soiled laundries and also the number of rinsing steps.

- Rinse Plus

With this function, you can increase the number of current rinsing steps. Thus, sensitive skins' risk of being affected by the remainder detergent on the clothes will be decreased.

- Anti-Creasing

With this function, drum movement will be lessened to prevent creasing and spinning speed is limited. In addition, washing is carried out at a higher water level.

Use this function for delicate laundries that crease easily.
i Whenever you select this auxiliary function, load your machine with half of the maximum laundry specified in the Programme table.

- No Heat

If you wish to wash your clothes in cold water, you can use this Programme.

Time display

The display shows the time remaining for the Programme to complete while a Programme is running. Time is displayed in hours and minutes as "01:30".

i Programme duration may differ from the values in the consumption table subject to the changes in the water pressure, water hardness and temperature, ambient temperature, type and amount of laundry, auxiliary functions selected, and changes in the supply voltage.

Time delay

With the “Time delay” function you can delay the Programme start up to 24 hours. Time delay can be set with steps of one hour for the first three hours and with steps of three hours for the remainder (1, 2, 3, 6, 9, ...24).

Do not use liquid detergent when you set time delay! There is the risk of staining of the clothes.

1. Open the loading door, place the laundry inside and fill detergent drawer.
2. Set the washing Programme, spin speed and, if required, select the auxiliary functions.
3. Pres "Time Delay" button to adjust the desired time.
4. Press "Start/Pause/Cancel" button. The time delay will start to count down. The ":" in the middle of the displayed time delay will start flashing.
   i More laundry may be loaded during the time delay period.
5. At the end of countdown process, “:” will light up continuously, “Ready” light

will go off and the relevant Programme follow-up light will come on according to the selected Programme.

Changing the delay time

If you want to change the time during the countdown:

1. Press "Start/Pause/Cancel" button. ":" in the middle of the screen will stop flashing.
2. Pres "Time Delay" button to adjust the desired time delay.
3. Press "Start/Pause/Cancel" button.
4. The “:” in the middle of the displayed time delay will start flashing.

Canceling the time delay

If you want to cancel the time delay countdown and start the Programme:

1. Press "Start/Pause/Cancel" button. The ":" in the middle of the displayed time delay will stop flashing.
2. Pres "Time Delay" button to decrease the time delay. "0:00" will appear on the display.
3. Press "Start/Pause/Cancel" button to start the Programme.

Starting the Programme

1. Press "Start/Pause/Cancel" button to start the Programme.
2. Programme follow-up lamp showing the startup of the Programme will light up.

Progress of Programme

Progress of a running Programme is shown through the Programme follow-up indicator. At the beginning of every Programme step, the relevant indicator lamp will light up and light of the completed step will turn off. The indicator that is lit up at the far right of the series of indicator indicates the step that is being carried out.

If the machine is not spinning, the Programme may be in rinse hold mode or the automatic spin correction system has been activated due to an excessive unbalanced distribution of laundry in the machine.

Changing the selections after the Programme has started

Turning the Programme knob while the Programme is in a normal flow will not change the Programme.

Switching the machine to standby mode

Press “Start/Pause/Cancel” button momentarily to switch your machine to the standby mode. “Start/Pause/Cancel” lamp will start flashing to indicate that the machine is switched to standby mode.

Selecting or canceling an auxiliary function in standby mode

Auxiliary functions can be cancelled or selected in accordance with the step the Programme is at.

Adding/removing laundry in standby mode

The door can be opened if the water level is suitable. “Ready” lamp will flash until the door is allowed to open. “Ready” lamp will light up continuously when the door is allowed to open. Laundry may be added / taken out by opening the door. “Ready” lamp goes off it he front door is not allowed to open for safety reasons.

Door lock

The loading door can not be opened yet due to safety reasons while the “Ready” lamp is flashing. The loading door can be opened once the “Ready” lamp starts lighting up continuously.

Child-proof lock

This function protects the appliance from being tampered by children. In this case, all of the buttons are inactive except On/Off button; by On/Off button you can whether stop or resume (while child-lock on) the Programme of your machine.

The machine is switched to child-lock by pressing the 1st and 2nd auxiliary functions for 3 sec. "C on" (Child lock is activated) label appears on the screen.

The same symbol will also be displayed whenever any button is pressed while the machine is child-locked. Child-proof lock lamp on the Programme follow-up indicator will light up when the child-proof lock is activated. To deactivate the child-proof lock, press the 1st and 2nd auxiliary function buttons for 3 sec. "C OFF" (Child-proof lock is deactivated) symbol appears on the screen.

Child-proof lock lamp on the Programme follow-up indicator will go off when the child-proof lock is deactivated.

Ending the Programme through canceling

"Start/Pause/Cancel" button is pressed for 3 seconds to cancel the Programme. "Ready" warning lamp flashes during canceling and "End" will appear on the display.

6 Maintenance and cleaning

Service life of the product extends and frequently faced problems decrease if cleaned at regular intervals.

Cleaning the detergent drawer

Clean the detergent drawer at regular intervals (every 4-5 washing cycles) as shown below in order to prevent accumulation of powder detergent in time.

Technical diagram showing a mechanical component with a downward arrow and a labeled 'MAX' (no text or symbols beyond basic labels)

1. Press the dotted point on the siphon in the softener compartment and pull towards you until the compartment is removed from the machine.
   i If more than normal amount of water and softener mixture starts to gather in the softener compartment, the siphon must be cleaned.
2. Wash the detergent drawer and the siphon with plenty of lukewarm water in a washbasin. Wear protective gloves or use an appropriate brush to avoid touching of the residues in the drawer with your skin when cleaning.
3. Insert the drawer back into its place after cleaning and make sure that it is seated well.

Cleaning the loading door and the drum

Residues of softener, detergent and dirt may accumulate in your machine in time and may cause unpleasant odours and washing complaints. To avoid this, use the Drum Cleaning programme. If your machine is not featured with Drum Cleaning programme, use Cottons-90 programme and select Additional Water or Extra Rinse auxiliary functions as well. Before starting the programme, put max. 100 g of powder anti-limescale into the main wash detergent compartment (compartment nr. II). If the anti-limescale is in tablet form, put only one tablet into compartment nr. II. Dry the inside of the bellow with a clean piece of cloth after the programme has come to an end.

i Repeat Drum Cleaning process in every 2 months.
Use an anti-limescale suitable for the washing machines.

After every washing make sure that no foreign substance is left in the drum.

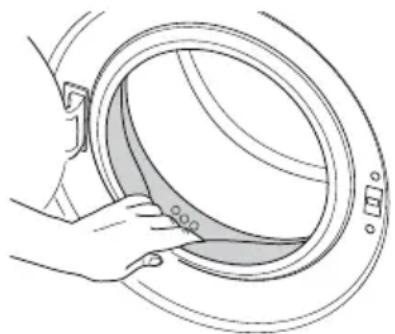

Line drawing of a hand adjusting a circular component with a shaded area (no text or symbols)

If the holes on the bellow shown in the figure is blocked, open the holes using a toothpick.

i Foreign metal substances in your machine will cause rust stains. Clean the stains on the drum surface by using cleaning agents for stainless steel. Never use steel wool or wire wool.

Cleaning the body and control panel

Wipe the body of the machine with soapy water or non-corrosive mild gel detergents as necessary, and dry with a soft cloth.

Use only a soft and damp cloth to clean the control panel.

⚠️ Never use sponge or scrub materials. These will damage the painted and plastic surfaces.

Cleaning the water intake filters

There is a filter at the end of each water intake valve at the rear of the machine and also at the end of each water intake hose where they are connected to the tap. These filters prevent foreign substances and dirt in the water to enter the washing machine. Filters should be cleaned as they do get dirty.

Three variations of faucet installation diagrams showing different components (no text or labels)

1. Close the taps.

2. Remove the nuts of the water intake hoses to access the filters on the water intake valves. Clean them with an appropriate brush. If the filters are too dirty, take them out by means of pliers and clean them.

3. Take out the filters on the flat ends of the water intake hoses together with the gaskets and clean thoroughly under running water.

4. Replace the gaskets and filters carefully in their places and tighten the hose nuts by hand.

Draining remaining water and cleaning the pump filter

The filter system in your machine prevents solid items such as buttons, coins and fabric fibers clogging the pump impeller during discharge of washing water. Thus, the water will be discharged without any problem and the service life of the pump will extend.

If the machine fails to drain water, the pump filter is clogged. Filter must be cleaned whenever it is clogged or in every 3 months. Water must be drained off first to clean the pump filter.

In addition, prior to transporting the machine (eg., when moving to another house) and in case of freezing of the water, water may have to be drained completely.

⚠️ Foreign substances left in the pump filter may damage your machine or may cause noise problem.

In order to clean the dirty filter and discharge the water:

1. Unplug the machine to cut off the supply power.

⚠️ Temperature of the water inside the machine may rise up to 90 °C. To avoid burning risk, filter must be cleaned after the water in the machine cools down.

1. Open the filter cap.

If the filter cap is composed of two pieces, press the tab on the filter cap downwards and pull the piece out towards yourself.

Simple line drawing of a hand holding a small object above a vertical axis, with arrows indicating motion direction (no text or symbols)

If the filter cap is one piece, pull the cap from both sides at the top to open.

Diagram showing two hands holding a rectangular object with directional arrows indicating movement or force (no text or symbols)

You can remove the filter cover by slightly pushing downwards with a thin plastic tipped tool, through the gap above the filter cover. Do not use metal tipped tools to remove the cover.

1. Some of our products have emergency draining hose and some does not have. Follow the steps below to discharge the water.

Discharging the water when the product has an emergency draining hose:

Diagram of a washing machine with a bowl and tubing (no text or symbols)

a. Pull the emergency draining hose out from its seat b. Place a large container at the end of the hose. Drain the water into the container by pulling out the plug at the end of the hose. When the container is full, block the inlet of the hose by replacing the plug. After

the container is emptied, repeat the above procedure to drain the water in the machine completely.

c. When draining of water is finished, close the end by the plug again and fix the hose in its place.
d. Turn the pump filter to take it out.

Discharging the water when the product does not have an emergency draining hose:

Two-step diagram showing a washing machine with a rotary knob and a pan containing liquid (no text or symbols)

a. Place a large container in front of the filter to catch water from the filter.
b. Loosen pump filter (anticlockwise) until water starts to flow. Fill the flowing water into the container you have placed in front of the filter. Always keep a piece of cloth handy to absorb any spilled water.
c. When the water inside the machine is finished, take out the filter completely by turning it.
4. Clean any residues inside the filter as well as fibers, if any, around the pump impeller region.
5. Install the filter.

⚠️ If your product has a water jet feature, be sure to fit the filter into its housing in the pump. Never force the filter while installing it into its housing. Seat the filter into its place completely. Otherwise, water may leak from the filter cap.

1. If the filter cap is composed of two pieces, close the filter cap by pressing on the tab. If it is one piece, seat the tabs in the lower part into

their places first, and then press the upper part to close.

7 Troubleshooting

Programme cannot be started or selected.

Washing machine has switched to self protection mode due to a supply problem (line voltage, water pressure, etc.). >>> Press and hold Start / Pause / Cancel button for 3 seconds to reset the machine to factory settings. (See "Canceling the programme")

Water in the machine.

Some water might have remained in the product due to the quality control processes in the production. >>> This is not a failure; water is not harmful to the machine.

There is water leaking from the bottom of the washing machine.

Likely problems with hoses or the pump filter. >>> Be sure the seals of the water inlet hoses are securely fitted. Attach the hose to the tap tightly.Pump filter might not be closed fully. >>> Make sure that the pump filter is completely closed.

Machine does not fill with water.

Tap is turned off. >>> Open the inlet water taps fully.Water inlet hose is bent. >>> Flatten the water inlet hose.Water inlet filter is clogged. >>> Clean the water inlet filter.The loading door is ajar. >>> Close the Loading Door.

Machine does not drain water.

Water drain hose might be clogged or twisted. >>> Clean or flatten the hose.Pump filter is clogged. >>> Clean the pump filter.

Machine vibrates or makes noise.

Machine might be standing unbalanced. >>> Adjust the feet to level the machine.A hard substance might have entered into the pump filter. >>> Clean the pump filter.Transportation safety bolts are not removed. >>> Remove the transportation safety bolts.Laundry quantity in the machine might be too little. >>> Add more laundry to the machine.Machine might be overloaded with laundry. >>> Take out some of the laundry from the machine or distribute the load by hand to balance it homogenously in the machine.Machine might be leaning on a rigid item. >>> Make sure that the machine is not leaning on anything.

Machine stopped shortly after the programme started.

Machine might have stopped temporarily due to low voltage. >>> It will resume running when the voltage restores to the normal level.

Machine directly discharges the water it takes in.

Draining hose might not be at adequate height. >>> Connect the water draining hose as described in the operation manual.

No water can be seen in the machine during washing.

i The water level is not visible from outside of the washing machine. This is not a failure.

Loading door cannot be opened.

Door lock is activated because of the water level in the machine. >>> Drain the water by running the Pump or Spin programme.Machine is heating up the water or it is at the spinning cycle. >>> Wait until the programme completes.Child lock is engaged. Door lock will be deactivated a couple of minutes after the programme has come to an end. >>> Wait for a couple of minutes for deactivation of the door lock.

Washing takes longer time than the one specified in the manual.

Water pressure is low. >>> Machine waits until taking in adequate amount of water to prevent poor washing quality due to the decreased amount of water. Therefore, the washing time extends.Voltage might be low. >>> Washing time is prolonged to avoid poor washing results when the supply voltage is low.Input temperature of water might be low. >>> Required time to heat up the water extends in cold seasons. Also, washing time can be lengthened to avoid poor washing results.Number of rinses and/or amount of rinse water might have increased. >>> Machine increases the amount of rinse water when good rinsing is needed and adds an extra rinsing step if necessary.Excessive foam might have occurred and automatic foam absorption system might have been activated due to too much detergent usage. >>> Use recommended amount of detergent.Machine does not switch to spinning step when the laundry is not evenly distributed in the drum to prevent any damage to the machine and to its surrounding environment. Laundry should be rearranged and re-spun.

Programme time does not countdown. (On models with display)

Timer may stop during water intake. >>> Timer indicator will not countdown until the machine takes in adequate amount of water. The machine will wait until there is sufficient amount of water to avoid poor washing results due to lack of water. Timer indicator will resume countdown after this.Timer may stop during heating step. >>> Timer indicator will not countdown until the machine reaches the selected temperature.Timer may stop during spinning step. >>> Automatic unbalanced load detection system might be activated due to the unbalanced distribution of the laundry in the drum.Machine does not switch to spinning step when the laundry is not evenly distributed in the drum to prevent any damage to the machine and to its surrounding environment. Laundry should be rearranged and re-spun.

Programme time does not countdown.

There might be an imbalance of laundry in the machine. >>> Automatic unbalanced load detection system might be activated due to the unbalanced distribution of the laundry in the drum.

Machine does not switch to spinning step when the laundry is not evenly distributed in the drum to prevent any damage to the machine and to its surrounding environment. Laundry should be rearranged and re-spun.

Machine does not switch to spinning step.

There might be an imbalance of laundry in the machine. >>> Automatic unbalanced load detection system might be activated due to the unbalanced distribution of the laundry in the drum.

Machine does not switch to spinning step when the laundry is not evenly distributed in the drum to prevent any damage to the machine and to its surrounding environment. Laundry should be rearranged and re-spun.

The machine will not spin if water is not drained completely. >>> Check the filter and the draining hose.

Excessive foam might have occurred and automatic foam absorption system might have been activated due to too much detergent usage. >>> Use recommended amount of detergent.

Washing performance is poor: Laundry turns gray.

Insufficient amount of detergent was used over a long period of time. >>> Use the recommended amount of detergent appropriate for water hardness and the laundry.

Washing was made at low temperatures for a long time over a long period of time. >>> Select the proper temperature for the laundry to be washed.

Insufficient amount of detergent is used with hard waters. >>> Using insufficient amount of detergent with hard water causes the soil to stick on the cloth and this turns the cloth into gray in time. It is difficult to eliminate graying once it happens. Use the recommended amount of detergent appropriate for water hardness and the laundry.

Too much detergent is used. >>> Use the recommended amount of detergent appropriate for water hardness and the laundry.

Regular drum cleaning is not applied. >>> Clean the drum regularly. For this, please see "Cleaning the loading door and the drum".

Washing performance is poor: Stains persist or the laundry is not whitened.

Insufficient amount of detergent is used. >>> Use recommended amount of detergent appropriate for the laundry.Excessive laundry was loaded in. >>> Do not load the machine in excess. Load with amounts recommended in the "Programme and consumption table".Wrong programme and temperature were selected. >>> Select the proper programme and temperature for the laundry to be washed.Wrong type of detergent is used. >>> Use original detergent appropriate for the machine.Detergent is put in the wrong compartment. >>> Put the detergent in the correct compartment. Do not mix the bleaching agent and the detergent with each other.Regular drum cleaning is not applied. >>> Clean the drum regularly. For this, please see "Cleaning the loading door and the drum".

Washing performance is poor: Oily stains appeared on the laundry.

Regular drum cleaning is not applied. >>> Clean the drum regularly. For this, please see "Cleaning the loading door and the drum".

Washing performance is poor: Clothes smell unpleasantly.

Odours and bacteria layers are formed on the drum as a result of continuous washing at lower temperatures and/or in short programmes. >>> Leave the detergent drawer as well as the loading door of the machine ajar after each washing. Thus, a humid environment favorable for bacteria cannot occur in the machine.Regular drum cleaning is not applied. >>> Clean the drum regularly. For this, please see "Cleaning the loading door and the drum".

Colour of the clothes faded.

Excessive laundry was loaded in. >>> Do not load the machine in excess.Detergent in use is damp. >>> Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures.A higher temperature is selected. >>> Select the proper programme and temperature according to the type and soiling degree of the laundry.Regular drum cleaning is not applied. >>> Clean the drum regularly. For this, please see "Cleaning the loading door and the drum".

It does not rinse well.

• The amount, brand and storage conditions of the detergent used are inappropriate. >>> Use a detergent appropriate for the washing machine and your laundry. Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures.
• Detergent is put in the wrong compartment. >>> If detergent is put in the prewash compartment although prewash cycle is not selected, machine can take this detergent during rinsing or softener step. Put the detergent in the correct compartment.
• Pump filter is clogged. >>> Check the filter.
• Drain hose is folded. >>> Check the drain hose.

Laundry became stiff after washing.

- Insufficient amount of detergent is used. >>> Using insufficient amount of detergent for the water hardness can cause the laundry to become stiff in time. Use appropriate amount of detergent according to the water hardness.

- Detergent is put in the wrong compartment. >>> If detergent is put in the prewash compartment although prewash cycle is not selected, machine can take this detergent during rinsing or softener step. Put the detergent in the correct compartment.

- Detergent might be mixed with the softener. >>> Do not mix the softener with detergent. Wash and clean the dispenser with hot water.

- Regular drum cleaning is not applied. >>> Clean the drum regularly. For this, please see "Cleaning the loading door and the drum".

Laundry does not smell like the softener.

- Detergent is put in the wrong compartment. >>> If detergent is put in the prewash compartment although prewash cycle is not selected, machine can take this detergent during rinsing or softener step. Wash and clean the dispenser with hot water. Put the detergent in the correct compartment.

- Detergent might be mixed with the softener. >>> Do not mix the softener with detergent. Wash and clean the dispenser with hot water.

- Regular drum cleaning is not applied. >>> Clean the drum regularly. For this, please see "Cleaning the loading door and the drum".

Detergent residue in the detergent drawer.

• Detergent is put in wet drawer. >>> Dry the detergent drawer before putting in detergent.
• Detergent has gotten damp. >>> Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures.
  • Water pressure is low. >>> Check the water pressure.
• The detergent in the main wash compartment got wet while taking in the prewash water. Holes of the detergent compartment are blocked. >>> Check the holes and clean if they are clogged.
• There is a problem with the detergent drawer valves. >>> Call the Authorized Service Agent.
• Detergent might be mixed with the softener. >>> Do not mix the softener with detergent. Wash and clean the dispenser with hot water.
• Regular drum cleaning is not applied. >>> Clean the drum regularly. For this, please see "Cleaning the loading door and the drum".

There is detergent left on the laundry.

• Excessive laundry was loaded in. >>> Do not load the machine in excess.
• Wrong programme and temperature were selected. >>> Select the proper programme and temperature for the laundry to be washed.
• Wrong detergent was used. >>> Select the proper detergent for the laundry to be washed.
• Regular drum cleaning is not applied. >>> Clean the drum regularly. For this, please see "Cleaning the loading door and the drum".

Too much foam forms in the machine.

• Improper detergents for the washing machine are being used. >>> Use detergents appropriate for the washing machine.
• Excessive amount of detergent is used. >>> Use only sufficient amount of detergent.
• Detergent was stored under improper conditions. >>> Store detergent in a closed and dry location. Do not store in excessively hot places.
• Some meshed laundry such as tulle may foam too much because of their texture.

  Use smaller amounts of detergent for this type of item.

• Detergent is put in the wrong compartment. >>> Put the detergent in the correct compartment.
• Softener is being taken early. >>> There may be problem in the valves or in the detergent dispenser. Call the Authorized Service Agent.
• Regular drum cleaning is not applied. >>> Clean the drum regularly. For this, please see "Cleaning the loading door and the drum".

Foam is overflowing from the detergent drawer.

- Too much detergent is used. >>> Mix 1 tablespoonful softener and 12 I water and pour into the main wash compartment of the detergent drawer.

Put detergent into the machine suitable for the programmes and maximum loads indicated in the “Programme and consumption table”. When you use additional chemicals (stain removers, bleaches and etc), reduce the amount of detergent.

Laundry remains wet at the end of the programme

- Excessive foam might have occurred and automatic foam absorption system might have been activated due to too much detergent usage. >>> Use recommended amount of detergent.

Machine does not switch to spinning step when the laundry is not evenly distributed in the drum to prevent any damage to the machine and to its surrounding environment. Laundry should be rearranged and re-spun.

⚠️ If you cannot eliminate the problem although you follow the instructions in this section, consult your dealer or the Authorized Service Agent. Never try to repair a nonfunctional product yourself.
