32FLK242BW - Television Finlux - Free user manual and instructions

Product Type	LED TV
Brand	Finlux
Model	32FLK242BW
Screen Size (Diagonal)	32 inches (81 cm)
Display Resolution	1366 x 768 pixels (HD Ready)
Energy Efficiency Class	A
On Mode Power Consumption	41 W (typical), 65 W (max)
Standby Power Consumption	0.5 W
Off Mode Power Consumption	0 W
Operating Voltage	220-240 V AC, 50 Hz
Tuner	DVB-T/T2/C (MPEG2/MPEG4 HD)
Number of Preset Channels	1000
Audio Output Power	2 x 6 W RMS (10% THD)
Audio System	German + Nicam Stereo
Connectivity	HDMI (x2), SCART, VGA (PC), USB (x2), CI slot, Headphone, SPDIF
Other Features	Teletext, EPG, Sleep Timer, Child Lock, Media Browser, Picture Off
Accessories Included	Remote Control, 2x AAA Batteries, Instruction Book, Side AV Cable
Dimensions (Approx. with Stand)	73 x 43 x 8 cm (estimated)
Weight (Approx.)	4.5 kg (estimated)

Frequently Asked Questions - 32FLK242BW Finlux

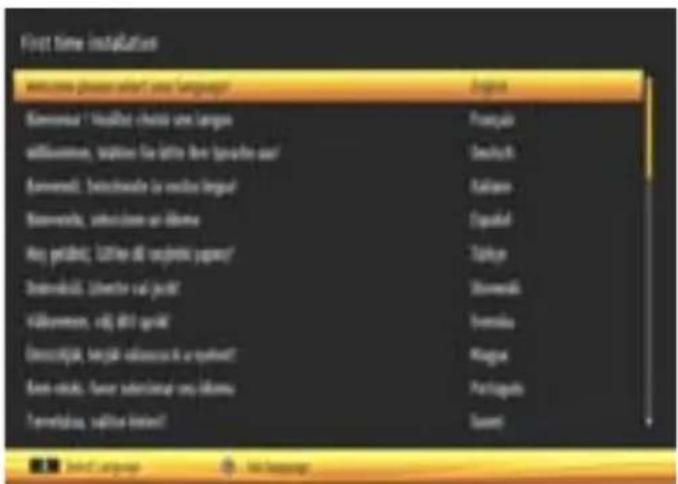

How do I set up the TV for the first time?

Connect the aerial and power cord. Turn on the TV and follow the on-screen language selection. After selecting your language and country, choose the search type (Digital & Analog, Digital only, or Analog only). The TV will automatically scan and store available channels.

How can I connect external devices like a game console?

Use HDMI, SCART, or VGA connections. For HDMI, simply plug the cable and select the HDMI source via the SOURCE button. For older devices, use the SCART or side AV input with the supplied cable.

Why is there no picture but sound?

Check if the correct input source is selected. Also ensure the aerial is properly connected and the TV is not in standby. If using an external device, verify it is powered on.

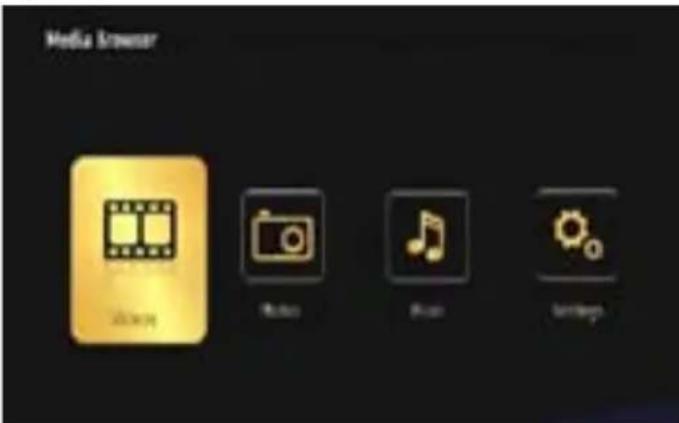

How do I play movies from a USB drive?

Connect a USB drive to the TV's USB port. Press the MENU button, select Media Browser, then choose Video, Music, or Picture. Navigate to your file and press OK to play. Supported formats include AVI, MKV, MP4, MP3, JPEG, etc.

Can I record TV programmes?

Yes, you can record to a USB drive. Connect the USB drive while the TV is off, then turn it on. Press the RECORD button on the remote to start recording. Access recordings via Media Browser > Recordings Library.

How do I change the picture size or aspect ratio?

Press the IMAGE SIZE button on the remote repeatedly to cycle through formats: Auto, 16:9, 14:9, 4:3, Cinema, etc. You can also adjust in Picture menu.

Why does the remote control not work?

First, check the batteries. Replace them with new AAA batteries, ensuring correct polarity. Also, ensure nothing is blocking the IR sensor on the TV. If still not working, use the control buttons on the TV itself.

How do I enable Parental Controls?

Go to Menu > Settings > Parental. Enter the default PIN (0000, 1234, or 4725) and set restrictions for channels or inputs. You can also lock specific channels.

What should I do if the TV automatically switches to standby?

This is a power-saving feature. If no signal is received for 5 minutes or if the TV is idle for 4 hours, it will go to standby. You can disable this in Settings > Other Settings > Auto TV Off.

How do I update the TV software?

Go to Menu > Settings > Other Settings > Software Upgrade > Scan for upgrade. The TV will search for updates via broadcast. Alternatively, enable automatic 3 AM search for updates.

USER MANUAL 32FLK242BW Finlux

Black-and-white photo of a man and woman relaxing on a sofa in an office setting, with no visible text or symbols.

Line drawing of a flat-screen monitor with no text or symbols on the screen or side

Top-down schematic of a computer monitor showing front, rear, and side views with no visible text or symbols

käyttö

Kytke virta & antenni

PAL/SECAM B/G D/K K' I/I' L/L'

DIGITAALINEN VASTAANOTTO

DVB-T MPEG2

DVB-T MPEG4 HD

DVB-T MHEG-5 Engine (vain Iso-Britannia)

KANAVIEN VASTAANOTTO

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

ESIASETETTUJEN KANAVIEN MÄÄRÄ

1000

KANAVAILMAISIN

Ruutunäyttö

RF-ANTENNITULO

Diagram showing a USB connector connected to a device icon with 'SOURCE' label (no text or symbols on the diagram itself)

Reparationsinformation

Line drawing of a flat-screen monitor with a stand (no text or symbols)

Top-down schematic of a computer monitor layout showing front, top, and side views (no text or labels)

Close-up of a cylindrical battery with glowing internal components and surrounding circular symbols (no readable text or labels)

Anslut ström & antenn

PAL/SECAM B/G D/K K' I/I' L/L'

DIGITAL MOTTAGNING

DVB-T MPEG2

DVB-T MPEG2 HD

DVB-T MHEG-5 MOTOR (endast Storbritannien)

MOTTAGNA KANALER

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

ANTAL FÖRINSTÄLLDA KANALER

1000

KANALINDIKATOR

Skärmvisning

RF ANTENNINGÅNG

75 Ohm (obalanserad)

DRIFTSPÄNNING

220-240V AC, 50 Hz.

LJUD

Safety Precautions 40

Environmental Information 41

Accessories included....41

TV - Features 41

Viewing the TV 42

TV Control button & Operation 42

Viewing remote control - TV 43

Using a Conditional Access Module.... 45

Standby Notifications....45

Installing the Batteries to the Remote.... 46

Connect Power & Antenna 46

Switching On/Off....46

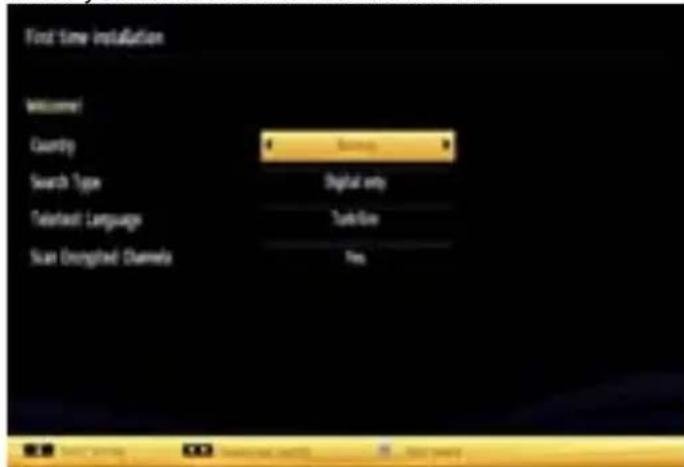

First Time Installation.... 46

Media Playback via USB Input 47

Changing Image Size: Picture Formats......48

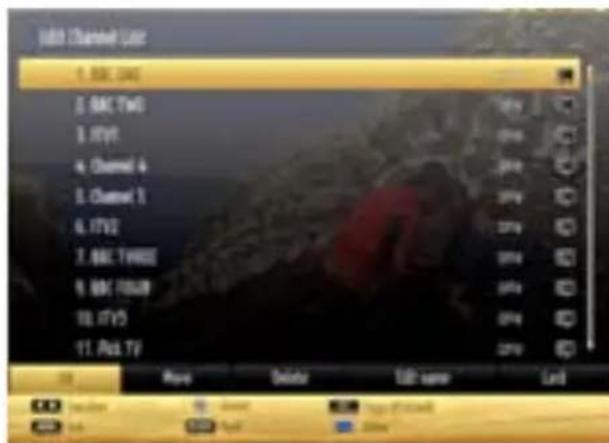

Using the Channel List 48

Quick Menu 48

Menu Features and Functions....49

Menu Features and Functions....50

Menu Features and Functions....51

Electronic Programme Guide (EPG) 52

Teletext....52

Software Upgrade.... 53

Troubleshooting & Tips....53

PC Typical Display Modes ....54

Specifications 55

Licence Notifications...... 55

Supported File Formats for USB Media Browser. 56

Supported DVI Resolutions....57

Safety Precautions

Please read these instructions fully before installing or operating.

Preparation

Place the device on a solid even surface. For ventilation, leave a free space of at least 10 cm all around the set. To prevent any fault and unsafe situations, do not place any objects on top of the set. Use this device in moderate climates. Operation temperature and operation humidity: 5^ C up to 45^ C, 85% rel. humidity max. (not blocking ventilation openings).

Intended Use

This device is used to receive and display TV programmes. The different connection options make an additional expansion of the reception and display sources possible (various external devices). This device is only suitable for the operation in dry interiors. This appliance is intended solely for private domestic use and may not be used for industrial and commercial purposes. We exclude liability in principle, if the device is not used as intended, or unauthorized modifications have been made. To operate your TV in extreme ambient conditions may cause the damage of the device.

WARNING: Never let people (including dren) with physical, sensory or mental ties or lack of experience and / or knowledge supervised use electrical device!

Children may not recognize dangers right! The swallowing of batteries can be fatal. Keep batteries always out of reach of small children. If a battery is swallowed, immediately seek medical attention. Keep the packaging films out of reach of children. Risk of suffocation.

Power source

- The TV should be operated only from a 220-240 V AC, 50 Hz outlet.

Warning: Do not leave your TV in standby or rating mode when you leave your house.

Positioning the TV

• For ventilation, please leave a clear space of at least 10cm all around the TV.
• Do not block the ventilation openings.
• Do not place the TV on sloping or unstable surfaces, the TV may tip over.
• To prevent damage to the TV, do not place any objects on top of the TV.
• Only use the TV in moderate climates.

Power cord and plug

• The power cord plug should be easily accessible. If there is lightning or storms, or if the TV is not going to be used for a while (e.g. if going away on holiday), disconnect the TV set from the mains.
• Do not place the TV, furniture, etc. on the power cord or pinch the cord.
• Handle the power cord by the plug, do not unplug the TV by pulling the power cord.
• Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.
• Never make a knot in the power cord or tie it with other cords.
• Power cords should be placed in such a way that they are not likely to be stepped on or provide a trip hazard.
• A damaged power cord/plug can cause fire or give you an electric shock. When damaged it must be replaced, this should only be done by qualified personnel.

Moisture and Water

• Do not use this TV in a humid or damp place (avoid using in the bathroom or near the kitchen sink)
• Do not expose this TV to rain or water, as this may be dangerous.
• If any solid object or liquid falls into the cabinet, unplug the TV and have it checked by qualified personnel before operating it any further.

Ventilation

• The slots and openings on the TV set are intended for ventilation and to ensure reliable operation.
• To prevent overheating, these openings must not be blocked or covered in any way.

Heat sources and Flames

• Do not expose the TV to direct sunlight or other heat sources.
• The TV should not be placed near open flames or sources of intense heat such as an electric heater.
• Ensure that no open flame sources, such as lit candles, are placed on top of the TV.

Headphone Volume

- Excessive sound pressure from earphones and headphones can cause hearing loss, please take care.

Wall Mounting (optional)

- To prevent injury, this TV must be securely attached to the wall in accordance with the installation instructions.

Screen

• Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green or red point. Please note that this does not affect the performance of your product.
  • Take care not to scratch the screen with fingernails or other hard objects.

Cleaning

• Before cleaning, unplug the TV from the wall socket.
• Do not use liquid

Environmental Information

This television is designed to consume less energy to help save the environment. You can not only help to save the environment but you can also save money by reducing your electricity bills thanks to the energy efficiency features of this TV. To reduce energy consumption, you should take the following steps:

You can use the Power Save Mode setting, located in the Picture menu. If you set the Power Save Mode as Eco, the TV will switch to energy-saving mode and the luminance level of TV set will be decreased to the optimum level. Note that some picture settings will be unavailable to be changed when the TV is in Power Save Mode.

If Picture Off is selected, "Screen will be off in 15 seconds." message will be displayed on the screen. Select PROCEED and press OK to continue. The screen will be off in 15 seconds.

If Picture Off is selected, "Screen will be off in 15 seconds." message will be displayed on the screen. Select PROCEED and press OK to continue. The screen will be off in 15 seconds. If you disable Power Save Mode, Picture mode will be automatically set to Dynamic.

When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.

Disconnect power when going away for longer time. It is highly recommended that you activate the Power Save Mode setting to reduce your annual power consumption. And also it is recommended to disconnect the TV from the mains plug to save energy more when you do not use.

Please helps us to save environment by following these steps.

Repair Information

Please refer all servicing to qualified personnel. Only qualified personnel must repair the TV. Please contact your local dealer, where you have purchased this TV for further information.

Accessories included

Remote Control

Batteries: 2 x AAA

Instruction Book

Side AV Connection Cable

TV - Features

• Remote controlled colour TV.
• Fully integrated digital/cable TV (DVB-TC).
• DVB-T2 Compliant.
• HDMI connectors for digital video and audio. This connection is also designed to accept high definition signals.
• USB input.
  • 1000 programmes.
• OSD menu system.
• Scart socket for external devices (such as video, video games, audio set, etc.).
• Stereo sound system.
• Teletext, fastext, TOP text.
  • Headphone connection.
  • Automatic programming system.
• Forward or backward manual tuning.
  • Automatic power down after up to six hours.
• Sleep timer.
• Child lock.
  • Automatic sound mute when no transmission.
• NTSC playback.
  • AVL (Automatic Volume Limiting).
• PLL (Frequency Search).
• PC input.
• Plug&Play for Windows 98, ME, 2000, XP, Vista, Windows 7.
• Game Mode (optional).
• Picture off function.

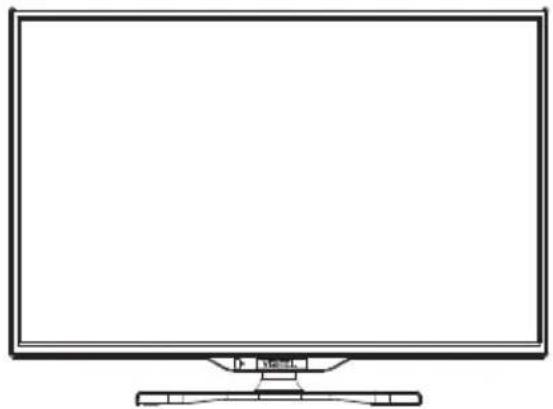

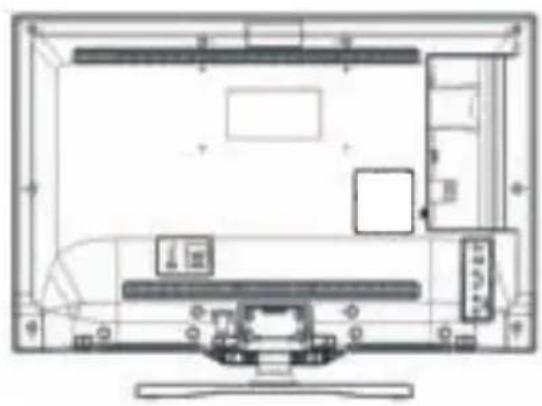

Viewing the TV TV Control button & Operation

Line drawing of a flat-screen monitor with no text or symbols on the screen or side

Top-down schematic of a computer monitor layout showing front, top, and side views (no text or labels)

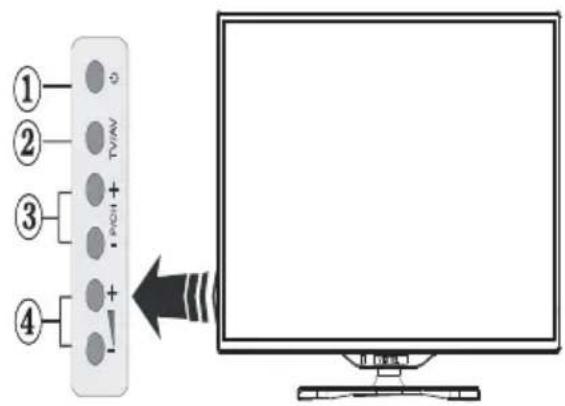

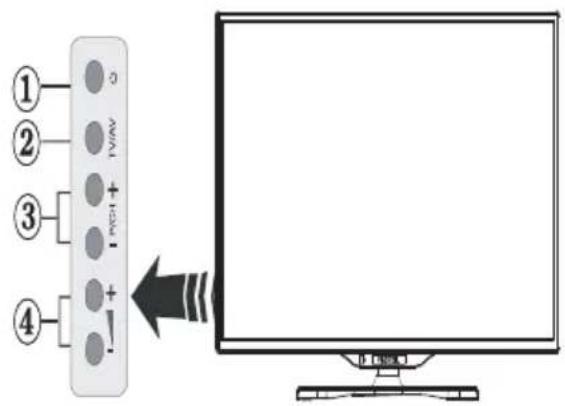

1. Standby button
2. TV/AV button
3. Programme Up/Down buttons
4. Volume Up/Down buttons

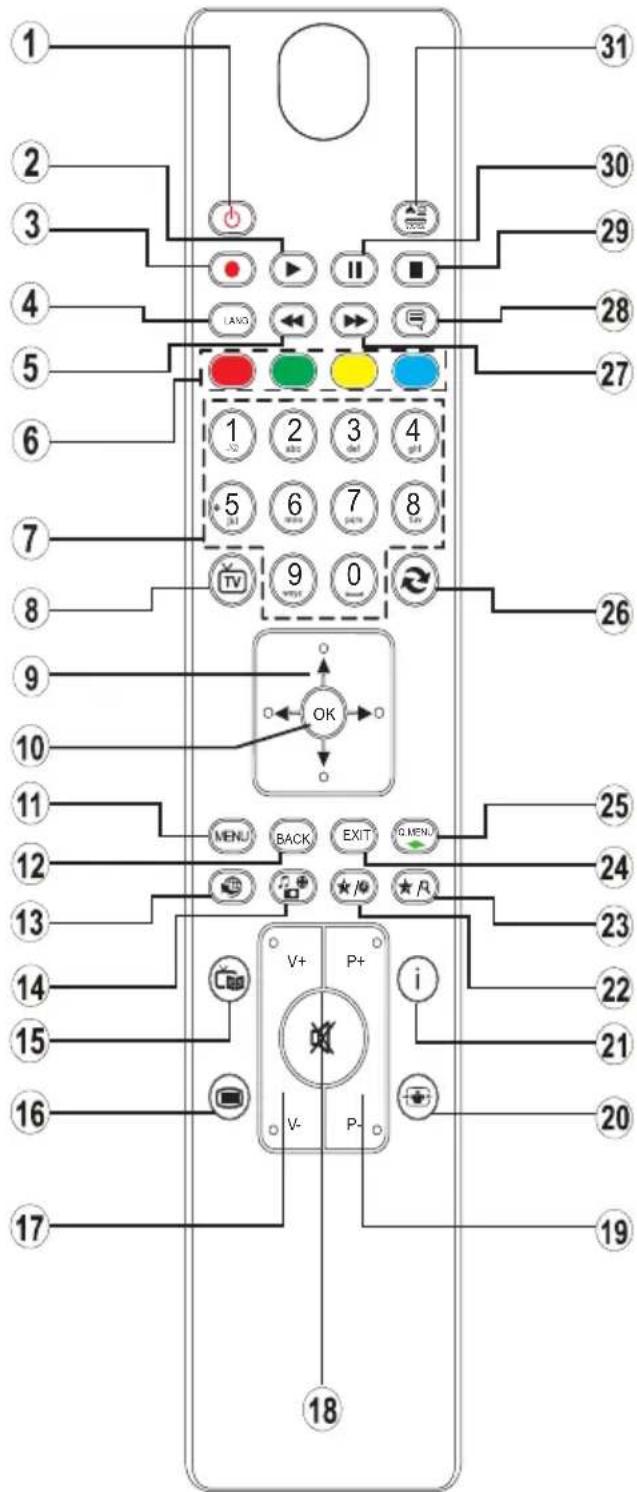

Viewing remote control - TV

1. Standby / On
2. Play (in media browser mode)
3. No function
4. Mono-Stereo Dual I-II / Current language
5. Fast rewind (in media browser mode)
6. Colored buttons
7. Numeric buttons
8. Channel list
9. Navigational buttons
10. Ok / Confirm
11. Menu on / off
12. Return / back
13. No function
14. Media browser
15. Electronic programme guide
16. Teletext - Mix
17. Volume up / down
18. Mute
19. Programme up / down
20. Image size
21. Info / Reveal (in TXT mode)
22. My button 1 (*)
23. My button 2: Switches between digital/cable/satellite broadcasts (**)
24. Exit
25. Quick menu
26. Previous programme / Now ( in EPG mode)
27. Fast forward (in media browser mode)
28. Subtitle on-off / Subtitle (in media browser mode)
29. Stop (in media browser mode)
30. Pause (in media browser mode)
31. AV / Source

NOTE: The Remote Control range is approximately 7m

/23ft.

Using My button 1 (\*)

Press MY BUTTON 1 for five seconds when on a desired source, channel or link, until the "MY BUTTON IS SET" message is displayed on the screen. This confirms that the selected MY BUTTON is now associated with the selected function.

Using My Button 2 (\*\*)

Press MY BUTTON 2 for five seconds when on a desired source, channel or link, until the "MY BUTTON IS SET" message is displayed on the screen. This confirms that the selected MY BUTTON is now associated with the selected function.

Viewing the Connections

Connector Type Cables Device
	Scart Connection (back)
	VGA Connection (back)
SIDE AV	PC/YPbPr Audio Connection (side)	Side Audio/Video Connection Cable (Supplied) PC Audio Cable (Not supplied)
	HDMI Connection (back)
SPDIF	SPDIF Connection (back)
SIDE AV	Side AV Connection (side)	AV Connection Cable (supplied)
HEADPHONE	Headphone Connection (side)
[BY2Y]	YPbPr Video Connection (back)	PC to YPbPr Connection Cable
[WDW]	USB Connection (side)
	CI Connection (side)

NOTE: When connecting a device via the Side AV input, you must use the supplied connection cables to enable connection. See the illustrations above. | YPbPr can be used only when you connect a device that has a YPbPr output through the PC input with YPbPr to PC cable (YPbPr to PC cable is not supplied). When the connection is made, switch to YPbPr source. To enable PC audio, you will need to use PC/YPBPR AUDIO CONNECTION WHITE & RED inputs. | If an external device is connected via the SCART socket, the TV will automatically switch to AV mode. | When receiving DTV channels (Mpeg4 H.264) or while in Media Browser mode, output will not be available via the scart socket. | When using the wall mounting kit (optional), we recommend that you plug all your cables into the back of the TV before mounting on the wall. | Insert or remove the CI module only when the TV is SWITCHED OFF. You should refer to the module instruction manual for details of the settings. Insert the CAM and then the viewing card to the slot that is located in the terminal cover at the rear side of the TV. The module should be correctly inserted, it is impossible to insert fully if reversed. The CAM or the TV terminal may be damaged if the CAM is forcefully inserted.

Using a Conditional Access Module

IMPORTANT: Insert or remove the CI module only when TV is SWITCHED OFF.

In order to watch certain digital channels, a conditional access module (CAM) can be necessary. This module must be inserted in the CI slot of your TV.

1. Obtain the Conditional Access Module (CAM) and the viewing card by subscribing to a pay channel company, then insert those to the TV using the following procedure.
2. Insert the CAM and then the viewing card to the slot that is located in the terminal cover at the rear side of the TV.
3. The CAM should be correctly inserted, it is impossible to insert fully if reversed. The CAM or the TV terminal may be damaged if the CAM is forcefully inserted.
4. Connect the TV to the mains supply, switch on and then wait for few moments until the card is activated.
5. When no module is inserted, "No Common Interface module detected" message appears on the screen.

You can refer to the module instruction manual for details of the settings.

Standby Notifications

If the TV does not receive any input signal (e.g. From an aerial or HDMI source) for 5 minutes, the TV will go into standby. When you next switch-on the TV, the following message will be displayed:

When the Auto Tv Off timeout is reached, the following message will be displayed on the screen. Select YES to shut down the TV. Select NO to cancel. The TV will switch off as well, if you do not make a selection on this screen.

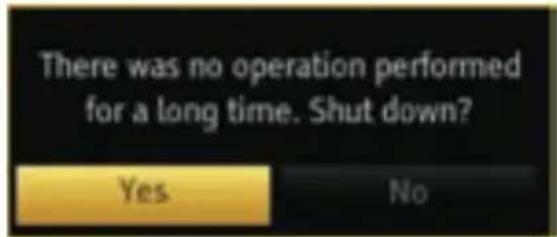

If the TV has been left on and not been operated for 4 hours, the TV will go into standby. When you next switch-on, the following message will be displayed:

Installing the Batteries to the Remote

1. Lift the cover on the back of the remote upward gently.
2. Install two AAA batteries. Make sure to match the + and - ends of the batteries in the battery compartment (observe the correct polarity.
3. Replace the cover.

Close-up of a battery cell with positive and negative charge indicators (no text or symbols on the cell itself)

Connect Power & Antenna

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz socket. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet.

Switching On/Off

To Switch the TV On

Connect the power cord to the 220-240V AC, 50 Hz.

To switch on the TV from standby mode either:

Press the "☐" button, P+ / P- or a numeric button on the remote control.

Press the "○" or P/CH+/- button on the TV.

To Switch the TV Off

Press the "button on the remote control or press the side function switch until the TV switches into standby mode.

To power down the TV completely, unplug the power cord from the mains socket.

Note: When the TV is switched to standby mode, the standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode.

First Time Installation

When turned on for the first time, the "language selection" menu appears. The message "Welcome please select your language!" is displayed in all language options listed alphabetically.

Press the “” or “” button to highlight the required language, press OK button to select. “First Time Installation” appears. Use “<” or “>” button to set the required country, and press “” button to select Search Type. Use “<” or “>” to set the desired search type. Available search types are Digital and analog, digital only and analog only. When set, press “” to select Teletext Language. Use “<” or “>” button to set the “Teletext Language” and select “Scan Encrypted” using “^” or “\~” button. You can set Scan Encrypted as Yes if you want to scan coded stations.

Default PIN code can change depending on the selected country.

If you are asked to enter a PIN code for viewing a menu option, use one of the following codes: 4725, 0000 or 1234.

Press OK button on the remote control to continue and the following message will be displayed on the screen.

You can activate Store mode option by using “<” or “>” button. If Store Mode (optional) is selected, Store mode option will be available in other settings menu and your TV's settings will be optimized for best display quality. A confirmation screen will be displayed after selecting the Store Mode. Select YES to proceed.

If Home Mode is selected, Store mode will not be available after the First Time Installation. Press OK button on the remote control to continue and the following message will be displayed on the screen.

You must select YES to search and store broadcasts. The television will search for digital terrestrial TV broadcasts.

NOTE: You can press MENU button to cancel.

After all the available stations are stored, Channel List will be displayed on the screen. If you like the sort channels, according to the LCN(*), please select "Yes" and then press OK.

Press OK button to quit channel list and watch TV. (*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel sequence.

Media Playback via USB Input

You can connect a USB hard disk drive or USB memory stick to your TV by using the USB inputs of the TV. This feature allows you to play files stored in a USB drive. 2.5" and 3.5" inch (hdd with external power supply) external hard disk drives are supported.

IMPORTANT! You should back up your files before making any connections to the TV set in order to avoid any possible data loss. Manufacturer will not be responsible for any file damage or data loss. It is possible that certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. Note: While formatting a USB hard disk that has 1TB (Tera Byte) or more file capacity, you can experience problems with the formatting process.

Quickly plugging and unplugging USB devices, is a very hazardous operation. Do not repeatedly quickly plug and unplug the drive. This may cause physical damage to the USB player and USB device itself. Do not pull out USB module while playing a file.

Media Browser Menu

You can play photo, music, and movie files stored on a USB disk by connecting it to your TV and using the Media Browser screen. To do this, perform the following: Connect a USB disk to one of the USB inputs located on the side of the TV.

You can connect two USB devices to your TV. If both USB devices include music, picture or video files, USB selection OSD will be displayed on the screen. The first USB device connected to the TV will be named as USB Drive1. Select a device by using “” or “” button and press OK.

Press MENU button and select Media Browser tab by using Left/Right and OK buttons. Main media browser screen will be displayed. You can display the related content by selecting the Video, Music or Picture tab. Follow the button indications under each on screen menu for media playback features.

You can set your Media Browser preferences by using the Settings dialog.

Using MENU button in Media Browser Mode

Pressing MENU button in Media Browser mode displays the following menu screen:

You can access Picture, Sound and Settings menu options using this screen. Press MENU again to exit from this screen.

Changing Image Size: Picture Formats

Programmes can be watched in different picture formats, depending on the transmission received. You can change the aspect ratio (image size) of the TV for viewing the picture in different zoom modes. Press "button repeatedly to change the image size. You can shift the screen up or down by using "or " buttons while in, 14:9 Zoom, Cinema or Subtitle.

Using the Channel List

The TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options. Press MENU button to view main menu. Select Channel List item by using Left or Right button. Press OK to view menu contents. Select Edit Channel List to manage all stored channels. Use Up or Down and OK buttons to select Edit Channel List. Press Up or Down button to select the channel that will be processed. Press Left or Right button to select a function on Channel List menu. Use P+/P- buttons to move page up or down. Press MENU button to exit.

Sorting Channel List

You can select broadcasts to be listed in the channel list. To display specific types of broadcast, you

should use Active channel list setting. Select Active channel list from the Channel list menu by using “^” or “^” button. Press OK button to continue. You can select a network type option from the list by using “^” or “^” and OK buttons.

Quick Menu

Quick Settings menu allows you to access some options quickly. This menu includes Power Save Mode, Picture Mode, Equalizer Settings, Favourites and Sleep Timer options. Press Q.MENU button on the remote control to view quick menu. See the following chapters for the details of the listed features.

Menu Features and Functions

Picture Menu Contents
Mode	For your viewing requirements, you can set the related mode option. Picture mode can be set to one of these options: Cinema, Game, Dynamic , Sport and Natural.
Contrast Sets the lightness and darkness values of the screen.
Brightness Sets the brightness value for the screen.
Sharpness Sets the sharpness value for the objects displayed on the screen.
Colour Sets the colour value, adjusting the colors.
Power Save Mode	To set Power Save Mode as Eco, Picture Off and Disabled. See the section, "Environmental Information" in this manual for further information on Power Save Mode.
Backlight (optional)	This setting controls the backlight level and it can be set to Auto, Maximum, Minimum and Eco Mode. Backlight function will be inactive if Power Save Mode is set to On. Backlight cannot be activated in VGA, Media Browser mode or while the picture mode is set to Game.
Noise Reduction	If the broadcast signal is weak and the picture is noisy, use Noise Reduction setting to reduce the noise amount. Noise Reduction can be set to one of these options: Low, Medium, High or Off.
Advanced Settings
Dynamic Contrast	You can change contrast rate by using dynamic contrast function. Dynamic contrast can be set to one of these options: Low, Medium, High or Off.
Colour Temp Sets the desired colour tone.
Picture Zoom Sets the picture size to Auto,16:9, Subtitle,14:9, 14:9 Zoom, 4:3 or Cinema.
HDMI True Black	While watching from HDMI source, this feature will be visible in the Picture Settings menu. You can use this feature to enhance blackness in the picture.
Film Mode	Films are recorded at a different number of frames per second to normal television programmes. Turn this feature on when you are watching films to see the fast motion scenes clearly.
Skin Tone Adjust the desired skin tone.
Colour Shift Adjust the desired colour tone.
RGB Gain	Press OK button to edit RGB gain. You can configure the colour temperature values using the RGB Gain feature.
Reset	Resets the picture settings to factory default settings.
Autoposition (in PC mode)	Automatically optimizes the display. Press OK to optimize.
H Position (in PC mode)	This item shifts the image horizontally to right hand side or left hand side of the screen.
V Position (in PC mode)	This item shifts the image vertically towards the top or bottom of the screen.
Dot Clock (in PC mode)	Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
Phase (in PC mode)	Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method.
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.

Menu Features and Functions

Sound Menu Contents
Volume Adjusts volume	level.
Equalizer:	In equalizer menu, the preset can be changed to Music, Movie, Speech, Flat, Classic and User. Press the MENU button to return to the previous menu. Equalizer menu settings can be changed manually only when the Equalizer Mode is in User.
Balance	This setting is used for emphasizing left or right speaker balance.
Headphone	Sets headphone volume.
Sound Mode	You can select Mono, Stereo, Dual I or Dual II mode, only if the selected channel supports that mode.
AVL	Automatic Volume Limiting (AVL) function sets the sound to obtain fixed output level between programmes (For instance, volume level of advertisements tend to be louder than programmes).
Headphone/Lineout	When you connect an external amplifier to your TV using the headphone jack, you can select this option as Lineout. If you have connected headphones to the TV, set this option as Headphone.
Dynamic Bass Enables	or disables the Dynamic Bass.
Surround Sound Surround	sound mode can be changed as On or Off.
Digital Out Sets digital out audio type.
Install and Retune Menu Contents
Automatic Channel Scan (Retune)	Displays automatic tuning options.Digital Aerial: Searches and stores aerial DVB stations.Digital Cable: Searches and stores cable DVB stations.Analogue: Searches and stores analogue stations.Digital Aerial & Analogue: Searches and stores aerial DVB and analogue stations.Digital Cable & Analogue: Searches and stores cable DVB and analogue stations.
Manual Channel Scan	This feature can be used for direct broadcast entry.
Analogue Fine Tune	You can use this setting for fine tuning analogue channels. This feature is not available if no analogue channels are stored.
First Time Installation	Deletes all stored channels and settings, resets TV to factory settings and starts first time installation. You can follow the instructions in the Initial Installation section for more information on this process.Factory-default PIN number is 0000.
Clear Service List	(*) This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland. Use this setting to clear channels stored.

Menu Features and Functions

Settings Menu Contents
Conditional Access Controls conditional access modules when available.
Language Configures language settings.
Parental	Configures parental settings.Default PIN code can change depending on the selected country.If you are asked to enter a PIN code for viewing a menu option, use one of the following codes: 4725, 0000 or 1234.
Timers Sets timers for selected programmes.
Date/Time Sets date and time.
Sources Enables or disables selected source options.
Other Settings: Displays other setting options of the TV set:
Menu Timeout Changes timeout duration for menu screens.
Scan Encrypted	When this setting is on, search process will locate the encrypted channels as well. If it is set as Off, encrypted channels will not be located in automatic search or manual search.
Blue Background	Activates or deactivates blue background system when the signal is weak or absent.
Software Upgrade	To ensure that your TV always has the most update information, you can use this setting. In order for the proper operation, please ensure that the TV is set to standby mode.
Application Version Displays application version.
Hard of Hearing	If the broadcaster enables any special signal concerning the audio, you can set this setting as On to receive such signals.
Audio Description	Audio description refers to an additional narration track for blind and visually impaired viewers of visual media, including television and movies. You can use this feature, only if the broadcaster supports that additional narration track.
Auto TV Off	You can set the timeout value of auto off feature.After the timeout value is reached and the Tv is not operated for selected time , the TV will go off.
Standby Search (optional)	If you change Standby Search to Off, this function will be unavailable. To use Standby search please make sure that you select Standby Search as On. If the Standby Search is set to On, when the TV is in standby mode, available broadcasts will be searched. If the TV locates any new or missing broadcasts, a menu screen will be displayed, asking you whether or not to execute these changes. Channel list will be updated and changed after this process. Please activate Standby Search setting in order to enable your TV for automatically updating the broadcast frequency of the broadcaster, broadcast definition and similar changes.
Store Mode	If you are displaying the TV in a store, you can activate this mode. While Store Mode is enabled, some items in the TV menu may not be available to be set.
Power Up Mode	This setting configures the power up mode preference. Always On: The TV always switches on when main on/off button is pressed. / Standby: The TV always powers up in Standby mode. / Last State: The TV always switches on with the last selected channel/source.

Electronic Programme Guide (EPG)

Some, but not all channels send information about the current and next programmes. Press the "L" button to view the EPG menu.

Up/Down/Left/Right: Navigate EPG.

Red button (Prev Day): Displays the programmes of previous day.

Green button (Next day): Displays the programmes of the next day.

Yellow button (Zoom): Expands programme information.

Blue button (Filter): Views filtering options.

SUBTTL: Press button to view Select Genre menu. Using this feature, you can search the programme guide database in accordance with the genre. Info available in the programme guide will be searched and results matching your criteria will be listed.

INFO(I): Displays, in detailed, information on the programme selected.

Numeric buttons (Jump): Jumps to the preferred channel directly via numeric buttons.

OK: Displays programme options.

Text (Search): Displays "Guide Search" menu.

SWAP (Now) : Shows the current programme.

Teletext

“teletext / Mix: Activates teletext mode when pressed once. Press again to place the teletext screen over the programme (mix). Pressing again will quit the teletext mode.

"BACK" Index: Selects the teletext index page.

“I” Reveal: Shows hidden information (e.g. solutions of games).

"OK" Hold: Holds a text page when convenient. Press again to resume.

“”/“” Subcode Pages: Selects subcode pages if available when the teletext is activated.

P+ / P- and numbers (0-9): Press to select a page.

Note: Most TV stations use code 100 for their index pages.

Your TV supports both FASTEXT and TOP text systems. When these systems are available, the pages are divided into groups or topics. When FASTEXT system is available, sections in a teletext page will become colour-coded and can be selected by pressing the coloured buttons. Press a coloured button that corresponds to with your needs. The coloured writings will appear, showing you which coloured buttons to use when TOP text transmission is present. Pressing “” or “” commands will request the next or previous page respectively.

Digital Teletext (for UK only)

- Press the 📄 button. The digital teletext information appears. Operate it with the coloured buttons, cursor buttons and OK button.

The operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on digital teletext screen.

When the "☐" button is pressed again, the TV returns to television broadcasting.

Software Upgrade

Your TV is capable of finding and updating new software upgrades over broadcast channels. For broadcast channels search, TV looks the available channels stored in your settings. So before software upgrade search, it is advised to auto search and update all available channels.

1) Software upgrade search via user interface

• It is possible manually to check if there is a new software upgrade for your TV set.
• Simply navigate on your main menu. Choose Settings and select Other Settings menu. In Other Settings menu navigate on to the Software Upgrade item and press OK button to open Upgrade Options menu.
• In Upgrade Options menu select Scan for upgrade and press OK button.
• If a new upgrade is found, it starts to download the upgrade. A progress bar indicates the remaining download progress. When download completes with success a message is displayed for reboot to activate new software. Press OK to continue with the reboot operation.

2) 3.AM search and upgrade mode

- If Automatic scanning in Upgrade Options menu is enabled, TV wakes up at 03:00 and searches broadcast channels for new software upgrade. If new software is found and downloaded successfully, with next power up TV opens with new software version.

Note on reboot operation: Reboot is the last step in software upgrade operation if download of new software is finished successfully. During reboot TV makes final initialization. In reboot sequence panel power is closed and front led indicates the activity with blinking. Around 5 minutes later TV restarts with new software activated.

- If your TV fails to restart in 10 minutes, unplug power for 10 minutes and re-plug again. TV should open with new software safely. If you still can not get TV working, please kindly repeat unplug and plug sequence a few times more. If your set still can not operate, please call the service personnel to fix the problem for you.

Caution: While led is blinking during reboot do not unplug your TV's power. Doing this may cause your TV not to re-open again and can only be fixed by service personnel.

Troubleshooting & Tips

Image persistence - ghosting

Please note that ghosting may occur while displaying a persistent image (still or paused image). TVs' image persistence may disappear after a short time. Try turning off the TV for a while. To avoid this, do not leave the screen in still picture mode for extended periods.

No power

If your TV has no power, please check the power cord plug is connect to the mains power socket.

Poor picture

1. Have you selected the correct TV system?
2. Is your TV or house aerial located too close to a non-earthed audio equipment or neon lights, etc.?
3. Mountains or high buildings can cause double pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial. Is the picture or teletext unrecognisable?
4. Check if you have entered the correct frequency.
5. Please retune the channels.
6. The picture quality may degrade when two devices are connected to the TV at the same time. In such a case, disconnect one of the devices.

No picture

1. No Picture means that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more. Also make sure the correct input source has been selected.
2. Is the aerial connected properly?
3. Are the plugs connected tightly to the aerial socket?
4. Is the aerial cable damaged?
5. Are suitable plugs used to connect the aerial?
6. If you are in doubt, consult your dealer.

No sound

1. Has the TV been set to mute? To cancel mute, press the "×" button, or increase the volume level.
2. Sound is coming from only one speaker. Is the balance set to one extreme? See Sound Menu section.

Remote control - does not operate

Your TV no longer responds to the remote control. The batteries may be exhausted, if so you can still use the control buttons on the TV. (* Is only possible if they are not blocked by parental control.)

Input sources - can not be selected

1. If you cannot select an input source, it is possible that no device is connected.
2. Check the AV cables and connections if you have tried to connect a device.

Information for Users on Disposal of Old Equipment and Batteries

[European Union only]

These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

PC Typical Display Modes

The following table is an illustration of some of the typical video display modes. Your TV may not support all resolutions. Your TV supports up to 1920x1200.

Index Resolution Frequency
1	x400 70Hz
2	x350 85Hz
3	x400 85Hz
4	x480 60Hz
5	x480 66Hz
6	x480 72Hz
7	x480 75Hz
8	x480 85Hz
9	x600 56Hz
10	0x600 60Hz
11	0x600 70Hz
12	0x600 72Hz
13	0x600 75Hz
14	0x600 85Hz
15	2x624 75Hz
16	24x768 60Hz
17	24x768 66Hz
18	24x768 70Hz
19	24x768 72Hz
20	24x768 75Hz
21	24x768 85Hz
22	52x864 60Hz
23	52x864 70Hz
24	52x864 75Hz
25	52x864 85Hz
26	52x870 75Hz

27	80x768 60Hz
28	60x768 60Hz
29	80x768 75Hz
30	80x768 85Hz
31	80x960 60Hz
32	80x960 75Hz
33	80x960 85Hz
34	80x1024 60Hz
35	80x1024 75Hz
36	80x1024 85Hz
37	00x1050 60Hz
38	00x1050 75Hz
39	00x1050 85Hz
40	40x900 60Hz
41	40x900 75Hz
42	00x1200 60Hz
43	80x1050 60Hz
44	20x1080 60Hz
45	20x1200 60Hz

Specifications

TV BROADCASTING

PAL/SECAM B/G D/K K' I/I' L/L'

DIGITAL RECEPTION

DVB-T MPEG2

DVB-T MPEG4 HD

DVB-T MHEG-5 Engine (for UK only)

RECEIVING CHANNELS

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

NUMBER OF PRESET CHANNELS

1000

CHANNEL INDICATOR

On Screen Display

RF AERIAL INPUT

75 Ohm (unbalanced)

OPERATING VOLTAGE

220-240V AC, 50 Hz.

AUDIO

German + Nicam Stereo

AUDIO OUTPUT POWER (W _RMS. ) (10% THD) 2 x 6

POWER CONSUMPTION (W) 65 W (max)

PANEL 16:9

Licence Notifications

Manufactured under license from Dolby Laboratories.

TRADEMARK ACKNOWLEDGMENT

and the double-D symbol are trademarks of Dolby Laboratories.

DOLBY. DIGITAL PLUS

"HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC."

HIGH-DEFINITION MULTIMEDIA INTERFACE

Supported File Formats for USB Media Browser

Media Extension Format Notes
Movie	mpg, mpeg	Mpeg1,2 MPEG1/2 Layer 1/2/3, AAC/HEAAC, AC3/EAC3, LPCM/ADPCM		1080P@ 30fps 50Mbit/sec
	dat, mpg, mpeg	MPEG2 ,H.264, VC1, AVS, MVC	MPEG1/2 Layer 1/2/3, AAC/HEAAC, AC3/EAC3, LPCM/ADPCM	H.264:1080Px2@25fps 1080P@ 50fps MVC: 1080P@ 24fps Other: 1080P@ 30fps" 50Mbit/sec
	.vob MPEG2	MPEG1/2 Layer 1/2/3, AC3,	LPCM 1080P@ 30fps 50Mbit/	sec
	.mkv MPEG	1,2,4, XviD, H.264, VC1,WMV3, Motion JPEG	MPEG1/2 Layer 1/2/3, AAC/HEAAC, AC3/EAC3, LPCM	H.264:1080Px2@25fps 1080P@ 50fps Other:1080P@ 30fps 50Mbit/sec
	.mp4 .mov	MPEG1/2 Layer 3, AAC/HEAAC,	AC3/EAC3, LPCM/ADPCM	H.264: 1080Px2@25fps 1080P@ 50fps Other: 1080P@ 30fps 50Mbit/sec
	.avi MPEG1	2,4 Xvid H.264, VC1,WMV3, Sorenson H.263 Motion JPEG	MPEG1/2 Layer 1/2/3, AAC/HEAAC, AC3/EAC3, LPCM/ADPCM, WMA	H.264: 1080Px2@25fps 1080P@ 50fps Other: 1080P@ 30fps" 50Mbit/sec
	flv H.264,	Sorenson H.263	MPEG1/2 Layer 3, AAC/HEAAC, LPCM/ADPCM	H.264: 1080Px2@25fps 1080P@ 50fps Other: 1080P@ 30fps" 50Mbit/sec
	3gp,3g2 MPE	EG4, H.264 1920x1080 @ 30P		20Mbit/sec
	asf, wmv MPE	EG2,4, XviD, H.264, VC1,WMV3	MPEG1/2 Layer 1/2/3, AAC/HEAAC, AC3/EAC3, LPCM, WMA	1080P@ 30fps 50Mbit/sec
Music	3	-	MPEG1 Layer 1/2/3 (MP3)
	.wav LPCM
	WMA/ASF WMA, WMA Pro
	.m4a/.aac AAC, HEAAC
Photo	.jpg .jpeg	Baseline JPEG		MAX WxH = 14592x12288 Up to 8 MegaByte
	.png	Progressive JPEG
	.bmp	non-interlace
	.png	interlace
Subtitle	sub	-	-
	srt	-	-

Supported DVI Resolutions

When connecting devices to your TV's connectors by using DVI converter cables (not supplied), you can refer to the following resolution information.

	56Hz 60Hz	66Hz 70Hz	72Hz 75Hz
640x400				☑
640x480		☑ ☑	☑ ☑
800x600	☑ ☑	☑ ☑ ☑
832x624						☑
1024x768		☑ ☑	☑ ☑ ☑
1152x864		☑ ☑	☑
1152x870						☑
1280x768		☑
1360x768		☑				☑
1280x960		☑				☑
1280x1024		☑				☑
1400x1050		☑				☑
1440x900		☑				☑
1600x1200		☑
1680x1050		☑
1920x1080		☑
1920x1200		☑

A	Product Fiche
B	Commercial Brand: FINLUX
C	Product No. 10088742
D	Model No. 32FLK242BW
E	Energy efficiency class A
F	Visible screen size (diagonal, approx.) (inch/cm)	32 inches 81 cm
G	On mode average power consumption (Watt)	41
H	Annual energy consumption (kWh/annum)	59
I	Standby power consumption (Watt)	0,5
J	Off mode power consumption (Watt)	0
K	Display resolution (px) 1366	x 768

	A B C D E F
English	Product Fiche Commercial Brand Product No. Model No. Energy efficiency class					Visible screen size (diagonal, approx.) (inch/cm)
Deutsch	Produkt-Datenblatt	Markenzeichen	Produkt-Nr.	Modell-Nr.	Energieeffizienzklasse	Sichtbare Biöschirmgroße (diagonal,ca.) (Zoll /cm)
عربي	دابس المنتج	العلامة اتجارية تفويткиns	رقم المنتج	كم الموديل	نثة فعالية الطاقة	البوصّه/سم) حجم الشائعة المربئية (ق *)ت *ر *ي)
Български	Справочен лист с техническите данни	Търговска марка	Продукт No	Модел No	Клас на енергийна ефективност	Видим размер на екрана (диагонал,прибл.) (инча /см )
čeština	Informační list	Značka výrobce	Čísло produktu	Model č.	Energetická třída	Viditelná velikost obrazovky (ühlopříčka,přibl.)(palcú /cm)
Dansk	Produktoplysningsskema	Varemærke	Produktnr.	Model nr.	Energieffektivitetsklasse	Synlig skærmstørrelse (diagonalt,ca.) (HK/cm)
Suomi	Tuote fiche	Kaupallinen merkki	Tuote nro.	Malli nro.	Virran tehokkuusluokka	Näkyvän kuvaruudun koko (diagonaalinen,n.) (tuumaa/cm)
Français	Fiche du produit	Marque commerciale	Produit N°	Modèle N°	Classe d'efficacité énergétique	Taille d'écran visible (diagonale,approx (pouces/cm)
Hrvatski	SAŽETAK PROIZVODA	Trgovačka marka	Br. proizvoda	Br. modela	Klasa energetske učinkovitosti	Vidljva velicina ekrana (dijagonalna,približno) (inča/cm)
Nederlands	Productliche	Commercieel merk.	Productnr.	Modelnr.	Energie efficiëntie klasse	Zichtbare schermgrootte (diagonaal,ca.) (inches/cm)
Español	Ficha del Producto	Marca Comercial	No de Producto	No de Modelo	Clasificación Energética	Tamaño de pantalla visible (diagonal,aprox.) (pulgadas/cm)
Svenska	Produktspecifikation	Varumärke	Produktnr.	Modellnr.	Energiklass	Synlig skärmstorlek (diagonal,ungefärlig) (tum/cm)
Italiano	Scheda prodotto	Marchio commerciale	Numero prodotto	Numero modello	Classe di efficienza energetica	Dimensioni visibili dello schermo (diagonale,circa)(pollici/cm)
Polski	KARTA PRODUKTU	Marka produktu	Nr produktu	Nr modelu	Klasa efektywności energetycznej	Widoczny obraz ekranu (przekątna,okolo)(cali/cm)
Magyar	Termékismertető adatlap	Kereskedelmi marka	Termékszám	Modellszám	Energiahatékonysági osztály	Látható képtartomány (diagonális,kb.) (inches/cm)
Norsk	Produktinformasjon	Kommersiell merkevare	Produkt nr.	Modell nr.	Energieffektivitet klasse	Synlig skjermstørrelse (diagonal, ca.) (tommer/cm)
Português	Ficha do produto	Marca Comercial	Produto No	Modelo No	Classificação eficiência energética	Tamanho ecrà visivel (diagonal, aprox. (polegadas/cm)
Română	Fişă produs	Marcă comercială	Nr. Produs	Nr. Model	Clasa de eficiență energetică	Dimensiunea ecranului vizibil (diagonală, aprox.) (inch/cm)
Русский	Справочный листок технических данных изделия	Торговая марка	Номер изделия	Номер модели	Класс энеропотребления	Видимый размер экрана (по диагонали, Около) (дюймов/см)
беларуская	Справочный листок технических данных изделия	Торговая марка	Номер изделия	Номер модели	Класс энеропотребления	Видимый размер экрана (по диагонали,Около)(дюймов/см)
македонски	Технички податоци	Комерцијална марка	Производ бр.	Модел бр.	Класа на енергетска ефикасност	Големина на видлив екран (дијагонала,околу) (инчи/cm)
український	Технічні дані	Кормеційна марка	Артикул	Модель	Клас енергоспоживання	Видимий розмір екрана (диагональ, Приблизно) (дюймів/см)
Srpski	Tehničke odlike	Komercijalna marka	Proizvod br.	Model br.	Klasa energetske efikasnosti	Veličina vidljivog ekrana (dijagonala, tokom) (inča/cm)
Slovenčina	Informačný list	Značka výrobcu	Čísло produktu	Model č.	Energetická trieda	Viditelná velikost'obrazovky (uhlopriečka,zhruba) (palcov/cm)
Slovenščina	Opis izdelka	Komercialna znamka	Št. İzdelka	Št. Modela	Razred energetske učinkovitosti	Vidna velikost zaslona (diagonala, pribl.) (palcev/cm)
Еллянік	Делтіо троїо́вто́ς	Емторіко о́н́ма	Ар. Проїо́вто́ς	Ар. Монтёлou	Катногоріа еверyeιακής απόδοσης	Орато’ μέγεθος οθόνης (διαγώνιος, περ.) (IVTOEC/cm)
Bosanski	Tehnički podaci	Komercijalna marka	Produkt br.	Model br.	Klasa energetske efikasnosti	Vidljiva veicina ekrana (diagonala, približno.) (inča/cm)
لاوي	لاوي عُمْتَدِ	لاوي عُمْتَدِ	لاوي عُمْتَدِ	لاوي عُمْتَدِ	لاوي عُمْتَدِ	لاوي عُمْتَدِ
Türkçe	Ürün fişi	Ticari Marka	Ürün No.	Model No.	Enerji verimiliği sınıfı	Görülen ekran boyutu (çapraz,yakışk.) (inc/cm)
Shqip	Tê dhēnat e produktit	Marka tregtare	Nr. i produktit.	Nr. i modelit.	Klasa e eficiencês sè energjisè	Madhésia e ekranit tè dukshēm (diagonal, afērsisht) (inc/cm)
Lietuvių	Gaminio etiketė	Gamintojas	Gaminio Nr.	Modelio Nr.	Energetinio efektyvumo klasé	Matomas ekran óyois (istnzaïne, approx.) (coliy/cm)
Latviešu	Produkta apraksts	Marka	Produkta nr.	Modela nr.	Energoefektivitätes klase	Ekrána izmērs (pa diognāli, apmçram) (collas/cm)
Eesti	TOOTEKIRJELDUS	Tootja firma	Toote nr.	Mudeli nr.	Energiaklass	Vaadatava ekraani suurus (diagonaal, umbes) (tolli/cm)
فارسی	مشخصک محصول	مارک تجاری	stmاره محصول	stmاره مثل	گروه کارآبی اترزی	اندارا صفحه قابل مشاهده (هنستی، قریبا - إبچ) (سانتی متر)

	GHIJ	K
English	On mode average power consumption (Watt)	Annual energy consumption (kWh/annum)	Standby power consumption (Watt)	Off mode power consumption (Watt)	Display resolution (px)
Deutsch	Durchschnittlicher Stromverbrauch im eingeschaltetem Zustand (Watt)	Jährlicher Energieverbrauch (kWh/Jahr) Standby-Stromverbrauch (Watt)		Stromverbrauch im ausgeschaltetem Zustand (Watt) Display-Auflösung (px)
عربية		متوسط استهلاك الطاقة عند النشعت (والمط)	الاستهلاك الطاقة في و pigment الاستعاد (والمط)	استهلاك الطاقة في و pigment الإيفر (والمط)	outdoors الشاشة (بکمل)
Български	Средна консумация на електроенергия във включено състояние(Watt)	Годишна консумация на електроенергия (kWh/Годишна)	Консумация на електроенергия в режим на готовност (Watt)	Консумация на електроенергия в изключено състояние (Watt)	Разделителна способност на дисплея(ликсела)
čeština	Prüměrná spotřeba elektrické energie v zapnutém režimu (Wattu)	Roční spotřeba energie (kWh/Roční)	Spotřeba elektrické energie v pohotovstním režimu (Wattů)	Spotřeba elektrické energie ve vypnutém režimu (Wattů) Rozilšení disploje (px)
Dansk	Gennemsnitligt stromforbrug i taëndt tilstand (Watt)	Ärligt energiforbrug (kWh/Ärligt)	Strømforbrug (standby)(Watt)	Strømforbrug i slukket tilstand (Watt)	Skærmoplopsning (px)
Suomi	Păällă-tilan keskimâäräinen virrankulutus (Wattia)	Vuosittainen sähkönkulutu (kWh/Vuosittainen)	Vakiovirran kulutus (Wattia)	Pois-tilan virrankulutus (Wattia)	Năytôn erottelukyky (pikselia)
Français	Consommation énergétique moyenne en mode "marche" (Watt)	Consommation énergétique annuelle (kWh/annuel)	Consommation d'énergie en veille (Watt)	Consommation d'énergie en mode "arrêt" (Watt)	Résolution de l'écran (px)
Hrvatski	Prosječna potrošnja el. energije kada je proizvod uključen (Watta)	Godišnja potrošnja el. Energije (kWh/Godišnja)	Potrošnja el. energije u modu pripravnosti (Watta)	Potrošnja el. energije kada je proizvod isključen (Watta)	Rezolucija zaslona (piksela)
Nederlands	Aan-modus gemiddeld stroomverbruik (Watt)	Jaarlijks energieverbruk(kWh/Jaarlijks )	Stand-by stroomverbruik (Watt)	Uit-modus stroomverbruik (Watt)	Schemresolutie (px)
Español	Consumo eléctrico medio, en funcionamiento (Vatio)	Consumo eléctrico anual (kWh/anual) Consumo en modo en espera (Vatio)		Consumo eléctrico modo apagado (Vatio)	Resolución de pantalla (px)
Svenska	Strômkonsumtion i PÀ-läge (Watt)	Energikonsumtion per år (kWh/Årlig)	Strômkonsumtion i viloläge (Watt)	Strômkonsumtion i AV-läge (Watt)	Skärmupplösning (pixlar)
Italiano	Consumo di corrente medio da accesa (Watt)	Consumo annuale di energia (kWh/annuo)	Consumo di corrente in modalità standby (Watt)	Consumo di corrente da spenta (Watt)	Risoluzione del display (px)
Polski	Średnie zużycie energii w trybie wiączonym (Watów)	Roczne zużycie energii (kWh/Roczne)	Średnie zużycie energii w trybie oczekiwania (Watów)	Zużycie energii w trybie wyłączonym (Watów)	Rozdziełkość obrazu (pikselii)
Magyar	Energiafogyasztás bekapcsolva hagyott üzemmódban (Watt) Éves energiafogyasztás	(kWh/Éves)	Energiafogyasztás standby üzemmódban (Watt)	Energiafogyasztás kiqapcsolt üzemmódban (Watt)	Képernyőfelbontás (px)
Norsk	Pàmodus gjennomsnittlig strømforbruk (Watt)	Ärlig strømforbruk (kWh/Ärlig)	Hvilemodus strømforbruk (Watt)	Av-modus stromforbruk (Watt)	Skjermoplopsning (piksel)
Português	Consumo energia em modo médio (Watt)	Consumo annual energia (kWh/anual) Consumo energia em sand-by (Watt)		Consumo energia em modo alimentação (Watt)	Resolução do visor (pixel)
Română	Consum electric mediu în modul pomit (Wat)	Consum anual de energie (kWh/anual)	Consum electric in stare de repaus (Wat)	Consum electric în modul oprit (Wat)	Rezolutja ecranului (pixeli)
Русский	Средний расход энергии в режиме включения (ватт)	Ежегодный расход энергии (кВтч/Годовое)	Расход энергии в режиме ожидания (ватт)	Расход энергии в режиме выключения (ватт)	Разрешение экрана (пикселей)
беларуская	Средний расход энергии в режиме включения (ватт)	Ежегодный расход энергии (kWh/гадавое)	Расход энергии в режиме ожидания (ватт)	Расход энергии в режиме выключения (ватт)	Разрешение экрана (пикселей)
македонски	Просечна потрошувачка кога е включен	Годишна потрошувачка на енергија (kWh/Годишна)	Потрошувачка во мирување (вати)	Потрошувачка кога е исклучен (вати)	Резолуција на екран (пиксели)
український	Середня спокивана потужність у робочому режимі (Вт)	Середньорічна споживана потужність (kWh/Річне)	Споживана потужність у режимі очікування (Вт)	Споживана потужність у вимкненому стані (Вт)	Роздільна здатність екрана (пикселів)
Srpski	Prosečna potrošnja kada je uključeni (Vati)	Godišnja potrošnja energije (kWh/Godišnja)	Potrošnja tokom mirovanja (Vati)	Potrošnja kada je isključeni (Vati)	Rezolucija displeja (piks.)
Slovenčina	Priemerná spotreba elektrickej energie v zapnutom režime (Wattov)	Ročná spotreba energie (kWh/Ročná)	Spotreba elektrickej energie v pohotovostnom režime (Wattov)	Spotreba elektrickej energie vo vypnutom režime (Wattov)	Rezilšenie displeja (pixl.)
Slovensčina	Poraba električne energije v povprečnem načinu (Wattov)	Letna poraba energije (kWh/Letna)	Poraba energije v stanju pripravljenosti (Wattov)	Poraba energije načinu izklopa (Wattov)	Resolucija zaslona (piks.)
Еллёнук	Месян катавálшо́н реúματος λειουργίας (Watt)	Ετήσια κατανάλωση ενέργειας (kWh/Eτήσια)	Κατανάλωση реúματος στην αναμονή (Watt)	Κατανάλωση реúματος σε απενεργοτοῖοη (Watt)	Ανόλυση οθόνης (Піξελ)
Bosanski	Prosečna potrošnja kada je uključen (Watt)	Godišnja potrošnja energije (kWh/Godišnja)	Potrošnja tokom mirovanja (Watt)	Potrošnja kada je isključen (Watt)	Rezolucja ekrana (piks.)
Треху	(крн) 1960 и 2015 и 2016 и 2017 и 2018 и 2019 и 2020 и 2021 и 2022 и 2023 и 2024 и 2025 и 2026 и 2027 и 2028 и 2029 и 2030 и 2031 и 2032 и 2033 и 2034 и 2035 и 2036 и 2037 и 2038 и 2039 и 2040 и 2041 и 2042 и 2043 и 2044 и 2045 и 2046 и 2047 и 2048 и 2049 и 2050 и 2051 и 2052 и 2053 и 2054 и 2055 и 2056 и 2057 и 2058 и 2059 и 2060 и 2061 и 2062 и 2063 и 2064 и 2065 и 2066 и 2067 и 2068 и 2069 и 2070 и 2071 и 2072 и 2073 и 2074 и 2075 и 2076 и 2077 и 2078 и 2079 и 2080 и 2081 и 2082 и 2083 и 2084 и 2085 и 2086 и 2087 и 2088 и 2089 и 2090 и 2091 и 2092 и 2093 и 2094 и 2095 и 2096 и 2097 и 2098 и 2099 и 2100 и 2101 и 2102 и 2103 и 2104 и 2105 и 2106 и 2107 и 2108 и 2109 и 2110 и 2111 и 2112 и 2113 и 2114 и 2115 и 2116 и 2117 и 2118 и 2119 и 2120 и 2121 и 2122 и 2123 и 2124 и 2125 и 2126 и 2127 и 2128 и 2129 и 2130 и 2131 и 2132 и 2133 и 2134 и 2135 и 2136 и 2137 и 2138 и 2139 и 2140 и 2141 и 2142 и 2143 и 2144 и 2145 и 2146 и 2147 и 2148 и 2149 и 2150 и 2151 и 2152 и 2153 и 2154 и 2155 и 2156 и 2157 и 2158 и 2159 и 2160 и 2161 и 2162 и 2163 и 2164 и 2165 и 2166 и 2167 и 2168 и 2169 и 2170 и 2171 и 2172 и 2173 и 2174 и 2175 и 2176 и 2177 и 2178 и 2179 и 2180 и 2181 и 2182 и 2183 и 2184 и 2185 и 2186 и 2187 и 2188 и 2189 и 2190 и 2191 и 2192 и 2193 и 2194 и 2195 и 2196 и 2197 и 2198 и 2199 и 2200 и 2201 и 2202 и 2203 и 2204 и 2205 и 2206 и 2207 и 2208 и 2209 и 2210 и 2211 и 2212 и 2213 и 2214 и 2215 и 2216 и 2217 и 2218 и 2219 и 2220 и 2221 и 2222 и 2223 и 2224 и 2225 и 2226 и 2227 и 2228 и 2229 и 2230 и 2231 и 2232 и 2233 и 2234 и 2235 и 2236 и 2237 и 2238 и 2239 и 2240 и 2241 и 2242 и 2243 и 2244 и 2245 и 2246 и 2247 и 2248 и 2249 и 2250 и 2251 и 2252 и 2253 и 2254 и 2255 и 2256 и 2257 и 2258 и 2259 и 2260 и 2261 и 2262 и 2263 и 2264 и 2265 и 2266 и 2267 и 2268 и 2269 и 2270 и 2271 и 2272 и 2273 и 2274 и 2275 и 2276 и 2277 и 2278 и 2279 и 2280 и 2281 и 2282 и 2283 и 2284 и 2285 и 2286 и 2287 и 2288 и 2289 и 2290 и 2291 и 2292 и 2293 и 2294 и 2295 и 2296 и 2297 и 2298 и 2299 и 2300 и 2301 и 2302 и 2303 и 2304 и 2305 и 2306 и 2307 и 2308 и 2309 и 2310 и 2311 и 2312 и 2313 и 2314 и 2315 и 2316 и 2317 и 2318 и 2319 и 2320 и 2321 и 2322 и 2323 и 2324 и 2325 и 2326 и 2327 и 2328 и 2329 и 2330 и 2331 и 2332 и 2333 и 2334 и 2335 и 2336 и 2337 и 2338 и 2339 и 2340 и 2341 и 2342 и 2343 и 2344 и 2345 и 2346 и 2347 и 2348 и 2349 и 2350 и 2351 и 2352 и 2353 и 2354 и 2355 и 2356 и 2357 и 2358 и 2359 и 2360 и 2361 и 2362 и 2363 и 2364 и 2365 и 2366 и 2367 и 2368 и 2369 и 2370 и 2371 и 2372 и 2373 и 2374 и 2375 и 2376 и 2377 и 2378 и 2379 и 2380 и 2381 и 2382 и 2383 и 2384 и 2385 и 2386 и 2387 и 2388 и 2389 и 2390 и 2391 и 2392 и 2393 и 2394 и 2395 и 2396 и 2397 и 2398 и 2399 и 2400 и 2401 и 2402 и 2403 и 2404 и 2405 и 2406 и 2407 и 2408 и 2409 и 2410 и 2411 и 2412 и 2413 и 2414 и 2415 и 2416 и 2417 и 2418 и 2419 и 2420 и 2421 и 2422 и 2423 и 2424 и 2425 и 2426 и 2427 и 2428 и 2429 и 2430 и 2431 и 2432 и 2433 и 2434 и 2435 и 2436 и 2437 и 2438 и 2439 и 2440 и 2441 и 2442 и 2443 и 2444 и 2445 и 2446 и 2447 и 2448 и 2449 и 2450 и 2451 и 2452 и 2453 и 2454 и 2455 и 2456 и 2457 и 2458 и 2459 и 2460 и 2461 и 2462 и 2463 и 2464 и 2465 и 2466 и 2467 и 2468 и 2469 и 2470 и 2471 и 2472 и 2473 и 2474 и 2475 и 2476 и 2477 и 2478 и 2479 и 2480 и 2481 и 2482 и 2483 и 2484 и 2485 и 2486 и 2487 и 2488 и 2489 и 2490 и 2491 и 2492 и 2493 и 2494 и 2495 и 2496 и 2497 и 2498 и 2499 и 2500 и 2501 и 2502 и 2503 и 2504 и 2505 и 2506 и 2507 и 2508 и 2509 и 2510 и 2511 и 2512 и 2513 и 2514 и 2515 и 2516 и 2517 и 2518 и 2519 и 2520 и 2521 и 2522 и 2523 и 2524 и 2525 и 2526 и 2527 и 2528 и 2529 и 2530 и 2531 и 2532 и 2533 и 2534 и 2535 и 2536 и 2537 и 2538 и 2539 и 2540 и 2541 и 2542 и 2543 и 2544 и 2545 и 2546 и 2547 и 2548 и 2549 и 2550 и 2551 и 2552 и 2553 и 2554 и 2555 и 2556 и 2557 и 2558 и 2559 и 2560 и 2561 и 2562 и 2563 и 2564 и 2565 и 2566 и 2567 и 2568 и 2569 и 2570 и 2571 и 2572 и 2573 и 2574 и 2575 и 2576 и 2577 и 2578 и 2579 и 2580 и 2581 и 2582 и 2583 и 2584 и 2585 и 2586 и 2587 и 2588 и 2589 и 2590 и 2591 и 2592 и 2593 и 2594 и 2595 и 2596 и 2597 и 2598 и 2599 и 2600 и 2601 и 2602 и 2603 и 2604 и 2605 и 2606 и 2607 и 2608 и 2609 и 2610 и 2611 и 2612 и 2613 и 2614 и 2615 и

Quick Start Guide

ENGLISH

1 Insert the batteries into the handset

Insert two AAA/R3 or equivalent type batteries inside. Observe the correct polarity (+/-) when inserting batteries and replace the battery cover.

2 Connect the aerial straight to your TV

3 Connect the TV to the mains socket

4 To switch the TV on

1. Connect the power cord to the 220-240V AC, 50 Hz. Then the standby LED lights up. To switch on the TV from standby mode either:
2. Press the "α" button, P+ / P+ or a numeric button on the remote control.
3. Press the "G" or P/CH+/- button on the TV. The TV will then switch on.

5 HDMI input

PLEASE ENSURE BOTH UNITS ARE SWITCHED OFF BEFORE CONNECTING. Use a HDMI to HDMI cable to connect the two units together. To select the HDMI input, press the SOURCE button on the remote control. Each time it is pressed, the on-screen menu confirms your selection.

6 Start Auto Setup procedure

IMPORTANT: Ensure that the aerial is connected and a Common Interface module is not inserted before switching on the TV for the first time installation. Do not insert a common interface module during the search process.

1. When the TV is turned on for the first time the language screen will be displayed. Select the desired language using Up or Down button and press OK to save and continue.

2. After setting the language, First Time Installation screen will be displayed. Use Up/Down and Left/Right buttons to set the desired options.

1. Press OK button on the on the remote control to continue and "Please select digital search type" screen will be displayed. You must select a search type to search and store broadcasts from the desired source.

Aerial Installation: If you select AERIAL option from the Search Type screen, the television will search for digital terrestrial TV broadcasts. After all the available stations are stored, Channel List will be displayed on the screen. If you like the sort channel's, according to the LCN(*), please select "Yes" and then press OK. (*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel sequence.

Cable Installation: If you select CABLE option and press OK button on the remote control to continue, a confirmation message will be displayed on the screen. Select YES to continue.

You can select frequency ranges from this screen. You can enter the frequency range manually by using the numeric buttons on the remote control. Set Start and Stop Frequency as desired by using numeric buttons on the remote control. After this operation, you can set Search Step as 8000 KHz or 1000 KHz. If you select 1000 KHz, the TV will perform search process in a detailed way. Searching duration will thus increase accordingly. When finished, press OK button to start automatic search. The TV will search and store available broadcasts.

Quick Start Guide

ENGLISH

7 Connect a USB memory stick to your TV

IMPORTANT: To record a programme, you should first connect a USB memory disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.

You should back up your files stored on your USB disk before making any connections to the TV set in order to avoid any possible data loss. Note that manufacturer will not be responsible for any file damage or data loss. 2.5" and 3.5" inch (hdd with external power supply) external hard disk drives are supported.

CAUTION!

- Quickly plugging and unplugging USB devices, is a very hazardous operation. Especially, do not repeatedly quickly plug and unplug the drive. This may cause physical damage to the USB player and especially the USB device itself.

- Do not pull out USB module while playing or recording a file.

For more information on USB memory disk connection, recording types, precautions and programme playback, please refer to the instruction book.

IMPORTANT: The TV supports only FAT32 and NTFS disk formatting. However, NTFS format is not supported for recording features. For recording, if you connect a USB disk with NTFS format, the TV will ask you to format the content. See the section, "Format Disk" in the instruction book for more information on disk formatting.

Note that ALL the data stored on the USB disk will be lost and then the disk format will be converted to FAT32 in such a case.

8 Instant Recording

Press ■ (RECORD) button to start recording an event instantly while watching a programme. The following OSD appears on the screen:

Record OSD will then be displayed for a short time and the current event will be recorded. You can press ■ (RECORD) button on the remote control again to record the next event on the EPG. In this case, OSD will display the programmed events for recording.

Press ■ (STOP) button to cancel instant recording. The following OSD will be displayed. Select Yes by using Left or Right and OK buttons to cancel instant recording.

9 Programme Playback

In the main menu, use Left or Right buttons to select Media Browser. Highlight Recordings Library item by using Left or Right button and press OK button to enter. Recordings Library will then be displayed.

Select a recorded item from the list (if previously recorded) by using Up or Down button. Press OK button to view Play Options.

Select an option by using Up or Down and OK buttons.

Available playback options:

• Play from start: Plays the recording from the beginning.
• Resume: Recommences the recordings.
• Play from offset: Speci es a playing point.

Note: Viewing main menu and menu items will not be available during the playback.

Press ■ (STOP) button to stop a playback and return to return to Recordings Library.

IMPORTANT: To view Recordings Library, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.
