KD12MM1 - Dishwasher KELVINATOR - Free user manual and instructions
Find the device manual for free KD12MM1 KELVINATOR in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.

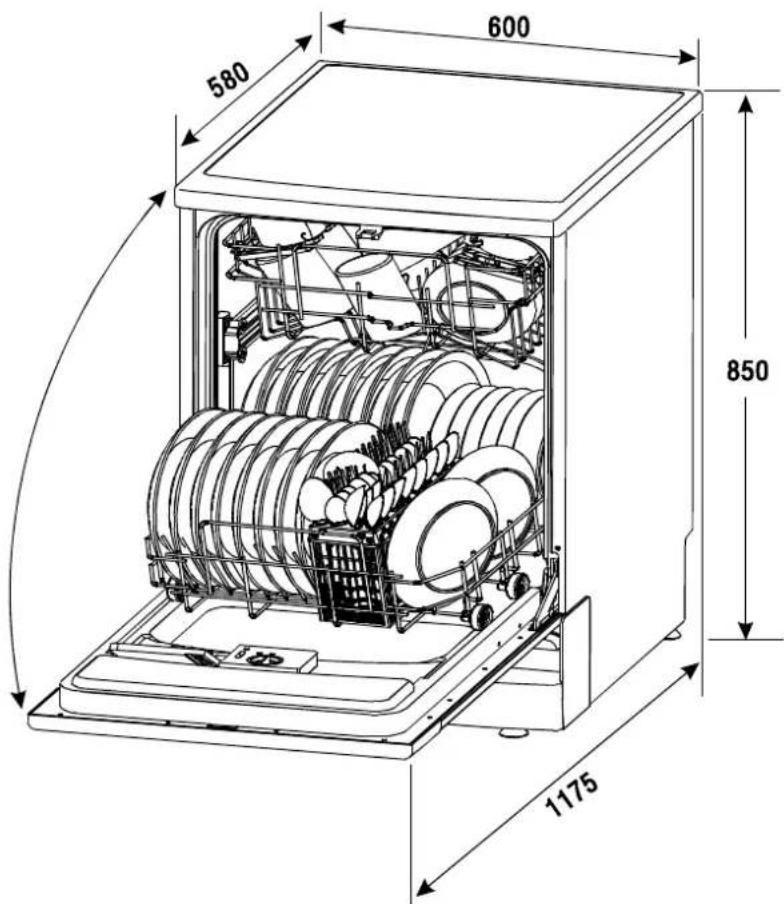

| Product Type | Freestanding or built-in dishwasher |
| Width | 24 inches (61 cm) |
| Height | 34 inches (86.4 cm) adjustable |
| Depth | 24 inches (61 cm) |
| Weight | 75 lbs (34 kg) |
| Electrical Rating | 120 V, 60 Hz, 12 A |
| Water Connection | Hot (120°F max) or cold, 3/8" male compression |
| Place Settings | 12 place settings |
| Wash Cycles | Normal, Heavy, Light, Eco, Quick, Rinse |
| Options | Delay start (1-24 hours), Sanitize, Heated Dry |
| Noise Level | 52 dBA |
| Energy Star Certified | Yes |
| Filter Type | Self-cleaning hard food disposer |
| Rinse Aid Dispenser | Yes, adjustable |
| Child Lock | Yes, button |
| Leak Protection | Overfill protection and leak sensor |
| Spare Parts Available | Filter, spray arms, racks, door gasket, control board |
| Repairability Index | 8/10 (common parts easily replaceable) |
| Warranty | 1 year parts and labor |
| User Manual Included | Yes, PDF available |
Frequently Asked Questions - KD12MM1 KELVINATOR
How do I install my Kelvinator KD12MM1 dishwasher?
Installation requires a standard 24-inch space, hot water supply (120°F max), and a dedicated 120 V outlet. Follow the installation manual for leveling, connecting water and drain, and securing the dishwasher. Ensure anti-tip brackets are used.
Why is my dishwasher not cleaning dishes properly?
Check that spray arms are not blocked, filter is clean, and you're using the correct cycle and detergent. Also ensure water temperature is at least 120°F (49°C) and you're not overloading the racks.

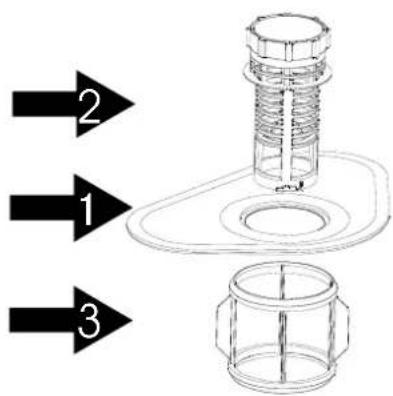

How do I clean the filter?
Remove the lower rack, then turn the filter assembly counterclockwise and lift out. Rinse under running water, scrub if necessary, and reinstall by aligning and turning clockwise until it locks.
What does the error code E1 mean?
E1 indicates a water leak or overfill. Check for loose connections, damaged hoses, or a faulty float switch. Turn off water supply and dry any excess water, then reset the dishwasher by unplugging for 30 seconds.
Can I use regular dish soap in the dishwasher?
No, only use dishwasher detergent (powder, gel, or tabs). Regular dish soap causes excessive suds, which can leak and damage the unit. If suds appear, stop the cycle and add a cup of vinegar to break them down.
How do I enable the child lock?
Press and hold the Heated Dry and Delay Start buttons simultaneously for 3 seconds until the child lock indicator lights up. Repeat to unlock.
Why is my dishwasher making loud noises?
Loud noises may be due to foreign objects (e.g., utensil hitting spray arm), a clogged grinder, or worn motor bearings. Check for obstructions and run an empty cycle with vinegar to clean.
How do I adjust the rinse aid setting?
Open the rinse aid dispenser lid and turn the dial to a higher number (1-6) for more rinse aid release. Typically set to 3 for normal water hardness. Close lid securely.
The dishwasher doesn't start. What should I do?
Ensure the door is closed firmly, the power cord is plugged in, the circuit breaker is not tripped, and the delay start feature is not active. If still not starting, test the door latch or control board.

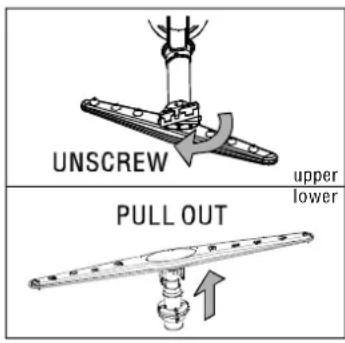

How do I replace the spray arms?
To remove, unscrew the center cap (lower) or press the center button (upper) to release. Install new spray arms by aligning and pushing until they snap or screw on. Ensure they spin freely. Part numbers: W10301394 (lower) and W10561013 (upper).
