KD12DW2 - Dishwasher KELVINATOR - Free user manual and instructions

Product Type	Freestanding Dishwasher
Brand	Kelvinator
Model	KD12DW2
Dimensions (W x D x H)	600 x 580 x 850 mm
Power Supply	220-240 V ~ 50/60 Hz, 10 A
Water Connection	Cold or hot water (max 60°C), 3/4" threaded connector
Water Softener	Built-in, salt capacity approx. 2 kg, adjustable consumption
Rinse Aid Dispenser	Capacity approx. 100 ml, 6 settings
Detergent Dispenser	Integrated, recommended dosage per cycle
Number of Programs	6: Strong, Normal, Economy, Rinse, Glass, Soak
Display	Digital LED for remaining time, delay, temperature, fault codes
Delayed Start	Yes, programmable
Upper Rack	Height-adjustable, for glasses, cups, small bowls
Lower Rack	Fold-down tines, for pots, pans, large plates
Silverware Basket	Removable, separate compartments
Filter System	3-stage: main, coarse, fine filter
Drain Pump	Self-cleaning, with automatic reversal
Safety Features	Child lock (door), grounding, overflow protection, hydrogen gas release
Energy Efficiency	Standard cycle (Normal) per IEC-EN 50242
Maintenance	Clean spray arms, filters, door seals periodically
Noise Level	Not specified

Frequently Asked Questions - KD12DW2 KELVINATOR

How do I fill the salt in the water softener?

Remove the lower basket, unscrew the salt container cap, add water (first time only), then pour about 2 kg of dishwasher salt using the funnel. Replace the cap securely.

When should I refill the rinse aid?

Refill when the black dot on the rinse aid dispenser becomes small (below 1/4 full). The capacity is about 100 ml. Adjust the setting (1-6) based on water hardness.

Why is my dishwasher not starting?

Check the fuse/circuit breaker, ensure the door is closed properly, and the power cord is plugged in. Verify the water supply is turned on.

How do I clean the filters?

Remove the filter assembly by pulling the cup handle upward. Rinse the semicircular filter and cup under running water. Clean the coarse and fine filters with a brush at least once a month.

What do error codes E1, E2, E3 mean?

E1: Longer inlet time (check faucet). E2: Longer draining time (drain pipe too high). E3: Heating issue (sensor or heating element). Refer to the manual for full list.

Can I use regular dish soap?

No, only use detergent specifically designed for automatic dishwashers. Regular soap causes excessive suds and may damage the appliance.

How do I adjust the rinse aid dispenser?

Open the rinse aid cap, rotate the dial to a higher number (e.g., from 1 to 2) if spots remain. The factory setting is 4. Too much rinse aid can cause cloudiness.

What should I do if the dishes are not drying?

Ensure the rinse aid dispenser is filled and the setting is appropriate. Also, check that the rinse aid warning light is off. Use the 'Economy' or 'Rinse' cycle for better drying.

How to remove hard water spots?

Run a normal cycle with two cups of vinegar placed in a bowl on the lower rack (no dishes or detergent). For stubborn spots, use 1/4 cup citric acid crystals instead.

Is it safe to leave the dishwasher door open?

After a cycle, leave the door slightly ajar to prevent moisture and odors. Do not leave it fully open as it may be a tripping hazard. Keep children away from detergent residues.

USER MANUAL KD12DW2 KELVINATOR

Line drawing of a multi-level kitchen appliance with visible internal components and open door (no text or symbols)

Read this Manual

This manual contains sections of Safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips etc. Carefully reading it before using the dis hwa sher will he lp you to use and mainta in the dishwasher properly.

Before Calling for Service

To re vie w the secti on on Troubl es hooti ng Tips will help you to solve some common problems by yourself and not nee d to ask for the help of professional technicians.

NOTE:

The manufacturer, following a policy of constant development and up-dating of the product, may make modifications without giving prior notice.

Safety Information....1

Operating Instructions

Contr ol Pa nel . . . . . . . . . . . . . . . . . . . . 2
Dis hwa sher Fea ture s 2
Was h Cyc le Ta ble . . . . . . . . . . . . . . . . . 3
Water Soffener 4
Deterge nt 5
Rinse Aid 5,6
Loading the Dish as her Rac k....6,7
Turni ng On the Ap plia nce . . . . . . . . . . 7
Fi lte ring S yste m....8
Cari ng for the Dishw as her . . . . . . . 9. . .

Installation instruction

About Ele ctr ici ty connecti on . . . . . . . 10

Water Connection 11

Dim ens ions 11

Troubleshooting Tips

Be fore c al li ng for s er vic e. . . . . . . . . 12, 13

IMPORTANT SAFETY INFORMATION

READ ALL INSTRUCTIONS BEFORE USING

WARNING!

When using your dishwasher, follow the below basic precautions including the following:

⚠ WARNING! HYDROGEN GAS IS EXPLOSIVE

Under certain conditions, Hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EX PLOSIVE. If the hot-water system has not been used for such a period, before using the dishwasher turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of a malf unctio n or breakdown, gro un ding will reduce the risk of electric shock by providing a path of least resistance of electric current. This appliance is equipped with acord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

▲WARNING!

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance; If it is not fit for the outlet, have a proper outlet installed by a qualified electrician.

WARNING! PROPER USE

Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
- Do not touch the heating element during or immediately after use.
Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items not so marked, check the manufactures recommendations.
Use only detergent and rinse additives designed for an automatic dishwasher. Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Keep these products out of children.
- Keep child away from detergent and rinse aid, keep child away from the open door of the dishwasher, there could still be some detergent left inside.
The door should not be left in the open position since this could present a tripping hazards.
During installation, the power supply must not be excessively or dangerously bent or flattened.
- Do not tamper with controls.
The appliance is not intended for use by young children or infirm persons without supervision.
- Dishwasher detergen ts are strongly alkaline,they can be extremely dangerous if swallowed.Avoid contact with skin and eye s and keep children away from the dishwashe r when the door is open.

Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
- Do not place any heavy objects of stand on the door when it is open. The appliance could tip forward.
- When loading items to be washed: 1) Loc ate s harp ite m s so that they are not likely to damage the door sea l; 2) Load sharp knives with the handles up to reduce the risk of cut-type i injuries.
■ When using your dishwasher, you should prevent plastic item from contacting with heating element.
If the supply cord is dama ge d, it must be replaced by the manufacturer or its ser vi ce agent or a similarly qualified person in order to avoid a hazard.
- Please di spose of packing materials properly.
■ Use the dishwasher only for its intended function.
■ Remove the door to the washing compartment when removing an old dishw asher from service or discarding it.
- Young children should be supervised to ensure that they do not play with the appliance.
- Check that the detergent recepta ble is empty after r completion of the w ash cycle.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY

SAVE THESE INSTRUCTIONS

IMPORTANT!

To get the best performance from your dishwasher, read all operating instructions before using it for the the

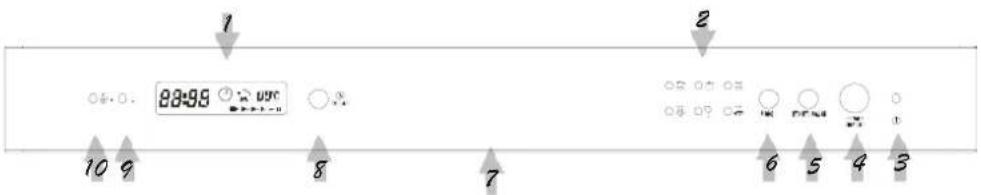

Control Panel

1 Display Window: Program remaining time, delay time, running indicator, temperature of water, fault codes and etc.
2 Program indicator light
3 Power On Indicator Light: Comes on when the power is turned on.
4 Power Switch: Turn on/off the power supply.
5 Start / Pause Knob: Press this knob to start or stop the dishwasher.

6 Program Knob: Press the knob to choose the desired program.
7 Door Lock: Pull it to open the door.
8 Delay ed Start Button: P re ss this button to set the delayed hours for washing.
9 Rins e Aid Warning light: rinse aidAdd more as the indicator on the front panel lights up(Certain model only).
10 Salt Warning Light: Add more salt as the indicator on the (Cfoxtia pane blighting).

Dishwasher Features

1 Upper Basket

4 Water Softener

7 Cup Shelf

10 Rinse Aid Dispenser

2 Spray Arm s

5

8 Silver ware B ask etMainVilteDrain pipe connector

3 Lower Basket

6 Detergent Dispenser

9 Coarse Filter

12 Inlet pipe connector

Line drawing of a rectangular frame with internal compartments and mounting feet, labeled 11 and 12 (no text or symbols on the diagram itself)

Wash Cycle Table

打勾*700	打勾*	打勾*	打勾*	打勾*	打勾*
		打勾*	打勾*	打勾*	打勾*
Strong		For the hea vie st soi led loads,suc h as pots,pa ns ,casse roledishes and dishes that havebeen sitting with dried food onthem for a while.	Pre-w as h w ith hot w ater.Extended wash at 55°C .Rins e wish cold water.Rinse with hot water at 70°CDrying.	4/20 gr.	★
Normal	(IEC-EN 50242)	For norma lly soi led loads,suc h aspopa tes,gl assesand lightly soiled pans .standard daily cycle.	Pre-w as h w ith col d water .Extended wash at 45°C .Rinse wish col d water.Rins e with hot w ater at 70°CDrying.	4/20 gr.	★
Economy		For lightly soiled loads,suchas p lates,glass es,bowl s andligh tly s oiled pans.	Extended wash at 45°C .Rinse wish col d water .Rins e with hot w ater at 70°CDrying.	20 gr.	★
Rinse		For dishes that need to rinsedand dried only	Rinse wish col d water.Rins e with hot w ater at 70°CDrying.		★
Glass		A shorter wash for lightlysoi le d loads that t do not needdrying.	Short was h at 35°CWarm rinse.	15 gr.
Soak		Pre-w ash of dis hes pots andpans while waiting for theload to be completed a fte r thesubs equent meal .	Short t cold wash to pre ventfood residue from drying onthe dis hes .

Turning on the Appliance

Start in g a wash cycle...

1 Draw out the lower and upper basket, load the dishes and push them back. It is commended that loading the lower basket first, then the upper one. The expensive and finer chinaw are should not be put in.

2 With a little force to ensure the door is properly closed. Note: a sound of click could be heard when the door is closed perfectly.

3 Insert the plug into the socket. The power supply is 230V 50HZ, the specification of the socket is 250V 10A.

4 According to the soil level to choose the desired program by pressing program selection button.

5 Press the ON/OFF button

6 Press this button to start automatic washing.

7 Press the ON/OFF button at the end of washing. Open the door of dishwasher after waiting 30 minutes.

Change the Programme

Pres s the button to s top was hing.

Press the programme button to select the programme.

Pres s the button to start washing.

At the end of the was h cycle

At end of washing, the time display will flash for 8 seconds while the buzzer sound. But at the end of delayed washing, no sound of the buzzer, only the flash of the time display.

NOTE: If your model have not water softener, you may skip this section.

WATER SOFTENER

There are two ways to reduce the waterhardness: one way is using water softener, the other is using detergent.

The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils.

The appliances is equipped with a special softener that uses a salt specifically designed to eliminate lime and minerals from the water.

Loading the Salt into the Softener

Always use salt in tended for use with dish washers.

The salt container is located beneath the lower rack and should be filled as follows:

Line drawing of a hand pouring granular material into a container with a side sink (no text or symbols)

1 Remove the lower baske t and then unscr ew and rem ove the cap from the salt container.
2 If you are filling the container for the first time, fill 2/3 of its volume with water.
3 Place the end of the funnel(supplied) into the hole and introduce about 2kg of salt. It is normal for a small amount of water to come out of the salt container
4 Carefully screw the cap back on.

NOTE:

1. The salt container must be refilled when the salt warning light comes on. Though the salt container is filled enough, the indicator light may not black out before the salt fully dissolve.
2. If there are spills of the salt, a soak program could be run to wipe them out.

Adjusting Salt Consumption

The dishwasher is designed to allow for adjusting the amount of salt consumed based on the hardness of the water used. This is intended to optimize and customize the level of salt consumption so that the salt consumption could be set proceed as follows:

1 Unscrew the cap from the salt container.
2 There is a ring on the container with a n arrow on it (see Figure to the side), if necessary, rotate the ring in the anticlockwise direction from the "-" Setting toward the "+" sign, based on the hardness of the water being used. It is recommended that adjustments should be made in accordance with the following schem a:

WATERHARDNESS			Selector Position	Salt consumption (gram/cycle)	Autonomy (cycles/2 kgs)
Clarke Degrees	^ dH	mm ol/l
0~14	0~10	0~1.7	-	0	/
14~36	18~44	1.8~4.4	/	20	60
36~71	45~89	4.5~8.9	MED	40	40
71	89	8.9	+	60	25

Contact your local water board for information on the hardness of your water supply.

YOU MAY NOT ADD TOO MUCH DETERGENT TO PREVENT THE FORMATION OF DEPOSITS BECAUSE YOUR DISHWASHERS HAVE SPECIALLY-DESIGNED WATER SOFTENERS.

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the "Wash Cycle Table". Your dishwashers use less detergent and rinse aid than conventional dishwashers. Generally, only one tablespoon of detergent is needed for a normal wash bad. Also, more heavily soiled items need more detergent. Always add the detergent just before starting dishwasher, otherwise it could get damp and will not dissolve properly.

Amount of Detergent to Use

IF THE WATER ISN'T TOO HARD, YOU MAY ALSO PREVENT THE FORMATION OF DEPOSITS BY ADDING DETERGENT. The amount of detergent needed can vary due to differences in water hardness. To determine the water hardness in your area, contact your local water utility or area water softening company. The harder the water, the more detergent you may need. Remember, you should adjust the amount of detergent you use by small amounts until you find the correct amount.

▲WARNING!

Dis hwa sher deter gent is corrosive! Take care to keep it out of reach of children.

RINSE AID DISPENSER

Line drawing of a washing machine with handle and side panel (no text or symbols)

To open the dispenser, turn the cap to the 'open' (left) arrow and lift it out.
■ Pour the rinse aid into the dispenser, being careful not to overfill.
- Replace the cap by inserting it aligned with 'open' arrow and turning it to the closed (right) arrow.

Removing Hard Water Spots

To remove hard water spots, try the following:

■ Run dishes through a normal wash program
■ Remove all metal dishw are, such as cutlery, pans, etc., from t h e dishwasher.
Do not add dete rge nt.
Pour two cups of vine gar into a bowl and set the bowl face up on the lower rack of the dishwasher.
- Run the dishes through a normal wash program. If this doesn't work, try the same process with 1/4 cup of citric acid crys tals instead of vine gar.

Proper Use of Detergent

Use only deterge nt s specific ally made for us e in dishwa shers. Keep your detergent fresh and dry. Don't put powder detergent into the dispen ser until You're ready to wash dishes.

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes that can leave spots and streaks. It also improves drying by allowing water to "sheet" off the dishes.

Your dishwashers are designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The dispenser holds about 100 ml of liquid rinse aid.

Be careful not to overfill the dispenser, because this could cause over sudsing. Wi pe away any spills with a da mp cloth. Don't forget to replace the cap before you close the dishwasher door.

If you have soft water, you may not need rins e aid for it may cause a white film to develop on your dishes.

Adjusting Rinse Aid Dispenser

A measured amount of rinse aid is released during the final rinse. As with detergent, the amount of rinse aid needed for your dishes depends on the hardness of the water in your area. Too much rinse aid can result in lather offoaming and cause cloudiness or steaks on your dishes. If the water in your area is very soft, you may not need rinse aid. If you do, you can dilute the rinse aid with an equal amount of water.

The rinse aid dispenser has six settings. Always start with the dispenser set on "1". If spots and poor drying are problems, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to '2'. If the dishes still are not drying properly or a re spotted, adjust the dial to the next higher number until your dishes are spot-free. We suggest you to set on '4'.

When to Refill the Rinse Aid Dispenser

If there is no rinse aid warning light in the control panel, you can judge the amount of rinse aid by the following means. The black dot on the rinse aid dispenser indicates the amount of rinse aid in the dispenser. As the rinse aid diminishes, the size of the black dot de cre as es. You should never let the rinse aid get below 1/4 full.

As the rinse a id diminishes, the size of the black dot on the rinse aid level indicator changes, a s illustrated be low.

Full
3/4 full
1/2 full
- 1 / 4 full - S hould re fill to e li mina te spotting ○ Empty

Loading the Dishwasher Racks.

For best performance of the dishwasher, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model.

How to use the Upper Rack

The upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cup and sauce rs, as well as plates, small bowls and shallow pans(as long as they are not too dirty).

Position the dishes and cookware so that they do not get moved by the spray of water. The upper rack can be adjusted for height by putting wheels of different height into the rails.

1 Cups

2 Small serving bow I

3 Large serving bowl

4 Glasses

5 Saucers

6 Dish

7 Plates

How to use the Lower Rack

We recommend that you place large items which are most difficult to clean into the lower rack: pots, pans, lids, serving dishes and bowls, as shown in the figure to the right.

It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

Pots, serving bowls, etc, must always be placed top down.
- Deep pots should be slanted to allow water to flow out.
The bottom rack featurefold down tine rows so that large or more pots and pans can be loaded.

1 Oval platter
2 Dinner plates
3 Soup plates
4 Dessert dishes
5 Silverware basket

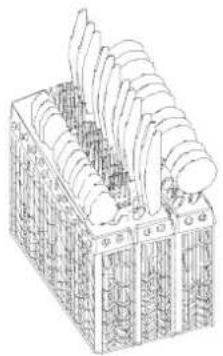

SILVERWARE BASKET

Silverware should be placed in the silverware basket with handles at the bottom: If the rack has side baskets, the spoon should be loaded individually into the appropriate slots, Especially long utensils should be placed in the horizontal position at the front of the upper rack.

Line drawing of a multi-tiered battery pack with no visible text or symbols

4 1	5 3	5 2
4 1	5 0	2
4 1	5 3	3 2
4 1	5 3	3 2
4 1	5 0	2
4 1	5 3	3 2
4 1	5 3	3 2
4 1	5 0	2
4 1	5 3	3 2
4 1	5 6	8 2
4 1	5 0	2
4 1	5 7	6 2

1 Forks

5 Knife

2 Soup spoons

6 Serving spoon

3 Dessert spoons

7 Gra vy ladl e

4 Teaspoons

8 Serving fork

▲ WARNING!

Do not let any item extend through bottom.

Turning on the Appliance

Starting a wash cycle...

1 Make sure that the plug for the appliance is inserted into the wall socket.
2 Make sure that the watersupply is turned on to full pres sure.
3 Load the dishw asher(seethe secti on entitled, * Loading the Dishwasher").
4 Pourin the detergent (sethe sectionentitled, Salt, Detergent and Rinse Aid ).
5 Turn the knob loca ted onthe right ofthe contropanel in the clockwise direction until the number or the symbol forthe cycle settings aligned with the reference mark (see the section entitled, "Wash Cycle Table").
6 Pressthe ON/OFF button, andthe ON/OFFlightwill turnon. At this point, the washcyclewill begin.

Specification of Display

Digi tal s ign: Di spl ay the delayed time, re ma ini ng ti me a nd fa ult code s.

Running sign: Re pe at e dly display the sign in turn when running, no flicker when stopping.

Delay sign: Display the sign when delaying.

Temperature display: Display the wash temperature at any time.

Delay sign: Display the sign when washing.

Fault codes

Codes	Meanings	Possible Causes
E1	Longer inlet time.	Faucets is not opened.
E2	Longer draining time.	The installation position of the drain pipe is too high.
E3	Longer heating time,but not reaching required temperature	Malfunction of temperature sensor or of heating element.
E4	Overfilled.	Too much inlet water. .
E5	Switch can not shut off automatically.	Low voltage.
E6,E7	Abnormal temperature	Short circuit or break of temperature sensor.

NOTE: When e rror occurs, the machi ne can shut off autom ati cal ly after draining.

Filtering System

For your convenience, we have placed the drain pump and filtering system within easy reach inside the tub. There are three components of the filtering system: the main filter, the coarse filter, and the fine filter.

1 Main filter Food and soil particles trapped by this filter are pulverized by a special jet on the lower spray arm and washed down the drain.
2 Coarse filter Larger item s, such as pieces of bone or glas s, that could clog the drain are trapped in the coarse filter. To remove an item caught in this filter, gently squeeze the tabs on top of this filter and lift it out.
3 Fine filter This filter holds soil and food residue in the sump area and prevents it from being redeposited on the dishes during a cycle.

Caring for the Dishwasher

To clean the control panel use a lightly dampened cloth then dry thoroughly. To clean the exterior use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Protect Against Freezing

If your dishwasher is left in an unheated place during the winter, ask a service technician to:

1 Cut off electrical power to the dishwasher. Remove fuses or trip circuit breaker.
2 Turn off the water supply and disconnect the water inlet pipe from the water valve.
3 Drain water from the inlet pipe and water valve. (Use a pan to catch the water.)

4 Reconnect the water inlet pipe to the water valve.

5 Remove the plastic sump cover in the tub the bottom and use a sponge to soak up water in rubber boot.

Cleaning the Spray Arms

It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To remove the spray arm, screw off the nut to take out the washer on top of the spray arm and remove the arm. Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

Cleaning the Filters

Simple line drawing of a rectangular container with an internal circular component (no text or symbols)

Filter assembly

For best perform an e and resu l ts , the filte r assembly must be cle aned.

The filter efficiently removes food particles from the wash water, allowing it to be recirculated during the cycle. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter assembly, pull on the cup handle in the upward direction. The entire filter assembly should be cleaned at least once a month.

To clean the coarse fil ter and the fine filter, use a cleaning brush. Then, reassemble the fil ter parts as shown in the figures left and reinsert the entire as sem bly in the dishwasher, positioning in its s eat and pressing downward.

The dis hwa sher mus t never be use d without the fil ter s. Improper re plac em ent of the filter may reduc e the perform a nce level of the appliance and damage dishes and utensils.

WARNING!

Never run the dishwasher without the filters in place.

Cleaning the Door

Simple line drawing of a rectangular object with internal components and an arrow pointing to it (no text or symbols)

To clean the edge around the door, you should use only a soft warm, damp rag. To prevent penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

Also, never use abrasive cleaners or scouring pads on the outer surfaces because they will scratch the fini sh. Some papers towe ls can also scratch or leave marks on the sur fa ce.

▲ WARNING!

Never use a spray cleaner to clean the door panel for it could damage the door lock and electrical components. It is not allowed to use the abrasive agent or some paper towel because of the risk of scratching or leaving spots on the stainless steel surface.

Cleaning the Drain Pump

Something will occasionally move into the filters and the drain pump. If this occurs, the drain pumps employed in your dishwashers are designed to automatically reverse, ejecting the item back into the sump area or down the drain. If you have to remove an obstacle from the drain pump, before you remove the filters, you should turn off the power; The n remove the small black insert from the sump area. (You might want to re move any standing water first). Scoop out the item that is probably in the sump area and causes the obstruction. Remember to re place the black insert before you put the filter's back in.

How to Keep Your Dishwasher in Shape

■ After Every Wash

After every wash, turn off the water supply to the appliance and leave the door slightly ajar so that moisture and od ors are not trapped inside.

Remove the Plug

Before cleaning or performing maintenance, always remove the plug from the socket. Do not run risks.

No Solvents or Abrasive Cleaning

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Rather, use only a cloth and warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water and a little white vinegar, or a cleaning product made specifically for dishwashers.

When You Go on Holiday

When you go on holiday, it is recommended that your runa wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly ajar. This will help the seals last longer and prevent odors from forming within the appliance.

■ Moving the Appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odors to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a dampsponge will prevent this from occurring.

About Electricity Connecting

CAUTION, for personal safety:

DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE. DO NOT, UNDER ANY CIRCUMSTANCES, CUT ORR EMOVE THE THIRD GROUNDING PRONG FROM THE POWER CORD.

The power-supply receptacle for the appliance shall be installed in a cabin net or on a wall a dja ce nt to the undercounter space in which the appliance is to be installed.

3 The edges of the opening specified in 2 shall, if the partition is wood, be smooth and rounded, or, if the partition is metal, be covered with an edge protector provided for this purpose by the manufacturer; and

2 There shall be an opening through the partition between the compartments specified in 1 that is I ar ge enough for the attachment plug to pass through. The longest dimension of the opening shall not be more than 38mm.
4 Care shall be exercised, when the appliance is installed or removed, to reduce the likelihood of damage to the power-supply cord.

Electrical Requirements

This dishwasher is designed for operation on an adequately wired individual 220\~240VAC, 50\~60HZ. Use required fuse 10amp. Fused electrical supply is required-copper wire only. Time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance. Outlet should be placed in adjacent cabine t.

Electrical Connection

⚠️ Insure proper ground exists before use

After makingsure that the voltage and the frequency values for the current in the home correspond to those on the rating plate and that the electrical system is sized for the maxi mum voltage on the rating plate, insert the plug into an electrical sock et which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

Cold Water Connection

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place.

If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inl et can get blocked and damage the appliance.

Hot Water Connection

The water sup ply to the applia nce can also be connected to the house hot water line (centralized system, heating system), as long as it does not exceed a temperature of 60°C. In this case, the was h cyc le time will be shortene d by about 15 minutes and the wash effi ci ency sli g htly reduc ed.

The connection must be made to the hot water line following the same procedures as those for the connection to the cold water line.

Positioning the Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to facilitate proper installation.

Levelling the Appliance

Once the appli ance is pos itioned, adjust the feet (scr ewing them in or out) to adjust the height of the dishwasher, making it level. In any case ,the appliance should not be inclined more than 2 .

Drain hose Connection

Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or rimping it. Use the special plastic support that comes with the appliance. The free end of the hose must be at a height between 40 and 100cm and must not be immersed in water.

How to D rain Excess Water From Unicouple Hoses

If the sink is 34 or higher from the floor, the excesswater in Unicouple hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

DIMENSIONS(mm)

Before Calling for service...

Troubleshooting Tips

Review the charts on the following pages may make you be free of calling for service.

Problem Possible Causes What To Do

Dishwasher doesn t run	Fuse blown, or the circuit breaker acted	Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher
	Power supply is not turned on	Make sure the dishwasher is turned on and the door is closed securely.Make sure the power cord is properly plugged into the wall socket.
	Water pressure is low	Check that the water supply is connected properly and the water is turned on.
Drain pump doesn t stop	Overflow	The system is designed to detect an overflow. When it does, it shuts off the circulation pump and turns on the drain pump.
Noise	Some audible sounds are normal	Sound from soft food shredding action and detergent cup opening.
	Utensils are not secure in the baskets or something small has drop ped in to the basket	To ensure everything is secured in the dishwasher.
	Motor hums Dishwasher has not been used regularly. If you do not use it often, remember to set it to fill and pump out every week, which will help keep the seal moist.
Suds in the tub	Improper detergent	Use only the special dishwasher detergent to avoid suds.If this occurs, open the dishwasher and let suds evaporate.Add 1 gallon of cold water to the tub. Close and latch the dishwasher, then drain out the water by slowly turning the Dial until a drain period is reached. Repeat if necessary.
	Spilled rinse agent Always wipe up rinse agent spills immediately.
Stained tub interior	Detergent with colorant was used	Make sure that the detergent is the one without colorant.
Dishes are not dried	Rinse agent dispenser is empty	Make sure that the rinse agent dispense is filled.
Dishes and flatware not clean	Improper program	Select stronger program
	Improper rack loading Make sure that the action of the detergent dispenser and spray arms are not blocked by large dishware.
Spots and filming on glasses and flatware	1 Extremely hard water2 Low inlet temperature3 Overloading the dishwasher4 Imp roper loading5 Old or damp powder detergent6 Empty rinse agent dispenser7 Incorrect dosage of detergent	To remove spots from glassware:1 Take out all metal utensils out of the dishwasher.2 Do not add detergent.3 Choose the longest cycle.4 Start the dishwasher and allow it to run for about 18 to 22 minutes, then it will be in the main wash.5 Open the door to pour 2 cups of white vinegar into the bottom of the dishwasher.6 Close the door and let the dishwasher complete the cycle. If the vinegar does not work: Repeat as above, except use 1/4 cup (60 ml)of citric acid crystals instead of vinegar.

Before calling for service...

Problem Possible Causes What To Do
Cloudiness on glassware	Combination of soft water and too much detergent	Use less detergent if you have soft water and select a shortest cycle to wash the glassware and to get them clean.
Yellow or brown film on inside surfaces	Tea or coffee stains	using a solution of 1/2 cup of bleach and 3 cups warm water to remove the stains by hand. ▲ WARNINGYou have to wait for 20 minutes after a cycle to let the heating elements cool down before cleaning interior; otherwise, burns will happen.
	Iron deposits in water can cause an overall film	You have to call a water softener company for a special filter.
White film on inside surface	Hard water minerals	To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent for the risk of foaming or suds.
Detergent cup lid won t latch	Dial is not in the OFF position	Turn the Dial to OFF position and slide the door latch to the left.
Detergent left in dispenser cups	Dishes block detergent cups	Re-loading the dishes properly.
Steam	Normal phenomenon	There is some steam coming through the vent by the door latch during drying and water draining.
Black or gray marks on dishes	Aluminum utensils have rubbed against dishes	Use a mild abrasive cleaner to eliminate those marks.
Water standing in the bottom of the tub	This is normal	A small amount of clean water around the outlet on the tub bottom at the back of the tub keeps the water seal lubricated.
Dishwasher leaks	Overfill dispenser or rinse aid spills	Be careful not to overfill the rinse aid dispenser. Spilled rinse aid could cause oversuding and lead to overflowing. Wipe away any spills with a damp cloth.
	Dishwash er isn t level	Make sure the dishwasher is level.
