Product Type	LED TV
Model	H-LED22V13
Screen Diagonal	21.5 inches (55 cm)
Resolution	1920 x 1080 (Full HD)
Aspect Ratio	16:9
Response Time	8 ms
Color System	PAL, SECAM, NTSC (from line input)
Sound System	B/G, DK, I
Audio Output	2 x 3W (NICAM Stereo)
Inputs	Component (YPbPr), AV RCA, SCART, VGA, PC Audio, HDMI, USB
Outputs	Coaxial, Headphone jack
USB Playback	Video (ASF, AVI, MKV, MPG), Audio (MP3, WMA), Photo (JPEG)
Channel Memory	199 channels
Teletext	1000 pages
Power Supply	AC 110-240V, 50/60Hz (DC adapter 12V, 3A)
Power Consumption	36W
Protection Class	Class II
Dimensions (without stand)	523.5 x 43 x 347.5 mm
Dimensions (with stand)	523.5 x 175 x 375 mm
Net Weight	3.8 kg
Gross Weight	4.8 kg
Safety Features	Overload protection, grounding required, do not disassemble
Cleaning	Unplug before cleaning, use soft dry cloth; do not use liquid cleaners
Reparability	No user-serviceable parts; contact service center for repairs
Accessories Included	Remote control, stand, screws, USB cable, AC adapter, power cord, warranty card, manual

Frequently Asked Questions - H-LED22V13 HYUNDAI

How do I connect an external device like a DVD player?

Connect the device using the appropriate input: use AV (RCA) cables for composite video and stereo audio, SCART for both video and audio, HDMI for digital video and audio, or Component (YPbPr) for high-definition video. Then press SOURCE button and select the corresponding input.

Why is there no picture or sound?

Check that the power cord is securely plugged in. Ensure the TV is turned on (green indicator). Verify that the volume is not muted and the brightness/contrast are not set to minimum. If using an external source, confirm the correct input is selected.

How can I mount the TV on a wall?

Remove the stand by unscrewing the 8 screws. The back panel has 4 screw holes (100mm x 100mm pattern) for a wall-mount bracket (not included). Use 4*8 screws and a compatible bracket. Ensure the wall can support the TV's weight. Do not install without proper bracket.

What file formats can I play via USB?

The USB port supports video files with extensions ASF, AVI, MKV, MPG (codecs: WMV9, DIVX, H263, MPEG-4, MPEGII, XVID) and audio codecs WMA, MP3, DD(AC3). Photo and text files are also supported. Maximum USB capacity is 400GB, file system FAT16/32/NTFS.

How do I reset the TV to factory settings?

Press MENU, go to OPTION, select Reset, and confirm. This will restore all settings to default values. Note that channel lists and personal settings will be lost.

The remote control does not work. What should I do?

First, check if batteries are inserted correctly (polarity) and are not exhausted. Replace with new AAA batteries if needed. Ensure there are no obstacles between the remote and the sensor on the TV (within 8 meters and 30° angle).

Can I use the TV as a computer monitor?

Yes, connect your PC to the VGA input and use the PC audio input for sound. Select PC as the source. You can adjust screen settings (horizontal/vertical position, clock, phase) in the SCREEN menu.

How do I clean the TV screen?

Unplug the TV. Use a soft, dry microfiber cloth to gently wipe the screen. Do not use any liquid cleaners, alcohol, or abrasive materials, as they may damage the panel.

What should I do if the TV makes unusual noises or smells?

Immediately unplug the TV from the power outlet. Contact a service center. Do not attempt to open the casing. This could indicate a serious electrical fault.

How do I set the sleep timer?

Press the SLEEP button on the remote repeatedly to cycle through timer options from 10 to 240 minutes. The TV will automatically turn off after the selected time.

USER MANUAL H-LED22V13 HYUNDAI

Black remote control with multiple ports and buttons (no visible text or symbols)

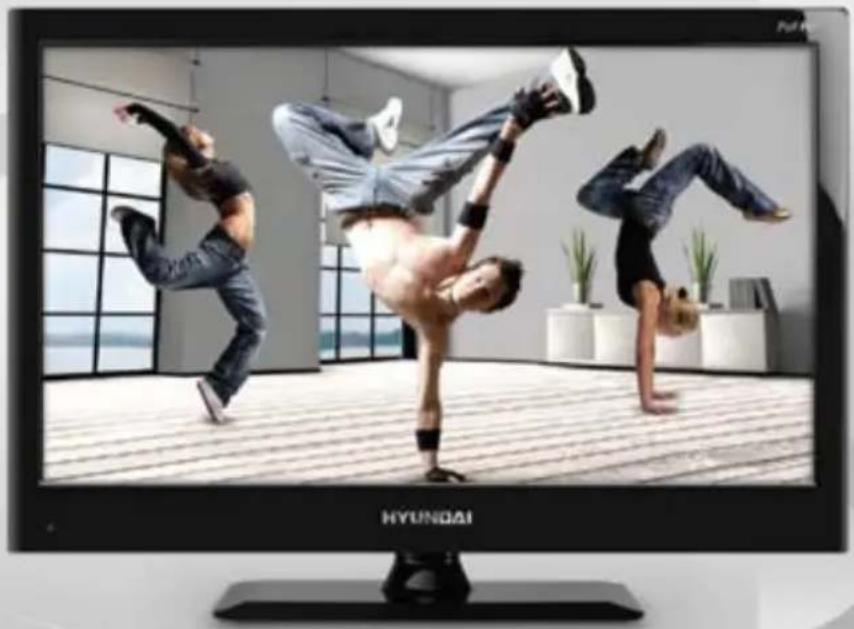

Modern TV displaying a person performing acrobatic handstand movements in a minimalist room with large windows and potted plants (no text or symbols on the image itself)

Two glossy spheres with reflections, no text or symbols present

LED TV

ME61

ТЕЛЕВИЗОР

Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future.

Table of contents 2

Before you start 3

Utilization of the product 3

Important safeguards 3

Installation 4

Base installation 4

Wall mounting 4

Connection 5

Outdoor antenna connection 5

Other connections 5

Operation 6

Control elements 6

Front panel 6

Back panel 6

Remote controller 7

Changing the battery 7

General operations 8

Signal sources 8

Teletext operations.... 8

OSD operation....9

Channel setting 9

Picture setting 9

Sound setting 10

Timer setting 10

Option setting 10

Screen setting.... 11

USB operation.... 11

General playback information 11

Operations of file playback 11

General information 13

Troubleshooting 13

Causes of interference 13

Accessories 14

Specifications 14

Utilization of the product

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Please contact your local authorities for the correct method of disposal. By doing so, you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

Important safeguards

• Before connecting the AC power cord to the DC adapter outlet, make sure that the voltage designation of the DC adapter corresponds to the local electrical supply.
• Accessories include a DC adaptor SUN-1200300. Do not use other adaptors with this unit.
• Please unplug the power cord from the AC outlet and contact a service center for repair if following occurs: any obvious abnormality appears in the unit, such as smoky, peculiar smell or strange sound; liquid has been spilled or other objects have fallen into the unit; no picture or sound; cover or panel is broken; although you have operated the unit following the operating instructions, it still cannot work normally.
• This unit should only be connected to a wall socket having grounding.
  • Always disconnect the power cord and antenna during a storm.
• Do not fix the power cord with a metal nail.
• Unplug the power cord from the AC outlet; also unplug the signal cables from the input ports when the unit is unused for long periods of time.
• When unplugging the plug, always hold the wide slot, do not touch the metal part, and do not destroy, refit, twist, pull or roast the power cord.
• Please contact the service center immediately if you found that the core is

showed in the air or has been broken.

• Please replace the AC outlet if the metal bolt cannot be inserted into the power socket completely or it cannot be fastened even when it was pushed in, otherwise, any accidents of shocks and fires would happen.
• Never touch the antenna lie or power plug if it stars to thunder.
• Do not touch the power plug with wet hands.
• Do not use any non-rated power socket with numerous devices jointed on one power socket or cable device. The wire of non-designated capacity may cause the fire due to the generation of heat.
• All instructions must be read and understood well before you operate the unit. Heed all warnings and follow all instructions.
• Please use the accessories provided by the manufacturer. Using inadequate accessories may result in accidents.
• Please adjust the product through the panel buttons or the remote controller, do not remove the cover or attempt to service the product by yourself. Do not disassemble back cover and do not make maintenance by yourself to avoid the electric shock.
  • Over-press the panel may destroy the product.
• Do not place the product on an unstable cart, stand surface, tripod, bracket, or table. The product may fall, causing serious accidents as well as the damage to the product.
• Please place the product on a flat surface

in a well-ventilated location. Keep it away from the burning-light, direct sunlight, vibration, high-temperature and humidity.

• Do not place any vase, potted plant, cup, medicine and any container with water on this product. If the liquid is spilt, it may cause the fire, electric shock or breakdown.
• Do not install it at the place on the strong magnetic field or current field. It may cause break down. This equipment may be observed deterioration of the picture by electromagnetic radiation in electromagnetic environment.
• Fasten the wheel of the product or shelf with wheels when installing this product. If it moves or is tipped over, it may be damaged.
• Do not place any fire source such as candlelight close to this product or place it on this product. If it is tipped over or fallen down, it may cause damage or fire.
• Do not place the unit into closed space of TV for better ventilation; it can reduce the product lifetime. Keep a space at least 10 cm at above, left, and right of the TV.
• Please place all the signal cords behind of rear panel.
• Do not overexert or touch the panel when you convey the product. Do not transfer the LED TV up or down display direction.
• Do not transport it with the power cord or the connection cable connected. If you move this product with the power cord or the connection cable connected, damaged power cord, connection cable or connection terminal may cause fire, electric shock or breakdown.
• 2 persons or more shall transport the device, which is heavier than 18kg . If you drop or tip over the device, it may damage it.
• The temperature of the product's body becomes a little higher after a long period use. This phenomenon indicates that heat exchange in normal working mode, thus please do not let children or anyone who is sensitive of temperature to touch.

All images provided herein are schematic drawings of real objects and may differ from their real images.

Installation

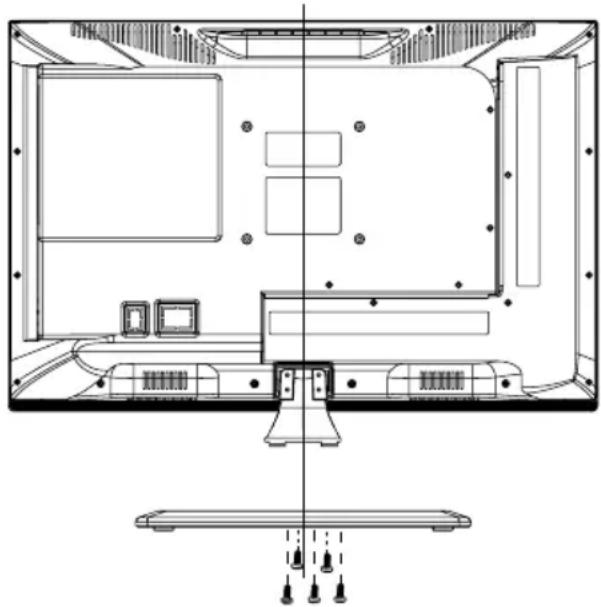

Base installation

Architectural floor plan of a computer room showing front, top, and side views with no text or labels

Cover an even stable surface with a soft cloth. Place the TV unit facedown on the cloth. Aline the holes in the stand with the fixing holes in the bottom of the TV casing. Fasten the 5 screws.

Wall mounting

• Unscrew the 8 screws from the stand in the bottom of the unit. Separate the stand from the cabinet before wall mounting.
• For wall mounting the back panel of this unit is equipped with 4 screw holes (for 4*8 screws, 100 mm horizontal spread distance x 100 mm vertical spread distance). A wall-mount bracket should be used for wall mounting (the bracket is not included and should be acquired separately). Manufacturer is not responsible for improper mounting resulting in damage of the unit.

Connection

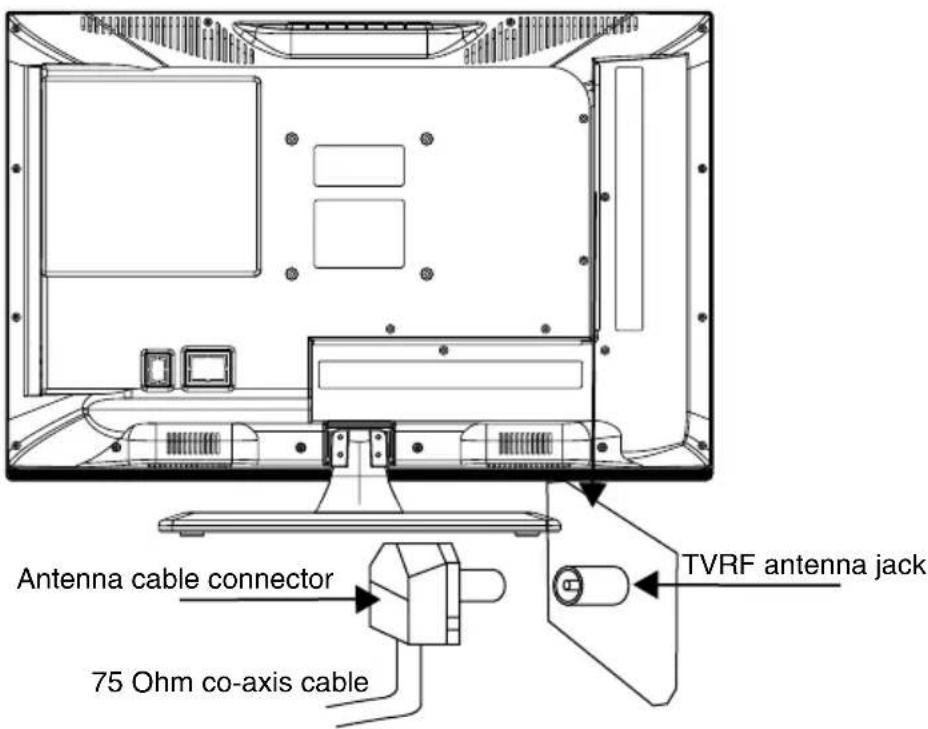

Outdoor Antenna Connection

Use 75Ω coaxial cable plug or 300-75Ω impedance converter to plug in antenna input terminal on the rear of the cabinet.

Other connections

• Connect the audio sources (Including DVD, VCDR, CAMCORDER and PC) to the proper Audio input jacks 'L' and 'R'.
• Connect the video source to the Composite video jack by RCA cable.
• If the video source has a SCART terminal jack, you can connect the signal to the monitor by the SCART cable (not included). SCART can be used as both input and output.
• Component input Y/Pb/Pr is intended to receive component video signal from the external device.
• Connect the power cord to the DC adaptor, then connect the adapter to the DC

power jack of this unit.

• When using the LED as a computer screen, connect the PC to the VGA jack from the monitor by the relevant cable (not included).
• This unit has PC audio in jack. Connect this jack to PC main unit with related audio cable in PC mode and adjust the volume to what you want.
• If the video source has a HDMI output jack, you can connect the signal to the monitor by the HDMI cable (not included).
• Connect your headphones or earphones (not included) to the headphone socket of this unit. When earphones are connected, the sound output through the built-in speakers of this unit is mute.
• Coaxial output is intended for transmitting multi-channel sound to an external decoder (e.g. in 5.1-CH format). RCA cable should be used for connection.

Control elements

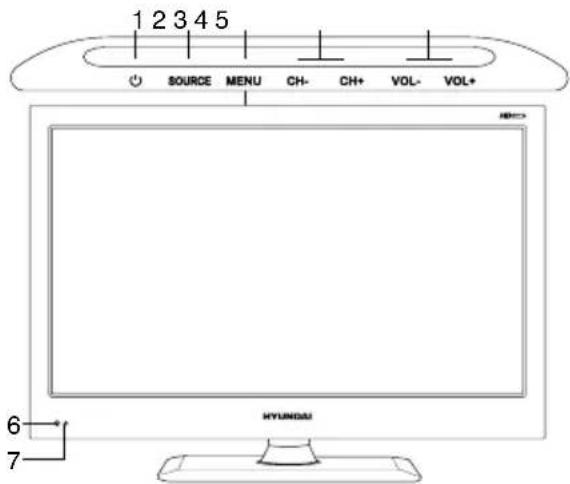

Front panel

1. POWER button
2. SOURCE button
3. MENU button
4. CH+/CH- buttons
5. VOL+/VOL- buttons
6. IR sensor
7. Power indicator

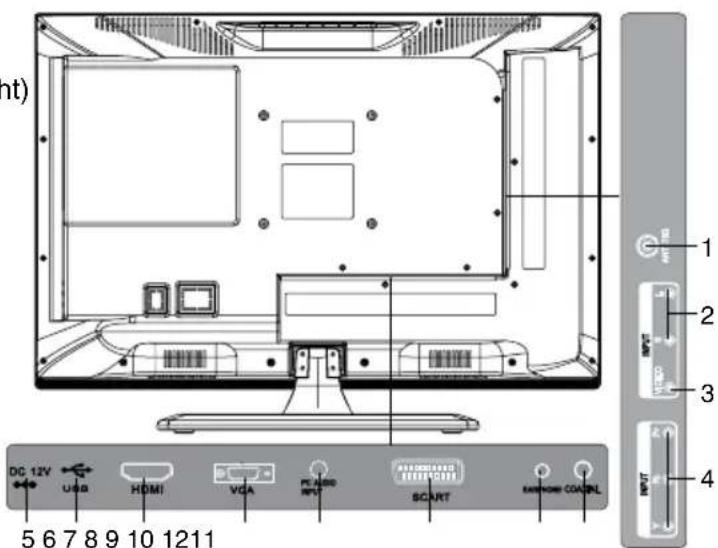

Back panel

1. RF antenna jack
2. Stereo audio input (white=left; red=right)
3. Composite video input
4. Component video input (YPbPr)
5. DC adapter input
6. USB port
7. HDMI input
8. VGA input
9. PC audio input
10. SCART connector
11. Headphone jack
12. Coaxial output

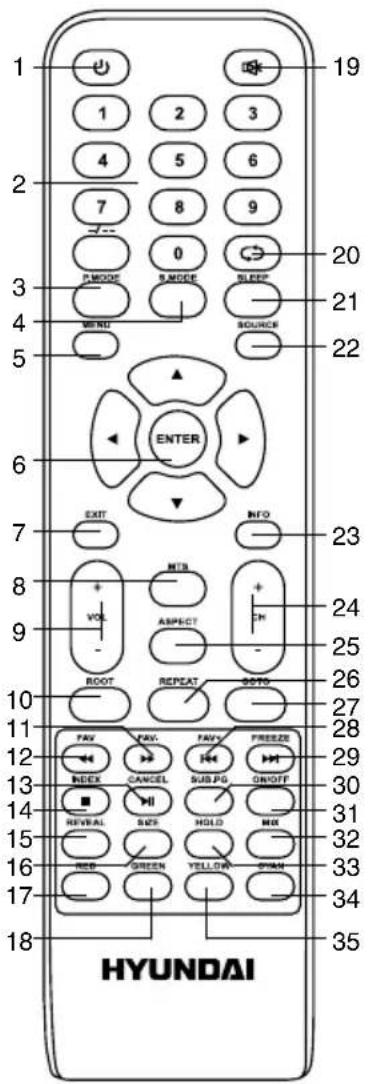

Remote controller (RC)

1. POWER button
2. Number buttons
3. P.MODE button
4. S.MODE button
5. MENU button
6. Cursor (UP/DOWN/LEFT/RIGHT) buttons/ENTER button
7. EXIT button
8. MTS button
9. VOL+/VOL- buttons

10. ROOT button

11. FAV-▶ button

12. FAV/◄◄ button
13. CANCEL▶button
14. INDEX button
15. REVEAL button
16. SIZE button
17. RED button
18. GREEN button
19. MUTE button
20. button
21. SLEEP button
22. SOURCE button
23. INFO button
24. CH+/CH- buttons
25. ASPECT button
26. REPEAT button
27. GOTO button
28. FAV+button
29. FREEZE/▶ button
30. SUB.PG button
31. ON/OFF button
32. MIX button
33. HOLD button
34. CYAN button
35. YELLOW button

Changing the battery

1. Remove the battery compartment cover on the back of the RC.
2. Insert two AAA batteries into the battery compartment making sure that the correct polarity is observed.
3. Install the cover back.
4. The RC should be pointed at remote sensor within 8 meters and within 30 degrees at the left or the right side.
   • Take the battery out of the RC if it is not used for a long time.
5. Do not mix new and used batteries or different types of batteries. Weak batteries can leak and severely damage the RC.
6. Do not expose the RC to shock, liquids, and do not place it in an area with high humidity.

General operations

• Press POWER button on the unit or on the RC to switch on the power, the indication light will be in green color. Press POWER button again to switch off the power, and the light will be in red color.
• Press VOL- button repeatedly to decrease the volume; press VOL+ button repeatedly to increase the volume.
• Press SLEEP button repeatedly to set the sleep time (from 10 to 240 min).
• Press button on the RC to select from the present channel and the previously displayed channel.
• Press ASPECT button repeatedly to select a screen display size from the available list: 4:3/16:9/Zoom1/Zoom2. Available aspects may differ for different signal sources.
• Press MUTE button to cut off sound, press this button again or adjust volume to resume sound.
• Select the TV function mode. Press CH-/CH+ buttons to select previous or next channels; or press number buttons and [-/--] button to enter a channel number directly.
• Press P.MODE button repeatedly to cycle through the available video picture modes from the following types: Movie => Dynamic => Standard => User.
• Press S.MODE button repeatedly to cycle through the available sound modes from the following types: Standard => Dynamic => Soft => User.
• Press INFO button to display the preset TV channel play information.
• Press FREEZE button to freeze the picture on or off.
• Press FAV button to show the favourite channel list. Press FAV+/FAV- buttons to select next or previous favorite channel.
• Press MTS button in TV mode repeatedly to switch between various Nicam sound modes (can be unavailable for some channels).

Signal sources

Press SOURCE button, then press DOWN/UP cursor buttons on the RC or CH+/CH-buttons on the panel to select a source from available source list: TV - AV - SCART - YPBPR - HDMI - PC - Media. Press ENTER button on the RC or MENU button on the panel to confirm.

TELETEXT operations (option)

• Select the TV source mode. Then press CH-/CH+ buttons to select TV channel in order to pick up the picture signal of Teletext.
• Press CH-/CH+ buttons to select the previous page or the next page.
• Teletext button functions are as follows:

ON/OFF: Press TEXT button to enter into TEXT mode. Press this button again to return to the channel you are watching.

HOLD: Press this button to stop the move to the next page. Press this button again to cancel operation.

INDEX: Press this button to go to the index page.

SIZE: Press this button to enlarge the text shown on the teletext screen, and one half of page could be shown. Press this button again to view the second half of this page. Press this button third time to normal size text page view.

REVEAL: Press this button to reveal the cancelled information. Press this button again to cancel the information.

SUB.PG: Press this button to select sub page, and the sub-page symbol will appear in the left top hand corner of the screen. Enter the number of sub page and use numeric buttons in the format 0001 for sub page 1. The teletext will search for the sub page.

CANCEL: When a text page is selected, it may take some time before it becomes available; press this button to return to TV mode. When the required page is found, its number will be displayed at the top of the screen; press this button to return to the teletext mode and browse the page.

MIX: Press this button to mix the teletext and current TV signal image (transparent background).

RED/GREEN/YELLOW/CYAN buttons:

Press these 4 color buttons to access directly to corresponding color page displayed at the lower parts of teletext screen.

OSD operation

1. Press MENU button to enter the setting menu displayed on the screen.
2. Press LEFT/RIGHT cursor buttons on the RC or VOL+/- buttons on the panel to select setting page.
3. Press DOWN cursor button or ENTER button on the RC or CH+ button on the panel to go to the parameter list.
4. Press UP/DOWN cursor buttons on the RC or CH+/- buttons on the panel to select a parameter to adjust.
5. Press cursor buttons on the RC or VOL+/- or CH+/- buttons on the panel to adjust the selected parameter.
6. Press EXIT button to quit the menu.
   Some menu items may be in grey color, in this case they are not adjustable. Pictures of OSD menu are for reference only; they may differ from the real screens.

Channel setting (only for TV source)

○ □ ⚙ ■
CHANNEL	Auto tuning ATV Manual tuning Programme edit
◇ Move Menu OK Exit ENTER

• Auto tuning: press ENTER button to start automatic search of available channels. To stop the process press MENU or EXIT button.
• ATV Manual tuning: Press ENTER button to enter into manual tuning menu:

Current Channel: select channel number.

Color System: select corresponding color

system (PAL/SECAM/NTSC).

Sound System: select corresponding sound system (DK/BG/I).

Fine-tune: perform fine adjustment of the current frequency.

AFC: set On/Off automatic frequency correction.

Search: press LEFT/RIGHT buttons; the unit will search for next available channel downward or upward and save it under the current number.

- Program Edit: this item allows you to sort TV programs according to your preferences. Enter into program edit menu:

Delete: Select the channel you want to delete. Press red button to delete the channel.

Rename: Highlight the needed channel. Press green button; then press UP/DOWN buttons to select a symbol. Press LEFT/RIGHT buttons to select the next symbol. Press ENTER button to confirm.

Move: Highlight the needed channel. Press yellow button; select the position to put the channel into. Press yellow button to confirm.

Skip: Highlight the needed channel. Press blue button; now this channel will be skipped when you select previous/next channels.

Favorite: Select the channel you want to edit. If this channel is your favorite channel, you can add the mark to the channel as your favorite channel by pressing FAV button.

Picture setting

◇ □ ◎ ■
PICTURE	Picture mode Contrast Brightness Color Tint Sharpness Color temperature Noise reduction
◇ Move Menu OK Exit ↗

• Picture Mode: Movie/Dynamic/Standard/User.
• Contrast, Brightness, Color, Tint (adjust

the tone of color when your system is in NTSC), Sharpness

• Colour Temperature: Normal/Warm/Cool.
- Noise Reduction: Digital noise reduction effect for reducing the video noise level: Off/Low/Middle/High.

Sound setting

SOUND	Sound modeTrebleBassBalanceAuto volumeSPDIF mode
Move Menu OK Exit ENTER

• Sound mode: Standard/Dynamics/Soft/User.
• Treble: adjust treble frequency (only in User sound mode).
• Bass: adjust bass frequency (only in User sound mode).
  • Balance: adjust balance between left and right speaker.
• Auto volume: set the auto volume correction on/off. It will level out the sound volume when sudden changes in volume occur during commercial breaks or channel change.
• SPDIF mode: select PCM/Auto/Off.

Timer setting

TIME	Sleep timerAuto sleepOSD timer
Move Menu OK Exit

• Sleep timer: select the period until automatic switch-off of the unit (10 - 240 min).
  • Auto sleep: select the period of time after

which the unit will automatically switch off if no operation is done.

- OSD timer: select the period of time after which the OSD will be hidden.

Option setting

OPTION	OSD languageTT languageAspect ratioBlue screenKey lockResetSoftware upgrade (USB)
Move Menu OK Exit ENTER

• OSD Language: select the language of the OSD menu.
  • TT Language: select teletext language.
• Aspect ratio: 4:3/16:9/Zoom1/Zoom2.

The set of available aspects can vary depending on the current signal source.

• Blue screen: set on or off blue screen activation when no signal.
  • Key lock: select ON to lock all buttons on the panel. Set OFF to unlock the buttons.
• Reset: reset the parameters to initial factory settings.
• Software upgrade: this option is intended for using by qualified technicians only.

Screen setting (only for PC mode)

SCREEN	Auto adjustHorizontal Pos.Vertical Pos.ClockPhase
Move Menu OK Exit ENTER

• Auto adjust: automatic setting of the parameters.

• Horizontal Position: adjust horizontal position of the image.

• Vertical Position: adjust vertical position of the image.

• Clock: adjust the image frequency manually.
  • Phase: adjust the phase manually.

USB operation

General playback information

- Insert a USB into the USB jack. Select Media source and press ENTER button. The screen will show a USB playback window, in which you can select Music, Photo, Movie and Text contents to play by pressing LEFT/RIGHT cursor buttons and ENTER button.

- USB file systems supported: FAT16, FAT32, NTFS. 2.0 USB version is supported; maximum capacity 400 Gb. For correct and satisfactory operation, licensed USB devices of famous brands should be used with this unit. Avoid using USB devices of unknown brands. Playback of some file formates cannot be supported.

- This unit supports playback of video files with ASF, AVI, MKV, MPG extension, with video codecs WMV9, DIVX, H263, MPEG-4, MPEGII, XVID and audio codecs WMA, MP3, DD(AC3). Video image resolution should not be more than 576x720.

The above list of extensions and codecs is for information only and is not a guarantee that all files having the above extensions and codecs should be read by this unit.

- Some AVI files cannot be played due to their parameters and recording conditions. Video files more than 2 Gb having AVI extension can be played partially.

Operations of file playback

• Press cursor buttons to select Return option and press ENTER button if you want to go back to the previous menu.
• In the content menu, press cursor buttons to select folder, press ENTER button or CANCEL▶ button to enter it, then press cursor buttons to select the file you want to

watch or to listen to. When highlighting the file, the file information will appear on the right (not available for text files) and picture will be previewed in the center (not available for music and text files). Press ENTER button or CAN-CEL▶II button to play the selected file.

- While playback, press ENTER button; the bottom of the screen will show playback menu in which you can select an operation by LEFT/RIGHT cursor buttons on perform this operation by pressing ENTER button. The operations are as follows:

	Play or pause playback All files
	Select previous file All files
	Select next file All files
	Stop plabyack and return to previous menu	All files
	Select repat playback mode All files
	Play music in background mode when photo or text file is being browsed (you should select music file first)	Photo and Text
	Show playlist All files
	Show file information All files
	Rotate image clockwise Photo
	Rotate image anti-clockwise Photo
	Fast backward playback Music
	Fast forward playback Music
	Mute the sound Music
	Select time to start playback from	Music
	Fragment repeat playback. Press OK to select initial point, press OK to select final point of the fragment	Movie
	Slow playback Movie
	Step playback Movie
	Zoom in Movie
	Zoom out Movie
	Select aspect ratio Movie

• While playback, press CANCEL▶ button to pause or resume playback. Press INDEX/■ button to stop playback.
• When playing photo, movie and music files, you can press REPEAT button to select the repeat play mode. Press ROOT button to go to the root menu of the storage.
• When playing music files you can press ◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▼▶▲
• When playing photo files, you can press <◀/▶buttons to page up or page down the file. Press LEFT/RIGHT cursor buttons to rotate the image.

Troubleshooting

Below is a table describing simple measures that can help you eliminate most problems likely to emerge when this unit is in use. If below measures do not help, turn to a service center or to the nearest dealer.

Symptom Cause Solution
No picture, no sound, and no indicator light	The power cord is not plugged in. Contrast, brightness, color and volume are all in the minimum value or TV is in mute mode.	Plug the power cord in. Alter the value of contrast, brightness, color and volume.
Picture and sound with abnormality	Contrast and color are set improperly. Color system is set improperly. Sound system is set improperly.	Set the value of Contrast and color properly. Set the sound system properly.
Picture is spotted or with snow	Signal source is low-grade or the signal is in a lower quality.	Use the qualified signal cord.
Blue background	No video signal or the signal cord is improperly/not connected.	Connect the signal cord properly.
No sound No audio	signal or the signal cord is improperly/not connected.	Connect the audio signal cord properly. Set the sound system properly.
The RC does not work	Batteries are improperly installed or exhausted.	Make sure the positive and the negative polarities are correct. Reattach the battery lid. Replace the batteries.

Causes of interference

Incorporated in your TV receiver are the most up-to-date devices to eliminate interference. Local radiation however, can create disturbances, which visibly affect your picture. Proper installations, a good aerial are your best safeguards against these disturbances.

• RF INTERFERENCE: Moving ripples across the screen are caused by nearby transmitting or receiving short-wave radio equipment.
• DIATHERMY: Herringbone pattern and partial picture loss can result from the operation of diathermy equipment from a nearby doctor's surgery or hospital.
• SNOW: Weak TV signals from long distant stations result in an instead picture and give the effect of falling snow. An antenna adjustment or antenna amplifier may be needed.
• GHOST: Multiple image, caused by TV signals reflected back from surrounding buildings, hills, aircraft, etc. is minimized by correct aerial positioning.
• CAR IGNITION: Nearby cars and electrical motors can cause small streaks across the picture or make the picture roll.

Accessories

1. LED TV 1 pc
2. Remote controller 1 pc
3. Stand 1 pc
4. Screw 5 pcs

5. USB cable 1 pc

6. AC adapter 1 pc

7. Power cord 1 pc
8. Consumer information 1 pc
9. Warranty card 1 pc
10. Instruction manual 1 pc

Specifications

Size (diagonal) 21.5" (55 cm)

Resolution 1920 x 1080

Aspect ratio 16:9

Response time 8 ms

Color system PAL, SECAM, NTSC (from line input)

Sound system B/G, DK, I

NICAM Stereo 2 x 3 W

Component in +

AV RCA in +

SCART +

PC audio input +

VGA in +

HDMI in +

Coaxial out +

Headphone jack +

Russian and English OSD +

Progressive scan +

Digital comb filter 3D

Sleep timer +

USB movie, audio and photo support +

Quantity of channels 199

Teletext 1000 pages

Power supply (DC adapter) \~110-240 V, 50/60 Hz (12 V, 3 A)

Power consumption 36 W

Electric shock protection class II

Unit dimensions: without stand 523.5 x 43 x 347.5 mm

with stand 523.5 x 175 x 375 mm

Net/Gross weight 3.8 kg/4.8 kg

The LED panel is a high technology product with many thin film transistors that can give you a fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green, red, black or white, please note that this does not affect the performance of your LED TV.

Warning: Specifications may be subject to change without notice for improvement.

Architectural floor plan of a room with furniture layout and ceiling-mounted equipment (no text or labels)
