Product Type	Microwave with Grill
Model	CM119
Rated Voltage	230 V ~ 50 Hz
Microwave Input Power	1450 W
Microwave Output Power	900 W
Grill Input Power	1100 W
Oven Capacity	25 L
Turntable Diameter	315 mm
External Dimensions (W×H×D)	594 × 410 × 388 mm
Net Weight	Approx. 19 kg
Installation Type	Built-in
Control Type	Electronic with digital display
Cooking Modes	Microwave, Grill, Combi (Microwave+Grill), Defrost by Weight/Time, Auto Menus (8 programs), Speed Cooking, Multi-stage Cooking
Microwave Power Levels	10% to 100% (10 steps) - P100, P80, P50, P30, P10
Grill Power	100% Grill, Combi-1 (55% MW + 45% Grill), Combi-2 (36% MW + 64% Grill)
Clock & Timer	24-hour clock and kitchen timer (max 95 min)
Child Lock	Yes, via 3-second press of STOP/CLEAR
Safety Features	Door interlock system, overheating protection, grounding plug
Cleaning & Maintenance	Clean interior with damp cloth; door seals and frame must be kept clean; do not use steam cleaner or abrasive cleaners
Accessories Included	Glass tray, turntable ring assembly, grill rack (for grill models), instruction manual
Repairability & Spare Parts	Lamp replacement possible by qualified person; other repairs must be done by competent service agent
Disposal	WEEE compliant - do not dispose with household waste

Frequently Asked Questions - CM119 Caple

How do I set the clock on the Caple CM119 microwave?

Press CLOCK/KITCHEN TIMER once, then use the arrow keys to set the hour (0-23), press again to set minutes (0-59), and press once more to confirm. The clock runs on a 24-hour format.

What is the maximum cooking time I can set?

The maximum cooking time is 95 minutes for all manual cooking modes, including microwave, grill, combi, defrost by time, and kitchen timer.

Can I use metal containers or aluminum foil in this microwave?

No. Metal containers, aluminum trays, and metal-trimmed utensils can cause arcing and damage the oven. Only use microwave-safe utensils. Small pieces of aluminum foil may be used to shield thin parts of meat, but must be at least 2.5 cm away from oven walls.

How do I use the grill or combination cooking function?

Press Microwave/Grill/Combi repeatedly to select Grill (G), Combi-1 (C-1, 55% microwave + 45% grill), or Combi-2 (C-2, 36% microwave + 64% grill). Press START/+30SEC./CONFIRM, set cooking time (0:05-95:00), then press start again. During grill cooking, the oven will beep halfway to remind you to turn food over.

What should I do if the microwave does not start?

Check that the power cord is plugged in securely. If the fuse has blown or the circuit breaker tripped, replace/reset it. Ensure the door is fully closed. If the outlet is faulty, test with another appliance. If none of these work, contact a qualified technician.

How do I activate the child lock?

In standby mode, press and hold STOP/CLEAR for 3 seconds until you hear a long beep. The display shows the current time (if set) or '::'. To unlock, repeat the same procedure.

Can I heat baby food or milk in this microwave?

Yes, but always stir or shake the contents and check the temperature before feeding to avoid burns. Never heat sealed bottles or jars as they may explode. Remove lids from jars before heating.

What are the dimensions required for built-in installation?

The microwave must be installed in a 60 cm wide wall-mounted cabinet with a minimum depth of 55 cm and a minimum height of 85 cm from the floor. The cabinet must not have a back wall behind the appliance. Ensure ventilation slots are not covered.

How do I clean the microwave properly?

Unplug the appliance. Clean the interior with a slightly damp cloth. Use soapy water for accessories. Door frame and seals must be cleaned carefully with a damp cloth. Do not use harsh abrasive cleaners or sharp metal scrapers on the glass door.

Is it normal for the oven light to be dim during low-power cooking?

Yes, during low-power microwave cooking the oven light may become dim. This is normal. Also, steam may accumulate on the door and hot air may come out of the vents during operation - this is expected.

USER MANUAL CM119 Caple

Instructionmanualformicrowaveovenandgrill

Modelcode:agag119

Front view of a white microwave oven with control buttons and a digital display (no visible text or symbols on the device body)

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	CM119
Rated Voltage:	230V~50Hz
Rated Input Power(Microwave):	1450W
Rated Output Power(Microwave):	900W
Rated Input Power(Grill):	1100W
Oven Capacity:	25L
Turntable Diameter:	315mm
External Dimensions:	594×410×388mm
Net Weight:	Approx. 19 kg

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
3. Warning: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.
4. Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. (only for grill series)
5. Only use utensils suitable for use in microwave ovens.
6. The oven should be cleaned regularly and any food deposits should be removed.
7. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.

12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

13. Install or locate this oven only in accordance with the installation instructions provided.

14. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
15. Use this appliance only for its intended uses as described in manual. Do not use corrosive chemicals or vapours in this appliance. This oven is especially designed to heat. It is not designed for industrial or laboratory use.
16. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
17. Do not store or use this appliance outdoors.
18. Do not use this oven near water, in a wet basement or near a swimming pool.
19. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any events on the oven.
20. Do not let cord hang over edge of table or counter.
21. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

22. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

23. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

24. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
25. Children should be supervised to ensure that they do not play with the appliance.
26. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
27. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
28. Accessible parts may become hot during use. Young children should be kept away.
29. Steam cleaner is not to be used.
30. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
31. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
32. Only use the temperature probe recommended for this oven.(for ovens provided with a facility to use a temperature-sensing probe.)

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

CLEANING

Be sure to unplug the

appliance from the power supply.

1. Clean the inside of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

Line drawing of a mechanical component with three protrusions and a central shaft (no text or symbols)

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:
   1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
   2) The extension cord must be a grounding-type 3-wire cord.
   3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks

Aluminium foil	Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks

Aluminium tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

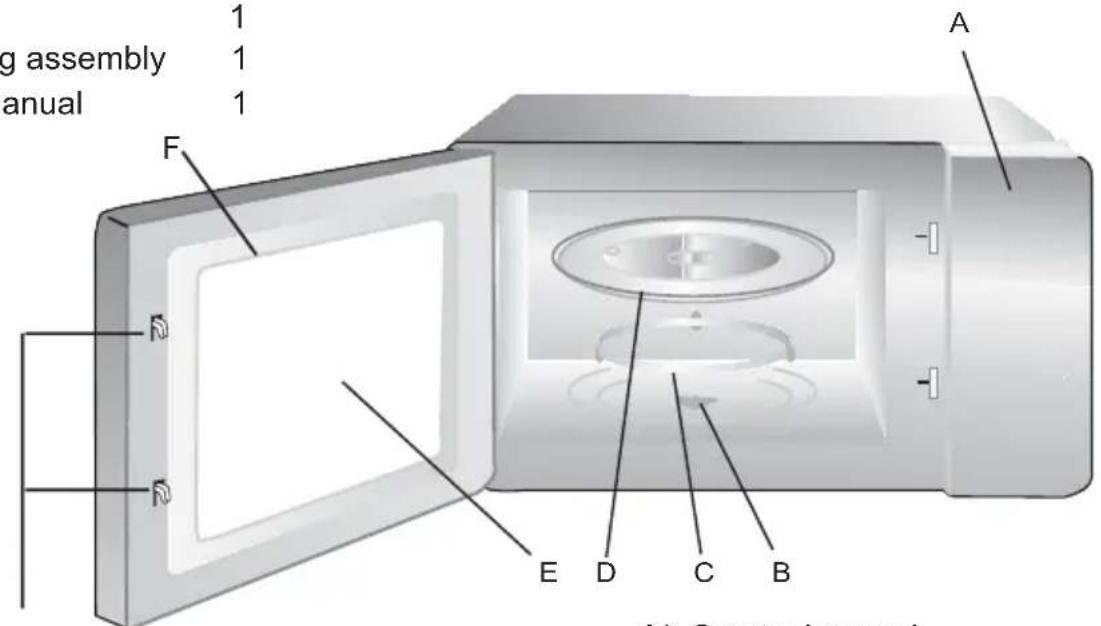

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray 1 Turntable ring assembly 1 Instruction Manual 1

G

Line drawing of a circular metal structure with three vertical supports (no text or symbols)

Grill Rack( Only for Grill series )

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

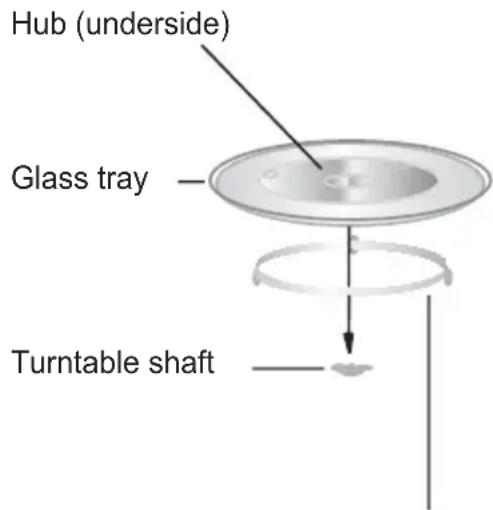

Turntable Installation

Turntable ring assembly

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Installation and connection

1. This appliance is only intended for domestic use.
2. This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard.
3. Please observe the special installation instructions.
4. The appliance can be installed in a 60cm wide wall-mounted cupboard (at lease 55cm deep and 85cm off the floor).
5. The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
6. The mains voltage must correspond to the voltage specified on the rating plate.
7. The socket must be installed and connecting cable must only be replaced by a qualified electrician. If the plug is no longer to accessible following installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at lease 3mm.
8. Adapters, multi-way strips and extension leads must not be used. Overloading can result in a risk of fire.

The accessible surface may be hot during operation.

Installation Instructions

Please Read the Manual Carefully Before Installation

Please note

Electrical connection

Theovenisfittedwithaplugandmustonly socket. Thesocketmustonlybeinstalled replacedbyaqualifiedelectrician, andin Iftheplugisnolongeraccessiblefollowing bepresentontheinstallationsidewitha Thefittedcabinetmustnothaveaback Minimuminstallationheight:85 cm. Donotcoverventilationslotsandsuction beconnectedtoproperlyinstalledearthed andtheconnectingcablemustonlybe accordancewiththeappropriateregulations. installation,anall-poleisolatingswitchmust contactgapofatleast3 mm. wallbehindtheappliance.

holes.

Note:

Donottraporbendthepowercable.

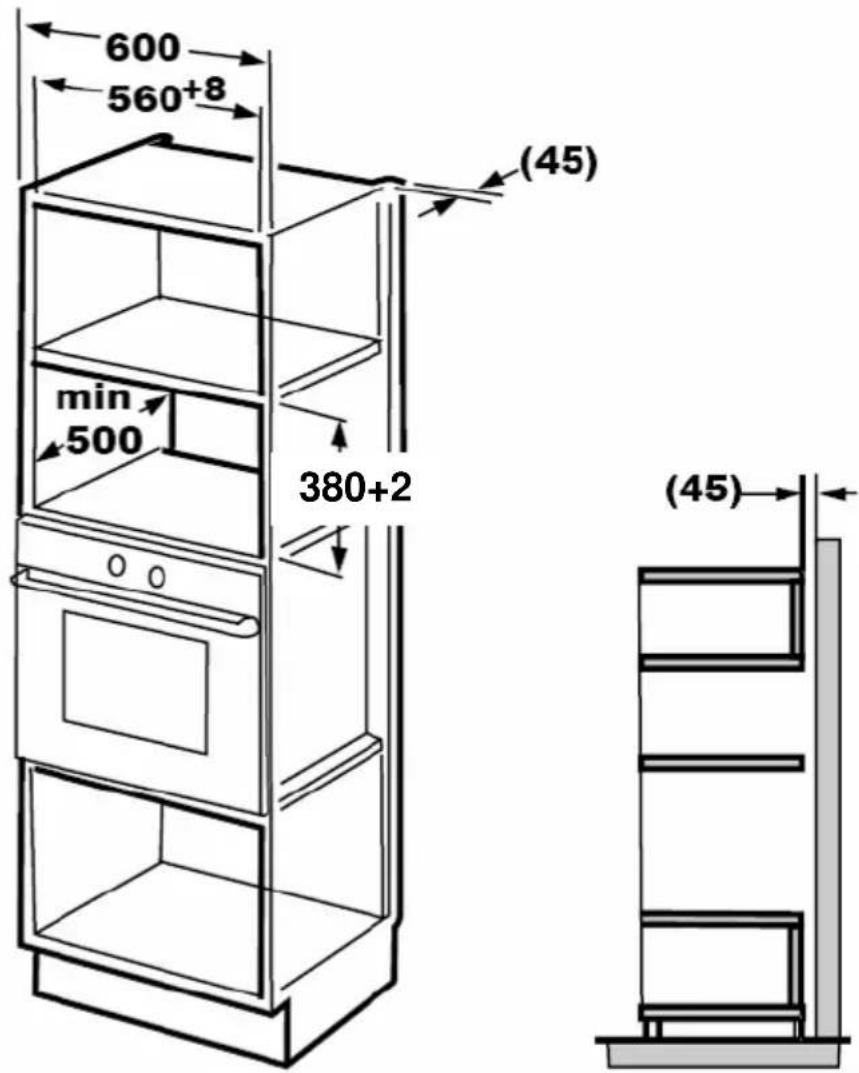

A. Built-in furniture

B. Pre are the cai inet

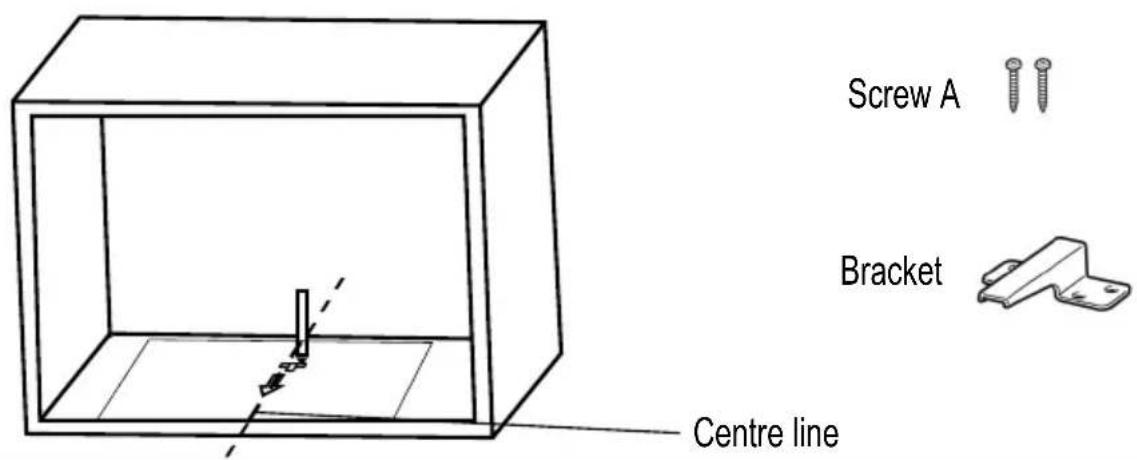

1. Read the instructions on the BOTTOM CABINET TEMPLATE, put the template on the bottom plane of cabinet.

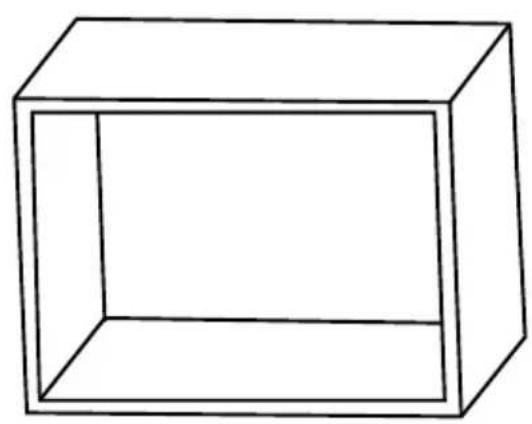

Simple line drawing of a 3D rectangular prism (no text or symbols)

1. Make the marks on the bottom plane of cabinet according to marks"a" of the template

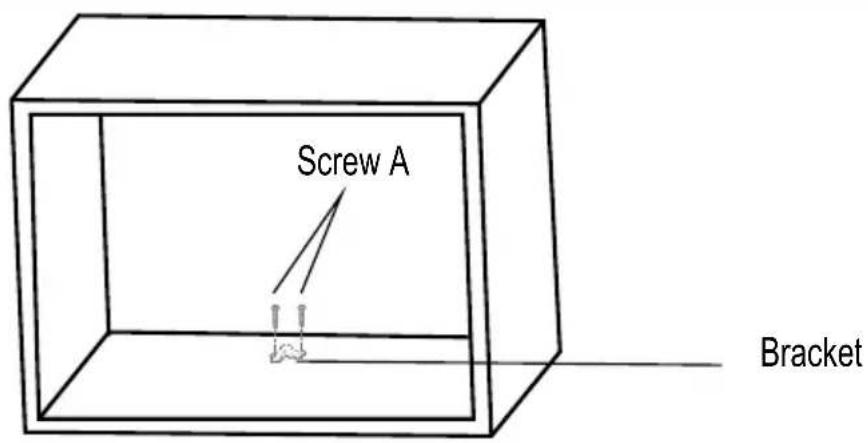

1. Remove the bottom cabinet template and fix the bracket with screw A.

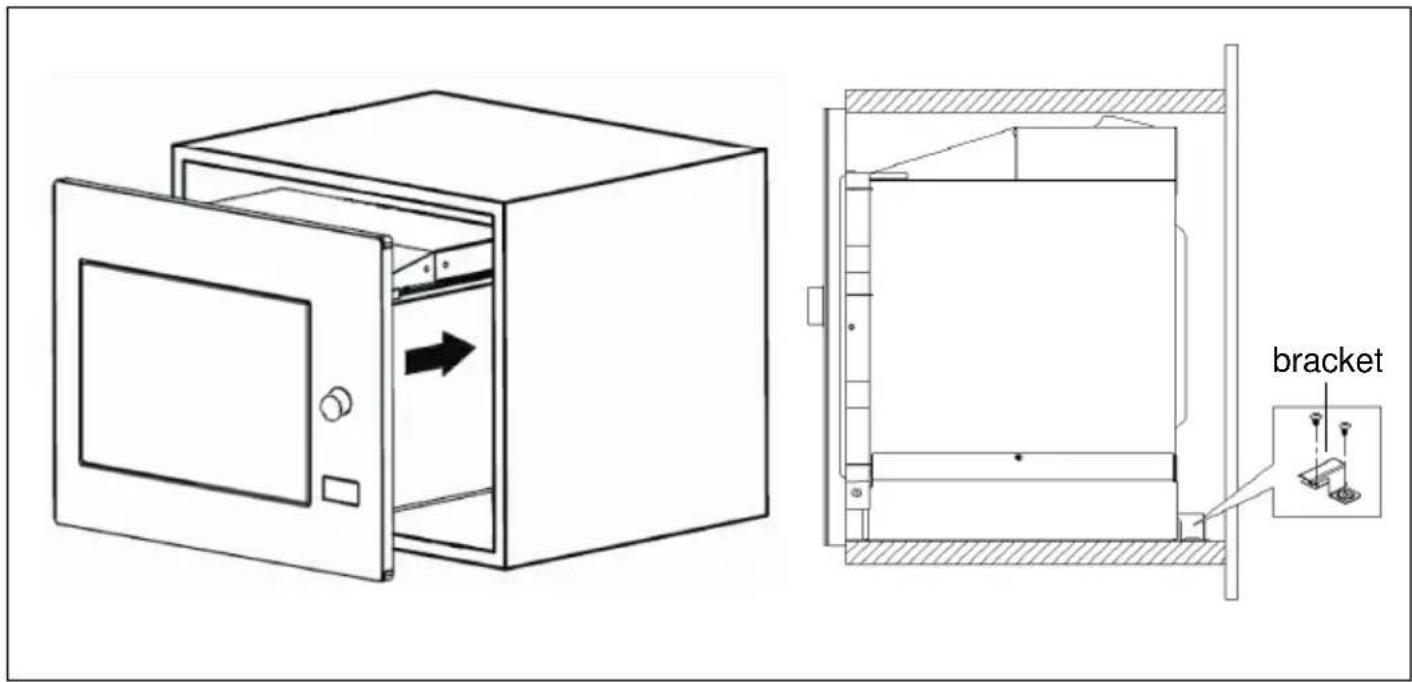

.Install the oven

1. Install the oven to the cabinet

2. Make sure the back of the oven is locked by bracket.

3. Do not trap or kink the power cord.

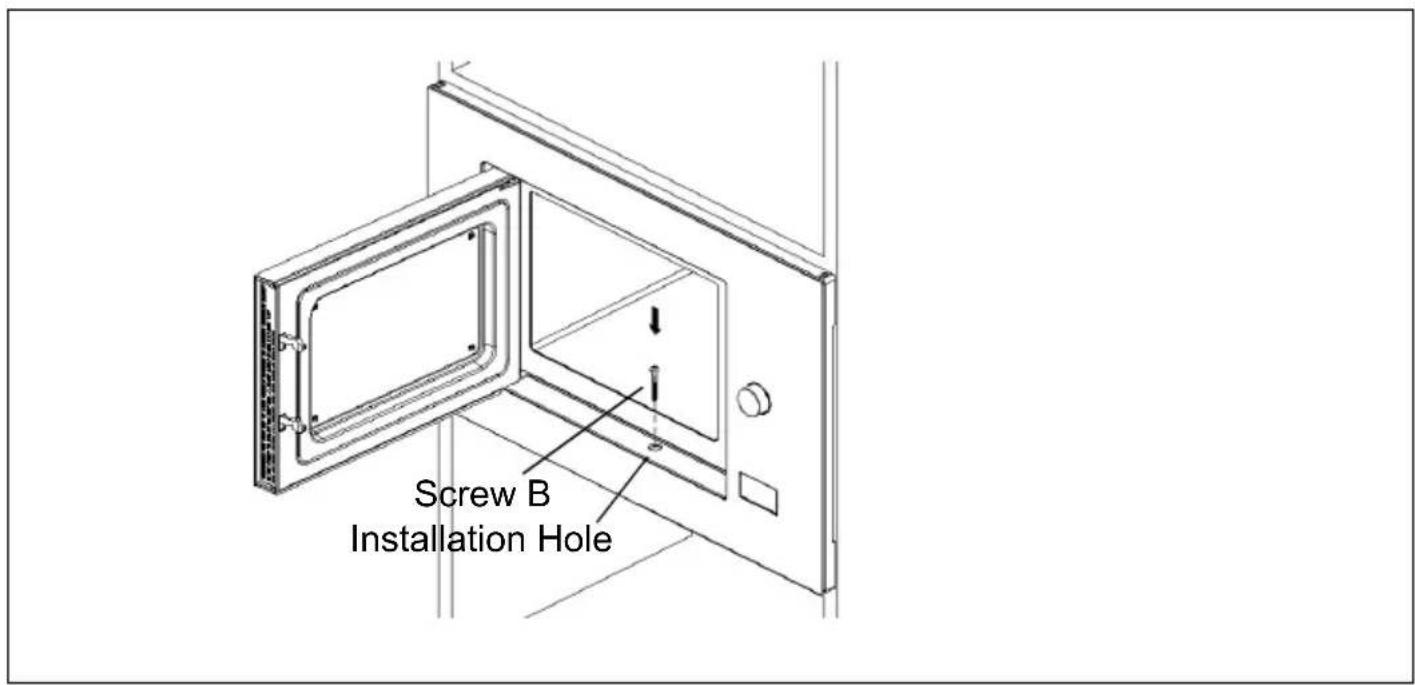

1. Open the door, fix the oven to the cabinet with Screw B, at the installation hole.

This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.

1. Clock Setting

When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once.

1) Press "CLOCK/KITCHEN TIMER" once, the hour figure flash;
2) Press "^" or "∨" to adjust the hour figures, the input time should be within 0--23.
3) Press "CLOCK/KITCHEN TIMER", the minute figures will flash.
4) Turn "^" or "∨" to adjust the minute figures, the input time should be within 0--59.
5) Press "CLOCK/KITCHEN TIMER" to finish clock setting. ":" will flash, the " ℓ "indicator will go out. The clock setting has been finished.

Note: 1) If the clock is not set, it would not function when powered.

2) During the process of clock setting, if you press " STOP/CLEAR ", the oven will go back to the previous status automatically.

2. Microwave Cooking

1) Press the "Microwave/Grill/Combi." key once, and "P100" will display.
2) Press "Microwave/Grill/Combi." for times or press "^" and "∨" to select the microwave power from 100% to 10%. "P100", "P80", "P50", "P30", "P10" will display in order.
3) Press "START/+30SEC./CONFIRM" to confirm.
4) Press "^" or "∨" to adjust the cooking time.

(The time setting should be 0:05-95:00.)

5) Press " START/+30SEC./CONFIRM " to start cooking.

NOTE: the step quantities for the adjustment time of the coding switch are as follow:

Microwave Power Chart

Microwave Power		80% 50%		30%	10%100%
Display	P100	P80	P50	P30	P10

3. Grill or Combi. Cooking

Press "Microwave/Grill/Combi." once the LCD will display "P100", and press " Microwave/Grill/Combi." for times or press the " ^ " or " √ " to choose the power you want, and "G","C-1" or "C-2" will display. Then press " START/+30SEC./CONFIRM " to confirm, and press " ^ " or " √ " to set cooking time from 0:05 to 95:00. Press " START/+30SEC./CONFIRM " again to start cooking.

Example: If you want to use 55% microwave power and 45% grill power(C-1) to cook for 10 minutes, you can operate the oven as the following steps.

1) Press " Microwave/Grill/Combi. " once, the screen display "P100".
2) Continue to press "Microwave/Grill/Combi." until the screen displays "C-1".
3) Press " START/+30SEC./CONFIRM " to confirm.
4) Press "^" or " √ " to adjust the cooking time until the oven displays "10:00".
5) Press " START/+30SEC./CONFIRM " to start cooking.

Combination Power instructions:

Program	Display	Microwave Power	Grill Power
Grill	G	0%	100%
Combi.1	C-1	55%	45%
Combi.2	C-2	36%	64%

Note: If half the grill time passes, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over, close the door, and then press"START/+30SEC./Confirm" to continue cooking. If no operation, the oven will continue working.

4. Defrost By Weight

1) Press "WEIGHT/TIME DEFROST" once, the screen will display "dEF1".
2) Press "∧" or "∨" to select the food weight. The range of weight is 100-2000g.
3) Press " START/+30SEC./CONFIRM " key to start defrosting.

5. Defrost By Time

1) Press "WEIGHT/TIME DEFROST" twice, the screen will display "dEF2".
2) Press "^" or " √" to select the cooking time. The maximum time is 95 minutes.
3) Press "START/+30SEC./CONFIRM" key to start defrosting.

6.Multi-Stage Cooking

Two stages can be maximally set. If one stages is defrosting, it should be put in the first stage. The buzzer will ring once after each stage and the next stage will begin.

Note: Auto menu cannot be set as one of the multi-stage.

Example: if you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps are as following:

1) Press "WEIGHT/TIME DEFROST" twice, the LCD display "dEF2".
2) Press " ∧ "or " ∨" to adjust the defrost time of 5 minutes;
3) Press"Microwave/Grill/Combi." once, LCD will dispaly "P100".
4) Press "^" or "∨" to choose microwave power till "P80" display;
5) Press "START/+30SEC./CONFIRM" to confirm, LCD will display "P80".
6) Press "∧" or "∨" to adjust the cooking time of 7 minutes;
7) Press "START/+30SEC./CONFIRM" to start cooking.

7. Kitchen Timer

(1) Press "CLOCK/KITCHEN TIMER" twice, LCD will display 00:00.
(2) Press " ∧ " or " ∨ " to enter the correct timer.
(The maximum cooking time is 95 minutes)
(3) Press " START/+30SEC./CONFIRM " to confirm setting, timer indicator will be lighted.
(4) When the kitchen time is reached, timer indicator will go out. The buzzer will ring 5 times.
If the clock be set(24-hour system), LCD will display the current time.
Note: The kitchen Time is differ from 24-hour system, Kitchen Timer is a timer.

8. Auto Menu

1) In waiting state, press "^" or "∨" to choose the menu from "A-1" to "A-8".
2) Press "START/+30SEC./CONFIRM" to confirm the menu you choose.
3) Press "^"or" ∨" to choose the food weight.
4) Press "START/+30SEC./CONFIRM" to start cooking.
5) After cooking finish, the buzzer sounds five times. The LCD display "0:00".

If the time has been set, current time will be displayed.

The menu chart:

Menu	Weight	Display
A-1	200 g	200
Pizza	400 g	400
A-2	200 g	200
Potato	400 g	400
	600 g	600
A-3	250 g	250
Meat	350 g	350
	450 g	450
A-4	250 g	250
Fish	350 g	350
	450 g	450
A-5	200 g	200
Vegetable	300 g	300
	400 g	400
A-6	1 cup(120 ml)	1
Beverage	2 cups(240 ml)	2
	3 cups(360ml)	3
A-7	50g(with 450 ml cold water)	50
Pasta	100g(with 800 ml cold water)	100
A-8	50 g	50
Popcorn	85 g	85
	100 g	100

9. Speedy Cooking

1) In waiting state, press " START/+30SEC./CONFIRM " key to cook with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking time is 95 minutes.
2) During the microwave, grill, combination cooking and the defrost by time process, press "START/+30SEC./CONFIRM" to increase the cooking time.
3) Under the states of auto menu and defrost by weight, cooking time cannot be increased by pressing "START/+30SEC./CONFIRM".

10. Lock Function for Children

Lock: In waiting state, press " STOP/CLEAR" for 3 seconds, there will be a long beep denoting entering the children-lock state and the current time will display if the time has been set, otherwise, the LCD will display " [::] ".

Lock quitting: In locked state, press "STOP/CLEAR" for 3 seconds, there will be a long "beep" denoting that the lock is released.

11. Inquiring Function

1) In cooking states of microwave, grill and combination. Press "Microwave/Grill/Combi." the current power will be displayed for 2-3 seconds.

2) During cooking state, press "CLOCK/KITCHEN TIMER" to check the current time. It will be displayed for 2-3 seconds.

12. Specification

(1) "START/+30SEC./CONFIRM" must be pressed to continue cooking if the door is opened during cooking;
(2) Once the cooking programme has been set, "START/+30SEC./CONFIRM" is not pressed in 1 minute. The current time will be displayed. The setting will be cancelled.
(3) The buzzer sounds once by efficient press, inefficient press will be no response.

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.
Glass turntable makes noise when microwave oven operates	(5) Dirty roller rest and oven bottom.	Refer to "Maintenance of Microwave" to clean dirty parts.

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.
