Product Type	Microwave Oven
Brand	Midea
Model	MM717CFB
Rated Voltage	230 V ~ 50 Hz
Rated Input Power (Microwave)	1150 W
Rated Output Power (Microwave)	700 W
Oven Capacity	17 L
Turntable Diameter	245 mm
External Dimensions (L x W x H)	433 x 345 x 258 mm
Net Weight	Approx. 10.0 kg
Power Levels	Low (17%), Med Low (33%), Med (55%), Med High (77%), High (100%)
Control Type	Knobs (Power and Timer)
Timer Range	Up to 30 minutes (mechanical)
Door Type	Side-opening with handle
Safety Features	Safety interlock system, door seals, grounding
Cleaning Instructions	Unplug before cleaning; use damp cloth; clean door seals
Included Accessories	Glass tray, turntable ring assembly, instruction manual
Installation Clearance	At least 7.5 cm from walls, 30 cm above, one side open
Intended Use	Household only, not for industrial or laboratory
Warranty	Standard manufacturer warranty (duration not specified)

Frequently Asked Questions - MM717CFB MIDEA

How do I set the cooking time and power level?

Turn the power knob to desired level (Low, Med Low, Med, Med High, High) and the timer knob to desired time. The oven starts automatically. After time is up, it will beep.

Can I use metal containers in this microwave?

No, metal containers and metal-trimmed utensils can cause arcing. Use only microwave-safe materials.

How to clean the microwave oven?

Unplug the oven. Clean the interior with a slightly damp cloth. Clean accessories with soapy water. Door frame and seals should be cleaned carefully.

What should I do if the oven doesn't start?

Check if the power cord is plugged in tightly. Unplug and try again after 10 seconds. Also check the circuit breaker or fuse. If outlet is faulty, test with another device.

Is it safe to use plastic wrap?

Yes, but only if labeled microwave-safe. Use to cover food, but do not let it touch the food.

Can I heat eggs in the microwave?

No, eggs in the shell and whole hard-boiled eggs may explode even after heating. Do not microwave them.

Why does the turntable make noise?

The roller rest or oven bottom may be dirty. Refer to Cleaning section to clean those parts.

How much space do I need around the oven?

At least 7.5 cm from walls, 30 cm above, and one side must be open. Do not block vents.

What does it mean if the oven light is dim?

During low power cooking, the oven light may become dim. This is normal.

Can I use the oven without food inside?

No, operating the microwave without food can cause damage to the magnetron. Always ensure there is food or liquid inside when running.

USER MANUAL MM717CFB MIDEA

Please read the Instruction Manual carefully before use and keep it for future reference.

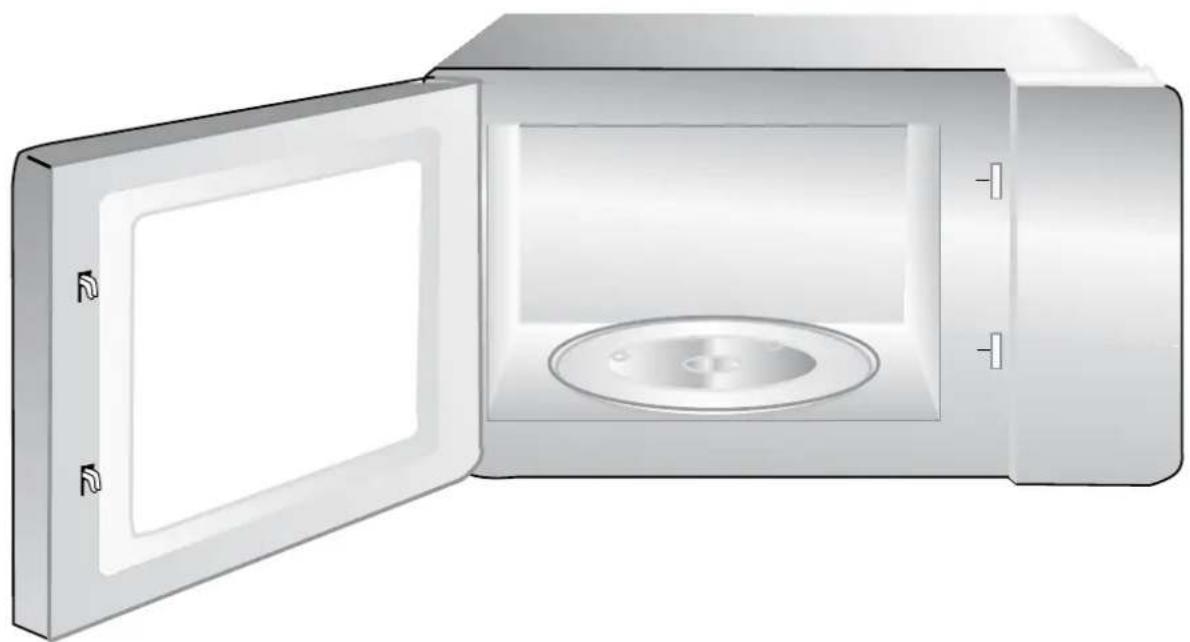

Illustration of a microwave oven with open lid and circular vent (no text or symbols)

SE

FÖRSIKTIGHETSÅTGÄRDER FÖR ATT UNDVIKA MIKROVÅGSSTRÅLNING

Line drawing of a plug with two leads and a side socket (no text or symbols)

Jordad stickpropp

Line drawing of a black electrical outlet plug with two leads (no text or symbols)

RUOANVALMISTUSASTIAT

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by qualified service personnel.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the life span of the apparatus and lead to a dangerous situation.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than qualified service personnel to remove a cover which gives protection against exposure to microwave energy.
3. Warning: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.
4. Only use utensils suitable for use in microwave ovens.
5. The oven should be cleaned regularly and any food deposits should be removed.
6. Read and follow the specific:"Precautions to Avoid Possible Exposure to Excessive Microwave Energy".
7. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
8. If smoke is observed, switch off and unplug the appliance and keep the door closed in order to stifle any flames.
9. Do not overcook food.
10. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.

11. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

12. Install and locate this oven only in accordance with the installation instructions provided.

13. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
14. Use this appliance only for its intended uses as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed to heat. It is not designed for industrial or laboratory use.
15. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
16. Do not store or use this appliance outdoors.
17. Do not use this oven near water, in a wet basement or near a swimming pool.
18. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any vents on the oven.
19. Do not let cord hang over edge of table or counter.
20. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

21. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

22. Microwave heating of beverages can result in delayed eruptive boiling, therefore take care when handling the container.

23. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

24. Children should be supervised to ensure that they do not play with the appliance.

25. The microwave oven shall not be placed in a cabinet unless there is enough space around it.

26. Appliances are not intended to be operated by means of an external timer or separate remote-control system.
27. The door or the outer surface may get hot when the appliance is operating.
28. The rear surface of appliance shall be placed against a wall.

TO REDUCE THE RISK OF INJURY TO PERSONS

Grounding Installation

• Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. Only qualified service personnel may repair the oven.
• This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
• Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

Use of Extension Cord

Line drawing of a plug with two leads and a terminal socket (no text or symbols)

Two-round-pin plug

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:

(a) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.

(b) The extension cord must be a grounding type 3-wire cord.

(c) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the inside of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

UTENSILS

See the instructions on "Materials you can use in microwave oven" and "Materials to be avoided in microwave oven." There may be certain nonmetallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250 ml), and put this container in the microwave, along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

MATERIALS YOU CAN USE IN MICROWAVE OVEN

Utensils Remarks
Aluminium foil	Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 2.5 cm away from oven walls.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labelled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only.
Wax paper	Use as a cover to prevent splattering and retain moisture.

MATERIALS TO BE AVOIDED IN MICROWAVE OVEN

Utensils Remarks
Aluminium tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

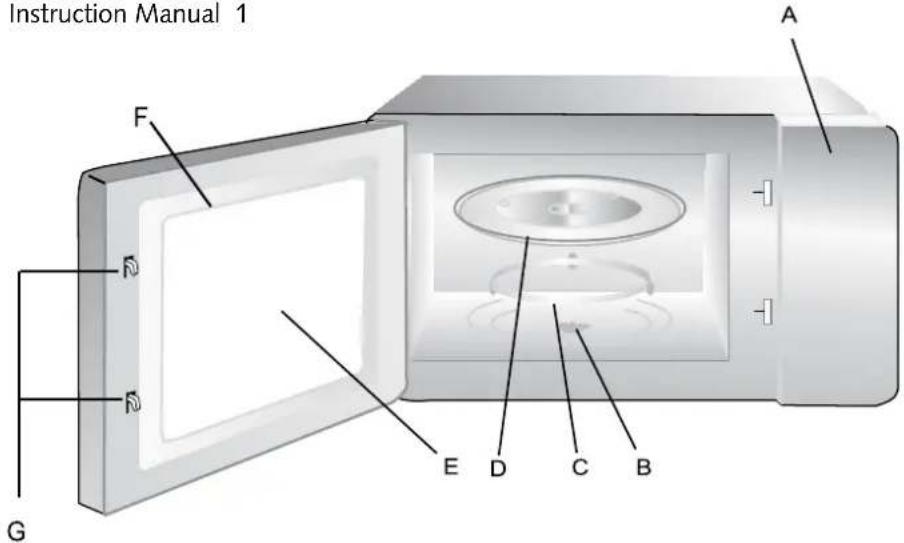

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray 1

Turntable ring assembly 1

Instruction Manual 1

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

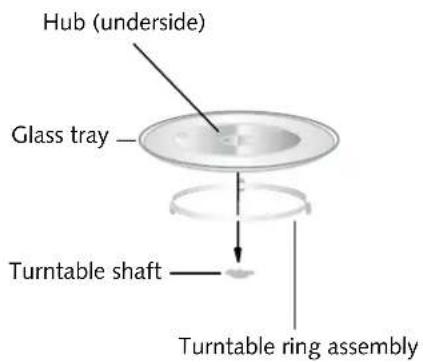

TURNTABLE INSTALLATION

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service centre.

COUNTER TOP INSTALLATION

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface.

Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

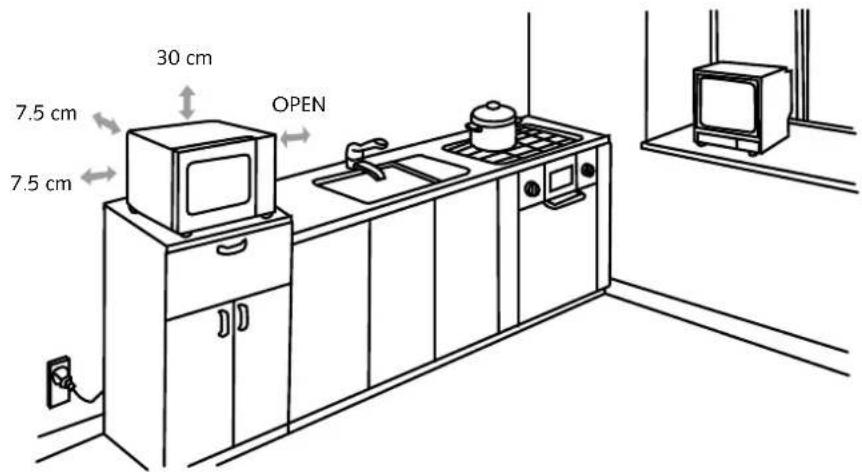

INSTALLATION

1. Select a level surface that provides enough open space for the intake and/or outlet vents.

A minimum clearance of 7.5 cm is required between the oven and any adjacent walls. One side must be open.

(a) Leave a minimum clearance of 30 cm above the oven.
(b) Do not remove the legs from the bottom of the oven.
(c) Blocking the intake and/or outlet openings can damage the oven.
(c) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

1. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cook top or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

OPERATION INSTRUCTIONS

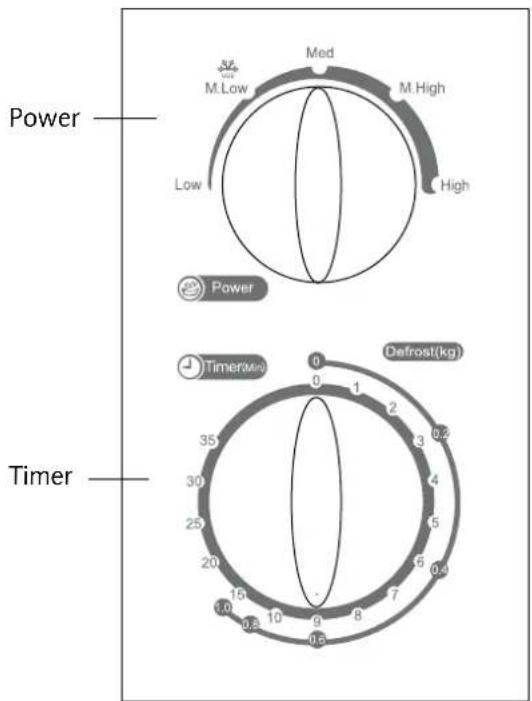

Control Panel and Features

1. Set the cooking power by turning the power knob to desired level.
2. Set the time of cooking by turning the timer knob to desired time per your food cooking guide.
3. The microwave oven will automatically start cooking after power level and time are set.
4. After the cooking time is up, the unit will "Dong" to stop.
5. If the unit is not in use, always set time to "0".

Function/Power Output Application
Low 17% micro. Soften ice cream
Med. Low (Defrost) 33%	micro. Soup stew, soften butter or defrost
Med. 55% micro. Stew, fish
Med. High 77% micro. Rice, fish, chicken, minced meat
High 100% micro. Reheat, milk, boil water, vegetables, beverage

Notice: When removing food from the oven, please ensure that the oven power is switched off by turning the timer switch to 0 (zero). Failure to do so, and operating the microwave oven without food in it, can result in overheating and damage to the magnetron.

TROUBLE SHOOTING

Normal
Microwave oven interfering TV reception.	Radio and TV reception may be interfered with when the microwave oven is operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light. In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents.	When cooking, steam may come out of food. Most will get out through the vents, but some may accumulate on a cool place like the oven door. It is normal.
Oven started accidentally with no food in.	Do not run the unit without food inside. This may cause damage to the oven.

Trouble Possible Cause Remedy
Oven cannot start. Power cord not plugged in tightly. Unplug.	Then plug again after 10 seconds.
	Tripped main circuit breaker or blown circuit fuse.	Reset the circuit breaker or replace the fuse (repaired by professional person- nel).
	Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	Door not closed well.	Close door properly.
Glass turntable makes noise when microwave operates.	Dirty roller rest and oven bottom.	Refer to "Cleaning" to clean dirty parts.

SPECIFICATIONS

Rated Voltage: 230V\~50Hz

Rated Input Power (Microwave): 1150W

Rated Output Power (Microwave): 700W

Oven Capacity: 17 L

Turntable Diameter: 245 mm

External Dimensions (LxWxH): 433x345x258 mm

Net Weight: Approx. 10.0 kg

CE
