98-S - Tractor SABO - Free user manual and instructions

Product Type	Ride-on Lawn Tractor
Model	98-S
Brand	SABO
Engine Type	4-stroke gasoline engine
Engine Power	10.5 hp
Cutting Deck Width	92 cm
Cutting Height Adjustment	Central lever, 6 positions
Transmission	Hydrostatic with foot pedal
Steering	Steering wheel
Fuel Tank Capacity	3.5 L
Weight	220 kg
Dimensions (L x W x H)	1750 x 1000 x 1050 mm
Recommended Engine Oil	SAE 30 or 10W-30
Spark Plug	BPR6ES or equivalent
Blade Engagement	Electric clutch
Battery	12V, 20Ah
Wheel Size (Front)	15 x 6-6
Wheel Size (Rear)	20 x 10-8
Safety Features	Operator presence control, deadman's switch
Maintenance Interval	Oil change every 50 hours
Cutting Blade Torque	40-45 Nm (M10x25 bolts)

Frequently Asked Questions - 98-S SABO

How do I start the SABO 98-S tractor?

Ensure the parking brake is engaged, sit on the seat to activate the operator presence switch, and turn the ignition key to start.

How often should I change the engine oil?

Change the engine oil every 50 hours of operation for optimal performance.

What type of oil should I use?

Use SAE 30 or 10W-30 motor oil with API service classification SF or higher.

The mower deck does not engage. What should I check?

Check the electric clutch connection and the fuse. Also ensure the blade engagement switch is properly activated.

How do I adjust the cutting height?

Use the cutting height adjustment lever located on the right side of the tractor. Move it to the desired position.

Why is the engine running rough?

Check the air filter for dirt, inspect the spark plug, and ensure you are using fresh, clean gasoline.

How do I replace the blades?

Disconnect the spark plug wire, raise the deck, and remove the blade bolts. Torque the new bolts to 40-45 Nm.

What are the storage recommendations?

Clean the tractor, remove the battery, and store it indoors in a dry place. Add fuel stabilizer if storing for winter.

What is the recommended tire pressure?

Front tires: 20 psi (1.4 bar). Rear tires: 15 psi (1.0 bar).

Where can I find replacement parts?

Replacement parts are available through authorized SABO dealers or online parts retailers. Use the model number 98-S.

USER MANUAL 98-S SABO

Line drawing of a grassy tractor with visible frame, wheels, and suspension components (no text or symbols)

DE

AUFSITZMÄHER

BETRIEBSANLEITUNG

Technical line drawing of a vehicle's rear wheel assembly with mounting brackets and tire tracks (no text or symbols)

M10X25(X2) (40,0 - 45,0 Nm)

Technical line drawing of a mechanical tank or vehicle assembly (no text or symbols present)

(1,5-2,0 Nm)
ST5.0×16(X3)

P

Q

Technical line drawing of a mechanical engine component with no visible text or symbols

R

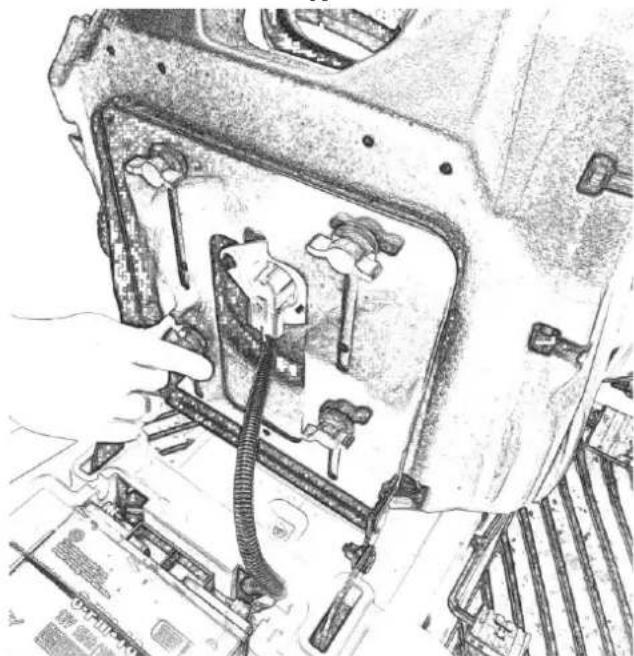

Hand inserting a plug into a vehicle's engine compartment, showing wiring and components (no text or symbols visible)

DE

Deutsch

Name and address of the person in the community authorized to compile the technical construction file:
