Power Mixer 303085 - Blender Arendo - Free user manual and instructions

Product Type	Blender
Brand	Arendo
Model	Power Mixer 303085
Power Supply	220-240V AC, 50/60 Hz
Power Consumption	1400 W
Dimensions (H x W x D)	Approx. 420 mm x 180 mm x 200 mm
Weight	4500 g
Jar Capacity	1.75 L
Functions	Ice Crush, Smoothie, Interval programs; variable speed control; manual start/stop
Operating Time	Maximum 2-3 minutes continuous use; then 5 minutes cool-down
Safety Features	Safety lock ensures operation only when jar is securely seated; anti-skid base
Blade Unit	Stainless steel, sharp; not dishwasher safe
Jar and Lid Material	Plastic; dishwasher safe
Cleaning	Base: damp cloth; jar and lid: dishwasher or soapy water; blade: hand wash
Program Duration	Ice Crush: 68 s; Smoothie: 60 s; Interval: 43 s
WEEE Registration	DE 67896761
Compliance	WEEE Directive 2012/19/EU; CE
Included Accessories	Base station, blender jar with lid, blade unit, user manual
Guarantee	Warranty valid if no unauthorized modifications; details in manual

Frequently Asked Questions - Power Mixer 303085 Arendo

What is the maximum capacity of the blender jar?

The blender jar has a capacity of approximately 1.75 liters.

How long can I use the blender continuously?

The blender is designed for 2-3 minutes of continuous use, after which you must let it cool down for 5 minutes.

What are the pre-set programs and their durations?

There are three programs: Ice Crush (68 s), Smoothie (60 s), and Interval (43 s). They automatically stop at the end.

Can I put the blender jar and lid in the dishwasher?

Yes, the blender jar and lid are dishwasher safe. However, the blade unit must be washed by hand.

How do I clean the base unit?

Unplug the device and wipe the base unit with a slightly damp soft cloth. Do not use liquids or abrasive cleaners.

What safety features does the blender have?

The blender has a safety lock that prevents operation unless the jar is properly seated, and an anti-skid base for stability.

Can I blend dry ingredients without liquid?

No, always ensure there is enough liquid in the jar. Dry ingredients alone may damage the device.

How do I use the program functions?

Turn the mode dial to Program, then press one of the program buttons (Ice Crush, Smoothie, Interval). The blender will run the selected program automatically.

Is the blade unit removable and replaceable?

Yes, the blade unit is detachable. For replacement, contact the manufacturer or authorized service.

What should I do if the power cord is damaged?

Do not use the blender. The cord must be replaced by the manufacturer or a qualified person to avoid hazard.

USER MANUAL Power Mixer 303085 Arendo

Thank you for choosing an Arendo product. Please read the following user manual carefully to get the most from the product you have purchased.

1. Scope of supply

• Base station
• User manual
• 1x blender jar + lid
• Blade unit

2. Technical data

Power supply 220-240V AC 50/60 Hz
Power consumption 1400W
Dimensions (H x W x D) approx. 420mm x 180mm x 200mm
Weight 4500g
Capacity (blender jar) approx. 1.75l
Features • Anti-skid base	• Safety lock• 3 different modes(“Ice Crush”, “Smoothie”, “Interval”)

3. First start-up

Take the device out of the package and remove all packaging material. Clean the blender jar and the blade unit. You can clean the blender jar and the blender lid in the dishwasher or in soapy water. The blade unit is not suitable for dishwashers. Do not use any aggressive or strong cleaning agents.

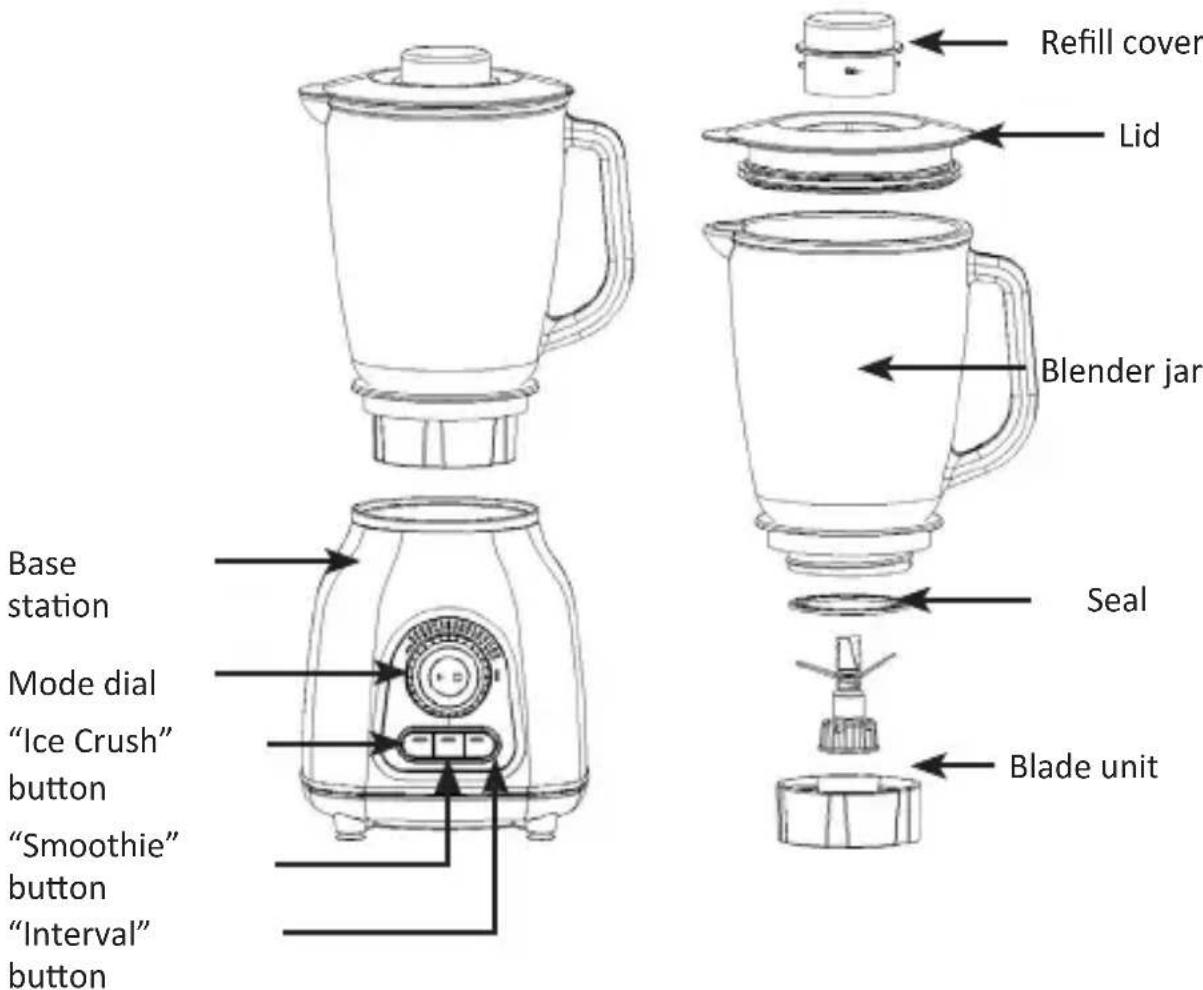

4. Product details

5. Safety switches

The device can be operated only if the blender jar is securely seated. Make sure the jar is properly seated. Only then can the device be operated.

6. Brief operation

The device is designed only for brief periods of operation. You can use the blender continuously for about 2-3 minutes. After this time, you must allow the motor to cool down for approx. 5 minutes.

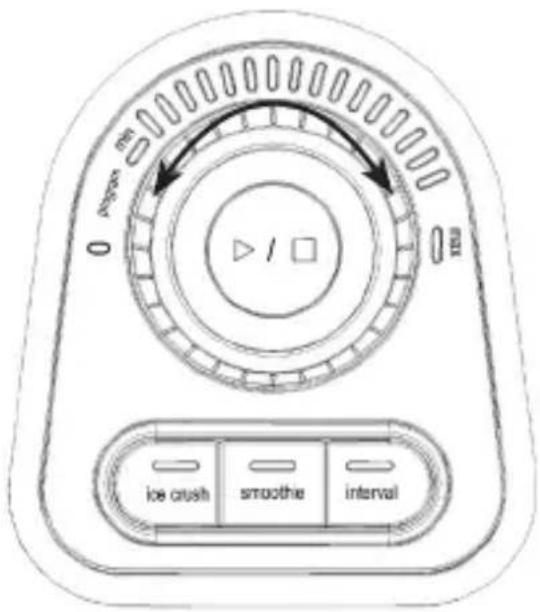

7. Operating elements

Turn the mode dial to the position "0" to turn off the device.

Turn the mode dial in the direction "Max" to increase the speed. Turn it in the direction "Min" to decrease the speed.

Turn the mode dial to “Program” to use the program functions “ice crush”, “smoothie” and “interval”. Then press a program button to start the corresponding program.

Ice crush	The mixer starts the “Ice Crush” program. Thereby, the device switches between different speeds and pauses. The program automatically ends after 68 seconds.
Smoothie	The mixer starts the “Smoothie” program. For this purpose, the device switches between different speeds. The program automatically ends after 60 seconds.
Interval	The mixer starts the “Interval” program. In this case, the device switches between different speeds and pauses. The program automatically ends after 43 seconds.

You can stop and start the device at any time by pressing the stop/ start button in the mode dial centre.

12 English

8. Commissioning

Fit the blade unit and the seal onto the blender jar. Then connect the power plug of the device into a properly installed power socket.

Place the blender jar with the blade unit onto the base unit. Ensure that it snaps into place. Now open the top of the blender jar and put in the required ingredients. The refill cover can be taken from the lid.

Do not use dry ingredients and make sure there is enough liquid in the blender jar. Add liquid if necessary.

Select the required operating mode. The blender will then start to chop the chosen ingredients into smaller pieces. Adhere to the prescribed operating time. Do not exceed the blending time under any circumstances. If you want to use a program for blending, turn the mode dial to the “Program” position and press the required program button. After completing the blending process, remove the blending jar from the base unit and pull out the plug from the socket.

Note: The device is designed only for brief periods of operation. Allow the device to cool down for approx. 5 minutes of continuous operation before you start blending again!

9. Cleaning and maintenance

Unplug the power cord from the outlet. Clean the base unit with a slightly dampened soft cloth. Caution! Do not use liquids to clean the base unit and the power connections. Do not use any aggressive, strong or abrasive cleaning agents.

You can clean the blender jar, the lid and the blade unit in soapy water. The blender jar and the lid can also be cleaned in a dishwasher.

To clean the device quickly and immediately after use, fill the blender jar with warm water up to about 60%, add little detergent and let the device run briefly. Then, take the blender jar and shake it. Finally, rinse only the blender jar and the blade unit using clean water until all residue and traces of the detergent are removed.

Allow all parts of the device to dry completely.

10. Important safety guidelines for this device

- Never use this device without the lid placed! There is a risk of injury!

- Do not use dry ingredients and make sure there is enough liquid in the blender jar. Add liquid if necessary.

- Never operate the device when it is dry.

- Always check the device for any damage before operating it. Do not operate the device if the cable, the plug or the device show any visible signs of damage.

- Do not make any modifications or repairs to the device.

- Caution! The blade unit is very sharp!

- Plug the device only into a properly installed power socket.

- Never leave the blender unattended and choose a location in which the device is out of reach of animals and /or children.

• Children should not play with the device.

- Children above 8 years of age and persons with restricted physical, sensory and mental abilities may use the device only if they are instructed or supervised by a person who is responsible for their safety.

- Keep the blender out of reach of children under 8 years of age.

- Keep it on an appropriate surface so that it does not tip over.

- Do not keep the blender next to heat sources (e.g., electric stove).

- Unplug the power plug when the device is not in operation or during cleaning.

- Do not move the device when it is being operated.

- Ensure that the power cable does not come into contact with any hot surfaces.

- If you want to pull out the plug from the socket, pull by holding the plug and not the cable.

- Never touch the plug with wet hands.

- Protect the device against fire.

- Do not immerse the cable, the plug or the entire device in water or any other liquids.

- The device should not be used by children. Keep this device and the power plug out of reach of children.

- Switch off the device, pull the power plug when you want to replace any accessories or to move the device to another location.

• Remove the power plug from the socket when the device is not in operation, and during cleaning and assembly.
• If the mains cable is damaged, this must be replaced by the manufacturer or by a qualified personnel in the event of a defect, in order to prevent damage.
• Never insert body parts, or objects which are not defined for it, in the blender.

11. Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

12. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 303085/20180330QZ001 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
