Product Type	Blender
Brand	Teesa
Model	TSA3538
Dimensions (H x W x D)	Approx. 40 x 17 x 17 cm
Weight	Approx. 1.5 kg
Power Supply	220-240 V ~ 50/60 Hz
Rated Power	500 W
Capacity (Jug)	1.5 L
Material (Jug)	Glass or Tritan plastic
Number of Speed Settings	2 speeds + pulse
Main Functions	Blending, mixing, pureeing, crushing ice
Safety Features	Non-slip feet, safety lock lid, overload protection
Cleaning and Maintenance	Detachable jug; hand wash recommended; wipe motor base with damp cloth
Spare Parts	Replacement jug, blade assembly, lid available
Repairability	User-replaceable parts; professional repair for motor issues
General Information	For household use only; not dishwater safe; store in dry place

Frequently Asked Questions - TSA3538 Teesa

How do I clean the blender jar?

Rinse the jar immediately after use. Fill with warm water and a drop of dish soap, then run the blender on pulse for 10 seconds. Rinse thoroughly and air dry. The blade assembly can be removed for deeper cleaning.

Can I crush ice with this blender?

Yes, the TSA3538 is suitable for crushing ice. Use the pulse function and add a small amount of liquid to prevent strain on the motor.

What is the maximum capacity for hot liquids?

Do not blend hot liquids above 60°C (140°F). Allow liquids to cool before blending to avoid pressure buildup and potential lid ejection.

Is the jar dishwasher safe?

The jar is not dishwasher safe. Hand washing with mild detergent is recommended to maintain clarity and prevent damage to seals.

Why does the blender stop suddenly?

The blender has an overload protection feature that shuts off the motor if it overheats. Unplug the unit, let it cool for 15 minutes, and reduce the load before restarting.

How do I remove the blade assembly for cleaning?

Ensure the blender is unplugged. Unscrew the bottom of the jar counter-clockwise. The blade assembly can be removed and washed separately. Handle blades with care.

Can I replace the jar if it breaks?

Yes, replacement jars and blade assemblies are available. Contact Teesa customer service or check authorized retailers for compatible spare parts.

What type of warranty does the TSA3538 have?

Teesa typically offers a 2-year warranty on blenders. Register your product online or keep the purchase receipt for service.

How do I avoid leaks from the lid?

Ensure the lid is properly aligned and pressed down until it clicks. The seal must be clean and free of debris. Do not overfill beyond the max line.

Can I blend nuts or dry ingredients?

The blender is designed for wet blending. For dry ingredients like nuts, use short pulses with a small amount of liquid to prevent damage to the blades.

USER MANUAL TSA3538 Teesa

Line drawing of a person pouring liquid from a bottle into a jar (no text or symbols)

Line drawing of a blender with handle and control panel, no text or symbols present

TIPPS

Thank you for purchasing TEESA appliance. Please read this operation instruction carefully before use, and keep it for future reference. Producer does not take responsibility for damages caused by inappropriate handling and use of the product.

SAFETY INSTRUCTIONS

In order to reduce the injuries or damages, follow basic safety precautions applied when using any electrical device, including the following:

1. Read this instruction manual carefully, even if you are familiar with the appliance. Keep the manual for future reference.

2. Before connecting the device to power supply socket, make sure the voltage indicated on the appliance corresponds to the voltage in the power supply socket.

3. Place the device on flat, stable surface.

4. Clean this device in accordance to instructions listed in "Cleaning and Maintenance" section.

5. ALWAYS turn off the device and disconnect it from the mains supply:

• if it's not operating correctly
- if there's an uncommon voice when using
• before disassembling the device
- before cleaning
- when not in use

1. When you disconnect the power cord of the device, grasp and pull the plug, not the cord/cable.

2. Keep the device out of the reach of children. Do not leave children unsupervised with the product.

3. This appliance may be used by children who are above 8 years old and by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they are supervised and guided by a person who is responsible for their safety in a cautious manner, and all the safety precautions are understood and followed. Children should not play with this device. Children should not perform cleaning and servicing of the device unsupervised.

4. Fixed power cable may only be replaced in an authorized service point.

5. Keep the device and its cord/cable away from heat, water, moisture, sharp edges and any other factor which may damage the appliance or its cord.

6. Protect the product from strong impact and mechanical stress.

7. Do not place the appliance in water or any liquid; nor handle/use it with wet or moist hands.

8. Do not use the product for purposes different from displayed in this operating manual.

9. Do not leave the appliance unattended when it's working.

10. Producer of this product is not responsible for damages caused by inappropriate handling and using of the device.

11. ALWAYS disconnect the product form the mains supply when it is not in use.

12. DO NOT use this device if the cord or the plug is damaged, or the appliance is broken.

13. Do not attempt to repair this appliance yourself. Only authorized and qualified personnel may repair this device. Never disassemble this device.

14. Do not use unauthorized accessories.

15. Appliance for indoor and household use only.

16. This appliance is suitable exclusively for food preparation. Do not place anything but food in the appliance.

17. Always securely clamp in place all parts before the motor is turned on. Do not disassemble while the device is operating.
18. Do not touch moving parts. Make sure the motor stops completely before disassembling.
19. Use only original attachment /accessories.
20. Do not operate with empty-load or over-load.
21. Handle the blade with care – it is very sharp.
22. Do not add hot water into cup.

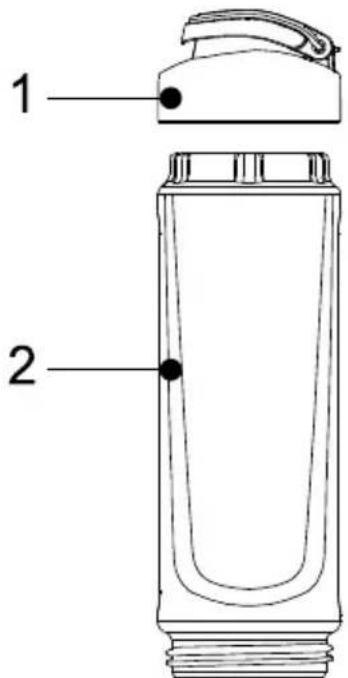

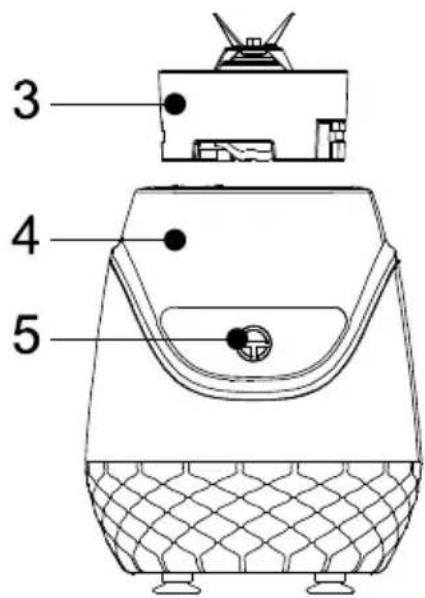

PRODUCT DESCRIPTION

1. Cap
2. Cup
3. Blade assembly
4. Motor unit
5. Power button

OPERATION

Wash the parts that will have contact with food before first use. Rinse thoroughly with warm water and allow to air dry. Never submerge the device motor base in water or any other liquid.

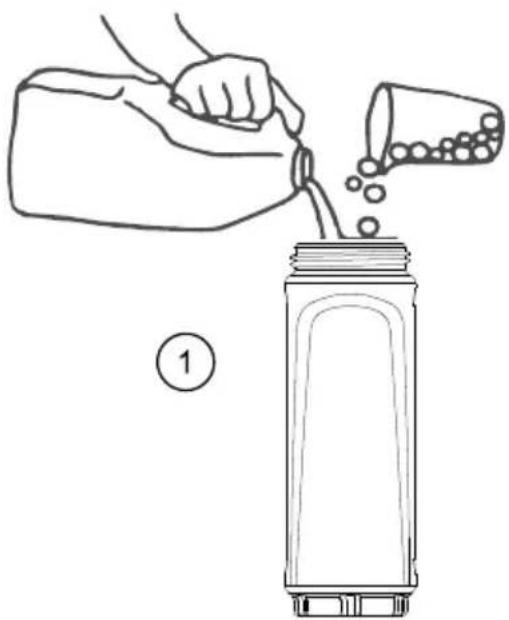

1. Put the motor base on flat and dry surface. Cut the food into the cube blocks (max. 15 mm). Put these cube blocks into the cup and add liquid if necessary. Do not overfill the cup.

Line drawing of a hand pouring liquid into a bottle with a container, labeled with number 1 (no text or symbols on the diagram itself)

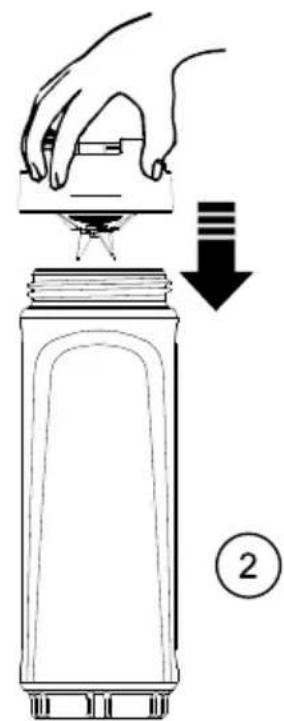

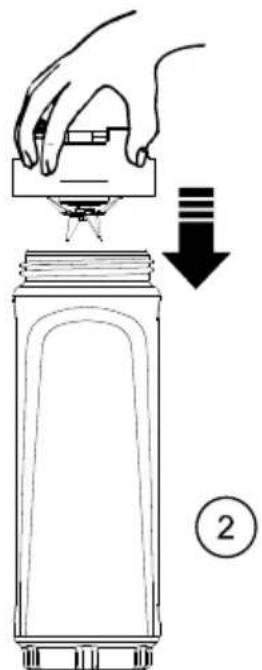

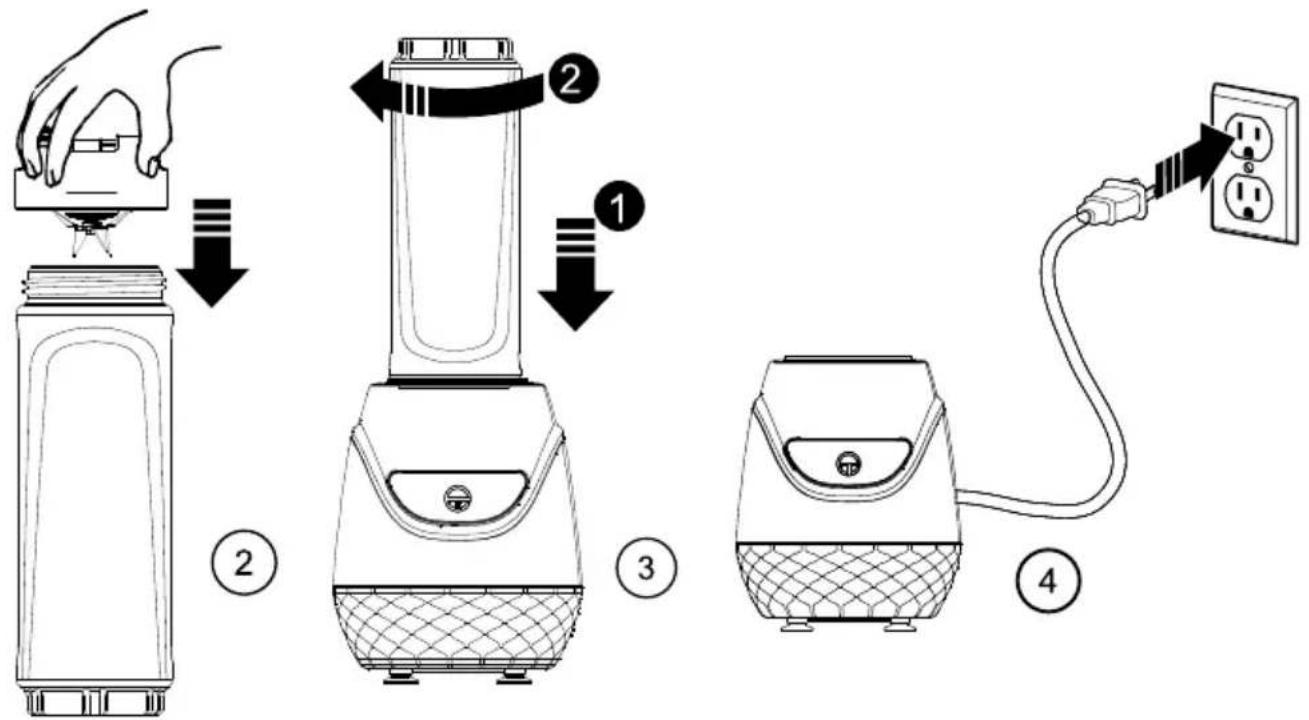

1. Screw the blade assembly into the cup. Make sure the blade assembly is properly screwed on the cup. Note that the ingredients amount should not exceed the indicated maximum capacity of the cup.

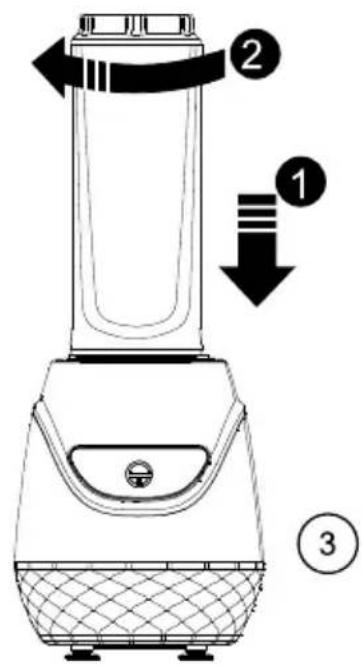

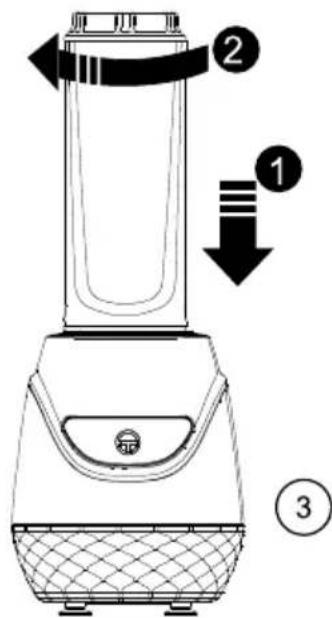

2. Turn the cup upside down. Line up arrow on the blade assembly with the open padlock on the base. Place the cup on the base and simply turn the cup clockwise until the arrow lines up with the closed padlock.
3. Plug into power supply socket. Make sure the voltage indicated on this device matches power supply voltage.
4. Press the power switch, the blender starts working. If the blending cup and the motor unit are not locked, the blender won't operate.
5. Do not run the blender continuously for longer than 3 minutes. Switch off and let it rest for the motor to cool down before starting again.

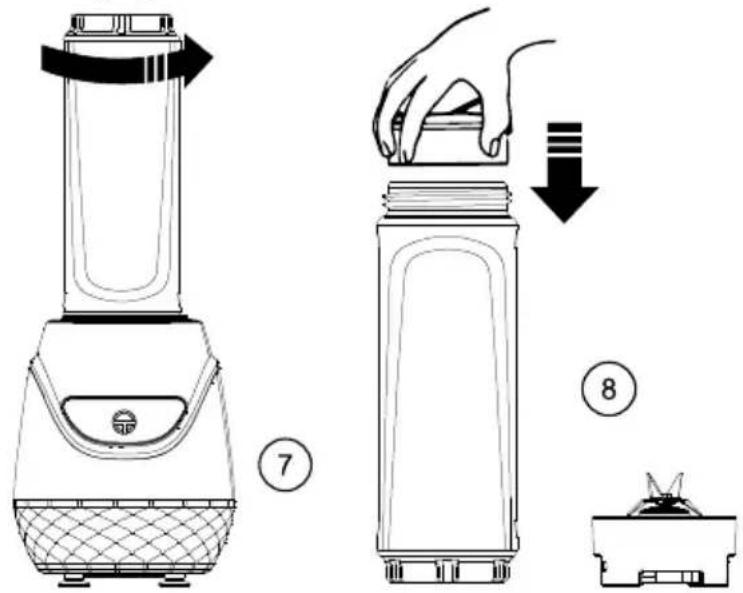

6. After use, unplug the appliance from the mains. Spin out the cup counterclockwise.
7. Spin the blade assembly out.

Reminder: turn off the device when blending is complete. Do not run the device without any food inside the unit as this could overheat the motor

TIPS

• Cut food into pieces that are no larger than 15 mm cubes for best blending results.
• Do not put any frozen fruit, vegetables or ice into the unit.
- Portable cup cover: put the juice into the cup, screw the cover into the cup and open the upper cover to drink directly from the cup.
- In order to keep the low temperature of the smoothie inside the cup, use the included cooling cartridge. Fill the cartridge with water (up to indicated maximum level) and close the cartridge. Place the cooling cartridge into a freezer until desired temperature is reached. Then place the cartridge into the inner side of the cap and twist to secure in place.

CLEANING AND MAINTENANCE

1. Put into the blender cup warm water and a little food detergent, cover the cup and run the machine for about 10 seconds; or soak the mug and blade holder into the water to wash with a brush. Then use the clean water to rinse several times.
2. Wipe the motor unit with a piece of dry cloth. Do not wash it in water to prevent damage.

WARNING: Handle the blade with care – it is very sharp.

Note:

• Don't use an abrasive cloth or abrasive liquids.
• Do not rinse the device base or submerge the base in water.
  • Dry it before reusing.
  • Never use strong household cleaners, ammonia or abrasives while cleaning the device.
  • Cleaning the device immediately after each use will also help to reduce stains.

TROUBLESHOOTING

PROBLEM SOLUTION
Device cannot be operated	Check power cord and power source.Check the device has been assembled correctly. If the blending cup and the motor unit are not locked, the blender won't operate.
Machine jams, clogs or stops operating	Cup may be loose after tough and long time processing. Spin the cup out and rest for a few minutes. Then turn the cup into motor base

SPECIFICATIONS

Main features

• Double blade
  • Anti-slip rubber feet
  • BPA free (cup, cooling cartridge, blade assembly and cap)
  • Protections: from overheat and overcurrent
  • Dishwasher safe parts (cup, cooling cartridge, blade assembly and cap)
  • Set includes: 2 cups, cooling cartridge

Technical data

• Speed: 20000 rpm
• Cup capacity: 2x 600 ml
• Used materials:
• Motor unit housing: ABS
- Blades: stainless steel
- Cup: PCTG
• Cooling cartridge: PP
• Power: 600 W

• Power supply: 220-240 V\~; 50/60 Hz

English

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or Its literature, indicates that It should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract This product should not be mixed with other commercial wastes for disposal.

Made in China for LECHPOL ELECTRONICS Sp. z o.o. Sp.k., ul. Garwolińska 1, 08-400 Miętne.
