Product Type	Contact Grill / Griddle
Model	TSA3223
Brand	Teesa
Dimensions (Device)	32 x 12.5 x 29 cm
Weight	2.7 kg
Maximum Power	1500 W
Power Supply	220-240 V, 50/60 Hz
Cord Length	69 cm
Plate Dimensions (each)	17.5 x 27.8 cm
Plate Material	Non-stick, removable
Grilling Positions	3: Closed (oven), Half-open (contact grill), Open (flat)
Key Features	Adjustable hinge, grease outlets, removable drip tray, power & heating indicators, thermostat knob, heatproof grip, overheating protection, stainless steel cover, anti-slip feet
Dishwasher Safe Parts	Plates and grease drip tray
Safety	Overheating protection, grounded plug, automatic thermal cutout
Cleaning Instructions	Wipe with damp cloth; do not immerse in water; avoid abrasives
Intended Use	Indoor food preparation only

Frequently Asked Questions - TSA3223 Teesa

What are the three grilling positions?

The Teesa TSA3223 offers three positions: Oven (closed, both plates contact food), Contact grill (half-open, upper cover does not touch food), and Open grill (fully open, both plates flat for large quantities).

How do I remove and insert the grill plates?

To remove: open the upper cover, press the upper or lower plate release button, and pull the plate out. To insert: place the plate in position, press the release button, and push downward until it clicks. Always ensure the device is cool before handling plates.

Can the plates and drip tray be washed in a dishwasher?

Yes, both the removable plates and the grease drip tray are dishwasher safe. For hand cleaning, use a soft damp cloth and mild detergent. Avoid abrasive pads or chemicals.

What is the maximum power consumption of the TSA3223?

The maximum power is 1500 W at a supply voltage of 220-240 V, 50/60 Hz.

How should I clean the grease drip tray?

Remove and empty the drip tray after each use. Wash it in warm soapy water or place it in the dishwasher. Dry thoroughly with a soft cloth before reinserting.

Can I use the grill outdoors?

No, the Teesa TSA3223 is designed for indoor use only. It should be placed on a flat, stable surface away from water and moisture.

What does the green light on the grill indicate?

The green heating light turns on when the plates are heating and turns off when they have reached the selected temperature. It cycles on and off to maintain the set temperature.

Why does my grill emit a smell when first used?

An initial odor is normal during first use as the protective coating on the plates heats up for the first time. This should disappear after a few uses.

Can I use metal utensils on the non-stick plates?

No, never use metal, sharp, or abrasive utensils as they can damage the non-stick coating. Use wooden or plastic spatulas instead.

How do I adjust the grilling temperature?

Use the thermostat knob to set the desired temperature. The appropriate setting depends on the type and thickness of food. Wait until the green light goes off before placing food on the plates.

USER MANUAL TSA3223 Teesa

DE

Exterior view of a modern stainless steel grater with control panel (no visible text or symbols)

Exterior view of a standard 35-inch grating with open lid and control panel (no text or symbols visible)

Offener Grill

Exterior view of a black grating with a control panel and side-mounted dish (no visible text or symbols)

Thank you for purchasing TEESA appliance. Please read this operation instruction carefully before use, and keep it for future use. Distributor does not take responsibility for damages caused by inappropriate handling and use of the product.

SAFETY INSTRUCTIONS

In order to reduce the injuries or damages, follow basic safety precautions applied when using any electrical device, including the following:

1. Read this instruction manual carefully, even if you are familiar with the appliance. Keep the manual for future reference.
2. Before connecting the device to power supply socket, make sure the voltage indicated on the appliance corresponds to the voltage in the power supply socket.

3. In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

4. Appliance for indoor use only.

5. Do not use the appliance if the grease drip tray is not assembled.

6. Place the device on flat, stable surface.

7. Locate the appliance in a place with sufficient air circulation to prevent overheating.

8. Never place the appliance on fragile or soft surfaces.

9. Do not move the appliance while it is operating.

10. Danger of burns! During operation the temperature of accessible surfaces can be very high. Therefore use only handles or knobs to operate the appliance.

11. Risk of scalding! Hot steam will escape during the grilling process and when opening the upper cover.

12. Switch off the appliance before inserting and removing plates.

13. Clean this device in accordance to instructions listed in "Cleaning" section.

14. ALWAYS turn off the device and disconnect it from the mains supply:

15. if it's not operating correctly,

16. if there's an uncommon voice when using,
    • before disassembling the device,
17. before cleaning,

18. before servicing.

19. When you disconnect the power cord of the device, grasp and pull the plug, not the cord/cable.

20. Keep the device out of the reach of children. Do not leave children unsupervised with the product.

21. This appliance may be used by children who are above 8 years old and by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they are supervised and guided by a person who is responsible for their safety in a cautious manner, and all the safety precautions are understood and followed. Children should not play with this device. Children should not perform cleaning and servicing of the device unsupervised.

22. Fixed power cable may only be replaced in an authorized service point.

23. Keep the device and its cord/cable away from heat, water, moisture, sharp edges and any other factor which may damage the appliance or its cord.

24. Do not place the appliance in water or any liquid; nor handle/use it with wet or moist hands.

25. Do not use the product for purposes different from displayed in this operating manual.

26. Do not leave the appliance unattended when it's working.

27. Producer of this product is not responsible for damages caused by inappropriate handling and using of the device.

28. DO NOT use this device if the cord or the plug is damaged, or the appliance is broken.

29. Do not attempt to repair this appliance yourself. Only authorized and qualified personnel may repair this device. There are no user-serviceable parts inside the device, never disassemble this product.

30. Do not use unauthorized accessories.

31. Make sure the power cord does not touch any hot or sharp elements.

32. This appliance is suitable exclusively for food preparation. Do not place anything but food in the appliance.

33. To reduce the risk of electric shock this appliance is equipped with a grounded plug. Contact a qualified electrician if the plug does not fit fully into the electrical outlet. Do not modify the plug in any way or use an adapter.

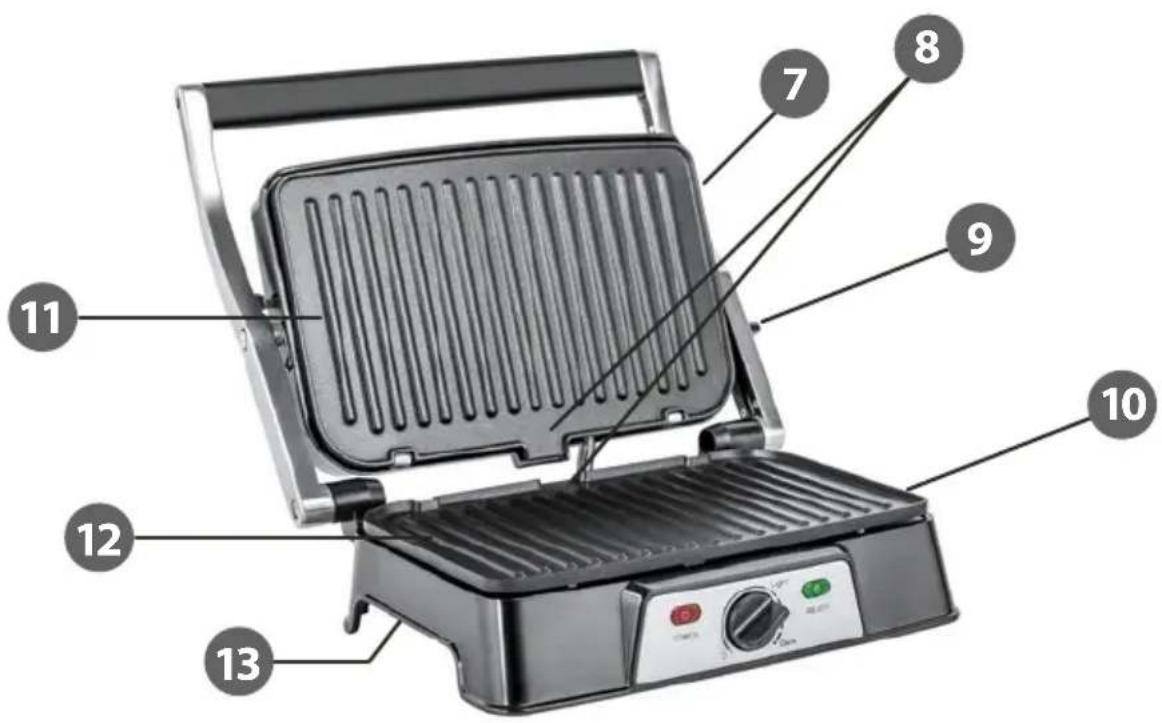

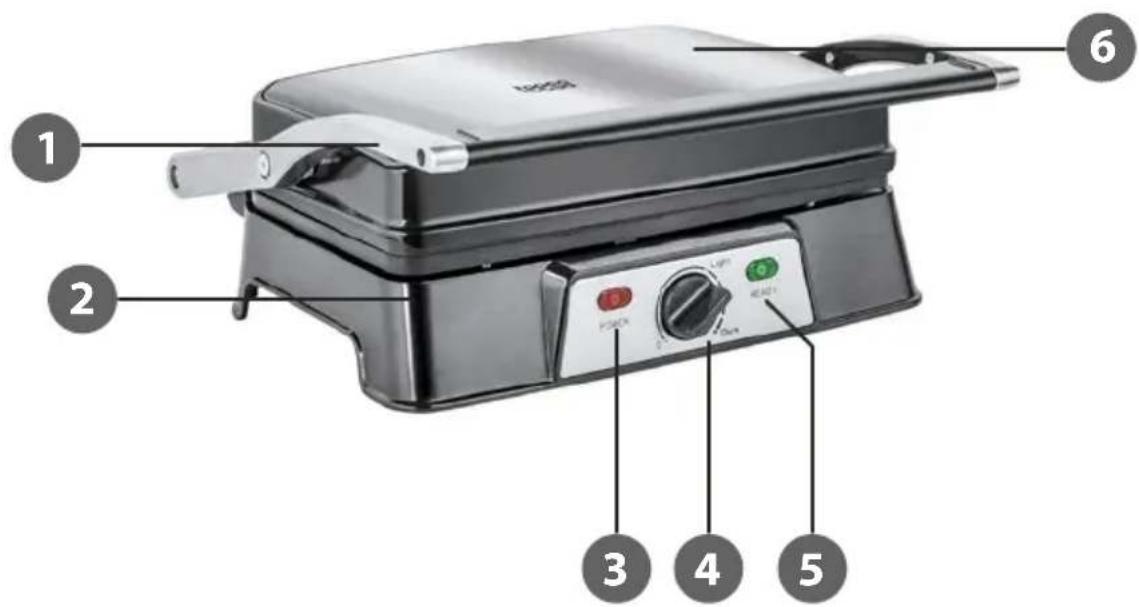

PRODUCT DESCRIPTION

1. Handle
2. Lower casing
3. Power light (red)
4. Thermostat knob
5. Heating light (green)
6. Upper cover
7. Upper plate release button
8. Grease outlets
9. Upper cover release switch
10. Lower plate release button
11. Upper plate
12. Lower plate
13. Grease drip tray

ASSEMBLING AND DISASSEMBLING OF PLATES

Removing:

1. Open the upper cover.
2. Press the upper plate release button to release and remove the upper plate. Press the lower plate release button to release and remove the lower plate.

Inserting:

1. Put the upper plate in the upper cover, then press and hold upper plate release button and push the plate downwards.
2. Release the button.
3. Repeat the above steps with the lower plate to insert it.
4. Check if the plates are assembled correctly.

Warning! Before removing or inserting heating plates make sure the device has cooled down after operating. Never replace the plates when the device is still hot.

PREPARATION FOR USE

1. Remove the device from the packaging and peel off any labels.
2. Place the device on dry and flat surface.
3. Make sure the power supply socket is nearby.
4. Before first use, clean the plates with a soft and damp cloth and then wipe them dry.
5. Make sure the grease drip tray is assembled.
6. Make sure the plates are inserted correctly.
7. Open the cover and apply a layer of vegetable oil or butter on the plates using kitchen towel or brush for dough. If necessary wipe off any excess oil.
8. Close the cover and insert the plug into supply socket. Red and green indicators turn on.
9. Use the Thermostat knob to set the temperature which is appropriate to the type of food that is being prepared.
   Note: Remember that the actual grilling time and temperature depend on the type of food that is being prepared, its thickness and individual tastes.
10. Wait until green light goes off; it means that the plates reached the grilling temperature. The device is now ready to be used.

Notes:

• It is normal for the green light to go on and off while the device is operating. It means that the device keeps the grilling temperature.
• Hot steam can emit from the cover of the grill during operation. Please exercise caution.
• Initially, the appliance may release an odor. This is a normal reaction caused by initial heating of the plates and should not reoccur.

THREE GRILLING POSITIONS

Oven (closed: both plates touch the food)

Use oven position to grill burgers, boneless pieces of meat and thin slices of meat and vegetables.

This position provides quick food preparation because you are grilling both sides of the food at the same time.

Exterior view of a modern stainless steel grater with control panel (no visible text or symbols)

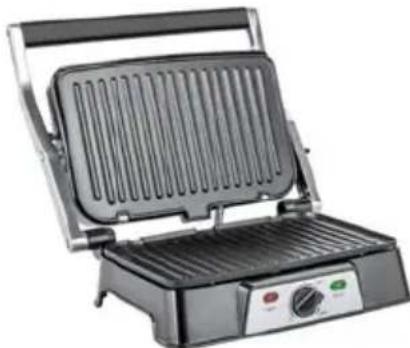

Contact grill (half-open: upper cover cannot touch the food)

Use contact grill position to grill sandwiches, bread and quesadillas. You can easily grill anything from a thinly-sliced potato to a thick sirloin steak with even results.

Exterior view of a standard black grating with open lid and control panel (no text or symbols visible)

Open grill

Use open grill position to cook burgers, steak, poultry (it is not recommend to cook bone-in chicken, since it does not cook evenly on an open grill), fish and vegetables. You have the option of cooking different type of food separately without combining their flavors, or

Exterior view of a black grating with a control panel and handle (no text or symbols visible)

cooking large amounts of the same type of food. The open position also accommodates different cuts of meat with varying thickness, allowing you to cook each piece to you liking.

GRILLING

1. Make sure all the steps from the "Preparation for use" section has been followed.

2. Oven and contact grill:

3. Open the upper cover and place food on the bottom plate (make sure to place the food at the rear of the bottom plate in case of grilling in the oven position).

4. Close the upper cover (oven position); set the upper cover in half-open position (contact grill).

5. Open grill:

- Slide the upper cover release switch in the direction marked by the arrow (upwards) to flat open the upper cover and then place food on the both plates.

1. Grill the food for the desired time and temperature.

2. When the food is ready, use the handle to open the grill (oven and contact grill) and use a wooden or plastic spatula to remove the food from the plates.

Notes:

• Never use metal, sharp or coarse kitchen utensils as they can damage the plates.

• Exercise caution when removing food from the plates as hot steam will escape when opening the upper cover.

• If you want to place another batch of food, firstly remove the excess oil from the plates with a paper towel.

• Please remember to disconnect the appliance from power mains socket after you have finished using it. Then clean the device according to the instructions from "Cleaning" section.

CLEANING

- It is easier to clean and remove any residues from the plates when they are still slightly warm.

- Clean the plates with soft, damp cloth.

- In case of hard to remove residues, squeeze some warm water mixed with a detergent on the residue and clean it with a non-abrasive, plastic scouring pad or place wet kitchen paper over the residue to moisten it so that it would be easier to remove it.

• The plates and grease drip tray can be washed in a dishwasher.
• Remove and empty the grease drip tray after each use. Clean it in warm, soapy water. After cleaning, wipe it dry with a soft cloth.
• Clean the housing of the appliance with a soft and slightly damp cloth.
• Never immerse the device in water!
• Do not use any abrasives or chemical agents to clean this appliance.
• To clean the plates, grease drip tray and housing do not use any abrasive products which can scratch and damage their surface.
• Before storing the device, make sure the it is cool, clean and dry.
• Make sure that while storing the device is disconnected from the power mains.

SPECIFICATION

Main features

3 grill positions: table (open), oven (closed), contact grill (half-open)

Removable, non-stick, ribbed plates

Adjustable hinge for even cooking

Grease outlets

Removable drip tray

Power light

Heating light

Thermostat knob

Heatproof grip

Overheating protection

Stainless steel cover

Anti-slip feet

Dishwasher-safe plates and drip tray

Technical data

Maximum power: 1500 W

Power supply: 220 \~ 240 V; 50/60 Hz

Physical parameters

Weight: 2,7 kg

Dimensions:

Device: 32 x 12,5 x 29 cm

Plate: 17,5 x 27,8 cm (x2)

Cord length: 69 cm

English

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or Its literature, indicates that It should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract This product should not be mixed with other commercial wastes for disposal.

Made in China for LECHPOL ELECTRONICS Sp. z o.o. Sp.k., ul. Garwolińska 1, 08-400 Miętne.
