ASP-ROLLER - Vacuum Cleaner Grunkel - Free user manual and instructions

Brand	Grunkel
Model	ASP-ROLLER
Product Type	Vacuum Cleaner
Power Consumption	600W
Voltage / Frequency	220-240V ~50/60Hz
Filtration System	HEPA filter (washable)
Dirt Container Type	Removable dirt cup
Filter Replacement Interval	Every 6 months (recommended)
Usage	Domestic indoor use only
Not Suitable For	Ashes, debris, liquids, metal particles
Safety Features	Thermal protector, do not immerse in water
Cleaning Instructions	Wipe with damp cloth; do not use detergents
Filter Cleaning	Rinse with water only, dry for 24 hours
Maintenance	Replace HEPA filter every 6 months
Included Accessories	Tube, floor brush, HEPA filter
Cord Length	Not specified (estimated ~5 m)
Weight	Not specified (estimated ~3.5 kg)
Dimensions	Not specified (estimated 30x20x40 cm)
Technical Service	Contact: 954 185 320
WEEE Compliance	Yes, directive 2002/96/EC
Manual	Available for download in PDF (29 pages)

Frequently Asked Questions - ASP-ROLLER Grunkel

How do I clean the HEPA filter?

Remove the filter from the dirt cup. Rinse it under running water. Do not use soap or detergent. Allow the filter to dry for at least 24 hours before reinstalling.

How often should I replace the HEPA filter?

It is recommended to replace the HEPA filter approximately every 6 months for optimal performance.

What should I do if the vacuum cleaner stops working?

Check that the power cord is firmly plugged in. If the thermal protector has tripped, let the vacuum cool for 30 minutes and restart. If it still doesn't work, contact technical service.

Why is my vacuum cleaner losing suction?

Possible causes: dirt cup full or not installed correctly, clogged filter, blocked hose or nozzle. Empty the dirt cup, clean or replace the filter, and check for clogs in the hose and brush.

Can I vacuum liquids with this vacuum?

No. This vacuum cleaner is not suitable for absorbing liquids, ashes, debris, or metal particles. Use it only for dry household dust.

How do I empty the dirt cup?

Press the tank release button to remove the dirt cup, then press the lid release button to empty the contents into a trash bin. Do not hold the unit with the dirt cup facing upward.

Can I use the vacuum cleaner outdoors?

No. The appliance is for domestic indoor use only. Do not use it outdoors or on rough surfaces like asphalt.

What should I do if dust comes out of the vacuum?

Check if the dirt cup is full or not installed correctly. Also verify that the hose and filter are properly fitted. Reinstall the dirt cup and filter securely.

How do I clean the exterior of the vacuum?

Unplug the appliance and wipe with a soft, slightly damp cloth. Do not immerse in water or use aggressive cleaners.

Where can I find replacement parts or get repairs?

Contact the Grunkel technical service at 954 185 320 or visit an authorized service center. Always use original parts.

USER MANUAL ASP-ROLLER Grunkel

Black RoIClean 600W vacuum cleaner with attached blade and handle (no visible text or symbols on body)

Manual de Instrucciones Instruction Manual

Modelo: ASP-ROLLER

GRACIAS POR ESCOGER ESTE PRODUCTO GRUNKEL

Symbol of a trash bin crossed with no text or labels, accompanied by a horizontal bar (no text or symbols present)

Technical line drawings of three different types of handheld devices, shown from top, side, and side views (no text or labels present)

Funcionamiento

Illustration of a mechanical lever and a bucket on a surface (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

THANK YOU FOR CHOOSING THIS GRUNKEL PRODUCT

GRUNKEL puts at your disposal innovative, durable and practical products. When used responsibly and with proper maintenance, it will provide you with a long useful life and will help make everyday life a much easier task.

We appreciate your trust and hope you enjoy it.

Discover the rest of our range at www.grunkel.com

This manual is a faithful reproduction in terms of characteristics, operation and aesthetics of the product you have purchased, except for typographical, printing or translation errors. The specification, operation and features of this appliance are subject to change without notice.

BEFORE PUTTING THE APPLIANCE ON WORKING

• Please read carefully the instructions for use of this manual in its entirety before putting it into operation.
• Pay special attention to safety instructions.
• Keep this instruction manual. If you give the device to a third party, these instructions must also be given.
• Also keep the guarantee, the purchase receipt or invoice and, if possible, the box with the inner packaging for possible future requests.

Safety measures for its use

ABefore using the appliance, make sure that the voltage used corresponds to that shown on the appliance's label. Always connect the plug to a suitable power source.

To prevent electrical hazards, do not immerse cord, plug, or appliance in water or other liquid. Please read the cleaning instructions carefully.

Do not use unauthorized accessories. This will void the warranty and may cause accidents.

Do not let cord hang over edge of table or shelf. Keep it away from hot surfaces. Do not allow it to come into contact with sharp or blunt objects. Do not operate if the cord or plug is damaged or if you notice that the appliance is not working properly.

Do not leave the appliance running unattended. Always switch off the appliance or unplug it (by pulling the plug, not the cable). To disconnect, grasp plug and remove from outlet. Never disconnect by pulling on the cable.

In case of any repair, cable replacement or adjustment, please consult a qualified technician, or take the device to the Official Technical Service.

CAUTION: For the safety of your children, do not leave packing materials (plastic bags, cardboard, polyethylene, etc.) within their reach.

Always supervise the appliance when it is used in the vicinity of children. Never leave the appliance running unattended.

Use the appliance only for its intended use.

The appliance is not intended to be operated by means of an external timer or a separate remote control system.

separate remote control system.

Never use a fork or other sharp object to clean the appliance, as this could cause serious damage or lead to an accident.

Do not immerse the appliance in water or any other liquid. Do not handle the unit with wet hands.

Before cleaning the appliance, make sure that it is disconnected from the mains.

If you need a copy of the instruction manual, please contact an authorized service center.

Do not use the appliance incorrectly. Serious injury could result. In case of misuse by the customer, the appliance will be out of warranty.

Do not use it outdoors.

Do not leave the unit unattended.

Do not hold the unit with the dirt compartment facing upwards. Do not shake the appliance.

This appliance is not suitable for absorbing ashes, debris, building materials, liquids or metal particles. Do not use on animals.

Do not use the appliance on uneven or rough surfaces, such as asphalt or concrete.

Never use the appliance without the filter system installed.

Stop the appliance immediately if you notice a drastic reduction in suction power or if it emits a shrill sound during operation. Make sure that the ventilation ducts are not obstructed.

Avoid vacuuming large or sharp objects during cleaning, as they may damage the tank or the filtering system of the appliance.

Keep the appliance away from flammable, explosive or liquid materials.

Children should be supervised to ensure that they do not play with this appliance.

Keep the device and cord out of the reach of children under 8 years of age.

WARNING: This appliance is for DOMESTIC use only. It is not intended for industrial use.

CAUTION

THIS APPLIANCE SHOULD NOT BE USED OR CLEANED BY CHILDREN UNDER 8 YEARS OF AGE WITHOUT ADULT SUPERVISION. IT IS ALSO NOT INTENDED FOR USE OR CLEANING BY PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE OR KNOWLEDGE IN THE USE OF THE APPLIANCE, OR WHO HAVE NOT RECEIVED ADEQUATE TRAINING UNDER THE DIRECT SUPERVISION OF A QUALIFIED PERSON.

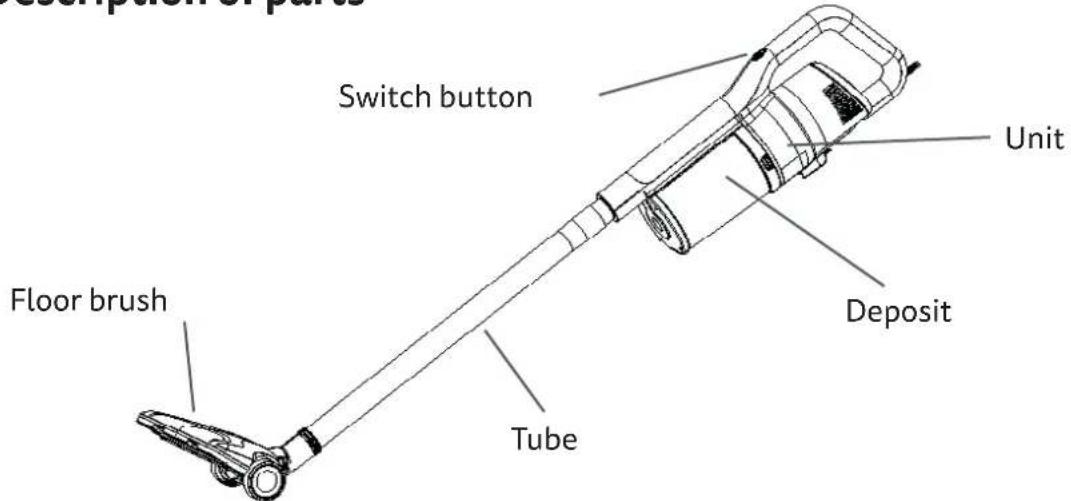

Description of parts

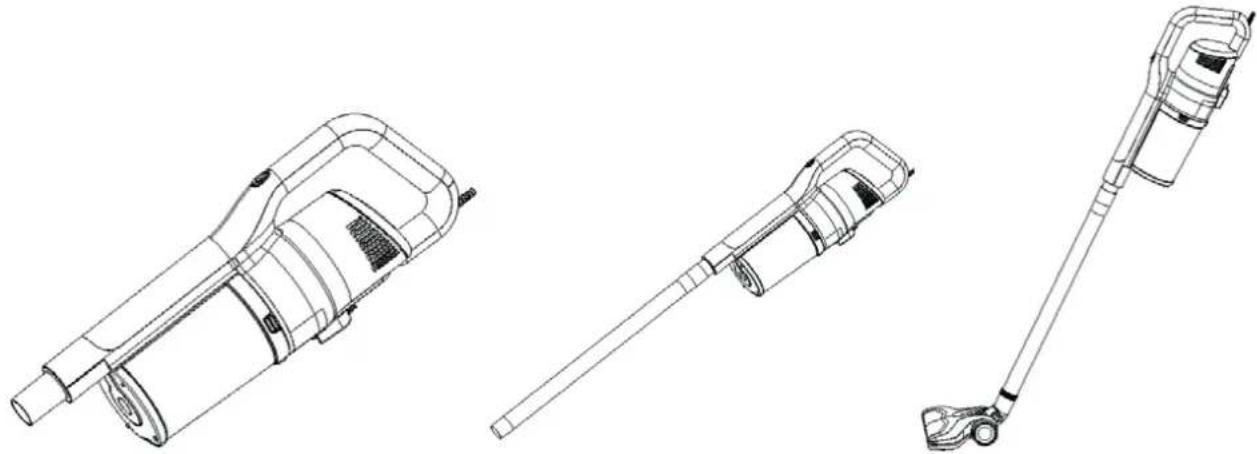

Installation

Insert the tube into the suction opening of the unit. Then connect the floor brush to the other end of the tube.

Technical line drawings of three different types of vacuum cleaner components (no text or symbols present)

Operation

Connect the power cord of the device to a suitable electrical outlet.

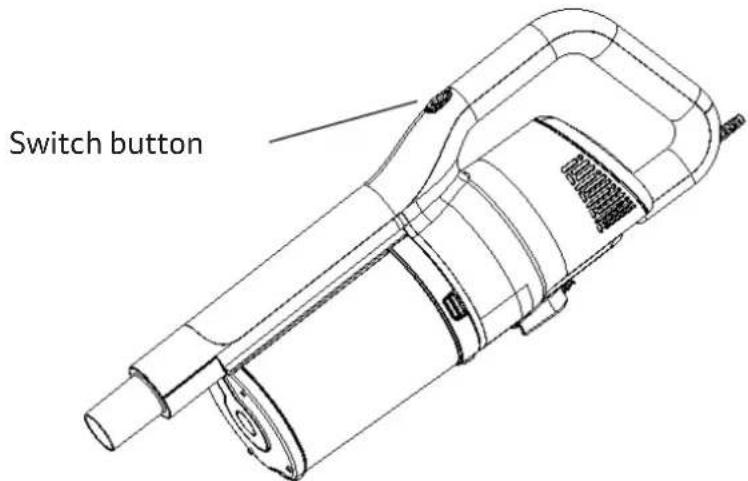

To use the device, simply press the switch button.

To turn off the device, press the switch button again.

Tank cleaning

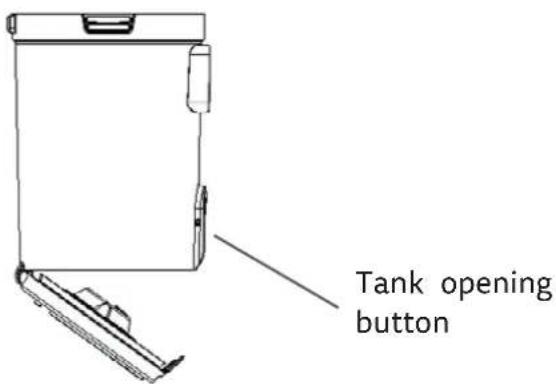

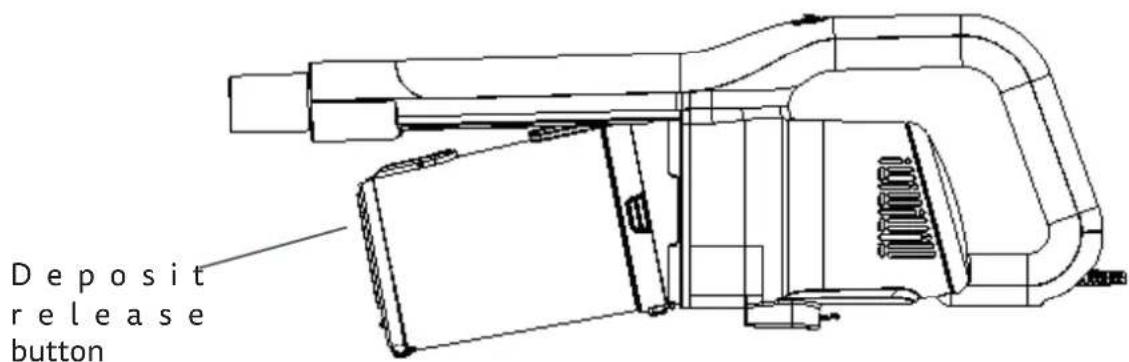

Hold the unit with one hand and press the tank release button with the other hand. The tank can then be removed from the unit.

Press the lid release button to remove the dirt and dust stored in the tank. Deposit the contents in a suitable waste garbage can or container.

To clean the HEPA filter, hold the filter under running water to rinse it. Do not use soap or detergent. Allow the filter to dry for at least 24 hours before replacing it in the unit.

Once completely dry, insert the filter back into the holder. Then place the filter holder with the filter back into the unit's reservoir.

Illustration of a mechanical lever and a bucket-like component (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

NOTE: It is recommended that the HEPA filter be replaced approximately every 6 months.

Cleaning and maintenance

Unplug the appliance from the electrical outlet before cleaning, disassembling or handling the appliance or any of its parts.

Use a soft, slightly damp cloth to clean the surface of the appliance.

Never immerse the appliance in water or any other liquid. Do not place it under running water. Do not put the appliance or any of its parts in the dishwasher.

Do not use detergents or aggressive products. Do not use brushes or metallic or sharp utensils for cleaning.

or pointed utensils for cleaning.

This appliance is intended for household use. Do not use it for commercial use. Failure to do so will invalidate the warranty.

220-240V \~50/60Hz / 600W

Troubleshooting

Problem Possible cause cSolution
Vacuum cleaner does not work	1. Power cord not firmly plugged into outlet2. Fuse blown or circuit break-er tripped.3. Needs repair. 4. Thermal protector tripped.	1. Enchufe la unidad firmemente.2. Compruebe el fusible o el disyuntor de la vivienda. Sustituya el fusible y restablezca el disyuntor.3. Póngase en contacto con el servicio técnico.4. Deje que la limpiadora se enfríe durante 30 minutos.
The vacuum cleaner does not pick up or sucks little.	1. Dirt cup not installed correctly.2. Dirt cup full.3. Worn brush.4. Broken or worn belt.5. Filter clogged.6. Nozzle/brush clogged.7. Clogged hose.	cCheck the removal and replacement of the dirt cup. 2. Empty the dirt cup.3. Replace the brush.4. Replace the belt.5. Remove the filter and clean.6. Check nozzle / brush roller; remove clogging / jam.7. Remove hose and tools; remove clogging.
Dust comes out of the vacuum cleaner.	1. Filled dirt cup.2. Dirt cup not installed correctly.3. Hose not installed correctly.4. Filter improperly installed.	1. Empty the dirt cup.2. Check the removal and replacement of the dirt cup.3. Check hose installation.4. Review the removal and replacement of the filter.

Removal of the unit

Waste electrical equipment regulations according to the WEEE DIRECTIVE 2002/96/EC. This symbol means that this product must not be treated as normal household waste, but must be returned to the distributor, or handed over to the appropriate collection point for electrical or electronic equipment, or taken to a collection point set up for this purpose so that its components can be recycled and not mixed with household waste.

You can also notify the collection service of your municipality so that it can be collected and treated in the appropriate manner, following the instructions for environmental protection or for advice on how to do so. The disposal of a household appliance means avoiding possible negative consequences for the environment and health. Proper disposal will result in significant energy and resource savings.

As a reminder of the need for separate disposal of electrical appliances, a crossed-out wheeled dustbin appears on the product.

To obtain technical assistance you can contact

954 185 320
