Type de produit	Compact tactical sight
Marque	Burris
Modèle	RT-3
Magnification	3x
Reticle	Ballistic 3X with illuminated center dot and stadia lines
Illumination	Yes, 7 brightness settings (4 daylight, 3 night vision)
Objective End Diameter	33.8 mm
Clear Objective Diameter	20 mm
Ocular End Diameter	35 mm
Eye Relief	2.6 inches (66 mm)
Click Value	1 MOA
Elevation Travel	100 MOA
Windage Travel	100 MOA
Length	3.5 inches (89 mm)
Weight	8.8 ounces (249 g)
Battery	One CR2032 3V lithium
Mount	Picatinny (integrated base)
Finish	Matte
Auto Shut-Off	After 4 hours on bright settings, 8 hours on night vision settings
Adjustments	Windage (right side) and elevation (top) with 1 MOA clicks
Diopter Adjustment	Yes, on ocular end for reticle focus
Warranty	Lifetime, no questions asked, transferable

Frequently Asked Questions - RT-3 Burris

What battery does the Burris RT-3 use?

The RT-3 uses a single CR2032 3V lithium battery. To install, remove the cap on the right side, insert battery positive side up, and tighten the cap.

How do I turn on the illumination on the RT-3?

Press any button on top of the sight to activate illumination. Use the forward/back buttons to cycle through 7 brightness settings. Press and hold the rear button for 4 seconds to turn off.

What mounts are compatible with the RT-3?

The RT-3 has an integrated Picatinny mount. It also accepts bases with a Trijicon MRO footprint (standard and high mounts included).

How do I zero the RT-3?

Use a small screwdriver to adjust windage (right side) and elevation (top). Arrows indicate direction of bullet impact movement. Each click is 1 MOA.

What is the reticle type on the RT-3?

The RT-3 features a Ballistic 3X reticle with illuminated broken circle, center dot, and stadia lines for bullet drop compensation out to 600 yards.

Does the RT-3 have auto shut-off?

Yes, the sight automatically turns off after 4 hours on the 4 brightest settings and 8 hours on the 3 night vision settings to preserve battery life.

What is the eye relief on the RT-3?

The RT-3 has an eye relief of 2.6 inches, suitable for medium-range use on carbines.

How do I adjust the reticle focus on the RT-3?

Rotate the diopter adjustment ring on the ocular end of the sight to sharpen the reticle to your preference.

Is the RT-3 waterproof or fog-proof?

While not explicitly stated in the manual, Burris optics are generally built to be weather-resistant. The warranty covers defects; for exact specifications, refer to Burris.

What is the warranty for the Burris RT-3?

Burris offers a lifetime warranty that is transferable to future owners. No receipt or warranty card needed; repairs or replacements are free, no questions asked.

USER MANUAL RT-3 Burris

Abstract black and red circular logo with a white mountain-like shape at the base (no text or symbols)

Burris®

FIND WHAT MATTERS

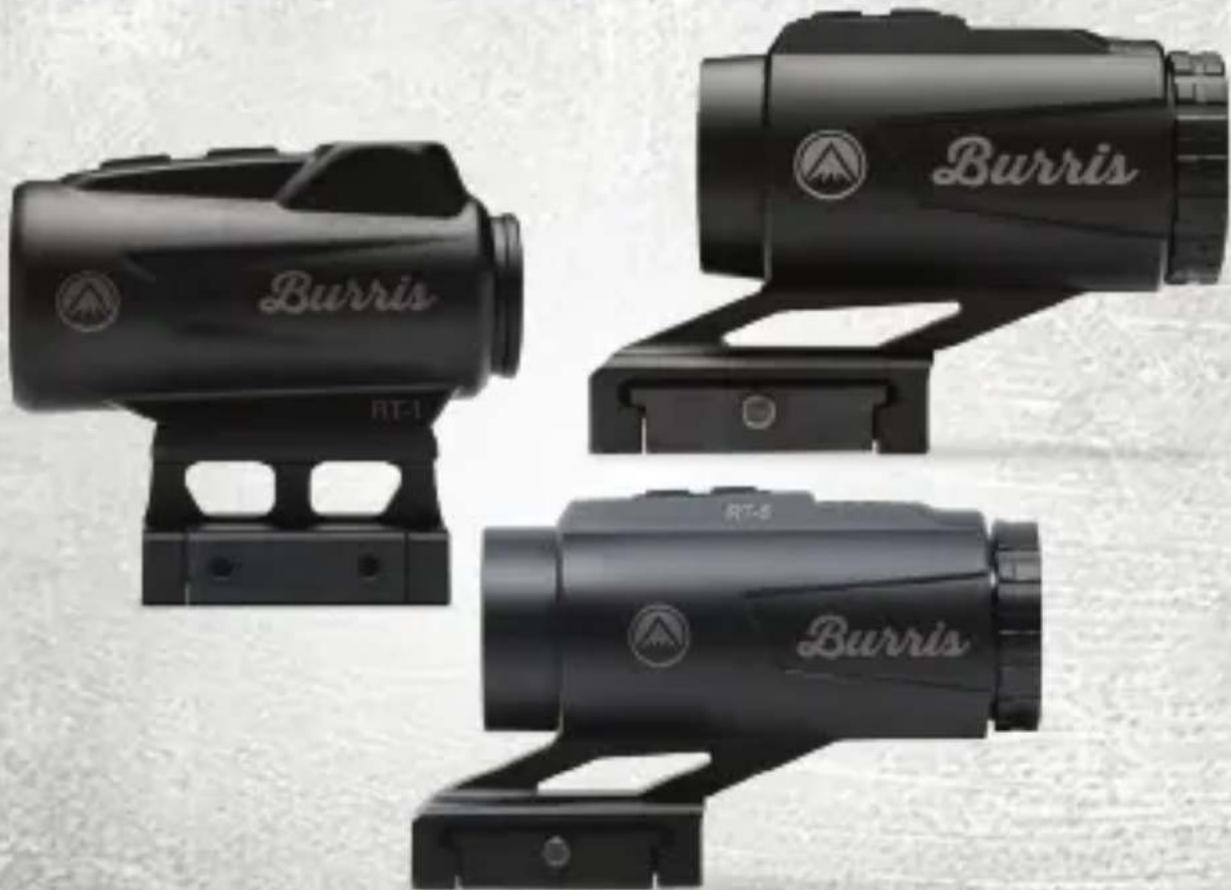

Three black Burris brand headsets with visible branding and model numbers RT-1, RT-2, RT-3 (no additional text or symbols)

RT-Series™ Compact Sights

User Guide

Burris RT sights are compact, 'Close Quarters' optics made for tactical carbines. Burris RT-1, with its 1x magnification and 2 MOA red dot, provides quick target acquisition for close or fast-moving targets. The RT-3 and RT-5 have illuminated reticles that are perfect for close to medium range targets and feature easy-to-use bullet drop-compensation for accurate shots out to 600 yards.

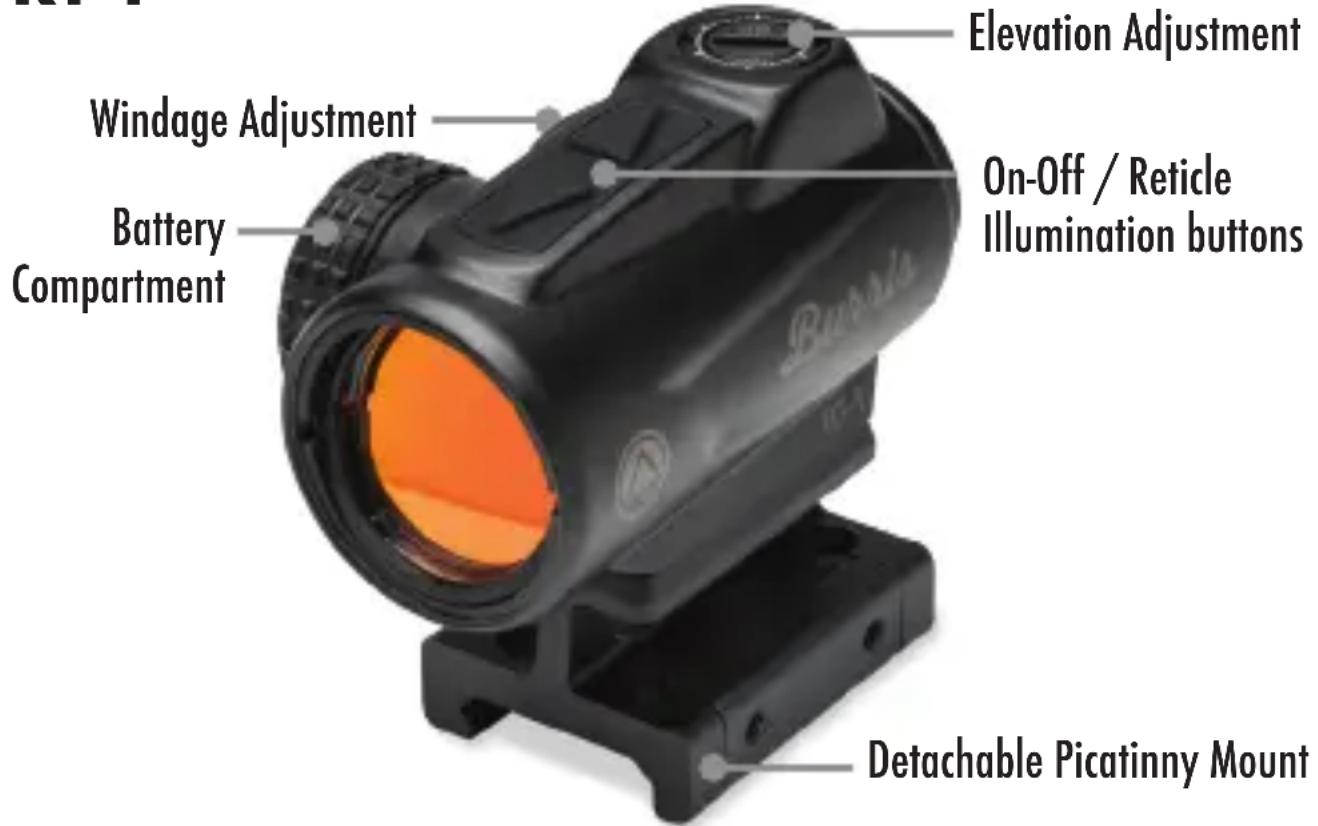

RT-1

Simple geometric diagram showing a circle with a small red dot at its center (no text or labels)

2 MOA DOT

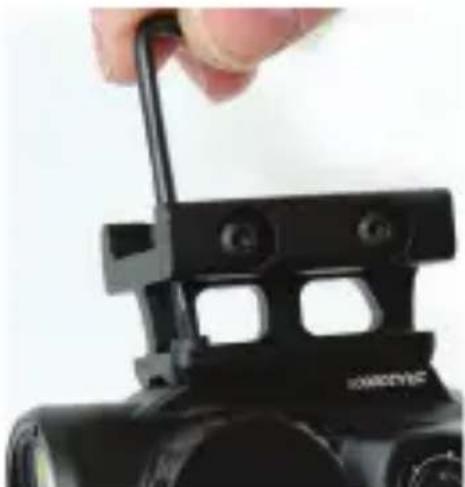

RT-1 Base

The RT-1 comes with a standard and a high base mount, both of which match the Trijicon® MRO® footprint.* Select the base that

provides the best mounting height. To remove the base, use the supplied torx wrench to loosen the four screws on bottom of the sight. The base is symmetrical so there is no special orientation. Tighten the screws to 15 in-lbs. of torque and you're ready to mount the sight on the rail.

Close-up of a black camera with a hand adjusting its cable (no visible text or symbols)

* TRIJICON and MRO are trademarks of Trijicon, Inc. Burris Company and its goods are not sponsored or endorsed by or otherwise affiliated with or related to Trijicon, Inc. or its products.

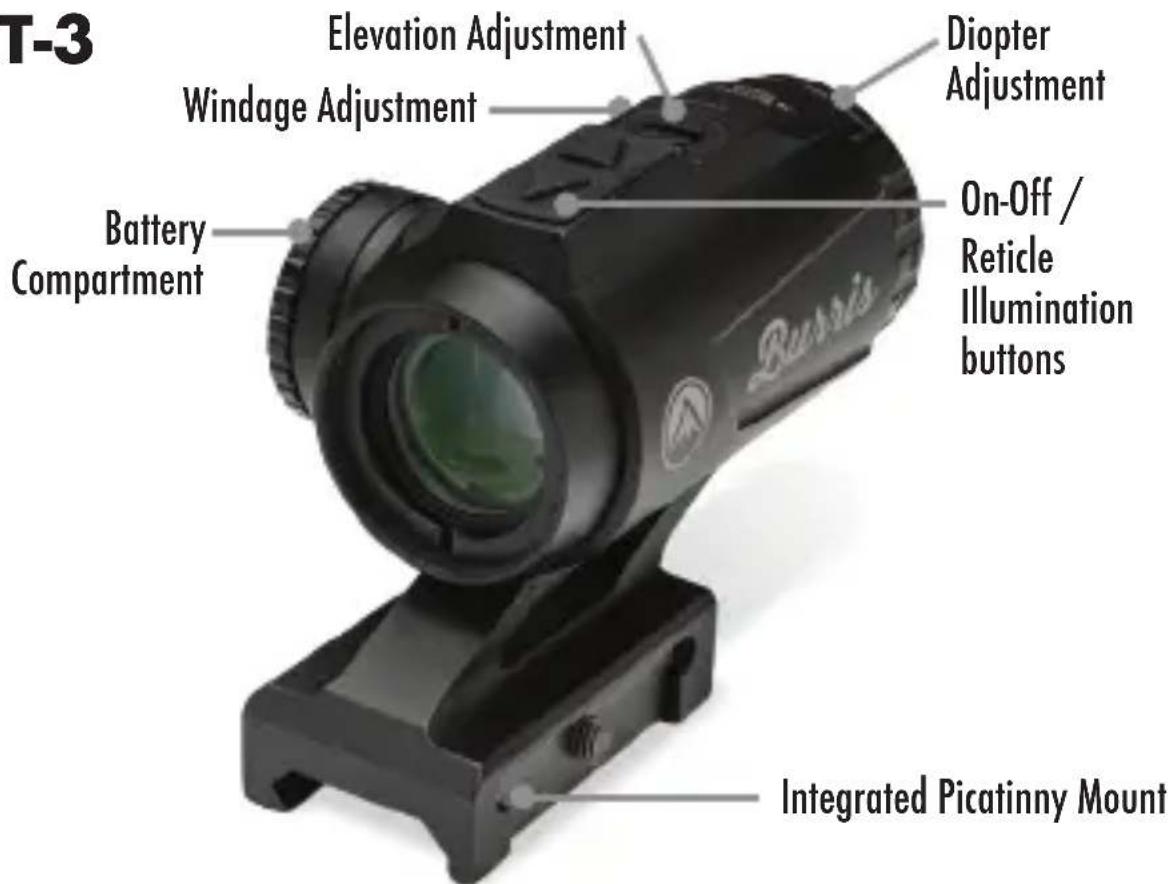

RT-3

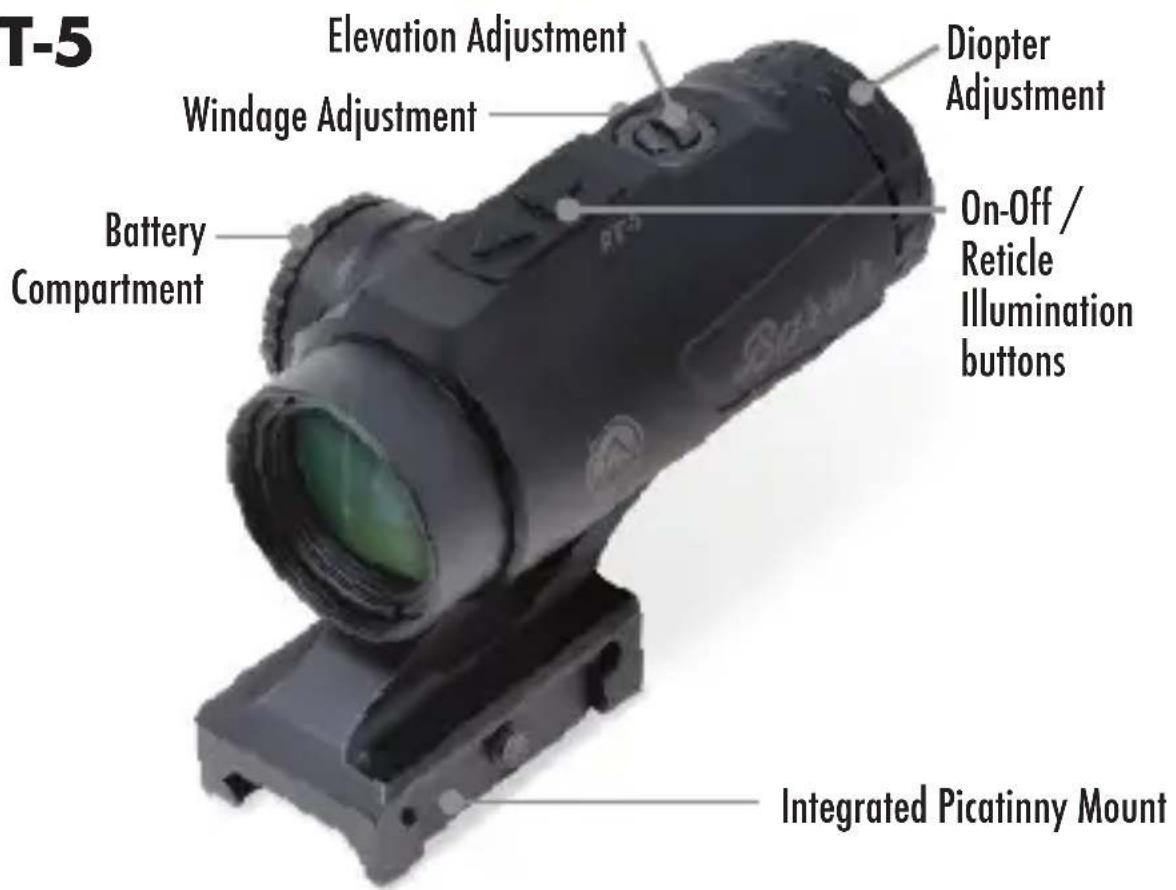

RT-5

Mounting the Optic

Each sight comes factory-ready to mount to a Picatinny rail system. Using the supplied Torx wrench, loosen the screw(s) on the right side of the base to open the mount just enough to fit over the width of the rail. Once positioned on the rail, test for proper eye relief. Once properly located on the rail, use the wrench to tighten the base screw(s) to 45 in. - lbs.

Reticle Focus Adjustment

The RT-3 and RT-5 have a diopter adjustment ring on the ocular end which is used to sharpen reticle focus to your preference.

Battery Installation / Replacement

The RT-1, RT-3 and RT-5 are each powered by a single CR 2032 3V lithium battery. The battery compartment is on the right side of the sight. To open the compartment, turn the cap counter-clockwise. Drop in the battery with the positive side (+) face up and re-tighten cap completely. To preserve battery life, all RT

sights are equipped with an Auto-Shut Off. The sight automatically turns off after 4 hours on the 4 brightest settings and 8 hours on the 3 night vision settings.

Red Dot / Reticle Illumination Adjustment

To activate the red dot on the RT-1 or illuminate the reticle of the RT-3 or RT-5, press any button on the top of the sight. Once the dot/reticle is illuminated, the forward and back buttons can be used to select any of the 7 brightness settings. To turn the sight off, press and hold the rear button on top of the sight for 4 seconds.

Windage /Elevation Adjustment

The elevation adjustment screw is located on top of the sight. The windage adjustment screw is located on the right side of the sight. Use a small screwdriver to adjust point of aim up and down or left and right. Arrows on the dial indicate direction of movement.

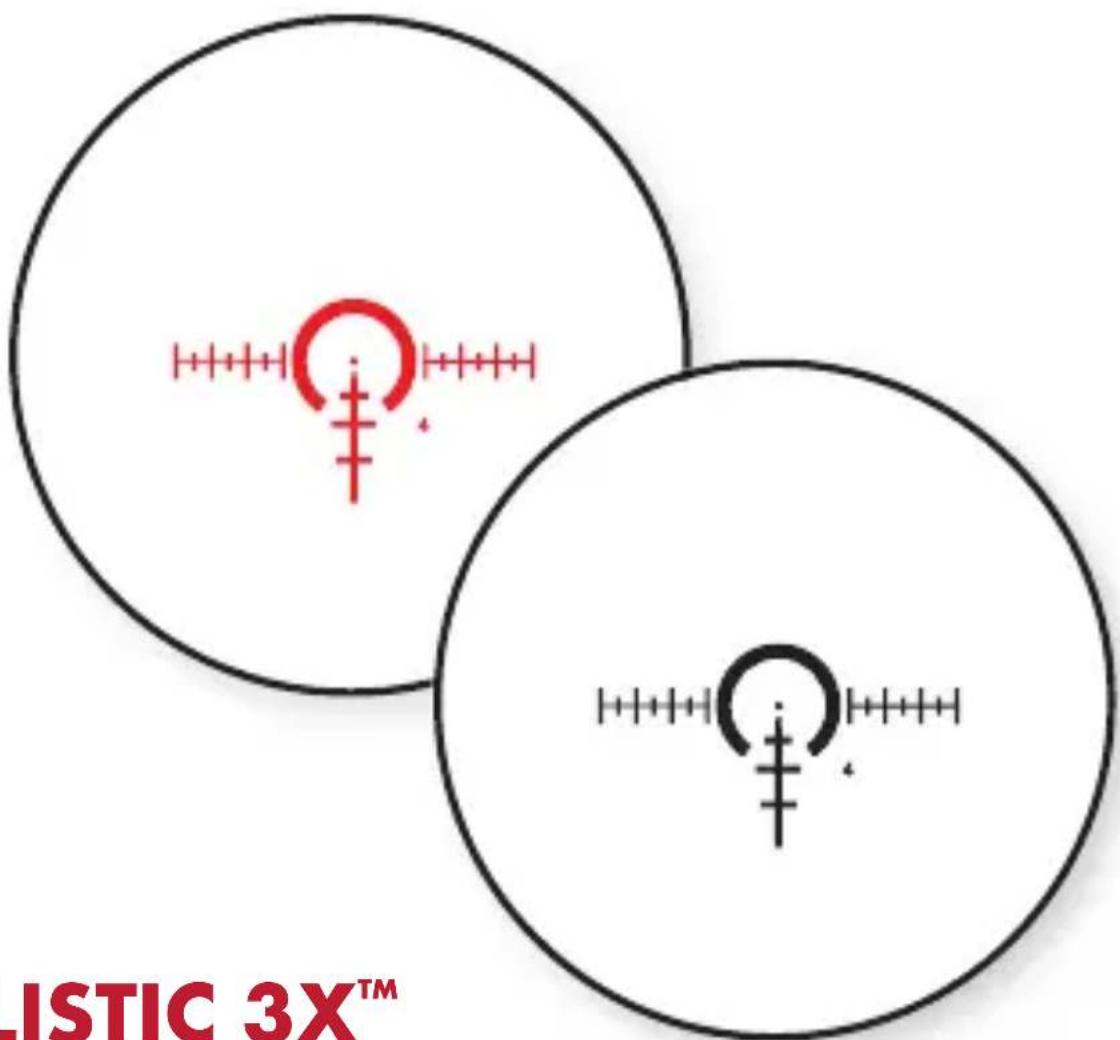

BALLISTIC 3X™

• Stadia lines and center horseshoe are optimized for viewing at 3x magnification
- Fine aiming lines for elevation and windage adjustment, precise shot placement at distance
• Proven broken circle design with center dot for ultra-fast engagement at short distances
- Illumination is daylight bright and won't wash out in harsh light

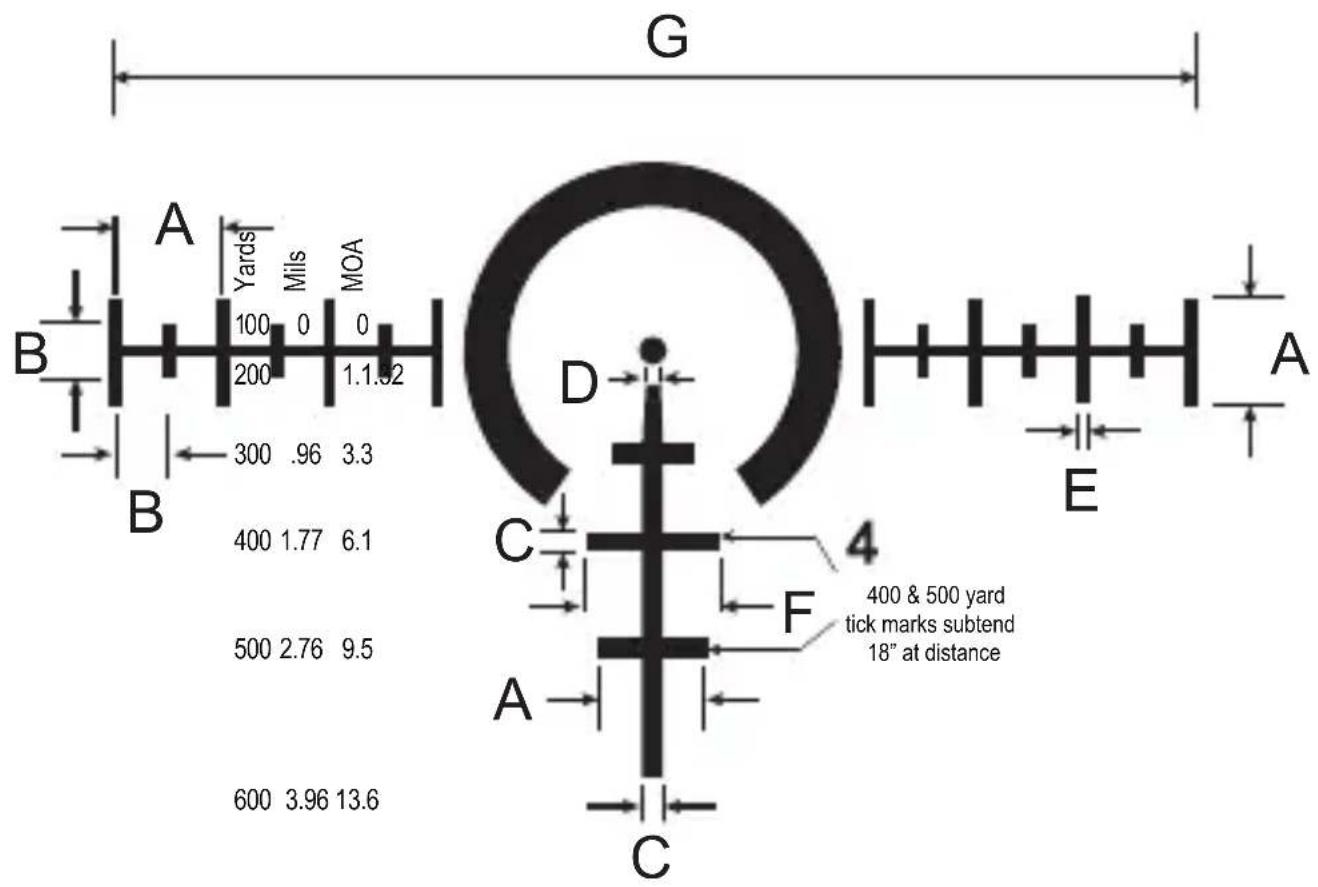

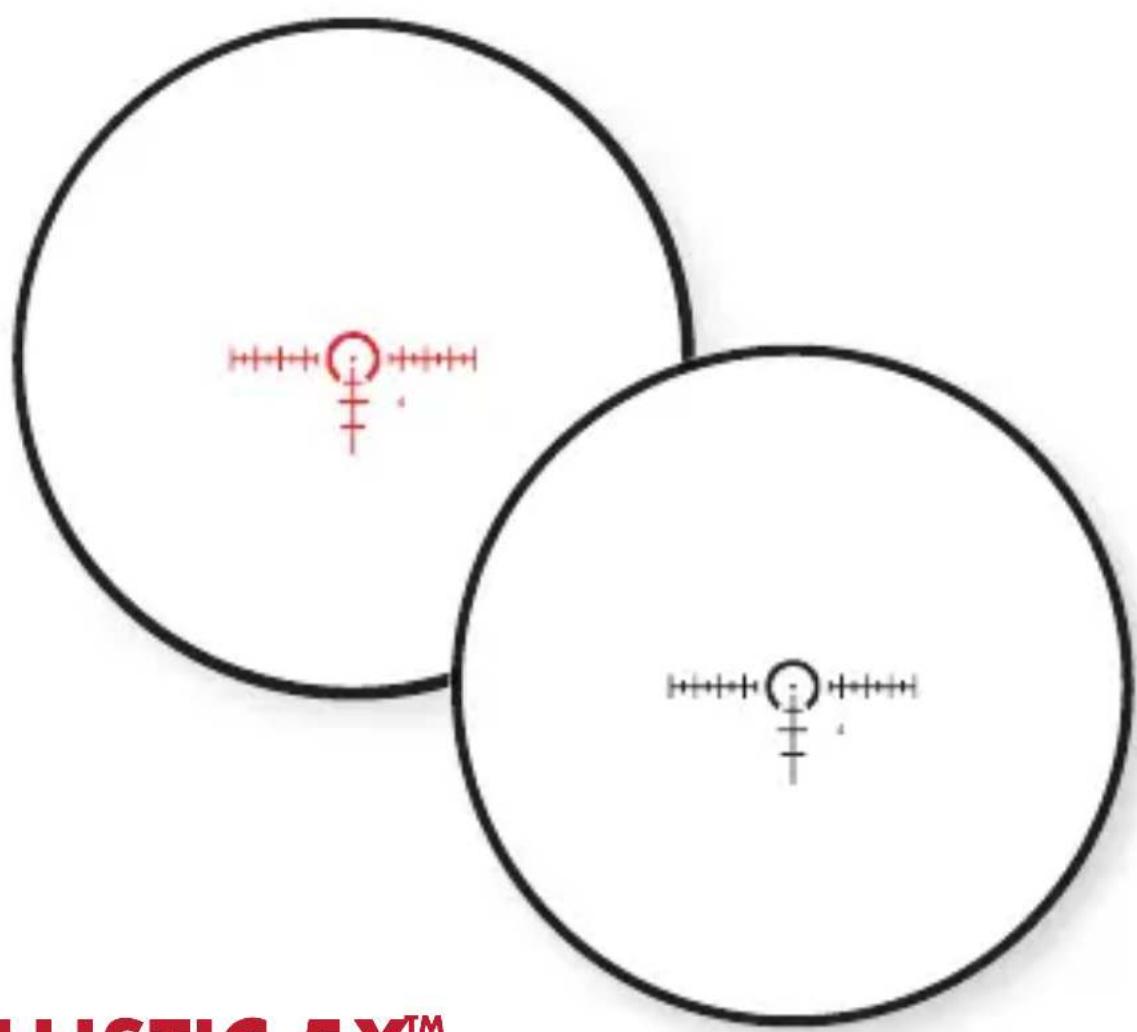

RETICLE SUBTENSIONS (in Mils)

Model	A	B	C	D	E	F	G
RT-3	1	.50	.175	.125	.1	1.25	10

Two overlapping circular diagrams with crosshair markers, no text or symbols present

BALLISTIC 5X™

• Versatile tactical reticle with milradian measurements.
• Illuminated broken circle with center dot allows for ultra-fast engagement at short distances.
• Trajectory compensation out to 600 yards.
• Ideal for achieving long-range accuracy with 5.56 and .223 ammunition.

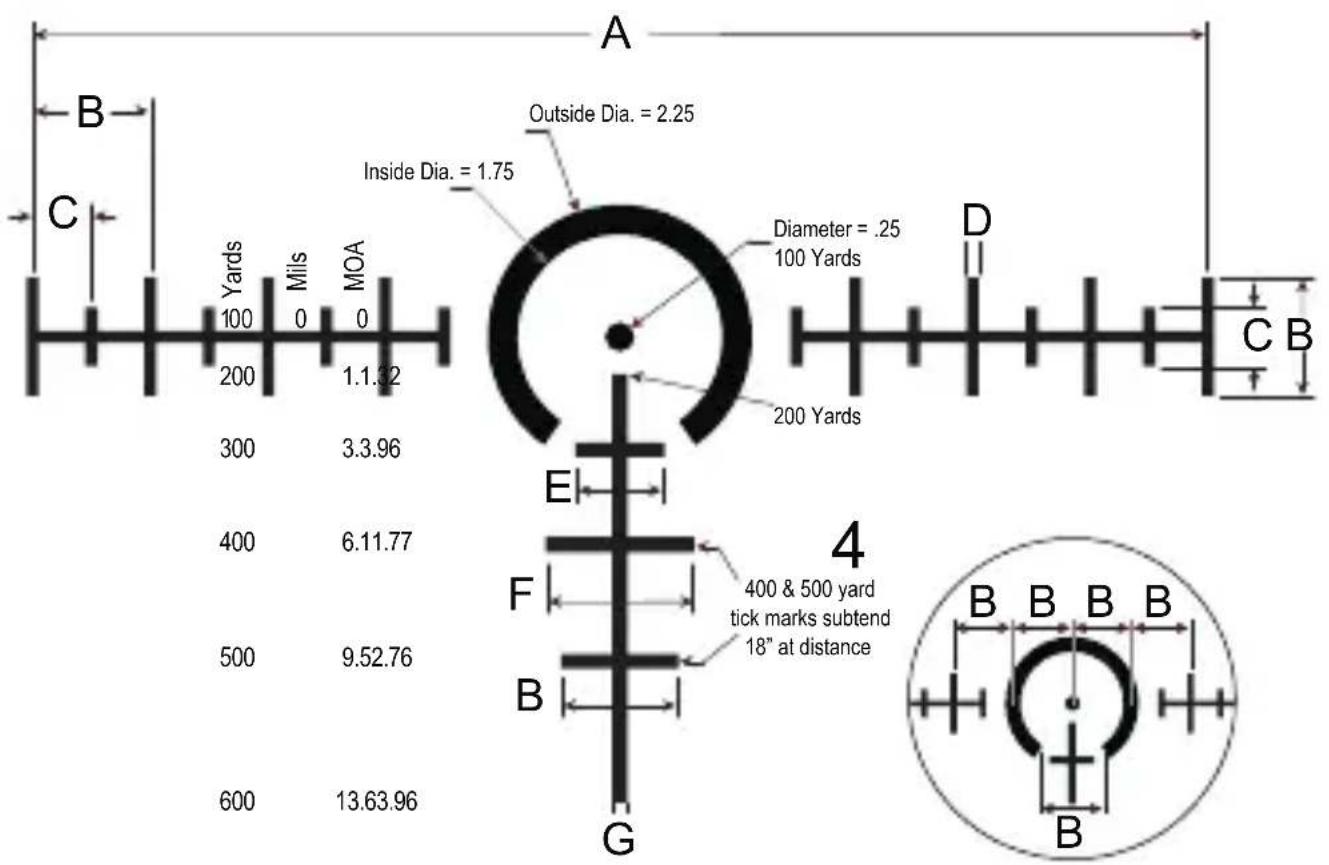

BALLISTIC 5X™ DETAIL

RETICLE SUBTENSIONS (in Mils)

Units	A	B	C	D	E	F	G
Mils	10	1	.5	.125	.75	1.25	.175

Item 300261 300262 300263

Magnification 1x 3x 5x

Objective End Diameter 33.5 mm 33.8 mm 33.8 mm

Clear Objective 25 mm 20 mm 25 mm Diameter

Ocular End Diameter 24 mm 35 mm 35 mm

Reticle 2 MOA Dot Ballistic 3x Ballistic 5X

Illumination Yes Yes Yes

Finish Matte Matte Matte

Mount Picatinny Picatinny Picatinny

Eye Relief Infinite 2.6 in. 2.6 in.

Click Value 0.5 MOA 1 MOA 1 MOA

Elevation Travel 120 MOA 100 MOA 70 MOA

Windage Travel 120 MOA 100 MOA 70 MOA

Length 2.75 in. 3.5 in. 4.25 in.

Weight 4.8 oz. 8.8 oz. 9.5 oz.

Battery CR2032 CR2032 CR2032

Warranty

We will repair or replace your Burris optic if it is damaged or defective. The warranty is automatically transferred to future owners.

• No repair or replacement charge

• No warranty card needed

- No receipt needed

• No questions asked

Abstract black and red circular logo with a white mountain-like shape at center (no text or symbols)

Burris.

FIND WHAT MATTERS

Burris Company

331 East 8th St. • Greeley, CO 80631

[phone]

BurrisOptics.com

Facebook.com/BurrisOptics

INSTR-9507
