| Product Type | Digital Force Gauge |
| Model | DFG N 1K |
| Brand | PCE Instruments |
| Measurement Range | 0 – 1000 N (100 kgf) |
| Resolution | 0.1 N / 0.01 kgf |
| Accuracy | ±0.1% of full scale |
| Units | N, kgf, lbf, ozf |
| Display | Backlit LCD, 5 digits |
| Peak Hold Function | Yes (tension & compression) |
| Data Output | USB / RS-232 (optional) |
| Power Supply | Rechargeable Ni-MH battery (included) or AC adapter |
| Battery Life | Approx. 10 hours continuous use |
| Dimensions (L×W×H) | 200 × 80 × 40 mm |
| Weight | 0.5 kg |
| Overload Protection | 120% of full scale |
| Operating Temperature | 0°C – 40°C |
| Storage Temperature | -10°C – 60°C |
| Humidity | < 80% RH, non-condensing |
| Auto Power Off | Yes (adjustable) |

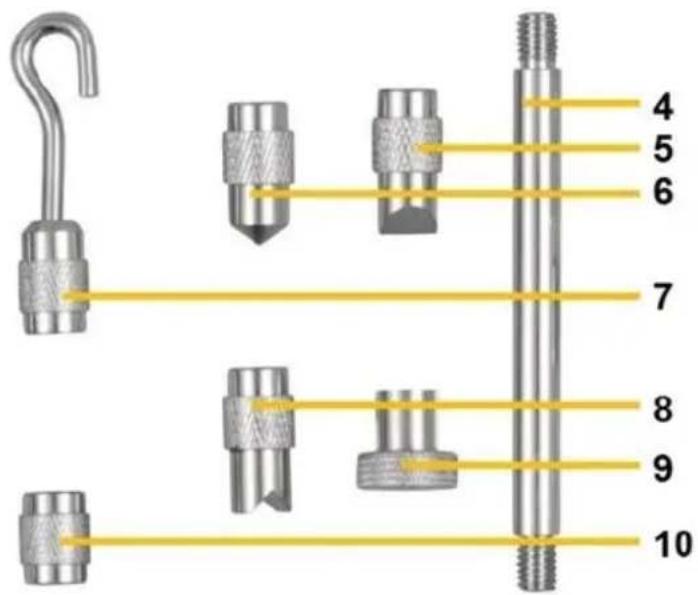

| Accessories Included | Carrying case, hook, flat tip, AC adapter, manual |
| Calibration | Factory calibrated (NIST traceable) |
| Standards | CE, RoHS |
| Warranty | 2 years |
| Maintenance | Clean with dry cloth; avoid moisture and solvent |
Frequently Asked Questions - DFG N 1K PCE Instruments
How do I calibrate the DFG N 1K force gauge?
The gauge is factory calibrated. For recalibration, use a certified calibration weight set or send it to PCE Instruments service center. The manual provides a zero adjustment procedure using the ZERO key.

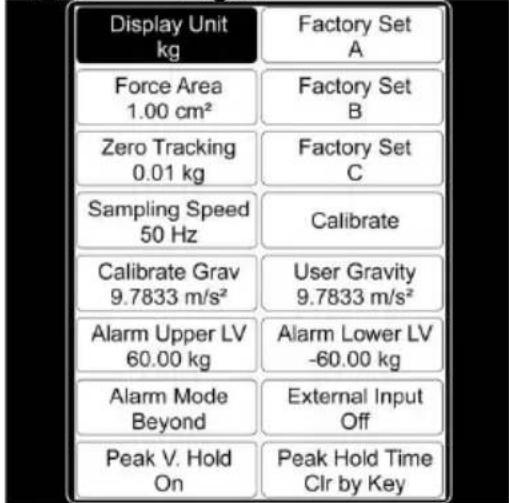

Can I change the measurement units?
Yes, press the UNIT button to cycle through N, kgf, lbf, and ozf. The display shows the active unit.
What happens if I overload the gauge?
The gauge can handle up to 120% of full scale (1200 N) momentarily. Exceeding this may damage the sensor. An overload warning will appear on the display.
How long does the battery last?
The rechargeable Ni-MH battery provides approximately 10 hours of continuous use. Full charge takes about 3 hours using the included AC adapter.

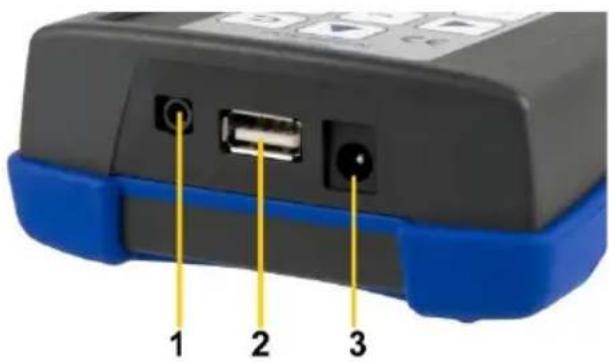

Can I export data to a computer?
Yes, via optional USB or RS-232 interface. You can connect to a PC for data logging using PCE Instruments software (sold separately).

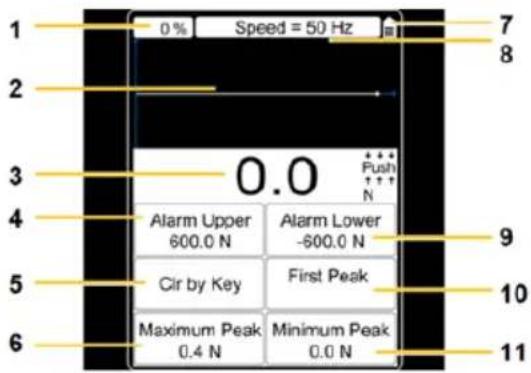

How do I use the peak hold function?
Press the PEAK button to activate peak hold. The gauge will capture and display the maximum force during measurement. Press again to clear or switch to real-time mode.
What is the accuracy of the DFG N 1K?
Accuracy is ±0.1% of full scale (±1 N for 1000 N range). This ensures reliable measurements for most testing applications.
How do I zero the gauge?
Ensure no load is applied, then press the ZERO button. The display will reset to zero. For best results, perform zeroing after power-on and before each measurement series.
Can I mount the gauge on a test stand?
Yes, the gauge has a 6-32 UNC threaded hole on the back for mounting. Use the included mounting bracket or optional adapters for compatibility with most test stands.
What is covered under the warranty?
PCE Instruments offers a 2-year warranty covering defects in materials and workmanship. Excludes damage from misuse, overload, or unauthorized repairs. Contact PCE Instruments for warranty claims.
