CV630-ND3W - Security Camera Marshall Electronics - Free user manual and instructions

Product Type	UHD30 NDI® PTZ Camera
Model	CV630-ND3W
Dimensions (L x W x H)	174 x 187 x 190 mm
Weight (camera only)	2.0 kg
Weight (with metal plates)	2.5 kg
Power Supply	DC 12V or PoE+ (IEEE 802.3at)
Optical Zoom	30x HD
Resolution (max)	4K UHD (3840x2160) up to 60p (via HDMI/NDI)
Video Outputs	HDMI, 3G-SDI, USB 3.0, Ethernet (NDI|HX, RTSP, RTMP, SRT, MPEG-TS)
NDI|HX Support	HX2 and HX3 (selectable)
Audio Input	Line In / Mic In (selectable)
Control Interfaces	RS-232 (In/Out), RS-422
Pan/Tilt Range	Pan: ±170°, Tilt: -30° to +90°

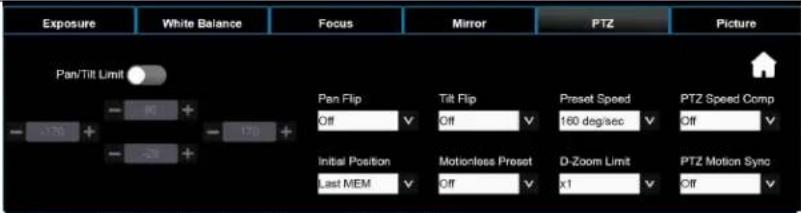

Preset Speed	5 to 300 deg/sec (selectable)
Tally Indicator Light	Yes (enable via RS-232 or web)
Operating Temperature	Not specified in manual; typical 0°C to 40°C
Cleaning	Disconnect cables, wipe with dry cloth; do not use alcohol or solvents
Safety Certifications	FCC Part 15 Class A, ICES-003, CE, KC
Mounting	Desk or ceiling (UL-approved hanger required for ceiling)
Package Contents	Camera, remote control, power adapter, power cord, RS-422 connector, metal plates A/B, M3 screws (silver x8, black x2), manual

Frequently Asked Questions - CV630-ND3W Marshall Electronics

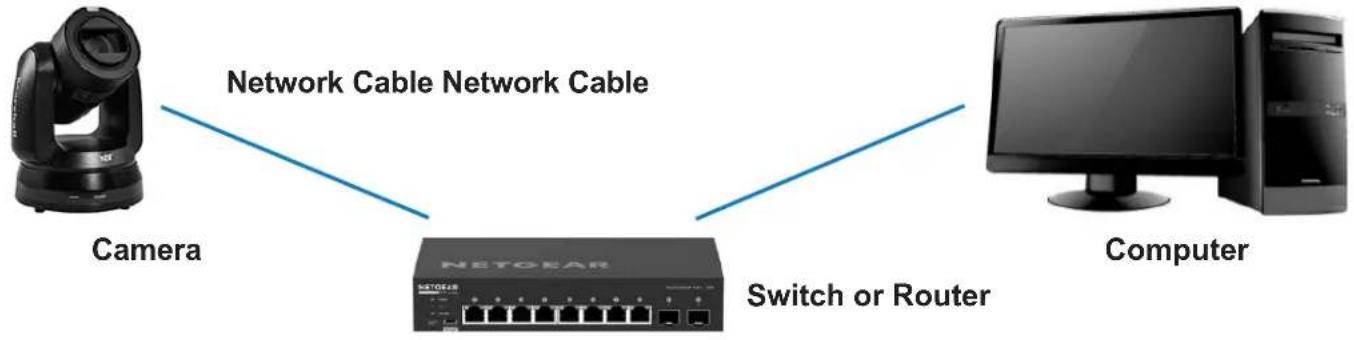

How do I connect the CV630-ND3W camera to my network?

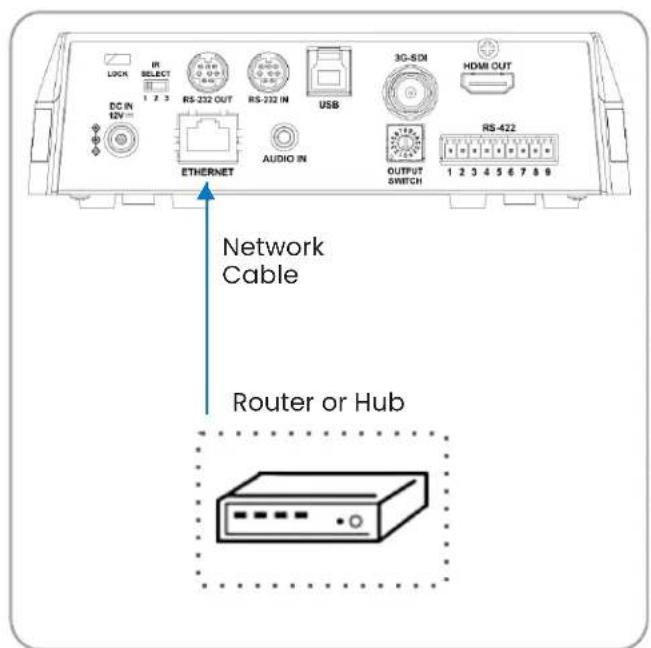

Connect the camera to a switch or router using an Ethernet cable supporting PoE+. The default IP address is 192.168.100.100. Ensure your computer is on the same subnet (e.g., 192.168.100.xxx) and access the web interface via a browser. For NDI|HX mode, refer to the manual for settings.

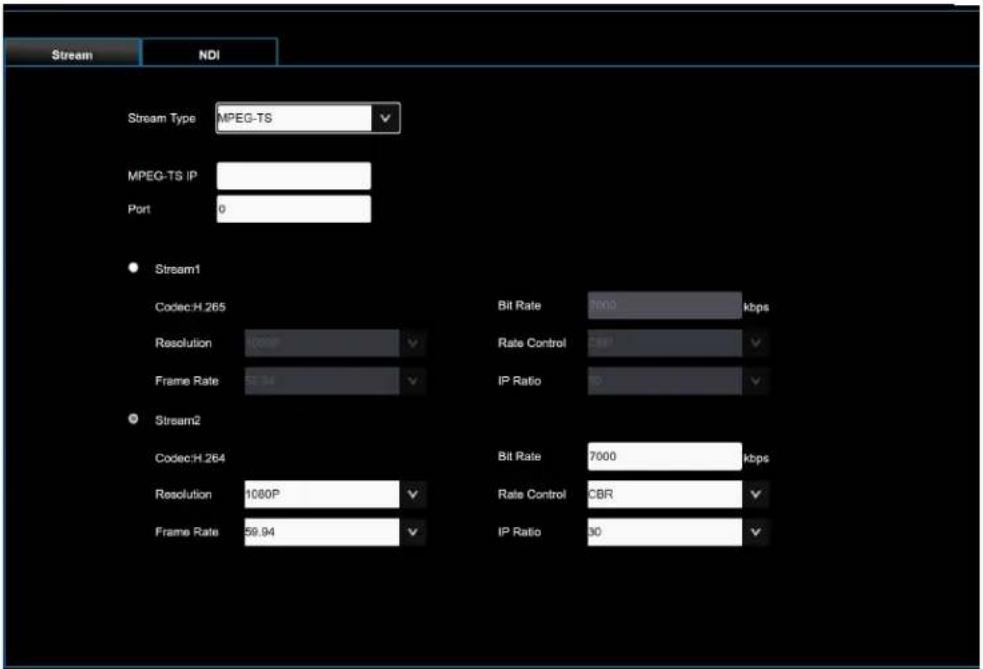

Can I use the camera with NDI? How do I enable NDI|HX?

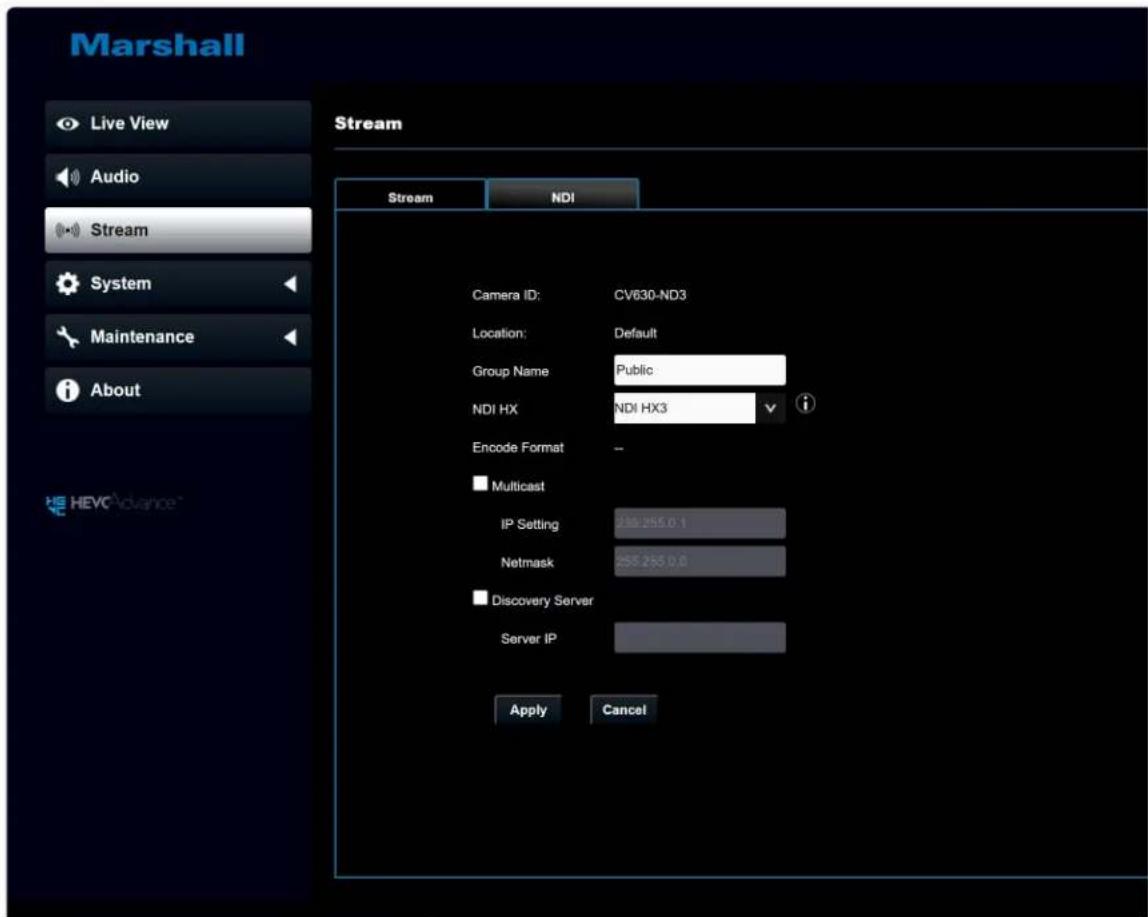

Yes, the CV630-ND3W supports NDI|HX2 and HX3. To enable, log into the web interface, go to Stream > NDI, set NDI|HX to HX2 or HX3, and apply. Note that RTSP/RTMP streams are disabled when NDI|HX is on. Use NDI Studio Monitor to view the camera.

How do I mount the camera on the ceiling?

Use a UL-approved ceiling hanger. Attach metal plate B to the hanger with provided screws, then attach metal plate A to the camera base with 4 M3 silver screws. Lift the camera, push plate A into plate B to latch, and secure with 2 silver and 1 black M3 screw. Ensure the camera is oriented correctly before finalizing.

Why is there no image output from the camera?

Check power supply (DC 12V or PoE+). Verify the output source (HDMI, SDI, USB) matches your monitor. Ensure the resolution is compatible (e.g., 4K requires 4K monitor). Replace cables if faulty. Confirm the camera is powered on (green LED).

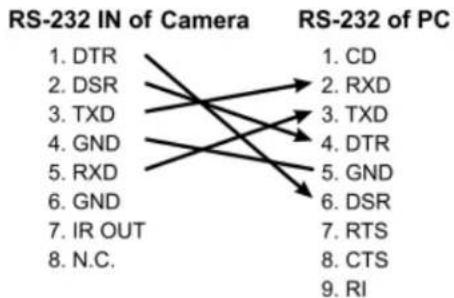

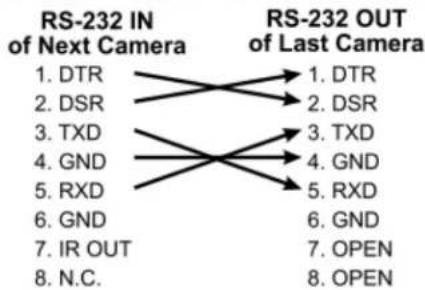

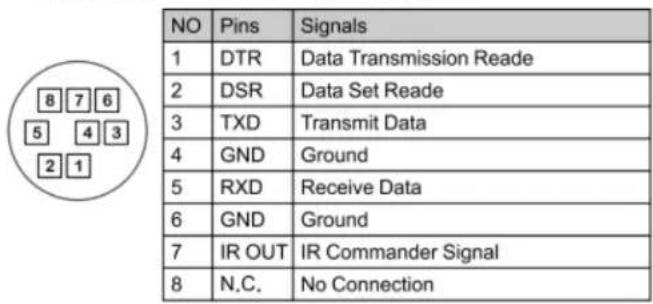

How do I control the camera via RS-232?

Connect the controller to the RS-232 IN port of the camera. Set the baud rate (default 9600 or 38400) and protocol (VISCA or Pelco-D) in the web interface under System > Control. Ensure the VISCA address matches the camera ID. Up to 7 cameras can be daisy-chained.

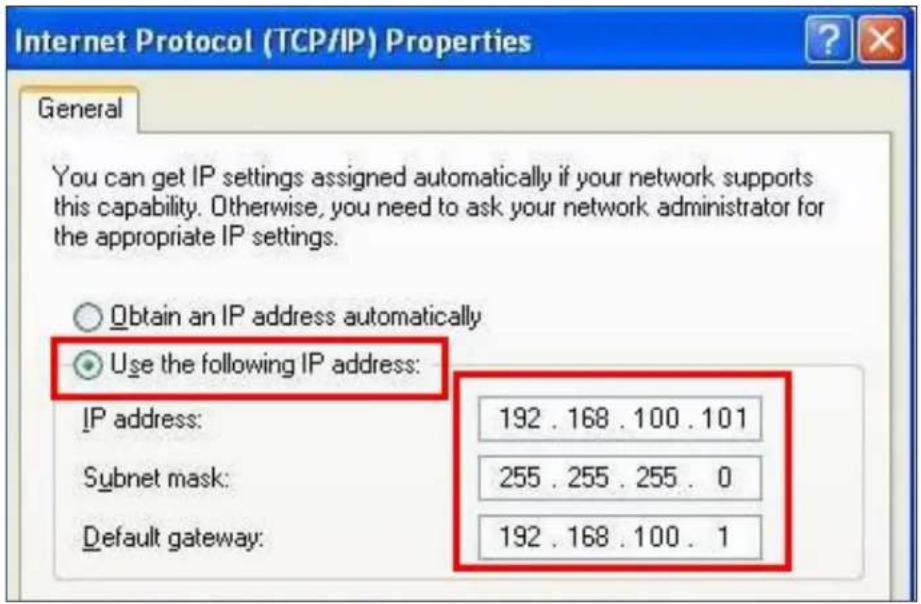

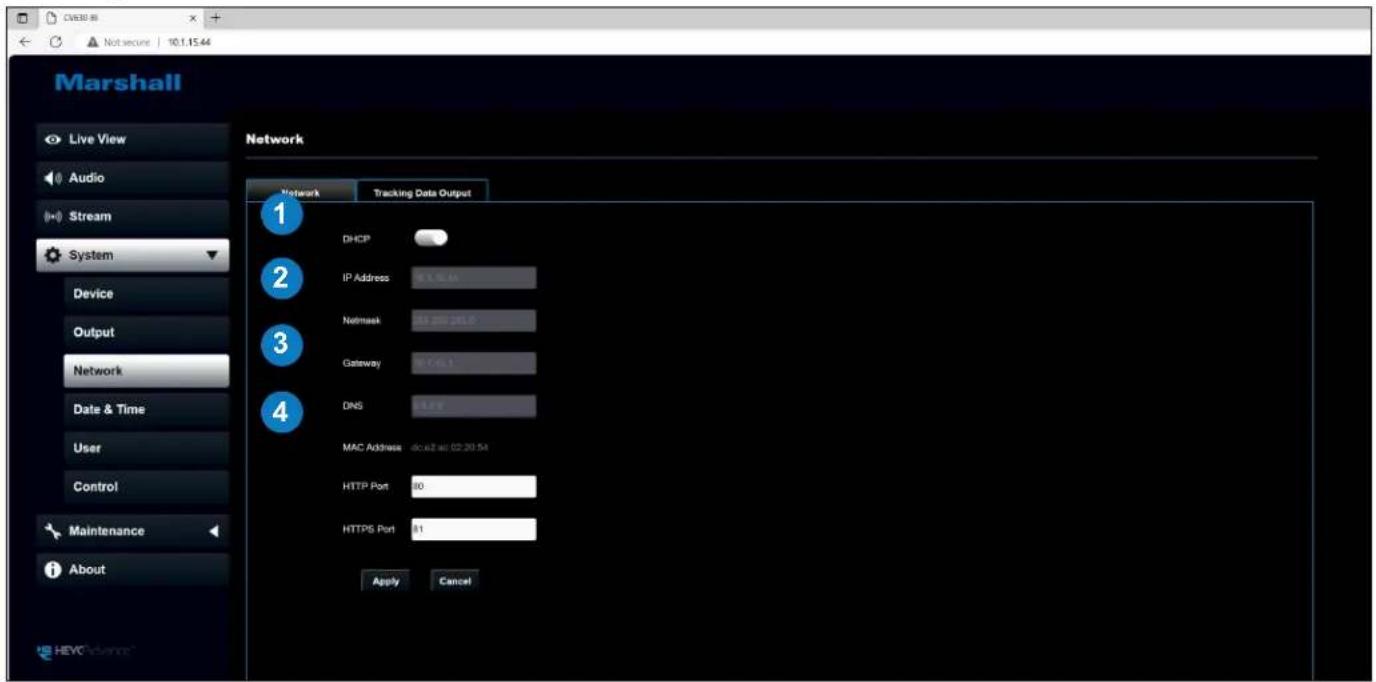

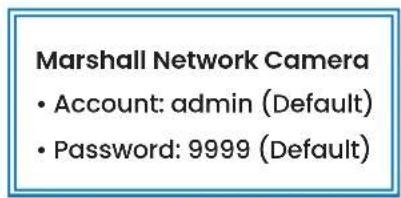

What is the default IP address and how do I change it?

The default IP is 192.168.100.100. To change it, access the web interface, go to System > Network, disable DHCP, and enter a new IP, subnet mask, and gateway. Click Apply and reboot the camera.

How do I reset the camera to factory settings?

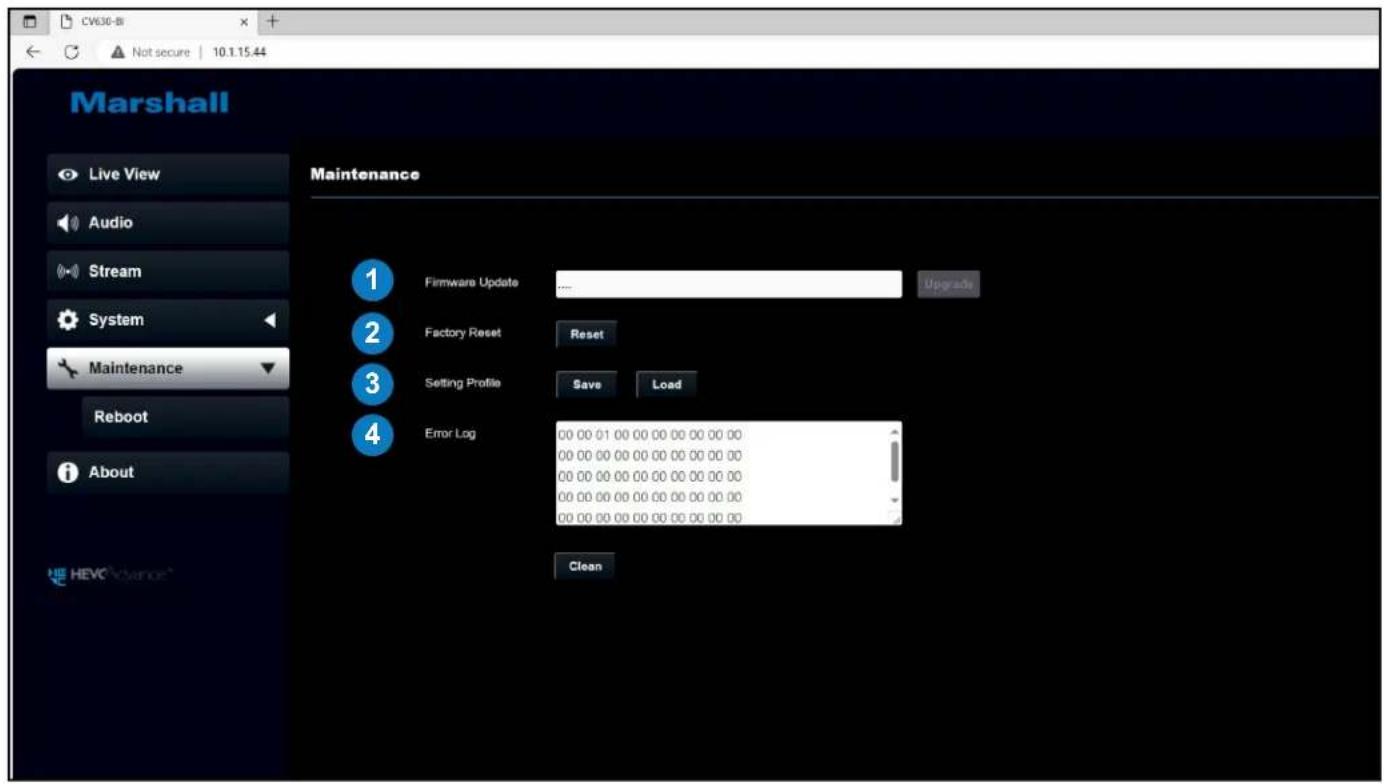

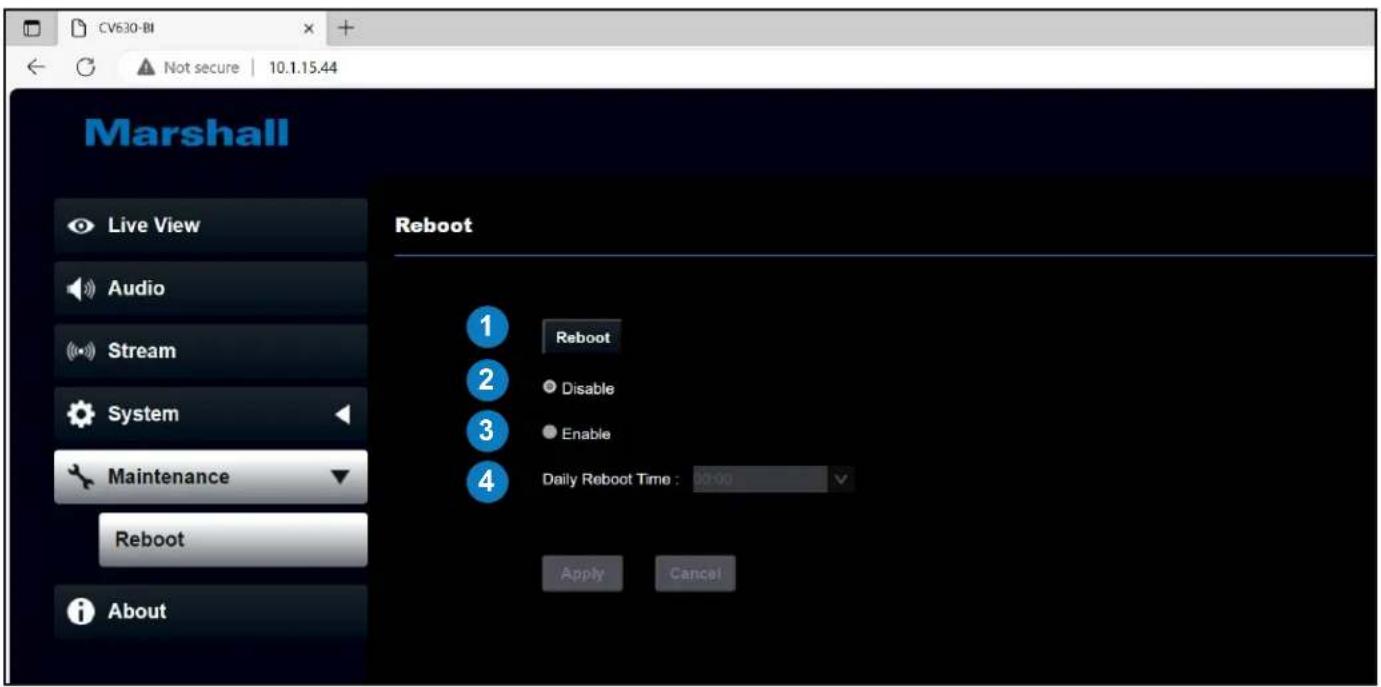

There are two methods: 1) Via the web interface, go to Maintenance and click Factory Reset. 2) Via the OSD menu (remote control), navigate to System and select Factory Reset. Note: This erases all user settings including account information.

The tally light does not work. How do I enable it?

Ensure the tally lamp function is enabled either via the OSD menu (System > Tally Lamp) or web interface (Setting > Camera > Tally Lamp). Also check that RS-232 commands are configured correctly. If using CMMD mode, set to Link or General as needed.

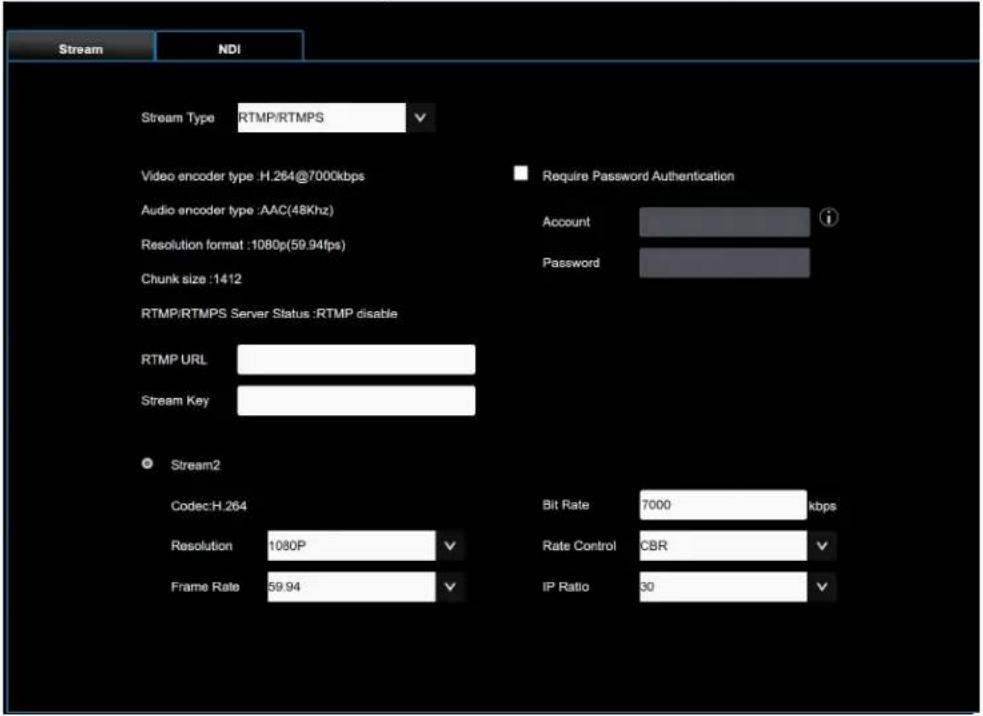

Can I stream video to YouTube or social media?

Yes, the camera supports RTMP/RTMPS streaming. In the web interface, go to Stream > Stream, choose RTMP/RTMPS, and paste the RTMP URL provided by YouTube or your streaming platform. Enable audio in the Audio settings. Stream 2 is typically used for RTMP.

How do I update the camera firmware?

Download the latest firmware from Marshall Electronics website. In the web interface, go to Maintenance, click the [...] button to select the firmware file, then click Upgrade. Do not power off the camera during the update (takes 2-3 minutes). The camera will reboot automatically.

USER MANUAL CV630-ND3W Marshall Electronics

CV630-BI/WI/ND3/ND3W

UHD30 NDI® PTZ Camera

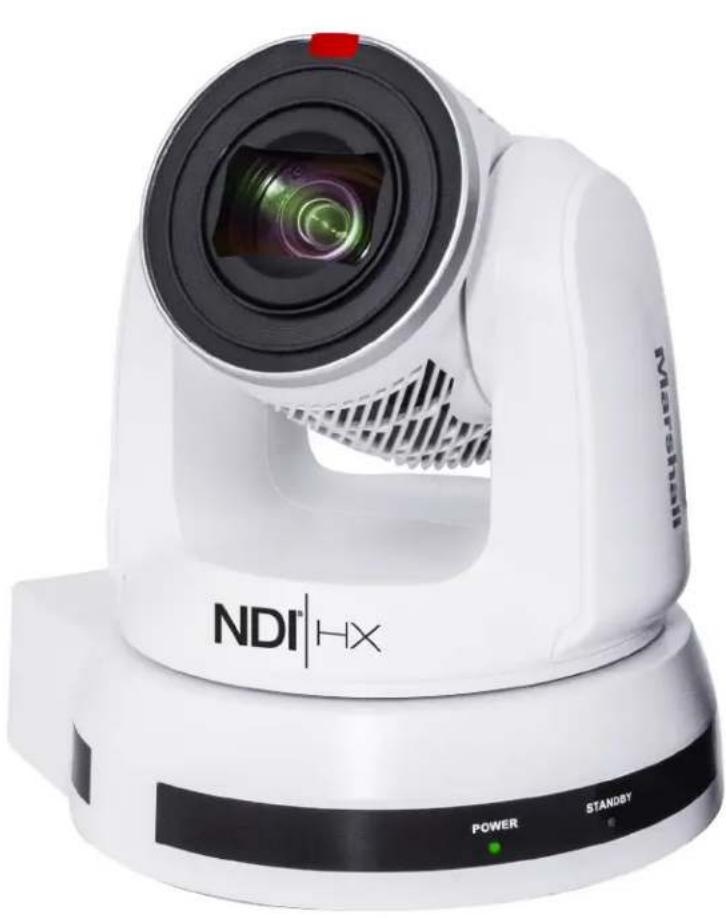

White NDI HX radar device with lens and control buttons (no visible text beyond brand name)

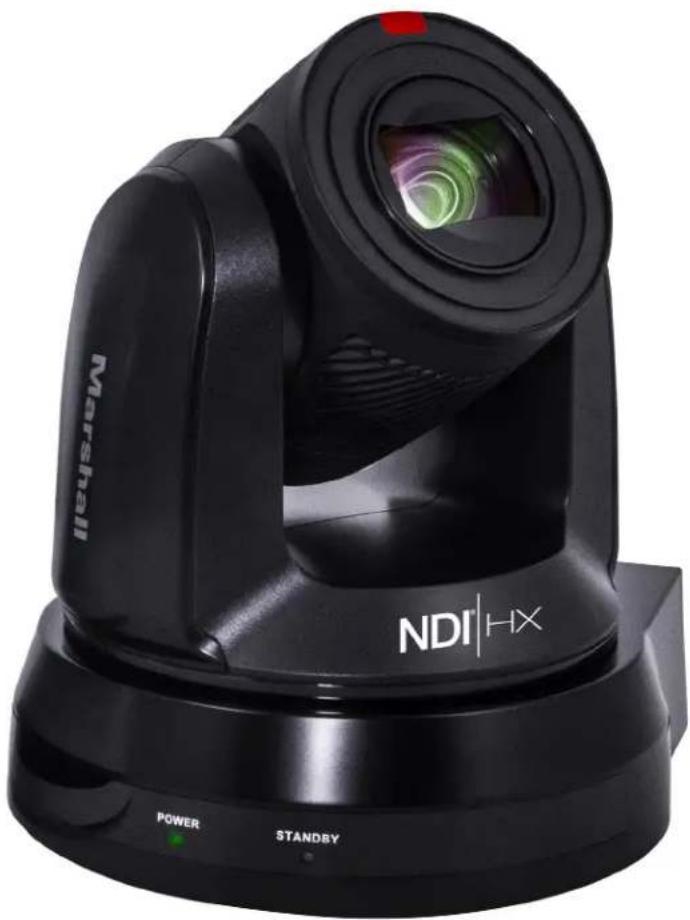

Black Marshall NDI HX radar device with visible lens and control buttons (Power, Standby) on the base (no text beyond brand name)

User Manual

Table of Contents

Copyright Information......2

Precautions 2

Chapter 1: Safety Instructions....3

Chapter 2: Package Contents......4

Chapter 3: Function Introduction......5

3.1 I/O functions Introduction....5

3.2 Description of LED indicator 7

3.3 Tally Indicator Light Function Description....7

Chapter 4: Instruction for installation....8

4.1 Preparation before installation....8

4.2 Instruction for installation....8

4.3 Connecting devices....15

Chapter 5: Remote Control and Setting Menu....19

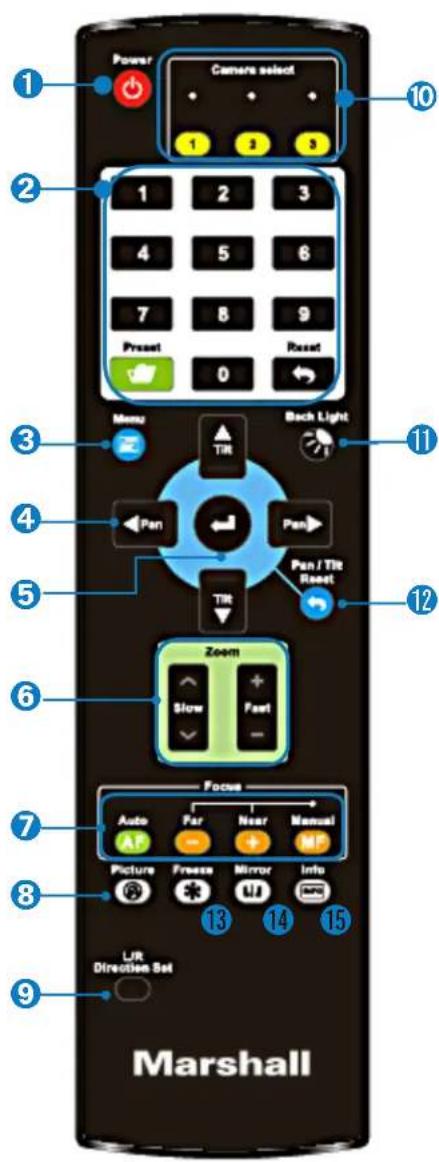

5.1 Functions of remote control....19

5.2 Setting Menu 20

Chapter 6: Network Function Settings Description....25

6.1 Connecting Camera to Network....25

6.2 Web Page Function Description 27

Chapter 7: DIP Switch Setting....43

7.1 DIP SWITCH 43

Chapter 8: Troubleshooting......44

Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information....45

Copyrights © Marshall Electronics, Inc. All rights reserved.

Copying, reproducing or transmitting this file is not allowed if a license is not provided by Marshall Electronics, Inc., unless copying this file is for the purpose of backup after purchasing this product.

In order to keep improving the product, Marshall Electronics, Inc. hereby reserves the right to make changes to product specifications without prior notice. The information in this file is subject to change without prior notice.

To fully explain or describe how this product should be used, this manual may refer to names of other products or companies without any intention of infringement.

Disclaimer of warranties: Marshall Electronics, Inc. is not responsible for any possible technological, editorial errors or omissions, nor responsible for any incidental or related damages arising from providing this file, using, or operating this product.

Precautions

This symbol indicates that this equipment may contain dangerous voltage which could cause electric shock.

This symbol indicates that there are important operating and maintenance instructions in this User Manual with this unit.

FCC WARNING

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

NOTICE :

The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

IC WARNING

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled "Digital Apparatus," ICES-003 of Industry Canada.

EN55032 CE WARNING

Operation of this equipment in a residential environment could cause radio interference.

KC WARNING

This equipment is Industrial (Class A) electromagnetic wave suitability equipment and seller or user should take notice of it, and this equipment is to be used in the places except for home.

Chapter 1: Safety Instructions

Always follow these safety instructions when setting up and using this product:

1. Operation

1.1 Please use the product in the recommended operating environment, away from water or source of heat.
1.2 Do not place the product in tilted position or unstable trolley, stand or table.
1.3 Please clean the dust on the power plug prior to usage. Do not insert the product's power plug into a multiplug to prevent sparks or a fire.
1.4 Do not block the slots and openings in the case of the product. They provide ventilation and prevent the product from overheating.
1.5 Do not open or remove covers, otherwise it may expose you to dangerous voltages and other hazards. Refer all servicing to licensed service personnel.
1.6 Unplug the product from the wall outlet and refer servicing to licensed service personnel when the following situations happen:
- If the power cords are damaged or frayed.
- If liquid is spilled into the product or the product has been exposed to rain or water.

2. Installation

2.1 For security considerations, please make sure the standard hanging rack you bought is in line with UL or CE safety approbations and installed by technician personnel approved by agents.

3. Storage

3.1 Do not place the product where the cord can be stepped on as this may result in fraying or damage to the lead or the plug.
3.2 Unplug the product during thunderstorms or if it is not going to be used for an extended period.
3.3 Do not place the product or accessories on top of vibrating equipment or heated objects.

4. Cleaning

4.1 Disconnect all the cables prior to cleaning and wipe the surface with a dry cloth. Do not use alcohol or volatile solvents for cleaning.

1. Batteries (for products or accessories with batteries)

5.1 When replacing batteries, please only use similar or the same type of batteries.

5.2 When disposing of batteries or products, please adhere to the relevant instructions in your country or region for disposing of batteries or products.

Chapter 2: Package Contents

Installation InstructionsP

Z Camera Remote Control

Line drawing of a mechanical support device with labeled buttons (power and standby) at the base (no text or symbols on the device itself)

Click Here for Product Page:

https://marshall-usa.com/cameras/CV630-NDI/

Power AdapterAC Po

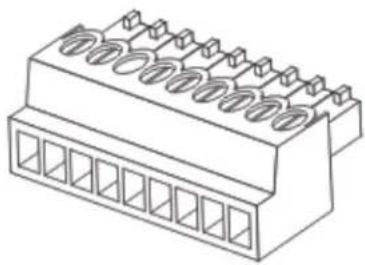

ver Cord RS-422 Connect

Line drawing of a coiled electrical plug with two connectors (no text or symbols)

Appearance may vary depending on county/ region

Line drawing of a rectangular electronic device with a coiled cable and connector (no text or symbols)

Isometric line drawing of a 3-pin electrical connector (no text or symbols)

Metal Plate BMetal

ate A M3 Screws

Top-down schematic of a mechanical or electrical component layout (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with multiple compartments and mounting feet (no text or symbols)

Illustration of four different screwdrivers with no text or symbols

Silver x8/ Black x2

Chapter 3: Function Introduction

3.1 I/O functions Introduction

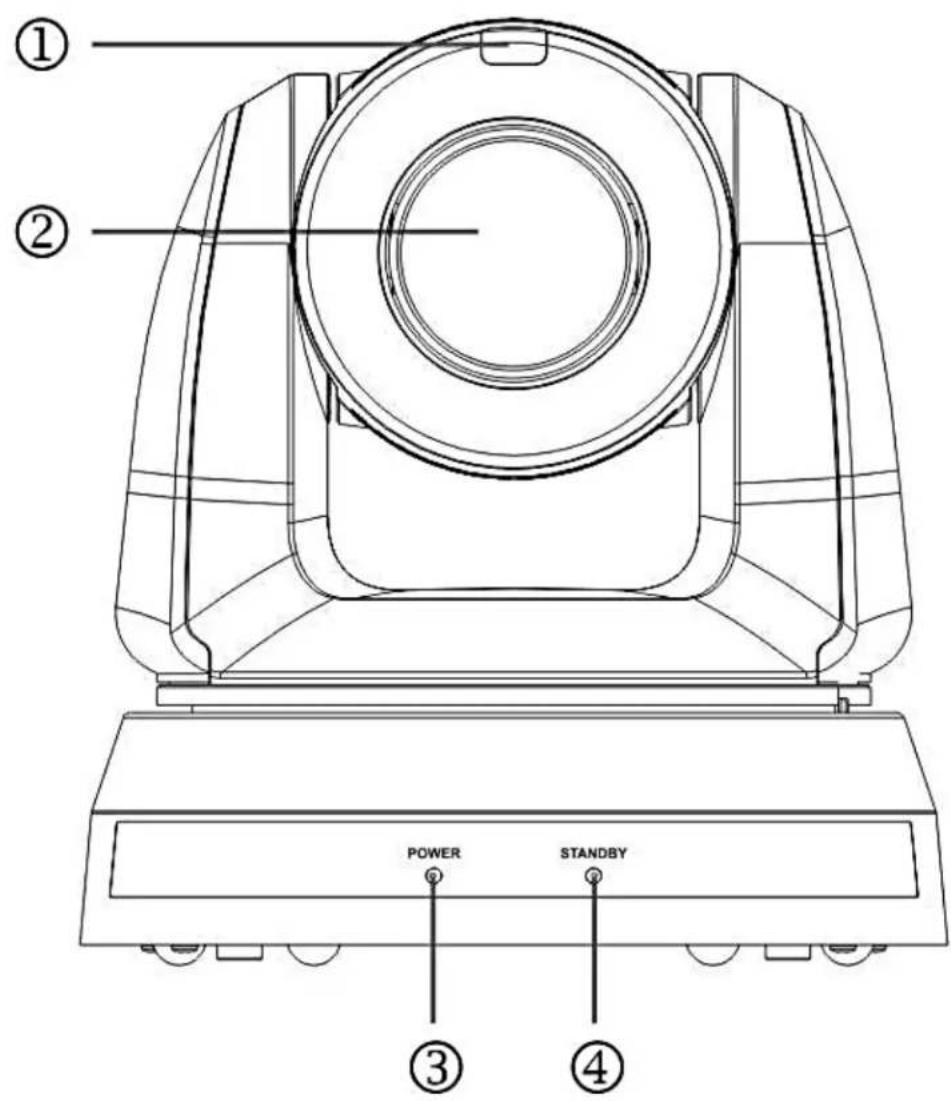

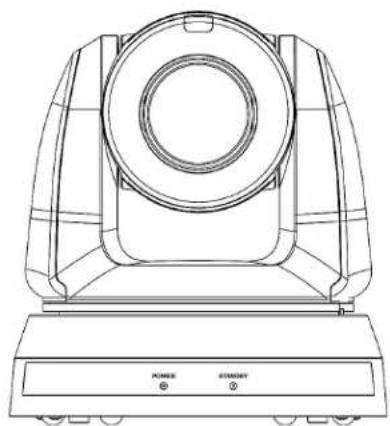

3.1.1 Front View

NO.	Item Function Descriptions
1.	Tally Lamp Display the tally light status of the camera
2.	Camera lens 30x HD camera lens
3.	Power LED indicatorDisplay the status of the camera
4.	Standby LED indicatorDisplay the status of the camera

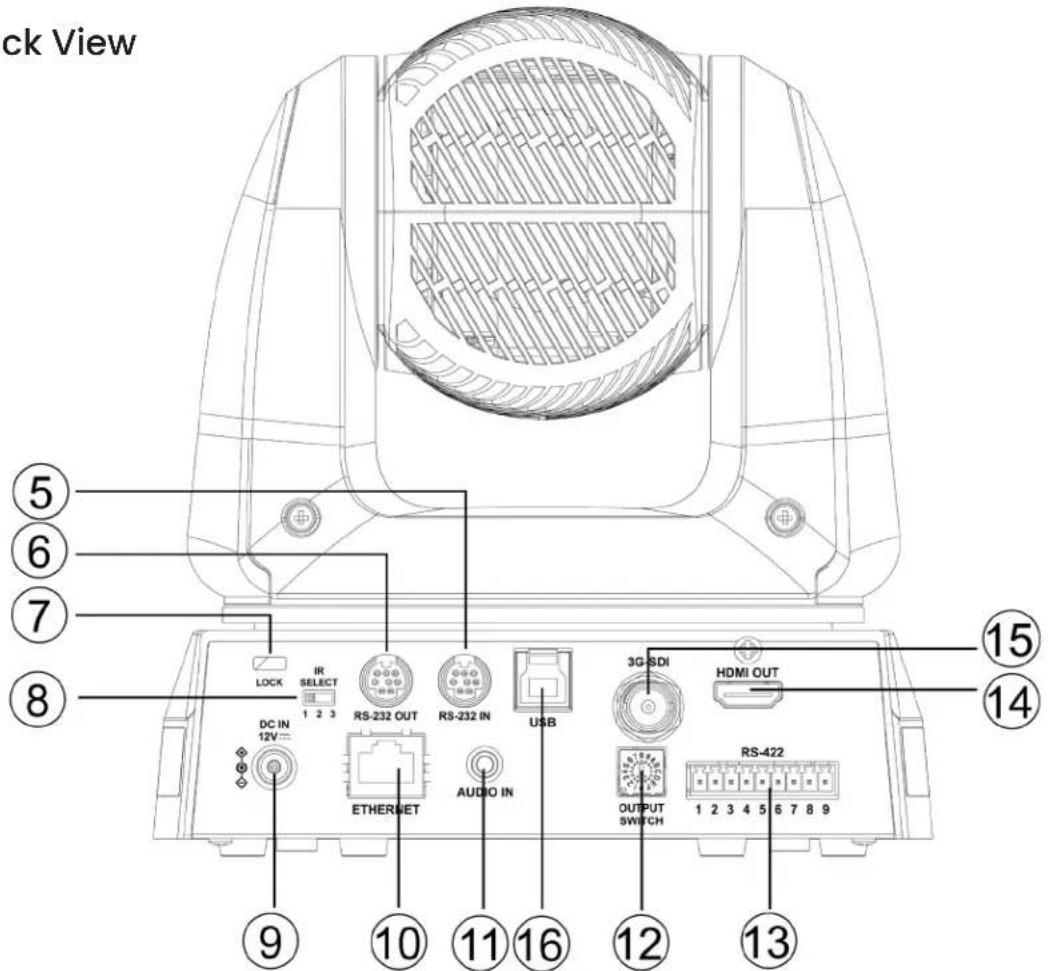

3.1.2 Back View

NO.	Item Function Descriptions

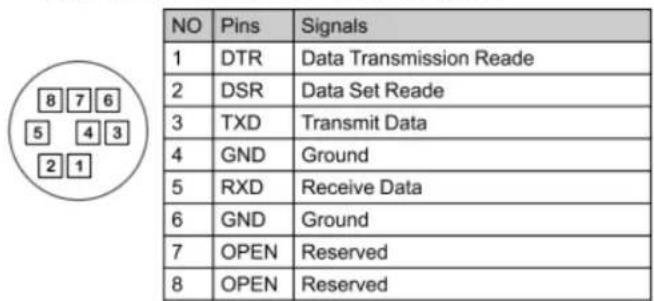

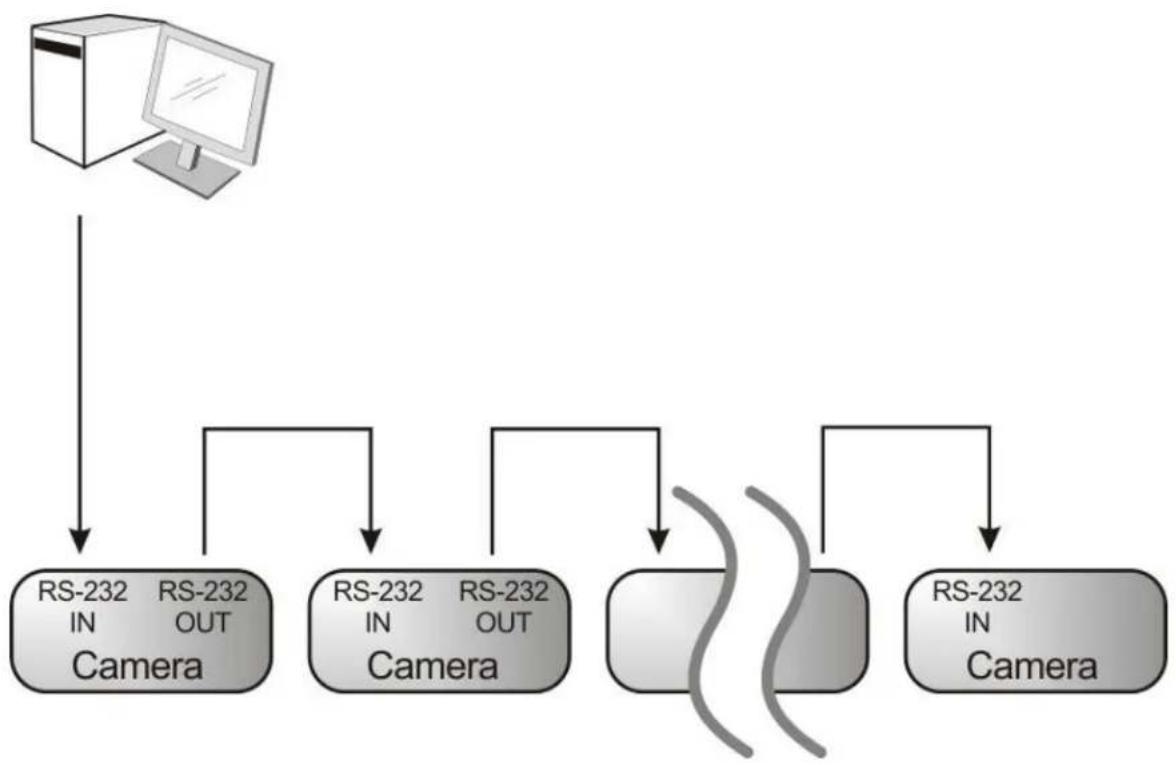

1.	RS-232 input	RS-232 input port, at most 7 cameras can be connected in a serial connection
2.	RS-232 output	RS-232 output port, at most 7 cameras can be connected in a serial connection
3.	Lock hole Lock hole of	safety lock
4.	IR SELECT	The remote-control ID setting is only controlled after corresponding to the Camera Select on the remote control
5.	DC 12 V power Port	DC power supply connecting port
6.	Ethernet port	Network cable port supports routers or hubs of PoE+ (IEEE 802.3at).

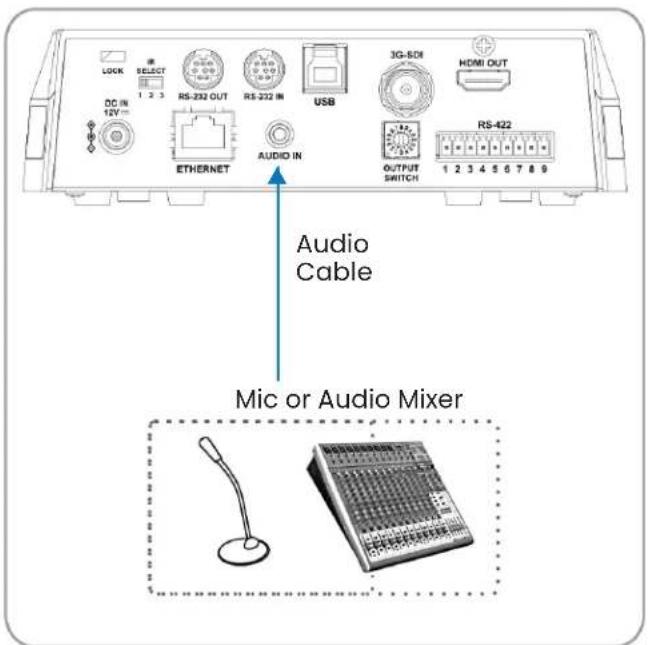

7.	Audio input Support	Line In/Mic In
8.	OUTPUT Switch Adjust	the resolution setting. The default is 1080p/59.94

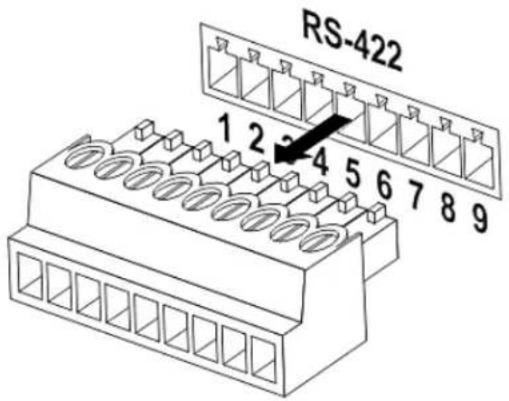

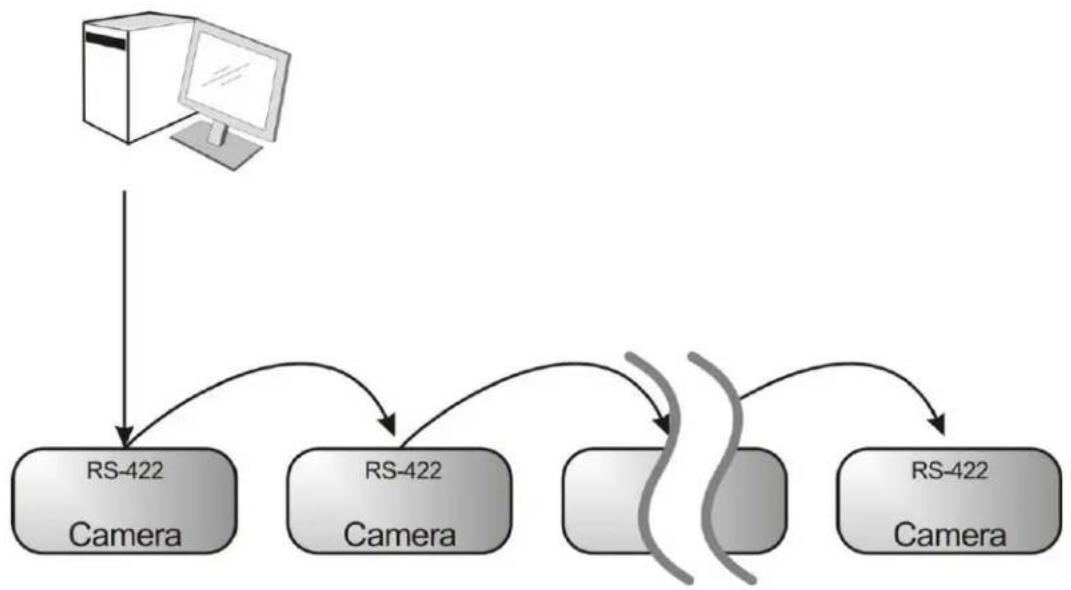

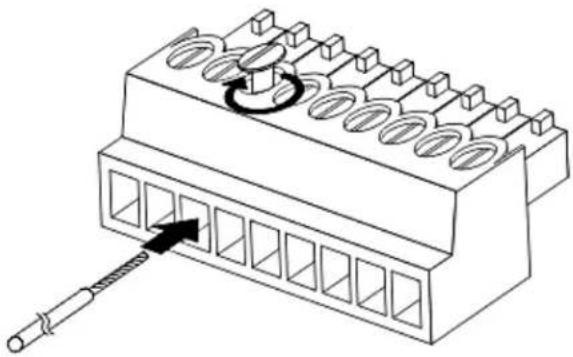

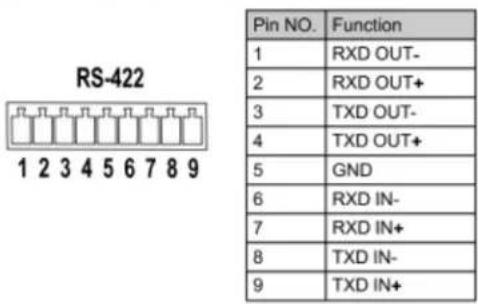

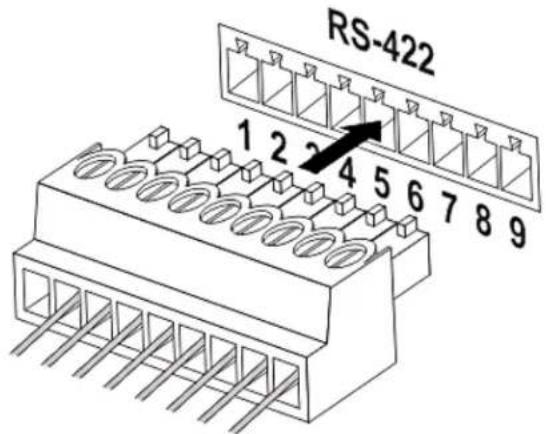

9.	RS-422 Port	RS-422 connecting port, at most 7 cameras can be connected in a serial connection

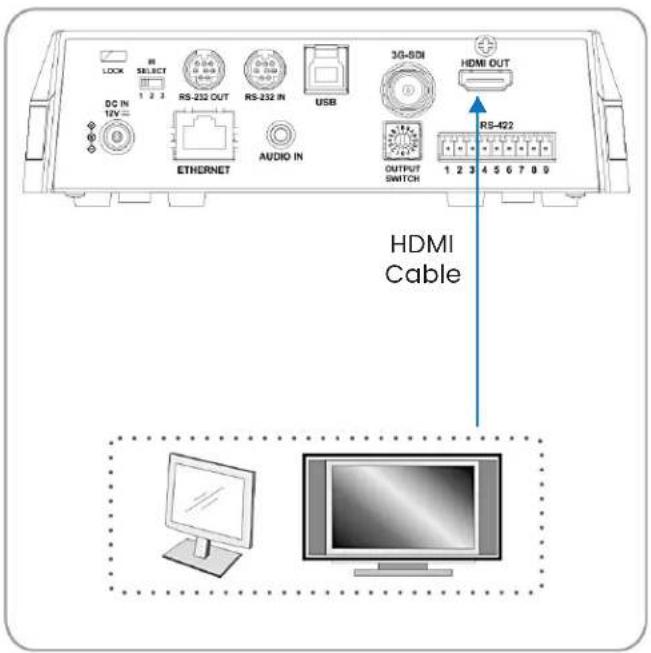

10.	HDMI output HDMI output	(Audio output supported)
11.	3G-SDI output	3G-SDI output(Audio output supported)Support the audio output of 48 KHz only/resolutions up to 1080p 59.94/50

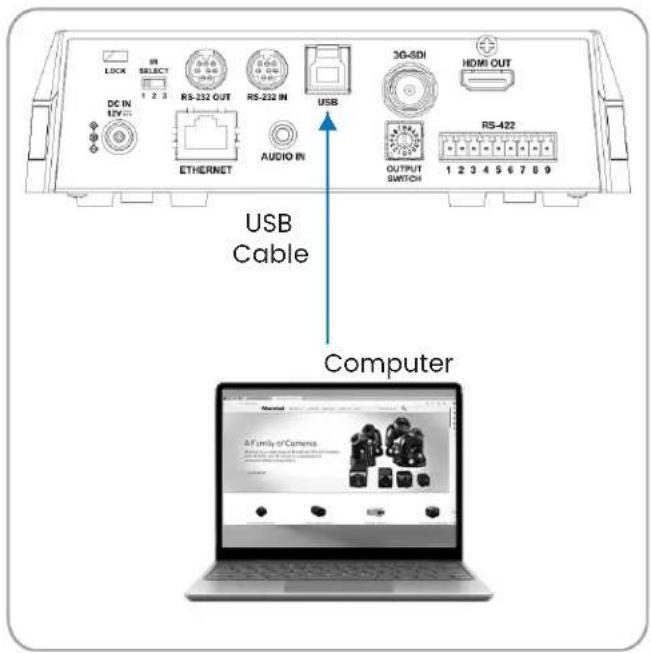

12.	USB 3.0 port	Connect to the USB port of the computer, camera image output via video softwareSupport up to H.264 2160 29.97p/MJPEG 1080 29.97p

Technical line drawing of a dome-shaped mechanical component with circular features and mounting holes (no text or symbols)

NO.	Item Function Descriptions

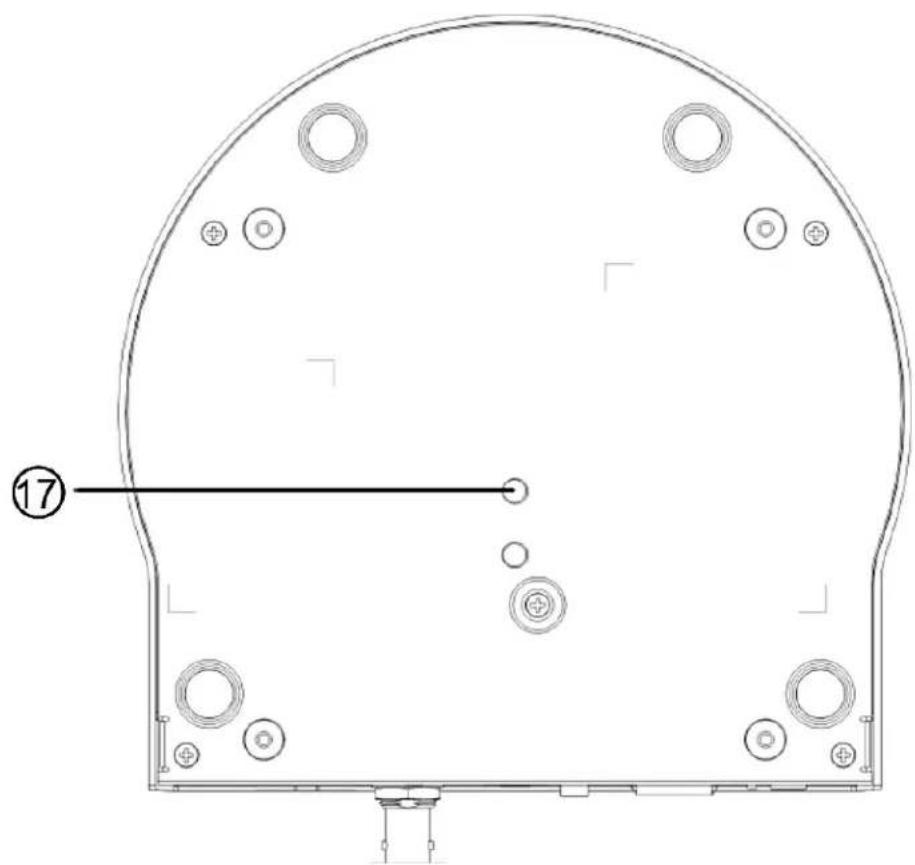

17.	Tripod lock hole	The camera is mounted on a (specification) 1/4” - 20 UNC tripod

3.2: Description of LED indicator

Status	Power	Standby
Startup in progress (initialization)	Green light Orange light
In use Green light No indicator
In standby mode No indicator Orange light

3.3: Tally Indicator Light Function Description

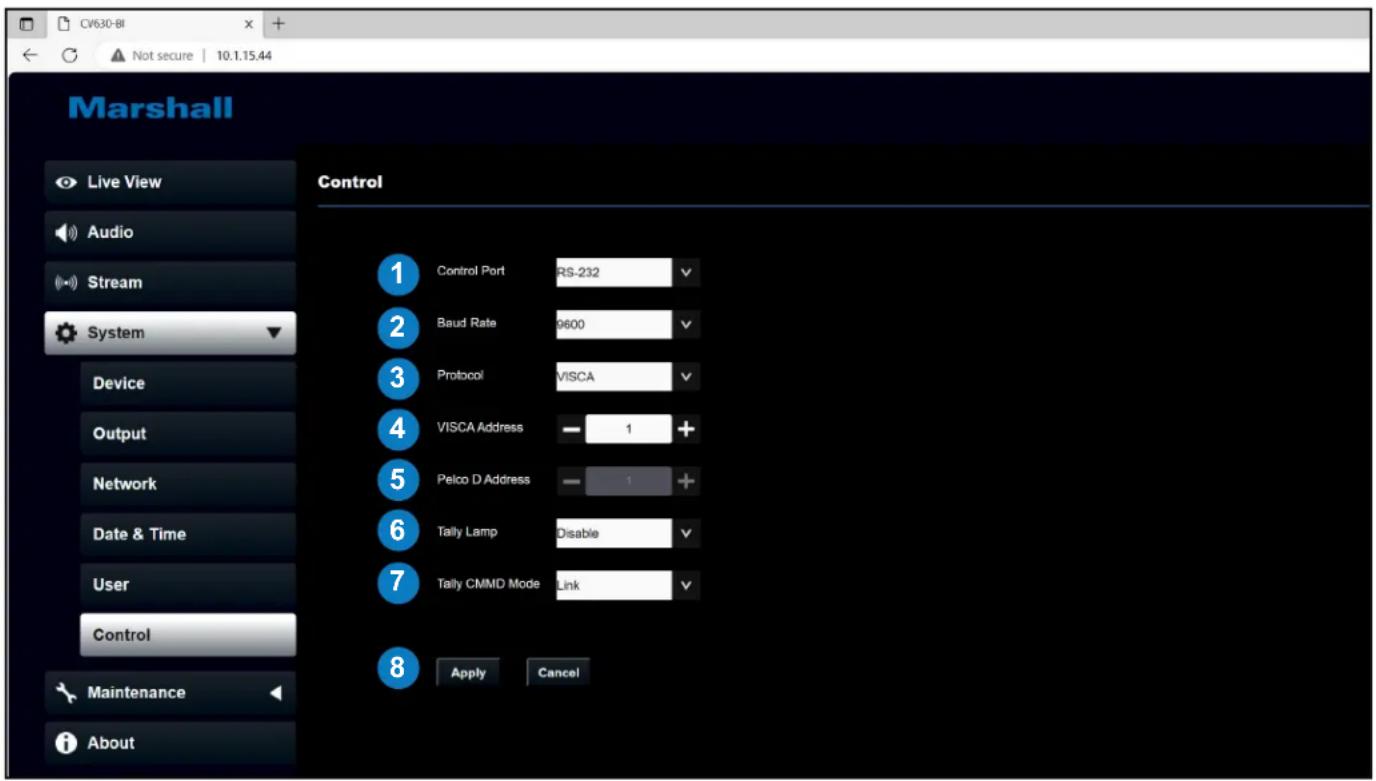

The tally indicator light function can be enabled through RS-232 command.

Please refer to RS-232 command set document.

Chapter 4: Instruction for installation

4.1 Preparation before installation

Installation and connection of the camera requires special skills. To install by yourself, please follow necessary steps, ensure steady and tight installation of the device, and pay attention to your safety to avoid any accident.

4.1.1 Ensure the safety of the installation environment.

Please do not install the device on unstable ceiling or in a place where the device is in danger of falling to avoid any accident.

4.1.2 Please check whether accessories in the box are complete or not.

Please contact the supplier for any shortage, and make sure to keep the accessories in the box intact.

4.1.3 Please choose a proper place for installation of camera in advance.

Please determine an installation place according to the following requirements

4.1.3.1 Confirm the position for the object to be captured.

4.1.3.2 Confirm whether the camera is set at a proper distance from other light sources.

4.2 Instruction for installation

4.2.1 I would like to install camera on the desk

4.2.1.1 Precautions for installation

• Please install the machine on a flat desk

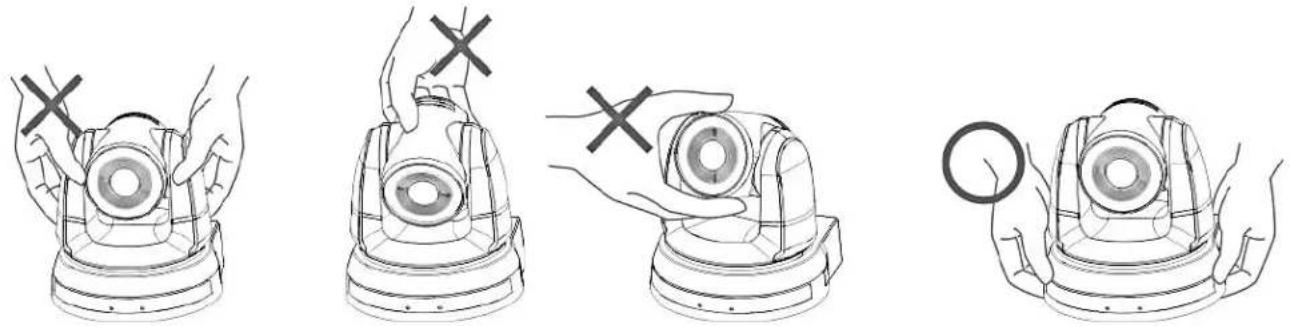

• Do not grab the camera head by hand when handling the device
• Do not rotate the camera head by hand, improper rotation may result in breakdown of the camera

Four-step line drawing of a hand operating a surveying instrument, showing no text or symbols.

4.2.1.2 Installation steps

1. Please adjust DIP switch at first prior to installation
   Please refer to Chapter 7 DIP Switch Setting for the relevant descriptions on DIP switch.
2. Place the camera on a flat desk directly to ensure the normal vertical and horizontal operation of the machine

4.2.2 I would like to install the camera on the ceiling

4.2.2.1 Prepare for the parts and equipment required during the installation

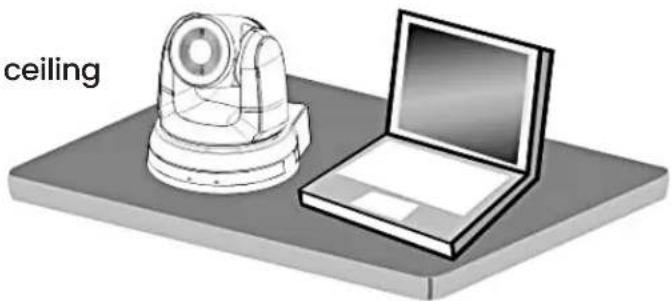

Illustration of a ceiling-mounted device next to a laptop on a flat base (no text or symbols)

1. Accessories in the box (metal plates A, B, M3 screw silver x 8, black x 2)
2. Screw for locking on ceiling mounted hanger x 4
3. Drilling machine, screwdriver, ladder

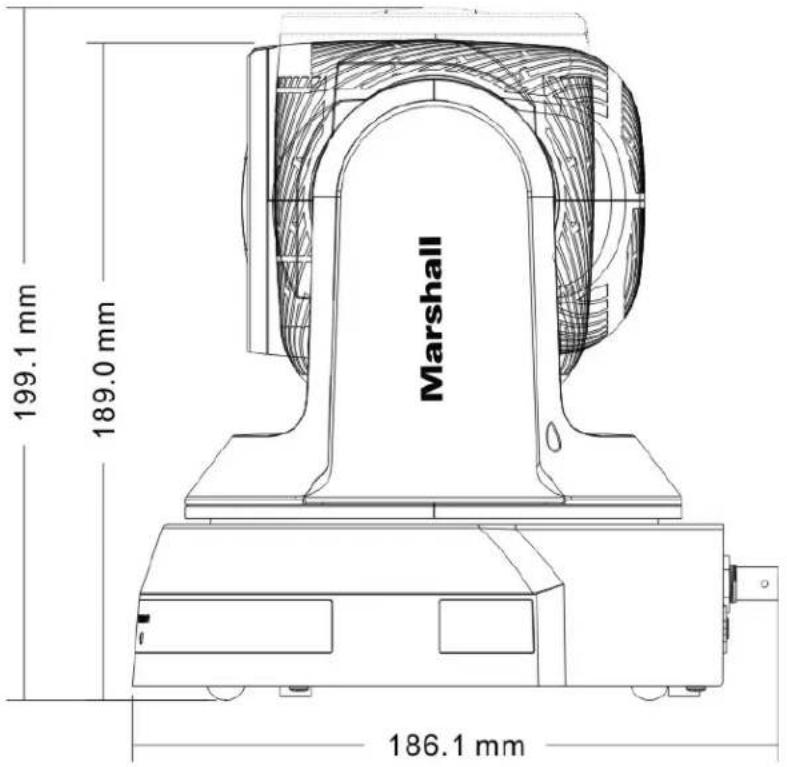

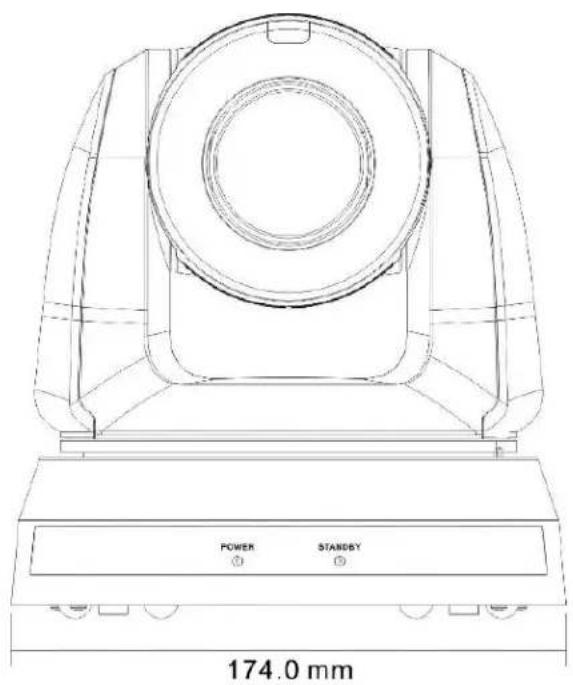

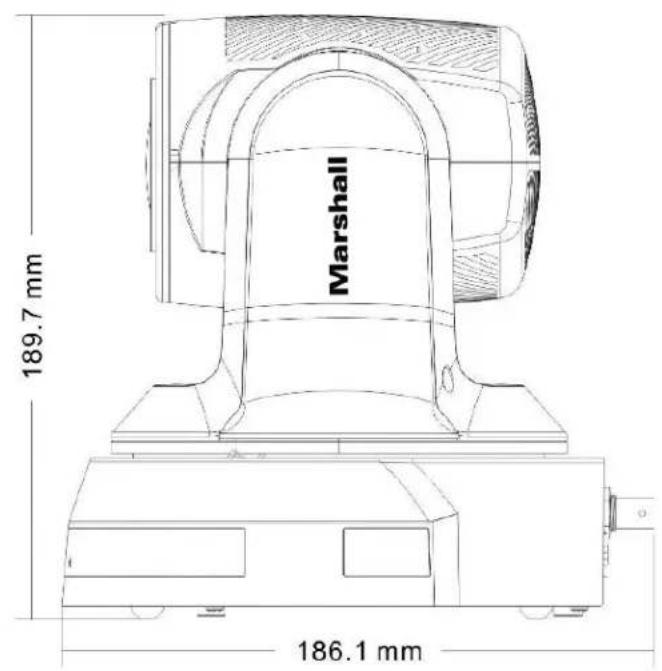

4.2.2.2 Camera Size

L x W x H : 174 x 187 x 190 mm Weight: 2.0 Kg

4.2.2.3 Max. rotation dimension of camera

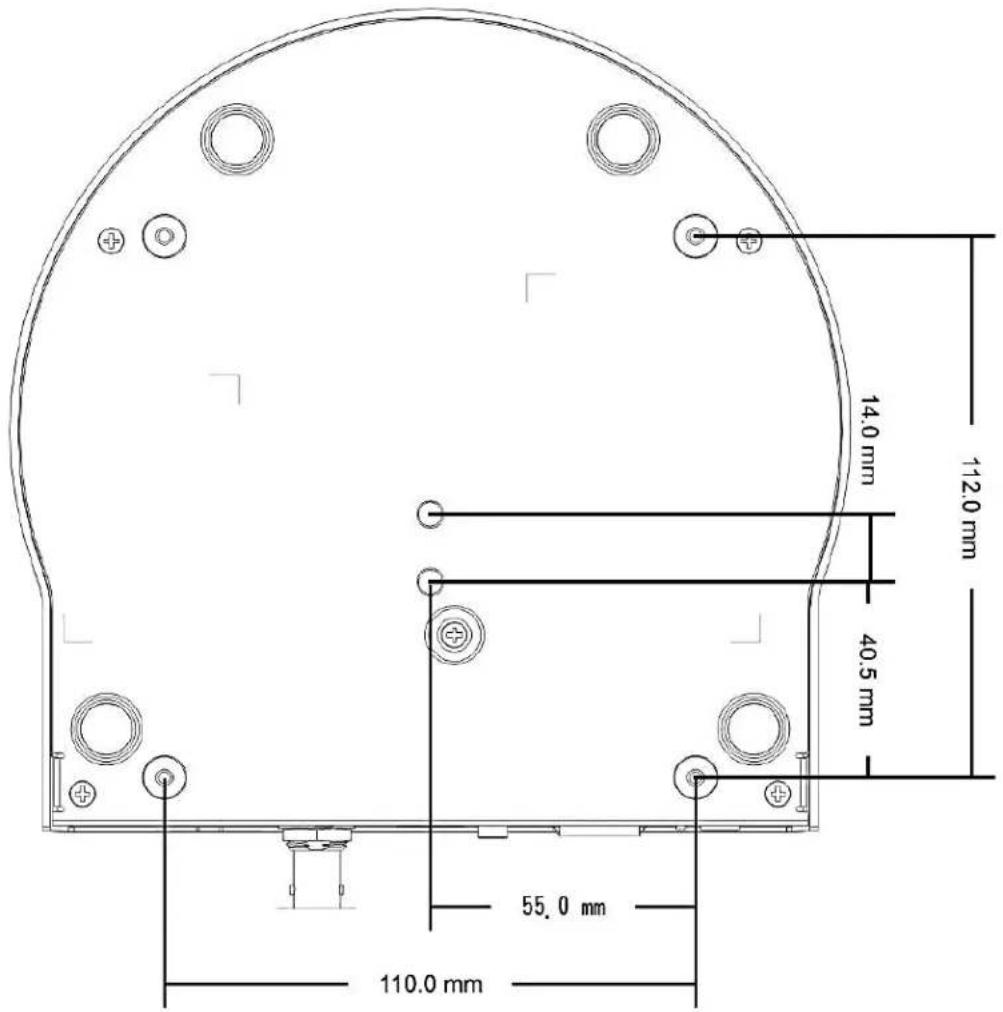

4.2.2.4 Size Diagram

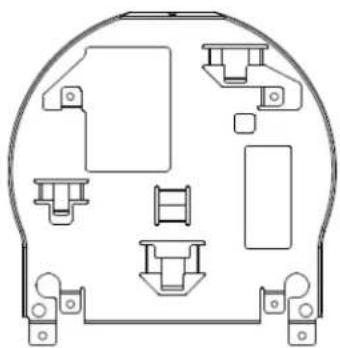

1. Bottom of machine

The camera can be mounted on a 1/4", -20 UNC PTZ tripod deck by using the lock holes on the bottom for the tripod.

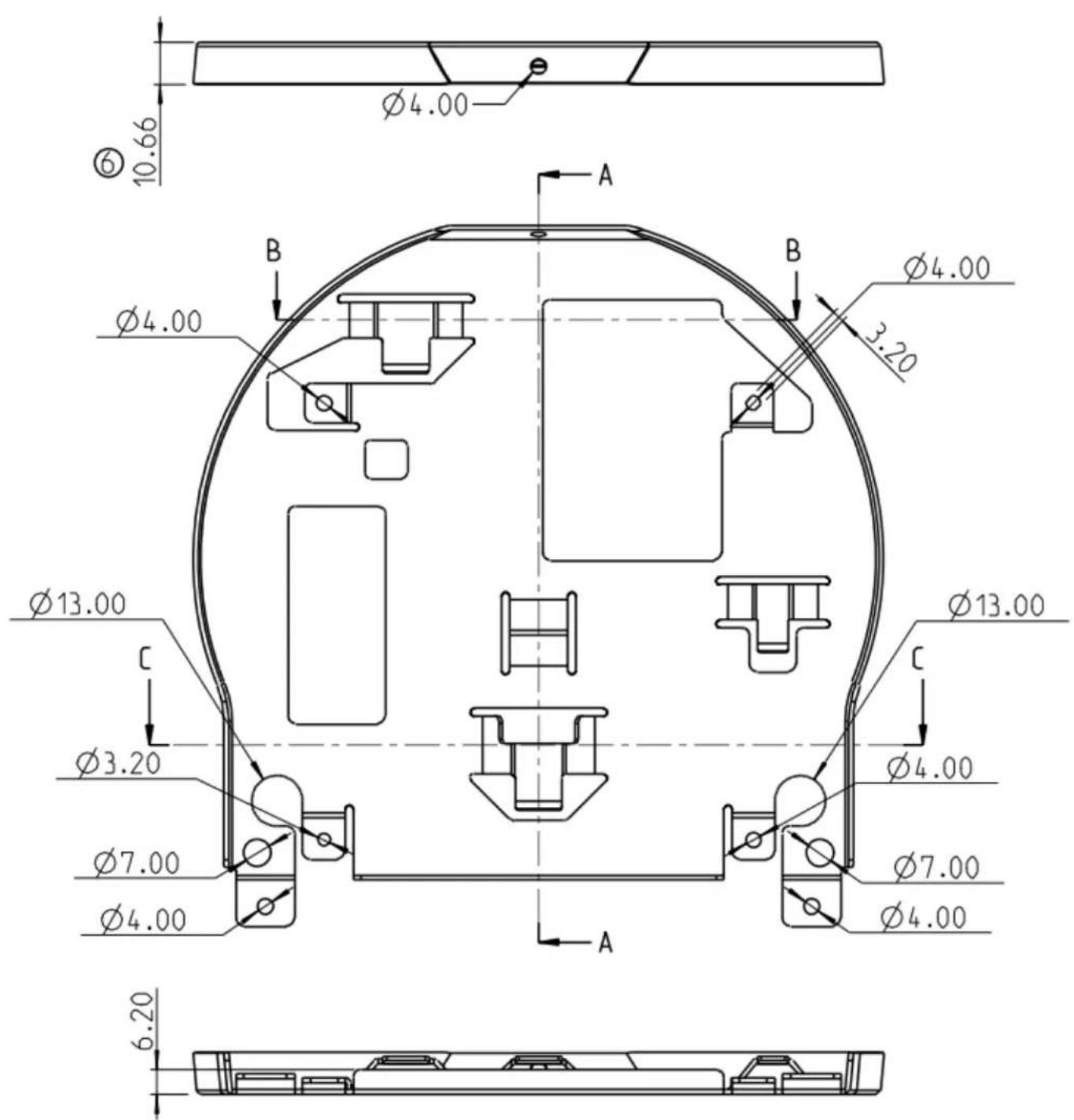

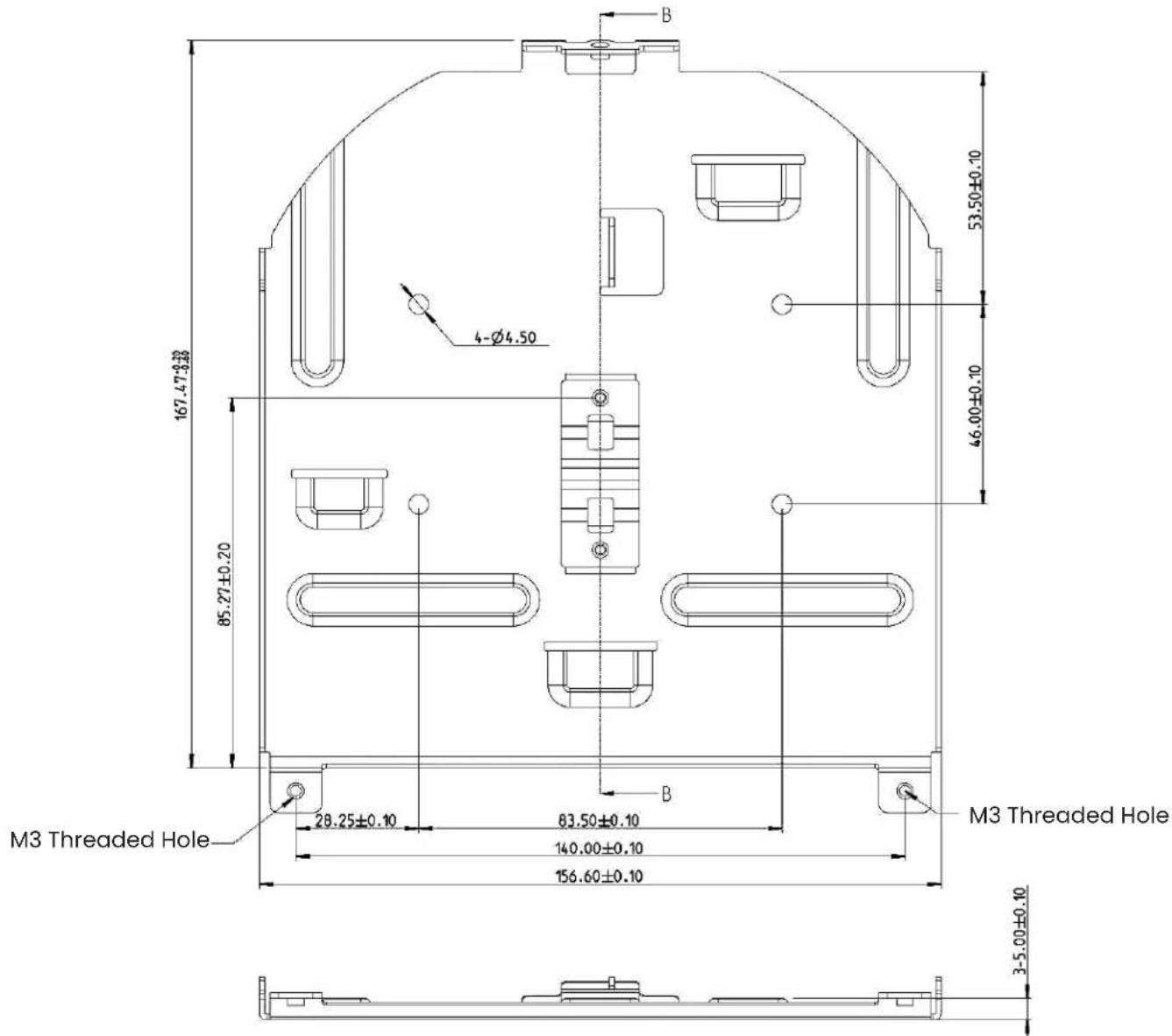

2. Metal Plate size diagram

• Metal plate A - machine side

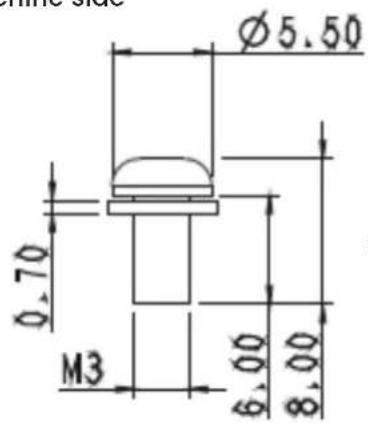

Metal plate A - Locking Screw

Metal Plate A - Machine Side

Metal Plate B - Ceiling Side

Metal plate B locking screw Metal plate B locking Bolt

Metal Plate B - Ceiling Side

4.2.2.5 Precautions for installation

1. Before installation, please confirm the orientation of the machine relative to the object to be captured

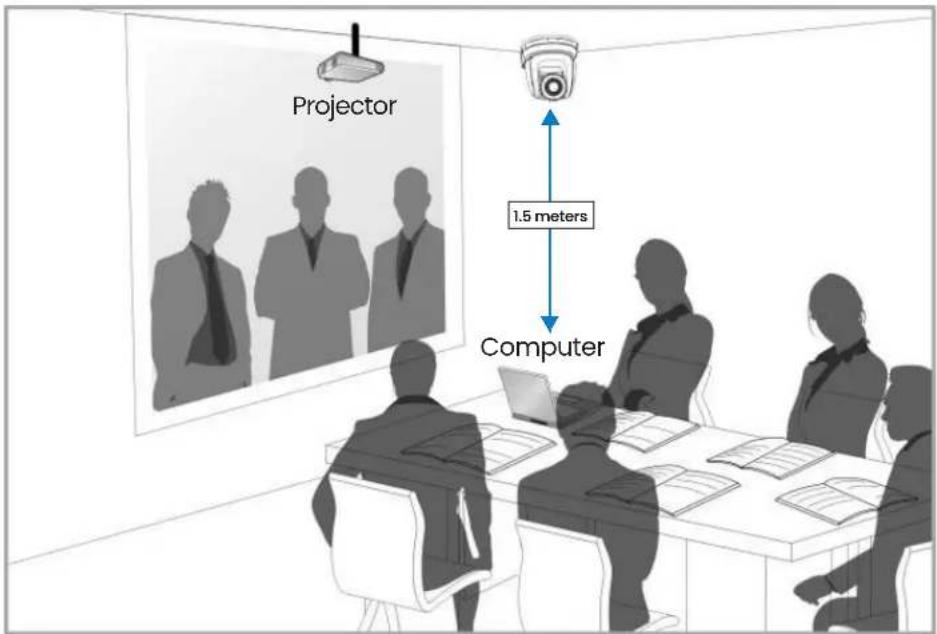

2. It is recommended that the machine should be set at more than 1.5 meter away from the object to be captured. Please adjust for a best distance according to the magnification of the lens

1. The machine (including metal plates) weighs about 2.5 kg. If it is to be installed on the ceiling, please use the hanger that has obtained UL security approval to prevent the machine from falling.
2. Please check whether the camera is installed securely on a regular basis

4.2.2.6 Installation steps

1. Please adjust resolution on DIP switch at first

Please refer to Chapter 7 DIP Switch Setting for the relevant descriptions on DIP switch

Technical line drawing of a camera module with mounting holes and internal components (no text or symbols)

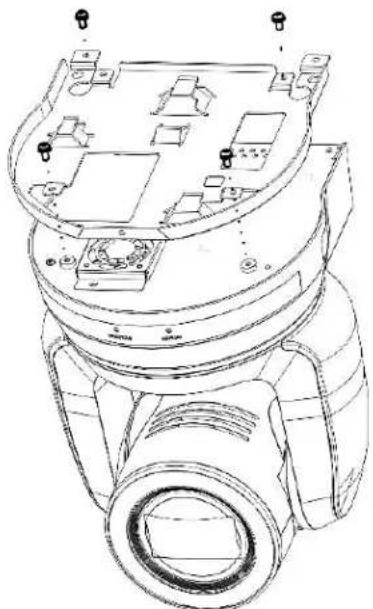

1. Fix the metal plate A on the machine base with 4 M3 silver screws
2. Lock the metal plate B on ceiling mounted hanger

CAUTION: (1) Please use the hanger that has obtained UL security approval

(2) Please reserve the hole for the connecting wires of the camera

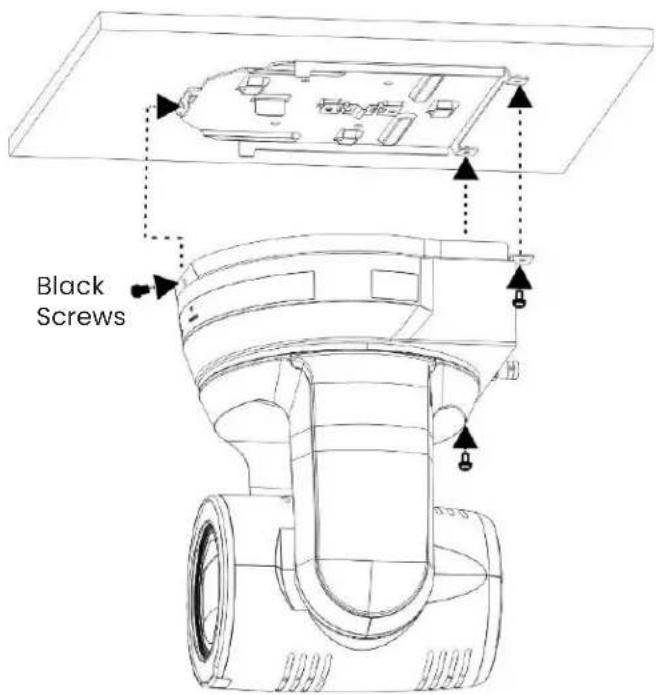

1. Combine the metal plate A and the metal plate B

(1) Push the metal plate A up to the ceiling and then to the right to latch the metal plate B
(2) And then secure with 2 M3 silver screws and 1 M3 black screw

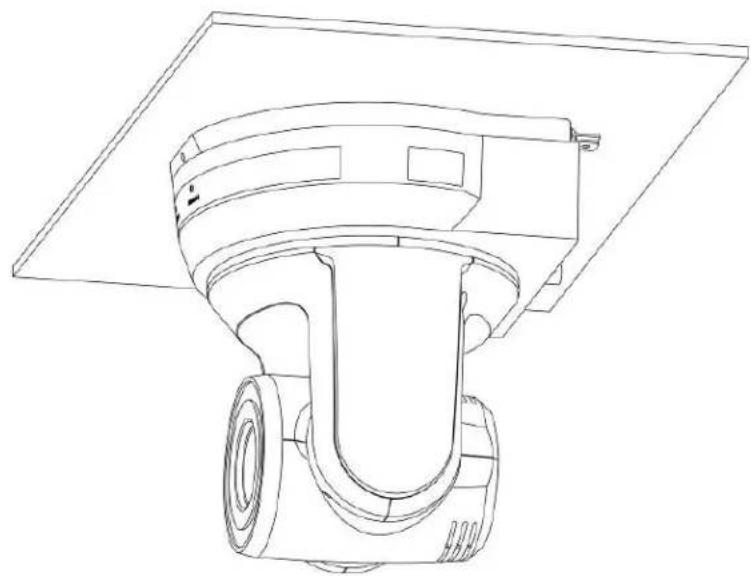

4.2.2.7 How to remove

1. Remove the connecting wires from the camera
2. Uninstall the camera together with the ceiling, loosen the three screws that fix the metal plates A and B and push to the left to remove the machine
3. Then remove the screws on the hanger and the machine

Technical line drawing of a mechanical device with a flat plate and cylindrical components (no text or symbols)

4.3 Connecting devices

4.3.1 Connecting to PC (video conference)

Support up to H.264 2160 29.97p/ MPEG 1080 29.97p

4.3.2 Connecting to an HDTV/computer monitor (HDMI)

4.3.3 Connecting to Internet

For details of web page connection setting and description, please refer to Chapter 6 Network Function Settings Description

4.3.4 Connecting AUDIO IN Set the [Audio In] in the OSD to reflect the input device

4.3.5 Connecting RS-232

With RS-232 in/out, at most 7 Marshall cameras can be connected.

• RS-232 PINS DEFINITION INSTRUCTIONS

▼ RS-232 IN Pins Instructions

▼ RS-232 OUT Pins Instructions

▼ RS-232 Connection Instructions

    I["1. CD"] --> J["2. RXD"]
    I --> K["3. TXD"]
    I --> L["4. DTR"]
    I --> M["5. GND"]
    I --> N["6. DSR"]
    I --> O["7. RTS"]
    I --> P["8. CTS"]
    I --> Q["9. RI"]

▼ RS-232 Connection Instructions

4.3.6 Connecting RS-422

CAUTION: When RS-422 connection is being used, do not use RS-232 connection.

• RS-422 PINS DEFINITION INSTRUCTIONS

▼ RS-422 Pins Instructions

▼ RS-422 Connection Instructions

—Applicable to Marshall Compact Camera Controller

▼ RS-422 Connection Instructions

—Applicable to SONY Compact Camera Controller


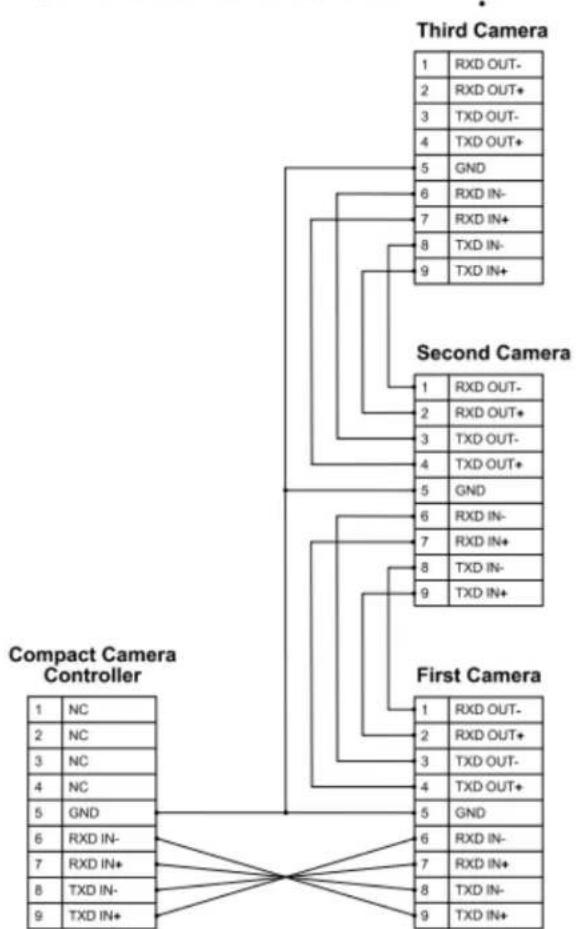

▼ RS-422 Serial Connection

Up to seven cameras can be daisy-chained

• RS-422 CONNECTION INSTRUCTIONS

1. Hold the two sides of RS-422 connector and pull out in the direction shown by the arrow in the figure below

1. Peel off a section of copper wire (AWG Nos. 28 to 18) and insert it into the connector hole; then use flat screwdriver to fix it

Technical line drawing of a connector with slots and a screw, no text or symbols present

1. Insert the wired RS-422 connector back to the Camera. Now the connection is completed

Chapter 5: Remote Control and Setting Menu

5.1 Functions of remote control

No	Item Description
1	Power Power Switch
2	Preset	Numeric Keys 0 - 9: Click to call the presetPreset: Appoint an ID (0 ~ 9) to save the current position dataReset: Appoint an ID (0 ~ 9) to delete the current position data
3	Menu Display OSD menu
4	Pan/ Tilt Move the lens
5	Home-Enter Go back to the main page / Execute
6	Zoom	Fast: Adjust image sizeSlow: Fine-tune image size
7	Focus	Auto: Auto focusManual: Enable Manual FocusFar/ Near: Adjust the focal length in Manual
8	Picture Switch image effect (OFF/ Neg/ B&W)
9	L/R Direction Set	L/R Direction / Normal
10	Camera select	Choose camera ID 1 ~ 3
11	Back Light	Turn on/off back light compensation
12	Pan/ Tilt Reset	Clear the Pan/Tilt setting
13	Freeze	Freeze the screen
14	Mirror	Rotate the image (OFF/ Mirror/ Flip/ Rotate)
15	Info Status information

5.2 Setting Menu

Press [Menu] on the remote control to enter the setting menu; the bold underlined values in the following tables are defaults.

1st LevelMajorItems	2nd LevelMinor Items	3rd LevelAdjustment Values		Function Descriptions
Exposure	Mode	1.Full Auto2.Shutter Pri3.Iris Pri4.Manual		Exposure mode setting
	Exposure Comp.	On /Off		AE Level
	Exposure Comp.Level	-5~C~5		The value can be adjusted afterExposure Comp. is activated
	Spot Light On / Off	—
	Spot LightPosition	X(0~6)Y(0~4)		The value can be adjusted afterSpotlight is activated
	Shutter Pri	60/30Mode	50/25Mode	Adjustable when theExposure modeis set toShutter Pri
		1/10000~C~1/1
	Iris Pri F1.6~C~F18/ Off _			Adjustable when theExposure modeis set toIris Pri
	Manual Gain 0~45dB			Adjustable when theExposure modeis set toManual
	Manual Speed	60/30Mode	50/25Mode	Manually set the shutter
		1/10000~C~1/1
	Manual Iris	F1.6~C~F18/ Off		Manually set the iris
	Gain Limit	9~45 dB		Max. limit value of electron gain
	Iris Limit	F3.2~F11		Max. limit value of iris
	WDR	Off/ 1/ 2/ 3
	Smart AE On / Off	—		Available when “Auto FocusSmart AF” is on
WhiteBalance	Mode	1. Auto2. Indoor3. Outdoor4. One Push WB5. ATW6. Manual7. Sodium Lamp8. 3000K9. 4300K10. 5000K11. 6500K12. 8000K	Select the color temperature mode1. 4000k ~ 7000k2. 3200k3. 5800k4. 1700k ~ 10000k5. 1700k ~ 10000k6. Custom7. 2800k
	One PushTrigger	ENTER	One push trigger
	Manual Red 0~C~128_		Adjustable when the white balance mode is set to Manual
	Manual Blue 0~C~128_		Adjustable when the white balance mode is set to Manual
Picture	Picture effect Off/	Neg/ B & W
	Sharpness 0~C~14_
	2D NR	Off/ 1/ 2/ 3
	3D NR	Off/ Low/ Typ/ Max
	Image Mode	Default/ Custom	The user may customize his/her desired image mode
	Image ModeLoad	ENTER	Adjustable when the Image mode is set to Custom. After selected, the corresponding Image mode parameters will be read and applied to Custom
	Brightness	0~C~15	Adjustable when the Image mode is set to Custom
	Hue	0~C~15	Adjustable when the Image mode is set to Custom
	Saturation	0~C~15	Adjustable when the Image mode is set to Custom
	Gamma	0~C~3	Adjustable when the Image mode is set to Custom
Pan Tilt	Pan/Tilt Limit	On / Off	Turn on/off the angle limit setting
Zoom	Pan Right Limit	0~170	Limit the right angle
	Pan Left Limit -170~0		Limit the left angle
	Tilt UP Limit 0~90	—	Limit the upward angle
	Tilt Down Limit -30~0		Limit the downward angle
	Pan Flip On / Off	—	Activate the reverse Pan command
	Tilt Flip On / Off	—	Activate the reverse Tilt command
	Preset Speed	5/ 25/ 50/ 80/ 120/160/ 200/ 300deg/sec	Set the rotation speed of the cradle head when Preset is executed
	Preset Mode	Normal/ PTZ Only	• Normal: Call the preset, execute Pan/Tilt/Zoom/Focus + Image parameter setting• PTZ Only: Call the preset, only execute Pan/Tilt/Zoom/Focus
	PTZ Speed Comp	On / Off	Set the Pan/Tilt moving speed to vary from the zoom position
	D-Zoom Limit	x1~x12	Set limits for digital zoom
	PTZ Motion Sync	On / Off	After turning on, operate Presetto achieve PTZ Motion SyncThis function will refer to the default speed setting, but may automatically adjust the speed due to the difference in PTZ movement range
D-Effect Mirror		Off/ Mirror/ Flip/Mirror + Flip	Set the mode at which the image is turned
Auto Focus	AF Sensitivity Low/ Middle/ High		For AF triggering speed, the higher the speed is, the faster AF is triggered
	AF Frame	Center Area / AllArea / Auto	AF frame setting, when central area was set as AF frame, focusing will be on the center of the screen. When Full Frame was set as AF frame, focusing will be calculated based on the full screen
	Zoom tracking	Manual /CurveTracing/ ZoomTracking	It can be set in the Manual Focus (MF) modeThe focus mode during lens zooming
	PTZ Assist	On /Off	Check whether auto focus is enabled if there is any changes of PTZ (can be set in “Manual”)When PTZ Assist is enabled and PTZ control is in operation, the focus will be triggered. The focus will not be triggered when the scene changes
	Preset AF	On / Off	Set whether to perform Auto Focus after Preset
	SMART AF	On /Off	Turn on this function and AF will mainly focus on the face
Ethernet	DHCP On / Off	—	Enable/Disable DHCP setting using left and right arrow keys and press [ENTER] to apply setting.
	IP Address 192.168.100.100		Press [ENTER] to be in modify mode; select the item to be modified using the up and down keys and modify the value using the left and right keys or the numeric keys.
	Subnet mask 255.255.255.0		Press [ENTER] to be in modify mode; select the item to be modified using the up and down keys and modify the value using the left and right keys or the numeric keys.
	Gateway 192.168.100.254		Press [ENTER] to be in modify mode; select the item to be modified using the up and down keys and modify the value using the left and right keys or the numeric keys.
Audio	Audio In Line In/Mic In Set Audio In
	Audio Enable	On /Off	Turn on/off audio output
	Audio Volume	0~C~10	Audio Volume Setting
	Audio Delay	On / Off	When the audio is not synchronized with the video, enable this function to set the audio delay timeSupported when NDI|HX function setting is off
	Audio DelayTime(ms)	-1~-500ms	Set audio delay timeSupported when NDI|HX function setting is off
	Encode Type	AAC/ G.711	Set audio encode typeSupported when NDI|HX function setting is off
	Encode SampleRate	1. 48 KHz(AAC)2. 44.1 KHz(AAC)3. 16 KHz(AAC)4. 16 KHz(G.711)5. 8 KHz(G.711)	Set the encode type and sample rateSupported when NDI|HX function setting is off
System	Prompt	On / Off	Turn on/off the prompt information on the display
	IR Receive	On / Off
	Tally Lamp	On / Off
	Tally CMMDMode	General / Link	Set whether the indicator light is linked with RS232 command■ General (Not linked): The indicator light switch and mode shall be set separately.➢ When the indicator light is on, and the default mode is off, additional command is required to set the indicator light mode➢ Setting the indicator light mode when the indicator light is off will not trigger the indicator light■ Link:➢ When the indicator light is on, the default mode is red light➢ Setting the indicator light mode when the indicator light is off will turn on the indicator light
	Language	English / Chinese
	Initial Position	Last MEM / 1stPreset	Select the camera lens to return to the last memory position or the 1st Preset position after POWER ON1st Preset = Preset 0
	Control Device	Encoder /Controller	Control Device setting, Controller: for joystick Encoder: for tracking system

Chapter 6: Network Function Settings Description

6.1 Connecting Camera to Network

6.1.1 Connecting to Internet

Two common connection methods are shown below

1. Connecting via switch or router

1. To connect directly through network cable, the IP address of the computer should be changed so that it is on the same network segment as the camera

E.g.: The factory-preset default IP address of the camera is 192.168.100.100. The computer IP address must be set with the same network segment, such as 192.168.100.101, so that the computer can be connected correctly with the camera

Network Cable

Camera

Black desktop computer setup with monitor and tower (no visible text or labels)

Computer

• CHANGE NETWORK SETTINGS

6.1.2 Using the Browser to View the Images

• Open the browser, and enter the URL of camera in the IP address bar e.g.: http://192.168.100.100 (default IP address)

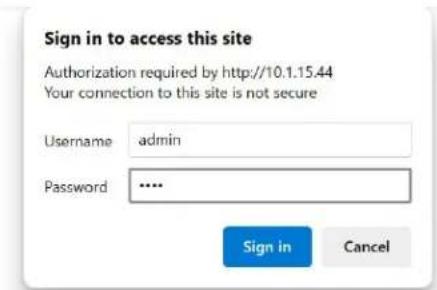

• Enter administrator's account and password * For the first login, please refer to 6.2.9 Account Management to change the default password

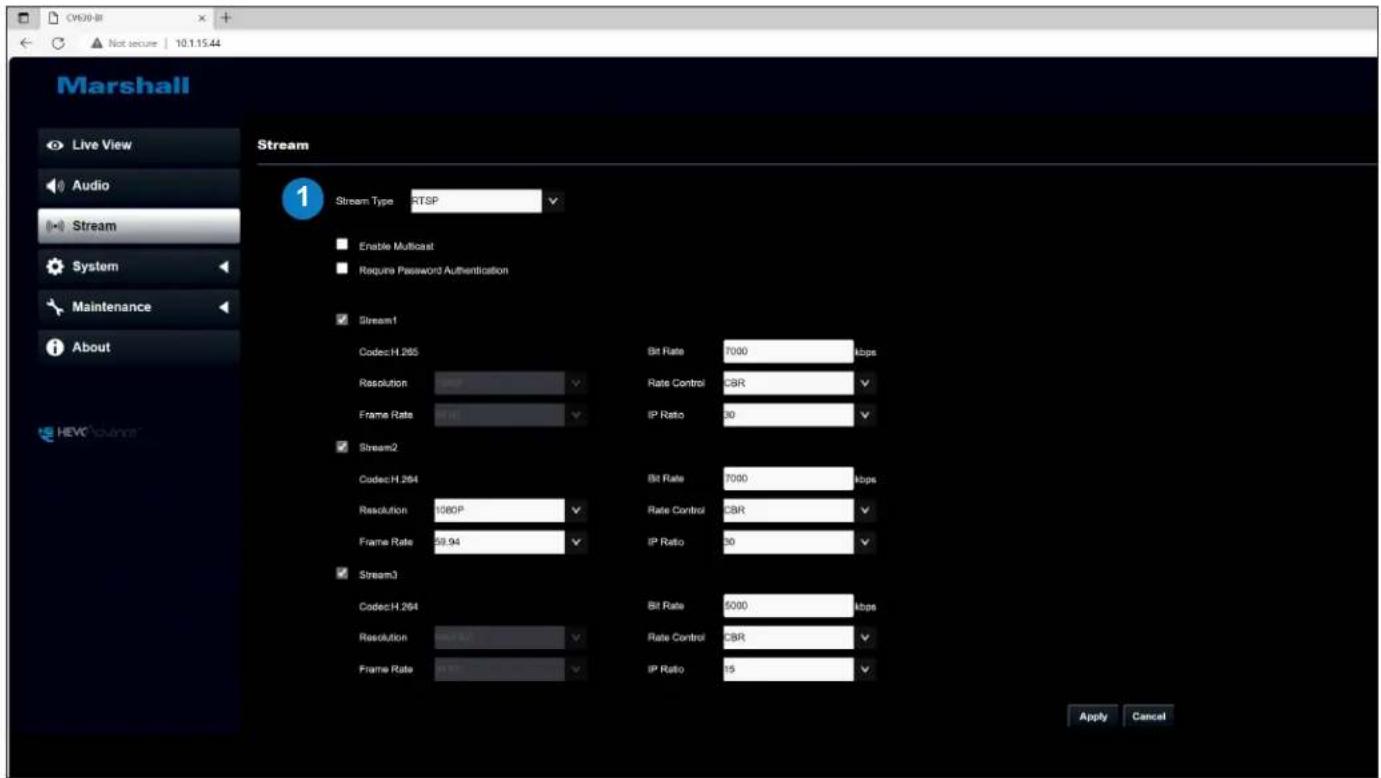

6.1.3 Using RTSP Player to View the Images

For CV630-ND3/ND3W, to support this function, please turn off NDIIHX (Please refer to 6.2.4 Streaming-NDI) In addition to the browser and VMS, other free software also can be used for RTSP connection, such as VLC, Quick Time and PotPlayer

RTSP connection address formats are as follows:

• RTSP Streaming 1 => rtsp://camera IP:8554/hevc
- RTSP Streaming 2 => rtsp://camera IP:8557/h264
• RTSP Streaming 3 => rtsp://camera IP:8556/h264

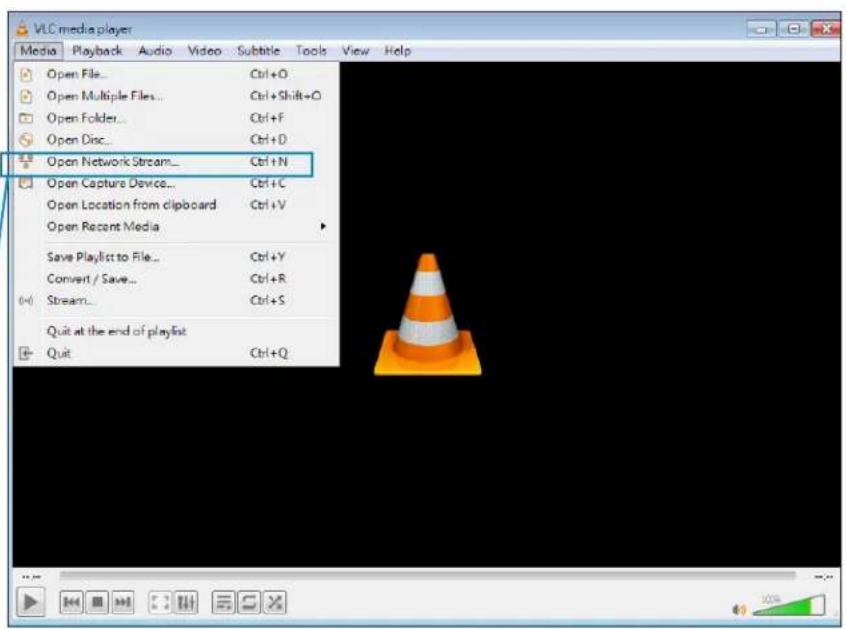

Example: Open VLC software, click [Open Network Streaming], and enter a URL: rtsp://192.168.100.150:8557/h264

6.1.4 Using NDI Studio Monitor to View the Images

This is only applicable to VC-630-ND3/ND3W. Support when NDIHX is on (Please refer to 6.2.5 Setting - Video)

For NewTek product operation or instructions, please visit the website: https://www.newtek.com/

To download NDI 4 Tool, click the link: http://new.tk/NDIHX-Driver-Win

Network Protocol Please enter a network URL: r tsp://192.16 8.10 0.150:8557/h264

6.2 Web Page Function Description

6.2.1 Connecting to Internet

Two common connection methods are shown below:

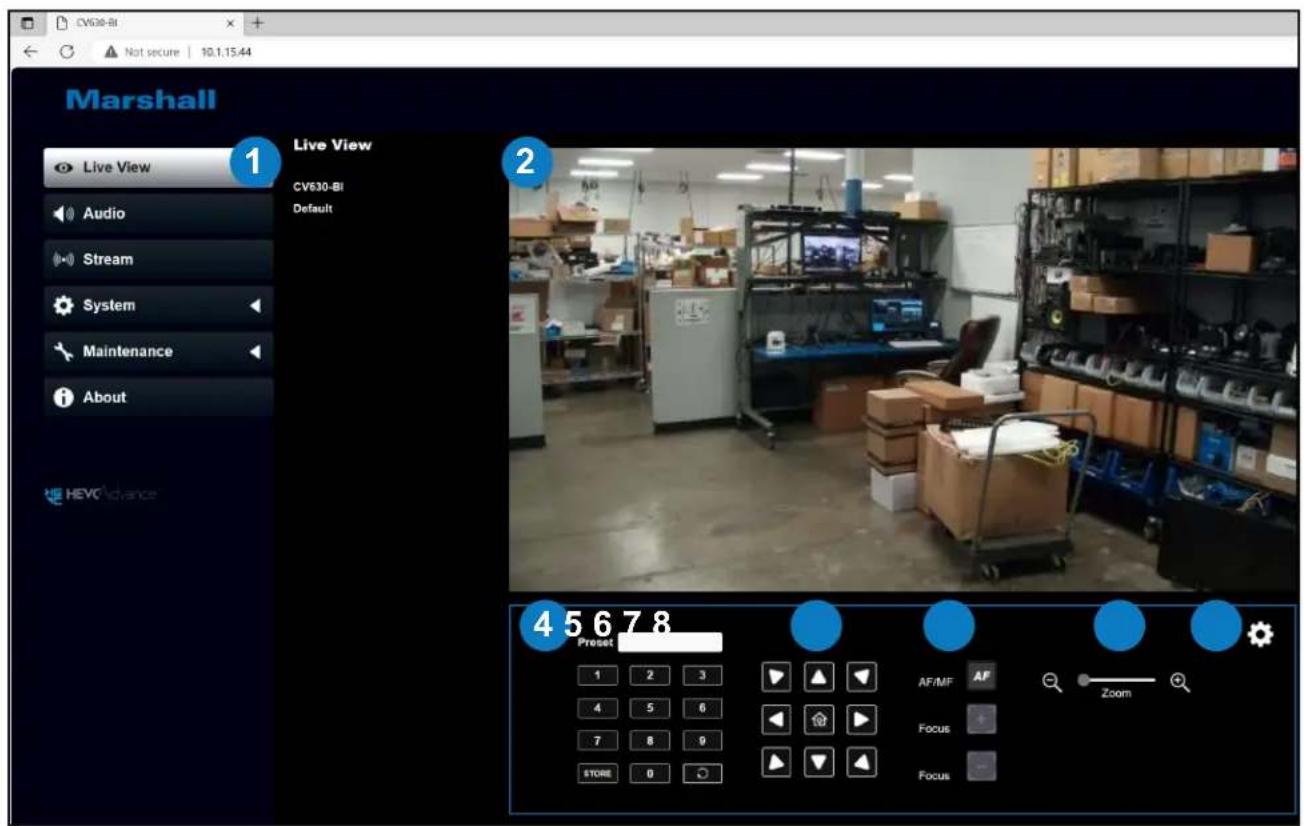

No Item Function Descriptions

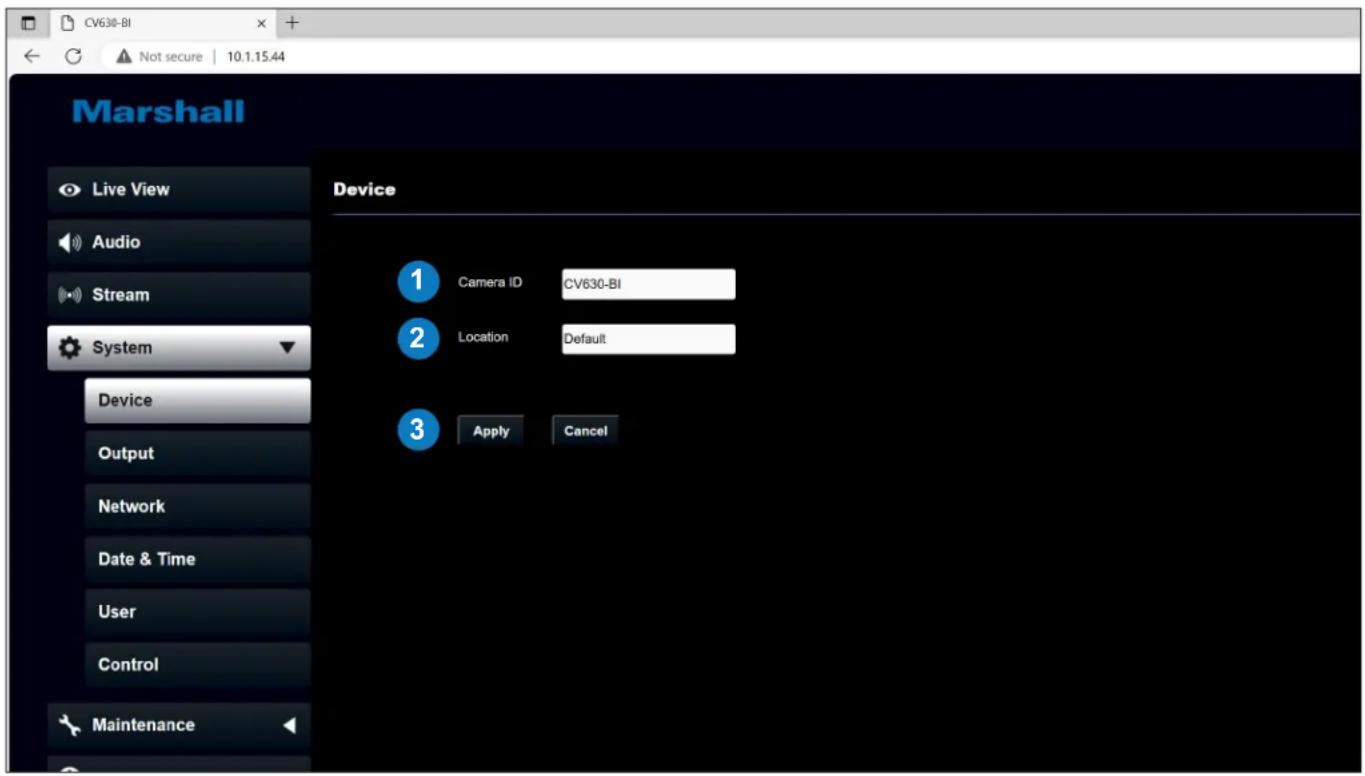

1	Camera ID/location	Display camera ID/locationPlease refer to6.2.5 System-Device
2	Preview window	Display the screen currently captured by the camera
3	Enlarge the preview window	Zooming in/out the preview image
4	Preset setting	Select the number first and then select SAVE or LOADPTZ ONLYEnable/disable PTZ OnlyDisable (Default): Call the preset, executePan/ Tilt/ Zoom/ Focus + picture parameters settingEnable: Call the preset, only execute Pan/Tilt/Zoom/Focus
5	Pan/Tilt setting	Adjust the Pan/Tilt position of the camera screen
6	AF/MF	Switch to Auto Focus/Manual Focus. Focus can be adjusted in Manual Focus
7	Zoom ratio	Adjust the zoom-in or zoom-out ratio via scroll bar
8	Camera Setting	Please refer to6.2.1.1 Camera Settingfor relevant settings
9	Language	Support English/ Traditional Chinese/ Simple Chinese
10	Power button	Turn on or turn off the camera power
11	Logout	Log out the administrator screen on the website

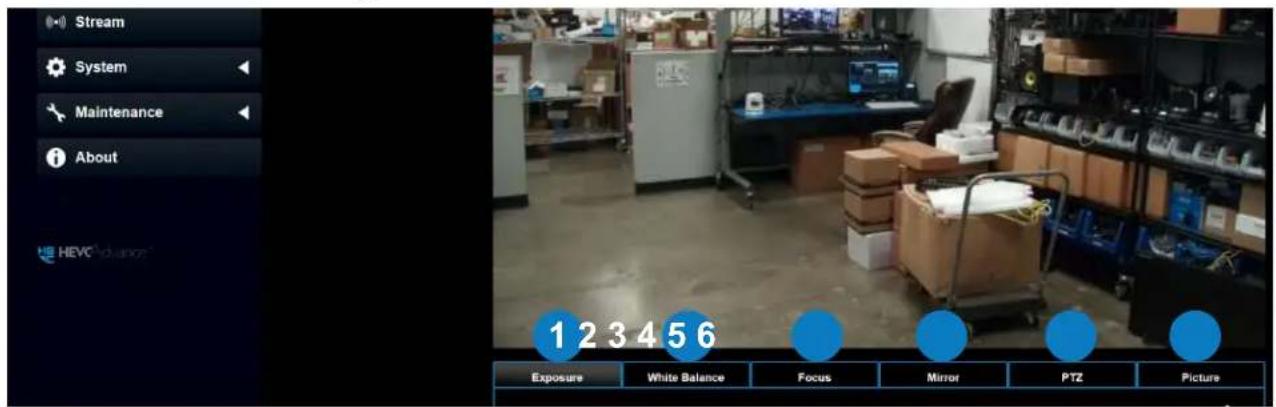

6.2.1.1 Camera Setting

No	Item Function	Descriptions
1	Exposure	Mode: Select exposure mode (Automatic/ Shutter Priority/ Aperture Priority/ Manual)Gain Level: The gain limit is adjustable when the exposure mode is set to “Manual”WDR: Set the level of wide dynamic range (WDR) to obtain better imagesExposure Comp. Level: Select exposure compensation levelIris Level: The size of aperture is adjustable when the exposure mode is set to “Manual” or “Aperture Priority”Shutter Speed: The shutter speed is adjustable when the exposure mode is set to “Manual” or “Shutter Priority”
2	White Balance	Mode: Select the color temperature modeOne Push Trigger: One push color temperature is adjustable when the white balance mode is set to “One Push Trigger”Manual Red / Blue: Manually adjust blue/red color temperature
3	Focus	AF Sensitivity: Set automatic focus sensitivityAF Frame: Set automatic focus rangeZoom Tracking: Set the focus mode during lens zooming in Manual Focus modePTZ Assist: Check whether auto focus is enabled if there is any changes of PTZ (can be set in “Manual”)When PTZ Assist is enabled and PTZ control is in operation, the focus will be triggered. The focus will not be triggered when the scene changesPreset AF: Set whether to perform auto focus after PresetSmart AF: Turn on this function and AF will mainly focus on the faceOne Push AF: When the manual focus mode is on, click the button to perform one auto focus
4 Mirror		■ Mirror: Set automatic flip mode■ Flip: Set the mode at which the image is turned
5	Pan/ Tilt/ Zoom	■ Pan/Tilt limit: Set the pan/tilt limit■ Pan/Tilt flip: Set Pan/Tilt flip■ Preset Speed: Set the rotation speed of the cradle head when Preset is executed■ PTZ Speed Comp: Set the Pan/Tilt moving speed to vary from the zoom position■ Initial Position: Set the camera lens to return to the last memory position or the 1st Preset position after POWER ON1st Preset = Preset 0■ Motionless Preset: When the function is enabled, the screen will Freeze when Preset is executed. Freeze will be released after Preset is completed■ D-Zoom Limit: Set the D-Zoom Limit, x1 - x12■ PTZ Motion Sync: When activated, PTZ synchronization can be achieved by controlling with thePresetsRefer to the Preset speed setting for this feature. The speed may be adjusted automatically due to the difference of PTZ moving range

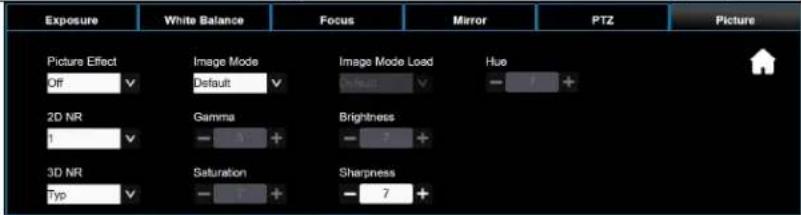

6 Picture		■ Picture Effect: Set picture effect, Off/ Neg/ Black and White■ Image Mode: The user may customize his/ her desired image mode■ Image Mode Load: When no custom setting is needed, reset the picture parameters back to the factory default by selecting this item■ 2D NR: 2D noise reduction settings■ 3D NR: 3D noise reduction settings■ Gamma: Gamma Level adjustment; Adjustable when the image mode is set to Custom■ Brightness: Brightness adjustment of the image; Adjustable when the image mode is set to Custom■ Hue: Hue adjustment; Adjustable when the image mode is set to Custom■ Saturation: Saturation adjustment of the image; Adjustable when the image mode is set to Custom■ Sharpness: Adjust the sharpness of the image

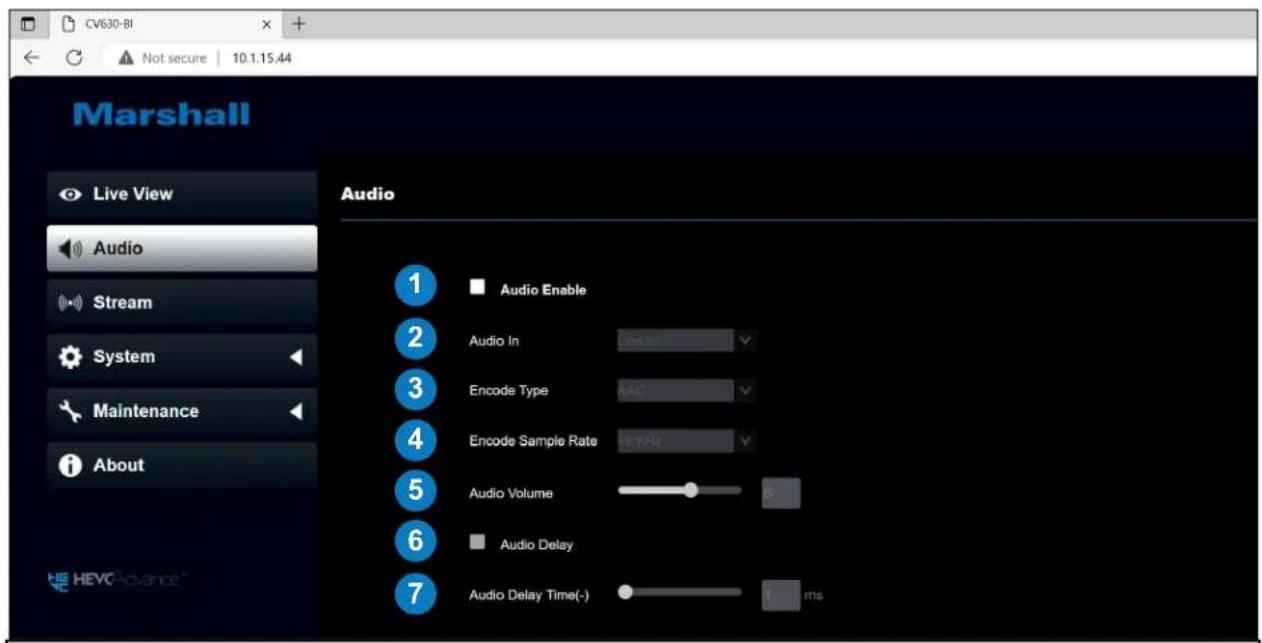

6.2.2 Audio

No	Item	Function Descriptions	NDI|HX OFF	NDI|HX ON
1	Audio Enable Turn on/	off sound v v
2	Audio in Set MIC In/ Line In v v
3	Encode Type	AAC / G.711 v
4	Encode Sample Rate	Set Encode sample rate➢ 48 KHz (AAC)➢ 44.1 KHz (AAC)➢ 16 KHz (AAC)➢ 16 KHz (G.711)➢ 8 KHz (G.711)	v
5	Audio Volume Adjust Audio Volume		v v
6	Audio Delay	Turn on/ off audio delay	v
7	Audio Delay Time	Set the audio signal delay time (-1 ~ -500 ms)	v

6.2.3 Stream-Stream

For CV630-ND3/ND3W, to support this function, please turn off NDI|HX

No	Item	Function Descriptions
1 Stream Type Support types: MPEG-TS/RTMP/RTMPS/RTSP/SRT
RTSP	■ Enable / Disable MulticastIt is suggested to enable Multicast when the number of users online watching the image simultaneously is more than 4■ Enable / Disable Password AuthenticationRTSP connection format can be found in6.1.3 Using RTSP Player to View the ImagesThe username/password is the same as the web login password of the camera, please refer to6.2.10 System Userto add/ modify account informationStream1/ 2/ 3: Please refer to6.2.3.1 Streaming parameter settingtable below for relevant settings
MPEG-TS
	■ Set MPEG-TS formatPort must be set in the range above 1024 with a maximum value of 9999The following ports are used by the camera. Setting of the port may not connect correctly 1935, 8080, 8554, 8556, 8557, 9090Stream1/ 2: Please refer to6.2.3.1 Streaming parameter settingtable below for relevant settings
RTMP/ RTMPS
	■ Copy the RTMP web address provided by the RTMP service platform and paste it to the RTMP connection address to publish the camera images on the RTMP service platformTo upload to YouTube for live streaming, please refer to6.2.2 Audioto turn on the audio functionStream 2: Please refer to6.2.3.1 Streaming parameter settingtable below for relevant settings
SRT	Stream NDI Stream Type SRT Connect Status:SRT Disable Connection Mode Caller URL Port 0 Stream ID Latency 120 ms Encryption None Passphrase Stream1 Codec:H.265 Bit Rate 7000 kbps Resolution 1080P Rate Control CBR Frame Rate 59.94 IP Ratio 50 Stream2 Codec:H.264 Bit Rate 7000 kbps
	■ The port number must be set in the range above 1024 with a maximum value of 9999 <Remark>The following port is used by the camera. Setting of the port may not connect correctly 1935,8554,8555,8556,8557 ■ Delay time is for 20 to 8000 microseconds. The default value is 120 microseconds ■ Stream1/2: Please refer to 6.2.3.1 Streaming parameter setting table below for relevant settings

Function		Streaming 1	Streaming 2	Streaming 3
Encode Format		H.265	H.264
Resolution		4K	1080p / 720p /1080i	4K
Frame Rate		Setting according to the supported resolution
Bit Rate(kbps)	2,000~20,000	2,000~20,000 2,000~20,000	512~5,000
	7,000 7,000	7,000	1,000
Rate Control		CBR / VBR
IP Ratio		Setting according to the supported resolution

6.2.3 Stream - NDI

For CV630-ND3/ND3W only; the setting is available when NDI|HX is set to HX2/HX3

No	Item	Function Descriptions
1	Camera ID/ Location	Displaying ID/location according to [System] > [Device] setting content
2 Group Name		The group name can be modified here and set with Access Manager -Receive in NDI Tool■ If no group is assigned, the machine belongs to Public. As the default of Access Manager includes Public, Studio Monitor can discover this machine■ If a group is assigned, but this group is not added into Access Manager, Studio Monitor cannot discover this machine■ If a group is assigned and this group is added into Access Manager, Studio Monitor can discover this machineThe name can contain commas (,) to distinguish different groupsExample: default, 123, abc means this machine belongs to three groups at the same time (default/ 123/ abc)
3 NDI|HX		Set NDI HX 2/ HX3/ Off■ Off: Support RTSP/ RTMP/ RTMPS/ MPEG-TS/ SRT, and ONVIF can find devices but cannot be used with NDI Tool■ HX2: Support HX2■ HX3: Support HX3<Remark> HX3 only supports 1080p 60/59.94/50 resolutionsONVIF cannot find devices, and RTSP/ RTMP/ RTMPS/ MPEG-TS/ SRT streams cannot be used when HX2/ HX3 on.
4 Encode Format		Display Encode Format
5 Multicast		Multicast SettingIt is suggested to enable Multicast when the number of users online watching the image simultaneously is more than 4
6 Discovery Serve Check to enter the Server IP address
7 Apply		After the setting has been modified, select this button to apply the setting

6.2.4 System - Output

No	Item	Function Descriptions
1 Camera ID		Change camera ID here■ Camera IDs are limited to 1 - 12 characters■ Please mix uppercase and lowercase letters or numbers for characters. Special symbols such as “/” and “space” cannot be usedModifying this field will modify the Onvif device name synchronously
2 Location		Modify the location of the camera, such as Room 1■ Camera location is limited to 1 - 11 characters■ Please mix uppercase and lowercase letters or numbers for characters. Special symbols such as “/” and “space” cannot be usedModifying this field will modify the Onvif device location synchronously
3 Apply After the setting has been modified, select this button to apply the setting

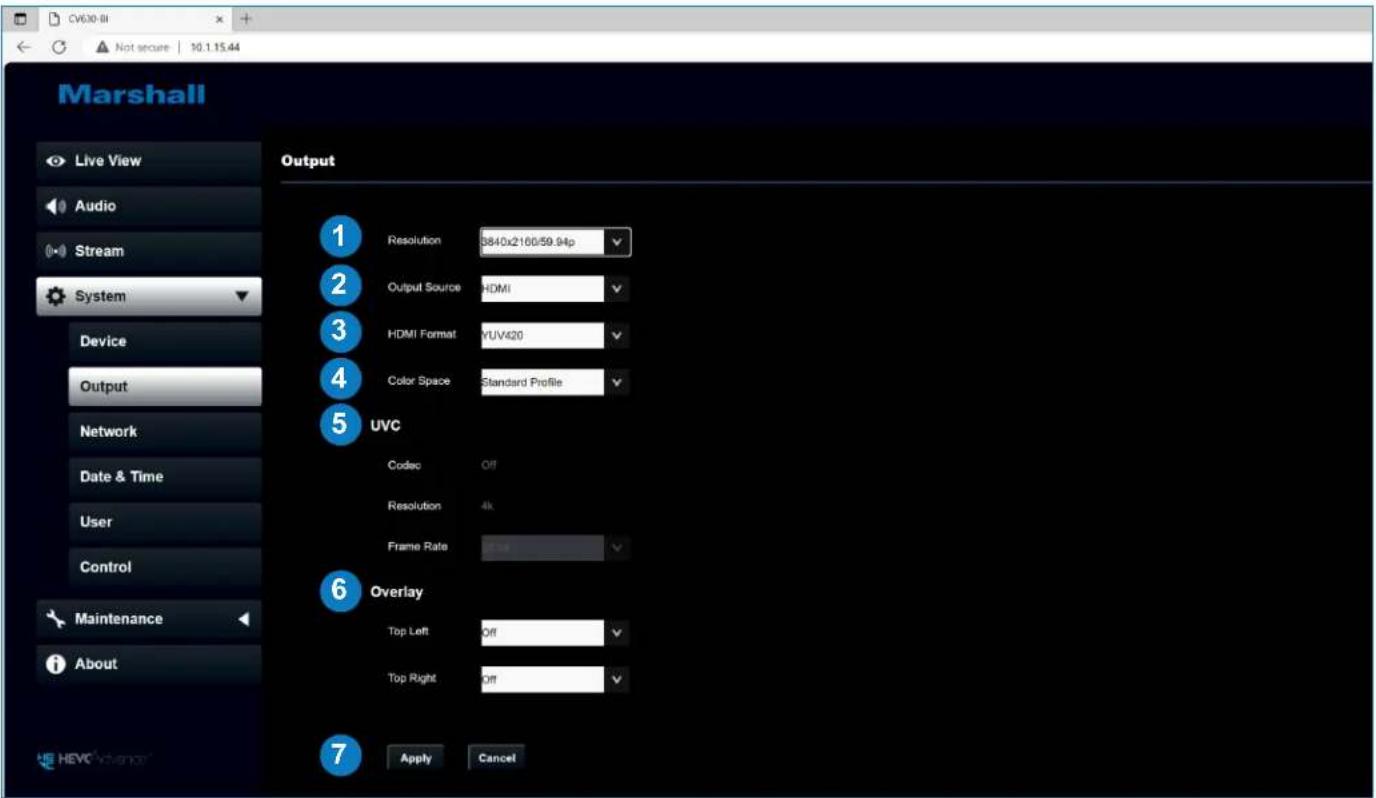

6.2.5 System - Output

No Item Function Descriptions
1 Resolution		Set the resolution of the cameraAfter switching to the resolution, the camera will restart. Please refresh the browser
2 Output Source		According to the output resolution, you can select HDMI+NDI, HDMI + Streaming or HDMI + UVC outputWhen it is set to UVC output, 3840 x 2160 30p or lower resolutions are supportedUVC does not support 1080i.
3 HDMI Format		Select YUV422 / YUV420 / RGBWhen it is set to YUV420, 3840 x 2160 60p/ 59.94p/ 50p resolutions are supported
4 Color Space Set the standard for color gamut Standard Profile/ REC.709/ BT.2020
5 UVC		Available when System-Output-Output Source is set to HDMI+UVCn Encode Format:Ø 3840x2160 29.97 / 25 fps: H.264Ø Less than 1080p (inclusive): H.264/MJPEGn Resolution: It is shown based on System-Output-Output SourceFrame Rate: 3840 x 2160 can only select the highest 29.97 fps
6	Overlay	Set the stream to display “date and time” or “custom content” and to display location
7 Apply/ Cancel Apply/ Cancel		Setting

6.2.6 System – Network

No Item Function Descriptions
1 DHCP	Network setting of camera. Change of setting is available when DHCP function is closed.
2 HTTP Port Set HTTP	port. The default Port value is 80
3 HTTPS Port Set HTTPS	port. The default Port value is 81

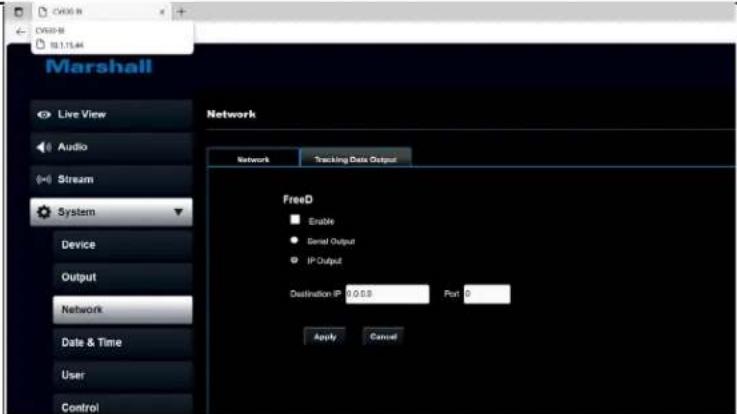

4	Tracking Data Output	When enabled, PTZ position information can be reported when the camera movesSerial Output: Please set the protocol to VISCA and the baud rate to 38400IP output: Set the IP address and portThe port numbers should be > 1024. 1935, 8555, 8556, 8557 cannot be used.When Tracking Data Output is enabled, the camera performance may be affected.

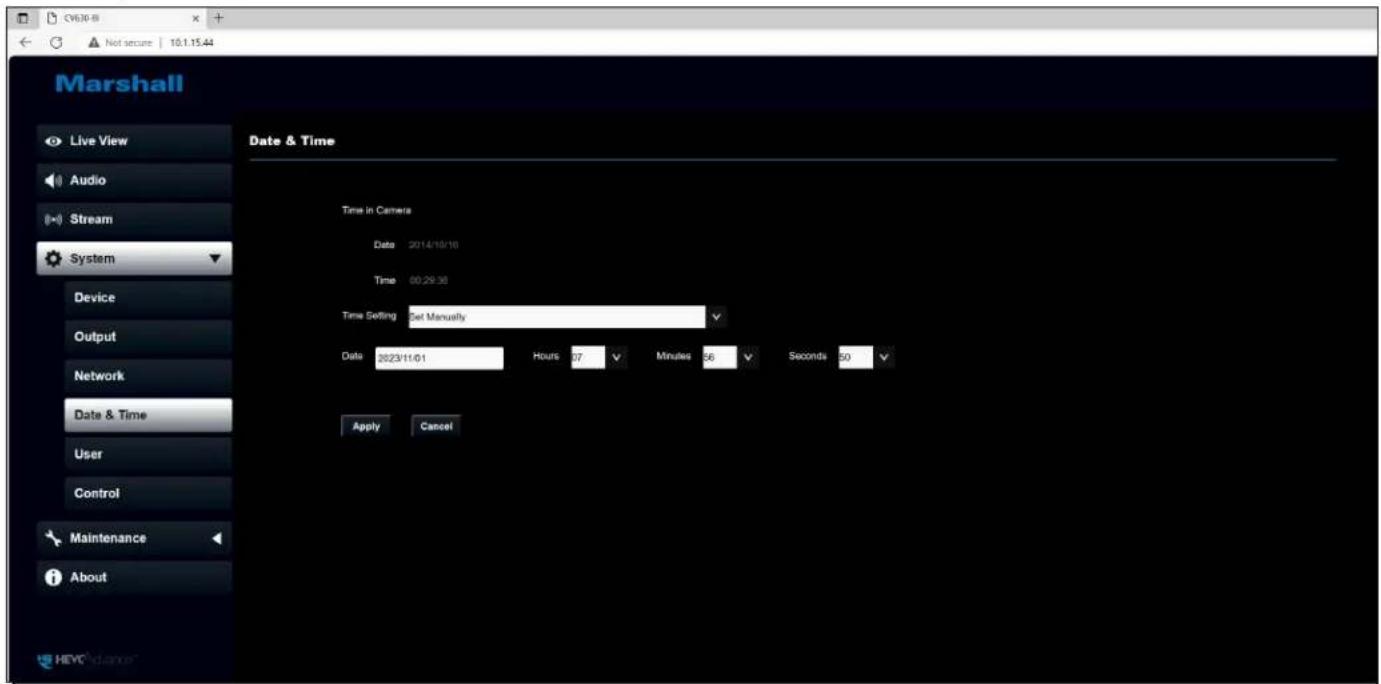

6.2.7 System - Date & Time

Function Descriptions

Enable/disable 802.1x protocol, and configure settings when enabled

The router must support 802.1x protocol to enable this feature

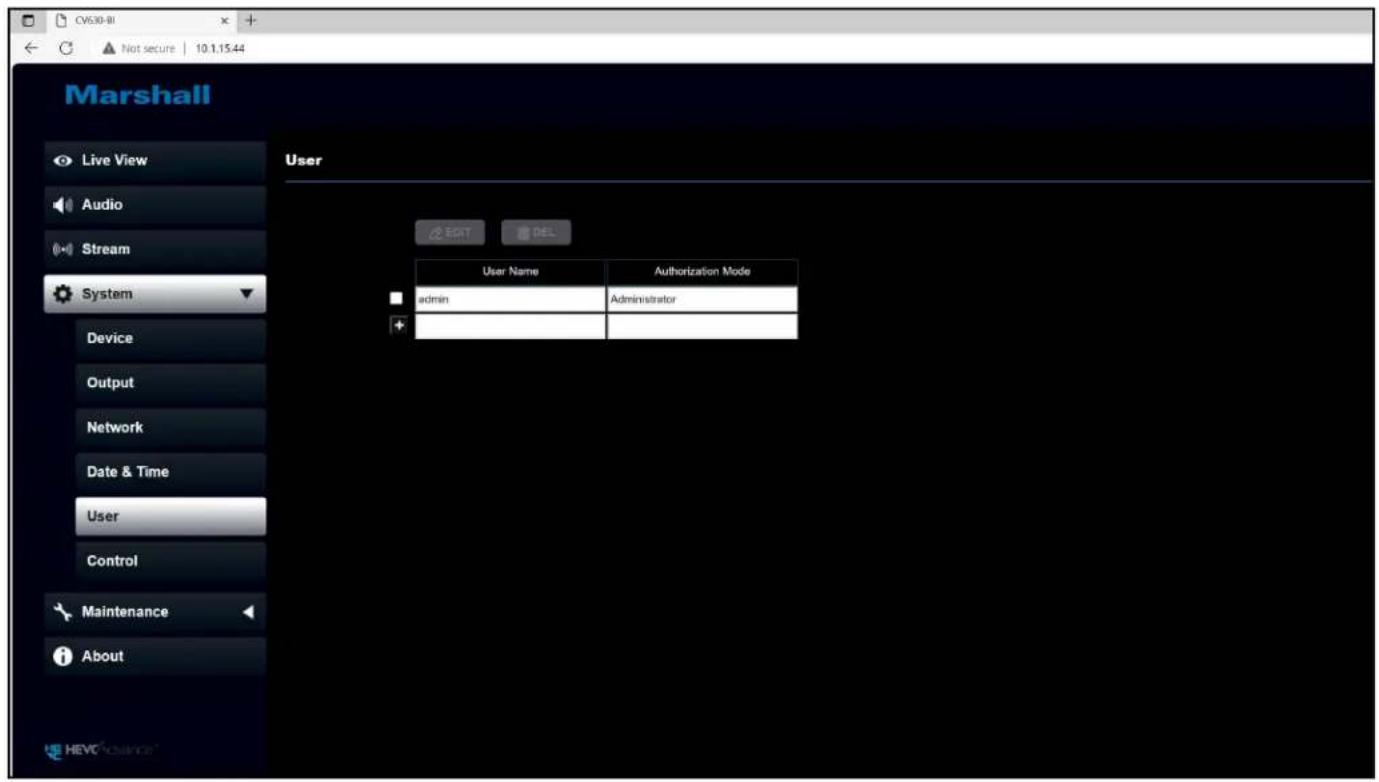

6.2.8 System - User

Function Descriptions

Add/ Modify/ Delete user account

n Supporting 4 \~ 32 characters for username and password
n Please mix uppercase and lowercase letters or numbers for characters. Special symbols or the underlined cannot be used
n Authentication Mode: Set the new account management permissions

User Type	Admin	Operator	Viewer
View images	V V V
Settings V V	X
Account management	V X X

When Factory Reset is executed, it will clear the user's data.

6.2.9 System - Control

No Item Function Descriptions
1 Control Port RS-232 / RS-422
2 Baud Rate Choose the transmission speed of the control signal 9600/ 38400
3 Protocol Support VISCA/ Pelco D Protocol
4 VISCA Address The camera ID address 0 ~ 7 can be assigned.
5 Pelco D Address The camera ID address 1 ~ 255 can be assigned.
6 Tally Lamp	Turn On/ Off Tally Lamp
7 Tally CMMD Mode	Set whether the indicator is linked with RS232 command∅ Normal (Not linked): The indicator light status and mode shall be set separately.-When the indicator light is on, and the default mode is off, additional command is required to set the indicator light mode- When the indicator light is off will not trigger the indicator light∅ Link:- When the indicator light is on, the default mode is red light- When the indicator light is off will turn on the indicator light
8 Apply/ Cancel	Apply/ Cancel Setting

6.2.10 - Maintenance

No Item Function Descriptions
1 Firmware Update		Click [....] to select the firmware file, and click [Upgrade] to update the firmwareUpdate takes about 2 - 3 minutesPlease do not operate or turn off the power of the device during the update to avoid firmware update failure
2 Factory Reset		Select the reset button to resume the factory default setting as the web page setting
3	Setting Profile	The web page setting parameters can be exported from the computer and imported/applied to another camera
4	Error Log	If the camera encounters errors, an error code log will be establishedWhen an error code appears, the user may try to clickClean to confirm if the error will repeat itself

6.2.11 Maintenance - Reboot

No Item Function Descriptions
1 Reboot Reboot immediately
2 Disable Disable the reboot settings
3 Daily Reboot		Set the daily reboot timePlease go to6.2.9 System –Date & Timeto complete the SNTP server synchronization to set daily reboot
4 Timing Reboot Set the timing		reboot time

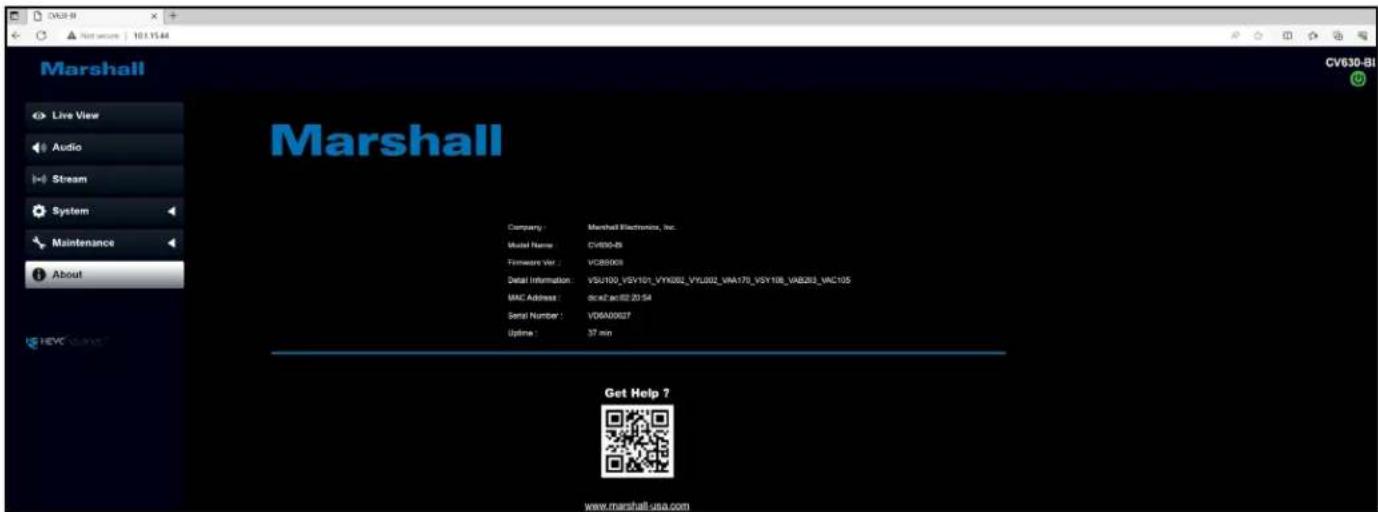

6.2.12 - About

Function Descriptions

Display the firmware version, serial number, running time and other related information of the cameraFor technical support, please scan the QRcode at the bottom right for assistance

Chapter 7: DIP Switch Setting

7.1 DIP Switch

7.1.1 OUTPUT Switch

To switch via the OSD/ RS-232 Command is also available based on the last executed action

ID	Resolution	Frame Rate	Remark
0	3840 x 2160p	29.97
1		25
2	1920 x 1080p	59.94
3		50
4		29.97
5		25
6	1280 x 720p	59.94
7		50
8		29.97
9		25
A	1920x1080i	59.94
B		50
C	Reserved Reserved
D
E
F

72 IR Select

When using the remote control, please make sure the settings of IR SELECT and the Camera Select of the remote control are consistent

ID	Setting
1
2
3

Chapter 8: Troubleshooting

This chapter describes problems you may encounter while using CV630-BI/WI/ND3/ND3W. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurs, please contact your distributor or the service center.

No.	Problems Solutions
1.	Boot without power signal	1. Make sure you have plugged in the power cord.2. When using a PoE connection, ensure that the power supply supports POE+ (IEEE 802.3at) hubs
2.	There is no image output from the camera	1. Check the power supply or PoE supply functions.2. Confirm the output signals are in streaming output.3. Confirm whether the camera resolution can be used together with the monitor equipmentn If 4k output, confirm the monitor equipment supports 4K output4. Replace the cables and make sure they are not faulty.
3.	The Camera image is severely delayed	Please use 1080p or 720p 60/50 fps rather than 25/30 fps signals.
4.	RS-232 cannot be controlled	1. Confirm the connection is correct (RS-232 In/ Out)2. Please make sure the Baud rate setting is the same as the control equipment
5.	No image for 3G-SDI output resolution 3840x2160 29.97/ 25	Please confirm the screen menu/ Dip Switch setting3G-SDI supports output resolutions up to 1080p 59.94/50
6.	Whether the Internet can be used for operation	Please refer to Chapter 6 Network Function Description fo the Internet usage
7.	ONVIF software cannot locate the machine	Please be sure to use only English alphabets or numbers in [Setting]>[Video]> [Camera](Location) of the webpage. Using special characters and pressing the spacebar will cause the ONVIF software unable to locate the machine.For VC-A62N, either NDI or ONVIF can be used. Please go to the [Setting] > [Video] > [NDI|HX] on the web page to check if it is [Off].
8.	Tally lamp is not working when applying RS232 setting	Please make sure if the Tally lamp function is enabled from the setting menu or web page.n Setting Menu: System - Tally Lampn Web page: Setting - Camera - Tally Lamp
9.	The camera does not save the relevant parameters (PTZ, AWB ...) after reboot	Please make sure if the Initial Position is set to Last MEM from the setting menu or web pagen Setting Menu: System - Initial Positionn Web page: Live View-Setting - Camera Setting Zoom - Initial Position

Supplier's Declaration of Conformity

47 CFR § 2.1077 Compliance Information

Manufacturer: Marshall Electronics Inc.

Product Name: CV630-BI/WI/ND3/ND3W

Model Number: 4K PTZ Video Camera

Responsible Party – U.S. Contact Information

Supplier: Marshall Electronics Inc..

20608 Madrona Avenue, Torrance, CA 90503

e-mail: [e-mail]

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warranty

For Warranty information please refer to Marshall website page: https:marshall-usa.com/company/warranty.php
