Product Type	Vacuum Cleaner (Canister)
Brand	Hanseatic
Model	HVBL8506BLMC
Power Consumption	850 W
Supply Voltage	220–240 V~, 50–60 Hz
Maximum Suction Force	16 kPa
Maximum Volumetric Flow Rate	383 l/s
Sound Power Level	79 dB(A)
Weight (Assembled)	5.4 kg
Protection Class	II
Dust Bin Type	Bagless (reusable dust bin)
Filter System	Coarse dust filter, foam filter, hygiene filter
Washable Filters	Coarse dust filter and foam filter
Cable Rewind	Yes (foot switch)
Suction Control	Air bypass vent
Telescopic Tube	Yes, adjustable
Floor Nozzle	Yes, with foot selector for carpets/hard floors
Accessories	Furniture brush, crevice nozzle
Carrying Handle	Yes
Overheat Protection	Yes (auto shut-off)
Intended Use	Dry vacuuming of floors and upholstery
Order Number	95908314

Frequently Asked Questions - HVBL8506BLMC Hanseatic

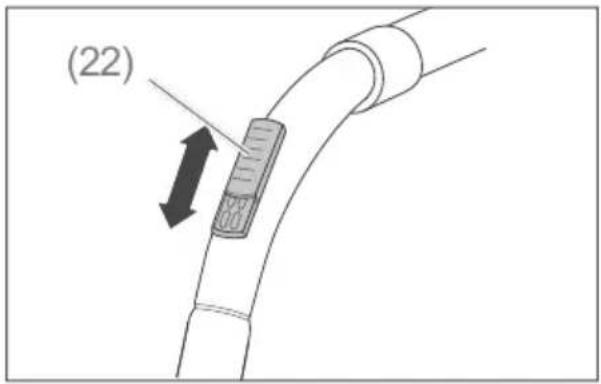

How do I adjust the suction power?

You can adjust the suction force by using the air bypass vent (22). Covering the vent increases suction, while uncovering reduces it. This also helps to prevent small objects from being sucked in.

What should I do if the vacuum cleaner switches off by itself?

The appliance may switch off due to overheat protection. First, switch off and unplug. Check if the brush or nozzle is blocked, or if the coarse dust filter is clogged. Clean any blockages and allow the appliance to cool for at least 30 minutes before restarting.

How do I clean the filters?

The coarse dust filter and foam filter can be washed under running water and must be completely air-dried before reinserting. The hygiene filter should be rinsed with clean water only, tapped out, or cleaned with compressed air. Never use detergents or dry filters on a heater.

Can I vacuum liquids with this vacuum cleaner?

No, this vacuum cleaner is intended only for dry dirt. Never vacuum water or other liquids, as moisture can cause short circuits and damage the appliance.

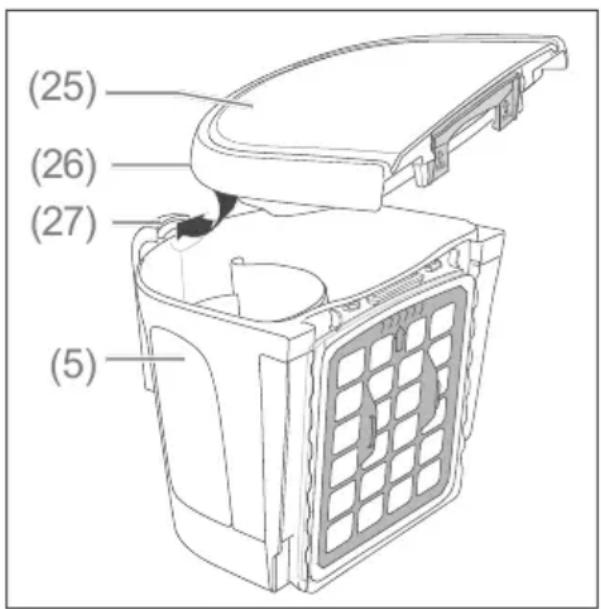

How do I change the dust bin?

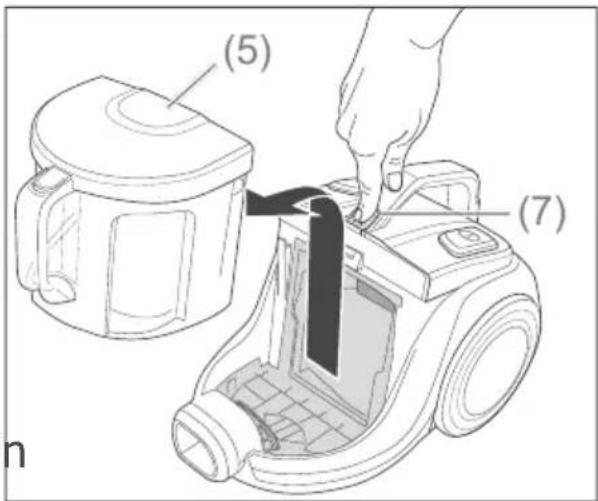

To empty the dust bin, first unplug the vacuum. Press the release button (7) to remove the dust bin. Release the locking mechanism under the lid to open it and empty the bin. Replace the lid, ensuring it clicks into place, then reinsert the dust bin.

What accessories are included?

The package includes a suction hose with telescopic tube handle, telescopic tube, floor nozzle, furniture brush, and crevice nozzle.

How do I store the vacuum cleaner?

After use, rewind the cable by pressing the foot switch for the cable retractor while holding the plug. Insert the mounting bracket on the floor nozzle into the storage holder on the back of the appliance for vertical storage.

What is the power consumption of the vacuum cleaner?

The power consumption is 850 W. It operates on 220–240 V~, 50–60 Hz.

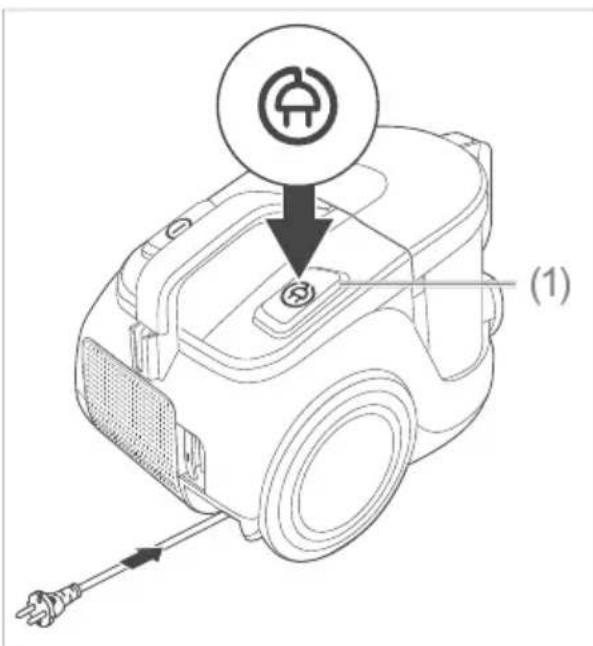

How do I rewind the cable?

Press the foot switch for the cable retractor (1) with your foot. To avoid a whipping effect, hold the mains plug while the cable retracts.

Is the vacuum cleaner suitable for pet hair?

Yes, it can be used for vacuuming pet hair from floors and upholstery. However, the filters should be cleaned regularly to maintain suction. The turbo brush is not included; only standard nozzles are provided.

USER MANUAL HVBL8506BLMC Hanseatic

Line drawing of a vacuum cleaner with handle and clasp (no text or symbols)

Gebrauchsanleitung

Anleitung/Version:

194570 20211029

Line drawings of various household appliances including a vacuum cleaner, hose, and accessories (no text or labels)

Lieferumfang

Line drawing of a vacuum cleaner with a magnified inset showing internal components (no text or symbols)

Line drawing of a vacuum cleaner with labeled component (11), no text or symbols present

Line drawing of a vacuum cleaner device with labeled part (2), no text or symbols present

Line drawing of a vacuum cleaner with handle and clasp (no text or symbols)

User manual

Manual/version:

194570 20211029

Article no.: 95908314

Reproduction, even of

excerpts, is not per- mitted!

Vacuum cleaner

Table of contents

Explanation of terms/

symbols....EN-3

Safety EN-4

Intended use.....EN-4

Safety notices.....EN-5

Delivery....EN-10

Package contents.....EN-10

Check the delivery ..... EN-10

Appliance parts ..... EN-11

Nozzles.....EN-12

Start-up ..... EN-14

Unpacking the appliance EN-14

Setting up the appliance EN-14

Operation ..... EN-16

Vacuuming floors ..... EN-16

Setting the suction force EN-18

Finishing vacuuming . . . EN-18

Moving the appliance . . . EN-19

Setting down and

storing the appliance . . . EN-19

Care and maintenance . . . EN-20

Emptying the dust bin. . .EN-20

Cleaning/changing the

coarse dust filter.....EN-21

Cleaning the foam filter .EN-22

Cleaning/changing the

hygiene filter.....EN-23

Cleaning the appliance .EN-24

Cleaning the floor nozzle. EN-25

Troubleshooting table . . . . EN-26

Service ..... EN-28

General customer

service ..... EN-28

Spare parts.....EN-28

Disposal and waste

prevention......EN-29

Packaging.....EN-29

Waste prevention ..... EN-29

Disposing of old elec-

trical devices in an en-

vironmentally-friendly

manner....EN-29

Technical specifications .. EN-30

Explanation of terms/symbols

Please read through the safety instructions and user manual carefully before using the appliance. This is the only way you can use all the functions reliably and reliably.

Be absolutely sure to also observe the national regulations in your country, which are also valid in addition to the regulations specified in this user manual.

Keep all safety notices and instructions for future reference. Pass all safety notices and instructions on to the subsequent user of the appliance.

The following symbols can be found in this user manual.

WARNING

This symbol indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.

CAUTION

This symbol indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTICE

This symbol warns against possible damage to property.

This symbol refers to useful additional information.

Safety

Intended use

The appliance is intended for vacuuming up loose and dry dirt, such as dust, lint, crumbs on floors and cushions around the home and car.

The appliance can be operated without switching at 220–240 V\~/50–60 Hz.

The appliance may be used only if the motor protection filter is in place.

Use the appliance exclusively as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury.

The manufacturer accepts no liability for damage caused by improper use.

The appliance is not suitable for vacuuming up

• hazardous dust
• water and other fluids
• glowing ash, burning cigarettes or matches
• clay, plaster, cement, masonry dust or drilling dust
  – sharp objects, such as glass fragments

The appliance is not designed for commercial use or shared use (e.g. use by several parties in an apartment block).

Safety notices

In this chapter you will find general safety notices which you must always observe for your own protection and that of third parties. Please also observe the warning notices in the individual chapters on operation, cleaning, etc.

Risks to children

WARNING

Risk of suffocation!

Children can become entangled in the packaging film or swallow small parts and suffocate.

■ Do not allow children to play with the packaging film.
■ Prevent children from pulling small parts from the appliance or taking them out of the accessory bag and putting them in their mouths.

Risks for certain groups of people

CAUTION

Dangers for children and people with limited physical, sensory or mental capacity!

■ This appliance can be used by children aged 8 years and older and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
■ Do not allow children to play with the appliance.
■ Cleaning and user maintenance must not be carried out by unsupervised children.

Risks in handling household electrical appliances

WARNING

Risk of electric shock! Touching live parts may result in severe injury or death.

■ Only use the appliance in doors. Do not use in wet rooms or in the rain.
■ Do not operate or continue to operate the appliance if

• it shows visible signs of damage, e.g. the supply cord is defective,
  – it makes unfamiliar noises,
• it emits smoke.

In such cases, you should pull the mains plug out of the socket or switch off/unscrew the fuse and have the appliance repaired (see chapter ‘Service’).

If this appliance's supply cord is damaged, to avoid hazards it must be replaced by the manufacturer, the manufacturer's service agent or a qualified expert.

■ Check the appliance regularly for damage.
■ We recommend using a pulse-sensitive fault current switch (residual current operated circuit-breaker).
- Keep the appliance, the mains plug and the mains cable away from open flames and hot surfaces. The insulation of the mains cord could melt.
■ Do not kink or pinch the mains cord or lay it over sharp edges.
■ Never pull the mains plug out of the socket by the mains cable, always hold the mains plug itself.
■ Never touch the mains plug with wet hands.
■ Never immerse the mains cord or plug in water or any other liquids.
■ In the event of a fault, as well as before cleaning or maintenance, disconnect the mains plug from the socket and/or switch off or unscrew the fuse.

■ Do not put any objects in or through the housing openings and also make sure that children cannot insert any objects through them.

■ Never clean the appliance with a high-pressure cleaner or steam cleaner.

■ This appliance contains electrical and mechanical parts which are essential for protection against potential sources of danger. Only parts corresponding to the original appliance specifications may be used for repairs.

■ Investigations and repairs to the appliance may only be carried out by authorised specialists, such as our Service department.

■ Unauthorised repairs to the appliance can cause property damage and personal injury, and invalidate liability and warranty claims. Never try to repair a defective or suspected defective appliance yourself.

CAUTION

Fire hazard!

Improper handling of the appliance can lead to fire.

■ Connect the appliance only to a properly installed and earthed electric socket. Do not connect to a multi-socket extension cable or a multi-socket plug.

NOTICE

Improper handling of the appliance may result in damage or explosions.

■ Do not use sharp objects to unpack the appliance.

When cleaning, please note:

■ Under no circumstances should sharp, coarse, sodium carbonate-based, acidic, solvent-based or abrasive cleaning agents be used. All-purpose cleaners with a neutral pH are recommended.

■ The door seals can be damaged by unsuitable cleaning agents. Use care products only on the outer surfaces.
■ Use only soft cloths for cleaning.
■ Ensure that water does no fire hazard!

enter the electrical components.

a “whipping effect” (on account of the mains cord swinging uncontrollably).

■ Lay the mains cord in such a

way that no one trips over it.

Risks when handling the vacuum cleaner

CAUTION

Risk of injury!

Improper handling of the appliance may result in injury.

■ Never touch moving parts of the appliance and accessories, for example, turbo brushes. There is a risk of fingers becoming trapped.
■ Always remove the turbo brush from the telescopic tube or suction hose before cleaning.
■ Hold on to the mains cord when winding it up. By forcefully retracting the mains cord this can cause

Vacuuming glowing ash, burning cigarettes, etc. will set the filter on fire.

Health hazard!

Improper handling of the appliance may result in health hazards.

■ Do not use the appliance if the hygiene or motor protection filter is missing or damaged.

Otherwise, vacuumed dust can penetrate the appliance and escape into the ambient air.

Even with the filters, the appliance exhaust air may still contain small quantities of dirt particles. If breathed in by small children, these can lead to allergic reactions.

■ Avoid vacuuming close to children, wherever possible.

! NOTICE

Risk of damage!

Improper handling of the appliance can lead to property damage.

■ Do not use sharp objects to unpack the appliance.

■ Never sit or stand on the appliance.

■ Use the appliance only if the motor protection filter is in place. The motor protection filter must not be damaged.

■ Only the original supplied accessories and the specified dust bag, motor protection filter and hygiene filter may be used.

■ Never vacuum clay, plaster, cement, masonry dust or drilling dust. Vacuuming these materials blocks the filter.

■ Never vacuum water and other liquids.

■ Never vacuum sharp - objects, such as glass splinters.

■ On freshly shampooed-car pets, always wait until the detergent is completely dry before vacuuming.

■ When using the vacuum cleaner, always pull out the mains cord completely to the yellow marker.

■ Never pull the mains cord out beyond the red marker. Pulling the cord out further can damage the cable reel.

■ Never place the vacuum cleaner directly next to a heater or oven.

■ Never dry the hygiene filter on a heater or with a hair-dryer or tumble dryer. The hygiene filter is porous and can be damaged.

■ Never wash the filter in a washing machine or dish-washer.

■ The filter must be air-dried only.

■ Do not use any abrasive cleaners (scouring or thinning agents) to clean the appliance and accessories. They could damage the surface of the appliance.

Delivery

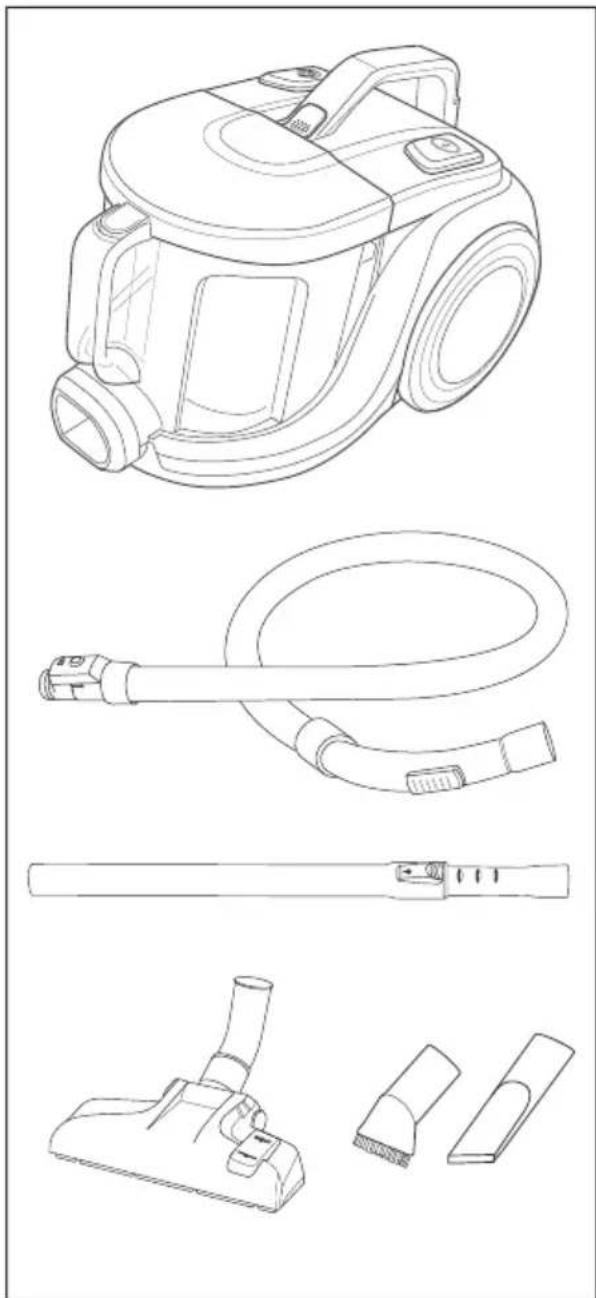

Line drawings of various household appliances including a vacuum cleaner, hose, and accessories (no text or labels)

Package contents

• Vacuum cleaner
  – Suction hose with telescopic tube handle
• Telescopic tube
• Floor nozzle
• Furniture brush
• Crevice nozzle
• User manual

Check the delivery

1. Unpack the appliance as described on page EN-14.
2. If the delivery is incomplete or the appliance has been damaged during transport, please contact our Service department (see page EN-28).

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Do not operate the appliance if it has visible damage.

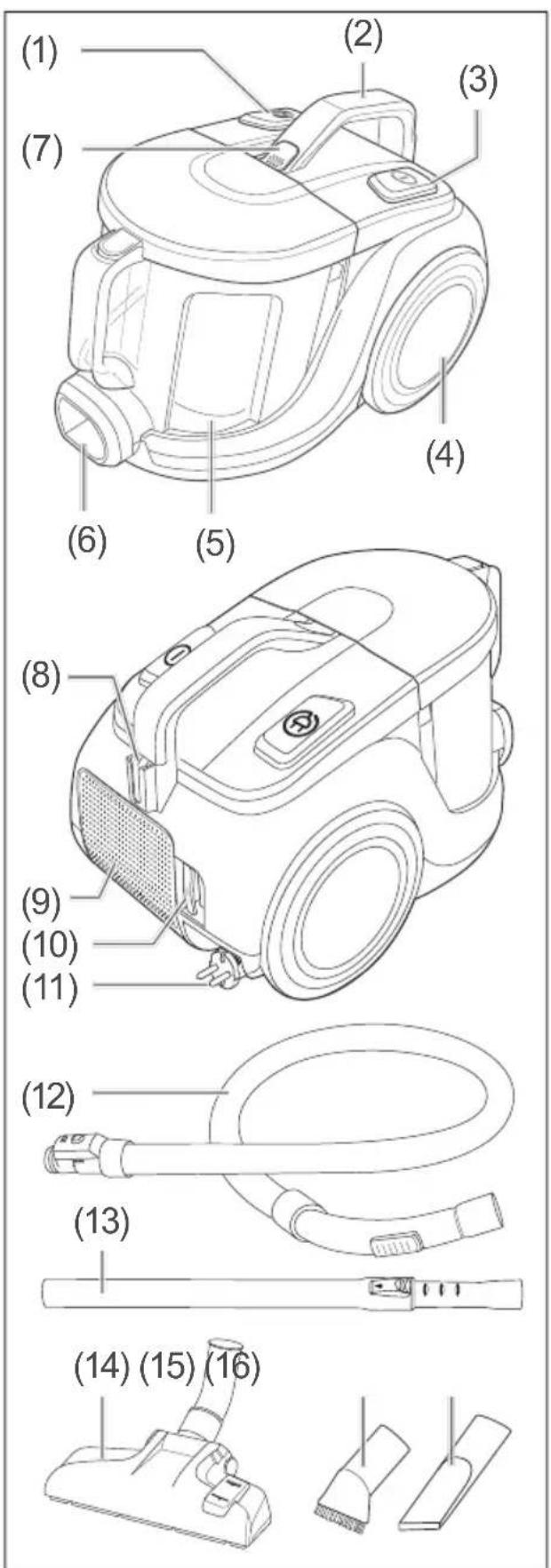

Appliance parts

(1) Foot switch for cable retractor

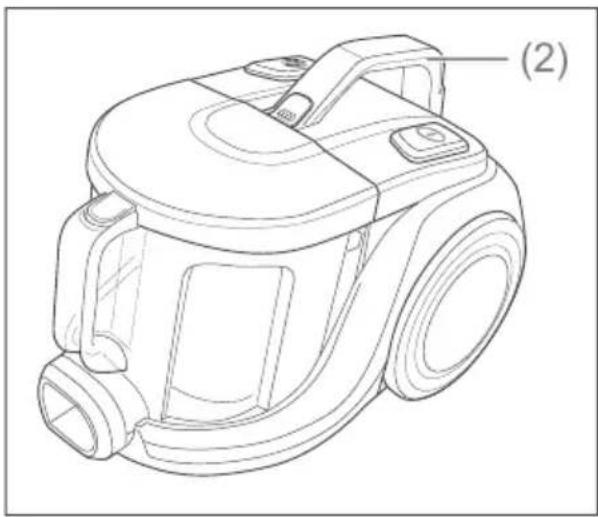

(2) Carrying handle

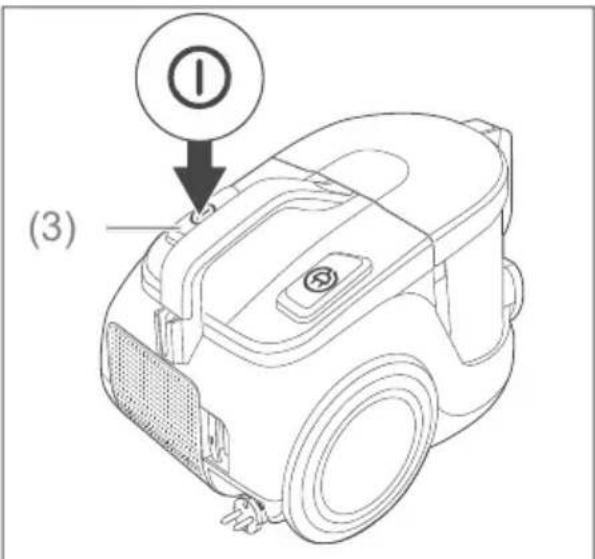

(3) On/Off foot switch
(4) Wheel
(5) Dust bin

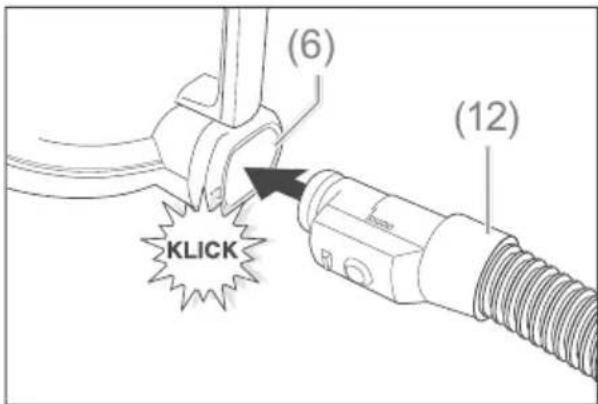

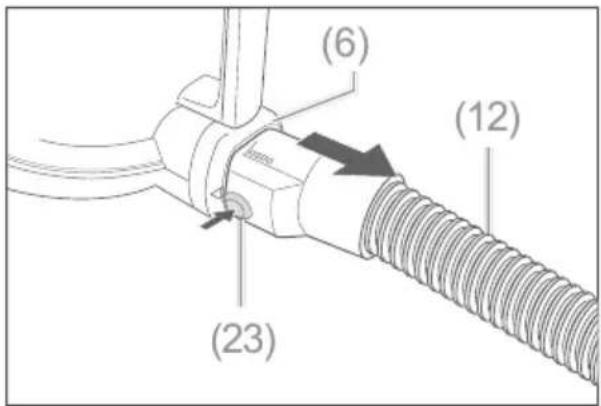

(6) Opening for the suction hose connection
(7) Release button for the dust bin

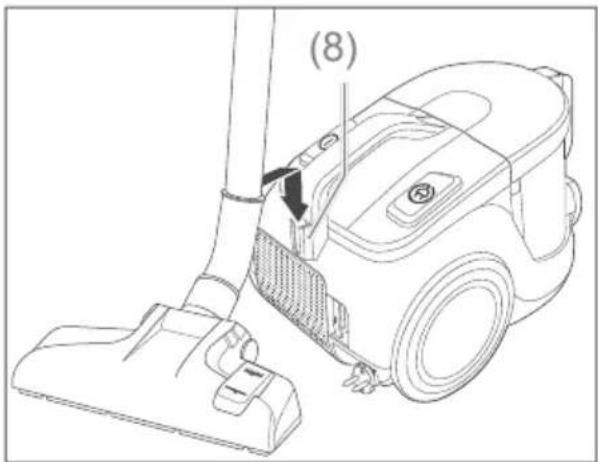

(8) Storage holder

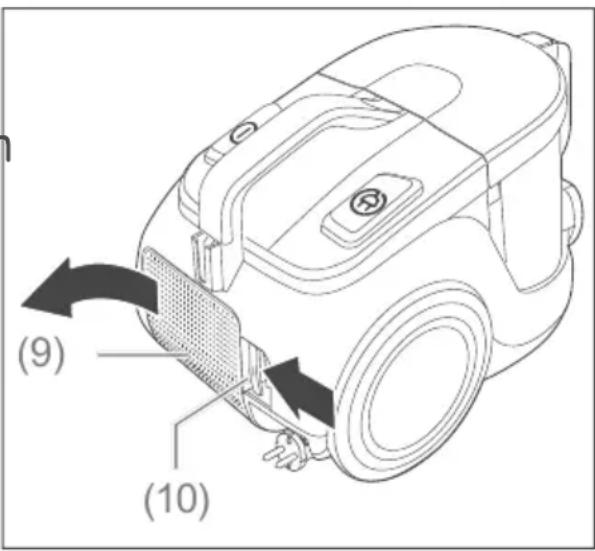

(9) Air vent and filter cover
(10) Release mechanism for filter cover

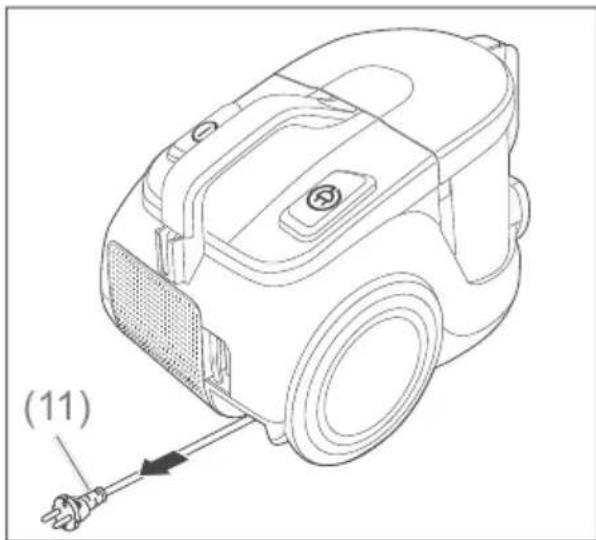

(11) Mains cord with mains plug

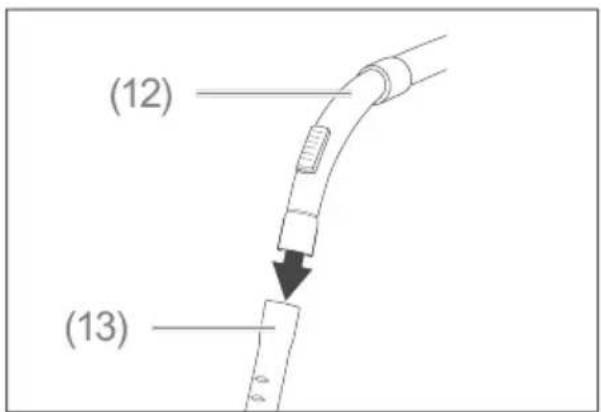

(12) Suction hose with telescopic tube handle
(13) Telescopic tube
(14) Floor nozzle
(15) Furniture brush
(16) Crevice nozzle

Nozzles

The vacuum cleaner comes with various nozzles designed for a range of uses. Where required, before or during vacuuming, each nozzle can be attached to the telescopic suction hose (12) or the telescopic tube (13).

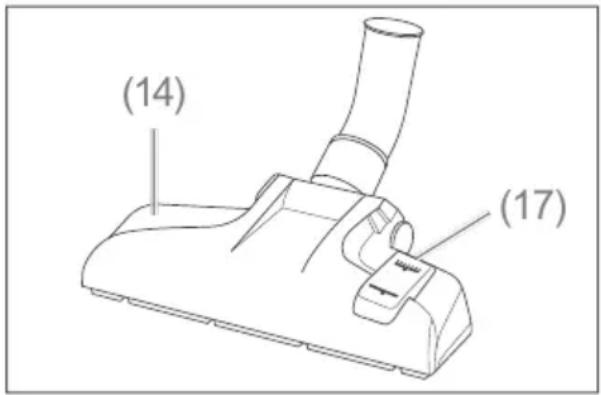

Floor nozzle

You will work with the floor nozzle (14) most of the time as it is designed for large, flat surfaces.

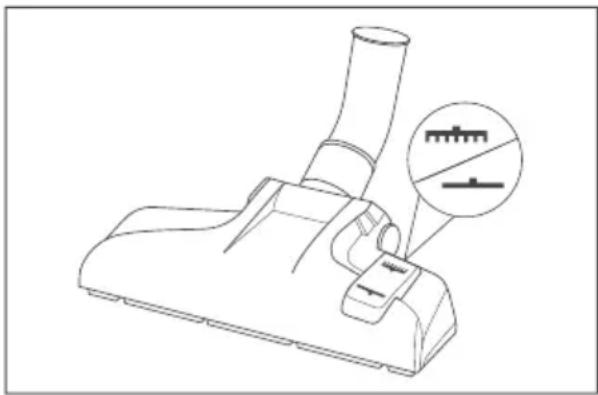

Best vacuuming results are achieved when you adapt the floor nozzle to the floor surface using the foot selector switch (17).

Line drawing of a vacuum cleaner with a magnified inset showing internal components (no text or symbols)

- For short-pile or smooth floors such as needle felt, PVC, parquet or tiles:

Set the foot selector switch to the correct position

- For long-pile rugs/carpets:

Set the foot selector switch to the correct position

The foot selector switch can also be readjusted during operation.

Furniture brush

With the furniture brush (15) you can dust books or fragile items such as picture frames.

Crevice nozzle

The crevice nozzle (16) is suitable for vacuuming material folds, joints, corners and niches that cannot be reached with the floor nozzle.

Start-up

Unpacking the appliance

NOTICE

Risk of damage! Improper handling of the appliance may result in damage.

■ Do not use sharp objects to. Put the suction hose (12) with unpack the appliance. the connector in the opening for the suction hose comes

1. Unpack the appliance.
2. Carefully remove all parts of the packaging, plastic profiles, tape and foam padding.

Setting up the appliance

1. Connect the suction hose (12) and the telescopic tube (13).

a. Put the suction hose (12) with the connector in the opening for the suction hose connection (6).

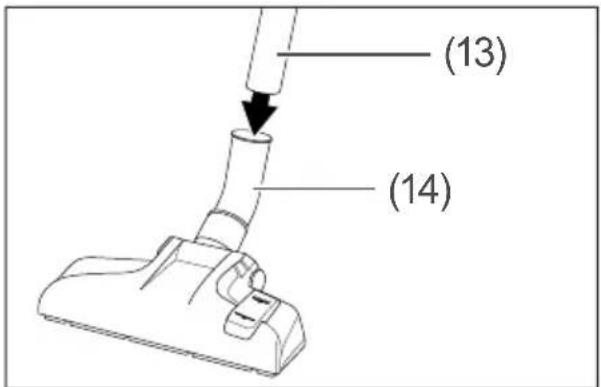

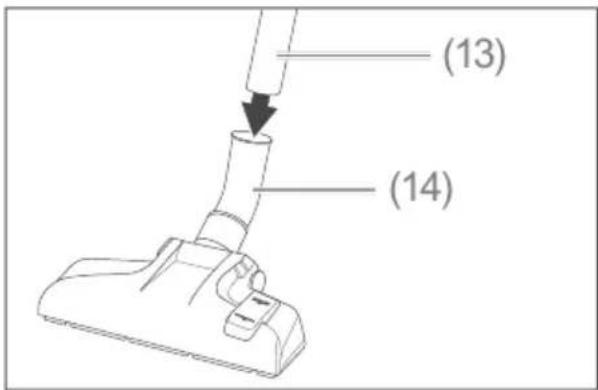

1. Select the desired nozzle (e.g. the floor nozzle) (14) and insert it into the telescopic tube (13).

You can also insert all nozzles directly into the telescopic tube handle located on the suction hose.

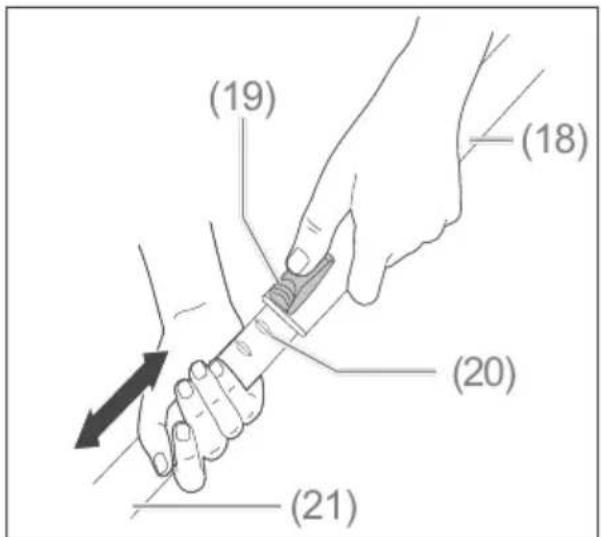

1. The length of the telescopic tube (13) can be adjusted to suit the height of its user.

To do this, hold the upper part of the telescopic tube (18) with one hand and press the locking mechanism (19) downwards. At the same time, use your other hand to push the lower part of the telescopic tube (21) away from or towards you.

Make sure that the lower part of the telescopic tube audibly clicks into one of the notch-es (20) in the upper part of the telescopic tube.

All filters are prefitted in the factory, and your vacuum cleaner is now ready to use.

Operation

You can use the appliance if

– you have read the chapter ‘Safety’ (see page EN-4).
– the appliance has been set up as described in the chapter "Start-up" (see page EN-14).

Vacuuming floors

WARNING

Risk of electric shock!

The appliance operates with 220-240 V\~/50-60 Hz mains voltage. Improper use of the appliance may lead to serious injury or death.

■ Do not vacuum glow ash, burning cigarettes or matches, sharp objects, glass fragments, water or other liquids. Glowing ash, burning cigarettes, etc. set the filter on fire; moisture can cause short circuits; sharp objects damage the filter and can cause short circuits.

CAUTION

Health hazard!

Improper handling of the appliance may result in health hazards.

■ Do not use the appliance if the hygiene or coarse dust filter is missing or damaged. Otherwise, vacuumed dust can penetrate the appliance and escape into the ambient air.

NOTICE

Risk of damage!

Vacuuming unsuitable materials blocks the filter and can damage the appliance.

■ Never vacuum clay, plaster, cement, masonry dust or drilling dust.

Failure to unplug the mains cord in an appropriate way may lead to damage.

■ When using the vacuum cleaner, always pull out the mains cord completely to the yellow marker.

■ Never pull the mains cord out beyond the red marker. Pulling the cord out further can damage the cable reel.

Line drawing of a vacuum cleaner with labeled component (11), no text or symbols present

1. Pull the mains cord out by the mains plug (11) until the yellow marking is visible on the mains cord.

If the red marking is visible, the mains cord has been pulled out too far. Allow the mains cord to retract slightly (see section „Finishing vacuuming“ on page EN-18).

1. Connect the mains plug to a properly installed socket.

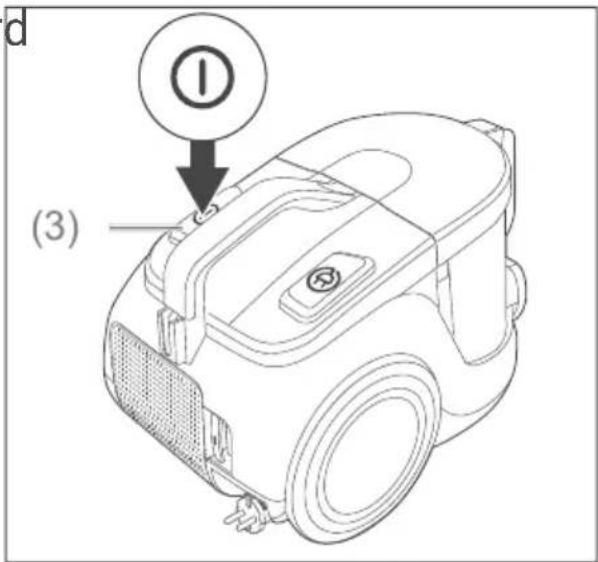

1. Use your foot to press the on/off foot switch (3) to switch the appliance on.

2. To vacuum, push and pull the nozzle across the surface you are vacuuming.

Rotate the telescopic tube handle (13) slightly to reach corners more effectively. This positions the nozzle diagonally.

In rare cases this can make a whistling noise initially. This is not a malfunction and stops after a while.

Setting the suction force

You can adjust the suction force as needed by using the air bypass vent (22). The covering of the air by-pass vent (22) can be adjusted as desired.

Should you accidentally allow the vacuum cleaner to come into contact with an object, opening the air bypass vent immediately reduces the suction force. This remedial action will prevent such items from being drawn into the dust bin.

Finishing vacuuming

CAUTION

Risk of injury!

Forcefully retracting the mains cord can cause a “whipping effect” (on account of the mains cord swinging uncontrollably). This could result in injury.

■ Hold on to the mains cord when winding it up.

1. Use your foot to press the on/off foot switch (3) to switch the appliance off.
2. Pull the mains plug (11) out of the socket.

1. To retract the mains cord (11), press your foot down on the foot switch for the cable retractor (1). To avoid a 'whipping effect', hold the mains plug on the mains cord in your hand.

Moving the appliance

Line drawing of a vacuum cleaner device with labeled part (2), no text or symbols present

• To transport the appliance, lift it by the carrying handle (2).

Setting down and storing the appliance

• Insert the mounting bracket found on the floor nozzle (14) into the storage holder (8).

Care and maintenance

Emptying the dust bin

CAUTION

Health hazard!

Improper handling of the appliance may result in health hazards.

■ Do not empty the dust bin in enclosed spaces. Empty the dust bin on a balcony, 3 or outdoors directly into the waste bin.

1. Pull the mains plug (11) out of the socket.

1. Pull the suction hose (12) out of the opening of the suction hose connection (6). First press the locking mechanism (23) and then remove the suction hose.

1. Press the unlocking button for the dust bin (7) and remove the dust bin (5) using the handle.

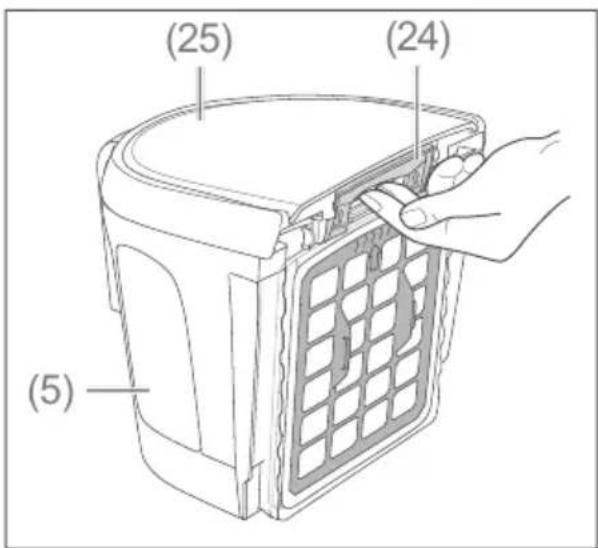

1. Release the locking mechanism (24) under the dust bin lid (25) and remove the dust bin lid.
2. Turn the dust bin (5) upside down over a rubbish bin to empty it into the bin.

1. Place the dust bin lid (25) back onto the dust bin. Make sure that the mounting bracket (26) on the dust bin lid clicks into the opening (27) on the dust bin handle.

Cleaning/changing the coarse dust filter

WARNING

Risk of electric shock!

Improper use of the appli- ance may lead to serious inju- ry or death.

■ Always pull the mains plug out of the socket prior to changing or cleaning the coarse dust filter.

NOTICE

Risk of damage!

Improper handling of the appliance may result in damage.

■ Always use the correct filter for the appliance, otherwise the appliance may not function optimally.
■ Never vacuum without filters or with damaged filters. The vacuumed dust would penetrate the appliance and damage the motor.
■ Do not wash the filter in a washing machine or a dish-washer.

The coarse dust filter should be replaced regularly.

1. Pull the mains plug (11) out of the socket.
2. Remove the dust bin as described in section „Emptying the dust bin“ on page EN-20.

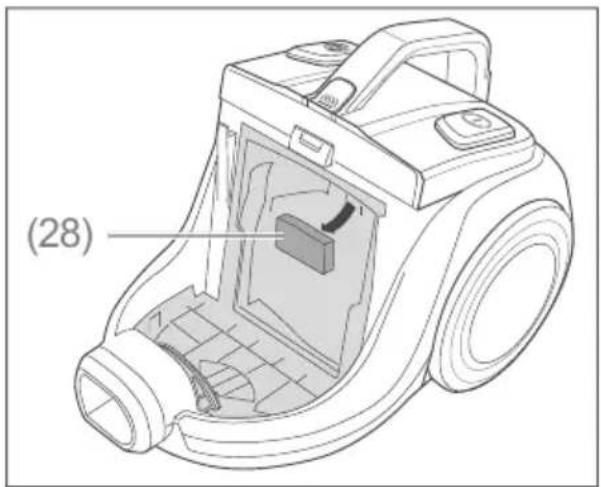

1. Remove the coarse dust filter (28) as illustrated.
2. Wash the coarse dust filter under running water. Should the coarse dust filter be damaged or no longer sufficiently cleanable, it must be replaced with a new one.
3. Allow the coarse dust filter to dry completely.
4. Insert the coarse dust filter back into the vacuum cleaner.
5. Insert the dust bin as described in section „Emptying the dust bin“ on page EN-20.

Cleaning the foam filter

1. Pull the mains plug (11) out of the socket.
2. Remove the dust bin (5) as described in section „Emptying the dust bin“ on page EN-20.

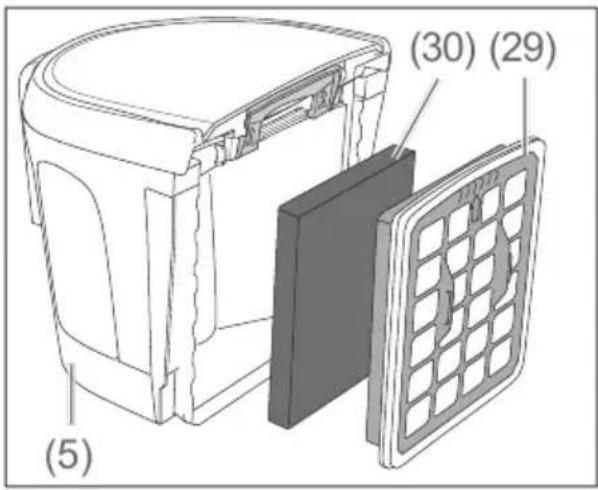

1. Remove the foam filter frame (29) and the foam filter(30).
2. Wash the foam filter under running water. If the foam filter is damaged or can no longer be sufficiently cleaned, it must be replaced with a new one.
3. Allow the foam filter to dry completely.
4. Reinsert the foam filter into the foam filter frame.

5. Re-insert the foam filter with the foam filter frame into the dust bin (5).

6. Insert the dust bin as described in section „Emptying the dust bin“ on page EN-20.

Cleaning/changing the hygiene filter

WARNING

Risk of electric shock! Improper use of the appliance may lead to serious injury or death.

■ Before changing or cleaning the hygiene filter, always pull the mains plug out of the socket.

NOTICE

Risk of damage! Improper handling of the appliance may result in damage.

■ Only use the appliance with the filters installed.
■ Never dry hygiene filters on a heater or with a hairdryer or tumble dryer, etc. It will become porous and can be damaged.

■ Never wash the hygiene filter in a washing machine.
■ Let the hygiene filter air-dry only.

The hygiene filter should be cleaned regularly.

If odours cannot be removed by cleaning or the filter is too heavily soiled, it must be replaced.

1. Pull the mains plug (11) out of the socket.

1. Remove the filter cover (9). To do this, press the the release mechanism (10)

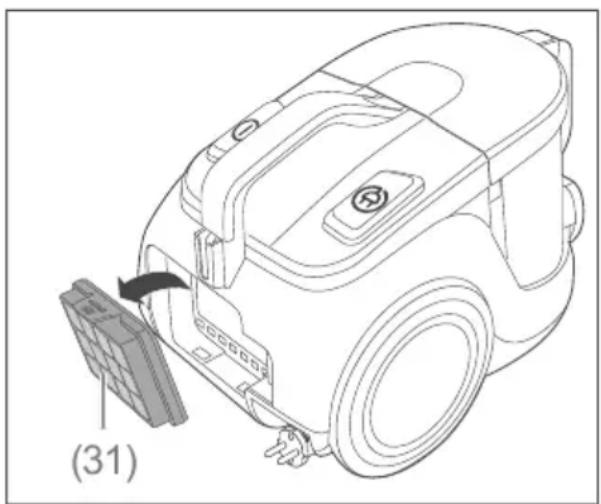

1. Lift out the hygiene filter (31).
2. Rinse the hygiene filter only with clean water, tap it out and/or clean it with compressed air. Never use detergent or washing-up liquid to clean the hygiene filter.
3. Let the hygiene filter dry out completely.
4. Reinsert the hygiene filter and the filter cover.

The article numbers for re-ordering motor protection and hygiene filters are listed in Chapter „Service“ on page EN-28.

Cleaning the appliance

WARNING

Risk of electric shock!

Improper use of the appli- ance may lead to serious inju- ry or death.

■ Before cleaning the appliance, pull the mains plug out of the socket.
■ Ensure that no water seeps into the appliance.
■ Never immerse the appliance in water.
■ Only insert the mains plug into the socket if all appliance components are completely dry.

NOTICE

Risk of damage!

Improper cleaning of the appliance can impair the surface.

■ Do not use any abrasive cleaners (scouring or thinning agents) to clean the appliance.

- Wipe

– the housing,

– the inside of the air vent and

- the accessories

with a damp cloth as required.

Never allow liquid to penetrate the vacuum cleaner.

- Occasionally clean the air vent with a soft brush.

Cleaning the floor nozzle

- Occasionally vacuum the underside of the floor nozzle (14) with the crevice nozzle (16).

Troubleshooting table

Malfunctions can occur in all electrical appliances. This does not necessarily mean there is a defect in the appliance. For this reason, check the tables to see if you can correct the malfunction.

WARNING

Risk of electric shock in case of improper repair!

Never try to repair a defective or suspected defective appliance yourself. You can put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.

Problem Possible	cause Solutions, tips
Appliance is not working.	On/Off foot switch does not actuate.	Switch the appliance on.
	Mains plug is loose.	Check that the mains plug is firmly inserted into the socket.
	The socket is defective.	Try the appliance with a different socket.
		Check fuses and/or circuit breakers.
	Mains cord is defective.	Check mains cord for damage. Contact our Service Centre, where necessary (see „Service“ on page EN-28).
Appliance switches itself off.	Brush/nozzle blocked.	Actuate On/Off foot switch, pull out mains plug, clean brush/nozzle.
	Coarse dust filter blocked. Overheat protection has been activated.	Actuate On/Off foot switch, pull out mains plug, leave appliance to cool for at least 1/2 hour and clean the coarse dust filter.
	Telescopic tube / suction hose is blocked.	Actuate On/Off foot switch, pull out mains plug, check telescopic tube and suction hose for blockage, and clean if necessary.
Suction force is weak.	Brush / nozzle is not positioned correctly.	Position the brush / nozzle correctly.
	Object is plugging the nozzle.	Actuate On/Off foot switch, pull out mains plug, check telescopic tube and suction hose for blockage. Remove object.
	Filters are inserted incorrectly or are contaminated.	Insert filters correctly and/or clean.
	Air by-pass vent is open.	Close the air by-pass vent.
Dust is being released from the appliance.	Filters are inserted incorrectly or are contaminated.	Insert filters correctly and/or clean.

In rare cases this can make a whistling noise initially. This is not a malfunction and stops after a while.

Service

Please note!

You are responsible for the condition of the appliance and its proper use in the household.

Damage resulting from non-compliance with this user manual cannot be recognised.

In order for us to help you quickly, please tell us:

Name of appliance	Model Order number
Vacuum cleaner	hanseatic HVBL8506BLMC	95908314

Accessories Order number
1× foam filter frame and foam filter 90598203
1 × hygiene filter 72558669

General customer service

Please contact your mail order company's product advice centre if you have questions, complaints or accessory orders.

Spare parts

Customers in Germany

– Please contact Hermes Fulfilment GmbH.

Tel. [phone],

Monday – Thursday, 8 am – 3 pm, Friday 8 am – 2 pm

Customers in Austria

- Please contact your mail order company's customer service centre or product advice centre.

Disposal and waste prevention

Packaging

Our packaging is made of environmentally friendly, recyclable materials:

– Outer packaging made of cardboard
- Moulded parts made of foamed, CFC-free polystyrene (PS)
– Films and bags made of poly-ethylene (PE)
– Tension bands made of polypropylene (PP)

If you would like to dispose of the packaging, please dispose of it in an environmentally friendly way.

Waste prevention

According to the provisions of Directive 2008/98/EC, waste prevention measures always take priority over waste management.

For electrical and electronic devices, waste prevention measures include extending the lifespan of defective devices through repair and reselling used working appliances instead of disposing of them.

Please help us reduce waste and contact our Service department if your product is faulty.

More information can be found in the brochure ‘Waste Prevention Programme - of the German Government with the Involvement of the Federal Länder’.

Disposing of old electrical devices in an environmentally- friendly manner

Electrical appliances contain harmful substances as well as valuable resources.

Every consumer is therefore required by law to dispose of old electrical appliances at an authorised collection or return point. They will thus be made available for environmentally-sound, resource-saving recycling.

You can dispose of old electrical appliances free of charge at your local recycling centre.

Contact your dealer directly for more information about this topic.

Technical specifications

Data sheet for vacuum cleaner according to Regulation (EU) No. 665/2013 and 666/2013.

Manufacturer hanseatic
Name of appliance Vacuum cleaner
Model HVBL8506BLMC
Sound power level in dB(A) 79
Power consumption in W 850
Supply voltage in V~ 50–60 Hz 220–240
Maximum suction force in kPa 16
Maximum volumetric flow rate in I/s 383
Protection class II
Weight (assembled) in kg, ca. 5.4
Order number 95908314

Notice: The vacuum cleaner was tested as a universal vacuum cleaner.
