Mini Par UVW LED - Machine à effets lumineux Adj - Free user manual and instructions
Find the device manual for free Mini Par UVW LED Adj in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | LED Light Effect Machine |
| Brand | Adj |
| Model | Mini Par UVW LED |
| Light Source | 12 x 3W LEDs (UV, White, Amber) |
| Power Consumption | 40W |
| Input Voltage | AC 100-240V, 50/60Hz |
| Dimensions (L x W x H) | 200 x 150 x 100 mm |
| Weight | 1.2 kg |
| Beam Angle | 25 degrees |
| DMX Channels | 3 or 6 selectable channels |
| Control Modes | DMX, Master/Slave, Auto, Sound Active |

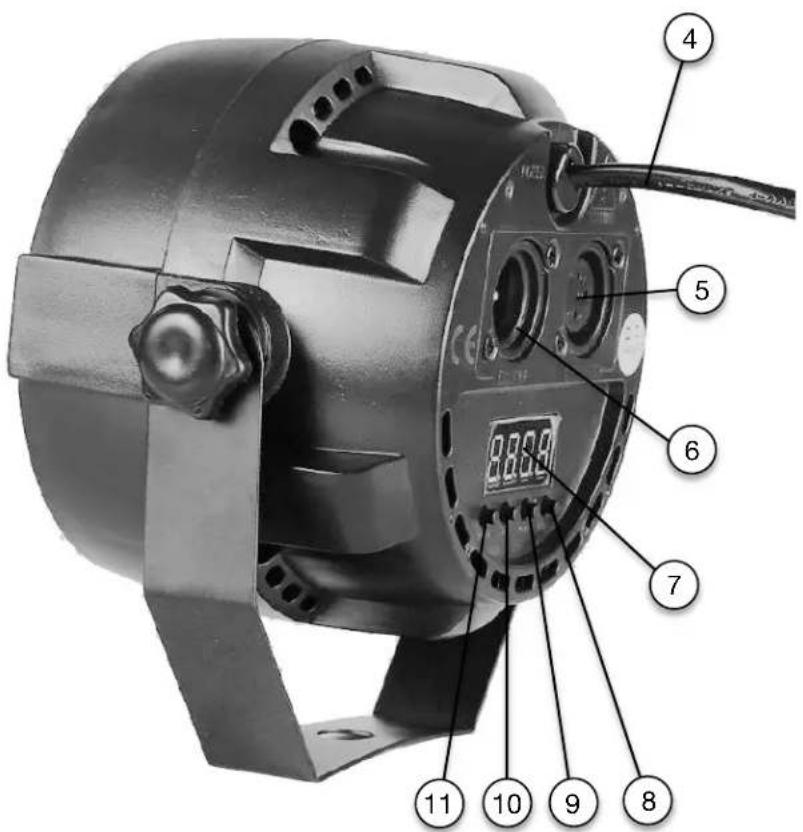

| Display | LED digital display with menu buttons |
| Cooling | Fan cooled |
| Housing Material | Aluminum alloy |
| Safety Certifications | CE, RoHS |
| Maintenance | Clean the housing with a soft, dry cloth. Avoid using solvents or abrasive cleaners. |
| Spare Parts Available | LED modules, power supply unit, fuse |
| Reparability | User-replaceable fuse and LED modules. Contact service for power supply issues. |

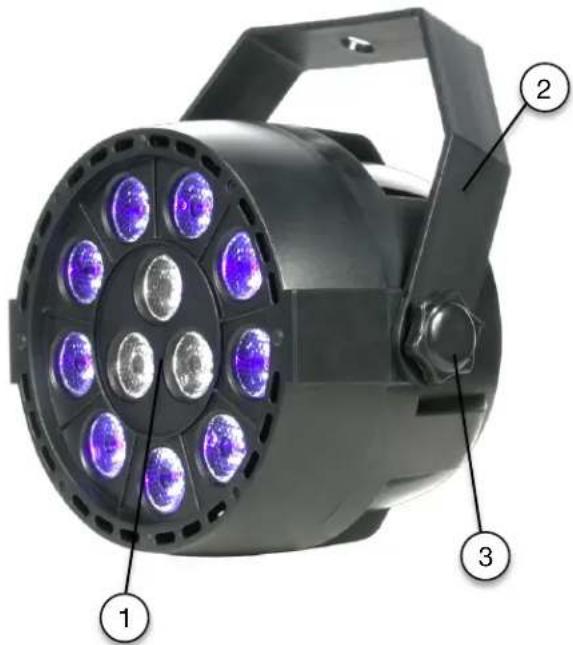

| Included Accessories | Power cord, DMX cable, mounting bracket, user manual |
| Intended Use | Indoor stage and event lighting |
Frequently Asked Questions - Mini Par UVW LED Adj
How do I connect the Mini Par UVW LED to a DMX controller?
Use a standard 3-pin DMX cable to connect the DMX OUT of the controller to the DMX IN of the first fixture. Then daisy chain from DMX OUT of the first fixture to DMX IN of the next. Set the DMX address on each fixture using the display menu.
How do I set the fixture to Master/Slave mode?
On the master fixture, select 'Master' mode in the settings. On slave fixtures, select 'Slave' mode. Connect all fixtures with DMX cables. The master will control the slaves.
What should I do if the fixture does not power on?
Check the power cord connection and ensure the outlet is working. Verify the fuse located near the power input; if blown, replace with a fuse of the same rating (usually T3.15A 250V). If still not working, contact support.
How do I clean the Mini Par UVW LED?
Always disconnect power before cleaning. Use a soft, dry cloth to wipe the housing and lens. Do not use water, solvents, or abrasive cleaners as they may damage the surface.
Can I use this light outdoors?
The Mini Par UVW LED is designed for indoor use only. Exposure to rain, moisture, or extreme temperatures may cause damage and void the warranty.
How does Sound Active mode work?
Select 'Sound Active' mode via the menu. The fixture will react to music or ambient sound through its built-in microphone, changing colors and patterns in sync with the beat. Use the sensitivity adjustment if available.
What is the maximum number of fixtures I can daisy chain?
It depends on the DMX signal quality and cable length, but typically up to 32 fixtures in a single chain is safe. For longer chains, use a DMX splitter.
How do I reset the fixture to factory defaults?
Go to the menu, navigate to 'Reset' or 'Factory Default' option, and confirm. This will reset all settings to original values.
What should I do if some LEDs are not working?
Individual LED failure may occur. First, try a factory reset. If the problem persists, the LED module may need replacement. Contact your dealer for spare parts or service.
How do I replace the fuse?
Disconnect the power. Locate the fuse holder near the power input. Open it and replace the old fuse with a new one of the same type and rating (usually 5x20mm, T3.15A 250V). Ensure the fixture is off before replacing.
