USER MANUAL Inno Pocket Roll Adj

Black and white photo of a laser beam projector with green laser beam and control panel (no visible text or symbols)

User Manual

©2022 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted. Product names used in this document may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. All non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their respective companies.

ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic loss associated with the use or reliance of any information contained within this document, and/or as a result of the improper, unsafe, insufficient and negligent assembly, installation, rigging, and operation of this product.

DOCUMENT VERSION

Due to additional product features and/or enhancements, an updated version of this document may be available online.

Please check www.adj.com for the latest revision/update of this manual before beginning installation and/or programming.

Europe Energy Saving Notice

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the environment. Please turn off all electrical products when they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power when not in use. Thank you!

GENERAL INFORMATION

Unpacking: Thank you for purchasing the Inno Pocket Roll by ADJ Products, LLC. Every device has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to have been damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit have arrived intact. In the event that damage has been found or parts are missing, please contact our toll free customer support number for further instructions. Do not return this unit to your dealer without first contacting customer support.

Introduction: The Inno Pocket Roll is a 6 channel DMX intelligent LED scanner. The Inno Pocket Roll has three operating modes: sound active, show mode, DMX controlled. The Inno Pocket Roll can operate as a stand alone fixture or in a primary/secondary configuration. For best results use fog or special effects smoke to enhance the beams projections.

Customer Support: Contact ADJ Service for any product related service and support needs. Also visit forums.adj.com with questions, comments or suggestions.

Parts: To purchase parts online visit:

http://parts.adj.com (US)

http://www.adjparts.eu (EU)

ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST

Voice: 800-322-6337 | Fax: [phone] | [e-mail]

ADJ SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET

Voice: [phone] | Fax: [phone] | [e-mail]

ADJ PRODUCTS LLC USA

6122 S. Eastern Ave. Los Angeles, CA. 90040

323-582-2650 | Fax [phone] | www.adj.com | [e-mail]

ADJ SUPPLY Europe B.V

Junostraat 2 6468 EW Kerkrade, The Netherlands

[phone] | Fax [phone]

www.americandj.eu | [e-mail]

ADJ PRODUCTS GROUP Mexico

AV Santa Ana 30 Parque Industrial Lerma, Lerma, Mexico 52000

[phone]

CAUTION! To prevent and reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture!

CAUTION! This unit is capable of causing severe eye injury! Always avoid looking directly into the light source!

Do not discard the shipping cartoon in the trash. Please recycle when ever possible.

LIMITED WARRANTY (USA ONLY)

A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of manufacturing defects in material and workmanship for a prescribed period from the date of purchase (see specific warranty period on reverse). This warranty shall be valid only if the product is purchased within the United States of America, including possessions and territories. It is the owner's responsibility to establish the date and place of purchase by acceptable evidence, at the time service is sought.
B. For warranty service, you must obtain a Return Authorization number (RA#) before sending the product back—please contact ADJ Products, LLC Service Department at 800-322-6337. Send the product only to the ADJ Products, LLC factory. All shipping charges must be prepaid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package and packaging material. No accessories should be shipped with the product. If any accessories are shipped with the product, ADJ Products, LLC shall incur no liability whatsoever for loss of or damage to any such accessories, nor for the safe return thereof.
C. This warranty is void if the product serial number and/or labels are altered or removed; if the product is modified in any manner which ADJ Products, LLC concludes, after inspection, affects the reliability of the product; if the product has been repaired or serviced by anyone other than the ADJ Products, LLC factory unless prior written authorization was issued to purchaser by ADJ Products, LLC; if the product is damaged because it was not properly maintained as set forth in the product instructions, guidelines and/or user manual.
D. This is not a service contract, and this warranty does not include maintenance, cleaning, or periodic check-up. During the period specified above, ADJ Products, LLC will replace defective parts at its expense with new or refurbished parts, and will absorb all expenses for warranty service and repair labor by reason of defects in material or workmanship. The sole responsibility of ADJ Products, LLC under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August 15, 2012, and bear identifying marks to that effect.
E. ADJ Products, LLC reserves the right to make changes in design and/or improvements upon its products without any obligation to include these changes in any products theretofore manufactured.
F. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with products described above. Except to the extent prohibited by applicable law, all implied warranties made by ADJ Products, LLC in connection with this product, including warranties of merchantability or fitness, are limited in duration to the warranty period set forth above. And all warranties, whether expressed or implied, including warranties of merchantability or fitness, are limited in duration to the warranty period set forth above. The consumer's and/or dealer's sole remedy shall be such repair or replacement as is expressly provided above; and under no circumstances shall ADJ Product, LLC be liable for any loss and/or damage, direct and/or consequential arising out of the use of, and/or inability to use this product.
G. This warranty is the only written warranty applicable to ADJ Products, LLC products, and supersedes all prior warranties and written descriptions of warranty terms and conditions heretofore published.

MANUFACTURER'S LIMITED WARRANTY PERIODS:

• Non-LED Lighting Products = 1-Year (365 Days) (Including Special Effect Lighting, Intelligent Lighting, UV lighting, Strobes, Fog Machines, Bubble Machines, Mirror Balls, Par Cans, Trussing, Lighting Stands, Power/Data Distribution, etc. excluding LED and lamps)
• Laser Products = 1-Year (365 Days) (excluding laser diodes which have a 6-Month Limited Warranty)
• LED Products = 2-Year (730 Days) (excluding batteries which have a 180 Day Limited Warranty)
• NOTE: 2-Year (730 Days) Limited Warranty ONLY applies to product purchased within the United States. StarTec Series = 1-Year (365 Days) (excluding batteries which have a 180 Day Limited Warranty)
  • ADJ DMX Controllers = 2 Year (730 Days)
  • American Audio Products = 1 Year (365 Days)

WARRANTY REGISTRATION

The Inno Pocket Roll carries a 2 year (730 days) limited warranty. Please fill out the enclosed warranty card to validate your purchase and warranty. You may also register your product online at our web site: www.adj.com. All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number. If the unit is under warranty, you must provide a copy of your proof of purchase invoice. Please contact ADJ customer support for an R.A. number.

GENERAL INSTRUCTIONS

To optimize the performance of this product, please read these operating instructions carefully and familiarize yourself with the basic operations of this unit. These instructions contain important safety information regarding the use and maintenance of this unit. Please keep this manual with the unit for future reference.

FEATURES

• 6 DMX Channels
  • 3 Operating Modes - Sound Active, Show Mode, & DMX Control
• Internal Microphone
  • Digital Display for Address and Function Setting
  • 12 Preprogrammed Shows
  • 8 fixed Gobos/Colors + Spot/White
  • Power Cord Daisy Chain
  • UC IR Compatible (Sold Separately)

HANDLING PRECAUTIONS

Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself, as doing so will void your manufacturer's warranty. In the event your unit requires service, please contact ADJ Products, LLC.

During operation the housing may become extremely hot. Avoid touching the unit with bare hands while in use.

ADJ Products, LLC will not accept any liability for any resulting damages caused by the non-observance of information presented in this manual or any unauthorized modification to this unit.

SAFETY PRECAUTIONS

For your own personal safety, please read and understand this manual completely before attempting to install or operate this device.

• To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture
- Do not spill water or other liquids into or on to your unit.
- Do not attempt to operate this unit if the power cord has been frayed or broken.
- Do not attempt to remove or break off the ground prong from the electrical cord. This prong is used to reduce the risk of electrical shock and fire in the event of an internal short.
- Disconnect from main power before making any type of connection.
- Do not remove the cover for any reason. There are no user serviceable parts inside.
- Never operate this unit with the cover removed.
- Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6" (15cm) between this device and a wall.
- Do not attempt to operate this unit if it has been damaged in any way.
- This unit is intended for indoor use only, and use of this product outdoors voids all warranties.
• Always mount this unit in safe and stable matter.
- Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
- Cleaning - The fixture should be cleaned only as recommended by the manufacturer. See the Cleaning section of this manual for details.
- Heat - This fixture should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
- The fixture should be serviced by qualified service personnel when:

A. Objects have fallen onto, or liquid has been spilled into, the appliance.
B. The appliance has been exposed to rain or water.
C. The appliance does not appear to operate normally or exhibits a marked change in performance.

SET UP

Power Supply: The ADJ Inno Pocket Roll contains an automatic voltage switch, which will automatically sense the voltage when it is plugged into a power source. With this switch, there is no need to worry about the correct power voltage, and this unit can be plugged in anywhere.

DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used by most lighting and controller manufacturers as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA "IN" and DATA "OUT" XLR terminals located on all DMX fixtures (most controllers only have a DATA "OUT" terminal).

DMX Linking: DMX is a language allowing all makes and models of different manufacturers to be linked together and operate from a single controller, as long as all fixtures and the controller are DMX compliant. To ensure proper DMX data transmission, try to use the shortest cable path possible when linking several DMX fixtures. The order in which fixtures are connected in a DMX line does not influence the DMX addressing. For example, a fixture assigned a DMX address of 1 may be placed anywhere in a DMX line: at the beginning, at the end, or anywhere in the middle. Therefore, the first fixture controlled by the controller could be the last fixture in the chain. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain.

Data Cable (DMX Cable) Requirements (For DMX and Primary/Secondary Operation): The Inno Pocket Roll can be controlled via DMX-512 protocol. The Inno Pocket Roll is a 6 channel DMX unit. The DMX address is set electronically using the controls on the front panel of the unit. Your unit and your DMX controller require a approved DMX-512 110 Ohm Data cable for data input and data output (Figure 1). We recommend Accu-Cable DMX cables. If you are making your own cables, be sure to use standard 110-120 Ohm shielded cable (This cable may be purchased at almost all professional sound and lighting stores). Your cables should be made with a male XLR connector at one end and a female XLR connector at the other. Also remember that DMX cable must be daisy chained and cannot be split.

Close-up of two black electronic connectors with metallic pins and wires (no text or symbols visible)

Figure 1

SET UP

Notice: Be sure to follow figures two and three when making your own cables. Do not use the ground lug on the XLR connector. Do not connect the cable's shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR's outer casing. Grounding the shield could cause a short circuit and result in erratic behavior.

Figure 3

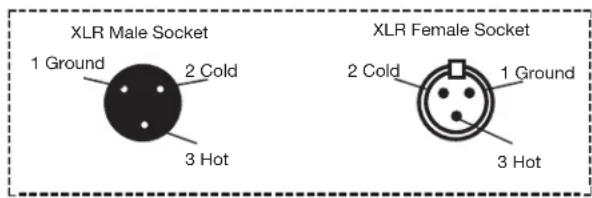

XLR Pin Configuration

Pin 1 = Ground

Pin 2 = Data Compliment (negative)

Pin 3 = Data True (positive)

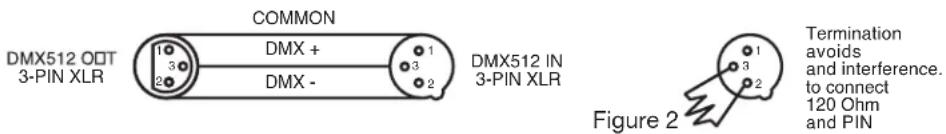

Special Note: Line Termination. When longer runs of cable are used, you may need to use a terminator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is connected between pins 2 and 3 of a male XLR connector (DATA+ and DATA-). This unit is inserted in the female XLR connector of the last unit is your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the possibility of erratic behavior.

Termination reduces signal errors and avoids signal transmission problems and interference. It is always advisable to connect a DMX terminal, (Resistance 120 Ohm 1/4 W) between PIN 2 (DMX-) and PIN 3 (DMX +) of the last fixture.

Figure 4
5-Pin XLR DMX Connectors. Some manufacturers use 5-pin DMX-512 data cables for DATA transmission in place of 3-pin. 5-pin DMX fixtures may be implemented in a 3-pin DMX line by using a cable adaptor. These adaptors are readily available at most electric stores. The chart below details a proper cable conversion.

3-Pin XLR to 5-Pin XLR Conversion
Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)
Ground/Shield	Pin 1	Pin 1
Data Compliment (- signal)	Pin 2	Pin 2
Data True (+ signal)	Pin 3	Pin 3
Not Used		Pin 4 - Do Not Use
Not Used		Pin 5 - Do Not Use

SYSTEM MENU

Addr 1 - 512 Set	DMX address
PISD	PRI Set unit as primary
	SEC1 Set unit as secondary, with matching movement
	SEC2 Set unit as secondary, with contrasting movement
ShNd Sh 0 - Sh 1	2 Select show; note that “Sh 0” selects a random show
SoUn On / Off Sound Mode
SEnS 0 - 100		Sound Sensitivity; 0 is least sensitive, 100 is most sensitive
dINd	StdA Dimmer Mode - Standard
	StGe Dimmer Mode - Stage
	tv Dimmer Mode - TV
	ArAL Dimmer Mode - Architectural
	thAL Dimmer Mode - Theatre
bLNd Yes / No Activate or deactivate blackout mode
LED On / Off		Enable or disable the feature that automatically turns off the LED display after 10 seconds on inactivity
dISP	dISP Display orientation - normal
	dSIP Display orientation - inverted
PAn	Yes / No Enable or disable pan inversion
tESt		Run automatic test
tENP		Display fixture temperature
FhrS		Display fixture run hours
vEr		Display software version
rSEt		Reset unit to factory default

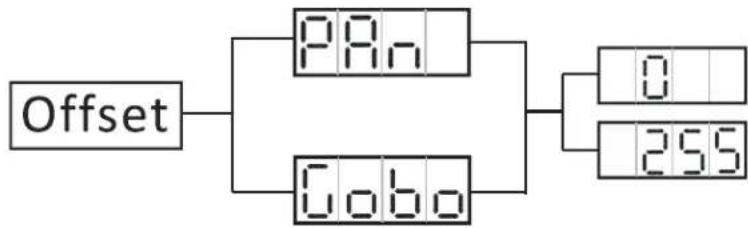

OFFSET ADJUSTMENT MENU

To enter the offset adjustment submenu, press and hold the ENTER button for 5 seconds. In this sub-menu you are able to adjust the pan home position and gobo wheel position.

PAN - Adjustment of the pan position.

1. Press and hold the ENTER button for at least 5 seconds, then press the UP or DOWN buttons so that "PAN" is displayed. Press ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and then press ENTER to confirm. Press and hold the MENU button for one second to exit.

GOBO - Adjustment of the gobo position.

1. Press and hold the ENTER button for at least 5 seconds, then press the UP or DOWN buttons so that "GOBO" is displayed. Press ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and then press ENTER to confirm. Press and hold the MENU button for one second to exit.

OPERATION

Operating Modes: This device features three different operating modes. In each mode, you can run the fixture as a stand alone fixture or in a primary/secondary configuration. This next section will detail the differences in the operating modes.

• Sound Active mode - The fixture will react to sound, chasing through the built-in programs.
  • Show mode - The fixture will run one of 12 shows.
• DMX control mode - This function will allow you to control each individual trait by using a standard DMX-512 controller.

Universal DMX Control: This function allows you to use a universal DMX-512 controller to control the chases and patterns, dimmer and strobe. A DMX controller allows you to create unique programs tailored to your individual needs.

1. This device has 6 DMX Channels. See the DMX Traits section of this manual for detailed information.
2. To control your fixture in DMX mode, follow the set-up procedures described in the Set Up section of this manual, as well as the set-up guidelines that are included with your DMX controller. For longer cable runs (more than 100 feet), use a terminator on the last fixture.
3. Set the DMX address of the device. Refer to the System Menu section of this manual for guidance.
4. You should now be able to control the fixture's DMX traits by using the DMX controller. For help with oeprating in DMX mode, consult the manual included with your DMX controller.

Sound Active Mode: This mode allows either a single unit or several units linked together to run to the beat of the music.

1. Press the MENU button until "SOUN" is displayed, then press ENTER. Press the UP or DOWN buttons to scroll to "ON" and press ENTER.
2. To adjust the sound sensitivity level, press the MENU button until "SENS" is displayed, and press ENTER. Use the UP or DOWN buttons to adjust the sensitivity level, "0" being least sensitive, "100" being the most sensitive. Press ENTER to set your level.

Show Mode: This mode allows either a single unit or several units linked together to run one of 12 shows that you choose. Show mode can run with or without sound active mode.

1. Press the MENU button until "SHND" is displayed, then press ENTER.
2. Press the UP or DOWN buttons until you find your desired show, then press ENTER.
3. Press and hold the MENU button for at least 3 seconds to activate. After you have set your desired show, it can be changed at any time using the UP or DOWN buttons.

UC IR REMOTE CONTROL

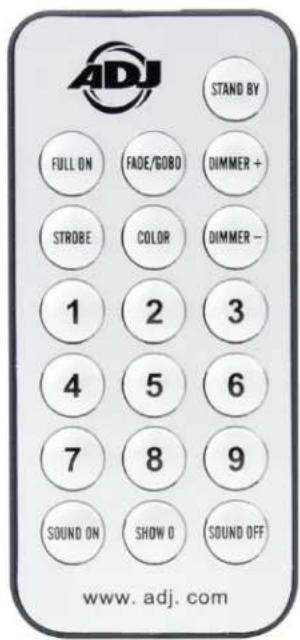

The UC IR infrared remote gives you control of various device functions, as described below. To control the device, you must aim the remote at the front of the fixture. Maximum effective range is 30 feet.

STAND BY - Press this button to blackout the fixture.

FULL ON - Hold this button down to fully light up the unit. The unit will return to its previous state when the button is released.

FADE/GOBO - Press this button to enter Gobo mode. Use the 1-9 buttons to select your desired gobo. Adjust the output intensity using the "DIMMER +" and "DIMMER -" buttons.

“DIMMER +” and “DIMMER -” - Use these buttons to adjust the output intensity, or to adjust the strobe speed.

STROBE - Press and hold this button to activate the strobe effect.

COLOR - This button has no defined function for this device.

1-9 - In Gobo mode, Color mode, or Show mode, these buttons will allow you to select a particular gobo, color, or show, respectively.

SOUND ON & OFF - These buttons activate and deactivate the sound active mode.

SHOW - This activates the show mode. Use buttons 1-9 to select your desired show.

NOTE: The unit can only be controlled when it has been set to Primary mode. The unit will NOT respond to commands when it has been set to Secondary mode.

UC IR REMOTE CONTROL

WIRELESS SETUP

There are many factors that can affect and/or interrupt a wireless signal, including walls, glass, metal, objects, and people. Therefore, the following guidelines are recommended in order to maximize the chances of having a clear path for the wireless signal to reach the device:

• Install the device a minimum of 9.8 ft (3m) above audiences and/or ground level.
- Arrange the wireless antenna in an upright, vertical position.
- Position devices in direct line of sight of the transmitting controller.

Careful planning and testing of the selected installation location is critical to ensure optimum and reliable wireless operation.

PRIMARY-SECONDARY SET UP

This function will allow you to link up to 16 units together and operate without a controller. The units will be sound activated. In a Primary-Secondary set up, one unit will act as the controlling unit, and the others will react to the controlling unit's programs. Any unit can act as a Primary or as a Secondary.

1. Using approved DMX data cables, daisy chain your units together via the XLR connectors on the rear panel of each unit. Remember that the male XLR connector is the input and the female XLR connector is the output. The first unit in the chain (primary) will use the female XLR connector only, and the last unit in the chain will use the male XLR connector only. For longer cable runs we suggest a terminator at the last fixture.
2. Set the primary unit to your desired operating mode.
3. On the secondary units tap the MENU button until "PISD" is displayed, then press ENTER. Choose either "SEC1" or "SEC2" and press ENTER.
4. The secondary units will now follow the primary unit.

POWER CORD DAISY CHAIN

This feature allows the user to connect the fixtures to one another using the IEC input and output sockets.

The maximum quantity that can be connected in this manner is as follows:

• 19 fixtures maximum for 120V
• 35 fixtures maximum for 240V

After the maximum fixtures has been reached you will need to use a new power outlet to accommodate any additional fixtures.

Linked fixtures should all be of the same make and model type. DO NOT mix fixtures.

DMX TRAITS

CHANNEL DMX VALUES FUNCTION
1 000 -	255 Pan
2		Tilt
	000 - 009 Stop
	010 - 120 Clockwise Roll, slow to fast
	121 - 134 Stop
	135 - 245 Counter-Clockwise Roll, slow to fast
	246 - 255 Stop
3		Strobe
	000 - 007 Blackout
	008 - 015 Open
	016 - 131 Strobing, slow to fast
	132 - 139 Open
	140 - 181 Slow Open, Fast Close
	182 - 189 Open
	190 - 231 Fast Open, Slow Close
	232 - 239 Open
	240 - 247 Random Strobe
	248 - 255 Open
4		Color Wheel
	000 - 007 Open
	008 - 014 Gobo 1 - Yellow
	015 - 021 Gobo 2 - Red
	022 - 028 Gobo 3 - Green
	029 - 035 Gobo 4 - Blue
	036 - 042 Gobo 5 - RGB
	043 - 049 Gobo 6 - UV
	050 - 056 Gobo 7 - Light Blue
	057 - 063 Gobo 8 - UV and Light Blue
	064 - 071 Open Shake
	072 - 078 Gobo 1 Shake
	079 - 085 Gobo 2 Shake
	086 - 092 Gobo 3 Shake
	093 - 099 Gobo 4 Shake
	100 - 106 Gobo 5 Shake
	107 - 113 Gobo 6 Shake
	114 - 120 Gobo 7 Shake
	121 - 127 Gobo 8 Shake
	128 - 255 Gobo Wheel Rotation, slow to fast
CONTINUED ON NEXT PAGE

DMX TRAITS

CHANNEL DMX VALUES FUNCTION
5 000 -	255 Master Dimmer, 0% to 100%
6		Dimmer Mode
	000 - 020 Standard
	021 - 040 Stage
	041 - 060 TV
	061 - 080 Architectural
	081 - 100 Theatre
	101 - 255 Default Dimmer Setting

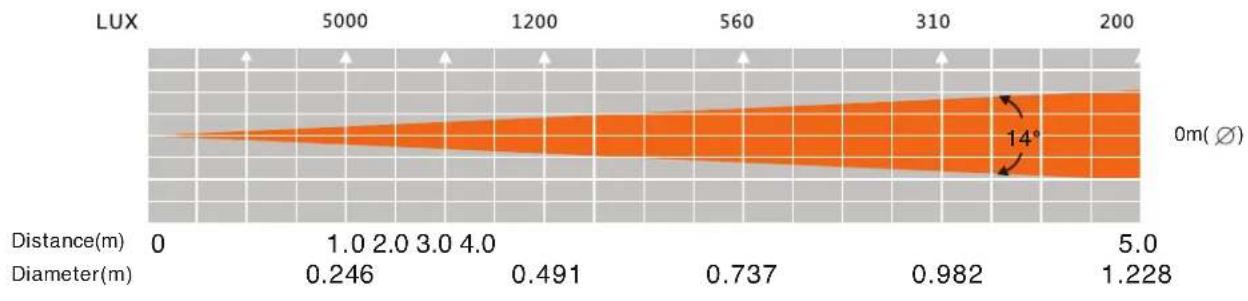

PHOTOMETRIC CHART

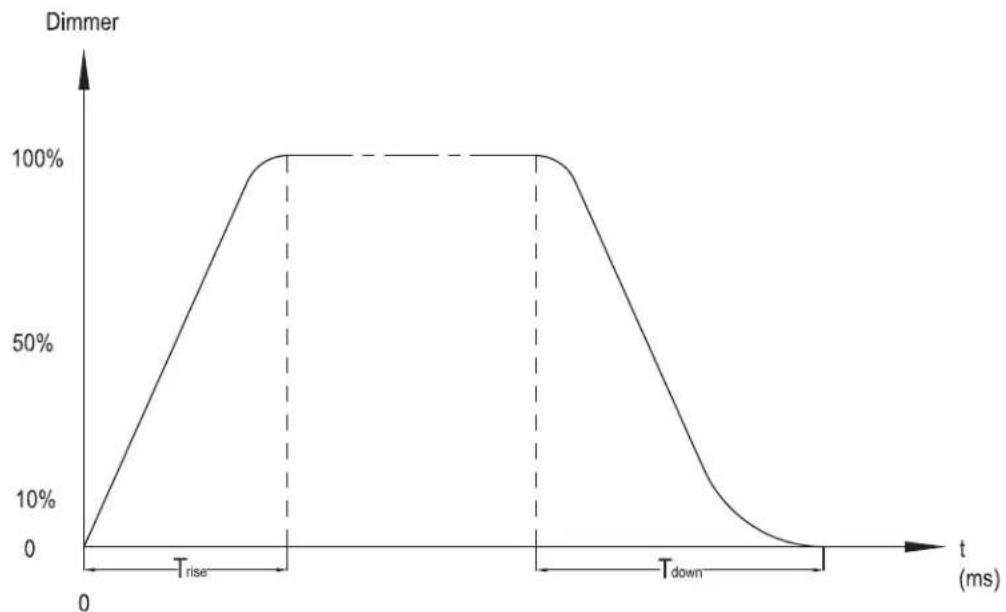

DIMMER CURVE CHART

Ramp Effect	0 ^255 OS (Fade Time) (Fade Time) 0 ^255 1S
	T_rise (ms)	T_down (ms)	T_rise (ms)	T_down (ms)
Standard	0	0	0	0
Stage	780	1100	1540	1660
TV	1180	1520	1860	1940
Architectural	1380	1730	2040	2120
Theatre	1580	1940	2230	2280

FUSE REPLACEMENT

The fuse holder is located at the rear of unit, next to the power cord. Use a phillips head screwdriver to remove the fuse holder, then remove the used fuse and replace with a new fuse of the same rating. Insert the fuse holder and fuse into the unit and secure the fuse holder in place.

CLEANING

Due to fog residue, smoke, and dust, cleaning of the internal and external optical lenses and mirror should be carried out periodically in order to optimize light output. Cleaning frequency depends on the environment in which the fixture operates (i.e. smoke, fog residue, dust, dew). In heavy club use, we recommend cleaning on a monthly basis. Periodic cleaning will ensure longevity and crisp output.

1. Use normal glass cleaner and a soft cloth to wipe down the outside casing.
2. Use a brush to wipe down the cooling vents and fan grill.
3. Clean the external optics with glass cleaner and a soft cloth every 20 days.
4. Clean the internal optics with glass cleaner and a soft cloth every 30-60 days.
5. Always be sure to dry all parts completely before plugging the unit back in.

TROUBLE SHOOTING

Listed below are a few common problems that you may encounter, with potential solutions.

No light output from the unit:

• Be sure the external fuse has not blown. The fuse is located on the rear of the unit.
• Be sure the fuse holder is completely and properly seated.

Unit does not respond to sound:

Low frequencies (bass) should cause the unit to react to sound. Tapping on the microphone, or quiet or high pitched sounds, may not activate the unit.

SPECIFICATIONS

Model: Inno Pocket Roll

Voltage: 100V \~ 240V / 50\~60 Hz

LED: 1 x 12W LED

Power Consumption: 36W

Power Cord Daisy Chain: 19 fixtures max (120V) 35 fixtures max (230V)

Dimensions: 13" (L) x 5.25" (W) x 6.5" (H) 329mm x 132mm x 165mm

Weight: 6 Lbs / 2.6 Kgs

Beam Angle: 14 Degrees

Fuse: 3.15 Amps

Duty Cycle: None

DMX: 6 DMX Channels

Gobos/Colors: 8 Fixed Gobos/Colors + Spot/White

Sound Active: Yes

Working Position: Any Safe, Secure Position

Warranty: 2 Years (730 Days)

Intertek

4000358

Auto Sensing Voltage: This fixture contains an automatic voltage switch, which will automatically sense the voltage when it is plugged into a power source.

Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice.

Follow Us!

Facebook.com/adjlighting YouTube.com/adjlighting

Twitter.com/adjlighting Instagram: adj_lighting

ADJ Products, LLC

6122 S. Eastern Ave. Los Angeles, CA 90040 USA

Tel: [phone] / Fax: [phone]

Web: www.adj.com / E-mail: [e-mail]

A.D.J. Supply Europe B.V.

Junostraat 2

6468 EW Kerkrade

The Netherlands

[e-mail] / www.americandj.eu

Tel: [phone] / Fax: [phone]
