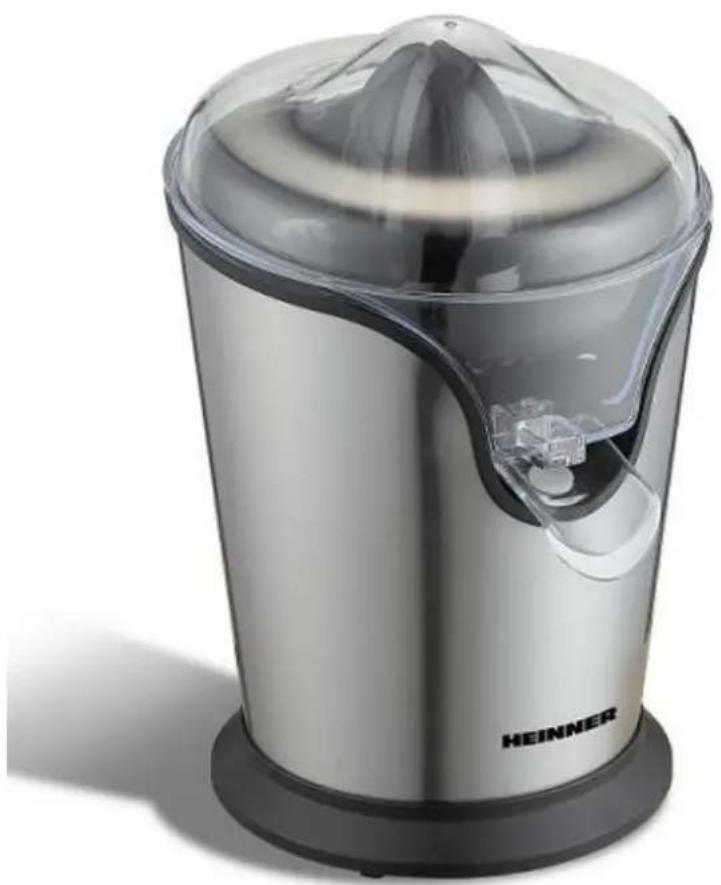

C850S - Juicer Heinner - Free user manual and instructions

Product Type	Citrus Juicer
Brand	Heinner
Model	C850S
Power	85 W
Voltage	220-240 V
Frequency	50/60 Hz
Color	Stainless steel
Body Material	Stainless steel and plastic
Package Contents	Juicer base, juice container, strainer, cones (2 sizes), transparent dust cover, instruction manual, warranty card
Juicing Method	Automatic start when fruit is pressed; stops when pressure is released
Spout Design	Adjustable spout for direct juice flow or collection in container
Overload Protection	Motor seizes if excessive pressure is applied to prevent damage
Dishwasher Safe Parts	Cones, strainer, juice container
Cord Storage	Underneath the juicer
Safety Features	Automatic shut-off, non-slip feet, cord storage, overheat protection (via seizing)
Care and Cleaning	Wipe motor base with damp cloth; wash removable parts in warm soapy water or dishwasher; clean spout after each use
Usage Surface	Level, easy-to-clean surface resistant to juice splashes
Certifications	CE compliant

Frequently Asked Questions - C850S Heinner

How do I turn on the Heinner C850S juicer?

Simply cut a citrus fruit in half and press the cut end onto the cone. The juicer automatically starts when pressure is applied and stops when you release the pressure.

What is the power rating of the Heinner C850S?

The juicer has a power rating of 85 W at 220-240 V, 50/60 Hz.

Can I put the parts in the dishwasher?

Yes, the cones, strainer, and juice container are dishwasher safe. The motor base should be wiped with a damp cloth only.

Why did the motor stop while juicing?

The motor may stop if too much pressure is applied to the cone. This is a safety feature to prevent overheating. Reduce pressure to resume operation.

How do I prevent juice from dripping when the spout is closed?

After each use, clean the spout to remove any pulp buildup. Residual pulp can cause dripping even when the spout is closed.

What fruits can I juice with this appliance?

The Heinner C850S is designed for citrus fruits such as oranges, lemons, limes, and grapefruits.

Is the cord long enough?

The cord is stored underneath the juicer and can be unwound to your desired length. The exact length is not specified but is typically around 1 meter.

How do I clean the motor base?

Unplug the appliance and wipe the motor base with a damp cloth. Never immerse it in water or any other liquid to avoid electric shock.

What should I do if the juicer is not working?

Check that the power cord is properly plugged into a working outlet. If the motor still doesn't start, contact authorized service.

Is the Heinner C850S safe for children to use?

This appliance is not intended for use by children without supervision. Keep out of reach of children and ensure they do not play with it.

USER MANUAL C850S Heinner

Exterior view of a modern HEINNER brand blender with clear lid and small accessories (no text or symbols on body)

• Storcator de citrice
  • 85W, 220-240V, 50/60 Hz
• Culoare: Inox

Copyright © 2013 Network One Distribution. All rights reserved.

http://www.heinner.com, http://www.nod.ro

Exterior view of a modern HEINNER brand juice maker with clear lid and glass casing (no text or symbols on device body)

• Citrus juicer 85W
  • 220-240V, 50/60 Hz
  • Color: Stainless steel

Thank you for choosing this product!

I. INTRODUCTION

Please read this instruction manual carefully before using it and keep it for later information. This manual is conceived for offering you all of the necessary info regarding installation, using and maintenance of the machine. For a correctly and safely use of the machine, please, read this manual before installation and using.

II. PACKAGE CONTENTS

Citrus juicer
➢ Instruction Manual
Warranty card

III. SAFETY REGULATIONS

Please read this instruction manual carefully before using it and keep it for later information;

1. Remove the mains plug from the wall socket outlet if a disturbance occurs.

2. If the citrus juicer is out of use for long period of time, please clean the citrus juicer by removing and inserting the pressing cone and please take care that you always have to pull the plug not the cord before the cleaning.

3. Please pay attention to whether any material damage.

4. If you apply too much pressure to the cone while juicing the motor may seize.

5. Keep the connection for placing the juicer.

6. Place the citrus juicer on a level surface that will not be harmed by splashes of juice as splashing cannot always be avoided. The surface should be easy to clean.

7. Do not put the juicer on hot surfaces or hot places, such as hotplates or near naked flames.

8. Do not fix the rubber feet to sensitive surfaces. Some paints or synthetic coating may react adversely with the material of the feet and may soften them. This could cause them to leave marks.

9. Never use abrasive or caustic cleaning products, as these may damage the surfaces

10. To protect against electrical shock, please do not immerse cord, plug or appliance itself in water or other liquids.

11. This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

12. Unplug from outlet when not in use and before cleaning .Allow to cool before putting on or taking off parts.

13. Do not operate any appliance with a damaged cord or plug or after the appliance malfunction or has been damaged in any manners. Return the appliance to the nearest authorized service facility for examination, repair or adjustment.

14. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

15. Do not store any materials other than manufacturers recommended accessories in this unit when not in use.

16. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Danger: Keep the packaging material away from children. They could suffocate.

• Unpack the citrus juicer and remove all of the packaging.
• Examine the juicer for visible damage and check that all of the parts are present.
• You should clean the appliance before using it for the first time.
• Wipe the motor base with a damp cloth.
• Before using the juicer for the first time, rinse the cones, strainer, juice container and transparent dust lid with warm water and a few drops of washing liquid.

V. USING THE APPLIANCE

Setting up the juicer:

1. Stand the appliance on an even surface that is easy to clean.
2. Unwind the power cord – to the length you require – from the cord storage compartment (underneath the juicer). Make sure that the cord is in a good condition before usage.
3. Connect the mains plug to a AC230V, 50Hz socket outlet.

Juicing:

Caution: if you apply too much pressure to the juicing cone, the motor may seize.

1. Remove the cover.
2. Fit the appropriate cone onto the drive shaft.

3. The juice appropriate cone onto the drive shaft:
   a. If you wish to collect the juice in the container, press the spout upwards to close it.
   b. If you want the juice to run straight into a glass, press the spout downwards to open it and place a cup, or any other kind of container under it.

4. Cut a citrus fruit in half and press the cut end of one fruit half onto the cone. The juicer switches on automatically when you press the fruit down and the cone starts to turn. The juicer automatically switches off as soon as you reduce pressure on the cone. The cone scrapes the pulp out and squeezes the juice from the fruit. The juice flows through the strainer into the juice container from where it can run into a glass (the spout must be open). The strainer keeps back thick pulp and seeds.

5. To maximize the quantity of juice extracted from a fruit, press a fruit onto the cone several times.

Cleaning:

Danger:

1. Unplug the citrus juicer before you clean it.
2. The motor base must not be immersed in water or other liquids or held under running water as this could give you an electric shock.
3. The juicing cones, strainer and juice container can be clean by the dishwasher.
4. Wipe the motor base with a damp cloth.
5. If you use the spout on the juice container frequently, pulp may build up in the spout. Therefore clean the spout after each use

After use:

1. Unplug the appliance;
2. Remove cone, strainer, juice container and drive shaft from the appliance and clean them.

VI. TROUBLESHOOTING

Troubleshooting:

- Motor won't start:

Check if the mains plug is connected properly to the socket outlet.

• Motor stops running while juicing:

Check if the pressure you apply on the cone is too much.

• Although the spout is closed, juice still drips out:

Check if there are any bits of pulp left in the spout

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to
