Product Type	Chest Freezer
Brand	Hanseatic
Model	HGT128A
Dimensions (H x W x D)	850 mm x 1285 mm x 696 mm
Weight (unloaded)	77 kg
Power Consumption	170 W
Voltage / Frequency	220-240 V ~ / 50 Hz
Rated Current	1.1 A
Protection Class	I
Refrigerant	R600a (82 g)
Foaming Agent	Cyclopentane
Climate Class	SN, N, ST, T (10 °C to 43 °C)
Temperature Control	Adjustable from 1 (warmest) to 6 (coldest)
Interior Light	Yes
Alarm Light	Yes (indicates temperature rise)
Number of Freezer Baskets	6
Defrost Drain	Yes
Plastic Scraper Included	Yes
Door Seal Replacement	Available for 10 years
Spare Parts Availability	Minimum 7 years after model discontinuation

Frequently Asked Questions - HGT128A Hanseatic

How do I set the temperature on the Hanseatic HGT128A freezer?

Turn the temperature controller (located near the control panel) between settings 1 (warmest) and 6 (coldest). For normal use, set to 4. Adjust based on ambient temperature and load. The ideal storage temperature is -18 °C.

What does the alarm light indicate?

The alarm light (labeled Alarm) illuminates when the internal temperature rises above the set level. This can happen after start-up, defrosting, cleaning, prolonged power failure, or storing a large amount of fresh food. It turns off automatically once the set temperature is reached.

How do I defrost the chest freezer?

Defrost when ice buildup exceeds 5 mm. Turn the temperature controller to OFF, unplug the freezer, and remove food. Place a bowl under the defrost drain inside, unscrew the cap, and let water drain. You can place a bowl of hot (not boiling) water inside to speed up the process. Use the plastic scraper to remove stubborn ice. Clean with warm rinsing water and dry thoroughly before restarting.

Can I freeze fresh food immediately?

Yes, but for best results, set the temperature controller to 6 a few hours beforehand to create a cold reserve. Place fresh food in the freezer, avoiding contact with already frozen items. The maximum freezing capacity is indicated on the type plate. After 12 hours, the food is frozen to the core.

What should I do during a power failure?

Keep the lid closed as much as possible. The storage time in case of failure is listed on the type plate. If the power outage is prolonged, remove frozen food and store it in a sufficiently cool place or another freezer. After power resumes, check if food is still edible; do not refreeze thawed items.

How do I clean the exterior and interior?

Unplug the freezer before cleaning. For the exterior, use a soft cloth with mild soapy water and wipe dry. For the interior, clean with warm rinsing water only – do not use harsh, abrasive, or solvent-based cleaners. The door seal can be cleaned with clean water. Ensure everything is dry before plugging back in.

What are the safety precautions for children?

Children aged 8 years and above can use the appliance under supervision. Children from 3 to 8 years may load and unload frozen food. Do not allow children to play with the packaging or appliance. When disposing, ensure the lid cannot trap a child – remove the lid or secure it.

Can I store aerosols or explosive substances?

No. Do not store explosive substances such as aerosol cans with flammable propellants, as they can form ignitable gas-air mixtures. Also avoid storing fizzy drinks or glass containers of liquid, as they may burst when frozen.

What is the minimum room size for installation?

The installation room must have a minimum size of 10.25 m³ to prevent flammable gas buildup in case of refrigerant leak. Also, leave at least 15 cm clearance from walls and other appliances for proper air circulation.

How do I obtain spare parts or service?

Spare parts are available for a minimum of 7 years after the model is discontinued; door seals for 10 years. Contact the customer service centre of your mail-order company. For Germany, visit https://reparaturauftrag.operatec.eu or call [phone]. Have your invoice ready with the order number.

USER MANUAL HGT128A Hanseatic

Line drawing of a front-loading refrigerator with control panel (no text or symbols)

Gebrauchsanleitung

Anleitung/Version:

2301-00731_DE_20230801

Bestell-Nr.:

94011416, 13828027,

82499932

Line drawing of a front-loading refrigerator with control panel and door (no text or symbols)

Pure mechanical diagram showing a component inserted into a housing with connecting rods (no text or symbols)

Line drawing of a front-loading refrigerator with control buttons (no text or symbols)

User manual

Manual/version:

2301-00731_EN_20230801

Order no.:

94011416, 13828027,

82499932

Reproduction, even of

excerpts, is not permitted!

Chest freezer

Table of contents

Please read through the safety instructions and user manual carefully before using the appliance. This is the only way you can use all the functions reliably. Be sure to also observe the national regulations in your country, which are valid in addition to the regulations specified in this user manual.

Keep all safety notices and instructions for future reference. Pass all safety notices and instructions on to the subsequent user of the product.

Information on installation and start-up can be found from page EN-19.

Explanation of terms and symbols,

definitions EN-3

Explanation of terms ..... EN-3

Explanation of symbols ..... EN-3

Definitions ...... EN-3

Safety EN-4

Intended use..... EN-4

Safety notices ...... EN-4

Delivery.... EN-10

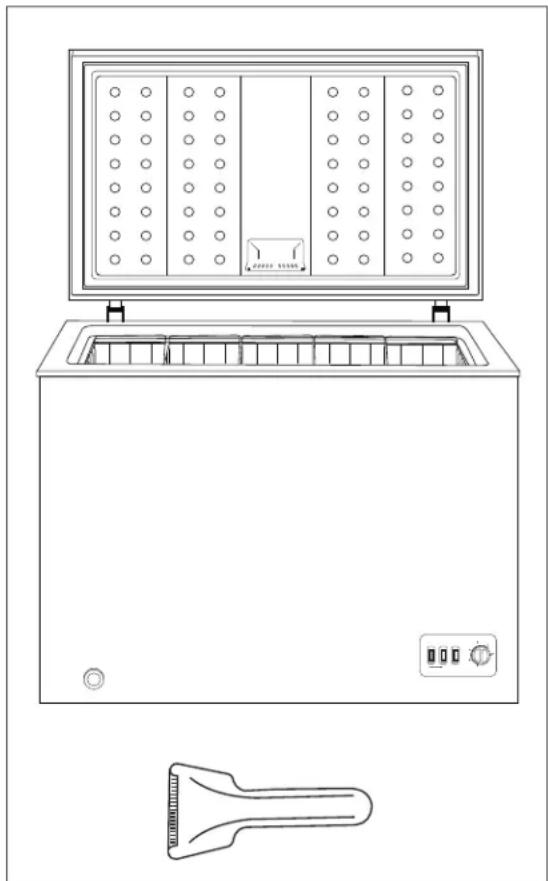

Package contents ..... EN-10

Check the delivery ..... EN-10

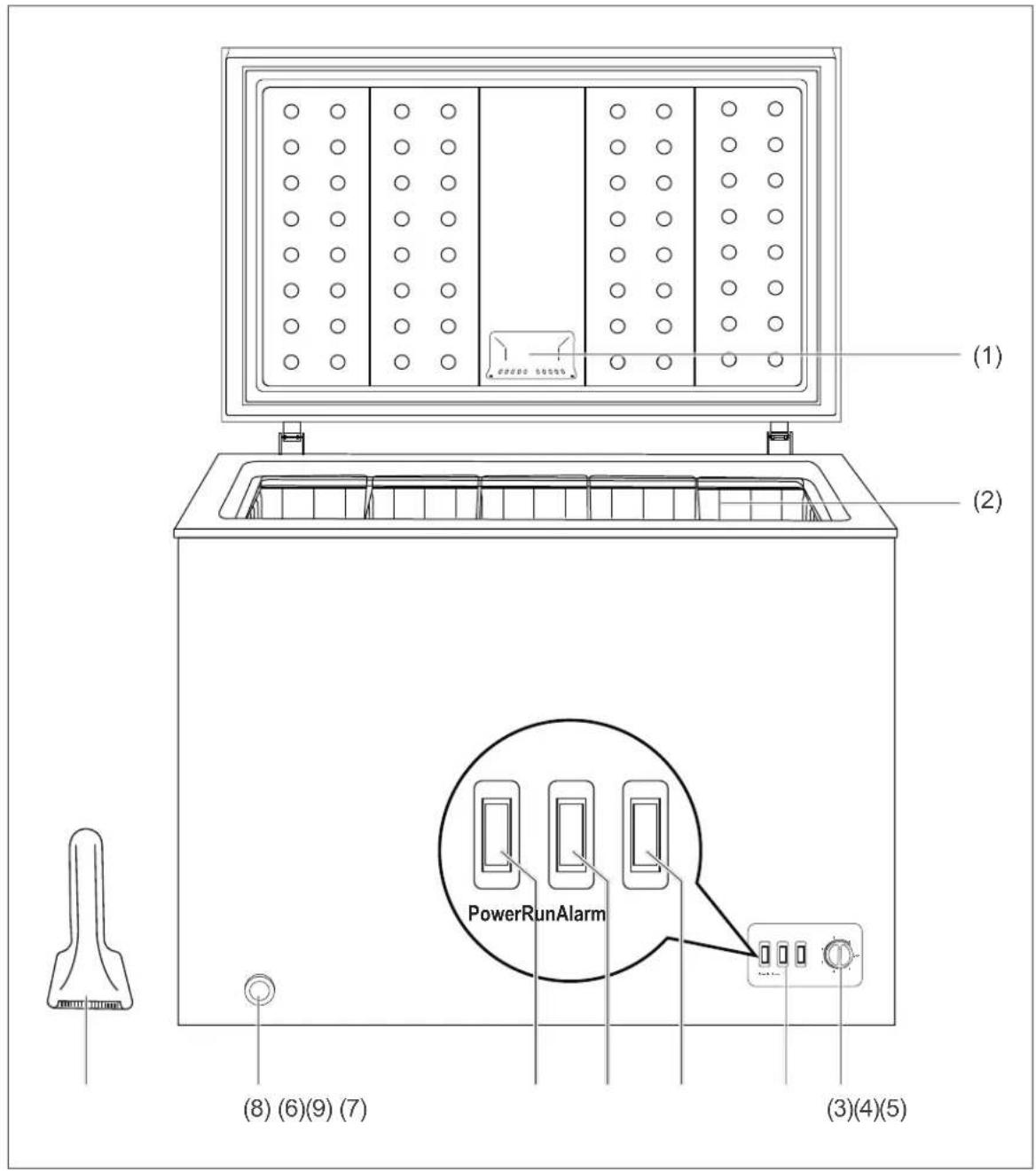

Appliance parts/control elements . . . .EN-11

Operation ...... EN-12

Requirements...... EN-12

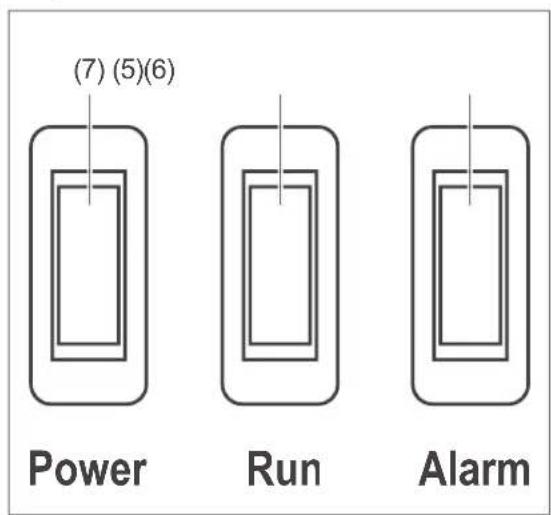

Operating displays ..... EN-12

Switching on and off ..... EN-12

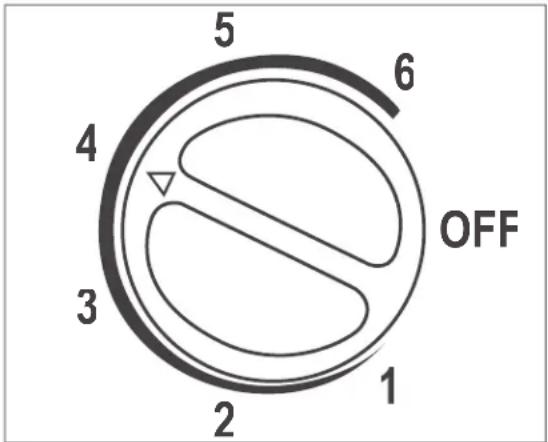

Temperature control ..... EN-13

Freezing foods, storing frozen foods EN-14

Freezing food ..... EN-15

Maximum freezing capacity ..... EN-15

Tips for freezing ..... EN-15

Care and maintenance ..... EN-16

Check and clean the cover seals..EN-16

Cleaning the exterior ..... EN-16

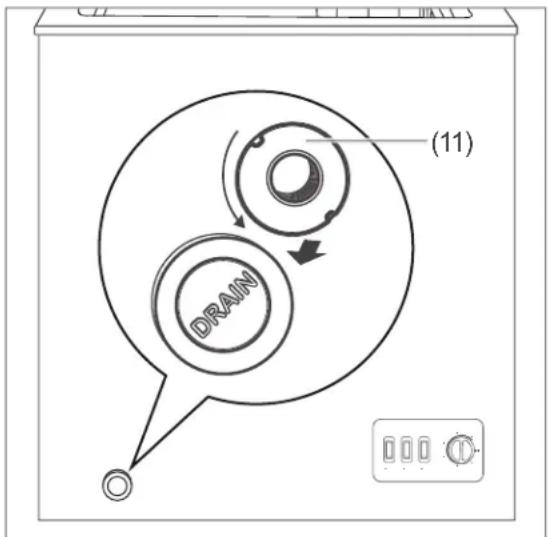

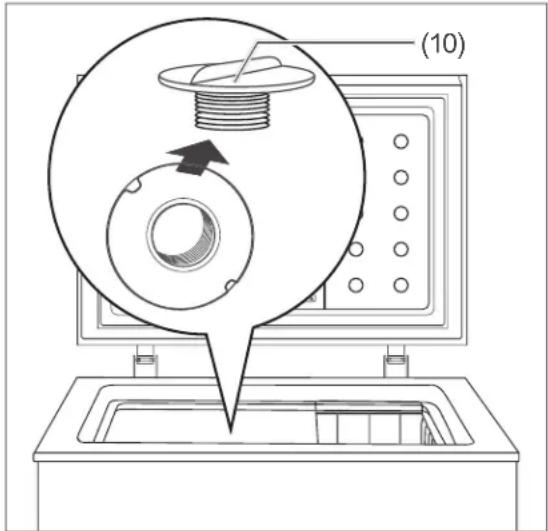

Defrosting and cleaning the chest freezer.... EN-17

Start-up EN-19

Moving and unpacking..... EN-20

Choosing a suitable location ..... EN-20

About climate categories ..... EN-21

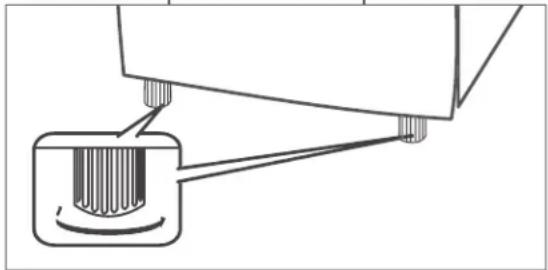

Set up the chest freezer and align. EN-22

Connecting the chest freezer..... EN-22

Troubleshooting table ..... EN-23

Service EN-25

Advice, complaints and orders .... EN-25

Repairs and spare parts ..... EN-25

Waste prevention, free return and

disposal...... EN-26

Waste prevention EN-26

Free return of old electrical appliances ...... EN-26

Disposal EN-26

Packaging ..... EN-27

Appendix EN-28

Product fiche concerning Regulation (EU) No. 2019/2016 . . . EN-28 Technical specifications . . . . . . . EN-28

Explanation of terms and symbols, definitions

Explanation of terms

The following symbols can be found in this user manual.

WARNING

This symbol indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.

CAUTION

This symbol indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTICE

This symbol warns against possible damage to property.

Explanation of symbols

The following symbols can be found in this user manual and/or on the appliance:

This symbol refers to useful additional information.

Caution: Fire hazard/flammable materials!

'4 star' symbol: Freezer at -18^ or colder

Definitions

'Food' refers to foods, ingredients and drinks including wine and other things mainly intended for consumption, which require refrigeration at certain temperatures.

'Food to be frozen' means fresh, room-temperature food to be frozen throughout as quickly as possible – for best results 'flash-frozen'.

‘Deep-frozen food’ means food which has already been frozen and for which the cool chain should not be broken.

Safety

Intendeduse

The purpose of this appliance is to

– store ordinary commercially available deep-frozen food,
– freeze fresh food from room temperature and
- make ice cubes.

This appliance is designed for use at ambient temperatures of +10°C to +43 °C.

The appliance is designed for use in private households and is not designed for commercial use or multiple use (e.g.: use by several parties in a block of flats).

The appliance is not suitable for storing blood reserves, medical products, laboratory samples, etc.

This cooling appliance is not designed for use as a built-in appliance.

Persons who are unable to operate the appliance safely due to their physical, sensory or mental abilities or lack of knowledge must be supervised during use.

Do not make any technical changes to the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Use the appliance exclusively as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury. The manufacturer accepts no liability for damage caused by improper use.

Safety notices

In this chapter you will find general safety notices which you must always observe for your own protection and that of third parties. Please also observe the warning notices in the individual chapters.

Risks to children and certain groups of individuals

WARNING

Risk of suffocation for children!

Children can become entangled in the packaging fi lm or swallow small parts and suffocate.

■ Do not allow children to play with the packaging fi lm.
■ Prevent children from pulling small parts off the appliance or putting them in their mouths.
■ When disposing of the appliance, ensure that children cannot suffocate inside the appliance (e.g. do not remove the fridge and freezer drawers, unscrew the appliance door/cover).

CAUTION

Risk of injury!

Children and certain groups of people have a higher risk of being injured when handling the appliance.

■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

■ Children from 3 to 8 years are allowed to load and unload refrigerating appliances.
■ Children shall not play with the appliance.
■ Cleaning and user maintenance shall not be made by children without supervision.

Risks when handling household electrical appliances

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Only use the appliance indoors. Do not use in wet rooms or in the rain.
■ Do not operate or continue to use the appliance, if it
– shows visible signs of damage, e.g. the mains cable is defective,
- starts smoking or there is a smell of burning,
- makes unfamiliar noises.

In such cases, remove the mains plug from the socket or unscrew/isolate the fuse and contact our service department "Service" on page EN-25.

■ The appliance corresponds to protection class I and may only be connected to a socket with a protective conductor that has been installed properly. When connecting the appliance, make sure that the voltage is correct. More detailed information about this can be found on the type plate.

■ To disconnect this appliance from the power supply, pull the mains plug out of the socket. The appliance must,

therefore, be connected to an easily accessible socket so that it can be quickly disconnected from the power supply in the event of malfunction.

■ Since all poles of the appliance cannot be disconnected from the mains via an accessible disconnecting device, an all-pole disconnecting device in accordance with overvoltage category III must be connected within the house installation with at least 3 mm contact clearance; consult a qualified professional if necessary "Service" on page EN-25.

■ When positioning the appliance, ensure the supply cord is not trapped or damaged. Do not kink the supply cord or lay it over sharp edges.

■ Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

- Keep the supply cord away from naked flames and hot surfaces.

■ Always pull on the mains plug and not the mains cable.

■ Never touch the mains plug with wet hands.

■ Never immerse the mains cable or plug in water or any other liquids.

■ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

■ Independent or improper repairs made to the appliance may cause damage to property and personal injury; any liability and warranty claims will be forfeited. Never try to repair the appliance yourself.

■ Inspections and repairs to the appliance may only be carried out by authorised specialists. Please contact our service department if necessary (see ""Service" on page EN-25).
■ This appliance contains electrical and mechanical parts which are essential for protection against potential sources of danger. Only parts corresponding to the original appliance specifications may be used for repairs.
In the event of a fault, as well as before extensive cleaning, pull out the mains plug or switch off/unscrew the fuse.
■ Do not put any objects in or through the housing openings, and also ensure that children cannot insert any objects into them.
■ Check the appliance regularly for damage.

Fire hazard!

Improper handling of the appliance can lead to fire and damage to property.

■ Do not connect to a timer or a separate remote-controlled system for distance monitoring and control.
■ Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Risks associated with using refrigerants

WARNING

Risk of fire and explosion!

Your appliance's refrigeration circuit contains the environmentally friendly, but fl ammable and – as a mixture of air and gas – explosive refrigerant R600a (isobutane).

■ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
■ Mechanical intervention in the refrigeration system must only be carried out by authorised specialists.
■ Do not damage the refrigerant circuit, e.g. by puncturing the refrigerant channels of the condensate evaporator with sharp objects, bending the piping, or cutting open the insulation.
■ Ensure that none of the cooling fi ns or tubes on a cooling appliance are damaged prior to the point of proper disposal.
■ To prevent the formation of a fl am- mable gas-air mixture in the event of a leakage in the refrigeration cir- cuit, the installation space must have a minimum size of 1 m ^3 per 8 g of refrigerant in compliance with the EN 378 standard. The amount of re- frigerant contained in your appliance can be found on the type plate.
■ To avoid the formation of sparks, do not pull out the mains plug in the event of a gas leak.
■ Dispose of old electrical appliances at an authorised collection or return point.
■ Only use original accessories.

Health hazard!

Spurting refrigerant can damage the eyes.

■ If refrigerant comes into contact with the eyes or mucous membranes, immediately flush eyes with clean water and seek medical attention.

High concentrations of refrigerant vapour can cause dizziness, headaches, nausea or asphyxiation.

■ Do not inhale refrigerant vapour.
■ Immediately air the room if refrigerant leaks.

Risks associated with chemical substances

CAUTION

Danger of explosion!

Improper handling of chemical substances can lead to explosions.

■ Do not store explosive substances such as aerosol cans with a fl ammable propellant in this appliance, as they can form ignitable gas-air mixtures.
■ Never use defrosting sprays to defrost. They can generate explosive gases.

Risk of fire and health hazard!

The thermal insulation and the interior are scratch and heat-sensitive and can melt or catch fire.

Plastics such as those used in thermal insulation can release toxic fumes if they melt or catch fire.

■ Do not use any electric heating equipment, knives or devices with an open flame such as candles.

■ Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- Keep the appliance away from open flames and hot surfaces.

Risks in handling freezers

WARNING

Fire hazard!

Improper handling of the appliance can lead to fire and damage to property.

- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

CAUTION

Health hazard!

Contaminated food can cause health problems.

■ Opening the door for long periods can cause a signifi cant increase of the temperature in the compartments of the appliance.
■ Clean regularly surfaces that can come in contact with food and accessible drainage systems.
■ Store raw meat and fi sh in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

The appliance may not operate properly if the ambient temperature exceeds or falls below the specified temperature range for a prolonged period. This can then lead to an increase in temperature inside the appliance.

■ Always ensure the prescribed ambient temperature is maintained (see "Intended use" on page EN-4).

Incorrect handling, insufficient cooling or overlapping items can spoil the stored food. This could lead to a risk of food poisoning when consumed!

• In particular, pack raw meat and fi sh carefully to ensure that adjacent food cannot be contaminated by salmonella or similar bacteria.
  ■ Abide by the storage times recommended by food manufacturers.
  ■ Note that the shelf life of the frozen food may be shortened due to a rise in the temperature inside the appliance (from defrosting, cleaning or power failure).
  If there is a power failure, the frozen food may remain sufficiently cold for some time (see “storage time in the event of a power failure” on the type plate of the appliance). In case of prolonged power failure or malfunction of the appliance, remove the stored frozen food from the appliance and store it in a sufficiently cool place or in another cooling appliance.
  ■ After a malfunction, check whether the stored food is still edible. Consume thawed and defrosted foods immediately, do not refreeze.
  ■ Use only potable water to make ice cubes.

Risk of injury from frozen goods!

Improper handling of the appliance may result in injury. There is a risk of burns caused by low temperatures.

■ The food and the inside walls of the freezer have a very low temperature. Never touch them with wet hands. This can cause injury to the skin. Skin damage can occur even with dry skin.

- Let ice cubes or ice lollies thaw a little before eating, do not put into your mouth straight from the freezer.

Risk of damage

WARNING

Fire hazard!

Improper handling of the appliance can lead to fire and property damage.

■ Only connect the appliance to a properly installed and earthed electric socket.
■ Do not connect to a multi-socket extension cable or a multi-socket plug.
■ Do not position the appliance directly against the wall and adhere to the minimum distances specified (see "Start-up" on page EN-19).

NOTICE

Risk of damage to property!

If the cooling appliance has been transported vertically, lubricant from the compressor may get into the cooling circuit.

■ If possible, transport the appliance only in a horizontal position.
- Keep the appliance in a horizontal position for two hours before turning it on. The lubricant will flow back into the compressor during this time.

Improper handling of the appliance can lead to property damage.

■ Place the appliance only on a level and fi rm surface that can support the weight of the appliance when it is filled.

■ Do not use sharp or pointed objects to unpack it.
■ Do not pull or lift the appliance by the appliance doors or door handles.
■ When unpacking the appliance, never damage the insulation material on the back of the appliance.
■ The interior light must only be used to illuminate the interior of the appliance. It is not suitable for lighting a room.
■ When cleaning, please note:
- Never use harsh, granular, soda, acid, solvent-based or abrasive cleaners. These attack the plastic surfaces. All-purpose cleaners with a neutral pH are recommended.
- Door seals and plastic parts are sensitive to oil and grease. Remove contaminants as quickly as possible.
- Use only soft cloths.

Delivery

Line drawing of a refrigerator with front panel and side control panel (no text or symbols)

You will find the type plate on the back panel of your product.

Package contents

• 1× Chest freezer
• 6× Freezer basket
• 1× Plastic scraper
• 1× User manual

Check the delivery

1. Move the appliance to a suitable place and unpack it (see chapter "Start-up" on page EN-19).
2. Remove all parts of the packaging, plastic profiles, tape and foam padding.
3. Check that the delivery is complete.
4. Check whether the appliance was damaged during transit.
5. If the delivery is incomplete or the appliance has been damaged during transport, please contact our service team (see page EN-25).

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Never use a damaged appliance.

Appliance parts/control elements

(1) Interior lighting
(2) Freezer baskets
(3) Temperature controller
(4) Operating displays
(5) Alarm light
(6) Run light

(7) Power light
(8) Defrost drain
(9) Plastic scraper

Operation

Requirements

You can use the chest freezer once

• you have read the 'Safety' chapter and understood the safety instructions (see page EN-4).
• It has been set up and connected as described in the 'Start-up' chapter (see page EN-19).

Operating displays

Power (7) illuminates as soon as power is supplied to the chest freezer.

Run (6) illuminates when the compressor is working.

Alarm (5) illuminates when the chest freezer temperature rises above the set level during normal operation,

– immediately after start-up, after defrosting and cleaning.
– after a prolonged power failure.
- if you have stored a large amount of fresh food.

As soon as the set temperature is reached, the Alarm indicator turns off automatically.

If none of this happens, refer to "Troubleshooting table" from page EN-23 to correct the problem.

Switching on and off

Switching on

1. Connect the mains plug to a properly installed socket (220–240V \~ / 50wwHz / 10A). The Power (7) indicator lights up.
2. Turn the temperature controller (3) to the desired cooling capacity.

The compressor starts to work after a short time, the refrigerant flows through the pipes and a quiet humming can be heard. The Power, Run (6) and Alarm (5) indicators are illuminated.

Once the chest freezer has reached the set temperature, the compressor turns off. The Run and Alarm indicators switch off.

1. If the chest freezer makes worrying noises check the solid base and remove any objects that are on top of the chest freezer.

Switch off / shutdown

If you do not want to use the empty freezer, switch it off in the following way:

1. Pull out the mains plug to switch off the chest freezer.
2. Remove the freezer baskets from the chest freezer.
3. Clean the chest freezer (see "Care and maintenance" on page EN-16).
4. Leave the lid slightly open, so mould does not form on the inside. You have now switched off the chest freezer and it is no longer in use.

If you only set the temperature controller (3) to "OFF", the compressor stops working, meaning that the appliance does not cool. However, the power will continue to flow.

Switching on again

If the running operation has been interrupted, the freezer can not be restarted immediately. It is interrupted,

• if you set the temperature controller (3) to "OFF".
• if you unplug the mains plug from the socket.
  – in the event of a power failure.

- Wait 4 to 5 minutes before restarting the chest freezer.

If the lid of your freezer does not open again after closing, it has formed a vac-

uum inside. Wait for 1 to 2 minutes, and then the lid can be easily opened again.

Temperature control

CAUTION

Health hazard!

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This can then lead to an increase in temperature inside the appliance.

■ Observe the specified ambient temperature (see "Intended use" on page EN-4).

You can adjust the temperature in the chest freezer with the temperature controller. Select a cooling capacity between "1" and "6". "1" is the highest temperature, whereas "6" is the lowest.

The freezer is designed for a specific ambient temperature (see "Intended use" on page EN-4). The power consumption and the temperature in the chest freezer can increase if

– the ambient temperature is exceeded or goes too low,
– the lid of the chest freezer is opened often or for too long.

The ideal temperature is -18^ .

1. Set the temperature controller (3) to the average cooling capacity "4". This setting is sufficient for normal ambient temperatures if you do not open the lid of the freezer for long and always close it properly.

2. To set a higher temperature, turn the temperature controller towards "1".

3. To set a lower temperature, turn the temperature controller towards "6".

4. Adjust the temperature in the freezer according to the ambient temperature (e.g. in summer towards "6") and the amount of stored food.

You ideally need a freezer thermometer to be able to control the cooling efficiency. Put it in one of the freezer baskets (2). If you set a lower temperature, you will need a higher cooling performance. This increases the energy consumption.

Freezing foods, storing frozen foods

WARNING

Risk of injury!

Improper handling of the appliance may result in injury. Risk of burns caused by low temperatures.

■ The food and the inside walls of the freezer unit have a very low temperature. Never touch them with wet hands. This can cause injury to the skin. Skin damage can occur even with dry skin.
- Do not put ice cubes or ice lollies straight from the freezer into your mouth.

Danger of explosion!

Improper handling of the appliance can lead to explosions.

• Do not store explosive substances such as aerosol cans with a fl ammable propellant in this appliance, as they can form ignitable gas-air mixtures.
  ■ Do not freeze any fi zzy drinks; water expands when frozen.
  ■ Do not store glass or metal containers of liquid. The containers could break.
  ■ Only freeze high-proof alcohol that is tightly sealed.

Health hazard!

Contaminated food can cause health problems.

■ Opening the door for long periods can cause a signifi cant increase of the temperature in the compartments of the appliance.
■ Clean regularly surfaces that can come in contact with food and accessible drainage systems.

■ If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Incorrect handling, insufficient cooling or overlapping items can spoil the stored food. This could lead to a risk of food poisoning when consumed!

• In particular, pack raw meat and fi sh carefully to ensure that adjacent food cannot be contaminated by salmonella or similar bacteria.
• Abide by the storage times recommended by food manufacturers. Note that the shelf life of the frozen food may be shortened due to a rise in the temperature inside the appliance (from defrosting, cleaning or power failure).
  ■ Remove the stored frozen food from the appliance – even when only switching off the appliance temporarily – and store it in a sufficiently cool place or in another refrigerating appliance.
  ■ After a possible power failure, check whether the stored foodstuffs are still edible. The maximum storage time in the event of a malfunction can be found on the type plate of the appliance.
  ■ Consume thawed and defrosted foods immediately; do not refreeze.

- Follow the instructions in this chapter to store your food over the longest possible time in the best possible way.

Freezing food

Freezing means reducing the core temperature of fresh, room-temperature food to frozen as quickly as possible – for best results 'flash-frozen'. If not cooled quickly enough, the food will be "killed by frost", i.e. the structure will be destroyed. A constant storage temperature of -18 ^ is needed to maintain the food's consistency, taste and nutritional value.

Freezing food has a positive effect on its shelf life. This will help to avoid food waste.

Set the temperature in the freezer compartment to -18 ^ . In this way, you can ensure that the temperature conditions inside are optimally utilised, guaranteeing optimal food storage.

Maximum freezing capacity

Details of the freezing capacity of your appliance can be found on the type plate of your appliance.

- Adhere to the maximum freezing capacity if possible.

Up to the maximum specified freezing capacity

If you adhere to the maximum freezing capacity, the food will freeze at the fastest rate. The temperature in the freezer briefly rises after placing fresh goods inside. After 12 hours, the goods are frozen to the core.

Above the maximum specified freezing capacity

If you want to freeze more food in one go as an exception, freezing will take longer. Keep fresh goods out of contact with existing frozen foods, as the frozen foods could start to defrost. If contact with stored food cannot be avoided, we recommend that you create a cold reserve in the freezer before freezing the fresh goods. 2 hours beforehand, set the temperature controller to maximum.

Tips for freezing

To maintain the taste and nutritional value of your frozen foods and to make sure your appliance does not use too much electricity and the freezer does not need to be defrosted unnecessarily often, please note:

• Frozen food requires a constant storage temperature of -18^ .
• A temperature setting that is too high or too low can reduce the shelf life of your food. This leads to greater food waste.
• Only freeze good quality food that has been prepared, split into portions and packaged as appropriate for its properties.
• Freeze meat, poultry and fish raw or prepared into portions suitable for at home and defrost them later in the fridge. Make sure that meat, for example, is not immersed in its own thawing liquid.
• Freeze fresh and prepared food dry and unseasoned. Unsalted foods are more durable.
• Allow prepared food to cool before freezing. This not only saves power, but also prevents excessive frost formation in the freezer.
• To make sure frozen food does not dry out, take on a strange taste or leak, use robust packaging material that is impermeable to air and liquids, is not too stiff and can be closed easily and labelled.
• Observe the manufacturer's instructions when storing processed frozen foods.
• You should also freeze meals in portion sizes if possible. Small portions are quicker to freeze to the core. As well as this, it is more cost-efficient to freeze several small portions than to throw away the remainder of a large portion.
• Adhere to the recommended storage times and temperatures.
• When storing fresh food, make sure that it does not come into contact with food that is already frozen, as this food may defrost.
• Make sure that food does not come into contact with the rear wall of the freezer, as it could end up freezing to the wall.

Careandmaintenance

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Before cleaning, unplug the mains plug from the socket or isolate/un-screw the fuse.
■ When pulling the mains plug out of the socket, always take hold of the mains plug itself and never pull the mains cable.

CAUTION

Risk of injury!

Danger to children and people with impaired physical, sensory or mental abilities!

■ Cleaning and user maintenance shall not be made by children without supervision.

Check and clean the cover seals

NOTICE

Risk of damage!

The surfaces and appliance parts can be damaged through improper handling.

■ Never use harsh, granular, soda, acid, solvent-based or abrasive cleaners. These attack the plastic surfaces. All-purpose cleaners with a neutral pH are recommended.
■ Door seals and plastic parts are sensitive to oil and grease. Remove contaminants as quickly as possible.
■ Only use soft cloths.

The cover seals must be checked regularly so that no air can enter the chest freezer.

1. To test them, clamp a thin piece of paper in various places. The paper should be difficult to pull through at all points.
2. If the seal is not uniform everywhere: Carefully warm the seal in the appropriate places with a hair dryer and pull it out with your fingers.
3. Only clean dirty seals with clean water.

Cleaning the exterior

NOTICE

Risk of damage to property!

The surfaces and appliance parts can be damaged through improper handling.

■ Never use harsh, soda, acid, solvent or abrasive cleaners. These attack the plastic surfaces. All-purpose cleaners with a neutral pH are recommended.
■ Use care products only on the outer surfaces.
■ Never spray the device with a water jet (e.g. high-pressure cleaner).
■ Only use soft cloths.

• Use only light pH-neutral soapy water.
• Wipe dry.
• Regularly remove dust deposits from the ventilation grilles on the back and on the right-hand side of the chest freezer to minimise energy consumption.

Defrosting and cleaning the chest freezer

! WARNING

Risk of explosion and injury!

Improper handling of the appliance can lead to serious injuries and damage!

- The thermal insulation of your appliance is made of sensitive insulating material. Therefore, do not use any electrical heating equipment, ice scrapers, knives, defrosting sprays, boiling water or any kind of aid with an naked flame, for example candles, to speed up the defrosting process. The thermal insulation and the interior are scratch and heat-sensitive and can melt.

Health hazard!

An increase in the temperature of the frozen food during defrosting can shorten the shelf-life of the frozen food.

■ Ensure that the frozen food is kept sufficiently cool during defrosting.

CAUTION

Risk of injury!

Improper handling of the appliance can lead to skin damage and injuries.

■ Never touch the inside walls or frozen food with wet hands. Injuries can also occur with dry hands though.
■ Use a dry towel to remove the frozen food.

! NOTICE

Risk of damage to property!

Improper handling of the appliance can lead to damage to property.

■ When cleaning, please note:

• Never use soap, sharp, granular, soda or solvent-based or abrasive cleaning agents. All-purpose cleaners with a neutral pH are recommended.
• The surfaces can be damaged by unsuitable cleaning agents. Use care products only on the outer surfaces.
  – Use only soft cloths.

■ Defrost the appliance before it forms a layer of ice and frost of more than 5 mm. Excessive ice formation inside the appliance can break the door.
- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
■ Defrost the freezer in winter when the outside temperature is low. You can then store the food on a balcony or similar while you are cleaning the freezer.

Otherwise, you can wrap the frozen food thickly in newspaper and place it in another freezer in a cool room. You also have the option of using an insulated bag.

1. At least 3 hours before disconnecting, turn the temperature controller (3) to "6". This way, the frozen food gets a cold reserve and does not defrost as quickly.
2. After 3 hours, turn the temperature controller to "OFF".

3. Disconnect the mains plug from the socket.

4. Take out the frozen food.

5. Unscrew the defrost drain cap in the base of the freezer anti-clockwise to drain the defrost water.

1. To accelerate defrosting, place a bowl of hot, but not boiling, water in the freezer.
2. Place a bowl under the defrost drain (8) to catch escaping defrost water.
3. Unscrew the cap from the defrost water drain anti-clockwise.

1. Leave the lid open during defrosting. The defrosting time depends on the thickness of the ice layer. Experience shows that you can start to clean the chest freezer after approximately one hour.

2. Carefully scrape off any stubborn ice with the plastic scraper (9).

3. Wipe the interior with warm rinsing water.
4. Clean the door seal (see chapter "Check and clean the cover seals" on page EN-16).
5. After cleaning, thoroughly rub everything dry, including the door. Ventilate everything for a short time.
6. Screw the cap back into the defrost drain at the base of the chest freezer.
7. Close the defrost drain with the cap.
8. Insert the mains plug back into the socket and turn the temperature controller to "6".
9. Once a temperature of -18 ^ is reached, you can put your frozen food back in the freezer again. Set the temperature controller to the desired cooling capacity.

Start-up

Before starting to use the appliance

- Read chapter "Safety" on page EN-4, in particular all the safety notices.

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Do not operate or continue to operate the appliance, if it

– shows visible signs of damage, e.g. the mains cable is defective,
- starts smoking or there is a smell of burning,
– makes unfamiliar noises.

In such cases, remove the mains plug from the socket or unscrew/switch off the fuse and contact our service department (see page EN-25).

■ Do not connect to a timer or a separate remote-controlled system for distance monitoring and control.
■ Since all poles of the appliance cannot be disconnected from the mains via an accessible disconnecting device, an all-pole disconnecting device in accordance with overvoltage category III must be connected within the house installation with at least 3 mm contact clearance; consult a qualified professional if necessary (see page EN-25).
- Do not kink or pinch the supply cord or lay it over sharp edges. This can result in a break in the cable.

WARNING

Fire hazard!

Improper handling of the appliance can lead to fire and property damage.

■ Only connect the appliance to a properly installed and earthed electric socket. Do not connect to a multi-socket extension cable or a multi-socket plug.

CAUTION

Risk of injury!

Improper handling of the appliance may result in injury.

■ The appliance is heavy and bulky. During transport, when setting up and positioning the appliance, get help from another person.
■ Freezer baskets, doors, etc. must not be used as steps or for support purposes.

Dangers from the refrigerant!

Improper use of the appliance may lead to injury or damage to health.

• Do not damage the refrigeration circuit, e.g. by puncturing the refrigerant channels of the condensate evaporator with sharp objects, bending the piping, or cutting open the insulation.
  ■ Refrigerant is flammable when spurting out and can damage the eyes. In this case, rinse your eyes in clean water and seek medical assistance immediately.

- To prevent the formation of a fl ammable gas-air mixture in the event of a leakage in the refrigeration circuit, the installation space must have a minimum size of 1m^3 per 8 g of refrigerant in compliance with the

EN 378 standard. The amount of refrigerant contained in your appliance can be found in the technical specifications (see from page EN-28).

- Do not place heat-emitting appliances such as microwaves, toasters etc. on the appliance and do not operate any electrical appliances inside the appliance.

! NOTICE

Risk of damage!

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This can then lead to an increase in temperature inside the appliance.

- Observe the specified ambient temperature (see "Intended use" on page EN-4).

Improper handling of the appliance may result in damage.

■ If possible, do not tip the appliance horizontally, but transport it at a maximum inclined angle of 45^ .

■ Do not use sharp objects to unpack the appliance.

Moving and unpacking

1. Tape the castors under the chest freezer with adhesive tape to ensure stability during transport.
2. Transport the chest freezer using a trolley or with the help of a second person.

3. Remove the adhesive strips from the castors. Lift the chest freezer slightly onto its left side and push or pull it until it reaches the desired position.

4. Unpack the chest freezer and carefully remove all packaging, plastic moulding, adhesive strips and foam padding from the inside, outside and back of the chest freezer.

Choosing a suitable location

Safety

For safety reasons, the room in which it is installed must have a minimum size of 10.25 m^3 .

Airflow

To ensure adequate air circulation,

– the chest freezer should not stand directly against the wall. Leave at least 15 cm from the wall, cabinets and other appliances.
– the ventilation grilles must remain clear and must not be covered.
– the entire area above the chest freezer must be unobstructed.

Coolingcapacity

To achieve the highest possible cooling performance with the least energy consumption, choose a location that:

– is not too warm, is dry and well ventilated.
– is not in direct sunlight.

It is recommended not to place it next to an oven, stove or radiator.

If underfloor heating is installed in the room where the chest freezer is to be installed, place an insulating plate of solid material under the chest freezer.

About climate categories

- Always ensure the prescribed ambient temperature is maintained (see chapter "Intended use" on page EN-4).

Climate category means that the appliance is intended for operation at the specified ambient temperature (see table 'climate categories'). If the room temperature drops significantly below this, the unit will not switch on as often. This indicates that an unwelcome increase in temperature may occur.

“Climate categories” table
Zone description Code Definition
Extended temperate zone	SN	This refrigerator is designed for use at ambient temperatures of +10 °C to +32 °C.
Temperate zone	N	This refrigerator is designed for use at ambient temperatures of +16 °C to +32 °C.
Subtropical zone	ST	This refrigerator is designed for use at ambient temperatures of +16 °C to +38 °C.
Tropical zone	T	This refrigerator is designed for use at ambient temperatures of +16 °C to +43 °C.

Set up the chest freezer and align

1. Place the chest freezer on a base that is as flat and firm as possible.
2. Check the position with a spirit level.

Pure mechanical diagram showing a component inserted into a housing, with no text or symbols present.

1. Level out any unevenness on the ground using both of the front levelling screws. To do this

2. close the lid.

3. tilt the chest freezer slightly to the right.

4. twist the levelling screws in or out until the chest freezer is vertically level and set the chest freezer straight back down again.

5. Check the alignment with a spirit level. When opening the lid, the chest freezer should not shift.

Connecting the chest freezer

! NOTICE

Risk of damage!

The coolant must be allowed to settle before connecting.

■ After transport leave the appliance to stand for 2 hours.
- Connect the mains plug to a properly installed socket (see "Technical specifications" on page EN-28). The Power light (7) illuminates.

Troubleshooting table

Malfunctions can occur in all electrical appliances. This does not necessarily mean there is a defect in the appliance. For this reason, please check the tables to see if you can correct the malfunction.

WARNING

Risk of electric shock in case of improper repair!

Never try to repair a defective or suspected defective appliance yourself. You can put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.

Problem Possible cause Solutions, tips, explanations
Compressor off, interior light off.	No electricity to socket.	Check the socket by connecting another appliance.
	Mains plug is loose. Check the tightness of the mains plug.
Compressor off, interior light on.	Desired temperature has been reached.	Further cooling not required. When the inside temperature rises, the compressor automatically turns on.
	Repositioning.	The appliance requires 2 hours to allow the refrigerant to settle.
Appliance cools too quickly.	Temperature controller is set at too cold a setting.	Turn down the temperature controller (see "Operation" on page EN-12).
The appliance doesn't cool sufficiently.	Incorrect temperature selected.	Turn the temperature controller to a higher cooling position (see "Operation" on page EN-12).
	Appliance door not tightly closed or door seal is not completely tight.	See "Check and clean the cover seals" on page EN-16.
	The appliance is near a heat source.	Change location.
	Food has been put in warm.	Only put in cooled foods.
	Too many goods loaded.	The maximum freezing capacity is shown on the appliance's type plate.
	Thick ice layer in the freezer compartment.	Defrost the freezer (see "Defrosting and cleaning the chest freezer" on page EN-17).
	Ambient temperature too low or too high.	Adjust ambient temperature (see "Intended use" on page EN-4).
	Compressor seems defective.	Set the temperature controller to the highest level. If the compressor does not switch on within an hour, please contact our service department (see page EN-25).
Problem Possible cause Solutions, tips, explanations
Appliance is making a noise.	Functional operating noise. These are not malfunctions.	Humming: Refrigeration unit is running.
		Flowing noise: Refrigerant is flowing through the pipes.
		Clicking: Motor switching on or off.
	Distracting noises that you can disregard.	Check that it is stable.
		Remove any objects from the appliance.
		Remove any foreign matter from the back of the appliance.

Service

Please note!

You are responsible for the condition of the appliance and its proper use in the household.

If you call out for customer service due to an operating error, you will incur charges, even during the guarantee/warranty period.

Damage resulting from non-compliance with this manual unfortunately cannot be recognised.

In order for us to help you quickly, please tell us:

Name of appliance Colour	Model Order number
hanseatic Chest freezer White HGT128A 94011416
hanseatic Chest freezer White HGT128B 13828027
hanseatic Chest freezer White HGT128C 82499932

Advice, complaints and orders

Please contact your mail order company's customer service centre if

– the delivery is incomplete,
– the appliance is damaged during transport,
–you have questions about your appliance,
- a malfunction cannot be rectified using the troubleshooting table,
–you would like to order further accessories.

You can find the contact details of your product advisor online on the service pages of your mail order company. The various sections of product advice are listed here.

Please have your appliance invoice ready.

For more information, visit www.hanseatic.de

Repairs and spare parts

You can prevent waste by having your defective appliances repaired. Please contact our Customer Service department.

Please have your appliance invoice ready (date of purchase and item no.).

Spare parts are available for a minimum period of seven years after the final version of the model has been placed on the market. Door seals are available for a period of ten years.

Customers in Germany

Place an order at https://reparaturauftrag.operatec.eu by E-mail: [e-mail] Phone [phone]

Customers in Austria

Please contact your mail order company's customer service centre or product advice centre.

Waste prevention, free return and disposal

Waste prevention

According to the provisions of Directive 2008/98/EC, waste prevention measures always take priority over waste management.

For electrical and electronic devices, waste prevention measures include extending the lifespan of defective devices through repair and reselling used working appliances instead of disposing of them.

Please help us reduce waste and contact our customer service if your product is faulty.

More information can be found in the brochure "Waste Prevention Programme – of the German Government with the Involvement of the Federal Länder".

Free return of old electrical appliances

Upon purchasing a new electrical appliance of the same type with essentially the same function, consumers may return an old electrical appliance to a distributor obliged to take back old appliances, at no extra cost for the consumers. This option also exists for deliveries made to a private household. For distance selling, the option of having old electrical equipment collected for free applies only in the case of purchase of new electrical equipment with heat exchangers (e.g. refrigerators, dehumidifiers), screens and display devices with a screen surface > 100 cm ^2 , and large devices with at least one of its external dimensions measuring more than 50 cm.

In addition, consumers may return up to three old electrical appliances of the same type to a distributor's collection point for free, without having to purchase a new electrical appliance. In this case, however, the old appliances' external dimensions may not exceed 25 cm.

Disposal

Disposing of old electrical devices in an environmentally friendly manner

Electrical appliances contain harmful substances as well as valuable resources.

Every consumer is therefore required by law to dispose of old elec-

trical appliances at an authorised collection or return point. They will thus be made available for environmentally-sound, resource-saving recycling.

You can dispose of old electrical appliances free of charge at your local recycling centre.

Please contact your dealer directly for more information about this topic.

Don't forget to erase data!

If necessary, each consumer is responsible for erasing personal data from electrical and electronic equipment.

Batteries and rechargeable batteries, lamps and bulbs

If necessary, old single-use and rechargeable batteries that are not encased by an old electrical appliance, as well as lamps/bulbs that can be removed from an old electrical appliance without being destroyed, must be removed and disposed of separately before you return the appliance.

This symbol means that batteries and rechargeable batteries must not be disposed of with other household waste.

Consumers are required by law to bring all batteries and rechargeable batteries, regardless of whether they contain harmful substances*) or not, to a collection point operated by their communal authority or borough or

to a retailer, so that they can be disposed of in an environmentally friendly manner and so that valuable resources (e.g. cobalt, nickel or copper) can be recovered.

Batteries and rechargeable batteries can be returned free of charge.

Some of the possible contents (e.g. mercury, cadmium and lead) are toxic and, if improperly disposed of, can have adverse effects on the environment. Heavy metals, for instance, can have detrimental health effects on humans, animals and plants and accumulate in the environment and food chain, and then enter the body indirectly through the consumption of food.

There is a high risk of fire with old lithium batteries. Special care must therefore be taken to properly dispose of old lithium batteries and rechargeable batteries. Improper disposal can also lead to internal and external short circuits due to thermal effects (heat) or mechanical damage. A short circuit can lead to a fire or an explosion and have serious consequences for people and the environment. It is therefore important to tape off the poles of lithium batteries and rechargeable batteries before disposing of them to prevent an external short circuit.

Before disposing of the appliance, batteries and rechargeable batteries which are not permanently built into the appliance must be removed and disposed of separately.

Please only dispose of batteries and rechargeable batteries in a discharged state!

If possible, use rechargeable batteries in place of disposable batteries.

Packaging

Our packaging is made of environmentally friendly, recyclable materials:

– Outer packaging made of cardboard
– Moulded parts made of foamed, CFC-free polystyrene (PS)
– Films and bags made of polyethylene (PE)
– Tension bands made of polypropylene (PP)
- Saving energy also protects against excessive global warming. Your new appliance uses little energy due to its environmentally friendly insulation and technology.

If you have sufficient space, we recommend keeping the packaging, at least during the warranty period. If

the appliance needs to be sent out for repairs, only the original packaging will provide sufficient protection.

If you would like to dispose of the packaging, please dispose of it in an environmentally friendly way.

Appendix

Product fiche concerning Regulation (EU) No. 2019/2016

The product fiche for your device is available online.

Go to https://eprel.ec.europa.eu and enter the model identifier of your device to access the product fiche.

The model identifier of your device can be found under Technical specifications.

Technicalspecifications

Item number	94011416
Name of appliance	Chest Freezer
Model identifier	HGT128A
Device measurements (Height × Width × Depth)	850 mm × 1285 mm × 696 mm
Unloaded weight	77 kg
Refrigerant	R600a
Filling capacity refrigerant	82 g
Foaming agent	cyclopentane
Rated power	170 W
Supply voltage / frequency / rated current	220 - 240 V ~ / 50 Hz / 1.1 A
Protection class	I
Climate class: SN-N-ST-T. This appliance is intended to be used at an ambient temperature between + 10 °C and + 43 °C.
Item number	13828027
Name of appliance	Chest Freezer
Model identifier	HGT128B
Device measurements (Height × Width × Depth)	850 mm × 1285 mm × 696 mm
Unloaded weight	77 kg
Refrigerant	R600a
Filling capacity refrigerant	82 g
Foaming agent	cyclopentane
Rated power	170 W
Supply voltage / frequency / rated current	220 - 240 V ~ / 50 Hz / 1.1 A
Protection class	I
Climate class: SN-N-ST-T. This appliance is intended to be used at an ambient temperature between + 10 °C and + 43 °C.
Item number	82499932
Name of appliance	Chest Freezer
Model identifier	HGT128C
Device measurements (Height × Width × Depth)	850 mm × 1285 mm × 696 mm
Unloaded weight	52 kg
Refrigerant	R600a
Filling capacity refrigerant	87 g
Foaming agent	cyclopentane
Rated power	170 W
Supply voltage / frequency / rated current	220 - 240 V ~ / 50 Hz / 1.1 A
Protection class	I
Climate class: SN-N-ST-T. This appliance is intended to be used at an ambient temperature between + 10 °C and + 43 °C.
