Product Type	Compact Mixer
Model	AM1204FX
Number of Channels	8 (4 mono mic/line + 2 stereo line)
Microphone Preamps	4 low-noise
Equalization	3-band, ±15dB (Low 80Hz, Mid 2.5kHz, Hi 12kHz)
Built-in Effects	16 programs with 32-bit processor, user-adjustable parameter
Compressor Function	Variable on mono channels
Low-Cut Filter	75Hz, 18dB/octave on mono channels
Phantom Power	+48V DC, switchable
Main Outputs	Balanced XLR x2
Aux Sends	2 (1 pre, 1 post)
Aux Returns	2 stereo (RCA or 1/4")
Level Meter	11-segment stereo
Power Supply	100-240 VAC, 50/60 Hz
Dimensions (WxHxD)	245 x 104.5 x 340 mm (9.65" x 4.11" x 13.39")
Weight	4.0 kg (8.8 lbs)
Frequency Response	20Hz-60KHz (+0/-1 dB), 20Hz-100KHz (+0/-3 dB)
Total Harmonic Distortion	< 0.005%
Signal-to-Noise Ratio	> 90 dB
USB Interface (USBR model)	2x2 stereo, 16-bit/48kHz (not on standard AM1204FX)
USB Player/Recorder (USBR model)	MP3/WMA playback, WAV recording (not on standard AM1204FX)
Care and Cleaning	Clean with dry cloth only; disconnect power before cleaning
Safety	Do not expose to rain/moisture; use only specified attachments; unplug during storms
Spare Parts and Repairs	Contact Phonic distributor; do not attempt self-repair (voids warranty)

Frequently Asked Questions - AM1204FX PHONIC

How many inputs does the AM1204FX have?

The mixer has 4 mono mic/line channels and 2 stereo line channels, providing a total of 8 input channels.

Does the AM1204FX include a built-in effects processor?

Yes, it features a 32-bit digital effects processor with 16 different effect programs, each with a user-adjustable parameter.

Is there a USB audio interface on the AM1204FX?

The standard AM1204FX does not have a USB interface. Only the AM1204FX USBR model includes a 2x2 USB audio interface and a USB player/recorder.

What type of phantom power does the mixer provide?

It provides +48V DC phantom power on the mic inputs, suitable for condenser microphones. A switch on the rear panel activates it.

Can I use the mixer with a computer for recording?

For the standard AM1204FX, you can use the Record Out (RCA) to connect to a computer’s line input. The USBR model allows direct USB recording without an external audio interface.

What is the compressor function on the mono channels?

The Compressor control adjusts threshold and ratio; past 12 o’clock it also engages an expander (compander). The LED lights when compression is active.

How do I connect external effects to the mixer?

Use the AUX Send 1 and 2 outputs to send audio to external processors, and return the processed signal via the AUX Return 1 and 2 inputs.

What is the ALT 3-4 mix used for?

When a channel is muted, its signal is redirected to the ALT 3-4 mix instead of being lost. This can be output via the ALT 3-4 outputs for monitoring or recording.

What kind of equalization does each channel offer?

Each channel has a 3-band equalizer with ±15dB shelving at Low (80Hz), peaking at Mid (2.5kHz), and shelving at High (12kHz).

How do I clean and maintain the mixer?

Clean only with a dry cloth. Do not use aerosol or liquid cleaners. Unplug the mixer before cleaning. For servicing, contact an authorized Phonic distributor.

USER MANUAL AM1204FX PHONIC

MAKING CONNECTIONS....3

CONTROLS AND SETTINGS....4

SPECIFICATIONS....8

APPENDIX

DIGITAL EFFECT TABLE....1

APPLICATION....2

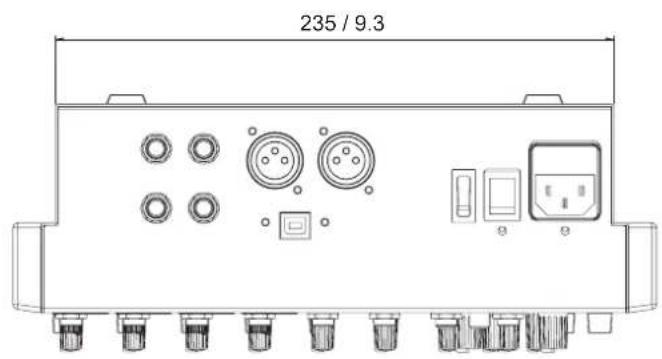

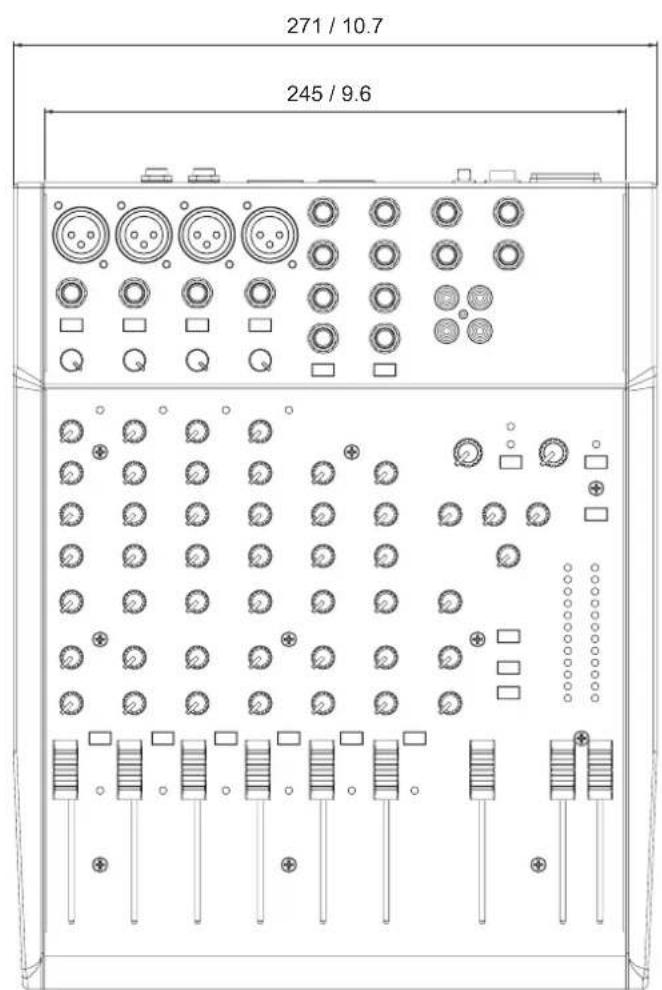

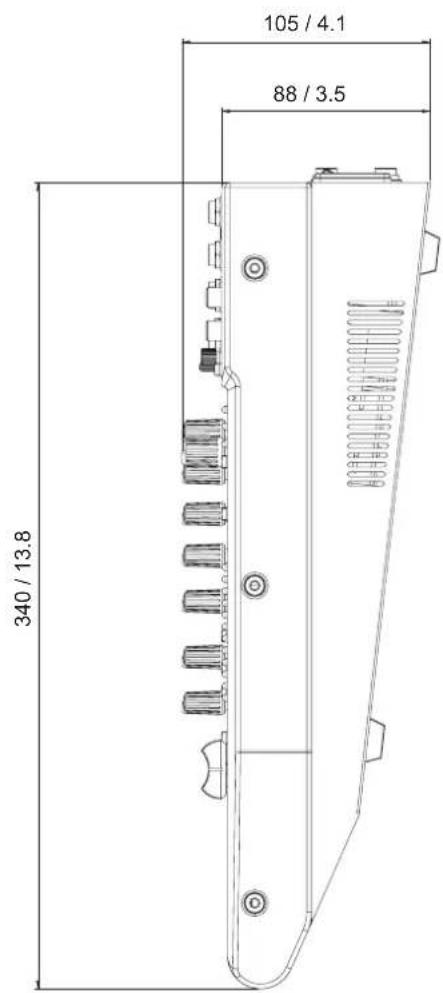

DIMENSIONS....3

Phonic reserves the right to improve or alter any information within this document without prior notice.

IMPORTANT SAFETY INSTRUCTIONS

The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. The MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable.

Warning: the user shall not place this apparatus in the confined area during the operation so that the mains switch can be easily accessible.

1. Read these instructions before operating this apparatus.
2. K eep these instructions for future reference.
3. H eed all warnings to ensure safe operation.
4. Follow all instructions provided in this document.
5. Do not use this apparatus near water or in locations where condensation may occur.
6. Clean only with dry cloth. Do not use aerosol or liquid cleaners. Unplug this apparatus before cleaning.
7. Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plug, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus

combination to avoid injury from tip-over.

1. Unplug this apparatus during lighting storms or when unused for long periods of time.

1. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED PERSONNEL

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: To reduce the risk of fire electric shock, do not expose this apparatus to rain or moisture.

CAUTION: Use of controls or adjustments or performance of procedures other than thosepecified may result in hazardous radiation exposure.

INTRODUCTION

Thank you for choosing one of Phonic's many quality compact mixers. The AM1204FX and AM1204FX USBR compact mixers – designed by the ingenious engineers that have created a variety of mixers fantastic in style and performance in the past – displays similar proficiency that previous Phonic products have shown; with more than a few refinements, of course. The AM series features full gain ranges, amazingly low distortion levels, and incredibly wide dynamic ranges, just showing the dominance these small machines will have in the pro audio industry.

AM1204FX and AM1204FX USBR both feature four of Phonic's quality low-noise preamplifiers accepting microphone signals, as well as number of line-level 14 " phone jack inputs across four mono and two stereo channels. The AM1204FX and AM1204FX USBR are both adorned with studio-quality 32-bit digital effect processors that feature 16 unique effects, each of which has its own user-adjustable parameter. Featured solely on the AM1204FX USBR is a stereo USB audio interface, perfect for sending audio directly to any modern OSX or Windows based computer. Stereo audio can also be injected straight into your mix via the USB interface.

We know how eager you are to get started – wanting to get the mixer out and hook it all up is probably your number one priority right now – but before you do, we strongly urge you to take a look through this manual. Inside, you will find important facts and figures on the set up, use and applications of your brand new mixer. If you do happen to be one of the many people who flatly refuse to read user manuals, then we just urge you to at least glance at the Instant Setup section. After glancing at or reading through the manual (we applaud you if you do read the entire manual), please store it in a place that is easy for you to find, because chances are there's something you missed the first time around.

FEATURES

• 4 mono mic/line channels with our famously low-noise preamplifiers
• 2 stereo channels with +4 / -10 pad switches for greater input versatility
• 32-bit digital effect engine with 16 EFX, each with their own user-adjustable parameter
  ● Variable compressor function on mono channels, ideal for vocals and drums
• EFX sends on each channel for creating monitor mixes and incorporating external signal processors
• Two stereo AUX returns for incorporating external signals into the mix
• AUX Return 1 features "to AUX 1" control for versatile EFX monitoring
• 75Hz low-cut filter on mono channel for removing stage rumble
• ALT 3-4 mix for redirecting muted channels to their own output
  ● 3-band EQ on every channel
  ● +48V phantom power on mic channels
  ● 11 segment level meter giving visual depictions
• Extremely versatile control room/phones source matrix for maximum monitor flexibility
  • Balanced XLR outputs

AM1204FX USBR also features:

- 2x2 USB audio interface for sending and returning stereo audio to and from a computer

- On board USB player/recorder supporting playback of MP3 and WMA formats, recording in WAV format

GETTING STARTED

1. Ensure all power is turned off on your mixer. To totally ensure this, the power supply should not be connected to the unit.
2. No input other than the one being set should have any device plugged in. This will ensure the purest signal is used when setting channels.
3. Set the level control of the channel you are setting to the 0 dB mark.
4. Disengaged the Mute button for the channel you wish to set.
5. Ensure the channel has a signal sent to it similar to the signal that will be sent when in common use. For example, if the channel is using a microphone, then you should speak or sing at the same level the performer normally would during a performance; if a guitar is plugged into the channel, then the guitar should also be strummed as it normally would be (and so on). This ensures levels are completely accurate and avoids having to reset them later.
6. Set the gain control on the channel so that the level meter indicates the audio level is around 0 dB.
7. This channel is now ready to be used; you can stop making the audio signal.
8. You can repeat the same process for other channels. Or not, it's your call.

USB INTERFACE

System Requirements

Windows

● Windows™ XP SP2, Vista™, 7, 8, or 10
Intel™ Pentium™ 4 processor or better
● 512 MB RAM (1 GB recommended)

Macintosh

• Apple™ Mac™ OSX 10.5 or higher
  ● G4 processor or better
  ● 512 MB RAM (1 GB recommended)

AM1204FX USBR Features

Computer Connection

By simply connecting the USB cable provided along with your AM1204FX USBR to the device and your Personal Computer or Laptop, you are able to send DVD quality (16-bit stereo, with a 48 kHz sampling rate) signal to and from your mixer. By doing this, you are actually turning your AM1204FX USBR into a highly useful plug'n'play soundcard for your computer.

The USB sends an audio stream of the Main Left and Right (record out) signal of your mixer to the computer. You can use almost any dedicated Digital Audio Workstation (DAW) software to record the signal from the AM1204FX USBR mixer. You can also set the mixer as your default audio device.

The USB interface also returns the audio signal from your computer back to the 2T Returns, the signal of which is controlled by the 2T / USB Return control. If there are input signals from both the USBR interface and the 2T Return, the two signals are combined and controlled simultaneously by the 2T return control.

Windows

1. Turn on both the AM1204FX USBR and your computer.
2. Connect the mixer to the computer via the provided USB cable.
3. Let Windows find the device and install an appropriate USB sound driver.
4. Enter the Control Panel and select Sounds and Audio Devices.
5. When here, go to the Audio tab and select the "USB Audio Codec" as your default sound recording and playback device.
6. Depending whether you have Windows XP, Vista, 7, 8 or 10, this may differ slightly, but the settings can always be found within the Control Panel's audio menu.
7. If you don't want to use the AM1204FX USBR as your computer's default audio device, you can simply enter your DAW or other audio software and select "USB Audio Codec" as your default device. This will allow the interface to be used within the software only.

Mac

1. Turn both the AM1204FX USBR and the computer on.
2. Connect the AM mixer to the computer via the provided USB cable.
3. Enter the AUDIO MIDI SETUP menu.
4. Select the "USB Audio Codec" as your input and output device.
5. The AM1204FX USBR is now your default audio device.
6. Alternatively, enter your DAW software (or other relevant audio program) and select the "USB Audio Codec" in the device preferences.
7. Be sure to set your minimum buffer settings to 64 samples as to avoid clicks and pops.

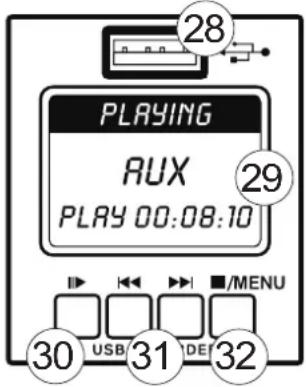

USB Recorder / Player

Unique to the AM1204FX USBR is the onboard USB recording function. This module allows you to connect USB flash drives to record stereo audio directly to the storage device. The module is also capable of playing back audio through the mixer. It supports playback of both MP3 and WMA formats up to 320 kbps.

USB Playback

1. Power on the device.
2. Insert an appropriately formatted (FAT32) USB flash drive.
3. Press the PLAY button to play the current track, or the ◀◀◀ and ▶▶◀! buttons to skip forward and backwards between tracks.
4. The AM1204FX USBR can playback MP3 and WMA files.
5. Use the level control for channel 8 to adjust the USB player's volume.
6. Press the ■MENU button to access the File Browser (Folders) and Repeat Mode functions.

Folders – Freely navigate songs in each folder on USB flash disc using the ◀◀◀ and ▶▶▶! buttons. Press ◀▶ button to select, press ■ /MENU button to go back.

Repeat Mode - There 4 repeat modes available.

No Repeat – Play each file in the current folder or root once.

Repeat One – Continuously repeat selected song.

Repeat Folder – Continuously repeat all the song in the current folder or root directory.

Random – Enables random playback of files in current folder or root.

USB Recording

1. Power on the device.
2. Insert an appropriately formatted (FAT32) USB flash drive.
3. In the main menu, select "Record" and press the ▪ button to enter recording mode.
4. Select between the 128 kbit/s and 192 kbit/s WAV recording modes and press the ▶ button.
5. Record mode will begin in standby/pause. Push the button to begin recording. The unit will save the recorded file into the RECORD directory on the USB device.
6. Push the ▪ button to pause recording. Pushing the ▪ button again will resume recording from the position at which it was paused.
7. Press the ■MENU button at any time to save the recording. Once the recording is saved, additional audio cannot be recorded to that file.
8. To exit record mode and return to the main menu, press and hold ■/MENU button for three seconds

MAKING CONNECTIONS

Inputs and Outputs

1. Mic Inputs

These jacks accept typical 3-pin XLR inputs for balanced and unbalanced signals. They can be used in conjunction with microphones – such as professional condenser, dynamic or ribbon microphones - with standard XLR male connectors, and feature low noise preamplifiers, serving for crystal clear sound replication. The AM1204FX and AM1204FX USBR mixers feature four standard XLR microphone inputs for your convenience.

NB. When these inputs are used with condenser microphones, the Phantom Power should be activated. However, when Phantom Power button is engaged, single ended (unbalanced) microphones and instruments should not be used on the Mic inputs.

2. Line Inputs

This input accepts typical 1/4" TRS or TS inputs, for balanced or unbalanced signals. There are various numbers of these inputs depending which mixer you are using. They can be used in conjunction with

various line level devices, such as keyboards, drum machines, electric guitars, and a variety of other electric instruments.

3. Stereo Channels

AM1204FX and AM1204FX USBR mixers feature two stereo channels thrown in for maximum flexibility. Each of these stereo channels features two 1/4" TRS phone jacks, for the addition of various line level input devices, such as electronic keyboards, guitars and external signal processors or mixers. These stereo channels can also be used as mono channels, where the signal from any 1/4" phone jack plugged into the Left stereo input will cause the signal to be duplicated to the Right input due to the miracle of jack normalizing. This does not work in reverse, however.

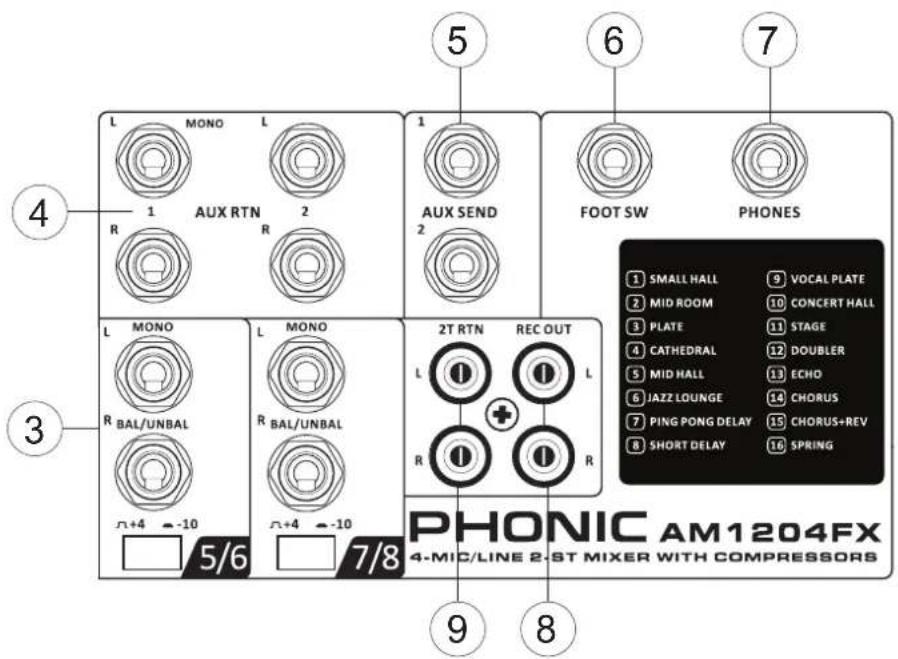

4. AUX Returns

These 1/4" TS inputs are for the return of audio to the AM1204FX and AM1204FX USBR mixers, processed by an external signal processor. If really needed, they can also be used as additional stereo input channels. The feed from these inputs can be adjusted using the AUX Return controls on the face of the mixer. When connecting a monaural device to the AUX Return 1 and 2 inputs, simply plug a 1/4" phone jack into the left (mono) input, and the signal will appear in the right as well.

NB. When any device is plugged into AUX Return 2, the mixer's internal digital effect engine is then disabled.

5. AUX Sends

These 1/4" TS outputs may be used to connect to an external digital effect processor, or even to an amplifier and speakers (depending on your desired settings), to the mixer. The signal sent from the AUX outputs are fed from the master AUX send controls which themselves get their signals from the individual AUX controls on input channels.

6. Footswitch Jack

This port is for the addition of a non-latching type footswitch. This can be used to activate the digital effect processor. Tap the foot switch once to activate effects; tap a second time to turn them off once again.

7. Phones Connector

This stereo output port is suited for use with headphones, allowing monitoring of the mix. The audio level of this output is controlled using the Phones / Submix control.

8. Record Out

These outputs will accommodate RCA cables, able to be fed to a variety of recording devices such as digital recorders, tape recorders, and even laptop computers.

9. 2T Return

These RCA stereo inputs are used to connect the mixer with external devices, such as tape and CD players, or even Laptop computers, receiving a signal from another source and feeding it to the Main L-R mixing bus.

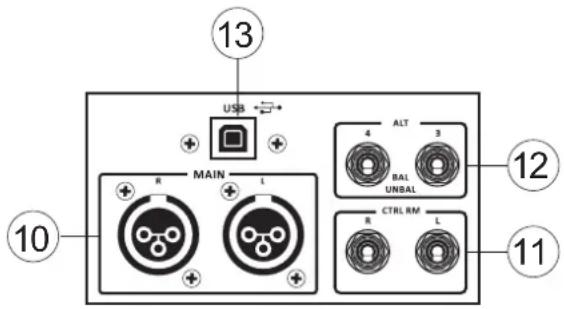

Rear Panel

10. Main L and R Outputs

These two ports will output the final stereo balanced line level signal sent from the main mixing bus. The primary purpose of these jacks is to send the main output to external devices, which may include power amplifiers (and in-turn, a pair of speakers), other mixers, as well as a wide range of other possible signal processors (Equalizers, Crossovers, etcetera).

11. Control Room Outputs

These two 1/4" Phone Jack outputs feed the signal altered by the Control Room/Phones level control on the face of the mixer. This output has extensive use, as it can be used to feed the signal from the mixer to an active monitor, for the monitoring of the audio signal from within a booth, among other possible uses.

12. ALT 3-4 Output

These unbalanced outputs are fed from the ALT 3-4 mix and can be used in conjunction with a large array of input devices, including signal processors, recording devices, monitor mixers, and so on. The ALT 3-4 mix is created by muting signals on channels 1 through 8.

13. USB Connector (AM1204FX USBR Only)

This USB connector can be used to connect the AM1204FX USBR to any modern Windows or Mac-based computer. Doing so will allow users to get a stereo signal both to and from the computer.

CONTROLS AND SETTINGS

Back Panel

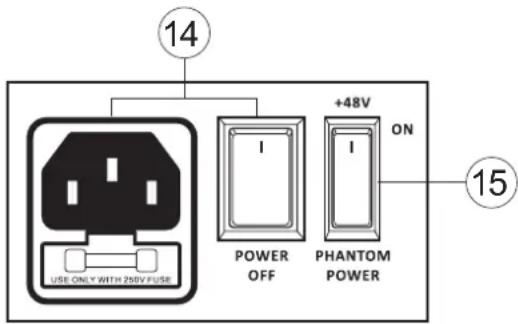

14. Power Switch and AC Connector

The power switch, located on the rear of the mixer, is used to activate the mixer. But there's no point in activating the mixer if there's no power, therefore an AC power connector has been included to ensure your mixer gets the power it needs. Please use the power cable that is included with this mixer only.

15. Phantom Power Switch

When this switch is in the on position, it activates +48V of phantom power for all microphone inputs, allowing condenser microphones (well, the ones that don't use batteries) to be used on these channels. Activating phantom power will be accompanied by an illuminated LED above the left channel level meter. Before turning Phantom Power on, turn all level controls to a minimum to avoid the possibility of a ghastly popping sound coming from the speakers.

NB. Phantom Power should be used in conjunction with balanced microphones. When Phantom Power is engaged, single ended (unbalanced) microphones and instruments should not be used on the Mic inputs. Phantom Power will not cause damage to most dynamic microphones, however if unsure, the microphone's user manual should be consulted.

Channel Controls

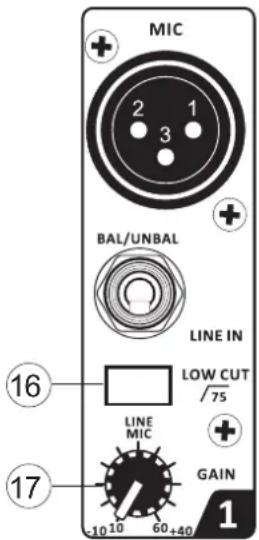

16. Low Cut Filter (75 Hz)

This button, located on channels 1 through to 4, will activate a low-cut / high-pass filter that reduces all frequencies below 75 Hz at 18 dB per octave, helping to remove any unwanted ground noise or stage rumble.

17. Gain Control

These controls, found on each input channel, allow users to adjust the sensitivity of the input signal for the Line/Microphone input. The gain should be adjusted to a level that allows the maximum use of the audio, while still maintaining the quality of the feed. This can be accomplished by adjusting it to a level that will allow the peak indicator occasionally illuminate. All 4 mono channels feature this control.

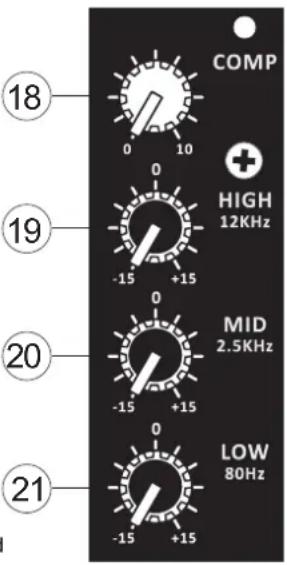

18. Compressor Controls and Indicators

These control the onboard compressor function on mono channels. Turning this control up towards the 12 o'clock position will adjust the threshold and ratio of the compressor at varying degrees. Once you reach the 12 o'clock position, the control will then adjust the compression settings along with an onboard expander (or, in other words, a "compander"). The LED that accompanies this control will light up when the compressor is triggered. This control and indicator can only be found on mono channels.

19. High Frequency Control

This control is used to give a shelving boost or cut of ±15 dB to high frequency (12 kHz) sounds. This will adjust the amount of treble included in the audio of the channel, adding strength and crispness to sounds such as guitars, cymbals, and synthesizers.

20. Middle Frequency Control

This control is used to provide a peaking style of boost and cut to the level of middle frequency (2.5 kHz) sounds at a range of ±15 dB. Changing middle frequencies of an audio feed can be rather difficult when used in a professional audio mix, as it is usually more desirable to cut middle frequency sounds rather than boost them, thereby soothing overly harsh vocal and instrument sounds in the audio.

21. Low Frequency Control

This control is used to give a shelving boost or cut of ±15 dB to low frequency (80 Hz) sounds. This will adjust the amount of bass included in the audio of the channel, and bring more warmth and punch to drums and bass guitars.

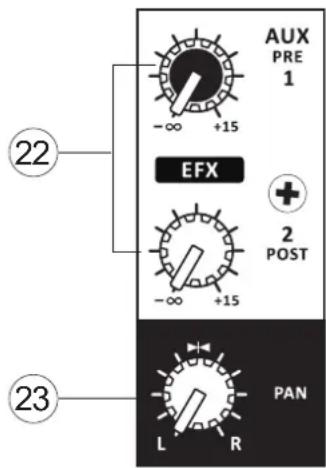

22. AUX / EFX Controls

The AUX 1 and 2 controls allow the user to send the corresponding signal to the AUX 1 and 2 mixes, the final levels of which are controlled by the AUX Send controls on the main mixing panel. These signals are then sent to the corresponding AUX Send Outputs for use with amplifiers and studio or stage monitors, or simply in conjunction with external processors. AUX 1 features a pre-fader, pre-EQ signal, while AUX 2's signal is post-fader, post-EQ. The AUX 2 control doubles EFX control on the AM1204FX and AM1204FX USBR, adjusting the signal that is sent to the built-in Digital Effects Processor.

23. Pan / Balance Control

This alternates the degree or level of audio that the left and right side of the main mix should receive. On mono channels, this control will adjust the level that the left and right should receive (pan), whereas on a stereo channel, adjusting the BAL control will increase the left or right audio signals accordingly (balance).

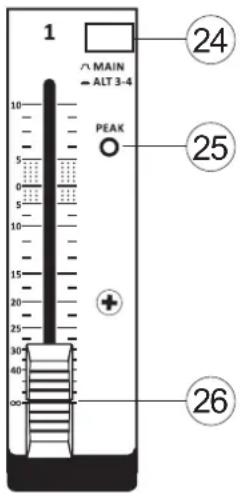

24. MAIN / ALT3-4 Button

This button turns a mute on the corresponding channel on and off, stopping all audio from the channel input to the Main mix. When a channel is muted, this audio – which would normally be wasted – is redirected to the ALT 3-4 mix.

25. Peak Indicator

This LED indicator will illuminate when the device hits high peaks, 6 dB before overload occurs. It is best to adjust the gain of the channel so that the PEAK indicator lights up on intervals only, if at all. This will ensure a greater dynamic range of audio.

26. Level Control

This 60mm fader will alter the signal level that is sent from the corresponding channel to the main mix.

27. +4 / -10 Switch

This button, located on both stereo channels, is used adjust the input sensitivity of the corresponding channels. This will adapt the channel to external devices that use different operating levels. If the input source is -10 dBV (consumer audio level), it is best to engage the switch, allowing the signal to be heard. The +4 dBu level is suitable for professional audio signals, which are considerably higher than the consumer level. However, if you are unsure of the source's operating level, we suggest leaving the switch disengaged until you test the source's signal. You can then engage if necessary (if the level of the input signal is obviously too low).

USB Player / Recorder (AM1204FX USBR only)

28. USB Port

Connect your USB flash drive to this input. Once a drive is connected, the files will initiate and the main menu will appear on screen. Users are advised to format their USB memory sticks with the FAT-32 file system.

29. LCD Display

This display will display the track number currently being played. It also offers play, pause and record indicators as well as the current play/record time.

30. Play/Pause Button

Push this button to start and stop playback and recording of the currently displayed track. Starting a track after it is paused will resume the track from the point at which it was paused (in both record and playback mode). When in recording mode, push and hold this button to finalize recordings

31. |◀◀ and ▶▶| Back/Next Buttons

Pushing these buttons will allow users to skip back and forwards between tracks. When the menu is activated, these buttons are used to scroll through on screen options.

32. ■/MENU (Stop/Menu Button)

Push this button to stop playback or recording when applicable. Push and hold the button to access the USB recorder/player's main menu.

Digital Effect Section

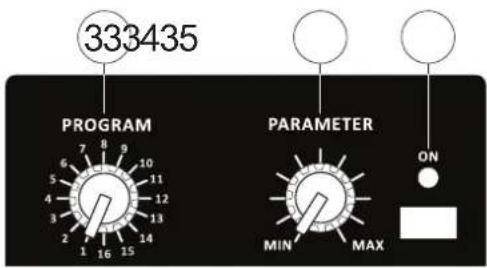

33. Program Control

This control will allow users to select one of the 16 built-in digital effects of the AM mixer. The effect names that correspond with the numbers can be found on the top of the mixer's face, or in the digital effect table.

34. Parameter Control

Turning this control will adjust the one main parameter of the selected effect. Each effect's adjustable parameter can be found within the digital effect table.

35. Effects On Button and Indicators

Pushing this button will turn the built-in effect processor on and off. When the effect processor is activated, the corresponding LED will light up to indicate so. The uppermost LED is a Peak indicator. This will light up when the EFX signal reaches excessive peaks and should be lowered slightly. Please note that unlike many other buttons on the AM mixer, the EFX ON button will not latch down.

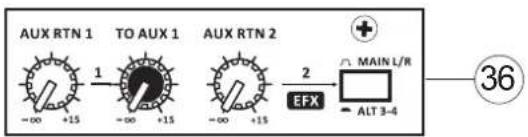

36. AUX Return Controls

These controls adjust the signal level of audio fed through the stereo AUX Return inputs to the main mix. The "To AUX 1" control found on the AUX Return 2 control adjusts the pre-fader level of the signal from the AUX Return to the AUX 1 Send mix. The button that accompanies the AUX 2 Return control allows users to determine whether the signal will be sent to the main stereo mix or the ALT 3-4 mix. When nothing is connected to the AUX 2 Return Input, the AUX 2 Return Control will be used to control the signal from the built-in effects processor.

37. Ctrl Room / Phones Control

This control is used to adjust the audio level of the Control Room feed, which is sent to both the Control Room outputs (for monitoring, acting as side fill or other purposes) and Phones outputs (to be used in conjunction with headphones for monitoring).

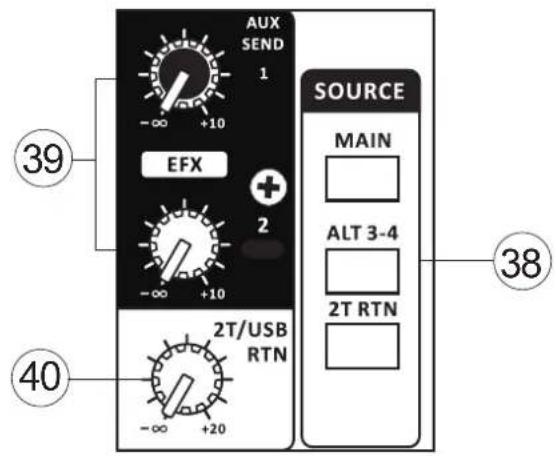

38. Control Room Source Buttons

These buttons allow users to select the source signals for the Control Rooms / Phones mix. Users are able to select from the Main mix, ALT 3-4 mix or the 2T Return mix.

39. AUX Send Controls

These controls adjust the final level of their corresponding AUX mixes (as taken from the AUX controls on each channel strip). This audio is then sent to the AUX 1 and 2 Send outputs found on the top of the mixer face.

40. 2T / USB Return Control

This rotary control adjusts the incoming level from the RCA 2T input connectors as sent to the main mix (and Control Room/Phones, if selected in the Control Room Source section). Unique to the AM1204FX USBR, this control is also used as the incoming USB level. All incoming signals through the stereo USB audio interface will be controlled by this control.

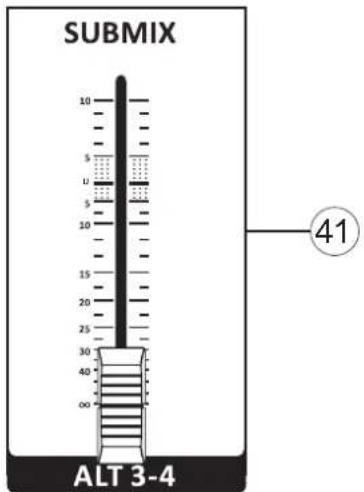

41. ALT 3-4 Submix Control

This fader is the final level control used to adjust the ALT 3-4 mix. This mix is created by muting input channels. Instead of simply losing the audio from these channels, it's redirected to the ALT 3-4 mix.

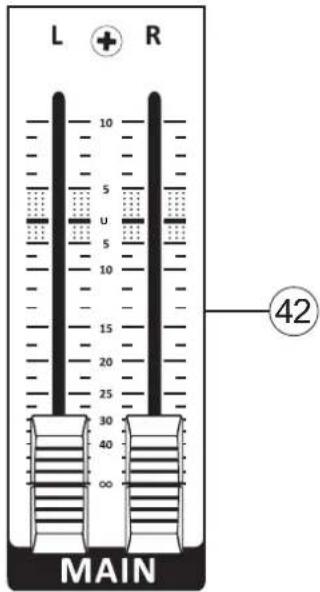

42. Main Fader

This 60mm fader is final level control for the main left and right audio feed, sent to the Main Left and Right outputs.

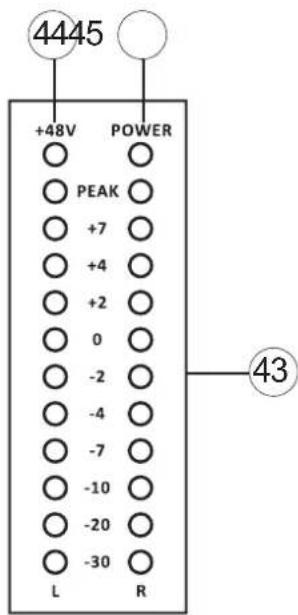

43. Level Meter

The mixer's stereo 11-segment level meter gives an accurate indication of when audio levels of the MAIN L/R output reach certain levels. It is suggested for the maximum use of audio to set the various levels controls to a level slightly below that which would cause the Peak LED to light up. This will help you get the most out of your audio without causing any distortion.

44. Phantom Power Indicator

This LED indicator will illuminate when the AM mixer's phantom power circuit is turned on.

45. Power Indicator

This LED indicator will light up when the AM mixer is turned on.

	AM1204FX AM1204FX USB
Inputs
Total Channels 8	10
Balanced Mono Mic / Line Channel	4	4
Balanced Stereo Line Channel	2 2
AUX Return 2 stereo 2 stereo
2T Input Stereo RCA Stereo RCA	CA
Outputs
Main L/R Stereo Bal. XLR x 2	Bal. XLR x 2
ALT 3-4	1	1
Rec Out Stereo RCA	Stereo RCA
CTRL RM L/R	2 x 1/4" TS	2 x 1/4" TS
Phones	1 1
AUX Sends	2 2
Compressors	-	4
Pan/Balance Control Yes	Yes
Volume Controls 60mm fader 60mm fader
Master Section
Phones Level Control	Yes	Yes
Main L/R Level Control 60 mm fader	60 mm fader
Level Meter	11-segment	11-segment
Phantom Power Supply	+48V DC	+48V DC
Frequency Response (Mic input to any output)
20Hz ~ 60KHz	+0/-1 dB	+0/-1 dB
20Hz ~ 100KHz	+0/-3 dB	+0/-3 dB
Crosstalk (1KHz @ 0dBu, 20Hz to 20KHz bandwidth, channel in to main L/R outputs)
Channel fader down, other channels at unity	<-90 dB	<-90 dB
Noise (20Hz~20KHz; measured at main output, Channels 1-4 unit gain; EQ flat; all channels on main mix; channels 1/3 as far left as possible, channels 2/4 as far right as possible. Reference=+6dBu)
Master @ unity, channel fader down	-86.5 dBu	-86.5 dBu
Master @ unity, channel fader @ unity	-84 dBu	-84 dBu
S/N ratio, ref to +4	>90 dB	>90 dB
Microphone Preamp E.I.N.(150 ohms terminated, max gain)	<-129.5 dBm	<-129.5 dBm
	AM1204 AM1204FX USB
THD (Any output, 1KHz @ +14dBu, 20Hz to 20KHz, channel inputs)	<0.005% <0.005%
CMRR (1 KHz @ -60dBu, Gain at maximum)	80dB 80dB
Maximum Level
Mic Preamp Input +10dBu +10dBu
All Other Input +22dBu +22dBu
Balanced Output +28dBu +28dBu
Impedance
Mic Preamp Input 2 K ohms 2 K ohms
All Other Input (except insert) 10 K ohms 10 K ohms
RCA 2T Output 1.1 K ohms 1.1 K ohms
Equalization	3-band, +/-15dB	3-band, +/-15dB
Low EQ	80Hz 80Hz
Mid EQ	2.5 kHz	2.5 kHz
Hi EQ	12 kHz	12 kHz
Low Cut Filter	75 Hz (-18 dB/oct)	75 Hz (-18 dB/oct)
USB Audio	-	Stereo In/Out
Connector Type	-	USB Type B
Bitrate	-	16-bit
Sampling Rate	-	48 kHz
USB Player/Recorder	-	Yes
Maximum Bitrate	-	320kb/sec
Compatible File Format -	mp3, wma
Recording Format	-	WAV
Digital Effect Processor	16 Programs with Tap Delay and Parameter Control	16 Programs with Tap Delay and Parameter Control
Footswitch	Yes	Yes
Power Requirements	100-240 VAC, 50/60 Hz	100-240 VAC, 50/60 Hz
Weight	4.0 kg (8.8 lbs)	4.0 kg (8.8 lbs)
Dimensions (WxHxD)	245 x 104.5 x 340 mm(9.65" x 4.11" x 13.39")	245 x 104.5 x 340 mm(9.65" x 4.11" x 13.39")

SERVICE AND REPAIR

For replacement parts, service and repairs please contact the Phonic distributor in your country. Phonic does not release service manuals to consumers, and advice users to not attempt any self repairs, as doing so voids all warranties. You can locate a dealer near you at http://www.phonic.com/where/.

WARRANTY INFORMATION

Phonic stands behind every product we make with a no-hassles warranty. Warranty coverage may be extended, depending on your region. Phonic Corporation warrants this product for a minimum of one year from the original date of purchase against defects in material and workmanship under use as instructed by the user's manual. Phonic, at its option, shall repair or replace the defective unit covered by this warranty. Please retain the dated sales receipt as evidence of the date of purchase. You will need it for any warranty service. No returns or repairs will be accepted without a proper RMA number (return merchandise authorization). In order to keep this warranty in effect, the product must have been handled and used as prescribed in the instructions accompanying this warranty. Any tampering of the product or attempts of self repair voids all warranty. This warranty does not cover any damage due to accident, misuse, abuse, or negligence. This warranty is valid only if the product was purchased new from an authorized Phonic dealer/distributor. For complete warranty policy information, please visit http://www.phonic.com/warranty/.

CUSTOMER SERVICE AND TECHNICAL SUPPORT

We encourage you to visit our online help at http://www.phonic.com/support/. There you can find answers to frequently asked questions, tech tips, driver downloads, returns instruction and other helpful information. We make every effort to answer your questions within one business day.

[e-mail]

http://www.phonic.com

PHONIC

Manual del Usuario

CONTENIDO

INTRODUCCIÓN....1

CARACTERÍSTICAS....1

PRIMEROS PASOS....1

USB INTERFACE....1

These RCA stereo inputs are used to connect the mixer with external devices, such as tape and CD players, or even Laptop computers, receiving a signal from another source and feeding it to the Main L-R mixing bus.

Panel Trasero

10. Salidas Main L Y R

Program Number	Program Name Parameter Parameter Range
1 Small	Hall Reverb Time (S) 0.3 to 1.1
2 Mid Room	Reverb Time (S) 0.1 to 0.45
3 Plate	Reverb Time (S) 0.9 to 1.45
4 Cathedral	Reverb Time (S) 1.1 to 3.8
5 Mid Hall	Reverb Time (S) 0.5 to 1.66
6	Jazz Lounge	Reverb Time (S)	0.15 to 0.9
7	Ping Pong Delay	Delay Average (S)	0.08 to 0.55
8	Short Delay	Delay Average (S)	0.05 to 0.4
9	Vocal Plate	Reverb Time (S)	0.2 to 2.2
10	Concert Hall	Reverb Time (S)	0.3 to 2.45
11	Stage	Reverb Time (S)	0.6 to 1.6
12	Doubler	Feedback Ratio	20% to 90%
13	Echo	Delay Average (S)	0.12 to 0.55
14	Chorus	LFO	0.66 to 9.6
15	Chorus + Rev	LFOReverb Time (S)	0.8 to 8.80.4 to 0.8
16	Spring	LFO 0.16 to 1.33

TABLA DE EFECTO DIGITAL

DIMENSIONS DIMENSIONES
